EXECUTIVE SUMMARY             On October 31, 1994, at 1559 Central Standard Time, an Avions deTransport Regional, model 72...
The safety issues in this report focused on communicating hazardousweather information to flightcrews, Federal regulations...
SELECTED ACRONYMS AND DEFINITIONSAAS       anti-icing advisory systemAC        advisory circular; provides nonregulatory g...
HIWAS    hazardous in-flight weather advisory service; continuous recorded         hazardous in-flight weather forecasts b...
TCAS        traffic alert and collision avoidance systemTRACON      terminal radar approach controlTLU         travel limi...
this page intentionally left blank

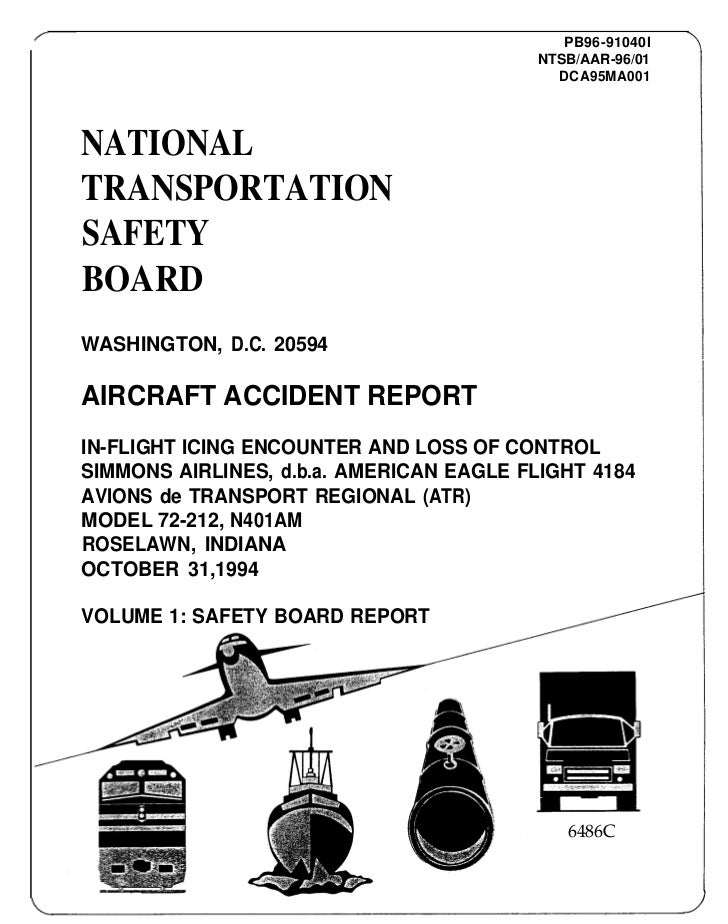

NATIONAL TRANSPORTATION SAFETY BOARD                            WASHINGTON, D .C. 20594                                  A...
2on the second leg (from IND to ORD), while the first officer was performing theduties of the flying pilot.             Pr...
3             The data from the digital flight data recorder (FDR) indicated that theflightcrew engaged the autopilot as t...
4ORD.7 At 1518:07, shortly after flight 4184 leveled off at 10,000 feet, the crewreceived a clearance from the BOONE contr...
5Figure 1.--Holding pattern location; box identifies LUCIT intersection.
6of conversation and sounds were recorded on the CVR:12                 1533:19          First Officer             you wan...
7received information from the company dispatch via the ACARS. The first officertransmitted the updated EFC time and fuel ...
8              At 1556:51, the FDR showed that the airplane began to descend from10,000 feet, the engine power was reduced...
Flight Path 3-D View with X-Y Axis Plane Projection                  (DCA95MA001, 10/31/94, Roselawn IN, ATR-72-212, N401A...
11             According to the FDR data, the captains nose-up control column forcedecreased below 22 pounds as the airpla...
12degrees of nose-up elevator, and was experiencing a vertical acceleration of 3.6 G.The CVR continued to record the loud ...
13an FAA First Class Airman Medical Certificate on October 31, 1994, with nolimitations.              The captain had gain...
14              The first officer had gained his flying experience (prior to employmentwith Simmons Airlines) in general a...
151982, and became a full performance level (FPL) controller on February 27, 1986.He was issued an FAA Second Class Airman...
16             At the time of the accident, the airplane had accumulated 1,352.5 hoursof flight time in 1,671 flights. The...
17selection, distance, groundspeed, desired track, bearings, glideslope or glidepathdeviations, and other navigational fea...
18            The ATR 72 wing is a non-laminar flow design; thus, the boundary layerairflow was not intended to remain lam...
19                             ROLL CONTROL                             CONTROL WHEEL                               —     ...
20AILERON ASSEMBLY       ..   -->.. }.... . . . . . . . . . . . . . . . .       ....................                      ...
21gearing between the aileron hinges and the cockpit control wheels. Aileron hingemoments are a function of the air pressu...
23indicated airspeed that is less than 180 knots. The TLU function can be overridden bythe pilot through the activation of...
24              The SPS logic also uses AOA probe information to reduce the triggeringthreshold when the AOA is rapidly mo...
25operated. Both the ATR and AMR Eagle/Simmons Airlines operating manualspermitted, as of the time of the accident, the us...
26                 2.       a pneumatic system for deicing the engine air intakes;                 3.       electrical hea...
27  ATR 72- ICE PROTECTION                                    *mFigure 7.--Ice protection system.
28ice, which, in turn, activates the visual and aural ice accretion alerts in the cockpit. Ifice is detected, the Rosemont...
29                         airframe. [ATR recommends that flightcrews use the IEP as a                         means of de...
301.6.7            ATR 42/72 Type Certification History1.6.7.1          General             The ATR 42-200 and -300 airpla...
31Figure 8.—14 CFR Part 25 Appendix C Icing Envelope.
32   DROPLET SIZEFigure 9.—Drop size diagram.
33Compliance with FAR/JAR 25.1419 must be demonstrated through analysis,experimentation, and flight testing.              ...
34encountered...it is recommended that the tests include a continuous exposure for atleast 45 minutes." The AC further sta...
351.6.7.3         Postaccident Certification Review             Subsequent to the accident involving flight 4184, the Safe...
36compliance with the requirements of FAR/JAR 25.1419. The wingdeicing system has demonstrated acceptable performance in t...
