1. Standing on the shoulders of giants:
Learn from LL(1) to PEG parser the hard way
Kir Chou
1

2. 2
https://www.youtube.com/watch?v=DZTLgVBxET4

3. About me
Presented at PyCon TW/JP since 2017
https://note35.github.io/about/
https://github.com/note35/Parser-Learning
3

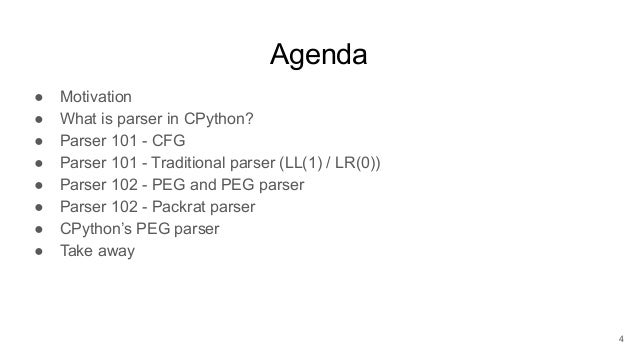

4. Agenda
● Motivation
● What is parser in CPython?
● Parser 101 - CFG
● Parser 101 - Traditional parser (LL(1) / LR(0))
● Parser 102 - PEG and PEG parser
● Parser 102 - Packrat parser
● CPython’s PEG parser
● Take away
4

5. Motivation
5

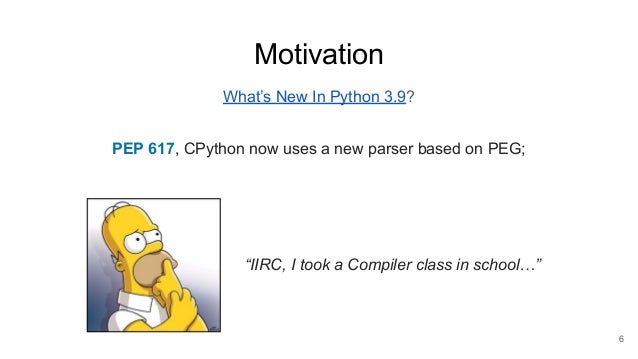

6. Motivation
What’s New In Python 3.9?
PEP 617, CPython now uses a new parser based on PEG;
“IIRC, I took a Compiler class in school…”
6

7. Motivation (Cont.)
School taught us the brief concept of the Compiler’s frontend and backend.
School’s parser assignment used Bison + YACC.
And...
7

8. My motivation = Talk objectives
What is PEG parser?
Why did python use LL(1) parser before?
Why did Guido choose PEG parser?
What other parsers do we have?
What’s the difference between those parsers?
How to implement those parsers?
8

9. What is parser in CPython?
CPython DevGuide - Design of CPython’s Compiler
9

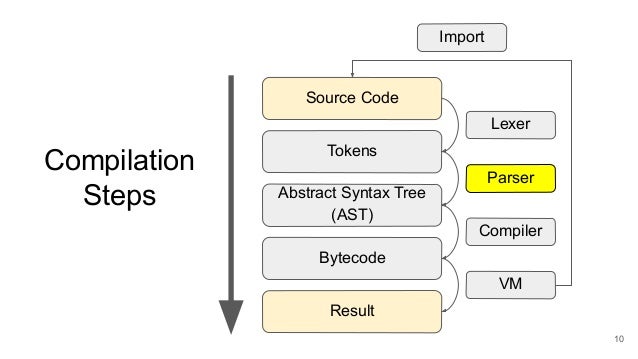

10. Compilation
Steps
10
Source Code
Tokens
Abstract Syntax Tree
(AST)
Bytecode
Result
Lexer
Parser
Compiler
VM
Import

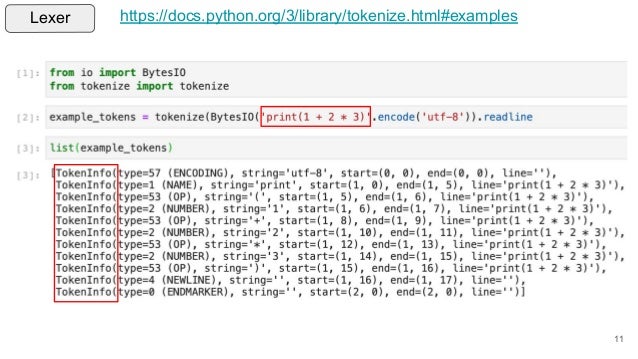

11. 11
https://docs.python.org/3/library/tokenize.html#examples
Lexer

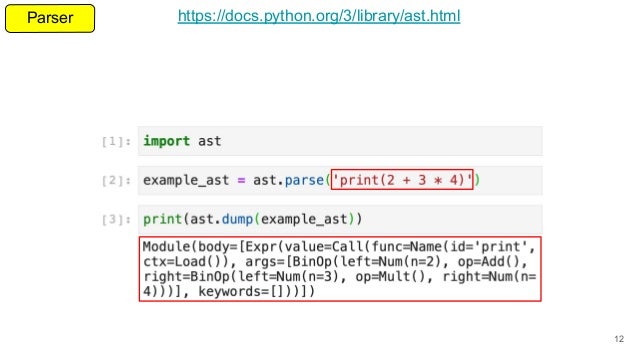

12. 12
https://docs.python.org/3/library/ast.html
Parser

13. 13

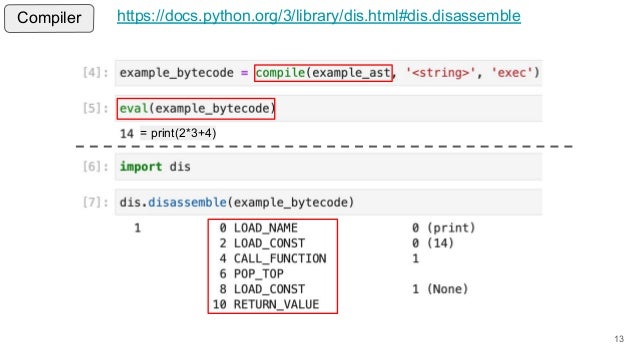

https://docs.python.org/3/library/dis.html#dis.disassemble
Compiler
= print(2*3+4)

14. 14
Source Code
Tokens
Abstract Syntax Tree
(AST)
Bytecode
Result
Lexer
Parser
Compiler
VM
Import
Talk’s focus!

15. Parser 101 - CFG
Uncode - GATE Computer Science - Compiler Design Lecture
15

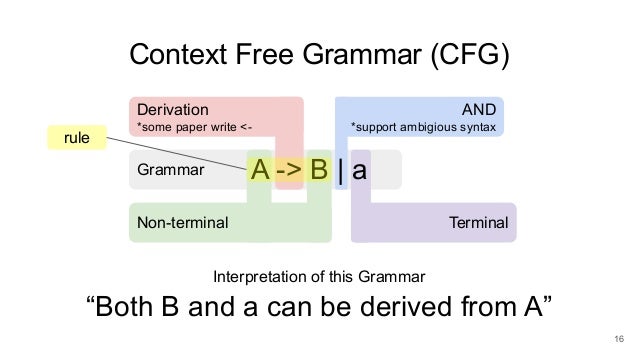

16. Grammar
Context Free Grammar (CFG)
16
Interpretation of this Grammar
“Both B and a can be derived from A”
Derivation
*some paper write <-
Non-terminal
AND
*support ambigious syntax
A -> B | a
Terminal
rule

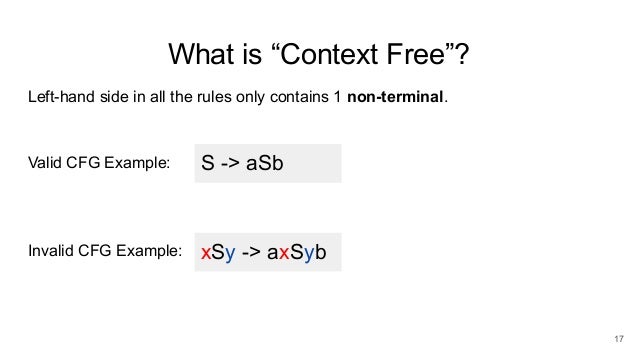

17. What is “Context Free”?
Left-hand side in all the rules only contains 1 non-terminal.
Valid CFG Example:
Invalid CFG Example:
17
S -> aSb
xSy -> axSyb

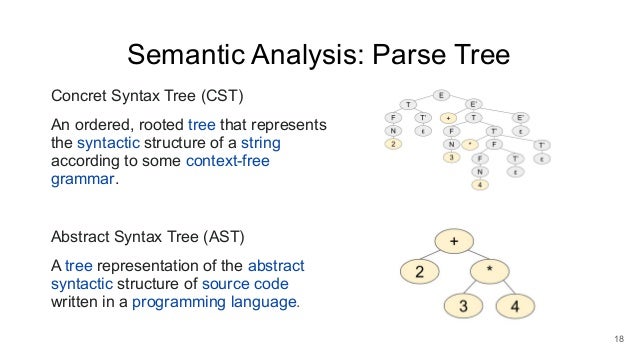

18. Semantic Analysis: Parse Tree
Concret Syntax Tree (CST)
An ordered, rooted tree that represents
the syntactic structure of a string
according to some context-free
grammar.
Abstract Syntax Tree (AST)
A tree representation of the abstract
syntactic structure of source code
written in a programming language.
18

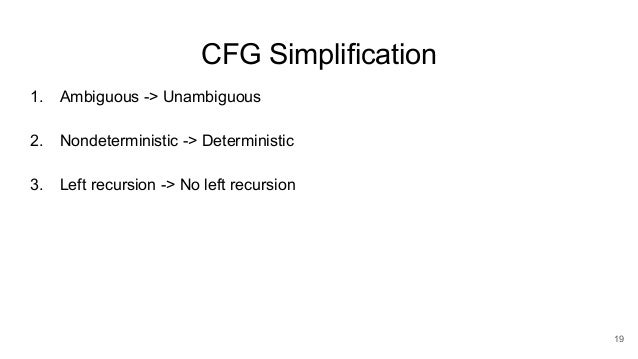

19. CFG Simplification
1. Ambiguous -> Unambiguous
2. Nondeterministic -> Deterministic
3. Left recursion -> No left recursion
19

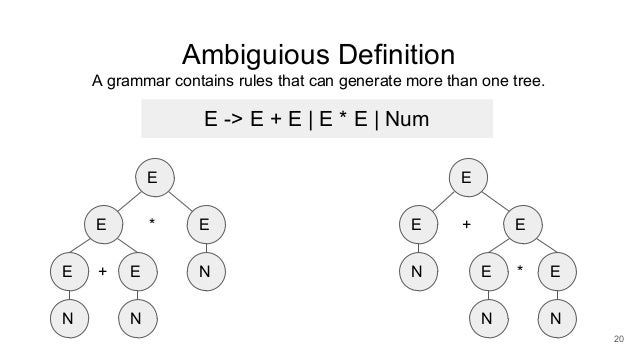

20. Ambiguious Definition
A grammar contains rules that can generate more than one tree.
20
E -> E + E | E * E | Num
N N
N
E E
E
+
E
*
E
N
E
E
N N
E E
E
*
+

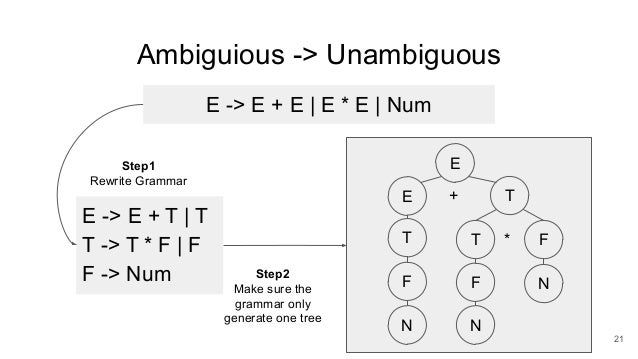

21. Ambiguious -> Unambiguous
21
N
E
E
N
N
T F
T
*
+
E -> E + T | T
T -> T * F | F
F -> Num
E -> E + E | E * E | Num
Step1
Rewrite Grammar
Step2
Make sure the
grammar only
generate one tree
T
F F

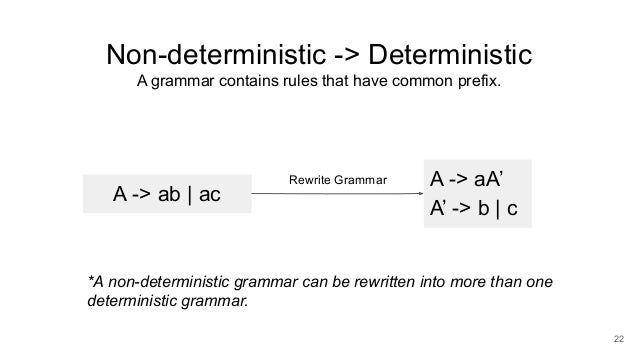

22. Non-deterministic -> Deterministic
A grammar contains rules that have common prefix.
22
A -> ab | ac
A -> aA’
A’ -> b | c
Rewrite Grammar
*A non-deterministic grammar can be rewritten into more than one
deterministic grammar.

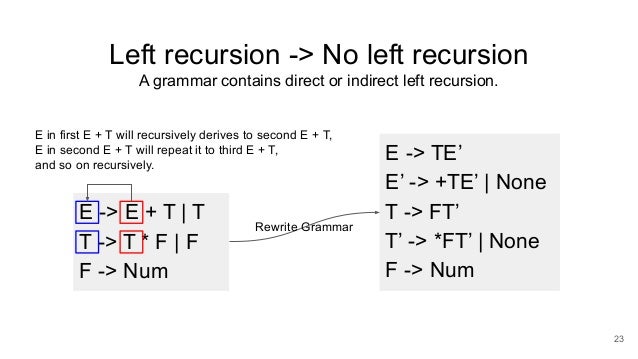

23. Left recursion -> No left recursion
A grammar contains direct or indirect left recursion.
23
E -> E + T | T
T -> T * F | F
F -> Num
E -> TE’
E’ -> +TE’ | None
T -> FT’
T’ -> *FT’ | None
F -> Num
Rewrite Grammar
E in first E + T will recursively derives to second E + T,
E in second E + T will repeat it to third E + T,
and so on recursively.

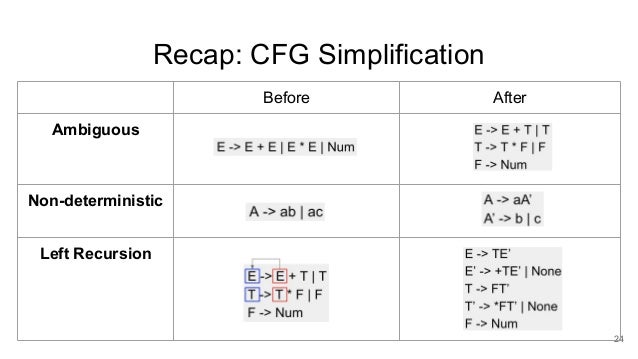

24. Recap: CFG Simplification
24
Before After
Ambiguous
Non-deterministic
Left Recursion

25. Parser 101 - Traditional parser
Uncode - GATE Computer Science - Compiler Design Lecture
25

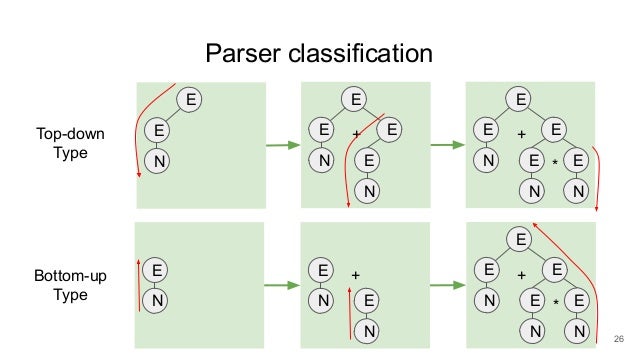

26. Parser classification
26
N
E
E
N N
E E
E
*
+
Top-down
Type
Bottom-up
Type N
E
N
E
N
E
+
N
E
E
N
E
E
N
E
E
+
N
E
E
N N
E E
E
*
+

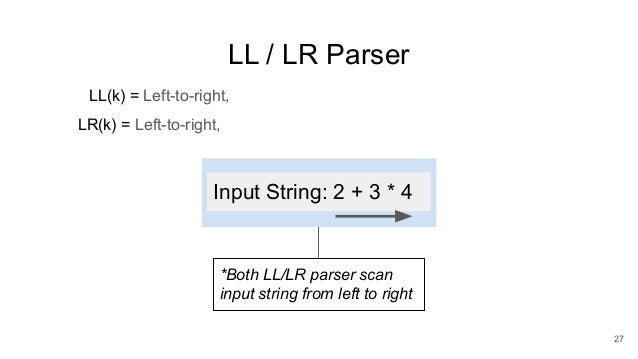

27. LL / LR Parser
LL(k) = Left-to-right, Leftmost derivation, k-token lookahead (k>0)
LR(k) = Left-to-right, Rightmost derivation, k-token lookahead (k>=0)
27
*Both LL/LR parser scan
input string from left to right
Input String: 2 + 3 * 4

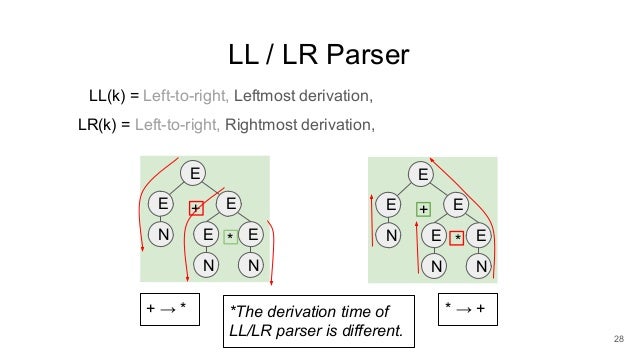

28. LL / LR Parser
LL(k) = Left-to-right, Leftmost derivation, k-token lookahead (k>0)
LR(k) = Left-to-right, Rightmost derivation, k-token lookahead (k>=0)
28
*The derivation time of
LL/LR parser is different.
N
E
E
N N
E E
E
*
+
N
E
E
N N
E E
E
*
+
+ → * * → +

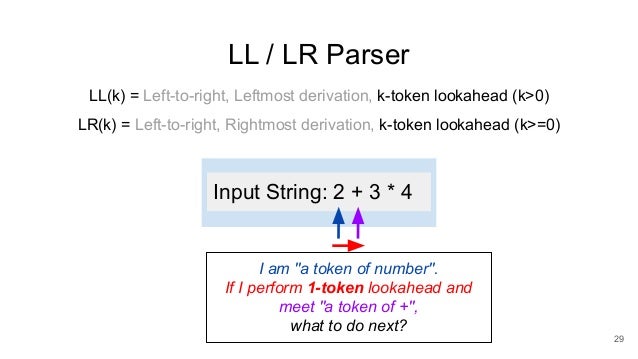

29. LL / LR Parser
LL(k) = Left-to-right, Leftmost derivation, k-token lookahead (k>0)
LR(k) = Left-to-right, Rightmost derivation, k-token lookahead (k>=0)
29
Input String: 2 + 3 * 4
I am "a token of number".
If I perform 1-token lookahead and
meet "a token of +",
what to do next?

30. Top Down - Recursive descent parser
30

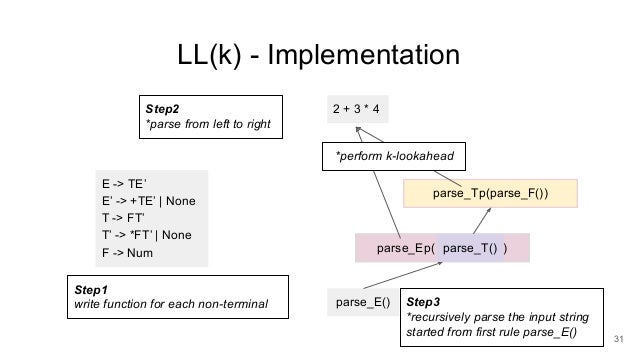

31. LL(k) - Implementation
31
2 + 3 * 4
parse_E()
E -> TE’
E’ -> +TE’ | None
T -> FT’
T’ -> *FT’ | None
F -> Num
parse_Tp(parse_F())
parse_Ep( )
Step3
*recursively parse the input string
started from first rule parse_E()
Step2
*parse from left to right
*perform k-lookahead
parse_T()
Step1
write function for each non-terminal

32. 32
Grammar
E -> TE’
E’ -> +TE’ | None
T -> FT’
T’ -> *FT’ | None
F -> Num
*perform 1-lookahead

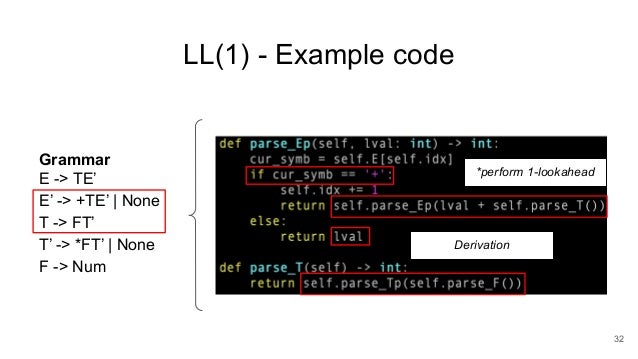

LL(1) - Example code
Derivation
x
x

33. Top Down - Non recursive descent parser
33

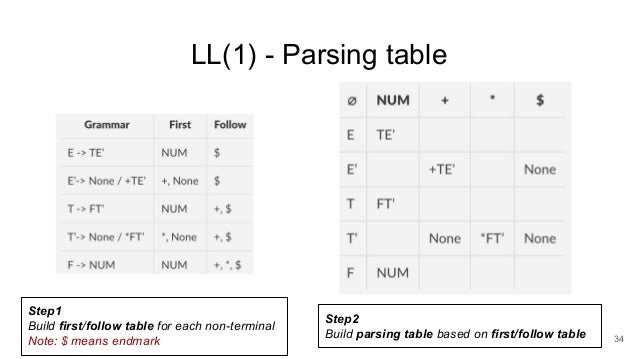

34. LL(1) - Parsing table
34
Step1
Build first/follow table for each non-terminal
Note: $ means endmark
Step2
Build parsing table based on first/follow table

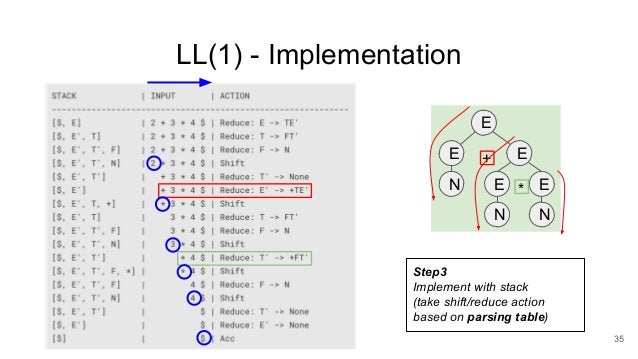

35. LL(1) - Implementation
35
Step3
Implement with stack
(take shift/reduce action
based on parsing table)
N
E
E
N N
E E
E
*
+

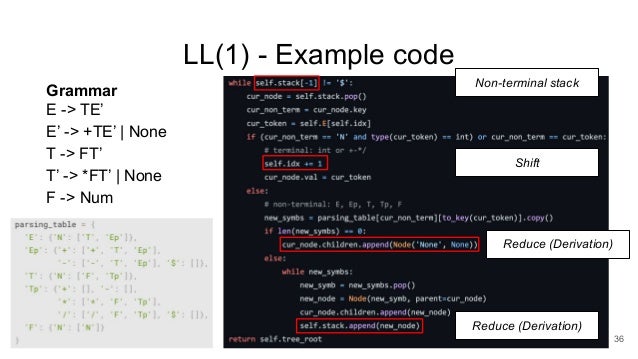

36. LL(1) - Example code
36
Grammar
E -> TE’
E’ -> +TE’ | None
T -> FT’
T’ -> *FT’ | None
F -> Num
Non-terminal stack
Reduce (Derivation)
Shift
Reduce (Derivation)

37. Bottom Up - LR(0) parser
37

38. LR(0) - Deterministic finite automaton
38
E’ -> .E --- (1)
E -> .E + T --- (2)
E -> .T --- (3)
T -> .T * Num --- (4)
T -> .Num --- (5)
Step1
Build Deterministic Finite Automaton(DFA)
E’ -> E.
E -> E. + T
E -> T.
T -> T. * Num
T -> Num.
E -> E + .T
T -> .T * Num
T -> .Num
T -> T * .Num
E -> E + T.
T -> T. * Num
T -> T * Num.
E
T
Num
*
+ T
Num
*
Num
S1 S2
S3
S4 S5
S6 S7
S8
Left recursion support

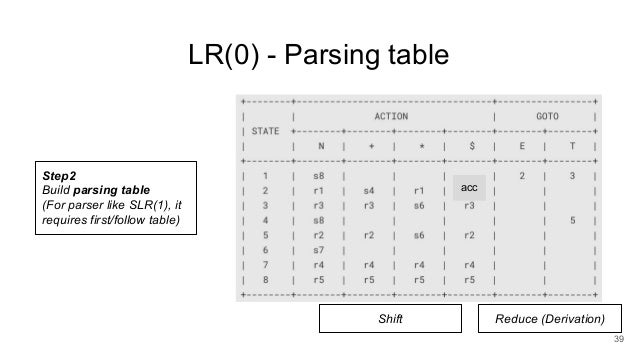

39. LR(0) - Parsing table
39
Step2
Build parsing table
(For parser like SLR(1), it
requires first/follow table)
Shift
acc
Reduce (Derivation)
acc

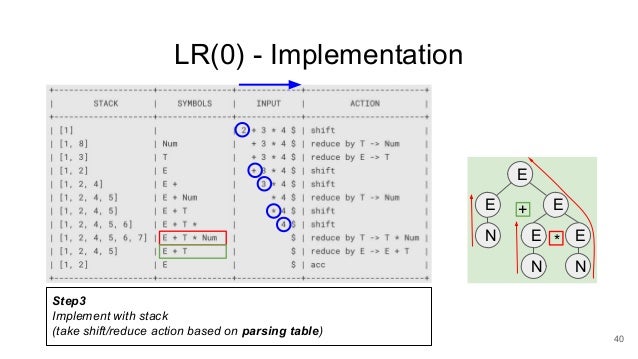

40. LR(0) - Implementation
40
Step3
Implement with stack
(take shift/reduce action based on parsing table)
N
E
E
N N
E E
E
*
+

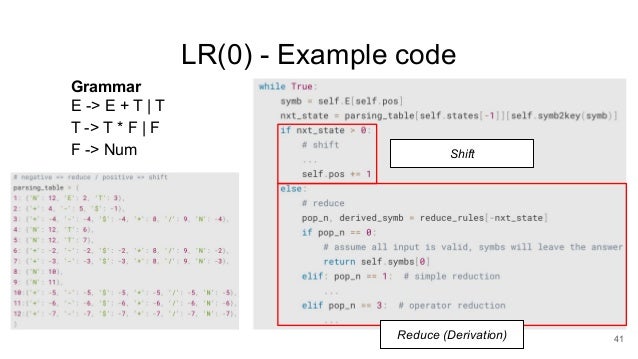

41. LR(0) - Example code
41
Grammar
E -> E + T | T
T -> T * F | F
F -> Num Shift
Reduce (Derivation)

42. Parser 102 - PEG and PEG parser
42

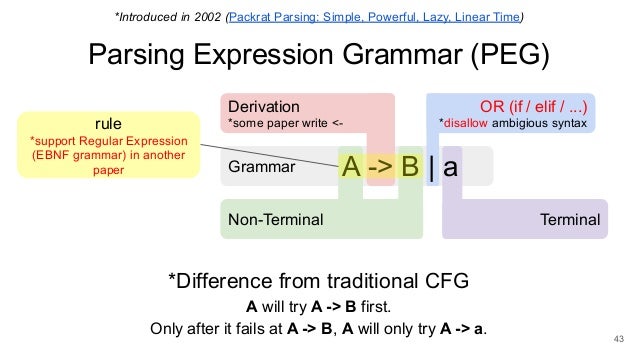

43. Grammar
Parsing Expression Grammar (PEG)
43
*Difference from traditional CFG
A will try A -> B first.
Only after it fails at A -> B, A will only try A -> a.
Derivation
*some paper write <-
Non-Terminal
OR (if / elif / ...)
*disallow ambigious syntax
A -> B | a
Terminal
*Introduced in 2002 (Packrat Parsing: Simple, Powerful, Lazy, Linear Time)
rule
*support Regular Expression
(EBNF grammar) in another
paper

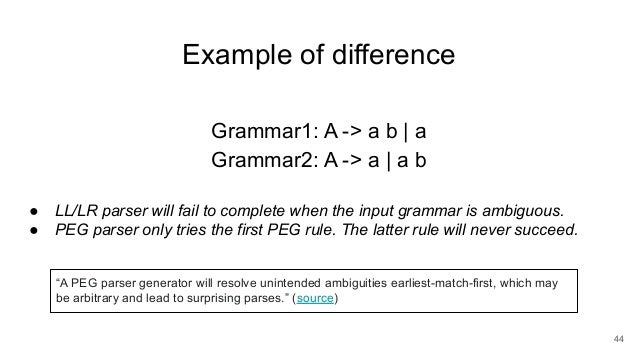

44. Example of difference
44
Grammar1: A -> a b | a
Grammar2: A -> a | a b
● LL/LR parser will fail to complete when the input grammar is ambiguous.
● PEG parser only tries the first PEG rule. The latter rule will never succeed.
“A PEG parser generator will resolve unintended ambiguities earliest-match-first, which may
be arbitrary and lead to surprising parses.” (source)

45. PEG Parser
PEG parser means “parser generated based on PEG”.
PEG parser can be a Packrat parser, or other traditional parser with k-lookahead
limitation. Mostly, PEG parser means Packrat parser.
45
CFG
EBNF
grammar
PEG
Packrat
parser
Traditional
parser
PEG Parser

46. Parser 102 - Packrat parser
46

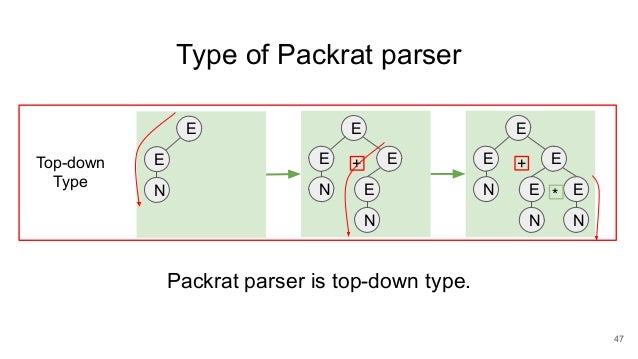

47. Type of Packrat parser
47
Top-down
Type
N
E
E
N
E
E
N
E
E
+
N
E
E
N N
E E
E
*
+
Packrat parser is top-down type.

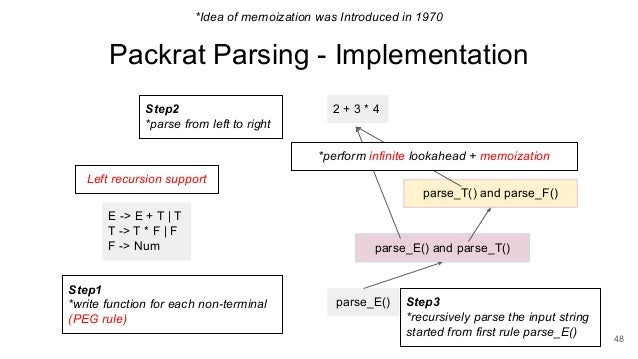

48. Packrat Parsing - Implementation
48
2 + 3 * 4
parse_E()
E -> E + T | T
T -> T * F | F
F -> Num
parse_T() and parse_F()
parse_E() and parse_T()
Step2
*parse from left to right
*perform infinite lookahead + memoization
Step1
*write function for each non-terminal
(PEG rule)
*Idea of memoization was Introduced in 1970
Step3
*recursively parse the input string
started from first rule parse_E()
Left recursion support

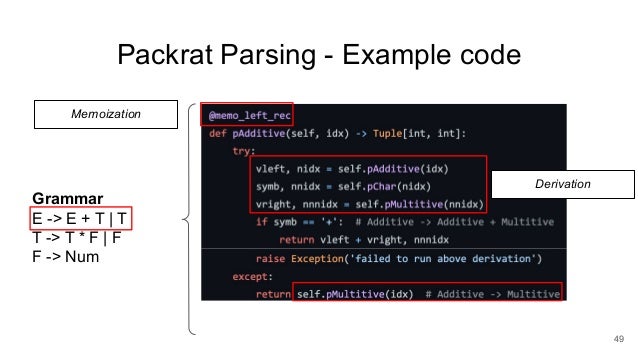

49. Packrat Parsing - Example code
49
Grammar
E -> E + T | T
T -> T * F | F
F -> Num
Derivation
Memoization

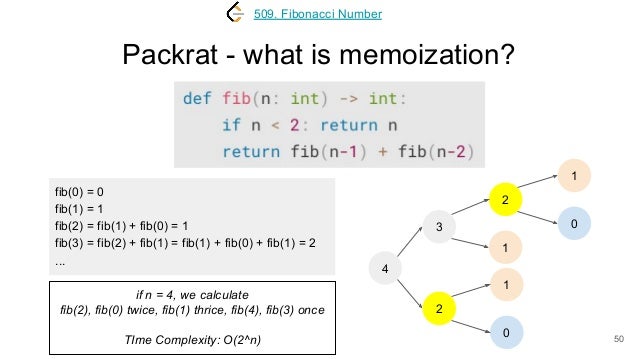

50. Packrat - what is memoization?
50
509. Fibonacci Number
4
3
2
2
1
fib(0) = 0
fib(1) = 1
fib(2) = fib(1) + fib(0) = 1
fib(3) = fib(2) + fib(1) = fib(1) + fib(0) + fib(1) = 2
...
1
0
1
0
if n = 4, we calculate
fib(2), fib(0) twice, fib(1) thrice, fib(4), fib(3) once
TIme Complexity: O(2^n)

51. Packrat - what is memoization? (Cont.)
51
509. Fibonacci Number
if n = 4, we…
calculate fib(4), fib(3), fib(2), fib(1), fib(0) once
Time Complexity: O(2^n) => O(n)
Space Complexity: O(1) => O(n)

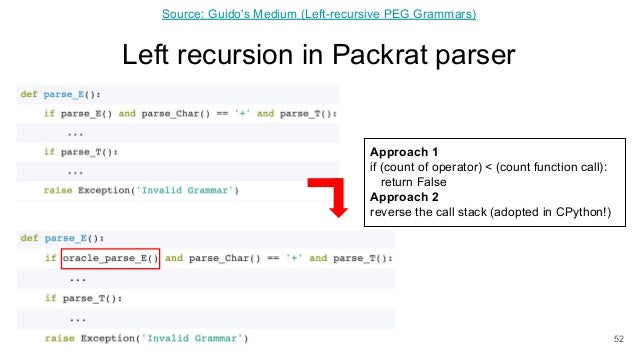

52. Left recursion in Packrat parser
52
Approach 1
if (count of operator) < (count function call):
return False
Approach 2
reverse the call stack (adopted in CPython!)
Source: Guido's Medium (Left-recursive PEG Grammars)

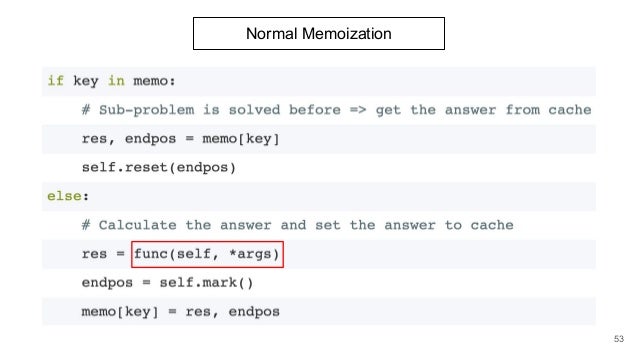

53. 53
Normal Memoization

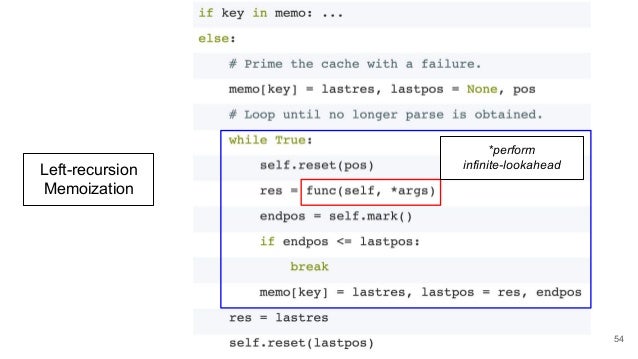

54. 54
Left-recursion
Memoization
*perform
infinite-lookahead

55. Traditional parser V.S Packrat parser
55

56. Traditional parser vs Packrat parser
56
Packrat Traditional
Scan Left-to-right (*Right-to-left memo) Left-to-right
Left Recursion Support (*Not support in first paper) LL needs to rewrite the grammar
Ambigious Disallowed (determinism) Allowed
Space Complexity O(Code Size) (space consumption) O(Depth of Parse Tree)
Worst Time
Complexity
Super linear time (statelessness)
*Because of feature like typedef in C
Expotenial time
Capability Basically covers all traditional cases
(infinite lookahead)
No left-recursion/ambigious for LL
Has k lookup limitations for both (e.g.
dangling else)
Red text: 3 highlighted characteristics of Packrat parser.

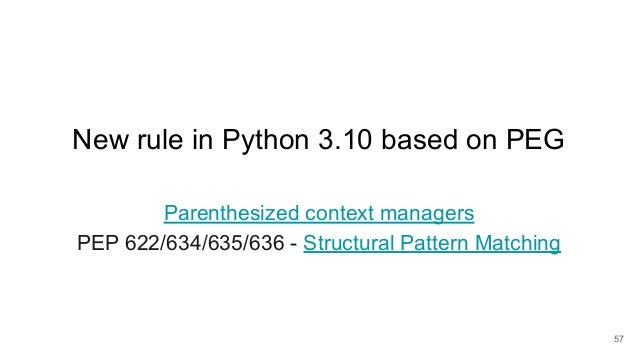

57. 57
Parenthesized context managers
PEP 622/634/635/636 - Structural Pattern Matching
New rule in Python 3.10 based on PEG

58. CPython’s PEG parser
58

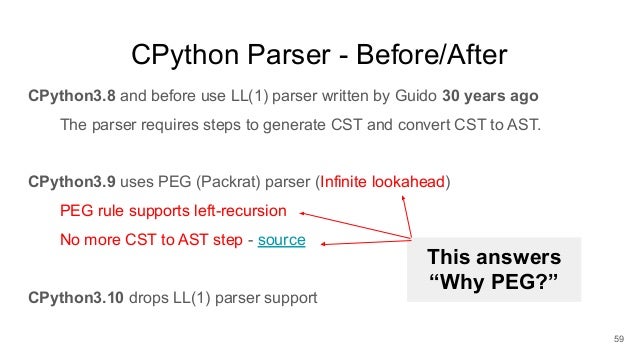

59. CPython Parser - Before/After
CPython3.8 and before use LL(1) parser written by Guido 30 years ago
The parser requires steps to generate CST and convert CST to AST.
CPython3.9 uses PEG (Packrat) parser (Infinite lookahead)
PEG rule supports left-recursion
No more CST to AST step - source
CPython3.10 drops LL(1) parser support
59
This answers
“Why PEG?”

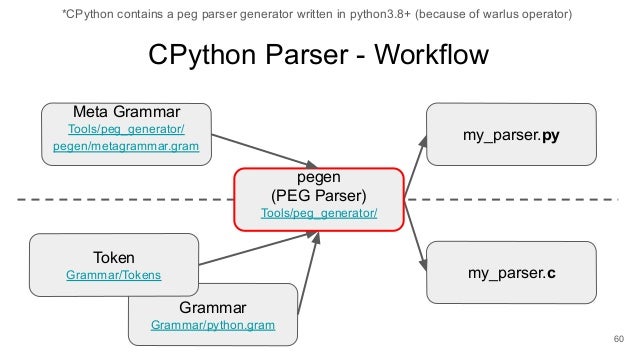

60. CPython Parser - Workflow
60
Meta Grammar
Tools/peg_generator/
pegen/metagrammar.gram
Grammar
Grammar/python.gram
Token
Grammar/Tokens
my_parser.py
my_parser.c
pegen
(PEG Parser)
Tools/peg_generator/
*CPython contains a peg parser generator written in python3.8+ (because of warlus operator)

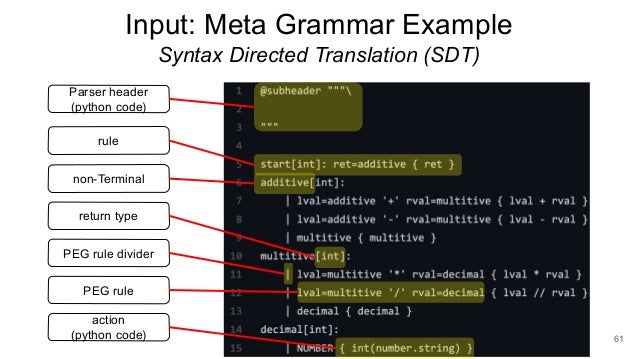

61. Input: Meta Grammar Example
Syntax Directed Translation (SDT)
61
rule
non-Terminal
return type
PEG rule divider
PEG rule
action
(python code)
Parser header
(python code)

62. Output: Generated PEG Parser
(Partial code)
62

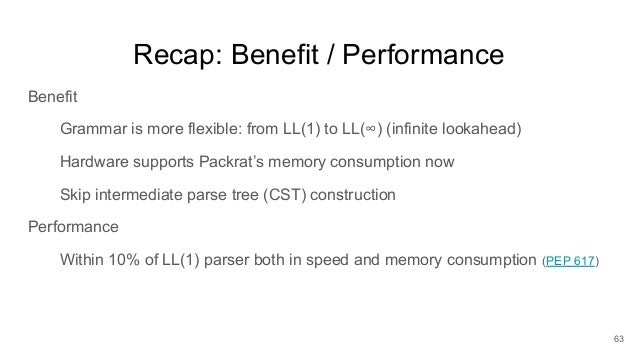

63. Recap: Benefit / Performance
Benefit
Grammar is more flexible: from LL(1) to LL(∞) (infinite lookahead)
Hardware supports Packrat’s memory consumption now
Skip intermediate parse tree (CST) construction
Performance
Within 10% of LL(1) parser both in speed and memory consumption (PEP 617)
63

64. Take away
64

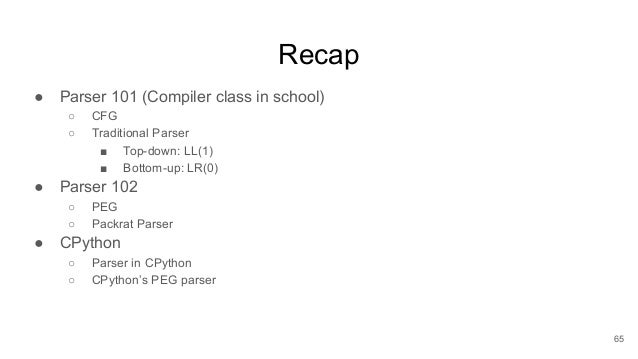

65. Recap
● Parser 101 (Compiler class in school)
○ CFG
○ Traditional Parser
■ Top-down: LL(1)
■ Bottom-up: LR(0)
● Parser 102
○ PEG
○ Packrat Parser
● CPython
○ Parser in CPython
○ CPython’s PEG parser
65

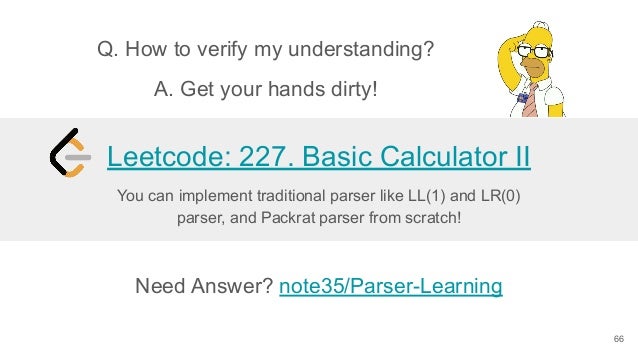

66. 66
Need Answer? note35/Parser-Learning
You can implement traditional parser like LL(1) and LR(0)
parser, and Packrat parser from scratch!
Leetcode: 227. Basic Calculator II
Q. How to verify my understanding?
A. Get your hands dirty!

67. Q & A
67

68. Appendix
68

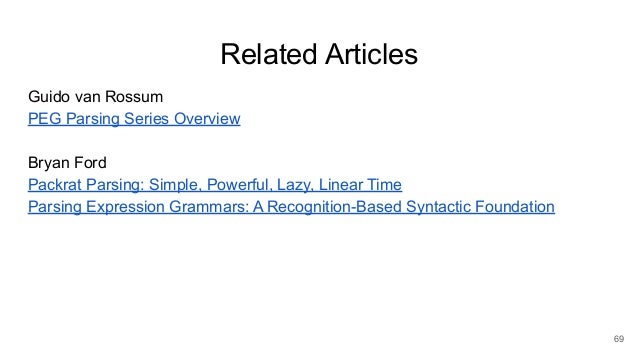

69. Related Articles
Guido van Rossum
PEG Parsing Series Overview
Bryan Ford
Packrat Parsing: Simple, Powerful, Lazy, Linear Time
Parsing Expression Grammars: A Recognition-Based Syntactic Foundation
69

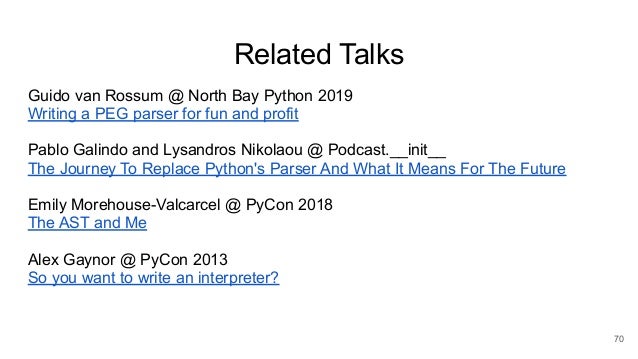

70. Related Talks
Guido van Rossum @ North Bay Python 2019
Writing a PEG parser for fun and profit
Pablo Galindo and Lysandros Nikolaou @ Podcast.__init__
The Journey To Replace Python's Parser And What It Means For The Future
Emily Morehouse-Valcarcel @ PyCon 2018
The AST and Me
Alex Gaynor @ PyCon 2013
So you want to write an interpreter?
70

71. Thanks for your listening!
71
