This document discusses ZIPP Assembly Technology's torque control solutions for industrial assembly applications involving bolting and fastening. It introduces the ZIPPTORK wireless torque transducer and torque controller, which allows for real-time monitoring, data logging, intelligent control, and auto compensation of torque during fastening processes. The system utilizes a patented control device, algorithm, and wireless torque transducer to enable controllable and traceable fastening with accessibility to data through internet-connected devices. Key features and specifications of the ZIPPTORK system and its components are then outlined.
ZIPPTORK Wireless Torque Transducer and Torque Controller are applicable to most of power torque tools for bolting intelligently with excellent torque control accuracy and data collection
Prior to Assembly: For checking the torque tool capability and calibrating the torque setting
During Assembly: For controlling and recording the torque being applied to the bolted joint instantly and wirelessly
After Assembly: For effectively verifying the residual torque accuracy with angle / torque mode
The document describes ZippTorK's wireless torque control system for bolting applications. The system includes a wireless torque transducer, torque controller, and optional accessories like a barcode scanner. The transducer measures torque and angle during assembly and transmits data wirelessly to the controller. The controller allows setting target torque values, monitoring the process, and collecting production records. It provides accurate torque control of various power tools from any brand. The system enables traceability of fastening processes and records through wireless data collection and cloud connectivity.
The document introduces Zipp Group's ZIPPTORK wireless torque control solution. It allows for torque control and data collection of most power torque tools used for bolting. The system uses a patented control device, algorithm, and wireless torque transducer. It makes fastener assembly processes and records controllable and accessible. The solution provides accurate torque control for both continuous and discontinuous air tools, regardless of tool brand. It solves issues like torque loss from variations in joint hardness or tool temperature. Data is logged and can be accessed remotely or sent to cloud servers. The system aims to make torque control easy and affordable for industrial assembly applications.
This document introduces ZIPPTORK's wireless torque transducer and torque controller products for bolting applications. The system uses a patented control device, algorithm, and wireless torque transducer to enable real-time torque control and data collection for various power tools. The torque controller can control tools from multiple brands and models to achieve accurate torque control of +/-5-15%. It allows monitoring of the fastening process, recording of torque data, and intelligent compensation of torque loss. The wireless torque transducer transmits torque and rotation data to the controller or mobile devices via Bluetooth.
ZIPP Assembly Technology presents fastening solutions for the industrial assembly market in bolting threaded fasteners, squeezing solid rivets, riveting blind rivets and rivet nuts, and fastening lock bolts, etc.
This system takes advantage of our combined patented control device, control algorithm, and wireless rotary torque transducer, with the best practice on IoT (Network of physical devices), making the controllability and traceability of fastener assembly, fastening processes, and fastening records possible and accessible. Presenting the world's first wireless torque transducer which is impact/shock approved, and can be used in wide range of torque tool for torque data collection.
The document discusses ZIPPTORK's wireless torque transducer and torque controller products for bolting applications. The wireless torque transducer can be used with impact wrenches, oil pulse wrenches, and other torque tools to provide real-time torque monitoring and data collection. The torque controller allows for dynamic torque control, multiple control modes, tool calibration, target torque setting, and bolting sequence control. It provides accurate torque control and traceable production records through various connectivity options.
1) The document discusses ZIPPTORK torque control products for bolt fastening including wireless torque transducers, torque controllers, and their applications and specifications.
2) The wireless transducers can be used to monitor torque in real time for various power tools and collect data to ensure bolts are properly fastened.
3) The torque controllers work with the transducers to control torque output and compensate for variables to maintain accuracy within a calibrated range.
The document discusses ZIPPTORK's wireless torque transducer and torque controller products for bolting applications. The key points are:
1) The wireless torque transducer can be used with impact wrenches, oil pulse wrenches, and other torque tools to monitor torque in real-time and wirelessly transmit data to a controller.
2) The torque controller receives wireless data from the transducer, allows setting target torques, and controls tools' air pressure and flow rate to achieve dynamic or static torque control.
3) The system provides functions like job sequence control, multi-stage bolting, automatic compensation, and remote monitoring/data logging.
ZIPPTORK Wireless Torque Transducer and Torque Controller are applicable to most of power torque tools for bolting intelligently with excellent torque control accuracy and data collection
Prior to Assembly: For checking the torque tool capability and calibrating the torque setting
During Assembly: For controlling and recording the torque being applied to the bolted joint instantly and wirelessly
After Assembly: For effectively verifying the residual torque accuracy with angle / torque mode
The document describes ZippTorK's wireless torque control system for bolting applications. The system includes a wireless torque transducer, torque controller, and optional accessories like a barcode scanner. The transducer measures torque and angle during assembly and transmits data wirelessly to the controller. The controller allows setting target torque values, monitoring the process, and collecting production records. It provides accurate torque control of various power tools from any brand. The system enables traceability of fastening processes and records through wireless data collection and cloud connectivity.
The document introduces Zipp Group's ZIPPTORK wireless torque control solution. It allows for torque control and data collection of most power torque tools used for bolting. The system uses a patented control device, algorithm, and wireless torque transducer. It makes fastener assembly processes and records controllable and accessible. The solution provides accurate torque control for both continuous and discontinuous air tools, regardless of tool brand. It solves issues like torque loss from variations in joint hardness or tool temperature. Data is logged and can be accessed remotely or sent to cloud servers. The system aims to make torque control easy and affordable for industrial assembly applications.
This document introduces ZIPPTORK's wireless torque transducer and torque controller products for bolting applications. The system uses a patented control device, algorithm, and wireless torque transducer to enable real-time torque control and data collection for various power tools. The torque controller can control tools from multiple brands and models to achieve accurate torque control of +/-5-15%. It allows monitoring of the fastening process, recording of torque data, and intelligent compensation of torque loss. The wireless torque transducer transmits torque and rotation data to the controller or mobile devices via Bluetooth.
ZIPP Assembly Technology presents fastening solutions for the industrial assembly market in bolting threaded fasteners, squeezing solid rivets, riveting blind rivets and rivet nuts, and fastening lock bolts, etc.
This system takes advantage of our combined patented control device, control algorithm, and wireless rotary torque transducer, with the best practice on IoT (Network of physical devices), making the controllability and traceability of fastener assembly, fastening processes, and fastening records possible and accessible. Presenting the world's first wireless torque transducer which is impact/shock approved, and can be used in wide range of torque tool for torque data collection.
The document discusses ZIPPTORK's wireless torque transducer and torque controller products for bolting applications. The wireless torque transducer can be used with impact wrenches, oil pulse wrenches, and other torque tools to provide real-time torque monitoring and data collection. The torque controller allows for dynamic torque control, multiple control modes, tool calibration, target torque setting, and bolting sequence control. It provides accurate torque control and traceable production records through various connectivity options.
1) The document discusses ZIPPTORK torque control products for bolt fastening including wireless torque transducers, torque controllers, and their applications and specifications.
2) The wireless transducers can be used to monitor torque in real time for various power tools and collect data to ensure bolts are properly fastened.
3) The torque controllers work with the transducers to control torque output and compensate for variables to maintain accuracy within a calibrated range.
The document discusses ZIPPTORK's wireless torque transducer and torque controller products for bolting applications. The key points are:
1) The wireless torque transducer can be used with impact wrenches, oil pulse wrenches, and other torque tools to monitor torque in real-time and wirelessly transmit data to a controller.
2) The torque controller receives wireless data from the transducer, allows setting target torques, and controls tools' air pressure and flow rate to achieve dynamic or static torque control.
3) The system provides functions like job sequence control, multi-stage bolting, automatic compensation, and remote monitoring/data logging.
The document discusses ZIPPTORK's bolt tightening solutions, including their torque controller and wireless rotary torque transducers. The torque controller uses patented control algorithms and devices to control the output torque of air tools, regardless of brand, within ±5-15% accuracy. It allows for bolting sequence control and records data. The wireless transducers transmit torque and angle signals to the controller for closed-loop control, compensating for torque loss from factors like joint hardness. The system provides solutions for issues like unstable torque control, uneven clamping, and lack of bolting data traceability.
This ZIPPTORK Torque Control System takes advantage of its combined patented control device, control algorithm, and wireless rotary torque transducer, with the best practice on IoT (Network of physical devices), making the controllability and traceability of fastener assembly, fastening processes, and fastening records possible and accessible. Making any targeted tightening torque more affordable and reliable using any air driven continuous & discontinuous torque tools
This document discusses bolt tightening technology and solutions from ZIPPTORK, including their torque controller and wireless rotary torque transducers. The torque controller can control the output torque of air impact tools with ±5-15% accuracy regardless of brand. The wireless transducers transmit torque and angle signals to allow real-time closed-loop control and record bolting data, sequences, and IDs to the controller and peripherals for traceability. Various product combinations address common bolting issues like variable joint hardness, temperature effects, and uncontrolled sequences.
This document introduces ZIPPTORK's bolt tightening technology products, including torque controllers, wireless rotary torque transducers, and other accessories. The products provide dynamic and static torque control for air impact tools, manual torque wrenches, and other powered tools. They allow monitoring and recording of bolting processes and parameters to help ensure consistent, traceable assembly of bolted joints.
Latest update of our torque control system and related products for precision bolt tightening with traceability and monitoring functions #torque #precision #traceability #monitoring #products #controlsystem #latest #bolt #update #functions #related
This document discusses ZIPPTORK's bolt tightening technology solutions. It introduces the Torque Controller TCA/TCB that can control the output torque of air impact tools with ±5-15% accuracy. It also describes the Wireless Rotary Torque Transducer TTES/TTEH/TTEB that can transmit torque and angle signals wirelessly for dynamic torque control. Various products can be combined for applications like torque calibration, control during bolting, and verification after bolting. The document also addresses common bolting issues and solutions.
This document discusses bolt tightening technology and solutions from ZIPPTORK. It introduces ZIPPTORK's torque controller and wireless rotary torque transducers that can control the output torque of air impact tools, regardless of brand, to within ±5-15% accuracy. The system uses patented control devices and algorithms to enable dynamic torque control and monitoring of bolting processes and records.
IRZ artificial lift solutions 1.3 july 2016Ivan Isaev
IRZ is a Russian company that produces oilfield electronic equipment and artificial lift solutions. It has over 20 years of experience, employs 300 people, and produces 8000 downhole sensors and 1000 variable speed drives per year. IRZ seeks to establish partnerships to expand its artificial lift solutions business internationally.
Shinko FCL Series 1/32 DIN Digital Temperature Controller - Available at the ...Mod-Tronic
The FCL-100 series is a compact, panel mount digital indicating controller that offers industry-leading features at low prices. It provides accurate temperature control via multiple input types (5 thermocouples and 1 RTD) and control outputs (relay, SSR, 4-20mA). Additional features include alarms, autotuning PID, communication capabilities, and a 3 year warranty.
AWgage-150 measures sheet resistance in ohms per square or milliohms per square. If specific resistivity is known, the thickness of the deposited film layer can be computed from the sheet resistance. The choice of measurement data is easily get in the software. AWgage-150 can accommodate 150mm (6") wafers as well as the standard 2", 3",4", 5" wafers without any hardware change
The document provides information about bolting strategies and torque control solutions from China Pneumatic Corporation. It discusses [1] types of joints that require different tightening forces, [2] methods for measuring torque at different stages of assembly, and [3] a novel wireless torque control method that uses a transducer and controller to accurately control torque without costly torque tools. The document promotes China Pneumatic Corporation's complete solutions for bolting works including wireless transducers, sensing bolts, transmitters, and controllers.
The document provides specifications for LG Variable Frequency Drives (VFDs) including the Starvert iG5 model. Key specifications include:
- Power ratings from 0.37 to 22 kW for 1 or 3 phase 200-230V and 3 phase 380-460V models
- IP00 to IP20 enclosure types
- Built-in PID control, preset speeds, skip frequencies, inputs/outputs
- Compact size that is 50% smaller than previous models
- Built-in RS-485 and Modbus RTU communication
This document describes the specifications of a Thermo-Hygrometer Meter 230A product. It has time and alarm clock functions and can measure temperature from -20 to 70 degrees Celsius or -4 to 158 degrees Fahrenheit with an accuracy of ±1 degree Celsius. It also measures humidity from 20% to 90% with an accuracy of ±5% between 40-80% humidity. Additional features include displaying maximum and minimum temperature and humidity readings, 12/24 hour clock, and an error message if the sensor is not working properly.
This document describes the ZIPPTORK Torque Control System and its products for achieving accurate torque control in bolting applications. It introduces ZIPPTORK's torque transducers, controllers, tagged bolts, and other products, along with their specifications and functions. Example applications are provided for using these products to tightly control torque in tasks like tightening bolts with pneumatic tools in a tire shop or assembly line. The system aims to improve bolting safety, control, traceability, and reliability.
This document describes the ZIPPTORK Torque Control System and its products for achieving accurate torque control in bolting applications. It includes wireless torque transducers, torque controllers, sensing bolts, and other products that can integrate with tools to monitor and record torque data. The system allows for torque calibration, control during bolting, and verification of bolted joints. Example applications described are for industries like automotive, manufacturing, and any application requiring accurate bolt torque control and traceability.
Bolting Strategy
To make torque control easy and affordable!
No more costly torque control tool required!
Achieving the Ultimate in Bolted Joint Excellence
Calibrating torque tool capability prior to assembly
by applying
ZIPP's Torque Tester / Torque Transducer / Torque Simulator
Torque Controller / Torque Monitor
This document provides specifications for various environmental sensors that are compatible with NTI's ENVIROMUX systems for monitoring temperature, humidity, and other environmental conditions remotely. It describes sensors for measuring temperature alone or in combination with humidity in various applications and ranges. It also includes precision sensors for industrial use as well as transmitters for converting sensor outputs to signals compatible with ENVIROMUX systems.
The document describes applications of ZIPPTORK torque control products for bolting processes. It discusses using various torque transducers, controllers, and transmitters to monitor and control torque applied by impact wrenches and screwdrivers in applications like tire installation, general assembly, and industrial bolting to ensure bolts are properly tightened. Wireless devices transmit torque data to phones/tables in real-time. Sensing bolts and tagged bolts enable remote monitoring and traceability of individual bolted joints.
ZIPPTORK General product catalog - July 2022
ZIPPTORK is a professional assembly tool, torque transducer, torque inspection, and process monitoring system brand
ZIPP Assembly Technology presents fastening solutions for the industrial assembly market in bolting threaded fasteners, squeezing solid rivets, riveting blind rivets and rivet nuts, and fastening lock bolts, etc.
This system takes advantage of our combined patented control device, control algorithm, and wireless rotary torque transducer, with the best practice on IoT (Network of physical devices), making the controllability and traceability of fastener assembly, fastening processes, and fastening records possible and accessible.
An Innovative Revolution of Impact Wrench Torque Control
Making the torque control easy and affordable
No more precision and costly torque-controlled tools required, regardless of air tool brand, manufacturer, design, and grade.
Applicable to
Air Clutch Tools
Air Impact Driver
Air Impact Ratchet
Air Pulse Wrenches
Air Impact Wrenches
Geared Wrench / Torque Multipliers
Any Air Driven Continuous & Discontinuous Torque Tools
The document provides information about bolting strategies and torque control solutions from China Pneumatic Corporation. It discusses [1] types of joints that require different tightening forces, [2] methods for measuring torque at different stages of assembly, and [3] a novel wireless torque control method that uses a transducer and controller to accurately control torque without costly torque tools. The document promotes China Pneumatic Corporation's complete torque control solutions for bolting works including wireless transducers, sensing bolts, controllers, and monitoring systems.
The document discusses ZIPPTORK's bolt tightening solutions, including their torque controller and wireless rotary torque transducers. The torque controller uses patented control algorithms and devices to control the output torque of air tools, regardless of brand, within ±5-15% accuracy. It allows for bolting sequence control and records data. The wireless transducers transmit torque and angle signals to the controller for closed-loop control, compensating for torque loss from factors like joint hardness. The system provides solutions for issues like unstable torque control, uneven clamping, and lack of bolting data traceability.
This ZIPPTORK Torque Control System takes advantage of its combined patented control device, control algorithm, and wireless rotary torque transducer, with the best practice on IoT (Network of physical devices), making the controllability and traceability of fastener assembly, fastening processes, and fastening records possible and accessible. Making any targeted tightening torque more affordable and reliable using any air driven continuous & discontinuous torque tools
This document discusses bolt tightening technology and solutions from ZIPPTORK, including their torque controller and wireless rotary torque transducers. The torque controller can control the output torque of air impact tools with ±5-15% accuracy regardless of brand. The wireless transducers transmit torque and angle signals to allow real-time closed-loop control and record bolting data, sequences, and IDs to the controller and peripherals for traceability. Various product combinations address common bolting issues like variable joint hardness, temperature effects, and uncontrolled sequences.
This document introduces ZIPPTORK's bolt tightening technology products, including torque controllers, wireless rotary torque transducers, and other accessories. The products provide dynamic and static torque control for air impact tools, manual torque wrenches, and other powered tools. They allow monitoring and recording of bolting processes and parameters to help ensure consistent, traceable assembly of bolted joints.
Latest update of our torque control system and related products for precision bolt tightening with traceability and monitoring functions #torque #precision #traceability #monitoring #products #controlsystem #latest #bolt #update #functions #related
This document discusses ZIPPTORK's bolt tightening technology solutions. It introduces the Torque Controller TCA/TCB that can control the output torque of air impact tools with ±5-15% accuracy. It also describes the Wireless Rotary Torque Transducer TTES/TTEH/TTEB that can transmit torque and angle signals wirelessly for dynamic torque control. Various products can be combined for applications like torque calibration, control during bolting, and verification after bolting. The document also addresses common bolting issues and solutions.
This document discusses bolt tightening technology and solutions from ZIPPTORK. It introduces ZIPPTORK's torque controller and wireless rotary torque transducers that can control the output torque of air impact tools, regardless of brand, to within ±5-15% accuracy. The system uses patented control devices and algorithms to enable dynamic torque control and monitoring of bolting processes and records.
IRZ artificial lift solutions 1.3 july 2016Ivan Isaev
IRZ is a Russian company that produces oilfield electronic equipment and artificial lift solutions. It has over 20 years of experience, employs 300 people, and produces 8000 downhole sensors and 1000 variable speed drives per year. IRZ seeks to establish partnerships to expand its artificial lift solutions business internationally.
Shinko FCL Series 1/32 DIN Digital Temperature Controller - Available at the ...Mod-Tronic
The FCL-100 series is a compact, panel mount digital indicating controller that offers industry-leading features at low prices. It provides accurate temperature control via multiple input types (5 thermocouples and 1 RTD) and control outputs (relay, SSR, 4-20mA). Additional features include alarms, autotuning PID, communication capabilities, and a 3 year warranty.
AWgage-150 measures sheet resistance in ohms per square or milliohms per square. If specific resistivity is known, the thickness of the deposited film layer can be computed from the sheet resistance. The choice of measurement data is easily get in the software. AWgage-150 can accommodate 150mm (6") wafers as well as the standard 2", 3",4", 5" wafers without any hardware change
The document provides information about bolting strategies and torque control solutions from China Pneumatic Corporation. It discusses [1] types of joints that require different tightening forces, [2] methods for measuring torque at different stages of assembly, and [3] a novel wireless torque control method that uses a transducer and controller to accurately control torque without costly torque tools. The document promotes China Pneumatic Corporation's complete solutions for bolting works including wireless transducers, sensing bolts, transmitters, and controllers.
The document provides specifications for LG Variable Frequency Drives (VFDs) including the Starvert iG5 model. Key specifications include:
- Power ratings from 0.37 to 22 kW for 1 or 3 phase 200-230V and 3 phase 380-460V models
- IP00 to IP20 enclosure types
- Built-in PID control, preset speeds, skip frequencies, inputs/outputs
- Compact size that is 50% smaller than previous models
- Built-in RS-485 and Modbus RTU communication
This document describes the specifications of a Thermo-Hygrometer Meter 230A product. It has time and alarm clock functions and can measure temperature from -20 to 70 degrees Celsius or -4 to 158 degrees Fahrenheit with an accuracy of ±1 degree Celsius. It also measures humidity from 20% to 90% with an accuracy of ±5% between 40-80% humidity. Additional features include displaying maximum and minimum temperature and humidity readings, 12/24 hour clock, and an error message if the sensor is not working properly.
This document describes the ZIPPTORK Torque Control System and its products for achieving accurate torque control in bolting applications. It introduces ZIPPTORK's torque transducers, controllers, tagged bolts, and other products, along with their specifications and functions. Example applications are provided for using these products to tightly control torque in tasks like tightening bolts with pneumatic tools in a tire shop or assembly line. The system aims to improve bolting safety, control, traceability, and reliability.
This document describes the ZIPPTORK Torque Control System and its products for achieving accurate torque control in bolting applications. It includes wireless torque transducers, torque controllers, sensing bolts, and other products that can integrate with tools to monitor and record torque data. The system allows for torque calibration, control during bolting, and verification of bolted joints. Example applications described are for industries like automotive, manufacturing, and any application requiring accurate bolt torque control and traceability.
Bolting Strategy
To make torque control easy and affordable!
No more costly torque control tool required!
Achieving the Ultimate in Bolted Joint Excellence
Calibrating torque tool capability prior to assembly
by applying
ZIPP's Torque Tester / Torque Transducer / Torque Simulator
Torque Controller / Torque Monitor
This document provides specifications for various environmental sensors that are compatible with NTI's ENVIROMUX systems for monitoring temperature, humidity, and other environmental conditions remotely. It describes sensors for measuring temperature alone or in combination with humidity in various applications and ranges. It also includes precision sensors for industrial use as well as transmitters for converting sensor outputs to signals compatible with ENVIROMUX systems.
The document describes applications of ZIPPTORK torque control products for bolting processes. It discusses using various torque transducers, controllers, and transmitters to monitor and control torque applied by impact wrenches and screwdrivers in applications like tire installation, general assembly, and industrial bolting to ensure bolts are properly tightened. Wireless devices transmit torque data to phones/tables in real-time. Sensing bolts and tagged bolts enable remote monitoring and traceability of individual bolted joints.
ZIPPTORK General product catalog - July 2022
ZIPPTORK is a professional assembly tool, torque transducer, torque inspection, and process monitoring system brand
ZIPP Assembly Technology presents fastening solutions for the industrial assembly market in bolting threaded fasteners, squeezing solid rivets, riveting blind rivets and rivet nuts, and fastening lock bolts, etc.
This system takes advantage of our combined patented control device, control algorithm, and wireless rotary torque transducer, with the best practice on IoT (Network of physical devices), making the controllability and traceability of fastener assembly, fastening processes, and fastening records possible and accessible.
An Innovative Revolution of Impact Wrench Torque Control
Making the torque control easy and affordable
No more precision and costly torque-controlled tools required, regardless of air tool brand, manufacturer, design, and grade.
Applicable to
Air Clutch Tools
Air Impact Driver
Air Impact Ratchet
Air Pulse Wrenches
Air Impact Wrenches
Geared Wrench / Torque Multipliers
Any Air Driven Continuous & Discontinuous Torque Tools
The document provides information about bolting strategies and torque control solutions from China Pneumatic Corporation. It discusses [1] types of joints that require different tightening forces, [2] methods for measuring torque at different stages of assembly, and [3] a novel wireless torque control method that uses a transducer and controller to accurately control torque without costly torque tools. The document promotes China Pneumatic Corporation's complete torque control solutions for bolting works including wireless transducers, sensing bolts, controllers, and monitoring systems.
The document provides information about bolting strategies and torque control solutions from China Pneumatic Corporation. It discusses [1] types of joints that require different tightening forces, [2] methods for measuring torque at different stages of assembly, and [3] a novel wireless torque control method using a transducer and controller that automatically compensates for tool power loss to achieve the target torque. The document promotes China Pneumatic Corporation's complete solution for bolting works including wireless sensing bolts, transmitting sockets, and controllers that allow remote monitoring of bolt status.
We supply Various Performance, Fatigue Test Machine,
Automotive, Bike, Vehicle Parts Test Facilities
Bearing, Gear, Joint, Coupling, Transmission Test Bench
Dynamometer: for Electric Motor, Engine, Generator Brake Test
Hydraulic Testing Equipments: Pump, Valve, Pipe Test
Shaking Table, Seismic Simulator
Automatic Assembly Line
This document provides information on various air gauging and measurement products:
- Sections 1-5 describe air snap gauges and ring gauges for measuring internal and external diameters, depths, tapers, and ovality from 2mm to 200mm.
- Sections 6-8 discuss electronic measurement systems for air gauges that provide digital readout of measurements and can connect to multiple gauges.
- Sections 9-16 cover additional electronic measurement systems for air gauges with various measurement capabilities and component tolerances.
- The document gives specifications for different air gauging systems and products.
Pacorr Melt Flow Index tester is used for evaluating the flow properties of molten plastics or resins. The Melt flow Index
of thermoplastic materials is defined as the rate of flow (in grams per ten minutes) of extrudates of molten resins through a
jet of a particular length and diameter.
This document provides training information for ZIPPTORK torque control products. It discusses torque control accuracy and factors that affect it like tool quality, fastener condition, and joint hardness. It introduces ZIPPTORK torque controllers, transducers, testers and other products. Application examples are provided for tire shops and assembly lines that require different levels of torque control accuracy. Selection guidance is given for tools, transducers and controllers based on factors like target torque, tightening time, and joint hardness.
This document summarizes the features and benefits of the Ultra II machinery health monitoring tool. It can perform condition-based monitoring to analyze bearing wear and gear degradation. It also enables single and dual plane rotor balancing to correct vibration issues. The Ultra II includes powerful software to manage asset data and diagnose faults, as well as perform inspections by capturing process parameters. It provides high specification vibration data collection and analysis in a portable, rugged, and easy to use device.
Mitsubishi inverter fr-s500 catalog-dienhathe.vnDien Ha The
Khoa Học - Kỹ Thuật & Giải Trí: http://phongvan.org
Tài Liệu Khoa Học Kỹ Thuật: http://tailieukythuat.info
Thiết bị Điện Công Nghiệp - Điện Hạ Thế: http://dienhathe.vn
The document provides an operation manual for a DMF-1 Series Coriolis mass flow meter. It discusses safety guidelines, an overview of the instrument's operation, technical parameters, structure diagrams, terminal wiring, installation instructions, calibration procedures, dimensions, troubleshooting tips, gas density conversions, and upper flow limits.
Vibration analysis uses sensors to measure vibrations in machines and identify potential failures or faults. Analyzing vibration data can help predict maintenance needs and improve machine reliability. Sensors are mounted on machines using various methods to measure vibrations generated by rotating components like motors, pumps and gears. The vibration measurements are analyzed to diagnose issues and plan repairs for machines before failures occur.
The document appears to be from the website of China Pneumatic Corporation, a Taiwanese company that manufactures air tools and bolting technology products. It provides information about the company's ZIPPTORK bolting control products, which include torque controllers, wireless torque transducers, and related systems that allow users to monitor and control torque levels during bolting processes. The systems can be used with air impact wrenches, pulse tools, and cordless tools to help ensure consistent and accurate fastening of bolted joints.
The document provides the user manual for the CTS-320 AC motor vector drive. It describes the product's specifications, functions, technical details, installation, operation, and application examples. The CTS-320 is an AC drive that supports closed-loop and sensorless vector control of AC motors. It has functions such as V/F control, PID control, preset speeds, and communication protocols. The manual instructs users on correct usage, setup, maintenance and fault handling of the CTS-320 drive.
Công ty TNHH Hạo Phương là đối tác phân phối các thiết bị điện công nghiệp của hãng Fuji Electric (Nhật Bản): MCCB, MCB, Contactor, Servo Motor, biến tần, màn hình cảm ứng, PLC...
The Serinus 50 Sulfur Dioxide (SO2) analyser delivers precise and reliable performance at excellent value. It uses proven pulsed UV fluorescent radiation technology to measure SO2 in ambient air (LDL <0.3 ppb, Range 0-20 ppm).
The Serinus range of analysers has been designed using our experience and knowledge gained from operating large air quality monitoring networks for more than 35 years. The result: instruments that integrate seamlessly into continuous monitoring networks.
Similar to ZIPPTORK Torque Control System Catalogue - Oct 2020 Edition (17)
ZIPPTORK Bolting provides innovative, effective, yet economical solutions for various industries in their daily bolting work. Such as torque tool calibration, torque simulation before work, bolting control during the process, residual torque verification after bolted, and even the highest requirement to control every bolted joint with the same bolt load. At the same time, keep monitoring the bolted joint status remotely, periodically, or continuously.
#equipment #manufacturing #maintenance #reliability #engineering #work #automotive #automation #quality #testing #torquesensor #torquetools #torquewrench #torquecontrol #atlascopco #atlascopcogroup #ZIPPTORK #desoutter #madeintaiwan #ZIPPTOOL #ZIPPGROUP
This document introduces a sensing washer system for monitoring bolted joints. The system uses sensing washers on each bolted joint connected via transmission cables to individual transmitters, which are connected via an RS485 cable to a LORA gateway and tablet. Each joint is tightened to a target preload of 60kN manually, and the system displays the preload and torque during tightening. It monitors for preload above or below thresholds of 54-66kN and alerts if out of range. Observations showed attenuation rates of around 5% for the bolted joints over several days under static conditions.
The document describes an anti-vibration sensing washer for controlling clamping force and remotely monitoring bolted joint status. It provides advantages over conventional methods like ultrasonic instruments and load cells by enabling wireless monitoring after bolting is complete. The sensing washer uses patented designs for loose-proof monitoring and can control bolting sequence. It is applicable to any type of threaded or axial fasteners in industries requiring critical bolt load control or status monitoring.
Introduction of Anti-vibration Sensing Washer
The ultimate solution of high precision bolting works
The Sensing Washer is developed with similar functions to a thru-hole load cell and a unique patented anti-vibration structure for wide application in critical bolt joints in various industries.
It meets the DIN65151 anti-vibration standard and provides the greatest clamping force controllability, accuracy, and monitorability of the joint condition after bolted remotely and continuously or periodically. The developed APP will tell the torque equivalent of each preload value according to different fastener specifications and joint conditions for the operator’s reference.
Invented by China Pneumatic Corporation (Taiwan)
#manufacturing #engineering #automotive #electronics #testing #machines #boltingsolutions #boltingsystems #boltingtools #bolting #fasteners #monitoring #monitoringsolutions #monitoringsystem #boschrexroth #atlascopco #atlascopcogroup #pipingsystems #pipingengineer #pipingsystem #pipingengineering #bossardgroup #bossard #FastenerTechnologyCorporation #kistler #nordlock #securebolting #böllhoff #stanleyblackanddecker #fastenal
This document provides information on various precision planetary gear reducers and economy gear reducers produced by Zipp Precision Gear Reducer. It includes technical specifications, dimensions, features, and applications for different models of precision planetary gear reducers and economy gear reducers. Product lines covered include PS, PN, RL, RS, ZSR precision planetary gear reducers and EL economy gear reducers. Specifications provided include torque ratings, speed ratios, dimensions, mounting instructions, and more. The document serves as a catalog and reference for selecting the appropriate Zipp precision or economy gear reducer for different applications.
This document appears to be a catalog for precision planetary gear reducers and related products from Zipp Precision Gear Reducer. It includes technical specifications, dimensions, features and applications for their various gear reducer models including precision planetary, precision & economy planetary, and economy gear reducers. Product information is provided for multiple frame sizes with details on torque ratings, speeds, materials, seals, lubrication and other specifications. Mounting instructions and diagrams of dimensional profiles are also included.
This document appears to be a catalog for precision planetary gear reducers and related products from Zipp Precision Gear Reducer. It includes technical specifications, dimensions, features and applications for various models of precision planetary gear reducers, economy gear reducers, and right angle gear reducers. The document contains sections on precision planetary gear reducers, precision and economy planetary gear reducers, technical data and dimensions for different models, as well as mounting instructions and torque requirements.
The ZIPP GROUP supplies industrial power tools for various industries globally such as construction, mining, aviation, manufacturing, and more. It adheres to high quality and safety standards and offers innovative products backed by reliable customer service. Brian Obiedzenski, a certified automotive technician and race car driver, recommends ZIPP air tools for their durability, performance, and support.
Torque controller designed for any air driven continuous & discontinuous torque tools.
An Innovative Revolution of Impact Wrench Torque Control
No more precision and costly torque-controlled tools required, regardless of air tool brand, manufacturer, design, and grade.
World's first impact tool approved wireless torque transducer that can be used with any electric or air impact tools or in static mode to use with click or torque wrenches for final tightening and data collection
The document provides information about Zipp Group, an industrial tools manufacturer. It summarizes Zipp Group's product lines which include assembly line air tools, automotive service tools, industrial air tools, construction air tools, and precision gear reducers. It details Zipp Group's global distribution network and commitment to high quality ISO-certified products. It also provides the company's contact information and policies around warranty and product support.
More from China Pneumatic Corporation & ZIPP GROUP (11)
Generative AI Deep Dive: Advancing from Proof of Concept to ProductionAggregage
Join Maher Hanafi, VP of Engineering at Betterworks, in this new session where he'll share a practical framework to transform Gen AI prototypes into impactful products! He'll delve into the complexities of data collection and management, model selection and optimization, and ensuring security, scalability, and responsible use.
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...DanBrown980551
Do you want to learn how to model and simulate an electrical network from scratch in under an hour?
Then welcome to this PowSyBl workshop, hosted by Rte, the French Transmission System Operator (TSO)!
During the webinar, you will discover the PowSyBl ecosystem as well as handle and study an electrical network through an interactive Python notebook.
PowSyBl is an open source project hosted by LF Energy, which offers a comprehensive set of features for electrical grid modelling and simulation. Among other advanced features, PowSyBl provides:
- A fully editable and extendable library for grid component modelling;
- Visualization tools to display your network;
- Grid simulation tools, such as power flows, security analyses (with or without remedial actions) and sensitivity analyses;
The framework is mostly written in Java, with a Python binding so that Python developers can access PowSyBl functionalities as well.
What you will learn during the webinar:
- For beginners: discover PowSyBl's functionalities through a quick general presentation and the notebook, without needing any expert coding skills;
- For advanced developers: master the skills to efficiently apply PowSyBl functionalities to your real-world scenarios.
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfPaige Cruz
Monitoring and observability aren’t traditionally found in software curriculums and many of us cobble this knowledge together from whatever vendor or ecosystem we were first introduced to and whatever is a part of your current company’s observability stack.
While the dev and ops silo continues to crumble….many organizations still relegate monitoring & observability as the purview of ops, infra and SRE teams. This is a mistake - achieving a highly observable system requires collaboration up and down the stack.
I, a former op, would like to extend an invitation to all application developers to join the observability party will share these foundational concepts to build on:
A tale of scale & speed: How the US Navy is enabling software delivery from l...sonjaschweigert1
Rapid and secure feature delivery is a goal across every application team and every branch of the DoD. The Navy’s DevSecOps platform, Party Barge, has achieved:
- Reduction in onboarding time from 5 weeks to 1 day
- Improved developer experience and productivity through actionable findings and reduction of false positives
- Maintenance of superior security standards and inherent policy enforcement with Authorization to Operate (ATO)
Development teams can ship efficiently and ensure applications are cyber ready for Navy Authorizing Officials (AOs). In this webinar, Sigma Defense and Anchore will give attendees a look behind the scenes and demo secure pipeline automation and security artifacts that speed up application ATO and time to production.
We will cover:
- How to remove silos in DevSecOps
- How to build efficient development pipeline roles and component templates
- How to deliver security artifacts that matter for ATO’s (SBOMs, vulnerability reports, and policy evidence)
- How to streamline operations with automated policy checks on container images
Climate Impact of Software Testing at Nordic Testing DaysKari Kakkonen
My slides at Nordic Testing Days 6.6.2024
Climate impact / sustainability of software testing discussed on the talk. ICT and testing must carry their part of global responsibility to help with the climat warming. We can minimize the carbon footprint but we can also have a carbon handprint, a positive impact on the climate. Quality characteristics can be added with sustainability, and then measured continuously. Test environments can be used less, and in smaller scale and on demand. Test techniques can be used in optimizing or minimizing number of tests. Test automation can be used to speed up testing.
Pushing the limits of ePRTC: 100ns holdover for 100 daysAdtran
At WSTS 2024, Alon Stern explored the topic of parametric holdover and explained how recent research findings can be implemented in real-world PNT networks to achieve 100 nanoseconds of accuracy for up to 100 days.
zkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex ProofsAlex Pruden
This paper presents Reef, a system for generating publicly verifiable succinct non-interactive zero-knowledge proofs that a committed document matches or does not match a regular expression. We describe applications such as proving the strength of passwords, the provenance of email despite redactions, the validity of oblivious DNS queries, and the existence of mutations in DNA. Reef supports the Perl Compatible Regular Expression syntax, including wildcards, alternation, ranges, capture groups, Kleene star, negations, and lookarounds. Reef introduces a new type of automata, Skipping Alternating Finite Automata (SAFA), that skips irrelevant parts of a document when producing proofs without undermining soundness, and instantiates SAFA with a lookup argument. Our experimental evaluation confirms that Reef can generate proofs for documents with 32M characters; the proofs are small and cheap to verify (under a second).
Paper: https://eprint.iacr.org/2023/1886
Unlocking Productivity: Leveraging the Potential of Copilot in Microsoft 365, a presentation by Christoforos Vlachos, Senior Solutions Manager – Modern Workplace, Uni Systems
How to Get CNIC Information System with Paksim Ga.pptxdanishmna97
Pakdata Cf is a groundbreaking system designed to streamline and facilitate access to CNIC information. This innovative platform leverages advanced technology to provide users with efficient and secure access to their CNIC details.
Communications Mining Series - Zero to Hero - Session 1DianaGray10
This session provides introduction to UiPath Communication Mining, importance and platform overview. You will acquire a good understand of the phases in Communication Mining as we go over the platform with you. Topics covered:
• Communication Mining Overview
• Why is it important?
• How can it help today’s business and the benefits
• Phases in Communication Mining
• Demo on Platform overview
• Q/A
Full-RAG: A modern architecture for hyper-personalizationZilliz
Mike Del Balso, CEO & Co-Founder at Tecton, presents "Full RAG," a novel approach to AI recommendation systems, aiming to push beyond the limitations of traditional models through a deep integration of contextual insights and real-time data, leveraging the Retrieval-Augmented Generation architecture. This talk will outline Full RAG's potential to significantly enhance personalization, address engineering challenges such as data management and model training, and introduce data enrichment with reranking as a key solution. Attendees will gain crucial insights into the importance of hyperpersonalization in AI, the capabilities of Full RAG for advanced personalization, and strategies for managing complex data integrations for deploying cutting-edge AI solutions.
GridMate - End to end testing is a critical piece to ensure quality and avoid...ThomasParaiso2
End to end testing is a critical piece to ensure quality and avoid regressions. In this session, we share our journey building an E2E testing pipeline for GridMate components (LWC and Aura) using Cypress, JSForce, FakerJS…
Dr. Sean Tan, Head of Data Science, Changi Airport Group
Discover how Changi Airport Group (CAG) leverages graph technologies and generative AI to revolutionize their search capabilities. This session delves into the unique search needs of CAG’s diverse passengers and customers, showcasing how graph data structures enhance the accuracy and relevance of AI-generated search results, mitigating the risk of “hallucinations” and improving the overall customer journey.
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Albert Hoitingh
In this session I delve into the encryption technology used in Microsoft 365 and Microsoft Purview. Including the concepts of Customer Key and Double Key Encryption.
In the rapidly evolving landscape of technologies, XML continues to play a vital role in structuring, storing, and transporting data across diverse systems. The recent advancements in artificial intelligence (AI) present new methodologies for enhancing XML development workflows, introducing efficiency, automation, and intelligent capabilities. This presentation will outline the scope and perspective of utilizing AI in XML development. The potential benefits and the possible pitfalls will be highlighted, providing a balanced view of the subject.
We will explore the capabilities of AI in understanding XML markup languages and autonomously creating structured XML content. Additionally, we will examine the capacity of AI to enrich plain text with appropriate XML markup. Practical examples and methodological guidelines will be provided to elucidate how AI can be effectively prompted to interpret and generate accurate XML markup.
Further emphasis will be placed on the role of AI in developing XSLT, or schemas such as XSD and Schematron. We will address the techniques and strategies adopted to create prompts for generating code, explaining code, or refactoring the code, and the results achieved.
The discussion will extend to how AI can be used to transform XML content. In particular, the focus will be on the use of AI XPath extension functions in XSLT, Schematron, Schematron Quick Fixes, or for XML content refactoring.
The presentation aims to deliver a comprehensive overview of AI usage in XML development, providing attendees with the necessary knowledge to make informed decisions. Whether you’re at the early stages of adopting AI or considering integrating it in advanced XML development, this presentation will cover all levels of expertise.
By highlighting the potential advantages and challenges of integrating AI with XML development tools and languages, the presentation seeks to inspire thoughtful conversation around the future of XML development. We’ll not only delve into the technical aspects of AI-powered XML development but also discuss practical implications and possible future directions.
2. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice

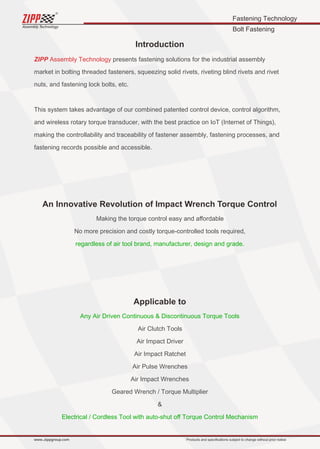

Introduction
ZIPP Assembly Technology presents fastening solutions for the industrial assembly
market in bolting threaded fasteners, squeezing solid rivets, riveting blind rivets and rivet
nuts, and fastening lock bolts, etc.
This system takes advantage of our combined patented control device, control algorithm,
and wireless rotary torque transducer, with the best practice on IoT (Internet of Things),
making the controllability and traceability of fastener assembly, fastening processes, and
fastening records possible and accessible.
An Innovative Revolution of Impact Wrench Torque Control
Making the torque control easy and affordable
No more precision and costly torque-controlled tools required,
regardless of air tool brand, manufacturer, design and grade.
Applicable to
Any Air Driven Continuous Discontinuous Torque Tools
Air Clutch Tools
Air Impact Driver
Air Impact Ratchet
Air Pulse Wrenches
Air Impact Wrenches
Geared Wrench / Torque Multiplier
Electrical / Cordless Tool with auto-shut off Torque Control Mechanism
3. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice
■ Patented anti-vibration mechanism, designed for
tolerating violent vibration of discontinuous torque tools
during assembly.
■ Ideal for
1. dynamic toque control of air impact wrenches, oil pulse
wrenches to do closed loop torque control,
2. oil pulse wrench or clutch type torque tool or the torque
tool equipped with built-in torque mechanism to do
torque calibration prior to work and real time torque
monitoring during assembly while display the data in
the tablet instantly via a Dongle and APP for further
transmitting to peripheral devices or cloud server,
3. click wrench to collect torque data as soon as it clicks
to make audible click visible.
■ With patented control algorithm and device for
controlling the output torque of all continuous and
discontinuous air driven torque tools especially air
impact wrenches, air ratchet wrenches, air oil pulse
wrenches as well as geared torque multipliers,
regardless of tool brand and its designed mechanism
with proven satisfactory control accuracy and durability.
■ Programmable function of bolting sequence control while
applying with the tagged bolt or sensing bolt.
■ Solves problems of torque loss that may be caused by
the variation of the joint hardness, the rise of
temperature of hydraulic fluid in pulse tools or the
posture of holding the tool during continuous operation
and compensate the dynamic torque loss automatically
within its allowable working torque range.
Prior to Assembly: For checking the torque tool capability and calibrating the torque setting。
During Assembly: For controlling and recording the torque being applied to the bolted joint instantly and wirelessly。
After Assembly: For effectively verifying the residual torque accuracy with angle / torque mode。
Applications

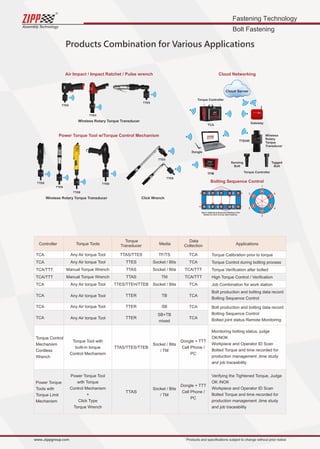

ZIPPTORK Wireless Torque Transducer and Torque Controller are applicable to most of power
torque tools for bolting intelligently with excellent torque control accuracy and data collection.
Wireless Torque Transducer~ Torque Controller~
ZIPPTORK Bolting Torque Control Solution
Real Time Monitoring / Data Logging / Intelligent Control / Auto Compensation
Cloud Server
4. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice

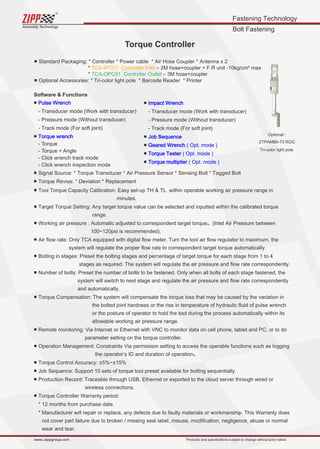

Torque Controller
■ Standard Packaging: * Controller * Power cable * Air Hose Coupler * Antenna x 2
* TCA-IPC01 Controller Inlet – 2M hose+coupler + F.R unit -10kg/cm² max.
* TCA-OPC01 Controller Outlet – 3M hose+coupler
■ Optional Accessories: * Tri-color light pole * Barcode Reader * Printer
Software Functions
■ Pulse Wrench
- Transducer mode (Work with transducer)
- Pressure mode (Without transducer)
- Track mode (For soft joint)
■ Torque wrench
- Torque
- Torque + Angle
- Click wrench track mode
- Click wrench inspection mode
■ Signal Source: * Torque Transducer * Air Pressure Sensor * Sensing Bolt * Tagged Bolt
■ Torque Revise: * Deviation * Replacement
■ Tool Torque Capacity Calibration: Easy set-up TH TL within operable working air pressure range in
minutes.
■ Target Torque Setting: Any target torque value can be selected and inputted within the calibrated torque
range.
■ Working air pressure : Automatic adjusted to correspondent target torque。(Inlet Air Pressure between
100~120psi is recommended).
■ Air flow rate: Only TCA equipped with digital flow meter. Turn the tool air flow regulator to maximum, the
system will regulate the proper flow rate to correspondent target torque automatically.
■ Bolting in stages: Preset the bolting stages and percentage of target torque for each stage from 1 to 4
stages as required. The system will regulate the air pressure and flow rate correspondently.
■ Number of bolts: Preset the number of bolts to be fastened. Only when all bolts of each stage fastened, the
system will switch to next stage and regulate the air pressure and flow rate correspondently
and automatically.
■ Torque Compensation: The system will compensate the torque loss that may be caused by the variation in
the bolted joint hardness or the rise in temperature of hydraulic fluid of pulse wrench
or the posture of operator to hold the tool during the process automatically within its
allowable working air pressure range.
■ Remote monitoring: Via Internet or Ethernet with VNC to monitor data on cell phone, tablet and PC, or to do
parameter setting on the torque controller.
■ Operation Management: Constraints Via permission setting to access the operable functions such as logging
the operator’s ID and duration of operation。
■ Torque Control Accuracy: ±5%~±15%
■ Job Sequence: Support 10 sets of torque tool preset available for bolting sequentially.
■ Production Record: Traceable through USB, Ethernet or exported to the cloud server through wired or
wireless connections.
■ Torque Controller Warranty period:
* 12 months from purchase date.
* Manufacturer will repair or replace, any defects due to faulty materials or workmanship. This Warranty does
not cover part failure due to broken / missing seal label, misuse, modification, negligence, abuse or normal
wear and tear.
■ Impact Wrench
- Transducer mode (Work with transducer)
- Pressure mode (Without transducer)
- Track mode (For soft joint)
■ Job Sequence
■ Geared Wrench ( Opt. mode )
■ Torque Tester ( Opt. mode )
■ Torque multiplier ( Opt. mode )
Optional :
ZTPAMB6-73 ROG
Tri-color light pole
5. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice

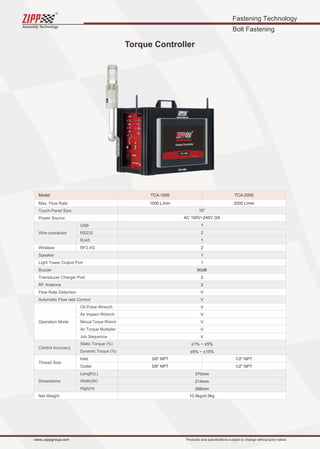

Model TCA-1000
1000 L/min
10
AC 100V~240V /2A
1
2
1
2
1
1
80dB
2
2
V
V
V
V
V
V
V
±1% ~ ±5%
±5% ~ ±15%
3/8 NPT 1/2 NPT
3/8 NPT 1/2 NPT
370mm
214mm
266mm
10.5kg±0.5kg
2000 L/min
TCA-2000
Max. Flow Rate
Touch Panel Size
Power Source
Wire connector
USB
RS232
RJ45
RF2.4G
Oil Pulse Wrench
Air Impact Wrench
Manual Torque Wrench
Air Torque Multiplier
Job Sequence
Static Torque (%)
Dynamic Torque (%)
Inlet
Outlet
Length(L)
Width(W)
High(H)
Wireless
Speaker
Light Tower Output Port
Buzzer
Transducer Charger Port
RF Antenna
Flow Rate Detection
Automatic Flow rate Control
Operation Mode
Control Accuracy
Thread Size
Dimensions
Net Weight
Torque Controller
6. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice
Specification
ZBSC-BT-421 ZBSC-N-421
Descriptions
Environment
Physical
Electrical
BT Communication Blue tooth Class Ⅱ, Blue 4.0 2.4G Wireless
Operating Temperature 32°F to 105°F (O°C to 50°C)
Case Material ABS + Rubber
Voltage 5V DC ±5%
Main Battery 2000 mAh, Li-ion Battery
Humidity 10% to 90% RH
Weight 150g
Stand-by Current 20-30mA
Indicator Beep and LED
Ambient Light Rejection 6000 Lux max. (Fluorescence)
Battery Charge Time Approx. 4-5 hours per full charge
Scan Speed 270 Scans/sec.
Resolution 0.075mm (3mil}
Scan Angle 45°
Scan Distance (PCS 90% code 39) 20-600mm (PCS 90%)
Memory 2MB
Storage Temperature -15°F to +140°F (-26°C to 60°C)
Dimension L:166mm W:66mm H:86mm
Operation Current 100-120mA
Keys One Key
Drop Approved by 1.5M drop test on concrete
Standard package 1.Main unit 2.Micro USB cable 3.Quick Guide manual
Interfaces SPP HID Interface (Compatible Android, iOS, Windows Mobile)
Safety Approval CE RoHS
Scan per full charge 30,000 scans 60,000 scans
Light Source RED LED (660nm)
PCS value 30% or more
Scan Width Up to 250mm or more (PCS90%)
Decodable Capability Code 39. Full ASCⅡ Code 39, Code 32, Code 128, Code 93, Code 11, Codabar/NW7,
All UPC/EAN/JAN code (EAN-13, EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5,
STD 2 of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code, IATA,
MSl/PLESSY, Italian Pharmacy Code, Telepen. RSS-14, RSS Limited, RSS Expanded
ZBSC-BT-421 BT / ZBSC-N-421 2.4G CCD Scanner
7. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice

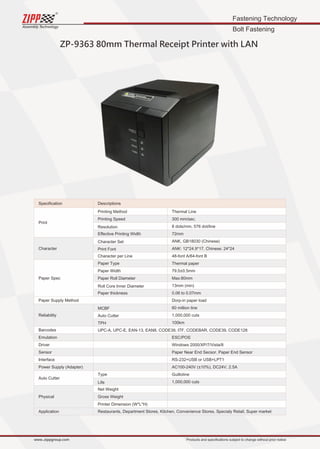

ZP-9363 80mm Thermal Receipt Printer with LAN
Specification Descriptions
Print
Character
Paper Spec
Paper Supply Method
Reliability
Barcodes
Emulation
Driver
Sensor
Interface
Power Supply (Adapter)
Auto Cutter
Physical
Application
Printing Method
Printing Speed
Resolution
Effective Printing Width
Character Set
Print Font
Character per Line
Paper Type
Paper Width
Paper Roll Diameter
Roll Core Inner Diameter
Paper thickness
MCBF
Auto Cutter
TPH
UPC-A, UPC-E, EAN-13, EAN8, CODE39, ITF, CODEBAR, CODE39, CODE128
Type
Life
Net Weight
Gross Weight
Printer Dimension (W*L*H)
Restaurants, Department Stores, Kitchen, Convenience Stores, Specialy Retail, Super market
Thermal Line
300 mm/sec.
8 dots/mm, 576 dot/line
72mm
ANK, GB18030 (Chinese)
ANK: 12*24.9*17, Chinese: 24*24
48-font A/64-font B
Thermal paper
79.5±0.5mm
Max:80mm
13mm (min)
0.06 to 0.07mm
Dorp-in paper load
60 million line
1,000,000 cuts
100km
ESC/POS
Windows 2000/XP/7/Vista/8
Paper Near End Secsor. Paper End Sensor
RS-232+USB or USB+LPT1
AC100-240V (±10%), DC24V, 2.5A
Guillotine
1,000,000 cuts
8. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice
■ The only wireless Torque Transducer applicable to impact or oil pulse torque
tool for dynamic bolting.
■ Designed with unique patent pending anti-vibration mechanism for dynamic
bolting torque control under violent impacts.
■ Standard Packaging: * Torque Transducer * Charging Cable * Magnet Switch
■ Optional Accessories: * Dongle for Android Pad or Window PC/Laptop
* Transducer Protection Cover
Software and Functions
■ Applicable to: * Oil Pulse Wrench * Impact Wrench * Geared Wrench
* Torque Wrench * Clutch Type Torque Tool * Click Wrench
■ Measurement: * Torque * Angular Movement * Pulse Count
■ RF Working Frequency: 60 channels available to be paired with TCA
■ Functions Check: Automatic check the status of power rate, signal quality, torque angle, etc. when
turned on.
■ Switch: Use magnet to turn on.
■ LED Light:
Blue/Orange color: Orange On~Low Power、Blue On~RF in communication、Blue flashing~pairing
with Controller、Orange flashing~Abnormal
Red/Green color:Red~Charging、Green~Fully Charged
Wireless Torque Transducer
Charger
IO(1)
IO(2) Wireless
Zero Balance
Static Accuracy
Temperature
Humidity
Type-C 5V/1A
USB Type-C *1
RF 2.4G up-to 20M
±0.5% FSD/°C
±1% FSD
-10°C~60°C
10~75% Non-condensing
Optional Dongle:
P/N: DG-CP for Android
P/N: DG-WIN for Window
Optional Transducer Protection Cover:
P/N: TPC-100 for 20/50/100Nm
P/N: TPC-250 for 180/250Nm
P/N: TPC-500 for 500Nm
P/N: TPC-2000 for 1000/1500/2000Nm
9. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice

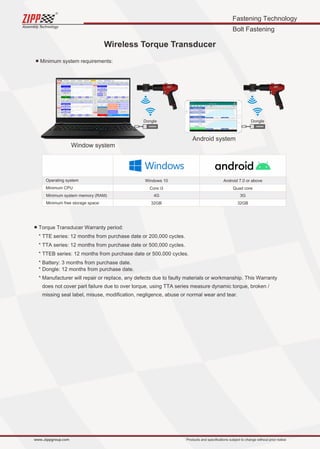

■ Minimum system requirements:
■ Torque Transducer Warranty period:
* TTE series: 12 months from purchase date or 200,000 cycles.
* TTA series: 12 months from purchase date or 500,000 cycles.
* TTEB series: 12 months from purchase date or 500,000 cycles.
* Battery: 3 months from purchase date.
* Dongle: 12 months from purchase date.
* Manufacturer will repair or replace, any defects due to faulty materials or workmanship. This Warranty
does not cover part failure due to over torque, using TTA series measure dynamic torque, broken /
missing seal label, misuse, modification, negligence, abuse or normal wear and tear.
Wireless Torque Transducer
Dongle
Android system
Dongle
Window system
Operating system
Minimum CPU
Minimum system memory (RAM)
Minimum free storage space:
Windows 10 Android 7.0 or above
Core i3 Quad core
4G 3G
32GB 32GB
10. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice
Model
Model
Model
Torque
(Nm)
Torque
(Nm)
Torque
(Nm)
20
50
100
180
250
500
1000
1500
2000
2500
20
50
100
180
250
500
1000
1500
2000
2500
5
10
20
1000
3/8
3/8
3/8
1/2
1/2
1/2
1
1
1
1-1/2
3/8
3/8
3/8
1/2
1/2
3/4
1
1
1
1-1/2
Hex. 6.35
Hex. 6.35
Hex. 6.35
1/2
3/8
3/8
1/2
1/2
1/2
3/4
1
1
1-1/2
1-1/2
3/8
3/8
1/2
1/2
3/4
3/4
1
1
1-1/2
1-1/2
Hex. 6.35
Hex. 6.35
Hex. 6.35
Hex. 30
45x83
45x83
45x89
45x97
45x97
60x106
60x127
60x134
60x143
60x163
45x83
45x83
45x89
45x97
45x104
60x113
60x127
60x134
60x143
60x163
45x121
45x121
45x121
60x118.7
0.18
0.2
0.21
0.26
0.3
0.55
0.85
0.95
1.14
1.5
0.18
0.2
0.21
0.26
0.35
0.55
0.85
0.95
1.14
1.5
0.15
0.15
0.15
1.3
Profile Dimension
O.D. X Length (mm)
Profile Dimension
O.D. X Length (mm)
Profile Dimension
O.D. X Length (mm)
Net Weight
(kgs)
Net Weight
(kgs)
Net Weight
(kgs)
Inlet Size
Inlet Size
Inlet Size
Outlet Size
Outlet Size
Outlet Size
Battery Capacity
Battery Capacity
Battery Capacity
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
TTES-20-FS3MS3
TTES-50-FS3MS3
TTES-100-FS3MS4
TTES-180-FS4MS4
TTES-250-FS4MS4
TTES-500-FS4MS6
TTES-1000-FS8MS8
TTES-1500-FS8MS8
TTES-2000-FS8MS12
TTES-2500-FS12MS12
TTAS-20-FS3MS3
TTAS-50-FS3MS3
TTAS-100-FS3MS4
TTAS-180-FS4MS4
TTAS-250-FS4MS6
TTAS-500-FS6MS6
TTAS-1000-FS8MS8
TTAS-1500-FS8MS8
TTAS-2000-FS8MS12
TTAS-2500-FS12MS12
TTEB-5-MHB6FHB6
TTEB-10-MHB6FHB6
TTEB-20-MHB6FHB6
TTER-1000-FS4FHM30
TTES series are designed for dynamic bolting works while TTAS series are for static torque control and measurement.
Model
Torque
(Nm)
Profile Dimension
O.D. X Length (mm)
Net Weight
(kgs)
Inlet Size Outlet Size Battery Capacity
180
180
180
250
250
1000
180
180
180
250
250
1000
Hex. 18
Hex. 18
Hex. 18
Hex. 18
Hex. 18
Hex. 18
1/2
1/2
1/2
1/2
1/2
1/2
Hex. 17
Hex. 19
Hex. 21
Hex. 18
Hex. 24
Hex. 30
Hex. 17
Hex. 19
Hex. 21
Hex. 18
Hex. 24
Hex. 30
45x134
45x134
45x131
45x94
45x97
60x102
45x134
45x134
45x131
45x94
45x97
60x102
0.5
0.5
0.5
0.28
0.34
0.9
0.5
0.5
0.5
0.28
0.34
0.9
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
DC3.7V/650mAh
TTEH-180-FS4FHM17L
TTEH-180-FS4FHM19L
TTEH-180-FS4FHM21L
TTEH-250-FS4FHM18
TTEH-250-FS4FHM24
TTEH-1000-FS4FHM30
TTAH-180-FS4FHM17L
TTAH-180-FS4FHM19L
TTAH-180-FS4FHM21L
TTAH-250-FS4FHM18
TTAH-250-FS4FHM24
TTAH-1000-FS4FHM30
This series of Transducer can be custom made with specific size of hexagonal opening for correspondent size of bolt or nut.
TTEB series are designed for screwdrivers with bit holder.
TTER type Transducer can be custom-made upon request while ordering.
Wireless Torque Transducer
11. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice

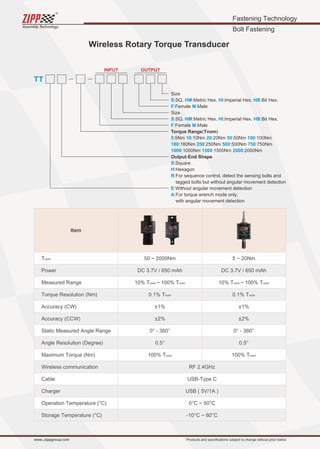

Size
:SQ. :Metric Hex. :Imperial Hex. :Bit Hex.S HM HI HB
:Female :MaleF M
Size
:SQ. :Metric Hex. :Imperial Hex. :Bit Hex.S HM HI HB
:Female :MaleF M
Torque Range(Tnom)
:5Nm :10Nm :20Nm :50Nm :100Nm5 10 20 50 100
:180Nm :250Nm :500Nm :750Nm180 250 500 750
:1000Nm :1500Nm :2000Nm1000 1500 2000
Output-End Shape
:SquareS
:HexagonH
:For sequence control, detect the sensing bolts andR
tagged bolts but without angular movement detection
:Without angular movement detectionE
:For torque wrench mode only,A
with angular movement detection
Wireless Rotary Torque Transducer
INPUT OUTPUT
TT
Tnom
Power
Measured Range
Torque Resolution (Nm)
Accuracy (CW)
Accuracy (CCW)
Static Measured Angle Range
Angle Resolution (Degree)
Maximum Torque (Nm)
Wireless communication
Cable
Charger
Operation Temperature (°C)
Storage Temperature (°C)
50 ~ 2000Nm
DC 3.7V / 650 mAh
10% Tnom~100% Tnom
0.1% Tnom
±1%
±2%
0° - 360°
0.5°
100% Tnom
5 ~ 20Nm
DC 3.7V / 650 mAh
10% Tnom~100% Tnom
0.1% Tnom
±1%
±2%
0° - 360°
0.5°
100% Tnom
RF 2.4GHz
USB-Type C
USB ( 5V/1A )
0°C ~ 50°C
-10°C ~ 60°C
Item
13. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice
Bolting Sequence Control
Spiral Tightening Sequence Starting in the
Middle for Non-Circular Bolt Patterns.
111
222 333
444555
666 777
888999
101010
Cloud Server
Air Impact / Impact Ratchet / Pulse wrench
Power Torque Tool w/Torque Control Mechanism
Wireless Rotary Torque Transducer
Wireless Rotary Torque Transducer Click Wrench
Torque Controller
Torque Controller
Tagged
Bolt
Sensing
Bolt
TTEHR
Cloud Networking
Dongle
TCA
Gateway
TFM
Wireless
Rotary
Torque
Transducer
TCA
TCA
TCA/TTT
TCA/TTT
TCA
TCA
TCA
TCA
Torque Control
Mechanism
Cordless
Wrench
Power Torque
Tools with
Torque Limit
Mechanism
Controller
Torque
Transducer
Data
CollectionMediaTorque Tools Applications
Any Air torque Tool
Any Air torque Tool
Manual Torque Wrench
Manual Torque Wrench
Any Air torque Tool
Any Air torque Tool
Any Air torque Tool
Any Air torque Tool
Torque Tool with
built-in torque
Control Mechanism
Power Torque Tool
with Torque
Control Mechanism
+
Click Type
Torque Wrench
TTAS/TTES
TTES
TTAS
TTAS
TTES/TTEH/TTEB
TTER
TTER
TTER
TTAS/TTES/TTEB
TTAS
TF/TS
Socket / Bits
Socket / Bits
TM
Socket / Bits
TB
SB
SB+TB
mixed
Socket / Bits
/ TM
Socket / Bits
/ TM
TCA
TCA
TCA/TTT
TCA/TTT
TCA
TCA
TCA
TCA
Dongle + TTT
Cell Phone /
PC
Dongle + TTT
Cell Phone /
PC
Torque Calibration prior to torque
Torque Control during bolting process
Torque Verification after bolted
High Torque Control / Verification
Job Combination for work station
Bolt production and bolting data record
Bolting Sequence Control
Bolt production and bolting data record
Bolting Sequence Control
Bolted joint status Remote Monitoring
Monitoring bolting status, judge
OK/NOK
Workpiece and Operator ID Scan
Bolted Torque and time recorded for
production management ,time study
and job traceability
Verifying the Tightened Torque, Judge
OK /NOK
Workpiece and Operator ID Scan
Bolted Torque and time recorded for
production management ,time study
and job traceability
Products Combination for Various Applications
14. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice

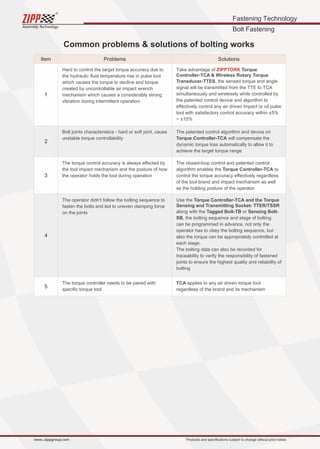

Common problems solutions of bolting works
Item
1
2
3
4
5
Problems Solutions
Hard to control the target torque accuracy due to
the hydraulic fluid temperature rise in pulse tool
which causes the torque to decline and torque
created by uncontrollable air impact wrench
mechanism which causes a considerably strong
vibration during intermittent operation
Bolt joints characteristics - hard or soft joint, cause
unstable torque controllability
The torque control accuracy is always affected by
the tool impact mechanism and the posture of how
the operator holds the tool during operation
The operator didn't follow the bolting sequence to
fasten the bolts and led to uneven clamping force
on the joints
The torque controller needs to be paired with
specific torque tool
Take advantage of TorqueZIPPTORK
Controller-TCA Wireless Rotary Torque
Transducer-TTES, the sensed torque and angle
signal will be transmitted from the TTE to TCA
simultaneously and wirelessly while controlled by
the patented control device and algorithm to
effectively control any air driven impact or oil pulse
tool with satisfactory control accuracy within ±5%
~ ±15%
The patented control algorithm and device on
Torque Controller-TCA will compensate the
dynamic torque loss automatically to allow it to
achieve the target torque range
The closed-loop control and patented control
algorithm enables the Torque Controller-TCA to
control the torque accuracy effectively regardless
of the tool brand and impact mechanism as well
as the holding posture of the operator
Use the Torque Controller-TCA and the Torque
Sensing and Transmitting Socket- TTER/TSSR
along with the Tagged Bolt-TB or Sensing Bolt-
SB, the bolting sequence and stage of bolting
can be programmed in advance, not only the
operator has to obey the bolting sequence, but
also the torque can be appropriately controlled at
each stage.
The bolting data can also be recorded for
traceability to verify the responsibility of fastened
joints to ensure the highest quality and reliability of
bolting
TCA applies to any air driven torque tool
regardless of the brand and its mechanism
15. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice

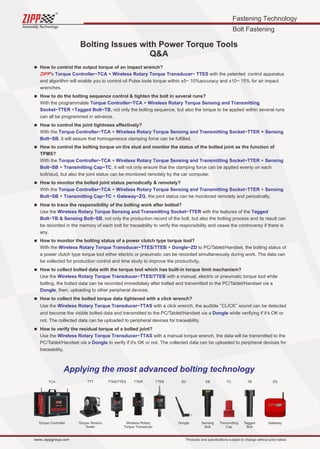

Bolting Issues with Power Torque Tools
QA
Applying the most advanced bolting technology
n How to control the output torque of an impact wrench?
ZIPP's Torque Controller~TCA + Wireless Rotary Torque Transducer~ TTES with the patented control apparatus
and algorithm will enable you to control oil Pulse tools torque within ±5~ 10%accuracy and ±10~ 15% for air impact
wrenches.
n How to do the bolting sequence control tighten the bolt in several runs?
With the programmable Torque Controller~TCA + Wireless Rotary Torque Sensing and Transmitting
Socket~TTER +Tagged Bolt~TB, not only the bolting sequence, but also the torque to be applied within several runs
can all be programmed in advance.
n How to control the joint tightness effectively?
With the Torque Controller~TCA + Wireless Rotary Torque Sensing and Transmitting Socket~TTER + Sensing
Bolt~SB, it will assure that homogeneous clamping force can be fulfilled.
n How to control the bolting torque on tire stud and monitor the status of the bolted joint as the function of
TPMS?
With the Torque Controller~TCA + Wireless Rotary Torque Sensing and Transmitting Socket~TTER + Sensing
Bolt~SB + Transmitting Cap~TC, it will not only ensure that the clamping force can be applied evenly on each
bolt/stud, but also the joint status can be monitored remotely by the car computer.
n How to monitor the bolted joint status periodically remotely?
With the Torque Controller~TCA + Wireless Rotary Torque Sensing and Transmitting Socket~TTER + Sensing
Bolt~SB + Transmitting Cap~TC + Gateway~ZG, the joint status can be monitored remotely and periodically.
n How to trace the responsibility of the bolting work after bolted?
Use the Wireless Rotary Torque Sensing and Transmitting Socket~TTER with the features of the Tagged
Bolt~TB Sensing Bolt~SB, not only the production record of the bolt, but also the bolting process and its result can
be recorded in the memory of each bolt for traceability to verify the responsibility and cease the controversy if there is
any.
n How to monitor the bolting status of a power clutch type torque tool?
With the Wireless Rotary Torque Transducer~TTES/TTEB + Dongle~ZD to PC/Tablet/Handset, the bolting status of
a power clutch type torque tool either electric or pneumatic can be recorded simultaneously during work. The data can
be collected for production control and time study to improve the productivity.
n How to collect bolted data with the torque tool which has built-in torque limit mechanism?
Use the Wireless Rotary Torque Transducer~TTES/TTEB with a manual, electric or pneumatic torque tool while
bolting, the bolted data can be recorded immediately after bolted and transmitted to the PC/Tablet/Handset via a
Dongle, then, uploading to other peripheral devices.
n How to collect the bolted torque data tightened with a click wrench?
Use the Wireless Rotary Torque Transducer~TTAS with a click wrench, the audible CLICK sound can be detected
and become the visible bolted data and transmitted to the PC/Tablet/Handset via a Dongle while verifying if it's OK or
not. The collected data can be uploaded to peripheral devices for traceability.
n How to verify the residual torque of a bolted joint?
Use the Wireless Rotary Torque Transducer~TTAS with a manual torque wrench, the data will be transmitted to the
PC/Tablet/Handset via a Dongle to verify if it's OK or not. The collected data can be uploaded to peripheral devices for
traceability.
Torque Controller
TCA
Torque Tension
Tester
TTT
Wireless Rotary
Torque Transducer
TTAS/TTES TTER TTEB
Dongle
ZD
Sensing
Bolt
SB
Transmitting
Cap
TC
Tagged
Bolt
TB
Gateway
ZG
16. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice

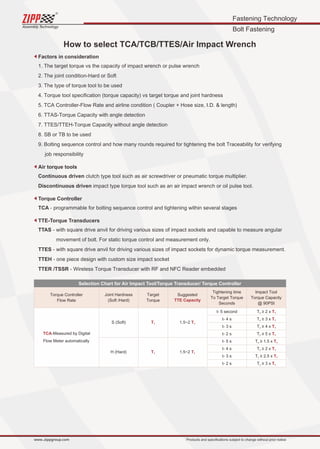

Factors in consideration
Air torque tools
Torque Controller
TTE-Torque Transducers
1. The target torque vs the capacity of impact wrench or pulse wrench
2. The joint condition-Hard or Soft
3. The type of torque tool to be used
4. Torque tool specification (torque capacity) vs target torque and joint hardness
5. TCA Controller-Flow Rate and airline condition ( Coupler + Hose size, I.D. length)
6. TTAS-Torque Capacity with angle detection
7. TTES/TTEH-Torque Capacity without angle detection
8. SB or TB to be used
9. Bolting sequence control and how many rounds required for tightening the bolt Traceability for verifying
job responsibility
Continuous driven clutch type tool such as air screwdriver or pneumatic torque multiplier.
Discontinuous driven impact type torque tool such as an air impact wrench or oil pulse tool.
TCA - programmable for bolting sequence control and tightening within several stages
TTAS - with square drive anvil for driving various sizes of impact sockets and capable to measure angular
movement of bolt. For static torque control and measurement only.
TTES - with square drive anvil for driving various sizes of impact sockets for dynamic torque measurement.
TTEH - one piece design with custom size impact socket
TTER /TSSR - Wireless Torque Transducer with RF and NFC Reader embedded
Torque Controller
Flow Rate
Joint Hardness
(Soft /Hard)
S (Soft)
t- 5 second T ≥ 2 x5 TT
T ≥ 3 x4 TT
T ≥ 4 x3 TT
T ≥ 5 x2 TT
T ≥ 1.5 x5 TT
T ≥ 2 x4 TT
T ≥ 2.5 x3 TT
T ≥ 3 x2 TT
t- 4 s
t- 3 s
t- 2 s
t- 5 s
t- 4 s
t- 3 s
t- 2 s
TT 1.5~2 TT
1.5~2 TTTTH (Hard)
Suggested
TTE Capacity
Tightening time
To Target Torque
Seconds
Impact Tool
Torque Capacity
@ 90PSI
Target
Torque
TCA-Measured by Digital
Flow Meter automatically
Selection Chart for Air Impact Tool/Torque Transducer/ Torque Controller
17. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice

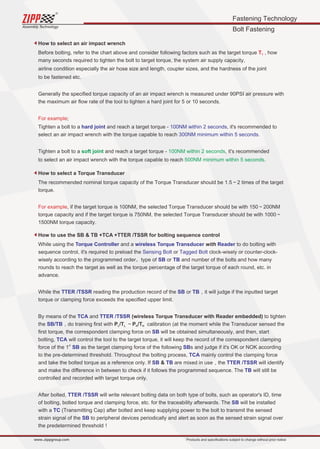

How to select an air impact wrench
How to select a Torque Transducer
How to use the SB TB +TCA +TTER /TSSR for bolting sequence control
Before bolting, refer to the chart above and consider following factors such as the target torque , howTT
many seconds required to tighten the bolt to target torque, the system air supply capacity,
airline condition especially the air hose size and length, coupler sizes, and the hardness of the joint
to be fastened etc.
Generally the specified torque capacity of an air impact wrench is measured under 90PSI air pressure with
the maximum air flow rate of the tool to tighten a hard joint for 5 or 10 seconds.
For example;
Tighten a bolt to a and reach a target torque - , it's recommended tohard joint 100NM within 2 seconds
select an air impact wrench with the torque capable to reach 300NM minimum within 5 seconds.
Tighten a bolt to a and reach a target torque - , it's recommendedsoft joint 100NM within 2 seconds
to select an air impact wrench with the torque capable to reach .500NM minimum within 5 seconds
The recommended nominal torque capacity of the Torque Transducer should be 1.5~2 times of the target
torque.
For example, if the target torque is 100NM, the selected Torque Transducer should be with 150~200NM
torque capacity and if the target torque is 750NM, the selected Torque Transducer should be with 1000~
1500NM torque capacity.
While using the and a with to do bolting withTorque Controller wireless Torque Transducer Reader
sequence control, it's required to preload the or clock-wisely or counter-clock-Sensing Bolt Tagged Bolt
wisely according to the programmed order、type of or and number of the bolts and how manySB TB
rounds to reach the target as well as the torque percentage of the target torque of each round, etc. in
advance.
While the reading the production record of the or ,it will judge if the inputted targetTTER /TSSR SB TB
torque or clamping force exceeds the specified upper limit.
By means of the and (wireless Torque Transducer with Reader embedded) to tightenTCA TTER /TSSR
the ,do training first with P /T ~P /T calibration (at the moment while the Transducer sensed theL L H HSB/TB
first torque, the correspondent clamping force on will be obtained simultaneously, and then, startSB
bolting, will control the tool to the target torque, it will keep the record of the correspondent clampingTCA
st
force of the 1 as the target clamping force of the following s and judge if it's OK or NOK accordingSB SB
to the pre-determined threshold. Throughout the bolting process, mainly control the clamping forceTCA
and take the bolted torque as a reference only. If are mixed in use,the will identifySB TB TTER /TSSR
and make the difference in between to check if it follows the programmed sequence. The will still beTB
controlled and recorded with target torque only.
After bolted, will write relevant bolting data on both type of bolts, such as operator's ID, timeTTER /TSSR
of bolting, bolted torque and clamping force, etc. for the traceability afterwards. The will be installedSB
with a (Transmitting Cap) after bolted and keep supplying power to the bolt to transmit the sensedTC
strain signal of the to peripheral devices periodically and alert as soon as the sensed strain signal overSB
the predetermined threshold!
18. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice
Model
Static
TCA-2000
2000
Auto
Auto
TCA-1000
1000
Auto
Auto
3 3 3
Max. Flow Rate Liter per Minute
Air Pressure Regulation
Flow Rate Selection
Tool Air Consumption Test
Torque Display
Torque Control
Torque Mea-surement
Job Sequence
Bolting in Several stages
Bolting Sequence Control
No. of Torque Multiplier can be
Attached
Bolt Count
Job Record
Cloud Server
Software Authori-zation
Operation Manage-ment

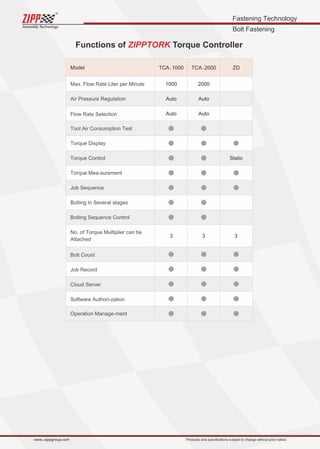

Functions of ZIPPTORK Torque Controller
ZD
19. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice

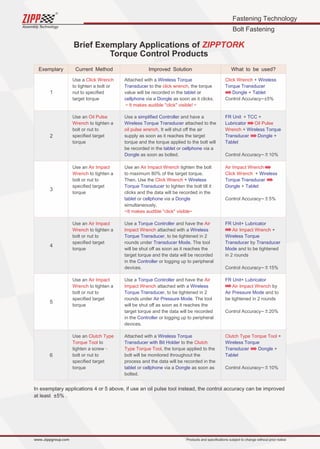

Exemplary Current Method Improved Solution What to be used?
1
2
3
4
5
6
In exemplary applications 4 or 5 above, if use an oil pulse tool instead, the control accuracy can be improved
at least ±5% .
Use a Click Wrench
to tighten a bolt or
nut to specified
target torque
Use an Oil Pulse
Wrench to tighten a
bolt or nut to
specified target
torque
Use an Air Impact
Wrench to tighten a
bolt or nut to
specified target
torque
Use an Air Impact
Wrench to tighten a
bolt or nut to
specified target
torque
Use an Air Impact
Wrench to tighten a
bolt or nut to
specified target
torque
Use an Clutch Type
Torque Tool to
tighten a screw、
bolt or nut to
specified target
torque
Attached with a Wireless Torque
Transducer to the , the torqueclick wrench
value will be recorded in the tablet or
cellphone Donglevia a as soon as it clicks.
~It makes audible click visible!~
Use a and have asimplified Controller
Wireless Torque Transducer attached to the
oil pulse wrench, It will shut off the air
supply as soon as it reaches the target
torque and the torque applied to the bolt will
be recorded in the or via atablet cellphone
Dongle as soon as bolted.
Use an tighten the boltAir Impact Wrench
to maximum 80% of the target torque.
Then, Use the +Click Wrench Wireless
Torque Transducer to tighten the bolt till it
clicks and the data will be recorded in the
tablet cellphone Dongleor via a
simultaneously.
~It makes audible click visible~
Use a and have theTorque Controller Air
Impact Wrench attached with a Wireless
Torque Transducer, to be tightened in 2
rounds under . The toolTransducer Mode
will be shut off as soon as it reaches the
target torque and the data will be recorded
in the or logging up to peripheralController
devices.
Use a and have theTorque Controller Air
Impact Wrench attached with a Wireless
Torque Transducer, to be tightened in 2
rounds under . The toolAir Pressure Mode
will be shut off as soon as it reaches the
target torque and the data will be recorded
in the or logging up to peripheralController
devices.
Attached with a Wireless Torque
Transducer with Bit Holder to the Clutch
Type Torque Tool, the torque applied to the
bolt will be monitored throughout the
process and the data will be recorded in the
tablet cellphone Dongleor via a as soon as
bolted.
Click Wrench + Wireless
Torque Transducer
+Dongle Tablet
Control Accuracy~±5%
FR Unit TCC+ +
Lubricator Oil Pulse
Wrench + Wireless Torque
Transducer Dongle +
Tablet
Control Accuracy~±10%
Air Impact Wrench
Click Wrench + Wireless
Torque Transducer
Dongle Tablet+
Control Accuracy~±5%
FR Unit Lubricator+
+Air Impact Wrench
Wireless Torque
Transducer Transducerby
Mode and to be tightened
in 2 rounds
Control Accuracy~±15%
FR Unit Lubricator+
byAir Impact Wrench
Air Pressure Mode and to
be tightened in 2 rounds
Control Accuracy~±20%
Clutch Type Torque Tool +
Wireless Torque
Transducer Dongle +
Tablet
Control Accuracy~±10%
Brief Exemplary Applications of ZIPPTORK
Torque Control Products
20. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice

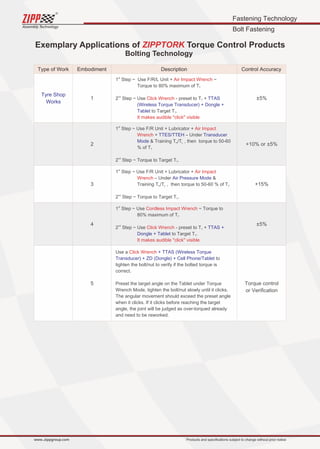

Exemplary Applications of ZIPPTORK Torque Control Products
Bolting Technology
Type of Work Embodiment Description Control Accuracy
1 ±5%
+15%
+10% or ±5%
±5%
Torque control
or Verification
Tyre Shop
Works
2
3
4
5
st
1 Step ~ Use F/R/L Unit + ~Air Impact Wrench
Torque to 80% maximum of TT
nd
2 Step ~ Use - preset to T +TClick Wrench TTAS
(Wireless Torque Transducer) + Dongle +
Tablet to Target T .T
It makes audible click visible
st
1 Step ~ Use F/R Unit + Lubricator + Air Impact
Wrench + – UnderTTES/TTEH Transducer
Mode Training T /T , then torque to 50-60H L
% of TT
nd
2 Step ~ Torque to Target T .T
st
1 Step ~ Use F/R Unit + Lubricator + Air Impact
Wrench – Under Air Pressure Mode
Training T /T , then torque to 50-60 % of TH L T
nd
2 Step ~ Torque to Target T .T
st
1 Step ~ Use ~ Torque toCordless Impact Wrench
80% maximum of TT
nd
2 Step ~ Use - preset to T +TClick Wrench TTAS +
Dongle + Tablet to Target T .T
It makes audible click visible
Use a Click Wrench + TTAS (Wireless Torque
Transducer) + ZD (Dongle) + Cell Phone/Tablet to
tighten the bolt/nut to verify if the bolted torque is
correct.
Preset the target angle on the Tablet under Torque
Wrench Mode, tighten the bolt/nut slowly until it clicks.
The angular movement should exceed the preset angle
when it clicks. If it clicks before reaching the target
angle, the joint will be judged as over-torqued already
and need to be reworked.
21. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice
Type of Work Embodiment Description Control Accuracy
1 ±10% ~ ±15%
±5%
±15%
+10% or ±5%
±10%
±5%
Torque control or
Verification
General
Assembly
Works
2
3
4
5
6
7
st
1 Step ~ Calibrate the tool torque of Air Screwdriver or
Electric Brushless Screwdriver with the TTEB
+ Dongle + Tablet to the desired target torque
prior to work.
nd
2 Step ~ Use the Air Screwdriver or Electric Brushless
Screwdriver with the to tighten theTTEB
Screw/Bolt to the target torque. The Tablet
will monitor the bolting torque throughout the
process and judge the result as or .OK NOK
st
1 Step ~ Use F/R/L Unit + ~TorqueAir Impact Wrench
to 80% maximum of TT
nd
2 Step ~ Use - preset to T +TClick Wrench TTAS +
Dongle + Tablet to Target T .T
It makes audible click visible
st
1 Step ~ Use F/R Unit + Lubricator + Air Impact
Wrench – Under Air Pressure Mode
Training T /T , then torque to 50-60% of TH L T
nd
2 Step ~ Torque to Target T .T
st
1 Step ~ Use F/R Unit + Lubricator + Air Impact
Wrench + – UnderTTES/TTEH Transducer
Mode Training T /T , then torque to 50-60%H L
of TT
nd
2 Step ~ Torque to Target T .T
st
1 Step ~ Use F/R/L Unit + +Oil Pulse tool TTES +
Dongle + Tablet to calibrate the target torque
on orTF Simulator
nd
2 Step ~ Torque to Target T . The will monitorT Tablet
the bolting torque throughout the process and
judge the result as or .OK NOK
st
1 Step ~ Use ~ Torque toCordless Impact Wrench
80% maximum of TT
nd
2 Step ~ Use - preset to T +TClick Wrench TTAS +
Dongle + Tablet to Target T .T
It makes audible click visible
Use a +Click Wrench TTAS (Wireless Torque
Transducer) + ZD (Dongle) + Cell Phone/Tablet to
tighten the bolt/nut to verify if the bolted torque is
correct.
Preset the target angle on the Tablet under Torque
Wrench Mode, tighten the bolt/nut slowly until it clicks.
The angular movement should exceed the preset angle
when it clicks. If it clicks before reaching the target
angle, the joint will be judged as over-torqued already
and need to be reworked.

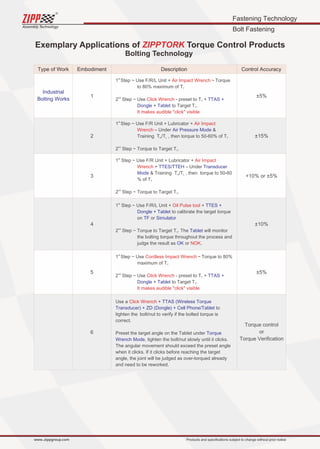

Exemplary Applications of ZIPPTORK Torque Control Products
Bolting Technology
22. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice
Type of Work Embodiment Description Control Accuracy
1
2
3
4
5
6
±5%
±15%
+10% or ±5%
±10%
±5%
Torque control
or
Torque Verification
Industrial
Bolting Works
st
1 Step ~ Use F/R/L Unit + ~TorqueAir Impact Wrench
to 80% maximum of TT
nd
2 Step ~ Use - preset to T +TClick Wrench TTAS +
Dongle + Tablet to Target T .T
It makes audible click visible
st
1 Step ~ Use F/R Unit + Lubricator + Air Impact
Wrench – Under Air Pressure Mode
Training T /T , then torque to 50-60% of TH L T
nd
2 Step ~ Torque to Target T .T
st
1 Step ~ Use F/R Unit + Lubricator + Air Impact
Wrench + – UnderTTES/TTEH Transducer
Mode Training T /T , then torque to 50-60H L
% of TT
nd
2 Step ~ Torque to Target T .T
st
1 Step ~ Use F/R/L Unit + +Oil Pulse tool TTES +
Dongle + Tablet to calibrate the target torque
on orTF Simulator
nd
2 Step ~ Torque to Target T . The will monitorT Tablet
the bolting torque throughout the process and
judge the result as orOK NOK.
st
1 Step ~ Use ~Torque to 80%Cordless Impact Wrench
maximum of TT
nd
2 Step ~ Use - preset to T +TClick Wrench TTAS +
Dongle + Tablet to Target T .T
It makes audible click visible
Use a +Click Wrench TTAS (Wireless Torque
Transducer) + ZD (Dongle) + Cell Phone/Tablet to
tighten the bolt/nut to verify if the bolted torque is
correct.
Preset the target angle on the Tablet under Torque
Wrench Mode, tighten the bolt/nut slowly until it clicks.
The angular movement should exceed the preset angle
when it clicks. If it clicks before reaching the target
angle, the joint will be judged as over-torqued already
and need to be reworked.
Exemplary Applications of ZIPPTORK Torque Control Products
Bolting Technology
23. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice

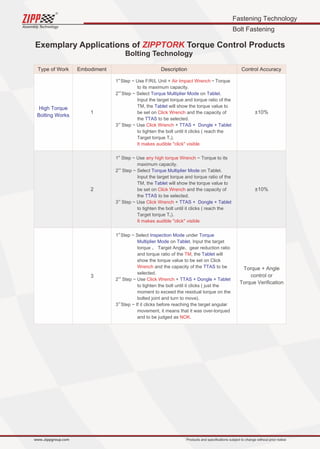

Type of Work Embodiment Description Control Accuracy
1
2
3
±10%
±10%
Torque + Angle
control or
Torque Verification
High Torque
Bolting Works
st
1 Step ~ Use F/R/L Unit + ~TorqueAir Impact Wrench
to its maximum capacity.
nd
2 Step ~ Select on .Torque Multiplier Mode Tablet
Input the target torque and torque ratio of the
TM, the will show the torque value toTablet
be set on and the capacity ofClick Wrench
the to be selected.TTAS
rd
3 Step ~ Use +Click Wrench TTAS + Dongle + Tablet
to tighten the bolt until it clicks ( reach the
Target torque T ).T
It makes audible click visible
st
1 Step ~ Use ~ Torque to itsany high torque Wrench
maximum capacity.
nd
2 Step ~ Select on Tablet.Torque Multiplier Mode
Input the target torque and torque ratio of the
TM, the will show the torque value toTablet
be set on and the capacity ofClick Wrench
the to be selected.TTAS
rd
3 Step ~ Use +Click Wrench TTAS + Dongle + Tablet
to tighten the bolt until it clicks ( reach the
Target torque T ).T
It makes audible click visible
st
1 Step ~ Select underInspection Mode Torque
Multiplier Mode Tableton . Input the target
torque 、 Target Angle、gear reduction ratio
and torque ratio of the , the willTM Tablet
show the torque value to be set on Click
Wrench and the capacity of the to beTTAS
selected.
nd
2 Step ~ Use +Click Wrench TTAS + Dongle + Tablet
to tighten the bolt until it clicks ( just the
moment to exceed the residual torque on the
bolted joint and turn to move).
rd
3 Step ~ If it clicks before reaching the target angular
movement, it means that it was over-torqued
and to be judged as .NOK
Exemplary Applications of ZIPPTORK Torque Control Products
Bolting Technology
24. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice
Exemplary Embodiment for the Application of
Torque Control Products
Type of
Torque Tools
Type of
Torque Tools
Advanced
Torque
Control
Method
Advanced
Torque
Control
Method
Features of
ZIPPTORK
Solutions
Features of
ZIPPTORK
Solutions
ZIPPTORK
products
ZIPPTORK
products
TTAS + Dongle + APP
TTES + Dongle + APP
TTAS + Dongle + APP
TCA + TTES
TTES + Dongle + APP
TTAS + TM + Dongle + APP
Manual Torque Wrench
Electric / Cordless
Impact Wrench
Manual Click Wrench
Air Impact Wrench
Pneumatic / Electric /
Cordless Torque Tools
Manual Torque Wrench
+ Torque Multiplier
It clicks as soon as it reaches the
preset torque
Torque controlled by air pressure
and/or airflow rate, or driving a
torsion stick
Use the click wrench with TTAS
along with a and toDongle APP
collect torque data and up load the
data immediately as soon as it
clicks.
Use the air impact wrench and
control the torque by patented
control algorithm and device of
TCA TTESand to collect torque
data and up-loads the data
simultaneously.
Detects and records the torque
data and upload the data
immediately as soon as it clicks.
Makes audible clicks visible.
Capable to do Bolting sequence
control by toTCA + TTES
tighten the bolts to its target within
several rounds, data collection and
upload the data.
The tool is equipped with built-in
torque control mechanism.
Auto shut off as soon as it
reaches the preset torque.
Use digital torque wrench + TM (
Torque Multiplier)
Use the power torque wrench with
TTES Donglealong with a and
APP to collect torque data and up
load the data immediately as soon
as it reaches preset torque and the
clutch dis-engaged.
Use any manual torque wrench to
drive the + a selected size ofTTAS
TM and take advantage of the
patented control algorithm of TTAS
to display / verify / record the final
torque applied to the joint.
Detects and records the torque
data and up loaded immediately as
soon as it reaches preset torque
and the clutch dis-engaged.
For high torque bolting, use any
impact tool to drive the bolt to
certain level and then use any
torque wrench along with a TTAS
+ selected to tighten the bolt toTM
the target torque.
Use a Digital torque wrench
instead
The tool is equipped with built-in
torque control mechanism.
Auto shut off as soon as it
reaches the preset torque.
Use any manual torque wrench
with along with aTTAS Dongle
and to collect torque data andAPP
up load the data immediately.
Use the power torque wrench with
TTES Donglealong with a and
APP to collect torque data and up
load the data immediately as soon
as it reaches preset torque and the
clutch dis-engaged.
Detects and records the torque
data just at the moment of 0.5o
angular movement of the bolt and
through a to display theDongle
let-go torque simultaneously.
Detects and records the torque
data and uploaded immediately as
soon as it reaches preset torque
and the clutch dis-engaged.
25. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice
Quick Coupler
20SM
Quick Coupler
80SN
Quick Coupler
20SM
Quick Coupler
40SMQuick Coupler
20SN
Quick Coupler
20PM
Air Torque Tool
Quick Coupler
40SF
Quick Coupler
40PF
Quick Coupler
80PN
Quick Coupler
80PN Quick Coupler
40PN
Quick Coupler
80PN
Quick Coupler
80PN
Quick Coupler
80SN
Quick Coupler
80SN
Quick Coupler
20PM
Lubricator
NUL‐02NA
Air Hose
8*12
Air Hose
8*12
Air Hose
8*12
Air Hose
8*12

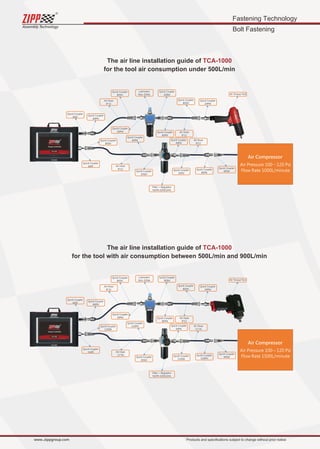

The air line installation guide of TCA-1000
for the tool air consumption under 500L/min
Air Pressure 100~120 Psi
Flow Rate 1000L/minute
Air Compressor
Filter + Regulator
NUFR‐02NCGHA
Quick Coupler
30SM
Quick Coupler
80SN
Quick Coupler
20PM
Air Torque Tool
Quick Coupler
40SF
Quick Coupler
80PN
Quick Coupler
110PN Quick Coupler
30PN
Quick Coupler
80PN
Quick Coupler
80SN
Quick Coupler
110SN
Quick Coupler
30PM
Lubricator
NUL‐02NA
Air Hose
8*12
Air Hose
8*12
Air Hose
11*16
The air line installation guide of TCA-1000
for the tool with air consumption between 500L/min and 900L/min
Air Compressor
Quick Coupler
30SM
Quick Coupler
40SMQuick Coupler
110SN
Quick Coupler
110PF
Quick Coupler
110PN
Air Hose
11*16
Air Pressure 100~120 Psi
Flow Rate 1500L/minute
Filter + Regulator
NUFR‐02NCGHA
TCA-1000
TCA-1000
TCA-1000
TCA-1000
26. Fastening Technology
Bolt Fastening
Assembly Technology
www..zippgroup.com Products and specifications subject to change without prior notice
Quick Coupler
30SM
Quick Coupler
110SN
Quick Coupler
400SM
Quick Coupler
400SMQuick Coupler
400SN
Quick Coupler
30PM
Air Torque Tool
Quick Coupler
40SF
Quick Coupler
400PF
Quick Coupler
110PN
Quick Coupler
400PN Quick Coupler
400PN
Quick Coupler
110PN
Quick Coupler
400PN
Quick Coupler
110SN
Quick Coupler
400SN
Quick Coupler
30PM
Lubricator
NUL‐03NA
Filter + Regulator
NUFR‐03NCGHA
Air Hose
11*16
Air Hose
11*16
Air Hose
13*27
Air Hose
13*27
Air Pressure 100~120 Psi
Flow Rate 2000L/minute
Air Compressor
Quick Coupler
400SM
Quick Coupler
400SN
Quick Coupler
400SM
Quick Coupler
400SMQuick Coupler
400SN
Quick Coupler
400PM
Air Torque Tool
Quick Coupler
400SF
Quick Coupler
400PF
Quick Coupler
400PN
Quick Coupler
400PN Quick Coupler
400PN
Quick Coupler
400PN
Quick Coupler
400PN
Quick Coupler
400SN
Quick Coupler
400SN
Quick Coupler
400PM
Lubricator
NUL‐04NA
Filter + Regulator
NUFR‐04NCGHA
Air Hose
13*27
Air Hose
13*27
Air Hose
13*27
Air Hose
13*27
Air Pressure 100~120 Psi
Flow Rate 2500L/minute
Air Compressor

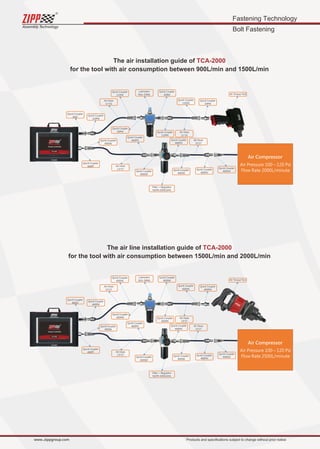

The air installation guide of TCA-2000
for the tool with air consumption between 900L/min and 1500L/min
The air line installation guide of TCA-2000
for the tool with air consumption between 1500L/min and 2000L/min
TCA-2000
TCA-2000
TCA-2000
TCA-2000
