1. Advanced Data Communication with the Flash Platform
twitter.com/wadearnold
wadearnold.com
wade.arnold@t8design.com

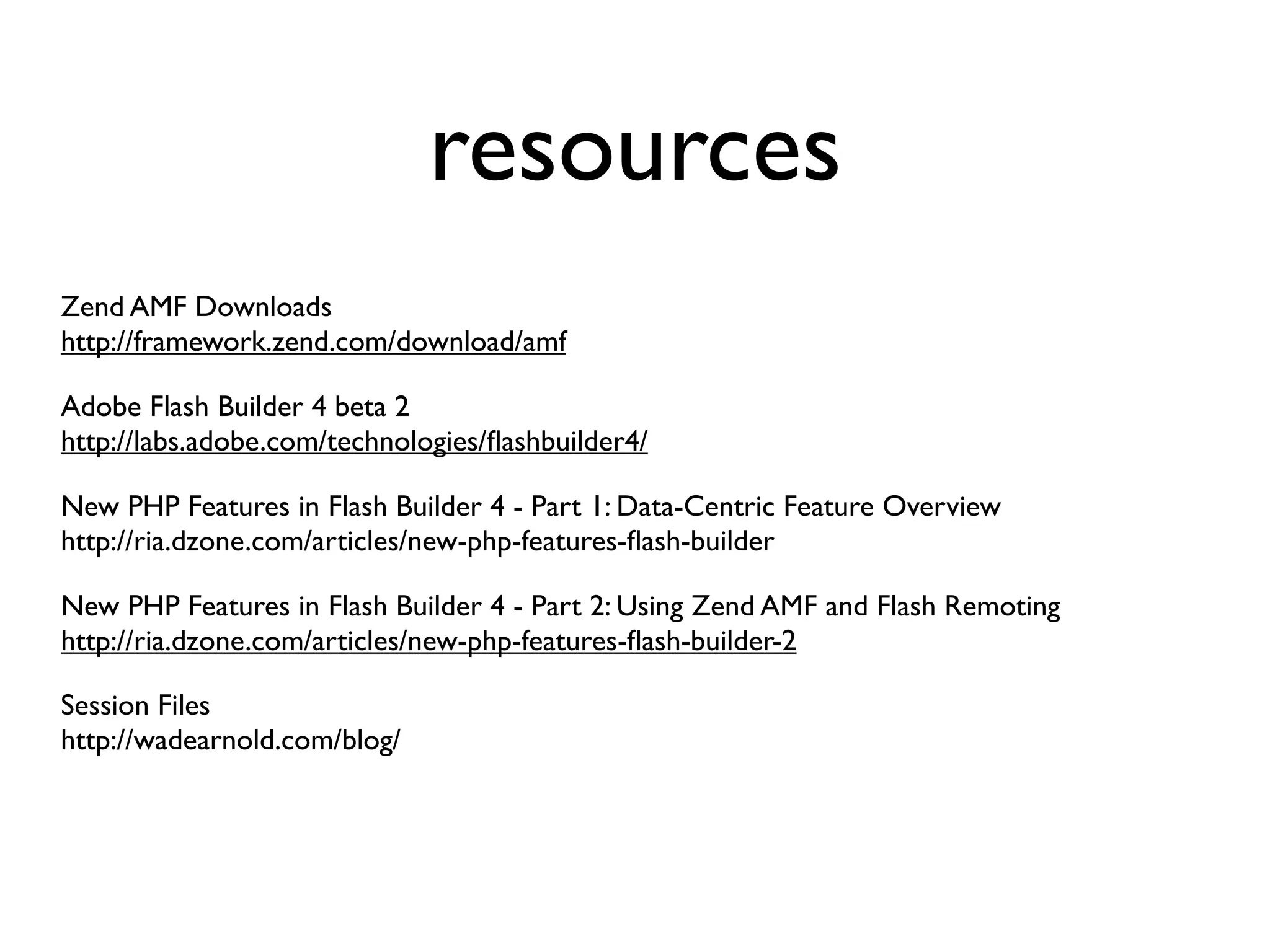

2. resources
Zend AMF Downloads
http://framework.zend.com/download/amf
Adobe Flash Builder 4 beta 2
http://labs.adobe.com/technologies/flashbuilder4/
New PHP Features in Flash Builder 4 - Part 1: Data-Centric Feature Overview
http://ria.dzone.com/articles/new-php-features-flash-builder
New PHP Features in Flash Builder 4 - Part 2: Using Zend AMF and Flash Remoting
http://ria.dzone.com/articles/new-php-features-flash-builder-2
Session Files
http://wadearnold.com/blog/

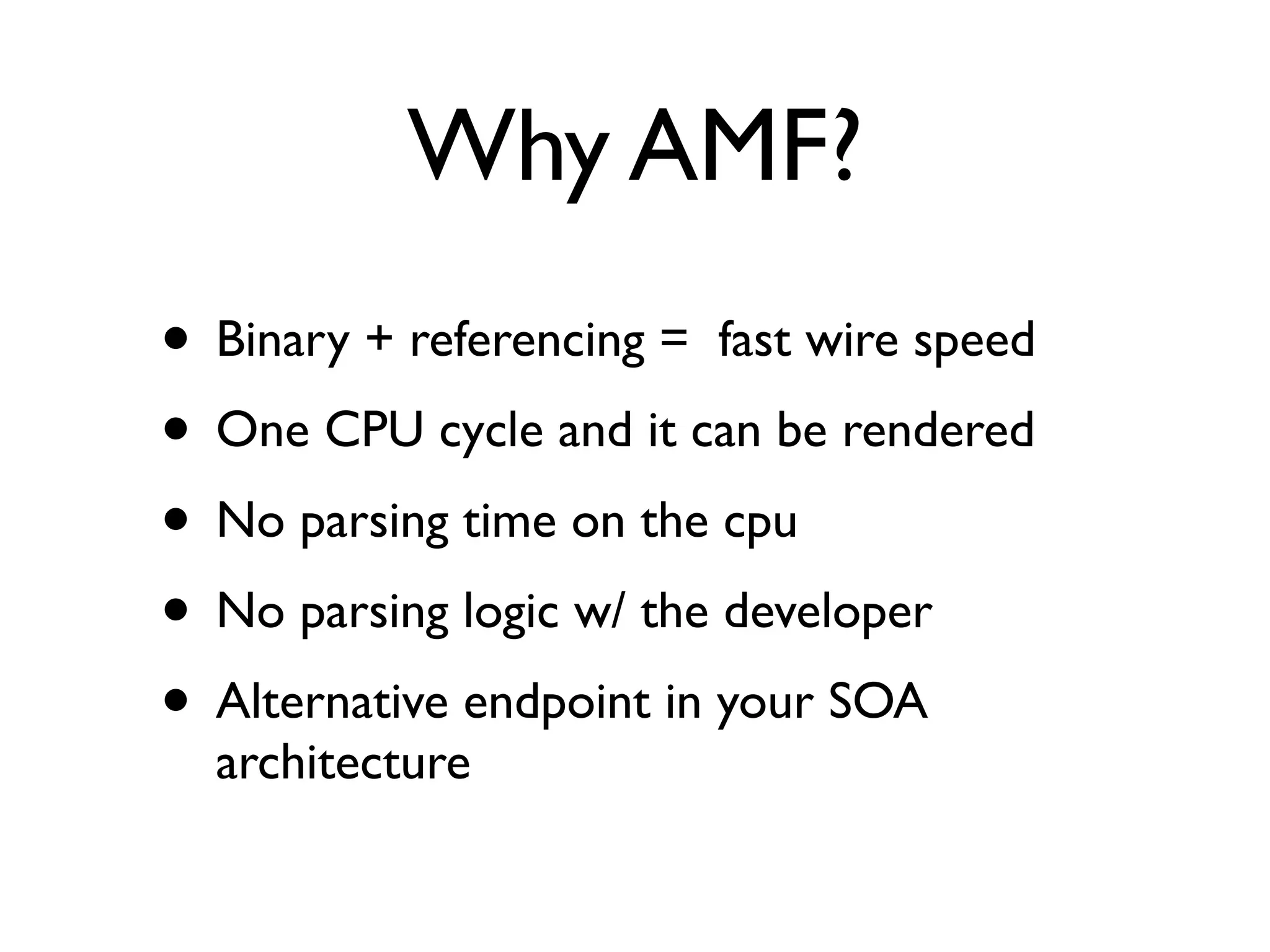

3. Why AMF?
• Binary + referencing = fast wire speed
• One CPU cycle and it can be rendered
• No parsing time on the cpu
• No parsing logic w/ the developer
• Alternative endpoint in your SOA
architecture

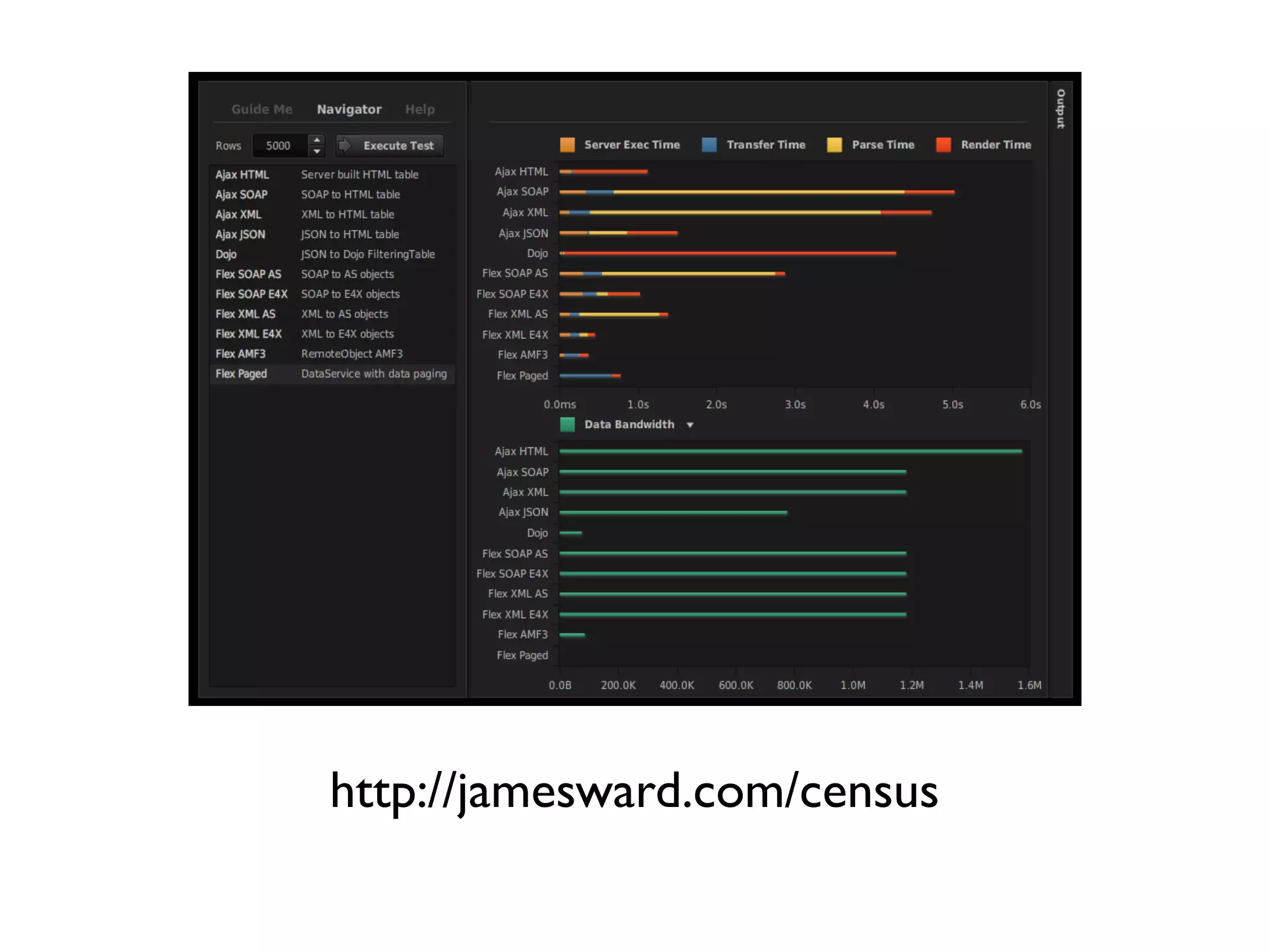

4. http://jamesward.com/census

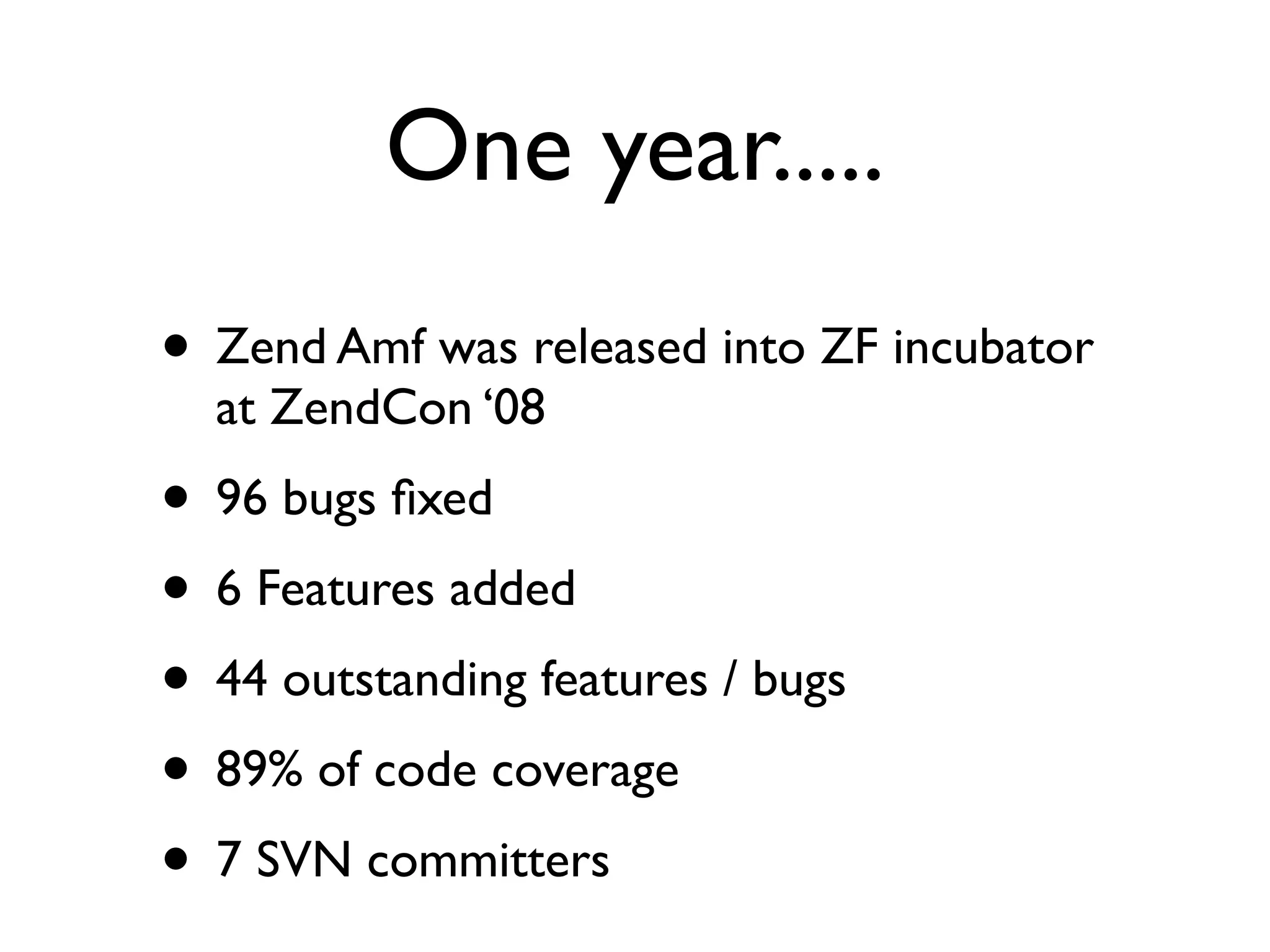

5. One year.....
• Zend Amf was released into ZF incubator
at ZendCon ‘08
• 96 bugs fixed
• 6 Features added
• 44 outstanding features / bugs
• 89% of code coverage
• 7 SVN committers

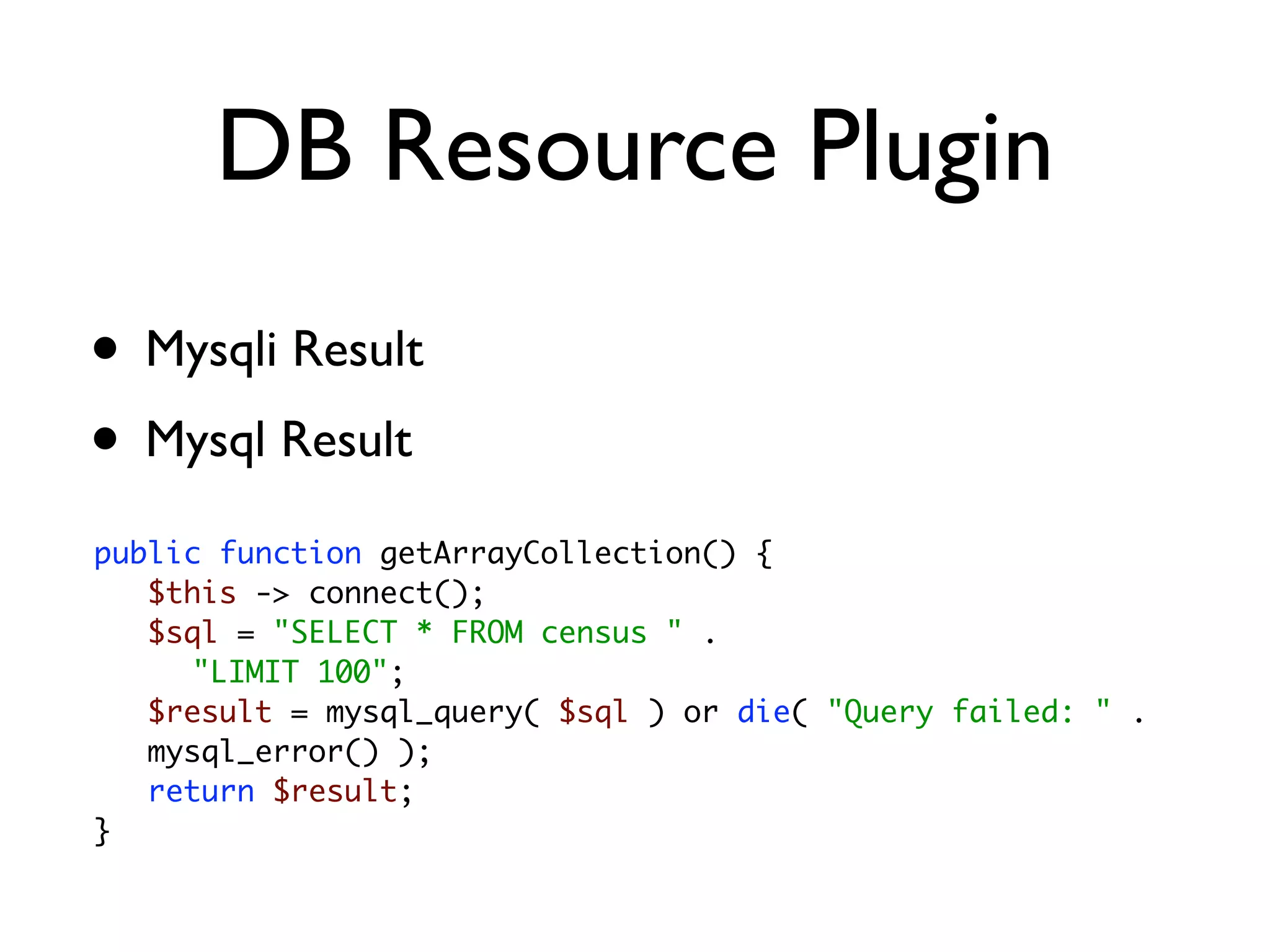

6. DB Resource Plugin
• Mysqli Result
• Mysql Result
public function getArrayCollection() {
$this -> connect();
$sql = "SELECT * FROM census " .
"LIMIT 100";
$result = mysql_query( $sql ) or die( "Query failed: " .
mysql_error() );
return $result;
}

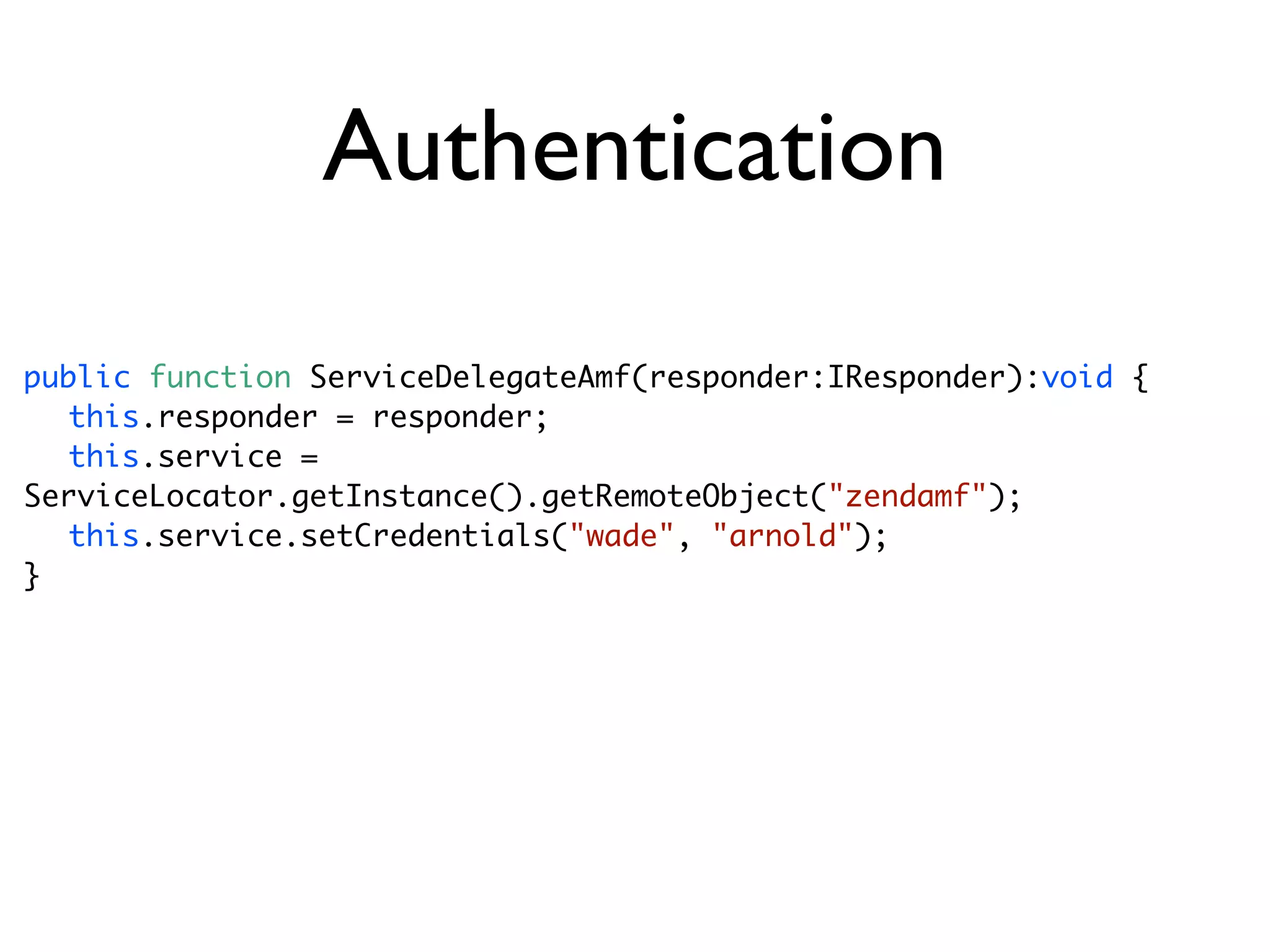

7. Authentication
public function ServiceDelegateAmf(responder:IResponder):void {
this.responder = responder;
this.service =
ServiceLocator.getInstance().getRemoteObject("zendamf");
this.service.setCredentials("wade", "arnold");
}

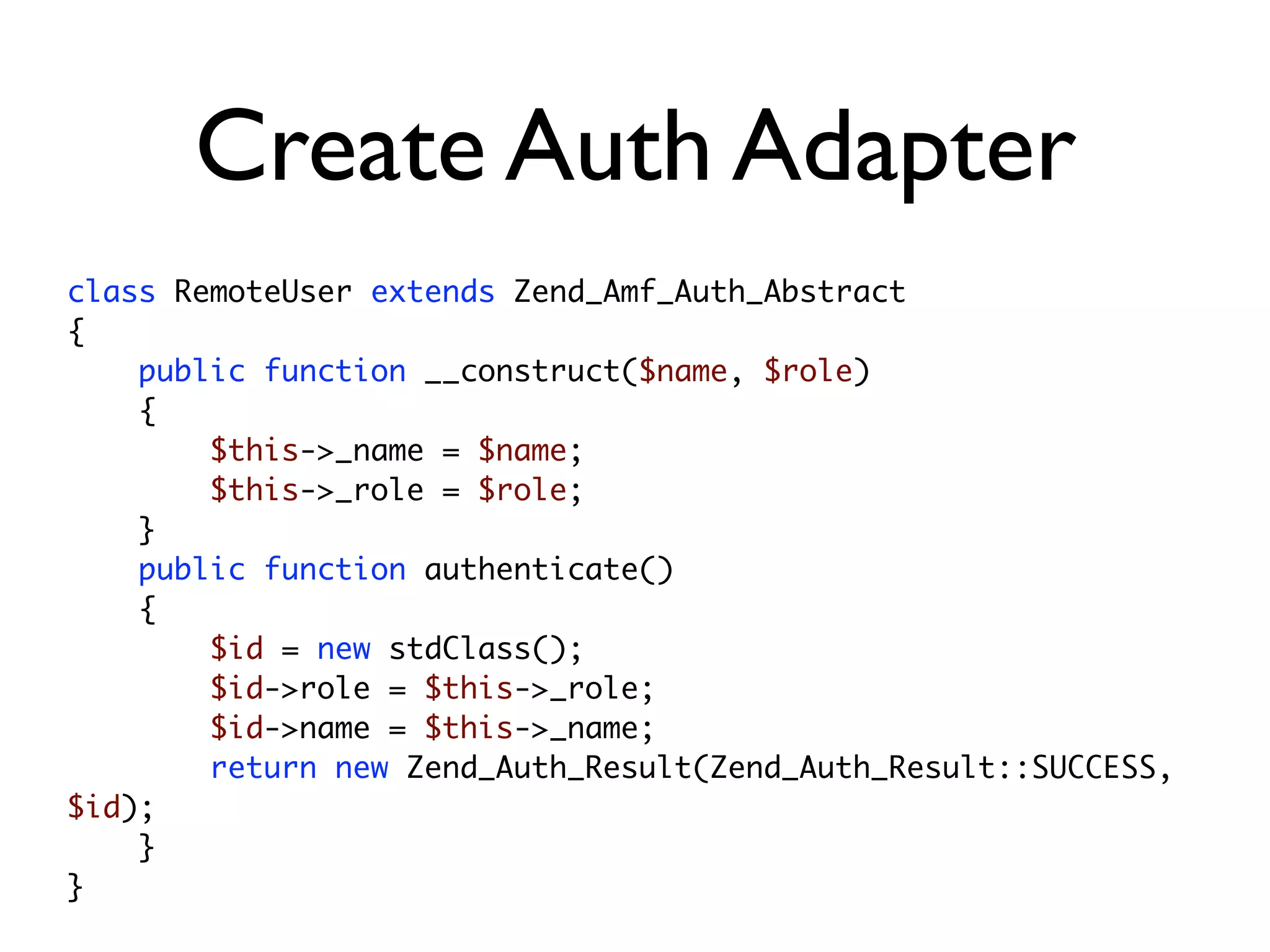

8. Create Auth Adapter
class RemoteUser extends Zend_Amf_Auth_Abstract
{
public function __construct($name, $role)
{
$this->_name = $name;
$this->_role = $role;
}
public function authenticate()
{
$id = new stdClass();
$id->role = $this->_role;
$id->name = $this->_name;
return new Zend_Auth_Result(Zend_Auth_Result::SUCCESS,
$id);
}
}

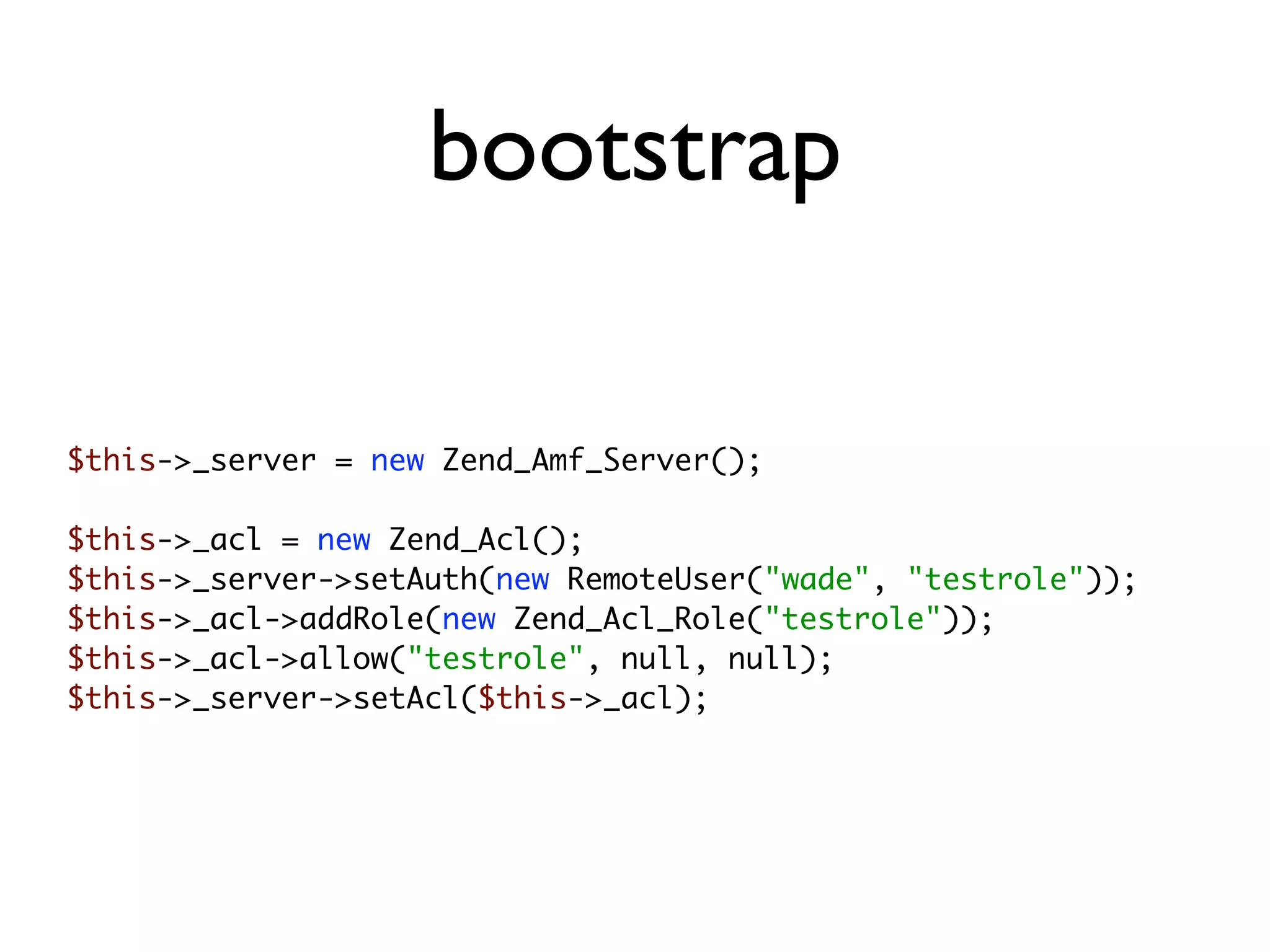

9. bootstrap
$this->_server = new Zend_Amf_Server();
$this->_acl = new Zend_Acl();
$this->_server->setAuth(new RemoteUser("wade", "testrole"));
$this->_acl->addRole(new Zend_Acl_Role("testrole"));
$this->_acl->allow("testrole", null, null);
$this->_server->setAcl($this->_acl);

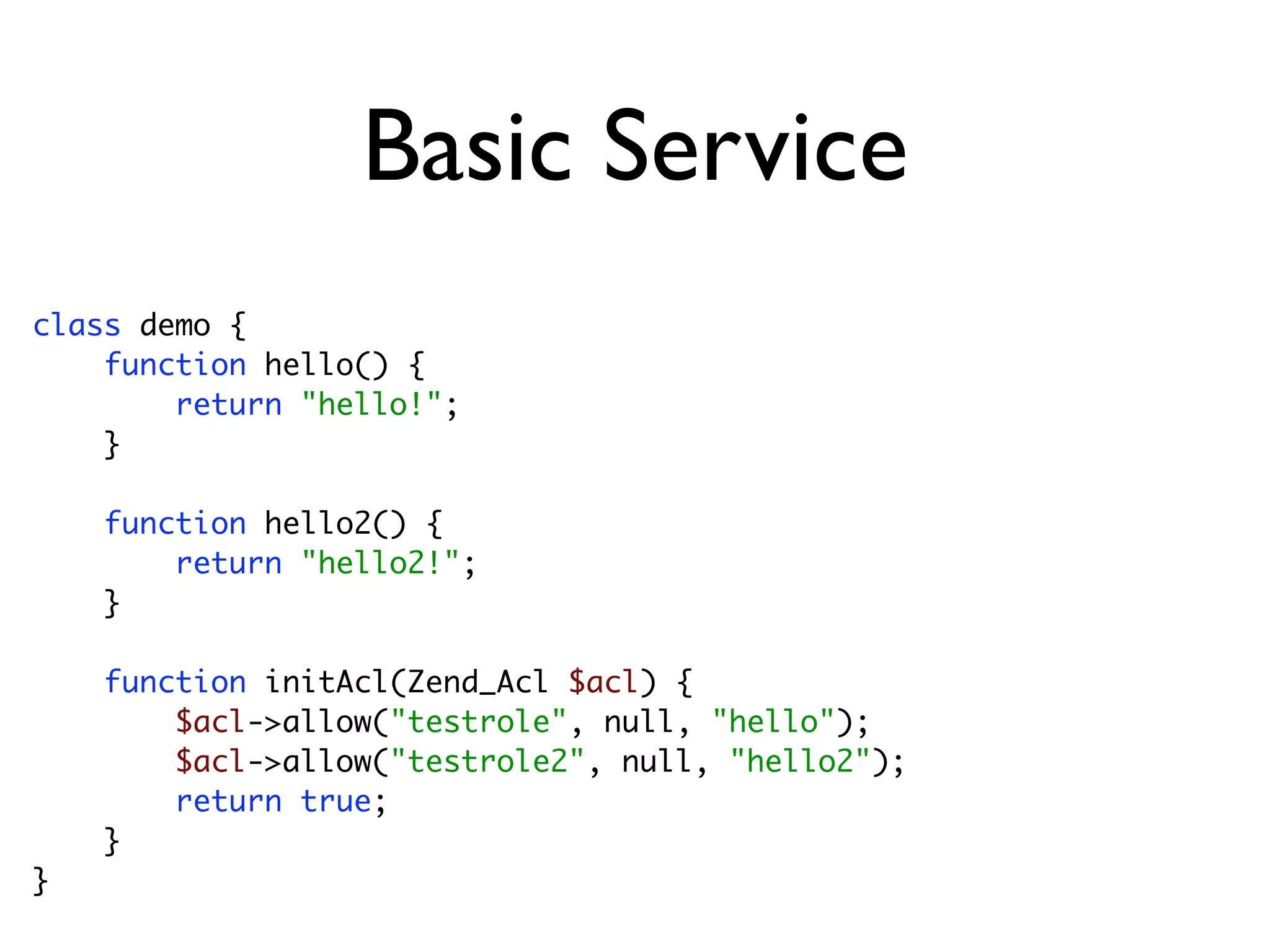

10. Basic Service
class demo {
function hello() {
return "hello!";
}
function hello2() {
return "hello2!";
}
function initAcl(Zend_Acl $acl) {
$acl->allow("testrole", null, "hello");
$acl->allow("testrole2", null, "hello2");
return true;
}
}

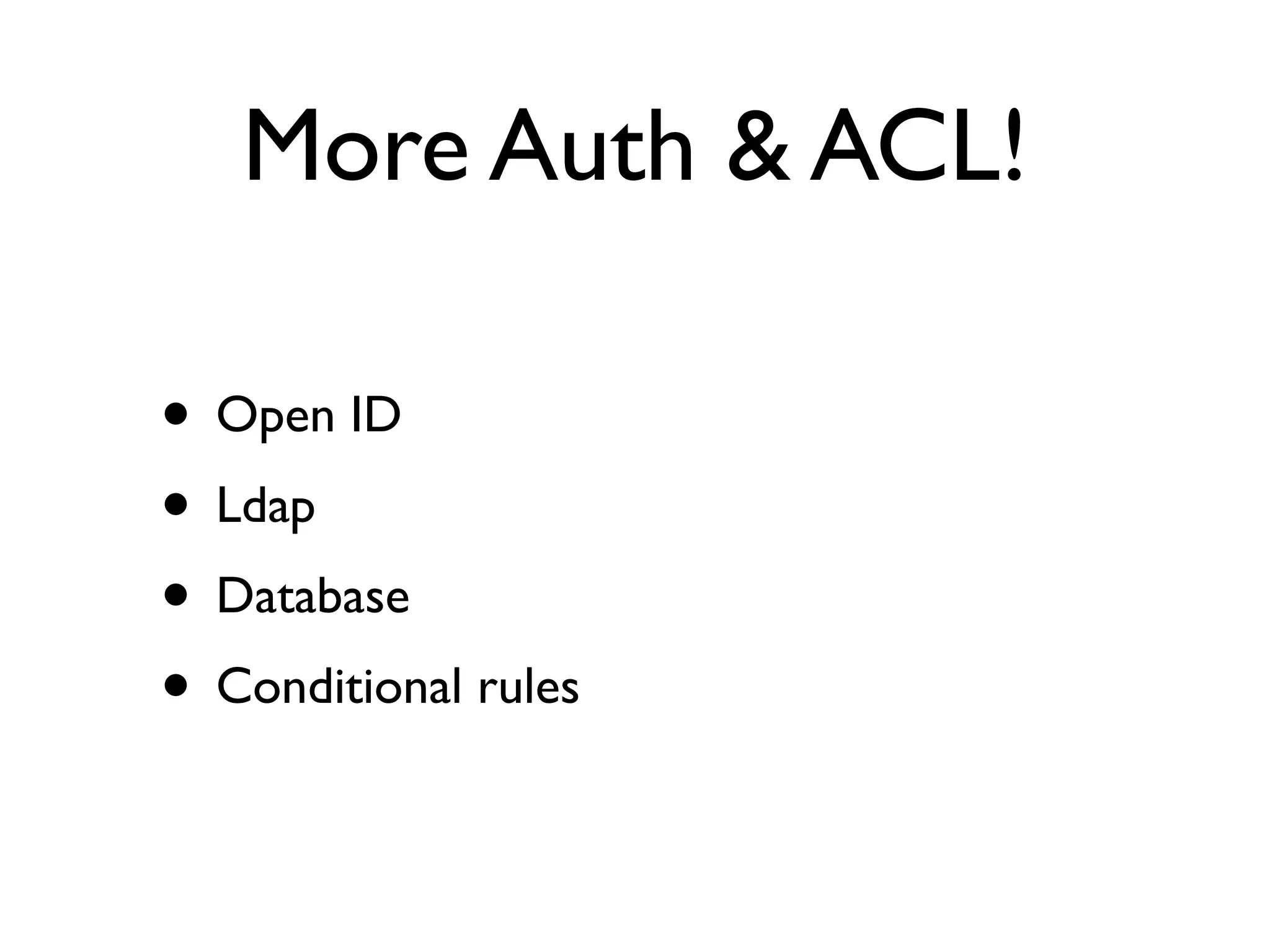

11. More Auth & ACL!
• Open ID
• Ldap
• Database
• Conditional rules

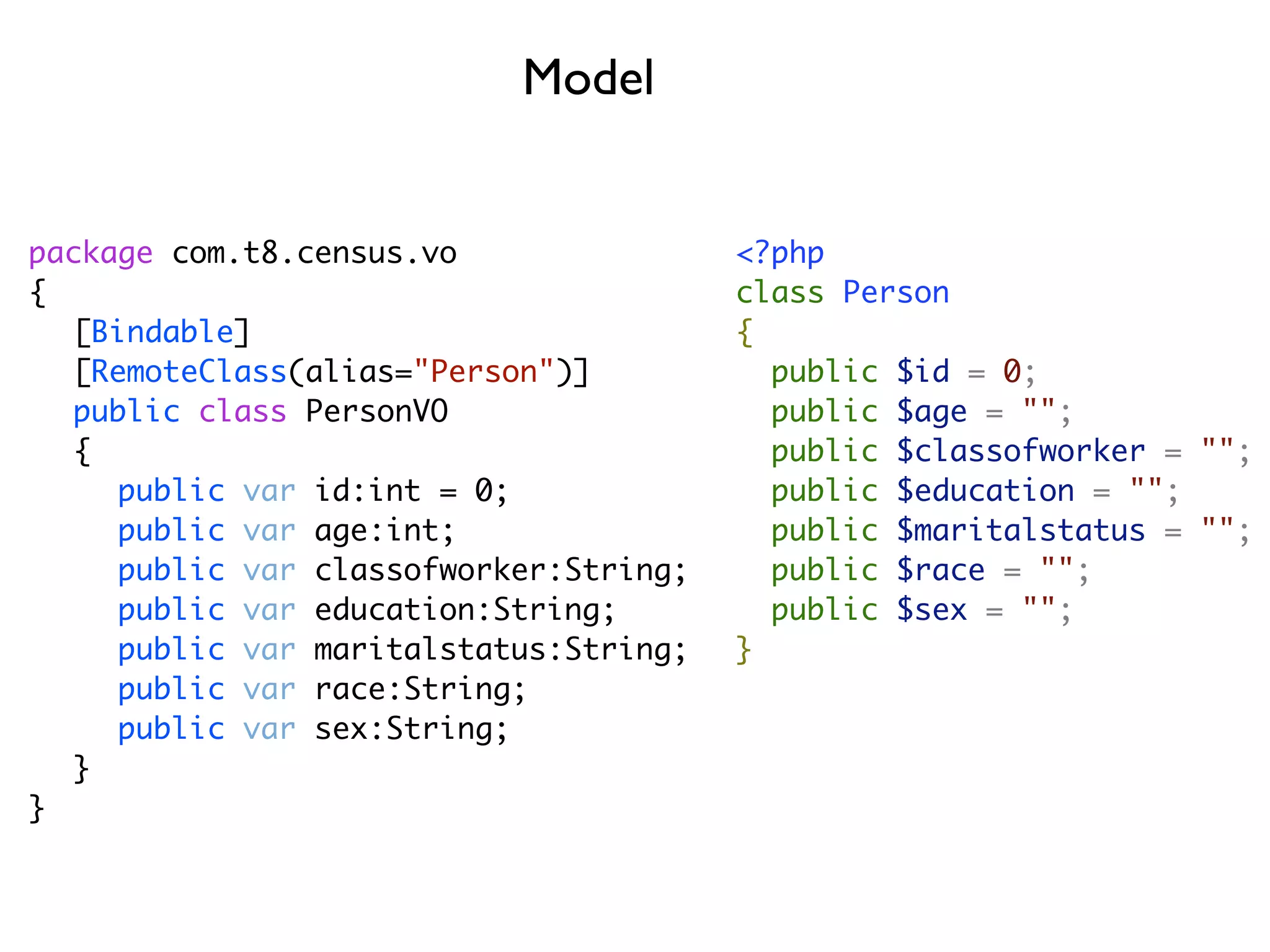

17. Model
package com.t8.census.vo <?php
{ class Person
[Bindable] {
[RemoteClass(alias="Person")] public $id = 0;
public class PersonVO public $age = "";
{ public $classofworker = "";
public var id:int = 0; public $education = "";
public var age:int; public $maritalstatus = "";
public var classofworker:String; public $race = "";
public var education:String; public $sex = "";
public var maritalstatus:String; }
public var race:String;
public var sex:String;
}
}

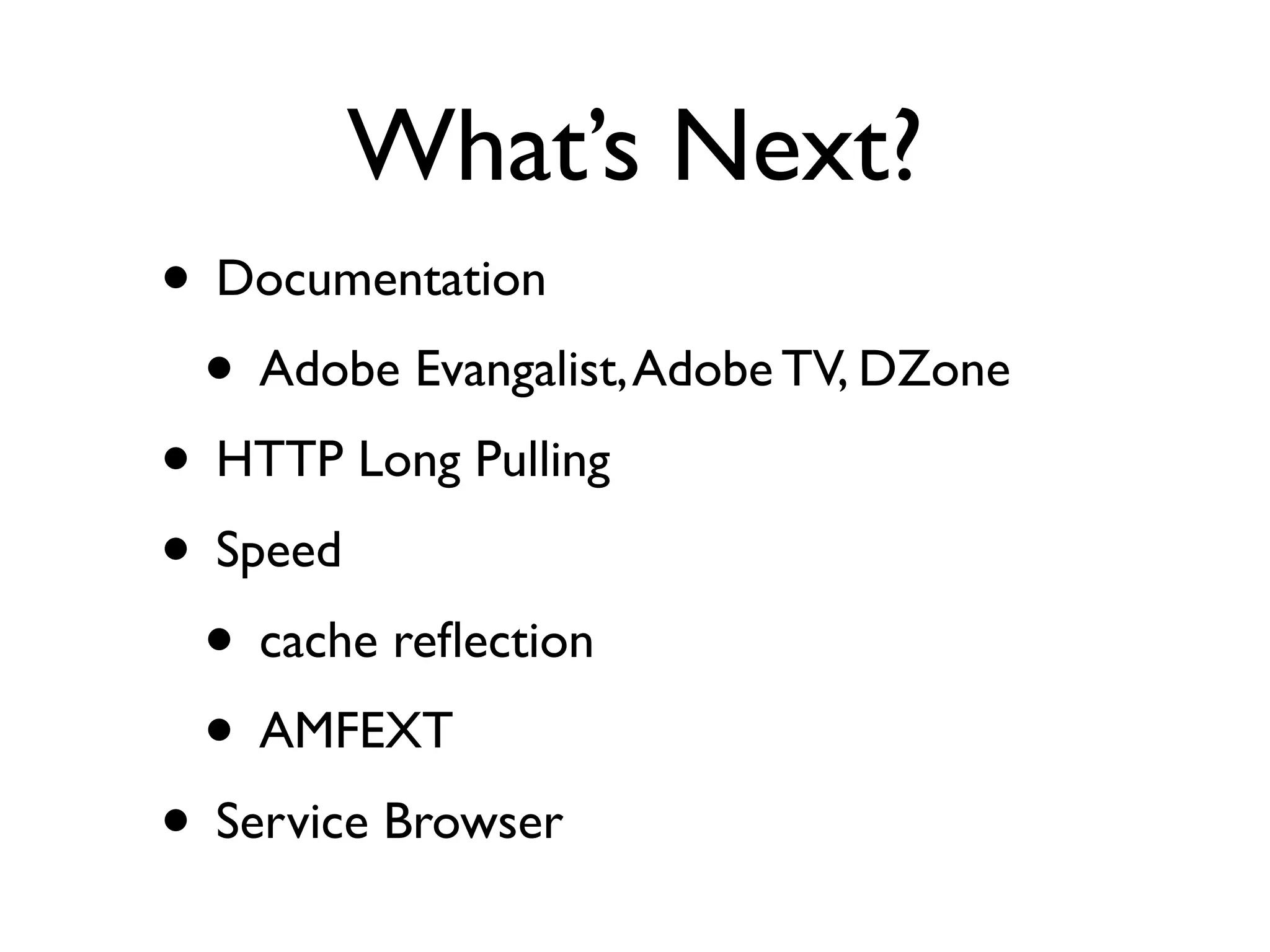

19. What’s Next?
• Documentation
• Adobe Evangalist, Adobe TV, DZone
• HTTP Long Pulling
• Speed
• cache reflection
• AMFEXT
• Service Browser

20. Help?
Issue tracker
Mailing list
Documentation
