This document summarizes the state of mobile forensics techniques. It discusses physical, logical, and manual acquisition methods as well as the types of data that can be extracted from mobile devices. It also covers challenges such as password protection, network connectivity during acquisition, and how both dead and live forensic techniques are used to gather evidence from mobile devices. Traditional forensic methods like log and file collection are described along with more modern techniques needed to investigate apps and address encryption. The conclusion emphasizes that mobile forensics is an evolving field where both dead and live approaches have value but new security features require continued innovation in methods.

1. STATE-OF-ART OF MOBILE FORENSICS
YURY CHEMERKIN
SOUTH EAST EUROPEAN REGIONAL FORUM ON CYBERSECURITY AND CYBERCRIME 2012

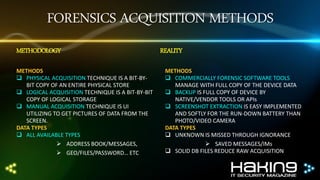

2. FORENSICS ACQUISITION METHODS
METHODOLOGY
METHODS
 PHYSICAL ACQUISITION TECHNIQUE IS A BIT-BYBIT COPY OF AN ENTIRE PHYSICAL STORE
 LOGICAL ACQUISITION TECHNIQUE IS A BIT-BY-BIT
COPY OF LOGICAL STORAGE
 MANUAL ACQUISITION TECHNIQUE IS UI
UTILIZING TO GET PICTURES OF DATA FROM THE
SCREEN.
DATA TYPES
 ALL AVAILABLE TYPES
 ADDRESS BOOK/MESSAGES,
 GEO/FILES/PASSWORD… ETC
REALITY
METHODS
 COMMERCIALLY FORENSIC SOFTWARE TOOLS
MANAGE WITH FULL COPY OF THE DEVICE DATA
 BACKUP IS FULL COPY OF DEVICE BY
NATIVE/VENDOR TOOLS OR APIs
 SCREENSHOT EXTRACTION IS EASY IMPLEMENTED
AND SOFTLY FOR THE RUN-DOWN BATTERY THAN
PHOTO/VIDEO CAMERA
DATA TYPES
 UNKNOWN IS MISSED THROUGH IGNORANCE
 SAVED MESSAGES/IMs
 SOLID DB FILES REDUCE RAW ACQUISITION

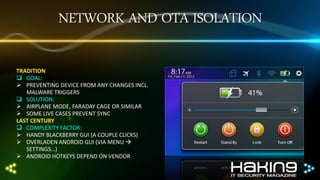

3. NETWORK AND OTA ISOLATION
TRADITION
 GOAL:
 PREVENTING DEVICE FROM ANY CHANGES INCL.
MALWARE TRIGGERS
 SOLUTION:
 AIRPLANE MODE, FARADAY CAGE OR SIMILAR
 SOME LIVE CASES PREVENT SYNC
LAST CENTURY
 COMPLEXITY FACTOR:
 HANDY BLACKBERRY GUI (A COUPLE CLICKS)
 OVERLADEN ANDROID GUI (VIA MENU 
SETTINGS…)
 ANDROID HOTKEYS DEPEND ON VENDOR

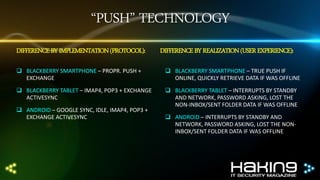

4. “PUSH” TECHNOLOGY
DIFFERENCE BY IMPLEMENTATION (PROTOCOL):
DIFFERENCE BY REALIZATION (USER EXPERIENCE):
 BLACKBERRY SMARTPHONE – PROPR. PUSH +
EXCHANGE
 BLACKBERRY SMARTPHONE – TRUE PUSH IF
ONLINE, QUICKLY RETRIEVE DATA IF WAS OFFLINE
 BLACKBERRY TABLET – IMAP4, POP3 + EXCHANGE
ACTIVESYNC
 BLACKBERRY TABLET – INTERRUPTS BY STANDBY
AND NETWORK, PASSWORD ASKING, LOST THE
NON-INBOX/SENT FOLDER DATA IF WAS OFFLINE
 ANDROID – GOOGLE SYNC, IDLE, IMAP4, POP3 +
EXCHANGE ACTIVESYNC
 ANDROID – INTERRUPTS BY STANDBY AND
NETWORK, PASSWORD ASKING, LOST THE NONINBOX/SENT FOLDER DATA IF WAS OFFLINE

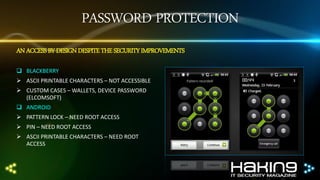

5. PASSWORD PROTECTION
AN ACCESS BY DESIGN DESPITE THE SECURITY IMPROVEMENTS
 BLACKBERRY
 ASCII PRINTABLE CHARACTERS – NOT ACCESSIBLE
 CUSTOM CASES – WALLETS, DEVICE PASSWORD
(ELCOMSOFT)
 ANDROID
 PATTERN LOCK – NEED ROOT ACCESS
 PIN – NEED ROOT ACCESS
 ASCII PRINTABLE CHARACTERS – NEED ROOT
ACCESS

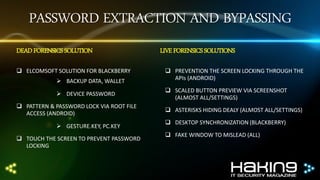

6. PASSWORD EXTRACTION AND BYPASSING
DEAD FORENSICS SOLUTION
 ELCOMSOFT SOLUTION FOR BLACKBERRY
 BACKUP DATA, WALLET
 DEVICE PASSWORD
 PATTERN & PASSWORD LOCK VIA ROOT FILE
ACCESS (ANDROID)
 GESTURE.KEY, PC.KEY
 TOUCH THE SCREEN TO PREVENT PASSWORD
LOCKING
LIVE FORENSICS SOLUTIONS
 PREVENTION THE SCREEN LOCKING THROUGH THE
APIs (ANDROID)
 SCALED BUTTON PREVIEW VIA SCREENSHOT
(ALMOST ALL/SETTINGS)
 ASTERISKS HIDING DEALY (ALMOST ALL/SETTINGS)
 DESKTOP SYNCHRONIZATION (BLACKBERRY)
 FAKE WINDOW TO MISLEAD (ALL)

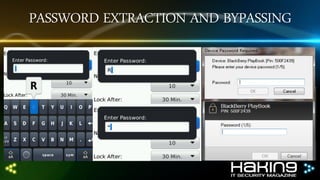

7. PASSWORD EXTRACTION AND BYPASSING

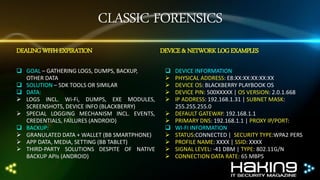

8. CLASSIC FORENSICS
DEALING WITH EXPIRATION
 GOAL – GATHERING LOGS, DUMPS, BACKUP,
OTHER DATA
 SOLUTION – SDK TOOLS OR SIMILAR
 DATA:
 LOGS INCL. Wi-Fi, DUMPS, EXE MODULES,
SCREENSHOTS, DEVICE INFO (BLACKBERRY)
 SPECIAL LOGGING MECHANISM INCL. EVENTS,
CREDENTIALS, FAILURES (ANDROID)
 BACKUP:
 GRANULATED DATA + WALLET (BB SMARTPHONE)
 APP DATA, MEDIA, SETTING (BB TABLET)
 THIRD-PARTY SOLUTIONS DESPITE OF NATIVE
BACKUP APIs (ANDROID)
DEVICE & NETWORK LOG EXAMPLES












DEVICE INFORMATION
PHYSICAL ADDRESS: E8:XX:XX:XX:XX:XX
DEVICE OS: BLACKBERRY PLAYBOOK OS
DEVICE PIN: 500XXXXX | OS VERSION: 2.0.1.668
IP ADDRESS: 192.168.1.31 | SUBNET MASK:
255.255.255.0
DEFAULT GATEWAY: 192.168.1.1
PRIMARY DNS: 192.168.1.1 | PROXY IP/PORT:
WI-FI INFORMATION
STATUS:CONNECTED | SECURITY TYPE:WPA2 PERS
PROFILE NAME: XXXX | SSID: XXXX
SIGNAL LEVEL: -41 DBM | TYPE: 802.11G/N
CONNECTION DATA RATE: 65 MBPS

9. CLASSIC FORENSICS
ANY DELAY LEAVE US FAR BEHIND
 EXIF DATA
 CAMERA MAKE
 RIM/BLACKBERRY/ANDROID
/HTC
 CAMERA MODEL
 DEVICE MODEL
 OTHER EXIF DATA
 EXPOSURE,
 DIAPHRAGM OPENING,
 FLASH, EXIF VERSION
 GEO DATA
 MEDIA FILE NAMES
 IMG20120103-XXXX
 GEO TAG AS CITY LIKE “MOSKVA”
 VOICE NOTES
 VN-20120319-XXXX.AMR / M4A
WHERE “20120319” IS DATE WITH
YYYY-MM-DD FORMATTING
 VID-YYYYMMDD-XXXXXX.3GP /
MP4

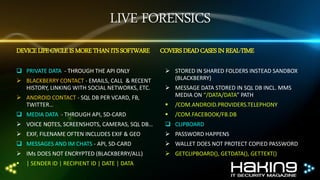

10. LIVE FORENSICS
DEVICE LIFE CYCLE IS MORE THAN ITS SOFTWARE
 PRIVATE DATA - THROUGH THE API ONLY
 BLACKBERRY CONTACT - EMAILS, CALL & RECENT
HISTORY, LINKING WITH SOCIAL NETWORKS, ETC.
 ANDROID CONTACT - SQL DB PER VCARD, FB,
TWITTER…
COVERS DEAD CASES IN REAL-TIME
 STORED IN SHARED FOLDERS INSTEAD SANDBOX
(BLACKBERRY)
 MESSAGE DATA STORED IN SQL DB INCL. MMS
MEDIA ON “/DATA/DATA” PATH

/COM.ANDROID.PROVIDERS.TELEPHONY
 MEDIA DATA - THROUGH API, SD-CARD

/COM.FACEBOOK/FB.DB
 VOICE NOTES, SCREENSHOTS, CAMERAS, SQL DB…
 CLIPBOARD
 EXIF, FILENAME OFTEN INCLUDES EXIF & GEO
 PASSWORD HAPPENS
 MESSAGES AND IM CHATS - API, SD-CARD
 WALLET DOES NOT PROTECT COPIED PASSWORD
 IMs DOES NOT ENCRYPTED (BLACKBERRY/ALL)
 GETCLIPBOARD(), GETDATA(), GETTEXT()

| SENDER ID | RECIPIENT ID | DATE | DATA

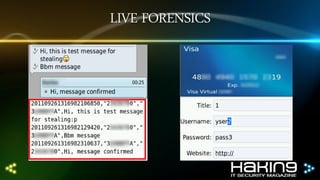

11. LIVE FORENSICS

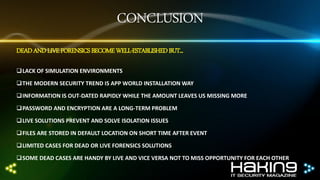

12. CONCLUSION
DEAD AND LIVE FORENSICS BECOME WELL-ESTABLISHED BUT...
LACK OF SIMULATION ENVIRONMENTS
THE MODERN SECURITY TREND IS APP WORLD INSTALLATION WAY
INFORMATION IS OUT-DATED RAPIDLY WHILE THE AMOUNT LEAVES US MISSING MORE
PASSWORD AND ENCRYPTION ARE A LONG-TERM PROBLEM
LIVE SOLUTIONS PREVENT AND SOLVE ISOLATION ISSUES
FILES ARE STORED IN DEFAULT LOCATION ON SHORT TIME AFTER EVENT
LIMITED CASES FOR DEAD OR LIVE FORENSICS SOLUTIONS
SOME DEAD CASES ARE HANDY BY LIVE AND VICE VERSA NOT TO MISS OPPORTUNITY FOR EACH OTHER

13. THANK YOU
YURY CHEMERKIN
HAKIN9 MAGAZINE REPRESENTATIVE
