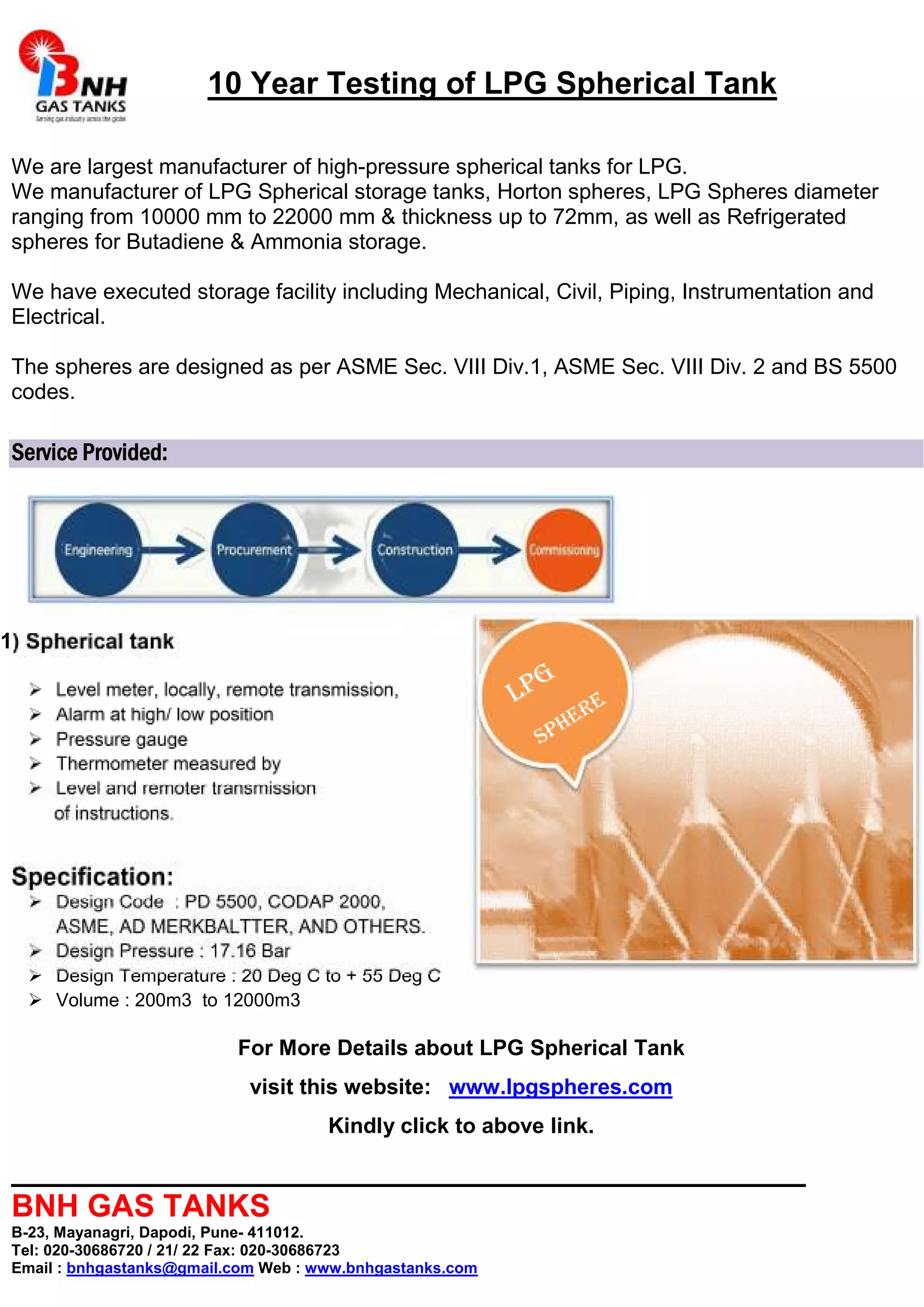

1. 10 Year Testing of LPG Spherical Tank
We are largest manufacturer of high-pressure spherical tanks for LPG.
We manufacturer of LPG Spherical storage tanks, Horton spheres, LPG Spheres diameter
ranging from 10000 mm to 22000 mm & thickness up to 72mm, as well as Refrigerated
spheres for Butadiene & Ammonia storage.
We have executed storage facility including Mechanical, Civil, Piping, Instrumentation and
Electrical.
The spheres are designed as per ASME Sec. VIII Div.1, ASME Sec. VIII Div. 2 and BS 5500
codes.
SSSSeeeerrrrvvvviiiicccceeee PPPPrrrroooovvvviiiiddddeeeedddd::::
1) Spherical tank
Level meter, locally, remote transmission,
Alarm at high/ low position
Pressure gauge
Thermometer measured by
Level and remoter transmission
of instructions.
Specification:
Design Code : PD 5500, CODAP 2000,
ASME, AD MERKBALTTER, AND OTHERS.
Design Pressure : 17.16 Bar
Design Temperature : 20 Deg C to + 55 Deg C
Volume : 200m3 to 12000m3
For More Details about LPG Spherical Tank
visit this website: www.lpgspheres.com
Kindly click to above link.
______________________________________________
BNH GAS TANKS
B-23, Mayanagri, Dapodi, Pune- 411012.
Tel: 020-30686720 / 21/ 22 Fax: 020-30686723
Email : bnhgastanks@gmail.com Web : www.bnhgastanks.com
