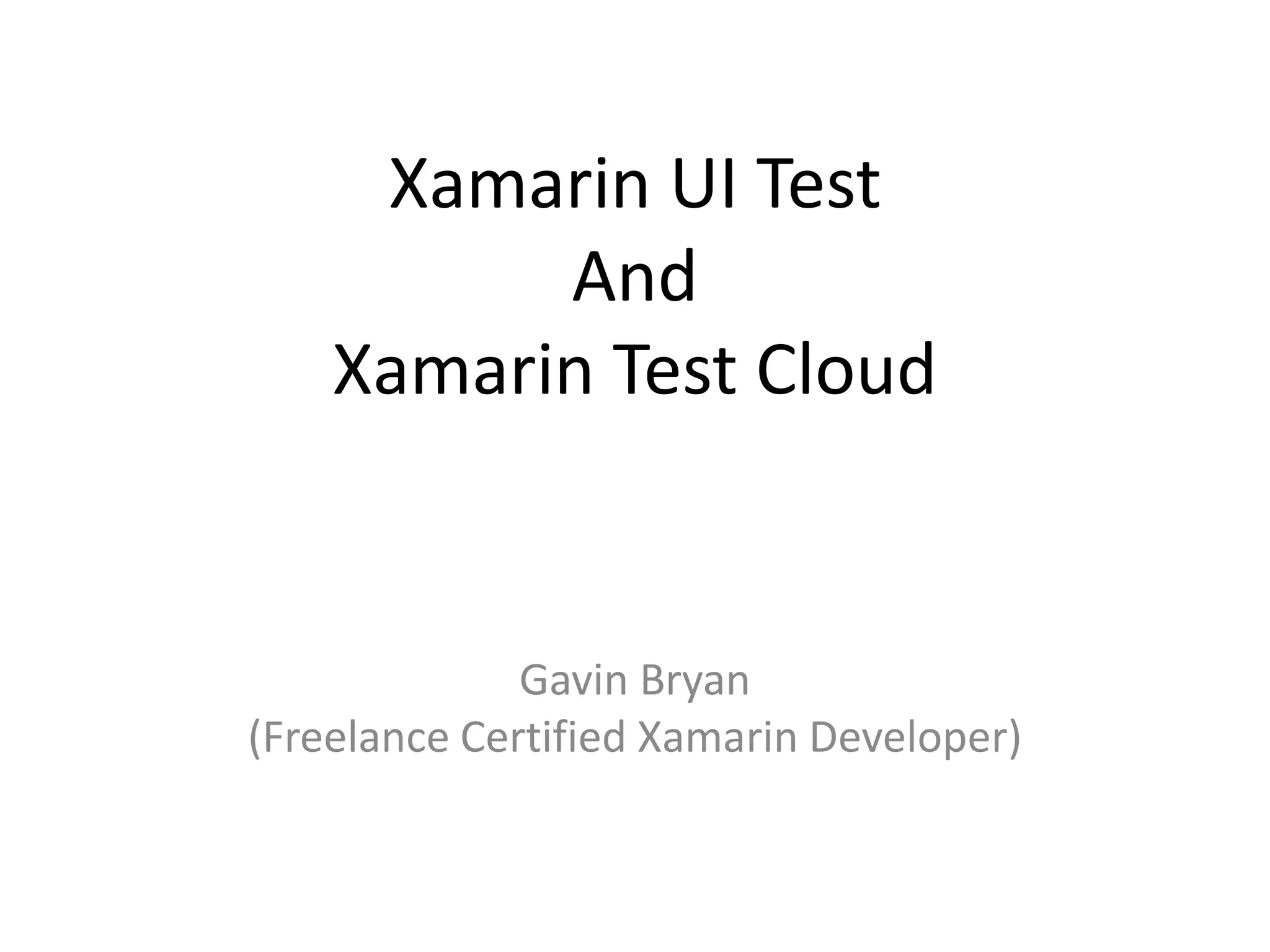

1. Xamarin UI Test
And
Xamarin Test Cloud
Gavin Bryan
(Freelance Certified Xamarin Developer)

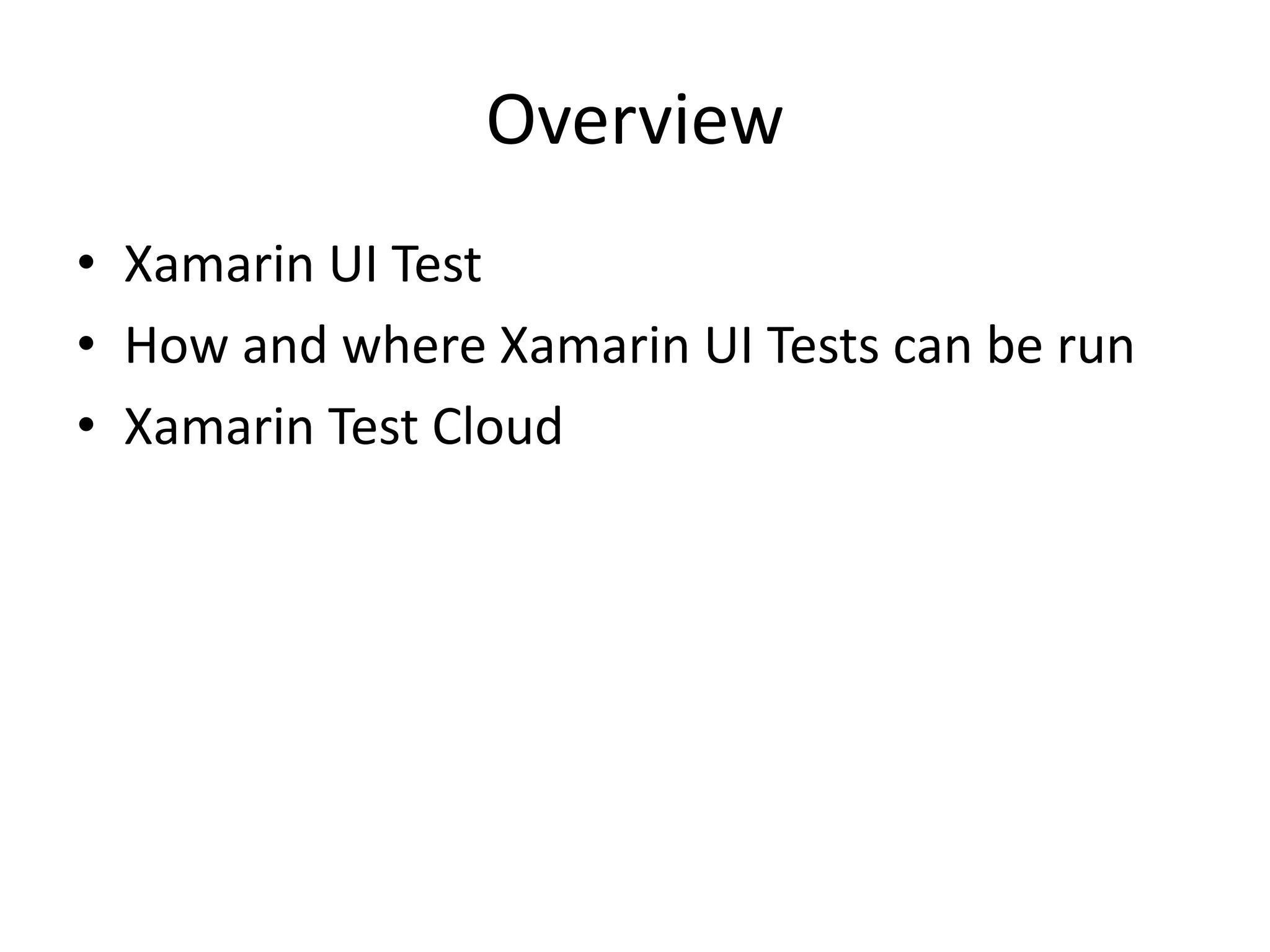

2. Overview
• Xamarin UI Test
• How and where Xamarin UI Tests can be run
• Xamarin Test Cloud

3. What is Xamarin UI Test?
• Automation Test Library
• Automate mobile device and application
• Automated UI Acceptance Tests written in
nunit (2.6.x) to be run against iOS and Android
• Can be used on Xamarin Apps, iOS (objective-c
/ Swift Apps) and Native Android Apps
• XTC does not support WP or Xamarin Forms
WP

4. Creating a Xamarin.UITest Project
Xamarin Studio has 3 Project Templates
1. MultiPlatform

5. Creating a Xamarin.UITest Project
2. IOS Template

6. Creating a Xamarin.UITest Project
3. Android Template

7. Most Simple Test
• [Test]
• public void MyFirstUITest()
• {
• var app = ConfigureApp
• .Android
• .ApkFile("MyApkFile.apk")
• .StartApp();
•
• app.EnterText("NameField", ”John Smith");
• app.Tap("SubmitButton");
• }

8. UITest Anatomy
• Uses a client / server communication using
http and json.
• Http server runs on the device
• Communicates with UI Test Client Agent

10. Android
• Xamarin Test Cloud Agent Server runs in it’s
own separate process
• Process is signed with the same keystore as
your application so it can drive it with the
Android Automation APIs

11. iOS
• Due to iOS restrictions on iOS the Xamarin
Test Cloud Agent has to be shipped with your
app in the bundle
• This allows it to access the iOS automation
APIs
• Xamarin Test Cloud Agent nuget needs to be
installed

12. Quick Example
app.Tap (c => c.Marked (”New"));
app.EnterText(c => c.Class("UITextField")
.Index(0), ”John Smith");
app.Tap (c => c.Marked ("Save"));

13. nUnit
• Test Fixture
• 3 A’s (Arrange / Act / Assert)
• Categories
• Demo – Create Android / IOS Project

14. UI Test Workflow
• Write automation tests while developing
feature
• Write tests, run locally to validate functionality
• Create Test run to run in CI / XTC etc.

15. UI Test Infrastructure
• Tests rely heavily on queries to locate UI
elements
• Different techniques to share test logic
between platforms
• Your tests can be cross-platform if you write
them in similar manner to cross-platform
apps.

16. Setting UI Elements
• Need a way for UI Test to identify UI Elements
• UI Test use different UI element ID on Android
and iOS
• Can you just text to identify element, but not
a good practice.

17. Android IDs
• Generally your normal android:id tag is best
identifier.
• e.g. android:id="@+id/submitButton"
• This is then used by UI Test
• app.Tap (x => x.Id ("submitButton"))

18. iOS Element IDs
• UI Element Accessibility Identifier
• UI Element Accessibility Label
• Can set in XCode Identity Inspector or in Code

19. Identifying UI Elements
• REPL (read, eval, print, loop)
• Android - Dump View Hierarchy for UI
Automator
• DEMO 1

20. UI Test Basics
• IApp – different implementations on Android
and iOS
• Use ConfigApp fluent builder to create
implementation on each platform
• Lots of methods and properties

21. Xamarin Test Recorder
• A tool for recording automated user interface
tests.
• Can be used on Android and iOS
• Android runs as standalone app
• iOS embeds a plugin into your app bundle to
run (make this is removed on app submission)
• Demo 2

22. Where Can You Run Your Tests
• Locally (devices or emulators / simulators)
• CI environments (TeamCity, VSTS, VSMC,
Jenkins, Bitrise etc.)
• Xamarin Test Cloud (XTC)

23. Command Line
• Run locally :-
nunit-console.exe in nuget package Nunit.Runners (2.6.4)
• Send to Test Cloud :-
• test-cloud.exe

24. Find Device Ids
• Android :- adb devices
• iOS - xcrun instruments -s devices (ios get local
devices) or Xcode
• Demo 3

25. Xamarin Test Cloud
• Test your app on hundreds of actual devices in
the Cloud (2000)
• Select Subset of devices to test on
• Very detailed analysis of your app
• Upload APK, IPA with UI Test Project
• iOS IPA are re-signed by Xamarin using their
own provisioning profiles

26. XTC
• Xamarin resigns your iOS app with their
provisioning profile so they can run on their
devices.

27. Some XTC Analysis
• Screenshots
• Memory Usage Profiling
• CPU Usage
• Test logs
• Device logs
• Demo 4

28. Thank You
• Any Questions ?
