The network report summarizes the testing of a WWTP network where a bad connection was found on the green wire at node 41. After fixing the problem, extensive tests were run and found no other issues. The report details the network properties, address list, signal measurements of devices on the network graphically and through oscilloscope images, and finds no deviations in the network.

1. ProfiTrace detailed network
report
1 General
Powered by:
Network name: WWTP
Project details summary: Customer was having intermittent communication errors. Using
Profitrace I found a bad connection on the green wire at node
41. After fixing the problem I then ran extensive tests to make
sure there were no other issues and then prepared this report.
(The text above is not defined by the end-customer)
Baker's Bay WWTPLocation:
2 Used tools
ProfiCore serial number:
ProfiTrace version:
1137409179
V2.9.4
3 Network properties
Transmission speed:
Number of Masters:
Number of slaves:
Cycle time:
1.5 Mbps
2
8
Min: 2.56 ms, Avg: 3.23 ms, Max: 3.91 ms
4 Conclusion
No deviations found
Deviations found
5 Remarks summary
None
(The text above is not defined by the end-customer)
Page 1 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

2. ProfiTrace detailed network
report
6 Tested subjects:
6.1 Slaves that have been lost at least one time: None
6.2 Slaves that generated diagnostics while in data exchange: None
6.3 Devices that have caused illegal responses: None
6.4 Device found on reserved address 126: None
6.5 Slaves that caused retries: None
Some types of ABB DCS systems continuously send Sync messages. This does
not influence the bus communication. These Syncs can be ignored.
6.6 Slaves that caused syncs: None
6.7 Parameters have been sent to the following slaves: None
Page 2 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

3. ProfiTrace detailed network
report
7 Live list
No activity
Legend:
Device is lost
Device is in data exchange
Device has a parameter error
Device has a configuration error
1
2
3
No activity
Master station
Slave station
0 1 2 3 4 5 6 7 8 9
0
10
20
30
40
50
60
70
80
90
100
110
120
0 1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69
70 71 72 73 74 75 76 77 78 79
80 81 82 83 84 85 86 87 88 89
90 91 92 93 94 95 96 97 98 99
100 101 102 103 104 105 106 107 108 109
110 111 112 113 114 115 116 117 118 119
120 121 122 123 124 125 126
Page 3 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

4. ProfiTrace detailed network
report
Address IdentNo Model name GSD name
8 Address list
Manufacturer
2 - Master --
4 - Master --
13 - Slave --
14 - Slave --
30 - Slave --
31 - Slave --
40 - Slave --
41 - Slave --
44 - Slave --
45 - Slave --
Page 4 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

5. ProfiTrace detailed network
report
9 Bar graph
9.1 Segment (Segment 1)
Segment type: <not set>
9.1.1 Measurement point (Measuring point 1)
0.0V
1.0V
2.0V
3.0V
4.0V
5.0V
6.0V
7.0V
8.0V
9.0V
2
8.11
4
8.12
13
6.44
14
6.53
30
6.48
31
6.12
40
8.25
41
8.20
44
8.06
45
8.02
Segment / Measuring point: Segment 1 / Measuring point 1 (1/1):
AB Diff voltage
0.0V
1.0V
2.0V
3.0V
4.0V
5.0V
6.0V
7.0V
8.0V
9.0V
2
5.09
4
5.14
13
4.77
14
4.77
30
5.37
31
5.69
40
6.93
41
5.41
44
7.71
45
7.75
Segment / Measuring point: Segment 1 / Measuring point 1 (1/1):
AB Diff stable voltage
Page 5 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

6. ProfiTrace detailed network
report

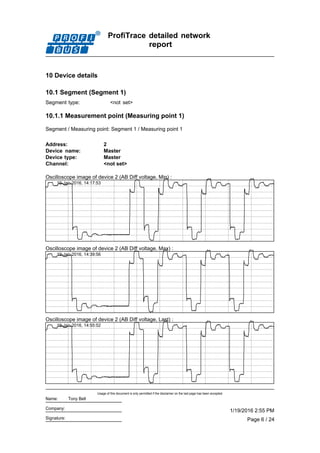

10 Device details
10.1 Segment (Segment 1)
Segment type: <not set>
10.1.1 Measurement point (Measuring point 1)
Segment / Measuring point: Segment 1 / Measuring point 1
Address: 2
Device type: Master
Channel: <not set>
Device name: Master
Oscilloscope image of device 2 (AB Diff voltage, Min) :
19-Jan-2016, 14:17:53
Oscilloscope image of device 2 (AB Diff voltage, Max) :
19-Jan-2016, 14:39:56
Oscilloscope image of device 2 (AB Diff voltage, Last) :
19-Jan-2016, 14:55:52
Page 6 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

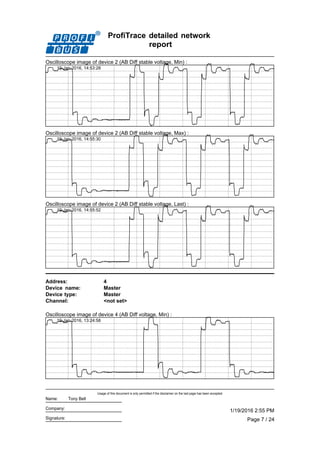

7. ProfiTrace detailed network
report
Oscilloscope image of device 2 (AB Diff stable voltage, Min) :
19-Jan-2016, 14:53:28
Oscilloscope image of device 2 (AB Diff stable voltage, Max) :
19-Jan-2016, 14:55:30
Oscilloscope image of device 2 (AB Diff stable voltage, Last) :
19-Jan-2016, 14:55:52
Address: 4
Device type: Master
Channel: <not set>
Device name: Master
Oscilloscope image of device 4 (AB Diff voltage, Min) :
19-Jan-2016, 13:24:58
Page 7 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

8. ProfiTrace detailed network
report

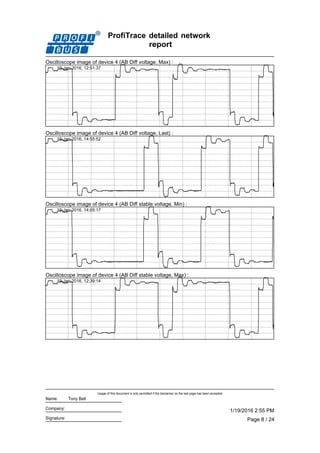

Oscilloscope image of device 4 (AB Diff voltage, Max) :
19-Jan-2016, 12:51:37
Oscilloscope image of device 4 (AB Diff voltage, Last) :
19-Jan-2016, 14:55:52
Oscilloscope image of device 4 (AB Diff stable voltage, Min) :
19-Jan-2016, 14:05:17
Oscilloscope image of device 4 (AB Diff stable voltage, Max) :
19-Jan-2016, 12:39:14
Page 8 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

9. ProfiTrace detailed network
report
Oscilloscope image of device 4 (AB Diff stable voltage, Last) :
19-Jan-2016, 14:55:52
Address: 13
Device type: Slave
Channel: <not set>
Device name: Slave
IdentNo: Not available
Total retry count: 0
Diag count while DX: 0
I/O length (bytes): 10 In, 4 Out
Times lost: 0
Not availableManufacturer:
Model name: Not available
Signal voltage: Min: 6.38 Volt, Max: 6.47 Volt, Last: 6.44 Volt
Oscilloscope image of device 13 (AB Diff voltage, Min) :
19-Jan-2016, 13:11:28
Oscilloscope image of device 13 (AB Diff voltage, Max) :
19-Jan-2016, 14:21:07
Page 9 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

10. ProfiTrace detailed network
report

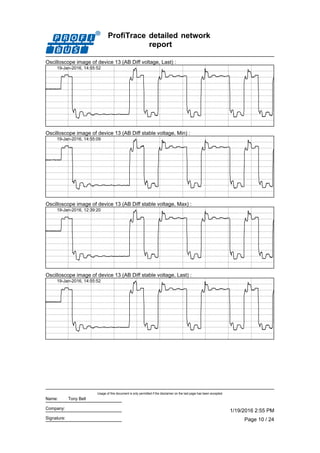

Oscilloscope image of device 13 (AB Diff voltage, Last) :
19-Jan-2016, 14:55:52
Oscilloscope image of device 13 (AB Diff stable voltage, Min) :
19-Jan-2016, 14:55:09
Oscilloscope image of device 13 (AB Diff stable voltage, Max) :
19-Jan-2016, 12:39:20
Oscilloscope image of device 13 (AB Diff stable voltage, Last) :
19-Jan-2016, 14:55:52
Page 10 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

11. ProfiTrace detailed network
report
Address: 14
Device type: Slave
Channel: <not set>
Device name: Slave
IdentNo: Not available
Total retry count: 0
Diag count while DX: 0
I/O length (bytes): 10 In, 4 Out
Times lost: 0
Not availableManufacturer:
Model name: Not available
Signal voltage: Min: 6.47 Volt, Max: 6.62 Volt, Last: 6.53 Volt
Oscilloscope image of device 14 (AB Diff voltage, Min) :
19-Jan-2016, 14:41:52
Oscilloscope image of device 14 (AB Diff voltage, Max) :
19-Jan-2016, 14:52:22
Oscilloscope image of device 14 (AB Diff voltage, Last) :
19-Jan-2016, 14:55:52
Page 11 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

12. ProfiTrace detailed network
report
Oscilloscope image of device 14 (AB Diff stable voltage, Min) :
19-Jan-2016, 14:55:22
Oscilloscope image of device 14 (AB Diff stable voltage, Max) :
19-Jan-2016, 12:39:51
Oscilloscope image of device 14 (AB Diff stable voltage, Last) :
19-Jan-2016, 14:55:52
Address: 30
Device type: Slave
Channel: <not set>
Device name: Slave
IdentNo: Not available
Total retry count: 0
Diag count while DX: 0
I/O length (bytes): 10 In, 4 Out
Times lost: 0
Not availableManufacturer:
Model name: Not available
Signal voltage: Min: 6.45 Volt, Max: 6.55 Volt, Last: 6.48 Volt
Page 12 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

13. ProfiTrace detailed network
report
Oscilloscope image of device 30 (AB Diff voltage, Min) :
19-Jan-2016, 14:38:46
Oscilloscope image of device 30 (AB Diff voltage, Max) :
19-Jan-2016, 14:53:02
Oscilloscope image of device 30 (AB Diff voltage, Last) :
19-Jan-2016, 14:55:52
Oscilloscope image of device 30 (AB Diff stable voltage, Min) :
19-Jan-2016, 14:53:50
Page 13 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

14. ProfiTrace detailed network
report
Oscilloscope image of device 30 (AB Diff stable voltage, Max) :
19-Jan-2016, 14:55:52
Oscilloscope image of device 30 (AB Diff stable voltage, Last) :
19-Jan-2016, 14:55:52
Address: 31
Device type: Slave
Channel: <not set>
Device name: Slave
IdentNo: Not available
Total retry count: 0
Diag count while DX: 0
I/O length (bytes): 10 In, 4 Out
Times lost: 0
Not availableManufacturer:
Model name: Not available
Signal voltage: Min: 6.07 Volt, Max: 6.15 Volt, Last: 6.12 Volt
Oscilloscope image of device 31 (AB Diff voltage, Min) :
19-Jan-2016, 14:29:03
Page 14 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

15. ProfiTrace detailed network
report

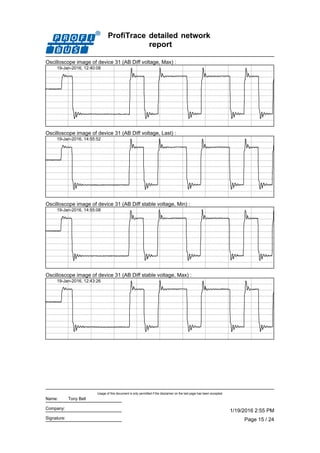

Oscilloscope image of device 31 (AB Diff voltage, Max) :
19-Jan-2016, 12:40:08
Oscilloscope image of device 31 (AB Diff voltage, Last) :
19-Jan-2016, 14:55:52
Oscilloscope image of device 31 (AB Diff stable voltage, Min) :
19-Jan-2016, 14:55:08
Oscilloscope image of device 31 (AB Diff stable voltage, Max) :
19-Jan-2016, 12:43:26
Page 15 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

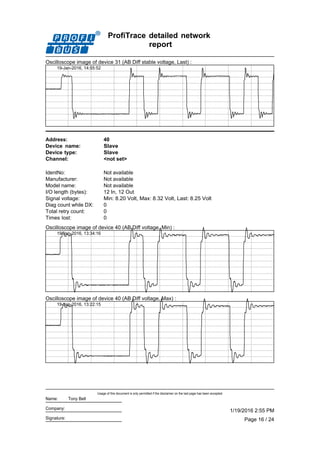

16. ProfiTrace detailed network
report
Oscilloscope image of device 31 (AB Diff stable voltage, Last) :
19-Jan-2016, 14:55:52
Address: 40
Device type: Slave
Channel: <not set>
Device name: Slave
IdentNo: Not available
Total retry count: 0
Diag count while DX: 0
I/O length (bytes): 12 In, 12 Out
Times lost: 0
Not availableManufacturer:
Model name: Not available
Signal voltage: Min: 8.20 Volt, Max: 8.32 Volt, Last: 8.25 Volt
Oscilloscope image of device 40 (AB Diff voltage, Min) :
19-Jan-2016, 13:34:16
Oscilloscope image of device 40 (AB Diff voltage, Max) :
19-Jan-2016, 13:22:15
Page 16 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

17. ProfiTrace detailed network
report
Oscilloscope image of device 40 (AB Diff voltage, Last) :
19-Jan-2016, 14:55:52
Oscilloscope image of device 40 (AB Diff stable voltage, Min) :
19-Jan-2016, 14:46:44
Oscilloscope image of device 40 (AB Diff stable voltage, Max) :
19-Jan-2016, 13:23:01
Oscilloscope image of device 40 (AB Diff stable voltage, Last) :
19-Jan-2016, 14:55:52
Page 17 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

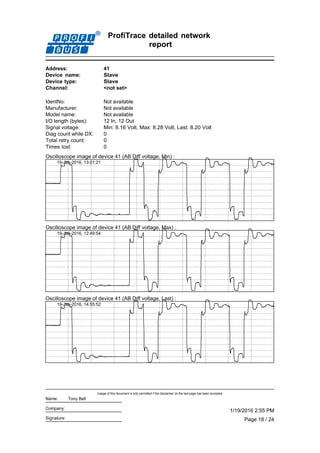

18. ProfiTrace detailed network
report
Address: 41
Device type: Slave
Channel: <not set>
Device name: Slave
IdentNo: Not available
Total retry count: 0
Diag count while DX: 0
I/O length (bytes): 12 In, 12 Out
Times lost: 0
Not availableManufacturer:
Model name: Not available
Signal voltage: Min: 8.16 Volt, Max: 8.28 Volt, Last: 8.20 Volt
Oscilloscope image of device 41 (AB Diff voltage, Min) :
19-Jan-2016, 13:01:21
Oscilloscope image of device 41 (AB Diff voltage, Max) :
19-Jan-2016, 12:49:54
Oscilloscope image of device 41 (AB Diff voltage, Last) :
19-Jan-2016, 14:55:52
Page 18 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

19. ProfiTrace detailed network
report
Oscilloscope image of device 41 (AB Diff stable voltage, Min) :
19-Jan-2016, 14:40:17
Oscilloscope image of device 41 (AB Diff stable voltage, Max) :
19-Jan-2016, 12:46:01
Oscilloscope image of device 41 (AB Diff stable voltage, Last) :
19-Jan-2016, 14:55:53
Address: 44
Device type: Slave
Channel: <not set>
Device name: Slave
IdentNo: Not available
Total retry count: 0
Diag count while DX: 0
I/O length (bytes): 12 In, 12 Out
Times lost: 0
Not availableManufacturer:
Model name: Not available
Signal voltage: Min: 8.00 Volt, Max: 8.10 Volt, Last: 8.05 Volt
Page 19 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

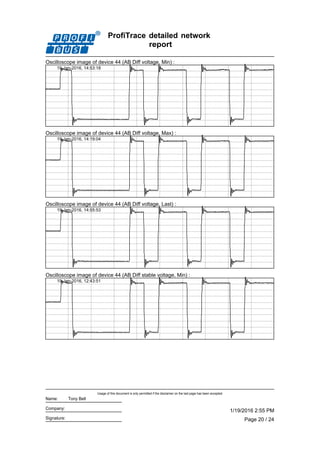

20. ProfiTrace detailed network
report
Oscilloscope image of device 44 (AB Diff voltage, Min) :
19-Jan-2016, 14:53:18
Oscilloscope image of device 44 (AB Diff voltage, Max) :
19-Jan-2016, 14:19:04
Oscilloscope image of device 44 (AB Diff voltage, Last) :
19-Jan-2016, 14:55:53
Oscilloscope image of device 44 (AB Diff stable voltage, Min) :
19-Jan-2016, 12:43:51
Page 20 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

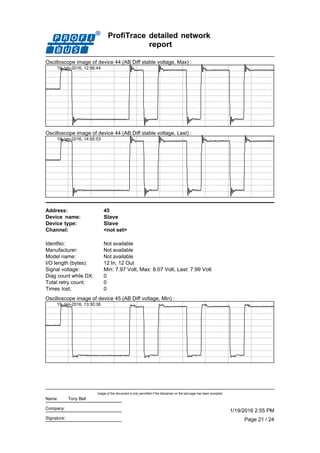

21. ProfiTrace detailed network
report
Oscilloscope image of device 44 (AB Diff stable voltage, Max) :
19-Jan-2016, 12:56:44
Oscilloscope image of device 44 (AB Diff stable voltage, Last) :
19-Jan-2016, 14:55:53
Address: 45
Device type: Slave
Channel: <not set>
Device name: Slave
IdentNo: Not available
Total retry count: 0
Diag count while DX: 0
I/O length (bytes): 12 In, 12 Out
Times lost: 0
Not availableManufacturer:
Model name: Not available
Signal voltage: Min: 7.97 Volt, Max: 8.07 Volt, Last: 7.99 Volt
Oscilloscope image of device 45 (AB Diff voltage, Min) :
19-Jan-2016, 13:30:36
Page 21 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

22. ProfiTrace detailed network
report
Oscilloscope image of device 45 (AB Diff voltage, Max) :
19-Jan-2016, 14:09:56
Oscilloscope image of device 45 (AB Diff voltage, Last) :
19-Jan-2016, 14:55:53
Oscilloscope image of device 45 (AB Diff stable voltage, Min) :
19-Jan-2016, 14:52:51
Oscilloscope image of device 45 (AB Diff stable voltage, Max) :
19-Jan-2016, 12:41:39
Page 22 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

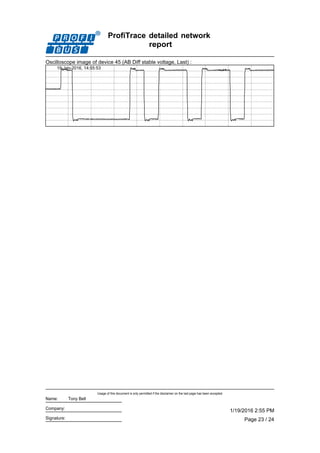

23. ProfiTrace detailed network
report
Oscilloscope image of device 45 (AB Diff stable voltage, Last) :
19-Jan-2016, 14:55:53
Page 23 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell

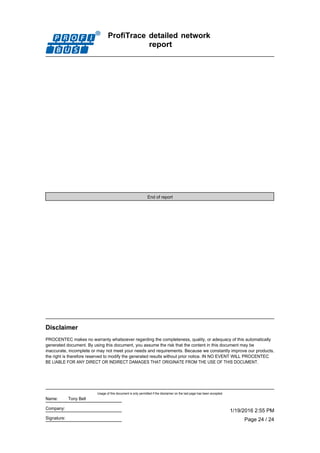

24. ProfiTrace detailed network
report
End of report
PROCENTEC makes no warranty whatsoever regarding the completeness, quality, or adequacy of this automatically
generated document. By using this document, you assume the risk that the content in this document may be
inaccurate, incomplete or may not meet your needs and requirements. Because we constantly improve our products,
the right is therefore reserved to modify the generated results without prior notice. IN NO EVENT WILL PROCENTEC
BE LIABLE FOR ANY DIRECT OR INDIRECT DAMAGES THAT ORIGINATE FROM THE USE OF THIS DOCUMENT.
Disclaimer
Page 24 / 24
1/19/2016 2:55 PM
Usage of this document is only permitted if the disclaimer on the last page has been accepted.
Signature:
Company:
Name: Tony Bell
