1. Greeled Electronic Ltd
Professional Digital LEDs Manufacturer
www.greeled.net www.gree-leds.com

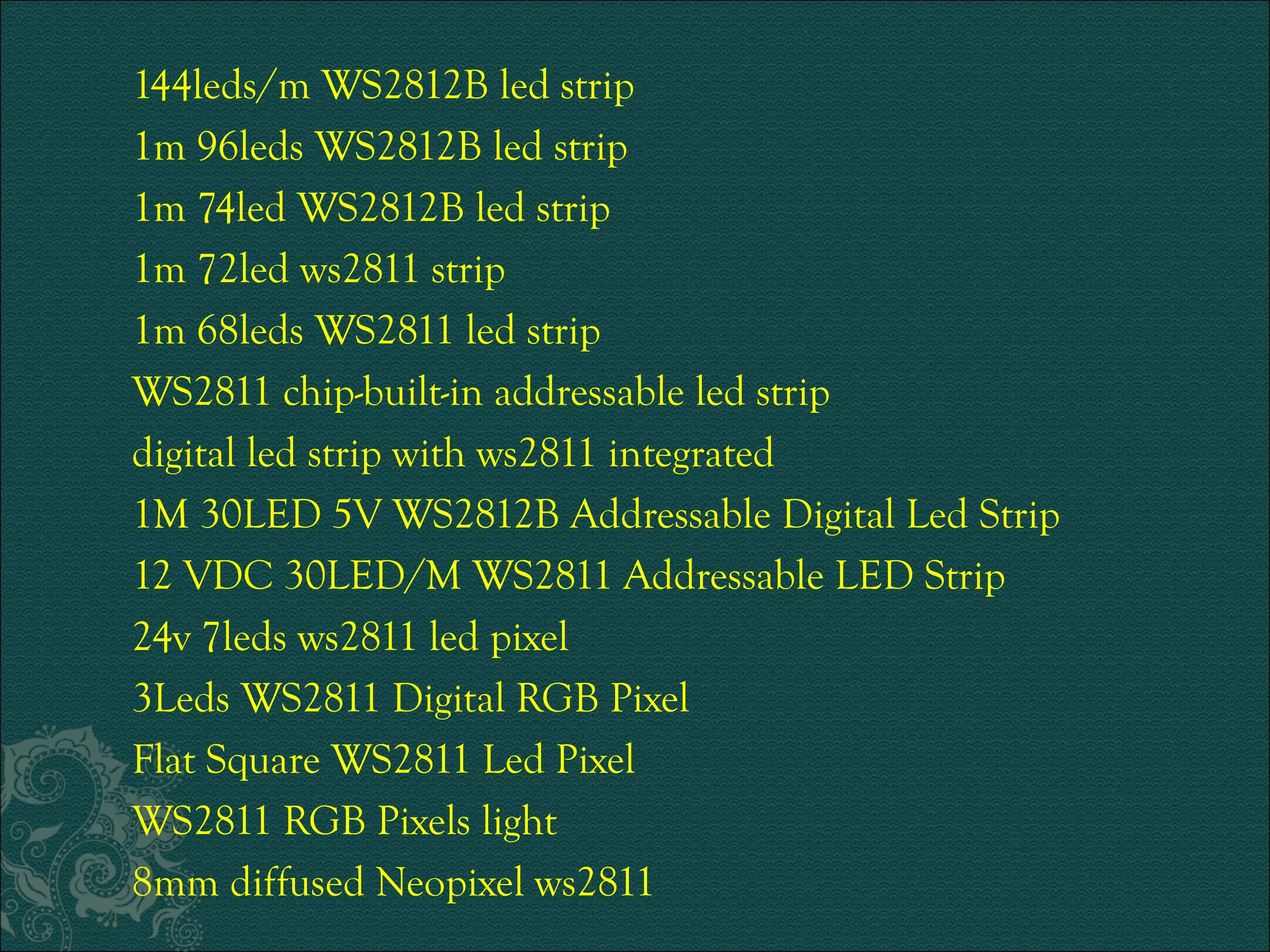

2. 144leds/m WS2812B led strip
1m 96leds WS2812B led strip
1m 74led WS2812B led strip
1m 72led ws2811 strip
1m 68leds WS2811 led strip
WS2811 chip-built-in addressable led strip
digital led strip with ws2811 integrated
1M 30LED 5V WS2812B Addressable Digital Led Strip
12 VDC 30LED/M WS2811 Addressable LED Strip
24v 7leds ws2811 led pixel
3Leds WS2811 Digital RGB Pixel
Flat Square WS2811 Led Pixel
WS2811 RGB Pixels light
8mm diffused Neopixel ws2811

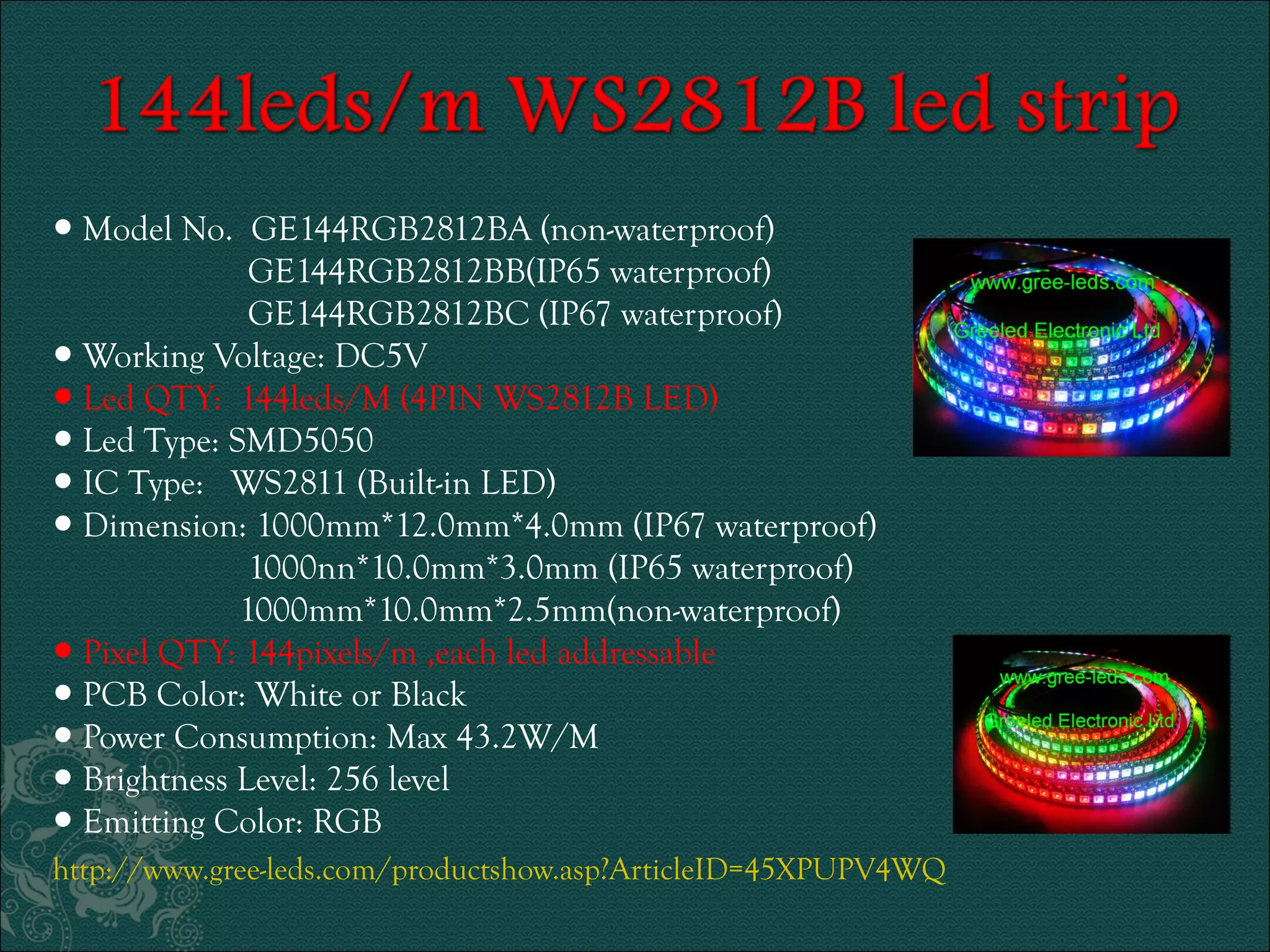

3. ● Model No. GE144RGB2812BA (non-waterproof)
GE144RGB2812BB(IP65 waterproof)
GE144RGB2812BC (IP67 waterproof)
● Working Voltage: DC5V
● Led QTY: 144leds/M (4PIN WS2812B LED)
● Led Type: SMD5050
● IC Type: WS2811 (Built-in LED)
● Dimension: 1000mm*12.0mm*4.0mm (IP67 waterproof)
1000nn*10.0mm*3.0mm (IP65 waterproof)
1000mm*10.0mm*2.5mm(non-waterproof)
● Pixel QTY: 144pixels/m ,each led addressable
● PCB Color: White or Black
● Power Consumption: Max 43.2W/M
● Brightness Level: 256 level
● Emitting Color: RGB
http://www.gree-leds.com/productshow.asp?ArticleID=45XPUPV4WQ

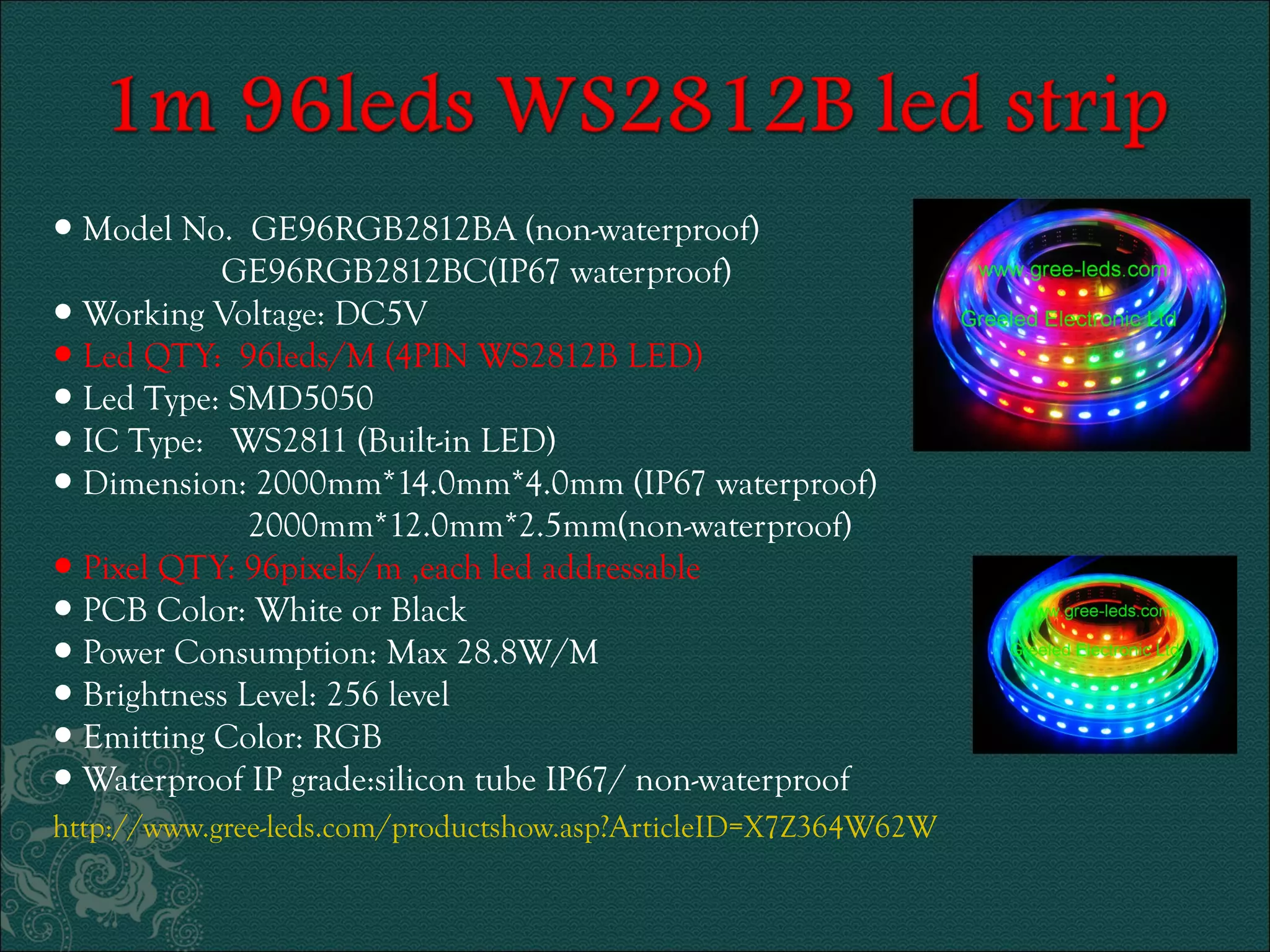

4. ● Model No. GE96RGB2812BA (non-waterproof)
GE96RGB2812BC(IP67 waterproof)
● Working Voltage: DC5V
● Led QTY: 96leds/M (4PIN WS2812B LED)
● Led Type: SMD5050
● IC Type: WS2811 (Built-in LED)
● Dimension: 2000mm*14.0mm*4.0mm (IP67 waterproof)
2000mm*12.0mm*2.5mm(non-waterproof)
● Pixel QTY: 96pixels/m ,each led addressable
● PCB Color: White or Black
● Power Consumption: Max 28.8W/M
● Brightness Level: 256 level
● Emitting Color: RGB
● Waterproof IP grade:silicon tube IP67/ non-waterproof
http://www.gree-leds.com/productshow.asp?ArticleID=X7Z364W62W

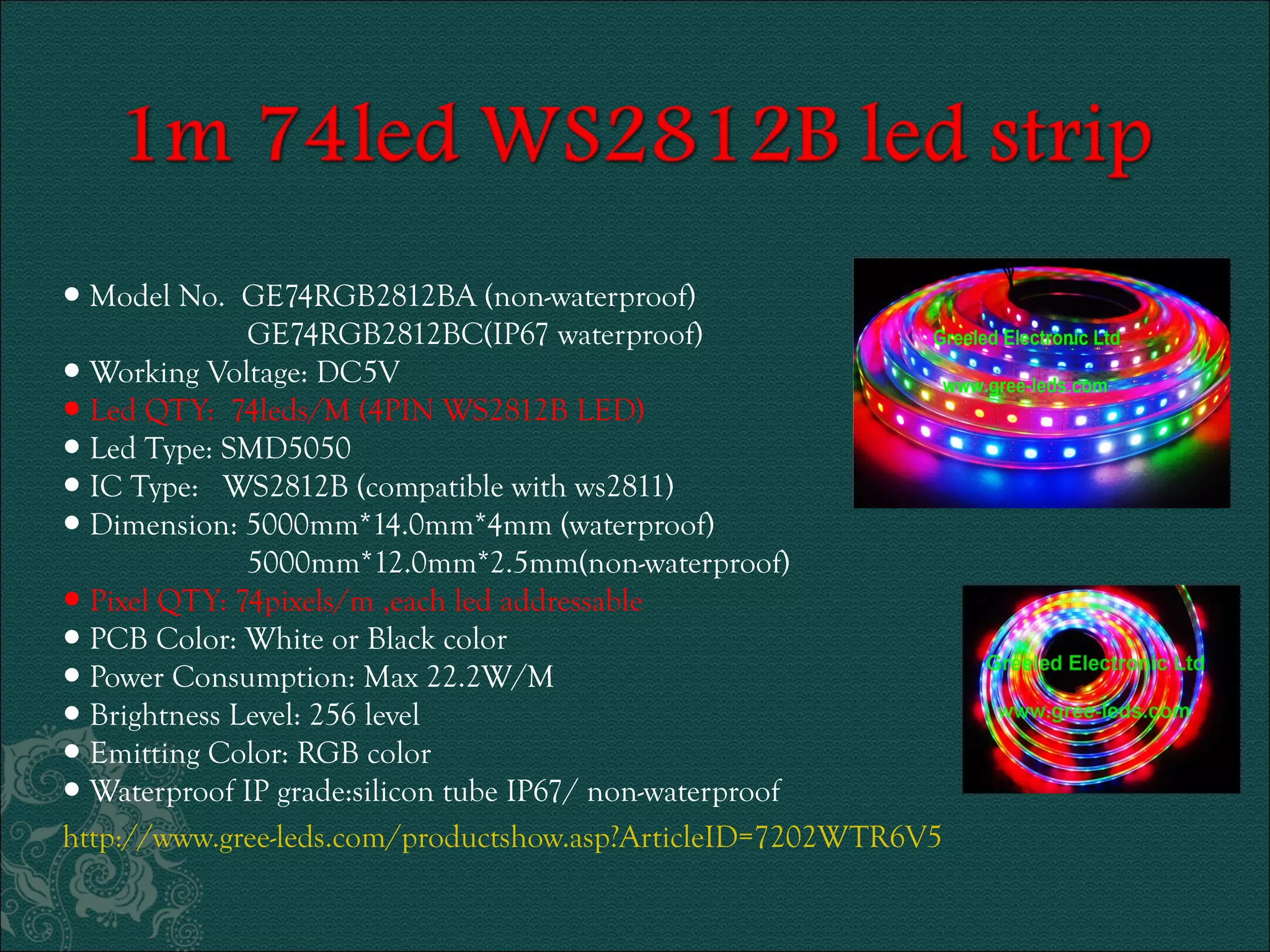

5. ● Model No. GE74RGB2812BA (non-waterproof)
GE74RGB2812BC(IP67 waterproof)
● Working Voltage: DC5V
● Led QTY: 74leds/M (4PIN WS2812B LED)
● Led Type: SMD5050
● IC Type: WS2812B (compatible with ws2811)
● Dimension: 5000mm*14.0mm*4mm (waterproof)
5000mm*12.0mm*2.5mm(non-waterproof)
● Pixel QTY: 74pixels/m ,each led addressable
● PCB Color: White or Black color
● Power Consumption: Max 22.2W/M
● Brightness Level: 256 level
● Emitting Color: RGB color
● Waterproof IP grade:silicon tube IP67/ non-waterproof
http://www.gree-leds.com/productshow.asp?ArticleID=7202WTR6V5

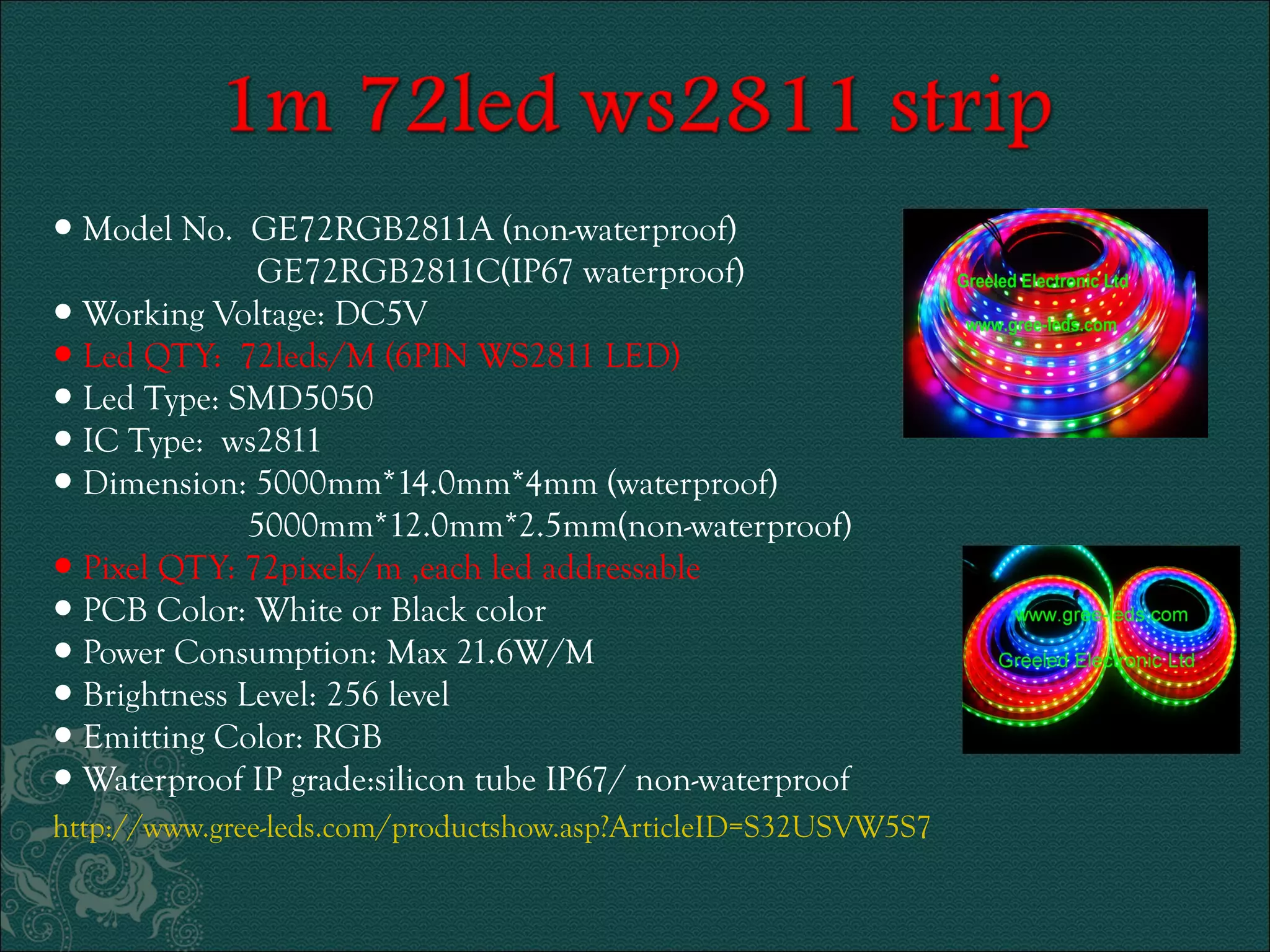

6. ● Model No. GE72RGB2811A (non-waterproof)
GE72RGB2811C(IP67 waterproof)
● Working Voltage: DC5V
● Led QTY: 72leds/M (6PIN WS2811 LED)
● Led Type: SMD5050
● IC Type: ws2811
● Dimension: 5000mm*14.0mm*4mm (waterproof)
5000mm*12.0mm*2.5mm(non-waterproof)
● Pixel QTY: 72pixels/m ,each led addressable
● PCB Color: White or Black color
● Power Consumption: Max 21.6W/M
● Brightness Level: 256 level
● Emitting Color: RGB
● Waterproof IP grade:silicon tube IP67/ non-waterproof
http://www.gree-leds.com/productshow.asp?ArticleID=S32USVW5S7

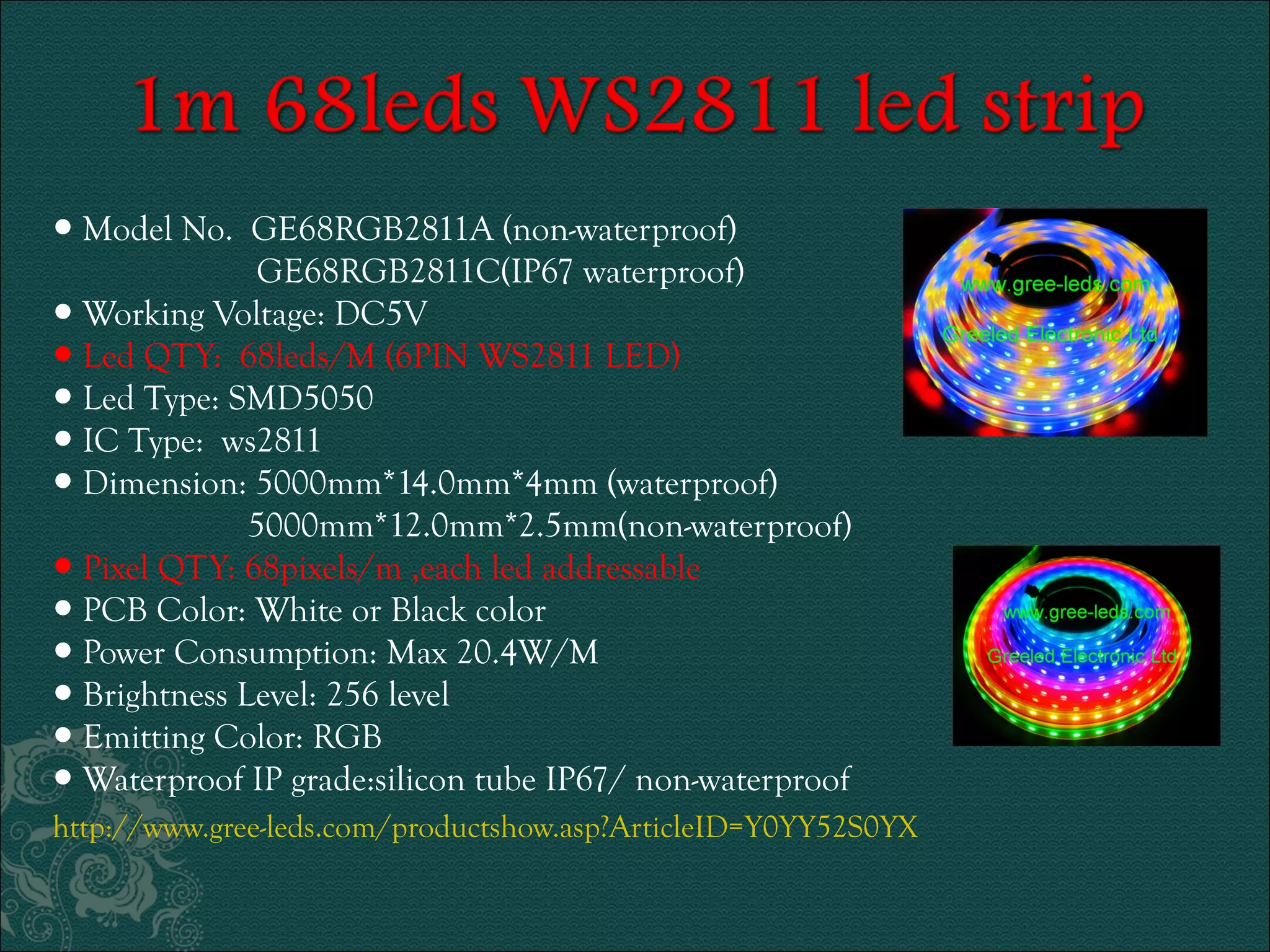

7. ● Model No. GE68RGB2811A (non-waterproof)
GE68RGB2811C(IP67 waterproof)
● Working Voltage: DC5V
● Led QTY: 68leds/M (6PIN WS2811 LED)
● Led Type: SMD5050
● IC Type: ws2811
● Dimension: 5000mm*14.0mm*4mm (waterproof)
5000mm*12.0mm*2.5mm(non-waterproof)
● Pixel QTY: 68pixels/m ,each led addressable
● PCB Color: White or Black color
● Power Consumption: Max 20.4W/M
● Brightness Level: 256 level
● Emitting Color: RGB
● Waterproof IP grade:silicon tube IP67/ non-waterproof
http://www.gree-leds.com/productshow.asp?ArticleID=Y0YY52S0YX

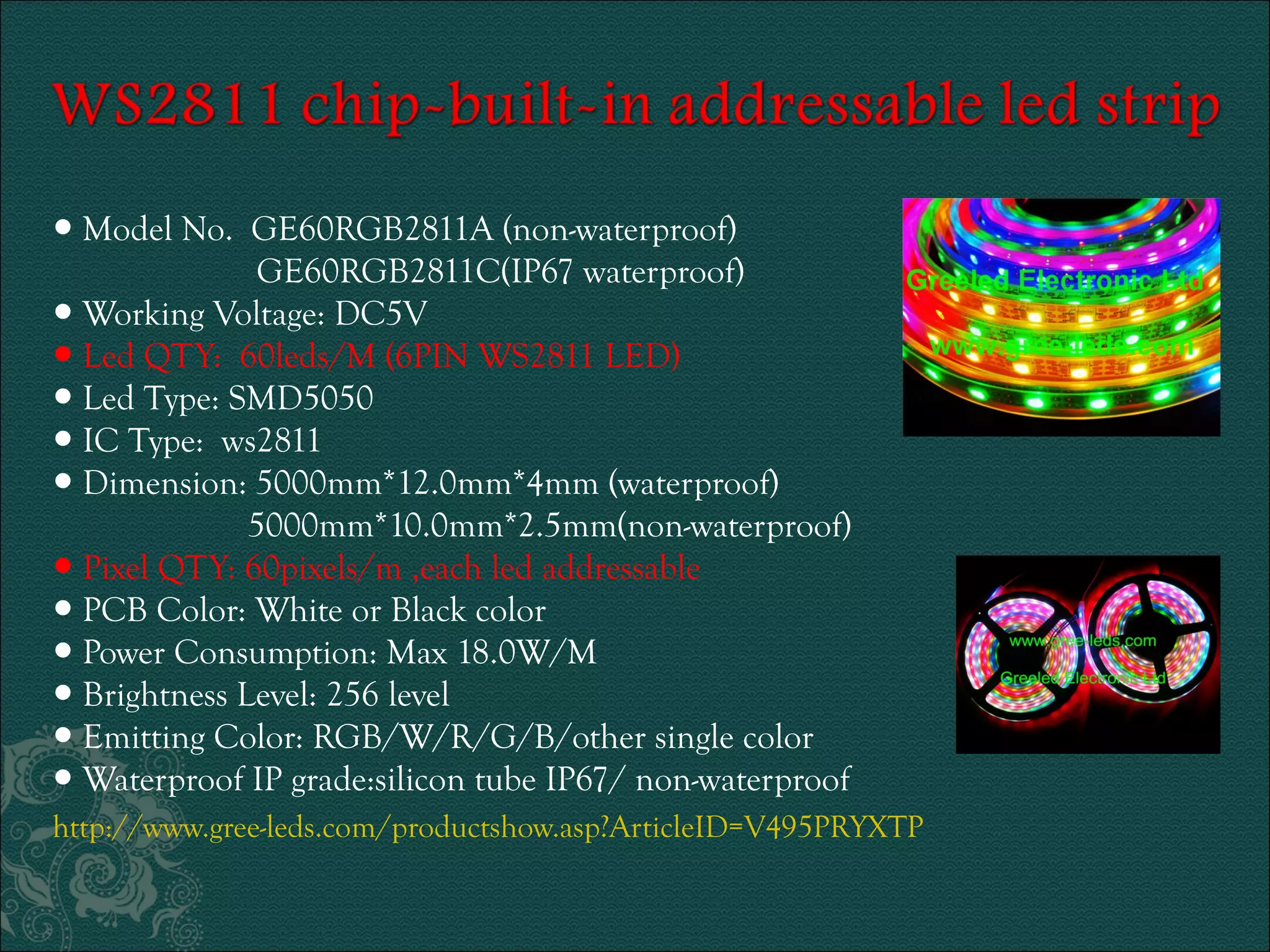

8. ● Model No. GE60RGB2811A (non-waterproof)
GE60RGB2811C(IP67 waterproof)
● Working Voltage: DC5V
● Led QTY: 60leds/M (6PIN WS2811 LED)
● Led Type: SMD5050
● IC Type: ws2811
● Dimension: 5000mm*12.0mm*4mm (waterproof)
5000mm*10.0mm*2.5mm(non-waterproof)
● Pixel QTY: 60pixels/m ,each led addressable
● PCB Color: White or Black color
● Power Consumption: Max 18.0W/M
● Brightness Level: 256 level
● Emitting Color: RGB/W/R/G/B/other single color
● Waterproof IP grade:silicon tube IP67/ non-waterproof
http://www.gree-leds.com/productshow.asp?ArticleID=V495PRYXTP

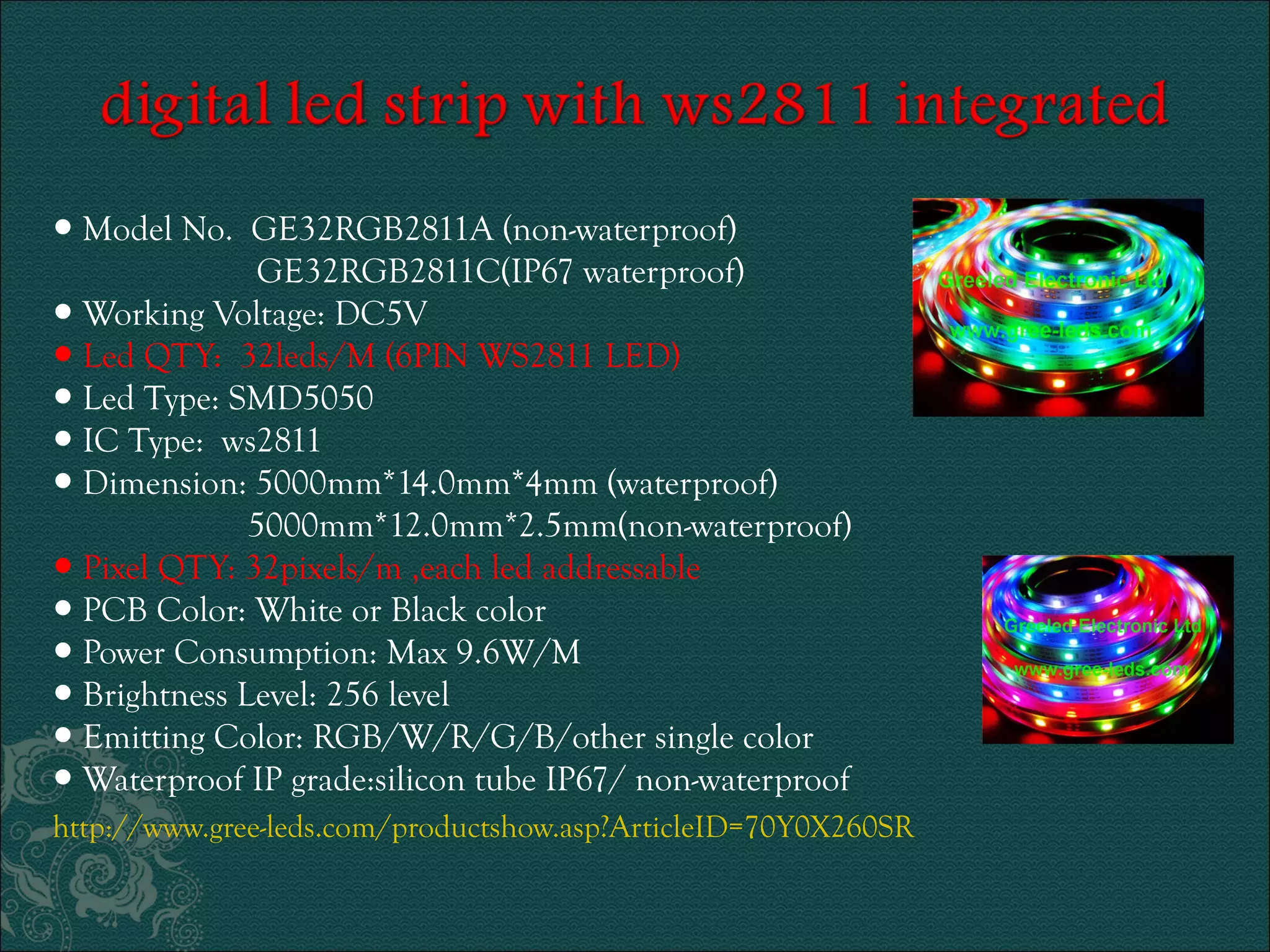

9. ● Model No. GE32RGB2811A (non-waterproof)
GE32RGB2811C(IP67 waterproof)
● Working Voltage: DC5V
● Led QTY: 32leds/M (6PIN WS2811 LED)
● Led Type: SMD5050
● IC Type: ws2811
● Dimension: 5000mm*14.0mm*4mm (waterproof)
5000mm*12.0mm*2.5mm(non-waterproof)
● Pixel QTY: 32pixels/m ,each led addressable
● PCB Color: White or Black color
● Power Consumption: Max 9.6W/M
● Brightness Level: 256 level
● Emitting Color: RGB/W/R/G/B/other single color
● Waterproof IP grade:silicon tube IP67/ non-waterproof
http://www.gree-leds.com/productshow.asp?ArticleID=70Y0X260SR

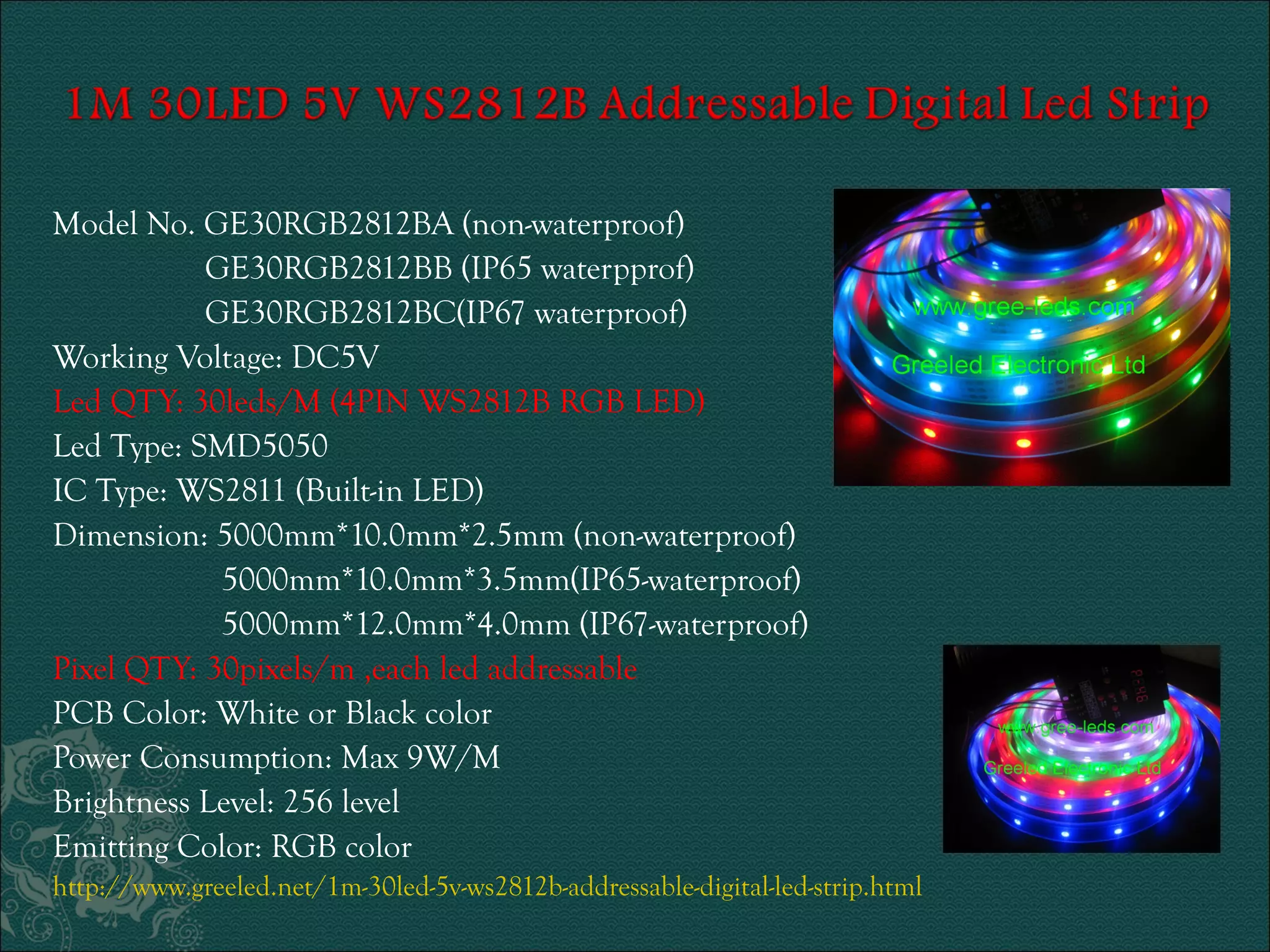

10. Model No. GE30RGB2812BA (non-waterproof)
GE30RGB2812BB (IP65 waterpprof)
GE30RGB2812BC(IP67 waterproof)
Working Voltage: DC5V
Led QTY: 30leds/M (4PIN WS2812B RGB LED)
Led Type: SMD5050
IC Type: WS2811 (Built-in LED)
Dimension: 5000mm*10.0mm*2.5mm (non-waterproof)
5000mm*10.0mm*3.5mm(IP65-waterproof)
5000mm*12.0mm*4.0mm (IP67-waterproof)
Pixel QTY: 30pixels/m ,each led addressable
PCB Color: White or Black color
Power Consumption: Max 9W/M
Brightness Level: 256 level
Emitting Color: RGB color
http://www.greeled.net/1m-30led-5v-ws2812b-addressable-digital-led-strip.html

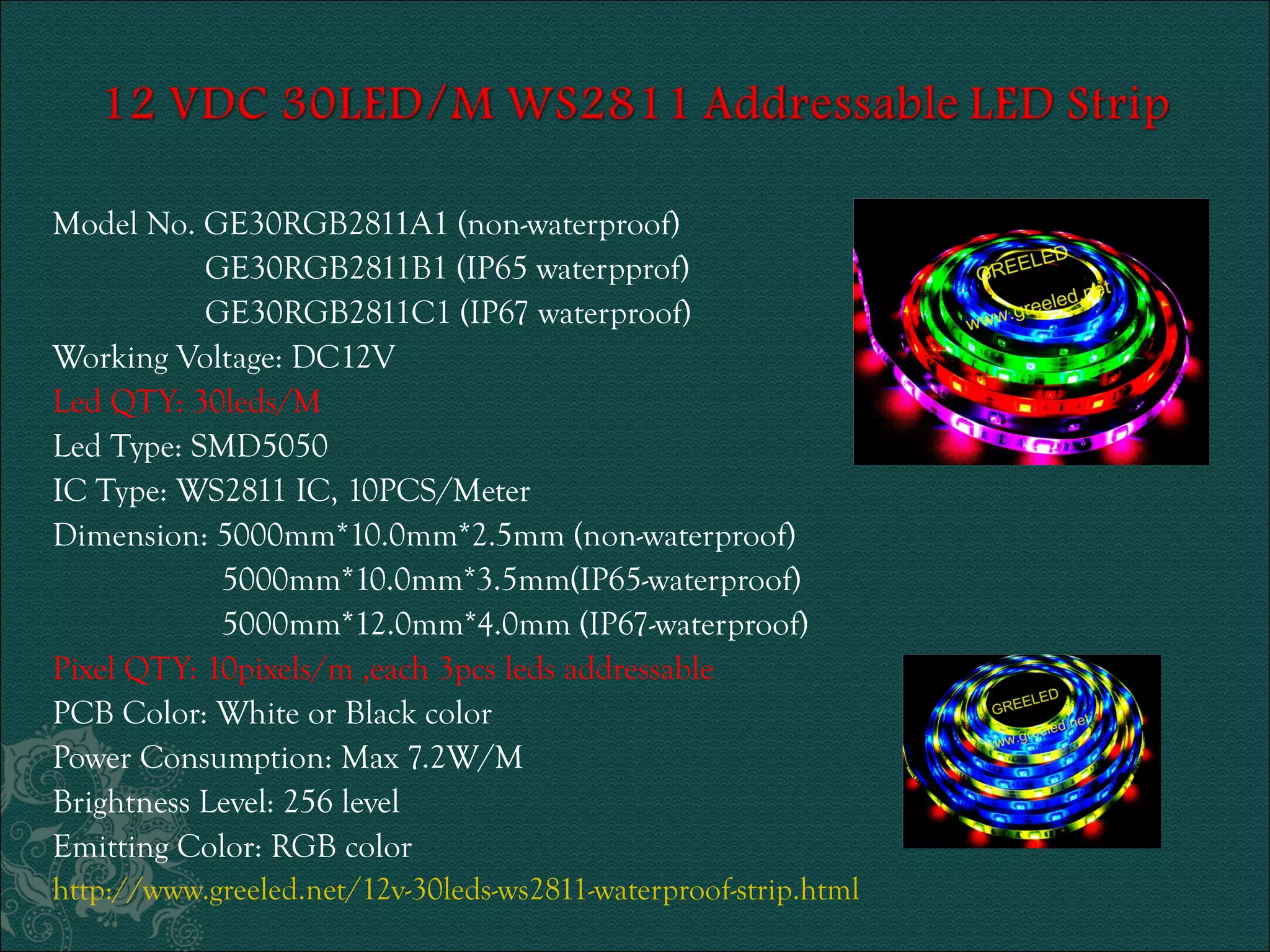

11. Model No. GE30RGB2811A1 (non-waterproof)
GE30RGB2811B1 (IP65 waterpprof)
GE30RGB2811C1 (IP67 waterproof)
Working Voltage: DC12V
Led QTY: 30leds/M
Led Type: SMD5050
IC Type: WS2811 IC, 10PCS/Meter
Dimension: 5000mm*10.0mm*2.5mm (non-waterproof)
5000mm*10.0mm*3.5mm(IP65-waterproof)
5000mm*12.0mm*4.0mm (IP67-waterproof)
Pixel QTY: 10pixels/m ,each 3pcs leds addressable
PCB Color: White or Black color
Power Consumption: Max 7.2W/M
Brightness Level: 256 level
Emitting Color: RGB color
http://www.greeled.net/12v-30leds-ws2811-waterproof-strip.html

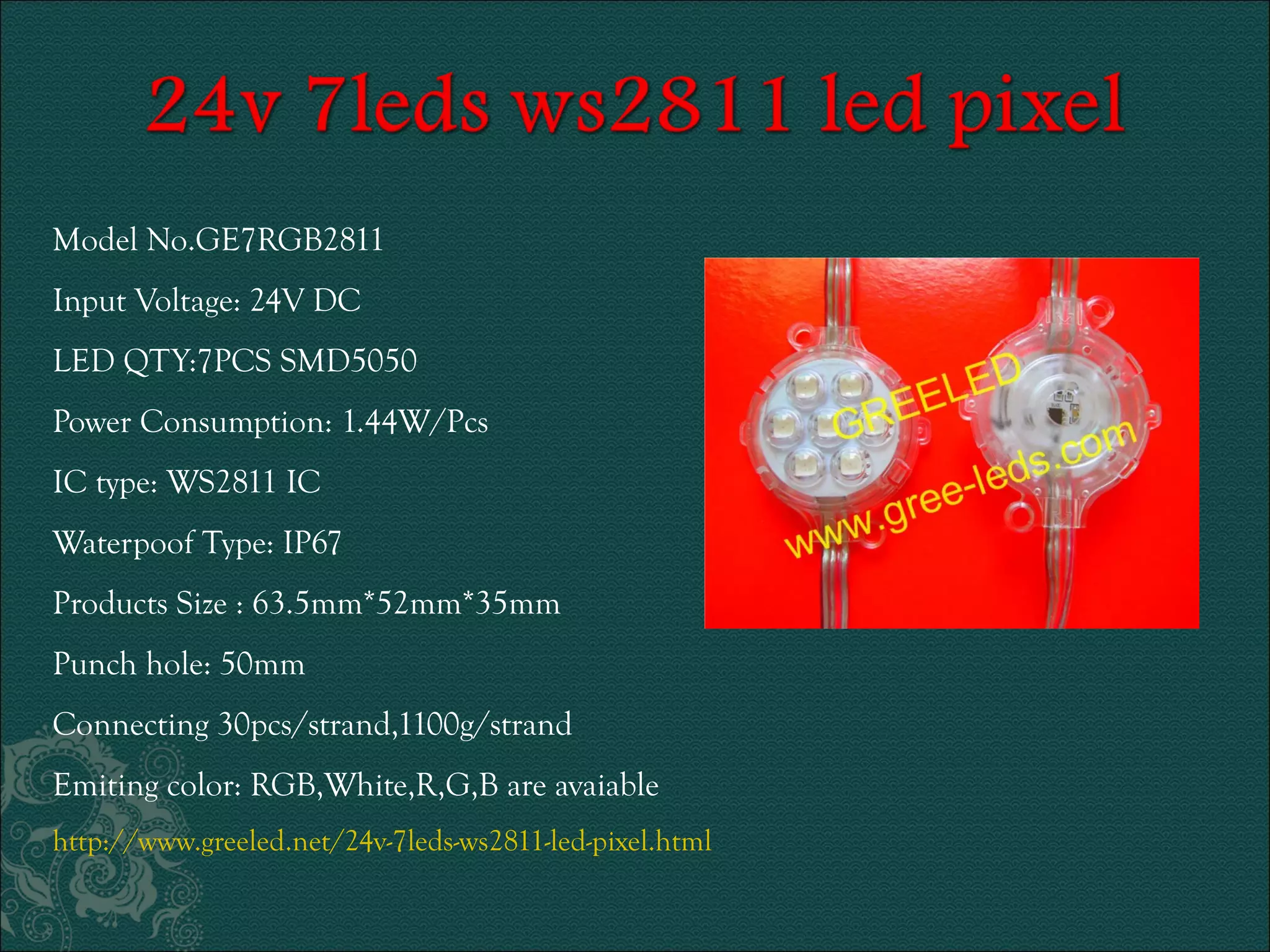

12. Model No.GE7RGB2811
Input Voltage: 24V DC
LED QTY:7PCS SMD5050
Power Consumption: 1.44W/Pcs
IC type: WS2811 IC
Waterpoof Type: IP67
Products Size : 63.5mm*52mm*35mm
Punch hole: 50mm
Connecting 30pcs/strand,1100g/strand
Emiting color: RGB,White,R,G,B are avaiable
http://www.greeled.net/24v-7leds-ws2811-led-pixel.html

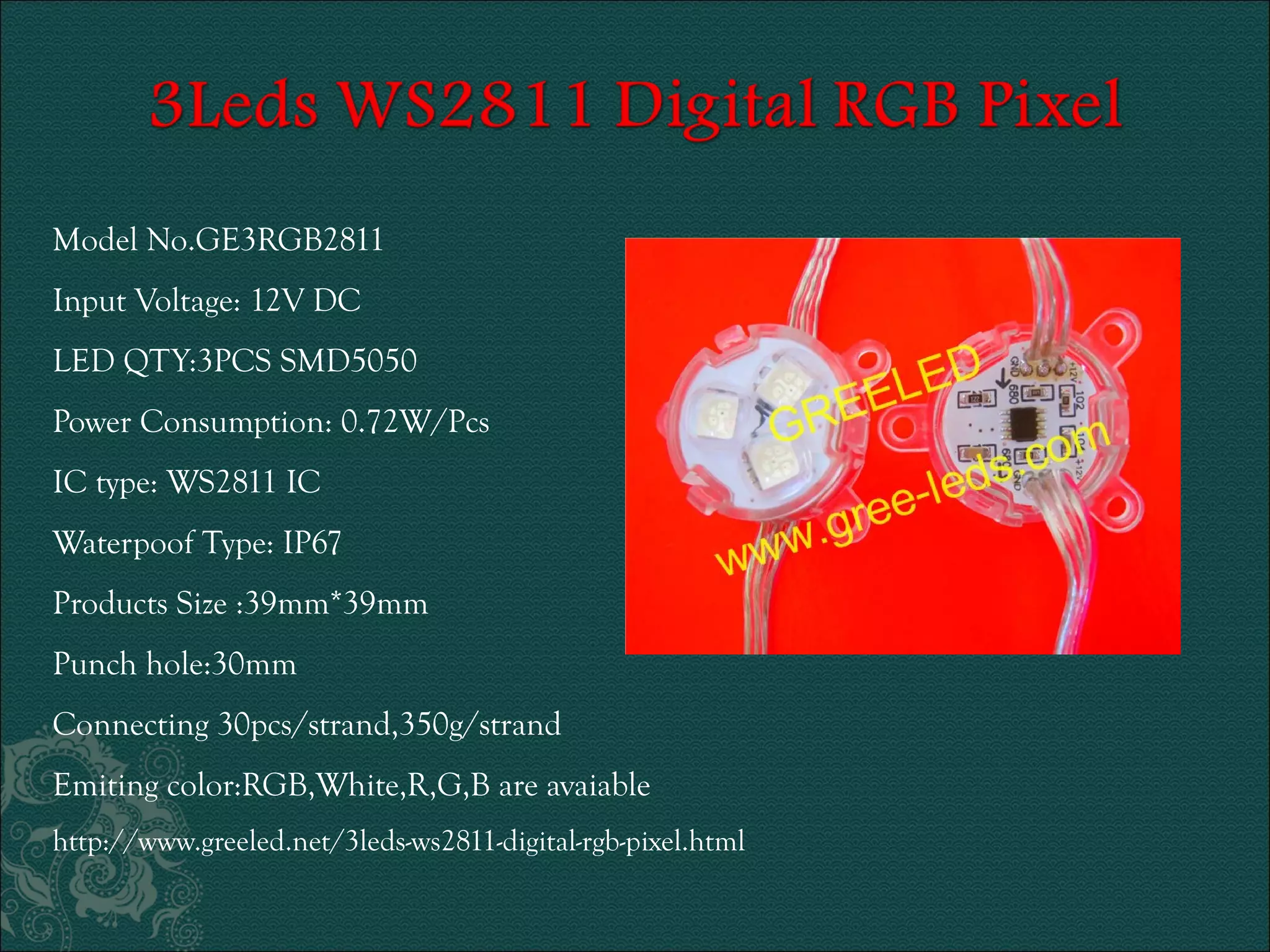

13. Model No.GE3RGB2811
Input Voltage: 12V DC
LED QTY:3PCS SMD5050
Power Consumption: 0.72W/Pcs
IC type: WS2811 IC
Waterpoof Type: IP67
Products Size :39mm*39mm
Punch hole:30mm
Connecting 30pcs/strand,350g/strand
Emiting color:RGB,White,R,G,B are avaiable
http://www.greeled.net/3leds-ws2811-digital-rgb-pixel.html

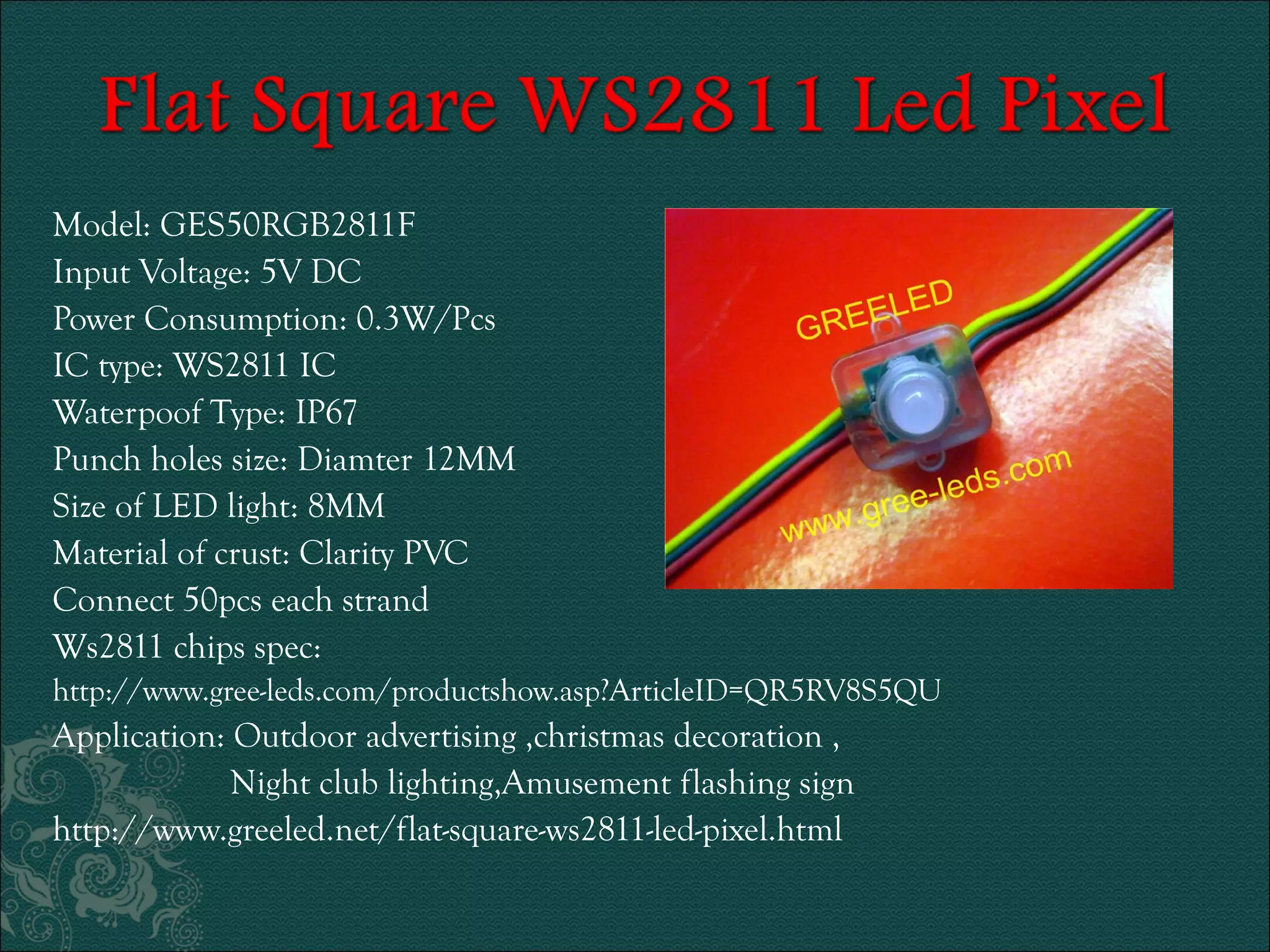

14. Model: GES50RGB2811F
Input Voltage: 5V DC
Power Consumption: 0.3W/Pcs
IC type: WS2811 IC
Waterpoof Type: IP67
Punch holes size: Diamter 12MM
Size of LED light: 8MM
Material of crust: Clarity PVC
Connect 50pcs each strand
Ws2811 chips spec:
http://www.gree-leds.com/productshow.asp?ArticleID=QR5RV8S5QU
Application: Outdoor advertising ,christmas decoration ,
Night club lighting,Amusement flashing sign
http://www.greeled.net/flat-square-ws2811-led-pixel.html

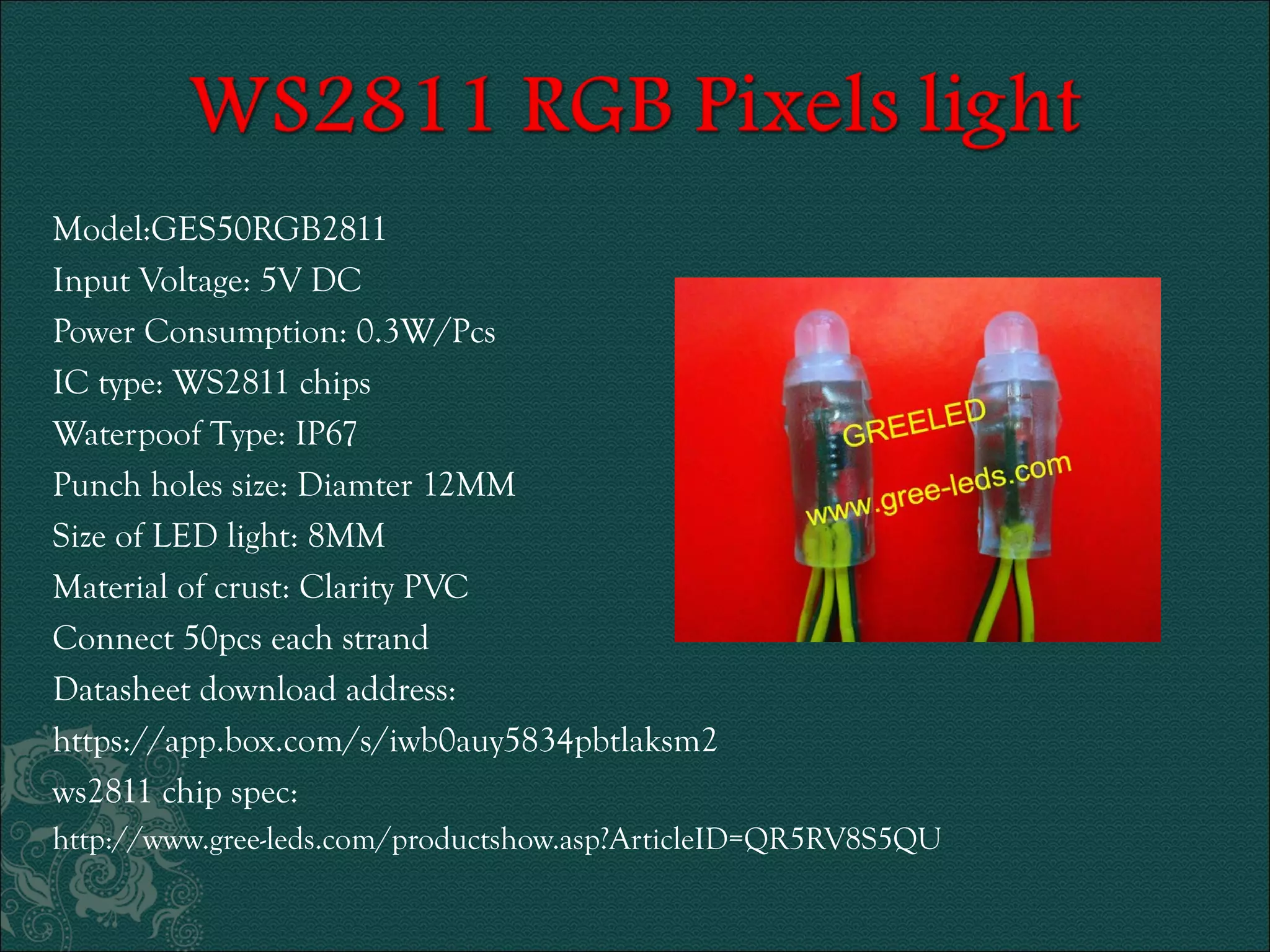

15. Model:GES50RGB2811
Input Voltage: 5V DC
Power Consumption: 0.3W/Pcs
IC type: WS2811 chips
Waterpoof Type: IP67
Punch holes size: Diamter 12MM
Size of LED light: 8MM
Material of crust: Clarity PVC
Connect 50pcs each strand
Datasheet download address:
https://app.box.com/s/iwb0auy5834pbtlaksm2
ws2811 chip spec:
http://www.gree-leds.com/productshow.asp?ArticleID=QR5RV8S5QU

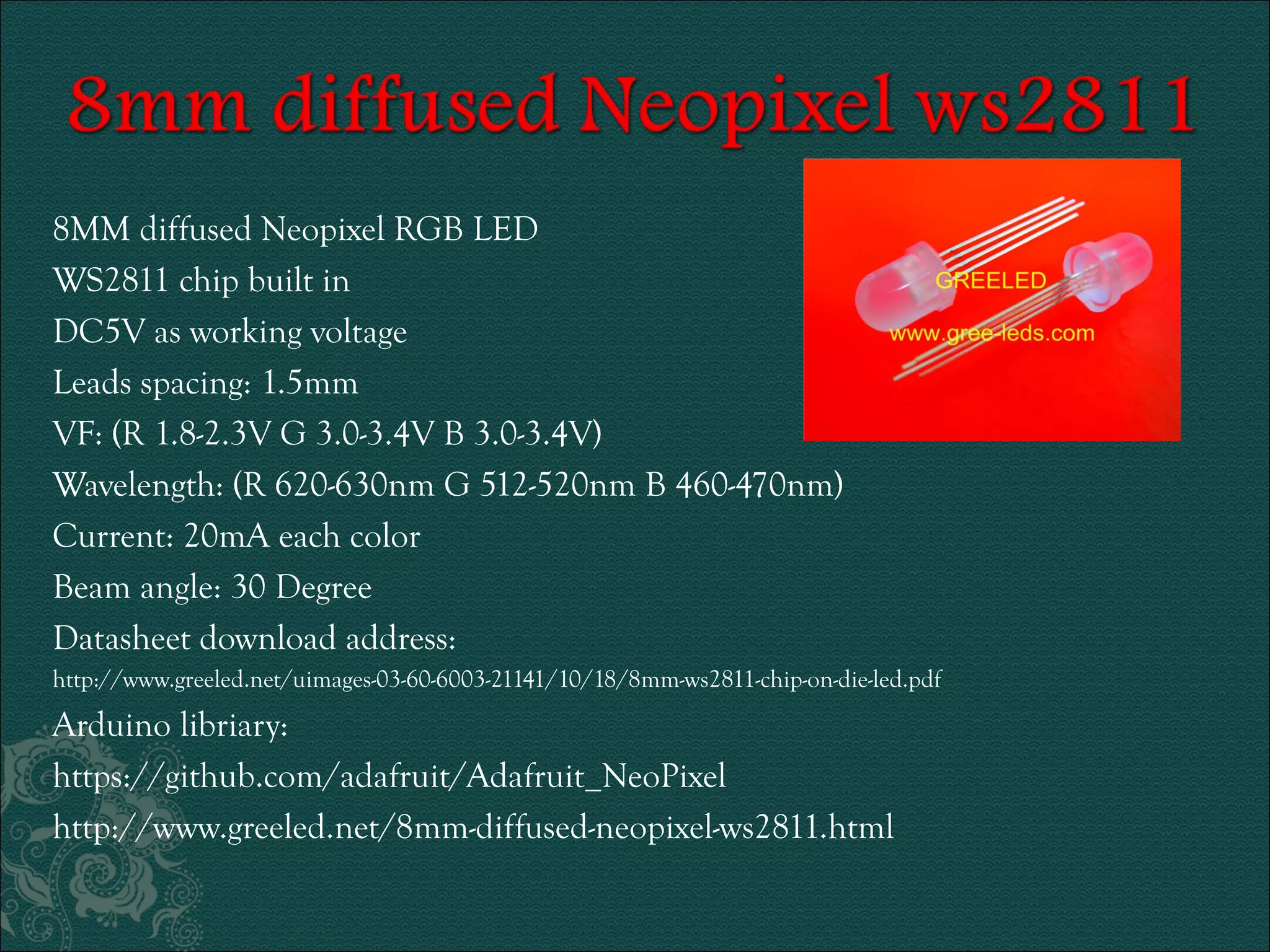

16. 8MM diffused Neopixel RGB LED
WS2811 chip built in
DC5V as working voltage
Leads spacing: 1.5mm
VF: (R 1.8-2.3V G 3.0-3.4V B 3.0-3.4V)
Wavelength: (R 620-630nm G 512-520nm B 460-470nm)
Current: 20mA each color
Beam angle: 30 Degree
Datasheet download address:
http://www.greeled.net/uimages-03-60-6003-21141/10/18/8mm-ws2811-chip-on-die-led.pdf
Arduino libriary:
https://github.com/adafruit/Adafruit_NeoPixel
http://www.greeled.net/8mm-diffused-neopixel-ws2811.html
