1. DIY WS2812B LED
Matrix
By Greeled Electronic Ltd
Email: sales@gree-led.com
www.greeled.net www.gree-leds.com

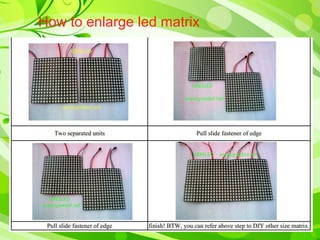

3. How to enlarge led matrix

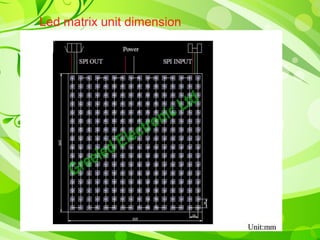

4. Led matrix unit dimension

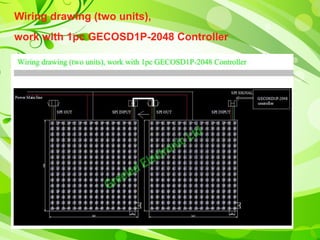

5. Wiring drawing (two units),
work with 1pc GECOSD1P-2048 Controller

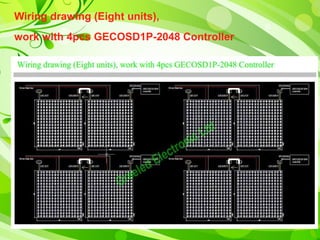

6. Wiring drawing (Eight units),
work with 4pcs GECOSD1P-2048 Controller

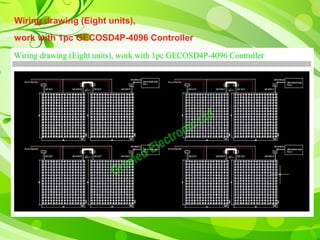

7. Wiring drawing (Eight units),
work with 1pc GECOSD4P-4096 Controller

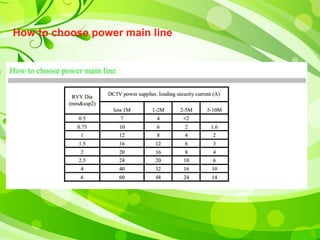

8. How to choose power main line

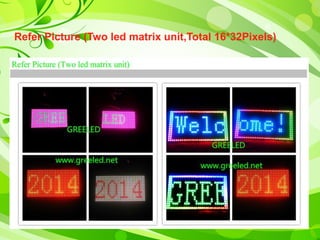

9. Refer Picture (Two led matrix unit,Total 16*32Pixels)

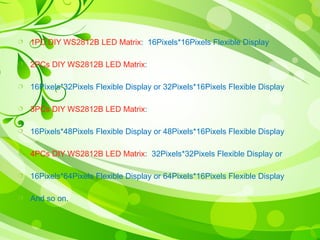

10.  1PC DIY WS2812B LED Matrix: 16Pixels*16Pixels Flexible Display
 2PCs DIY WS2812B LED Matrix:
 16Pixels*32Pixels Flexible Display or 32Pixels*16Pixels Flexible Display
 3PCs DIY WS2812B LED Matrix:
 16Pixels*48Pixels Flexible Display or 48Pixels*16Pixels Flexible Display
 4PCs DIY WS2812B LED Matrix: 32Pixels*32Pixels Flexible Display or
 16Pixels*64Pixels Flexible Display or 64Pixels*16Pixels Flexible Display
 And so on.
