This document explains how to enlarge a WS2812B LED matrix panel. It describes a DIY 16x16 pixel LED matrix unit that can be connected together using slide fasteners along the edges. Multiple units can be pulled together to create larger panels, such as connecting 2 units to make a 16x32 pixel panel or 4 units to make a 16x64 pixel panel. It also mentions using an SD card LED controller and power supplier to operate the enlarged panels.

1. How To Enlarge WS2812B LED Matrix
Panel
By Greeled Electronic Ltd
Email: sales@gree-led.com
www.greeled.net www.gree-leds.com

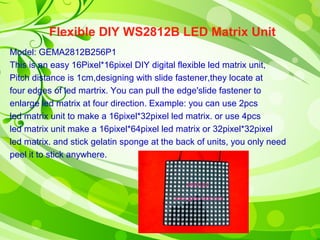

2. Flexible DIY WS2812B LED Matrix Unit
Model: GEMA2812B256P1
This is an easy 16Pixel*16pixel DIY digital flexible led matrix unit,
Pitch distance is 1cm,designing with slide fastener,they locate at
four edges of led martrix. You can pull the edge'slide fastener to
enlarge led matrix at four direction. Example: you can use 2pcs
led matrix unit to make a 16pixel*32pixel led matrix. or use 4pcs
led matrix unit make a 16pixel*64pixel led matrix or 32pixel*32pixel
led matrix. and stick gelatin sponge at the back of units, you only need
peel it to stick anywhere.

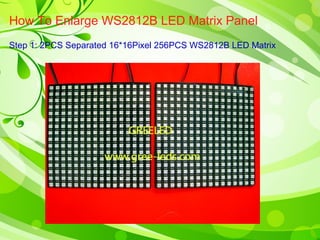

3. How To Enlarge WS2812B LED Matrix Panel
Step 1: 2PCS Separated 16*16Pixel 256PCS WS2812B LED Matrix

4. How To Enlarge WS2812B LED Matrix Panel
Step 2: Connect the slide fastener of edge together

5. How To Enlarge WS2812B LED Matrix Panel

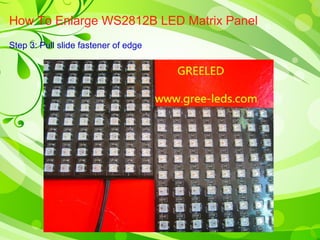

Step 3: Pull slide fastener of edge

6. How To Enlarge WS2812B LED Matrix Panel

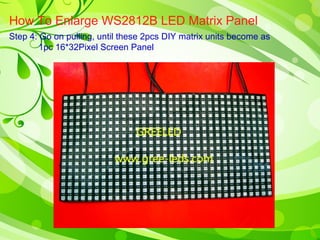

Step 4: Go on pulling, until these 2pcs DIY matrix units become as
1pc 16*32Pixel Screen Panel

7. How To Enlarge WS2812B LED Matrix Panel

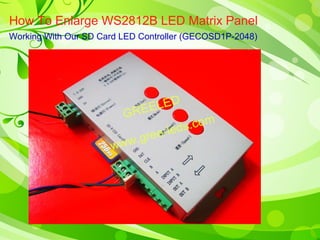

Working With Our SD Card LED Controller (GECOSD1P-2048)

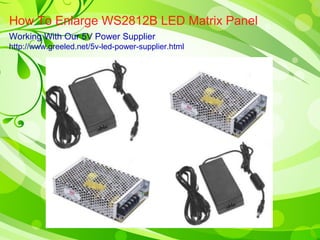

8. How To Enlarge WS2812B LED Matrix Panel
Working With Our 5V Power Supplier
http://www.greeled.net/5v-led-power-supplier.html

9. How To Enlarge WS2812B LED Matrix Panel

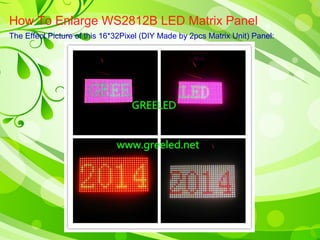

The Effect Picture of this 16*32Pixel (DIY Made by 2pcs Matrix Unit) Panel:

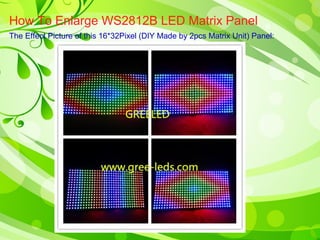

10. How To Enlarge WS2812B LED Matrix Panel
The Effect Picture of this 16*32Pixel (DIY Made by 2pcs Matrix Unit) Panel:

11. How To Enlarge WS2812B LED Matrix Panel

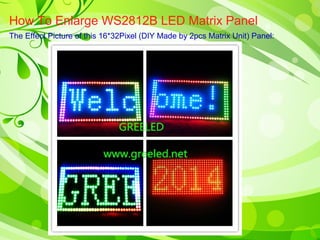

The Effect Picture of this 16*32Pixel (DIY Made by 2pcs Matrix Unit) Panel:

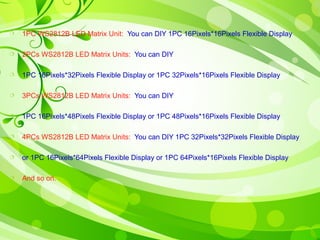

12.  1PC WS2812B LED Matrix Unit: You can DIY 1PC 16Pixels*16Pixels Flexible Display
 2PCs WS2812B LED Matrix Units: You can DIY
 1PC 16Pixels*32Pixels Flexible Display or 1PC 32Pixels*16Pixels Flexible Display
 3PCs WS2812B LED Matrix Units: You can DIY
 1PC 16Pixels*48Pixels Flexible Display or 1PC 48Pixels*16Pixels Flexible Display
 4PCs WS2812B LED Matrix Units: You can DIY 1PC 32Pixels*32Pixels Flexible Display
 or 1PC 16Pixels*64Pixels Flexible Display or 1PC 64Pixels*16Pixels Flexible Display
 And so on.
