The document contains a MASM program designed for sorting and counting random integers between 10 and 29. It generates 200 random integers, displays them unsorted, sorts them, calculates the median, and then counts the occurrences of each unique integer. The code includes functions for introducing the program, filling the array, displaying the array, sorting, and counting instances.

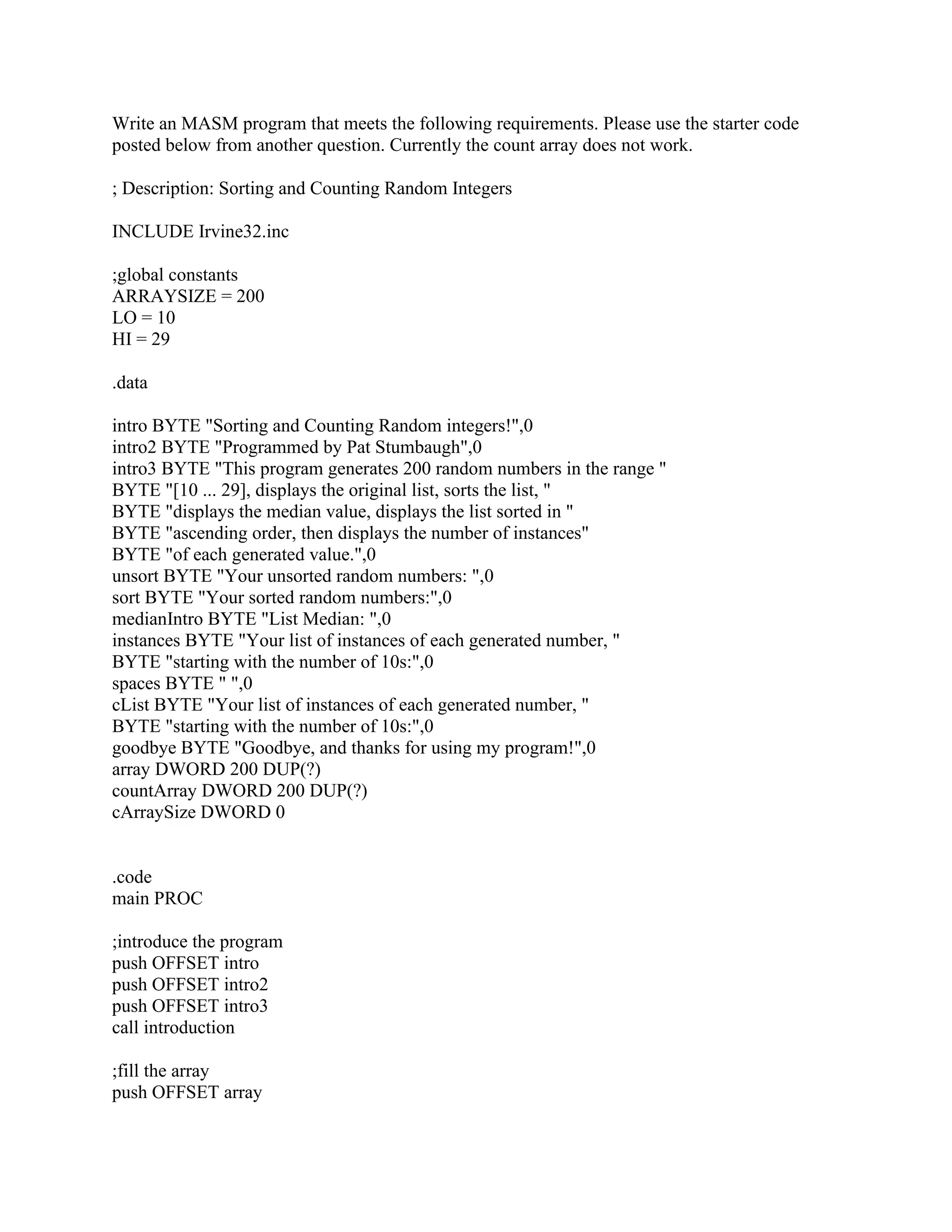

1. Write an MASM program that meets the following requirements. Please use the starter code
posted below from another question. Currently the count array does not work.
; Description: Sorting and Counting Random Integers
INCLUDE Irvine32.inc
;global constants
ARRAYSIZE = 200
LO = 10
HI = 29
.data
intro BYTE "Sorting and Counting Random integers!",0
intro2 BYTE "Programmed by Pat Stumbaugh",0
intro3 BYTE "This program generates 200 random numbers in the range "
BYTE "[10 ... 29], displays the original list, sorts the list, "
BYTE "displays the median value, displays the list sorted in "
BYTE "ascending order, then displays the number of instances"
BYTE "of each generated value.",0
unsort BYTE "Your unsorted random numbers: ",0
sort BYTE "Your sorted random numbers:",0
medianIntro BYTE "List Median: ",0
instances BYTE "Your list of instances of each generated number, "
BYTE "starting with the number of 10s:",0
spaces BYTE " ",0
cList BYTE "Your list of instances of each generated number, "
BYTE "starting with the number of 10s:",0
goodbye BYTE "Goodbye, and thanks for using my program!",0
array DWORD 200 DUP(?)
countArray DWORD 200 DUP(?)
cArraySize DWORD 0
.code
main PROC
;introduce the program
push OFFSET intro
push OFFSET intro2
push OFFSET intro3
call introduction
;fill the array
push OFFSET array

2. push ARRAYSIZE
push HI
push LO
call fillArray
call CrLf
;display title of unsorted array
push OFFSET unsort
call displayTitle
call CrLf
;display the unsorted list
push OFFSET array
push ARRAYSIZE
push OFFSET spaces
call displayArray ;display array call #1
call CrLf
call CrLf
;sort our array
push OFFSET array
push ARRAYSIZE
call sortList
;display title of median
push OFFSET medianIntro
call displayTitle
;display median
push OFFSET array
push ARRAYSIZE
call displayMedian
call CrLf
call CrLf
;display title of sorted array
push OFFSET sort
call displayTitle
call CrLf
;display sorted list
push OFFSET array
push ARRAYSIZE
push OFFSET spaces
call displayArray ;display array call #2
call CrLf

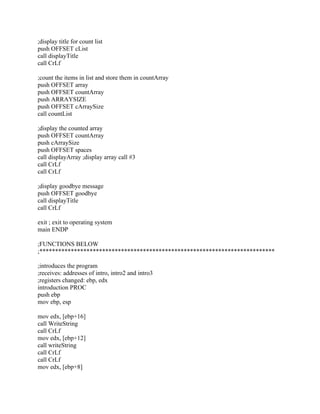

3. ;display title for count list
push OFFSET cList
call displayTitle
call CrLf
;count the items in list and store them in countArray
push OFFSET array
push OFFSET countArray
push ARRAYSIZE
push OFFSET cArraySize
call countList
;display the counted array
push OFFSET countArray
push cArraySize
push OFFSET spaces
call displayArray ;display array call #3
call CrLf
call CrLf
;display goodbye message
push OFFSET goodbye
call displayTitle
call CrLf
exit ; exit to operating system
main ENDP
;FUNCTIONS BELOW
;***************************************************************************
;introduces the program
;receives: addresses of intro, intro2 and intro3
;registers changed: ebp, edx
introduction PROC
push ebp
mov ebp, esp
mov edx, [ebp+16]
call WriteString
call CrLf
mov edx, [ebp+12]
call writeString
call CrLf
call CrLf
mov edx, [ebp+8]

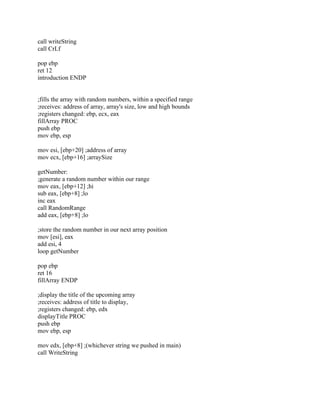

4. call writeString
call CrLf
pop ebp
ret 12
introduction ENDP
;fills the array with random numbers, within a specified range
;receives: address of array, array's size, low and high bounds
;registers changed: ebp, ecx, eax
fillArray PROC
push ebp
mov ebp, esp
mov esi, [ebp+20] ;address of array
mov ecx, [ebp+16] ;arraySize
getNumber:
;generate a random number within our range
mov eax, [ebp+12] ;hi
sub eax, [ebp+8] ;lo
inc eax
call RandomRange
add eax, [ebp+8] ;lo
;store the random number in our next array position
mov [esi], eax
add esi, 4
loop getNumber
pop ebp
ret 16
fillArray ENDP
;display the title of the upcoming array
;receives: address of title to display,
;registers changed: ebp, edx
displayTitle PROC
push ebp
mov ebp, esp
mov edx, [ebp+8] ;(whichever string we pushed in main)
call WriteString

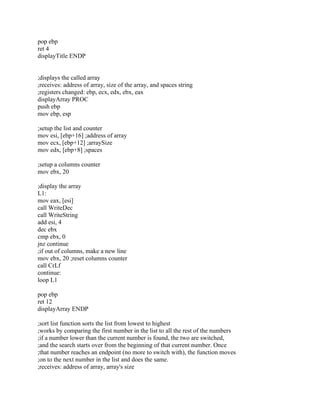

5. pop ebp
ret 4
displayTitle ENDP
;displays the called array
;receives: address of array, size of the array, and spaces string
;registers changed: ebp, ecx, edx, ebx, eax
displayArray PROC
push ebp
mov ebp, esp
;setup the list and counter
mov esi, [ebp+16] ;address of array
mov ecx, [ebp+12] ;arraySize
mov edx, [ebp+8] ;spaces
;setup a columns counter
mov ebx, 20
;display the array
L1:
mov eax, [esi]
call WriteDec
call WriteString
add esi, 4
dec ebx
cmp ebx, 0
jnz continue
;if out of columns, make a new line
mov ebx, 20 ;reset columns counter
call CrLf
continue:
loop L1
pop ebp
ret 12
displayArray ENDP
;sort list function sorts the list from lowest to highest
;works by comparing the first number in the list to all the rest of the numbers
;if a number lower than the current number is found, the two are switched,
;and the search starts over from the beginning of that current number. Once
;that number reaches an endpoint (no more to switch with), the function moves
;on to the next number in the list and does the same.
;receives: address of array, array's size

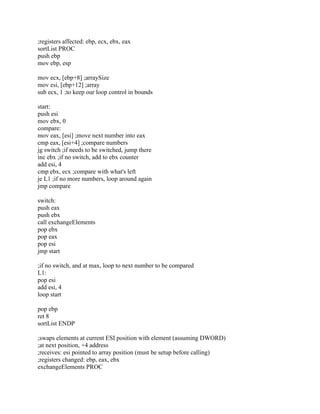

6. ;registers affected: ebp, ecx, ebx, eax
sortList PROC
push ebp
mov ebp, esp
mov ecx, [ebp+8] ;arraySize
mov esi, [ebp+12] ;array
sub ecx, 1 ;to keep our loop control in bounds
start:
push esi
mov ebx, 0
compare:
mov eax, [esi] ;move next number into eax
cmp eax, [esi+4] ;compare numbers
jg switch ;if needs to be switched, jump there
inc ebx ;if no switch, add to ebx counter
add esi, 4
cmp ebx, ecx ;compare with what's left
je L1 ;if no more numbers, loop around again
jmp compare
switch:
push eax
push ebx
call exchangeElements
pop ebx
pop eax
pop esi
jmp start
;if no switch, and at max, loop to next number to be compared
L1:
pop esi
add esi, 4
loop start
pop ebp
ret 8
sortList ENDP
;swaps elements at current ESI position with element (assuming DWORD)
;at next position, +4 address
;receives: esi pointed to array position (must be setup before calling)
;registers changed: ebp, eax, ebx
exchangeElements PROC

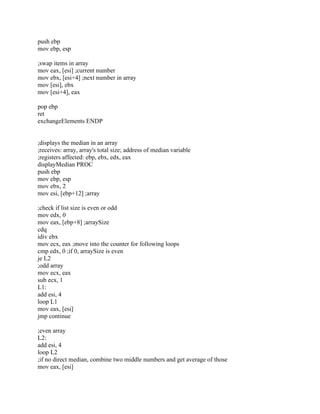

7. push ebp
mov ebp, esp
;swap items in array
mov eax, [esi] ;current number
mov ebx, [esi+4] ;next number in array
mov [esi], ebx
mov [esi+4], eax
pop ebp
ret
exchangeElements ENDP
;displays the median in an array
;receives: array, array's total size; address of median variable
;registers affected: ebp, ebx, edx, eax
displayMedian PROC
push ebp
mov ebp, esp
mov ebx, 2
mov esi, [ebp+12] ;array
;check if list size is even or odd
mov edx, 0
mov eax, [ebp+8] ;arraySize
cdq
idiv ebx
mov ecx, eax ;move into the counter for following loops
cmp edx, 0 ;if 0, arraySize is even
je L2
;odd array
mov ecx, eax
sub ecx, 1
L1:
add esi, 4
loop L1
mov eax, [esi]
jmp continue
;even array
L2:
add esi, 4
loop L2
;if no direct median, combine two middle numbers and get average of those
mov eax, [esi]

8. add eax, [esi-4]
mov ebx, 2
cdq
idiv ebx
;display the new median
continue:
call WriteDec
pop ebp
ret 8
displayMedian ENDP
;countList: counts the number of instances for each number
;receives: address of array, array's size
;registers changed: ebp, ecx, eax, ebx, edx
countList PROC
push ebp
mov ebp, esp
mov esi, [ebp+20] ;array
mov ecx, [ebp+12] ;array's size
;count the number of similar numbers (in a sorted array)
;if it encounters a different number, copy counted items tally into next spot,
;of the countArray array then restart tally and move to next item
restart:
mov eax, 1
continue:
mov ebx, [esi]
cmp ebx, [esi+4]
jne print
add eax, 1
add esi, 4
loop continue
jmp finish
print:
push [ebp+16] ;countArray
push [ebp+8] ;cArraySize
push eax ;number to add to array
call addToList
add esi, 4
loop restart

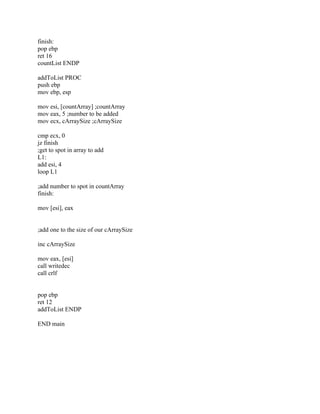

9. finish:
pop ebp
ret 16
countList ENDP
addToList PROC
push ebp
mov ebp, esp
mov esi, [countArray] ;countArray
mov eax, 5 ;number to be added
mov ecx, cArraySize ;cArraySize
cmp ecx, 0
jz finish
;get to spot in array to add
L1:
add esi, 4
loop L1
;add number to spot in countArray
finish:
mov [esi], eax
;add one to the size of our cArraySize
inc cArraySize
mov eax, [esi]
call writedec
call crlf
pop ebp
ret 12
addToList ENDP
END main
