Wire mesh screens made from high carbon spring steel wire are proposed as an alternative to mild steel plate screens for vibrators and hot mix plants. The steel wire screens have several advantages: [1] They allow more production as square openings provide a larger opening area than round openings. [2] The diagonal length of square openings requires the openings to be around 10% smaller. [3] The steel wire is stronger than mild steel plates and will last much longer. [4] Multiple layers of wire reinforce each other, increasing strength further. The wire mesh screens are also more economical despite their longer life. Specifications and pricing for various wire mesh screen options are provided.

1. Wire Mesh Screen for Vibrator and Hot Mix Plain
Wire Mesh Screen for Vibrator and Hotmix Plant

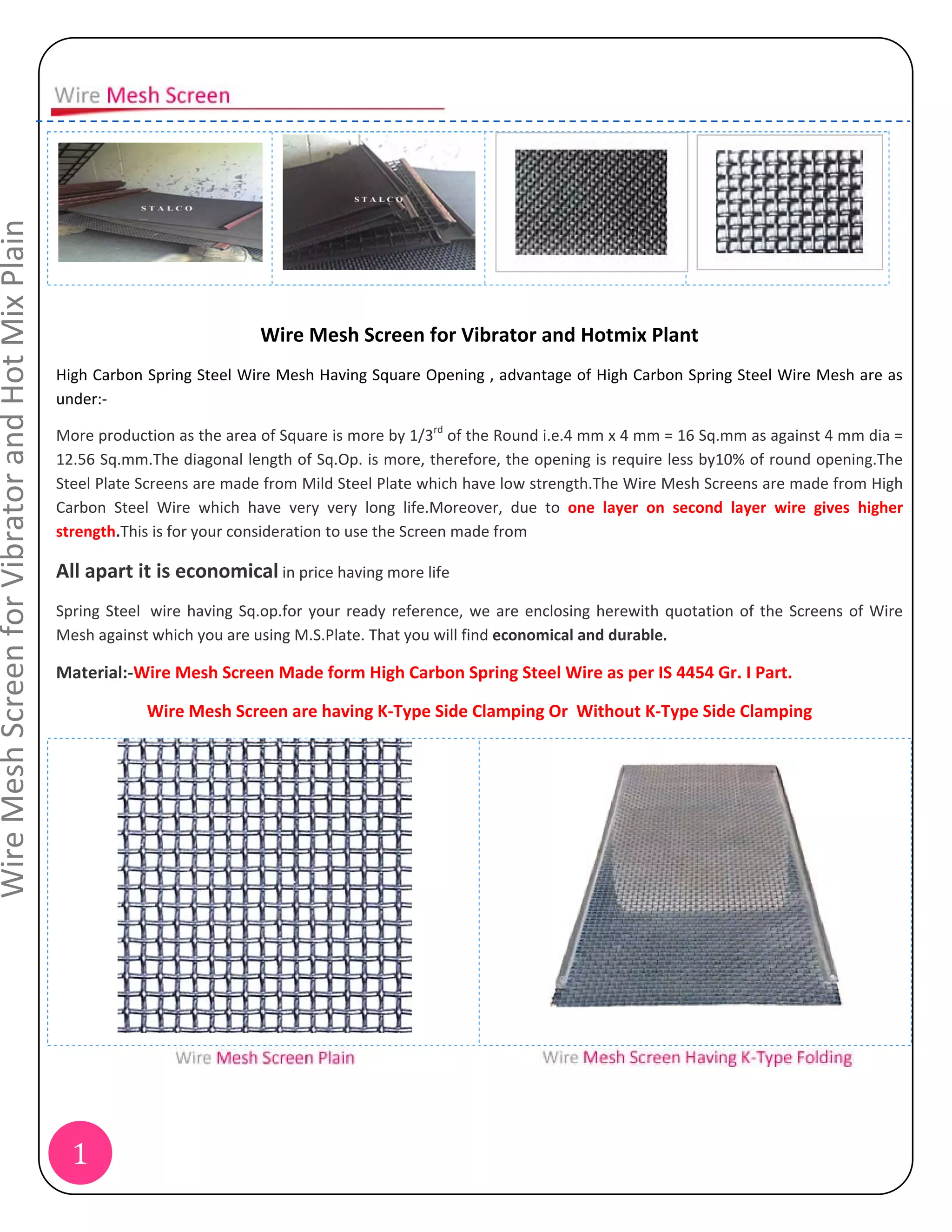

High Carbon Spring Steel Wire Mesh Having Square Opening , advantage of High Carbon Spring Steel Wire Mesh are as
under:‐
More production as the area of Square is more by 1/3rd of the Round i.e.4 mm x 4 mm = 16 Sq.mm as against 4 mm dia =
12.56 Sq.mm.The diagonal length of Sq.Op. is more, therefore, the opening is require less by10% of round opening.The
Steel Plate Screens are made from Mild Steel Plate which have low strength.The Wire Mesh Screens are made from High
Carbon Steel Wire which have very very long life.Moreover, due to one layer on second layer wire gives higher
strength.This is for your consideration to use the Screen made from
All apart it is economical in price having more life
Spring Steel wire having Sq.op.for your ready reference, we are enclosing herewith quotation of the Screens of Wire
Mesh against which you are using M.S.Plate. That you will find economical and durable.
Material:‐Wire Mesh Screen Made form High Carbon Spring Steel Wire as per IS 4454 Gr. I Part.

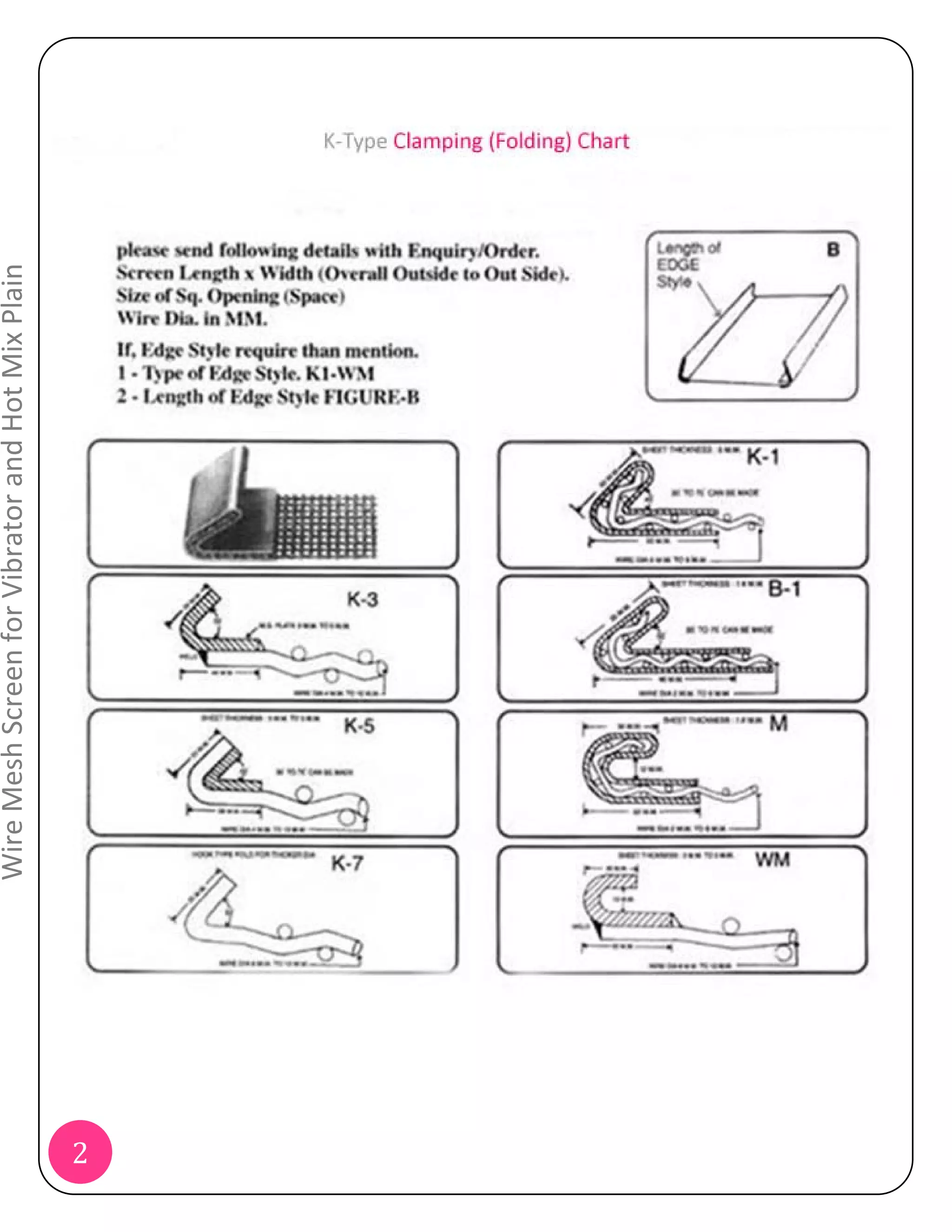

Wire Mesh Screen are having K‐Type Side Clamping Or Without K‐Type Side Clamping
1

2. Wire Mesh Screen for Vibrator and Hot Mix Plain
2

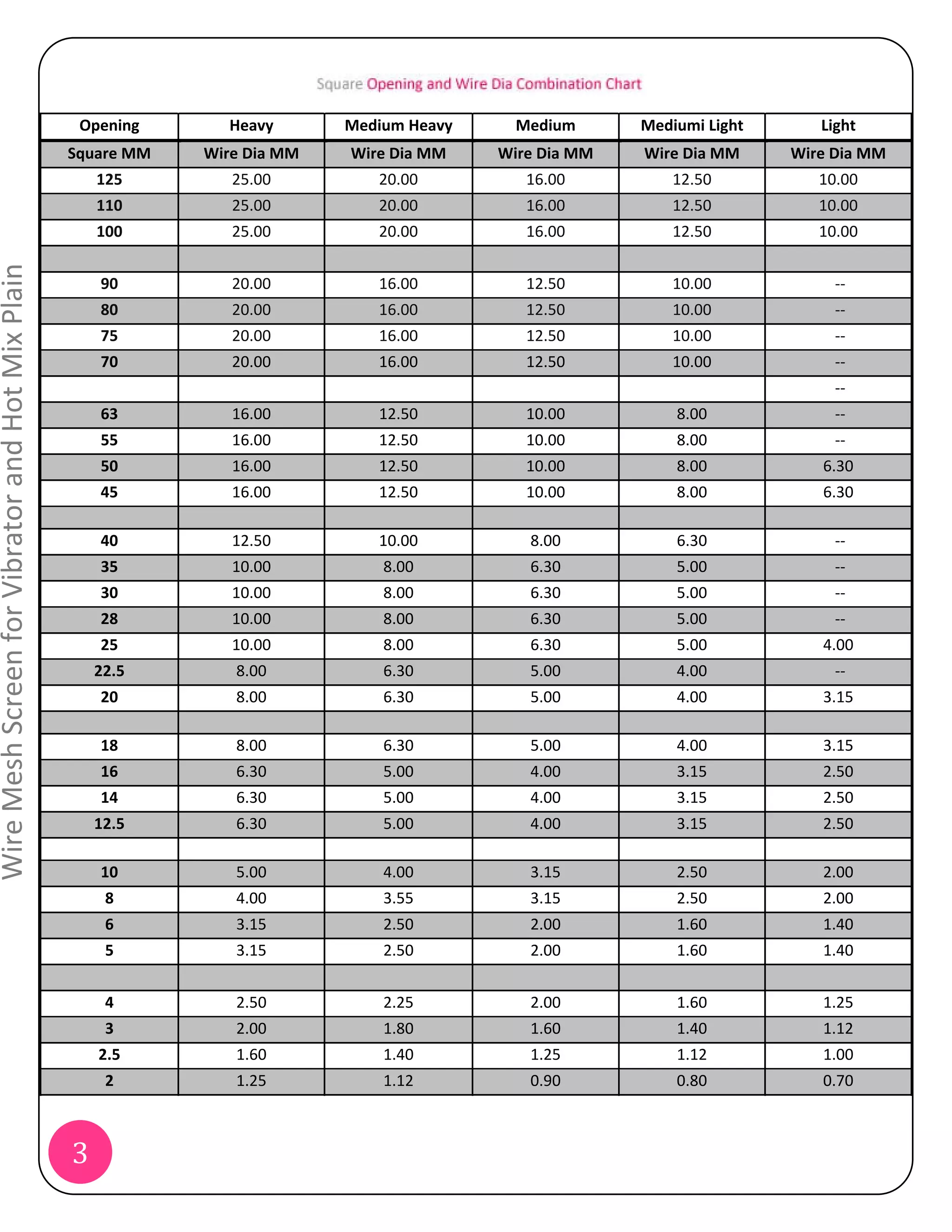

3. Opening Heavy Medium Heavy Medium Mediumi Light Light
Square MM Wire Dia MM Wire Dia MM Wire Dia MM Wire Dia MM Wire Dia MM
125 25.00 20.00 16.00 12.50 10.00
110 25.00 20.00 16.00 12.50 10.00
100 25.00 20.00 16.00 12.50 10.00
Wire Mesh Screen for Vibrator and Hot Mix Plain
90 20.00 16.00 12.50 10.00 ‐‐
80 20.00 16.00 12.50 10.00 ‐‐
75 20.00 16.00 12.50 10.00 ‐‐
70 20.00 16.00 12.50 10.00 ‐‐
‐‐
63 16.00 12.50 10.00 8.00 ‐‐
55 16.00 12.50 10.00 8.00 ‐‐
50 16.00 12.50 10.00 8.00 6.30
45 16.00 12.50 10.00 8.00 6.30
40 12.50 10.00 8.00 6.30 ‐‐
35 10.00 8.00 6.30 5.00 ‐‐
30 10.00 8.00 6.30 5.00 ‐‐
28 10.00 8.00 6.30 5.00 ‐‐
25 10.00 8.00 6.30 5.00 4.00
22.5 8.00 6.30 5.00 4.00 ‐‐
20 8.00 6.30 5.00 4.00 3.15
18 8.00 6.30 5.00 4.00 3.15
16 6.30 5.00 4.00 3.15 2.50
14 6.30 5.00 4.00 3.15 2.50
12.5 6.30 5.00 4.00 3.15 2.50
10 5.00 4.00 3.15 2.50 2.00
8 4.00 3.55 3.15 2.50 2.00
6 3.15 2.50 2.00 1.60 1.40
5 3.15 2.50 2.00 1.60 1.40
4 2.50 2.25 2.00 1.60 1.25
3 2.00 1.80 1.60 1.40 1.12
2.5 1.60 1.40 1.25 1.12 1.00
2 1.25 1.12 0.90 0.80 0.70
3

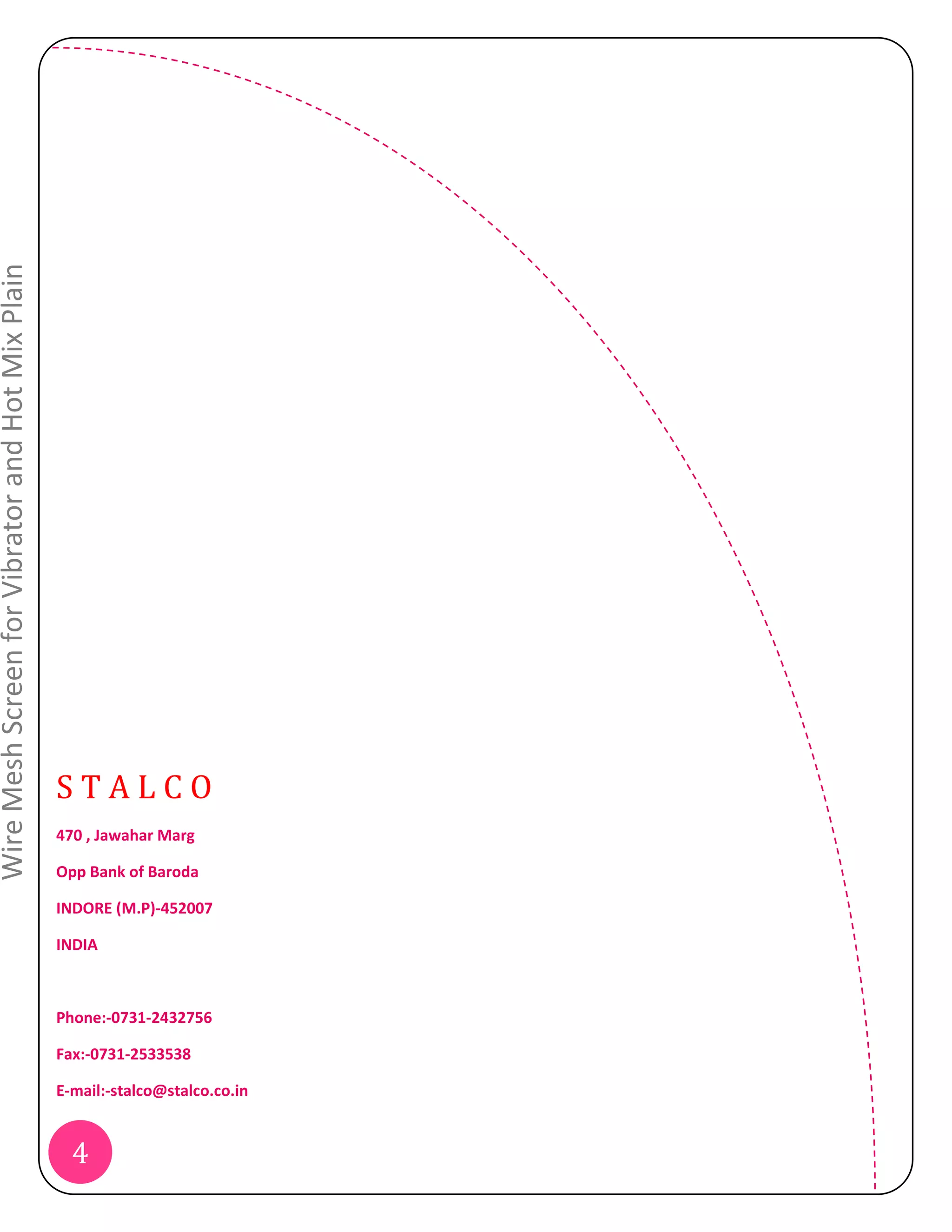

4. Wire Mesh Screen for Vibrator and Hot Mix Plain
