1. Sergei Petrunia
Vicentiu Ciorbaru
Window functions
in MariaDB

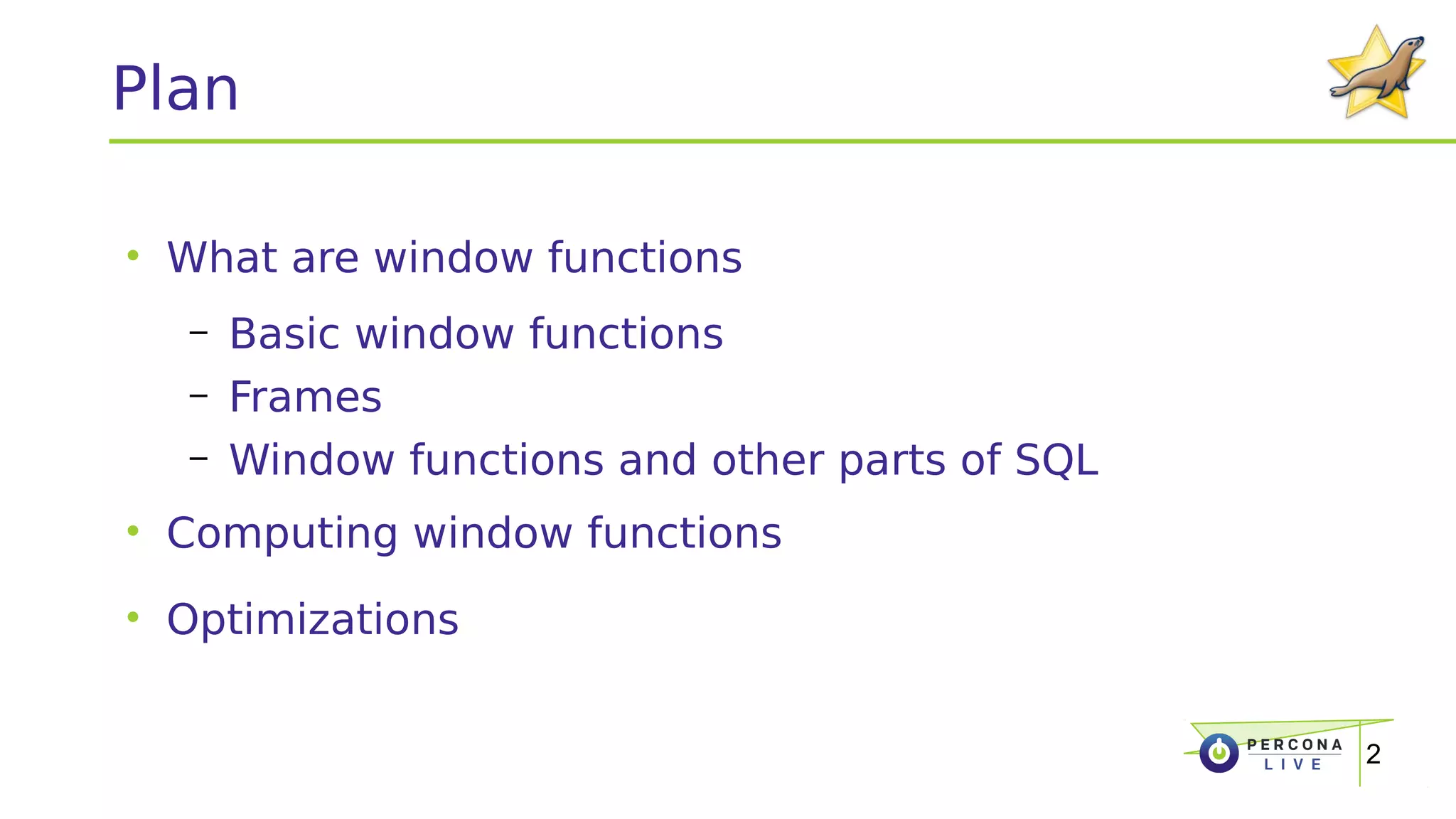

2. 2
Plan
• What are window functions
– Basic window functions
– Frames
– Window functions and other parts of SQL
• Computing window functions
• Optimizations

3. 3
Plan
• What are window functions
– Basic window functions
– Frames
– Window functions and other parts of SQL
• Computing window functions
• Optimizations

4. 4
Scalar functions
select
concat(Name, ' in ', Country)
from Cities
Peking in CHN
Berlin in DEU
Moscow in RUS
Chicago in USA
+------+---------+---------+
| ID | Name | Country |
+------+---------+---------+
| 1891 | Peking | CHN |
| 3068 | Berlin | DEU |
| 3580 | Moscow | RUS |
| 3795 | Chicago | USA |
+------+---------+---------+
• Compute values based on the current row

5. 5
Aggregate functions
• Compute summary for the group
• Group is collapsed into summary row
select
country, sum(Population) as total
from Cities
group by country
+-----------+---------+------------+
| name | country | population |
+-----------+---------+------------+
| Berlin | DEU | 3386667 |
| Frankfurt | DEU | 643821 |
| Moscow | RUS | 8389200 |
| New York | USA | 8008278 |
| Chicago | USA | 2896016 |
| Seattle | USA | 563374 |
+-----------+---------+------------+
+---------+----------+
| country | total |
+---------+----------+
| DEU | 4030488 |
| RUS | 8389200 |
| USA | 11467668 |
+---------+----------+

6. 6
Window functions
• Function is computed over an ordered partition (=group)
• Groups are not collapsed
select
name,
rank() over (partition by country,
order by population desc)
from cities
+-----------+---------+------------+
| name | country | population |
+-----------+---------+------------+
| Berlin | DEU | 3386667 |
| Frankfurt | DEU | 643821 |
| Moscow | RUS | 8389200 |
| New York | USA | 8008278 |
| Chicago | USA | 2896016 |
| Seattle | USA | 563374 |
+-----------+---------+------------+
+-----------+------+
| name | rank |
+-----------+------+
| Berlin | 1 |
| Frankfurt | 2 |
| Moscow | 1 |
| New York | 1 |
| Chicago | 2 |
| Seattle | 3 |
+-----------+------+

7. 7
Window functions
• Function is computed over an ordered partition (=group)
• Groups are not collapsed
select
name,
rank() over (partition by country,
order by population desc)
from cities
+-----------+---------+------------+
| name | country | population |
+-----------+---------+------------+
| Berlin | DEU | 3386667 |
| Frankfurt | DEU | 643821 |
| Moscow | RUS | 8389200 |
| New York | USA | 8008278 |
| Chicago | USA | 2896016 |
| Seattle | USA | 563374 |
+-----------+---------+------------+
+-----------+------+
| name | rank |
+-----------+------+
| Berlin | 1 |
| Frankfurt | 2 |
| Moscow | 1 |
| New York | 1 |
| Chicago | 2 |
| Seattle | 3 |
+-----------+------+

8. 8
Plan
• What are window functions
– Basic window functions
– Frames
– Window functions and other parts of SQL
• Computing window functions
• Optimizations

9. 9
Basic Window Functions
select
name, incidents
from
support_staff
+----------+-----------+
| name | incidents |
+----------+-----------+
| Claudio | 10 |
| Valeriy | 9 |
| Daniel | 9 |
| Geoff | 9 |
| Stephane | 8 |
+----------+-----------+

10. 10
row_number()
select
name, incidents,
row_number() over (order by incidents desc) as ROW_NUM
from
support_staff
+----------+-----------+---------+
| name | incidents | ROW_NUM |
+----------+-----------+---------+
| Claudio | 10 | 1 |
| Valeriy | 9 | 2 |
| Daniel | 9 | 3 |
| Geoff | 9 | 4 |
| Stephane | 8 | 5 |
+----------+-----------+---------+

11. 11
rank()
select
name, incidents,
row_number() over (order by incidents desc) as ROW_NUM,
rank() over (order by incidents desc) as RANK,
from
support_staff
+----------+-----------+---------+------+
| name | incidents | ROW_NUM | RANK |
+----------+-----------+---------+------+
| Claudio | 10 | 1 | 1 |
| Valeriy | 9 | 2 | 2 |
| Daniel | 9 | 3 | 2 |
| Geoff | 9 | 4 | 2 |
| Stephane | 8 | 5 | 5 |
+----------+-----------+---------+------+

12. 12
dense_rank()
select
name, incidents,
row_number() over (order by incidents desc) as ROW_NUM,
rank() over (order by incidents desc) as RANK,
dense_rank() over (order by incidents desc) as DENSE_R,
from
support_staff
+----------+-----------+---------+------+---------+
| name | incidents | ROW_NUM | RANK | DENSE_R |
+----------+-----------+---------+------+---------+
| Claudio | 10 | 1 | 1 | 1 |
| Valeriy | 9 | 3 | 2 | 2 |
| Daniel | 9 | 4 | 2 | 2 |
| Geoff | 9 | 2 | 2 | 2 |
| Stephane | 8 | 5 | 5 | 3 |
+----------+-----------+---------+------+---------+

13. 13
ntile(n)
select
name, incidents,
row_number() over (order by incidents desc) as ROW_NUM,
rank() over (order by incidents desc) as RANK,
dense_rank() over (order by incidents desc) as DENSE_R,
ntile(4) over (order by incidents desc) as QARTILE,
from
support_staff
+----------+-----------+---------+------+---------+----------+
| name | incidents | ROW_NUM | RANK | DENSE_R | QUARTILE |
+----------+-----------+---------+------+---------+----------+
| Claudio | 10 | 1 | 1 | 1 | 1 |
| Valeriy | 9 | 2 | 2 | 2 | 1 |
| Daniel | 9 | 3 | 2 | 2 | 2 |
| Geoff | 9 | 4 | 2 | 2 | 3 |
| Stephane | 8 | 5 | 5 | 3 | 4 |
+----------+-----------+---------+------+---------+----------+

14. 14
Conclusions so far
• Window functions are similar to aggregates
• Computed on (current_row, ordered_list(window_rows))
• Can compute relative standing of row wrt other rows
• RANK, DENSE_RANK, ...

15. 15
Plan
• What are window functions
– Basic window functions
– Frames
– Window functions and other parts of SQL
• Computing window functions
• Optimizations

16. 16
Framed window functions
• Some Window Functions use FRAMES
– e.g. Aggregates that are used as
window functions
• Window function is computed on rows
in the frame.
• Frame is inside PARTITION BY
• Frame moves with the current row
• There are various frame types

17. 17
Smoothing Noisy Data
• Noisy data
acquisition
solution
17
SELECT time, raw_data
FROM sensor_data;

18. 18
Smoothing Noisy Data
• Noisy data
acquisition
solution
SELECT time, raw_data
AVG(raw_data) OVER (
)
FROM sensor_data;

19. 19
Smoothing Noisy Data
• Noisy data
acquisition
solution
SELECT time, raw_data
AVG(raw_data) OVER (
ORDER BY time
)
FROM sensor_data;

20. 20
Smoothing Noisy Data
• Noisy data
acquisition
solution
SELECT time, raw_data
AVG(raw_data) OVER (
ORDER BY time
ROWS BETWEEN
3 PRECEDING AND
3 FOLLOWING )
FROM sensor_data;

21. 21
Smoothing Noisy Data
• Noisy data
acquisition
solution
SELECT time, raw_data
AVG(raw_data) OVER (
ORDER BY time
ROWS BETWEEN
6 PRECEDING AND
6 FOLLOWING )
FROM sensor_data;

22. 22
Account balance statement
• Generate balance sheet for bank account.
• Incoming transactions.
• Outgoing transactions.
+-----+----------+--------+
| tid | date | amount |
+-----+----------+--------+
| 1 | 20160401 | 2000 |
| 2 | 20160402 | -30.5 |
| 3 | 20160404 | -45.5 |
| 4 | 20160405 | -125.5 |
| 5 | 20160406 | 100.3 |
+-----+----------+--------+
select tid, date, amount
from transactions
where account_id = 12345;

23. 23
Account balance statement
SELECT tid, date, amount
FROM transactions
WHERE account_id = 12345;
+-----+----------+--------+
| tid | date | amount |
+-----+----------+--------+
| 1 | 20160401 | 2000 |
| 2 | 20160402 | -30.5 |
| 3 | 20160404 | -45.5 |
| 4 | 20160405 | -125.5 |
| 5 | 20160406 | 100.3 |
+-----+----------+--------+

24. 24
Account balance statement
SELECT tid, date, amount,
( SELECT SUM(amount)
FROM transactions t
WHERE t.date <= date AND
account_id = 12345 ) AS balance
FROM transactions
WHERE account_id = 12345;
+-----+----------+--------+----------+
| tid | date | amount | balance |
+-----+----------+--------+----------+
| 1 | 20160401 | 2000 | 2000 |
| 2 | 20160402 | -30.5 | 1969.5 |
| 3 | 20160404 | -45.5 | 1924 |
| 4 | 20160405 | -125.5 | 1798.5 |
| 5 | 20160406 | 100.3 | 1898.8 |
+-----+----------+--------+----------+

25. 25
Account balance statement
SELECT tid, date, amount,
SUM(amount) OVER (ORDER BY date
ROWS BETWEEN UNBOUNDED PRECEDING AND
CURRENT ROW) AS balance
FROM transactions
WHERE account_id = 12345;
+-----+----------+--------+----------+
| tid | date | amount | balance |
+-----+----------+--------+----------+
| 1 | 20160401 | 2000 | 2000 |
| 2 | 20160402 | -30.5 | 1969.5 |
| 3 | 20160404 | -45.5 | 1924 |
| 4 | 20160405 | -125.5 | 1798.5 |
| 5 | 20160406 | 100.3 | 1898.8 |
+-----+----------+--------+----------+

26. 26
Account balance statement
• How do queries compare?
# Rows Regular SQL Window Functions
100 3.72 sec 0.01 sec
500 30.04 sec 0.01 sec
1000 59.6 sec 0.02 sec
2000 1 min 59 sec 0.03 sec
4000 4 min 1 sec 0.04 sec
16000 18 min 26 sec 0.18 sec

27. 27
RANGE-type frames
• Useful when interval of interest has multiple/missing rows
• ORDER BY column -- one numeric column
• RANGE n PRECEDING
rows with R.column >= (current_row.column – n)
• RANGE n FOLLOWING
rows with R.column <= (current_row.column + n)
• CURRENT ROW
current row and rows with R.column = current_row.column

28. 28
RANGE-type frames
• Expenses from today and yesterday:
+----------+-------+--------+------+
| exp_date | name | amount | sum |
+----------+-------+--------+------+
| 20160407 | bus | 4 | 4 |
| 20160409 | beer | 2 | |
| 20160410 | wine | 4 | |
| 20160410 | snack | 12 | |
+----------+-------+--------+------+
select
*,
sum(amount) over (order by exp_date
range between 1 preceding and
current row) as sum
from expenses

29. 29
RANGE-type frames
• Expenses from today and yesterday:
+----------+-------+--------+------+
| exp_date | name | amount | sum |
+----------+-------+--------+------+
| 20160407 | bus | 4 | 4 |
| 20160409 | beer | 2 | |
| 20160410 | wine | 4 | |
| 20160410 | snack | 12 | |
+----------+-------+--------+------+
select
*,
sum(amount) over (order by exp_date
range between 1 preceding and
current row) as sum
from expenses

30. 30
RANGE-type frames
• Expenses from today and yesterday:
+----------+-------+--------+------+
| exp_date | name | amount | sum |
+----------+-------+--------+------+
| 20160407 | bus | 4 | 4 |
| 20160409 | beer | 2 | 2 |
| 20160410 | wine | 4 | |
| 20160410 | snack | 12 | |
+----------+-------+--------+------+
select
*,
sum(amount) over (order by exp_date
range between 1 preceding and
current row) as sum
from expenses

31. 31
RANGE-type frames
• Expenses from today and yesterday:
+----------+-------+--------+------+
| exp_date | name | amount | sum |
+----------+-------+--------+------+
| 20160407 | bus | 4 | 4 |
| 20160409 | beer | 2 | 2 |
| 20160410 | wine | 4 | 18 |
| 20160410 | snack | 12 | |
+----------+-------+--------+------+
select
*,
sum(amount) over (order by exp_date
range between 1 preceding and
current row) as sum
from expenses

32. 32
RANGE-type frames
• Expenses from today and yesterday:
+----------+-------+--------+------+
| exp_date | name | amount | sum |
+----------+-------+--------+------+
| 20160407 | bus | 4 | 4 |
| 20160409 | beer | 2 | 2 |
| 20160410 | wine | 4 | 18 |
| 20160410 | snack | 12 | 18 |
+----------+-------+--------+------+
select
*,
sum(amount) over (order by exp_date
range between 1 preceding and
current row) as sum
from expenses

33. 33
Date columns with RANGE-type frames
• Date columns and temporal intervals (MDEV-9727)
AVG(value) OVER (ORDER BY date_col
RANGE BETWEEN INTERVAL 1 MONTH PRECEDING
AND INTERVAL 1 MONTH FOLLOWING)
• SQL Standard allows this
• Not supported by PostgreSQL or MS SQL Server
• Intend to support in MariaDB.

34. 34
FRAME syntax
• ROWS|RANGE PRECEDING|FOLLOWING:

35. 35
Frames summary
• Some window functions use frames
– e.g. Aggregate functions used as window functions
• Frame moves with the current row
• RANGE/ROWS-type frames
– MariaDB supports all kinds
• Useful for
– Cumulative sums
– Running averages
– Getting aggregates without doing GROUP BY

36. 36
The Island problem
• Given a set of ordered integers, find the start and end of
sequences that have no missing numbers.
Ex: 2, 3, 10, 11, 12, 15, 16, 17
• A common problem, with plenty of use cases:
– Used in sales to identify activity periods.
– Detecting outages.
– Stock market analysis.

37. 37
The Island problem
SELECT value
FROM islands
ORDER BY value;
+-------+
| value |
+-------+
| 2 |
| 3 |
| 10 |
| 11 |
| 12 |
| 15 |
| 16 |
| 17 |
+-------+
+-------------+-----------+
| start_range | end_range |
+-------------+-----------+
| 2 | 3 |
| 10 | 12 |
| 15 | 17 |
+-------------+-----------+

38. 38
The Island problem
SELECT value, (SELECT ??? ) AS grp
FROM islands
ORDER BY value;
+-------+------+
| value | grp |
+-------+------+
| 2 | a |
| 3 | a |
| 10 | b |
| 11 | b |
| 12 | b |
| 15 | c |
| 16 | c |
| 17 | c |
+-------+------+
+-------------+-----------+
| start_range | end_range |
+-------------+-----------+
| 2 | 3 |
| 10 | 12 |
| 15 | 17 |
+-------------+-----------+

39. 39
The Island problem
SELECT value, (SELECT ??? ) AS grp
FROM islands
ORDER BY value;
+-------+------+
| value | grp |
+-------+------+
| 2 | a |
| 3 | a |
| 10 | b |
| 11 | b |
| 12 | b |
| 15 | c |
| 16 | c |
| 17 | c |
+-------+------+
+-------------+-----------+
| start_range | end_range |
+-------------+-----------+
| 2 | 3 |
| 10 | 12 |
| 15 | 17 |
+-------------+-----------+
SELECT MIN(value) AS start_range
MAX(value) AS end_range
FROM islands
GROUP BY grp;

40. 40
The Island problem – generating the groups
SELECT value, (SELECT ??? ) AS grp
FROM islands
ORDER BY value;
+-------+------+
| value | grp |
+-------+------+
| 2 | 3 |
| 3 | 3 |
| 10 | 12 |
| 11 | 12 |
| 12 | 12 |
| 15 | 17 |
| 16 | 17 |
| 17 | 17 |
+-------+------+

41. 41
The Island problem – generating the groups
SELECT value,
( SELECT MIN(B.value)
FROM islands AS B
WHERE B.value >= A.value
AND NOT EXISTS
( SELECT *
FROM islands AS C
WHERE C.col1 = B.col1 + 1)
) AS grp
FROM islands as A
ORDER BY value;
+-------+------+
| value | grp |
+-------+------+
| 2 | 3 |
| 3 | 3 |
| 10 | 12 |
| 11 | 12 |
| 12 | 12 |
| 15 | 17 |
| 16 | 17 |
| 17 | 17 |
+-------+------+

42. 42
The Island problem – generating the groups
SELECT value,
( SELECT MIN(B.value)
FROM islands AS B
WHERE B.value >= A.value
AND NOT EXISTS
( SELECT *
FROM islands AS C
WHERE C.value = B.value + 1)
) AS grp
FROM islands as A
ORDER BY value;
+-------+------+
| value | grp |
+-------+------+
| 2 | 3 |
| 3 | 3 |
| 10 | 12 |
| 11 | 12 |
| 12 | 12 |
| 15 | 17 |
| 16 | 17 |
| 17 | 17 |
+-------+------+

43. 43
The Island problem – generating the groups
43
SELECT value,
ROW_NUMBER() OVER
(ORDER BY value)
AS grp
FROM islands as A
ORDER BY value;
+-------+------+
| value | grp |
+-------+------+
| 2 | 1 |
| 3 | 2 |
| 10 | 3 |
| 11 | 4 |
| 12 | 5 |
| 15 | 6 |
| 16 | 7 |
| 17 | 8 |
+-------+------+

44. 44
The Island problem – generating the groups
SELECT value,
value - ROW_NUMBER() OVER
(ORDER BY value)
AS grp
FROM islands as A
ORDER BY value;
+-------+------+
| value | grp |
+-------+------+
| 2 | 1 |
| 3 | 1 |
| 10 | 7 |
| 11 | 7 |
| 12 | 7 |
| 15 | 9 |
| 16 | 9 |
| 17 | 9 |
+-------+------+

45. 45
The Island problem – generating the groups
SELECT value,
value - ROW_NUMBER() OVER
(ORDER BY value)
AS grp
FROM islands as A
ORDER BY value;
SELECT value,
( SELECT MIN(B.value)
FROM islands AS B
WHERE B.value >= A.value
AND NOT EXISTS
(SELECT *
FROM islands AS C
WHERE C.value = B.value + 1)
) AS grp
FROM islands as A
ORDER BY value;

46. 46
Plan
• What are window functions
– Basic window functions
– Frames
– Window functions and other parts of SQL
• Computing window functions
• Optimizations
SergeyP

47. 47
Window Functions and other SQL constructs
• Can have
WIN_FUNC(AGG_FUNC)
Join Group
Check
HAVING
DISTINCT Sort + Limit
Compute
Window
Functions
• Window functions can appear in
– SELECT list
– ORDER BY clause

48. 48
Filtering on window function value
• How to filter for e.g. RANK() < 3 ? Use a subquery.
select
name, incidents,
row_number() over (order by incidents desc) as ROW_NUM
from
support_staff

49. 49
Filtering on window function value
• How to filter for e.g. RANK() < 3 ? Use a subquery.
select * from (
select
name, incidents,
row_number() over (order by incidents desc) as ROW_NUM
from
support_staff
) as TBL
where TBL.ROW_NUM < 3

50. 50
Plan
• What are window functions
– Basic window functions
– Frames
– Window functions and other parts of SQL
• Computing window functions
• Optimizations

51. 51
Computing Window functions
group
table
table
table
join
• Join, grouping
• All partitions are mixed
together

52. 52
Computing Window functions
• Put join output into a
temporary table
• Sort it by
(PARTITITION BY clause,
ORDER BY clause)
group
table
table
table
join
sort
Sort by:
PARTITION BY clause,
ORDER BY clause

53. 53
Computing window function for a row
• Can look at
– Current row
– Rows in the partition, ordered
• Can compute the window function
• Computing values individually would
be expensive
– O(#rows_in_partition ^ 2)

54. 54
“Streamable” window functions
• ROW_NUMBER, RANK, DENSE_RANK, ...
– Can walk down and compute values on
the fly
• NTILE, CUME_DIST, PERCENT_RANK
– Get #rows in the partition
– Then walk down and compute values on
the fly.

55. 55
Computing framed window functions
• window_func(rows_in_the_frame)
• Frame moves with the current row

56. 56
Computing framed window functions
20
10
$total+10-20
$total
• window_func(rows_in_the_frame)
• Frame moves with the current row
• Some functions allow to add and
remove rows
– SUM, COUNT, AVG, BIT_OR, BIT_*
• Can compute efficiently
– Done in MariaDB 10.2.0.

57. 57
Some aggregates make streaming hard
20
21
19
10
MAX= ?
MAX=21
• MIN, MAX
• Need to track the whole window
– Doable for small frames
● Can also re-calculate
– Hard for bigger frames
• Are big frames used?
• Not implemented yet.

58. 58
LEAD and LAG issues
• LAG(expr, N) – “expr N rows before”
– LAG(expr,1) - previous
• Non-constant N?
• Lookups to arbitrary rows
– Expensive
– Worth doing at all?
LAG(..., 2)

59. 59
Summary for computing window functions
• Sort by (partition_by, order_by)
• Then walk through and compute window functions
• Most functions can be computed on-the-fly
• Framed window functions require moving the frame
– SUM, COUNT, AVG .. - can update value as frame moves
– MIN, MAX – more complex
• LEAD, LAG may require random reads

60. 60
Plan
• What are window functions
– Basic window functions
– Frames
– Window functions and other parts of SQL
• Computing window functions
• Optimizations

61. 61
Optimizations
Do window functions
optimizations matter?

62. 62
join
A query with window functions
select
'web' as channel
,web.item
,web.return_ratio
,web.return_rank
,web.currency_rank
from (
select
item
,return_ratio
,currency_ratio
,rank() over (order by return_ratio) as return_rank
,rank() over (order by currency_ratio) as currency_rank
from
( select ws.ws_item_sk as item
,(cast(sum(coalesce(wr.wr_return_quantity,0)) as decimal(15,4))/
cast(sum(coalesce(ws.ws_quantity,0)) as decimal(15,4) )) as return_ratio
,(cast(sum(coalesce(wr.wr_return_amt,0)) as decimal(15,4))/
cast(sum(coalesce(ws.ws_net_paid,0)) as decimal(15,4) )) as currency_ratio
from
web_sales ws left outer join web_returns wr
on (ws.ws_order_number = wr.wr_order_number and
ws.ws_item_sk = wr.wr_item_sk)
,date_dim
where
wr.wr_return_amt > 10000
and ws.ws_net_profit > 1
and ws.ws_net_paid > 0
and ws.ws_quantity > 0
and ws_sold_date_sk = d_date_sk
and ws_sold_date_sk between 2452245 and 2452275
and d_year = 2001
and d_moy = 12
group by ws.ws_item_sk
) in_web
) web
where
web.return_rank <= 10 or web.currency_rank <= 10
Window functions
group
table
table
table
sort

63. 63
Still, there are optimizations
• Doing fewer sorts
• Condition pushdown through PARTITION BY

64. 64
Doing fewer sorts
tbl
tbl
tbl
join
sort
select
rank() over (order by incidents),
ntile(4)over (order by incidents),
rank() over (order by incidents,
join_date),
from
support_staff
• Each window function requires a sort
• Can avoid sorting if using an index (MariaDB: not yet)
• Identical PARTITION/ORDER BY must share the sort step
• Compatible may share the sort step
– MariaDB: yes (but have bugs atm)
– PostgreSQL: yes, limited

65. 65
Condition pushdown through PARTITION BY
select * from (
select
name,
rank() over (partition by dept
order by incidents desc) as R
from
staff
) as TBL
where dept='Support'
staff sort
Development
Consulting
Supportsort

66. 66
Condition pushdown into PARTITION BY
• Other databases have this
• In MariaDB, requires:
MDEV-9197: Pushdown conditions into non-mergeable views/
derived tables
MDEV-7486: Condition pushdown from HAVING into WHERE
• These are 10.2 tasks too
• Considering it

67. 67
Optimizations summary
• Not much need/room for optimizations in many cases
– Window function is a small part of the query
• Optimizations to have
– Share the sort across window functions (have [bugs])
– Condition pushdown through PARTITION BY
●
Depends on another 10.2 task
●
Want to have it

68. 68
Conclusions
• Window functions coming in MariaDB 10.2!
• Already have ~SQL:2003 level features
• Intend to have ~SQL:2011 features
– Comparable with “big 3” databases
• Work on optimizations is in progress
– Send us your cases.

69. 69
Thanks
Q & A
