Window functions in MySQL 8
Dag H. Wanvik
Senior database engineer
MySQL optimizer team
Sep. 2017

Copyright © 2017, Oracle and/or its affiliates. All rights reserved. |

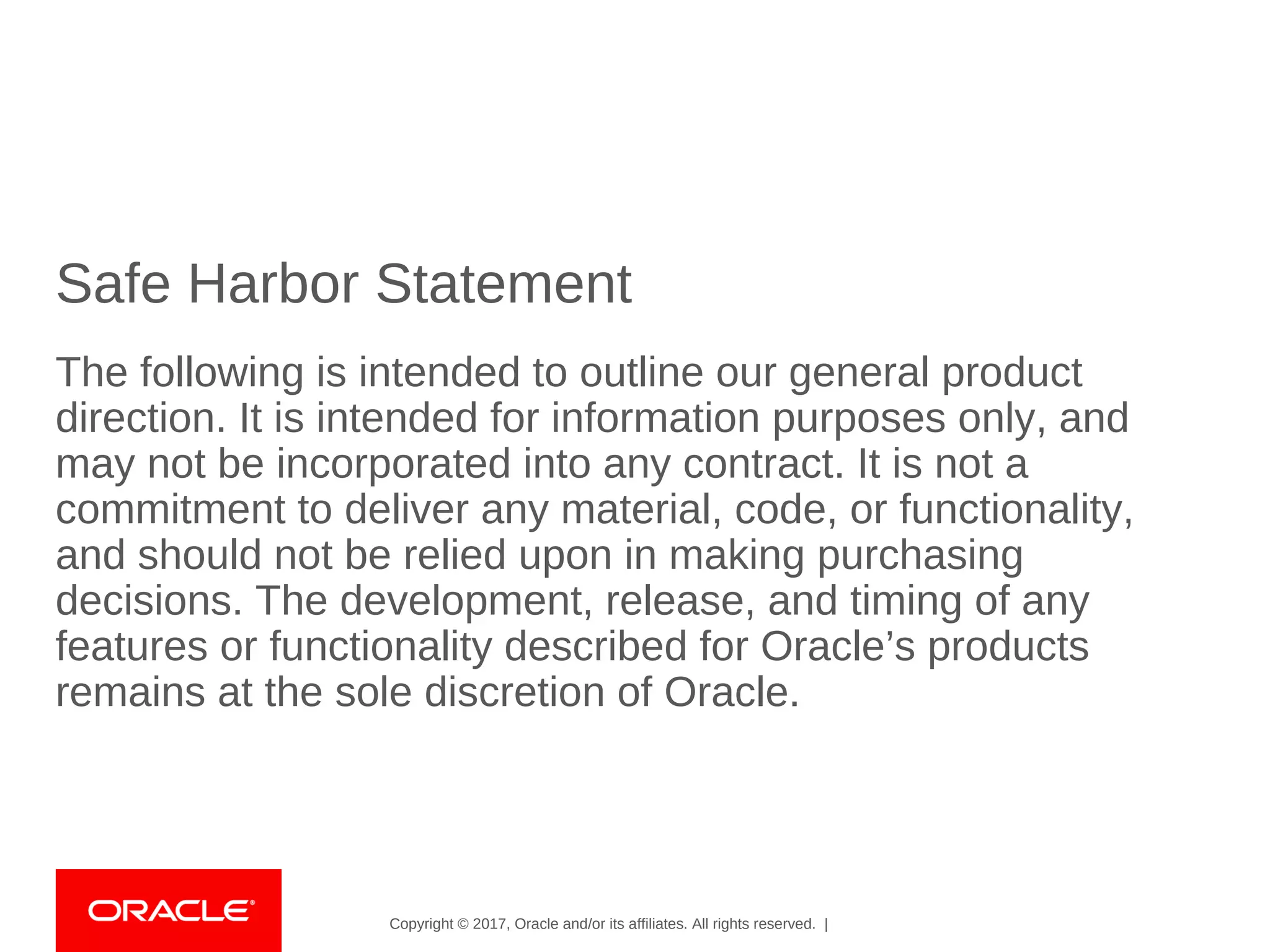

Safe Harbor Statement
The following is intended to outline our general product
direction. It is intended for information purposes only, and
may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality,
and should not be relied upon in making purchasing
decisions. The development, release, and timing of any
features or functionality described for Oracle’s products
remains at the sole discretion of Oracle.

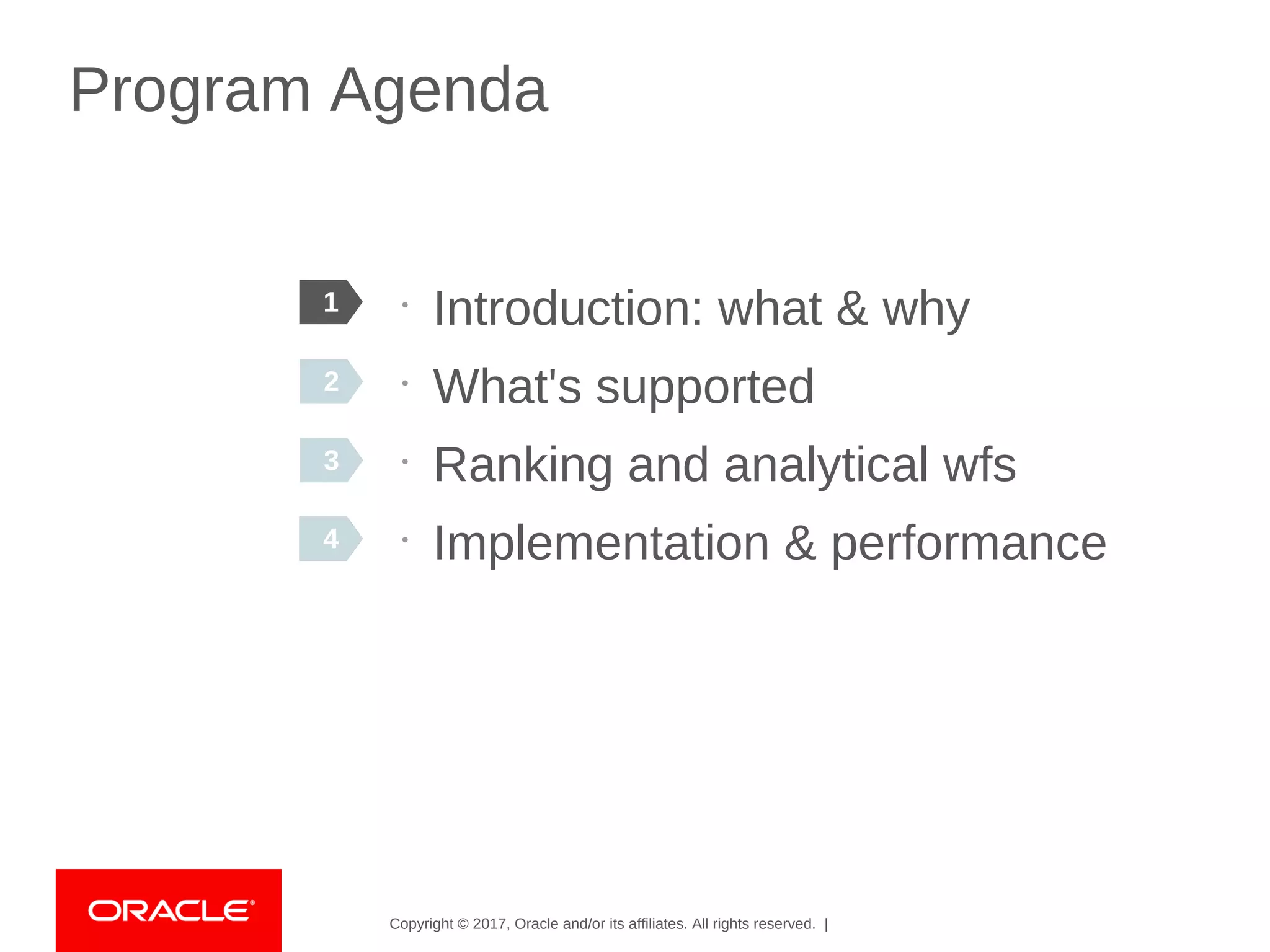

Program Agenda
•
Introduction: what & why
•
What's supported
•
Ranking and analytical wfs
•
Implementation & performance
1
2
3
44

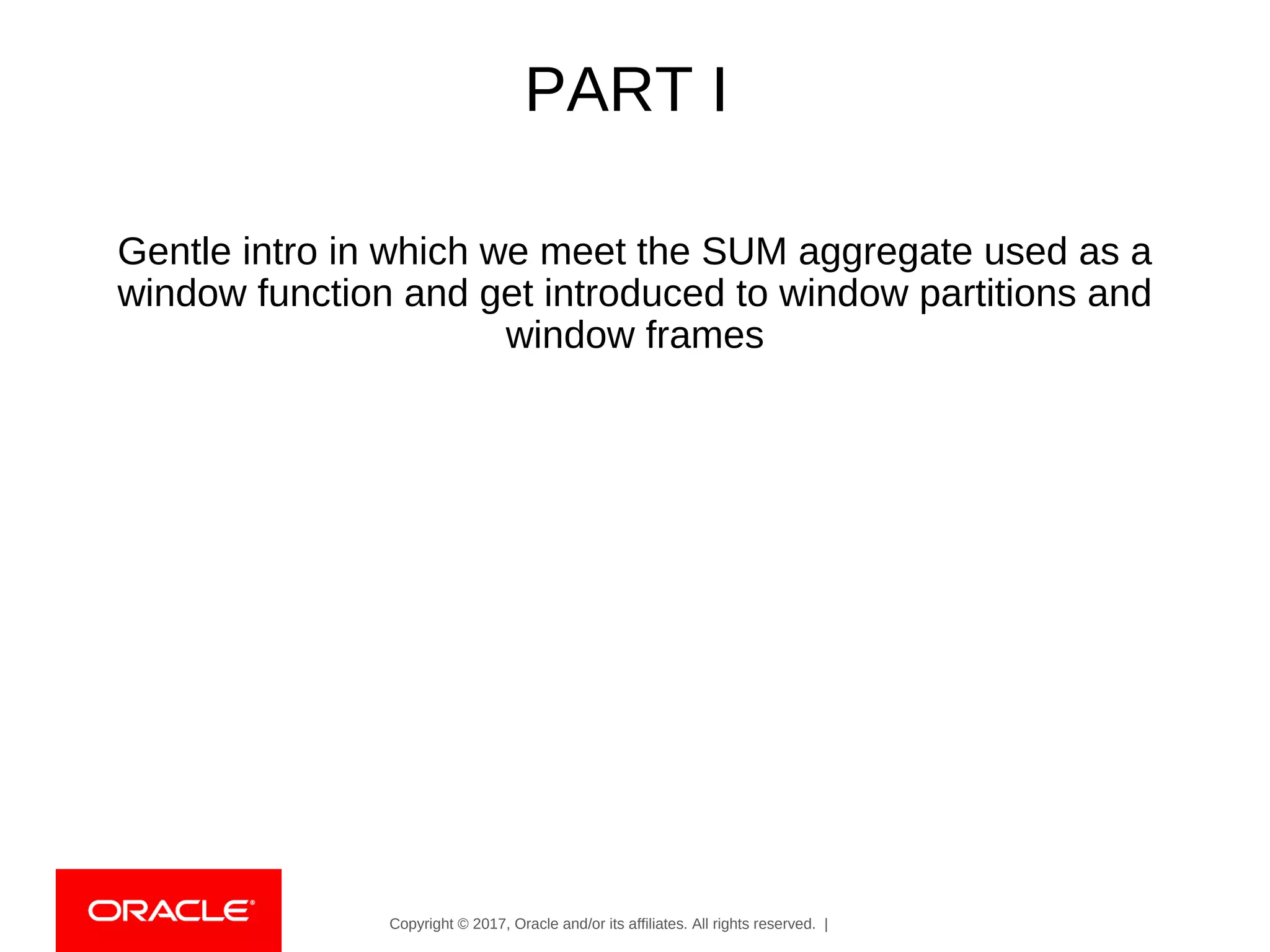

PART I
Gentle intro in which we meet the SUM aggregate used as a
window function and get introduced to window partitions and
window frames

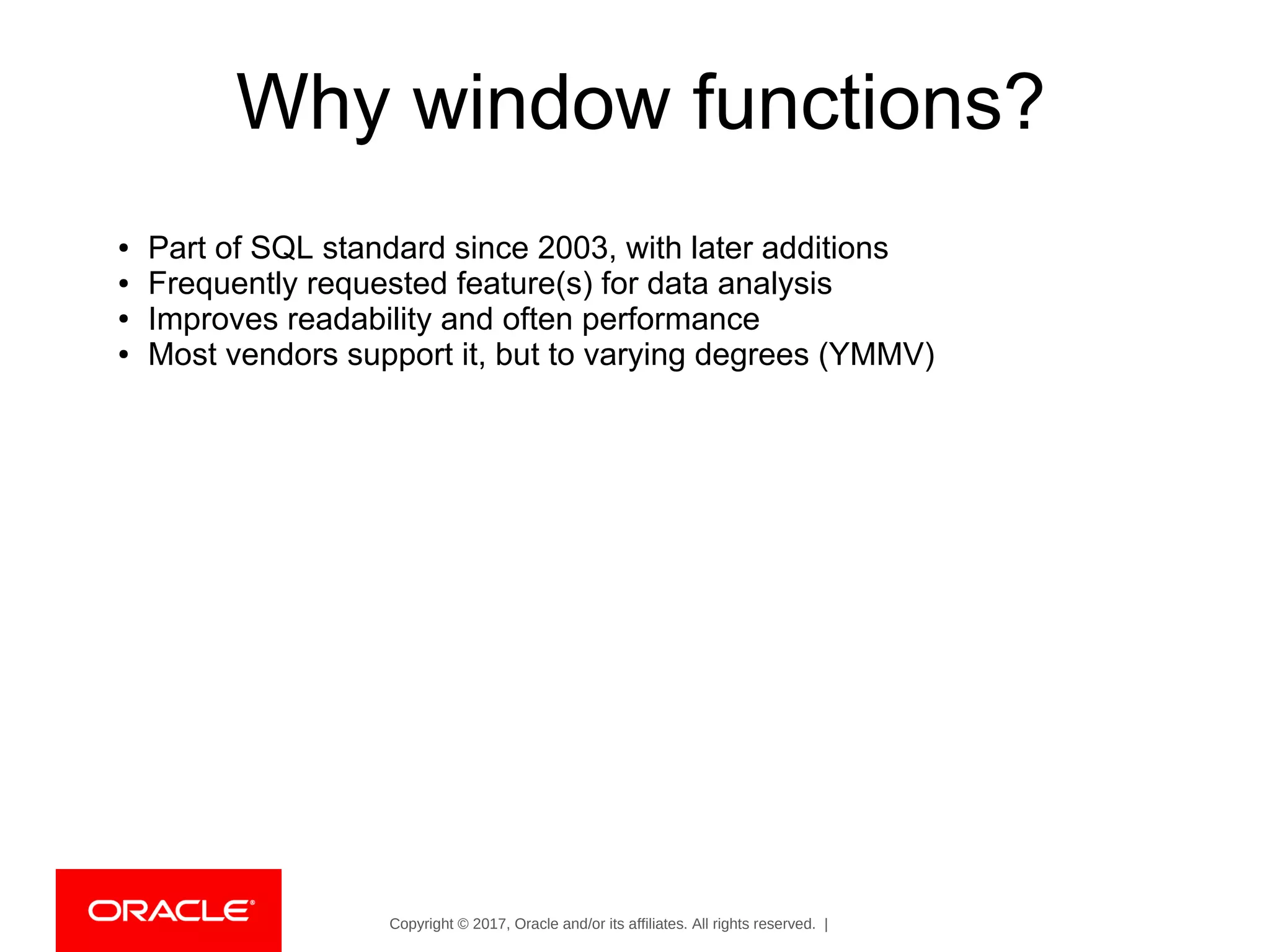

Why window functions?
● Part of SQL standard since 2003, with later additions
● Frequently requested feature(s) for data analysis
● Improves readability and often performance
● Most vendors support it, but to varying degrees (YMMV)

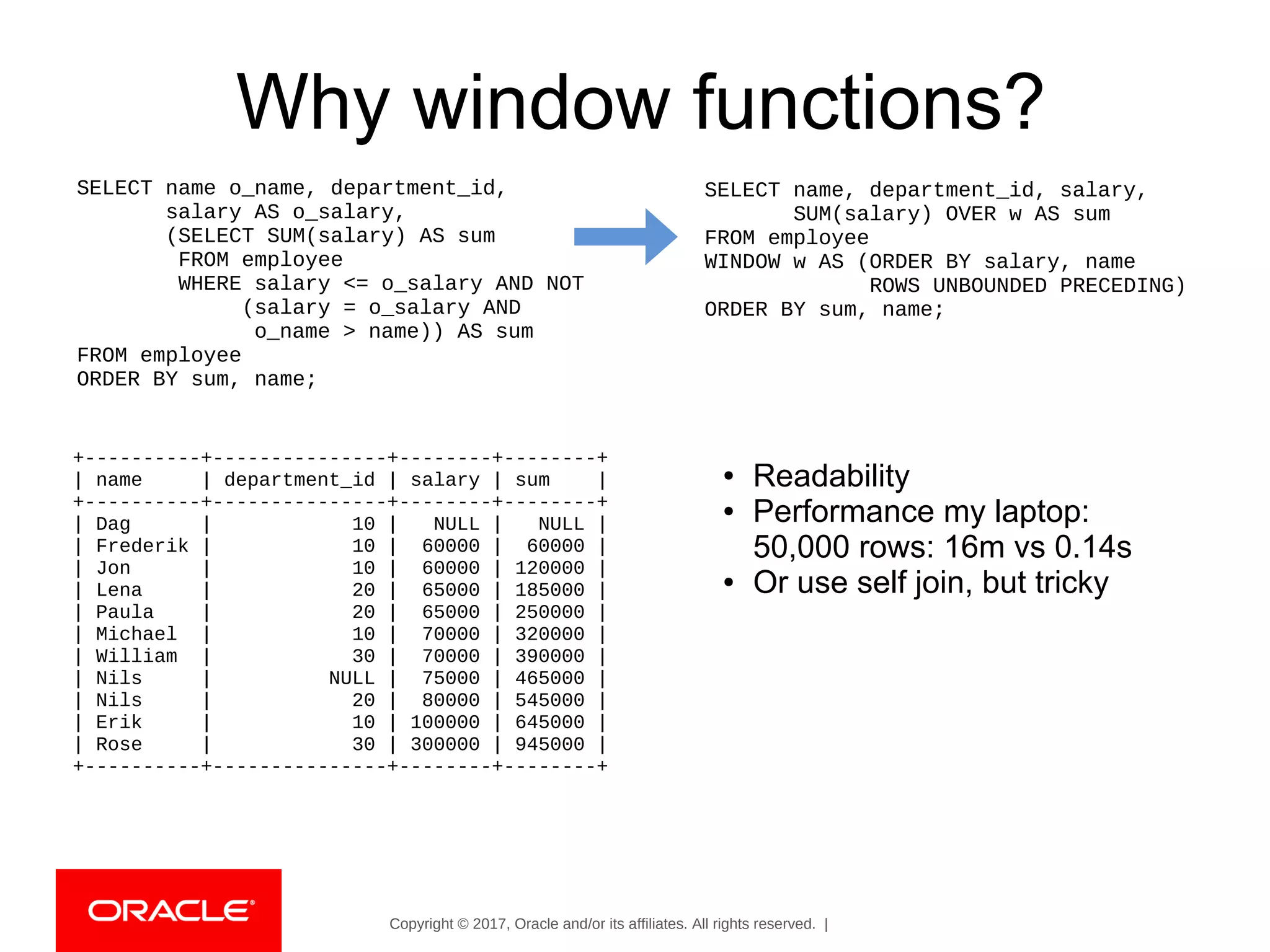

Why window functions?
SELECT name o_name, department_id,
salary AS o_salary,
(SELECT SUM(salary) AS sum
FROM employee
WHERE salary <= o_salary AND NOT
(salary = o_salary AND
o_name > name)) AS sum
FROM employee
ORDER BY sum, name;
SELECT name, department_id, salary,
SUM(salary) OVER w AS sum
FROM employee
WINDOW w AS (ORDER BY salary, name
ROWS UNBOUNDED PRECEDING)
ORDER BY sum, name;
+----------+---------------+--------+--------+
| name | department_id | salary | sum |
+----------+---------------+--------+--------+
| Dag | 10 | NULL | NULL |
| Frederik | 10 | 60000 | 60000 |
| Jon | 10 | 60000 | 120000 |
| Lena | 20 | 65000 | 185000 |
| Paula | 20 | 65000 | 250000 |
| Michael | 10 | 70000 | 320000 |
| William | 30 | 70000 | 390000 |
| Nils | NULL | 75000 | 465000 |
| Nils | 20 | 80000 | 545000 |
| Erik | 10 | 100000 | 645000 |
| Rose | 30 | 300000 | 945000 |
+----------+---------------+--------+--------+
● Readability
● Performance my laptop:
50,000 rows: 16m vs 0.14s
● Or use self join, but tricky

What's a SQL window function?
Short answer: a function that gets its arguments from a set of rows; a
window defined by a partition and a frame.
OK, but
● what is partitioned data?
● what is a frame?
● what does a window function look like? Hint: OVER keyword

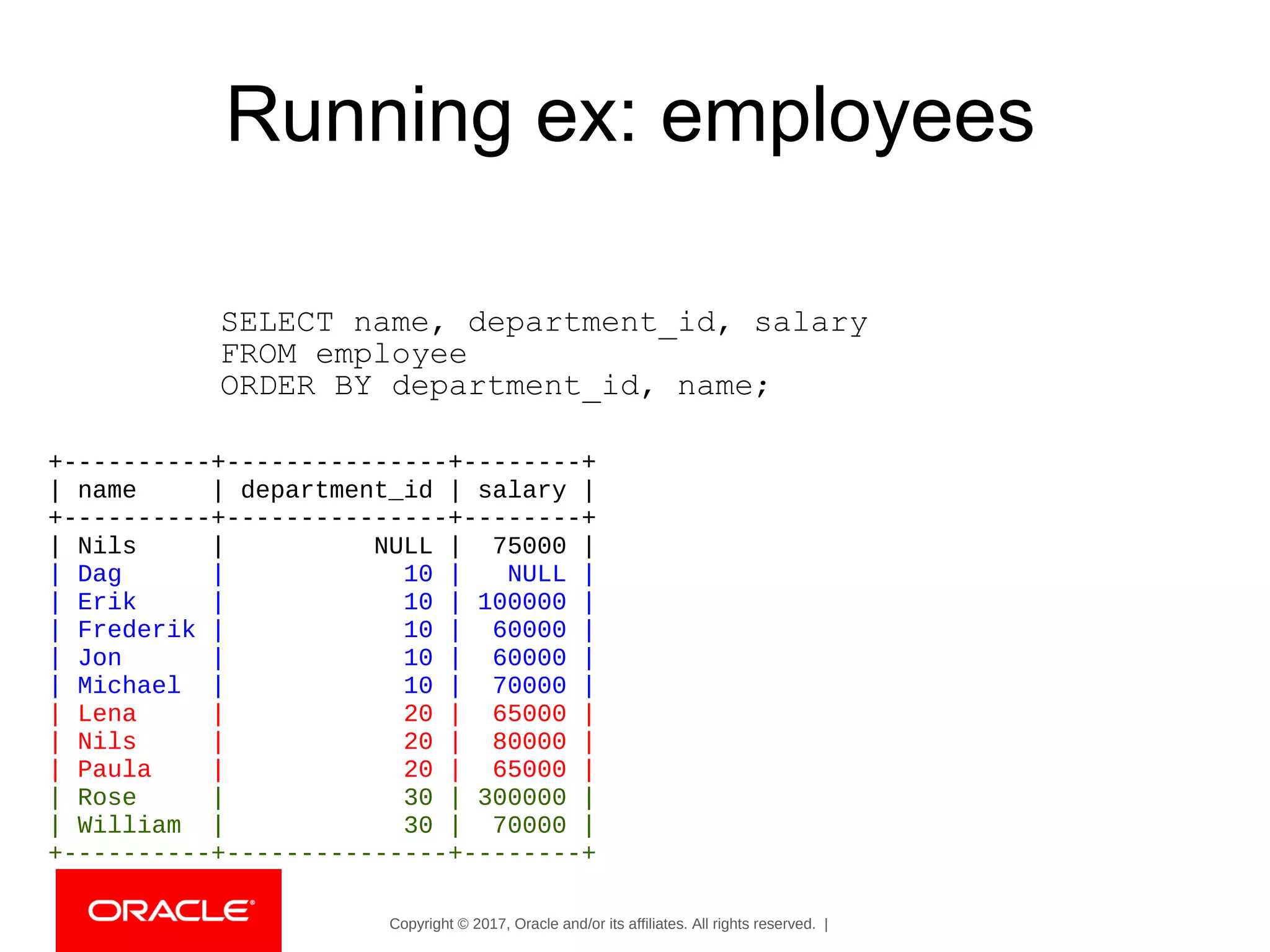

Running ex: employees
+----------+---------------+--------+
| name | department_id | salary |
+----------+---------------+--------+
| Nils | NULL | 75000 |
| Dag | 10 | NULL |
| Erik | 10 | 100000 |
| Frederik | 10 | 60000 |
| Jon | 10 | 60000 |
| Michael | 10 | 70000 |
| Lena | 20 | 65000 |
| Nils | 20 | 80000 |
| Paula | 20 | 65000 |
| Rose | 30 | 300000 |
| William | 30 | 70000 |
+----------+---------------+--------+
SELECT name, department_id, salary
FROM employee
ORDER BY department_id, name;

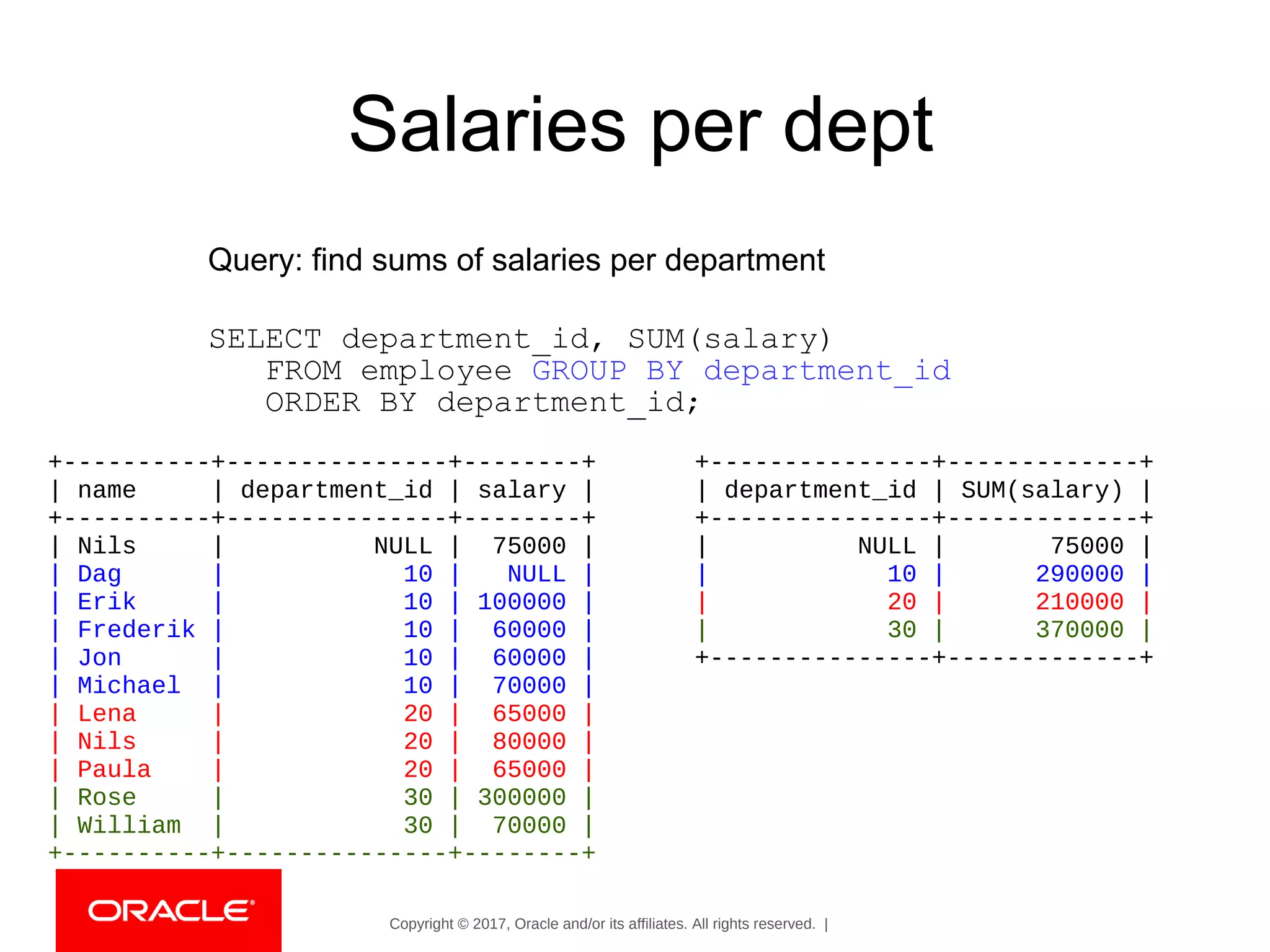

Salaries per dept
+----------+---------------+--------+
+----------+---------------+--------+
| Nils | NULL | 75000 |
| Dag | 10 | NULL |
| Erik | 10 | 100000 |
| Frederik | 10 | 60000 |
| Jon | 10 | 60000 |
| Michael | 10 | 70000 |
| Lena | 20 | 65000 |
| Nils | 20 | 80000 |
| Paula | 20 | 65000 |
| Rose | 30 | 300000 |
| William | 30 | 70000 |
+----------+---------------+--------+
+---------------+-------------+
| department_id | SUM(salary) |
+---------------+-------------+
| NULL | 75000 |
| 10 | 290000 |
| 20 | 210000 |
| 30 | 370000 |
+---------------+-------------+
SELECT department_id, SUM(salary)
FROM employee GROUP BY department_id
ORDER BY department_id;
Query: find sums of salaries per department

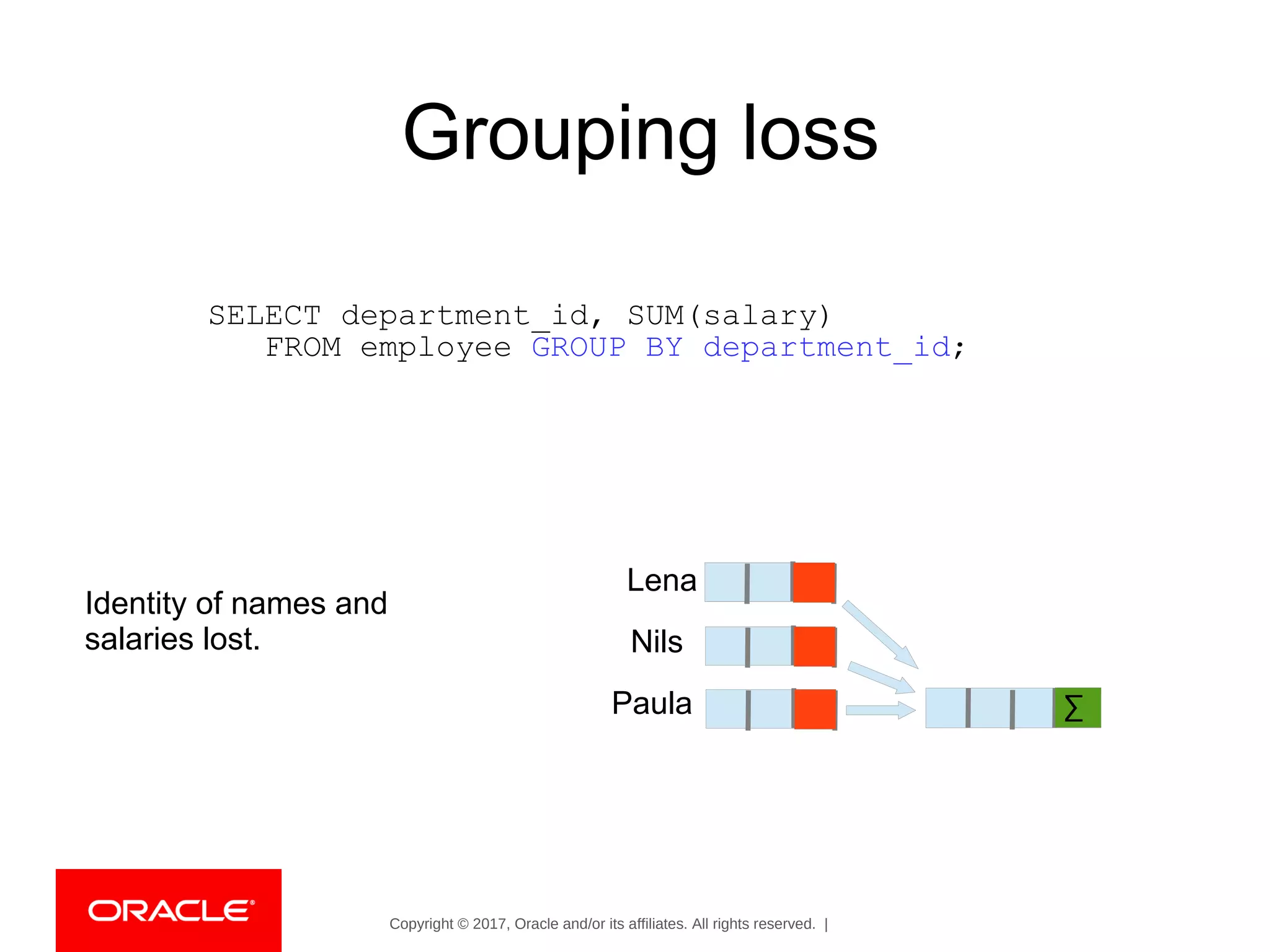

Grouping loss
SELECT department_id, SUM(salary)
FROM employee GROUP BY department_id;
Identity of names and
salaries lost.
Lena
Nils
Paula ∑

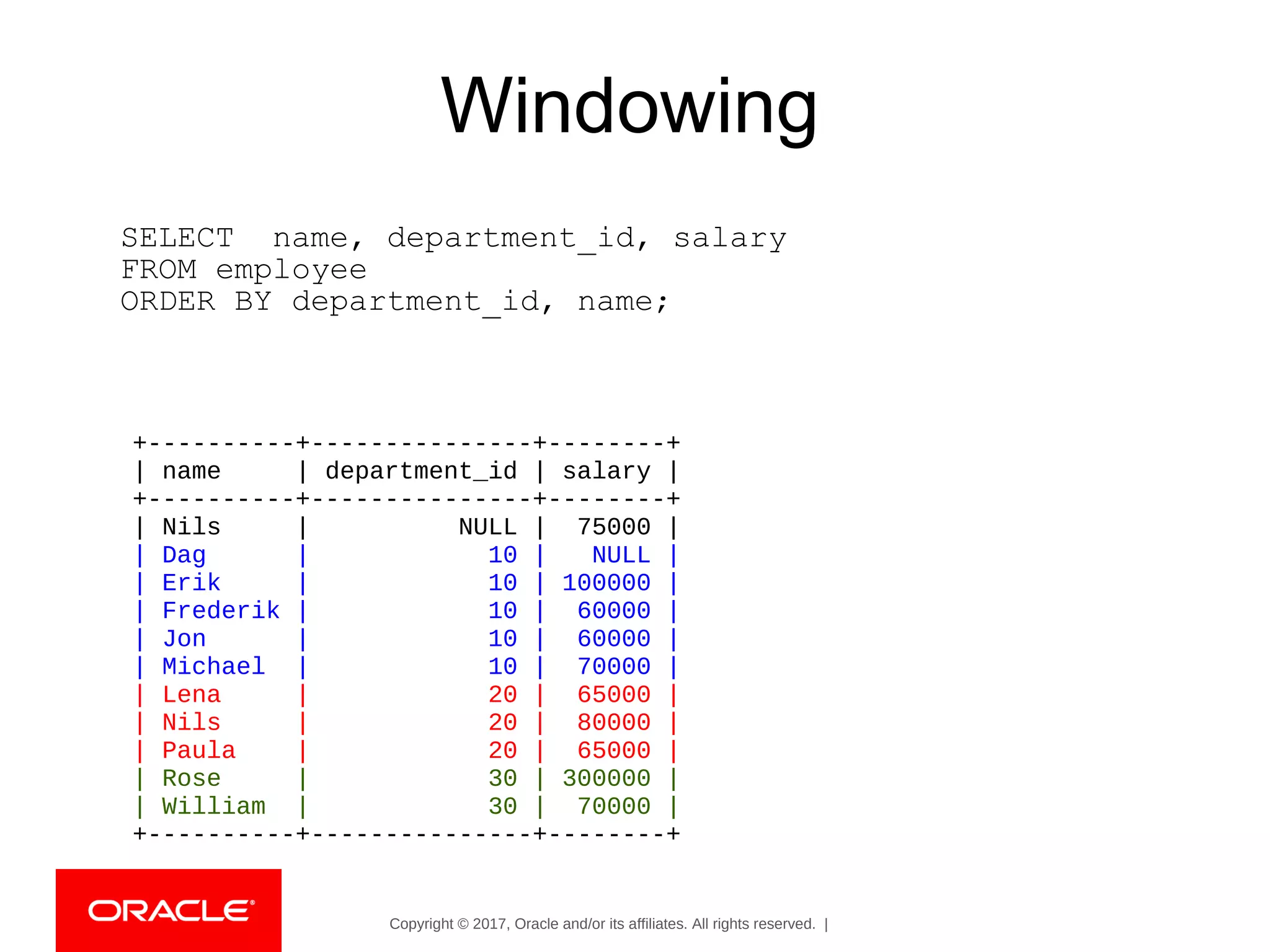

Windowing
+----------+---------------+--------+
+----------+---------------+--------+
| Nils | NULL | 75000 |
| Dag | 10 | NULL |
| Erik | 10 | 100000 |
| Frederik | 10 | 60000 |
| Jon | 10 | 60000 |
| Michael | 10 | 70000 |
| Lena | 20 | 65000 |
| Nils | 20 | 80000 |
| Paula | 20 | 65000 |
| Rose | 30 | 300000 |
| William | 30 | 70000 |
+----------+---------------+--------+
SELECT name, department_id, salary
FROM employee

Windowing, rows kept
+----------+---------------+--------+--------+
+----------+---------------+--------+--------+
| Nils | NULL | 75000 | 945000 |
| Dag | 10 | NULL | 945000 |
| Erik | 10 | 100000 | 945000 |
| Frederik | 10 | 60000 | 945000 |
| Jon | 10 | 60000 | 945000 |
| Michael | 10 | 70000 | 945000 |
| Lena | 20 | 65000 | 945000 |
| Nils | 20 | 80000 | 945000 |
| Paula | 20 | 65000 | 945000 |
| Rose | 30 | 300000 | 945000 |
| William | 30 | 70000 | 945000 |
+----------+---------------+--------+--------+
SUM(salary) OVER () sum
FROM employee

Windowing, «grouped»
+----------+---------------+--------+--------+
+----------+---------------+--------+--------+
| Nils | NULL | 75000 | 75000 |
| Dag | 10 | NULL | 290000 |
| Erik | 10 | 100000 | 290000 |
| Frederik | 10 | 60000 | 290000 |
| Jon | 10 | 60000 | 290000 |
| Michael | 10 | 70000 | 290000 |
| Lena | 20 | 65000 | 210000 |
| Nils | 20 | 80000 | 210000 |
| Paula | 20 | 65000 | 210000 |
| Rose | 30 | 300000 | 370000 |
| William | 30 | 70000 | 370000 |
+----------+---------------+--------+--------+
SUM(salary) OVER (PARTITION BY department_id) sum
FROM employee

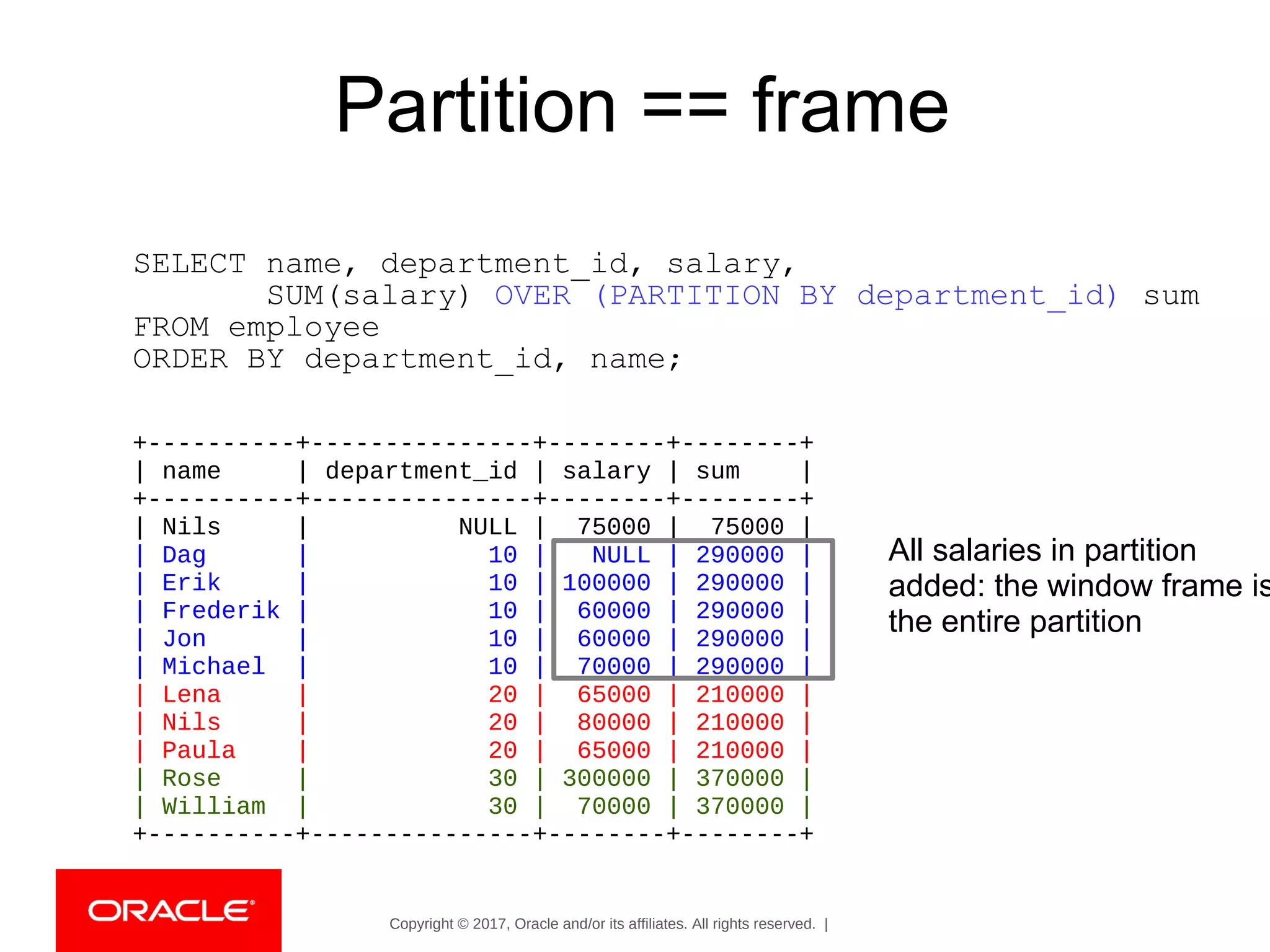

Partition == frame
+----------+---------------+--------+--------+
+----------+---------------+--------+--------+
| Nils | NULL | 75000 | 75000 |
| Dag | 10 | NULL | 290000 |
| Erik | 10 | 100000 | 290000 |
| Frederik | 10 | 60000 | 290000 |
| Jon | 10 | 60000 | 290000 |
| Michael | 10 | 70000 | 290000 |
| Lena | 20 | 65000 | 210000 |
| Nils | 20 | 80000 | 210000 |
| Paula | 20 | 65000 | 210000 |
| Rose | 30 | 300000 | 370000 |
| William | 30 | 70000 | 370000 |
+----------+---------------+--------+--------+
FROM employee
All salaries in partition
added: the window frame is
the entire partition

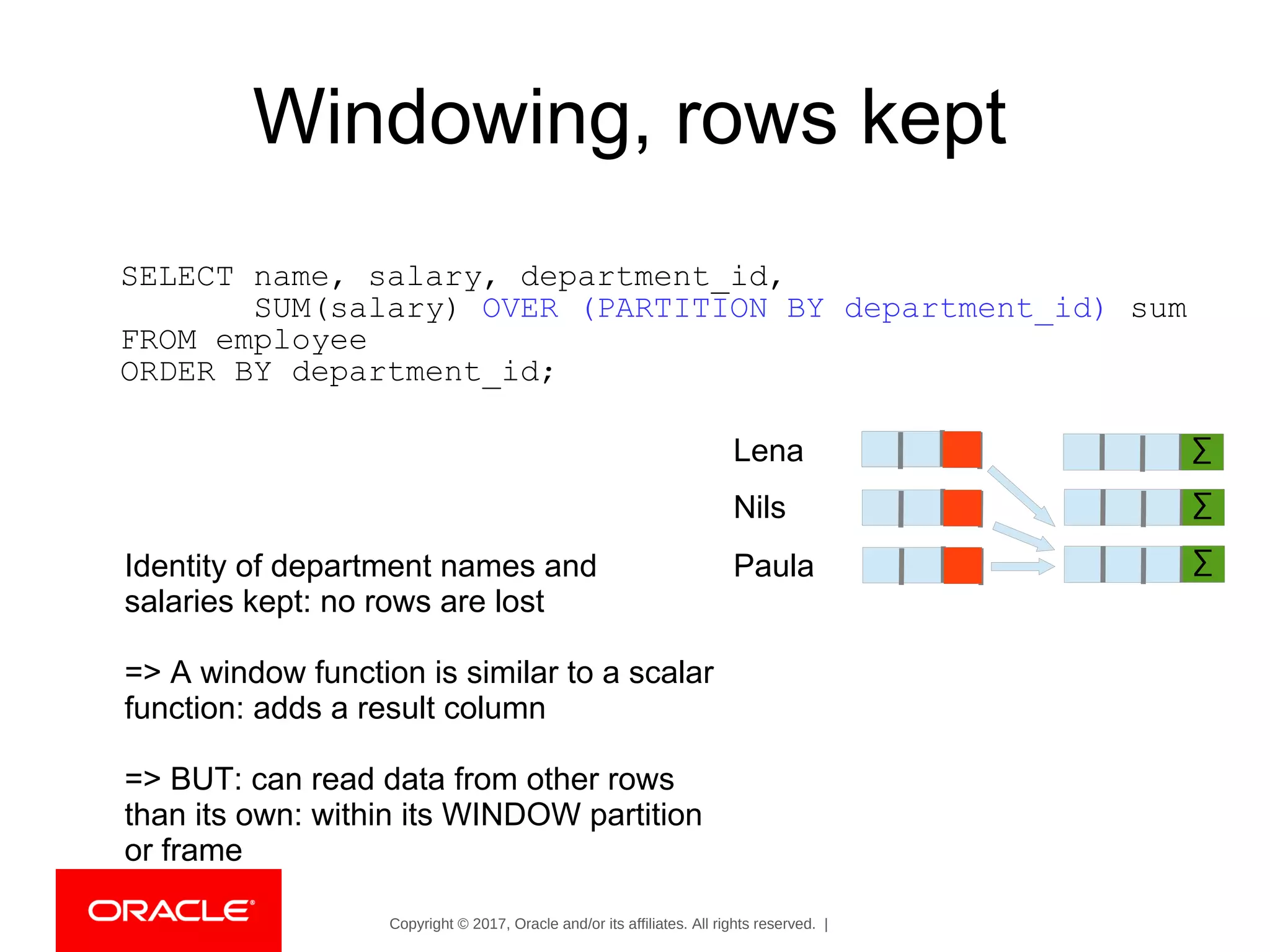

SELECT name, salary, department_id,
FROM employee
ORDER BY department_id;
∑
∑
∑Identity of department names and
salaries kept: no rows are lost
=> A window function is similar to a scalar
function: adds a result column
=> BUT: can read data from other rows
than its own: within its WINDOW partition
or frame
Lena
Nils
Paula

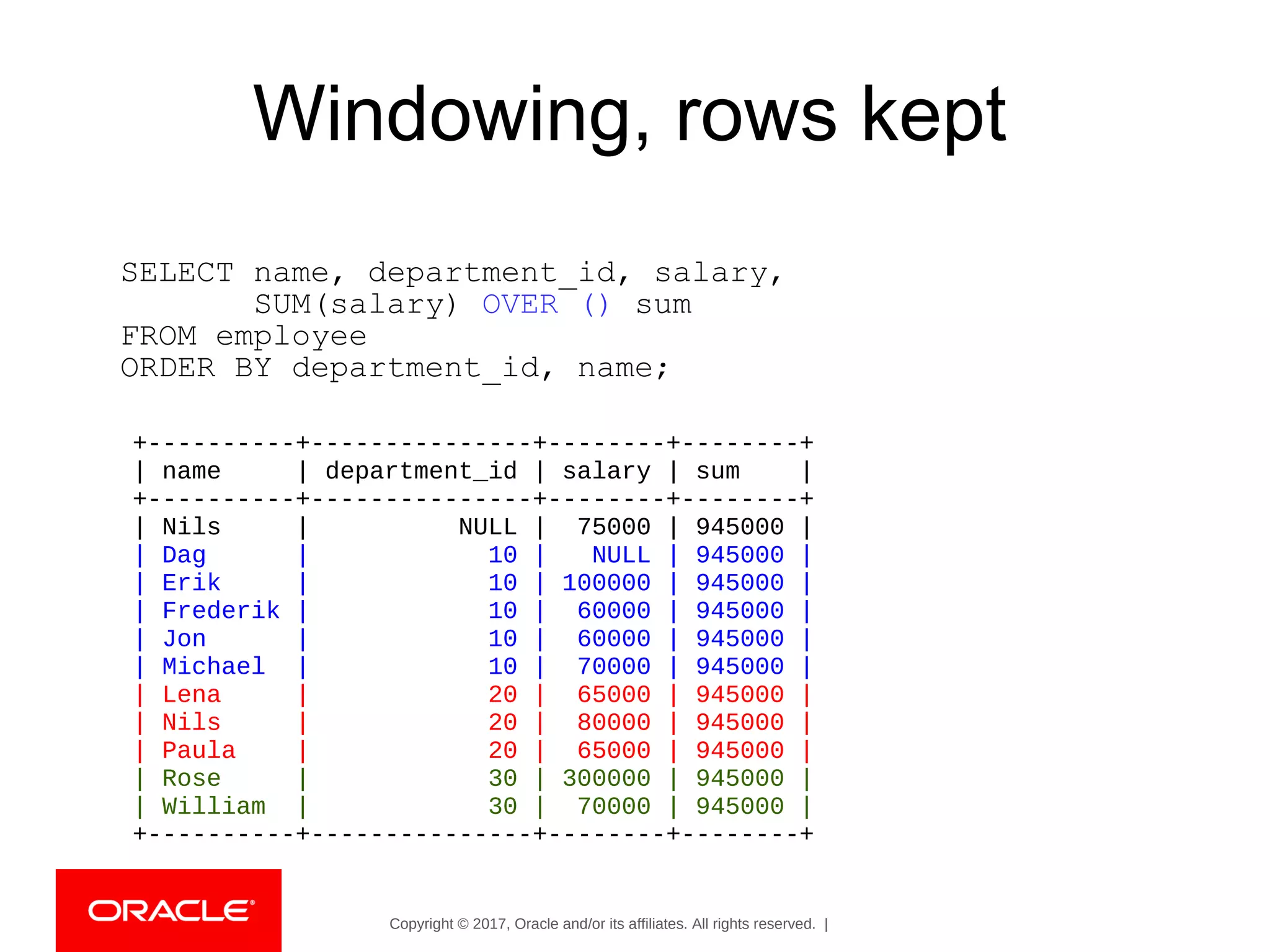

Windowing, rows kept

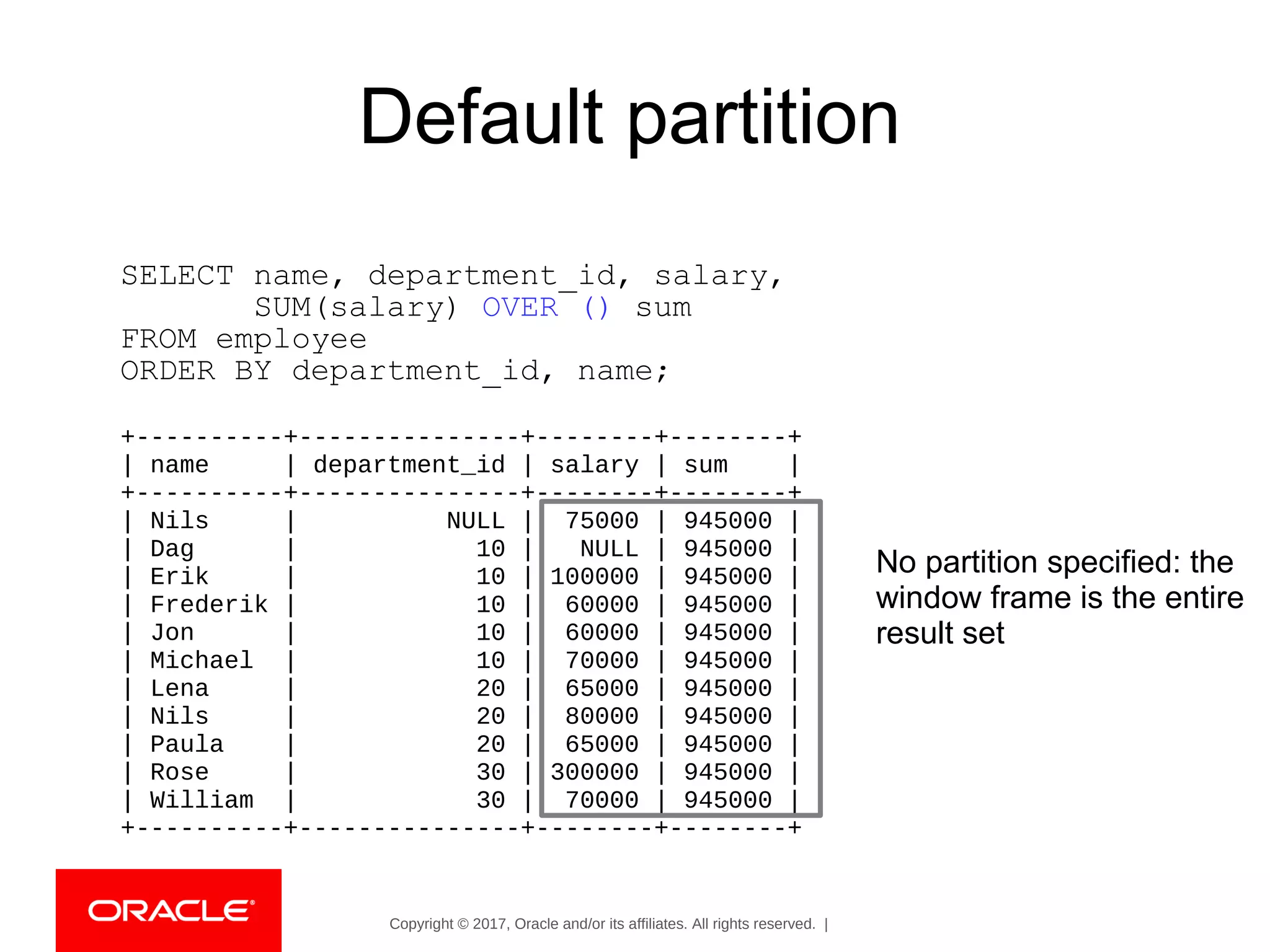

Default partition
SUM(salary) OVER () sum
FROM employee
No partition specified: the
window frame is the entire
result set
+----------+---------------+--------+--------+
+----------+---------------+--------+--------+
| Nils | NULL | 75000 | 945000 |
| Dag | 10 | NULL | 945000 |
| Erik | 10 | 100000 | 945000 |
| Frederik | 10 | 60000 | 945000 |
| Jon | 10 | 60000 | 945000 |
| Michael | 10 | 70000 | 945000 |
| Lena | 20 | 65000 | 945000 |
| Nils | 20 | 80000 | 945000 |
| Paula | 20 | 65000 | 945000 |
| Rose | 30 | 300000 | 945000 |
| William | 30 | 70000 | 945000 |
+----------+---------------+--------+--------+

SUM(salary) OVER (ORDER BY department_id, name
ROWS BETWEEN UNBOUNDED PRECEDING
AND CURRENT ROW) sum
FROM employee
window frame grows
+----------+---------------+--------+--------+
+----------+---------------+--------+--------+
| Nils | NULL | 75000 | 75000 |
| Dag | 10 | NULL | 75000 |
| Erik | 10 | 100000 | 175000 |
| Frederik | 10 | 60000 | 235000 |
| Jon | 10 | 60000 | 295000 |
| Michael | 10 | 70000 | 365000 |
| Lena | 20 | 65000 | 430000 |
| Nils | 20 | 80000 | 510000 |
| Paula | 20 | 65000 | 575000 |
| Rose | 30 | 300000 | 875000 |
| William | 30 | 70000 | 945000 |
+----------+---------------+--------+--------+

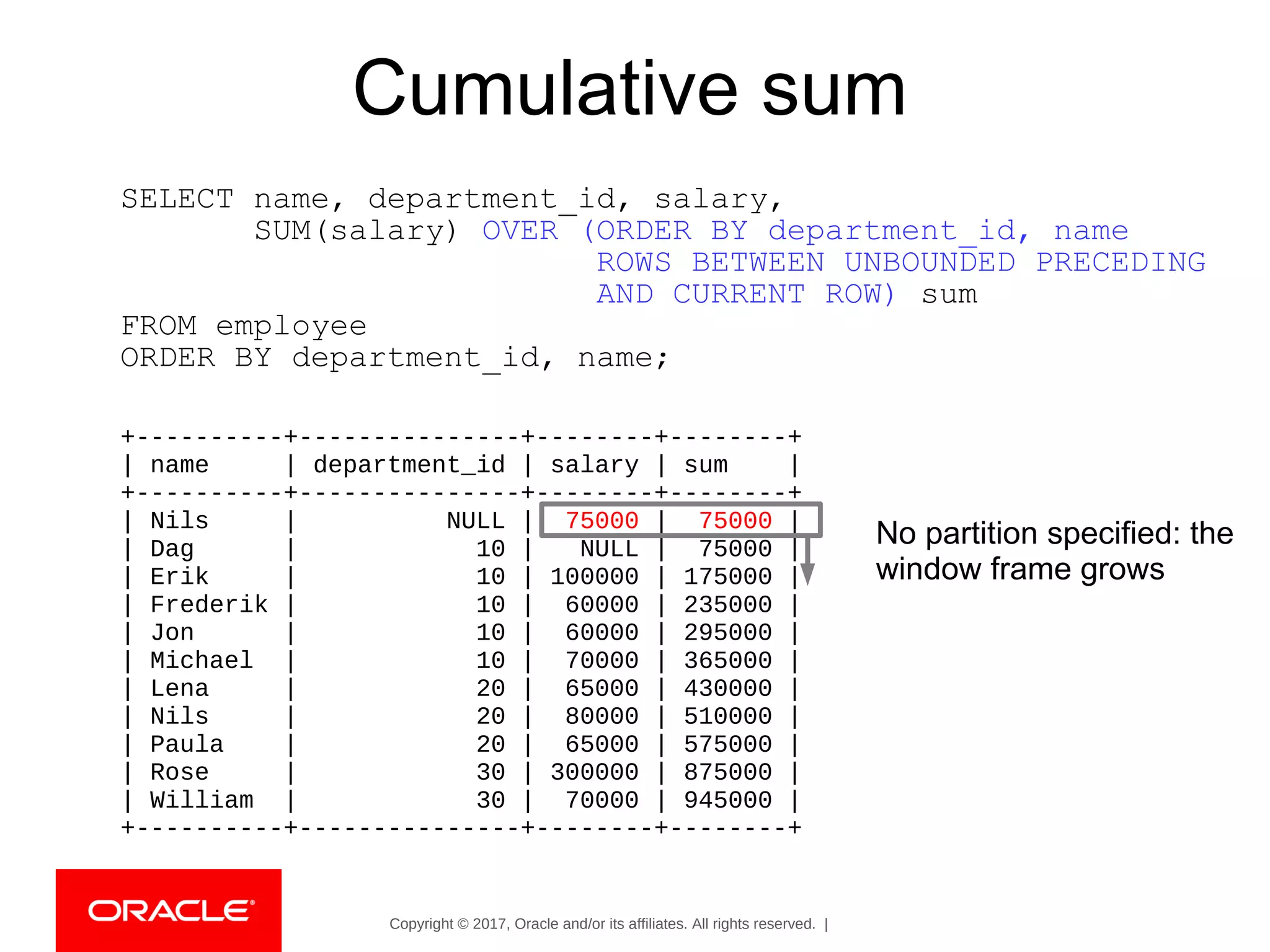

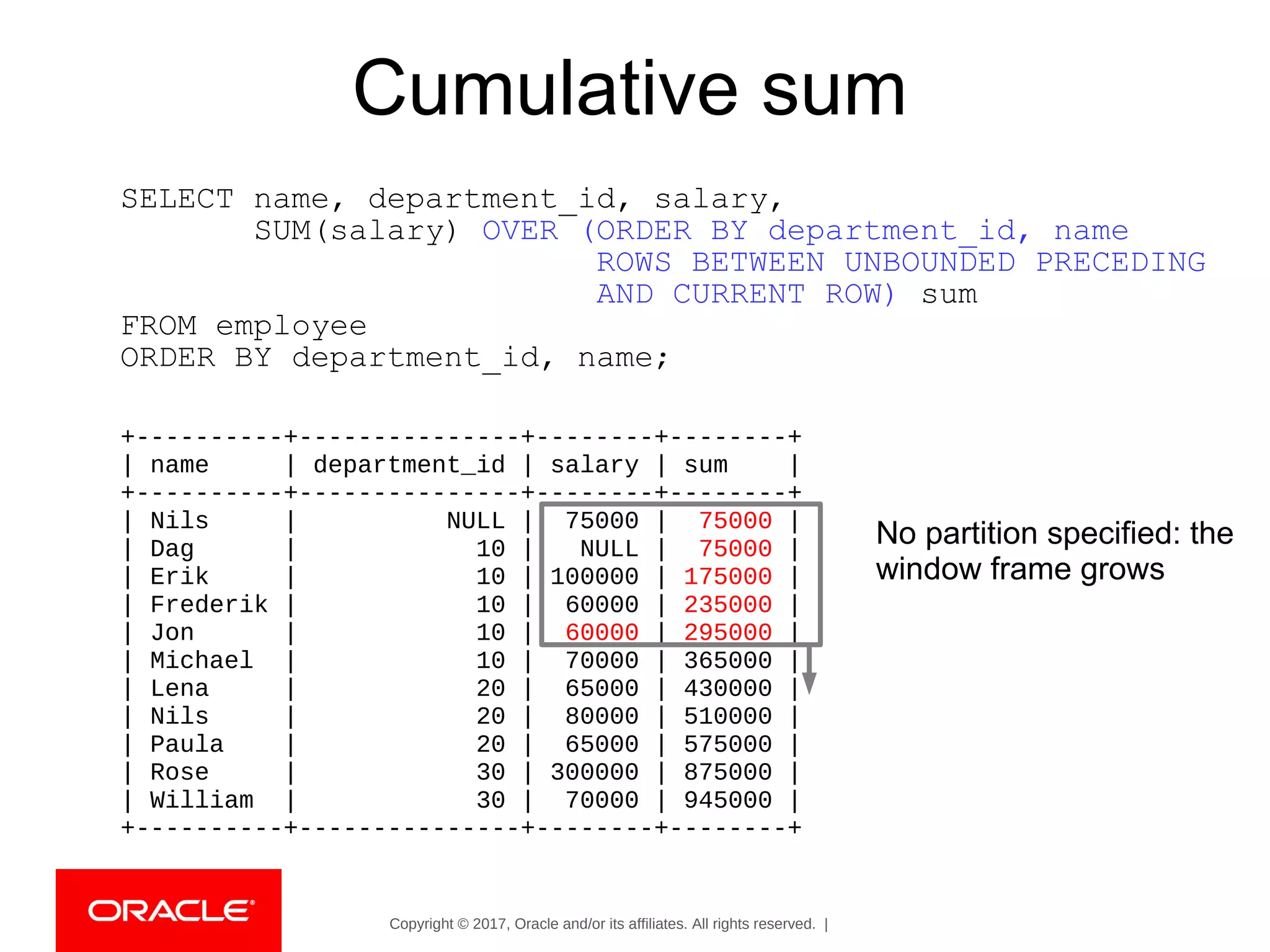

Cumulative sum

Cumulative sum
SUM(salary) OVER (ORDER BY department_id, name
FROM employee
window frame grows
+----------+---------------+--------+--------+
+----------+---------------+--------+--------+
| Nils | NULL | 75000 | 75000 |
| Dag | 10 | NULL | 75000 |
| Erik | 10 | 100000 | 175000 |
| Frederik | 10 | 60000 | 235000 |
| Jon | 10 | 60000 | 295000 |
| Michael | 10 | 70000 | 365000 |
| Lena | 20 | 65000 | 430000 |
| Nils | 20 | 80000 | 510000 |
| Paula | 20 | 65000 | 575000 |
| Rose | 30 | 300000 | 875000 |
| William | 30 | 70000 | 945000 |
+----------+---------------+--------+--------+

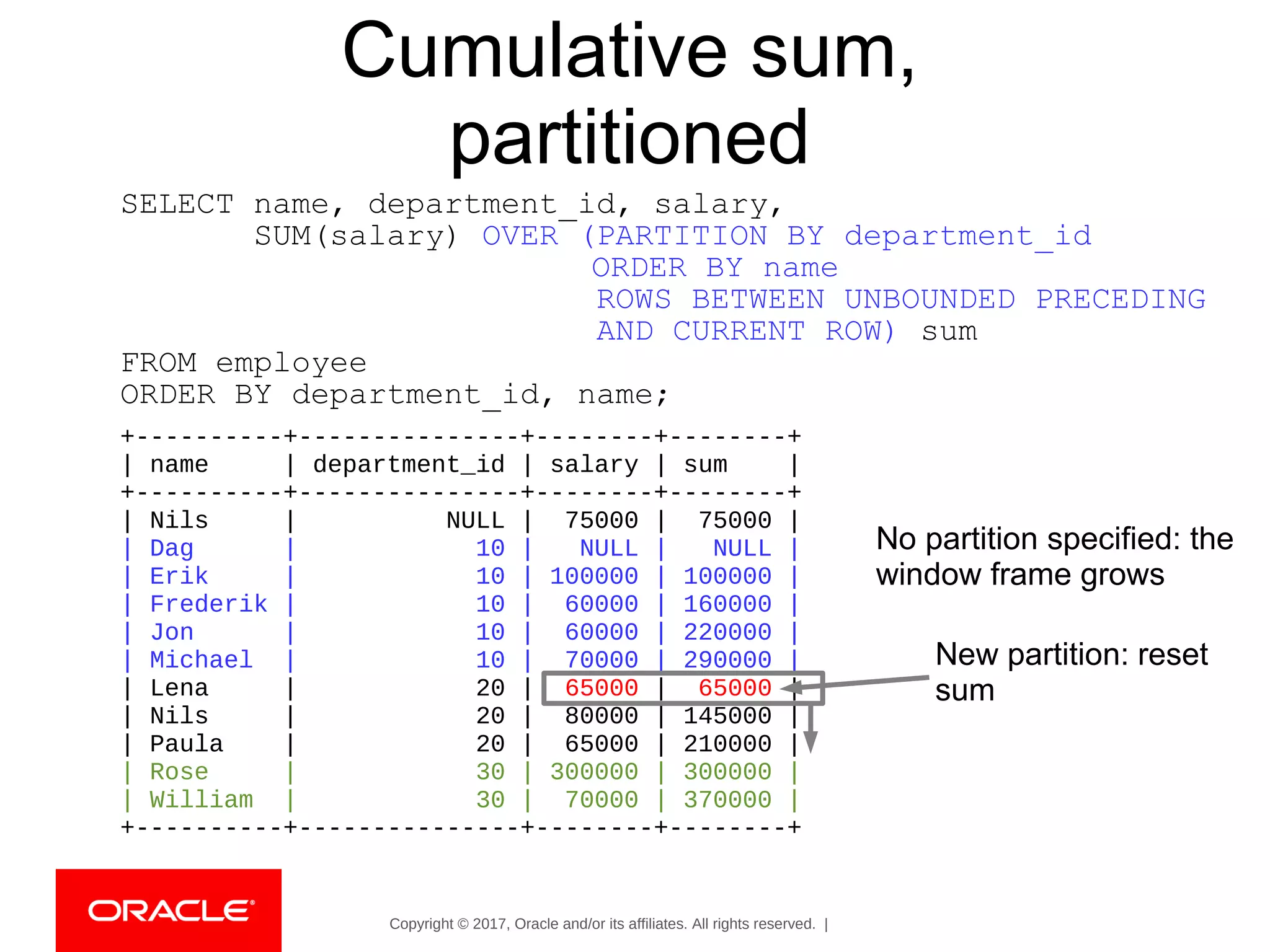

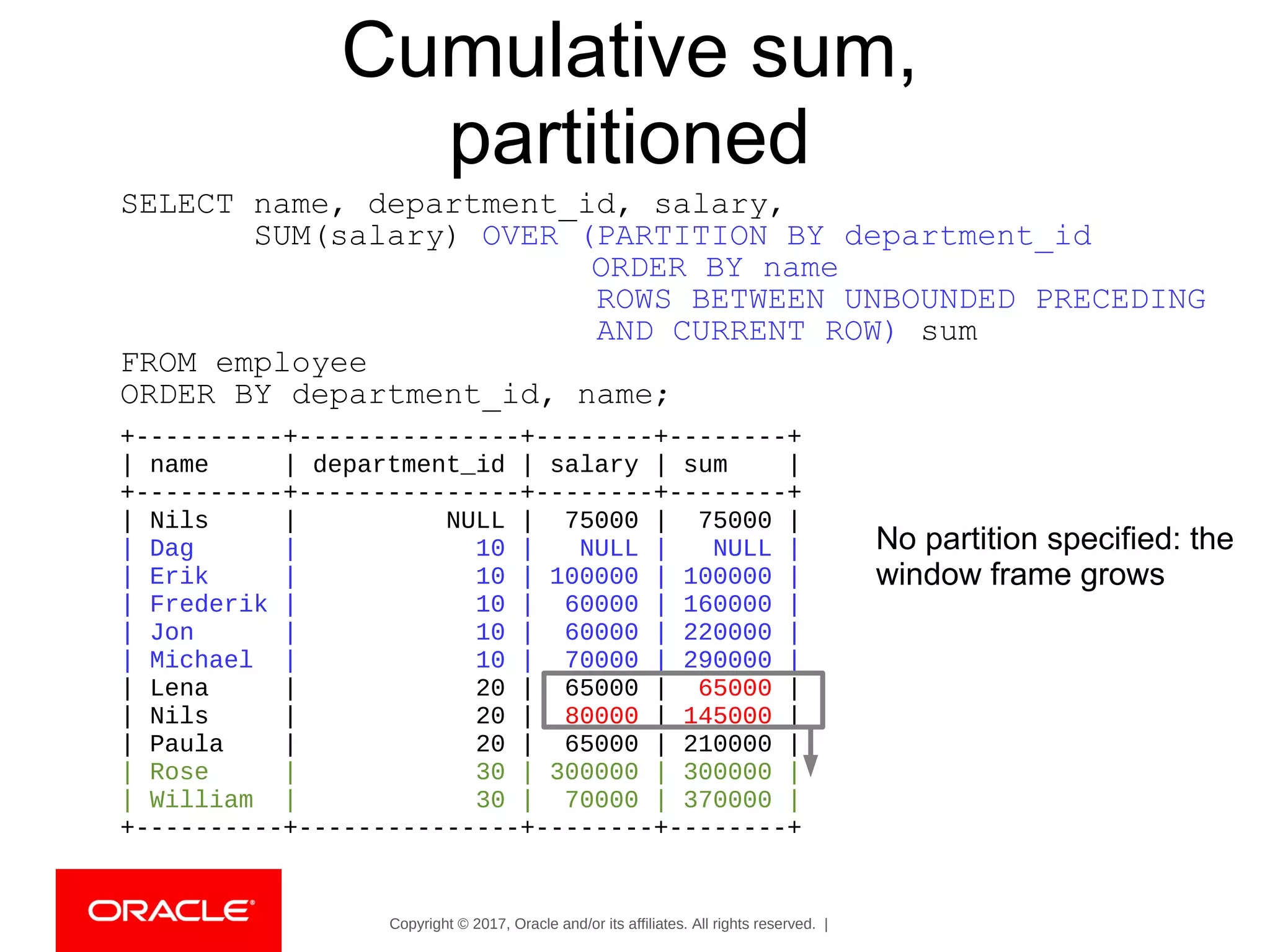

Cumulative sum,
partitioned
+----------+---------------+--------+--------+
+----------+---------------+--------+--------+
| Nils | NULL | 75000 | 75000 |
| Erik | 10 | 100000 | 100000 |
| Frederik | 10 | 60000 | 160000 |
| Jon | 10 | 60000 | 220000 |
| Michael | 10 | 70000 | 290000 |
| Lena | 20 | 65000 | 65000 |
| Nils | 20 | 80000 | 145000 |
| Paula | 20 | 65000 | 210000 |
| Rose | 30 | 300000 | 300000 |
| William | 30 | 70000 | 370000 |
+----------+---------------+--------+--------+
SUM(salary) OVER (PARTITION BY department_id
ORDER BY name
FROM employee
window frame grows
New partition: reset
sum

Cumulative sum,
partitioned
+----------+---------------+--------+--------+
+----------+---------------+--------+--------+
| Nils | NULL | 75000 | 75000 |
| Erik | 10 | 100000 | 100000 |
| Frederik | 10 | 60000 | 160000 |
| Jon | 10 | 60000 | 220000 |
| Michael | 10 | 70000 | 290000 |
| Lena | 20 | 65000 | 65000 |
| Nils | 20 | 80000 | 145000 |
| Paula | 20 | 65000 | 210000 |
| Rose | 30 | 300000 | 300000 |
| William | 30 | 70000 | 370000 |
+----------+---------------+--------+--------+
ORDER BY name
FROM employee
window frame grows

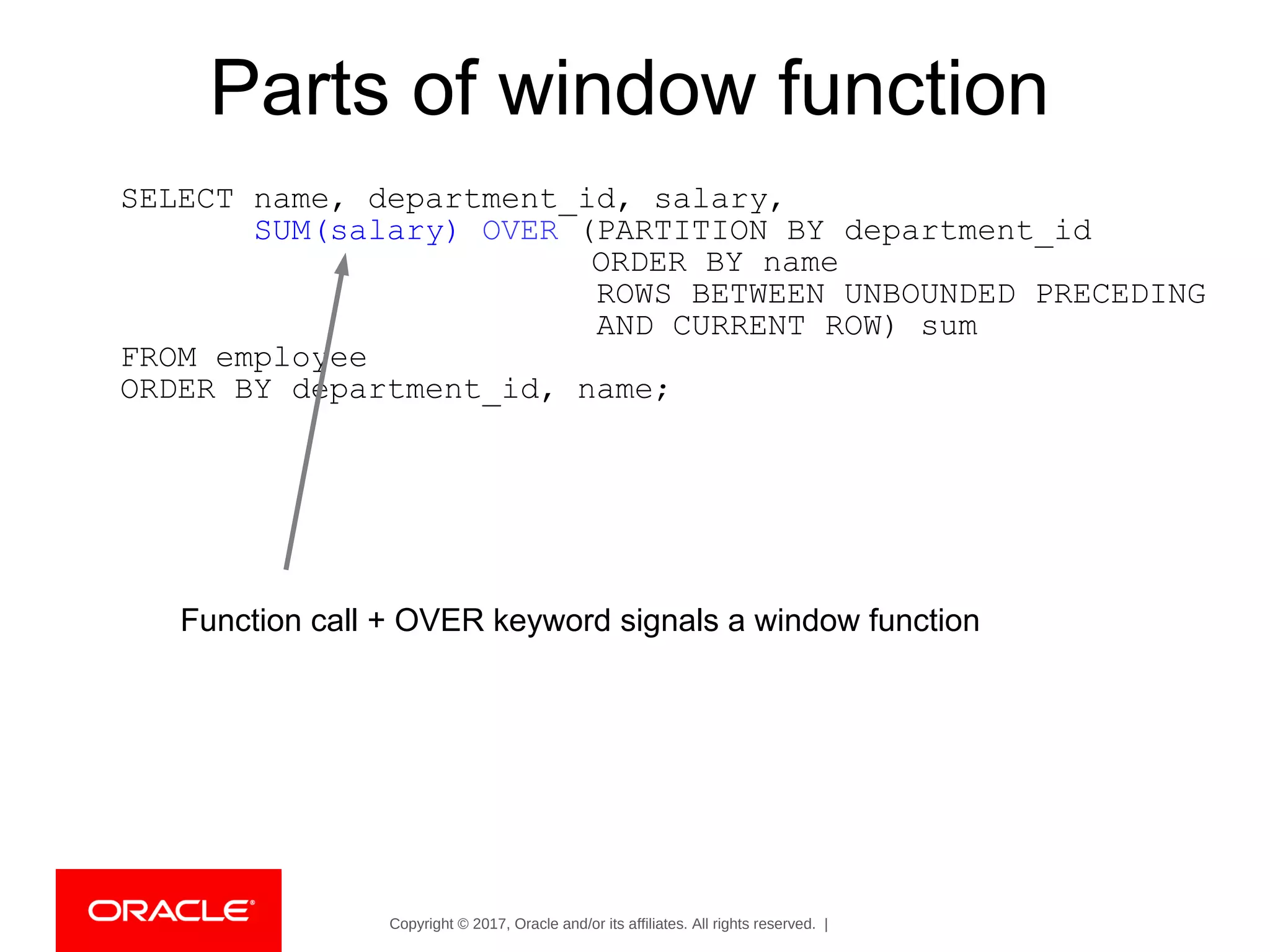

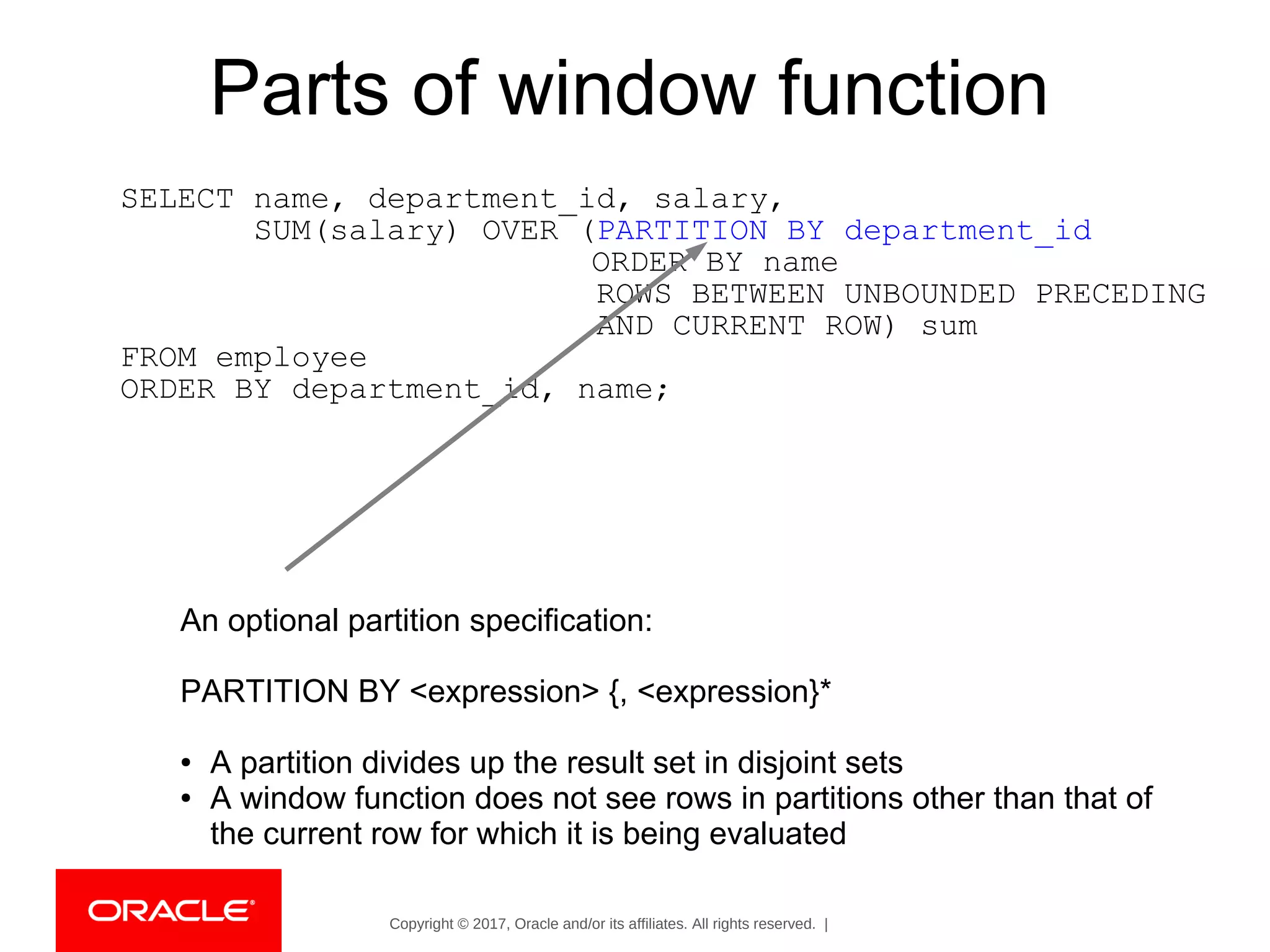

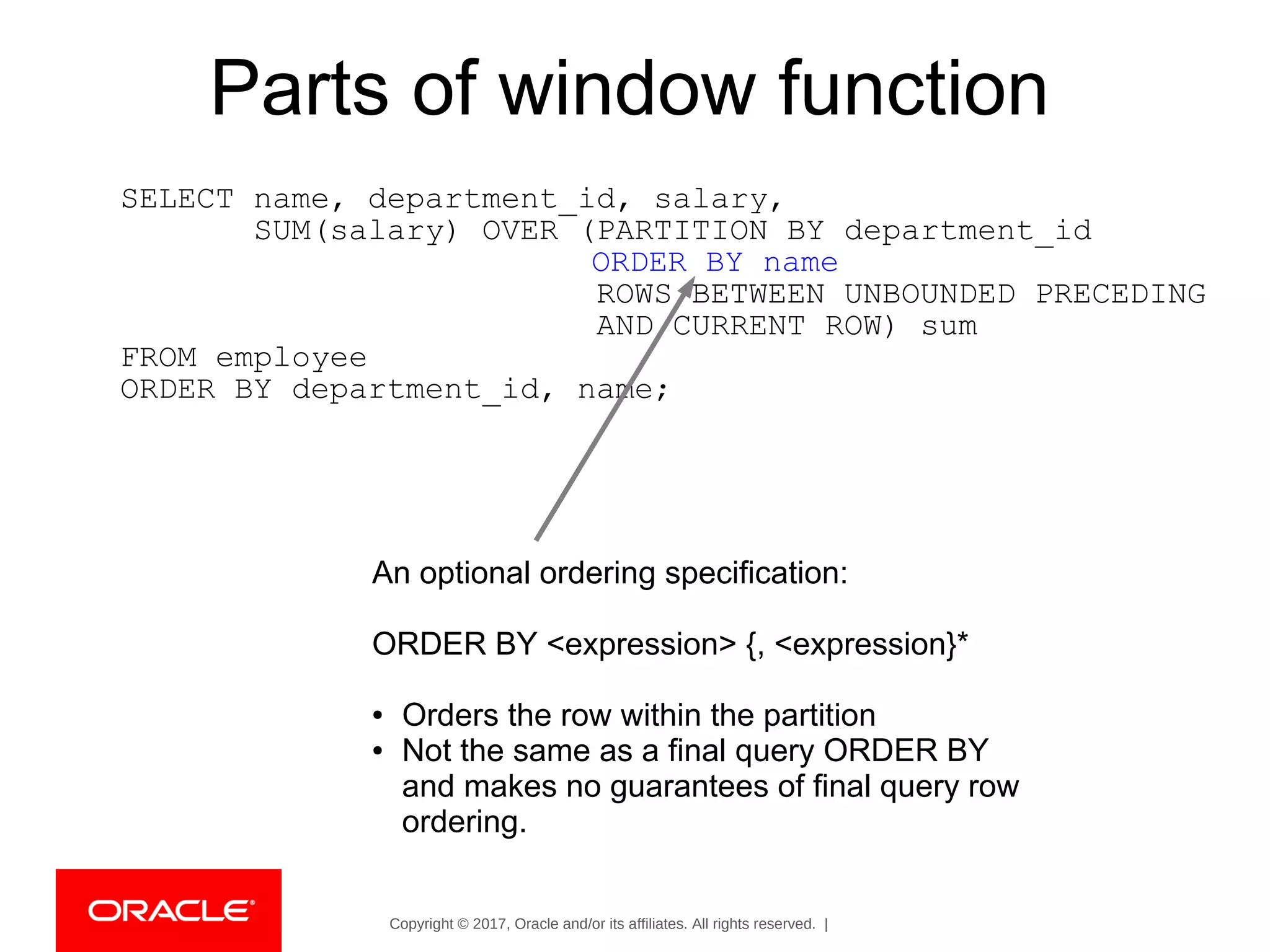

Parts of window function
ORDER BY name
FROM employee
Function call + OVER keyword signals a window function

ORDER BY name
FROM employee
An optional partition specification:
PARTITION BY <expression> {, <expression}*
● A partition divides up the result set in disjoint sets
● A window function does not see rows in partitions other than that of
the current row for which it is being evaluated

ORDER BY name
FROM employee
An optional ordering specification:
ORDER BY <expression> {, <expression}*
● Orders the row within the partition
● Not the same as a final query ORDER BY
and makes no guarantees of final query row
ordering.

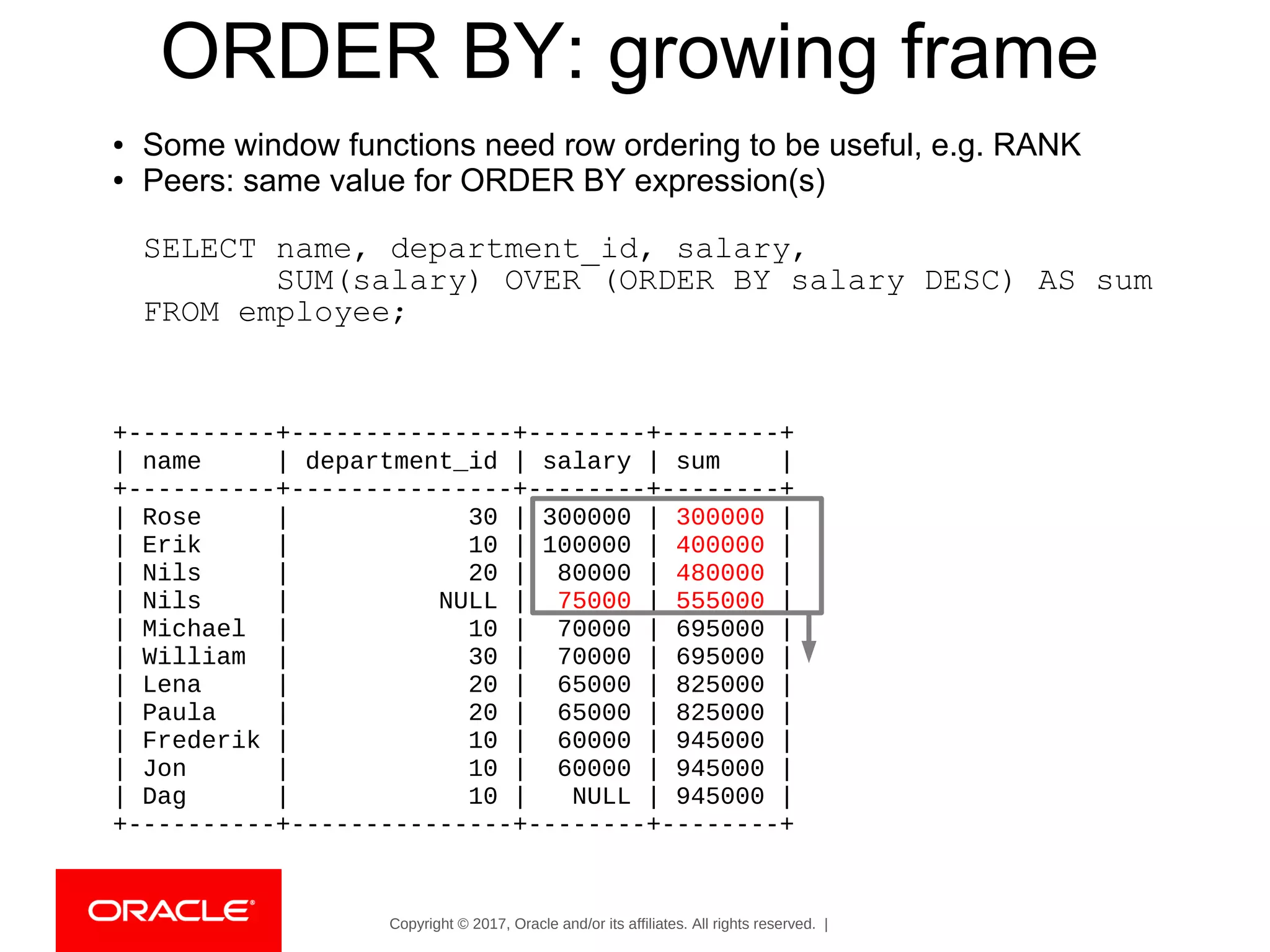

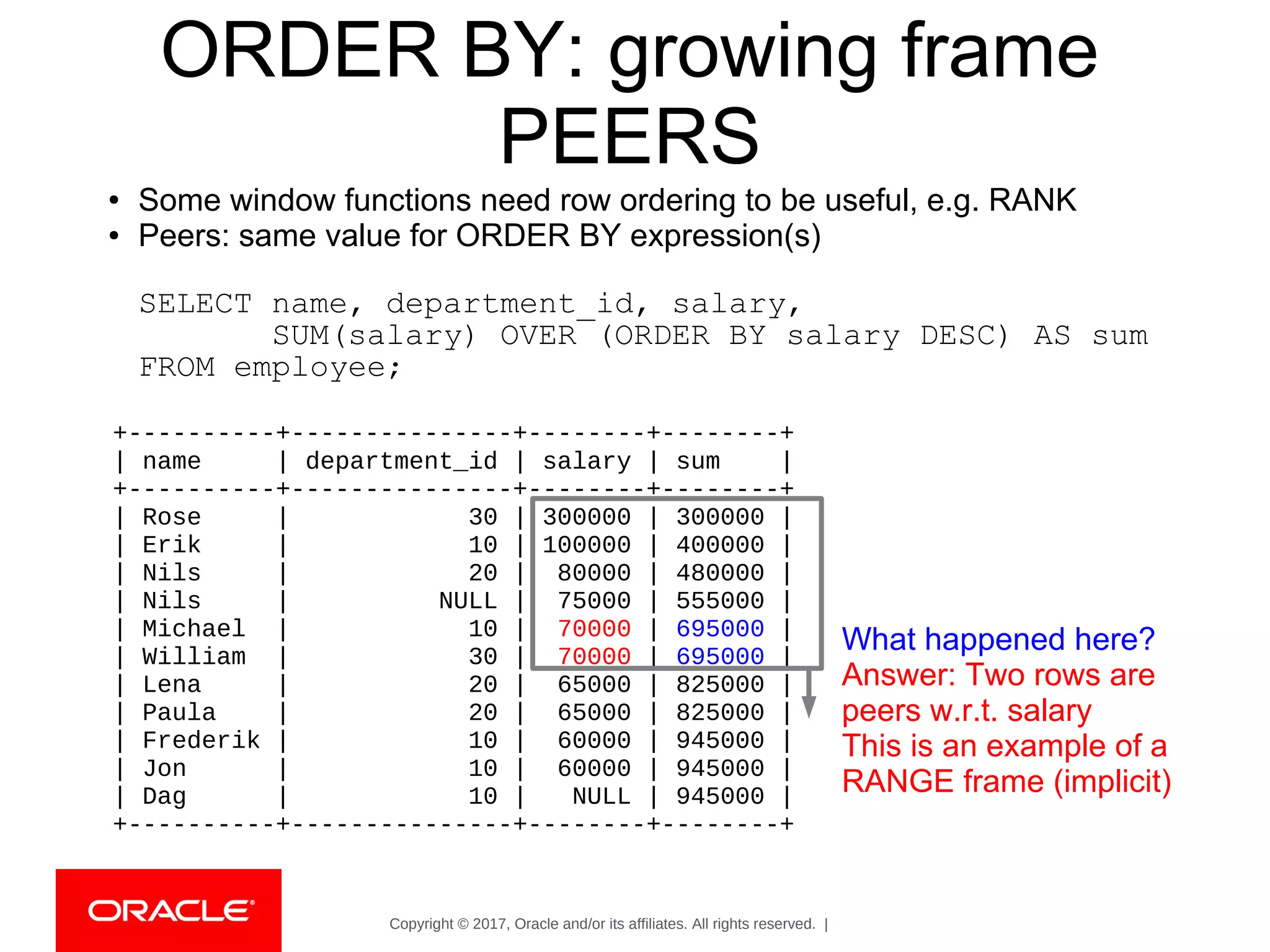

ORDER BY: growing frame
● Some window functions need row ordering to be useful, e.g. RANK
● Peers: same value for ORDER BY expression(s)
SUM(salary) OVER (ORDER BY salary DESC) AS sum
FROM employee;
+----------+---------------+--------+--------+
+----------+---------------+--------+--------+
| Rose | 30 | 300000 | 300000 |
| Erik | 10 | 100000 | 400000 |
| Nils | 20 | 80000 | 480000 |
| Nils | NULL | 75000 | 555000 |
| Michael | 10 | 70000 | 625000 |
| William | 30 | 70000 | 695000 |
| Lena | 20 | 65000 | 760000 |
| Paula | 20 | 65000 | 825000 |
| Frederik | 10 | 60000 | 885000 |
| Jon | 10 | 60000 | 945000 |
| Dag | 10 | NULL | 945000 |
+----------+---------------+--------+--------+

FROM employee;
+----------+---------------+--------+--------+
+----------+---------------+--------+--------+
| Rose | 30 | 300000 | 300000 |
| Erik | 10 | 100000 | 400000 |
| Nils | 20 | 80000 | 480000 |
| Nils | NULL | 75000 | 555000 |
| Michael | 10 | 70000 | 695000 |
| William | 30 | 70000 | 695000 |
| Lena | 20 | 65000 | 825000 |
| Paula | 20 | 65000 | 825000 |
| Frederik | 10 | 60000 | 945000 |
| Jon | 10 | 60000 | 945000 |
| Dag | 10 | NULL | 945000 |
+----------+---------------+--------+--------+

PEERS
FROM employee;
+----------+---------------+--------+--------+
+----------+---------------+--------+--------+
| Rose | 30 | 300000 | 300000 |
| Erik | 10 | 100000 | 400000 |
| Nils | 20 | 80000 | 480000 |
| Nils | NULL | 75000 | 555000 |
| Michael | 10 | 70000 | 695000 |
| William | 30 | 70000 | 695000 |
| Lena | 20 | 65000 | 825000 |
| Paula | 20 | 65000 | 825000 |
| Frederik | 10 | 60000 | 945000 |
| Jon | 10 | 60000 | 945000 |
| Dag | 10 | NULL | 945000 |
+----------+---------------+--------+--------+
What happened here?
Answer: Two rows are
peers w.r.t. salary
This is an example of a
RANGE frame (implicit)

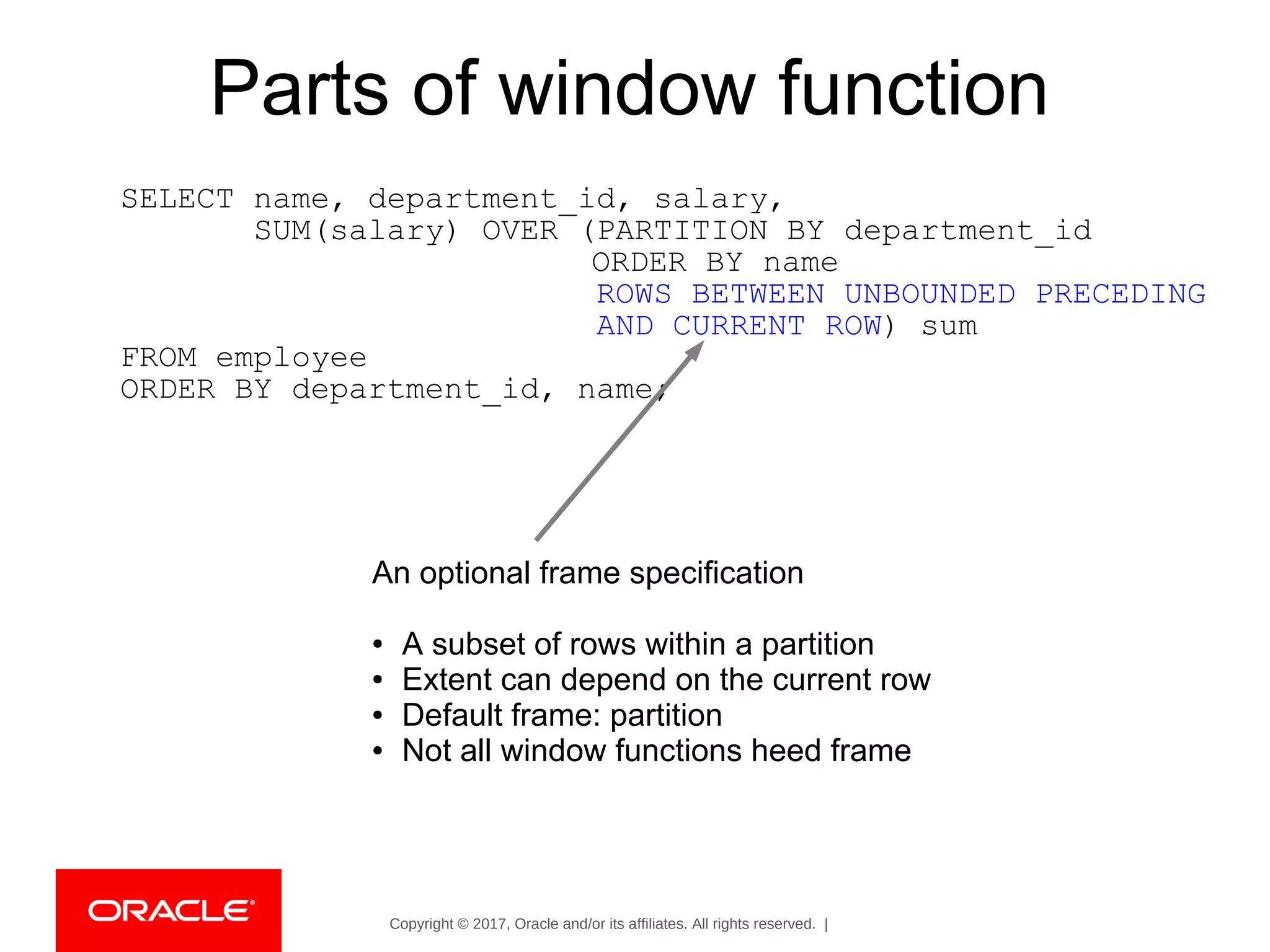

ORDER BY name
FROM employee
An optional frame specification
● A subset of rows within a partition
● Extent can depend on the current row
● Default frame: partition
● Not all window functions heed frame

partition
CURRENT
ROW
UNBOUNDED
PRECEDING
UNBOUNDED
FOLLOWING
n
PRECEDING
m
FOLLOWING
n: numeric or temporal

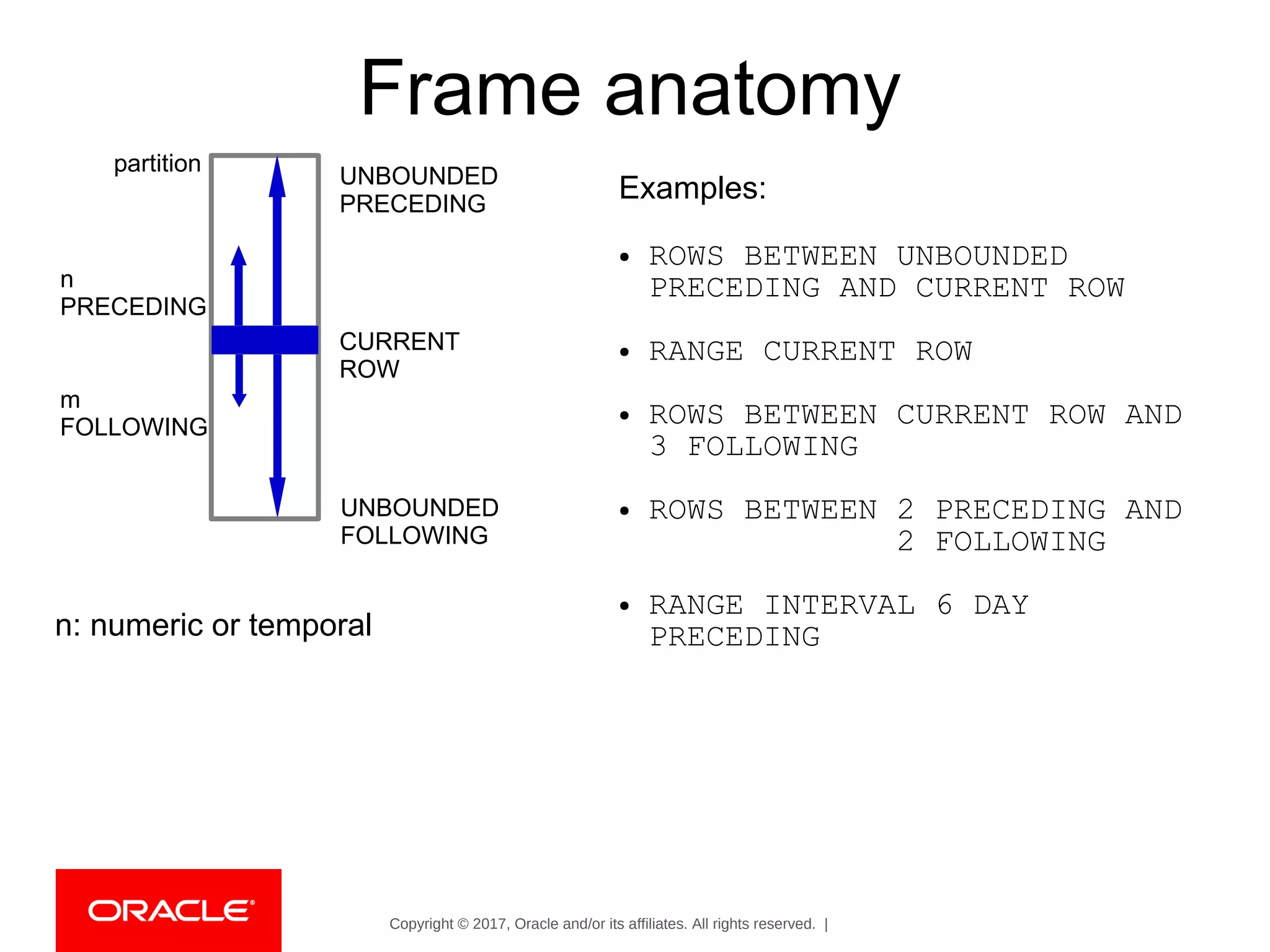

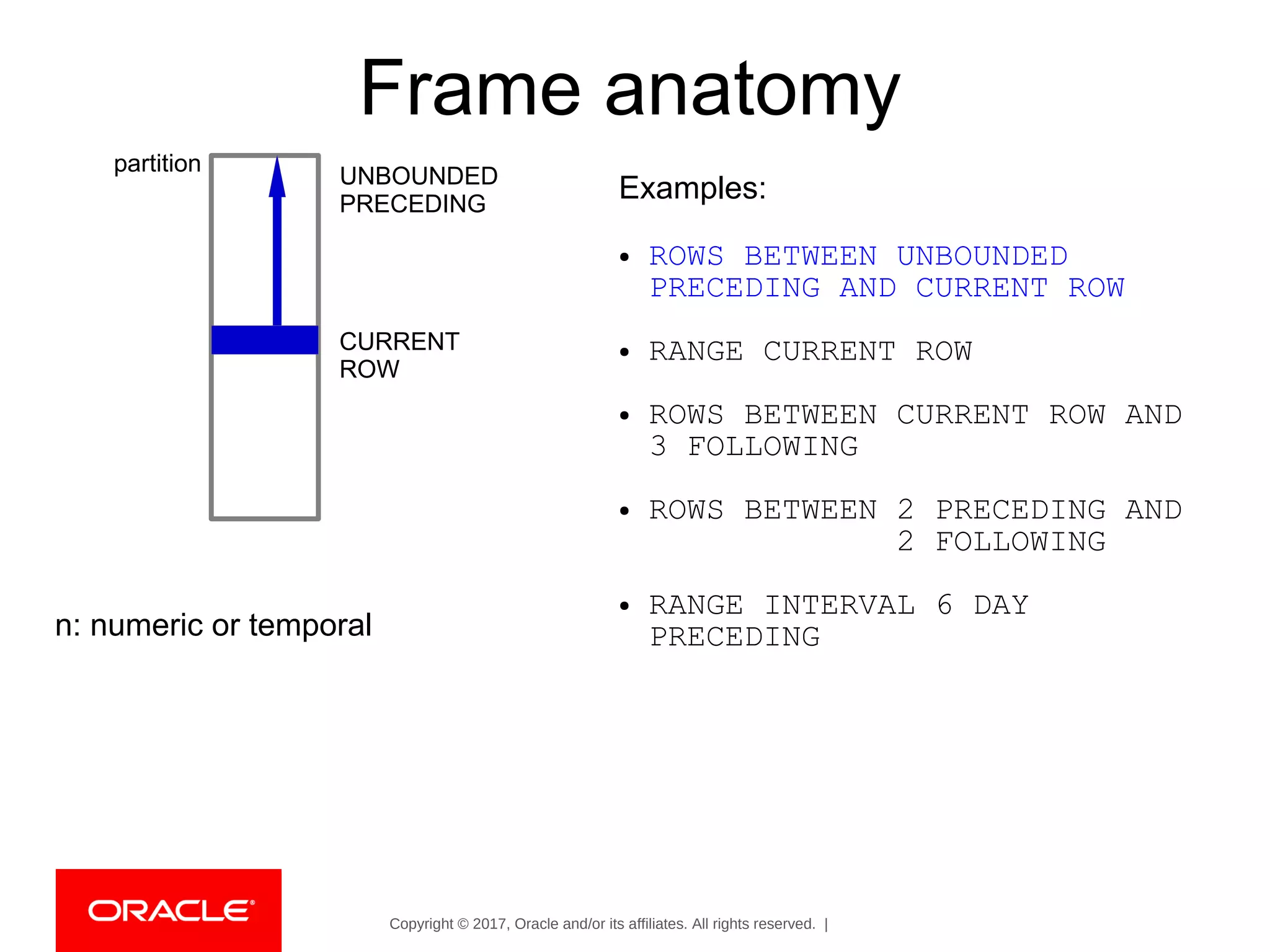

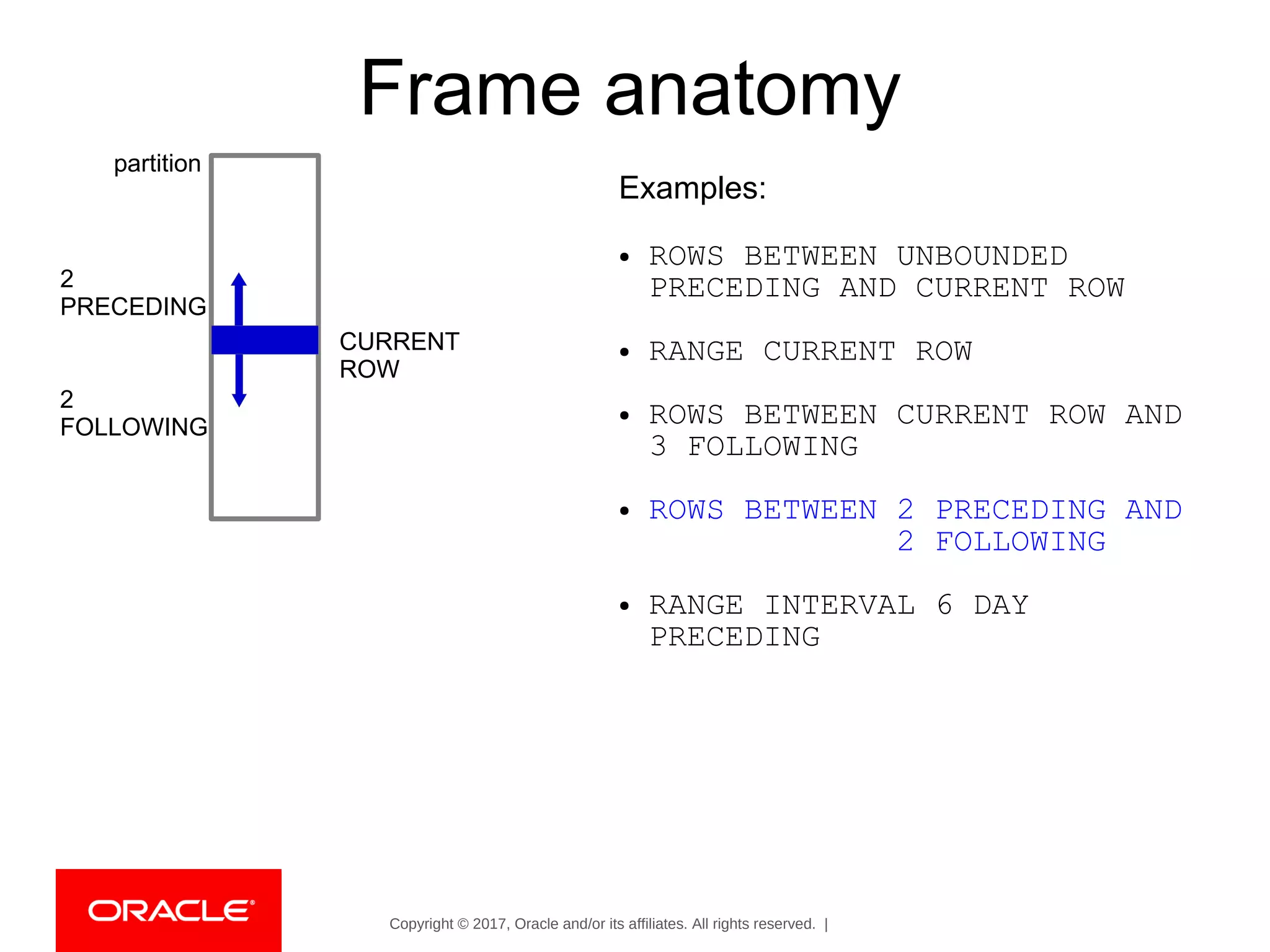

Frame anatomy
Examples:
● ROWS BETWEEN UNBOUNDED
PRECEDING AND CURRENT ROW
● RANGE CURRENT ROW
● ROWS BETWEEN CURRENT ROW AND
3 FOLLOWING
● ROWS BETWEEN 2 PRECEDING AND
2 FOLLOWING
● RANGE INTERVAL 6 DAY
PRECEDING

partition
CURRENT
ROW
UNBOUNDED
PRECEDING
n: numeric or temporal
Frame anatomy
Examples:
3 FOLLOWING
2 FOLLOWING
PRECEDING

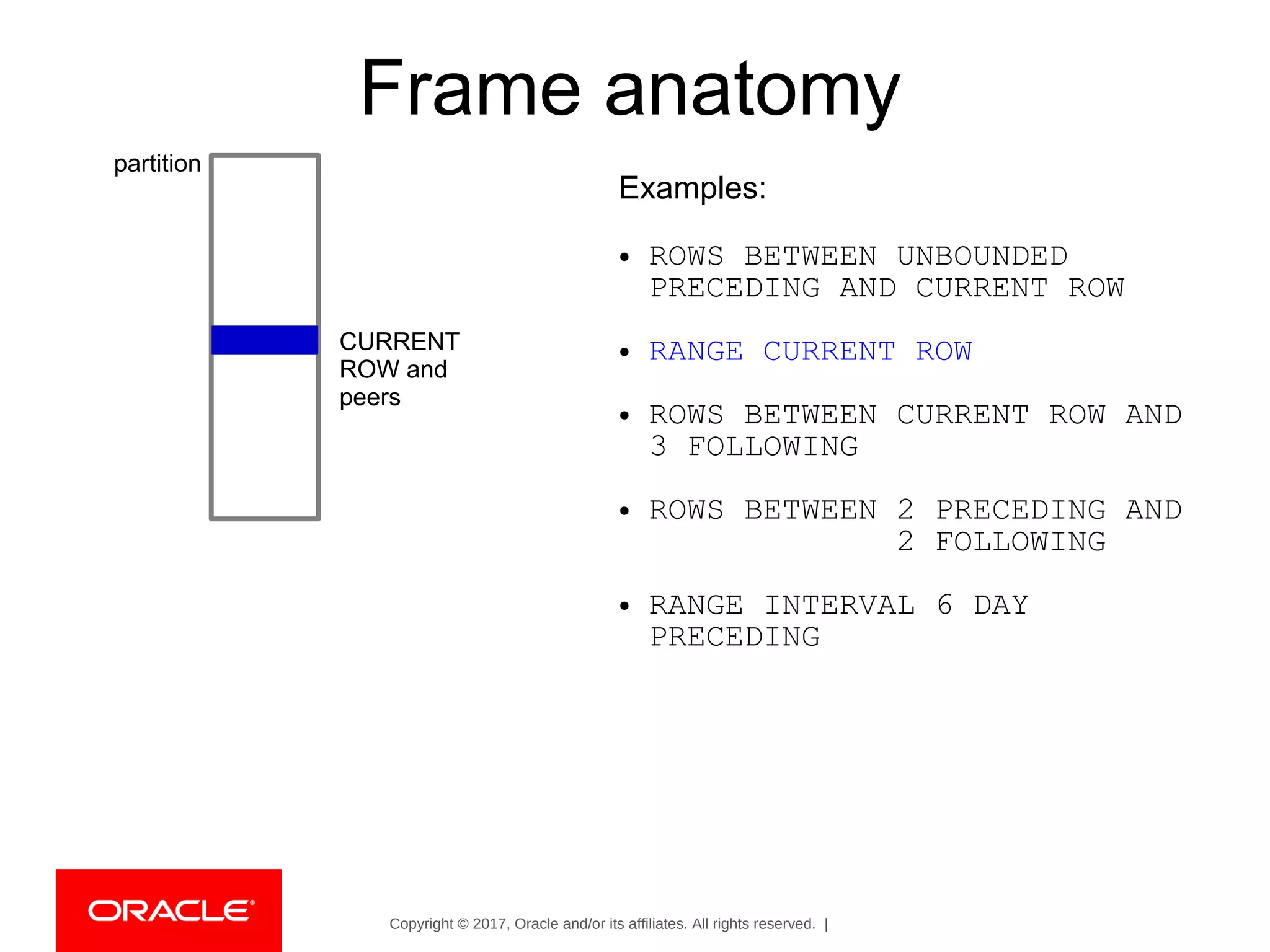

partition
CURRENT
ROW and
peers
Frame anatomy
Examples:
3 FOLLOWING
2 FOLLOWING
PRECEDING

partition
CURRENT
ROW
3
FOLLOWING
Frame anatomy
Examples:
3 FOLLOWING
2 FOLLOWING
PRECEDING

partition
CURRENT
ROW
2
FOLLOWING
Frame anatomy
Examples:
3 FOLLOWING
2 FOLLOWING
PRECEDING
2
PRECEDING

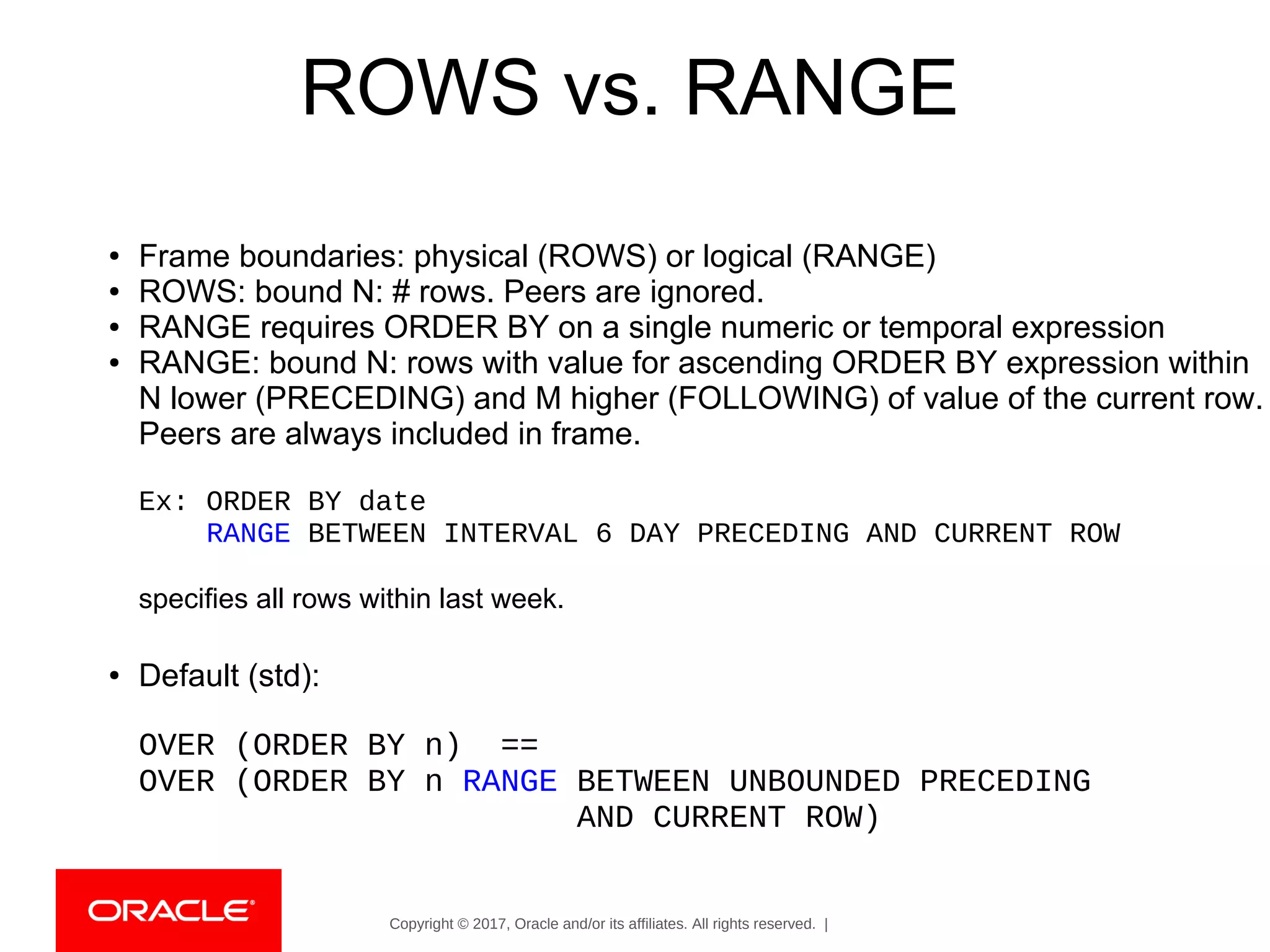

ROWS vs. RANGE
● Frame boundaries: physical (ROWS) or logical (RANGE)
● ROWS: bound N: # rows. Peers are ignored.
● RANGE requires ORDER BY on a single numeric or temporal expression
● RANGE: bound N: rows with value for ascending ORDER BY expression within
N lower (PRECEDING) and M higher (FOLLOWING) of value of the current row.
Peers are always included in frame.
Ex: ORDER BY date
RANGE BETWEEN INTERVAL 6 DAY PRECEDING AND CURRENT ROW
specifies all rows within last week.
● Default (std):
OVER (ORDER BY n) ==
OVER (ORDER BY n RANGE BETWEEN UNBOUNDED PRECEDING
AND CURRENT ROW)

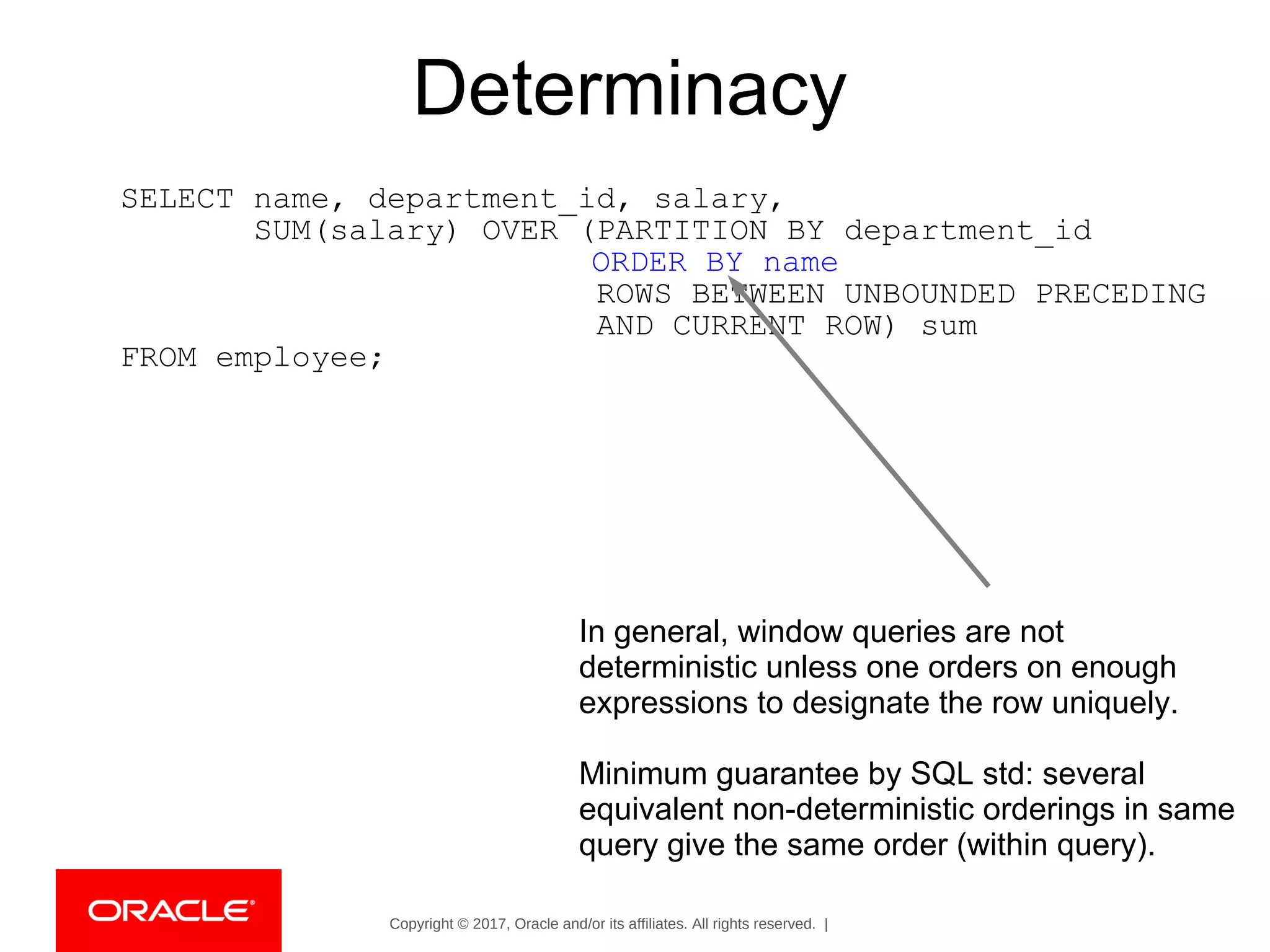

Determinacy
ORDER BY name
FROM employee;
In general, window queries are not
deterministic unless one orders on enough
expressions to designate the row uniquely.
Minimum guarantee by SQL std: several
equivalent non-deterministic orderings in same
query give the same order (within query).

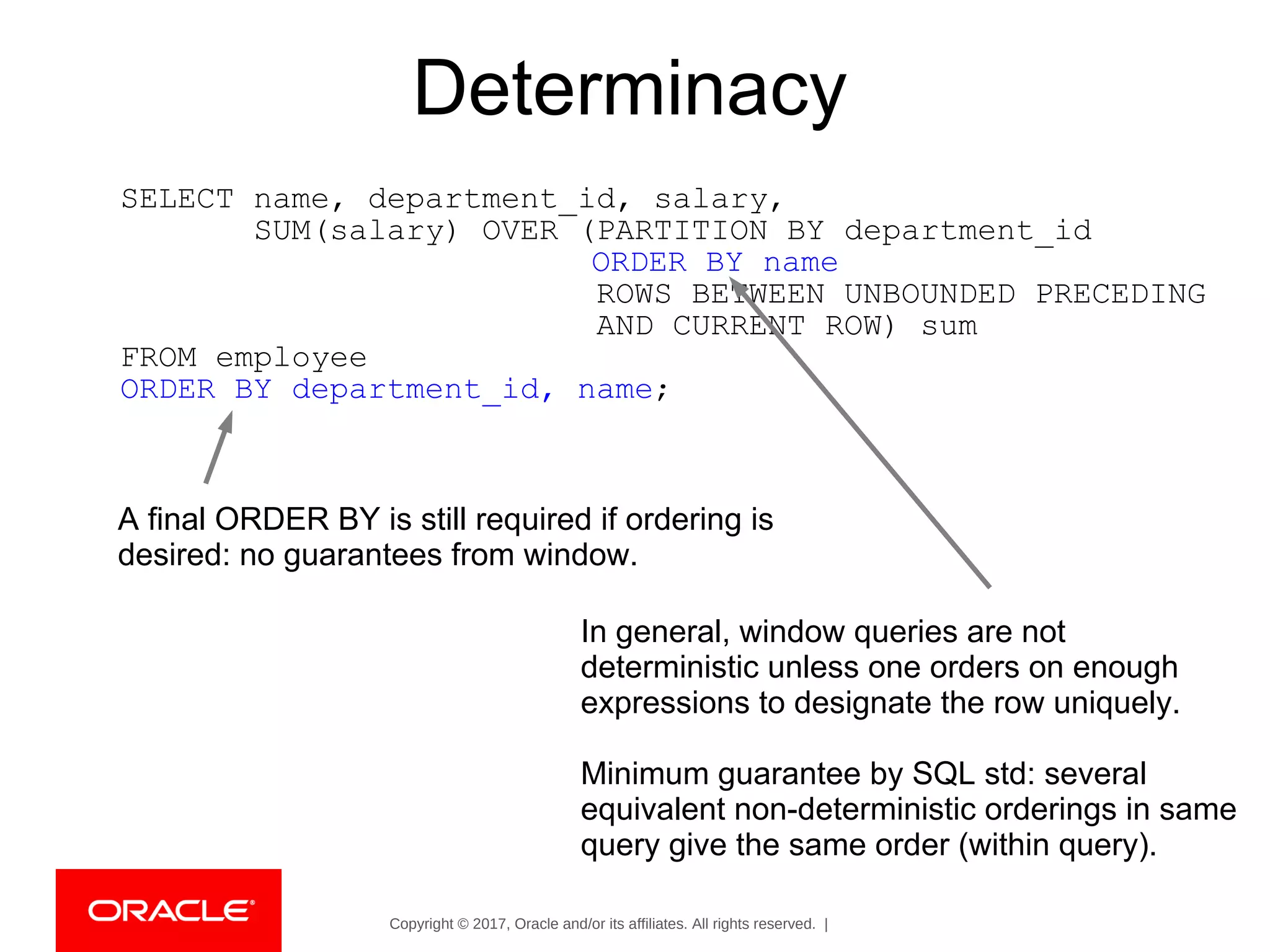

Determinacy
ORDER BY name
FROM employee
In general, window queries are not
deterministic unless one orders on enough
expressions to designate the row uniquely.
Minimum guarantee by SQL std: several
equivalent non-deterministic orderings in same
query give the same order (within query).
A final ORDER BY is still required if ordering is
desired: no guarantees from window.

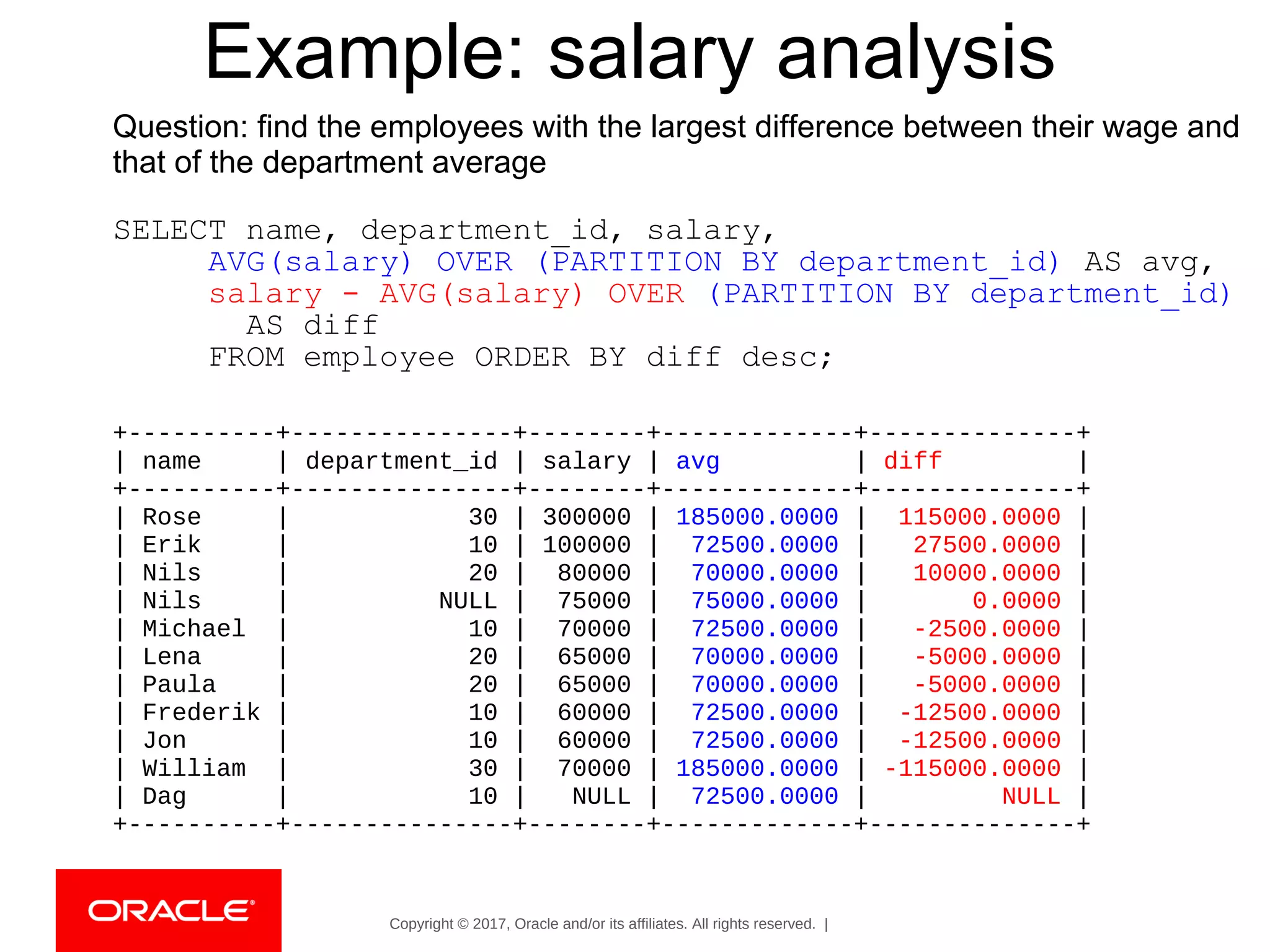

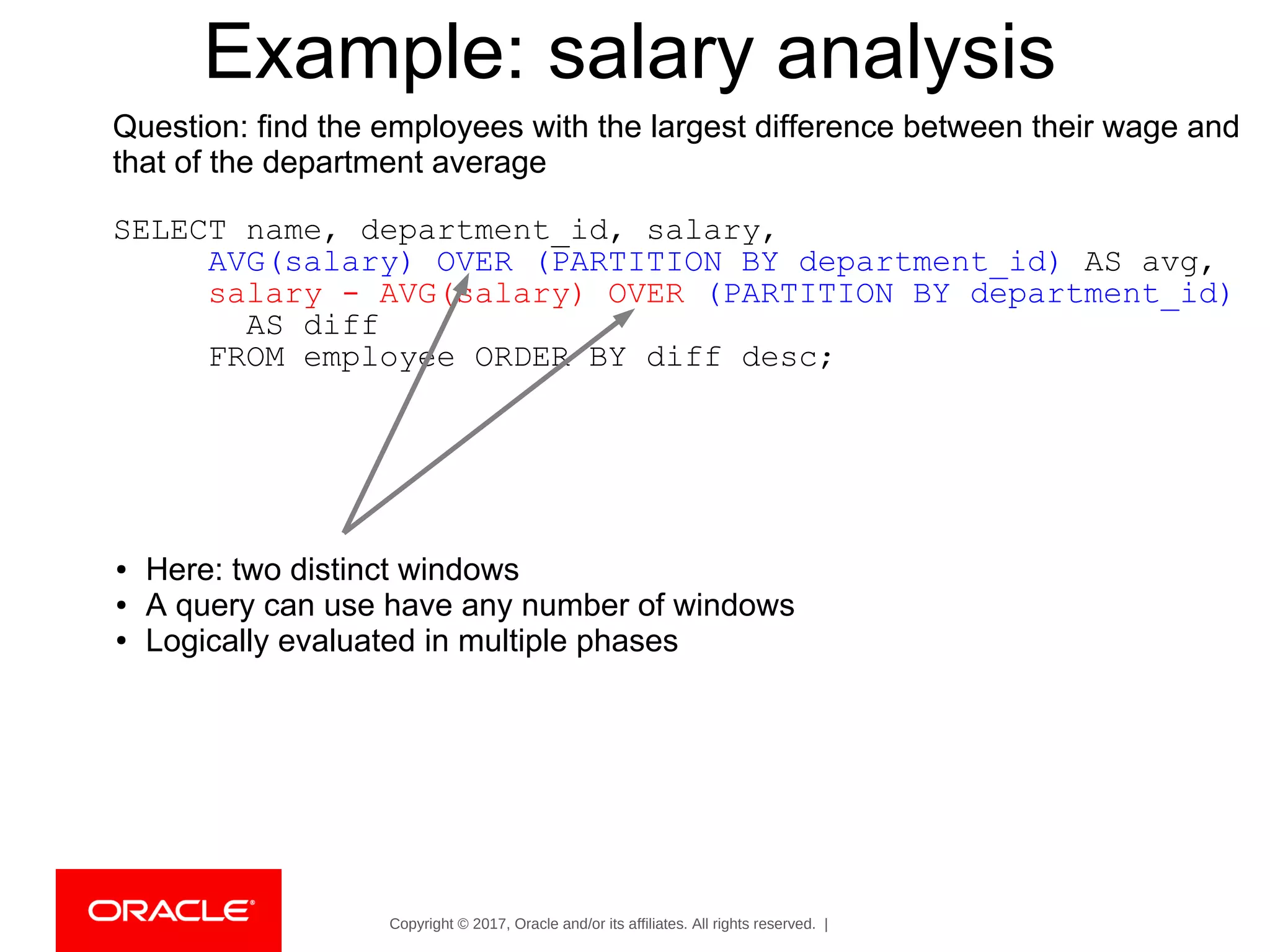

Example: salary analysis
Question: find the employees with the largest difference between their wage and
that of the department average
AVG(salary) OVER (PARTITION BY department_id) AS avg,
salary - AVG(salary) OVER (PARTITION BY department_id)
AS diff
FROM employee ORDER BY diff desc;
+----------+---------------+--------+-------------+--------------+
| name | department_id | salary | avg | diff |
+----------+---------------+--------+-------------+--------------+
| Rose | 30 | 300000 | 185000.0000 | 115000.0000 |
| Erik | 10 | 100000 | 72500.0000 | 27500.0000 |
| Nils | 20 | 80000 | 70000.0000 | 10000.0000 |
| Nils | NULL | 75000 | 75000.0000 | 0.0000 |
| Michael | 10 | 70000 | 72500.0000 | -2500.0000 |
| Lena | 20 | 65000 | 70000.0000 | -5000.0000 |
| Paula | 20 | 65000 | 70000.0000 | -5000.0000 |
| Frederik | 10 | 60000 | 72500.0000 | -12500.0000 |
| Jon | 10 | 60000 | 72500.0000 | -12500.0000 |
| William | 30 | 70000 | 185000.0000 | -115000.0000 |
| Dag | 10 | NULL | 72500.0000 | NULL |
+----------+---------------+--------+-------------+--------------+

Example: salary analysis
AVG(salary) OVER (PARTITION BY department_id) AS avg,
salary - AVG(salary) OVER (PARTITION BY department_id)
AS diff
FROM employee ORDER BY diff desc;
● Here: two distinct windows
● A query can use have any number of windows
● Logically evaluated in multiple phases

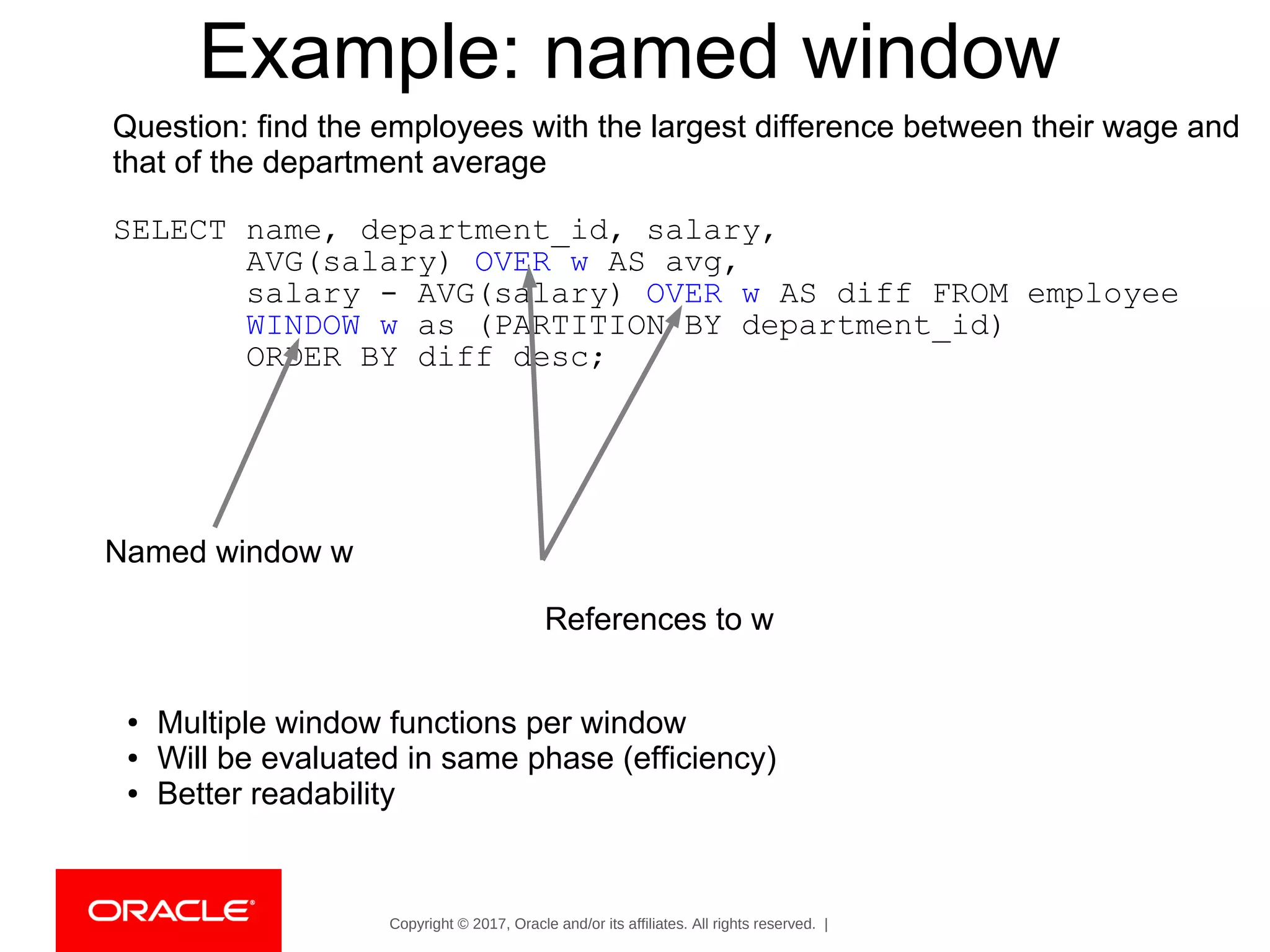

Example: named window
AVG(salary) OVER w AS avg,
salary - AVG(salary) OVER w AS diff FROM employee
WINDOW w as (PARTITION BY department_id)
ORDER BY diff desc;
Named window w
References to w
● Multiple window functions per window
● Will be evaluated in same phase (efficiency)
● Better readability

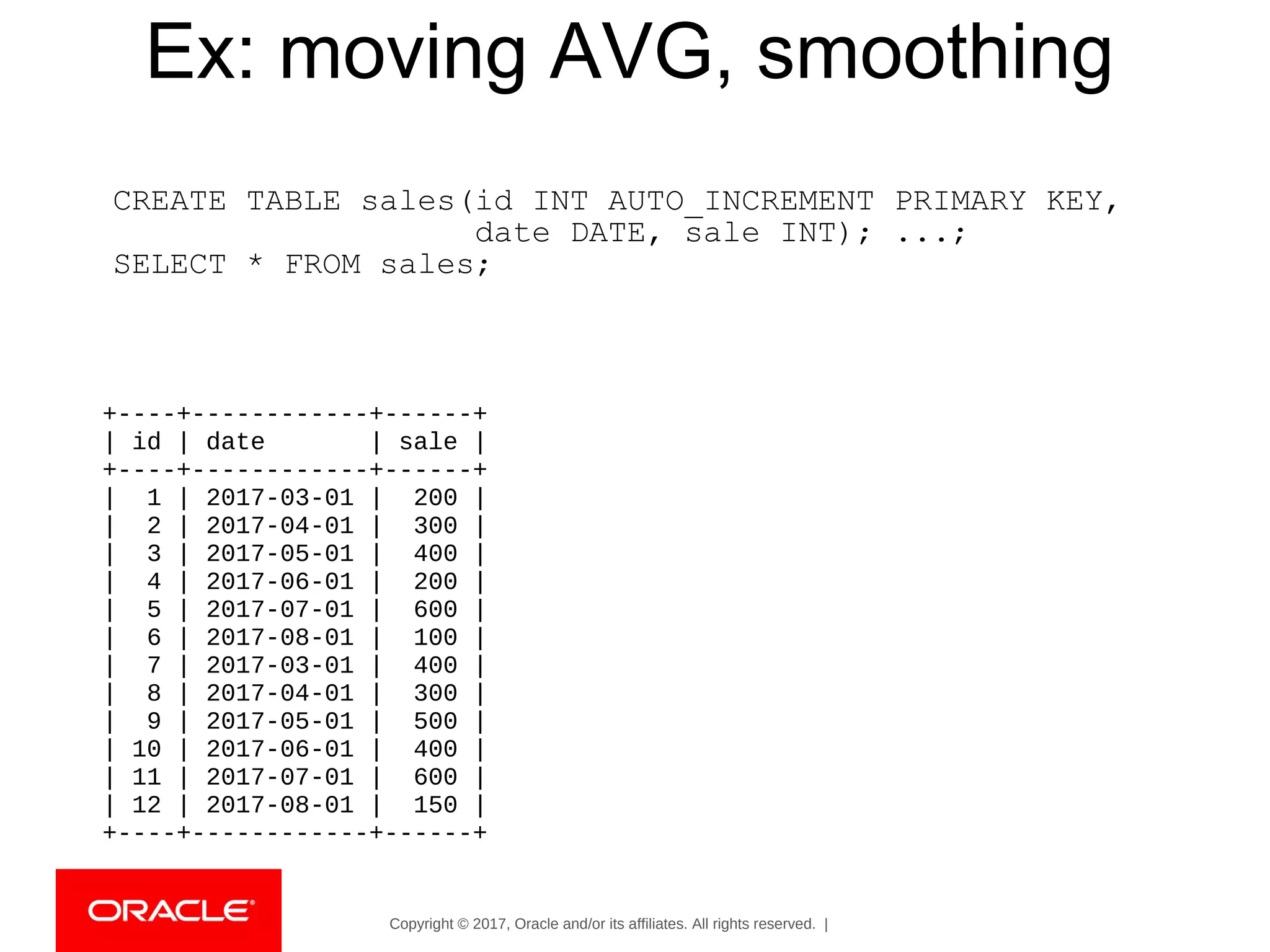

Ex: moving AVG, smoothing
CREATE TABLE sales(id INT AUTO_INCREMENT PRIMARY KEY,
date DATE, sale INT); ...;
SELECT * FROM sales;
+----+------------+------+
| id | date | sale |
+----+------------+------+
| 1 | 2017-03-01 | 200 |
| 2 | 2017-04-01 | 300 |
| 3 | 2017-05-01 | 400 |
| 4 | 2017-06-01 | 200 |
| 5 | 2017-07-01 | 600 |
| 6 | 2017-08-01 | 100 |
| 7 | 2017-03-01 | 400 |
| 8 | 2017-04-01 | 300 |
| 9 | 2017-05-01 | 500 |
| 10 | 2017-06-01 | 400 |
| 11 | 2017-07-01 | 600 |
| 12 | 2017-08-01 | 150 |
+----+------------+------+

+-------------+-----------+
| MONTH(date) | SUM(sale) |
+-------------+-----------+
| 3 | 600 |
| 4 | 600 |
| 5 | 900 |
| 6 | 600 |
| 7 | 1200 |
| 8 | 250 |
+-------------+-----------+

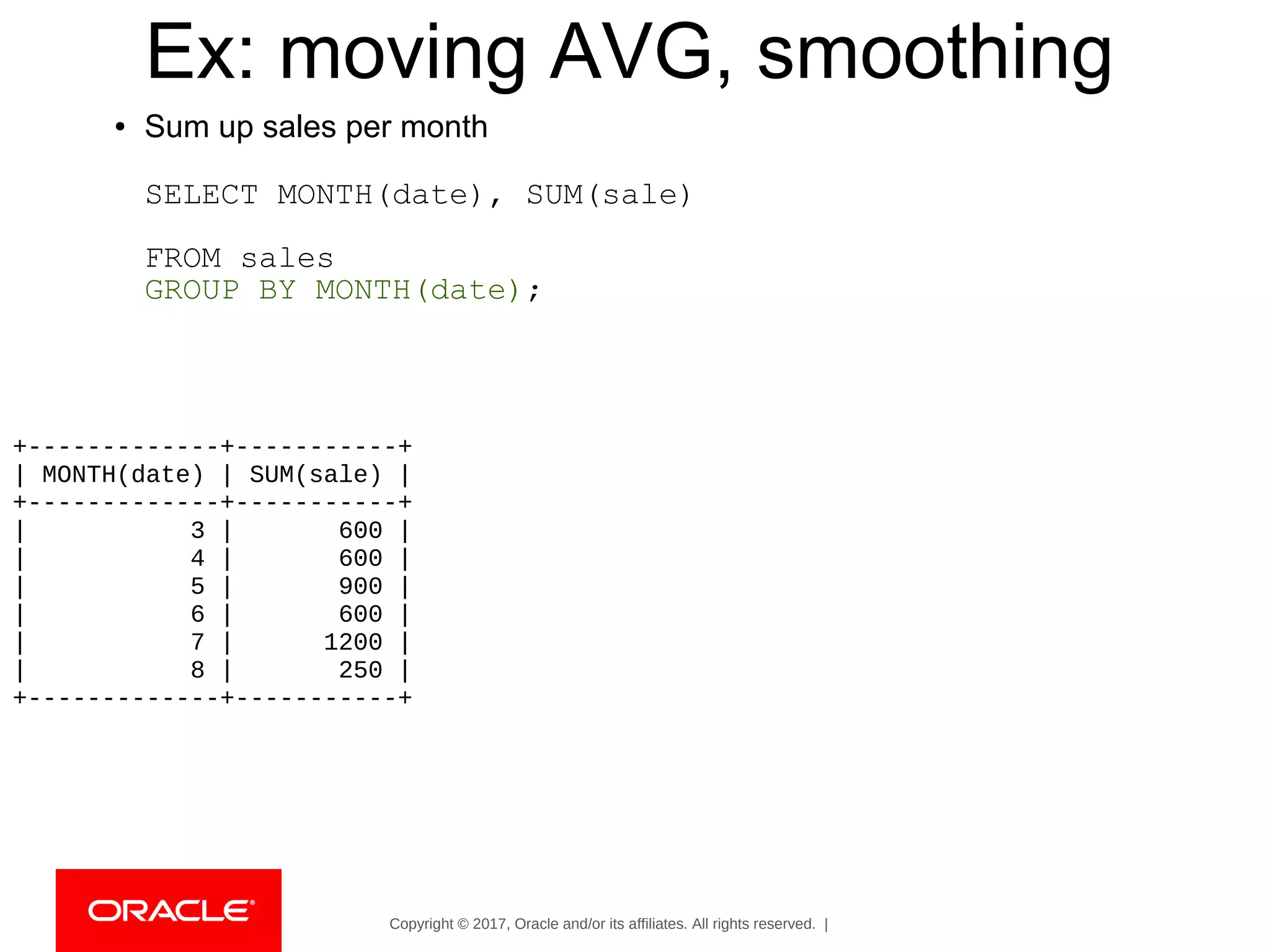

● Sum up sales per month
SELECT MONTH(date), SUM(sale)
FROM sales
GROUP BY MONTH(date);

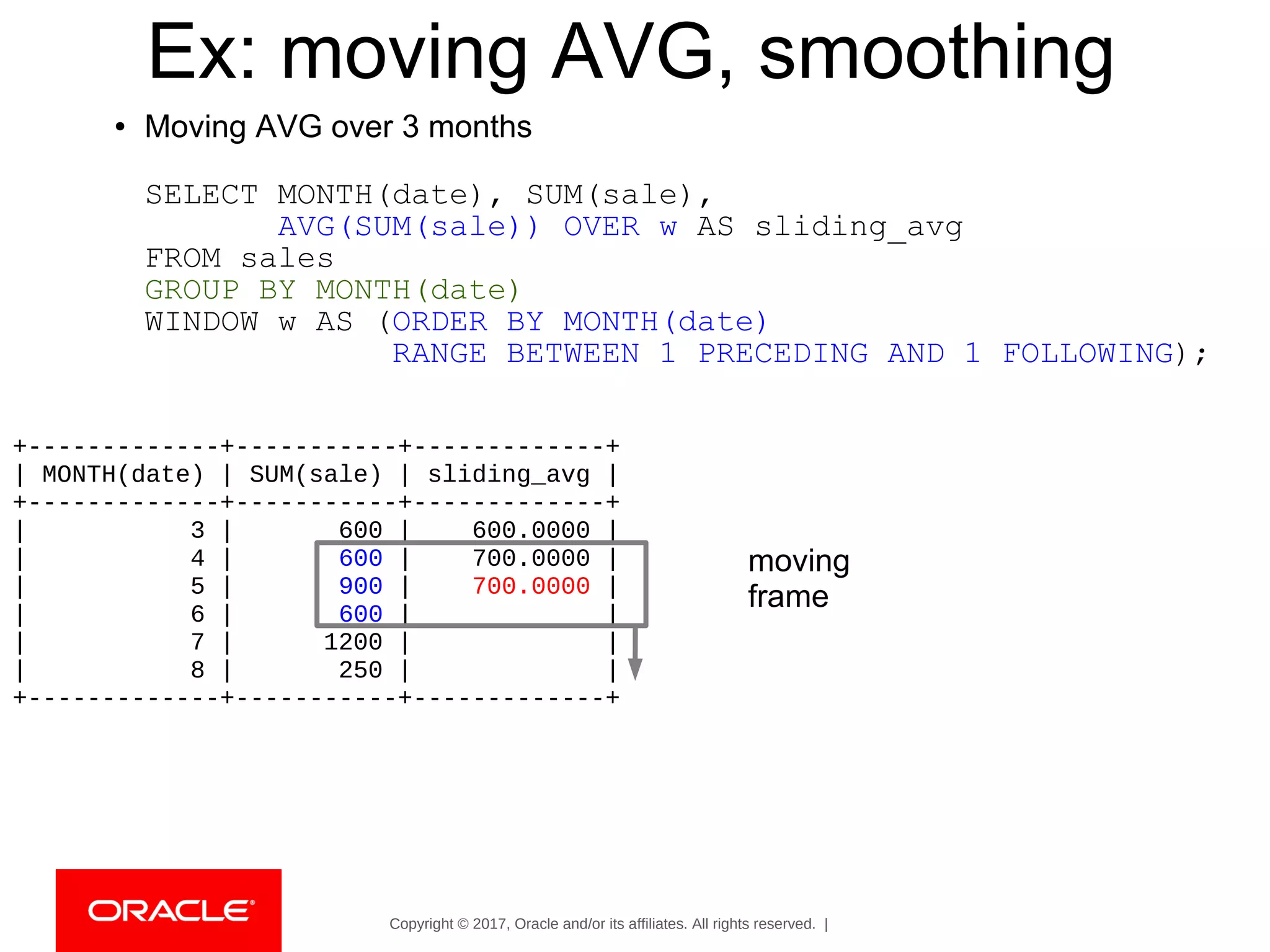

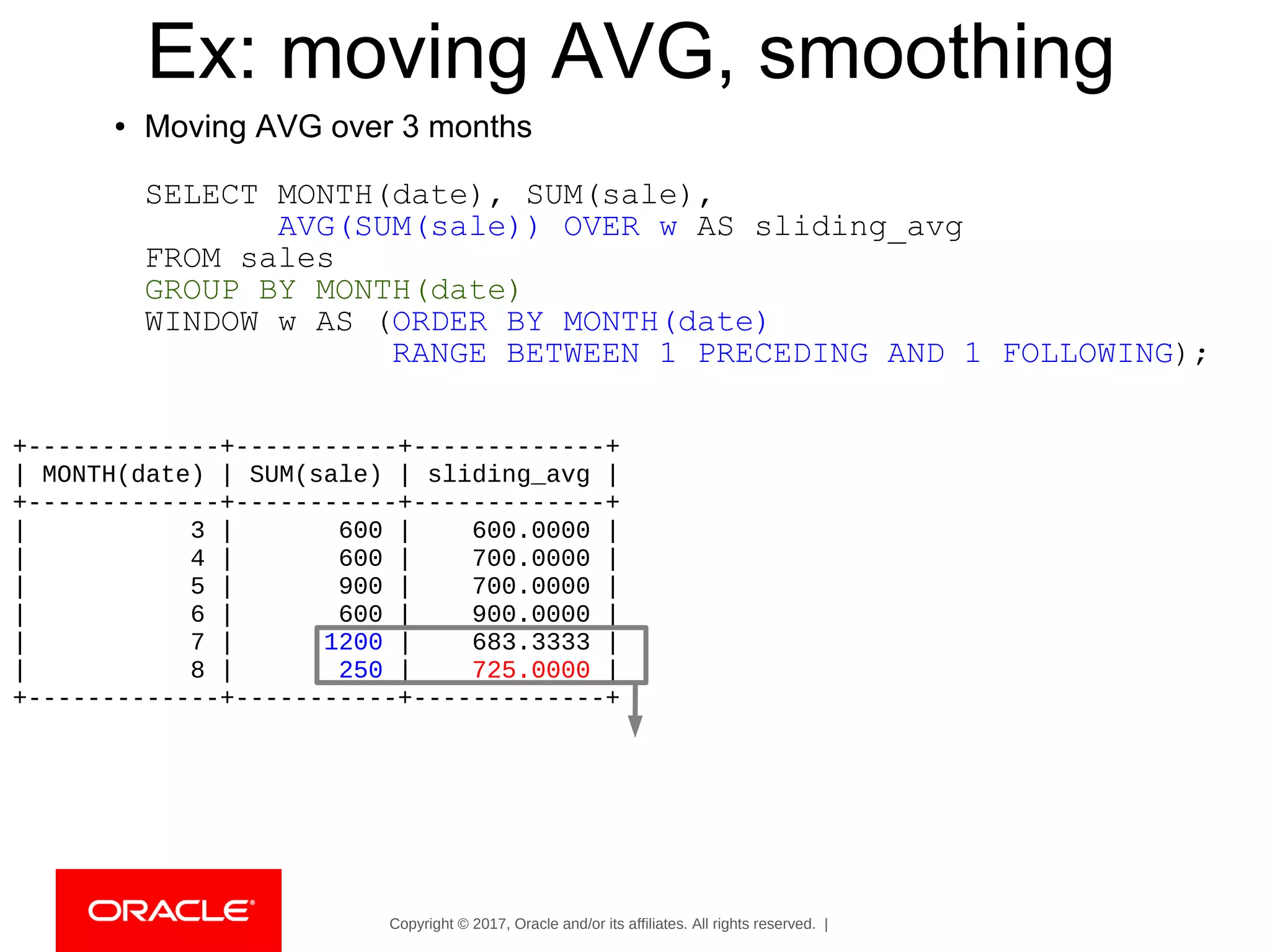

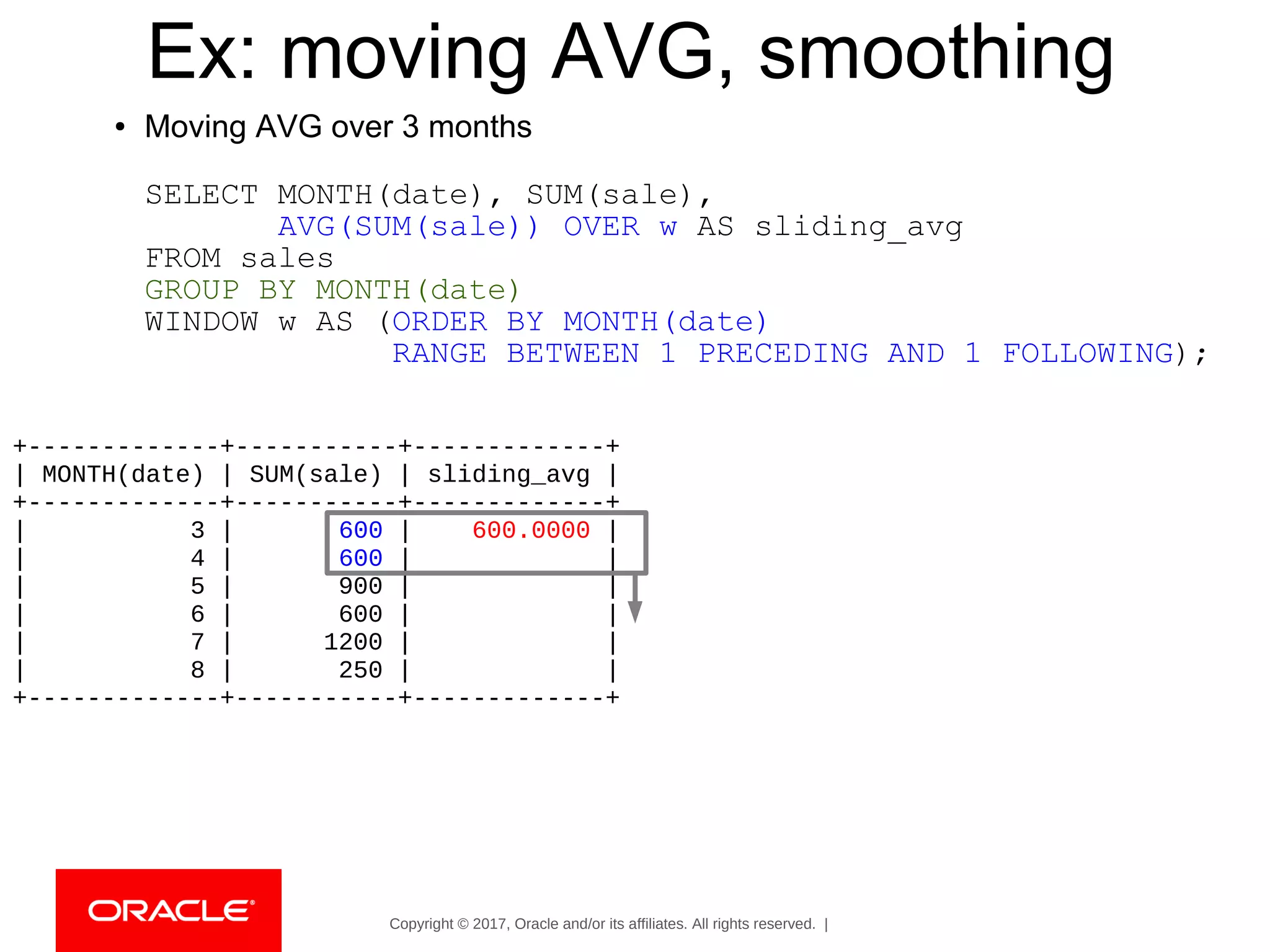

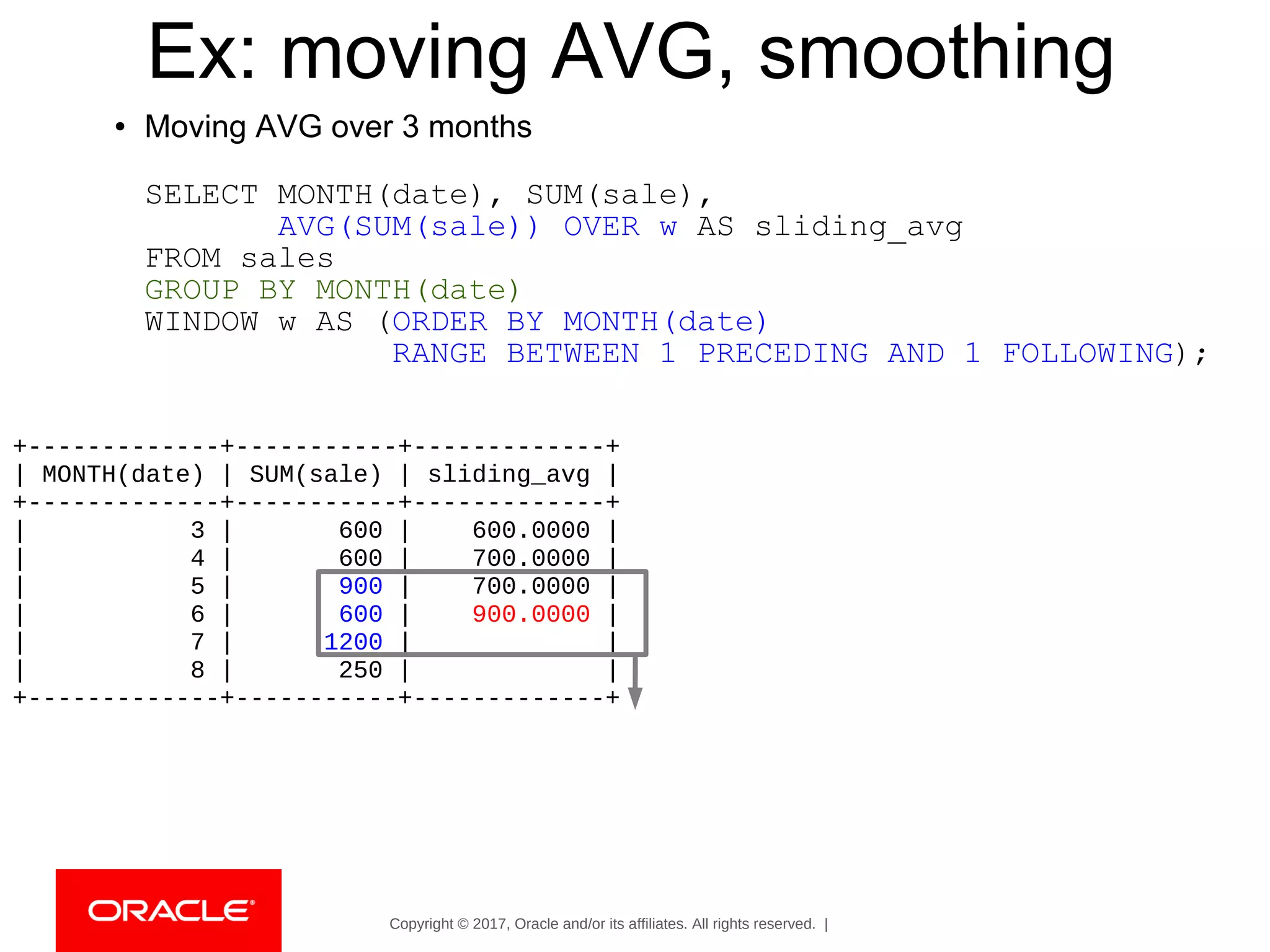

● Moving AVG over 3 months
SELECT MONTH(date), SUM(sale),
AVG(SUM(sale)) OVER w AS sliding_avg
FROM sales
GROUP BY MONTH(date)
WINDOW w AS (ORDER BY MONTH(date)
RANGE BETWEEN 1 PRECEDING AND 1 FOLLOWING);
+-------------+-----------+-------------+
| MONTH(date) | SUM(sale) | sliding_avg |
+-------------+-----------+-------------+
| 3 | 600 | 600.0000 |
| 4 | 600 | |
| 5 | 900 | |
| 6 | 600 | |
| 7 | 1200 | |
| 8 | 250 | |
+-------------+-----------+-------------+

+-------------+-----------+-------------+
+-------------+-----------+-------------+
| 3 | 600 | 600.0000 |
| 4 | 600 | 700.0000 |
| 5 | 900 | |
| 6 | 600 | |
| 7 | 1200 | |
| 8 | 250 | |
+-------------+-----------+-------------+
FROM sales

FROM sales
+-------------+-----------+-------------+
+-------------+-----------+-------------+
| 3 | 600 | 600.0000 |
| 4 | 600 | 700.0000 |
| 5 | 900 | 700.0000 |
| 6 | 600 | |
| 7 | 1200 | |
| 8 | 250 | |
+-------------+-----------+-------------+
moving
frame

FROM sales
+-------------+-----------+-------------+
+-------------+-----------+-------------+
| 3 | 600 | 600.0000 |
| 4 | 600 | 700.0000 |
| 5 | 900 | 700.0000 |
| 6 | 600 | 900.0000 |
| 7 | 1200 | |
| 8 | 250 | |
+-------------+-----------+-------------+

FROM sales
+-------------+-----------+-------------+
+-------------+-----------+-------------+
| 3 | 600 | 600.0000 |
| 4 | 600 | 700.0000 |
| 5 | 900 | 700.0000 |
| 6 | 600 | 900.0000 |
| 7 | 1200 | 683.3333 |
| 8 | 250 | |
+-------------+-----------+-------------+

FROM sales
+-------------+-----------+-------------+
+-------------+-----------+-------------+
| 3 | 600 | 600.0000 |
| 4 | 600 | 700.0000 |
| 5 | 900 | 700.0000 |
| 6 | 600 | 900.0000 |
| 7 | 1200 | 683.3333 |
| 8 | 250 | 725.0000 |
+-------------+-----------+-------------+

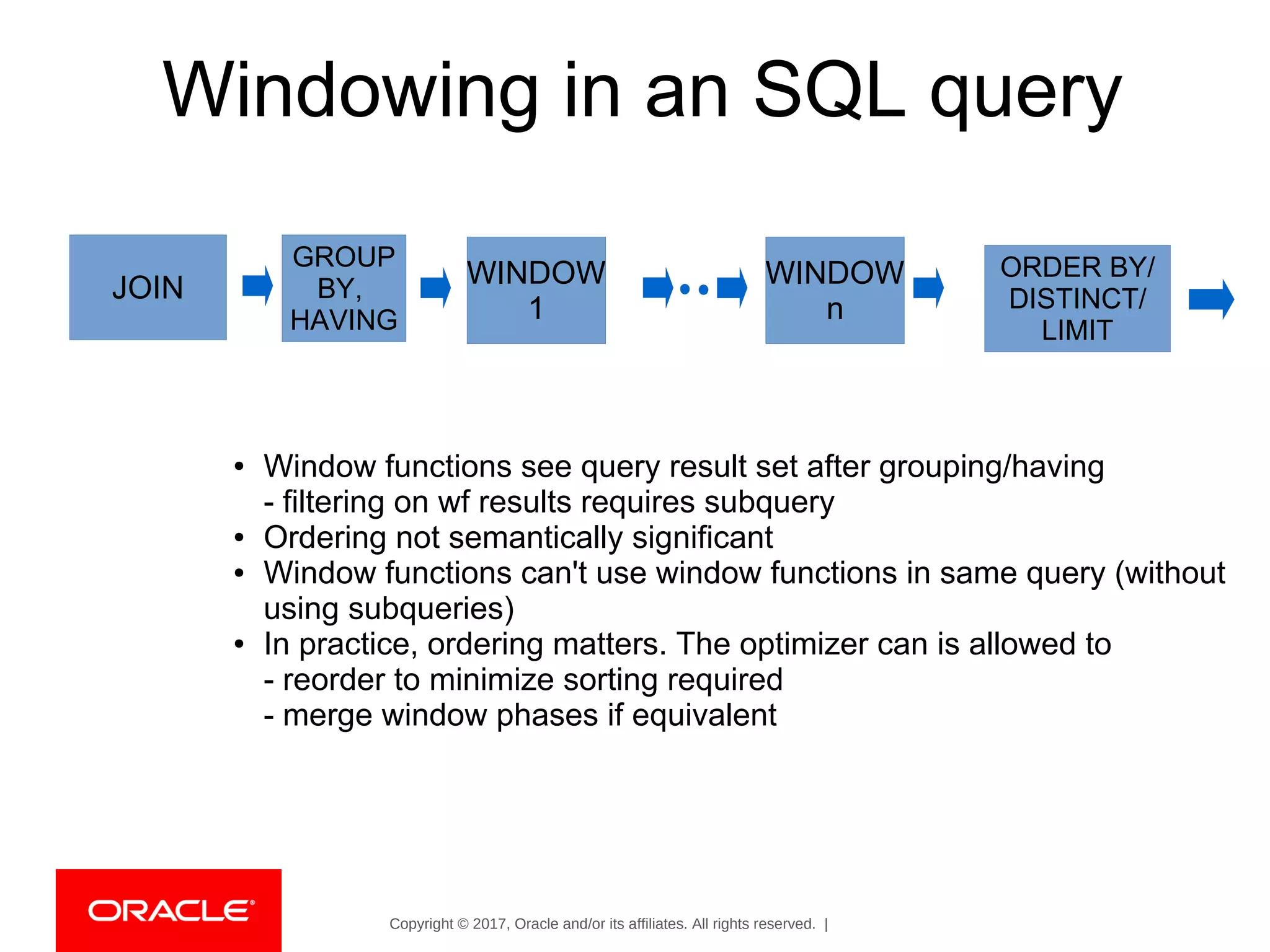

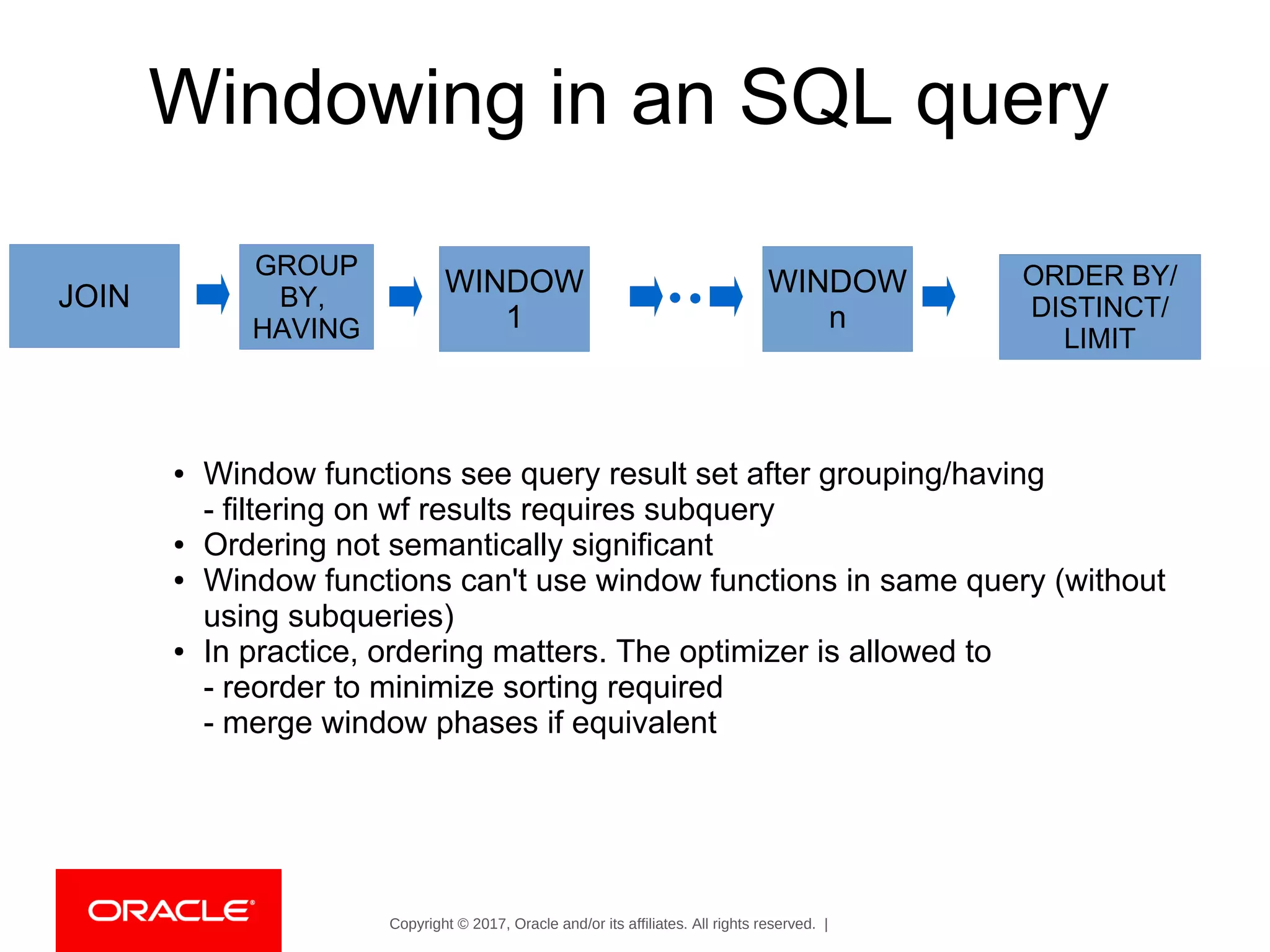

Windowing in an SQL query
JOIN
GROUP
BY,
HAVING
WINDOW
1
WINDOW
n
ORDER BY/
DISTINCT/
LIMIT
● Window functions see query result set after grouping/having
- filtering on wf results requires subquery
● Ordering not semantically significant
● Window functions can't use window functions in same query (without
using subqueries)
● In practice, ordering matters. The optimizer can is allowed to
- reorder to minimize sorting required
- merge window phases if equivalent

Program Agenda
•
•
What's supported
•
•
2
4
3
4
1

PART II
in which we learn which window functions are supported
by MySQL

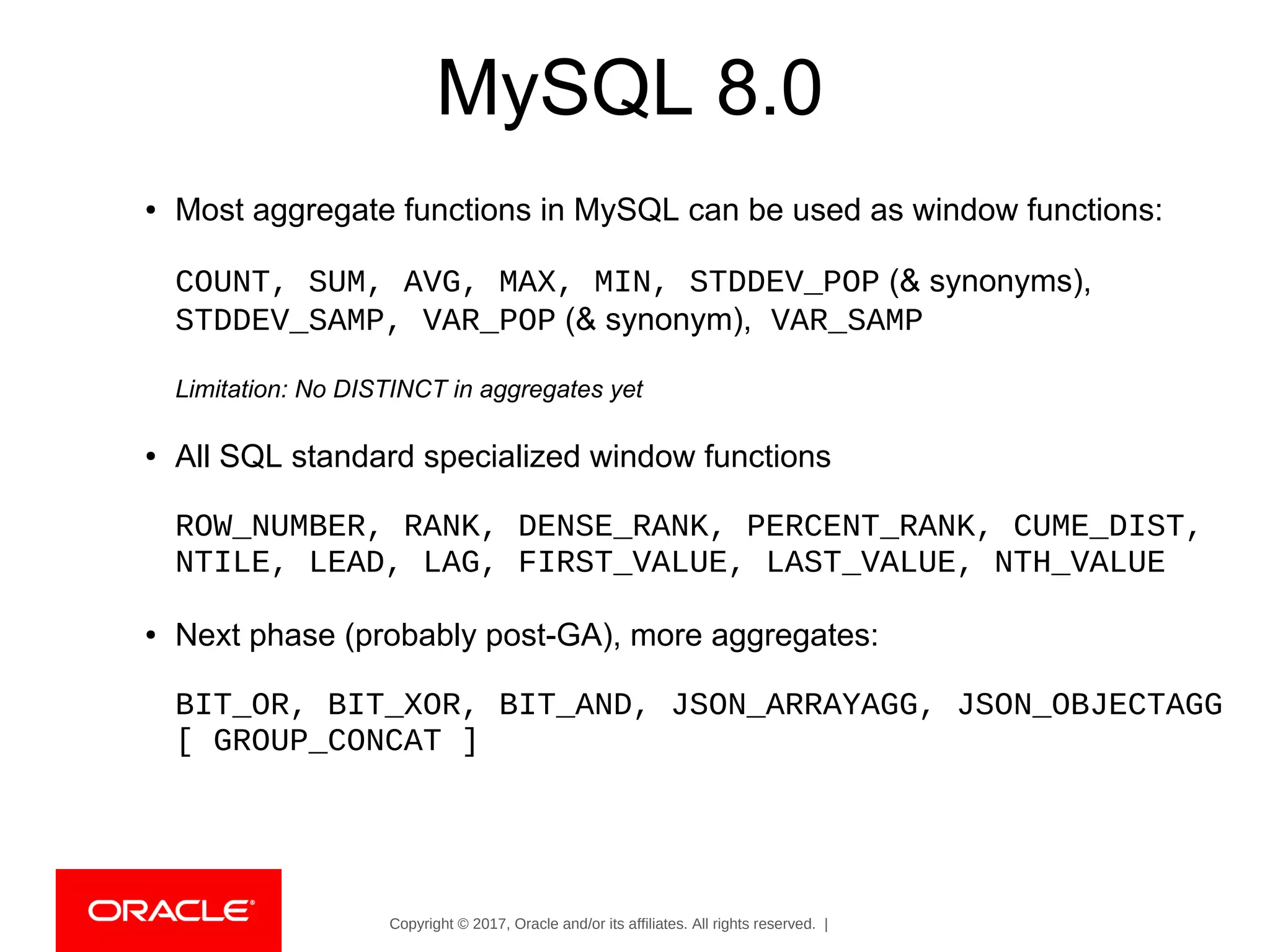

MySQL 8.0
● Most aggregate functions in MySQL can be used as window functions:
COUNT, SUM, AVG, MAX, MIN, STDDEV_POP (& synonyms),
STDDEV_SAMP, VAR_POP (& synonym), VAR_SAMP
Limitation: No DISTINCT in aggregates yet
● All SQL standard specialized window functions
ROW_NUMBER, RANK, DENSE_RANK, PERCENT_RANK, CUME_DIST,
NTILE, LEAD, LAG, FIRST_VALUE, LAST_VALUE, NTH_VALUE
● Next phase (probably post-GA), more aggregates:
BIT_OR, BIT_XOR, BIT_AND, JSON_ARRAYAGG, JSON_OBJECTAGG
[ GROUP_CONCAT ]

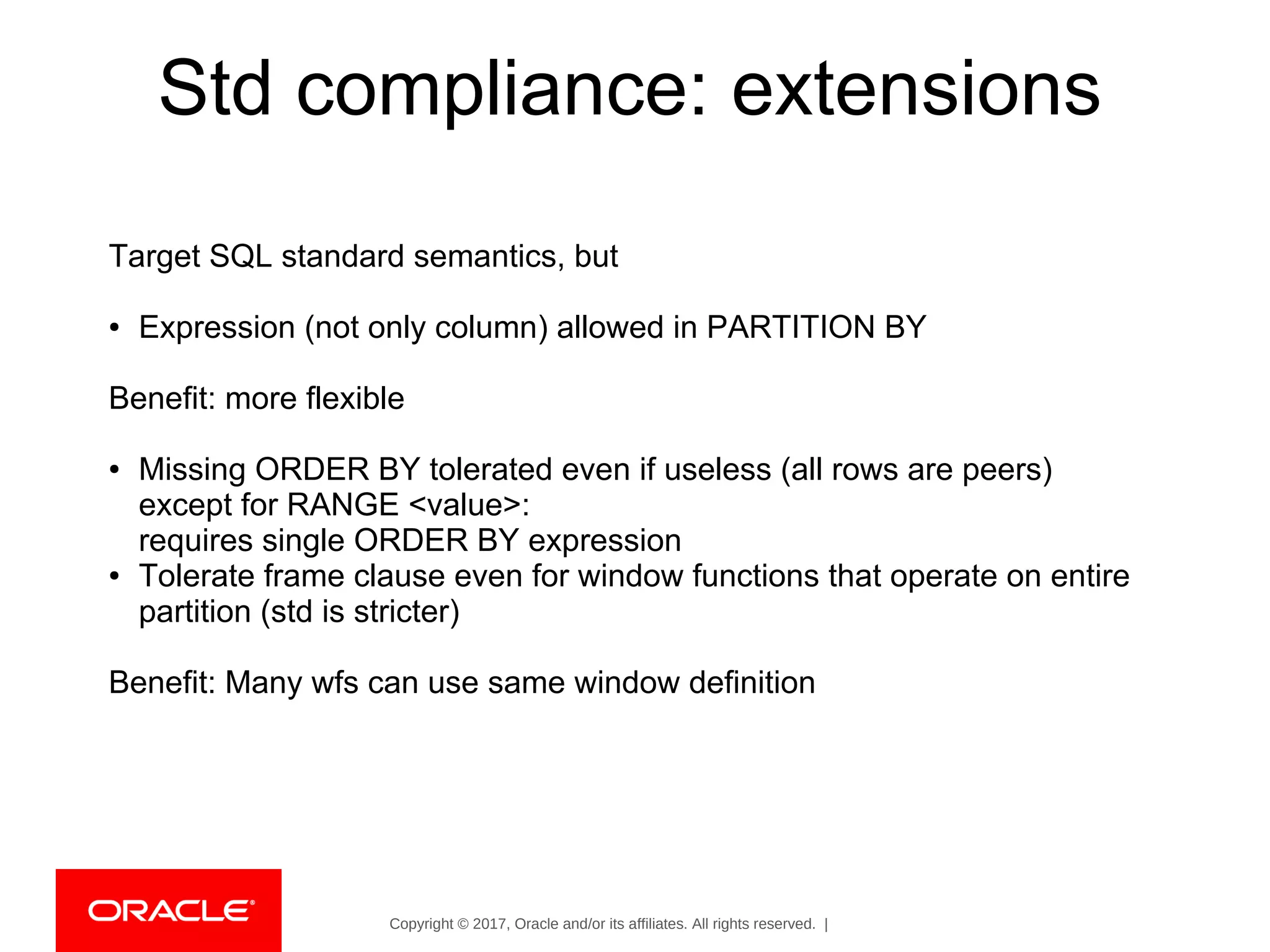

Std compliance: extensions
Target SQL standard semantics, but
● Expression (not only column) allowed in PARTITION BY
Benefit: more flexible
● Missing ORDER BY tolerated even if useless (all rows are peers)
except for RANGE <value>:
requires single ORDER BY expression
● Tolerate frame clause even for window functions that operate on entire
partition (std is stricter)
Benefit: Many wfs can use same window definition

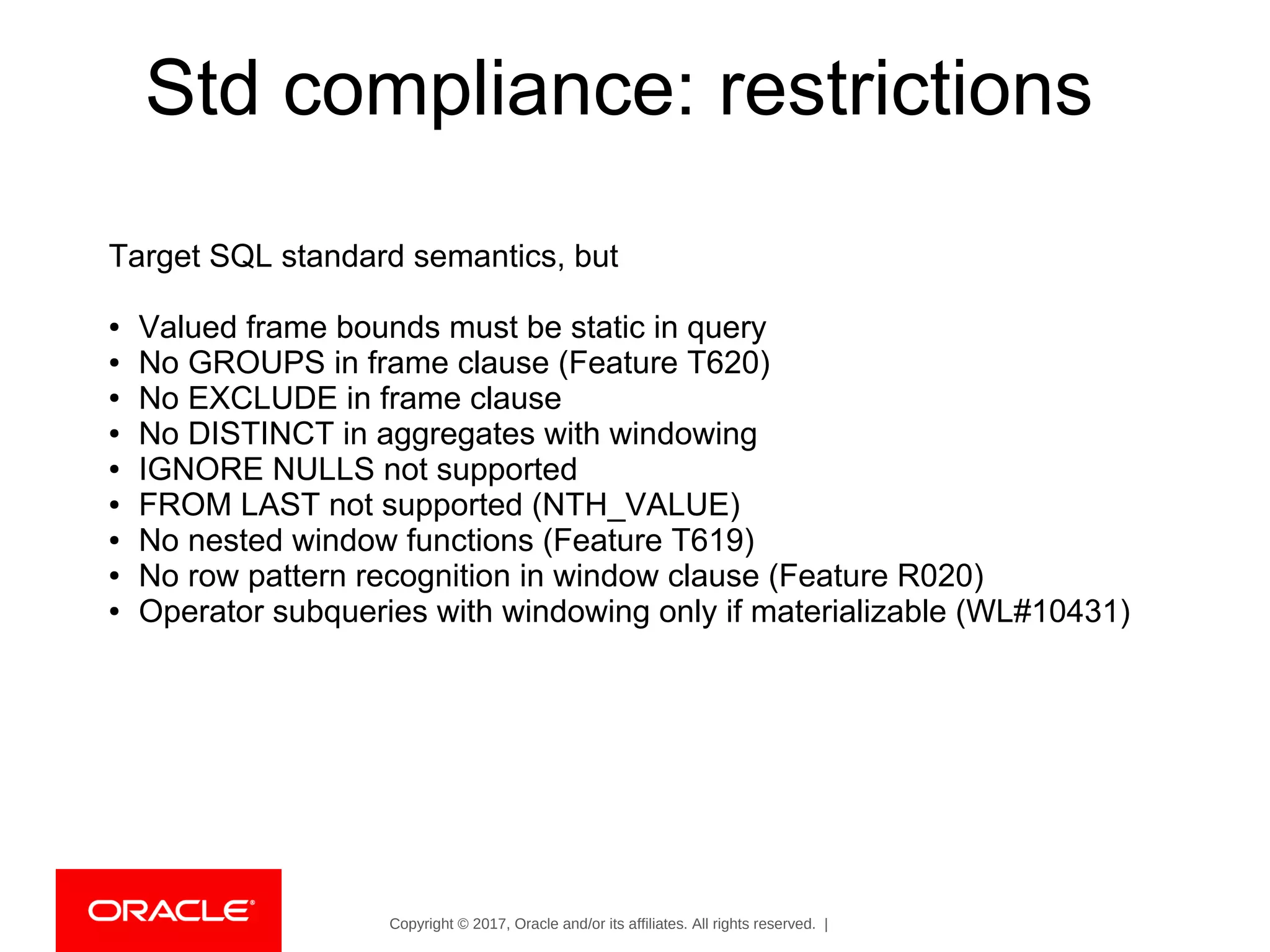

Std compliance: restrictions
Target SQL standard semantics, but
● Valued frame bounds must be static in query
● No GROUPS in frame clause (Feature T620)
● No EXCLUDE in frame clause
● No DISTINCT in aggregates with windowing
● IGNORE NULLS not supported
● FROM LAST not supported (NTH_VALUE)
● No nested window functions (Feature T619)
● No row pattern recognition in window clause (Feature R020)
● Operator subqueries with windowing only if materializable (WL#10431)

Program Agenda
•
•
What's supported
•
•
3
4
2
4
1

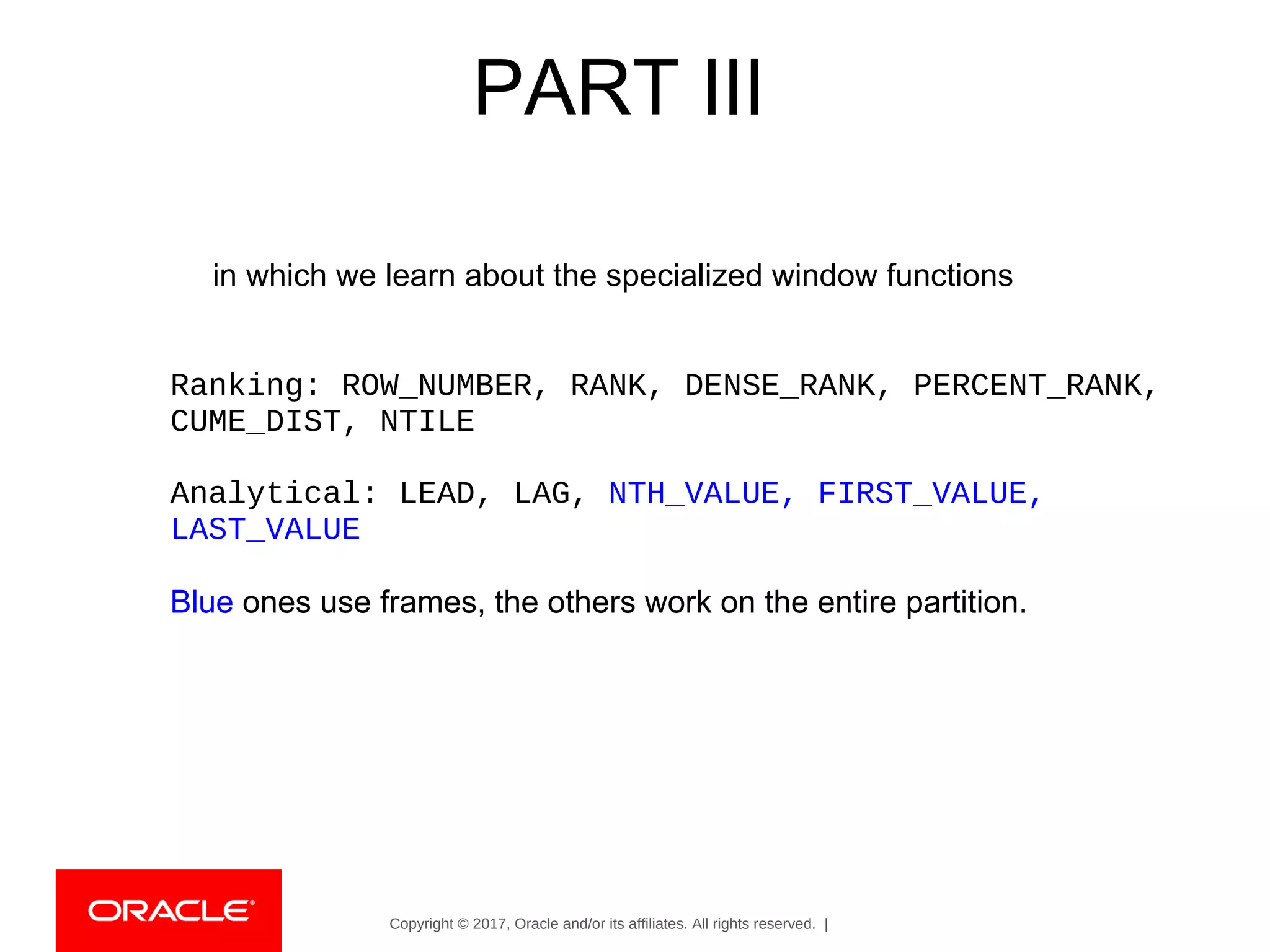

PART III
in which we learn about the specialized window functions
Ranking: ROW_NUMBER, RANK, DENSE_RANK, PERCENT_RANK,
CUME_DIST, NTILE
Analytical: LEAD, LAG, NTH_VALUE, FIRST_VALUE,
LAST_VALUE
Blue ones use frames, the others work on the entire partition.

ROW_NUMBER
● Assign number to row in ascending order
Example: give employees a number according to their salary
SELECT name, department_id AS dept, salary,
ROW_NUMBER() OVER w AS `row#`
FROM employee
WINDOW w AS (PARTITION BY department_id
ORDER BY salary DESC, name ASC)
ORDER BY department_id, `row#`;
+----------+------+--------+------+
| name | dept | salary | row# |
+----------+------+--------+------+
| Nils | NULL | 75000 | 1 |
| Erik | 10 | 100000 | 1 |
| Michael | 10 | 70000 | 2 |
| Frederik | 10 | 60000 | 3 |
| Jon | 10 | 60000 | 4 |
| Dag | 10 | NULL | 5 |
| Nils | 20 | 80000 | 1 |
| Lena | 20 | 65000 | 2 |
| Paula | 20 | 65000 | 3 |
| Rose | 30 | 300000 | 1 |
| William | 30 | 70000 | 2 |
+----------+------+--------+------+

RANK
● Rows that are the same w.r.t any ordering have the same rank
Example: rank employees within each department according to their
salary
SELECT name, department_id AS dept, salary, .. ,
RANK() OVER w AS `rank`
FROM employee
ORDER BY salary DESC)
+----------+------+--------+------+------+
| name | dept | salary | row# | rank |
+----------+------+--------+------+------+
| Nils | NULL | 75000 | 1 | 1 |
| Erik | 10 | 100000 | 1 | 1 |
| Michael | 10 | 70000 | 2 | 2 |
| Frederik | 10 | 60000 | 3 | 3 |
| Jon | 10 | 60000 | 4 | 3 |
| Dag | 10 | NULL | 5 | 5 |
| Nils | 20 | 80000 | 1 | 1 |
| Lena | 20 | 65000 | 2 | 2 |
| Paula | 20 | 65000 | 3 | 2 |
| Rose | 30 | 300000 | 1 | 1 |
| William | 30 | 70000 | 2 | 2 |
+----------+------+--------+------+------+
Peer rows w.r.t ordering,
skip rank 4.

DENSE_RANK
● Rows that are the same wrt any ordering have the same rank
salary
DENSE_RANK() OVER w AS dense
FROM employee
+----------+------+--------+------+------+-------+
| name | dept | salary | row# | rank | dense |
+----------+------+--------+------+------+-------+
| Nils | NULL | 75000 | 1 | 1 | 1 |
| Erik | 10 | 100000 | 1 | 1 | 1 |
| Michael | 10 | 70000 | 2 | 2 | 2 |
| Frederik | 10 | 60000 | 3 | 3 | 3 |
| Jon | 10 | 60000 | 4 | 3 | 3 |
| Dag | 10 | NULL | 5 | 5 | 4 |
| Nils | 20 | 80000 | 1 | 1 | 1 |
| Lena | 20 | 65000 | 2 | 2 | 2 |
| Paula | 20 | 65000 | 3 | 2 | 2 |
| Rose | 30 | 300000 | 1 | 1 | 1 |
| William | 30 | 70000 | 2 | 2 | 2 |
+----------+------+--------+------+------+-------+
Peer rows w.r.t ordering,
do not skip rank 4.

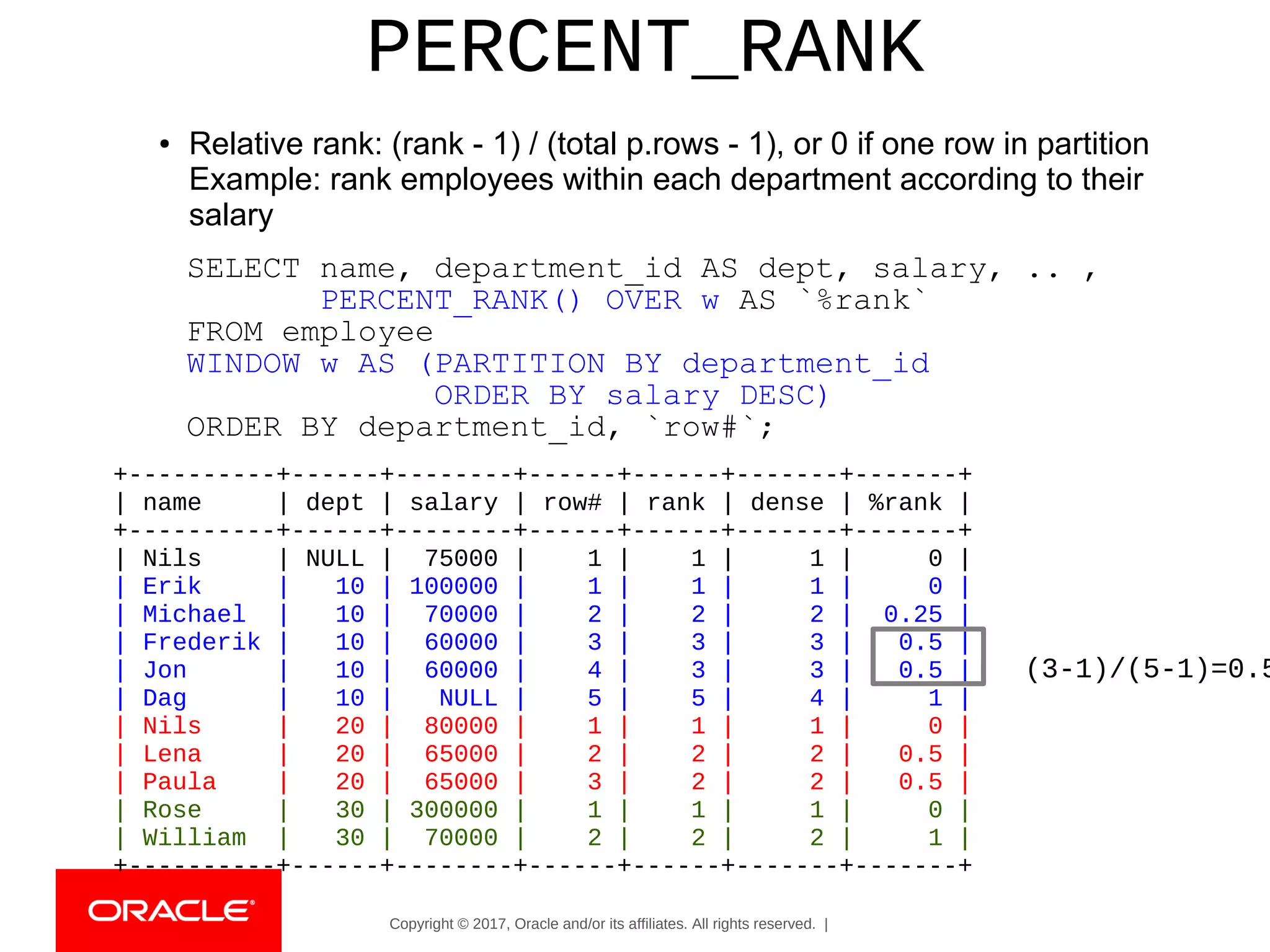

PERCENT_RANK
● Relative rank: (rank - 1) / (total p.rows - 1), or 0 if one row in partition
salary
PERCENT_RANK() OVER w AS `%rank`
FROM employee
+----------+------+--------+------+------+-------+-------+
| name | dept | salary | row# | rank | dense | %rank |
+----------+------+--------+------+------+-------+-------+
| Nils | NULL | 75000 | 1 | 1 | 1 | 0 |
| Erik | 10 | 100000 | 1 | 1 | 1 | 0 |
| Michael | 10 | 70000 | 2 | 2 | 2 | 0.25 |
| Frederik | 10 | 60000 | 3 | 3 | 3 | 0.5 |
| Jon | 10 | 60000 | 4 | 3 | 3 | 0.5 |
| Dag | 10 | NULL | 5 | 5 | 4 | 1 |
| Nils | 20 | 80000 | 1 | 1 | 1 | 0 |
| Lena | 20 | 65000 | 2 | 2 | 2 | 0.5 |
| Paula | 20 | 65000 | 3 | 2 | 2 | 0.5 |
| Rose | 30 | 300000 | 1 | 1 | 1 | 0 |
| William | 30 | 70000 | 2 | 2 | 2 | 1 |
+----------+------+--------+------+------+-------+-------+
(3-1)/(5-1)=0.5

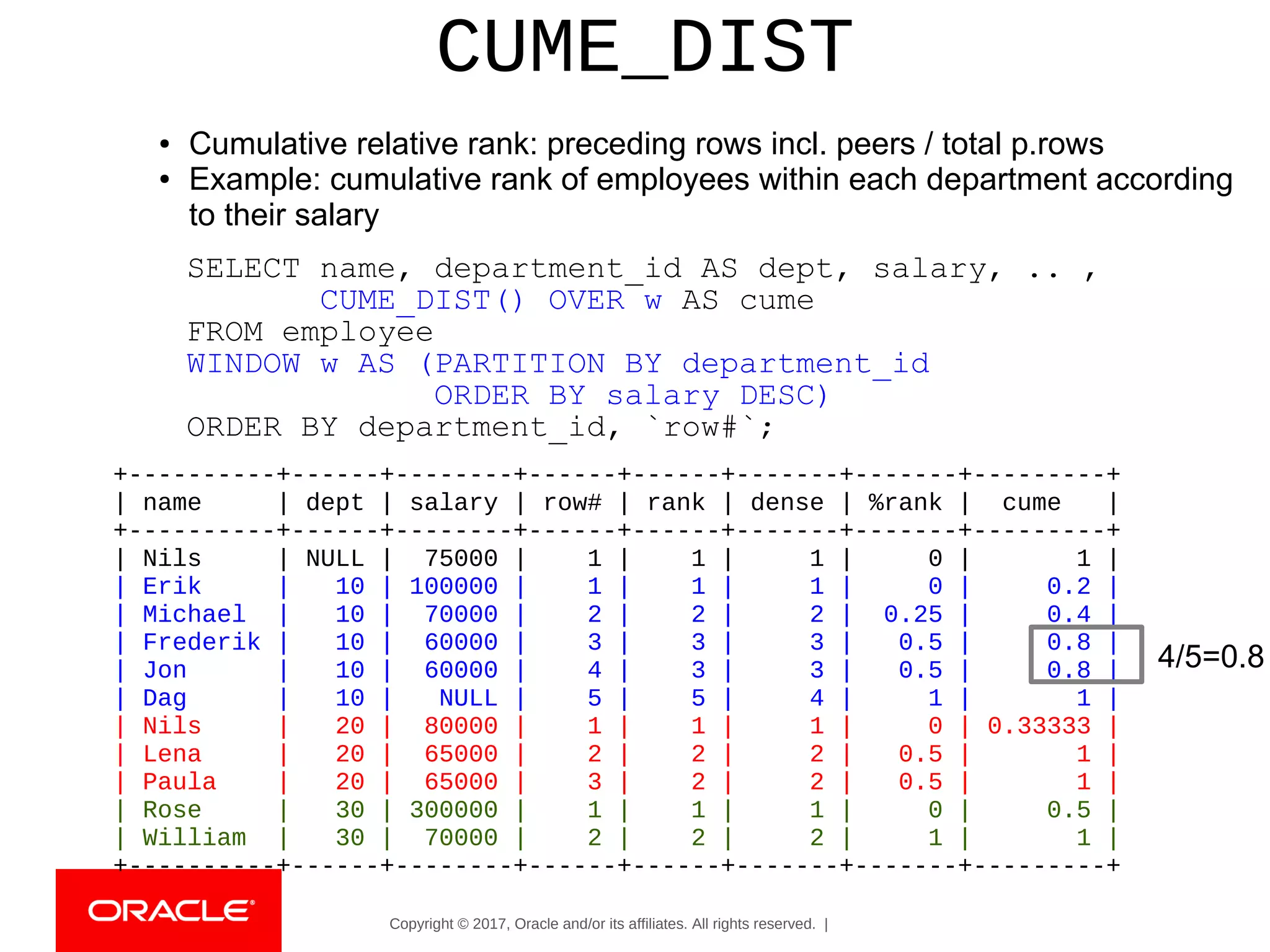

CUME_DIST
● Cumulative relative rank: preceding rows incl. peers / total p.rows
● Example: cumulative rank of employees within each department according
to their salary
CUME_DIST() OVER w AS cume
FROM employee
+----------+------+--------+------+------+-------+-------+---------+
| name | dept | salary | row# | rank | dense | %rank | cume |
+----------+------+--------+------+------+-------+-------+---------+
| Nils | NULL | 75000 | 1 | 1 | 1 | 0 | 1 |
| Erik | 10 | 100000 | 1 | 1 | 1 | 0 | 0.2 |
| Michael | 10 | 70000 | 2 | 2 | 2 | 0.25 | 0.4 |
| Frederik | 10 | 60000 | 3 | 3 | 3 | 0.5 | 0.8 |
| Jon | 10 | 60000 | 4 | 3 | 3 | 0.5 | 0.8 |
| Dag | 10 | NULL | 5 | 5 | 4 | 1 | 1 |
| Nils | 20 | 80000 | 1 | 1 | 1 | 0 | 0.33333 |
| Lena | 20 | 65000 | 2 | 2 | 2 | 0.5 | 1 |
| Paula | 20 | 65000 | 3 | 2 | 2 | 0.5 | 1 |
| Rose | 30 | 300000 | 1 | 1 | 1 | 0 | 0.5 |
| William | 30 | 70000 | 2 | 2 | 2 | 1 | 1 |
+----------+------+--------+------+------+-------+-------+---------+
4/5=0.8

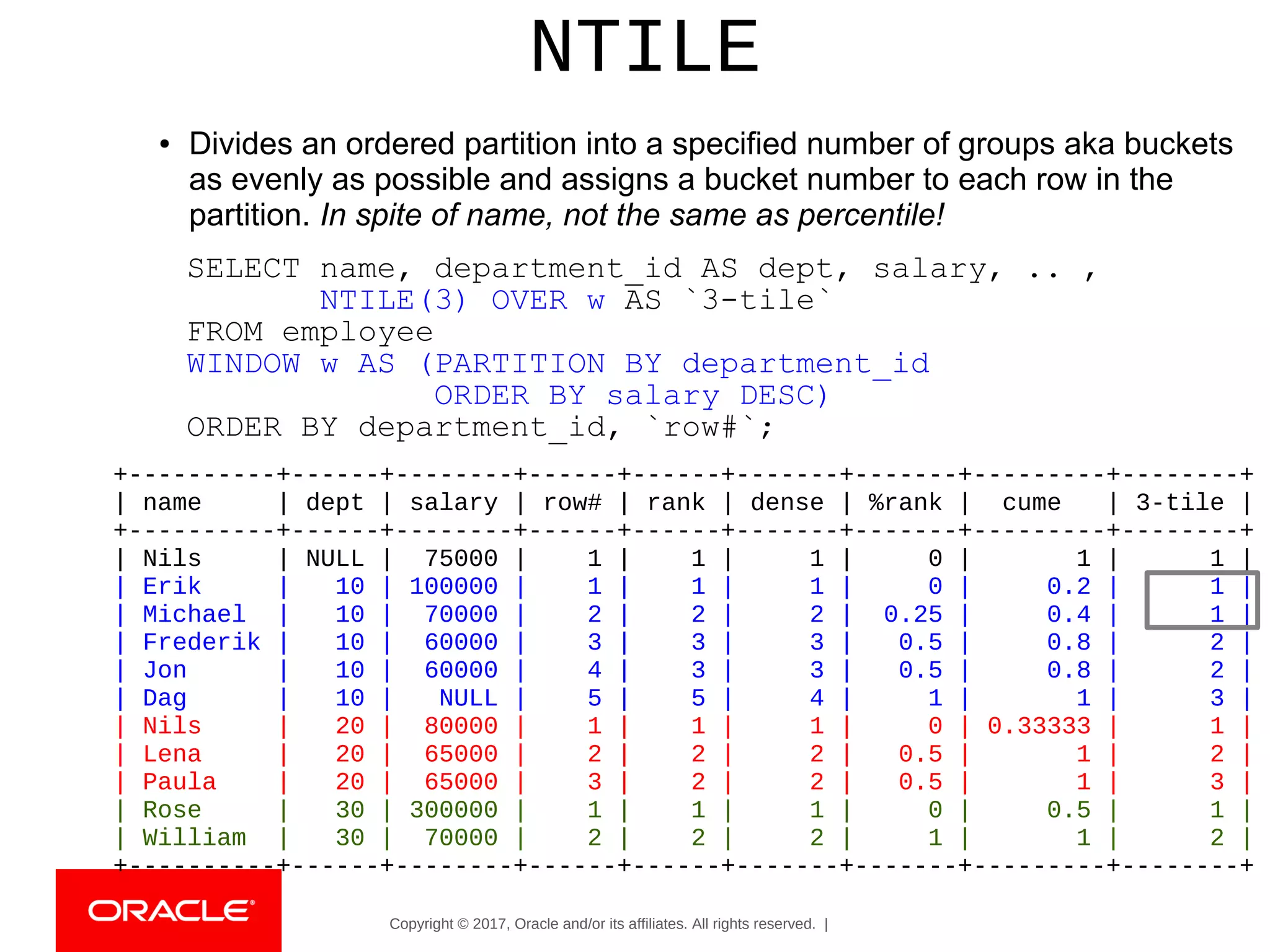

NTILE
● Divides an ordered partition into a specified number of groups aka buckets
as evenly as possible and assigns a bucket number to each row in the
partition. In spite of name, not the same as percentile!
NTILE(3) OVER w AS `3-tile`
FROM employee
+----------+------+--------+------+------+-------+-------+---------+--------+
| name | dept | salary | row# | rank | dense | %rank | cume | 3-tile |
+----------+------+--------+------+------+-------+-------+---------+--------+
| Nils | NULL | 75000 | 1 | 1 | 1 | 0 | 1 | 1 |
| Erik | 10 | 100000 | 1 | 1 | 1 | 0 | 0.2 | 1 |
| Michael | 10 | 70000 | 2 | 2 | 2 | 0.25 | 0.4 | 1 |
| Frederik | 10 | 60000 | 3 | 3 | 3 | 0.5 | 0.8 | 2 |
| Jon | 10 | 60000 | 4 | 3 | 3 | 0.5 | 0.8 | 2 |
| Dag | 10 | NULL | 5 | 5 | 4 | 1 | 1 | 3 |
| Nils | 20 | 80000 | 1 | 1 | 1 | 0 | 0.33333 | 1 |
| Lena | 20 | 65000 | 2 | 2 | 2 | 0.5 | 1 | 2 |
| Paula | 20 | 65000 | 3 | 2 | 2 | 0.5 | 1 | 3 |
| Rose | 30 | 300000 | 1 | 1 | 1 | 0 | 0.5 | 1 |
| William | 30 | 70000 | 2 | 2 | 2 | 1 | 1 | 2 |
+----------+------+--------+------+------+-------+-------+---------+--------+

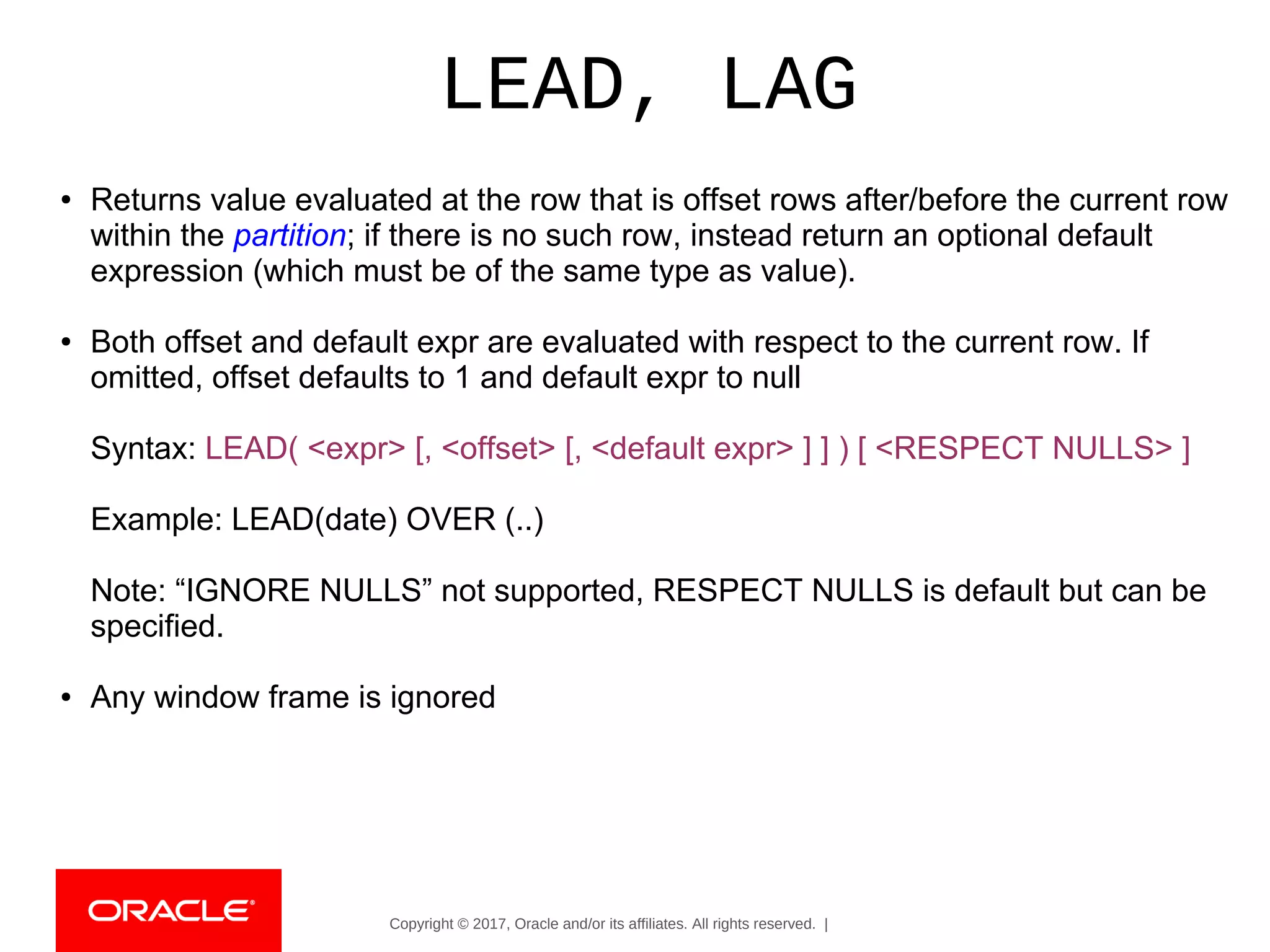

LEAD, LAG
● Returns value evaluated at the row that is offset rows after/before the current row
within the partition; if there is no such row, instead return an optional default
expression (which must be of the same type as value).
● Both offset and default expr are evaluated with respect to the current row. If
omitted, offset defaults to 1 and default expr to null
Syntax: LEAD( <expr> [, <offset> [, <default expr> ] ] ) [ <RESPECT NULLS> ]
Example: LEAD(date) OVER (..)
Note: “IGNORE NULLS” not supported, RESPECT NULLS is default but can be
specified.
● Any window frame is ignored

LEAD
+----------+------+--------+--------+
| name | dept | salary | lead |
+----------+------+--------+--------+
| Rose | 30 | 300000 | 100000 |
| Erik | 10 | 100000 | |
| Nils | 20 | 80000 | |
| Nils | NULL | 75000 | |
| Michael | 10 | 70000 | |
| William | 30 | 70000 | : |
| Lena | 20 | 65000 | |
| Paula | 20 | 65000 | |
| Frederik | 10 | 60000 | |
| Jon | 10 | 60000 | |
| Dag | 10 | NULL | |
+----------+------+--------+--------+
LEAD(salary, 1) OVER w AS `lead`
FROM employee
WINDOW w AS (ORDER BY salary DESC);

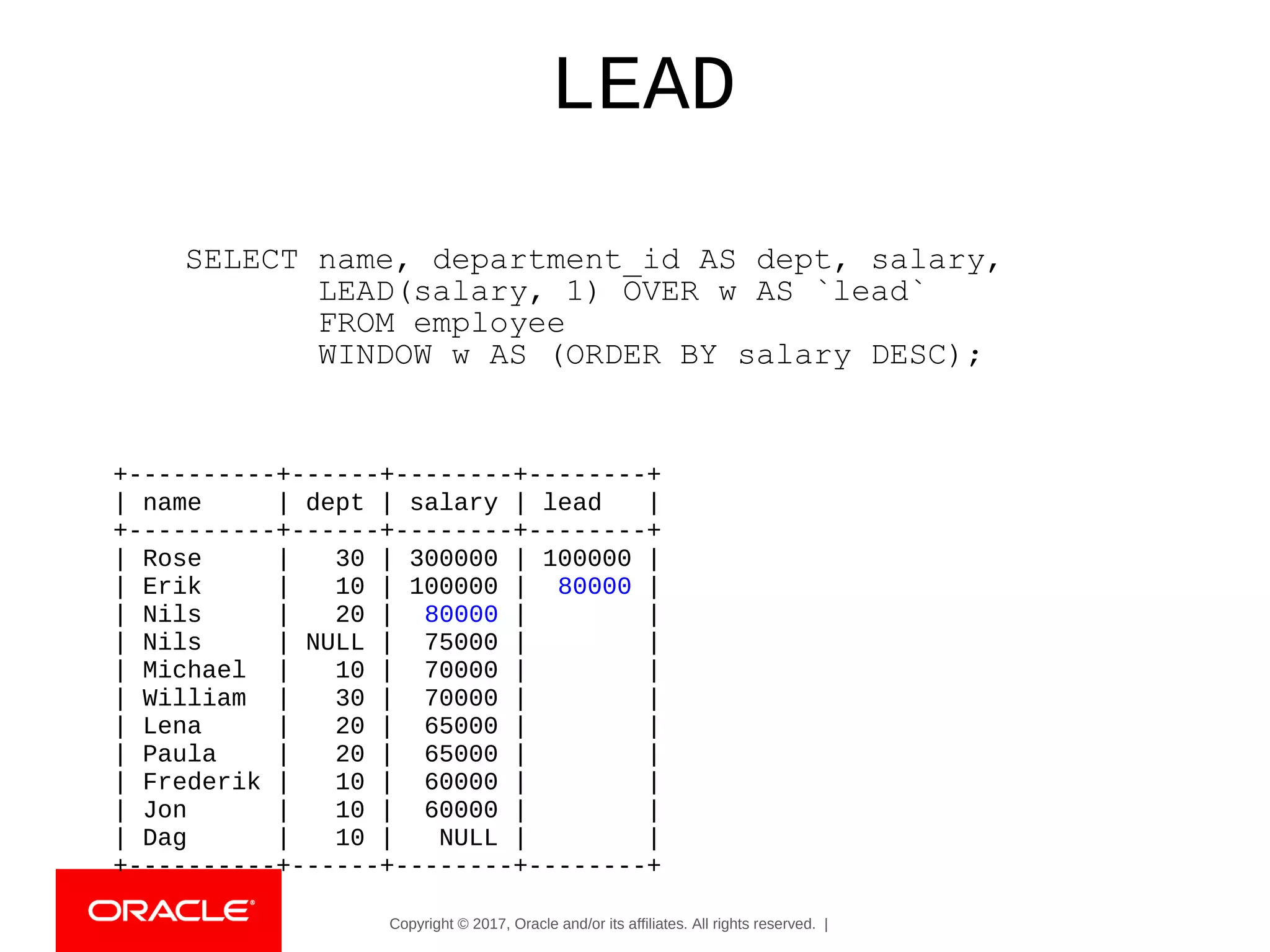

LEAD
+----------+------+--------+--------+
+----------+------+--------+--------+
| Rose | 30 | 300000 | 100000 |
| Erik | 10 | 100000 | 80000 |
| Nils | 20 | 80000 | |
| Nils | NULL | 75000 | |
| Michael | 10 | 70000 | |
| William | 30 | 70000 | |
| Lena | 20 | 65000 | |
| Paula | 20 | 65000 | |
| Frederik | 10 | 60000 | |
| Jon | 10 | 60000 | |
| Dag | 10 | NULL | |
+----------+------+--------+--------+
FROM employee

LEAD
+----------+------+--------+--------+
+----------+------+--------+--------+
| Rose | 30 | 300000 | 100000 |
| Erik | 10 | 100000 | 80000 |
| Nils | 20 | 80000 | 75000 |
| Nils | NULL | 75000 | |
| Michael | 10 | 70000 | |
| William | 30 | 70000 | |
| Lena | 20 | 65000 | |
| Paula | 20 | 65000 | |
| Frederik | 10 | 60000 | |
| Jon | 10 | 60000 | |
| Dag | 10 | NULL | |
+----------+------+--------+--------+
FROM employee

LEAD
+----------+------+--------+--------+
+----------+------+--------+--------+
| Rose | 30 | 300000 | 100000 |
| Erik | 10 | 100000 | 80000 |
| Nils | 20 | 80000 | 75000 |
| Nils | NULL | 75000 | 70000 |
| Michael | 10 | 70000 | 70000 |
| William | 30 | 70000 | 65000 |
| Lena | 20 | 65000 | 65000 |
| Paula | 20 | 65000 | 60000 |
| Frederik | 10 | 60000 | 60000 |
| Jon | 10 | 60000 | NULL |
+----------+------+--------+--------+
FROM employee

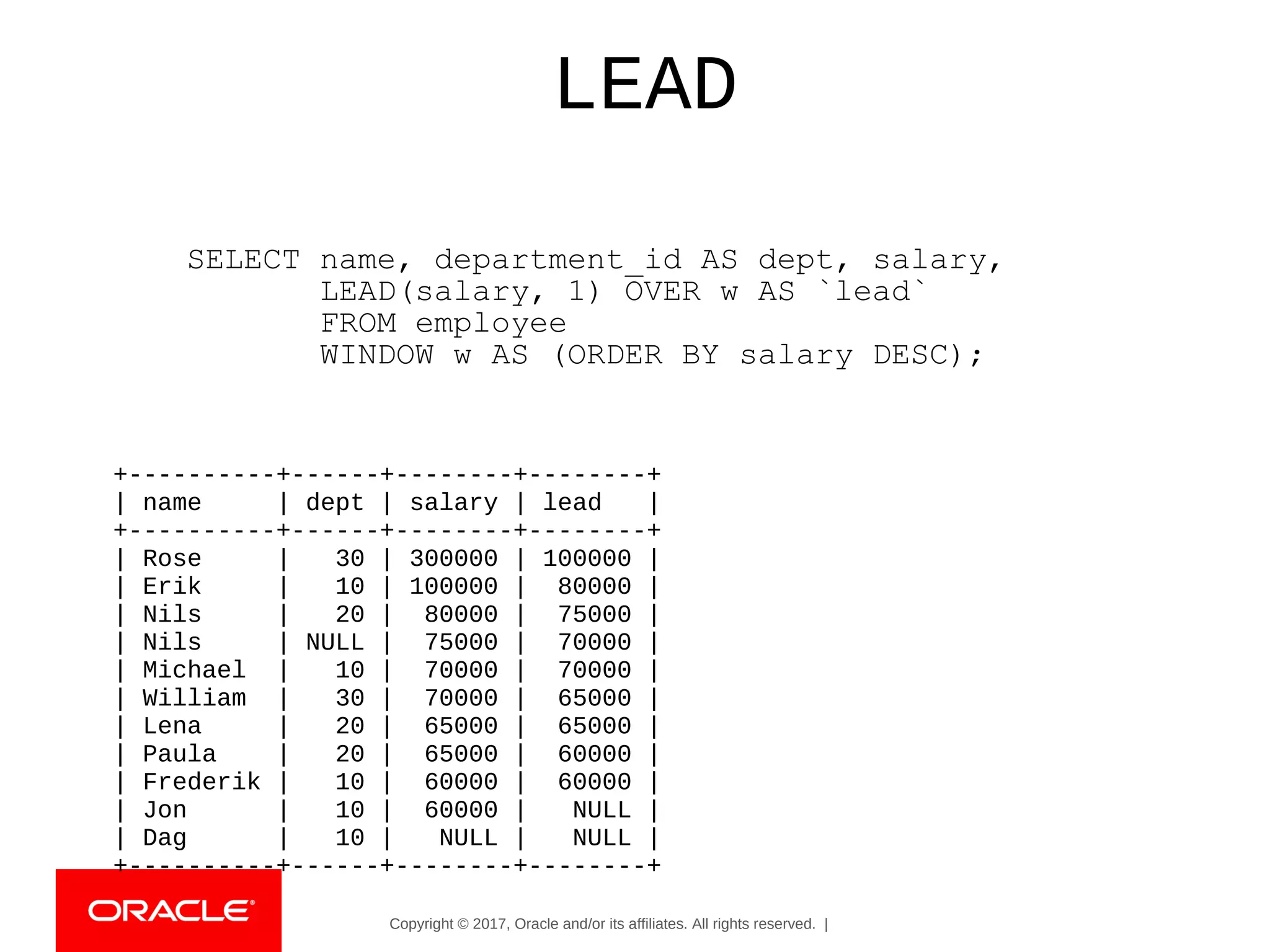

LEAD
+----------+------+--------+--------+
+----------+------+--------+--------+
| Rose | 30 | 300000 | 100000 |
| Erik | 10 | 100000 | 80000 |
| Nils | 20 | 80000 | 75000 |
| Nils | NULL | 75000 | 70000 |
| Michael | 10 | 70000 | 70000 |
| William | 30 | 70000 | 65000 |
| Lena | 20 | 65000 | 65000 |
| Paula | 20 | 65000 | 60000 |
| Frederik | 10 | 60000 | 60000 |
| Jon | 10 | 60000 | NULL |
| Dag | 10 | NULL | 77000 |
+----------+------+--------+--------+
LEAD(salary, 1, 77000) OVER w AS `lead`
FROM employee
default

LEAD - gap detection
● Classic example:
CREATE TABLE t(i INT);
INSERT INTO t VALUES (1), (2), (4), (5), (6), (8),
(9), (10);
SELECT i, l FROM
(SELECT i, LEAD(i) OVER (ORDER BY i) AS l FROM t) d
WHERE i + 1 <> l;
+------+------+
| i | l |
+------+------+
| 2 | 4 |
| 6 | 8 |
+------+------+

FIRST_VALUE, LAST_VALUE
Returns value evaluated at the first, last in the frame of the current row within the
partition; if there is no nth row (frame is too small), the NTH_VALUE returns NULL.
Note: “IGNORE NULLS” is not supported, RESPECT NULLS is default but can be
specified.

FIRST_VALUE
● Difference between employee wages and best paid in department
FIRST_VALUE(salary) OVER w - salary AS diff
FROM employee
+----------+------+--------+--------+
| name | dept | salary | diff |
+----------+------+--------+--------+
| Nils | NULL | 75000 | 0 |
| Erik | 10 | 100000 | 0 |
| Michael | 10 | 70000 | 30000 |
| Frederik | 10 | 60000 | 40000 |
| Jon | 10 | 60000 | 40000 |
| Nils | 20 | 80000 | 0 |
| Lena | 20 | 65000 | 15000 |
| Paula | 20 | 65000 | 15000 |
| Rose | 30 | 300000 | 0 |
| William | 30 | 70000 | 230000 |
+----------+------+--------+--------+

NTH_VALUE
Returns value evaluated at the nth in the frame of the current row within the
partition; if there is no nth row (frame is too small), the NTH_VALUE returns NULL.
Note: “IGNORE NULLS” is not supported, RESPECT NULLS is used but can be
specified.
Note: For NTH_VALUE, “FROM LAST” is not supported, FROM FIRST is used but
can be specified

Program Agenda
•
•
What's supported
•
•
Implementation & performance4
2
3
1

PART IV
is where we look at implementation and performance
aspects

Windowing in an SQL query
JOIN
GROUP
BY,
HAVING
WINDOW
1
WINDOW
n
ORDER BY/
DISTINCT/
LIMIT
● Window functions see query result set after grouping/having
- filtering on wf results requires subquery
● Ordering not semantically significant
● Window functions can't use window functions in same query (without
using subqueries)
● In practice, ordering matters. The optimizer is allowed to
- reorder to minimize sorting required
- merge window phases if equivalent

JOIN
GROUP
BY
WINDOW
1
WINDOW
n
ORDER BY/
DISTINCT/
LIMIT
Sort by
concatenation of
PARTITION BY and
ORDER BY
● Tmp table between each windowing step
● Optimization: re-order windows to
eliminate sorting steps: when equal
PARTITION BY/ORDER BY expressions
Processing window functions
SELECT name, SUM(salary) OVER () FROM employee LIMIT 3
+----------+---------------------+
| name | SUM(salary) OVER () |
+----------+---------------------+
| Dag | 945000 |
| Erik | 945000 |
| Frederik | 945000 |
+----------+---------------------+
Need to read all rows to get SUM
before we can output row 1:
need buffering to merge original row
with result of window function

JOIN
GROUP
BY
WINDOW
1
WINDOW
n
ORDER BY/
DISTINCT/
LIMIT
Row
addressable
buffer aka
frame buffer
in-memory tmp table;
overflows automatically to disk if needed
Permits re-reading rows when frame
moves
Processing window functions

Row
addressable
buffer aka
frame buffer
Streaming window functions
Frame buffer not needed for streaming window functions:
● ROW_NUMBER, RANK, DENSE_RANK
● Aggregates with ROW frame and dynamically growing
upper bound, e.g.
SELECT SUM(salary) OVER
(ROWS BETWEEN UNBOUNDED PRECEDING AND
CURRENT ROW)
FROM employee;
● Non-streaming (need buffer), e.g.
CUME_DIST, SUM() OVER ()
=> a function on what window function and which frame
specification
If in doubt, check with EXPLAIN FORMAT=JSON

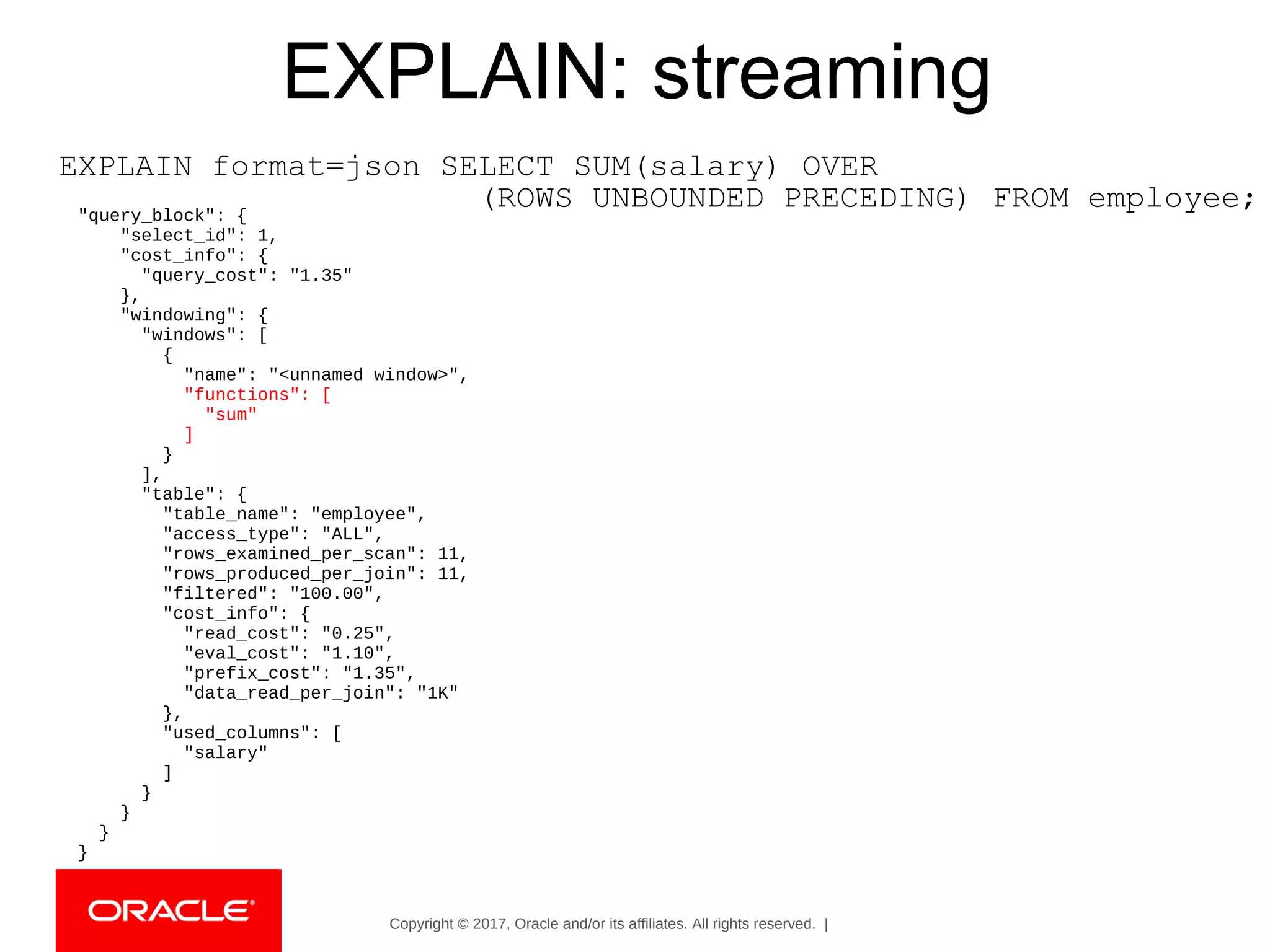

EXPLAIN: streaming
EXPLAIN format=json SELECT SUM(salary) OVER
(ROWS UNBOUNDED PRECEDING) FROM employee;"query_block": {
"select_id": 1,
"cost_info": {
"query_cost": "1.35"
},
"windowing": {
"windows": [
{
"name": "<unnamed window>",
"functions": [
"sum"
]
}
],
"table": {
"table_name": "employee",
"access_type": "ALL",
"rows_examined_per_scan": 11,
"rows_produced_per_join": 11,
"filtered": "100.00",
"cost_info": {
"read_cost": "0.25",
"eval_cost": "1.10",
"prefix_cost": "1.35",
"data_read_per_join": "1K"
},
"used_columns": [
"salary"
]
}
}
}
}

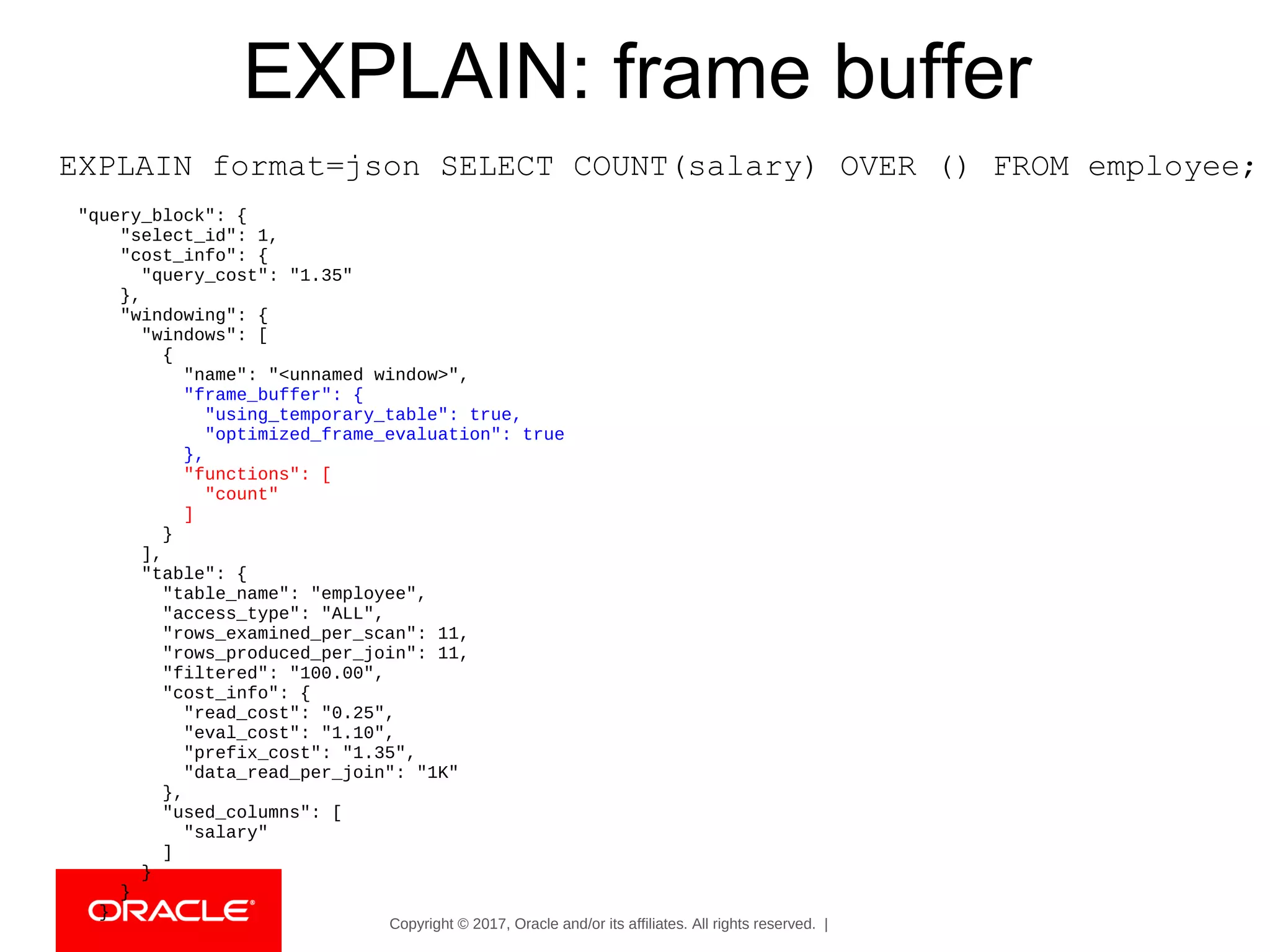

EXPLAIN: frame buffer
EXPLAIN format=json SELECT COUNT(salary) OVER () FROM employee;
"query_block": {
"select_id": 1,
"cost_info": {
"query_cost": "1.35"
},
"windowing": {
"windows": [
{
"name": "<unnamed window>",
"frame_buffer": {
"using_temporary_table": true,
"optimized_frame_evaluation": true
},
"functions": [
"count"
]
}
],
"table": {
"table_name": "employee",
"access_type": "ALL",
"rows_examined_per_scan": 11,
"rows_produced_per_join": 11,
"filtered": "100.00",
"cost_info": {
"read_cost": "0.25",
"eval_cost": "1.10",
"prefix_cost": "1.35",
"data_read_per_join": "1K"
},
"used_columns": [
"salary"
]
}
}
}

JOIN
GROUP
BY
WINDOW
1
WINDOW
n
ORDER BY/
DISTINCT/
LIMIT
Row
addressable
buffer aka
frame buffer
in-memory;
overflows automatically to disk if needed
Permits re-reading rows when frame
moves

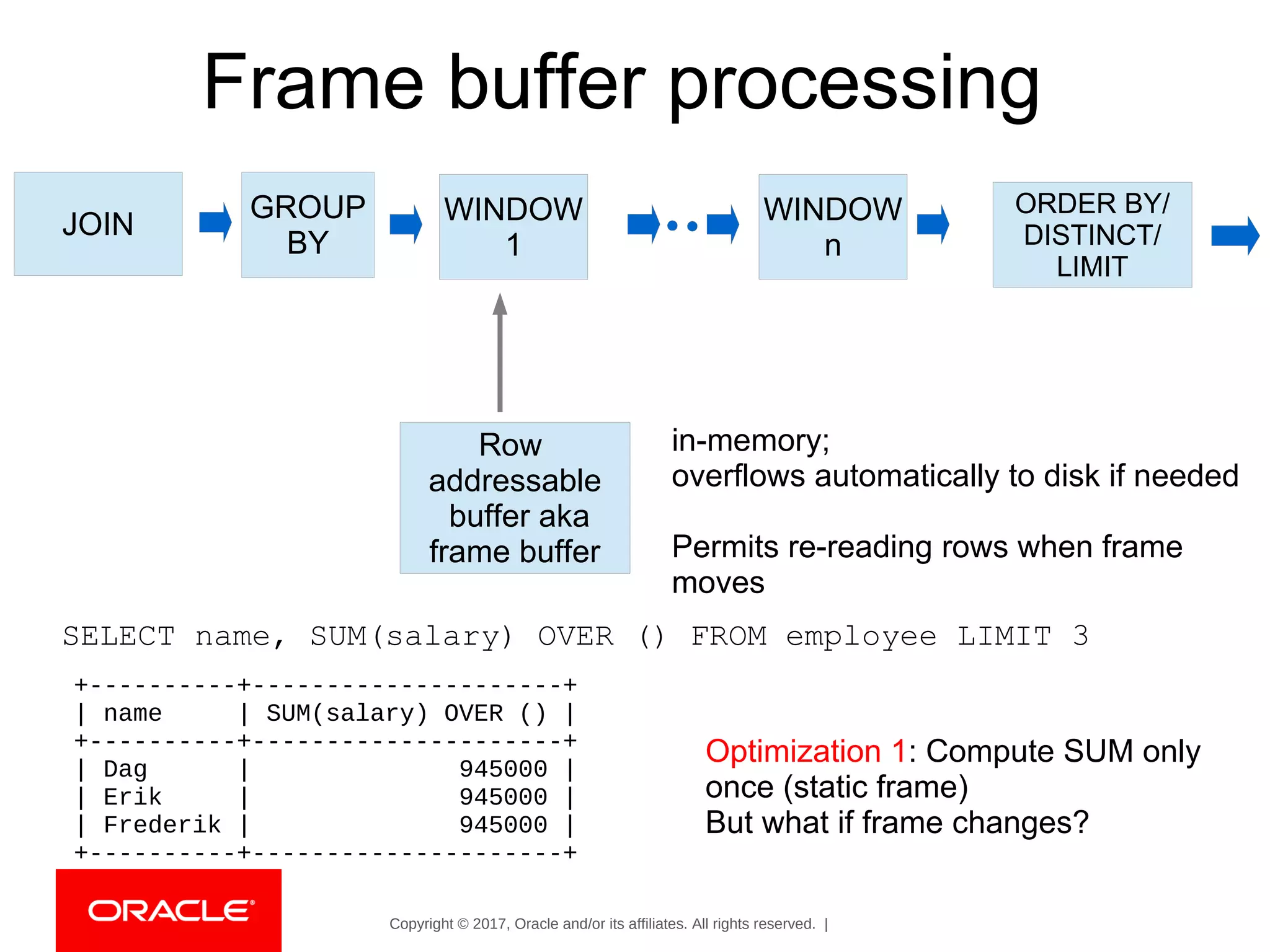

Frame buffer processing
SELECT name, SUM(salary) OVER () FROM employee LIMIT 3
Optimization 1: Compute SUM only
once (static frame)
But what if frame changes?
+----------+---------------------+
| name | SUM(salary) OVER () |
+----------+---------------------+
| Dag | 945000 |
| Erik | 945000 |
| Frederik | 945000 |
+----------+---------------------+

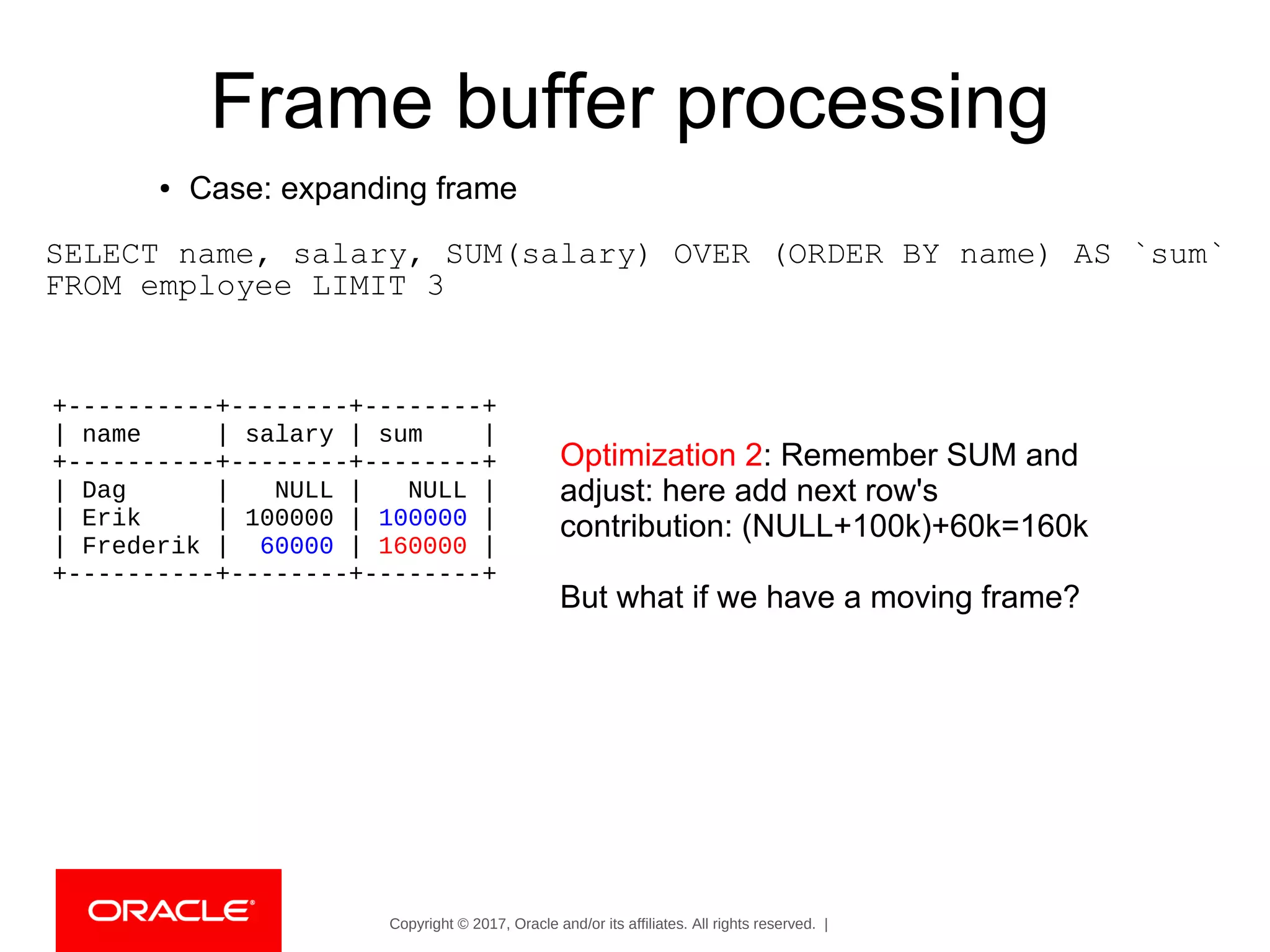

Frame buffer processing
● Case: expanding frame
SELECT name, salary, SUM(salary) OVER (ORDER BY name) AS `sum`
FROM employee LIMIT 3
Optimization 2: Remember SUM and
adjust: here add next row's
contribution: (NULL+100k)+60k=160k
But what if we have a moving frame?
+----------+--------+--------+
| name | salary | sum |
+----------+--------+--------+
| Dag | NULL | NULL |
| Erik | 100000 | 100000 |
| Frederik | 60000 | 160000 |
+----------+--------+--------+

Inversion
● Case: moving frame: Sales over this month and last
SELECT MONTH(date) AS month, SUM(sale) AS monthly,
SUM(SUM(sale)) OVER (ORDER BY MONTH(date)
RANGE 1 PRECEDING) AS `this&last`
FROM sales
GROUP BY MONTH(date);
Optimization 3: Remember SUM and
adjust: here remove last contribution
from 2 PRECEDING, then add current
row's contribution: inversion
NOTE: Ok only if: a + b - a + c = b + c
This isn't always the case for
aggregates
Penalty if we can't do this for large
window frames: O(#partition size) vs.
O(#partition size * #frame size)
+-------+---------+-----------+
| month | monthly | this&last |
+-------+---------+-----------+
| 3 | 600 | 600 |
| 4 | 600 | 1200 |
| 5 | 900 | 1500 |
| 6 | 600 | 1500 |
| 7 | 1200 | 1800 |
| 8 | 250 | 1450 |
+-------+---------+-----------+

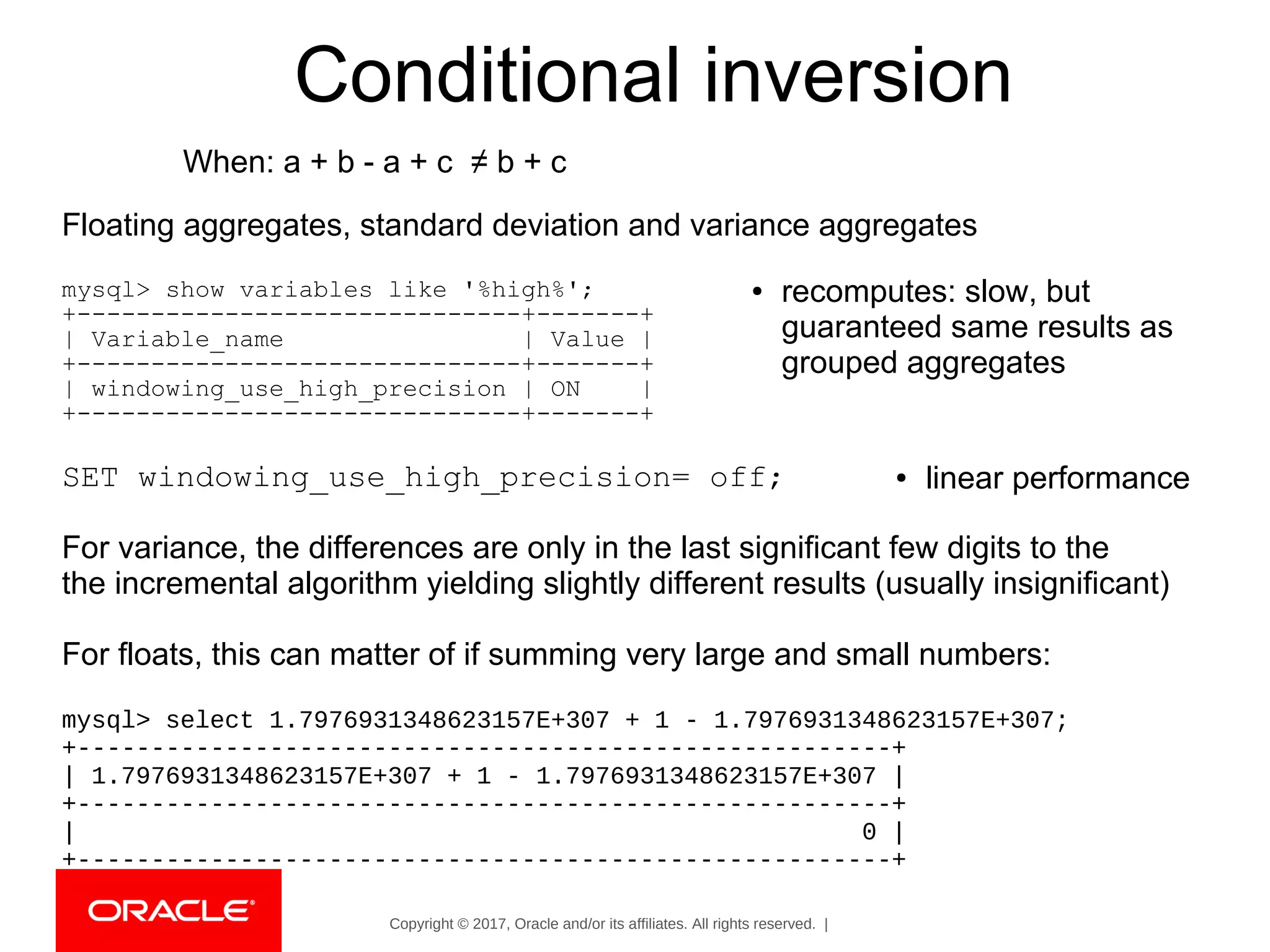

Floating aggregates, standard deviation and variance aggregates
mysql> show variables like '%high%';
+------------------------------+-------+
| Variable_name | Value |
+------------------------------+-------+
| windowing_use_high_precision | ON |
+------------------------------+-------+
SET windowing_use_high_precision= off;
For variance, the differences are only in the last significant few digits to the
the incremental algorithm yielding slightly different results (usually insignificant)
For floats, this can matter of if summing very large and small numbers:
mysql> select 1.7976931348623157E+307 + 1 - 1.7976931348623157E+307;
+-------------------------------------------------------+
| 1.7976931348623157E+307 + 1 - 1.7976931348623157E+307 |
+-------------------------------------------------------+
| 0 |
+-------------------------------------------------------+
Conditional inversion
When: a + b - a + c ≠ b + c
● recomputes: slow, but
guaranteed same results as
grouped aggregates
● linear performance

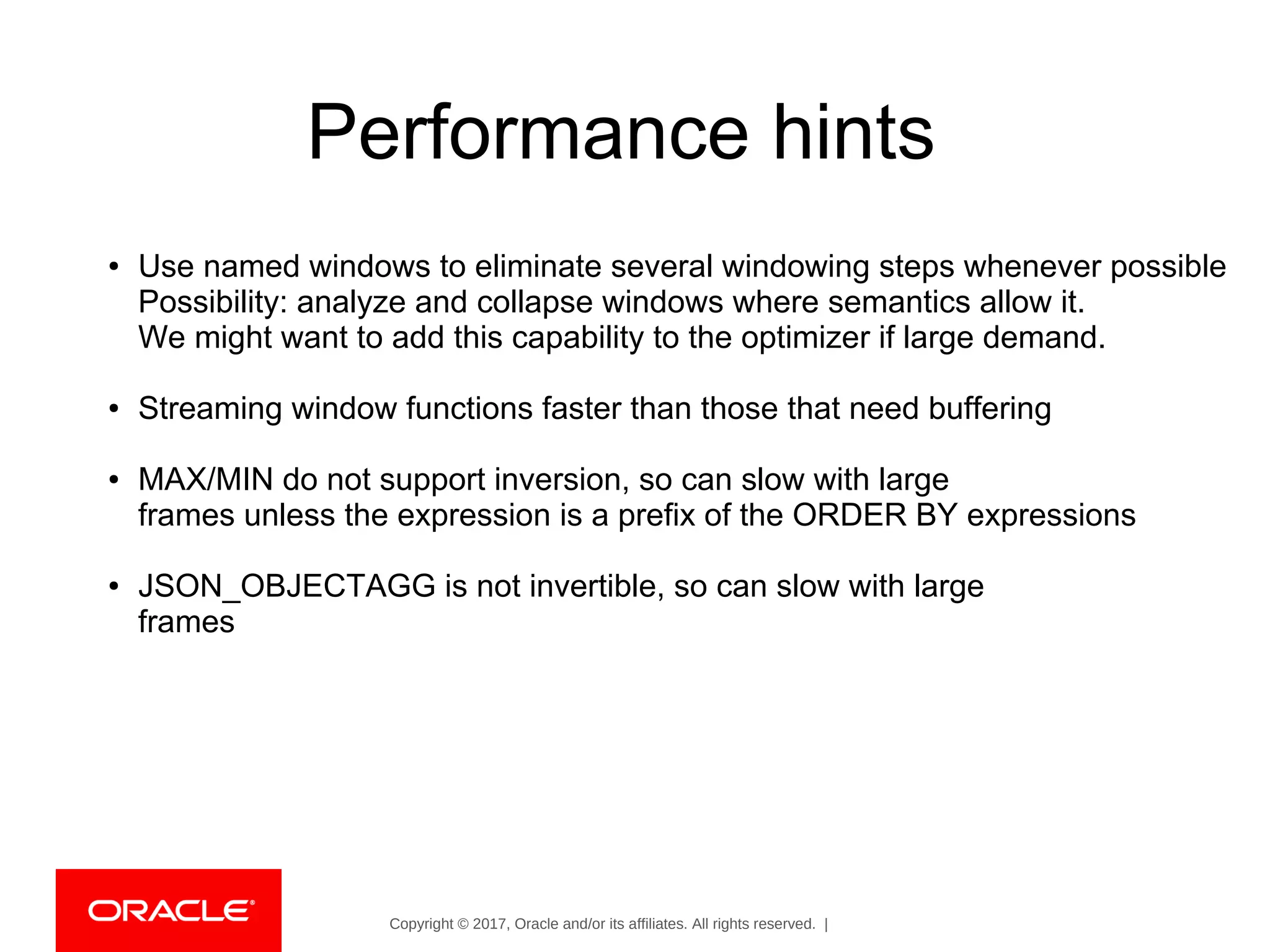

Performance hints
● Use named windows to eliminate several windowing steps whenever possible
Possibility: analyze and collapse windows where semantics allow it.
We might want to add this capability to the optimizer if large demand.
● Streaming window functions faster than those that need buffering
● MAX/MIN do not support inversion, so can slow with large
frames unless the expression is a prefix of the ORDER BY expressions
● JSON_OBJECTAGG is not invertible, so can slow with large
frames

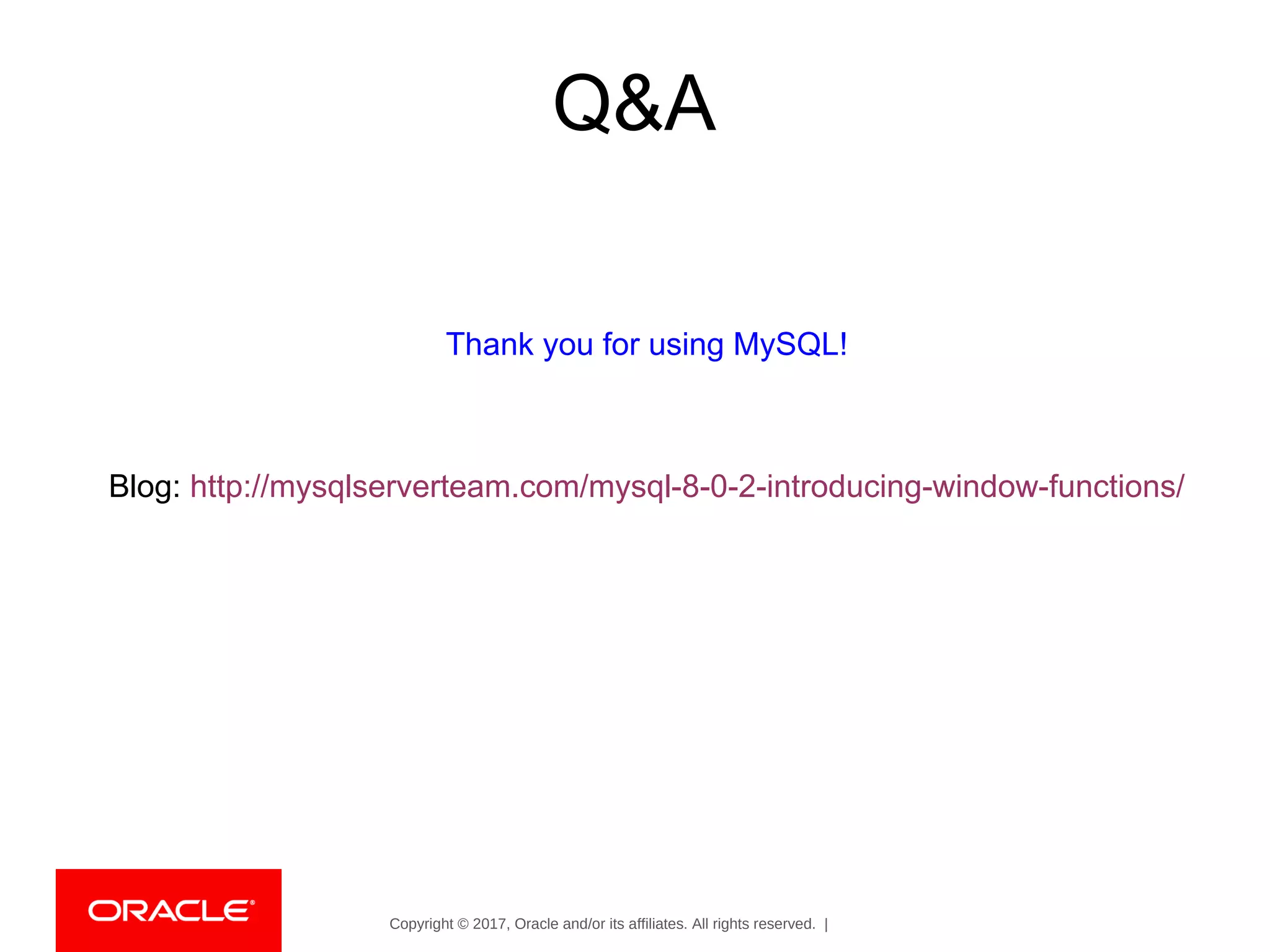

Q&A
Thank you for using MySQL!
Blog: http://mysqlserverteam.com/mysql-8-0-2-introducing-window-functions/

Safe Harbor Statement
The preceding is intended to outline our general product
direction. It is intended for information purposes only, and
may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality,
and should not be relied upon in making purchasing
decisions. The development, release, and timing of any
features or functionality described for Oracle’s products
remains at the sole discretion of Oracle.

Dublin 4x3-final-slideshare

More Related Content

Similar to Dublin 4x3-final-slideshare

Recently uploaded

Dublin 4x3-final-slideshare
