This document summarizes new global mobility products from Your Global Partner including the WEGO2 satellite network for maritime and offshore industries. The WEGO2 network uses multiple satellite bands to provide up to 10Mbps broadband connectivity to vessels and platforms globally. It also includes a global GSM service called Route 66 that provides international roaming for crew across 66 countries with no additional roaming charges. The document outlines the satellite, ground infrastructure, coverage maps and rollout phases for the WEGO2 network and provides information on maritime VSAT equipment and solutions as well as individual and corporate mobile phone plans available through the global GSM service.

1. Your Global Partner
Infrastructure as a ServiceJanuary 16
New Global Mobility Products

2. Your Global Partner
Slide 2

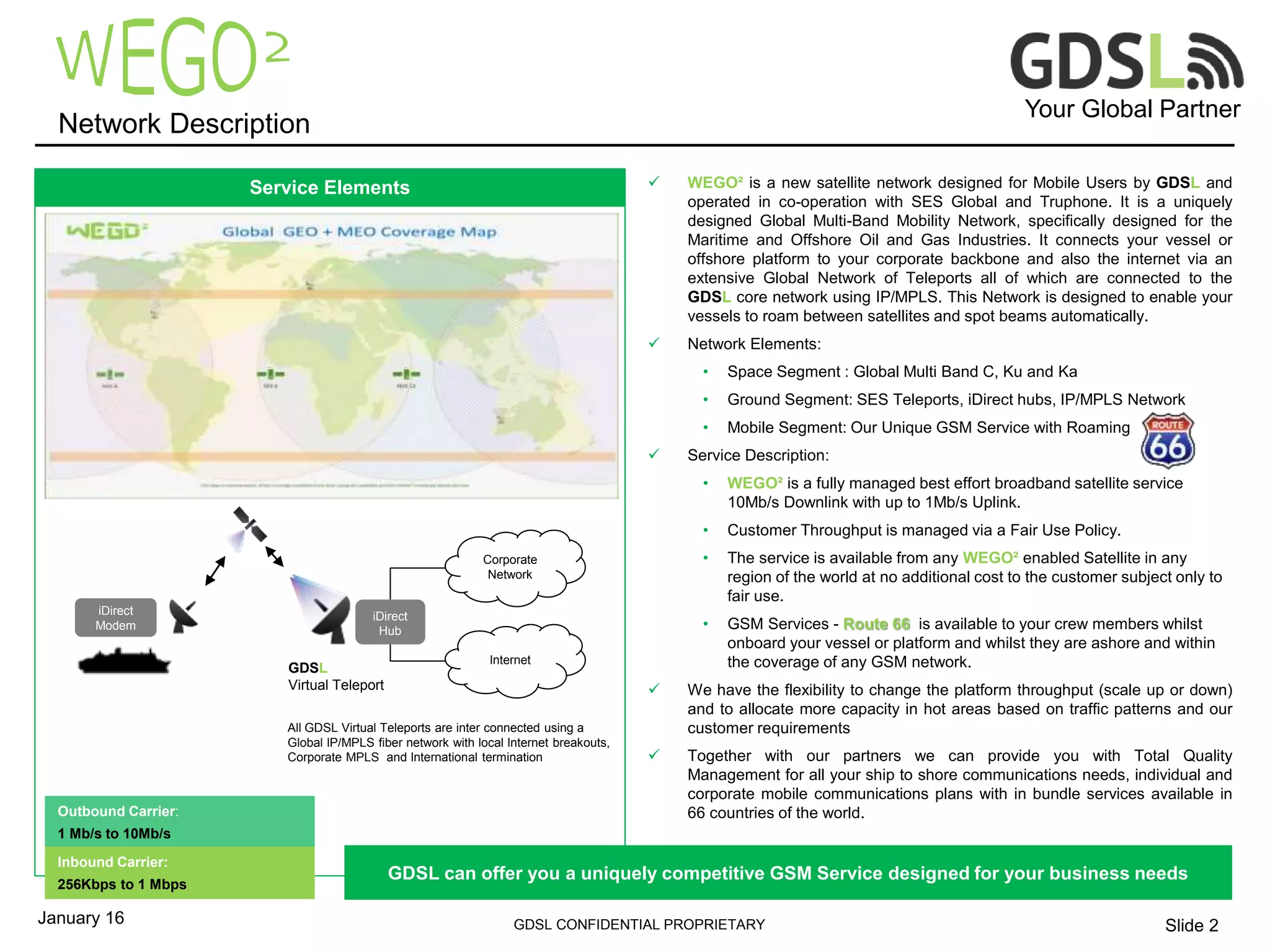

Network Description
GDSL
Virtual Teleport
Corporate
Network
Internet
iDirect
Modem
iDirect
Hub
 WEGO² is a new satellite network designed for Mobile Users by GDSL and
operated in co-operation with SES Global and Truphone. It is a uniquely
designed Global Multi-Band Mobility Network, specifically designed for the
Maritime and Offshore Oil and Gas Industries. It connects your vessel or
offshore platform to your corporate backbone and also the internet via an
extensive Global Network of Teleports all of which are connected to the
GDSL core network using IP/MPLS. This Network is designed to enable your
vessels to roam between satellites and spot beams automatically.
 Network Elements:
• Space Segment : Global Multi Band C, Ku and Ka
• Ground Segment: SES Teleports, iDirect hubs, IP/MPLS Network
• Mobile Segment: Our Unique GSM Service with Roaming
 Service Description:
• WEGO² is a fully managed best effort broadband satellite service
10Mb/s Downlink with up to 1Mb/s Uplink.
• Customer Throughput is managed via a Fair Use Policy.
• The service is available from any WEGO² enabled Satellite in any
region of the world at no additional cost to the customer subject only to
fair use.
• GSM Services - Route 66 is available to your crew members whilst
onboard your vessel or platform and whilst they are ashore and within
the coverage of any GSM network.
 We have the flexibility to change the platform throughput (scale up or down)
and to allocate more capacity in hot areas based on traffic patterns and our
customer requirements
 Together with our partners we can provide you with Total Quality
Management for all your ship to shore communications needs, individual and
corporate mobile communications plans with in bundle services available in
66 countries of the world.
Service Elements
GDSL CONFIDENTIAL PROPRIETARY
Outbound Carrier:
1 Mb/s to 10Mb/s
Inbound Carrier:
256Kbps to 1 Mbps
All GDSL Virtual Teleports are inter connected using a
Global IP/MPLS fiber network with local Internet breakouts,
Corporate MPLS and International termination
GDSL can offer you a uniquely competitive GSM Service designed for your business needs
January 16

3. Your Global Partner
Slide 3GDSL CONFIDENTIAL PROPRIETARY

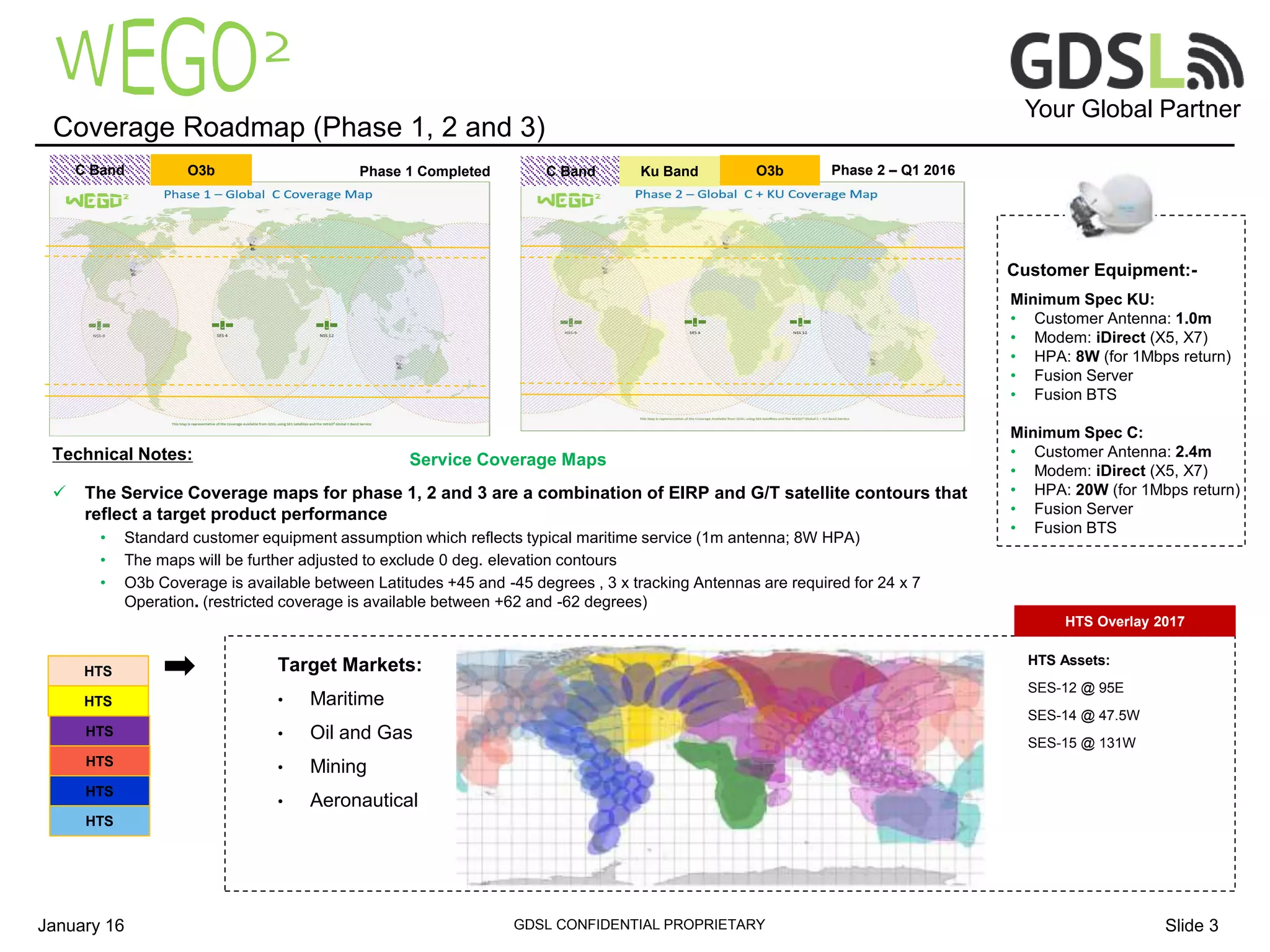

Coverage Roadmap (Phase 1, 2 and 3)
Minimum Spec KU:
• Customer Antenna: 1.0m
• Modem: iDirect (X5, X7)
• HPA: 8W (for 1Mbps return)
• Fusion Server
• Fusion BTS
Minimum Spec C:
• Customer Antenna: 2.4m
• Modem: iDirect (X5, X7)
• HPA: 20W (for 1Mbps return)
• Fusion Server
• Fusion BTS
Customer Equipment:-
Technical Notes:
 The Service Coverage maps for phase 1, 2 and 3 are a combination of EIRP and G/T satellite contours that
reflect a target product performance
• Standard customer equipment assumption which reflects typical maritime service (1m antenna; 8W HPA)
• The maps will be further adjusted to exclude 0 deg. elevation contours
• O3b Coverage is available between Latitudes +45 and -45 degrees , 3 x tracking Antennas are required for 24 x 7
Operation. (restricted coverage is available between +62 and -62 degrees)
HTS Assets:
SES-12 @ 95E
SES-14 @ 47.5W
SES-15 @ 131W
Phase 2 – Q1 2016Phase 1 Completed
Target Markets:
• Maritime
• Oil and Gas
• Mining
• Aeronautical
C Band
Service Coverage Maps
HTS
January 16
C Band Ku Band O3bO3b
HTS
HTS
HTS
HTS
HTS
HTS Overlay 2017

4. Your Global Partner
Slide 4

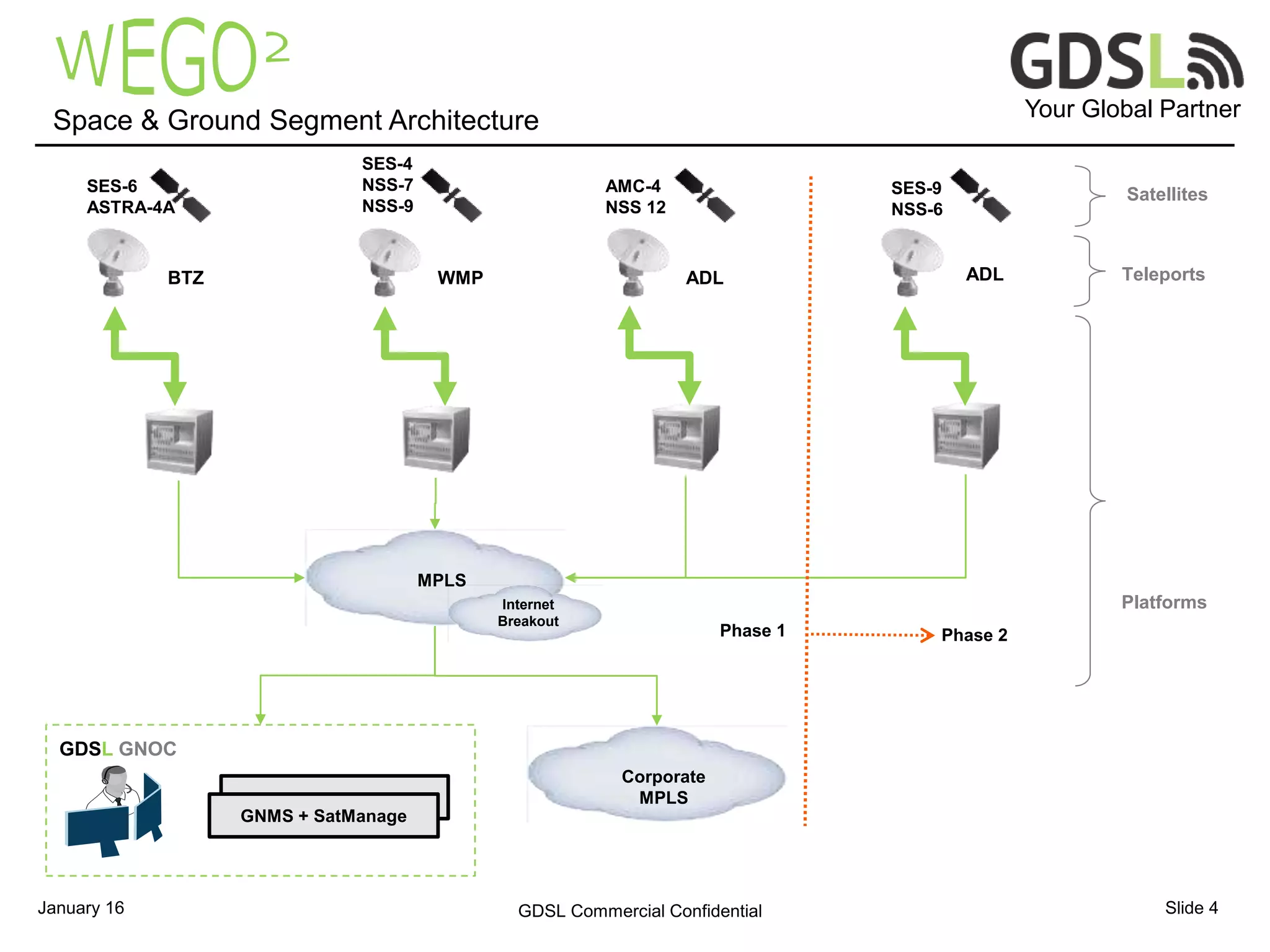

Space & Ground Segment Architecture
Teleports
Platforms
MPLS
BTZ WMP ADL ADL
GDSL GNOC
GNMS + SatManage
SatellitesSES-6
ASTRA-4A
SES-4
NSS-7
NSS-9
AMC-4
NSS 12
SES-9
NSS-6
Phase 1 Phase 2
January 16 GDSL Commercial Confidential
Corporate
MPLS
Internet
Breakout

5. Your Global Partner
GDSL Commercial ConfidentialJanuary 16 Slide 5

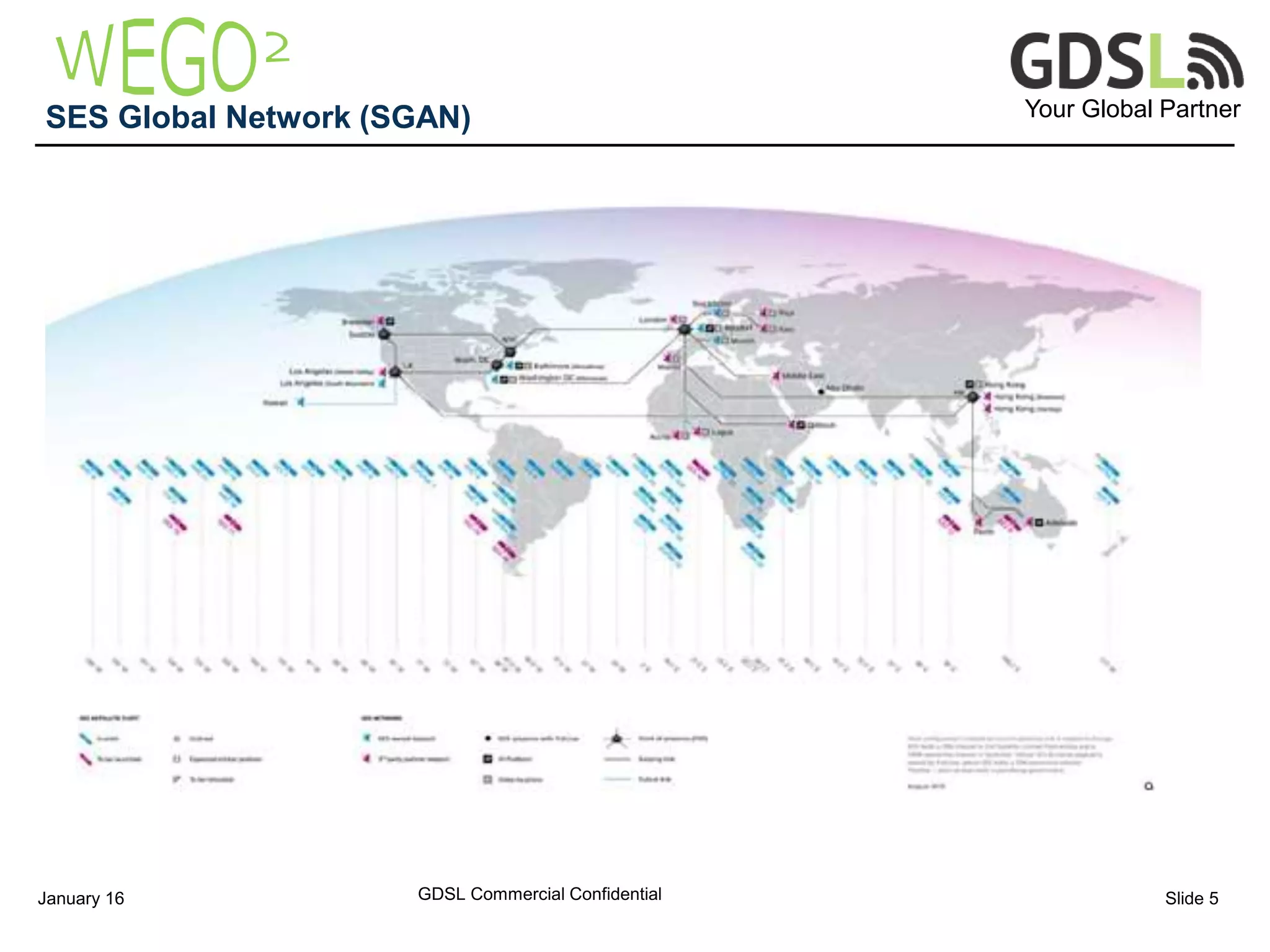

SES Global Network (SGAN)

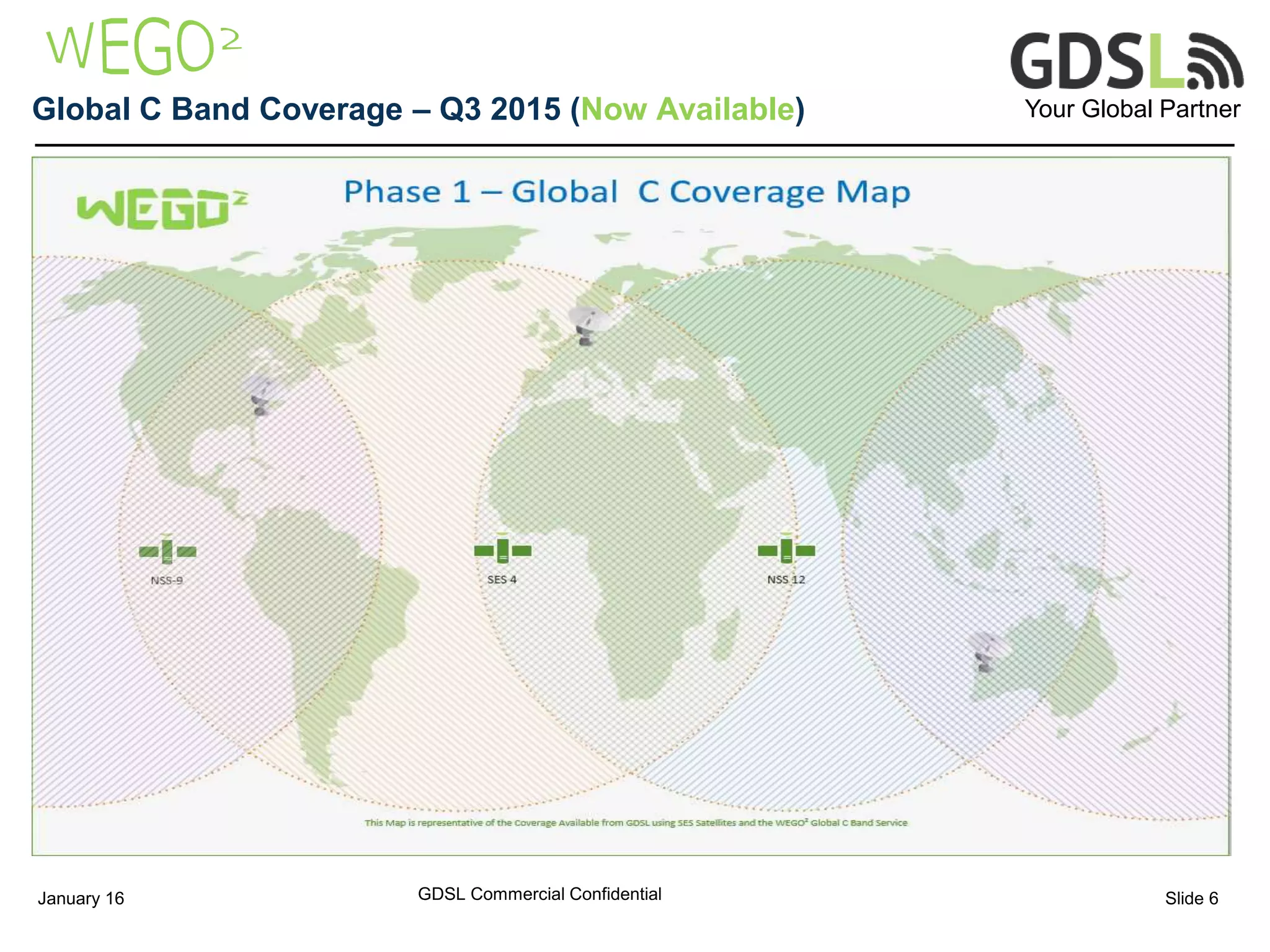

6. Your Global PartnerGlobal C Band Coverage – Q3 2015 (Now Available)
GDSL Commercial ConfidentialJanuary 16 Slide 6

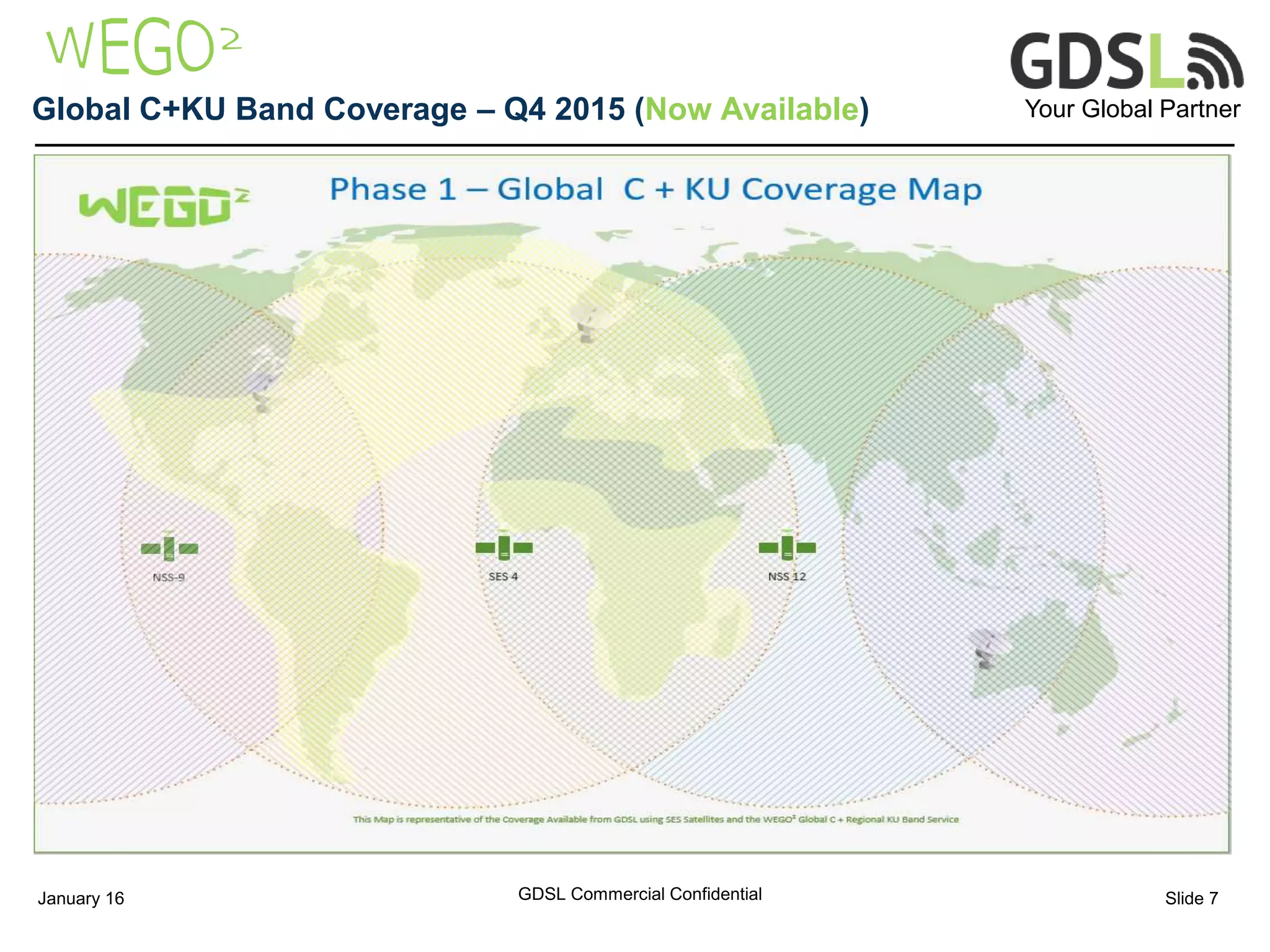

7. Your Global PartnerGlobal C+KU Band Coverage – Q4 2015 (Now Available)
GDSL Commercial ConfidentialJanuary 16 Slide 7

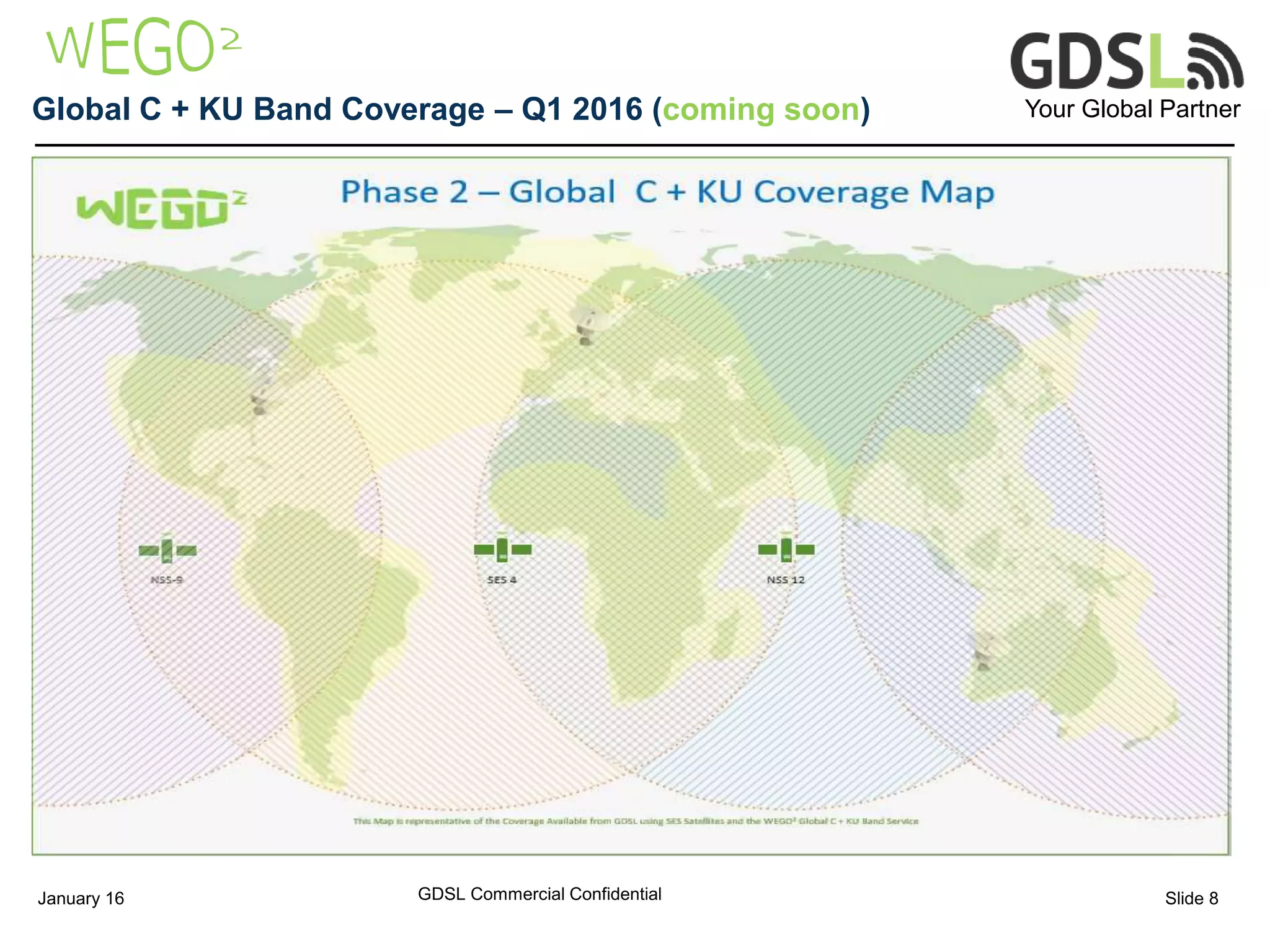

8. Your Global PartnerGlobal C + KU Band Coverage – Q1 2016 (coming soon)
GDSL Commercial ConfidentialJanuary 16 Slide 8

9. Your Global Partner
Equipment & Services
Global Broadband & Voice
Services

10. Your Global PartnerMaritime VSAT Equipment
Global C Band
Above Deck Equipment:
 System: 2.4m Marine Stabilised Circular/Linear
Xpol System.
 Radome: 4.1m
 3G/4G: Multiband Antenna (optional)
Below Deck Equipment:
 Rack: 4U Industrial Rack
 ACU: Antenna Control Unit with Software
 Server: Fusion VM Server
 Modem: iDirect Satellite Modem
 AP: 2G/3G BTS / Dual Band WiFi AP’s
Reliability & Resilience
 High Availability Solutions Available
Global KU
Above Deck Equipment:
 Systems: 0.6m to 2.4m Marine Stabilised
Circular/Linear Xpol System.
 Radome: 1.2m to 4.1m
 Aerial: Omni Directional Multiband Antenna
Below Deck Equipment:
 Rack: 4U Industrial Rack
 ACU: Antenna Control Unit with Software
 Server: Ultra Compact Server
 Modem: iDirect Satellite Modem
 AP: 2G/3G BTS / Dual Band WiFi AP’s
GDSL Commercial ConfidentialJanuary 16 Slide 10
FROM $85K
FROM $35K
Financial Services Available

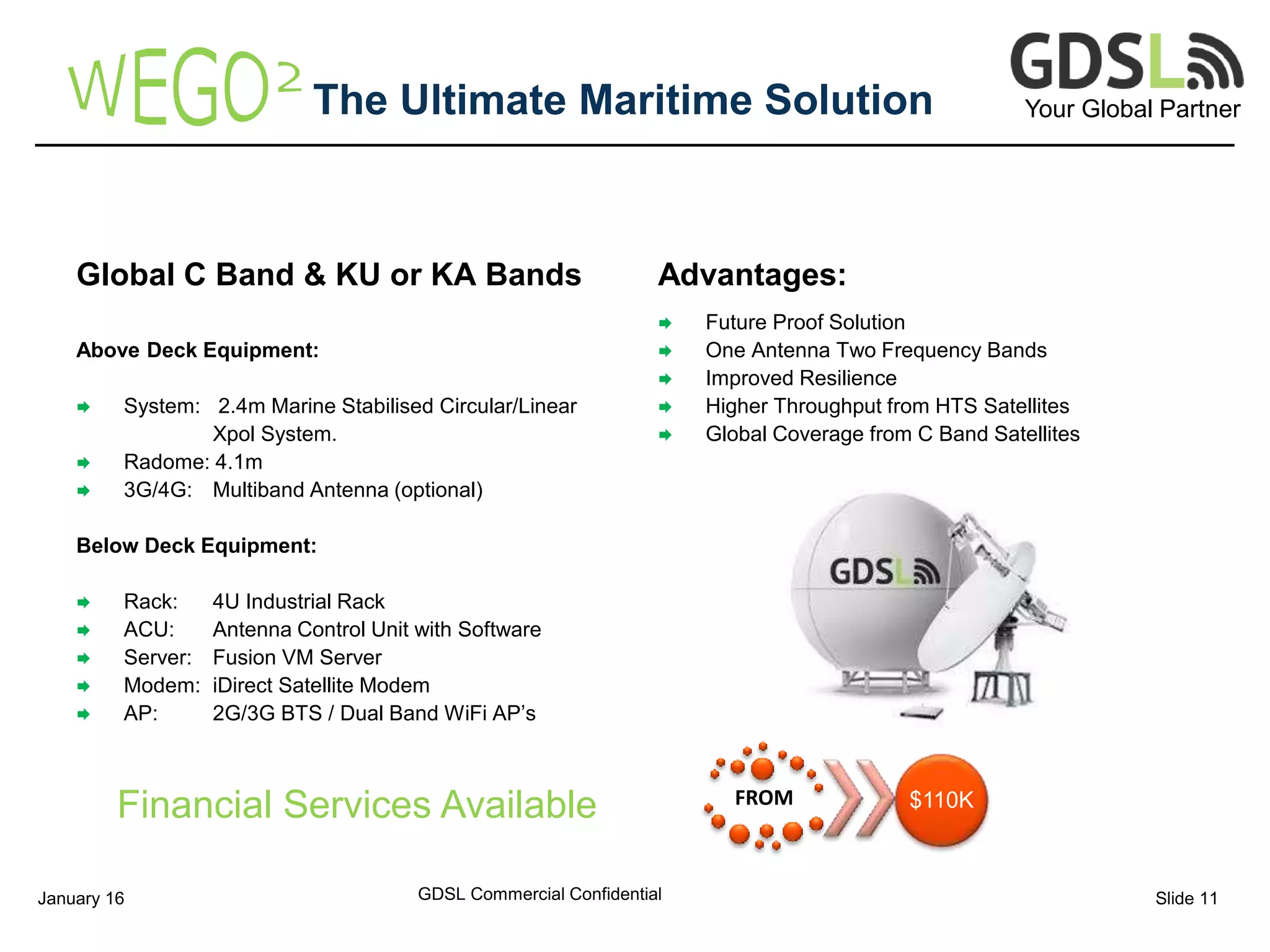

11. Your Global PartnerThe Ultimate Maritime Solution
Global C Band & KU or KA Bands
Above Deck Equipment:
 System: 2.4m Marine Stabilised Circular/Linear
Xpol System.
 Radome: 4.1m
 3G/4G: Multiband Antenna (optional)
Below Deck Equipment:
 Rack: 4U Industrial Rack
 ACU: Antenna Control Unit with Software
 Server: Fusion VM Server
 Modem: iDirect Satellite Modem
 AP: 2G/3G BTS / Dual Band WiFi AP’s
Advantages:
 Future Proof Solution
 One Antenna Two Frequency Bands
 Improved Resilience
 Higher Throughput from HTS Satellites
 Global Coverage from C Band Satellites
GDSL Commercial ConfidentialJanuary 16 Slide 11
FROM $110KFinancial Services Available

12. Your Global Partner

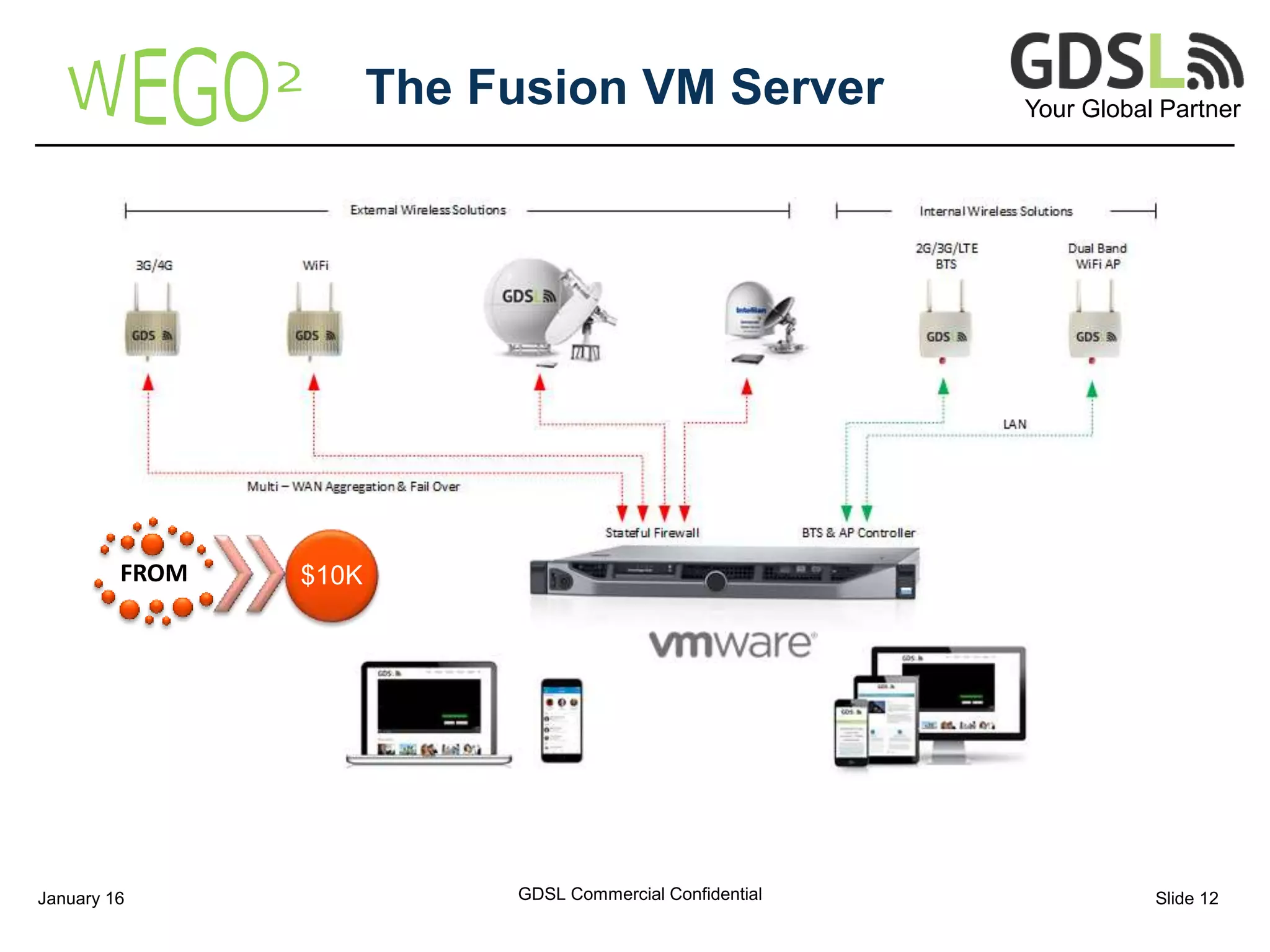

The Fusion VM Server
GDSL Commercial ConfidentialJanuary 16 Slide 12
FROM $10K

13. For Individuals and Corporations
GLOBAL GSM SERVICES

14. Your Global Partner

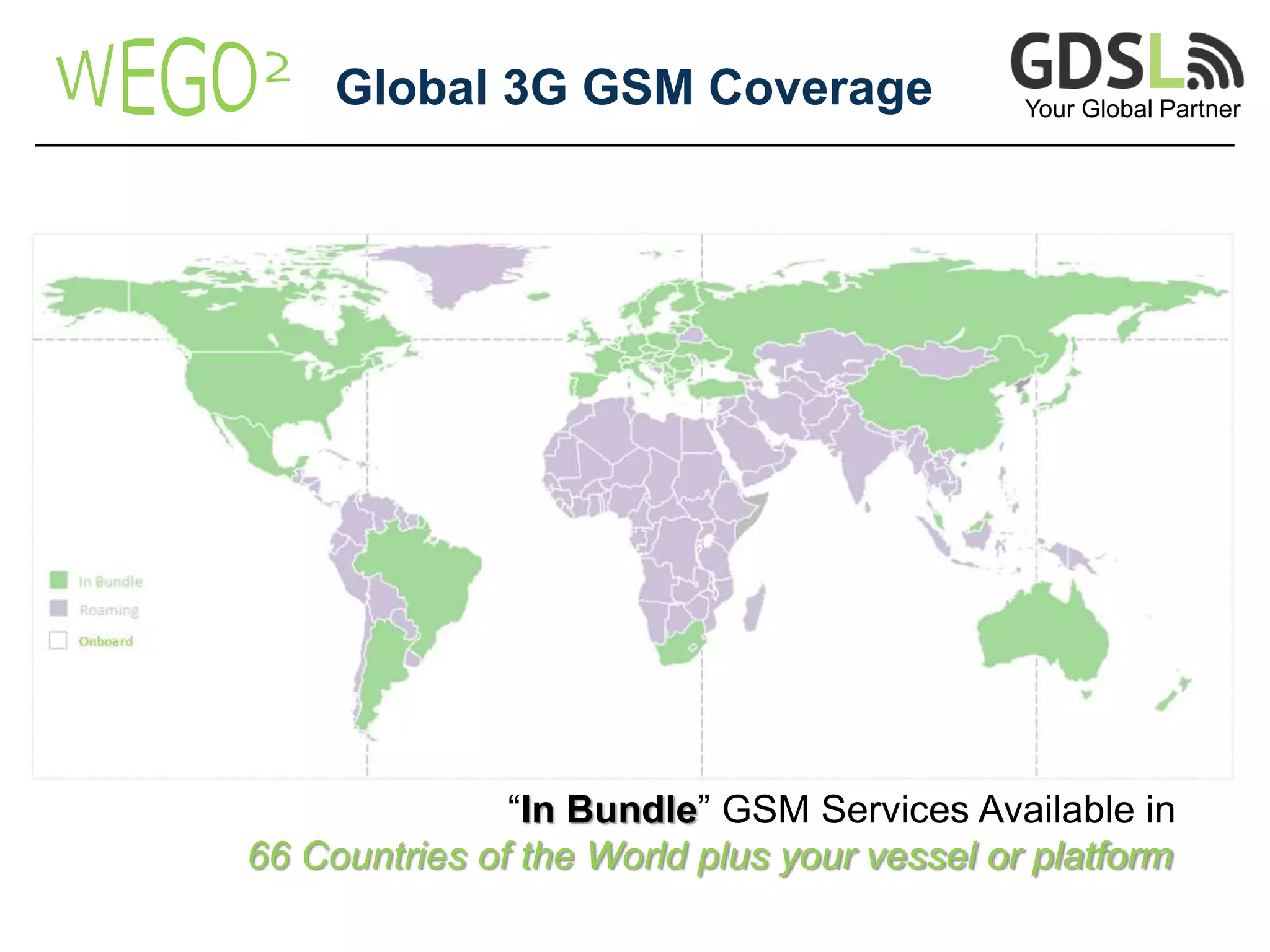

Global 3G GSM Coverage
66 Countries of the World plus your vessel or platform
“In Bundle” GSM Services Available in

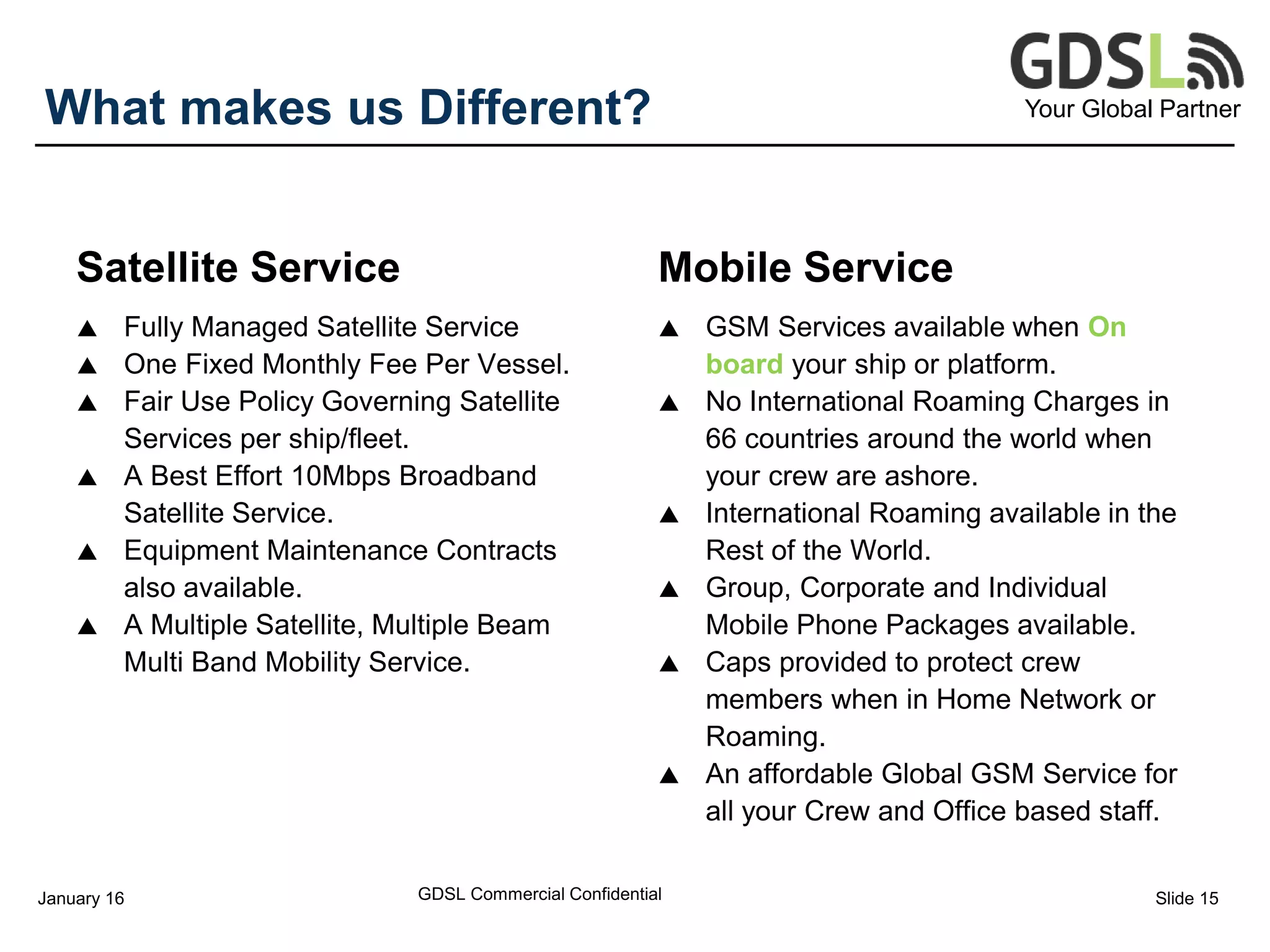

15. Your Global PartnerWhat makes us Different?
Satellite Service
 Fully Managed Satellite Service
 One Fixed Monthly Fee Per Vessel.
 Fair Use Policy Governing Satellite
Services per ship/fleet.
 A Best Effort 10Mbps Broadband
Satellite Service.
 Equipment Maintenance Contracts
also available.
 A Multiple Satellite, Multiple Beam
Multi Band Mobility Service.
Mobile Service
 GSM Services available when On
board your ship or platform.
 No International Roaming Charges in
66 countries around the world when
your crew are ashore.
 International Roaming available in the
Rest of the World.
 Group, Corporate and Individual
Mobile Phone Packages available.
 Caps provided to protect crew
members when in Home Network or
Roaming.
 An affordable Global GSM Service for
all your Crew and Office based staff.
GDSL Commercial ConfidentialJanuary 16 Slide 15

16. Your Global Partner

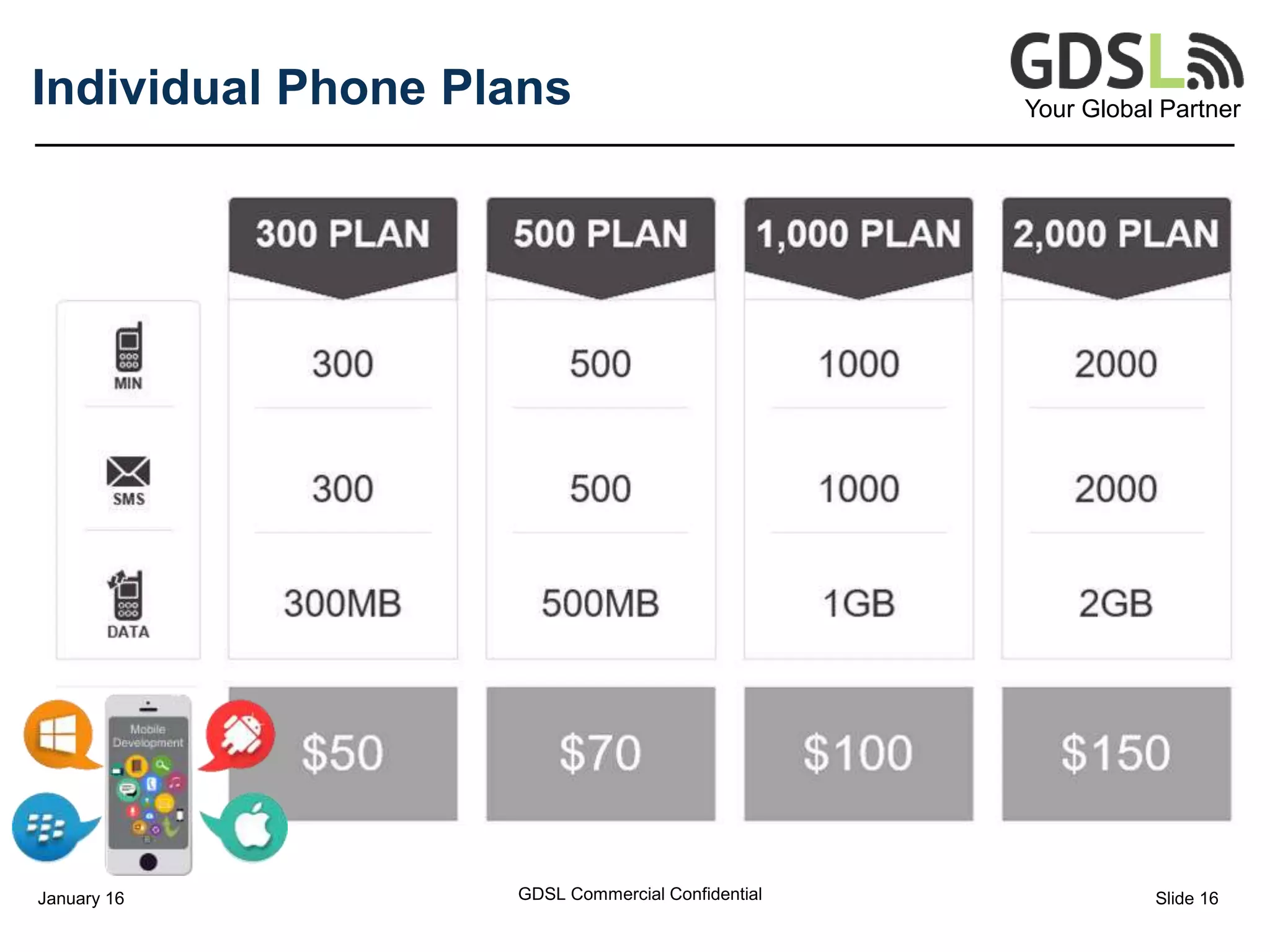

Individual Phone Plans
GDSL Commercial ConfidentialJanuary 16 Slide 16

17. Your Global Partner

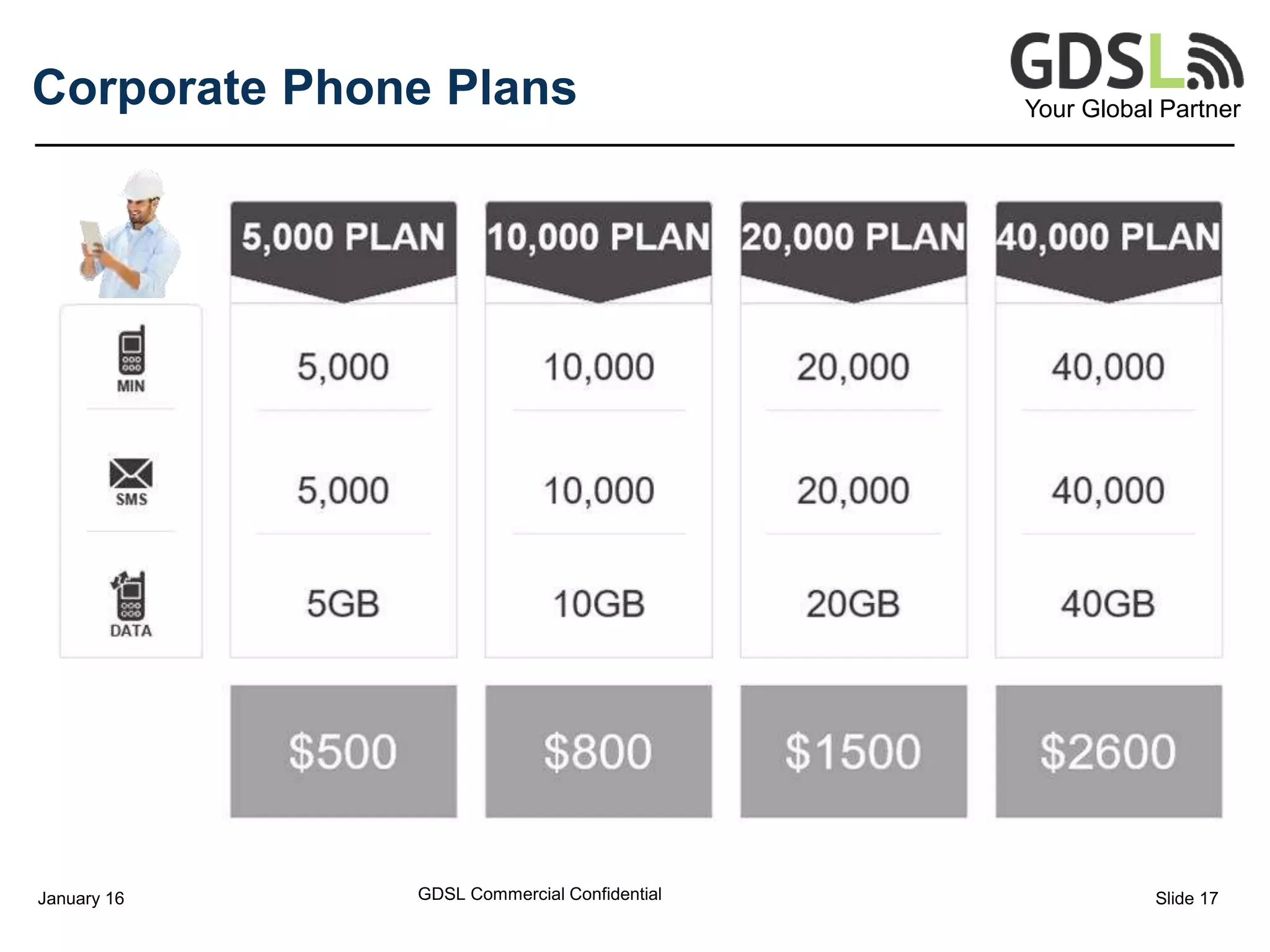

Corporate Phone Plans
GDSL Commercial ConfidentialJanuary 16 Slide 17

18. Your Global Partner
For Further Details Contact:
john.bean@geodatasystems.co.uk
+44 (0)203 191 9000 | +44 (0) 7989 516940
Making your Apps work for You!
