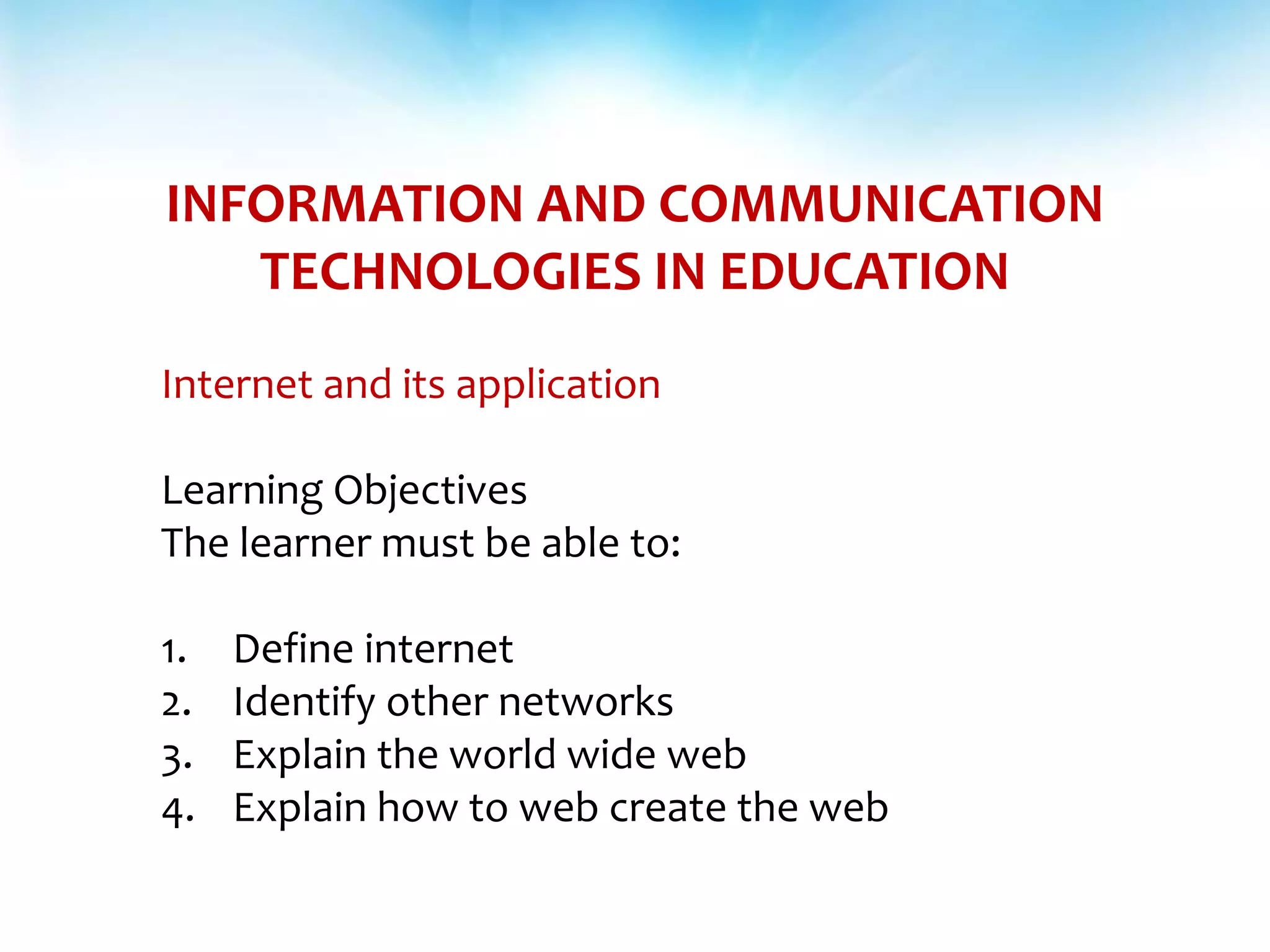

1. INFORMATION AND COMMUNICATION
TECHNOLOGIES IN EDUCATION
Internet and its application
Learning Objectives
The learner must be able to:
1. Define internet
2. Identify other networks
3. Explain the world wide web
4. Explain how to web create the web

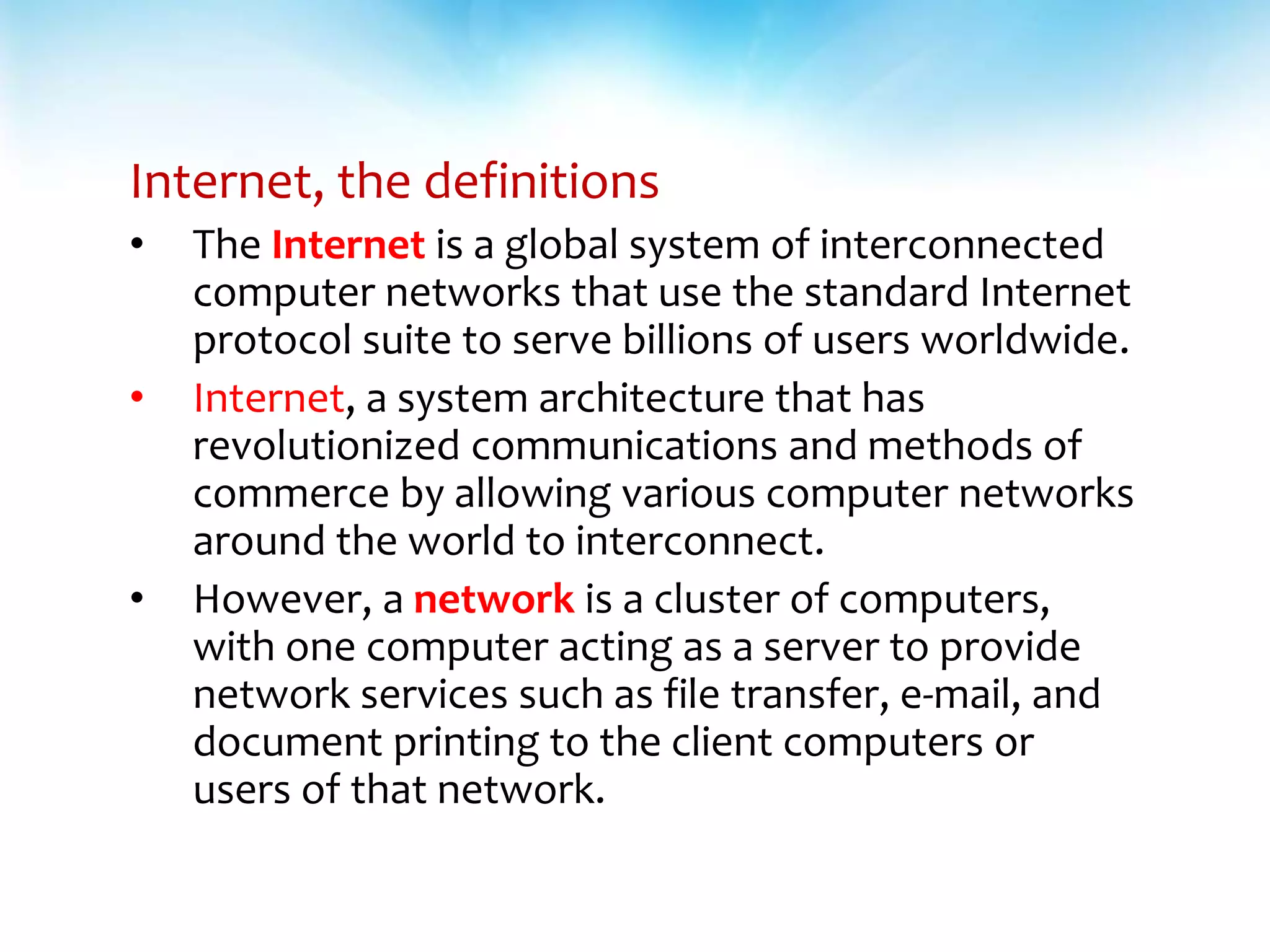

2. Internet, the definitions
⢠The Internet is a global system of interconnected
computer networks that use the standard Internet
protocol suite to serve billions of users worldwide.
⢠Internet, a system architecture that has
revolutionized communications and methods of
commerce by allowing various computer networks
around the world to interconnect.
⢠However, a network is a cluster of computers,
with one computer acting as a server to provide
network services such as file transfer, e-mail, and
document printing to the client computers or
users of that network.
3. Internet, the definitions
⢠The Internet is considered as network of
network
⢠Using gateways and routers, a local area network
(LAN) can be connected to other LANs to form a
wide area network (WAN).
⢠These LANs and WANs can also be connected to
the Internet through a server that provides both
the necessary software for the Internet and the
physical data connection (usually a high-bandwidth
telephone line, coaxial cable TV line, or wireless)
4. ⢠The Internet carries an extensive range of
information resources and services
⢠The Internet has no centralized governance in either
technological implementation or policies for access
and usage
Related Networking lexicons
⢠Intranet
⢠Extranet
⢠Ethernet
5. Internet Services
Service Purpose
ftp For transferring files between computers; can be anonymous or password
protected (from File Transfer Protocol)
gopher For menus of material available on the Internet (seldom used)
http For posting and reading documents (from the Hypertext Transfer Protocol used
by the World Wide Web)
https For posting and reading encrypted (secure) documents
imap For receiving electronic mail (from Internet Message Access Protocol)
irc For real-time text messaging (from Internet Relay Chat)
mud For real-time game playing (from MultiUser Dimension)
pop For receiving electronic mail (from Post Office Protocol)
rtsp For streaming media control (from Real Time Streaming Protocol)
telnet For logging on and working from remote computers
smtp For sending mail (Simple Mail Transport Protocol)
usenet For participating in discussion groups (from USERS NETwork)
6. Internet Services
⢠Each Internet service is implemented on an Internet
server by dedicated software known as a daemon.
(Actually, daemons only exist on Unix/Linux systemsâ
on other systems, such as Windows, the services may
run as regular applications or background processes.)
⢠Daemons are agent programs that run in the
background, waiting to act on requests from the
outside. In the case of the Internet, daemons support
protocols.
7. History of the Internet
⢠The Internet began as a research network funded by
the Advanced Research Projects Agency (ARPA) of the
U.S. Defense Department, when the first node of the
ARPANET was installed at the University of California
at Los Angeles in September 1969.
⢠By the mid-1970s, the ARPANET âinter-networkâ
embraced more than 30 universities, military sites, and
government contractors, and its user base expanded
to include the larger computer science research
community.
8. History of the Internet
⢠In 1989, responsibility and management for the
ARPANET was officially passed from military interests to
the academically oriented NSF, and research
organizations and universities (professors and students
alike)
⢠Commercial and business use of the Internet was not
permitted until 1992, but businesses have since become
its driving force.
How the Internet Spread
⢠Three inventions that spread the use of the Internet
were:
⢠The personal computer (early 1980s)
⢠The World Wide Web (1989)
⢠The browser (1991)
9. The World Wide Web (www), definition
⢠The World Wide Web (abbreviated as WWW or W3,
commonly known as the Web), is a system of
interlinked hypertext documents (HTML doc)
accessed via the Internet.
⢠Also seen as a wide-area hypermedia information
initiative aiming at providing universal access to a
large universe of information
Differences between the Internet and Web
⢠The Internet and the WWW are not synonymous
11. How is information accessed on the
Web
In order to connect to the Internet you must have:
⢠A modem: allows your computer to send and
receive signals through telephone lines
⢠An Internet service provider (ISP): required for all
home connections
⢠Browser software: might need plug-in programs to
retrieve some types of media applications
12. How is information accessed on the Web
(Connecting to the Internet)
Modem (modulator-demodulator)
⢠External Modem: This is a modem separated from the
system unit in the computer case. It is connected to
the serial port of the computer by means of a cable. It
is connected to the telephone wall jack by another
cable.
⢠Internal Modem: An internal modem is a circuit board
(a modem card) that can be added to the system unit
of the computer. It takes one of the expansion slots.
13. How is information accessed on the Web
(Connecting to the Internet)
An Internet service provider (ISP) or Internet access
provider (IAP): ISPs employ a range of technologies to
enable consumers to connect to their network through:
⢠Dial-up
⢠DSL (Digital Subscriber Line),
⢠ADSL (typically Asymmetric Digital Subscriber Line)
⢠Broadband wireless,
⢠Cable modem,
⢠Fiber to the premises (FTTH)
14. How is information accessed on the Web
⢠What transpires on the Internet
15. How is information accessed on the Web (Connecting to
the Internet)
Browser software (See below for further explanation):
Is a software application for retrieving, and presenting
information resources on the Wsorld Wide Web.
Information the web is identified or located by Uniform
Resources Identifier (URI) or Uniform Resource Locator
(URL)
Early browsers:
⢠Mosaic = 1993 by
⢠Nescape Navigator = 1994
⢠Internet explorer = 1995
16. Web Browser, definition
⢠Web browsers are information-rendering
software applications
⢠software application for retrieving, presenting
and traversing information resources on
the World Wide Web
⢠used to access information provided by web
servers in private networks or files in file systems.
⢠Early browsers included WorldWideWeb (Nexus),
Mosaic (Netscape) and Netscape Navigator
⢠Examples of popular web browsers include
Google Chrome, Firefox, Internet Explorer (IE),
Safari and Opera
17. Navigating the Web
In order to work with multimedia on the Internet, you must
understand:
⢠The browser screen and its standard elements
⢠URL addresses and the information they contain
18. Features of Web Browsers
Dropdown Menu
Tab Display
Address Bar
Search Bar with
Search Engine
Refresh Button which doubles as
Cancel button
Hit Display Area
Bookmarks Toolbar
Backward
Button
19. Features of Web Browsers
Address Bar doubling as Search Bar
Forward
Button
Backward
Button
Dropdown
Menu
20. Features of URL / URI
https://www.schoology.com/assignments/index.html
Uniform Resource Locator / Uniform Resource Identifier
https://www.schoology.com/
This address is an internet serve
that uses hypertext transfer protocol
This represent the internet service
know as World Wide Web
This belongs to a company called
Schoology. It is technically described
As Domain Name
21. Surfing with Web Search Engine
⢠Information resource gateway for surfing
information online
⢠It is designed to search for information on the
World Wide Web.
⢠Search results are referred to as Search Engine
Results Page (SERP)
⢠SERP contain Hits populated on the browserâs
display pages
⢠Hits = targets + source / Destination
22. Examples of Web Search Engine
Yahoo, Google, Bing, Yandex, AOL, Daemon, Baidu and
Ask
Web Resource (Website)
⢠Website is a set of related webpages containing
multimedia types and hosted on a server with a
single domain name
⢠Webpage is an information resource, or specifically
an HTML document suitable for the World Wide
Web and can be accessed through a web browser
23. Form of Website
⢠Static website (flat page): contains static
webpages and are delivered to the user exactly
as stored (interaction takes place at client side)
⢠Dynamic website: contains active or dynamic
pages, self automated and can customize it
content based client interaction (dynamic code
and dynamic content)
⢠Rich Internet Applications: desktop app with rich
user experience. Web application that has many
of the characteristics of desktop application
software
24. Taxonomy of Website
⢠Blog (weblog)
⢠Electronic Commerce (e-commerce)
⢠Gripe site
⢠Gallery site
⢠Dating Site
⢠Phishing Site
⢠Warez and Torrent Site
⢠Question and Answer sites
25. Building a Website
To build a website â dynamic or static- the developer
must understand any of these fundamental scripting
languages.
HTML â Hypertext Markup Language: popular
structural semantic language for structuring
webpages. HTML 5 is the latest
SGML â Standard General Markup Language
DHTML â Dynamic Hypertext Markup Language
XML â Extensible Markup Language
XHTML â Extensible Hypertext Markup Language
MXML â Macromedia Extensible Markup Language
27. Building a Website (client/server scripting
language)
Client-side languages
⢠HTML, CSS, JavaScript and AJAX
Server-side language
⢠PHP, Perl, ASP, Cold Fusion, Ruby on rail, JSP and Python
Databases (Relational Database Management System)
⢠MySQL, NoSQL, Sybase, Oracle, MSSQL,
Web Server Software
⢠A web server (sometimes called an HTTP server or
application server) is a program that serves content
using the HTTP protocol. E.g. Internet Information
Service (IIS), Apache, Nginx, Lighttpd etc.
28. Building a Website (contâd)
Tool for developing websites
⢠Simple text editors
⢠WYSIWYG offline editors
⢠WYSIWYG online editors
⢠Template-based editors
29. Deploying a Website (contâd)
⢠Websites are deployed on to a server for world
wide access
⢠Dedicated server, shared server or virtual server
⢠Buy domain name and server space ( monthly /
yearly subscription) for a hosting service provider
⢠hosting service provider eg. GoDaddy, Hostgator,
Google, Yahoo, aspspider etc.
30. Evolution of the WWW
⢠Four altered evolutions emanating from the web
x.0 concept
Web 1.0
⢠Publishing web or the info-centric web
⢠Focused on primarily building the web, making it
accessible to the web client and commercializing
the web for the first time
⢠Email communication was most effective
31. Web 2.0
⢠Publishing web or people-centric web
⢠Focused on participation, interaction and
collaboration
⢠Application platform + personal computer for
communication
⢠blogs, wikis, social networks, and RSS feeds are
web services that has brought about technical
and social revolution
32. Web 3.0
⢠Semantic web or Machine-centric web
⢠Focused on connecting knowledge and
application
⢠universal computing grid replacing operating
system and hard drive, resulting in large and
dynamic groups of machines connected to each
other.
⢠Web 3.0 is a convergence of several new
technologies and service
33. Web 4.0
⢠Intelligent web or Smart web or Agent-centric
web
⢠Combines the power of human and machine
⢠enables the software agent(s) to reason and
communicate with other agents and systems and
work collaboratively to accomplish things on
userâs behalf (Agent-Centric)
34. Searching the Web
Use search engines to find the right Web page:
⢠Create search queries that include keywords.
⢠Use Boolean search strategies to narrow your
search.
⢠Use the right search engine to conduct faster,
more efficient searches.
Editor's Notes
LAN
A local area network (LAN) is a computer network that interconnects computers in a limited area such as a home, school, computer laboratory, or office building using network media. The defining characteristics of LANs, in contrast to wide area networks (WANs), include their usually higher data-transfer rates, smaller geographic area, and lack of a need for leased telecommunication lines.
WAN
A computer network that spans a relatively large geographical area. Typically, a WAN consists of two or more local-area networks (LANs).
Computers connected to a wide-area network are often connected through public networks, such as the telephone system. They can also be connected through leased lines or satellites. The largest WAN in existence is the Internet.
Extranet
A buzzword that refers to an intranet that is partially accessible to authorized outsiders. Whereas an intranet resides behind a firewall and is accessible only to people who are members of the same company or organization, an extranet provides various levels of accessibility to outsiders. You can access an extranet only if you have a valid username and password, and your identity determines which parts of the extranet you can view.
Intranet
A network based on TCP/IP protocols (an internet) belonging to an organization, usually a corporation, accessible only by the organization's members, employees, or others with authorization. An intranet's Web sites look and act just like any other Web sites, but the firewall surrounding an intranet fends off unauthorized access.
ethernet
is a family of computer networking technologies for local area networks (LANs).
What is interplanetary network or InterPlaNet?
LAN
A local area network (LAN) is a computer network that interconnects computers in a limited area such as a home, school, computer laboratory, or office building using network media.[1] The defining characteristics of LANs, in contrast to wide area networks (WANs), include their usually higher data-transfer rates, smaller geographic area, and lack of a need for leased telecommunication lines.
WAN
A computer network that spans a relatively large geographical area. Typically, a WAN consists of two or more local-area networks (LANs).
Computers connected to a wide-area network are often connected through public networks, such as the telephone system. They can also be connected through leased lines or satellites. The largest WAN in existence is the Internet.
Extranet
A buzzword that refers to an intranet that is partially accessible to authorized outsiders. Whereas an intranet resides behind a firewall and is accessible only to people who are members of the same company or organization, an extranet provides various levels of accessibility to outsiders. You can access an extranet only if you have a valid username and password, and your identity determines which parts of the extranet you can view.
Intranet
A network based on TCP/IP protocols (an internet) belonging to an organization, usually a corporation, accessible only by the organization's members, employees, or others with authorization. An intranet's Web sites look and act just like any other Web sites, but the firewall surrounding an intranet fends off unauthorized access.
ethernet
is a family of computer networking technologies for local area networks (LANs).
What is interplanetary network or InterPlaNet?
LAN
A local area network (LAN) is a computer network that interconnects computers in a limited area such as a home, school, computer laboratory, or office building using network media.[1] The defining characteristics of LANs, in contrast to wide area networks (WANs), include their usually higher data-transfer rates, smaller geographic area, and lack of a need for leased telecommunication lines.
WAN
A computer network that spans a relatively large geographical area. Typically, a WAN consists of two or more local-area networks (LANs).
Computers connected to a wide-area network are often connected through public networks, such as the telephone system. They can also be connected through leased lines or satellites. The largest WAN in existence is the Internet.
Extranet
A buzzword that refers to an intranet that is partially accessible to authorized outsiders. Whereas an intranet resides behind a firewall and is accessible only to people who are members of the same company or organization, an extranet provides various levels of accessibility to outsiders. You can access an extranet only if you have a valid username and password, and your identity determines which parts of the extranet you can view.
Intranet
A network based on TCP/IP protocols (an internet) belonging to an organization, usually a corporation, accessible only by the organization's members, employees, or others with authorization. An intranet's Web sites look and act just like any other Web sites, but the firewall surrounding an intranet fends off unauthorized access.
ethernet
is a family of computer networking technologies for local area networks (LANs).
What is interplanetary network or InterPlaNet?
LAN
A local area network (LAN) is a computer network that interconnects computers in a limited area such as a home, school, computer laboratory, or office building using network media.[1] The defining characteristics of LANs, in contrast to wide area networks (WANs), include their usually higher data-transfer rates, smaller geographic area, and lack of a need for leased telecommunication lines.
WAN
A computer network that spans a relatively large geographical area. Typically, a WAN consists of two or more local-area networks (LANs).
Computers connected to a wide-area network are often connected through public networks, such as the telephone system. They can also be connected through leased lines or satellites. The largest WAN in existence is the Internet.
Extranet
A buzzword that refers to an intranet that is partially accessible to authorized outsiders. Whereas an intranet resides behind a firewall and is accessible only to people who are members of the same company or organization, an extranet provides various levels of accessibility to outsiders. You can access an extranet only if you have a valid username and password, and your identity determines which parts of the extranet you can view.
Intranet
A network based on TCP/IP protocols (an internet) belonging to an organization, usually a corporation, accessible only by the organization's members, employees, or others with authorization. An intranet's Web sites look and act just like any other Web sites, but the firewall surrounding an intranet fends off unauthorized access.
ethernet
is a family of computer networking technologies for local area networks (LANs).
What is interplanetary network or InterPlaNet?
How is information accessed on the internet/web
How is information accessed on the internet/web
Amazon search, Blekko, Volunia, Yebol, and blackie.com
Disadvantages of static website:
Any personalization or interactivity has to run client-side, which is restricting.
Maintaining large numbers of static pages as files can be impractical without automated tools.
A Rich Internet Application (RIA) is a Web application that has many of the characteristics of desktop application software, typically delivered by way of a site-specific browser, a browser plug-in, an independent sandbox, extensive use of JavaScript, or a virtual machine.
Created with Adobe flash, Adobe flash builder, silverlight, JavaFX Open Laszlo and HTML 5
Communication on the internet is based on an architecture described as client-server architecture.
One popular architecture used by web developers is known as the N-tier architecture. The N represent the
Number of phases the development will have to go through. Typically, developer adopt these three phase namely:
Presentation Tier
Business/logic Tier
Data Tier
Simple or Plain text editors: sublime text(cp) Atom (cp) Eclipse/ Aptana (cp) TextMate(OSX) coda (OSX) Espresso (OSX) chocolate (OSX) Komodo IDE (cp) Notepad++ (w) PSPad(w)
WYSIWYG offline editors e.g. Adobe Muse, Adobe Dreamweaver, Adobe Edge, Coffee Cup
WYSIWYG online editors e.g. JS fiddle, JS Bin Code Pen, ICEcoder, Divshot, Codio, codeanywhere, textarea (browser based cp) CodeMirror (BB cp)
Template-based editors: HTML 5 Boilerplate, Zurbs Foundation, Twitter Bootstrap, Wordpress
*cp = cross platform
*BB = browser based
*w = windows
*OSX = Mac
Web 1.0 generation - is about connecting information (Info-Centric). The focus of Web 1.0 was primarily on building the web, making it is accessible, and commercializing it for the first time. This generation of Web provides opportunities for people to communicate with other people and businesses using their personal computing devices. The users of this first generation of the Web go through the web sites of businesses to find the information they want and use the email to communicate with people they know. However, the machine and its ability to connect remains at the core of this web generation.
Web 2.0 generation is about connecting people (People-Centric) together, participation, interaction and collaboration. The Web in this generation provides the application platform that complements the personal computer used for communication in the earlier generation. The support of an application platform and the ability to create, store and execute applications, has resulted in a technical as well as a social revolution in the use of web. The blogs, wikis, social networks, and RSS feeds, as well as the continued growth Web 2.0 applications have been popular and used in past few years. Web Services (WS), referred to earlier, are a successful application of web technology in the generation of Web 2.0. Users cannot only get information from the business but also get services and pay for them across the net. Furthermore, people-to-people interaction moves from communication using emails to creation of social networks and groups resulting in sharing of information, thoughts and knowledge across the web.
This Web 3.0 is a convergence of several new technologies and service, such as mobility connectivity, network computing, services business, open technologies and open identity
