1. Azure IPaaS: #IntegrationEvolved: Logic
Apps, IFTTT and more
Glenn Colpaert,
Integration Consultant
@GlennColpaert

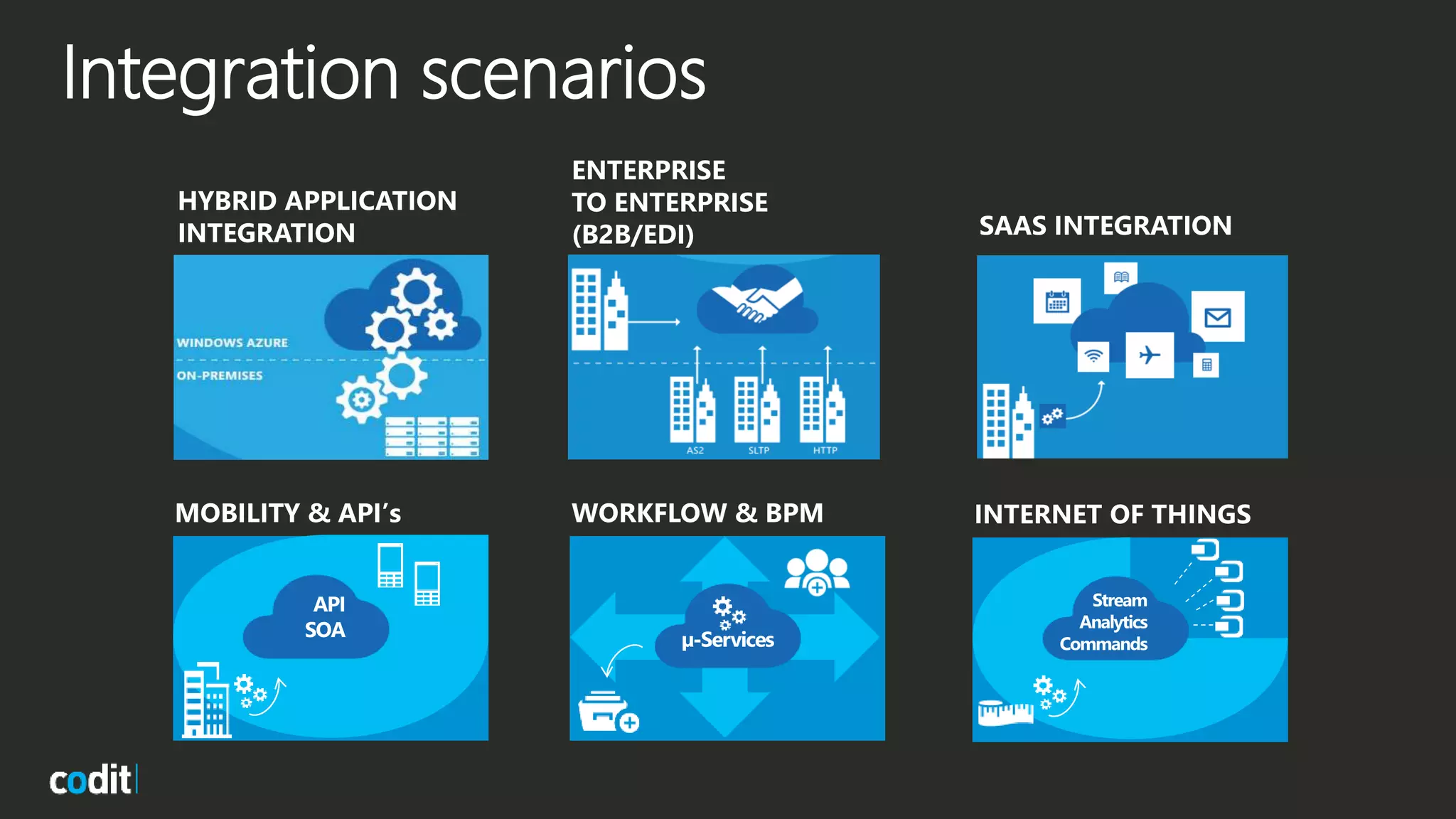

3. Integration scenarios
WORKFLOW & BPM
HYBRID APPLICATION
INTEGRATION
ENTERPRISE
TO ENTERPRISE
(B2B/EDI) SAAS INTEGRATION
MOBILITY & API’s INTERNET OF THINGS

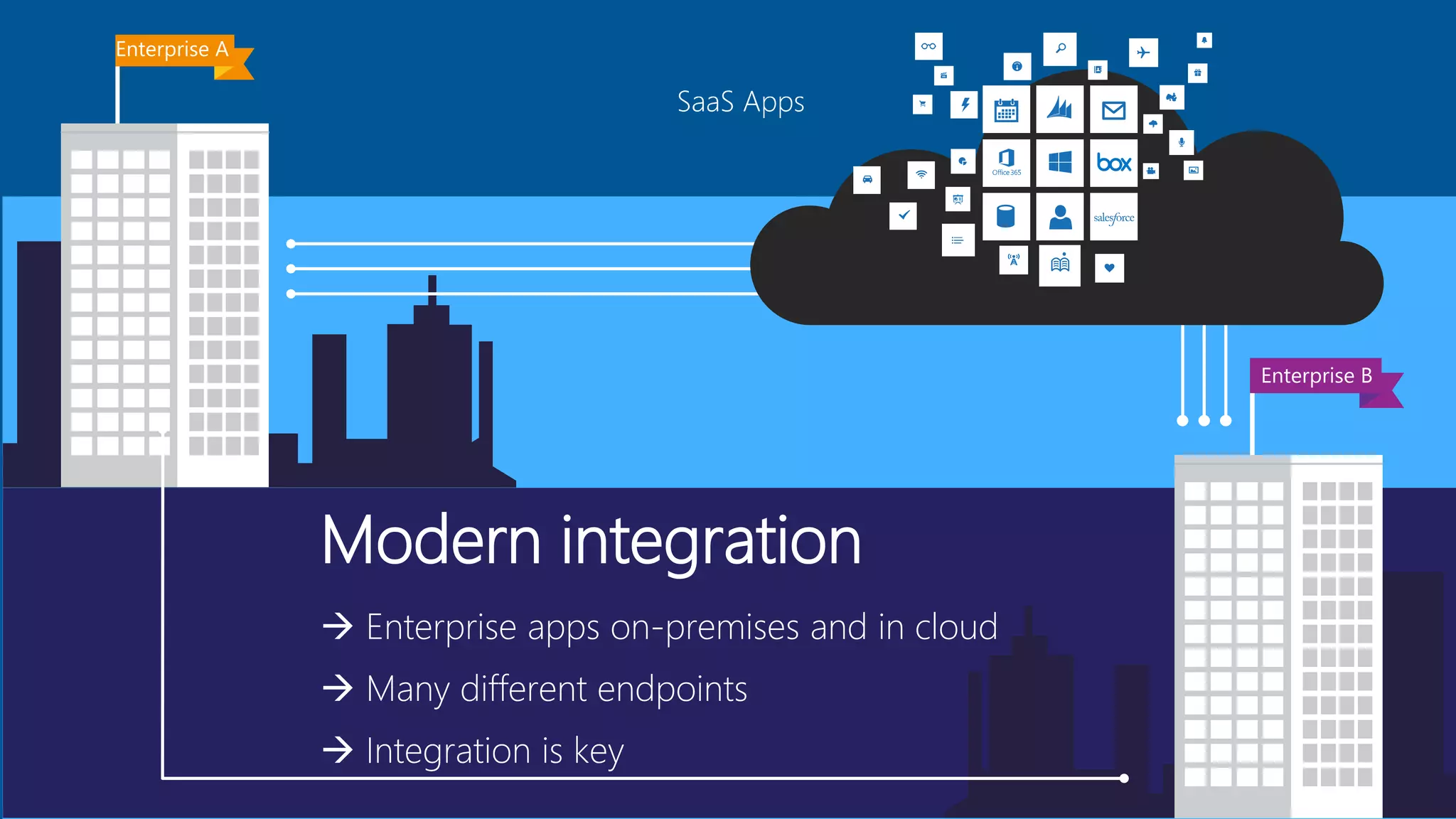

4. Modern integration
 Enterprise apps on-premises and in cloud
 Many different endpoints
 Integration is key
Enterprise B
Enterprise A

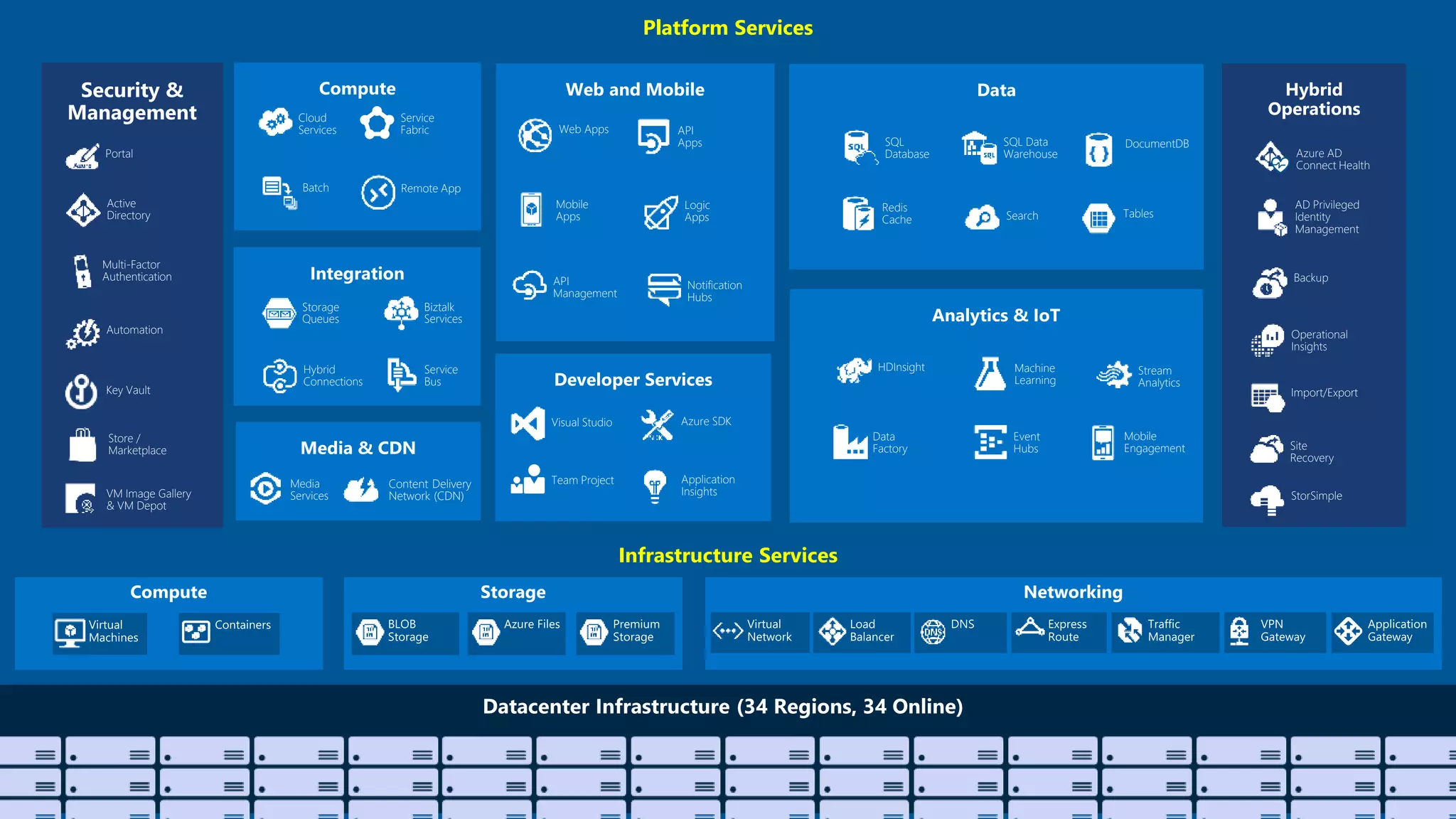

6. Platform Services
Security &
Management
Infrastructure Services
Web Apps
Mobile
Apps
API
Management
API
Apps
Logic
Apps
Notification
Hubs
Content Delivery
Network (CDN)
Media
Services
HDInsight Machine
Learning
Stream
Analytics
Data
Factory
Event
Hubs
Mobile
Engagement
Active
Directory
Multi-Factor
Authentication
Automation
Portal
Key Vault
Biztalk
Services
Hybrid
Connections
Service
Bus
Storage
Queues
Store /
Marketplace
Hybrid
Operations
Backup
StorSimple
Site
Recovery
Import/Export
SQL
Database
DocumentDB
Redis
Cache Search Tables
SQL Data
Warehouse Azure AD
Connect Health
AD Privileged
Identity
Management
Operational
Insights
Cloud
Services
Batch Remote App
Service
Fabric
Visual Studio
Application
Insights
Azure SDK
Team Project
VM Image Gallery
& VM Depot

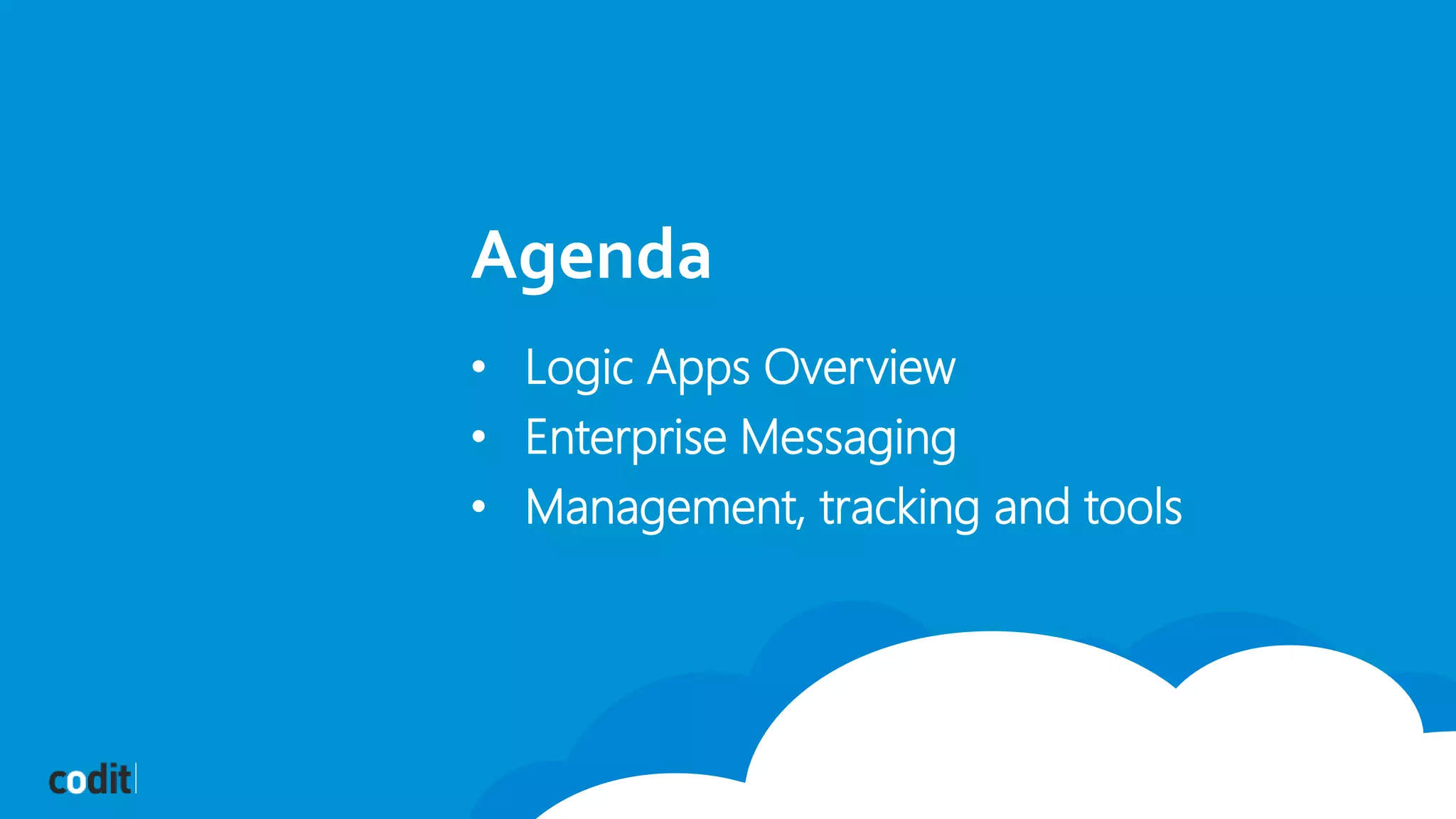

7. Agenda
• Logic Apps Overview
• Enterprise Messaging
• Management, tracking and tools

8. Logic Apps Overview

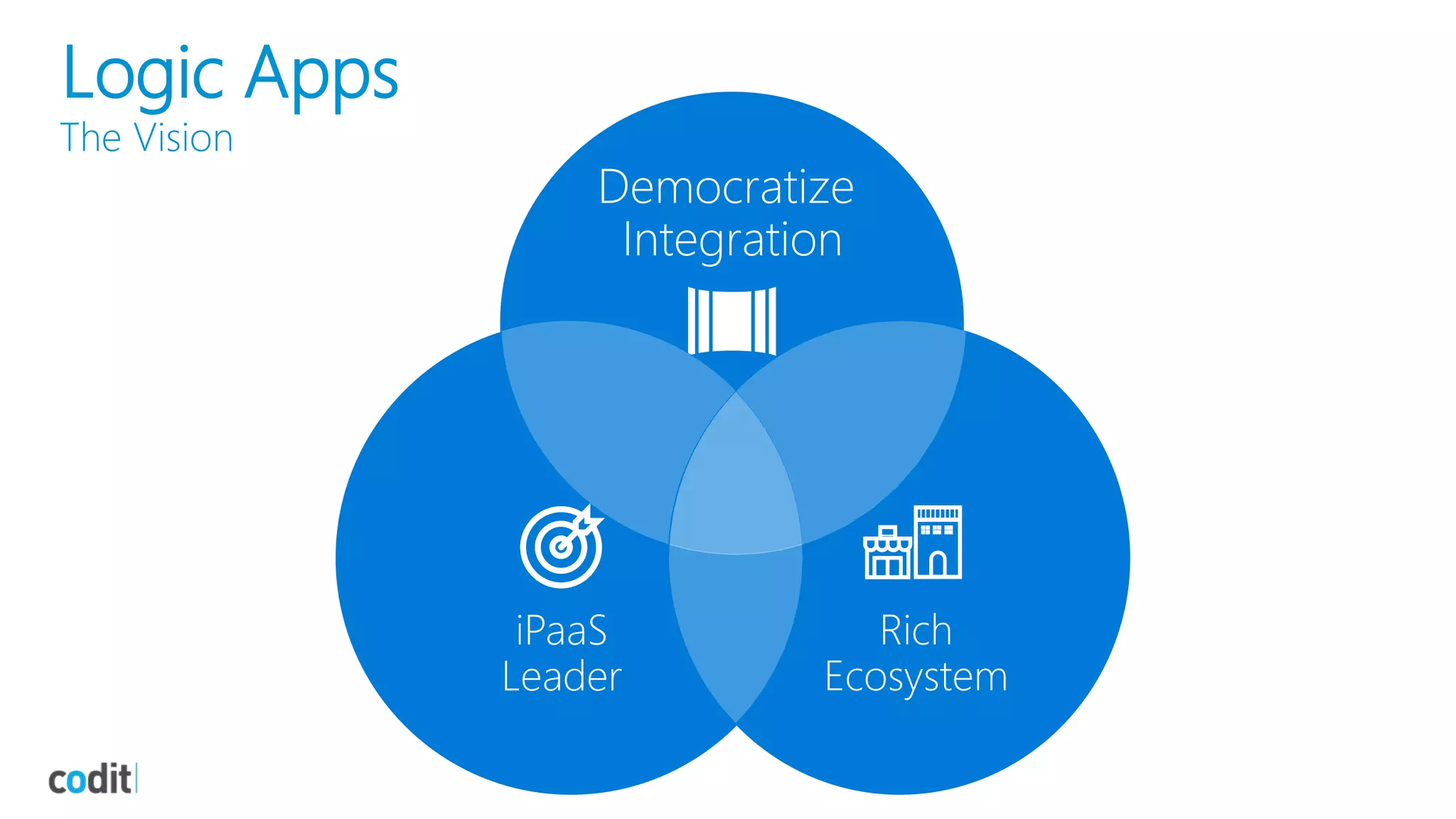

9. Democratize
Integration
iPaaS
Leader
Rich
Ecosystem
Logic Apps
The Vision

10.  Run mission-critical, complex integration
scenarios with ease
 Connect on-premises, hybrid and cloud
applications
 Position for the future with API centric
connectivity
 Easily connect custom on-premises
applications to the cloud
 Automate EAI, B2B/EDI, and business
processes
Logic Apps
Orchestrate Anything

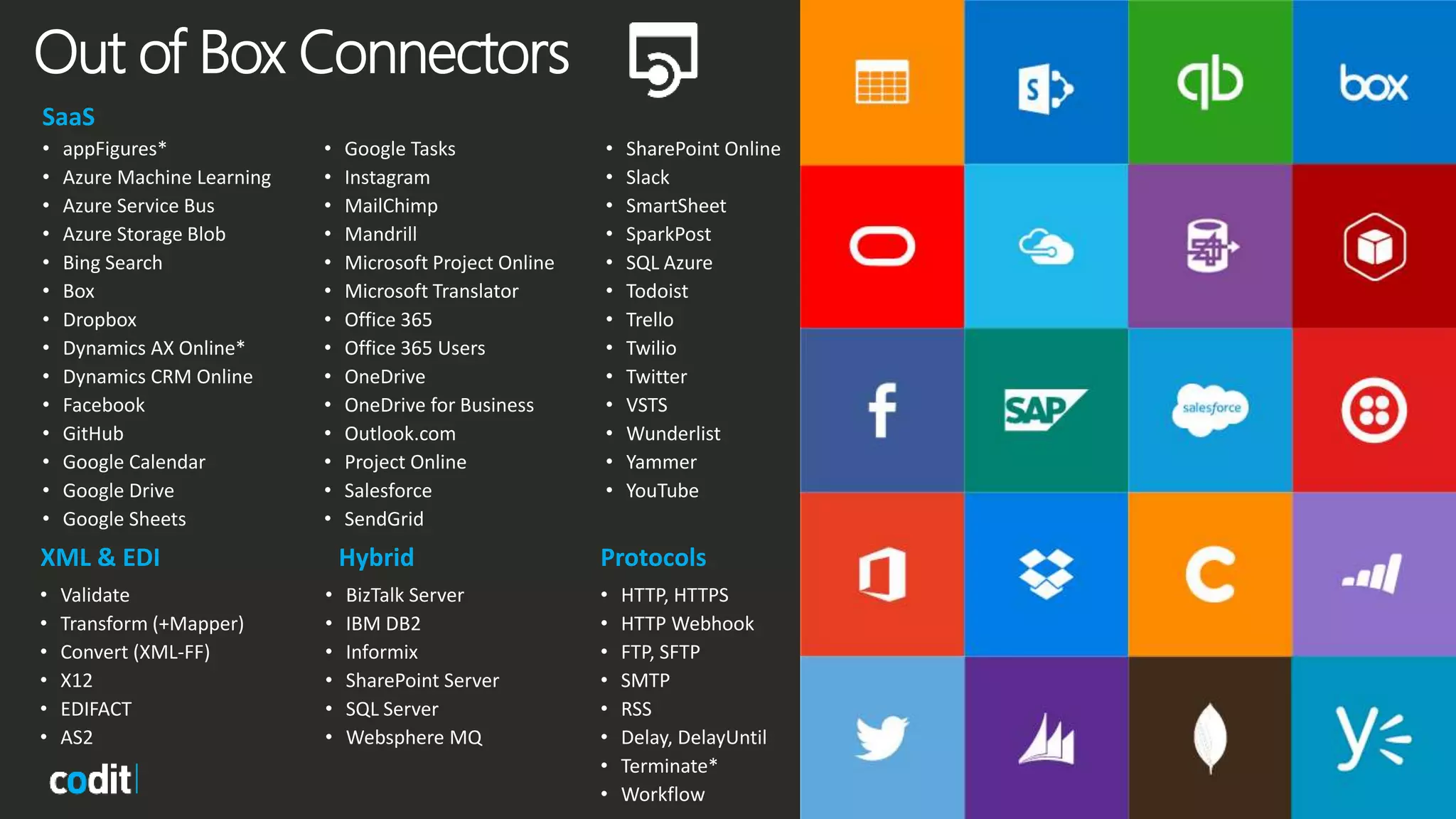

11. • appFigures*
• Azure Machine Learning
• Azure Service Bus
• Azure Storage Blob
• Bing Search
• Box
• Dropbox
• Dynamics AX Online*
• Dynamics CRM Online
• Facebook
• GitHub
• Google Calendar
• Google Drive
• Google Sheets
• Google Tasks
• Instagram
• MailChimp
• Mandrill
• Microsoft Project Online
• Microsoft Translator
• Office 365
• Office 365 Users
• OneDrive
• OneDrive for Business
• Outlook.com
• Project Online
• Salesforce
• SendGrid
• SharePoint Online
• Slack
• SmartSheet
• SparkPost
• SQL Azure
• Todoist
• Trello
• Twilio
• Twitter
• VSTS
• Wunderlist
• Yammer
• YouTube
SaaS
• HTTP, HTTPS
• HTTP Webhook
• FTP, SFTP
• SMTP
• RSS
• Delay, DelayUntil
• Terminate*
• Workflow
Protocols
• Validate
• Transform (+Mapper)
• Convert (XML-FF)
• X12
• EDIFACT
• AS2
XML & EDI Hybrid
• BizTalk Server
• IBM DB2
• Informix
• SharePoint Server
• SQL Server
• Websphere MQ
Out of Box Connectors

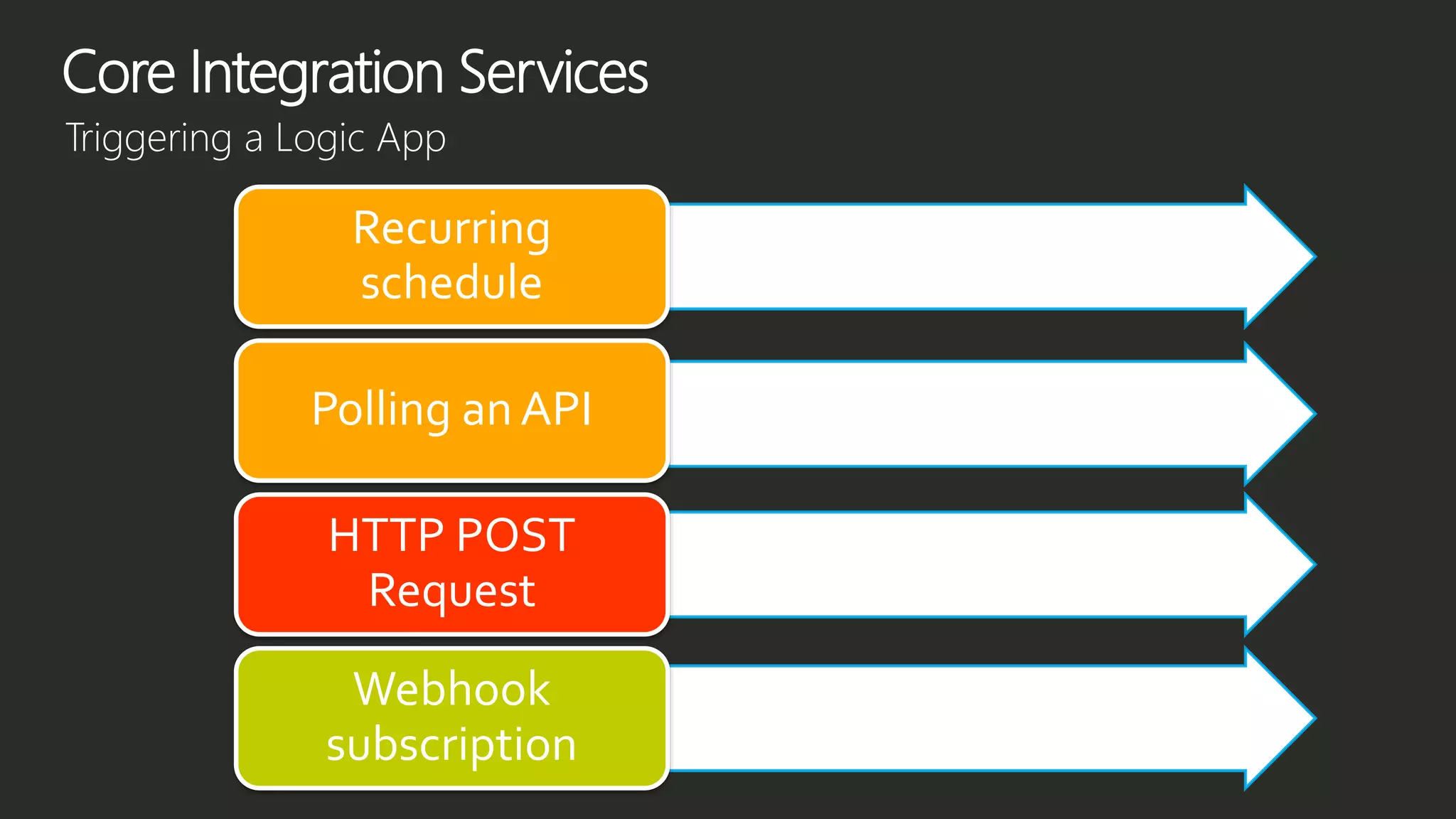

12. Recurring
schedule
Polling an API
HTTP POST
Request
Webhook
subscription
Core Integration Services
Triggering a Logic App

13. Core Integration Services

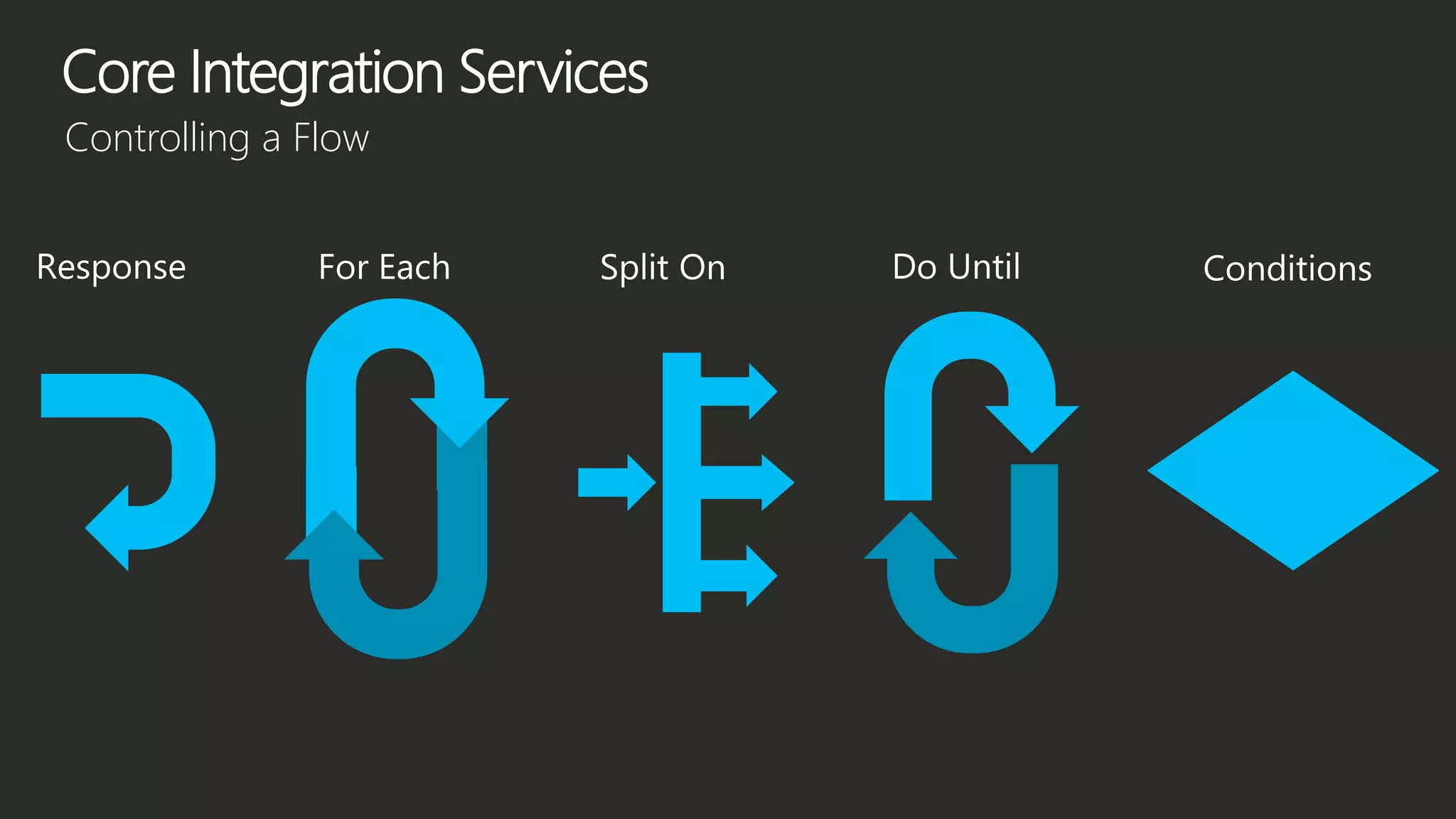

Controlling a Flow

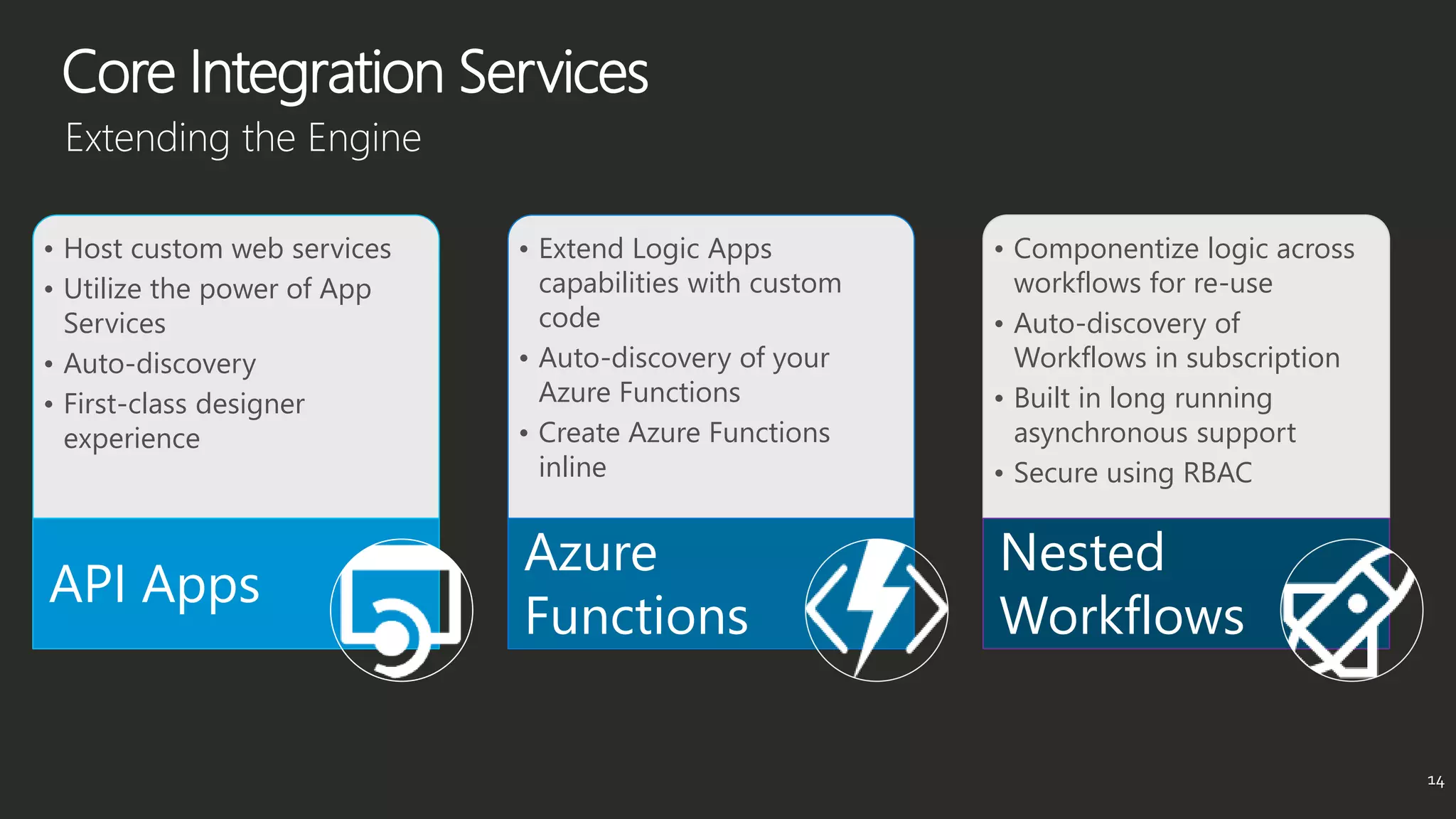

14. 14
• Host custom web services
• Utilize the power of App
Services
• Auto-discovery
• First-class designer
experience
API Apps
• Extend Logic Apps
capabilities with custom
code
• Auto-discovery of your
Azure Functions
• Create Azure Functions
inline
Azure
Functions
• Componentize logic across
workflows for re-use
• Auto-discovery of
Workflows in subscription
• Built in long running
asynchronous support
• Secure using RBAC
Nested
Workflows
Core Integration Services
Extending the Engine

15. #DEMO
Invoice Approval

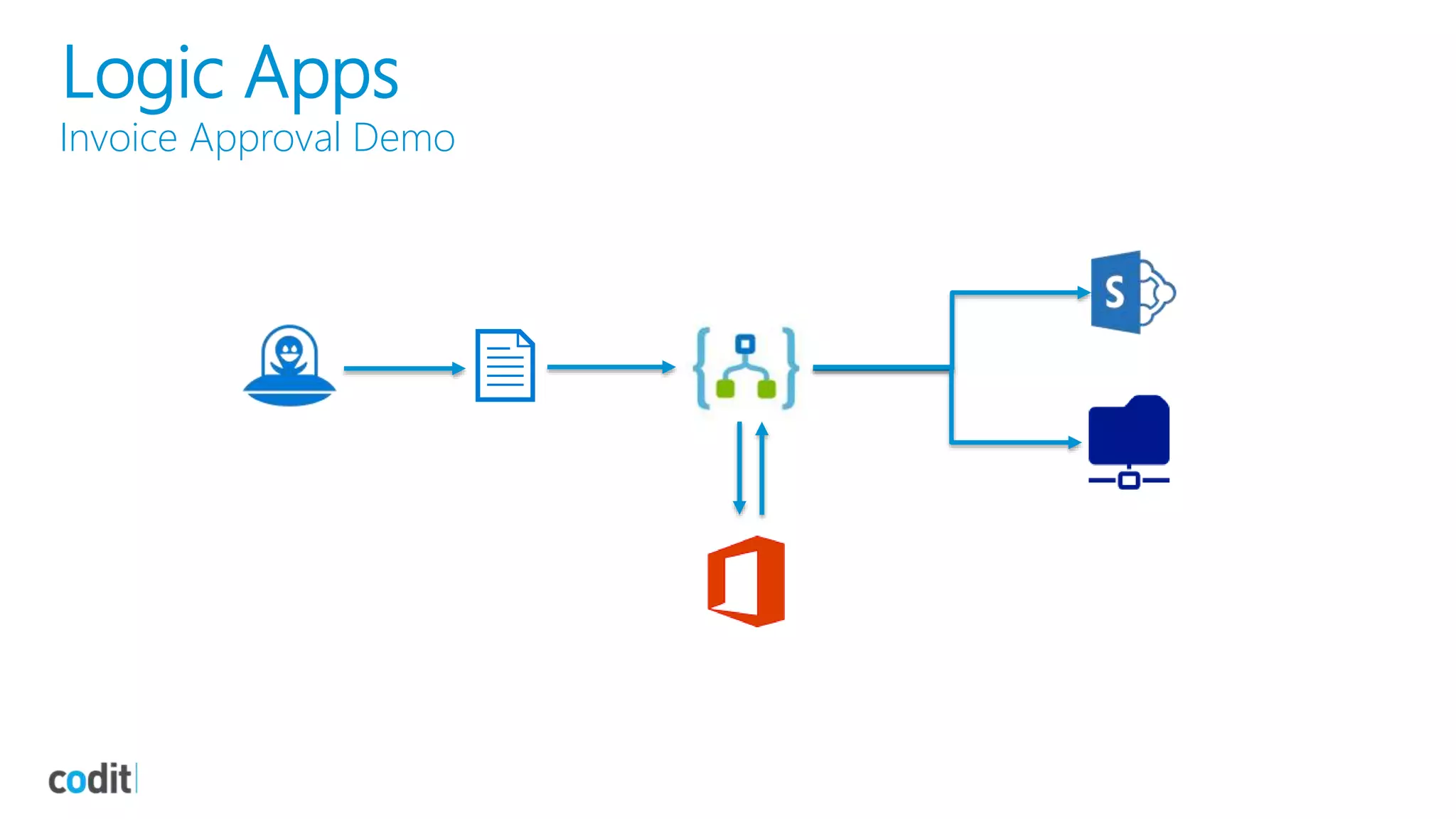

16. Logic Apps
Invoice Approval Demo

17. Enterprise Messaging

18. Enterprise Messaging
Integration Account
 Schemas
 Maps
 Trading Partners
 Agreements
 Certificates (KeyVault Integration)
Extensible Manageable
 Store your own
configuration
 REST API, Powershell
 Portal & Visual Studio
 Secure and Scalable

19. Enterprise Messaging
Integration Account – Message Handling
Flexible Content Types
 Binary, JSON, XML, Primitives
 Schema support for JSON
Mapping
 XSLT Based – use existing mappings
 Visual Studio mapper
 Parameter support
Validation
 XML Validation
FlatFile Support
 Convert from/to FlatFile – csv, delimited,
positional
 Built-in type conversion json-xml-base64
Flexible Processing
 Decouple messaging from processing
 Split/Debatch requests
 Sync & Async Protocols
 Pub/Sub via ServiceBus
EDI Processing
 X12 & EDIFACT Support
 EDI Batching
 Trading Partner Management
Mapping
 XSLT Based – use existing mappings
 Visual Studio mapper
 Parameter support

20. Enterprise Messaging

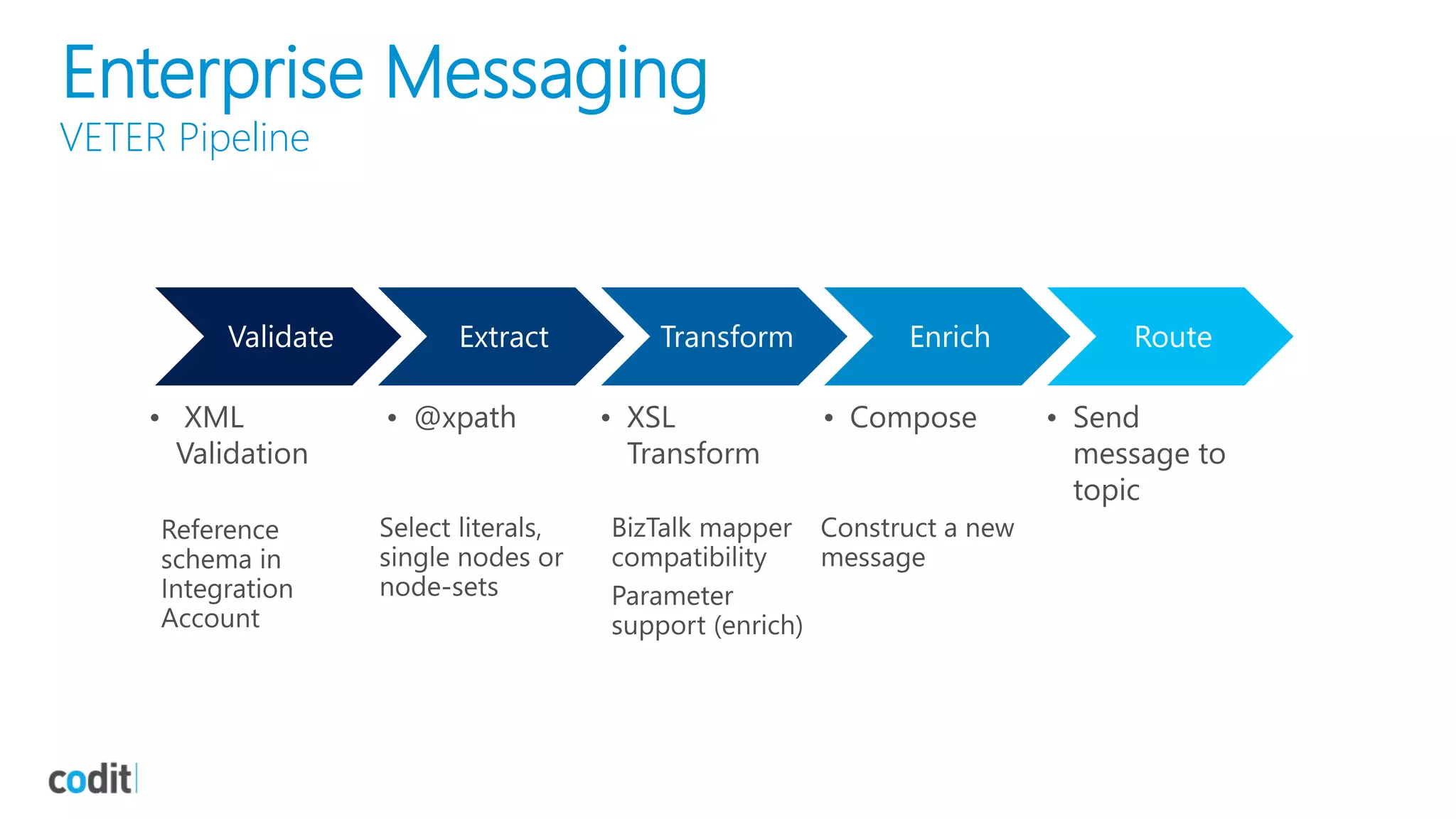

VETER Pipeline
Validate
• XML
Validation
Extract
• @xpath
Transform
• XSL
Transform
Enrich
• Compose
Route
• Send
message to
topic

21. Enterprise Messaging

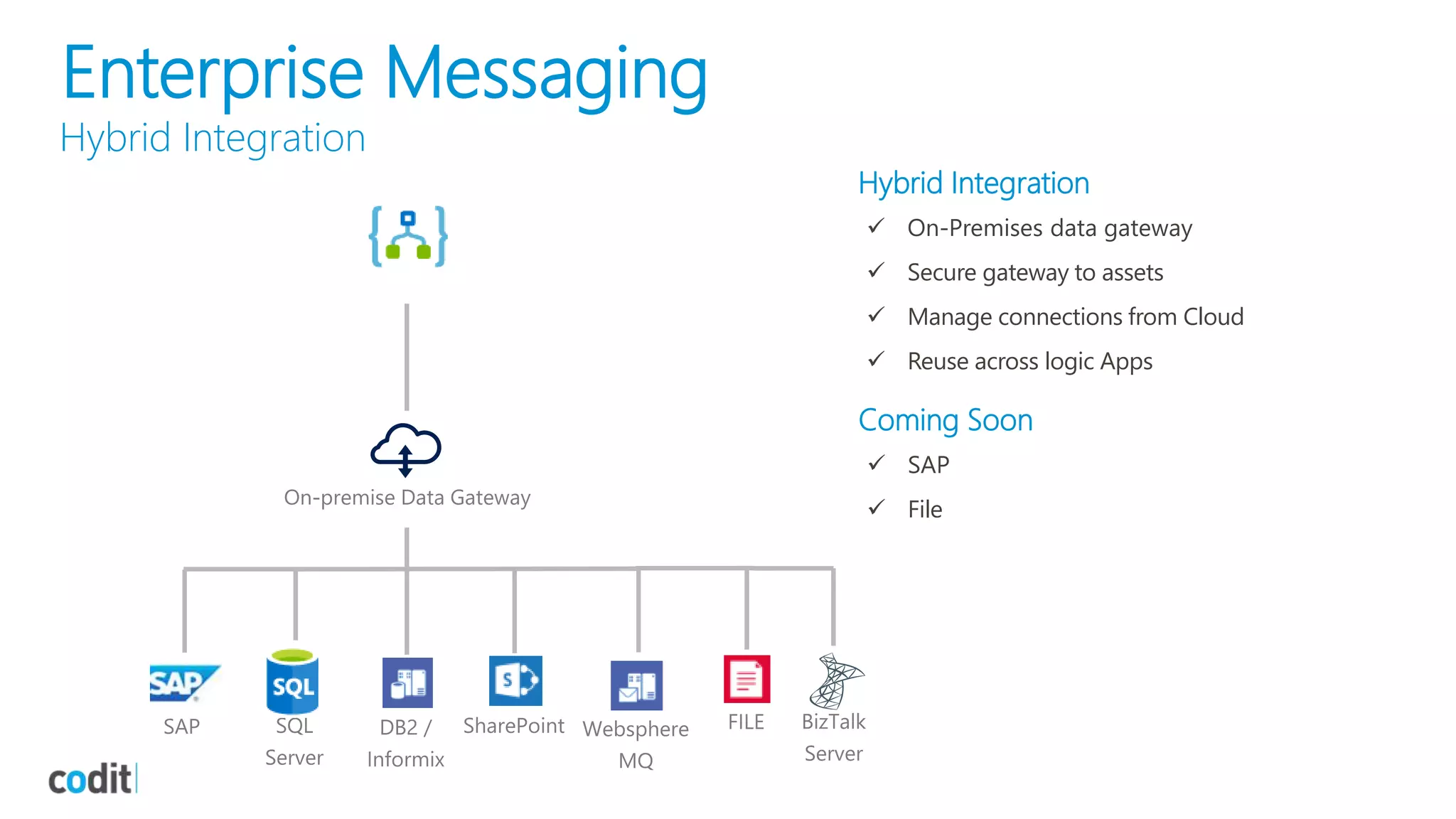

Hybrid Integration
Hybrid Integration
 On-Premises data gateway
 Secure gateway to assets
 Manage connections from Cloud
 Reuse across logic Apps
Coming Soon
 SAP
 File

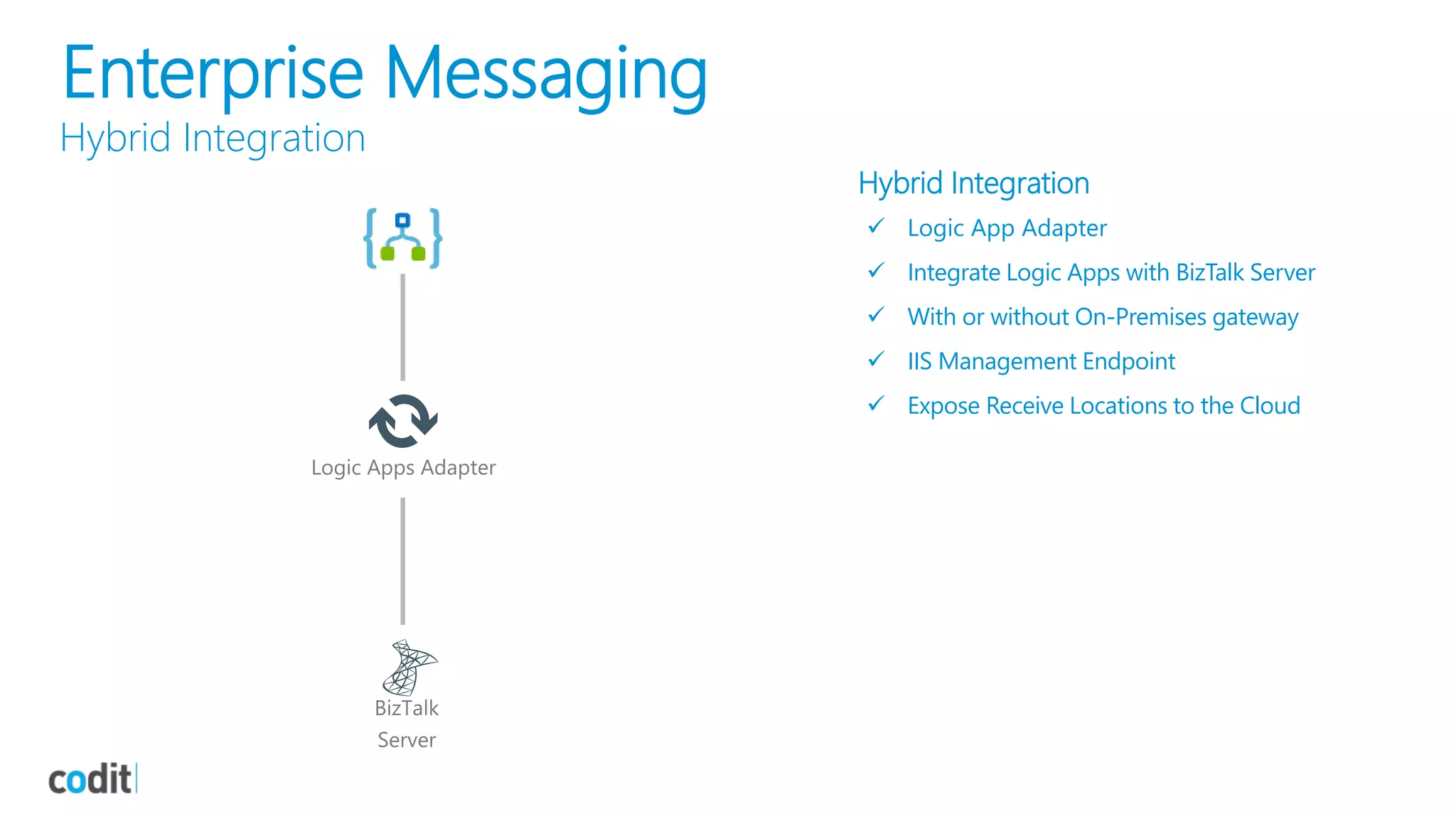

22. Enterprise Messaging
Hybrid Integration
Hybrid Integration
 Logic App Adapter
 Integrate Logic Apps with BizTalk Server
 With or without On-Premises gateway
 IIS Management Endpoint
 Expose Receive Locations to the Cloud

23. #DEMO
Enterprise Messaging

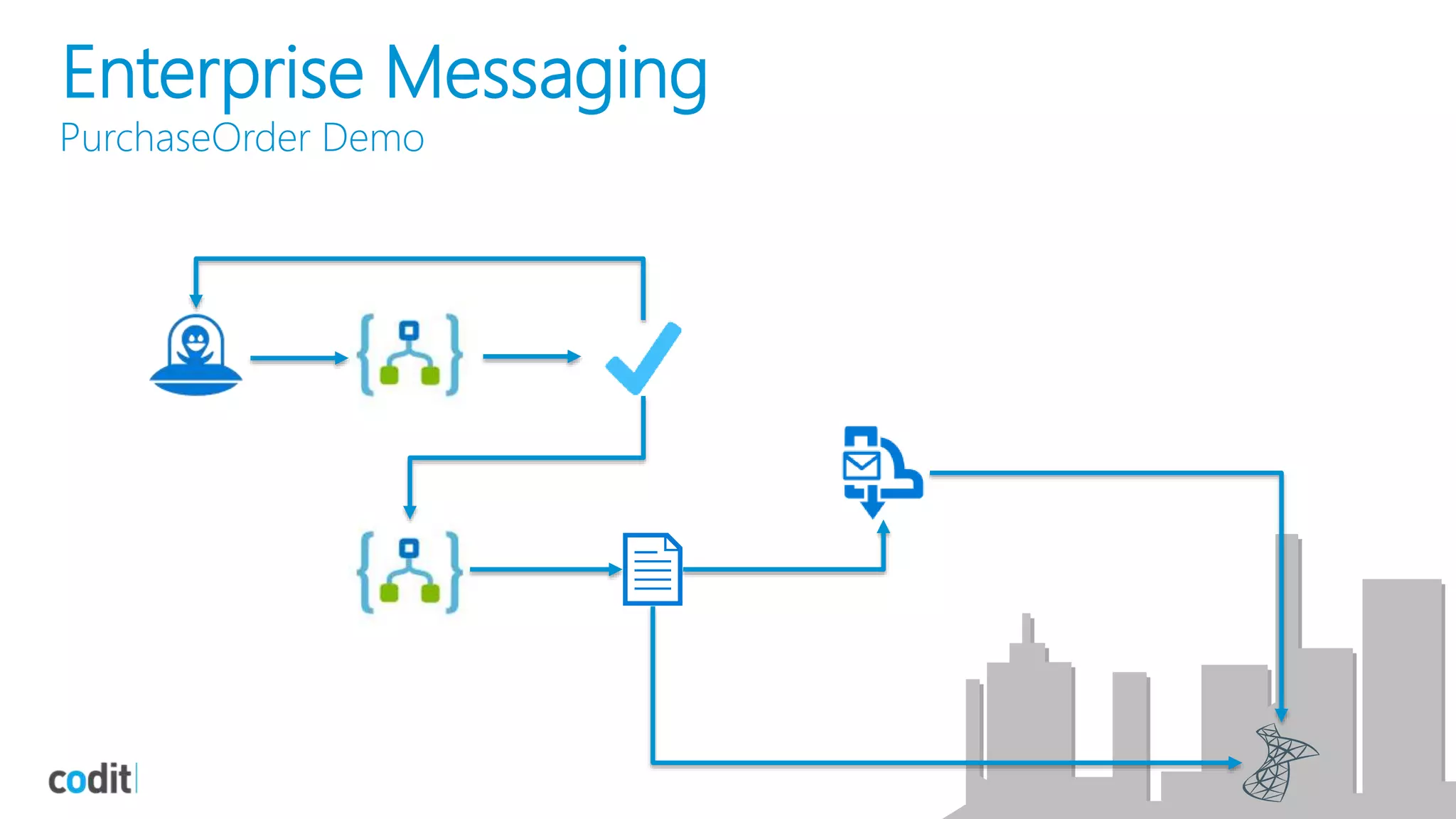

24. Enterprise Messaging
PurchaseOrder Demo

25. Tracking &Tools

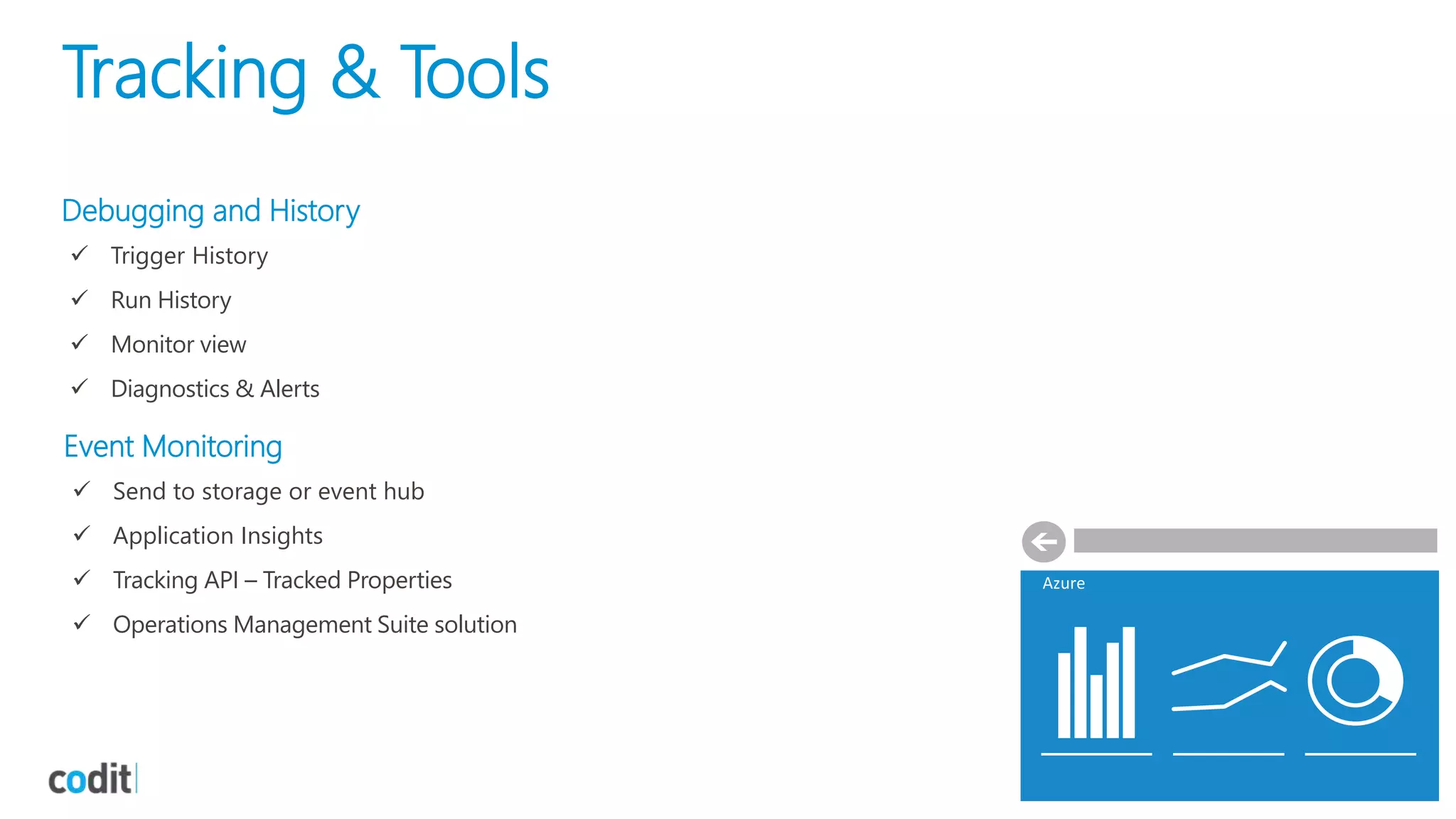

26. Tracking & Tools
Debugging and History
 Trigger History
 Run History
 Monitor view
 Diagnostics & Alerts
Azure
Event Monitoring
 Send to storage or event hub
 Application Insights
 Tracking API – Tracked Properties
 Operations Management Suite solution

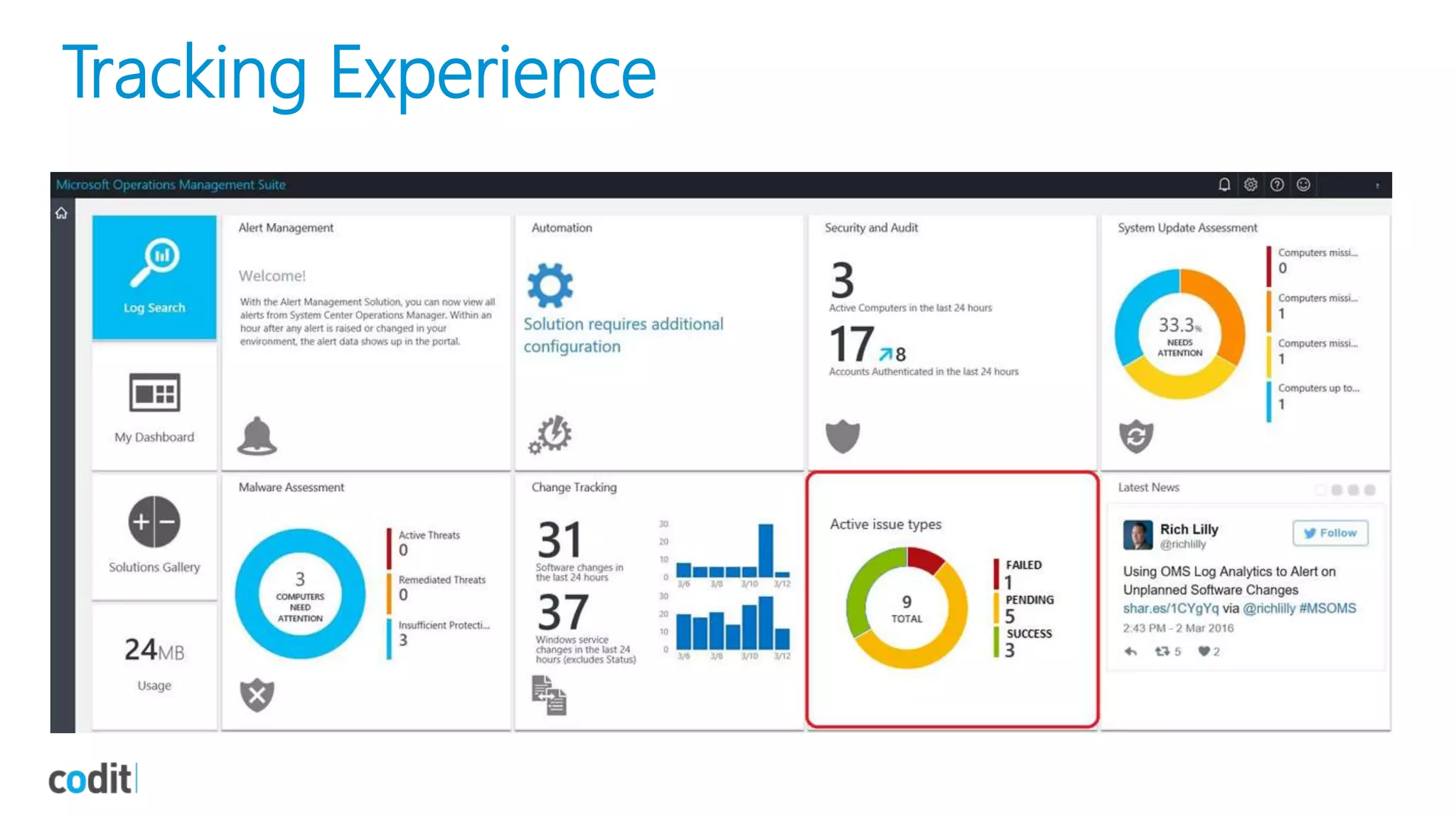

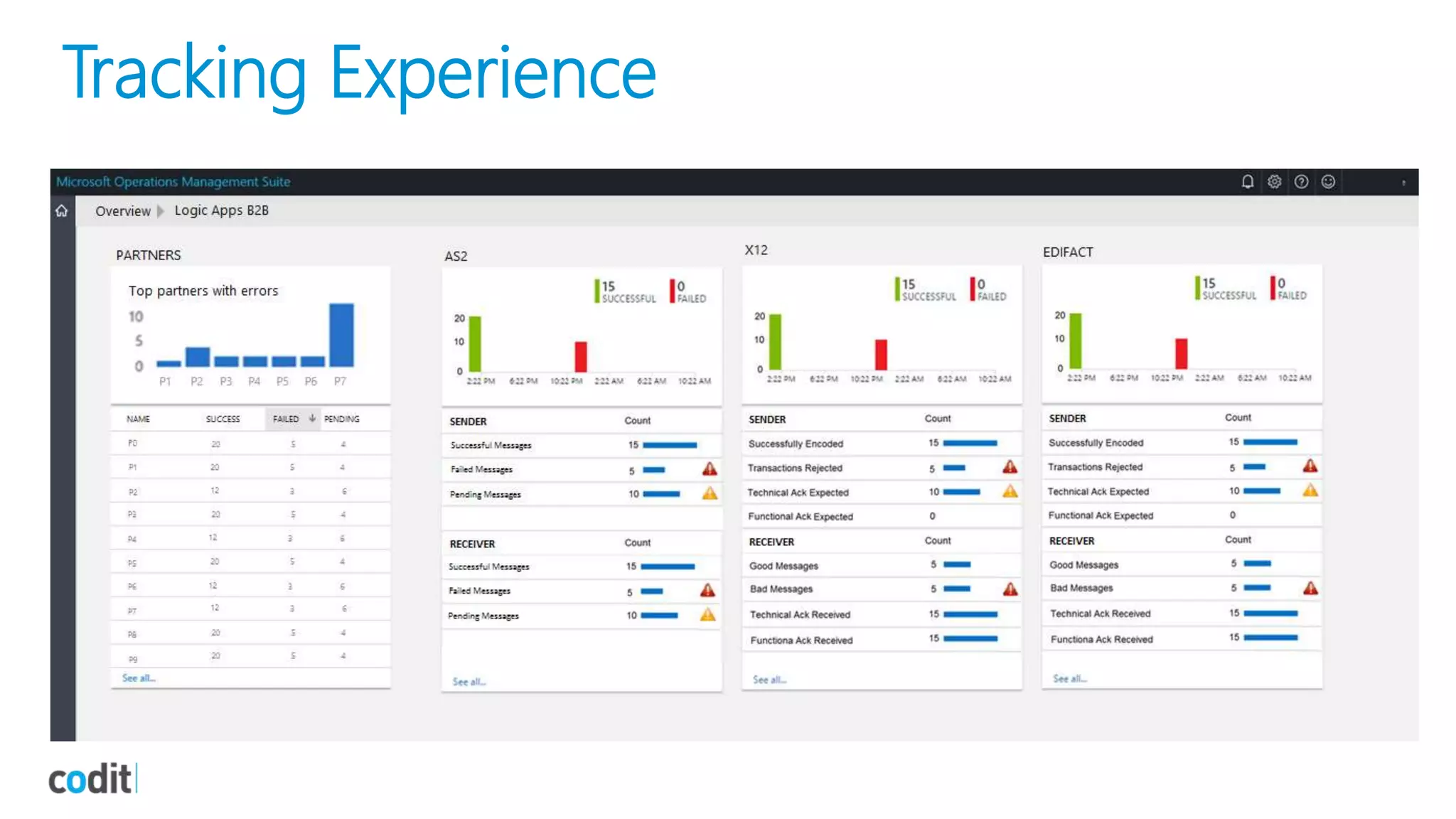

27. Tracking Experience

28. Tracking Experience
