Webinar on 1st Open Call - slideset

© 2017 – The symbIoTe Consortium
Webinar on 1st Open Call
symbIoTe
16 February 2017
Grant Agreement No 688156

© 2017 – The symbIoTe Consortium2
Meet the team!
Julia Wells
Open Call Assessment
ATOS
Maria Bianco
Open Call Manager
CNIT
Ivana Podnar Zarko
Technical Manager
UNIZG-FER
Sergios Soursos
Project Coordinator
ICOM

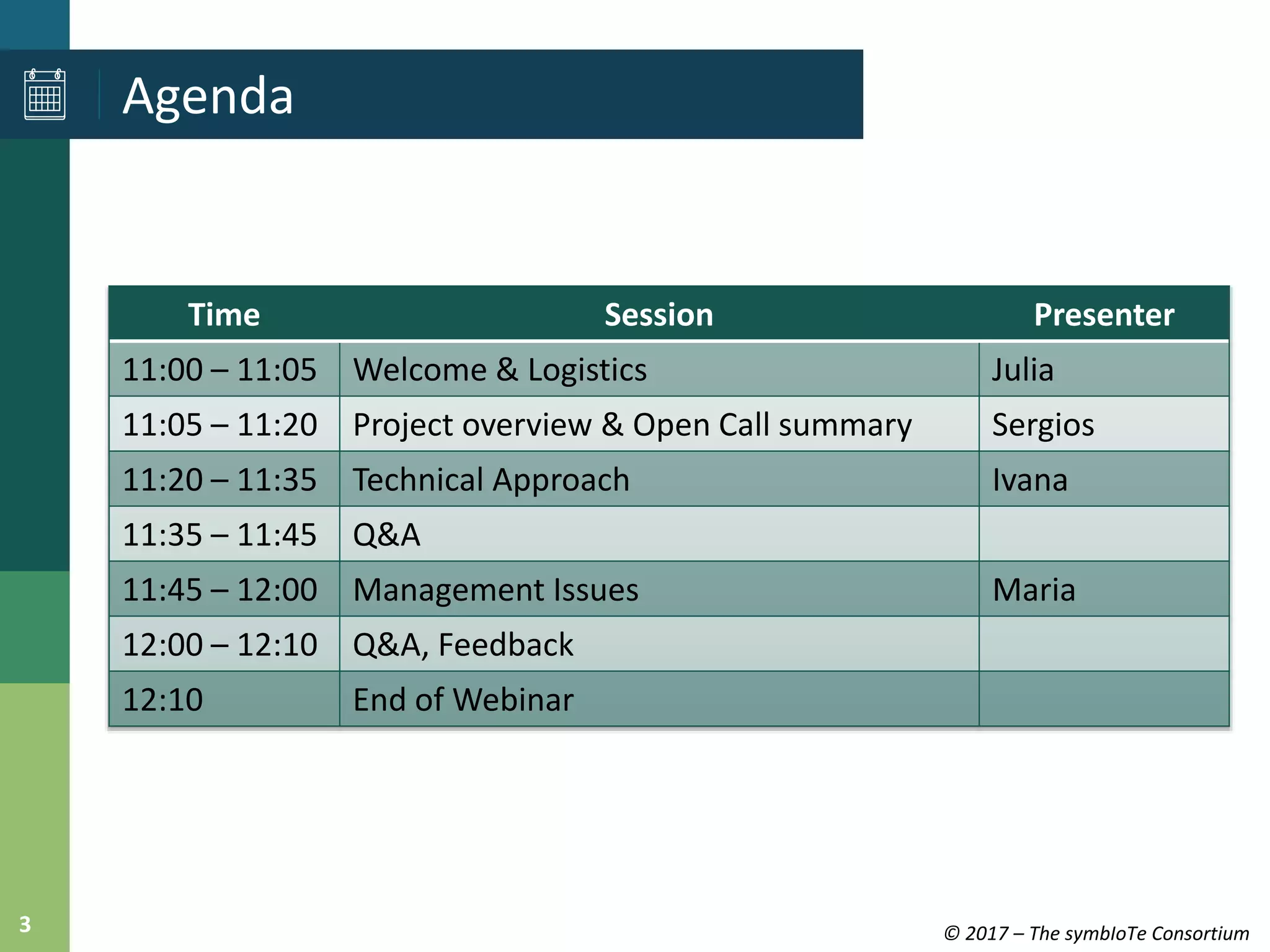

Agenda
Time Session Presenter
11:00 – 11:05 Welcome & Logistics Julia
11:05 – 11:20 Project overview & Open Call summary Sergios
11:20 – 11:35 Technical Approach Ivana
11:35 – 11:45 Q&A
11:45 – 12:00 Management Issues Maria
12:00 – 12:10 Q&A, Feedback
12:10 End of Webinar

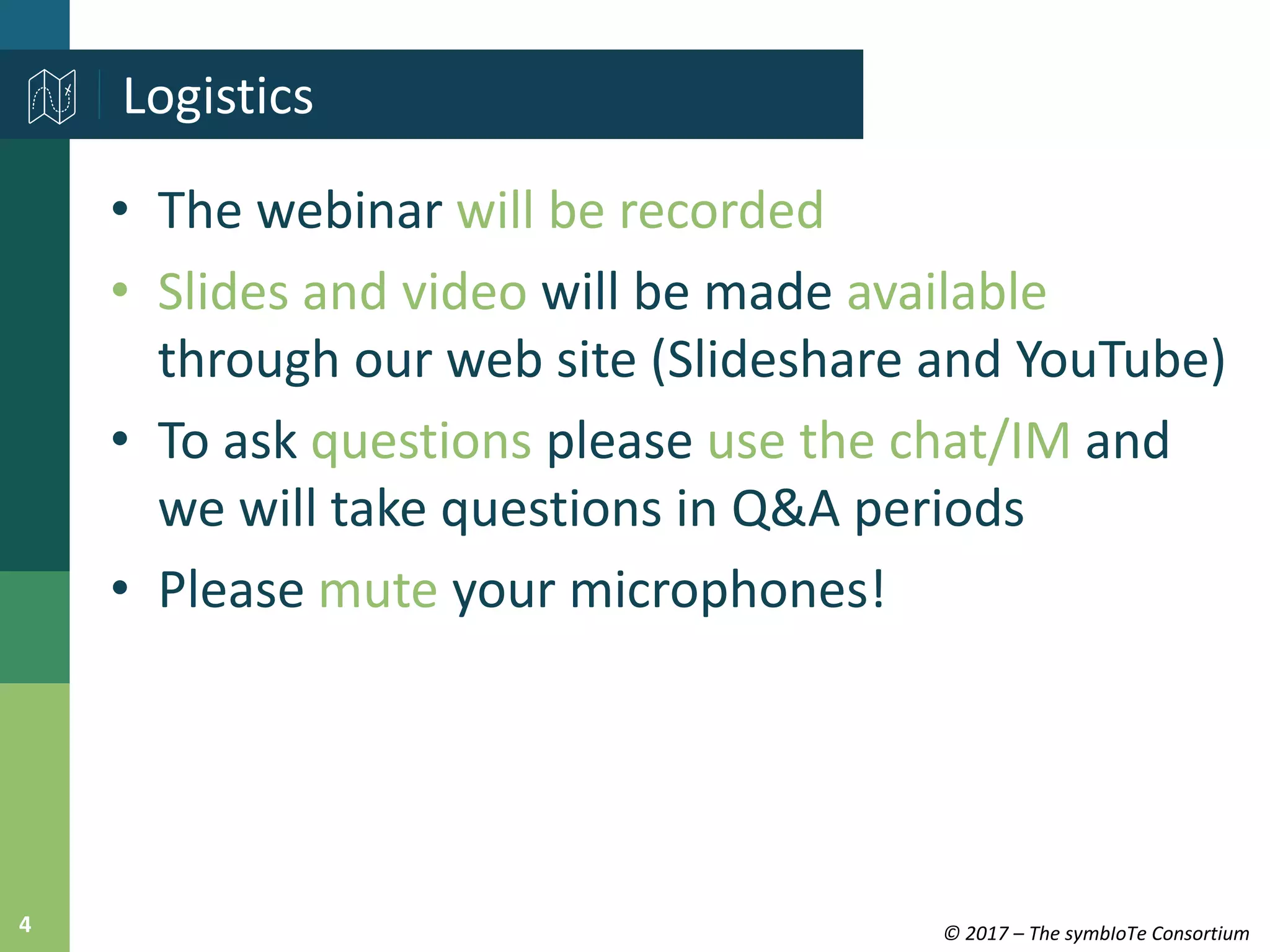

• The webinar will be recorded
• Slides and video will be made available
through our web site (Slideshare and YouTube)
• To ask questions please use the chat/IM and
we will take questions in Q&A periods
• Please mute your microphones!
Logistics

Project overview and
1st Open Call summary
symbIoTe
Sergios Soursos, Intracom SA Telecom Solutions
Project Manager

• IoT platforms offer vertical solutions, closed silos
– focusing in one domain
• Absence of cross-domain apps
– life is multi-dimensional
– partnerships sought
• Collocated platforms
– multiple installations
– increased costs
• Maintenance of e2e solutions
– high market entry barrier
– will a single standard/technology/protocol prevail?
• End users
– vendor lock-in
– multiple apps
IoT Landscape & Motivation

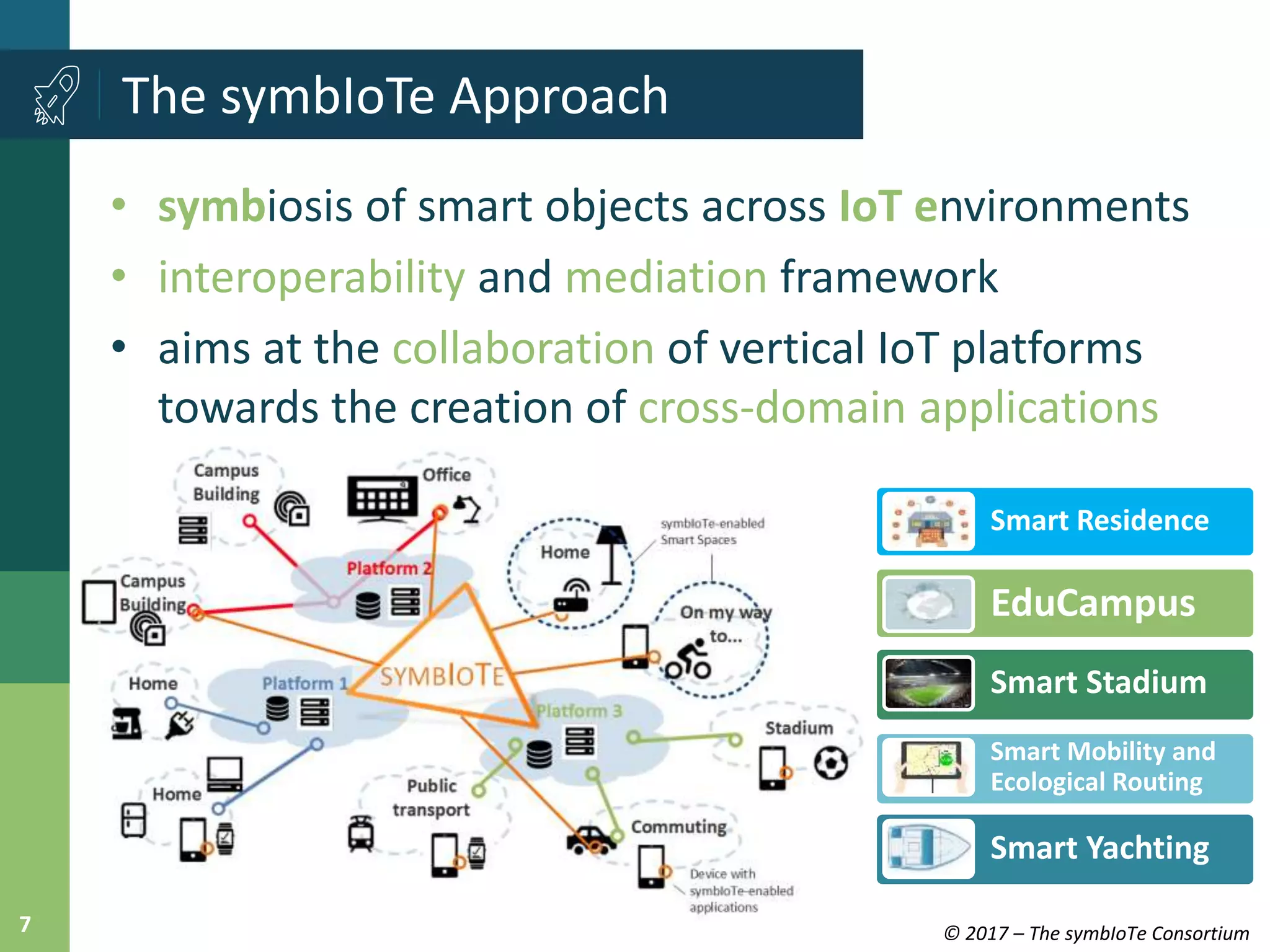

• symbiosis of smart objects across IoT environments
• interoperability and mediation framework
• aims at the collaboration of vertical IoT platforms
towards the creation of cross-domain applications
The symbIoTe Approach
Smart Residence
EduCampus
Smart Stadium
Smart Mobility and
Ecological Routing
Smart Yachting

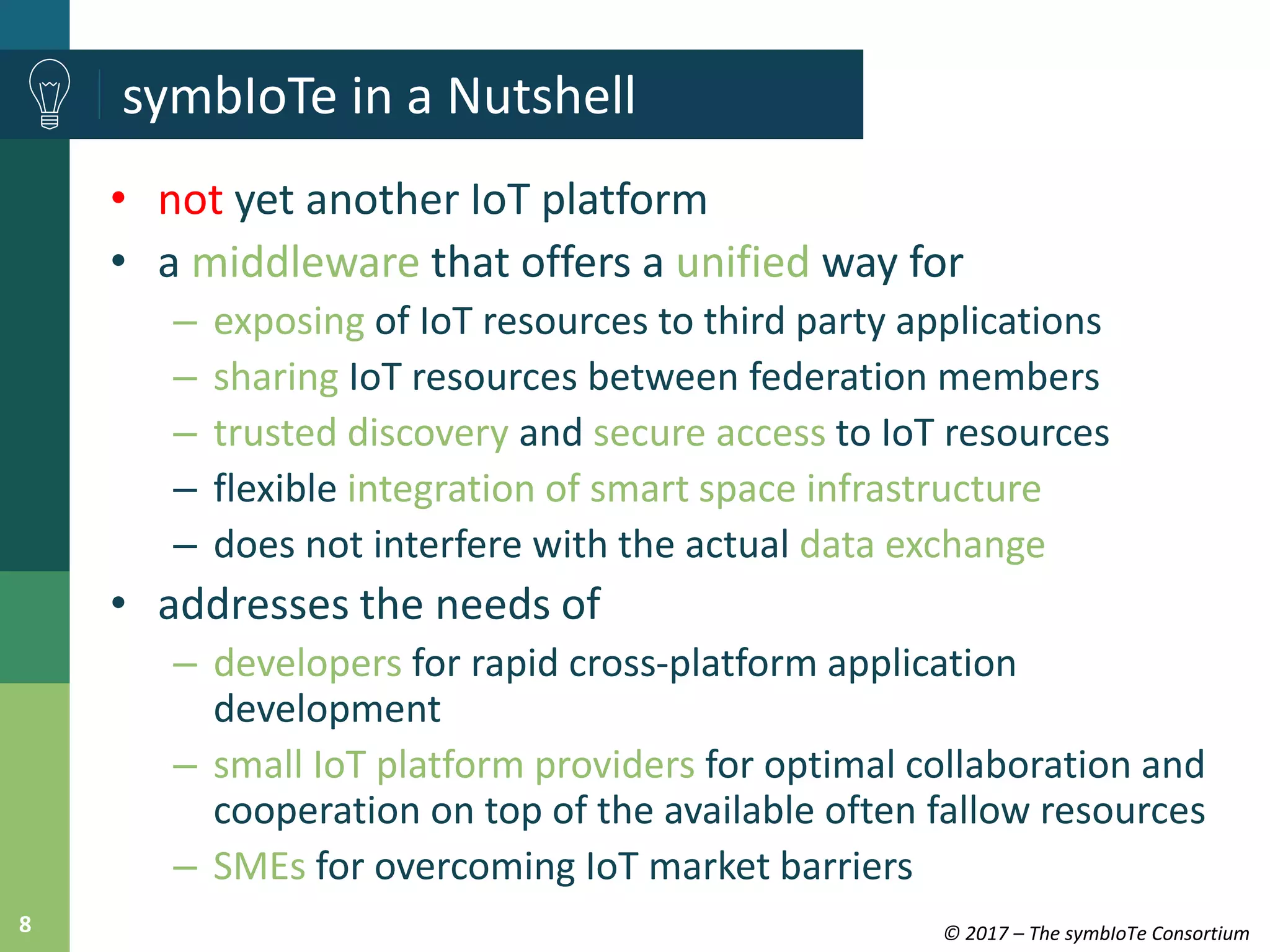

symbIoTe in a Nutshell
• not yet another IoT platform
• a middleware that offers a unified way for
– exposing of IoT resources to third party applications
– sharing IoT resources between federation members
– trusted discovery and secure access to IoT resources
– flexible integration of smart space infrastructure
– does not interfere with the actual data exchange
• addresses the needs of
– developers for rapid cross-platform application
development
– small IoT platform providers for optimal collaboration and
cooperation on top of the available often fallow resources
– SMEs for overcoming IoT market barriers

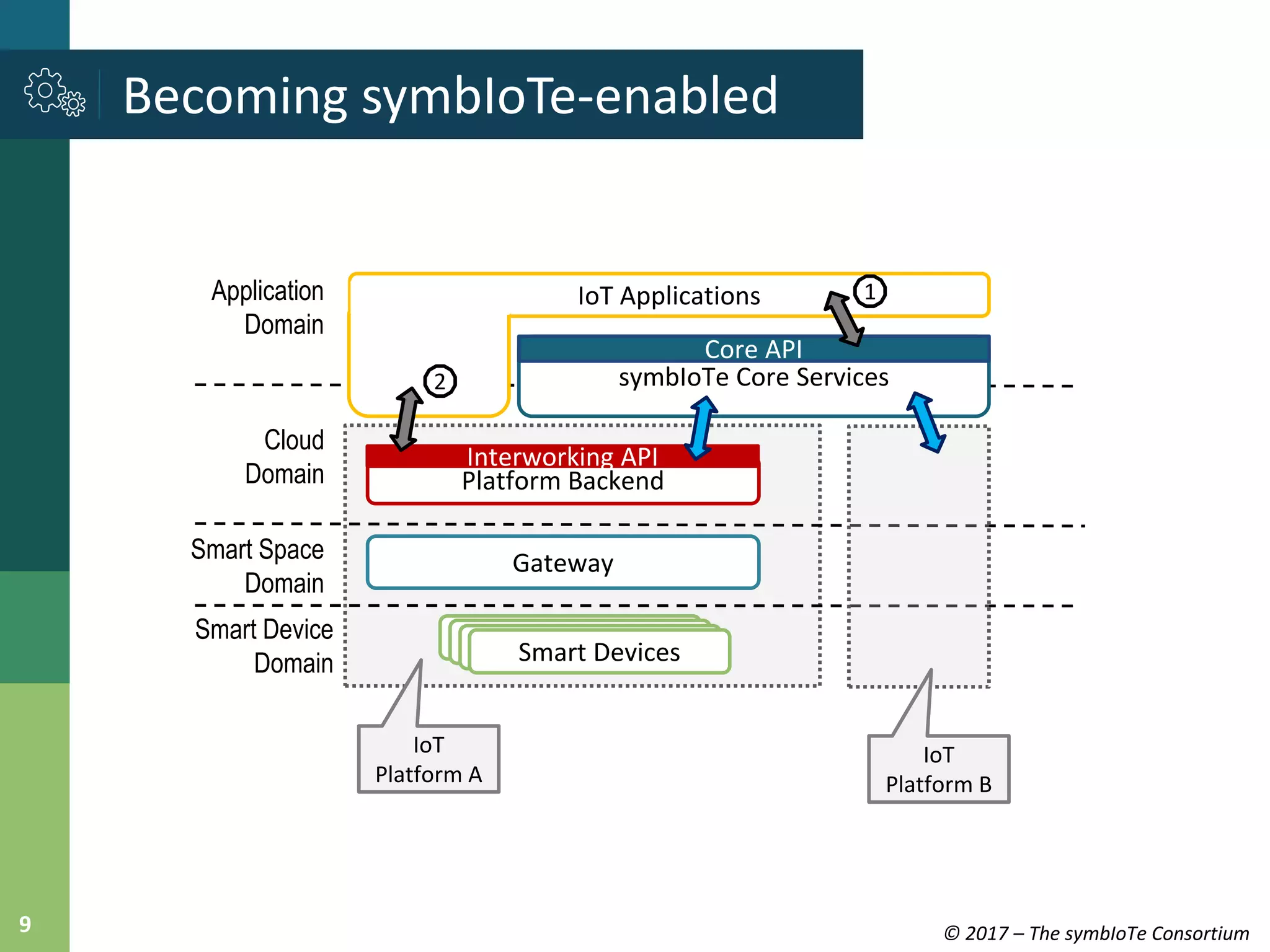

Becoming symbIoTe-enabled
Application
Domain
Cloud
Domain
Smart Space
Domain
Smart Device
Domain
Gateway
Smart DevicesSmart DevicesSmart DevicesSmart Devices
Platform Backend
Interworking API
IoT
Platform A
symbIoTe Core Services
Core API
IoT
Platform B
IoT Applications 1
2

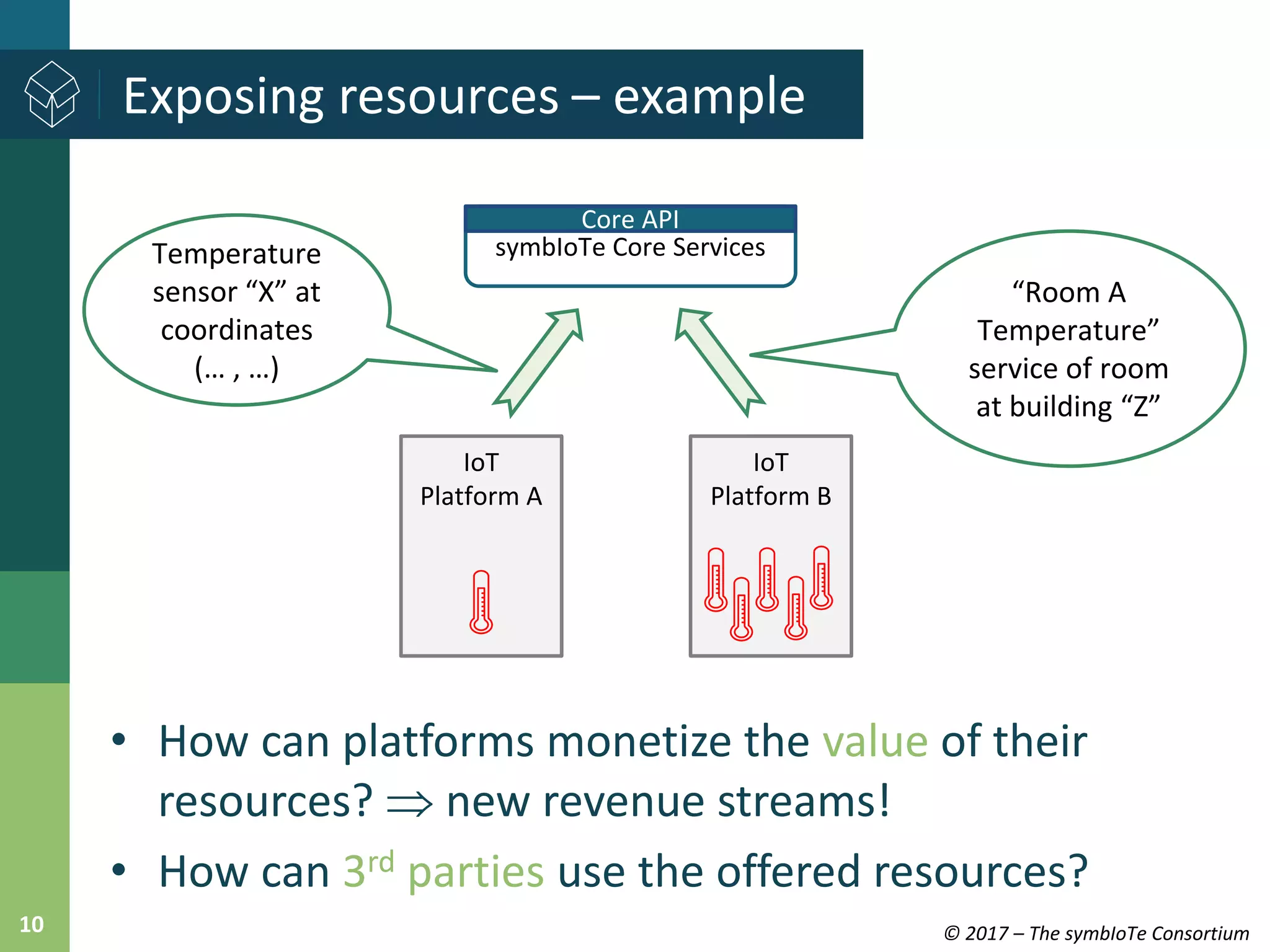

Exposing resources – example
Core API
IoT
Platform A
IoT
Platform B
Temperature
sensor “X” at
coordinates
(… , …)
“Room A
Temperature”
service of room
at building “Z”

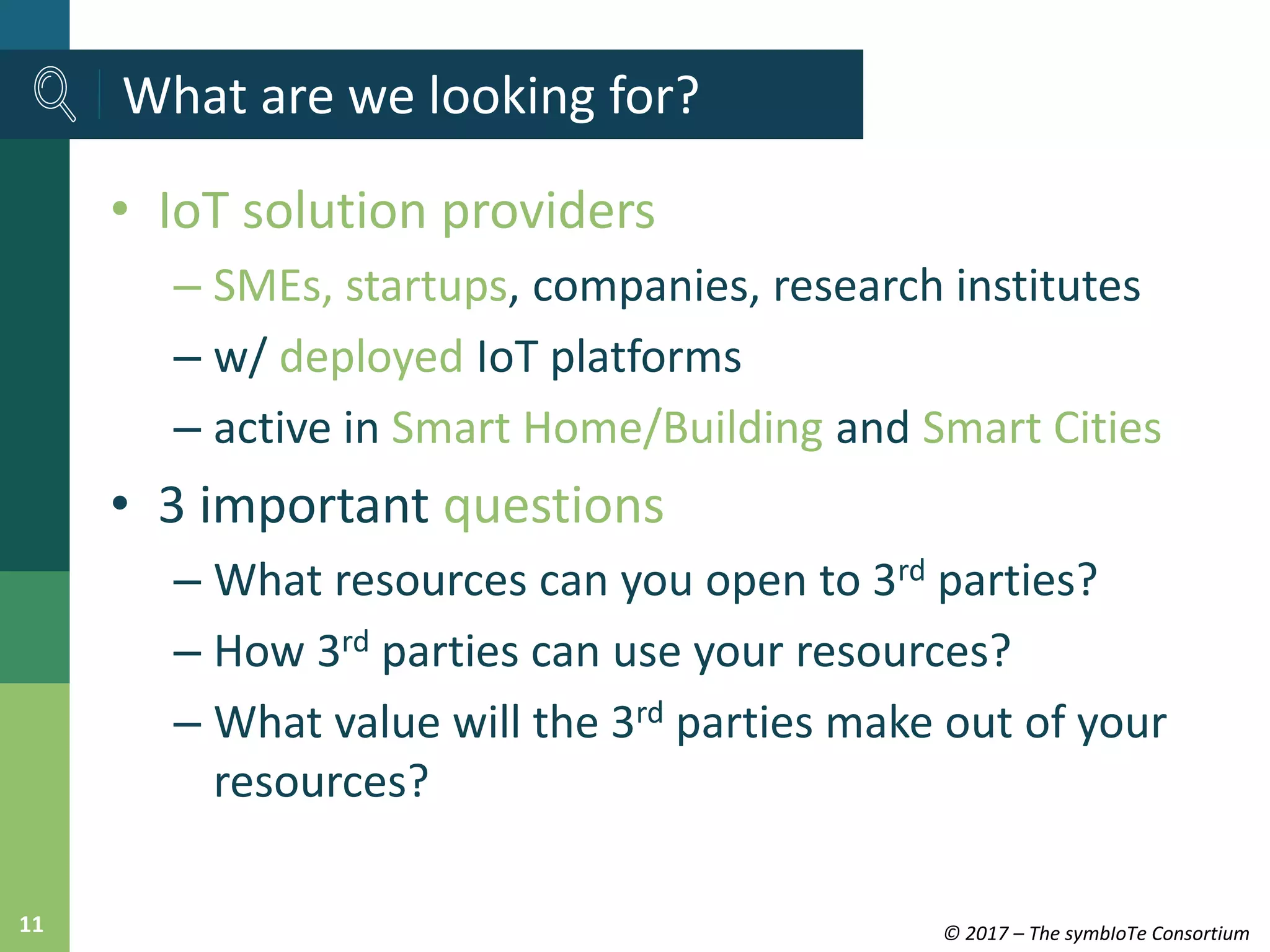

• How can platforms monetize the value of their
resources?  new revenue streams!
• How can 3rd parties use the offered resources?

• IoT solution providers
– SMEs, startups, companies, research institutes
– w/ deployed IoT platforms
– active in Smart Home/Building and Smart Cities
• 3 important questions
– What resources can you open to 3rd parties?
– How 3rd parties can use your resources?
– What value will the 3rd parties make out of your
resources?
What are we looking for?

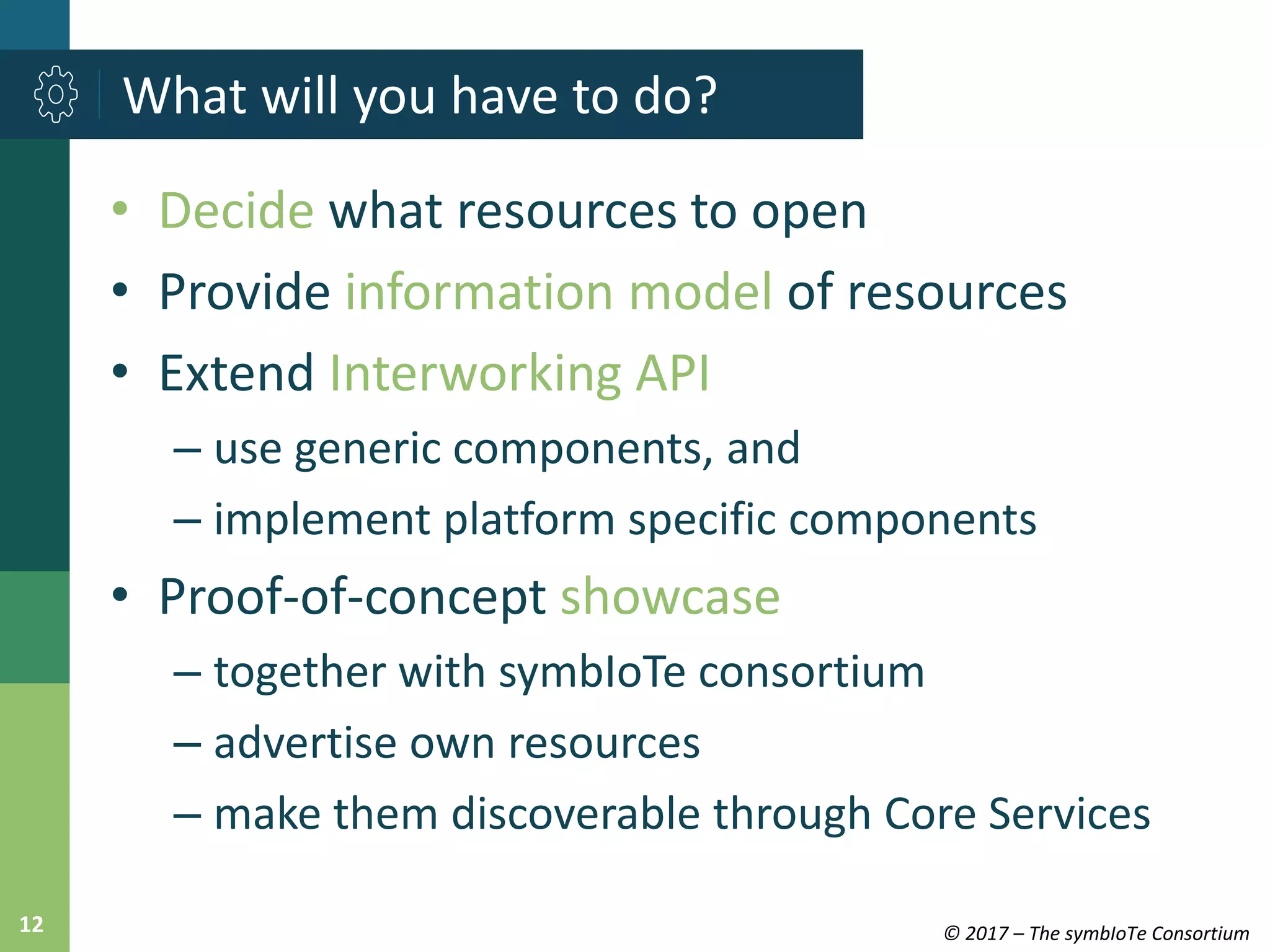

• Decide what resources to open
• Provide information model of resources
• Extend Interworking API
– use generic components, and
– implement platform specific components
• Proof-of-concept showcase
– together with symbIoTe consortium
– advertise own resources
– make them discoverable through Core Services
What will you have to do?

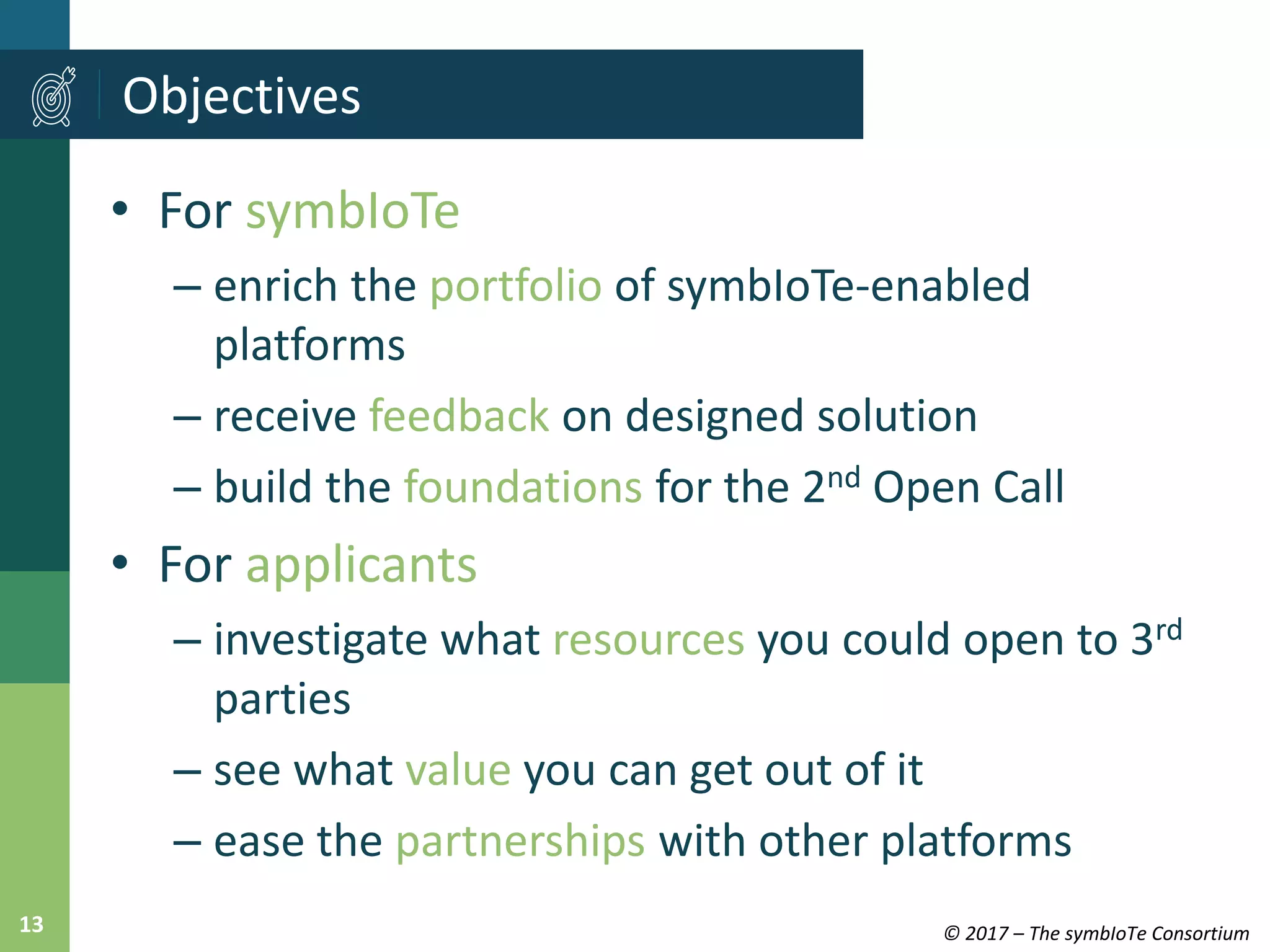

• For symbIoTe
– enrich the portfolio of symbIoTe-enabled
platforms
– receive feedback on designed solution
– build the foundations for the 2nd Open Call
• For applicants
– investigate what resources you could open to 3rd
parties
– see what value you can get out of it
– ease the partnerships with other platforms
Objectives

Technical Approach for
Level 1 Compliance
symbIoTe
Ivana Podnar Žarko, University of Zagreb
Technical Manager

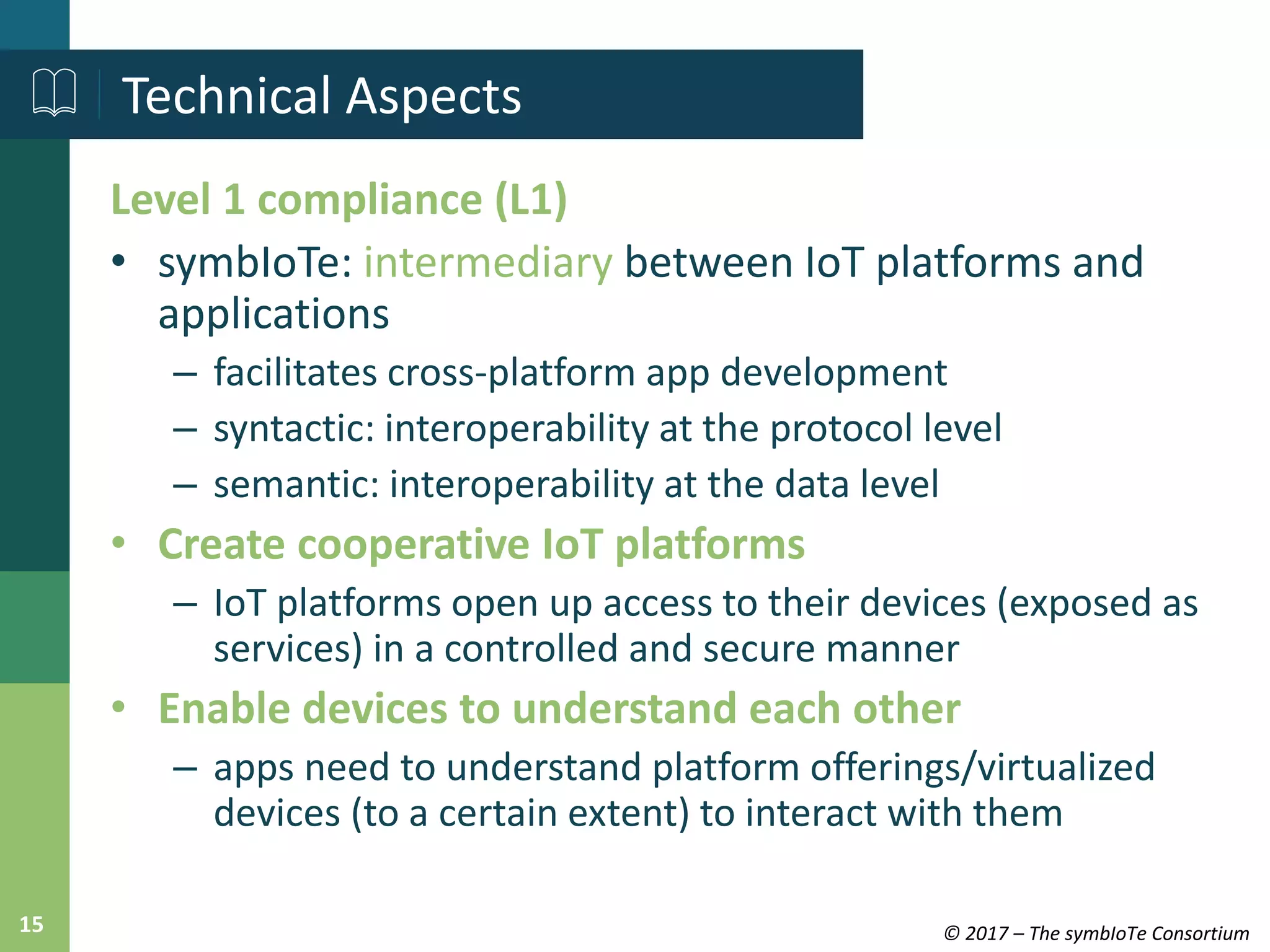

Level 1 compliance (L1)
• symbIoTe: intermediary between IoT platforms and
applications
– facilitates cross-platform app development
– syntactic: interoperability at the protocol level
– semantic: interoperability at the data level
• Create cooperative IoT platforms
– IoT platforms open up access to their devices (exposed as
services) in a controlled and secure manner
• Enable devices to understand each other
– apps need to understand platform offerings/virtualized
devices (to a certain extent) to interact with them
Technical Aspects

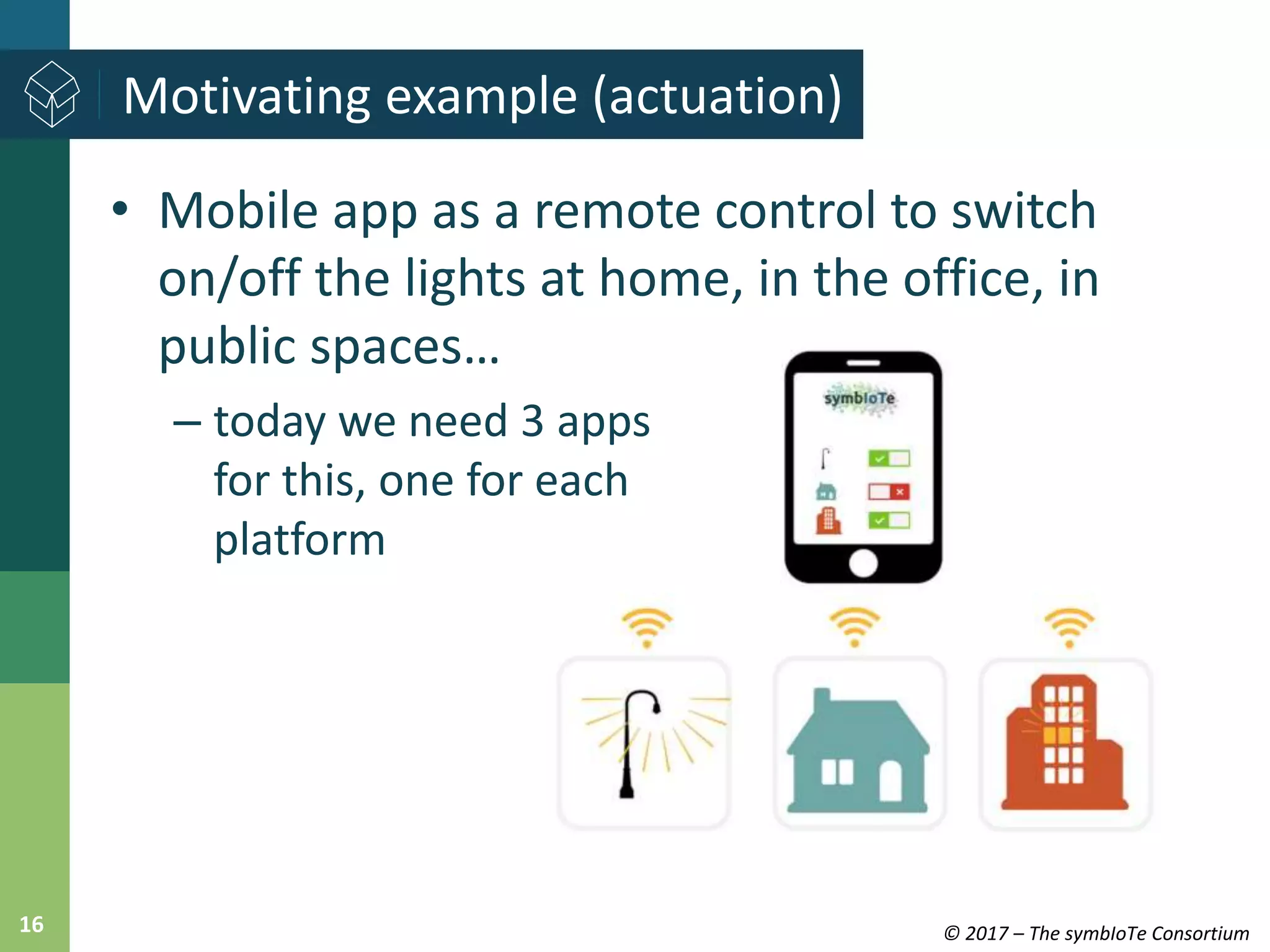

• Mobile app as a remote control to switch
on/off the lights at home, in the office, in
public spaces…
– today we need 3 apps
for this, one for each
platform
Motivating example (actuation)

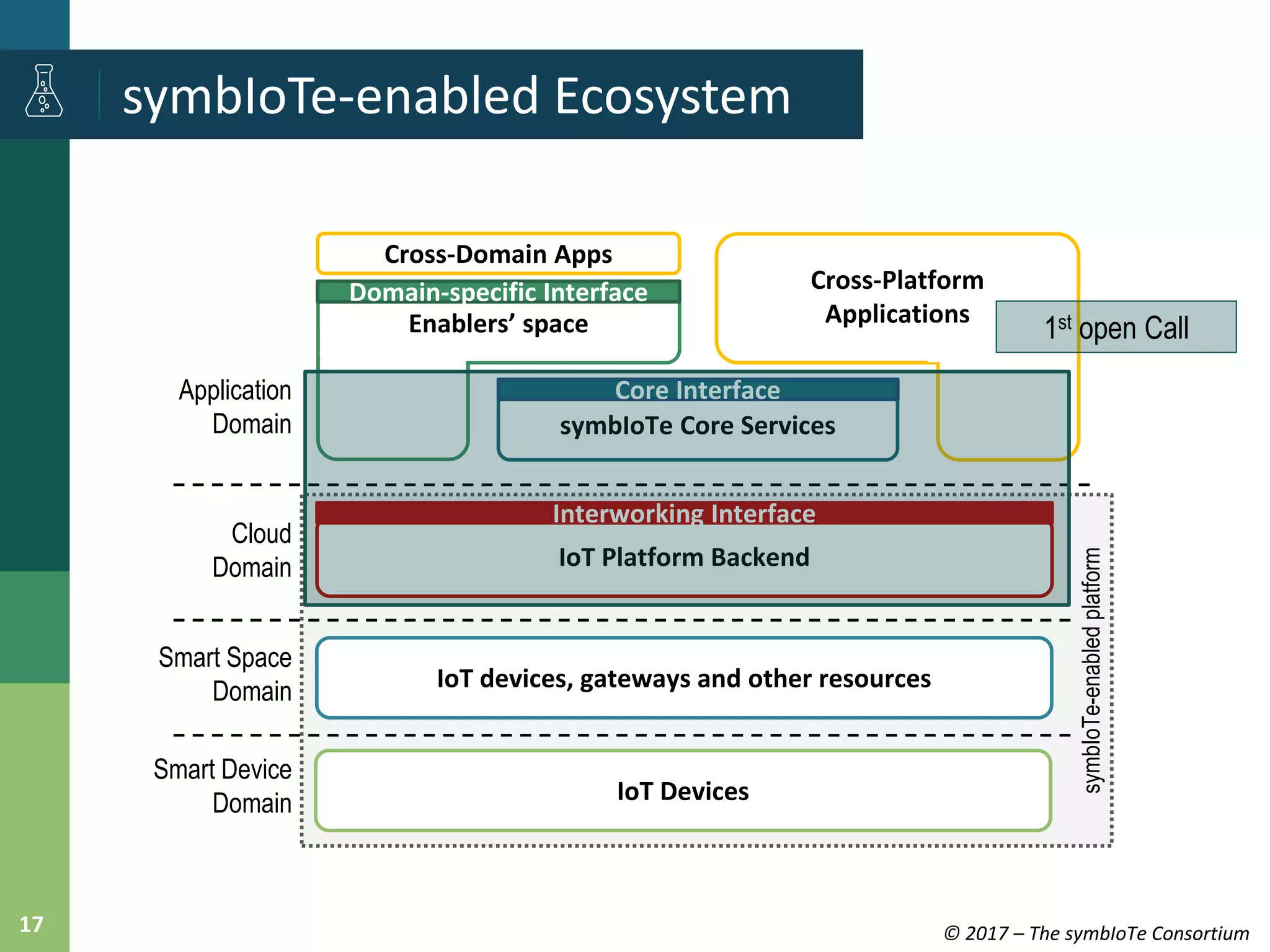

symbIoTe-enabled Ecosystem
Smart Space
Domain
Smart Device
Domain
Enablers’ space
IoT Platform Backend
IoT devices, gateways and other resources
Interworking Interface
IoT Devices
Core Interface
Cross-Domain Apps
Domain-specific Interface
Application
Domain
Cloud
Domain
Cross-Platform
Applications
symbIoTe-enabledplatform
1st open Call

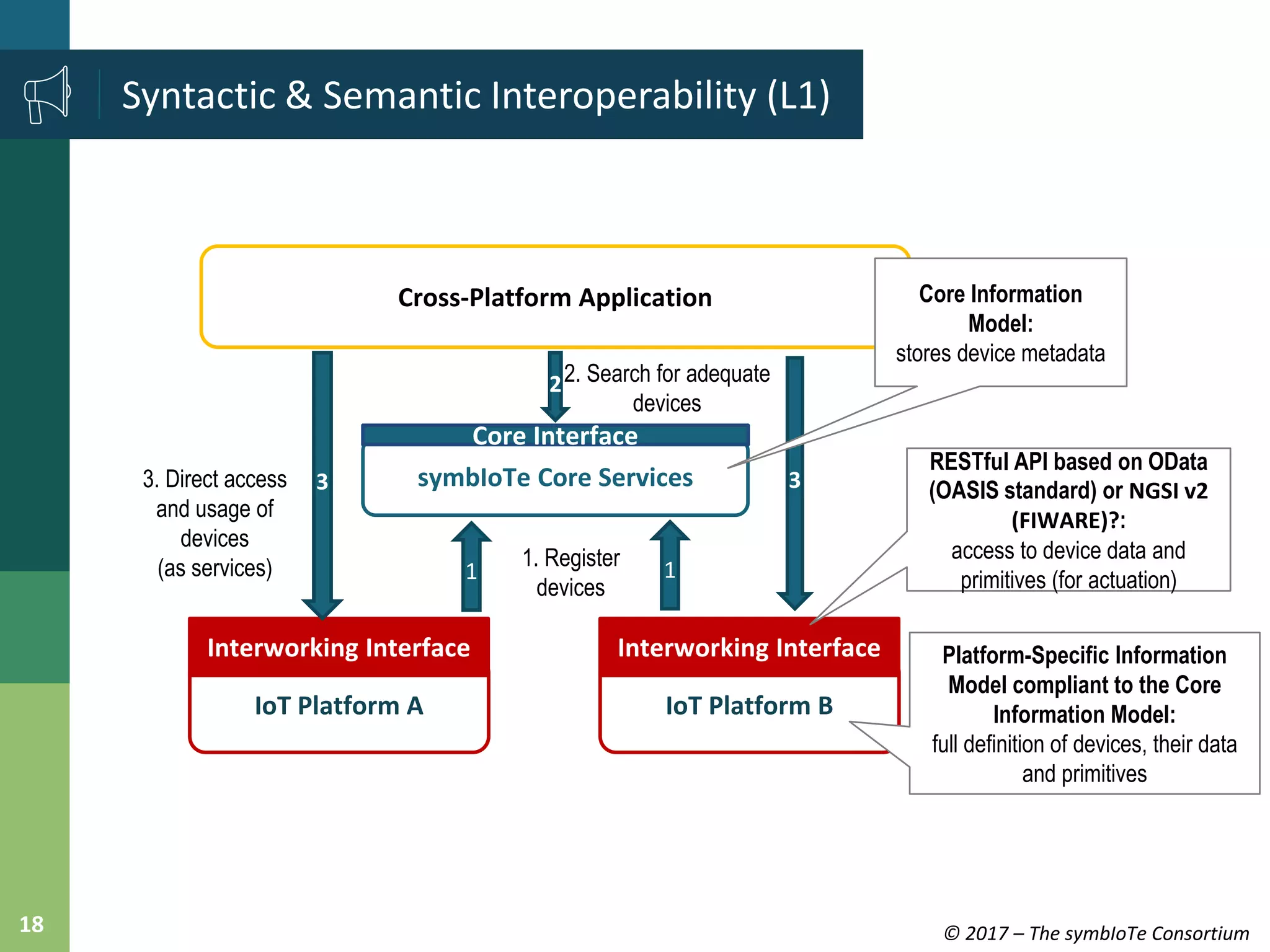

Syntactic & Semantic Interoperability (L1)
3. Direct access
and usage of
devices
(as services)
Cross-Platform Application
IoT Platform A
Core Interface
IoT Platform B
22. Search for adequate
devices
33
Core Information
Model:
stores device metadata
Platform-Specific Information
Model compliant to the Core
Information Model:
full definition of devices, their data
and primitives
RESTful API based on OData
(OASIS standard) or NGSI v2
(FIWARE)?:
access to device data and
primitives (for actuation)11
1. Register
devices

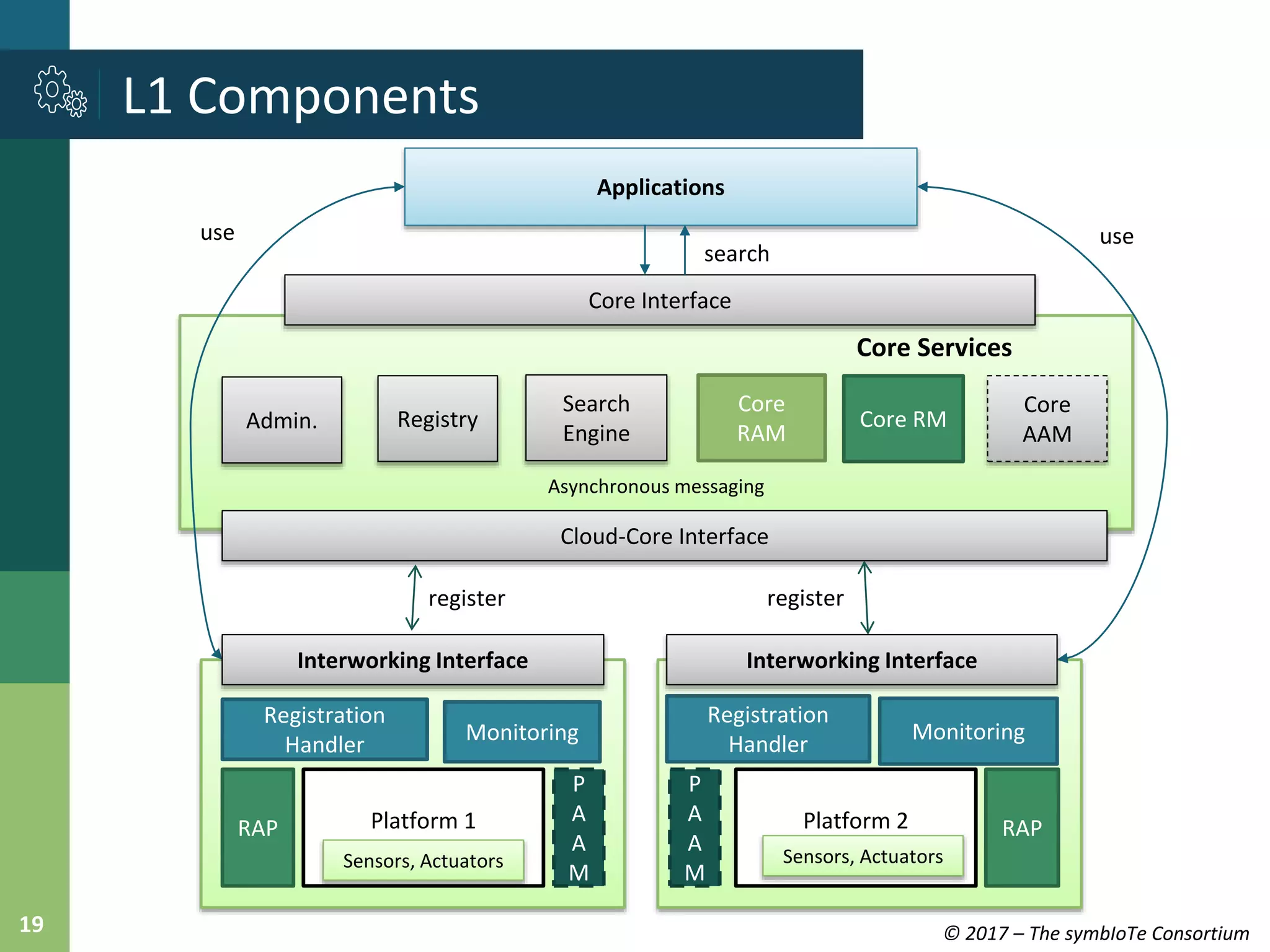

L1 Components
Asynchronous messaging
Platform 1 Platform 2
Sensors, Actuators
Registration
Handler
Registry
Search
Engine
Core
RAM
Applications
Core Interface
RAP RAP
Admin. Core RM
Cloud-Core Interface
Sensors, Actuators
Monitoring
Registration
Handler
Monitoring
P
A
A
M
P
A
A
M
Core
AAM
Core Services
search
register
useuse
register

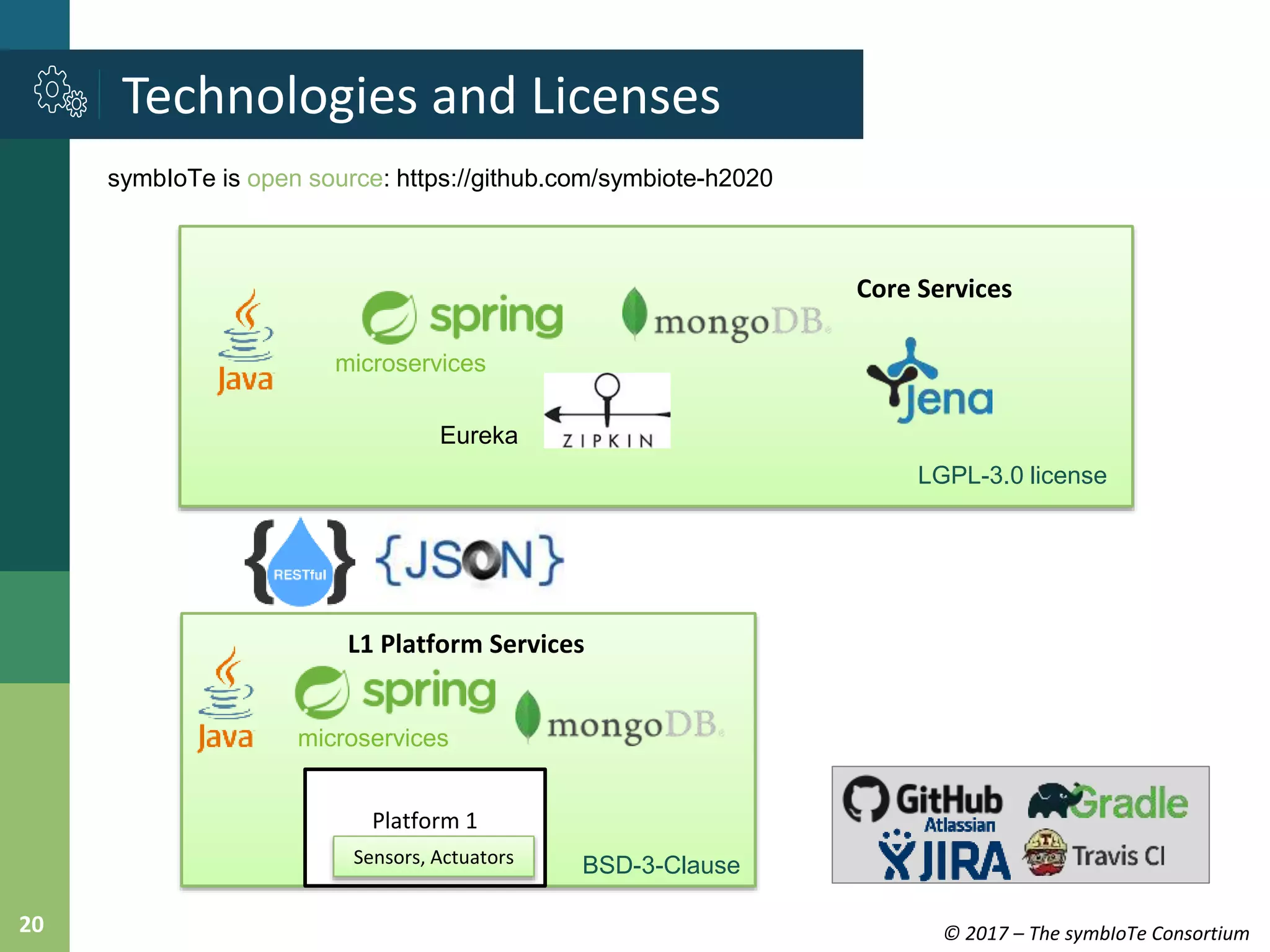

Technologies and Licenses
Platform 1
Sensors, Actuators
Core Services
symbIoTe is open source: https://github.com/symbiote-h2020
L1 Platform Services
microservices
microservices
Eureka
LGPL-3.0 license
BSD-3-Clause

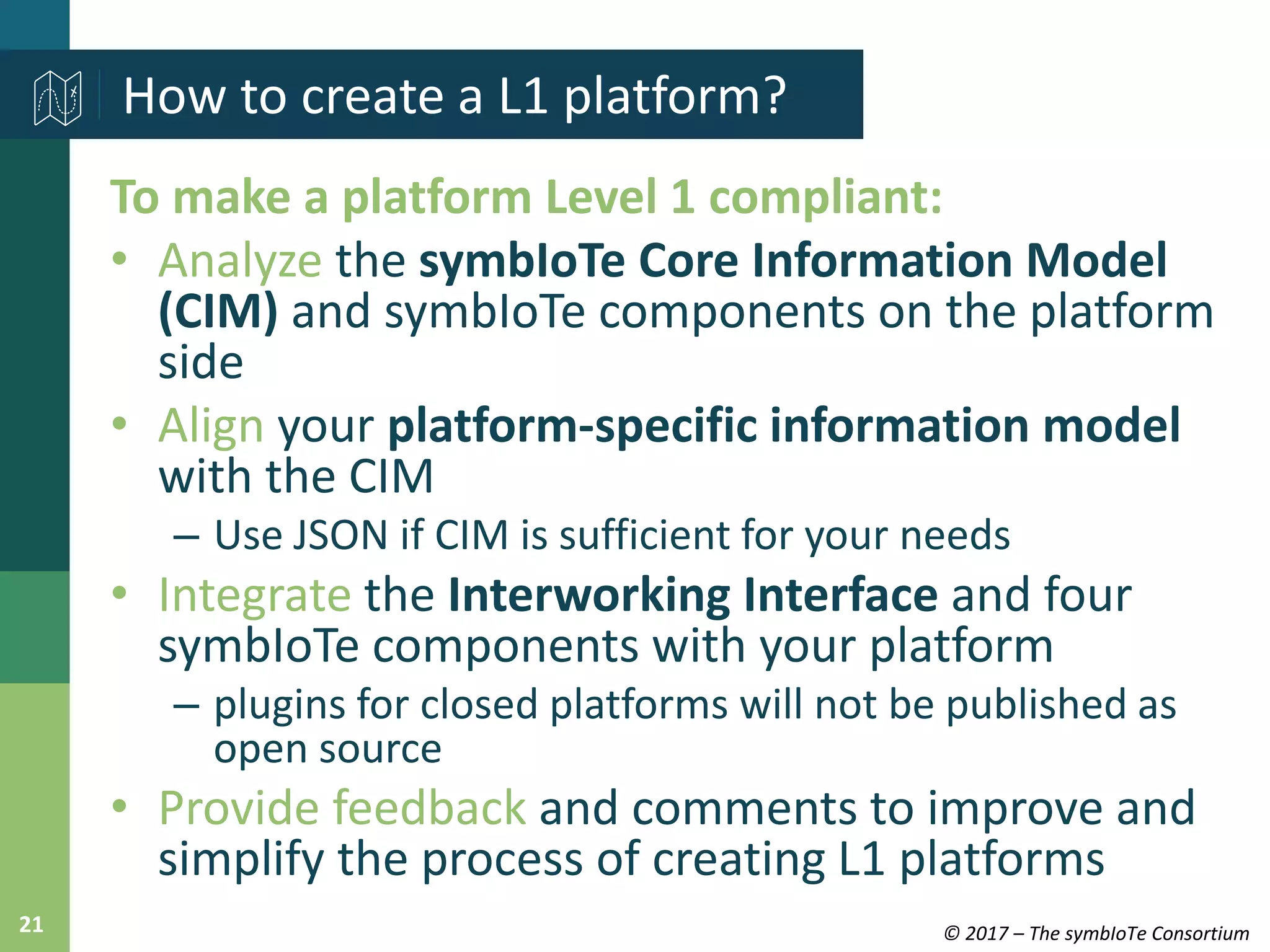

To make a platform Level 1 compliant:
• Analyze the symbIoTe Core Information Model
(CIM) and symbIoTe components on the platform
side
• Align your platform-specific information model
with the CIM
– Use JSON if CIM is sufficient for your needs
• Integrate the Interworking Interface and four
symbIoTe components with your platform
– plugins for closed platforms will not be published as
open source
• Provide feedback and comments to improve and
simplify the process of creating L1 platforms
How to create a L1 platform?

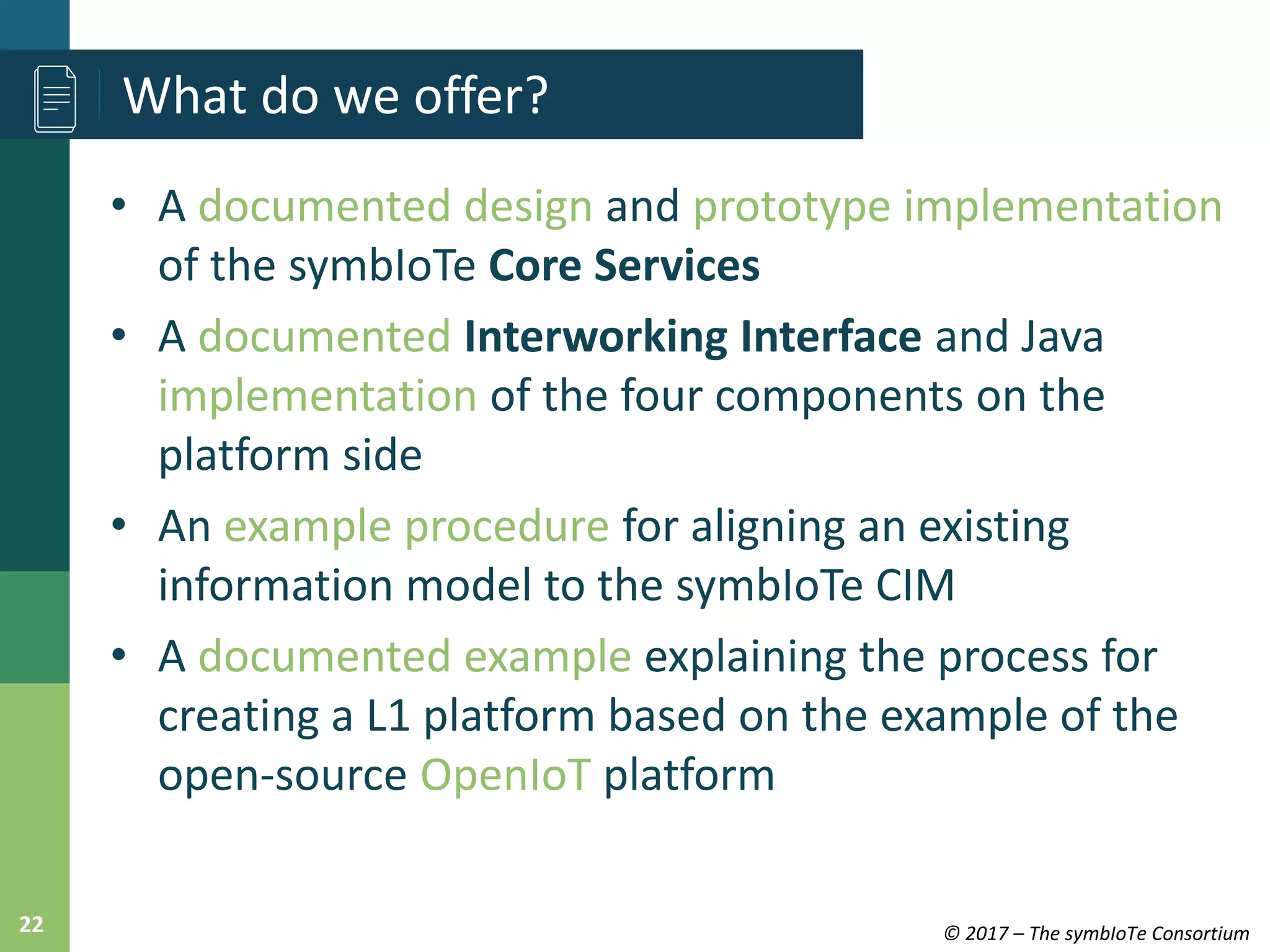

• A documented design and prototype implementation
of the symbIoTe Core Services
• A documented Interworking Interface and Java
implementation of the four components on the
platform side
• An example procedure for aligning an existing
information model to the symbIoTe CIM
• A documented example explaining the process for
creating a L1 platform based on the example of the
open-source OpenIoT platform
What do we offer?

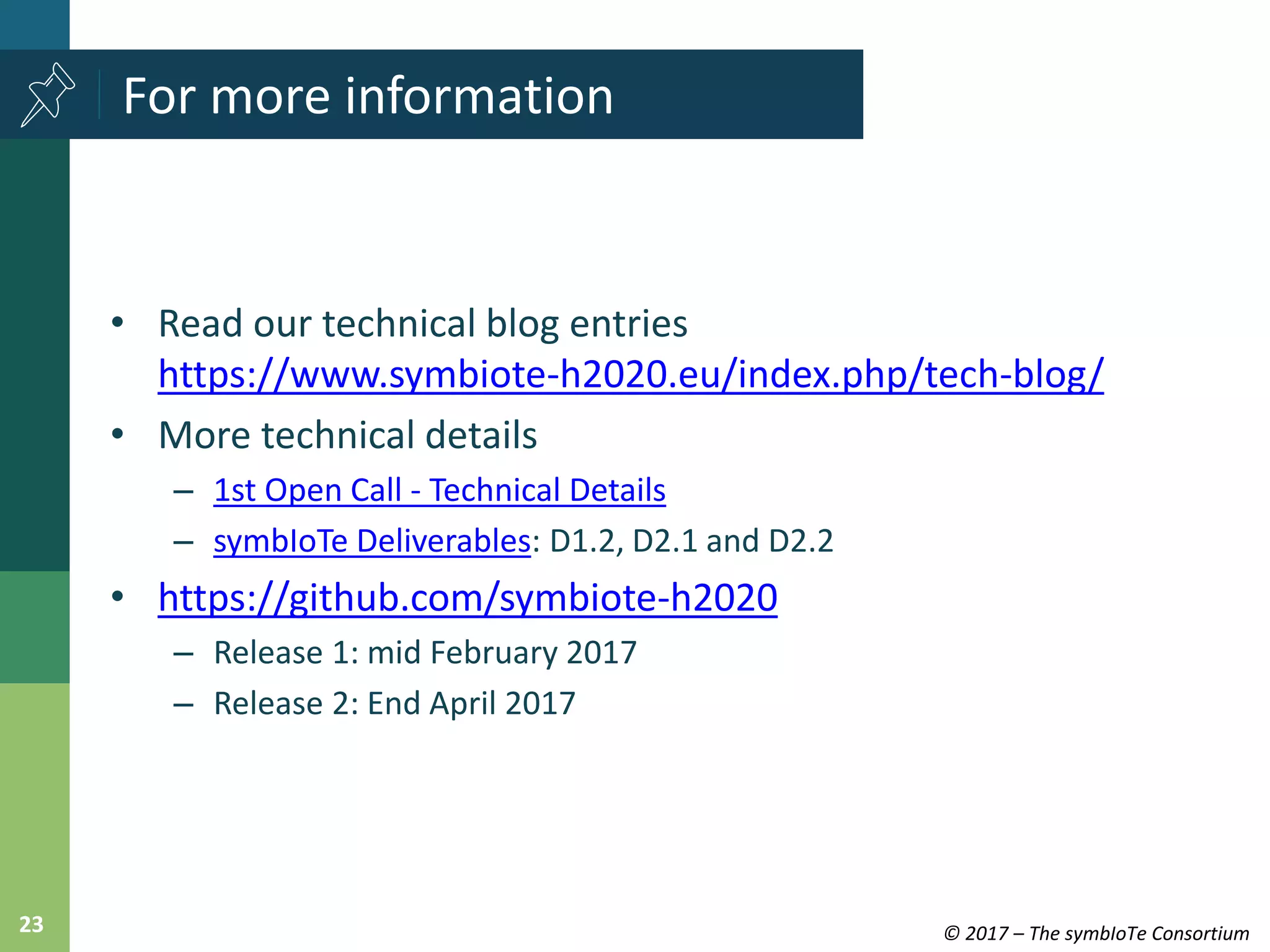

• Read our technical blog entries
https://www.symbiote-h2020.eu/index.php/tech-blog/
• More technical details
– 1st Open Call - Technical Details
– symbIoTe Deliverables: D1.2, D2.1 and D2.2
• https://github.com/symbiote-h2020
– Release 1: mid February 2017
– Release 2: End April 2017
For more information

Thank you!
Questions?
www.symbiote-h2020.eu
info@symbiote-h2020.eu
@symbiote_h2020
H2020 symbIoTe
github.com/symbiote-h2020

Management Issues
symbIoTe
Maria Bianco, CNIT National Inter-University Consortium for
Telecommunications
Open Call Compliance

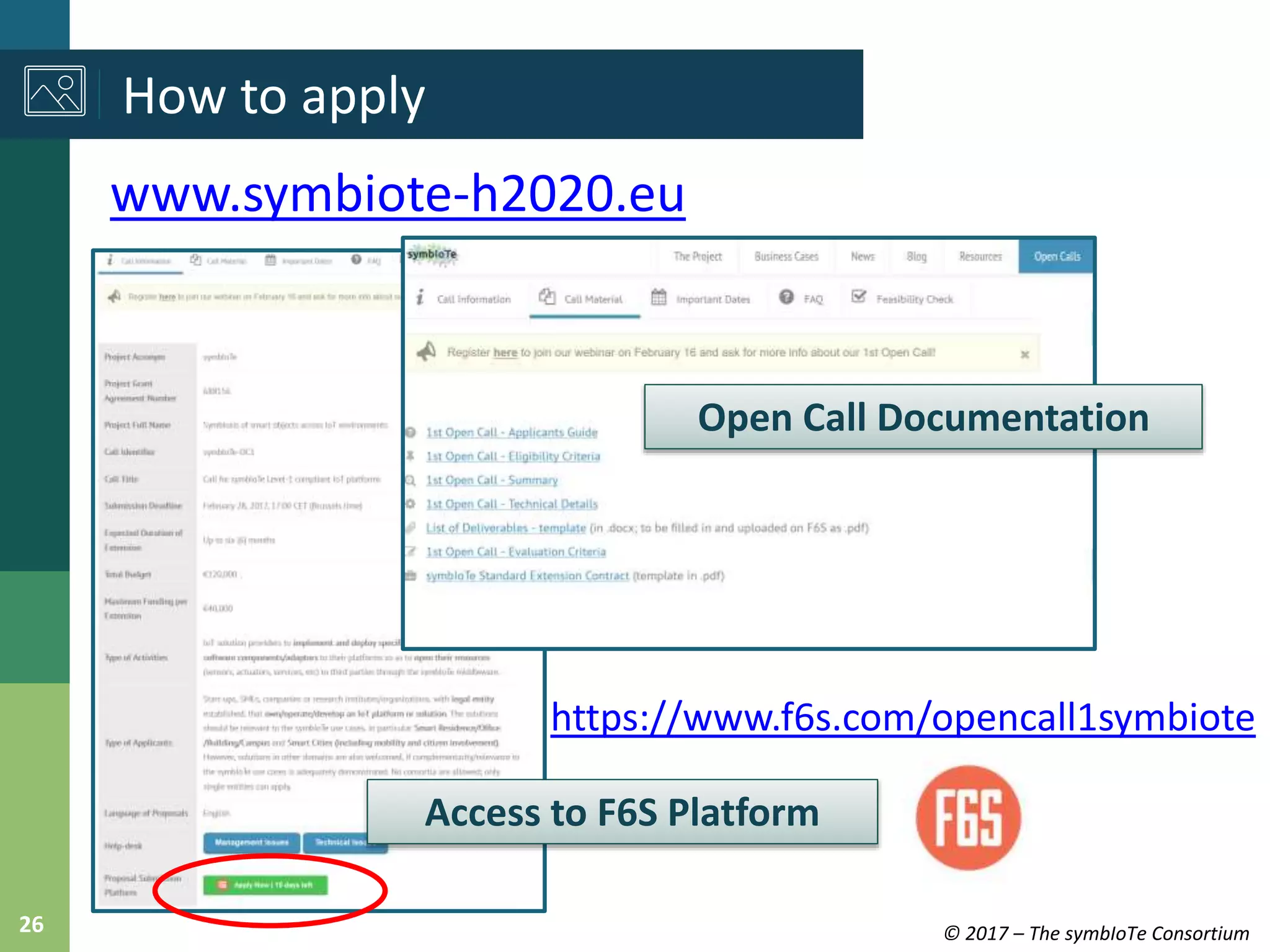

How to apply
Open Call Documentation
Access to F6S Platform
https://www.f6s.com/opencall1symbiote

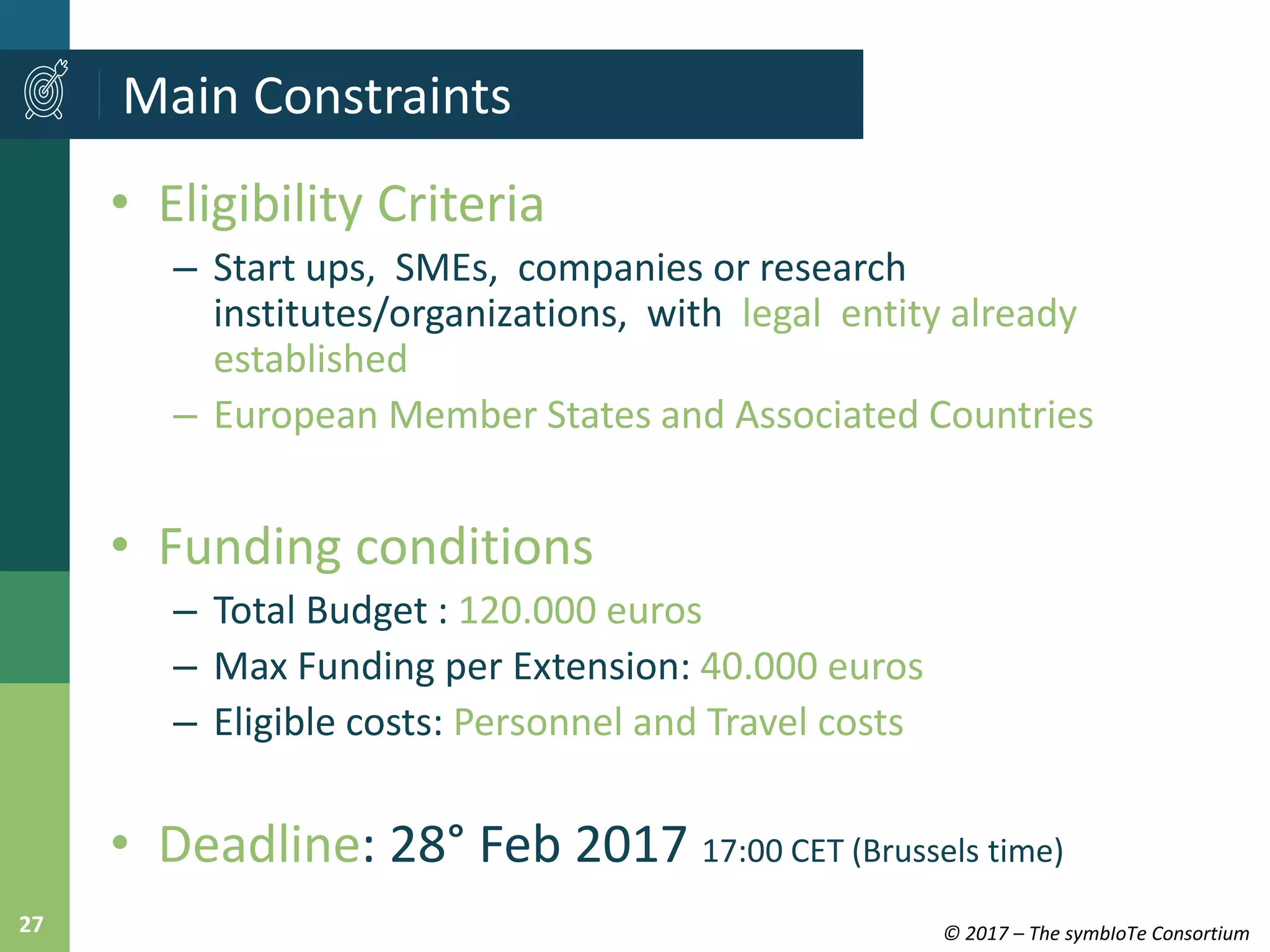

• Eligibility Criteria
– Start ups, SMEs, companies or research
institutes/organizations, with legal entity already
established
– European Member States and Associated Countries
• Funding conditions
– Total Budget : 120.000 euros
– Max Funding per Extension: 40.000 euros
– Eligible costs: Personnel and Travel costs
• Deadline: 28° Feb 2017 17:00 CET (Brussels time)
Main Constraints

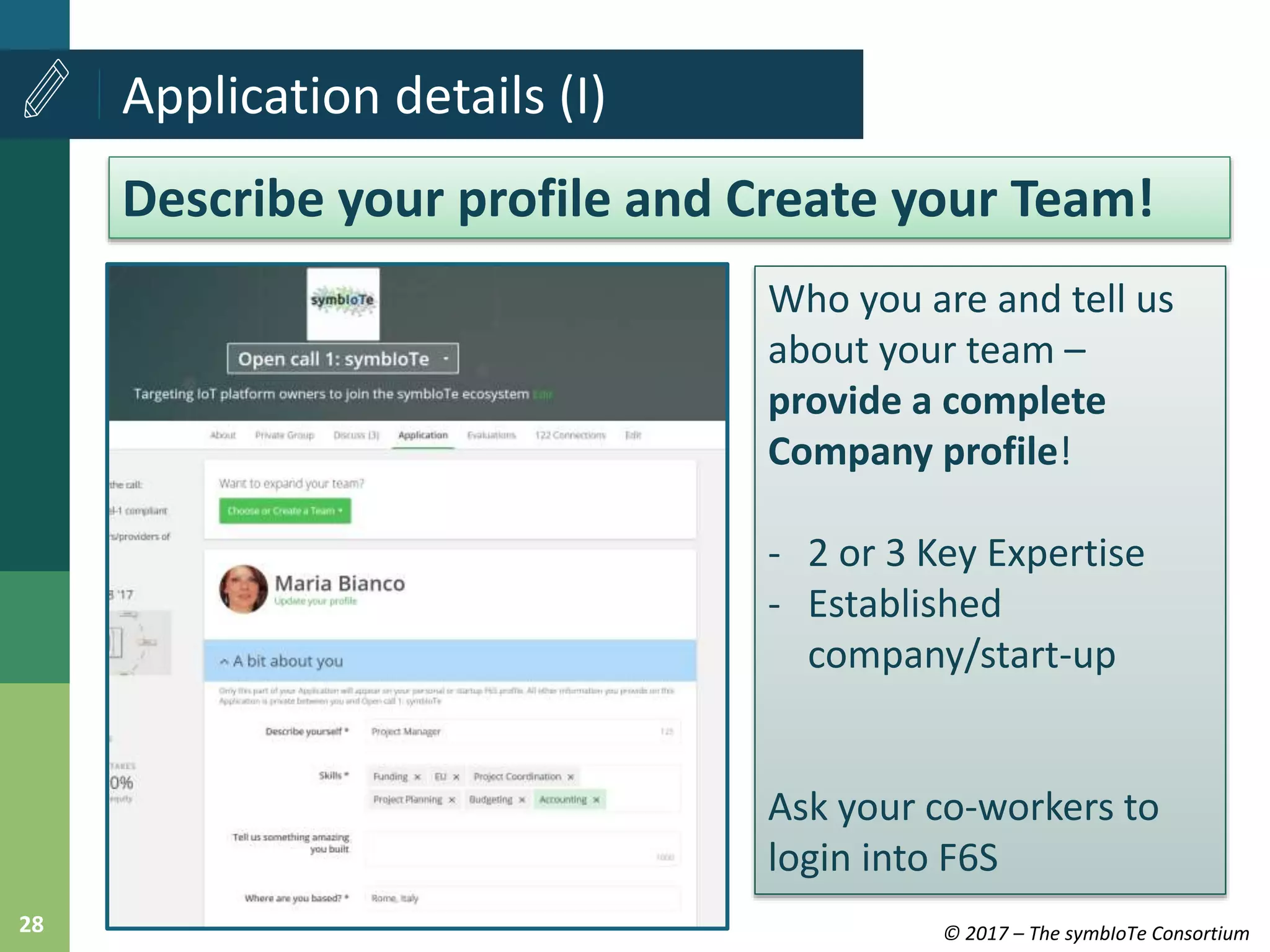

Application details (I)
Describe your profile and Create your Team!
Who you are and tell us
about your team –
provide a complete
Company profile!
- 2 or 3 Key Expertise
- Established
company/start-up
Ask your co-workers to
login into F6S

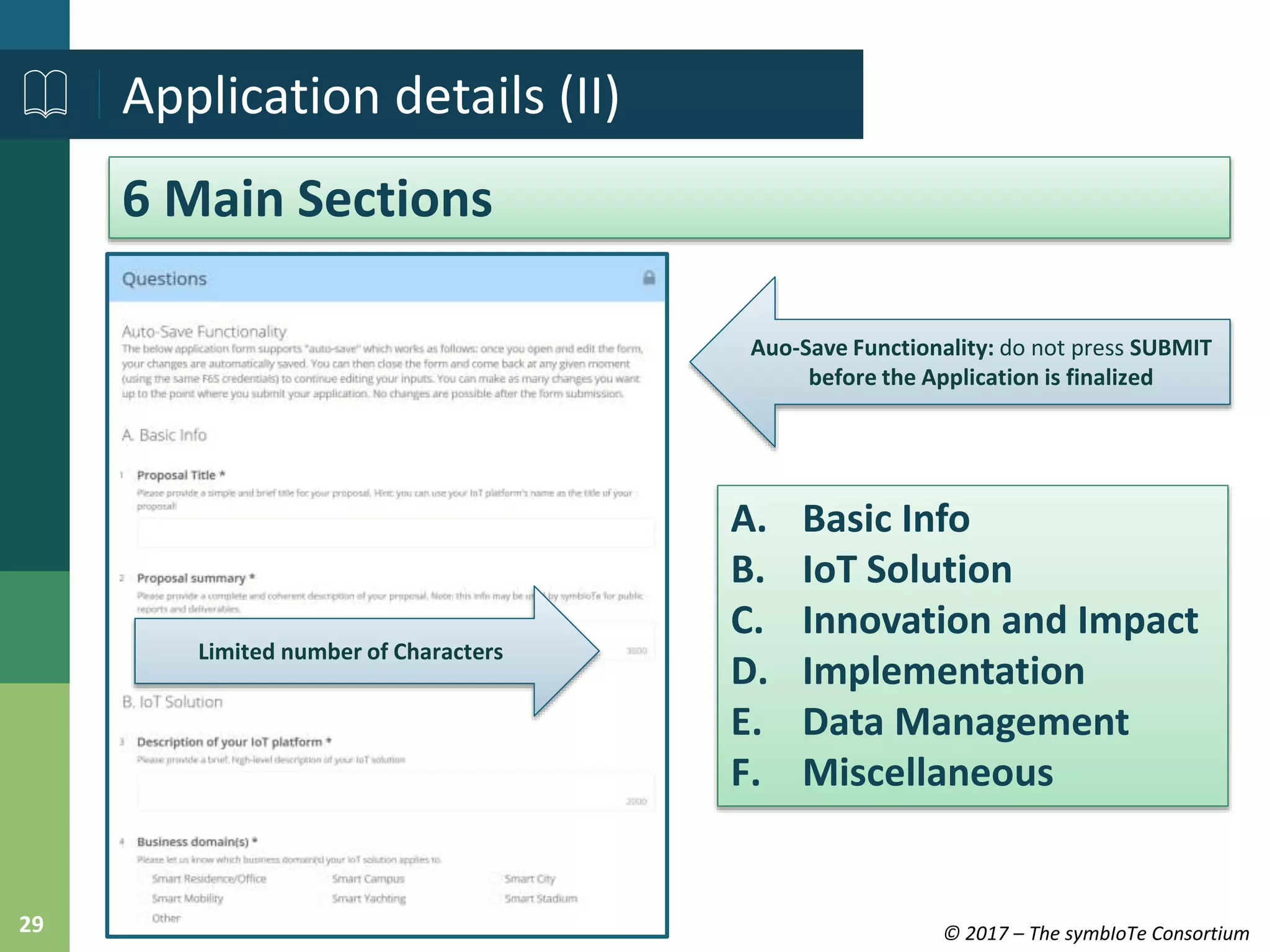

Application details (II)
6 Main Sections
Auo-Save Functionality: do not press SUBMIT
before the Application is finalized
Limited number of Characters
A. Basic Info
B. IoT Solution
C. Innovation and Impact
D. Implementation
E. Data Management
F. Miscellaneous

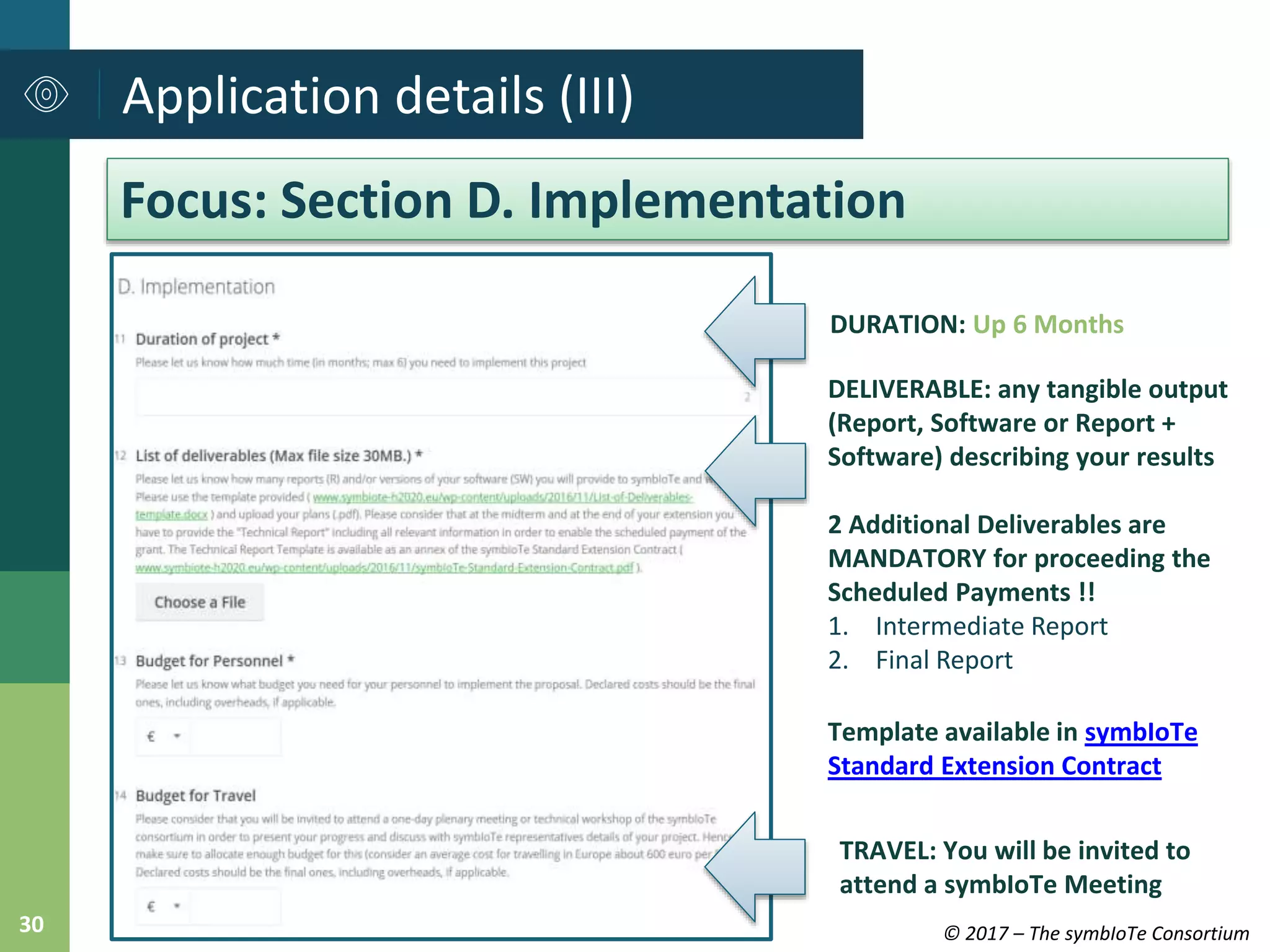

Application details (III)
Focus: Section D. Implementation
DURATION: Up 6 Months
DELIVERABLE: any tangible output
(Report, Software or Report +
Software) describing your results
2 Additional Deliverables are
MANDATORY for proceeding the
Scheduled Payments !!
1. Intermediate Report
2. Final Report
Template available in symbIoTe
Standard Extension Contract
TRAVEL: You will be invited to
attend a symbIoTe Meeting

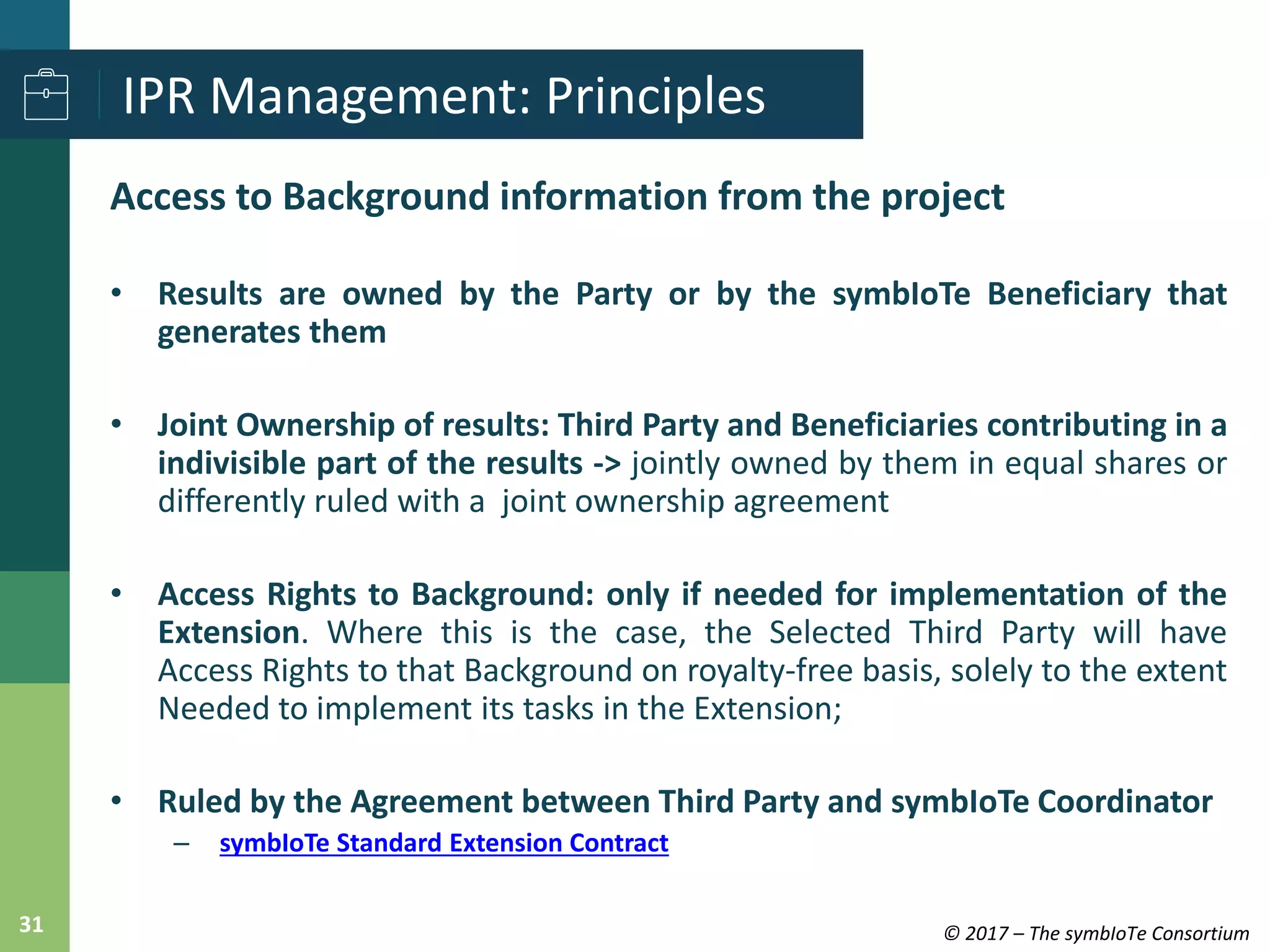

Access to Background information from the project
• Results are owned by the Party or by the symbIoTe Beneficiary that
generates them
• Joint Ownership of results: Third Party and Beneficiaries contributing in a
indivisible part of the results -> jointly owned by them in equal shares or
differently ruled with a joint ownership agreement
• Access Rights to Background: only if needed for implementation of the
Extension. Where this is the case, the Selected Third Party will have
Access Rights to that Background on royalty-free basis, solely to the extent
Needed to implement its tasks in the Extension;
• Ruled by the Agreement between Third Party and symbIoTe Coordinator
– symbIoTe Standard Extension Contract
IPR Management: Principles

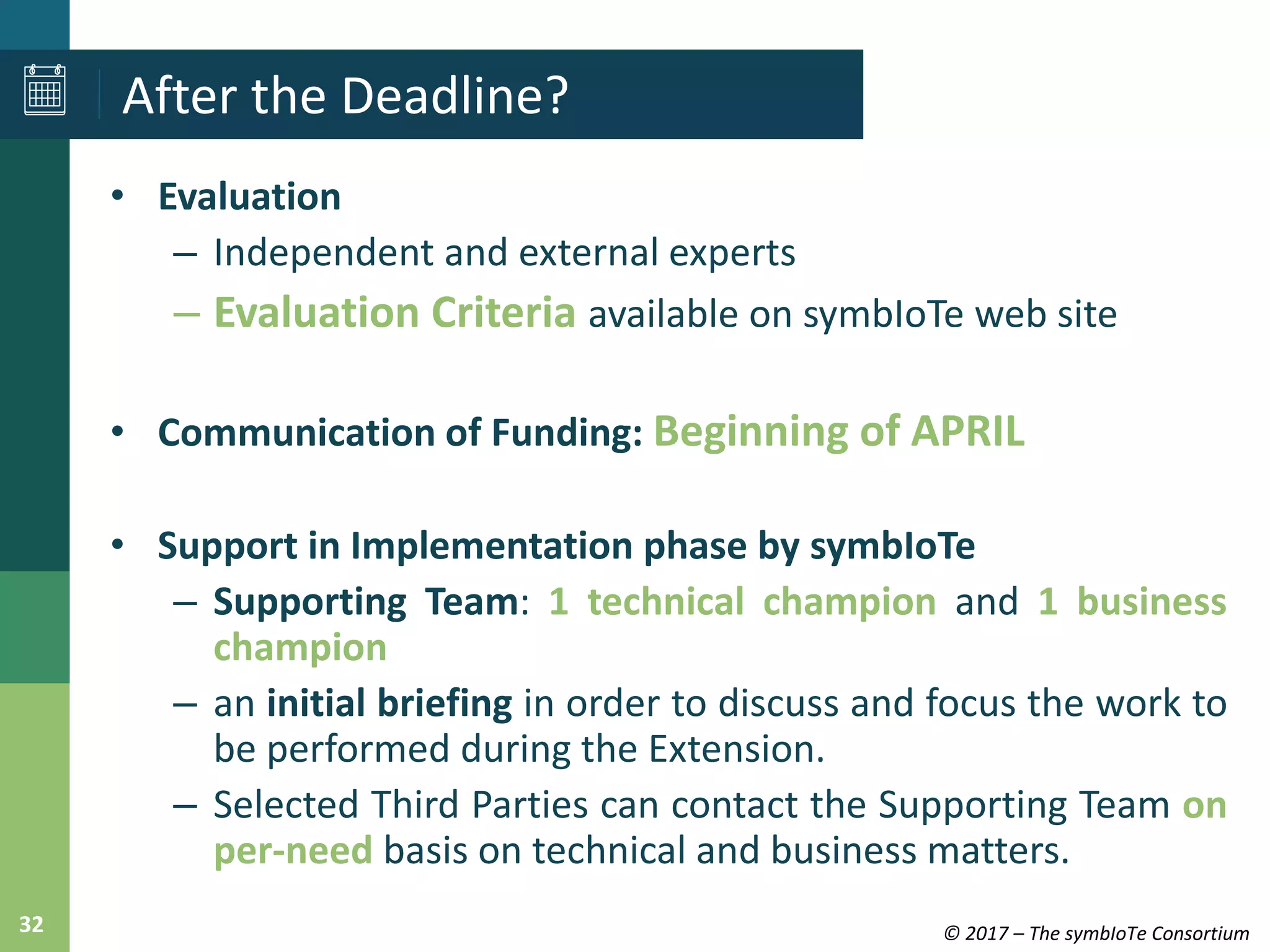

• Evaluation
– Independent and external experts
– Evaluation Criteria available on symbIoTe web site
• Communication of Funding: Beginning of APRIL
• Support in Implementation phase by symbIoTe
– Supporting Team: 1 technical champion and 1 business
champion
– an initial briefing in order to discuss and focus the work to
be performed during the Extension.
– Selected Third Parties can contact the Supporting Team on
per-need basis on technical and business matters.
After the Deadline?

Thank you!
… and Good Luck!
Questions?
info@symbiote-h2020.eu
@symbiote_h2020
H2020 symbIoTe
github.com/symbiote-h2020

Webinar on 1st Open Call - slideset

More Related Content

What's hot

Similar to Webinar on 1st Open Call - slideset

Recently uploaded

Webinar on 1st Open Call - slideset

Editor's Notes
