1. Enterprise Blockchain Simplified
with Truffle and Kaleido
Nick Gaski & Cruz Molina

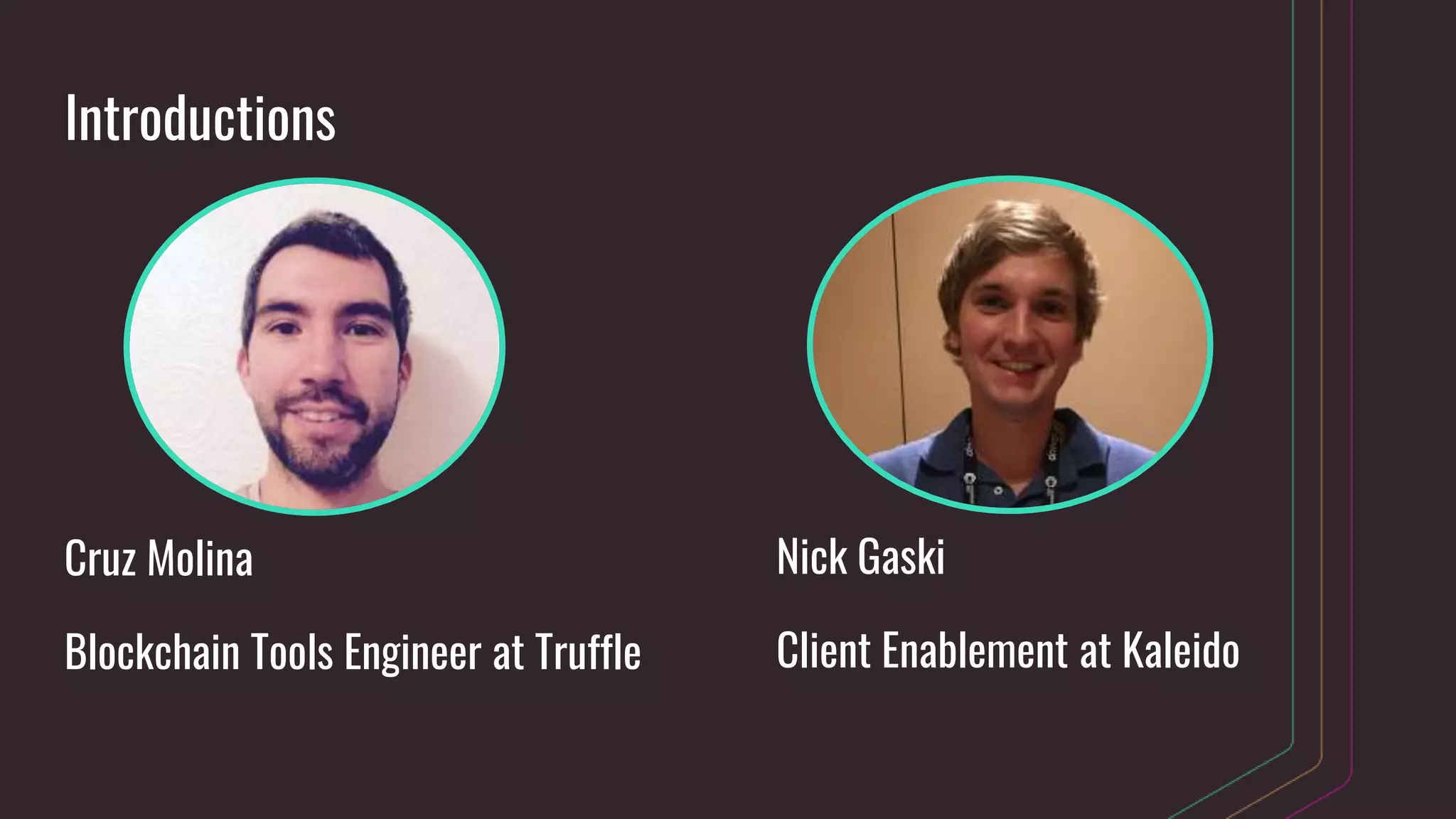

2. Introductions
Cruz Molina
Blockchain Tools Engineer at Truffle
Nick Gaski
Client Enablement at Kaleido

3. A CRASH COURSE
INTRODUCTION TO TRUFFLE
Cruz Molina
Truffle Suite

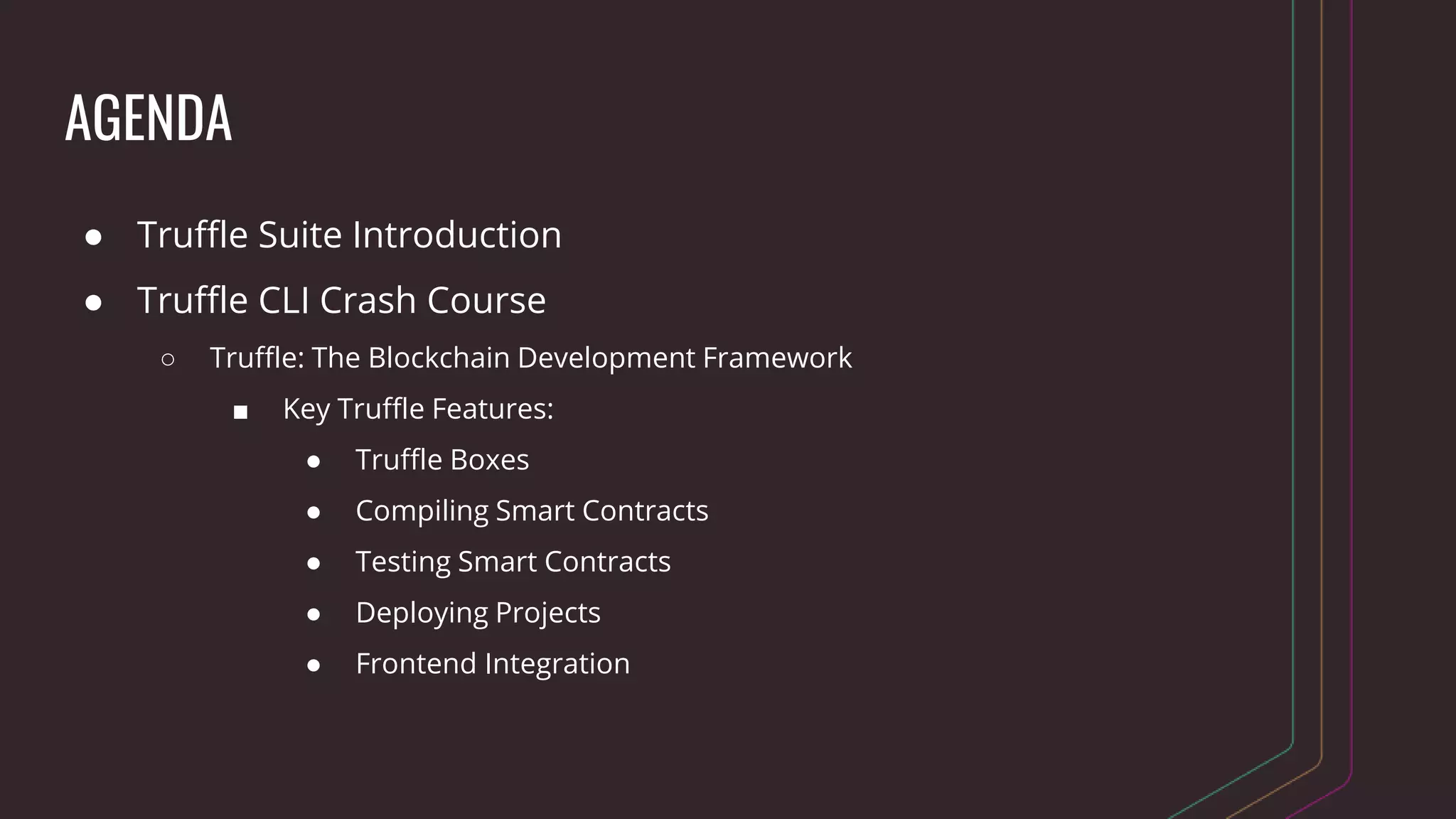

4. AGENDA
● Truffle Suite Introduction
● Truffle CLI Crash Course
○ Truffle: The Blockchain Development Framework
■ Key Truffle Features:
● Truffle Boxes
● Compiling Smart Contracts
● Testing Smart Contracts
● Deploying Projects
● Frontend Integration

5. TRUFFLE SUITE INTRODUCTION

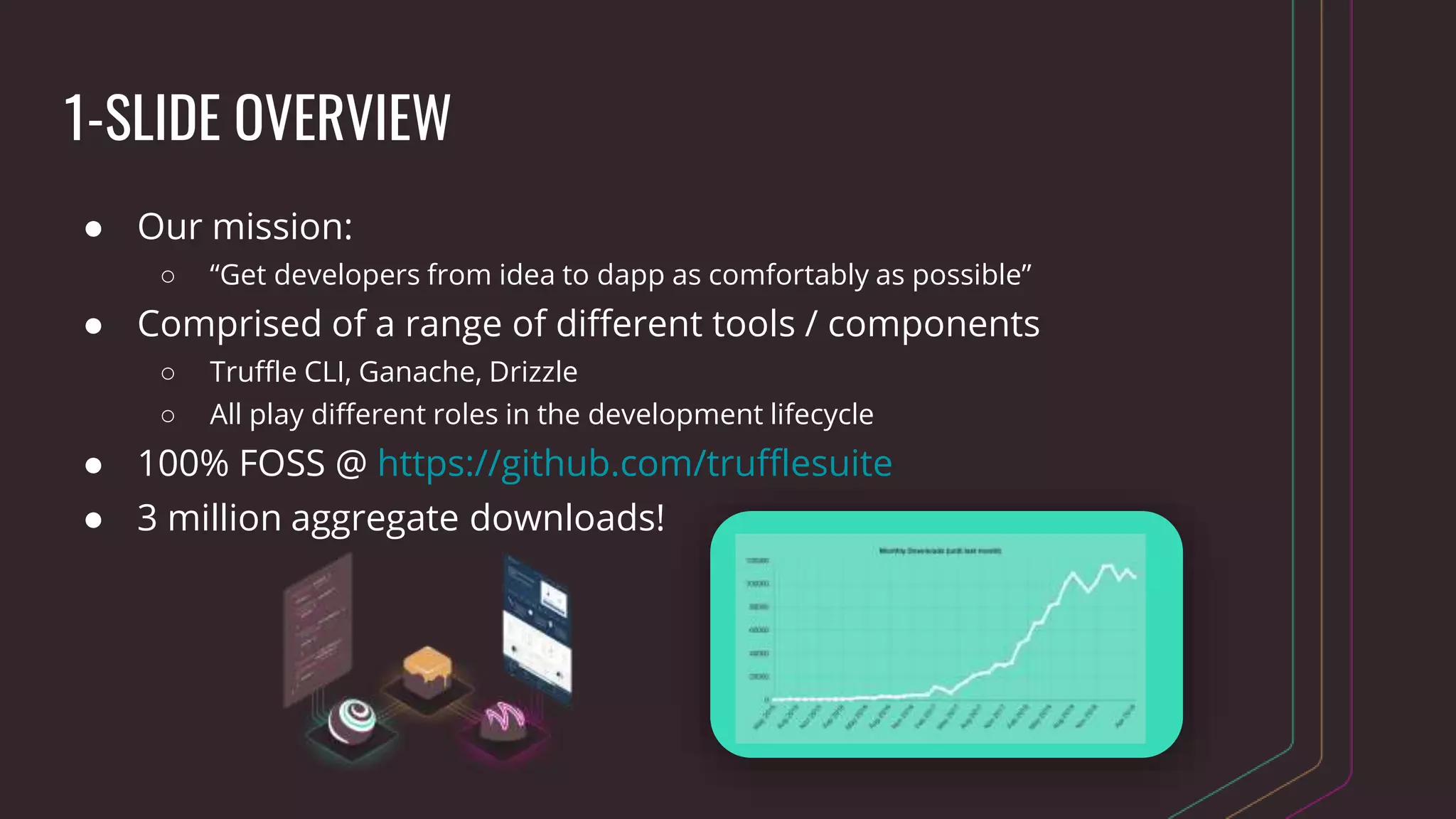

6. 1-SLIDE OVERVIEW
● Our mission:
○ “Get developers from idea to dapp as comfortably as possible”
● Comprised of a range of different tools / components
○ Truffle CLI, Ganache, Drizzle
○ All play different roles in the development lifecycle
● 100% FOSS @ https://github.com/trufflesuite
● 3 million aggregate downloads!

7. WHO’S USING TRUFFLE?

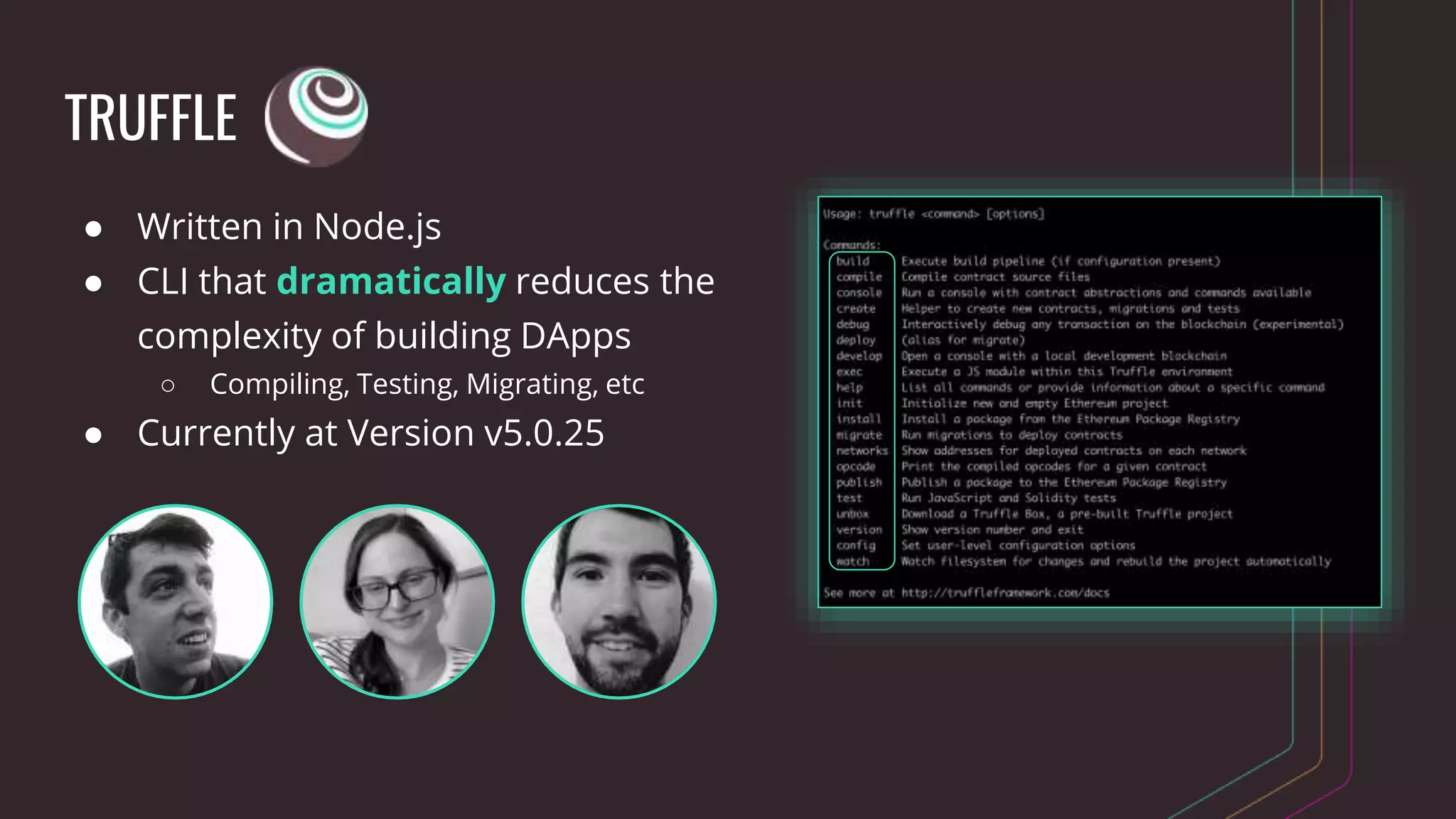

8. TRUFFLE
● Written in Node.js
● CLI that dramatically reduces the
complexity of building DApps
○ Compiling, Testing, Migrating, etc
● Currently at Version v5.0.25

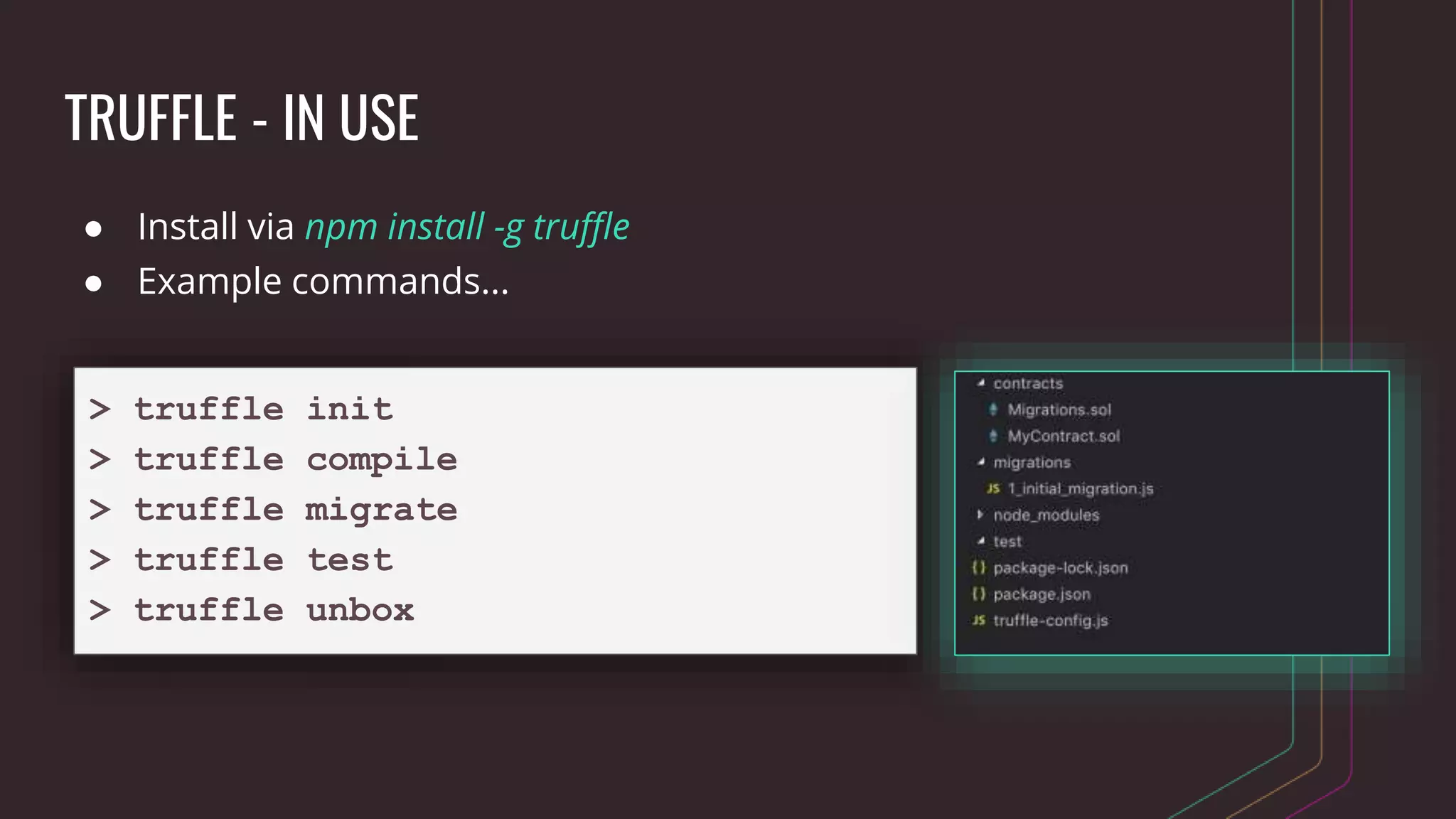

9. TRUFFLE - IN USE
● Install via npm install -g truffle
● Example commands...
> truffle init
> truffle compile
> truffle migrate
> truffle test
> truffle unbox

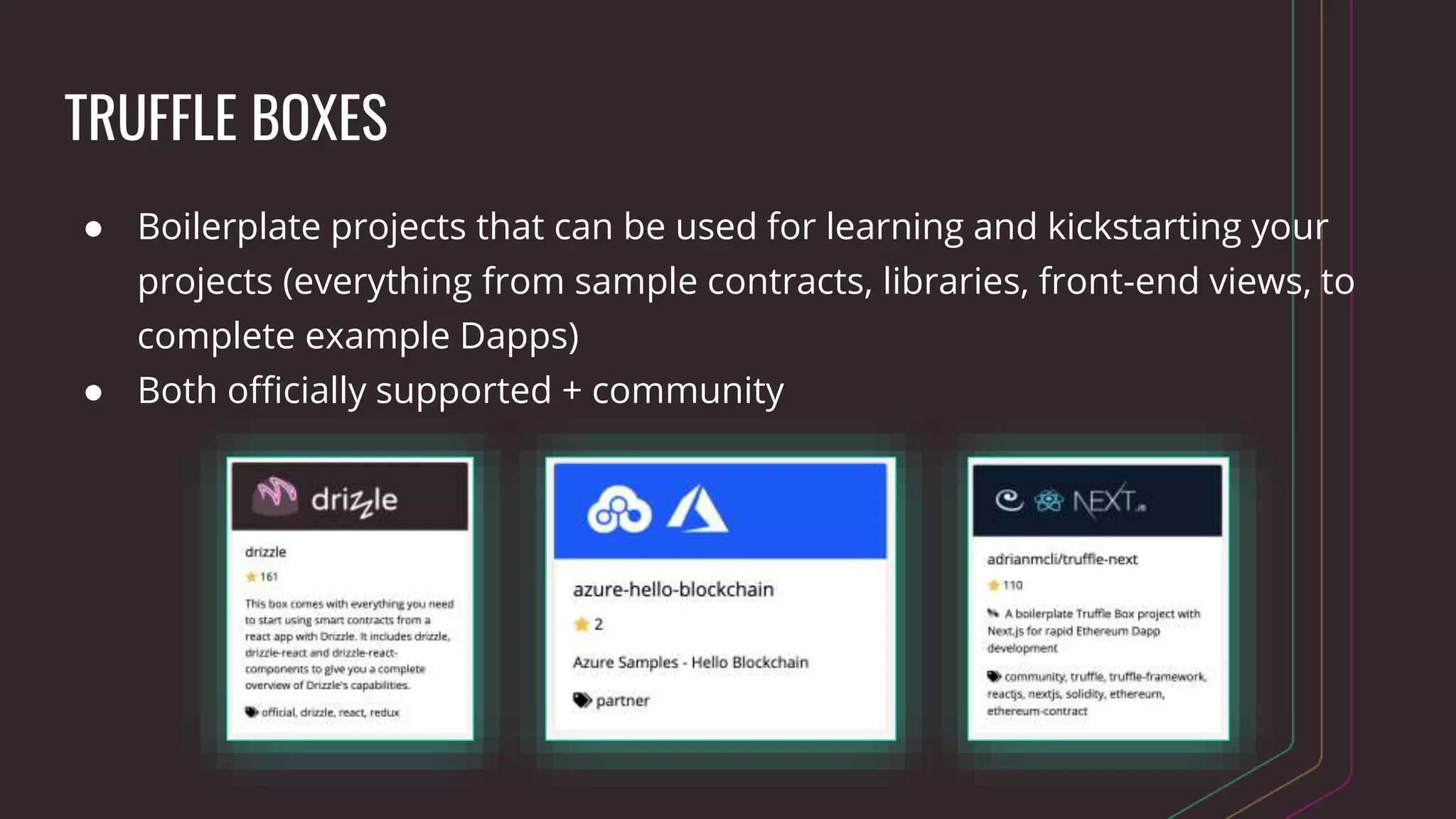

10. TRUFFLE BOXES
● Boilerplate projects that can be used for learning and kickstarting your
projects (everything from sample contracts, libraries, front-end views, to
complete example Dapps)
● Both officially supported + community

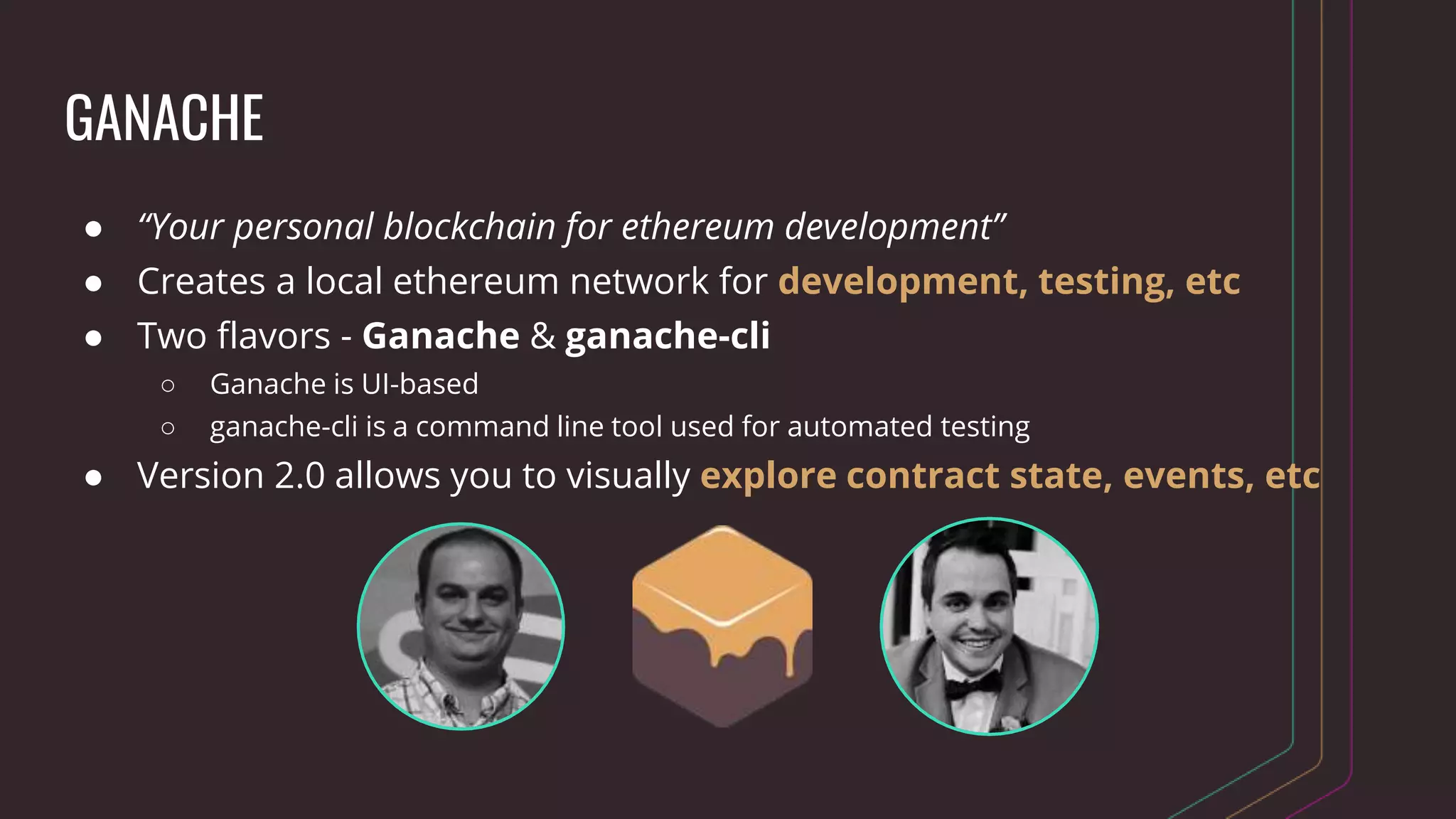

11. GANACHE
● “Your personal blockchain for ethereum development”
● Creates a local ethereum network for development, testing, etc
● Two flavors - Ganache & ganache-cli
○ Ganache is UI-based
○ ganache-cli is a command line tool used for automated testing
● Version 2.0 allows you to visually explore contract state, events, etc

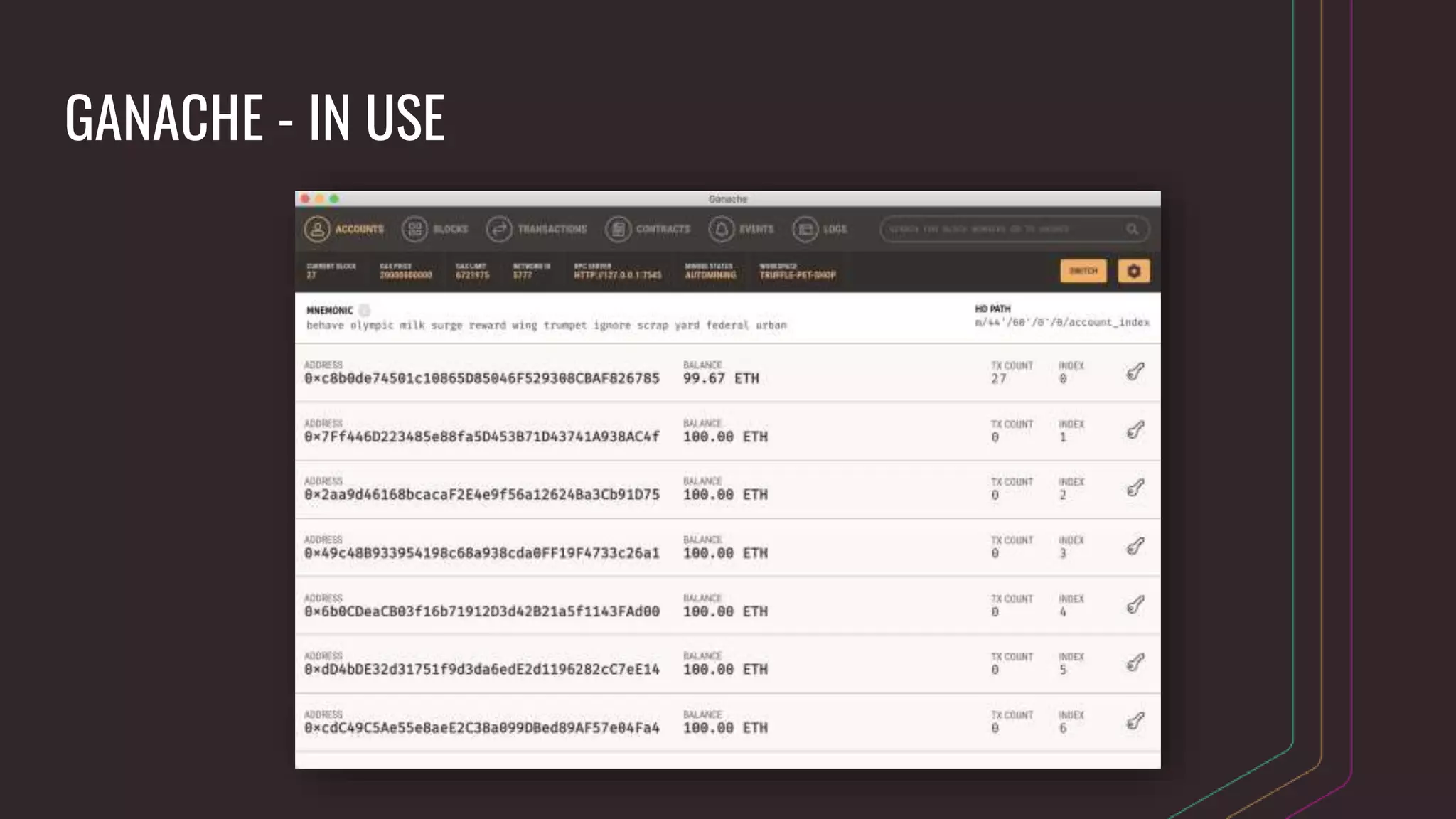

12. GANACHE - IN USE

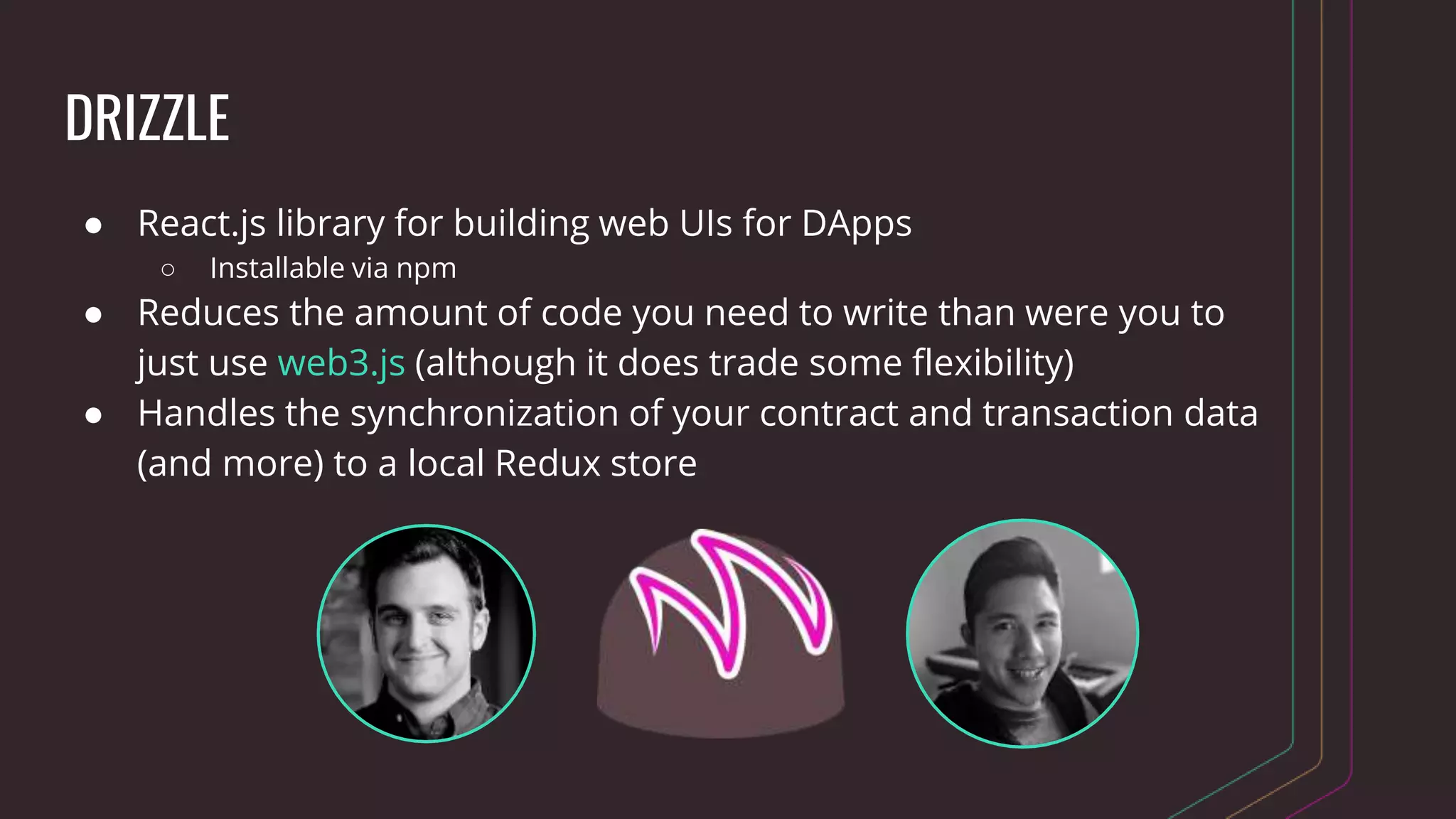

13. DRIZZLE
● React.js library for building web UIs for DApps
○ Installable via npm
● Reduces the amount of code you need to write than were you to
just use web3.js (although it does trade some flexibility)
● Handles the synchronization of your contract and transaction data
(and more) to a local Redux store

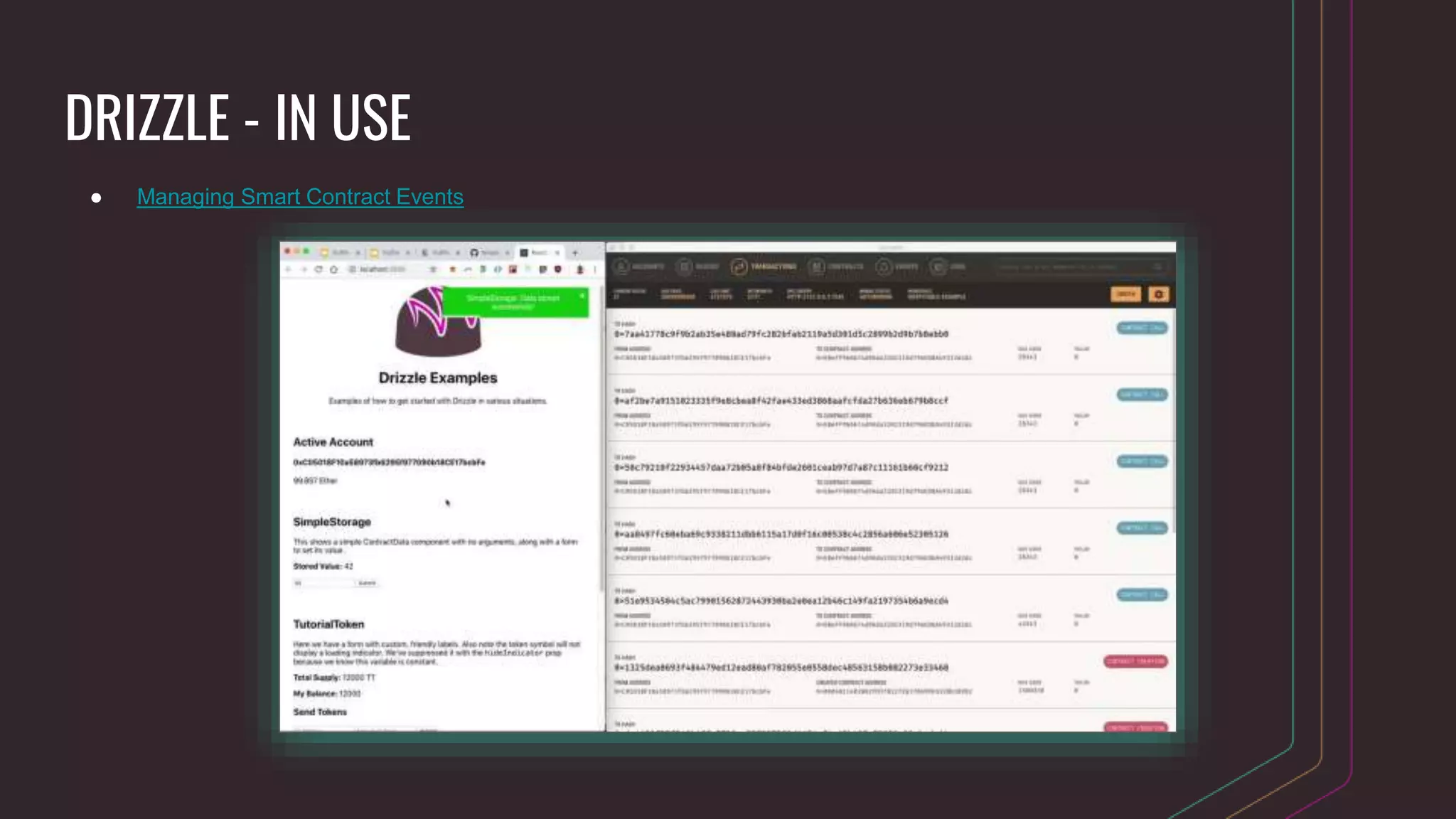

14. DRIZZLE - IN USE
● Managing Smart Contract Events

15. TRUFFLE CLI CRASH COURSE

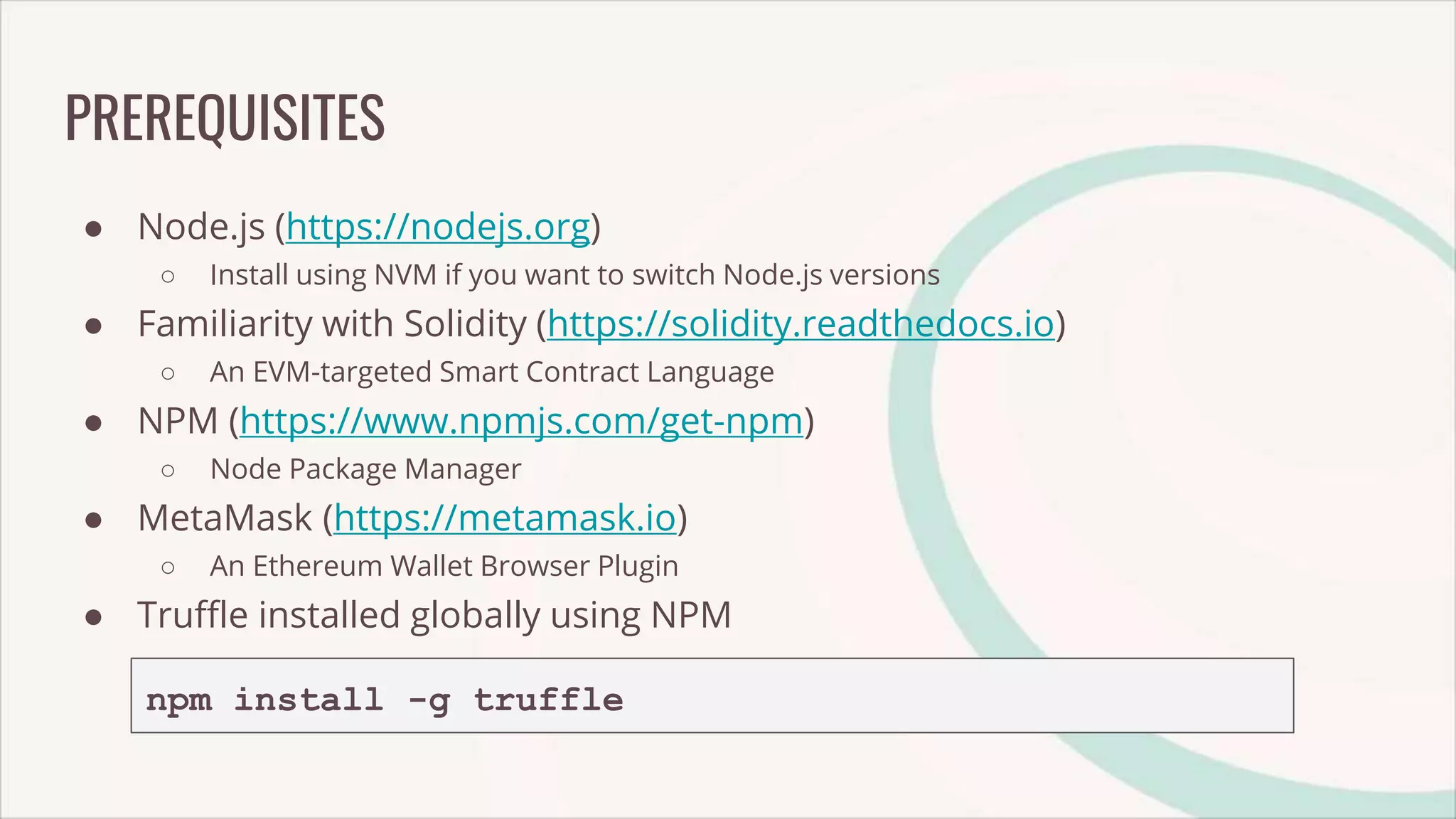

16. PREREQUISITES
● Node.js (https://nodejs.org)
○ Install using NVM if you want to switch Node.js versions
● Familiarity with Solidity (https://solidity.readthedocs.io)
○ An EVM-targeted Smart Contract Language
● NPM (https://www.npmjs.com/get-npm)
○ Node Package Manager
● MetaMask (https://metamask.io)
○ An Ethereum Wallet Browser Plugin
● Truffle installed globally using NPM
npm install -g truffle

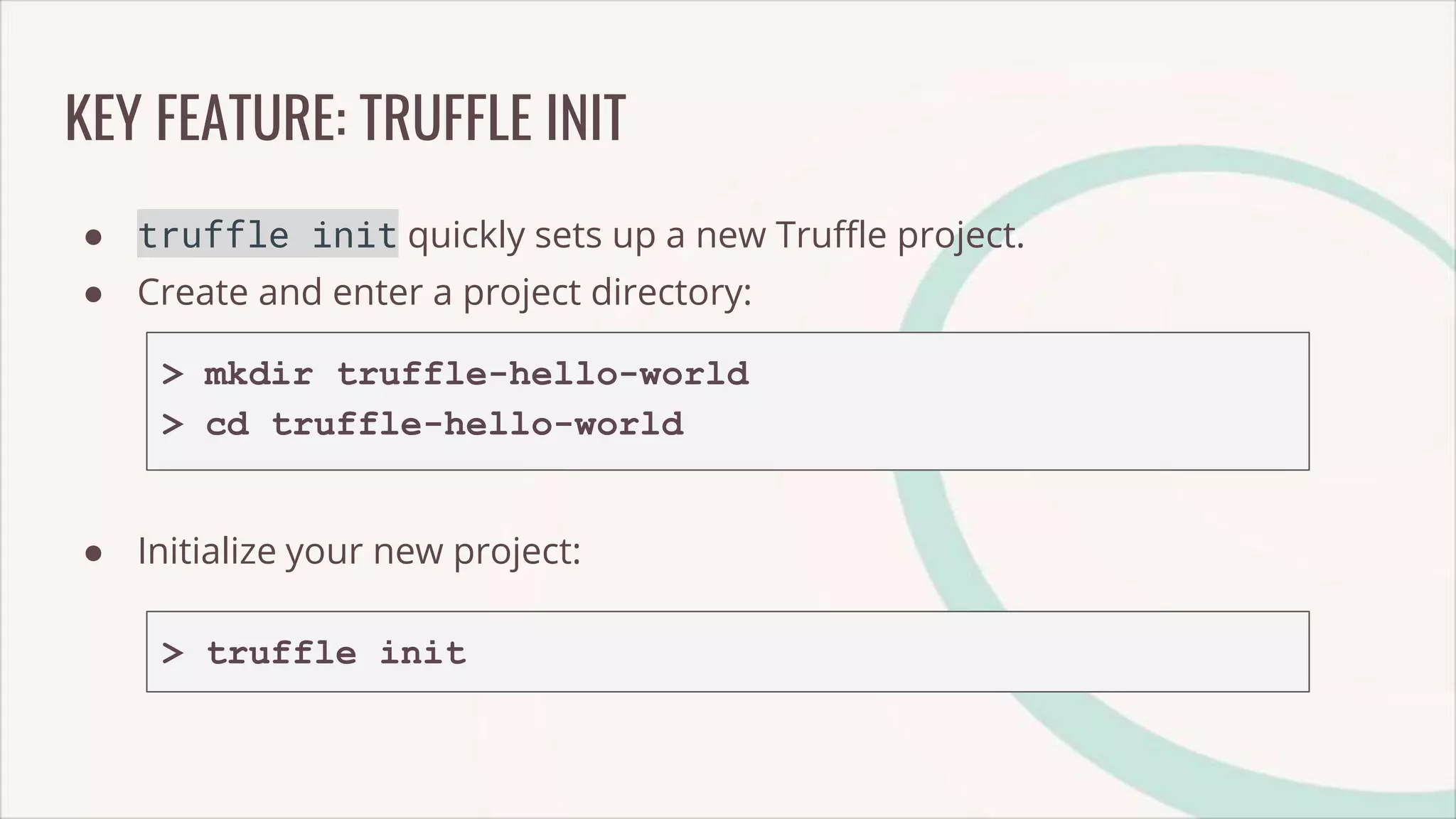

17. KEY FEATURE: TRUFFLE INIT
● truffle init quickly sets up a new Truffle project.
● Create and enter a project directory:
> mkdir truffle-hello-world
> cd truffle-hello-world
● Initialize your new project:
> truffle init

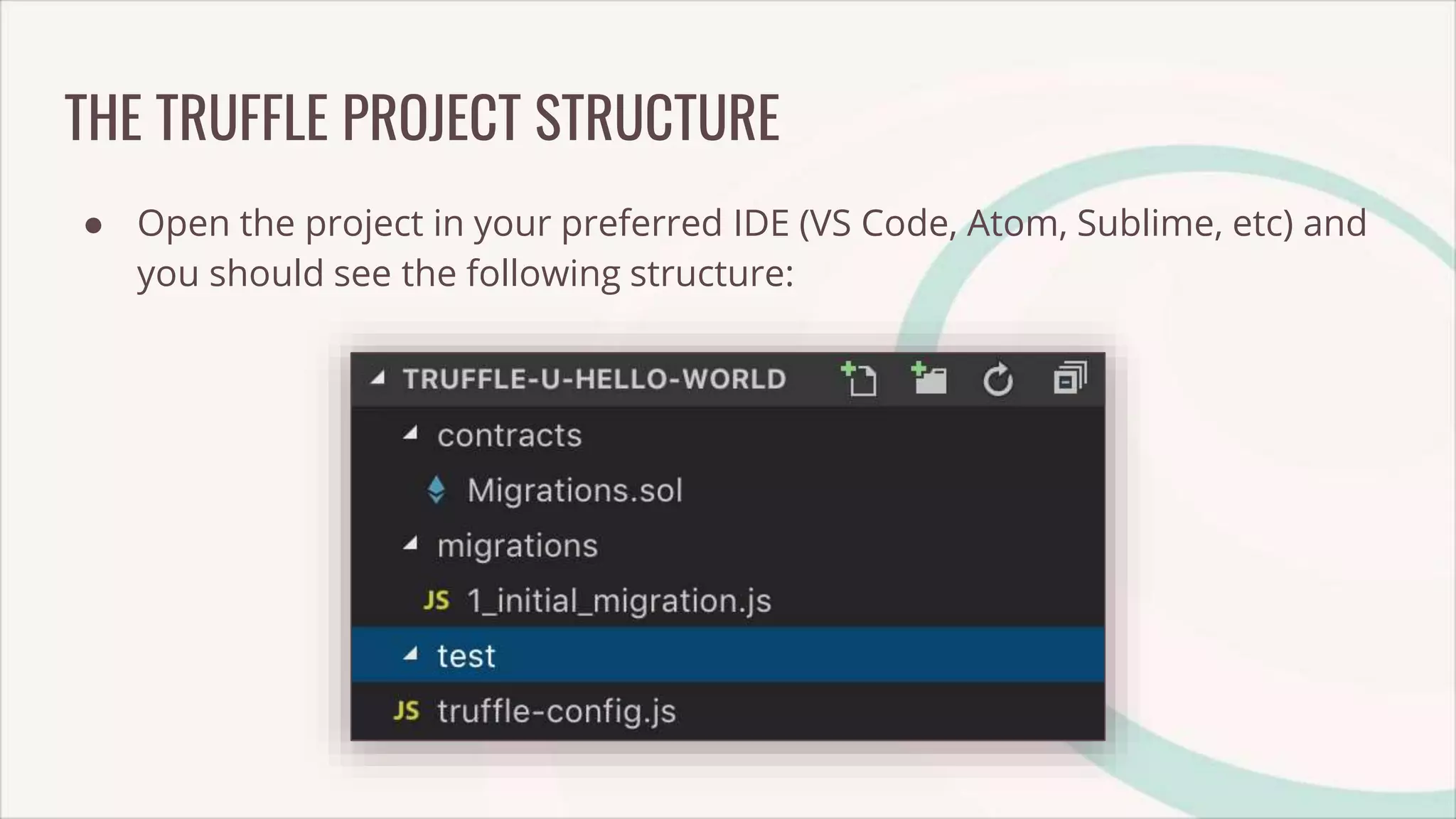

18. THE TRUFFLE PROJECT STRUCTURE
● Open the project in your preferred IDE (VS Code, Atom, Sublime, etc) and
you should see the following structure:

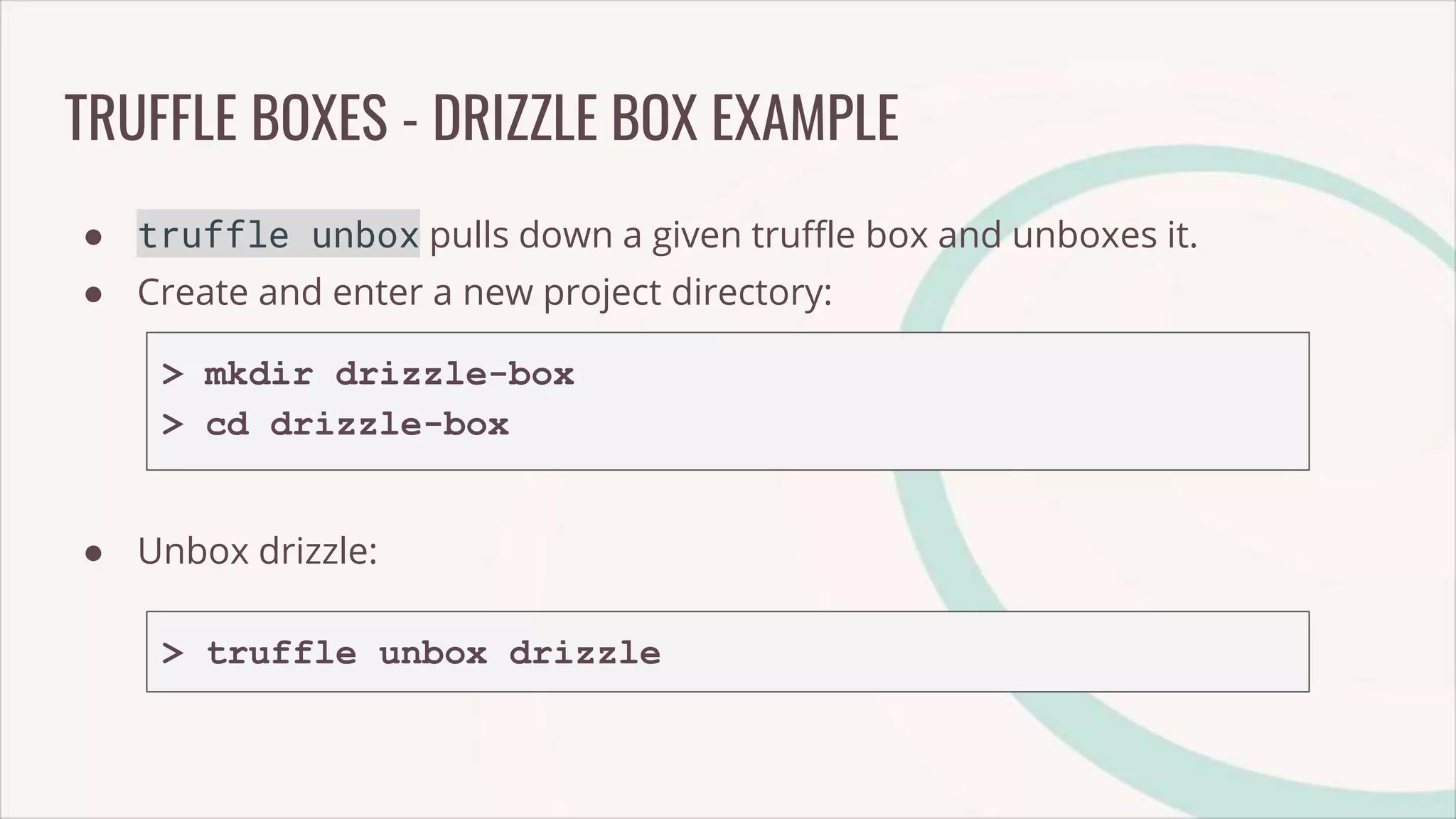

19. TRUFFLE BOXES - DRIZZLE BOX EXAMPLE
● truffle unbox pulls down a given truffle box and unboxes it.
● Create and enter a new project directory:
> mkdir drizzle-box
> cd drizzle-box
● Unbox drizzle:
> truffle unbox drizzle

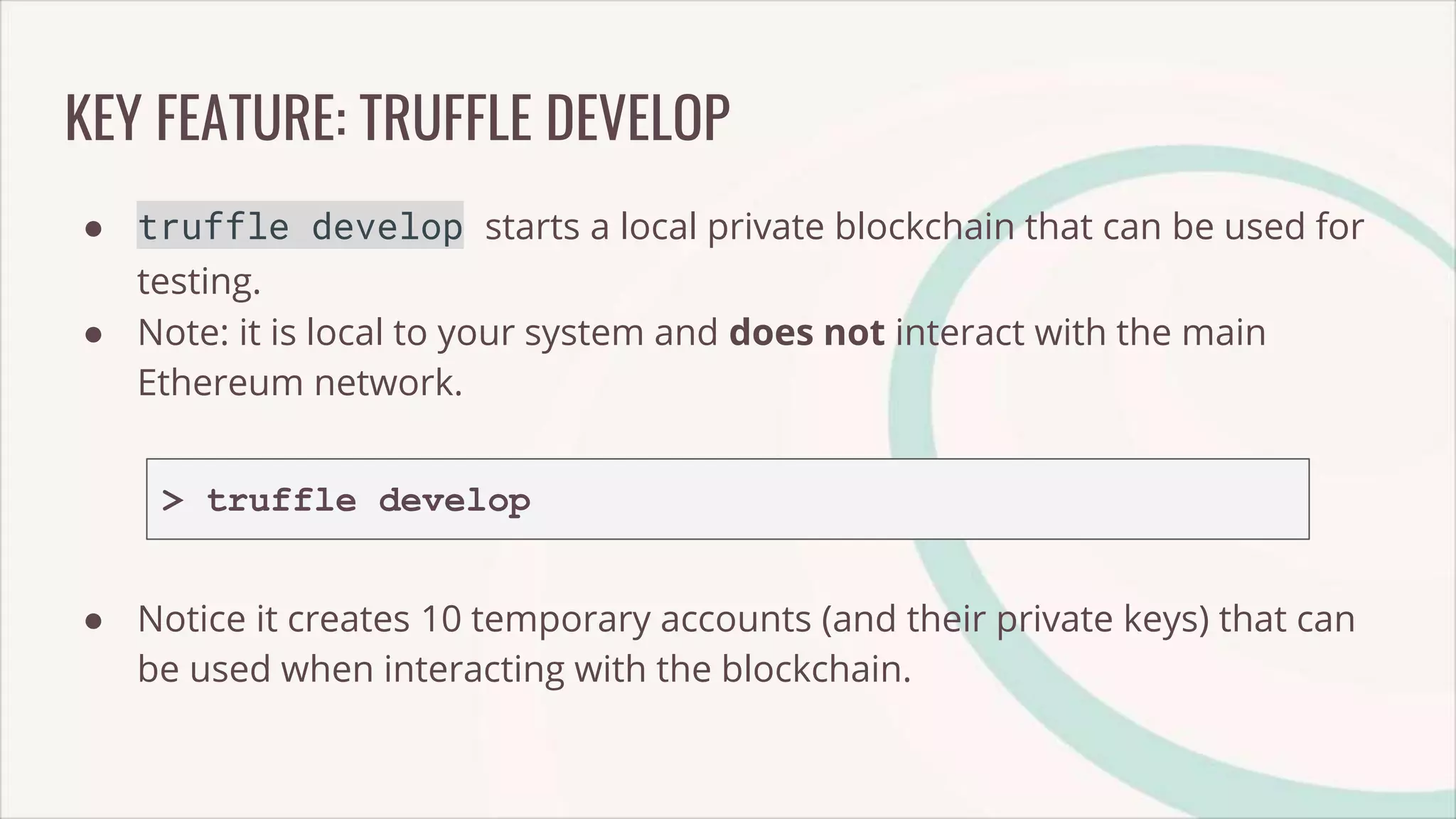

20. KEY FEATURE: TRUFFLE DEVELOP
● truffle develop starts a local private blockchain that can be used for
testing.
● Note: it is local to your system and does not interact with the main
Ethereum network.
> truffle develop
● Notice it creates 10 temporary accounts (and their private keys) that can
be used when interacting with the blockchain.

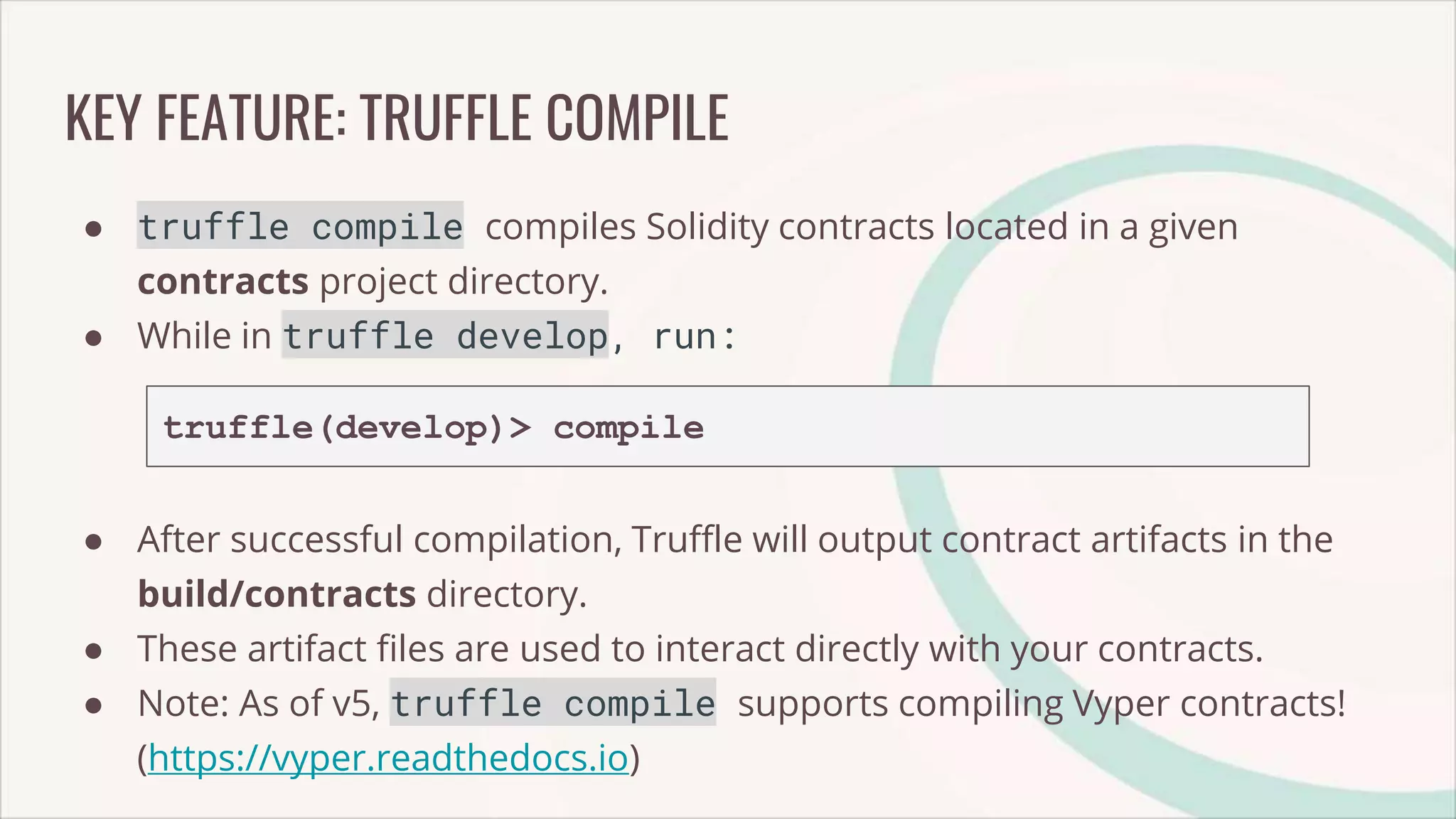

21. KEY FEATURE: TRUFFLE COMPILE
● truffle compile compiles Solidity contracts located in a given
contracts project directory.
● While in truffle develop, run:
truffle(develop)> compile
● After successful compilation, Truffle will output contract artifacts in the
build/contracts directory.
● These artifact files are used to interact directly with your contracts.
● Note: As of v5, truffle compile supports compiling Vyper contracts!
(https://vyper.readthedocs.io)

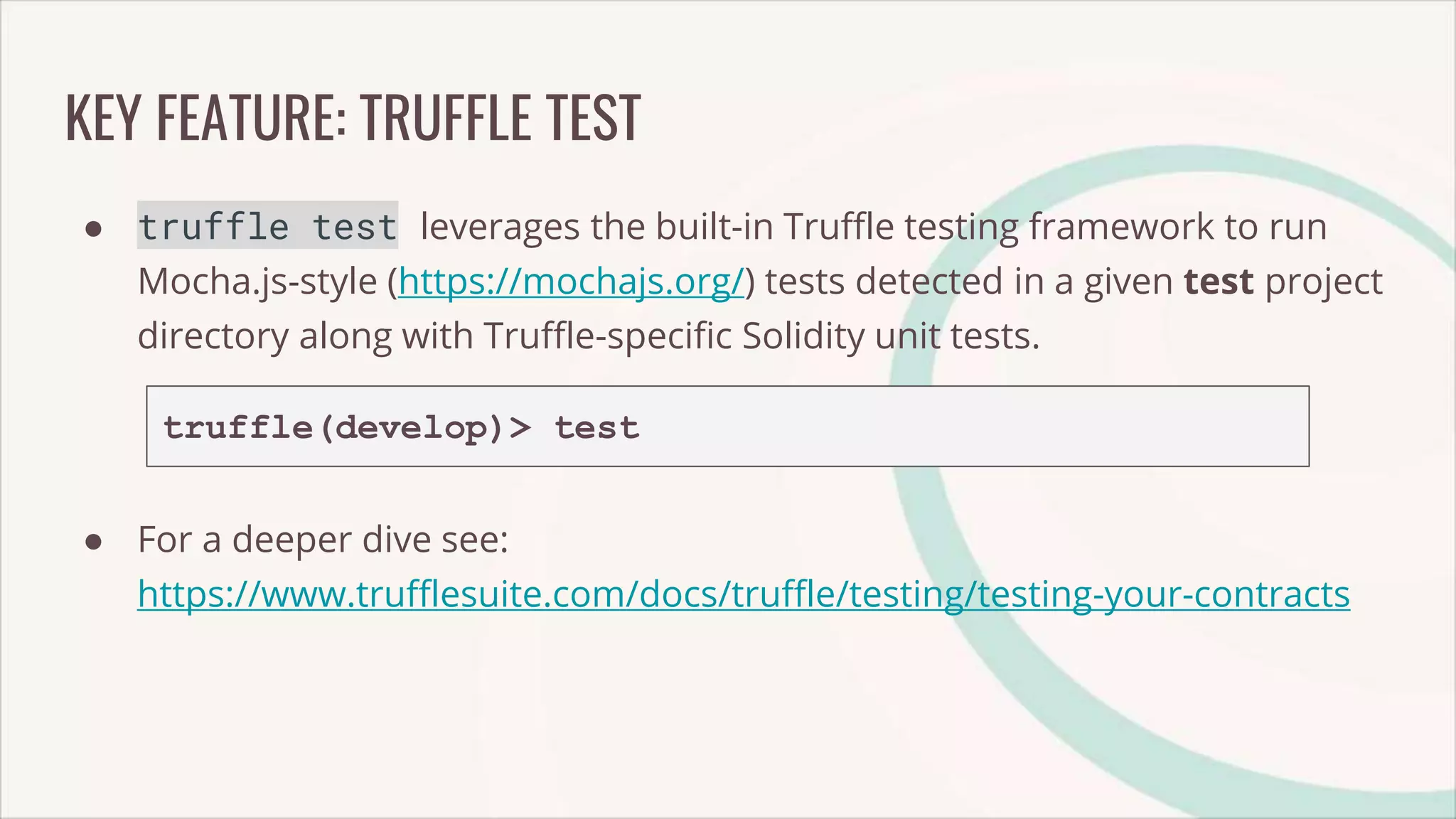

22. KEY FEATURE: TRUFFLE TEST
● truffle test leverages the built-in Truffle testing framework to run
Mocha.js-style (https://mochajs.org/) tests detected in a given test project
directory along with Truffle-specific Solidity unit tests.
truffle(develop)> test
● For a deeper dive see:
https://www.trufflesuite.com/docs/truffle/testing/testing-your-contracts

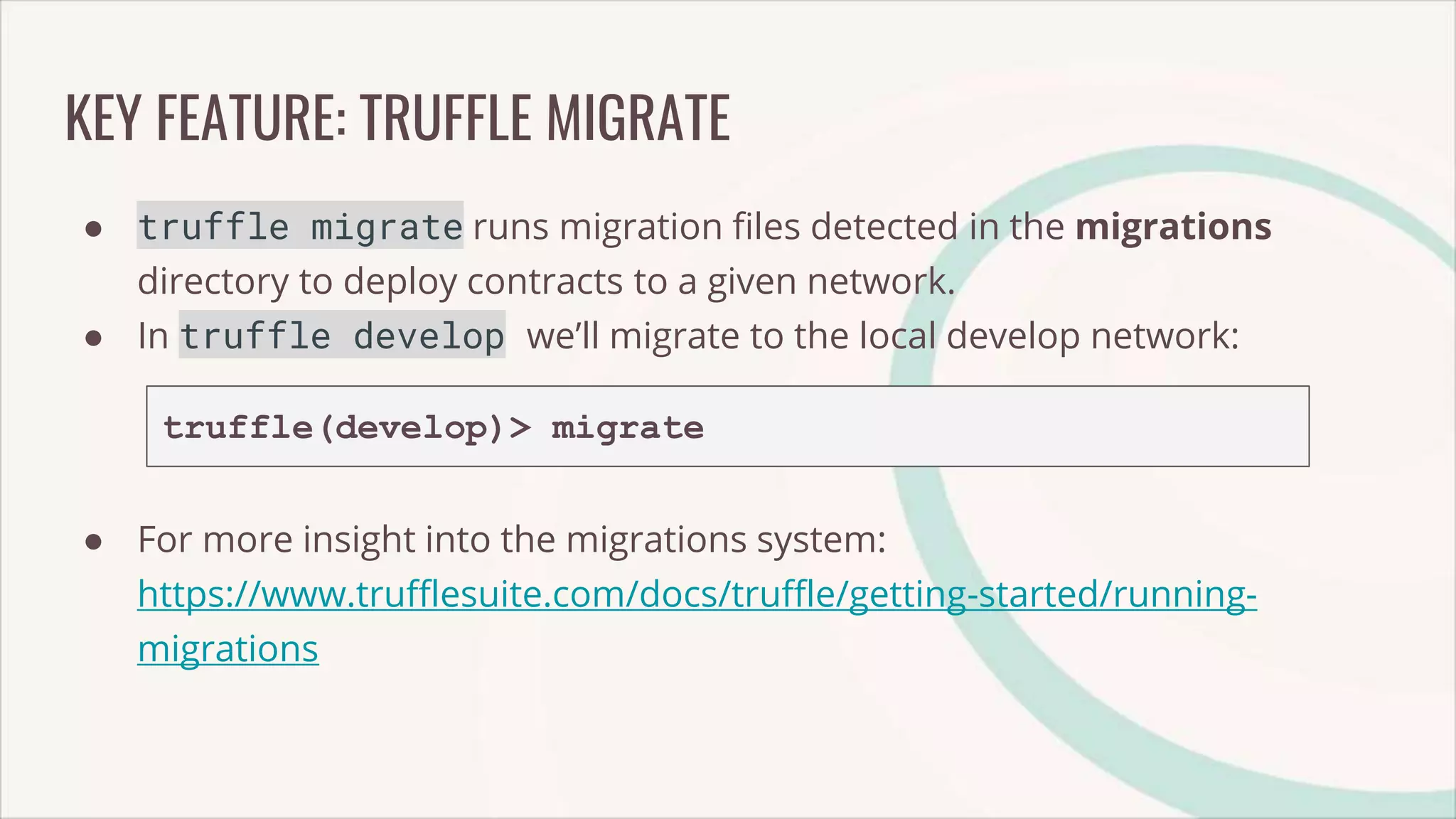

23. KEY FEATURE: TRUFFLE MIGRATE
● truffle migrate runs migration files detected in the migrations
directory to deploy contracts to a given network.
● In truffle develop we’ll migrate to the local develop network:
truffle(develop)> migrate
● For more insight into the migrations system:
https://www.trufflesuite.com/docs/truffle/getting-started/running-
migrations

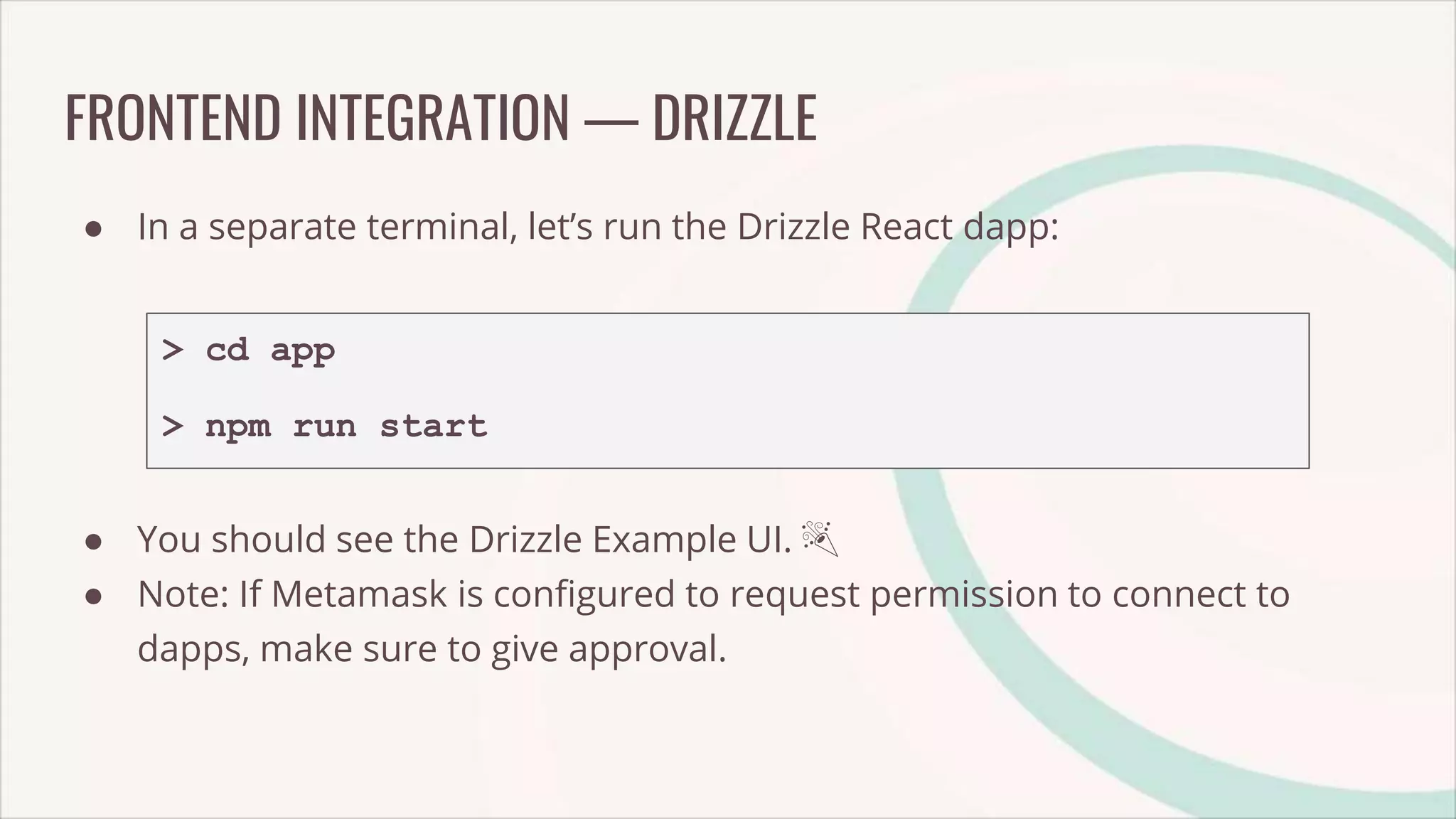

24. FRONTEND INTEGRATION — DRIZZLE
● In a separate terminal, let’s run the Drizzle React dapp:
> cd app
> npm run start
● You should see the Drizzle Example UI. 🎉
● Note: If Metamask is configured to request permission to connect to
dapps, make sure to give approval.

25. THANK YOU :)

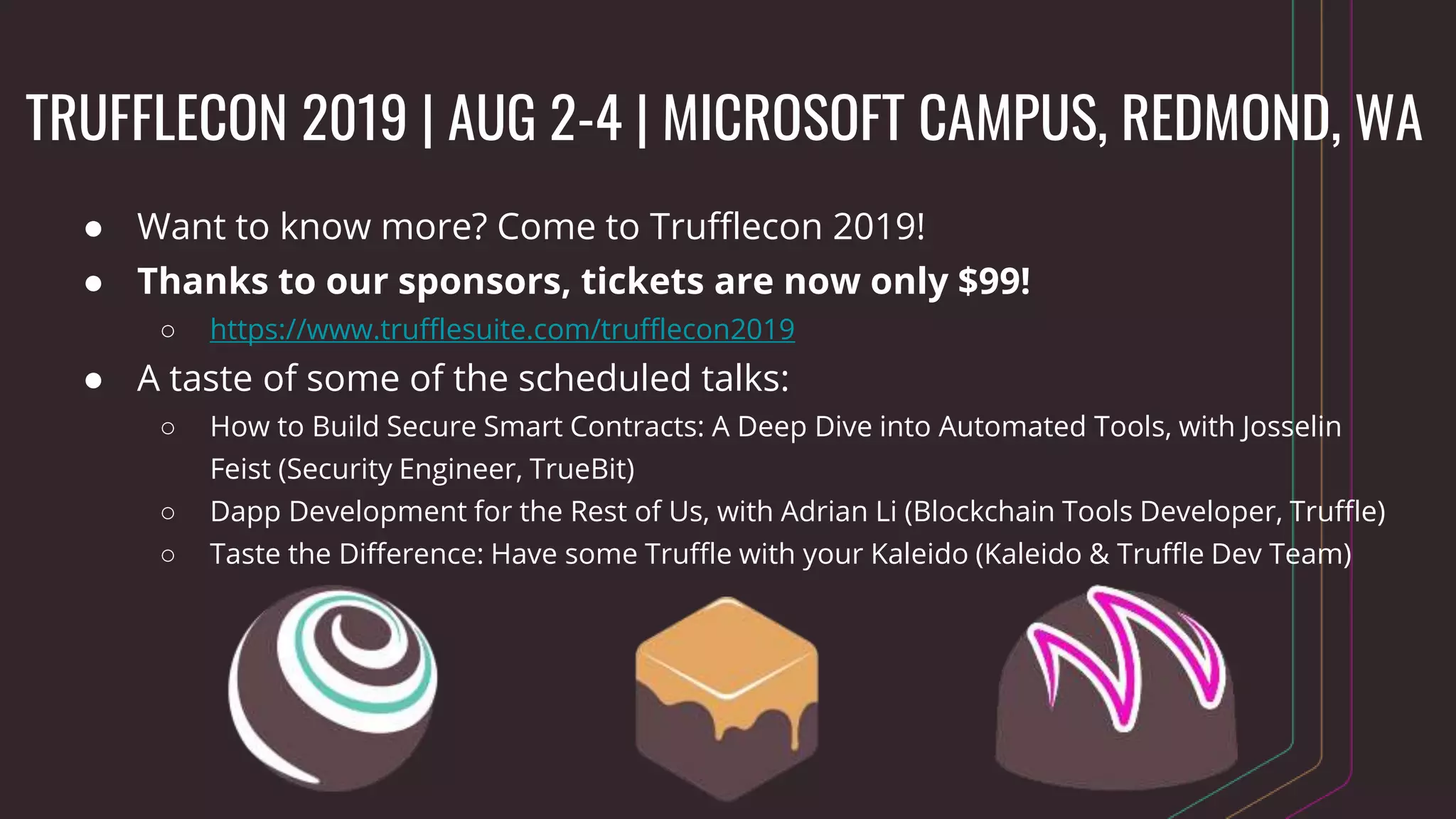

40. TRUFFLECON 2019 | AUG 2-4 | MICROSOFT CAMPUS, REDMOND, WA
● Want to know more? Come to Trufflecon 2019!
● Thanks to our sponsors, tickets are now only $99!
○ https://www.trufflesuite.com/trufflecon2019
● A taste of some of the scheduled talks:
○ How to Build Secure Smart Contracts: A Deep Dive into Automated Tools, with Josselin
Feist (Security Engineer, TrueBit)
○ Dapp Development for the Rest of Us, with Adrian Li (Blockchain Tools Developer, Truffle)
○ Taste the Difference: Have some Truffle with your Kaleido (Kaleido & Truffle Dev Team)
