- 1. WEB DESIGN TECHNOLOGY LECTURE2 BY MULENGA M.M
- 2. Understanding Basic HTML Webpages are created using Hypertext Markup Language (HTML), which is an authoring language used to create documents for the web. HTML consists of a set of special instructions called tags to define the structure and layout of content in a webpage. A browser reads the HTML tags to determine how to display the webpage content on a screen. Because the HTML tags define or “mark up” the content on the webpage, HTML is considered a markup language rather than a traditional programming language.

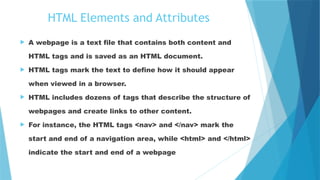

- 3. HTML Elements andAttributes A webpage is a text file that contains both content and HTML tags and is saved as an HTML document. HTML tags mark the text to define how it should appear when viewed in a browser. HTML includes dozens of tags that describe the structure of webpages and create links to other content. For instance, the HTML tags <nav> and </nav> mark the start and end of a navigation area, while <html> and </html> indicate the start and end of a webpage.

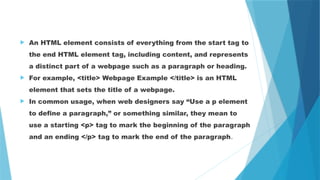

- 4. An HTMLelement consists of everything from the start tag to the end HTML element tag, including content, and represents a distinct part of a webpage such as a paragraph or heading. For example, <title> Webpage Example </title> is an HTML element that sets the title of a webpage. In common usage, when web designers say “Use a p element to define a paragraph,” or something similar, they mean to use a starting <p> tag to mark the beginning of the paragraph and an ending </p> tag to mark the end of the paragraph.

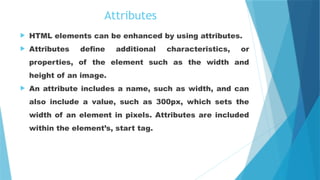

- 5. Attributes HTML elementscan be enhanced by using attributes. Attributes define additional characteristics, or properties, of the element such as the width and height of an image. An attribute includes a name, such as width, and can also include a value, such as 300px, which sets the width of an element in pixels. Attributes are included within the element’s, start tag.

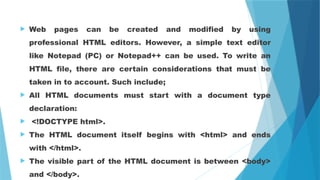

- 6. Web pagescan be created and modified by using professional HTML editors. However, a simple text editor like Notepad (PC) or Notepad++ can be used. To write an HTML file, there are certain considerations that must be taken in to account. Such include; All HTML documents must start with a document type declaration: <!DOCTYPE html>. The HTML document itself begins with <html> and ends with </html>. The visible part of the HTML document is between <body> and </body>.

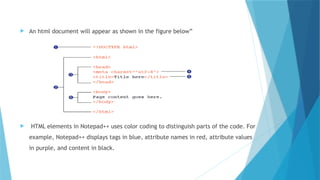

- 7. An htmldocument will appear as shown in the figure below” HTML elements in Notepad++ uses color coding to distinguish parts of the code. For example, Notepad++ displays tags in blue, attribute names in red, attribute values in purple, and content in black.

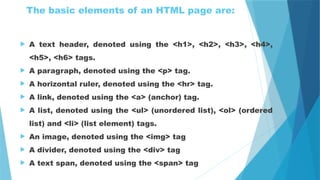

- 8. The basic elementsof an HTML page are: A text header, denoted using the <h1>, <h2>, <h3>, <h4>, <h5>, <h6> tags. A paragraph, denoted using the <p> tag. A horizontal ruler, denoted using the <hr> tag. A link, denoted using the <a> (anchor) tag. A list, denoted using the <ul> (unordered list), <ol> (ordered list) and <li> (list element) tags. An image, denoted using the <img> tag A divider, denoted using the <div> tag A text span, denoted using the <span> tag

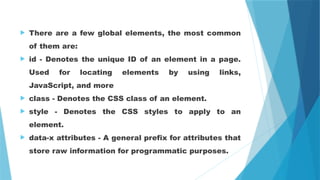

- 9. There area few global elements, the most common of them are: id - Denotes the unique ID of an element in a page. Used for locating elements by using links, JavaScript, and more class - Denotes the CSS class of an element. style - Denotes the CSS styles to apply to an element. data-x attributes - A general prefix for attributes that store raw information for programmatic purposes.

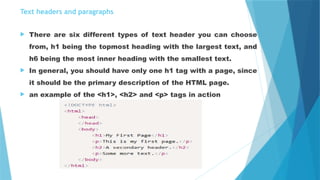

- 10. Text headers andparagraphs There are six different types of text header you can choose from, h1 being the topmost heading with the largest text, and h6 being the most inner heading with the smallest text. In general, you should have only one h1 tag with a page, since it should be the primary description of the HTML page. an example of the <h1>, <h2> and <p> tags in action

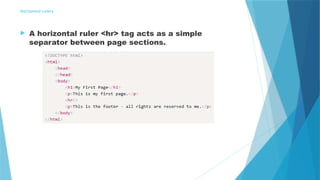

- 11. Horizontal rulers Ahorizontal ruler <hr> tag acts as a simple separator between page sections.

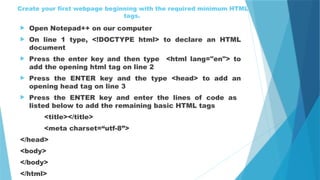

- 12. Create your firstwebpage beginning with the required minimum HTML tags. Open Notepad++ on our computer On line 1 type, <!DOCTYPE html> to declare an HTML document Press the enter key and then type <html lang="en"> to add the opening html tag on line 2 Press the ENTER key and the type <head> to add an opening head tag on line 3 Press the ENTER key and enter the lines of code as listed below to add the remaining basic HTML tags <title></title> <meta charset=“utf-8”> </head> <body> </body> </html>

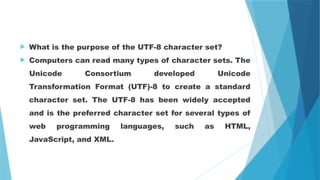

- 13. What isthe purpose of the UTF-8 character set? Computers can read many types of character sets. The Unicode Consortium developed Unicode Transformation Format (UTF)-8 to create a standard character set. The UTF-8 has been widely accepted and is the preferred character set for several types of web programming languages, such as HTML, JavaScript, and XML.

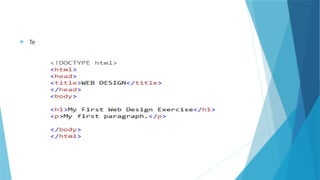

- 14.

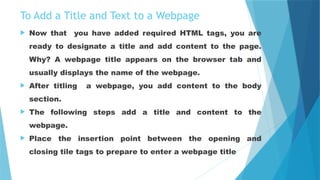

- 15. To Add aTitle and Text to a Webpage Now that you have added required HTML tags, you are ready to designate a title and add content to the page. Why? A webpage title appears on the browser tab and usually displays the name of the webpage. After titling a webpage, you add content to the body section. The following steps add a title and content to the webpage. Place the insertion point between the opening and closing tile tags to prepare to enter a webpage title

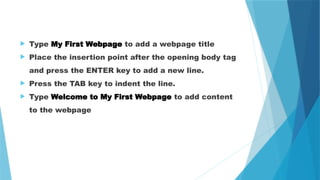

- 16. Type MyFirst Webpage to add a webpage title Place the insertion point after the opening body tag and press the ENTER key to add a new line. Press the TAB key to indent the line. Type Welcome to My First Webpage to add content to the webpage

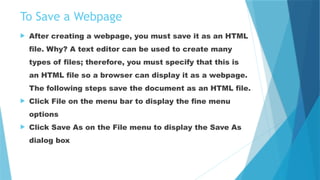

- 17. To Save aWebpage After creating a webpage, you must save it as an HTML file. Why? A text editor can be used to create many types of files; therefore, you must specify that this is an HTML file so a browser can display it as a webpage. The following steps save the document as an HTML file. Click File on the menu bar to display the fine menu options Click Save As on the File menu to display the Save As dialog box

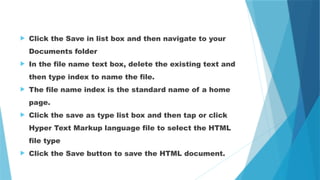

- 18. Click theSave in list box and then navigate to your Documents folder In the file name text box, delete the existing text and then type index to name the file. The file name index is the standard name of a home page. Click the save as type list box and then tap or click Hyper Text Markup language file to select the HTML file type Click the Save button to save the HTML document.

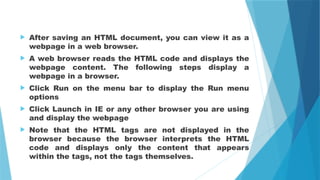

- 19. After savingan HTML document, you can view it as a webpage in a web browser. A web browser reads the HTML code and displays the webpage content. The following steps display a webpage in a browser. Click Run on the menu bar to display the Run menu options Click Launch in IE or any other browser you are using and display the webpage Note that the HTML tags are not displayed in the browser because the browser interprets the HTML code and displays only the content that appears within the tags, not the tags themselves.
