This document outlines steps for designing a scalable web architecture. It begins with launching a minimum viable product on Amazon EC2 with a MySQL database. As traffic increases, vertical scaling is introduced but has limits. Horizontal scaling with multiple AWS instances, Elastic Load Balancing, and MySQL master-slave replication is presented as an alternative. Further optimizations like content delivery networks, client-side rendering, compression, and caching are suggested to improve performance and speed. As data grows, a NoSQL database like MongoDB is proposed to replace MySQL. The minimum viable scalable setup combines these techniques and technologies.

1. Web Scale Architecture design
James Singh
1

2. Who is this targeted at?
Mostly Tech Startups
If you own a tech startup with brilliant idea and execution,
chances are that your startup will catch up like fire.
- Initial traffic from TNW, TechCrunch, HackerNews etc.
- Huge organic traffic
If you’re not prepared, bad things will happen.
2

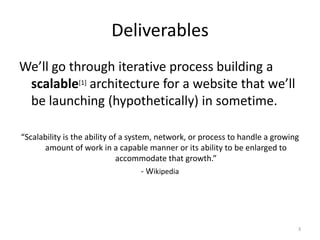

3. Deliverables
We’ll go through iterative process building a
scalable[1] architecture for a website that we’ll
be launching (hypothetically) in sometime.
“Scalability is the ability of a system, network, or process to handle a growing
amount of work in a capable manner or its ability to be enlarged to
accommodate that growth.”
- Wikipedia
3

4. It all starts with the launch
Minimum Viable Product running on the following:
1. Amazon EC2 instance
2. MySQL database
4

5. Oops! You’ve hit the wall
- The server is showing 100% CPU Utilization. Need
more resources.
- Vertical scaling gives you sigh of relief.
5

6. Vertical Scalability ???
Increasing the hardware resources without changing the number
of nodes. Also known as "Scaling up" the server.
Advantages:
- Simple to implement
Disadvantages:
- Finite limit
- Requires downtime
6

7. Houston, we have a problem!
7

8. Horizontal scaling
Increasing the number of nodes of the App server through load
balancing. Also referred to as "Scaling out" the app server.
- Increase in the number of nodes by replacing the nodes.
- Each node performs the same tasks.
- Each node is identical.
8

9. 1. Multiple AWS instances + Auto scaling
2. Elastic load balancing (ELB) / nginx
3. MySQL (master + slaves)
9

10. Doing good. Let’s work on performance
1. Not hitting the application server for static content
[Performance]
2. Take advantage of Content Delivery Networks (CDNs),
which copy the static assets to servers around the world
[Speed].
3. Render on the client side using templates. Return data
from server, as JSON/XML etc, rather than HTML.
[Performance+speed]
4. Returning compressed data from server. [Speed]
5. Caching data instead of hitting database every time
[Performance + Speed]
10

11. Our latest setup
1. Multiple AWS instances + Auto scaling
2. Elastic load balancing (ELB) / nginx
3. MySQL (master + slaves)
4. CDN / CloudFront / Akamai
5. Memcached
11

12. The database crunch!
The db has grown to the extent that a single machine
cannot hold all data.
Solution: NoSQL
Data spanning across multiple disks.
Options: MongoDB, Cassandra, Redis, CouchDB, Hbase,
Riak
12

13. Minimum viable setup??
1. Multiple AWS instances + Auto scaling
2. Elastic load balancing (ELB) / nginx
3. CDN / CloudFront / Akamai
4. Memcached
5. MongoDB
13
