This document is a washer repairing manual for Whirlpool and Kenmore belt drive models, detailing the design and operation of the agitate and spin cycles. It explains the role of key components such as the motor, solenoids, and cam bar in the washing process. Contact information for A-1 Appliance Parts is also provided.

1. Washing Machine Repair
/Contact Us @ www.a-1appliance.com

2. Washer Repairing
Manual
for Whirlpool or
Kenmore Belt Drive
The Design of Whirlpool /
Kenmore Washer Belt Drive
Contact Us @ www.a-1appliance.com

3. Drive Train
The design uses a single direction
motor, with solenoids to engage and
disengage the agitate and spin
cycles and pump.

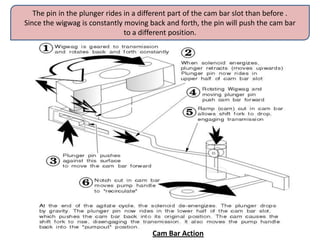

4. Cam Bar Action
The pin in the plunger rides in a different part of the cam bar slot than before .
Since the wigwag is constantly moving back and forth, the pin will push the cam bar
to a different position.

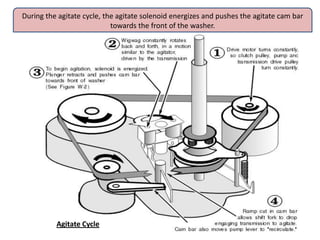

5. Agitate Cycle
During the agitate cycle, the agitate solenoid energizes and pushes the agitate cam bar
towards the front of the washer.

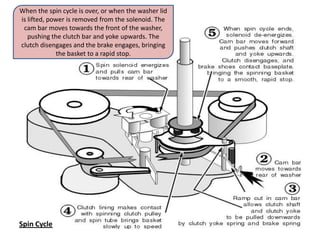

6. Spin Cycle
When the spin cycle is over, or when the washer lid
is lifted, power is removed from the solenoid. The
cam bar moves towards the front of the washer,
pushing the clutch bar and yoke upwards. The
clutch disengages and the brake engages, bringing
the basket to a rapid stop.

7. See figure for details about opening the
cabinet and console.
A wiring diagram is usually pasted
to the back of the machine.
