Volvo740wiring

The document contains wiring diagrams for a 1989 Volvo 740 vehicle. It includes diagrams for different engine models including the B200/230 E, B200/230ET, B230FT, B230F, B234F, and B200K. The diagrams cover various ignition and fuel injection systems including CI-fuel injection, Motronic, LH-Jetronic, Regina, EZ 116K, EZ 117K, EZ 118K, Rex i, and Renix. There are 27 pages of wiring diagrams provided.

Embed presentation

Downloaded 33 times

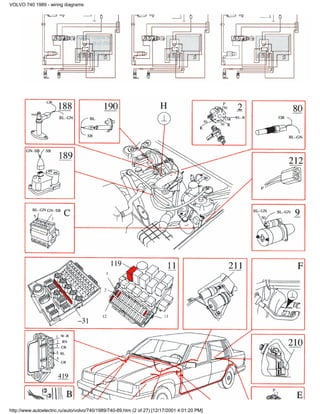

VOLVO 740 1989 - wiring diagrams VOLVO 740 1989 Wiring Diagrams CI-fuel injection, B200/230 E http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (1 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (2 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams Motronic, B200/230ET http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (3 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (4 of 27) [12/17/2001 4:01:20 PM]

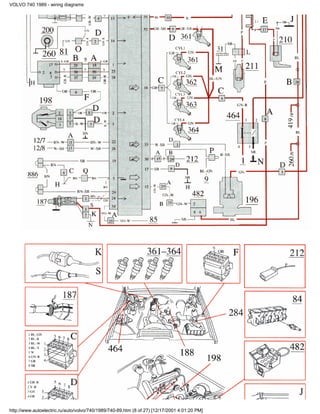

VOLVO 740 1989 - wiring diagrams LH-Jetronic 2.2, B230FT http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (5 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (6 of 27) [12/17/2001 4:01:20 PM]

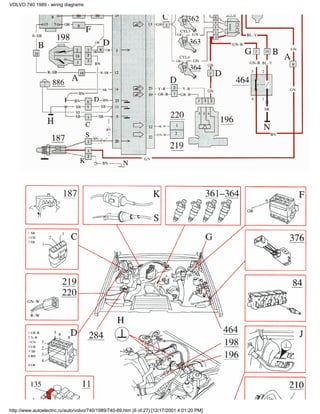

VOLVO 740 1989 - wiring diagrams LH-Jetronic 2.4, B230F http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (7 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (8 of 27) [12/17/2001 4:01:20 PM]

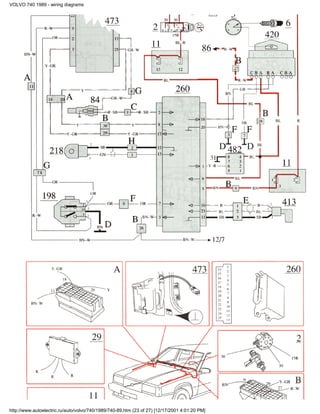

VOLVO 740 1989 - wiring diagrams LH-Jetronic 2.4, B234F, B204E http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (9 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (10 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (11 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams Regina, B234F, USA Federal http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (12 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (13 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams EZ 116K Ignition system, B230F http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (14 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (15 of 27) [12/17/2001 4:01:20 PM]

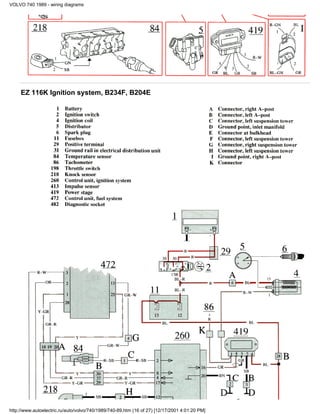

VOLVO 740 1989 - wiring diagrams EZ 116K Ignition system, B234F, B204E http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (16 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (17 of 27) [12/17/2001 4:01:20 PM]

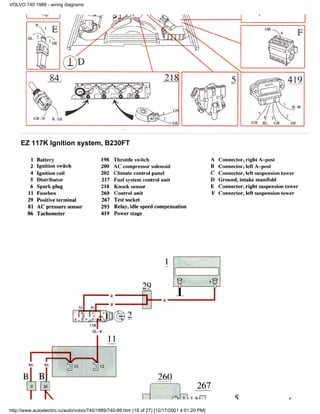

VOLVO 740 1989 - wiring diagrams EZ 117K Ignition system, B230FT http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (18 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (19 of 27) [12/17/2001 4:01:20 PM]

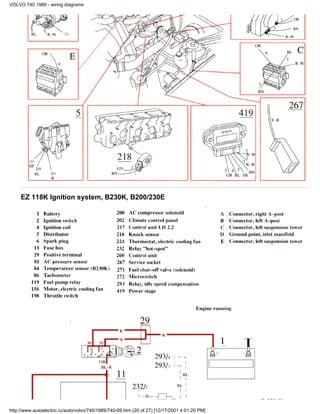

VOLVO 740 1989 - wiring diagrams EZ 118K Ignition system, B230K, B200/230E http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (20 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (21 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams Rex i Ignition system, B234F USA, Federal http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (22 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (23 of 27) [12/17/2001 4:01:20 PM]

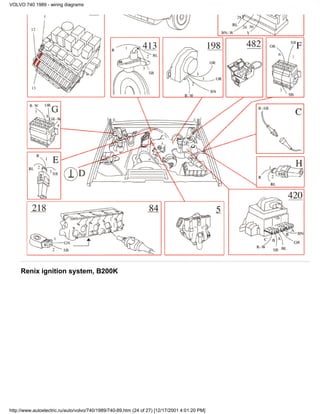

VOLVO 740 1989 - wiring diagrams Renix ignition system, B200K http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (24 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (25 of 27) [12/17/2001 4:01:20 PM]
VOLVO 740 1989 - wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (26 of 27) [12/17/2001 4:01:20 PM]

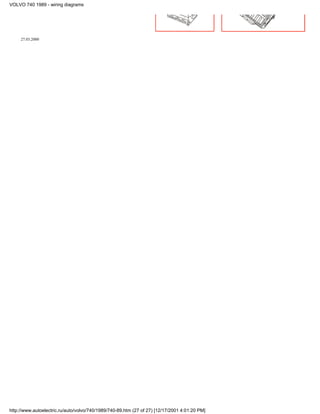

VOLVO 740 1989 - wiring diagrams 27.03.2000 http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (27 of 27) [12/17/2001 4:01:20 PM]

More Related Content

PDF
Wiring diagram for common rail diesel injection (CDI) control unit OM651.911.pdf
byHumbertoMontoya18

PDF
volvo wiring diagram vm
bySergio Andres Aburto

PDF
Massey Ferguson User Manual
byOBD Advisor

PDF
Case ih case international (david brown) 1690 tractor service repair manual
byudfjjdjkkmds

PDF
Bobcat 863 skid steer loader service repair manual instant download (sn 51451...
byudfjsjjekkekmem

PDF
FARMTRAC AND FORD TRACTORS PARTS PHOTO CATALOG (S26-S30)
byDeepjot Rekhi

PDF
Hyster h177 (h2.50 xm) forklift parts catalogue manual
byfujfjjjskekemm

PDF
FARMTRAC AND FORD TRACTORS PARTS PHOTO CATALOG (S31-S35)
byDeepjot Rekhi

Wiring diagram for common rail diesel injection (CDI) control unit OM651.911.pdf
byHumbertoMontoya18

volvo wiring diagram vm
bySergio Andres Aburto

Massey Ferguson User Manual
byOBD Advisor

Case ih case international (david brown) 1690 tractor service repair manual
byudfjjdjkkmds

Bobcat 863 skid steer loader service repair manual instant download (sn 51451...
byudfjsjjekkekmem

FARMTRAC AND FORD TRACTORS PARTS PHOTO CATALOG (S26-S30)
byDeepjot Rekhi

Hyster h177 (h2.50 xm) forklift parts catalogue manual
byfujfjjjskekemm

FARMTRAC AND FORD TRACTORS PARTS PHOTO CATALOG (S31-S35)
byDeepjot Rekhi


Viewers also liked

PDF
Volvo wiring diagram fh
bySergio Andres Aburto

PDF
Catalogo camiones-fh-fh16-volvo
byMERCATDO

PDF
17071 02 b13 r d13c chn 125761-132856
bymarco

PPT
1. equity
byFAROUQ

PDF
10 skills a man must possess
byFAROUQ

PDF
Discharge lecture
byFAROUQ

PDF
740 1987
byFAROUQ

PDF
Volvo 740 ownersmanual_1991
byFAROUQ

PDF
Philosophy presentation port
byFAROUQ

PDF
Remedies lecture 2
byFAROUQ

PPTX
Permit to use air space
byFAROUQ

DOC
Cover philo
byFAROUQ

PDF
Report writing
byFAROUQ

PDF
Volvo 480 service_manual_body_equipment
byFAROUQ

PDF
Cara pengurusan jenazah islam/ islamic funeral governance
byFAROUQ

PPTX
Philosophy presentation 1
byFAROUQ

PPT
Remedies
byFAROUQ

PPT
Alienation of Land
byFAROUQ

PDF
Legal profession act 1976
byFAROUQ

PDF
Caparo 1
byFAROUQ

Volvo wiring diagram fh
bySergio Andres Aburto

Catalogo camiones-fh-fh16-volvo
byMERCATDO

17071 02 b13 r d13c chn 125761-132856
bymarco

1. equity
byFAROUQ

10 skills a man must possess
byFAROUQ

Discharge lecture
byFAROUQ

740 1987
byFAROUQ

Volvo 740 ownersmanual_1991
byFAROUQ

Philosophy presentation port
byFAROUQ

Remedies lecture 2
byFAROUQ

Permit to use air space
byFAROUQ

Cover philo
byFAROUQ

Report writing
byFAROUQ

Volvo 480 service_manual_body_equipment
byFAROUQ

Cara pengurusan jenazah islam/ islamic funeral governance
byFAROUQ

Philosophy presentation 1
byFAROUQ

Remedies
byFAROUQ

Alienation of Land
byFAROUQ

Legal profession act 1976
byFAROUQ

Caparo 1
byFAROUQ


Similar to Volvo740wiring

PDF
A25F-A40F Step 1_Diagrams_Training Purpose Only_GB.zip.pdf
bySimbaJuma

PDF
Diagrams Volvo Ec140b Lc Complete Manual Pdf
byabjekGoogle

PDF
Toyota corolla-wiring-diagram-1998
byCharith Ruckshan

PDF
Tp39167202 2010 c30 s40 v50 c70 supplement wiring diagram
bydeanhandley

PPTX
Auto mobile engineering over view N. Mondal
byNiteshMondal1

PDF
2011 Chevy Volt Bob Jass Chevrolet Elburn, Illinois
byBob Jass Chevrolet of Elburn Illinois

PPTX
unit 1.pptx
bySiddheshJadhav84

A25F-A40F Step 1_Diagrams_Training Purpose Only_GB.zip.pdf
bySimbaJuma

Diagrams Volvo Ec140b Lc Complete Manual Pdf
byabjekGoogle

Toyota corolla-wiring-diagram-1998
byCharith Ruckshan

Tp39167202 2010 c30 s40 v50 c70 supplement wiring diagram
bydeanhandley

Auto mobile engineering over view N. Mondal
byNiteshMondal1

2011 Chevy Volt Bob Jass Chevrolet Elburn, Illinois
byBob Jass Chevrolet of Elburn Illinois

unit 1.pptx
bySiddheshJadhav84


More from FAROUQ

PPTX
Mahan Sea Power
byFAROUQ

PPTX
Power of attorney
byFAROUQ

DOC
PERATURAN-PERATURAN ANGKATAN TENTERA(BIDANGKUASA TERUS) 1976
byFAROUQ

DOC
PERATURAN-PERATURAN ANGKATAN TENTERA (BIDANGKUASA TERUS) 1976
byFAROUQ

DOC
KAEDAH-KAEDAH ANGKATAN TENTERA (PENJARAAN DAN TAHANAN) 1976
byFAROUQ

DOC
KAEDAH-KAEDAH ANGKATAN TENTERA (MAHKAMAH TENTERA) 1976
byFAROUQ

DOCX
PERATURAN-PERATURAN ANGKATAN TENTERA(HUKUMAN MEDAN) 1976
byFAROUQ

DOCX
KAEDAH-KAEDAH ANGKATAN TENTERA (LEMBAGA SIASATAN) 1976
byFAROUQ

DOC
Torts _measure_of_damage
byFAROUQ

DOC
Torts _fatal_accident_clai
byFAROUQ

DOC
Tracing 1_
byFAROUQ

DOC
Torts remoteness
byFAROUQ

DOC
Torts duty of_care
byFAROUQ

DOC
Torts defamation iii
byFAROUQ

DOC
Torts defamation ii
byFAROUQ

DOC
Torts defamation i
byFAROUQ

DOC
Torts damages
byFAROUQ

DOC
Torts damage to_property
byFAROUQ

DOC
Torts contributARY negligence
byFAROUQ

DOC
Torts causation of_facts
byFAROUQ

Mahan Sea Power
byFAROUQ

Power of attorney
byFAROUQ

PERATURAN-PERATURAN ANGKATAN TENTERA(BIDANGKUASA TERUS) 1976
byFAROUQ

PERATURAN-PERATURAN ANGKATAN TENTERA (BIDANGKUASA TERUS) 1976
byFAROUQ

KAEDAH-KAEDAH ANGKATAN TENTERA (PENJARAAN DAN TAHANAN) 1976
byFAROUQ

KAEDAH-KAEDAH ANGKATAN TENTERA (MAHKAMAH TENTERA) 1976
byFAROUQ

PERATURAN-PERATURAN ANGKATAN TENTERA(HUKUMAN MEDAN) 1976
byFAROUQ

KAEDAH-KAEDAH ANGKATAN TENTERA (LEMBAGA SIASATAN) 1976
byFAROUQ

Torts _measure_of_damage
byFAROUQ

Torts _fatal_accident_clai
byFAROUQ

Tracing 1_
byFAROUQ

Torts remoteness
byFAROUQ

Torts duty of_care
byFAROUQ

Torts defamation iii
byFAROUQ

Torts defamation ii
byFAROUQ

Torts defamation i
byFAROUQ

Torts damages
byFAROUQ

Torts damage to_property
byFAROUQ

Torts contributARY negligence
byFAROUQ

Torts causation of_facts
byFAROUQ


Recently uploaded

PDF
UiPath Coded Agents - A Developer Driven Agentic Automation Era
byUiPathCommunity

PDF
Presentation of Cybersecurity and data protection
bytarikaityahya2

PDF
Why Are Cloud Migration Services Essential for Modern Business Growth?
byGeoPITS Global Pvt Ltd

PPTX
CodeMash 2026 - Optimizing Azure App Services
byBrian McKeiver

PDF
January Patch Tuesday
byIvanti

PPTX
Single Cell Protein from Methane or Methanol - Process development research c...
byJohn Downs

PDF
Profiting from Technological Innovation: Managing Intellectual Property to Bu...
byDavid Teece

PDF
Implementing A Data Lakehouse Using Iceberg & Spark
byAnass Nabil

PPT
Telecommunication system introduction to wireless communication
by143irha

PDF
Special Reeling Cable Specification _ Anhui Feichun Special Cable Co., Ltd_.pdf
byAnhui Feichun Special Cable Co., Ltd.

PDF
Lightweight, Travel-Ready Freedom for Adults and Seniors
byTopmate

PPTX
Becoming Frontier for Dynamics 365 Finance PPT
byjonbravetti

PDF
Français Patch Tuesday - Janvier
byIvanti

PDF
Top 10 Dedicated Server Providers in Stockholm (Updated Edition).pdf
byAtal Networks

PPT
connectives-linking words in English.ppt
byAmrMohammed82

PPTX
Mastering SQL Server Replication: Types, Setup & Troubleshooting
byGeoPITS Global Pvt Ltd

PDF
2006 IEEE International Solid-State Circuits Conference
bySlide_N

PPTX
Achieve enterprise automation with SAP BTP solutions and SAP Signavio
bydarrellkiwi

PDF
Are AI Hallucinations Getting Better or Worse? We Analyzed the Data.
byScott M. Graffius

PDF
TopMate ES11 3-Wheel Electric Scooter: Comfort, Stability, and Independence f...
byTopmate

UiPath Coded Agents - A Developer Driven Agentic Automation Era
byUiPathCommunity

Presentation of Cybersecurity and data protection
bytarikaityahya2

Why Are Cloud Migration Services Essential for Modern Business Growth?
byGeoPITS Global Pvt Ltd

CodeMash 2026 - Optimizing Azure App Services
byBrian McKeiver

January Patch Tuesday
byIvanti

Single Cell Protein from Methane or Methanol - Process development research c...
byJohn Downs

Profiting from Technological Innovation: Managing Intellectual Property to Bu...
byDavid Teece

Implementing A Data Lakehouse Using Iceberg & Spark
byAnass Nabil

Telecommunication system introduction to wireless communication
by143irha

Special Reeling Cable Specification _ Anhui Feichun Special Cable Co., Ltd_.pdf
byAnhui Feichun Special Cable Co., Ltd.

Lightweight, Travel-Ready Freedom for Adults and Seniors
byTopmate

Becoming Frontier for Dynamics 365 Finance PPT
byjonbravetti

Français Patch Tuesday - Janvier
byIvanti

Top 10 Dedicated Server Providers in Stockholm (Updated Edition).pdf
byAtal Networks

connectives-linking words in English.ppt
byAmrMohammed82

Mastering SQL Server Replication: Types, Setup & Troubleshooting
byGeoPITS Global Pvt Ltd

2006 IEEE International Solid-State Circuits Conference
bySlide_N

Achieve enterprise automation with SAP BTP solutions and SAP Signavio
bydarrellkiwi

Are AI Hallucinations Getting Better or Worse? We Analyzed the Data.
byScott M. Graffius

TopMate ES11 3-Wheel Electric Scooter: Comfort, Stability, and Independence f...
byTopmate


Volvo740wiring

  • 1.
    VOLVO 740 1989- wiring diagrams VOLVO 740 1989 Wiring Diagrams CI-fuel injection, B200/230 E http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (1 of 27) [12/17/2001 4:01:20 PM]
  • 2.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (2 of 27) [12/17/2001 4:01:20 PM]
  • 3.
    VOLVO 740 1989- wiring diagrams Motronic, B200/230ET http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (3 of 27) [12/17/2001 4:01:20 PM]
  • 4.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (4 of 27) [12/17/2001 4:01:20 PM]
  • 5.
    VOLVO 740 1989- wiring diagrams LH-Jetronic 2.2, B230FT http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (5 of 27) [12/17/2001 4:01:20 PM]
  • 6.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (6 of 27) [12/17/2001 4:01:20 PM]
  • 7.
    VOLVO 740 1989- wiring diagrams LH-Jetronic 2.4, B230F http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (7 of 27) [12/17/2001 4:01:20 PM]
  • 8.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (8 of 27) [12/17/2001 4:01:20 PM]
  • 9.
    VOLVO 740 1989- wiring diagrams LH-Jetronic 2.4, B234F, B204E http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (9 of 27) [12/17/2001 4:01:20 PM]
  • 10.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (10 of 27) [12/17/2001 4:01:20 PM]

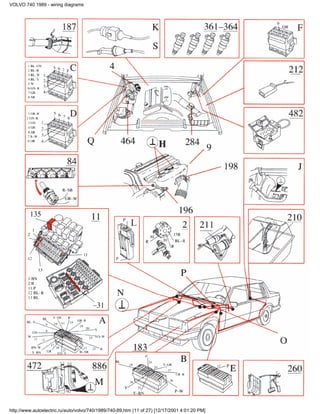

  • 11.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (11 of 27) [12/17/2001 4:01:20 PM]
  • 12.
    VOLVO 740 1989- wiring diagrams Regina, B234F, USA Federal http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (12 of 27) [12/17/2001 4:01:20 PM]
  • 13.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (13 of 27) [12/17/2001 4:01:20 PM]
  • 14.
    VOLVO 740 1989- wiring diagrams EZ 116K Ignition system, B230F http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (14 of 27) [12/17/2001 4:01:20 PM]
  • 15.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (15 of 27) [12/17/2001 4:01:20 PM]
  • 16.
    VOLVO 740 1989- wiring diagrams EZ 116K Ignition system, B234F, B204E http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (16 of 27) [12/17/2001 4:01:20 PM]

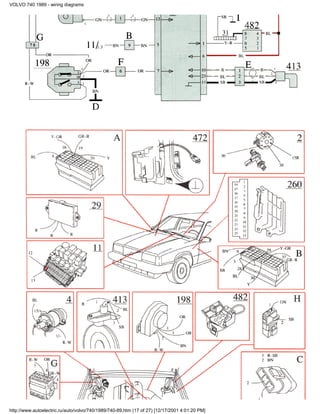

  • 17.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (17 of 27) [12/17/2001 4:01:20 PM]
  • 18.
    VOLVO 740 1989- wiring diagrams EZ 117K Ignition system, B230FT http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (18 of 27) [12/17/2001 4:01:20 PM]
  • 19.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (19 of 27) [12/17/2001 4:01:20 PM]
  • 20.
    VOLVO 740 1989- wiring diagrams EZ 118K Ignition system, B230K, B200/230E http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (20 of 27) [12/17/2001 4:01:20 PM]
  • 21.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (21 of 27) [12/17/2001 4:01:20 PM]
  • 22.
    VOLVO 740 1989- wiring diagrams Rex i Ignition system, B234F USA, Federal http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (22 of 27) [12/17/2001 4:01:20 PM]
  • 23.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (23 of 27) [12/17/2001 4:01:20 PM]
  • 24.
    VOLVO 740 1989- wiring diagrams Renix ignition system, B200K http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (24 of 27) [12/17/2001 4:01:20 PM]
  • 25.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (25 of 27) [12/17/2001 4:01:20 PM]
  • 26.
    VOLVO 740 1989- wiring diagrams http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (26 of 27) [12/17/2001 4:01:20 PM]

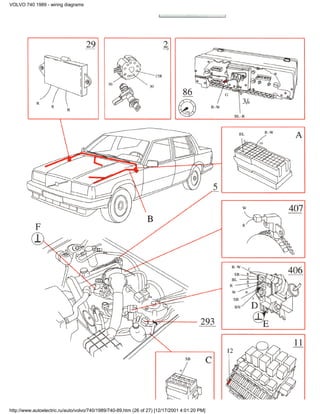

  • 27.
    VOLVO 740 1989- wiring diagrams 27.03.2000 http://www.autoelectric.ru/auto/volvo/740/1989/740-89.htm (27 of 27) [12/17/2001 4:01:20 PM]
