![Countertop Warming and Display The Vollrath Company, LLC
Cayenne® Warmers and Rethermalizers Selection Guide
WELL OFFERED WITH
PAGE # WARMER AND DIRECT CONTACT STAINLESS STEEL LOW WATER THERMOSTATICALLY DRIPLESS LIGHTED ON/
MODEL CONFIGURATION WATTAGE WARMER ONLY DRAIN INSETS AND
SHOWN RETHERMALIZER HEATING SYSTEM WELL LIGHT CONTROLLED EDGE OFF SWITCH
(W X D) LADLES
1001 3-12 12 x 20 700 x x x x x
2000 3-11 12 x 20 1000 x x x
1220 3-8 12 x 20 1000 x x x x x x
HS Ultra 3-8 12 x 20 1440 x x x x x x
Nitro 3-10 12 x 20 1440 x x x x
Twin 7 qt 700/
TSM 27 3-15 x x x x x x
Round ea.
HS 7 3-8 7 qt Round 800 x x x x x x
HS 11 11 qt
3-8 800 x x x x x x
Round
T43R 4/3 3-9 4, 1⁄3 Pans 1600 x x x x x x
TD43R 4/3 3-9 4, 1⁄3 Pans 1600 x x x x x x x
Dual,
Dual 3-10 1400 x x x x x x x
12 x 20
Twin 4 qt 500/
CM 24 3-13 Round ea. x { x x
Twin 7 qt 700/
TW 27R 3-13 x x x x x x
Round ea.
SS4 3-12 4 qt Round 350 x { x x
1776 Colonial 11 qt
Kettle 3-18 Round 650 x { x x x
1777 Colonial 11 qt
Kettle 3-18 Round 900 x { x x x
{Coated Aluminum
Which WARMER OR RETHERMALIZER
Cayenne® Keeps hot food hot Takes prepared food from chilled to hot
Unit Holds heated food Holds heated food
is Right Meets appropriate NSF4 criteria Meets appropriate NSF4 criteria
for You? Performance Criteria: Performance Criteria:
Designed to hold heated prepared foods at Designed to take a container of prepared
temperatures above the HACCP danger food from a chilled state (below 40°F [4.4°C])
zone of 140°F (60°C). The performance through the HACCP danger zone to a
standard is measured using the NSF mixture temperature of 165°F (73.9°C) in less than
preheated to 160°F (71.1°C). The unit will 90 minutes. The performance standard is
hold the temperature of this product above measured using the NSF mixture chilled to
150°F (65.6°C). The temperature will be 35°F (1.7°C). The unit will raise the tempera-
maintained when the food product and inset ture of this product above 165°F (73.9°C) in
are used with a standard inset cover, the less than 90 minutes. The temperature will
proper water level is maintained in the well, be maintained above 150°F (65.6°C) when
and the food product is stirred regularly. the food product and inset are used with a
standard inset cover, the proper water level
is maintained in the well and the food
product is stirred regularly.
3-9](https://image.slidesharecdn.com/vollrathcatalog201120110201-12993695915088-phpapp02/85/Vollrath-Catalog2011-02-01-72-320.jpg)
![vollrathco.com
Countertop Warming and Display
Cayenne®
Dual Warmer
Q Two independently controlled warmers
featuring Vollrath's exclusive Direct Contact
Heating System
Q Lowest energy usage of any dual full-size
warmer on the market - draws only 11.6
amps, allowing unit to plug into any 15A outlet
Q Drain hose and controls are concealed behind
front panel for easy access and finished look -
can be used for front-of-house applications
Q Stainless steel exterior for long life
and durability
Q Lighted main power switch Receptacle
controls power to both wells
120V
MAXIMUM DIMENSIONS (W X D X H)
ITEM DESCRIPTION IN (CM) VOLTAGE WATTS AMPS PLUG CASE LOT
72789 Dual Warmer 301⁄ 2 x 121⁄ 2 x 241⁄ 2 (77.5 x 31.8 x 61) 120 AC 1400 11.6 5-15P 1
Cayenne® Nitro™
Power Rethermalizer
Q High-efficiency 1440W element that operates on
standard 15A circuit
Q Direct contact element concentrates energy directly
into the well for maximum efficiency
Q Almost twice the water capacity of
other countertop models, reducing need
to refill the well as often
Q Holds with wet or dry heat — moist heat always
recommended for best performance and preserving
food quality — NSF4 listed when using moist heat
Q Heavy-duty bulb and capillary thermostat with
overtemp protection for accuracy and safety
Q Adjustable 1 (2.5 cm) feet
Q 6' (183 cm) cord and plug
Q 300 series stainless steel well
Q See page 3-21 for a full line of accessories
Receptacle
Performance Criteria: Cayenne® Nitro™ Rethermalizers 120V
Nitro Cookers are designed to take a container of cooked food from a chilled state (below 40° F [4.4° C]) through the HACCP “danger zone” of 165˚ F (73.9˚ C)
in less than 90 minutes. The performance standard is measured using the NSF mixture chilled to 35° F (1.7° C). The electric unit will raise the temperature of this
product above 165˚ F (73.9˚ C) in less than 90 minutes. The temperature will be maintained above 150° F (65.6° C) when the food product and pan or inset are
used with a standard pan or inset cover, the proper water level is maintained in the well, and the food product is stirred regularly.
DIMENSIONS (W X D X H) CASE
ITEM DESCRIPTION IN (CM) VOLTAGE WATTS AMPS PLUG LOT
72090 Model PC-21, rethermalizer 14 x 22 x 91⁄ 2 (35.6 x 55.9 x 24.1) 120 AC 1440 12.0 5-15P 1
3-12](https://image.slidesharecdn.com/vollrathcatalog201120110201-12993695915088-phpapp02/85/Vollrath-Catalog2011-02-01-75-320.jpg)
Uploaded byMark Moreno
Vollrath Catalog2011 02 01
Vollrath University is a 10,000 square foot facility for foodservice training that includes simulated environments like a full kitchen, meeting areas, and classrooms. It offers product demonstrations, presentations on multimedia tools, and is a go-to location for industry training events. The facility can be used for various types of events like training, meetings, and food preparation/serving.
Vollrath Catalog2011 02 01

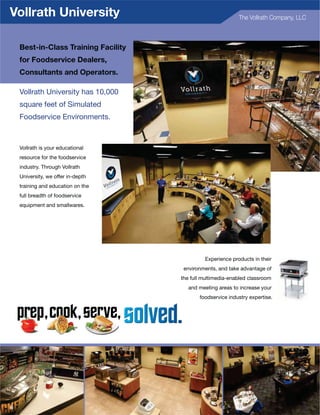

- 4. Vollrath University The Vollrath Company, LLC Best-in-Class Training Facility for Foodservice Dealers, Consultants and Operators. Vollrath University has 10,000 square feet of Simulated Foodservice Environments. Vollrath is your educational resource for the foodservice industry. Through Vollrath University, we offer in-depth training and education on the full breadth of foodservice equipment and smallwares. Experience products in their environments, and take advantage of the full multimedia-enabled classroom and meeting areas to increase your foodservice industry expertise. iii
- 5. vollrathco.com Vollrath University Full Kitchen with large island for presentations. Great for events requiring food preparation and serving. >> Product demonstrations >> Presentations, videos, and multimedia tools >> The industry’s go-to facility for training and events Convenience Store K-12/College and University Cafeteria Meeting Area overlooks Foodservice Multi-media Classroom Environments & Training Center with Stadium seating for 50 people & Arena Front of House Back of House Restaurant/Hotel/ Commercial Banquet Kitchen Use our facility for your next training event. Contact your local Vollrath representative for more information. iv iv
- 6. Sustainability The Vollrath Company, LLC Helping Foodservice Serve Up A Better Environment For 136 years, Vollrath’s heritage for innovation has produced durable, high-performance “green” products that save energy and water, minimize food waste, and maximize recyclability. Simply by using Vollrath® products, foodservice professionals can operate efficiently and profitably, and help sustain a healthier environment in the process iin g s ngs red sav sav uc r ee gy gy cd e rr e yc cl a en en rb i bi ed bo li as ny t t re f oo in c tpr int enviro e g e g rn int mn ee pr nt m ot a a a toy lu n li f re ac sp f f in to un bo ab rin si acrl b g ccy ilit y ced re redu For more information on Vollrath Sustainability, visit us at http://www.vollrathco.com/green/ v
- 7. vollrathco.com Sustainability Better ways to save energy... Conserve with from prep to serve. recyclable materials. The Vollrath® ® Fabricate Use Full Life Cycle of ® Stainless Steel Melt Scrap 100% recyclable Stainless Steel and Aluminum facts… continuously recycled made from recycled material recycled more long service life needs less maintenance, Greater longevity, lower replacement costs ® vi

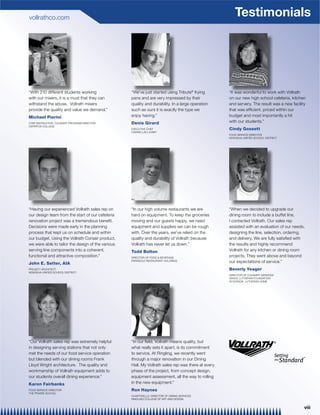

- 8. Testimonials The Vollrath Company, LLC What Our Customers are Saying... ® ® ® Francesco Lorusso Ruth Ann Kiley Jerry E. Carr C.E.C. Chris Mills David Wray ® Gower Lane vii
- 9. vollrathco.com Testimonials ® Michael Pierini Denis Girard Cindy Gossett Todd Bolton John E. Setter, AIA Beverly Yeager Karen Fairbanks Ron Haynes viii
- 10. Online Design andEstimating The Vollrath Company, LLC Your Equipment Tool Kit... Vollrath’s Concept™ Equipment Configurator Create a custom line-up with quotes and drawings in minutes! Q Q PHOTO Q QUALITY Q Q RENDERINGS Q Q www.vollrathco.com AutoQuotes Equipment Specifier Q www.aqnet.com Vollrath Photo Gallery Photo Gallery view more photo samples online at vollrathco.com ix

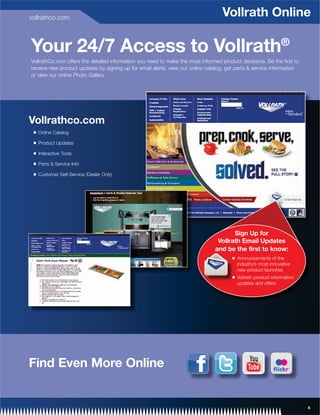

- 11. vollrathco.com Vollrath Online Your 24/7 Access to Vollrath® Vollrathco.com Q Q Q Q Q Sign Up for Vollrath Email Updates and be the first to know: Q Q Find Even More Online x

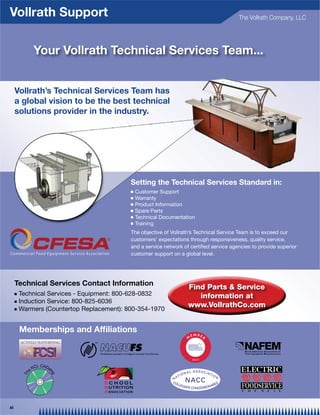

- 12. Vollrath Support The Vollrath Company, LLC Your Vollrath Technical Services Team... Vollrath’s Technical Services Team has a global vision to be the best technical solutions provider in the industry. Setting the Technical Services Standard in: Q Customer Support Q Warranty Q Product Information Q Spare Parts Q Technical Documentation Q Training The objective of Vollrath’s Technical Service Team is to exceed our customers’ expectations through responsiveness, quality service, and a service network of certified service agencies to provide superior customer support on a global level. Technical Services Contact Information Find Parts & Service Q Technical Services - Equipment: 800-628-0832 information at Q Induction Service: 800-825-6036 Q Warmers (Countertop Replacement): 800-354-1970 www.VollrathCo.com Memberships and Affiliations xi
- 13. vollrathco.com Table of Contents Q Introduction Lobster King™ 1-23 Oyster King™ 1-23 Prep, Cook, and Serve Resource i to ii Grill Tender® 1-24 Vollrath University Overview iii to iv Tater King™ Scooper 1-24 Serve Up a Better Environment v to vi Petrol Gel 1-24 Testimonials vii to viii Can Openers 1-25- to 1-26 Equipment Tool Kit ix Online Support x Q Technical Services Team xi Countertop Cooking Equipment Symbol Legend xvi Mirage® Pro Induction Ranges 2-3 Mirage® Cadet Induction Ranges 2-4 Q Food Prep Equipment Mirage® Drop-In Induction Ranges 2-5 Mirage® International Induction Ranges 2-5 Mixer Overview 1-3 Mirage® Carrying Case 2-5 Floor and Bench Mixers 1-4 Ultra Series Induction 2-6 Countertop Mixers 1-4 Professional Series Induction 2-7 Mixer Accessories 1-5 Commercial Series Induction 2-8 Mixer Capacity Chart 1-6 Ultra Fajita Heater 2-9 Slicer Overview 1-7 Mirage® Fajita Heater 2-9 Deluxe Slicers 1-8 Induction Product Selection Guide 2-10 Heavy-Duty Slicers 1-8 Cayenne® Charbroilers 2-11 Light and Medium-Duty Slicers 1-9 Cayenne® Gas Flat Top Griddles 2-12 Slicer Accessories 1-9 Cayenne® Electric Flat Top Griddles 2-12 Vacuum Pack Machines 1-10 Cayenne® Gas Hot Plates 2-13 Grinders 1-11 Cayenne® Electric Hot Plate 2-13 Grinder Accessories 1-11 Equipment Stands 2-13 Vertical Cutter/Mixer 1-11 Cayenne® Convection Ovens 2-14 Potato Cutter 1-12 Microwaves 2-15 E-Z Juice Extractor 1-12 Cayenne® Chicken Rotisserie Oven 2-15 Redco® Manual Food Processors Overview 1-13 to 1-14 Cayenne® Pizza/Bake Oven 2-16 InstaCut™ 5.0 1-15 Cayenne® Cheese Melter 2-16 InstaCut™ 3.5 1-16 Cayenne® Hot Dog Roller Grills 2-16 Wedgemaster® II 1-17 Cayenne® Sandwich Presses 2-17 Wedgemaster® 1-17 Cayenne® Electric Fryers 2-18 InstaBloom® 1-18 Onion King® 1-18 Q InstaSlice™ 1-19 Countertop Warming and Display Tomato Pro™ 1-20 Heated and Refrigerated Display Cabinets 3-3 to 3-4 Tomato King® Scooper 1-20 Cayenne® Hot Food Merchandisers 3-5 Lettuce King® I 1-21 Cayenne® Bain Marie Hot Display Case 3-6 Lettuce King® IV and Drum Ring 1-21 Direct Contact Heating System 3-7 King Kutter™ 1-22 Cayenne® Heat N’ Serve Overview 3-8 CubeKing™ 1-23 Warmer/Rethermalizer Selection Guide 3-9 Cheese Blocker™ 1-23 xii
- 14. Table of Contents The Vollrath Company, LLC Cayenne® Heat 'N Serve Rethermalizers 3-10 to 3-11 NSF2 Breath Guard Overview 4-23 Cayenne® Dual Warmer 3-12 Breath Guards 4-23 to 4-30 Cayenne® Nitro Rethermalizer 3-12 Q Cayenne® Model 2000 Warmers 3-13 Mobile Serving Equipment Cayenne® Warmer with Drain 3-13 Custom Kiosks 5-5 Cayenne® Model 1001 Warmers 3-14 ACM/WCM Comparison 5-6 Model SS-4 Warmer 3-14 Mobile Carts 5-7 Cayenne® Twin Well Rethermalizers 3-15 Merchandising Carts 5-8 Cayenne® Soup Merchandisers 3-16 to 3-18 Coffee Carts 5-9 Soup Kiosks 3-19 5' Snack Merchandiser Cart 5-10 Cayenne® Colonial Kettles™ 3-20 3' Chip Merchandiser 5-10 Warmer Accessories 3-21 Retail Carts 5-11 Cayenne® Heat Strips 3-22 Condiment Cart 5-11 Cayenne® Heated Shelves 3-23 to 3-24 Cashier/Merchandising Station 5-12 Cayenne® Heat Lamp 3-24 Mobile Cashier Station 5-12 Soup Merchandiser Cart 5-13 Q Fabricator Components Beverage Tubs 5-14 Modular Drop-Ins Features and Benefits 4-3 Hand Sink Cart 5-14 Hot Well Dimensions 4-3 Utility Counter – Countertop Equipment Island 5-15 Short Side Drop-Ins 4-4, 4-8 Mobile Utility/Beverage Counters 5-16 Bain Marie Hot Modular Drop-Ins 4-4 Demonstration Table/Action Station 5-17 One Well Hot Modular Drop-Ins 4-5 Hot or Cold Prep Station 5-18 Two Well Hot Modular Drop-Ins 4-5 Garbage Can Storage 5-19 Three Well Hot Modular Drop-Ins 4-6 Curved Bar 5-20 Four Well Hot Modular Drop-Ins 4-6 Milestone™ Serving Lines 5-21 to 5-22 Five Well Hot Modular Drop-Ins 4-7 Signature Server® Serving Lines 5-23 to 5-44 Six Well Hot Modular Drop-Ins 4-7 Signature Server® 2.0 Mobile Food Bars 5-23 to 5-24 Refrigerated Short Side Drop-Ins 4-8 Signature Server® Classic Food Bars 5-25 to 5-29 Non-Refrigerated Short Side Cold Pan Drop-Ins 4-8 Signature Server® 2.0 and 5-31 to 5-39 NSF7 Refrigerated Cold Pan Modular Drop-Ins 4-9 Classic Breath Guards Standard Refrigerated Cold Pan Modular Drop-Ins 4-9 Signature Server® 2.0 and 5-39 to 5-44 Classic Accessories Non-Refrigerated Cold Pan Modular Drop-Ins 4-10 Affordable Portable™ Food Bars 5-45 to 5-48 Refrigerated Frost-Top Modular Drop-Ins 4-10 Induction Buffet Table 5-49 to 5-50 Soup Well Modular Drop-Ins 4-11 Servewell® Food Stations 5-51 to 5-53 Top-Mount Fabricator Well 4-11 Auto-Fill Option/Accessory 4-11 Q Steam Table Pans, Mirage® Drop-In Induction Units 4-12 Prep and Holding Professional Series Drop-In Induction 4-13 Super Pan® Super Shapes 6-3 to 6-4 Ultra Series Drop-In Induction 4-13 Super Pan 3® Stainless Steel Pans 6-5 to 6-6 Cayenne® Heat and Light Strips 4-14 to 4-20 Super Pan 3® Plastic Pans 6-7 to 6-8 Cayenne® Drop-In Warmers 4-21 Super Pan 3® Stainless Steel Perforated Pans 6-9 Refrigerated and Heated Drop-In Display Cabinets 4-22 Super Pan 3® Stainless Steel SteelCoat x3™ Pans 6-9 xiii
- 15. vollrathco.com Table of Contents Super Pan 3® Full Size Flex Lid 6-9 Fryers - Aluminum/ Footed Basket 7-37 Super Pan 3® Accessories 6-10 Aluminum Steamers/ Cookers 7-37 Super Pan II® Overview 6-11 Covers for Aluminum Cookware 7-38 Super Pan II® Stainless Steel Pans 6-12 Arkadia™ Economy Aluminum Cookware 7-39 to 7-40 Super Pan II® Accessories 6-13 to 6-15 Sheet Pans 7-41 Super Pan II® and 6-16 to 6-17 Wire Grates 7-41 Super Pan 3® Accessories Roasters 7-42 Deli Pans and Covers 6-16 Bake and Roast Pans 7-43 Inset Adaptor Plates and Rings 6-18, 6-20 Party Pan 7-44 Bain Maries and Covers 6-19 Cheesecake Pans 7-44 Inset Accessories 6-19 Loaf Pans 7-44, 7-45 Steam Table Pan Layouts 6-21 Biscuit and Cake Pan 7-44 Steam Table Pan Flange and Opening Sizes 6-22 Cookie/ Baking Sheets 7-44 Super Pan II® and Super Pan 3® 6-22 Meat Loaf/Bread Pans 7-45 Portion Control Guide Stainless Steel Loaf Pan 7-45 Unique Meatloaf/Bread Pan 7-45 Q Professional Cookware Pans/ Pie Plates 7-46 Cookware Types 7-3 Cake Pans 7-46 Cookware Care and Use 7-4 Egg Poachers 7-46 Vollrath Cookware Overview 7-5 TriVent™ Handle Benefits 7-6, 7-25 Q Kitchen Essentials Tribute® 3-Ply Cookware 7-7 to 7-10 Agion® Overview 8-3 Stainless Steel Fry Pans 7-8, 7-12, 7-16, 7-18 Jacob’s Pride® Overview 8-4 Induction Cookware 7-7 to 7-20 HACCP Overview 8-5 Centurion® Cookware 7-11 to 7-14 Portion Control Menu Planner 8-6 Intrigue® Professional Cookware 7-15 to 7-17 Portion Control Products 8-7 Optio™ Cookware 7-18 to 7-20 Spoodle® Utensils 8-8 to 8-10 Stainless Steel Stock Pots 7-21 Color-coded Portion Servers 8-8 to 8-10 Stainless Steel Double Boilers 7-21, 7-22 Whips 8-11 to 8-12 Stainless Steel Sauce Pans 7-22 Ladles 8-13 to 8-16 Carbon Steel Fry Pans 7-22 Transfer Ladles 8-16 Induction Fry Pans 7-22 Hooked Handle Utensils 8-16 Stir Fry Pans/ Dome Cover 7-23 Dipper 8-16 Wear-Ever® Aluminum Cookware 7-24 to 7-38 Dressing Ladle 8-16 Cool Handle® Overview 7-26 Color-coded Disher 8-17 Aluminum Fry Pans 7-27 to 7-30 Squeeze Dishers 8-17 to 8-18 Wear-Ever® Classic Select® 7-31 - 7-32 Heavy Duty Aluminum Cookware Basting Spoons 8-19 to 8-20 Wear-Ever® Classic™ Aluminum Cookware 7-33 to 7-34 Color-coded Tongs 8-21 Aluminum Sauce Pans 7-35 Tongs 8-21 to 8-23 Aluminum Double Boiler 7-36 Turners 8-24 Pasta and Vegetable Cooker 7-36 Stainless Steel Spatula 8-24 Aluminum Boiler/ Fryer Sets 7-36 Skimmers 8-25 xiv

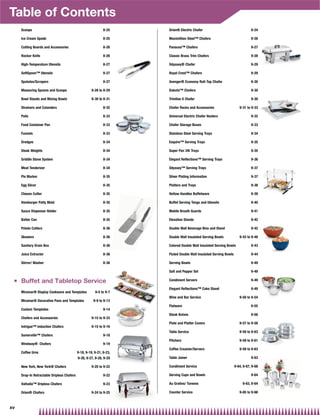

- 16. Table of Contents Scoops 8-25 Orion® Electric Chafer 9-24 Ice Cream Spade 8-25 Maximillian Steel™ Chafers 9-26 Cutting Boards and Accessories 8-26 Panacea™ Chafers 9-27 Rocker Knife 8-26 Classic Brass Trim Chafers 9-28 High-Temperature Utensils 8-27 Odyssey® Chafer 9-29 SoftSpoon™ Utensils 8-27 Royal Crest™ Chafers 9-29 Spatulas/Scrapers 8-27 Avenger® Economy Roll-Top Chafer 9-30 Measuring Spoons and Scoops 8-28 to 8-29 Dakota™ Chafers 9-30 Bowl Stands and Mixing Bowls 8-30 to 8-31 Trimline II Chafer 9-30 Strainers and Colanders 8-32 Chafer Racks and Accessories 9-31 to 9-33 Pails 8-33 Universal Electric Chafer Heaters 9-32 Food Container Pan 8-33 Chafer Storage Boxes 9-33 Funnels 8-33 Stainless Steel Serving Trays 9-34 Dredges 8-34 Esquire™ Serving Trays 9-35 Steak Weights 8-34 Super Pan 3® Trays 9-35 Griddle Stone System 8-34 Elegant Reflections™ Serving Trays 9-36 Meat Tenderizer 8-34 Odyssey™ Serving Trays 9-37 Pie Marker 8-35 Silver Plating Information 9-37 Egg Slicer 8-35 Platters and Trays 9-38 Cheese Cutter 8-35 Hollow Handles Buffetware 9-39 Hamburger Patty Mold 8-35 Buffet Serving Tongs and Utensils 9-40 Sauce Dispenser Holder 8-35 Mobile Breath Guards 9-41 Batter Can 8-35 Elevation Stands 9-42 Potato Cutters 8-36 Double Wall Beverage Bins and Stand 9-42 Skewers 8-36 Double Wall Insulated Serving Bowls 9-43 to 9-48 Sanitary Drain Box 8-36 Colored Double Wall Insulated Serving Bowls 9-43 Juice Extractor 8-36 Fluted Double Wall Insulated Serving Bowls 9-44 Stirrer/ Masher 8-36 Serving Bowls 9-49 Salt and Pepper Set 9-49 Q Buffet and Tabletop Service Condiment Servers 9-49 Elegant Reflections™ Cake Stand 9-49 Miramar® Display Cookware and Templates 9-5 to 9-7 Wine and Bar Service 9-50 to 9-54 Miramar® Decorative Pans and Templates 9-9 to 9-13 Flatware 9-55 Custom Templates 9-14 Steak Knives 9-56 Chafers and Accessories 9-15 to 9-33 Plate and Platter Covers 9-57 to 9-58 Intrigue™ Induction Chafers 9-15 to 9-16 Table Service 9-59 to 9-63 Somerville™ Chafers 9-18 Pitchers 9-59 to 9-61 Windway® Chafers 9-19 Coffee Creamer/Servers 9-59 to 9-63 Coffee Urns 9-18, 9-19, 9-21, 9-23, 9-26, 9-27, 9-28, 9-29 Table Joiner 9-63 New York, New York® Chafers 9-20 to 9-22 Condiment Service 9-64, 9-67, 9-68 Drop-In Retractable Dripless Chafers 9-22 Serving Cups and Bowls 9-64 Valhalla™ Dripless Chafers 9-23 Au Gratins/ Tureens 9-63, 9-64 Orion® Chafers 9-24 to 9-25 Counter Service 9-65 to 9-66 xv

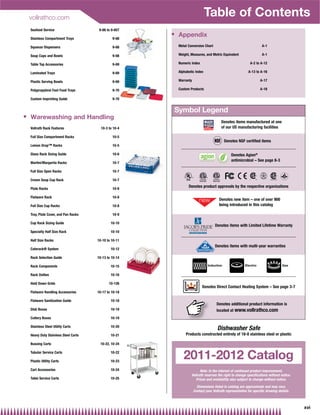

- 17. vollrathco.com Table of Contents Seafood Service 9-66 to 9-657 Q Stainless Compartment Trays 9-68 Appendix Squeeze Dispensers 9-68 Metal Conversion Chart A-1 Soup Cups and Bowls 9-68 Weight, Measures, and Metric Equivalent A-1 Table Top Accessories 9-69 Numeric Index A-2 to A-12 Laminated Trays 9-69 Alphabetic Index A-13 to A-16 Plastic Serving Bowls 9-69 Warranty A-17 Polypropylene Fast Food Trays 9-70 Custom Products A-18 Custom Imprinting Guide 9-70 Symbol Legend Q Warewashing and Handling Denotes items manufactured at one Vollrath Rack Features 10-3 to 10-4 of our US manufacturing facilities Full Size Compartment Racks 10-5 Denotes NSF certified items Lemon Drop™ Racks 10-5 Glass Rack Sizing Guide 10-6 Denotes Agion® antimicrobial – See page 8-3 Martini/Margarita Racks 10-7 Full Size Open Racks 10-7 Cream Soup Cup Rack 10-7 Plate Racks 10-8 Denotes product approvals by the respective organizations Flatware Rack 10-8 Denotes new item – one of over 900 Full Size Cup Racks 10-8 being introduced in this catalog Tray, Plate Cover, and Pan Racks 10-9 Cup Rack Sizing Guide 10-10 Denotes items with Limited Lifetime Warranty Specialty Half Size Rack 10-10 Half Size Racks 10-10 to 10-11 Denotes items with multi-year warranties Caterack® System 10-12 Rack Selection Guide 10-13 to 10-14 Rack Components 10-15 Induction Electric Gas Rack Dollies 10-16 Hold Down Grids 10-126 Denotes Direct Contact Heating System – See page 3-7 Flatware Handling Accessories 10-17 to 10-18 Flatware Sanitization Guide 10-18 Denotes additional product information is Dish Boxes 10-19 located at www.vollrathco.com Cutlery Boxes 10-19 Stainless Steel Utility Carts 10-20 Dishwasher Safe Heavy Duty Stainless Steel Carts 10-21 Products constructed entirely of 18-8 stainless steel or plastic Bussing Carts 10-22, 10-24 Tubular Service Carts Plastic Utility Carts 10-22 10-23 2011-2012 Catalog Cart Accessories 10-24 Note: In the interest of continued product improvement, Vollrath reserves the right to change specifications without notice. Table Service Carts 10-25 Prices and availability also subject to change without notice. Dimensions listed in catalog are approximate and may vary. Contact your Vollrath representative for specific drawing details. xvi

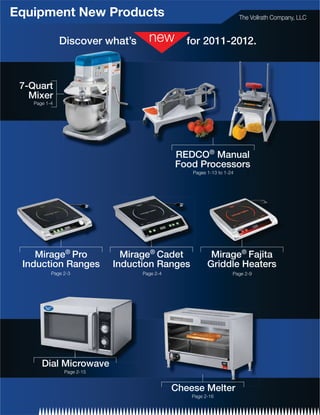

- 18. Equipment New Products The Vollrath Company, LLC Discover what’s for 2011-2012. 7-Quart Mixer REDCO® Manual Food Processors Mirage® Pro Mirage® Cadet Mirage® Fajita Induction Ranges Induction Ranges Griddle Heaters Dial Microwave Cheese Melter
- 19. Preparation Equipment vollrathco.com Food EQUIPMENT Countertop Equipment Cooking Refrigerated/Heated Display Cabinets Page 3-3 Countertop Warming & Display NSF Certified Breath Guards Pages 4-23 to 4-30 Components Fabricator Serving Mobile Units WCM Carts & Kiosks Pages 5-6 to 5-19
- 20.
- 21. Food Preparation Equipment Slicers Mixers Redco® Food From small coffee shops All the features, all the workhorse to supermarket delis, durability, and all the Vollrath Processors Save time and increase the vegetables to frozen meats and service, reliability, and reputation quality of food presentations cheeses, Vollrath offers the perfect combined into one tough range of with the easy-to-operate, slicer to fit your needs. mixers, ready to keep you mixing easy maintenance Redco® line. strong, serving long. Vollrath “Green” Facts for Food Preparation Equipment: Vollrath's well-engineered, easy-to-use Food Preparation lines offer high durability for long life and optimum performance. The right product in the right application ensures maximum results and energy savings. For more details on Vollrath’s green products, visit www.vollrathco.com/green 1-2
- 22. Food Preparation Equipment The Vollrath Company, LLC Mixers Vollrath's Mixers are a standard-setting advance in value: all the features, all the workhorse durability, and all the Vollrath service, reliability, and reputation in one tough range of mixers, ready to keep you mixing strong, serving long. No. 12 hub accommodates Meat Grinder and Vegetable Slicer attachments for flexibility with grinding, slicing, and mixing Thermal overload protection automatically shuts off mixer to protect from damage Timer with automatic stop and audible shutoff signal Consistent mixing speeds regardless of volume Gears and shafts are made of heat-treated alloy steel for long life and Planetary mixing action quieter operation Grease-packed ball bearing Bowl arm protection cover Heavy-duty construction Comes standard with: Q Dough hook Q Wire whisk Q Spatula Q Stainless steel mixing bowl Surface protection Q Safety guard foot covers Bow Bowll truck included with 40760 only w included iith 40 60 clud d th 40 luded lu 407 1-3
- 23. vollrathco.com Food Preparation Equipment Floor/Bench Mixers Q Three speed transmission Q Safety cut-switch automatically turns On Belt the unit off if gears are changed without stopping the mixer 40759 Q 60 qt model includes bowl truck for convenient bowl transport Q Meat Grinder, Vegetable Slicer, reducer kits, and other accessories available - see page 1-5 for details 40758 40760 with included Bowl Truck Receptacles 208 & 240V 120V 40757 DIMENSIONS (W X D X H) ITEM MODEL DESCRIPTION IN (CM) TRANSMISSION HP VOLTAGE AMPS PLUG 40757 MIX1020 20 qt mixer with guard 20 ⁄8 x 20 ⁄8 x 35 ⁄8 (51.8 x 51.8 x 90.5) 3 3 5 3 speed 1 ⁄2 hp 110 8 5-15P 40758 MIX1030 30 qt mixer with guard 25 x 241⁄2 x 477⁄8 (63.5 x 62.2 x 121.6) 3 speed 1 hp 110 16 5-15P 40759 MIX1040 40 qt mixer with guard 261⁄2 x 269⁄16 x 471⁄8 (67.3 x 67.5 x 119.7) 3 speed 11⁄2 hp 220 12 6-15P 40760 MIX1060 60 qt mixer with guard 273⁄8 x 30 x 5513⁄16 (69.5 x 76.2 x 141.8) 3 speed 2 hp 220 16 6-15P Countertop Mixers Q Commercial grade table model Q Five speed direct drive transmission Q Digital control panel to make easy speed shifts while unit is running Receptacle Q Compact design for smaller 40755 footprint and portability 120V Q Non-skid rubber base 40756 DIMENSIONS (W X D X H) ITEM MODEL DESCRIPTION IN (CM) TRANSMISSION HP VOLTAGE AMPS PLUG 40755 MIX1007 7 qt mixer with guard 13 ⁄8 x 17 ⁄4 x 20 ⁄4 (33.3 x 45.1 x 51.4) 1 3 1 5 speed 1⁄3 110 6 5-15P 40756 MIX1010 10 qt mixer with guard 131⁄16 x 1711⁄16 x 213⁄16 (33.2 x 44.9 x 53.8) 5 speed 1⁄3 110 6 5-15P 1-4
- 24. Food Preparation Equipment The Vollrath Company, LLC Mixer Accessories Grinder and Slicer Attachments Convenient attachments connect to the front hub of your Vollrath Mixer to create a multi-functional workstation, meeting your kitchen's mixing, grinding, and shredding needs. 40786 40785 with Plates ITEM DESCRIPTION FITS 40785 Vegetable slicer head complete, comes with All Vollrath 5 ⁄16" (8 mm) shredder and 3⁄16" (5 mm) slicing plates floor mixers 40786 Meat grinder head attachment for No 12. hub All Vollrath with 1⁄8" (32mm) and 5⁄16" (79 mm) grinder plates floor mixers Note: Do not use attachments on hub while mixing Agitators, Bowls and Reducer Kits Dough Hook Wire Whisk Flat Beater DESCRIPTION 10 QUART ITEM 20 QUART ITEM 30 QUART ITEM 40 QUART ITEM 60 QUART ITEM Wire whisk 40762 40766 40770 40774 40778 Mixing Bowl Dough hook 40763 40767 40771 40775 40779 Flat beater 40764 40768 40772 40776 40780 Mixing bowl 40761 40765 40769 40773 40777 ITEM DESCRIPTION 40787 Reducer kit for 40 qt mixer - includes 20 qt stainless steel bowl, whisk, dough hook and beater 40788 Reducer kit for 60 qt mixer - includes 30 qt stainless steel bowl, whisk, dough hook and beater 1-5
- 25. vollrathco.com Food Preparation Equipment Mixer Capacity Chart Find the right mixer for your application. Q When mixing dough (pizza, bread or bagels) check your "AR" absorption ratio - water weight divided by flour weight Example: If recipe calls for 5 lb of water and 10 lb of flour, then 5 divided by 10 = 0.50 x 100 = 50 % AR Q Below capacities based on 12% flour moisture at 70°F water temperature Q If high gluten flour is used, reduce dough batch size by 10% Q 2nd speed should never be used on mixtures with less than 50% AR Q Do not use attachments on hub while mixing Q When calculating the correct size mixer for your application, here are some helpful weights & measures: 8.3 lb = 1 gallon of water & 2.08 lb = 1 quart MAXIMUM BOWL CAPACITY PRODUCT DESCRIPTION AGITATOR SPEED 7 QUART 10 QUART 20 QUART 30 QUART 40 QUART 60 QUART Bread and roll dough - 60% AR Dough hook 1st speed only 4 lb 5 lb 25 lb 45 lb 50 lb 90 lb Heavy bread dough - 55% AR Dough hook 1st speed only 2 lb 3 lb 15 lb 30 lb 40 lb 70 lb Pizza dough, thin - 40% AR Dough hook 1st speed only 2 lb 3 lb 9 lb 14 lb 25 lb 40 lb Pizza dough, medium - 50% AR Dough hook 1st speed only 3 lb 4 lb 10 lb 20 lb 32 lb 60 lb Pizza dough, thick - 60% AR Dough hook 1st speed only 4 lb 5 lb 20 lb 40 lb 50 lb 70 lb Raised donut dough - 65% AR Dough hook 1st speed only 2 lb 2 lb 9 lb 15 lb 25 lb 40 lb Pie dough Flat beater All speeds 4 lb 4 lb 18 lb 30 lb 35 lb 60 lb Mashed potatoes Flat beater All speeds 4 lb 5 lb 15 lb 23 lb 30 lb 45 lb Cake batter Flat beater All speeds 6 lb 8 lb 20 lb 30 lb 40 lb 60 lb Waffle or hot cake batter Flat beater All speeds 3 qt 4 qt 8 qt 12 qt 16 qt 24 qt Pound cake batter Flat beater All speeds 6 lb 8 lb 20 lb 30 lb 40 lb 60 lb Egg whites Wire whisk All speeds 3⁄4 pt 1 pt 1 qt 11⁄2 qt 2 qt 3 qt Meringue Wire whisk All speeds 1⁄2 pt 3⁄4 pt 1 qt 11⁄2 qt 2 qt 3 qt Whipped cream Wire whisk All speeds 1.8 qt 2 qt 4 qt 6 qt 8 qt 12 qt Note: This chart should be used as a guideline only. Type of flour and other factors can vary and may require the batch size to be adjusted 1-6
- 26. Food Preparation Equipment The Vollrath Company, LLC Slicers Slicer Selection Guide Accommodates Frozen Food Blade Accommodates Vegetable Chute Extended 11⁄4" Slice Thickness Max Clearance Receiving Tray Safe Blade Removal System Automatic Carriage Non-Stick Coating Gear Drive Kickstand Blade Slicer Model Rating Processed Meats Cheese Size 40802 SLR7009/N Light 1 hr or less/day Not recommended 9" x 40803 SLR7010/N Light 1 hr or less/day Not recommended 10" x 40804 SLR7312/N Medium 1hr/day Not recommended 12" x 40849 SLR7012/N Heavy 3hr/day 1 hr or less/day 12" x x x 40799 SLR7512/N Heavy Continuous Continuous 12" x x x x 40801 SLR0012/N Deluxe Continuous 3 hr/day 12" x x x x x x 40800 SLR7912/N Deluxe Continuous Continuous 12" x x x x x x Safe Blade Removal System is a standard feature on 40801 and 40800 1: Insert 2: Fasten 3: Turn 4: Remove Blade Safely 1-7
- 27. vollrathco.com Food Preparation Equipment Deluxe Slicers Maximum Clearance: 40801 Automatic Carriage: 40800 Q Special clear slice exit design provides unobstructed Q Automatic carriage slices approximately 40 slices per receiving tray area for easier slicing and cleaning minute for maximum operational efficiency Q Extended 11⁄4" maximum slice thickness Q Intuitive setup includes simple main switch and for greater versatility variable speed control Q Can also be used manually Includes Safe Blade Removal Q Includes easy kickstand to System! Includes Safe Blade Removal prop up slicer for cleaning System! 40801 shown from front 40800 with kickstand Receptacle 120V 40801 shown from side 40800 DIMENSIONS (W X D X H) ITEM MODEL DESCRIPTION IN (CM) DRIVE HP VOLTAGE AMPS PLUG 40801 SLM0012/N 12" (30.5 cm) deluxe max clearance 22 x 27 x 18 Belt 2 ⁄3 hp 110 2.5 5-15P slicer with non-stick finish (55.9 x 68.6 x 45.7) 40800 SLR7912 12" (30.5 cm) deluxe automatic slicer 21 x 27 x 23 Belt 3 ⁄4 hp 110 4.7 5-15P with non-stick finish (53.3 x 68.6 x 58.4) All Vollrath Slicers are 100% Italian designed and engineered for optimum results Heavy-Duty Slicers Belt Driven: 40849 Gear Driven: 40799 Q Large receiving tray Q Direct drive gear transmission for powerful Q Powerful 1⁄2 hp motor cutting applications such as cheese Receptacle 120V 40849 40799 DIMENSIONS (W x D x H) ITEM MODEL DESCRIPTION IN (CM) DRIVE HP VOLTAGE AMPS PLUG 40849 SLR7012/N 12" (30.5 cm) heavy-duty slicer with 20 x 27 x 18 Belt ⁄2 hp 1 110 2.5 5-15P non-stick finish (50.8 x 68.6 x 45.7) 40799 SLR7512/N 12" (30.5 cm) heavy-duty gear-driven 21 x 27 x 18 Gear ⁄2 hp 1 110 2.5 5-15P slicer with non-stick finish (53.3 x 68.6 x 45.7) 1-8
- 28. Food Preparation Equipment The Vollrath Company, LLC Light and Medium-Duty Slicers Q Space-saver design with smaller footprint for tight areas Q Ideal for casual slicing needs such as coffee shops, small restaurants, sub shops, and delis Receptacles 120V 40803 40804 DIMENSIONS (W x D x H) ITEM MODEL DESCRIPTION IN (CM) DRIVE HP VOLTAGE AMPS PLUG 40802 SLR7009/N 9" (22.9 cm) light-duty slicer 16 x 18 x 15 Belt 1 ⁄4 hp 110 1.2 5-15P (40.6 x 45.7 x 38.1) 40803 SLR7010/N 10" (25.4 cm) light-duty slicer 17 x 21 x 15 Belt 1 ⁄3 hp 110 1.5 5-15P (43.2 x 53.3 x 38.1) 40804 SLR7312/N 12" (30.5 cm) space saver medium-duty slicer 18 x 22 x 16 Belt 1 ⁄3 hp 110 1.5 5-15P (45.7 x 55.9 x 40.6) All Vollrath Slicers are 100% Italian designed and engineered for optimum results Slicer Accessories ITEM DESCRIPTION DIMENSIONS: IN (CM) FITS 40806{ 7" stainless steel vegetable 7" dia x 15" L Heavy-Duty & chute, with pusher (17.8 dia x 38.1 L) Deluxe Slicers 40807{ 12" frozen food blade 12" dia (30.5 dia) 40849, 40799, 40801 & 40800 40807 40806 {These items are not NSF certified All Vollrath Slicers are 100% Italian designed and engineered for world-premium quality Reasons to Buy a Vollrath Slicer Q 30° gauge plate angle reduces Q Exclusive non-stick coating Q Built-in two-stone sharpener operator fatigue by allowing increases glide performance makes sharpening simple operator to stand more upright and cleans up in half the time and convenient 1-9
- 29. vollrathco.com Food Preparation Equipment Vacuum Pack Machines Bring Vacuum Packing into your operation and make your fresh menu offerings broader and more flexible than you ever thought possible. Vacuum Packing extends the refrigerated shelf life of foods three to five times longer than conventional alternatives. Increase customer satisfaction in high and low volume times, and cut down on food spoilage. In-Chamber Vacuum Pack Machines Q Suitable with wet or dry products Receptacle Q Extends the shelf life of foods and cuts 120V down on waste due to spoilage Q Vacuum packing opens the pores in foods, creating an excellent way to quickly marinate meats 40850 DIMENSIONS (W x D x H) CHAMBER SIZE (W x D x H) SEALING BAR ITEM MODEL DESCRIPTION IN (CM) IN (CM) LENGTH: IN (CM) VOLTAGE WATTS AMPS PLUG 40850 2100325P In-chamber vacuum 15 ⁄16 x 20 ⁄2 x 14 ⁄16 3 1 9 10 ⁄8 x 15 ⁄4 x 6 ⁄16 5 3 5 9 ⁄1613 120 450/700 5 5-15P pack machine (38.5 x 52 x 37) (27 x 40 x 16) (25) 40851 2100326P In-chamber vacuum 217⁄16 x 2213⁄16 x 201⁄16 171⁄8 x 171⁄8 x 81⁄4 165⁄16 120 1200 9 5-15P pack machine (54.5 x 58 x 51) (43.5 x 43.5 x 21) (41.5) Vacuum Pack Bags: ITEM DESCRIPTION DIMENSIONS IN (CM) CASE LOT 40815 In-chamber 8 x 12 (20.3 x 30.5) Pack of 100 In Chamber – Regular 40816 In-chamber 10 x 14 (25.4 x 35.6) Pack of 100 Q Total Thickness: 3.5mm 40817 In-chamber 12 x 16 (30.5 x 40.6) Pack of 100 Q Maximum Cooking Temperature: 158°F (70°C) 40818 In-chamber 14 x 18 (35.5 x 45.7) Pack of 100 Vacuum Pack Bags: ITEM DESCRIPTION DIMENSIONS IN (CM) CASE LOT 23850 In-chamber “boil-in” 6 x 8 (15.2 x 20.3) Pack of 100 In Chamber – “Boil-In” 23852 In-chamber “boil-in” 8 x 12 (20.3 x 30.4) Pack of 100 Q Total Thickness: 4.0mm 23854 In-chamber “boil-in” 12 x 16 (30.5 x 40.6) Pack of 100 Q Maximum Cooking Temperature: 212°F (100°C) Out-of-Chamber Vacuum Pack Machine Q Out-of-chamber vacuum packing – requires specific bag type (listed below) Receptacle Q Extends the shelf life of foods and cuts down on waste due to spoilage 120V Q Not suited for use with liquids DIMENSIONS (W x D x H) SEALING BAR ITEM MODEL DESCRIPTION IN (CM) LENGTH: IN (CM) VOLTAGE WATTS AMPS PLUG 40858 2100324P Out-of-chamber 14 ⁄4 x 11 ⁄16 x 5 ⁄16 3 11 11 12 ⁄16 3 120 450 3.3 5-15P vacuum pack machine (37.5 x 29.7 x 14.5) (31) Vacuum ITEM DESCRIPTION DIMENSIONS IN (CM) CASE LOT 40812 Out-of-chamber 6 x 12 (15.2 x 30.5) Pack of 100 Pack 40813 Out-of-chamber 8 x 12 (20.3 x 30.5) Pack of 100 Bags 40814 Out-of-chamber 10 x 14 (25.4 x 35.6) Pack of 100 1-10
- 30. Food Preparation Equipment The Vollrath Company, LLC Grinders Q Energy efficient motor and precision gear drive Q Excellent fit and finish with no sharp corners or seams Q Forward and reverse switch Q Attractive, compact design suitable for any open kitchen or supermarket Q Supplied with 1⁄8" (32 mm) and 5⁄16" (79 mm) grinder plates Q Perfect for butchers, supermarkets, Asian restaurants, delis, and pizza shops Q Sausage stuffer and feed stick accessories included Q Convenient top-mounted carrying handle No. 12, 40743 with standard accessories Q Grinding head, pan and attachments are dishwasher safe Q No. 12 unit features 1 hp motor to grind Receptacles 264 lb (120 Kg) of meat per hour 120V 120V Q No. 22 unit features 1.5 hp motor to grind 528 lb (240 Kg) of meat per hour No. 22, 40744 with standard accessories DIMENSIONS (W X D X H) ITEM MODEL DESCRIPTION IN (CM) OUTPUT HP VOLTAGE AMPS PLUG 40743 MIN0012 Meat grinder No. 12 10 ⁄16 x 15 ⁄4 x 19 ⁄16 (25.9 x 40 x 49.4) 3 3 7 264 lb (120 Kg)/hr 1 hp 110 8 5-15P 40744 MIN0022 Meat grinder No. 22 103⁄16 x 201⁄4 x 241⁄4 (27.5 x 51.4 x 61.6) 528 lb (240 Kg)/hr 11⁄2 hp 110 16 5-20P Grinder Accessories ITEM DESCRIPTION FITS 40746 Grinder knife, No. 12 40743 40747 Grinder plate, 1⁄8" (32 mm) 40743 40748 Grinder plate, 5⁄16" (79 mm) 40743 40749 Grinder plate, 1⁄2" (1.3 cm) 40743 40750 Grinder knife, No. 22 40744 Knife 40751 Grinder plate, 1⁄8" (32 mm) 40744 40752 Grinder plate, 5⁄16" (79 mm) 40744 Grinder Plate 40753 Grinder plate, 1⁄2" (1.3 cm) 40744 Vertical Cutter/Mixer Great for preparing pâtés, mayonnaise, salsa, and guacamole, and for chopping nuts and vegetables. Ideal unit for toppings and sauces, or to puree patients' food in hospitals and assisted living facilities. Q Chops, mixes, blends and purees Q Suitable for continuous use applications Q Anodized aluminum body and stainless steel bowl for attractive look and easy cleaning Q Receptacle Stainless steel "S" blade and bowl for easy cleaning Q Safety cutoff switch stops blade when lid is removed 120V Q Constant RPM and clear lid allow operator to stop unit when product reaches preferred texture DIMENSIONS (W X D X H) ITEM MODEL DESCRIPTION IN (CM) CAPACITY VOLTAGE HP AMPS PLUG 40826 BCA7003 Cutter/Mixer 113⁄8 x 141⁄2 x 101⁄2 (28.9 x 36.8 x 26.7) 3 qt 110 1⁄3 2.6 5-15P 1-11
- 31. vollrathco.com Food Preparation Equipment Potato Cutters Q Heavy, strong, nickel-plated ductile cast iron frame and 47713 sure grip handle Q Screw holes on base of legs for permanent mounting to table or wall Q Clean and durable stainless steel "V" trough guarantees smooth operation Q Dimensions: 111⁄2" (29.2 cm) deep at base, 14" (35.6 cm) high with closed handle, 341⁄2" (87.6 cm) deep x 23" (58.4 cm) high with open handle Wall hanger bracket holds potato cutters securely on wall to save counter space. ITEM DESCRIPTION CASE LOT 47703{ Wedge cut, 8-cut 1 47713| French fry, 3⁄8" (1 cm) cut size 1 47703 47714| French fry, 7⁄16" (1.1) cut size 1 47715| French fry, 9⁄32" (0.7) cut size 1 45682} Potato cutter wall hanger bracket 1 {Replacement blades and parts available |Replacement blades available }Screws not included See Kitchen E-Z Juice Extractor Q Superior leverage for Essentials for Q maximum juice output Heavy-duty enamel- More Manual Q coated cast iron base Rubber feet assure Food Prep Tools! Q no-slide use Requires minimal 8 x 9" (20.3 x 22.9 cm) tabletop space Q Overall height: 26" (66 cm) with handle in upright position Pages 8-1 through 8-36 ITEM DESCRIPTION CASE LOT 47704 Juice extractor 1 1-12
- 32. Food Preparation Equipment The Vollrath Company, LLC ® ® Recently Vollrath Redco Added! Manual Food Processors Foodservice equipment & supplies Vollrath We have expanded our breadth of line with an outstanding selection of Manual Food Processing Equipment. With our new line, you will find Ma 2010 rs the best value in food prep solutions to make your business nua l Food lic e C h o p p er s / S even more flexible, efficient and profitable. Q Achieve significant labor savings when compared to cutting by hand Q Higher food quality - no browning or bruising Q Allows for consistent product with every cut Q Increased food yield Redco® Manual Food Processors Q Vegetable Slicers/Wedgers Q Specialty Cutters Q Tomato Slicers Q Cheese Slicers & Cubers Q Seafood Cutters Q Potato Scooper Q Grill Accessories Q Can Openers Visit www.vollrathco.com for Redco® parts information. 1-13
- 33. vollrathco.com Food Preparation Equipment Are You Still Cutting by Hand? Reduce labor time with Vollrath® Redco® Model Product Cut Speed Tomato Pro™ & T P 31⁄2" Tomatoes 5x Faster InstaSlice™ Wedgemaster® & L Lemons/Limes Wedgemaster®II Oranges 3x Faster Tomatoes InstaCut 5.0, Onions InstaCut 3.5, Celery Tabletop or Wall Mount Peppers 3x Faster Tomatoes Potatoes Apples Pears 4x Faster Onion King® Onions Potatoes Lemons/Limes 21⁄2x Faster Oranges Lettuce King® I 1 ⁄3 Lettuce 1 ⁄2 - 3" Onion 1 ⁄2 Bell Pepper 5x Faster Cucumbers Lettuce King® IV Lettuce 11x Faster 1-14
- 34. Food Preparation Equipment The Vollrath Company, LLC Redco® InstaCut™ 5.0 Tabletop Dicer & Slicer REDCO® STYLE GUIDE Foods Cut Styles Onions Dice Celery Slice Peppers Tomatoes Potatoes Apples Pears Q Tall base designed to fit containers up to 6" (15.2 cm) high Q Sled-leg base design offers superior resistance to breakage Q Pop-in pop-out blade assembly for easy cleaning and maintenance Q Thermoset blade frames never need adjustment and will not corrode Q Full 5" (12.7 cm) square cutting area fits large fruits and vegetables Q 3x faster than cutting by hand Q Clean, quick cuts reduce bruising and raise the quality level of food presentation COMPLETE CUT DESCRIPTION OPEN DIMENSIONS CLOSED DIMENSIONS CASE CUT DESCRIPTION T-HANDLE, PUSHER REPLACEMENT CASE UNIT IN (MM) W X D X H: IN (CM) W X D X H: IN (CM) LOT IN (MM) BLOCK, AND BLADE* BLADE ONLY * LOT 55000 1 ⁄4 (6.4) dice 1 1 ⁄4 (6.4) dice 55059 55062 1 55001 3 ⁄8 (9.5) dice 1 ⁄8 (9.5) dice 3 55060 55063 1 55002 1 ⁄2 (12.7) dice 10 x 111⁄2 x 20 10 x 111⁄2 x 181⁄2 1 1 ⁄2 (12.7) dice 55061 55064 1 55011 1 ⁄4 (6.4) slice (25.4 x 29.2 x 50.8) (25.4 x 29.2 x 47) 1 1 ⁄4 (6.4) slice 55088 55066 1 55012 3 ⁄8 (9.5) slice 1 3 ⁄8 (9.5) slice 55089 55074 1 55013 1 ⁄2 (12.7) slice 1 ⁄2 (12.7) slice 1 55090 55087 1 * Vollrath warranty policies do not cover Redco® blades Double Wall Bowls Super Pan 3® and Stands Plastic Pan Perfect for serving fresh Recommended items: salads, salsas, and fruits! Clear sixth-size – 8066410 See pages 9-46 to 9-50 Clear third-size – 8036410 See page 6-7 1-15
- 35. vollrathco.com Food Preparation Equipment ® Redco REDCO® STYLE GUIDE Foods Cut Styles ™ InstaCut 3.5 Onions Celery Dice Wedge Q Changes from dice to wedge to core in seconds Peppers Core with pop-in pop-out blade assembly Tomatoes Q Thermoset blade frames never need adjustment Potatoes and will not corrode Apples Q Sled-leg base design offers superior resistance to breakage Pears Q Aluminum base with stainless steel rods - lightweight and strong Q Clean, quick cuts reduce bruising and raise the quality level of food presentation 15000 Q Wall mount bracket allows quick hanging and removal for cleaning (sold separately) Tabletop COMPLETE CUT DESCRIPTION OPEN DIMENSIONS CLOSED DIMENSIONS CASE UNIT IN (CM) W X D X H: IN (CM) W X D X H: IN (CM) LOT 15000 1 ⁄4 (6.4 mm) dice 1 15001 3 ⁄8 (9.5 mm) dice 1 15002 1 ⁄2 (12.7 mm) dice 1 15003 4 section wedge 1 15005 6 section wedge 9 x 9 x 18 9 x 9 x 17 ⁄8 1 1 15006 8 section wedge (23 x 23 x 45.7) (23 x 23 x 43.5) 1 15007 10 section wedge 1 15008 12 section wedge 1 15009 6 section core 1 15010 8 section core 1 Wall Mount COMPLETE CUT DESCRIPTION OPEN DIMENSIONS CLOSED DIMENSIONS CASE UNIT IN (CM) W X D X H: IN (CM) W X D X H: IN (CM) LOT 15016 shown with 15016 1 ⁄4 (6.4 mm) dice 1 Super Pan 3® clear pans – see page 6-7 15017 3 ⁄8 (9.5 mm) dice 1 15018 1 ⁄2 (12.7 mm) dice 1 15019 4 section wedge 1 8 x 141⁄2 x 221⁄4 8 x 141⁄2 x 14 15021 6 section wedge 1 (20.3 x 36.8 x 56.5) (20.3 x 36.8 x 35.6) 15022 8 section wedge 1 15023 10 section wedge 1 15024 12 section wedge 1 15026 8 section core 1 Replacement Blades and Accessories CUT DESCRIPTION REPLACEMENT T-HANDLE, PUSHER BLOCK, T-HANDLE, PUSHER BLOCK, CASE IN (CM) BLADE ONLY AND BLADE - TABLETOP AND BLADE - WALL MOUNT LOT 1 ⁄4 (6.4 mm) dice 15062 15059 15081 1 3 ⁄8 (9.5 mm) dice 15063 15060 15082 1 1 ⁄2 (12.7 mm) dice 15064 15061 15083 1 ⁄4 x ⁄2 (6.4 x 12.7 mm) dice 1 1 15086 15085 15084 1 4 section wedge 15065 15050 15073 1 6 section wedge 15067 15052 15075 1 8 section wedge 15068 15053 15076 1 10 section wedge 15069 15054 15077 1 12 section wedge 15070 15055 15078 1 6 section core 15071 15087 15079 1 8 section core 15072 15058 15080 1 15125 Base assembly N/A 15100 N/A 1 Wall mount bracket Wall mount bracket N/A N/A 15125 1 * Vollrath warranty policies do not cover Redco® blades 1-16
- 36. Food Preparation Equipment The Vollrath Company, LLC Redco® Wedgemaster® II REDCO® STYLE GUIDE Foods Cut Styles Lemons Wedge Limes Oranges 700-1 Tomatoes Onions Potatoes Q Constructed of durable, dishwasher-safe polycarbonate material Q Well-balanced, stable footprint Q Cuts lemons, limes, oranges, tomatoes, and more into six- or eight-section wedges Q Six or eight section blades standard, four- and twelve-section blades sold separately 708 BLADE CASE ASSEMBLY DESCRIPTION LOT OPEN DIMENSIONS CLOSED DIMENSIONS CASE COMPLETE UNIT DESCRIPTION W X D X H: IN (CM) W X D X H: IN (CM) LOT 704 4 section cut blade assembly 1 700-1 6 section cut 1 706 6 section cut blade assembly 1 Wedgemaster® II 93⁄4 x 9 x 16 93⁄4 x 9 x 151⁄4 708 8 section cut blade assembly 1 700-4 8 section cut (24.8 x 23 x 40.6) (24.8 x 23 x 38.7) 1 Wedgemaster® II 712 12 section cut blade assembly 1 Redco® Wedgemaster® REDCO® STYLE GUIDE Foods Cut Styles Lemons Wedge Limes Core Oranges Unit without safety guard Tomatoes Onions Potatoes Q Great for fast-production kitchen, buffet, and bar preparation Q Cuts fruits consistently and predictably for constant high-quality food and drink presentations Q Available in six- or eight-section wedge styles 808SG COMPLETE SHIPS WITH OPEN DIMENSIONS CLOSED DIMENSIONS CASE UNIT DESCRIPTION BLADES W X D X H: IN (CM) W X D X H: IN (CM) LOT 606N 6 section cut 306/336 1 Wedgemaster® BLADE CASE ASSEMBLY DESCRIPTION LOT 808N 8 section cut 308/338 1 9 x 8 x 16 9 x 8 x 157⁄8 306 6 section wedge blade 1 Wedgemaster® (23 x 20.3 x 40.6) (23 x 20.3 x 40.3) 308 8 section wedge blade 1 808SG 8 section cut 308/338 1 Wedgemaster® 336 6 section core blade 1 with safety guard 338 8 section core blade 1 1-17
- 37. vollrathco.com Food Preparation Equipment Redco® InstaBloom® REDCO® STYLE GUIDE Foods Cut Styles Onions Bloom Q Create and serve unique, money-making appetizers using onions 15600 Q Allows kitchen staff to make blooming onion appetizers easily and consistently - four times faster than cutting by hand Q Constructed from heavy-duty cast aluminum with precision-edged stainless steel blades Q Sled-leg base design offers superior resistance to breakage OPEN DIMENSIONS CLOSED DIMENSIONS CASE ITEM DESCRIPTION W X D X H: IN (CM) W X D X H: IN (CM) LOT 15600 InstaBloom® 141⁄4 x 14 x 30 141⁄4 x 14 x 19 1 24-section cut (36.2 x 35.6 x 76.2) (36.2 x 35.6 x 48.3) 15602 Adaptor kit with – – 1 small core cutter 15601 Replacement – – 1 15601 blade assembly Complete the process ess ® with a Cayenne Electric Fryer See page 2-18 Redco® Onion King® REDCO® STYLE GUIDE Foods Cut Styles Onions Potatoes Slice Squash Lemons Limes Oranges …great for pre-cooked meats 509 Q Slices whole onions and other firm vegetables in one stroke 500N for fast production Q Cuts in exact slice thicknesses every time, raising the quality and consistency of menu foods like sandwiches and cottage fries Q Slices vegetables perfectly without crushing or bruising COMPLETE CUT DESCRIPTION OPEN DIMENSIONS CLOSED DIMENSIONS CASE UNIT IN (MM) W X D X H: IN (CM) W X D X H: IN (CM) LOT BLADE ASSEMBLY CUT DESCRIPTION: IN (MM) CASE LOT 500N ⁄16 (4.8) - 13 blades 3 1 509 ⁄16 (4.8) - 13 blades 3 1 501N 1 ⁄4 (6.4) - 11 blades 19 ⁄4 x 13 ⁄4 x 19 ⁄4 1 3 1 19 ⁄4 x 13 ⁄4 x 15 ⁄2 1 3 1 1 511 1 ⁄4 (6.4) - 11 blades 1 502N ⁄8 (9.5) - 7 blades 3 (49 x 34.9 x 49) (49 x 34.9 x 39.4) 1 510 ⁄8 (9.5) - 7 blades 3 1 503N 1 ⁄2 (12.7) - 6 blades 1 512 1 ⁄2 (12.7) - 6 blades 1 * Vollrath warranty policies do not cover Redco® blades 1-18
- 38. Food Preparation Equipment The Vollrath Company, LLC Redco® InstaSlice™ REDCO® STYLE GUIDE Foods Cut Styles Tomatoes Straight- Strawberries blade slice Mushrooms Scalloped- Oranges blade slice …and more 15105 Q Pop-in pop-out blade assembly for easy cleaning and maintenance Q Thermoset blade frames never need adjustment and will not corrode Q Largest slicing area in the industry Q Corrosion-resistant polyurethane food carrier Q Hardcoat® pusher head fingers resist corrosion from tomato acids and other harsh foods Q Detachable table stop assures processor will stay in place Q Sled-leg base design offers superior resistance to breakage Q Available with straight or scalloped blades, allowing slicing of tomatoes without 'pre-scoring' the skin COMPLETE CUT SIZE OPEN DIMENSIONS CLOSED DIMENSIONS UNIT IN (MM) BLADE TYPE W X D X H: IN (CM) W X D X H: IN (CM) CASE LOT 15105 3 ⁄16 (4.8) Scalloped 1 Detachable safety guard included 15205 3 ⁄16 (4.8) Straight 1 15102 7 ⁄32 (5.6) Scalloped 1 15202 7 ⁄32 (5.6) Straight 10 ⁄2 x 17 ⁄2 x 10 ⁄4 1 1 3 10 ⁄2 x 16 x 10 ⁄4 1 3 1 15103 1 ⁄4 (6.4) Scalloped (26.7 x 44.5 x 27.3) (26.7 x 40.6 x 27.3) 1 15203 1 ⁄4 (6.4) Straight 1 15104 3 ⁄8 (9.5) Scalloped 1 15204 3 ⁄8 (9.5) Straight 1 REPLACEMENT CUT SIZE BLADE ITEM IN (MM) BLADE TYPE NO. OF BLADES CASE LOT 15115 3 ⁄16 (4.8) Scalloped 16 1 15209 3 ⁄16 (4.8) Straight 16 1 15112 7 ⁄32 (5.6) Scalloped 13 1 15115 15206 7 ⁄32 (5.6) Straight 13 1 15113 1 ⁄4 (6.4) Scalloped 12 1 15207 1 ⁄4 (6.4) Straight 12 1 15209 15114 3 ⁄8 (9.5) Scalloped 8 1 15208 3 ⁄8 (9.5) Straight 8 1 * Vollrath warranty policies do not cover Redco® blades Super Pan® Super Shapes Slice it fast, serve it fresh and lay it out with style See pages 6-3 and 6-4 1-19
- 39. vollrathco.com Food Preparation Equipment Redco® Tomato Pro™ REDCO® STYLE GUIDE Foods Cut Styles Tomatoes Straight- Strawberries blade slice Mushrooms Scalloped- Oranges blade slice …and more Q NSF approved, high-density polyethylene base material is designed for constant contact with tomato 0643N acids and other harsh foods - will not corrode Q Positive-stop arm helps keep slicer sturdy while operating the push-through slicing mechanism Q Available with straight or scalloped blades, allowing slicing of tomatoes without 'pre-scoring' the skin COMPLETE CUT OPEN DIMENSIONS CLOSED DIMENSIONS CASE UNIT DESCRIPTION IN (MM) BLADE STYLE W X D X H: IN (CM) W X D X H: IN (CM) LOT 0643N Tomato Pro™, without safety guard 3 ⁄16 (4.8) Straight 1 0644N Tomato Pro™, without safety guard 1 ⁄4 (6.4) Straight 1 0646N Tomato Pro™, without safety guard 3 ⁄8 (9.5) Straight 1 91⁄2 x 183⁄4 x 91⁄2 91⁄2 x 183⁄4 x 91⁄2 0694N Tomato Pro™, without safety guard 3 ⁄16 (4.8) Scalloped 1 (24.1 x 47.6 x 24.1) (24.1 x 47.6 x 24.1) 0645N Tomato Pro™, without safety guard 1 ⁄4 (6.4) Scalloped 1 0643SGN Tomato Pro™, with safety guard 3 ⁄16 (4.8) Straight 1 0644SGN Tomato Pro™, with safety guard 1 ⁄4 (6.4) Straight 1 ® * Vollrath warranty policies do not cover Redco blades BLADE CUT NO. OF CASE ITEM IN (MM) BLADE STYLE BLADES LOT 0643SGN 0653 ⁄16 (4.8) 3 Straight 15 1 0654 1 ⁄4 (6.4) Straight 11 1 0656 3 ⁄8 (9.5) Straight 8 1 0648 0648 ⁄16 (4.8) 3 Scalloped 15 1 0653 0652 1 ⁄4 (6.4) Scalloped 11 1 Tomato Pro™ 0647 3 ⁄8 (9.5) Scalloped 8 1 with safety guard * Vollrath warranty policies do not cover Redco® blades Redco® Tomato King® Scooper Q One quick twist removes tomato cores, making them ready for slicing - a must-have for high-production food prep Q Also can be used to remove potato eyes, core strawberries, score cucumbers, and make melon balls ITEM DESCRIPTION CASE LOT 1400 Tomato King® Scooper - bulk pack 144 1401 1401 Tomato King® Scooper - standard pack 24 1-20
- 40. Food Preparation Equipment The Vollrath Company, LLC Redco® Lettuce King® I REDCO® STYLE GUIDE Foods Cut Styles Lettuce Cucumbers Shred lettuce Cabbage Cantaloupes and cabbage 3" Onions Chicken Slice vegetables Bell Peppers and soft meats 400N Q Eliminate 75% of the time and cost of shredding lettuce with a knife Q Prevents bruising of lettuce during cutting, reducing food waste Q Cut 1⁄4 head of lettuce at a time CUT DESCRIPTION OPEN DIMENSIONS CLOSED DIMENSIONS CASE REPLACEMENT CUT DESCRIPTION CASE ITEM IN (MM) W X D X H: IN (CM) W X D X H: IN (CM) LOT BLADE ITEM IN (MM) LOT 400N 3 ⁄16 (4.8) cut, 37 blades 1 435 ⁄16 (4.8) cut, 37 blades 3 1 403N 1 ⁄4 (6.4) cut, 28 blades 17 ⁄2 x 19 x 26 ⁄4 1 1 17 ⁄2 x 23 ⁄4 x 13 ⁄8 1 1 3 1 485 1 ⁄4 (6.4) cut, 28 blades 1 402NC 3 ⁄8 (9.5) cut, 19 blades (44.5 x 48.3 x 66.7) (44.5 x 59.1 x 34) 1 484C 3 ⁄8 (9.5) cut, 19 blades 1 401N 3 ⁄4 (19) cut, 10 blades 1 434 3 ⁄4 (19) cut, 10 blades 1 * Vollrath warranty policies do not cover Redco® blades Redco® Lettuce King® IV & Drum Ring REDCO® STYLE GUIDE Foods Cut Styles Lettuce Chop 4400N Lettuce King® IV on 2900 Drum Ring - items sold separately Q Prepares lettuce in a fraction of the time it takes to do with a knife Q Prevents bruising of lettuce during cutting - prepare days in advance Q Drum Ring – Fits snugly over Rubbermaid® Greenskeeper™ storage drums – One size fits both 20 and 32 gallon drums – Streamlines high-volume chopping of lettuces OPEN DIMENSIONS CLOSED DIMENSIONS CASE REPLACEMENT ITEM DESCRIPTION W X D X H :IN (CM) W X D X H: IN (CM) LOT BLADE ITEM 4400N Lettuce King® IV, 17 x 171⁄2 x 32 17 x 181⁄2 x 215⁄8 1 4408 1" x 1" (25.4 x 25.4 mm) cut (43.2 x 44.5 x 81.28) (44.5 x 47 x 54.9) 2900 Drum Ring 223⁄4 dia. x 17⁄8 (57.8 dia. x 4.8) n/a 1 n/a * Vollrath warranty policies do not cover Redco® blades 1-21
- 41. vollrathco.com Food Preparation Equipment Redco® King Kutter™ REDCO® STYLE GUIDE Foods Cut Styles Cheese Shred 6004 Potatoes String Carrots Crinkle-cut Onions Julienne Lettuce Grate Pickles Slice Bananas Apples …and much more 6003 Q Shred, string, crinkle-cut, julienne, grate and slice a wide variety of foods - may be the most versatile processor in the kitchen Q Easy manual operation with none of the maintenance, electrical issues or cost associated with powered units Q All cones feature a finely machined, precision stainless steel edge easily changed for fast-cycle processing of foods OVERALL OPERATING DIMENSIONS CASE COMPLETE UNIT DESCRIPTION INCLUDED CONES W X D X H: IN (CM) LOT 6003 King Kutter™ with suction cup base #1, 2, & 4 81⁄4 x 9 x 12 (21 x 22.9 x 30.5) 1 6005 King Kutter™ with suction cup base #1-5 81⁄4 x 9 x 12 (21 x 22.9 x 30.5) 1 ™ 6004 King Kutter with clamp base #1, 2, & 4 8 ⁄4 x 9 x 16 (21 x 22.9 x 40.6) 1 1 6006 King Kutter™ with clamp base #1-5 81⁄4 x 9 x 16 (21 x 22.9 x 40.6) 1 REPLACEMENT CASE CONE ITEM DESCRIPTION LOT 6011 #1 - 1⁄8" (3.2 mm) Shredder cut 1 6012 #2 - ⁄16" (4.8 mm) String cut 3 1 6013 #3 - 3⁄8" (9.5 mm) French fry cut 1 6014 #4 - 1⁄8" (3.2 mm) Thin slice cut 1 6015 #5 - 3⁄16" (4.8 mm) Krinkle cut 1 Shredder String French Fry Thin Slice Crinkle Cut 6016 #6 - 3⁄16" (4.8 mm) Thick slice cut 1 (6011) (6012) (6013) (6014) (6015) * Vollrath warranty policies do not cover Redco® blades 1-22
- 42. Food Preparation Equipment The Vollrath Company, LLC Redco® CubeKing™ Q Cut cheese cubes, sticks, square blocks, and rectangular blocks, fast and uniform DESCRIPTION OPEN DIMENSIONS CLOSED DIMENSIONS CASE ITEM IN (CM) W X D X H: IN (CM) W X D X H: IN (CM) LOT 1811 CubeKing™, 3⁄4 (19.1 mm) cut 1 ™ 3 17 x 171⁄4 x 32 17 x 181⁄2 x 215⁄8 1812 CubeKing , ⁄8 (9.5 mm) cut 1 (43.2 x 43.8 x 81.3) (43.2 x 47 x 54.9) 1823 CubeKing™ replacement wire kit 1 1811 Redco® Cheese Blocker™ Q Accommodates blocks up to 50 lbs and wheels up to 35 lbs Q 1 ⁄2" measuring increments on front plate and base Q Prepare cheese for cubing, slicing, and shredding COMPLETE DIMENSIONS - HANDLE UP DIMENSIONS - HANDLE DOWN CASE REPLACEMENT UNIT DESCRIPTION W X D X H: IN (CM) W X D X H: IN (CM) LOT WIRE KIT ITEM 1837 1837 Cheese Blocker™ 121⁄4 x 291⁄4 x 225⁄8 121⁄4 x 22 x 121⁄4 1 1838 (31.1 x 74.3 x 57.5) (31.1 x 55.8 x 31.1) Redco® Lobster King™ Q Makes lobster tails ready for preparation in one clean cut of the shell Q Also works on crab legs COMPLETE DIMENSIONS - HANDLE UP DIMENSIONS - HANDLE DOWN CASE REPLACEMENT UNIT DESCRIPTION W X D X H: IN (CM) W X D X H: IN (CM) LOT 10" (25.4 CM) KNIFE ITEM 1851 1851 Lobster 10 x 151⁄4 x 16 10 x 191⁄2 x 41⁄4 1 5103 King (25.4 x 38.7 x 40.6) (25.4 x 49.5 x 10.8) Vollrath warranty policies do not cover Redco® blades Redco® Oyster King™ Q Opens oysters and clams with one simple, safe stroke Q Durable steel point blade COMPLETE DIMENSIONS - HANDLE UP DIMENSIONS - HANDLE DOWN CASE REPLACEMENT UNIT DESCRIPTION W X D X H: IN (CM) W X D X H: IN (CM) LOT BLADE ITEM 1853 Oyster 57⁄8 x 101⁄2 x 15 57⁄8 x 143⁄4 x 41⁄4 1 5382 1853 King™ (14.9 x 26.7 x 38.1) (14.9 x 37.5 x 10.8) Vollrath warranty policies do not cover Redco® blades 1-23
- 43. vollrathco.com Food Preparation Equipment Redco® Grill Tender® Q Removes carbonized food from grill surfaces quickly and easily Q Splash guard and extra-long handle offer added protection from burns and kickback of debris 1101 Q Durable steel point blade Cayenne® COMPLETE UNIT DESCRIPTION DIMENSIONS W X D X H: IN (CM) CASE LOT REPLACEMENT BLADE ITEM Charbroilers s See page 2-11 1101 Grill Tender® 215⁄8 x 6 x 31⁄8 1 1102R (54.9 x 15.2 x 7.9) Tater King™ Scooper Q Scoop, skin and wedge four partially baked potatoes in less time than a minute Q Quickly prepare deep fried skins, steak fries, twice baked potatoes and more 1801 COMPLETE CASE REPLACEMENT REPLACEMENT REPLACEMENT UNIT DESCRIPTION LOT BLADE ITEM HANDLE WITH GRIP ITEM CASE LOT 1801 Tater King 12 1802 1803 1 Scooper Redco® Petrol Gel Q Designed specifically for use with all Redco® Manual Food Processors Q Tasteless and odorless Q Impervious to water ITEM DESCRIPTION CASE LOT 15149 4 oz petrol sanitary gel lubricant 1 1-24
- 44. Food Preparation Equipment The Vollrath Company, LLC Redco® EaziClean® Can Openers Vollrath’s new generation of can openers, EaziClean®, gives the cleanest and most hygienic cut ever. Q EaziClean® blades are finished with antibacterial coating for increased safety Q High-grade steel cutting mechanism for clean cut – no risk of frayed metal shavings Q All cutting mechanisms are dishwasher safe, and BCO-7000 is dishwasher safe in its entirety Q Patented quick-release blade carrier for easy cleaning 1. 2. Q Color-coded collars for easy identification Titan = Black BCO-7000 Heavy-Duty = Blue BCO-5000 & BCO-6000 Medium Duty = Yellow BCO-2000 & BCO-3000 1-25
- 45. vollrathco.com Food Preparation Equipment Additional EaziClean® features: Q Case-hardened blade for longer life Q Wheels made from gear-cutting grade steel – able to withstand intense pressure Q Beveled gear wheel makes assembly easy Q Ergonomic design for more comfortable use Q Stainless steel base Premium™ * BCO-1 EaziClean® Medium-Duty BCO-2000 BCO-3000 EaziClean® Heavy-Duty BCO-5000 BCO-6000 EaziClean® Titan BCO-7000 EaziClean® Can Openers BAR MAX CAN OUTPUT PER LENGTH HEIGHT GEAR DAY CASE BLADE GEAR CARTRIDGE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) (#10 CAN) LOT ITEM ITEM ITEM BCO-2000 Medium-duty, zammac alloy 16 14 1 20 cans 1 BCO-11 BCO-12 BCO-15 construction (40.6) (35.6) (2.5) BCO-3000 Medium-duty, zammac alloy 25 22 1 20 cans 1 BCO-11 BCO-12 BCO-15 construction (63.5) (55.9) (2.5) BCO-5000 Heavy-duty, stainless steel 16 14 11⁄2 60 cans 1 BCO-11 BCO-10 BCO-14 construction (40.6) (35.6) (3.8) BCO-6000 Heavy-duty, stainless steel 25 22 11⁄2 60 cans 1 BCO-11 BCO-10 BCO-14 construction (63.5) (55.9) (3.8) BCO-7000 Titan, stainless steel 25 22 11⁄2 60+ cans 1 BCO-11 BCO-10 BCO-14 construction, dishwasher safe (63.5) (55.9) (3.8) Premium™ and CanMaster™ Can Openers* p MAX CAN BAR LENGTH HEIGHT GEAR CASE BLADE GEAR ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) LOT ITEM ITEM BCO-1* Premium™ can opener 16 (40.6) 14 (35.6) 1 (2.5) 1 BCO-11 BCO-12 ™ BCO-4* CanMaster can opener 16 (40.6) 14 (35.6) 1 ⁄2 (3.8) 1 1 BCO-11 BCO-10 *Items BCO-1 and BCO-4 are not NSF certified 1-26
- 47. Countertop Cooking Equipment Induction Convection Charbroilers Ranges Ovens and Griddles New Mirage® Pro and Cadet The perfect opportunity to With today's constantly changing Induction Ranges feature break into the fresh-baked menus, you'll be ready for both redesigned engines and market or expand existing high performance and flexibility compatibility with a wider menus, with high speed and with Cayenne® Charbroilers range of pans. minimal fuss. and Griddles. Vollrath “Green" Facts for Induction Ranges: Induction Ranges use cutting-edge technology, providing efficiencies of 90% or more. Approximately 40% more efficient than electric or gas ranges. Induction conserves energy use in HVAC by dramatically decreasing the amount of treated air consumed by conventional gas ranges. For more details on Vollrath’s green products, visit www.vollrathco.com/green 2-2
- 48. Countertop Cooking Equipment The Vollrath Company, LLC Mirage® Induction Ranges Introducing two new additions to the Mirage® line from the foodservice industry's induction technology leader. Q Works with a wide range of induction-ready pans to minimize cookware compatibility issues Q Latest generation engine designs for efficiency, control, and durability Q G4 Engine (see Did You Know explanation, next page) Q Knob control with digital readout makes settings quick and clear Q 90% energy efficiency - compare to the approximate 50% Q Digital troubleshooting display efficiency of gas ranges Q Stainless case top and aluminum bottom Q 100 power levels for precise cooking control Q Low-profile, modern case design Q 80°-450° F (27°-232° C) featuring a lower range for chocolates Q See page 2-5 for additional Mirage features Mirage® Pro ITEM DESCRIPTION MAX PAN SIZE: IN (CM) DIMENSIONS (W X D X H): IN (CM) VOLTAGE KW AMPS PLUG CASE LOT 1 59500P Countertop 14 14 x 15 ⁄ 4 x 3 120 AC 1.8 15 5-15P 1 - US Only (35.6) (35.6 x 38.7 x 7.6) 59510P Countertop 14 14 x 151⁄ 4 x 3 120 AC 1.4 12 5-15P 1 - Canada Only (35.6) (35.6 x 38.7 x 7.6) 2-3
- 49. vollrathco.com Countertop Cooking Equipment Did You Know? Induction ranges rely on an internal component called an IGBT switch to control power levels. The Mirage® G1 engine uses a single IGB switch to power the entire unit. The Mirage® G4 uses four IGBTs, so the same workload is shared across four parallel switches. This increases the efficiency, control, and longevity of the Mirage® Pro induction range. Q G1 Engine (see Did You Know explanation above) Q Pushbutton control with digital readout Q 75% efficient - compare to the approximate 50% efficiency of gas ranges Q Stainless case top and molded plastic bottom Q 20 power levels Q See page 2-5 for additional Mirage features Q 100°-450° F (38°-232° C) range Mirage® Cadet ITEM DESCRIPTION MAX PAN SIZE: IN (CM) DIMENSIONS (W X D X H): IN (CM) VOLTAGE KW AMPS PLUG CASE LOT 59300 Countertop - US only 14 12 x 16 x 31⁄8 120 AC 1.8 15 5-15P 1 (35.6) (30.5 x 40.6 x 7.9) 59310 Countertop - Canada only 14 12 x 16 x 31⁄8 120 AC 1.4 12 5-15P 1 (35.6) (30.5 x 40.6 x 7.9) 2-4
- 50. Countertop Cooking Equipment The Vollrath Company, LLC Features on All Mirage® Induction Ranges Q Bright LED digital readout is easy to see Q 100% factory bench tested for ultimate quality control Q Temperature memory — powers up to the last used Q "Hot" warning display for safety temperature setting Q Padded carrying bag available for safe and convenient Q Compact and mobile, no maintenance transport –sold separately Q 100% framed ceramic top for durability Q 6' (183 cm) cord and plug Mirage® Standard Drop-In Models Q Cutting-edge dial control with high-speed power and temperature adjustment - includes 1-180 minute Receptacles timer function Q Designed for commercial sauté and warming stations 120V Q Countersunk installation creates sleek, easy-to-clean counter work surface MAX PAN SIZE DIMENSIONS (W X D X H) CUTOUT DIMENSIONS CASE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) VOLTAGE KW AMPS PLUG LOT 59501{ Drop-in 14 121⁄ 2 x 141⁄ 2 x 27⁄ 8 113⁄ 4 x 133⁄ 8 120 AC 1.4 12 5-15P 1 cooking range (35.6) (31.8 x 36.8 x 7.3) (29.9 x 33.9) 5950145{| Commercial 14 121⁄ 2 x 141⁄ 2 x 27⁄ 8 113⁄ 4 x 133⁄ 8 120 AC .45 3.8 5-15P 1 drop-in warmer (35.6) (31.8 x 36.8 x 7.3) (29.9 x 33.9) { 59501 and 5950145 Control Box Cutout Dimensions: 5" x 211⁄16" (12.7 x 6.9 cm) | Warming unit only – not a cooking range International Models (available for export only) Q Cutting-edge dial control with high-speed power and temperature adjustment - includes 1-180 minute timer function Receptacles Q Designed for commercial sauté and warming stations 230V 230V 230V Q Low-profile case for natural cooking height Q 360° design looks appealing on both operator 59650 and customer sides MAX PAN SIZE DIMENSIONS (W X D X H) CASE ITEM DESCRIPTION IN (CM) IN (CM) VOLTAGE KW AMPS PLUG LOT 59650 Countertop (Europe) 14 14 x 151⁄ 4 x 3 230 AC 1.8 7.8 Shuko 1 (35.6) (35.6 x 38.7 x 7.6) 59651 Countertop (UK) 14 14 x 151⁄ 4 x 3 230 AC 1.8 7.8 UK 1 (35.6) (35.6 x 38.7 x 7.6) 59652 Countertop (CHINA) 14 14 x 151⁄ 4 x 3 230 AC 1.8 7.8 China 1 (35.6) (35.6 x 38.7 x 7.6) Mirage® Carrying Case Q Convenient carrying case to transport and protect your countertop induction range Q Side pocket fits cookware or other items DIMENSIONS (W X D X H) CASE ITEM DESCRIPTION IN (CM) FITS UNITS LOT 59145 Carrying case for Mirage® 161⁄ 2 x 181⁄ 2 x 41⁄ 2 All Mirage Countertop 1 countertop units (41.9 x 47 x 11.4) Induction Ranges 2-5
- 51. vollrathco.com Countertop Cooking Equipment Ultra Series Induction Ranges Q Designed for large volume and heavy-duty usage Q 100 power settings for precise cooking control Q Controlled high-end temperatures for sauté, stir fry, stock-pot and sauce pot applications Q Sensitive low-end control for cooking delicate sauces, crémes, and chocolates Q Continuous duty induction circuitry for non-stop cooking Q 92+% efficiency versus 50% for gas stoves Q Double oversized fans for longer life Q Digital display 69504 Q "HOT" warning display for safety Q Drop-in Cutout Dimensions (W x D): Receptacles 69505: 161⁄8" x 151⁄8" (40.9 x 38.4 cm) 208/240V 208/240V 69508: 263⁄8" x 157⁄8" (67 x 40.3 cm) Q FCC Part 18 Approved Q Two year parts and labor warranty Q 6' (183 cm) cord and plug 69505 69507 69508 MAX PAN SIZE DIMENSIONS (W X D X H) CASE ITEM DESCRIPTION IN (CM) IN (CM) VOLTAGE KW AMPS PLUG LOT 69504 Countertop 14 157⁄ 8 x 181⁄ 2 x 53⁄ 4 208/240 AC 3.0 - 3.5 14.6 6-20P 1 (35.6) (40.3 x 47 x 14.6) 69505 Drop-in 14 173⁄ 8 x 161⁄ 2 x 43⁄ 4 208/240 AC 3.0 - 3.5 14.6 6-20P 1 (35.6) (43.2 x 41.9 x 12) 69507 Dual Hob Countertop 12 157⁄ 8 x 293⁄ 4 x 513⁄ 16 208/240 AC 3.0 - 3.5* 29.2 6-50P 1 Front to Back (30.5) (40.4 x 75.6 x 14.8) 69508 Dual Hob Drop-In 12 173⁄ 8 x 277⁄ 8 x 51⁄ 8 208/240 AC 3.0 - 3.5* 29.2 6-50P 1 Front to Back (30.5) (44.1 x 70.8 x 13) *Per Hob 69505/69508 Control Box Cutout Dimensions: 71⁄4" x 37⁄8" (18.4 x 9.8 cm) – Note: 1 Control Per Hob Upscale Your Induction Buffet Presentation! Miramar® Buffet Display Tables Cookware See pages 5-49 See pages 9-5 through 9-7 through 5-50 2-6
- 52. Countertop Cooking Equipment The Vollrath Company, LLC Professional Series Induction Ranges Q Designed for sauté, sauce pots and small stock pots Q 100 settings for precise cooking control — set to power level or temperature setting Q Continuous duty induction circuitry for non-stop cooking Q Firewall protected circuitry with oversized fans and 18 gauge heavy-duty 18-8 stainless steel casing 69523 Q 1-180 minute timer — unit shuts off at end of cycle Q Digital display is easy to clean – no knobs to collect food and it helps prevent accidental temperature changes Q "HOT" warning display for safety Q Three-foot remote control cord on drop-in models Q 69521 FCC Part 18 Approved Q Two year parts and labor warranty 6954301 Q 6' (183 cm) cord and plug 6954302 6954303 69520 Receptacles 6954701 208/240V 208/240V 230V 230V 230V 6954702 6954703 69524 MAX PAN SIZE DIMENSIONS (W X D X H) CUTOUT DIMENSIONS CASE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) VOLTAGE KW AMPS PLUG LOT 6954301 Single hob countertop† 14 131⁄ 8 x 161⁄ 2 x 4 — 208/240 AC 2.2/2.6 10.8 6-20P 1 (35.6) (32.7 x 41.9 x 10.2) 69520 Single hob countertop 14 157⁄ 8 x 181⁄ 2 x 53⁄ 4 — 208/240 AC 2.5 - 2.9 12.1 6-20P 1 (35.6) (40.3 x 47 x 14.6) 69521* Single hob drop-in 14 161⁄ 2 x 173⁄ 8 x 43⁄ 4 151⁄ 8 x 161⁄ 8 208/240 AC 2.5 - 2.9 12.1 6-20P 1 (35.6) (41.9 x 43.2 x 12) (38.4 x 40.9) 6954701 Dual hob countertop 12 157⁄ 8 x 293⁄ 4 x 513⁄ 16 — 208/240 AC 1.6-1.9 15.8 6-20P 1 front to back† (30.5) (40.4 x 75.6 x 14.8) per hob 69523 Dual hob countertop 12 263⁄ 4 x 1715⁄ 16 x 53⁄ 8 — 208/240 AC 2.5 - 2.9 24.1 6-30P 1 side by side (30.5) (67.9 x 45.5 x 13.7) per hob 69524* Dual hob drop-in 12 173⁄ 8 x 277⁄ 8 x 51⁄ 8 157⁄ 8 x 263⁄ 8 208/240 AC 2.5 - 2.9 24.2 6-30P 1 front to back (30.5) (44.1 x 70.8 x 13) (40.3 x 67) per hob *69521 and 69524 Control Box Cutout Dimensions: 71⁄4" x 37⁄8" (18.4 x 9.8 cm) † 6954301 and 6954701 are manufactured by Vollrath China International Models – available for export only MAX PAN SIZE DIMENSIONS (W X D X H) CASE ITEM DESCRIPTION IN (CM) IN (CM) VOLTAGE KW AMPS PLUG LOT 6954302 Schuko 131⁄ 8 x 161⁄ 2 x 4 6954303 Single hob countertop† 14 (35.6) 208/240 AC 2.2-2.6 10.8 UK 1 (32.7 x 41.9 x 10.2) 6954304 China 6954702 Schuko Dual hob countertop 27 x 13 x 5 1.6-1.9 6954703 12 (30.5) (68.6 x 33 x 12.72) 208/240 AC per hob 15.8 UK 1 side by side† China 6954704 † 6954302 to 6954304 and 6954702 to 6954704 are manufactured by Vollrath China 2-7
- 53. vollrathco.com Countertop Cooking Equipment Don’t Forget Your Induction Ready Cookware! Intrigue® Professional Cookware See page 7-15 to 7-17 Miramar® Intrigue™ Display Induction Tribute® Cookware Cookware Chafers! See pages 7-7 through 7-10 See page 9-5 to 9-7 See page 9-15 to 9-16 Commercial Series Induction Ranges Q Designed for light commercial sauté and warming stations Q Ideal for presentation cooking, omelet stations or small reheat stations Q Rear bracket protects cord and provides proper ventilation for unit on countertop models Q Nine control settings Q FCC Part 18 Approved; ETL Approval on all models Q Digital display Receptacle 6950020/6951020 120V Q One year parts and labor warranty Q 6' (183 cm) cord and plug MAX PAN SIZE DIMENSIONS (W X D X H) CASE ITEM DESCRIPTION IN (CM) IN (CM) VOLTAGE KW AMPS PLUG LOT 6950020 Countertop, US only 14 (35.6) 131⁄ 8 x 161⁄ 2 x 4 (32.7 x 41.9 x 10.2) 120 AC 1.8 15 5-15P 1 6951020 Countertop, Canada only 14 (35.6) 131⁄ 8 x 161⁄ 2 x 4 (32.7 x 41.9 x 10.2) 120 AC 1.4 12 5-15P 1 Know what our customers are saying... “The Vollrath Mirage Induction Cooker is my favorite travel companion. Wherever I go in the world, the sleek, powerful range is perfect for demonstrations, cooking classes and events" Chef Rick Bayless Frontera Grill and Topolobampo TOP CHEF MASTER 2009 See page 2-3 to 2-5 for Mirage Induction Range and Carrying Case See pag 2-8
- 54. Countertop Cooking Equipment The Vollrath Company, LLC Induction Fajita Skillet Heaters Sssssssss-izzling! fajitas served right on the skillet: presentation at its best just got even better with Vollrath's fajita induction ranges. Q Simple one-touch operation produces perfect results in record time, every time Q Ranges will work with the two standard fajita pan styles and will heat room temperature pans to proper sizzle temperatures* Ultra Fajita Heater Mirage® Fajita Heater 69504F 59500F Three Presets Single Preset Setting 1: 80 Seconds, 450-550˚F 59500F - Heat: 120 Seconds, 450-550˚F Setting 2: 60 Seconds, 400-500˚F 59510F - Heat: 140 Seconds, 450-550˚F Setting 3: 30 Seconds, 300-350˚F 3000-3500 Watts Power 1440-1800 Watts Power DIMENSIONS (W X D X H) CASE ITEM DESCRIPTION IN (CM) VOLTAGE KW AMPS PLUG LOT 59500F Mirage® Fajita - induction cast iron 14 x 151⁄ 2 x 3 120 AC 1.8 15 5-15P 1 pan heater (US) (35.6 x 38.7 x 7.6) 59510F Mirage® Fajita - induction cast iron 14 x 151⁄ 2 x 3 120 AC 1.4 12 5-15P 1 pan heater (Canada) (35.6 x 38.7 x 7.6) 69504F Ultra Fajita - induction cast iron pan 157⁄ 8 x 181⁄ 2 x 53⁄ 4 208/240 AC 3.0 - 3.5 14.6 6-50P 1 heater (US/Canada) (40.3 x 47 x 14.6) *NOTE: These units are specifically designed for heating skillets to sizzle temperatures from room temperature, where the skillets are heated, then finished foods are plated and oil/water is added to create the fajita sizzle effect. They are not designed for use in other applications or to directly cook the food. 2-9
- 55. vollrathco.com Countertop Cooking Equipment Induction Ranges Induction Ranges Require Induction-Ready Cookware – see Pages Product Selection Guide 7-7 to 7-20 & 9-5 to 9-7 ULTRA SERIES PROFESSIONAL SERIES MIRAGE® PRO MIRAGE® CADET 3,000 - 3,500 Watt Output 2,500 - 2,900 Watt Output 1,440 - 1,800 Watt Output 1,440 - 1,800 Watt Output Ideal for high volume, high Ideal for medium volumes and Ideal for light commercial, sauté, Ideal for light commercial, sauté, speed, and continuous duty speed, high speed sautéing and non-continuous small stockpot non-continuous small stockpot stockpot stations small stockpot and saucepot warming warming warming Approx. Top Heating Approx. Top Heating Approx. Top Heating Approx. Top Heating Temperature: 625°F Temperature: 575°F Temperature: 450°F Temperature: 450°F Efficiency - 92% Efficiency - 90% Efficiency - 75% Efficiency - 90% Power Range Settings - 100 Power Range Settings - 100 Power Range Settings - 100 Power Range Settings - 20 with 1 to 180 minute timer Warranty - 2 Years Warranty - 2 Years Warranty - 2 Years Warranty - 1 Year Chosen by: Chosen by: Chosen by: Chosen by: * High Volume Hotels * Casual Dining Restaurants * Hotels * Hotels * Large Volume Restaurants * Quick Serve Restaurants * Caterers * Caterers * Cruise Ships * Hospitality (front or back * Casual Dining Restaurants * Sub Shops and Delis * Military of the house) * Quick Serve Restaurants * Culinary Schools * Cruise Ships * Sub Shops and Delis * Top Chefs who demand * Culinary Schools * Stadium/Arena Luxury Suites extreme high and low * Business and Institutions * Business and Institutions temp control * Pastry Chefs IMPORTANT NOTE: Vollrath will guarantee that Vollrath induction-ready products will work with Vollrath induction ranges and warmers, unless otherwise noted. Vollrath induction ranges and warmers are calibrated to work with a wide range of induction-ready products, but we cannot guarantee the quality and material choices of other manufacturers, or the performance of our ranges when used with those products. CE Listed Units Available for International Markets – see pages 2-5 and 2-7. 2-10
- 56. Countertop Cooking Equipment The Vollrath Company, LLC Cayenne® Charbroilers Ultimate versatility, all in one unit... ...Radiant or Lava ...Natural or LP Q Every unit ships with kits for both radiant and lava rock setup – natural or propane gas – configure to suit your needs Q ...Narrow or Wide Stainless and aluminized steel, fully-welded construction to eliminate grease and dirt traps Q One side features narrower grill surfaces with Q All gas units feature metal knobs integral channels – so durable they are guaranteed for life specially designed to Q Shipped set up for natural gas dispense excess fat, - includes kit with regulator for field reducing smoke conversion to propane Knobs and flames Q Guaranteed Burners placed every 12" (30.5 cm) for Q Flip side features flatter, for Life optimum heat distribution* wider grill surfaces, Q Heavy-duty legs with level adjustment ideal for fish and other more delicate items Q Full width stainless steel drip pan on units up to 36" (91.4 cm) Q Two half-width stainless steel drip pans on 48" (121.9 cm) and ...Flat or Angled 60" (152.4 cm) units Q Angled adaptor bar Q 23⁄4" (7 cm) backsplash, 21⁄4" (5.7 cm) side splashes allows food to be angled Q 12" (40728) unit offers smallest footprint for tighter spaces and away from heat for low-volume applications slower cooking and Q 19" (48.3 cm) cooking surface depth directs grease away to minimize flareups 40838 40730 40728 DIMENSIONS (W X D X H) OUTPUT CASE ITEM MODEL DESCRIPTION IN (CM) (BTU) LOT 40728 CBL9012 12" Radiant/Lava Rock Charbroiler 12 x 27 x 16 (30.5 x 68.6 x 40.6) 28,000 1 40729* CBL9016 18" Radiant/Lava Rock Charbroiler 18 x 27 x 16 (45.7 x 68.6 x 40.6) 28,000 1 40730 CBL9024 24" Radiant/Lava Rock Charbroiler 24 x 27 x 16 (61 x 68.6 x 40.6) 56,000 1 40731 CBL9036 36" Radiant/Lava Rock Charbroiler 36 x 27 x 16 (91.4 x 68.6 x 40.6) 84,000 1 40837 CBL9048 48" Radiant/Lava Rock Charbroiler 48 x 27 x 16 (121.9 x 68.6 x 40.6) 112,000 1 40838 CBL9060 60" Radiant/Lava Rock Charbroiler 60 x 27 x 16 (152.4 x 68.6 x 40.6) 140,000 1 *18" unit has one burner 2-11
- 57. vollrathco.com Countertop Cooking Equipment Cayenne® Gas Flat Top Griddles Q Stainless and aluminized steel with fully-welded construction for durability and long life Q All gas units feature metal knobs – so durable they are guaranteed for life Q Shipped set up for natural gas, includes kit for conversion Knobs to propane Guaranteed Q Polished surface 3⁄4" thick top plate for Life Q Welded seams eliminate grease and dirt traps Q 12" (30.5 cm) wide heating zone per control* Q Cooking surface depth: 19" (48.3 cm) Q 23⁄4" (7 cm) backsplash, 21⁄4" (5.7 cm) side splashes Q Heavy-duty legs with leveling adjustment Q Thermostatically controlled griddles maintain user settings to ensure consistent surface temperature 40720 DIMENSIONS (W X D X H) COOKING SURFACE DIMENSIONS (W X D) OUTPUT CASE ITEM MODEL DESCRIPTION IN (CM) IN (CM) (BTU) LOT MANUALLY CONTROLLED GAS GRIDDLES 40718 FTG9012 12" Gas flat top griddle 12 x 27 x 16 (30.5 x 68.6 x 40.6) 1111⁄16 x 19 (29.7 x 48.3) 28,000 1 40719* FTG9016 18" Gas flat top griddle 18 x 27 x 16 (45.7 x 68.6 x 40.6) 1711⁄16 x 19 (45 x 48.3) 28,000 1 40720 FTG9024 24" Gas flat top griddle 24 x 27 x 16 (61 x 68.6 x 40.6) 2311⁄16 x 19 (60.2 x 48.3) 56,000 1 40721 FTG9036 36" Gas flat top griddle 36 x 27 x 16 (91.4 x 68.6 x 40.6) 3511⁄16 x 19 (90.7 x 48.3) 84,000 1 40839 FTG9048 48" Gas flat top griddle 48 x 27 x 16 (121.9 x 68.6 x 40.6) 4711⁄16 x 19 (121.2 x 48.3) 112,000 1 40840 FTG9060 60" Gas flat top griddle 60 x 27 x 16 (152.4 x 68.6 x 40.6) 5911⁄16 x 19 (151.6 x 48.3) 140,000 1 THERMOSTATICALLY CONTROLLED GAS GRIDDLES 40722 FTA1024 24" Gas flat top griddle 24 x 27 x 16 (61 x 68.6 x 40.6) 2311⁄16 x 19 (60.2 x 48.3) 56,000 1 40723 FTA1036 36" Gas flat top griddle 36 x 27 x 16 (91.4 x 68.6 x 40.6) 3511⁄16 x 19 (90.7 x 48.3) 84,000 1 *18" unit has one burner Cayenne® Electric Flat Top Griddles Q Superior element design ensures even heating over entire cooking surface Q Fast startup and recovery times Q Heavy-duty polished cooking surface for high heat retention Q Griddle plate is fully welded to base Q 21⁄2" back and sloped side splashes Q Knob guards protect against accidental changes or damage Q Internally-mounted grease collection pan for cleaner appearance and easier cleaning and maintenance Q 40716 120V, 14" unit (40715) is ideally sized for buffet, brunch, or catering applications Receptacles Q 36" (40717) model features independent controls per 120V 220V 208/240V 12" heating zone, creating multiple stations in one unit Q Cooking surface depth: 161⁄2" (41.9 cm) Q All units ship with cord and plug installed DIMENSIONS (W X D X H) CASE ITEM MODEL DESCRIPTION IN (CM) WATTS VOLTAGE AMPS PLUG LOT 40715 FTA7016 14" Electric flat top griddle 141⁄4 x 20 x 11 (36.2 x 50.8 x 27.9) 1800 120 15 5-15P 1 40716* FTA8024 24" Electric flat top griddle 24 x 20 x 11 (61 x 50.8 x 27.9) 3000 220* 13.6 6-15P 1 40717* FTA8036 36" Electric flat top griddle 36 x 20 x 11 (91.4 x 50.8 x 27.9) 8400 220* 38 6-50P 1 *Items 40716 and 40717 are single phase 2-12
- 58. Countertop Cooking Equipment The Vollrath Company, LLC Cayenne® Gas Hot Plates Q Stainless and aluminized steel with fully-welded construction for durability and long life Q All gas units feature metal knobs – so durable they are guaranteed for life Q Shipped natural gas - includes kit Knobs with regulator for field conversion to propane Guaranteed 40736 Q Front access openings for lighting of pilot lights for Life Q Heavy-duty legs with leveling adjustment Q Each burner has a separate individual grate for easier handling and cleaning Q Front-back 12" model (40736) offers narrow footprint for tight counter spaces Q Full-width stainless steel drip pan Q Bull-nose design to protect from burns Q Superior burners for fast heating and even heat distribution Q 26,000 BTU per burner 40737 cookware not included NUMBER OF DIMENSIONS (W X D X H) OUTPUT CASE ITEM MODEL DESCRIPTION BURNERS IN (CM) (BTU) LOT 40736 HPA1002 12" Gas hot plate 2 12 x 27 x 133⁄8 (30.5 x 68.6 x 34) 52,000 1 40737 HPA1004 24" Gas hot plate 4 235⁄8 x 27 x 133⁄8 (60 x 68.6 x 34) 104,000 1 40738 HPA1006 36" Gas hot plate 6 351⁄2 x 27 x 133⁄8 (90.2 x 68.6 x 34) 156,000 1 Electric Hot Plate Q 9" solid plate burners (front-back) for faster, more even heating and easier cleanup Q Stainless steel construction for durability and long life Q Rear safety skirt Receptacles Q Heavy-duty legs with leveling adjustment 208/240V Q Narrow footprint for tight counter spaces Q Ships with installed cord and plug for convenient installation 40739 DIMENSIONS (W X D X H) CASE ITEM MODEL DESCRIPTION IN (CM) WATTS VOLTAGE AMPS PLUG LOT 40739 STA8002 Flat top electric hot plate - 811⁄16" (22 cm) dia 15 x 273⁄8 x 119⁄16 3000 - 208-240 14.4 - 6-30P 1 solid plates front and rear (38.1 x 69.5 x 29.3) 4000 16.7 Equipment Stands Q Stainless steel top for long working life Q 1" adjustable feet for optimizing height and stability Q Back and side splashes to contain spills and keep equipment securely on table Q Height adjustable galvanized bottom shelf for convenient working storage DIMENSIONS (W X D X H) CASE ITEM DESCRIPTION IN (CM) LOT 40740 40740 Equipment stand 24 x 24 x 26 (61 x 61 x 66) 1 40740 - 24" Equipment 40741 Equipment stand 36 x 24 x 26 (91.4 x 61 x 66) 1 Stand with 40740 40742 Equipment stand 48 x 24 x 26 (121.9 x 61 x 66) 1 Charbroiler (not included) 2-13
- 59. vollrathco.com Countertop Cooking Equipment Cayenne® Convection Ovens Vollrath Convection Ovens offer the perfect opportunity for operations to break into the fresh-baked market or easily expand existing menus. Ideally suited for dough products, pastries, and cakes - use with pre-made frozen products to achieve fresh-baked sales with 40703 high customer appeal and minimal fuss. Convection Air Flow Systems Vollrath's convection fans are surrounded by a ring element and feature a specially designed diffuser plate to create a consistent and even air flow encircling baking food. Additionally, the 40702 unit features dual fans that automatically reverse direction to ensure an even more uniform air flow. This system results in higher quality baking and greater efficiency in comparison with conventional ovens. Due to the unique efficiency of Convection Ovens, traditional recipe times and/or temperatures must be adjusted to achieve the best results. When considering a traditional oven recipe, you should generally either decrease the temperature by 25° F (4° C) or decrease the baking time by approximately 25%. Q Custom baffle fan and specially designed diffuser plate create consistent air flow and even, reliable baking Q 120 minute bake timer feature automatically switches oven off after set time Q Cool-touch door is easily removable for cleaning - incudes heavy-duty hinges and stainless steel door for high durability Q Removable shelf runners and rounded interior corners for easier cleaning Q 40702 Stainless steel interior and exterior finish Q Insulated double-wall construction for thermal efficiency and cooler exterior MOBILE ADVANCED STEAM BROIL ITEM MODEL SHELVES PAN SIZE ACCOMMODATION CATERING CIRCULATION INJECTION FUNCTION Q Supplied with non-tip chrome plated steel shelves 40701 COA8004 4 Half-Size Sheet Pans Q Interior light makes monitoring cooking easier 40702 COA8005 4 Full-Size Sheet Pans Q Temperature range: 150° - 570° F (66° - 299° C) 40703 COA7002 3 Half-Size Sheet Pans Q Knob guard protects thermostat and timer against damage or accidental changes MOBILE CATERING: Perfect size for portable catering applications, and features standard 120 volt, 15 amp cord and plug Receptacles ADVANCED CIRCULATION: Features dual, self-reversing fans for more uniform 120V 220V 208/240V cooking STEAM INJECTION: Features a steam injection system for manual humidity control, which allows for browning and crisping of pastry and bread products BROIL FUNCTION: Adds grilling, roasting, and browning all in one oven NUMBER DIMENSIONS (W X D X H) COOKING CHAMBER SIZE (W X D X H) CASE ITEM MODEL DESCRIPTION OF SHELVES IN (CM) IN (CM) WATTS VOLTAGE AMPS PLUG LOT 40703 COA7002 Half-size 3 237⁄16 x 241⁄2 x 181⁄16 181⁄2 x 13 x 89⁄16 120 11.6 5-15P 1 1400 (59.5 x 62.2 x 45.8) (47 x 33 x 21.8) 40701 COA8004 Half-size 4 237⁄16 x 241⁄2 x 231⁄4 181⁄2 x 13 x 133⁄4 2400 230 11 6-15P 1 (59.5 x 62.2 x 59) (47 x 33 x 35) 40702 COA8005 Full-size 4 3215⁄16 x 293⁄4 x 263⁄16 275⁄8 x 197⁄16 x 133⁄4 5600 230 25.5 6-50P 1 (83.7 x 75.5 x 66.5) (70.2 x 49.4 x 35) 2-14
- 60. Countertop Cooking Equipment The Vollrath Company, LLC Microwave Oven - Digital Q Three power levels Q 20 programmable settings Q Digital display and timer Q Stainless steel exterior and interior Q .9 cu ft cooking chamber Receptacle Q Output: 1000 watts 120V OVERALL DIMENSIONS COOKING CHAMBER DIMENSIONS (W X D X H) (W X D X H) CASE ITEM MODEL DESCRIPTION IN (CM) IN (CM) WATTS VOLTAGE AMPS PLUG LOT 40819 MWA7025 Microwave oven - 201⁄2 x 181⁄8 x 121⁄4 131⁄8 x 143⁄8 x 713⁄16 1450 120 12.1 5-15P 1 digital (52.1 x 46 x 31.1) (33.3 x 36.5 x 19.8) Microwave Oven - Manual Q Manual Control Q Digital power level, time and program display Q 6 power levels Q 60 minute timer Q Stainless steel exterior and interior Receptacle Q .9 cu ft cooking chamber 120V Q Output: 1000 watts OVERALL DIMENSIONS COOKING CHAMBER DIMENSIONS (W X D X H) (W X D X H) CASE ITEM MODEL DESCRIPTION IN (CM) IN (CM) WATTS VOLTAGE AMPS PLUG LOT 40830 MWA7125 Microwave oven - 201⁄2 x 181⁄8 x 121⁄4 131⁄8 x 143⁄8 x 713⁄16 1450 120 12.1 5-15P 1 manual (52.1 x 46 x 31.1) (33.3 x 36.5 x 19.8) Cayenne® Chicken Rotisserie Ovens Cook and merchandise, all in one unit! A simple countertop cord- and-plug setup for operators. Easy-to-load baskets can roast and merchandise more than just chickens - use for ribs, roasts, vegetables, or an entire rack of lamb. Baskets are also great for more delicate items like whole stuffed fish that could not be easily done in spit-style rotisserie ovens. Receptacle 220V 208/240V Q Glass front and rear for excellent point of sale display Q Unique circulation fan design distributes consistent heat throughout the chamber for even cooking and browning Q Stainless steel construction Q Removable full-size drip tray and chrome plated wire baskets for easy cleaning Q Thermostatically controlled for consistent results 40704 DIMENSIONS (W X D X H) COOKING CHAMBER DIMENSIONS CASE ITEM MODEL DESCRIPTION* IN (CM) (W X D X H) IN (CM) WATTS VOLTAGE AMPS PLUG LOT 40704 CGA8008 8 Bird rotisserie oven 291⁄4 x 201⁄16 x 231⁄8 1811⁄16 x 191⁄2 x 181⁄8 2700 230 12 6-15P 1 (74.3 x 51 x 58.7) (47.5 x 49.5 x 46) 40841 CGA8016 15 Bird rotisserie oven 37 x 215⁄8 x 261⁄8 267⁄16 x 217⁄16 x 199⁄16 5000 230 22 6-30P 1 (94 x 55 x 66.3) (67.2 x 54.5 x 49.7) *Oven capacities based on use of 3 lb chickens 2-15
- 61. vollrathco.com Countertop Cooking Equipment Cayenne® Pizza/Bake Oven Provide fresh baked pizzeria-style pizzas with this countertop version of a traditional deck oven. The even heat of the hearth stones and the higher temperature capability of this oven combine to make crisp, light, evenly-baked pizzas. Fresh hearth-baked pizzas create a distinct presentation and command a higher price than 40848 pizzas made in a countertop wire rack pizza oven. Receptacle Q Stainless steel exterior and interior for Q Fifteen-minute timer function 220V durability and easy cleaning Q Shelf size: 171⁄2 (44.45 cm) x 171⁄2 (44.45 cm) Q Oven supplied with two ceramic bake decks Q 21⁄2 (6.35 cm) between shelves for crisp, even browning of crust and breads Q Heat setting: 140° - 750° F (60° - 399° C) OVERALL DIMENSIONS (W X D X H) COOKING CHAMBER SIZE (W X D X H) CASE ITEM MODEL DESCRIPTION IN (CM) IN (CM) WATTS VOLTAGE AMPS PLUG LOT 40848 POA8002 Pizza/ 231⁄8 x 253⁄8 x 187⁄16 181⁄2 x 193⁄16 x 97⁄16 2100-2800 208-240 10.1-11.7 6-15P 1 bake oven (58.8 x 64.5 x 46.8) (47 x 48.7 x 23.9) Cayenne® Cheese Melter Q Ideal for melting and gratinating cheese on sandwiches, soups, etc. Q Can be used for warming pizza, breads and rolls, pastries, or croissants Q Three shelf heights - allows use with different size foods and control of distance of food from heating elements Q Slide-out crumb tray for easy cleaning Q Back can be removed for use as pass-through Q Infinite control OVERALL DIMENSIONS (W X D X H) COOKING CHAMBER SIZE (W X D X H) CASE ITEM MODEL DESCRIPTION IN (CM) IN (CM) WATTS VOLTAGE AMPS PLUG LOT 40700 SAA8003 Cheese melter 287⁄16 x 131⁄2 x 171⁄16 251⁄2 x 13 x 101⁄2 2253-3000 208-240 10.8-12.5 6-20P 1 (72.2 x 34.3 x 43.3) (64.8 x 33 x 26.7) Cayenne® Hot Dog Roller Grills Q Body and rollers are all stainless steel construction for durability and easy cleaning Q 360 degree roller rotation provides even heating and effective merchandising Q Removable drip pan for easy cleaning Q 40820 features compact design for applications where space is an issue Q 40821 and 40822 feature front and rear variable temperature controls for use with different menu items Q Breath guards available, sold separately Breath Guards – Sold Separately NUMBER OF HOT DOG DIMENSIONS (W X D X H) CASE DIMENSIONS (W X D X H) CASE ITEM MODEL ROLLERS CAPACITY IN (CM) WATTS VOLTAGE AMPS PLUG LOT ITEM IN (CM) LOT 23 x 10 x 10 27 x 10 x 12 40820 HDR5005 5 12 400 120 3.3 5-15P 1 40823 1 (58.4 x 25.4 x 25.4) (68.6 x 25.4 x 30.5) 23 x 13 x 10 27 x 13 x 12 40821 HDR5007 7 18 560 120 4.7 5-15P 1 40824 1 (58.4 x 33 x 25.4) (68.6 x 33 x 30.5) 23 x 16 x 10 27 x 16 x 12 40822 HDR5009 9 24 720 120 6.0 5-15P 1 40825 1 (58.4 x 40.6 x 25.4) (68.6 x 40.6 x 30.5) 2-16
- 62. Countertop Cooking Equipment The Vollrath Company, LLC Cayenne® Sandwich Presses Available in Flat and Panini Style Plates Q Thermostatically controlled for consistent results Q Durable cast aluminum plates for fast heatup and recovery times Q Plate design features inset heating element channels for greater heating efficiency Panini and Sandwich Q Uncoated sandwich presses should be seasoned before use Presses can also be used to grill chicken, burgers, Q Adjustable handle allows user to set press height for even, vegetables, and more. consistent cooking - order after order Panini and Flat Plate Style 40790 40791 Q Ideal for Cuban and Italian sandwiches, Texas Toast, and more Q 40790 features ribbed top and bottom for panini-style presentation Q 40790 and 40792 feature non-stick 40793 coating for easier cleaning Receptacle Q 40793 features large plate size 120V for high-volume output 40792 DIMENSIONS (W X D X H) COOKING AREA (W X D) CASE ITEM MODEL DESCRIPTION IN (CM) IN (CM) WATTS VOLTAGE AMPS PLUG LOT 40790 TSA7309 Panini style, non-stick 14 x 183⁄4 x 127⁄8 135⁄16 x 123⁄16 1800 120 15 5-15P 1 (35.5 x 47.7 x 32.7) (33.8 x 31) 40791 TSA7009 Flat plate, natural finish 14 x 183⁄4 x 127⁄8 135⁄16 x 123⁄16 1800 120 15 5-15P 1 (35.5 x 47.7 x 32.7) (33.8 x 31) 40792 TSA7109 Flat plate, non-stick 14 x 183⁄4 x 127⁄8 135⁄16 x 123⁄16 1800 120 15 5-15P 1 (35.5 x 47.7 x 32.7) (33.8 x 31) 40793 TSA7012 Super-size flat plate, 181⁄8 x 231⁄4 x 127⁄8 177⁄16 x 155⁄8 1800 120 15 5-15P 1 natural finish (46 x 59 x 32.7) (44.3 x 39.7) Cast Iron Plate, Panini Style 40795 Q Heavy duty cast iron plates for durability and superior heat retention Q Pivot-action top plate to suit any food thickness Q Ribbed top and bottom plates for grilled food presentation Q Thermostatically controlled up to 570° F (300° C) Q Efficient element design and high power output Q Satin-finish stainless steel body construction Receptacles Q Double unit features separate controls 120V 220V for each side, creating two independent stations in one unit Q Cleaning brushes included 40794 DIMENSIONS (W X D X H) COOKING AREA (W X D) CASE ITEM MODEL DESCRIPTION IN (CM) IN (CM) WATTS VOLTAGE AMPS PLUG LOT 40794 TSI7001 Single 161⁄8 x 147⁄8 x 81⁄16 (41 x 37.8 x 20.5) 161⁄8 x 95⁄8 (41 x 24.4) 1800 120 15 5-15P 1 40795 TSI8002 Double 22 ⁄16 x 14 ⁄8 x 8 ⁄16 (57 x 37.8 x 20.5) 7 7 1 221⁄2 x 95⁄8 (57.2 x 24.4) 3080 220 14 6-15P 1 2-17
- 63. vollrathco.com Countertop Cooking Equipment Cayenne® Fryers Vollrath deep fat fryers are designed to create a delicious variety of crisp fried food with minimal fuss. Delight your customers with French fries, chicken, seafood, and more. Cayenne® 10 lb Standard Duty Electric Fryers Q Ideal for small pubs, colleges, and product-specific applications Q Dual unit provides increased volume and separation of food types to prevent flavor transfer from oil Q Lift-out, one-piece stainless steel tank with carrying handles for easier cleaning Q Thermostatically controlled to 375° F (190° C) 40707 Q Quick heat-up and temperature recovery Receptacles time between loads Q 120V 220V Power On indicator light Q Ships with two nickel plated steel baskets per well 40705 NUMBER DIMENSIONS (W X D X H) CASE ITEM MODEL DESCRIPTION OF WELLS IN (CM) WATTS VOLTAGE AMPS PLUG LOT 40705 FFA7110 Countertop Fryer, 10 lb 1 105⁄16 x 175⁄8 x 1015⁄16 (26.2 x 44.7 x 27.8) 1800 120 15 5-15P 1 40706 FFA8110 Countertop Fryer, 10 lb 1 105⁄16 x 175⁄8 x 1015⁄16 (26.2 x 44.7 x 27.8) 2500 220 11.3 6-15P 1 40707* FFA7020 Dual Countertop Fryer, 2 x 10 lb 2 229⁄16 x 175⁄8 x 1015⁄16 (57.3 x 44.7 x 27.8) 2 x 1800 120 2 x 15 5-15P 1 40708* FFA8020 Dual Countertop Fryer, 2 x 10 lb 2 229⁄16 x 175⁄8 x 1015⁄16 (57.3 x 44.7 x 27.8) 2 x 2500 220 2 x 11.3 6-15P 1 *Dual units feature two separate power cords and require two receptacles Cayenne® 15 lb Medium Duty Electric Fryers Q Ideal for restaurants, canteens, and higher volume outlets Q Dual unit provides increased volume and separation of food types to prevent flavor transfer from oil Q Fully-welded oil tank with safety interlocked drainage valve for easy drainage and cleaning Q Thermostatically controlled to 375° F (190° C) Q Quick heat-up and temperature recovery time between loads Q Power On indicator light Q Designed with cold zone to help keep grease fresh longer Q Suitable for frozen product with excellent recovery time 40710 Q Receptacle Ships with two nickel plated steel baskets per well Q 220V Includes night cover(s) 40709 NUMBER DIMENSIONS (W X D X H) CASE ITEM MODEL DESCRIPTION OF WELLS IN (CM) WATTS VOLTAGE AMPS PLUG LOT 40709 FFA8115 Countertop Fryer with Drain, 15 lb 1 113⁄8 x 203⁄8 x 11 (28.9 x 51.7 x 27.9) 3000 220 13.6 6-15P 1 40710* FFA8130 Dual Countertop Fryer with Drain, 2 x 15 lb 2 2213⁄16 x 203⁄8 x 11 (58 x 51.7 x 27.9) 2 x 3000 220 2 x 13.6 6-15P 1 *Dual units feature two separate power cords and require two receptacles Cayenne® Fryer Accessories ITEM DESCRIPTION FITS DIMENSIONS (W X D X H) IN (CM) CASE LOT 40711 40711 Fryer Basket, Small Standard Medium Duty 315⁄16 x 91⁄16 x 415⁄16 (10 x 23 x 12.5) 1 Small Fryer 40712 Fryer Basket, Large Standard Medium Duty 81⁄16 x 91⁄16 x 415⁄16 (20.5 x 23 x 12.5) 1 Basket 40713 Fryer Night Cover, Large Baskets Standard Duty 13 x 105⁄8 x 9⁄16 (33 x 27 x 1.5) 1 40714 Fryer Night Cover, Small Baskets Standard Duty 13 x 105⁄8 x 9⁄16 (33 x 27 x 1.5) 1 2-18
- 65. Countertop Warming and Display Cayenne® Warmers Cayenne® Cayenne® Rethermalizers Display Merchandising Hot Holding Cayenne warmers, New heated food display cases with a list Gain up to 33% energy savings rethermalizers and merchandisers of convenient features for excellent point of with larger food safe zones on offer the largest variety to efficiently, purchase merchandising. Heat Strips, and the industry's first safely and attractively handle all your multi-zone Heated Shelf. hot food needs. Vollrath “Green” Facts for Heating and Warming: Cayenne® Heat Strips increase warming area for a 33% larger “Food Safe” zone. This allows operators to order lower-wattage elements and use less energy. The Cayenne® Heat Shelf features two heat zones and thermostatic controls that allow for more efficient operation and reduce energy usage. Vollrath warmers using our exclusive thermoset well and direct contact heating system combine to provide up to 25% energy savings over traditional heating systems. For more details on Vollrath’s green products, visit www.vollrathco.com/green For warranty and replacement parts information, please visit www.vollrathco.com 3-2
- 66. Countertop Warming andDisplay The Vollrath Company, LLC Heated and Refrigerated Display Cabinets Q Inside lighting strips located both at the top of the cabinet Q 120 Volt cord and plug - avoid complicated and underneath the upper shelf create optimum food electrical installations display throughout cabinet Q Digitally controlled thermostat for precise and Q Dual fans circulate air throughout unit to ensure even consistent settings temperature control Refrigerated units: 36° to 46° F (2° to 21° C) Q Triple-glazed front glass gives added strength and insulation temperature range Q Lift-and-remove rear sliding doors for easy display changes Heated units: 104° - 158° F (40° to 70° C) and end of day cleaning temperature range Q Note: these items must ship by truck Countertop Display Cabinets 40856 40862 Receptacles 120V Countertop Curved Glass Display Cabinets Q Two shelves ITEM MODEL DESCRIPTION DIMENSIONS - W X D X H: IN (CM) HP VOLTAGE AMPS WATTS PLUG 40852 RDE8136 36 Curved glass, refrigerated 35 ⁄8 x 21 ⁄4 x 31 (89.9 x 53.8 x 78.7) 3 1 ⁄5 1 120 AC 3.2 385 5-15P 40853 RDE8148 48 Curved glass, refrigerated 471⁄4 x 211⁄4 x 31 (119.9 x 53.8 x 78.7) 1 ⁄4 120 AC 4.5 540 5-15P 40854 RDE8160 60 Curved glass, refrigerated 59 x 211⁄4 x 31 (149.9 x 53.8 x 78.7) 1 ⁄4 120 AC 4.5 540 5-15P 40855 HDE8136 36 Curved glass, heated 35 ⁄8 x 21 ⁄4 x 31 (89.9 x 53.8 x 78.7) 3 1 - 120 AC 5 2 x 300 5-15P 40856 HDE8148 48 Curved glass, heated 471⁄4 x 211⁄4 x 31 (119.9 x 53.8 x 78.7) - 120 AC 5 2 x 300 5-15P 40857 HDE8160 60 Curved glass, heated 59 x 21 ⁄4 x 31 (149.9 x 53.8 x 78.7) 1 - 120 AC 5 2 x 300 5-15P Countertop Cubed Glass Display Cabinets Q Three shelves ITEM MODEL DESCRIPTION DIMENSIONS - W X D X H: IN (CM) HP VOLTAGE AMPS WATTS PLUG 40862 RDE8236 36 Cubed glass, refrigerated 353⁄8 x 211⁄4 x 37 (89.9 x 53.8 x 94) 1 ⁄4 120 AC 4.5 540 5-15P 40863 RDE8248 48 Cubed glass, refrigerated 471⁄4 x 211⁄4 x 37 (119.9 x 53.8 x 94) 3 ⁄8 120 AC 6.5 780 5-15P 40864 RDE8260 60 Cubed glass, refrigerated 59 x 21 ⁄4 x 37 (149.9 x 53.8 x 94) 1 3 ⁄8 120 AC 6.5 780 5-15P 40865 HDE8236 36 Cubed glass, heated 353⁄8 x 211⁄4 x 37 (89.9 x 53.8 x 94) - 120 AC 5 2 x 300 5-15P 40866 HDE8248 48 Cubed glass, heated 47 ⁄4 x 21 ⁄4 x 37 (119.9 x 53.8 x 94) 1 1 - 120 AC 5 2 x 300 5-15P 40867 HDE8260 60 Cubed glass, heated 59 x 211⁄4 x 37 (149.9 x 53.8 x 94) - 120 AC 5 2 x 300 5-15P 3-3
- 67. vollrathco.com Countertop Warming and Display Drop-In Display Cabinets Q Attractively designed base allows display to be used either as a drop-in or as a freestanding countertop unit - use two or more units to create excellent heated/refrigerated merchandising display lineups Q 121⁄4 (31.1 cm) bottom shelf depth to accommodate steam table pans, trays, bowls, or other display items Q Top shelf - 71⁄2 (19 cm) depth Q Note: these items must be shipped by truck 40842 40845 Receptacles 120V Drop-In Curved Glass Display Cabinets Q Two shelves OVERALL DIMENSIONS (W X D X H) ITEM MODEL DESCRIPTION IN (CM) HP VOLTAGE AMPS PLUG 40842 RDE7136 36 Display cabinet, refrigerated 36 x 21 x 321⁄2 (91.4 x 53.3 x 82.6) 1 ⁄5 120 AC 3.8 5-15P 40843 RDE7148 48 Display cabinet, refrigerated 48 x 21 x 321⁄2 (121.9 x 53.3 x 82.6) 1 ⁄4 120 AC 4.9 5-15P 40844 RDE7160 60 Display cabinet, refrigerated 60 x 21 x 321⁄2 (152.4 x 53.3 x 82.6) 1 ⁄4 120 AC 4.9 5-15P 40845 HDE7136 36 Display cabinet, heated 36 x 21 x 321⁄2 (91.4 x 53.3 x 82.6) 760 120 AC 6.3 5-15P 40846 HDE7148 48 Display cabinet, heated 48 x 21 x 321⁄2 (121.9 x 53.3 x 82.6) 800 120 AC 6.7 5-15P 40847 HDE7160 60 Display cabinet, heated 60 x 21 x 321⁄2 (152.4 x 53.3 x 82.6) 840 120 AC 7 5-15P 3-4
- 68. Countertop Warming andDisplay The Vollrath Company, LLC Cayenne® Hot Food Merchandisers Q Thermostatically controlled heat with 85° to 175°F (29° to 79°C) temp range Q Specially designed baffle for even temperature distribution Q Internal humidifying system to keep food looking fresh longer Q Front and rear sliding doors for easy loading and customer self-serve convenience Q Three adjustable shelves for versatile displays Q Illuminated display for bright, eye-catching merchandising Q Lights controlled separately, lights can be used without heating the merchandise Q Double-walled stainless steel construction keeps cabinet cool 40733 shown with food product 40733 Receptacle 120V DIMENSIONS W X D X H ITEM MODEL IN (CM) VOLTAGE WATTS AMPS PLUG 40733 FMA7026 26 x 19 x 25 (66 x 48.3 x 63.5) 120 AC 1500 12.5 5-15P 40734 FMA7036 36 x 19 x 25 (91.4 x 48.3 x 63.5) 120 AC 1500 12.5 5-15P 40735 FMA7048 47 x 19 x 25 (119.4 x 48.3 x 63.5) 120 AC 1500 12.5 5-15P 3-5
- 69. vollrathco.com Countertop Warming and Display Cayenne® Bain Marie Hot Display Case Q Versatile heating element allows well to be used wet or dry Q Rear drain valve for easier end-of-day maintenance Q Energy regulator dial gives reliable temperature control to accommodate a wide range of different foods Q Includes two adaptor bars to divide full-size well spaces for 1⁄6 size pans Q Double skin stainless steel base reduces heat loss and allows unit to be used either as a drop-in or countertop Q Stainless steel top is heated and can be used as a plate warmer Q Sliding glass doors in rear lift out easily for cleaning Q Top-mounted halogen lighting for excellent staging of merchandised food Q 120 Volt cord and plug – avoid complicated electrical installations Receptacle 120V Rear drain valve DIMENSIONS W X D X H ITEM MODEL IN (CM) VOLTAGE WATTS AMPS PLUG 40732 BMA7103 43 x 31 x 29 (109.2 x 78.7 x 73.7) 120 AC 1440 12 5-15P Combine Hot Food Merchandisers with a Cayenne® Chicken Rotisserie Oven for the Ultimate Profit Center! See page 2-15 for details 3-6
- 70. Countertop Warming andDisplay The Vollrath Company, LLC Direct Contact Heating System Look for the Direct Contact The ultimate in performance and efficiency symbol Direct Contact Heating System Competitor's Design NO VENTS = HIGH EFFICIENCY VENTS = POOR EFFICIENCY The heating element is in direct contact with the The element is located underneath the well and water for the most efficient heat transfer possible. loses a large amount of heat to the sides and This is coupled with Vollrath’s exclusive fiber- bottom. Because of this, vents must be cut into reinforced resin well, which provides superior the sides of the warmer to allow the excessive insulation for maximum energy efficiency. So much amount of lost heat to escape. heat is saved that there is no need for vents. Save Model 1001 Energy Savings Comparison $ 109.00 Per Year! MODEL VOLLRATH 71001 BRAND X Wattage 700 1200 Kilowatts .7 kw 1.2 kw Number of hours in use/day 8 8 Adjusted to reflect time actively consuming energy (Assume cycling on 75% of the time) 6 6 Kilowatts x hours in use = Kilowatts per hay 4.2 7.2 Cost per Kilowatt hour 10 cents{ 10 cents{ Cost to Operate Food Warmer for 1 Day .42 cents .72 cents {Average commercial retail price of electricity = $0.10/kWh as of September 2008 per U.S. Dept. of Energy – Website: eia.doe.gov 3-7
- 71. vollrathco.com Countertop Warming and Display Cayenne® Heat ‘N Serve Countertop Food Rethermalizers 1 Thermoset Fiber-Reinforced Resin Well Q Self-insulating 5 Q Maximum energy efficiency Q Prevents scale build-up 1 Q Easy to clean 2 6 2 Increased Water Capacity Q Reduce labor costs Q Improve food quality by maintaining maximum moist heat 3 Recessed Controls/Indicator Q Reduce accidental changes in temperature settings Q Low-water indicator light eliminates guesswork NEW FEATURE! 4 Capillary Tube Thermostat Control Q Supplies constant temperature 3 Low-water indicator light – New Blue Color! Q Supplies power only when needed for maximum power efficiency 7 5 Wide Dripless Lip Q Catches and drains moisture back into the well Q Creates more uniform fit with inset 6 Cooler Exterior 3 Q Meets UL surface temperature standards for 9 4 8 operator and customer safety Q Concentrates heat inside the well, 10 Q Meets NSF4 Performance Standards for not to the outside surface and rim rethermalization and hot food holding equipment 7 Dome Heater Q Uses up to 25% less energy Cayenne® Heat ‘N Serve Q Non-stick surface prevents scale build-up for easy cleaning and longer operating life Approximate Dial Q Cast-in heating element for longer service life and Temperature Range greater energy transfer Q Concentrates energy into the well 80-85˚F 100-105˚F 115-120˚F 27-30˚C 38-41˚C 46-49˚C – producing steam quickly 130-135˚F 54-57˚C 8 Bottom Exit Power Cord 145-150˚F Q Adapts to receptacle location for safe installation 63-66˚C Q Allows for 360˚ control placement 165-170˚F 74-77˚C 9 Non-skid Feet Q Helps keep unit from sliding on counter 185-190˚F 85-88˚C 10 Standard cord length of 6' (183 cm) for all Vollrath warmers 200˚F 94˚C 3-8
- 72. Countertop Warming andDisplay The Vollrath Company, LLC Cayenne® Warmers and Rethermalizers Selection Guide WELL OFFERED WITH PAGE # WARMER AND DIRECT CONTACT STAINLESS STEEL LOW WATER THERMOSTATICALLY DRIPLESS LIGHTED ON/ MODEL CONFIGURATION WATTAGE WARMER ONLY DRAIN INSETS AND SHOWN RETHERMALIZER HEATING SYSTEM WELL LIGHT CONTROLLED EDGE OFF SWITCH (W X D) LADLES 1001 3-12 12 x 20 700 x x x x x 2000 3-11 12 x 20 1000 x x x 1220 3-8 12 x 20 1000 x x x x x x HS Ultra 3-8 12 x 20 1440 x x x x x x Nitro 3-10 12 x 20 1440 x x x x Twin 7 qt 700/ TSM 27 3-15 x x x x x x Round ea. HS 7 3-8 7 qt Round 800 x x x x x x HS 11 11 qt 3-8 800 x x x x x x Round T43R 4/3 3-9 4, 1⁄3 Pans 1600 x x x x x x TD43R 4/3 3-9 4, 1⁄3 Pans 1600 x x x x x x x Dual, Dual 3-10 1400 x x x x x x x 12 x 20 Twin 4 qt 500/ CM 24 3-13 Round ea. x { x x Twin 7 qt 700/ TW 27R 3-13 x x x x x x Round ea. SS4 3-12 4 qt Round 350 x { x x 1776 Colonial 11 qt Kettle 3-18 Round 650 x { x x x 1777 Colonial 11 qt Kettle 3-18 Round 900 x { x x x {Coated Aluminum Which WARMER OR RETHERMALIZER Cayenne® Keeps hot food hot Takes prepared food from chilled to hot Unit Holds heated food Holds heated food is Right Meets appropriate NSF4 criteria Meets appropriate NSF4 criteria for You? Performance Criteria: Performance Criteria: Designed to hold heated prepared foods at Designed to take a container of prepared temperatures above the HACCP danger food from a chilled state (below 40°F [4.4°C]) zone of 140°F (60°C). The performance through the HACCP danger zone to a standard is measured using the NSF mixture temperature of 165°F (73.9°C) in less than preheated to 160°F (71.1°C). The unit will 90 minutes. The performance standard is hold the temperature of this product above measured using the NSF mixture chilled to 150°F (65.6°C). The temperature will be 35°F (1.7°C). The unit will raise the tempera- maintained when the food product and inset ture of this product above 165°F (73.9°C) in are used with a standard inset cover, the less than 90 minutes. The temperature will proper water level is maintained in the well, be maintained above 150°F (65.6°C) when and the food product is stirred regularly. the food product and inset are used with a standard inset cover, the proper water level is maintained in the well and the food product is stirred regularly. 3-9
- 73. vollrathco.com Countertop Warming and Display Cayenne® Full-Size Heat ‘N Serve Rethermalizers Q Features Vollrath's exclusive Direct Contact Heating System - see page 3-7 for details Q Must be used with water for maximum energy transfer (NSF Standard) Q Low-water indicator light eliminates guesswork Q Lighted on/off switch Q Recessed control knobs Receptacles Q 120V 230V 230V Pans not included Q See page 3-21 for accessories 72020/72023 US/Canada Models DIMENSIONS (W X D X H) WELL DEPTH CASE ITEM DESCRIPTION IN (CM) IN (CM) VOLTAGE WATTS AMPS PLUG LOT 72020 Model 1220 full-size rethermalizer 213⁄ 4 x 133⁄ 4 x 9 (55 x 33 x 23) 65⁄ 8 (16.8) 120 AC 1000 8.3 5-15P 1 72023 Model HS-Ultra full-size rethermalizer 213⁄ 4 x 133⁄ 4 x 9 (55 x 33 x 23) 65⁄ 8 (16.8) 120 AC 1440 12 5-15P 1 International Models* — available for export only INT’L DIMENSIONS (W X D X H) WELL DEPTH CASE ITEM DESCRIPTION IN (CM) IN (CM) VOLTAGE WATTS AMPS PLUG LOT 72630* Model 1220 full-size rethermalizer 213⁄ 4 x 133⁄ 4 x 9 (55 x 33 x 23) 65⁄ 8 (16.8) 230 AC 1000 4.3 Schuko 1 3⁄ 4 133⁄ 4 65⁄ 8 (16.8) 72550* Model 1220 full-size rethermalizer 21 x x 9 (55 x 33 x 23) 230 AC 1000 4.3 UK 1 *CE listed only Cayenne® Round Heat ‘N Serve Rethermalizers Q Features Vollrath's exclusive Direct Contact Heating System - see page 3-7 for details Q 7 qt or 11 qt models available Q Low-water indicator light eliminates guesswork Q Recessed control knobs Receptacles Q Must be used with water for maximum 120V 230V energy transfer (NSF Standard) 72021 Q See page 3-21 for accessories 72017 US/Canada Models DIMENSIONS (DIAMETER X HEIGHT) WELL DEPTH CASE ITEM DESCRIPTION IN (CM) IN (CM) VOLTAGE WATTS AMPS PLUG LOT 72017 Model HS-7, 7 qt (6.6 L) unit only 109⁄ 16 x 95⁄ 8 (26.8 x 24.5) 63⁄ 4 (17.1) 120 AC 800 6.7 5-15P 1 72018 Model HS-7, 7 qt (6.6 L) package 109⁄ 16 x 95⁄ 8 (26.8 x 24.5) 63⁄ 4 (17.1) 120 AC 800 6.7 5-15P 1 with inset (78184), hinged cover (47488) 72021 Model HS-11, 11 qt (10.4 L) unit only 125⁄ 8 x 95⁄ 8 (32.0 x 24.5) 63⁄ 4 (17.1) 120 AC 800 6.7 5-15P 1 72009 Model HS-11, 11 qt (10.4 L) package 125 5 ⁄ 8 x 9 ⁄ 8 (32.0 x 24.5) 63⁄ 4 (17.1) 120 AC 800 6.7 5-15P 1 with inset (78204), hinged cover (47490) 72196 Adaptor ring — Allows use of 7 qt inset with 11 qt Heat ‘N Serve — — — — 1 72221 Adaptor ring — Allows use of 4 qt inset with 7 qt Heat ‘N Serve — — — — 1 International Models — available for export only INT’L DIMENSIONS (DIAMETER X HEIGHT) WELL DEPTH CASE ITEM DESCRIPTION IN (CM) IN (CM) VOLTAGE WATTS AMPS PLUG LOT 72517 Model HS-7, 7 qt (6.6 L) unit only 109⁄ 16 x 95⁄ 8 (26.8 x 24.5) 63⁄ 4 (17.1) 230 AC 800 3.5 Schuko 1 72518 Model HS-7, 7 qt (6.6 L) package with 109⁄ 16 x 95⁄ 8 (26.8 x 24.5) 63⁄ 4 (17.1) 230 AC 800 3.5 Schuko 1 inset (78184), hinged cover (47488) 72521 Model HS-11, 11 qt (10.4 L) unit only 125⁄ 8 x 95⁄ 8 (32.0 x 24.5) 63⁄ 4 (17.1) 230 AC 800 3.5 Schuko 1 72522 Model HS-11, 11 qt (10.4 L) package 125⁄ 8 x 95⁄ 8 (32.0 x 24.5) 63⁄ 4 (17.1) 230 AC 800 3.5 Schuko 1 with inset (78204), hinged cover (47490) 3 10 3-10
- 74. Countertop Warming andDisplay The Vollrath Company, LLC Cayenne® Heat ‘N Serve 4/3 Rectangular Rethermalizer 72050 This countertop merchandiser is designed for maximum capacity within a minimum footprint. Q Features Vollrath's exclusive Direct Contact Heating System - see page 3-7 for details Q 33% greater capacity than full-size warmers — holds four 1⁄3 size pans up to 6 deep Q Low-water indicator light eliminates guesswork Q Capillary tube thermostat for more accurate temperature control 72788 package, Q Two 800 watt elements for rethermalization and faster recovery see below for details Q Wide no-drip lip keeps countertop dry and returns condensation to well Q Lighted ON/OFF switch Q Controls and switches recessed on end of base for added safety Q Adaptor bars recommended to reduce evaporation and conserve energy Receptacles Q Bottom exit cord is 6' (183 cm) long 120V 120V Q Stainless exterior for easy cleaning 72051 US Models MAXIMUM DIMENSIONS (W X D X H) ITEM DESCRIPTION IN (CM) VOLTAGE WATTS AMPS PLUG CASE LOT 72050 Model T43R without drain 13 ⁄4 x 28 ⁄4 x 9 ⁄4 3 3 3 120 AC 1600 13.3 5-15P 1 (34.9 x 73 x 24.8) 72051 Model TD43R with drain 133⁄4 x 283⁄4 x 135⁄16 120 AC 1600 13.3 5-15P 1 (34.9 x 73 x 33.7) 72788 Model T43R without drain 133⁄4 x 283⁄4 x 93⁄4 120 AC 1600 13.3 5-15P 1 package with (3) Opening (34.9 x 73 x 24.8) Adaptor Plates (19188), (3) Stainless Steel Insets (78184), (3) Hinged Inset Covers (47488), and (3) One-Piece Heavy-Duty Black Ladles (4980420) 19188 Adaptor plate with three 83⁄8 (21.3 cm) diameter holes for 71⁄4 qt round insets (inset item #78184) 1 75012 Adaptor bars, 1 x 1215⁄16 x 1⁄4 (2.5 x 32.9 x 0.6 cm) 12 Note: Pans, insets and adaptor bars sold separately, see pages 6-3 to 6-6 and 6-9 to 6-20 Canada Models — available for Canada only CANADA MAXIMUM DIMENSIONS (W X D X H) ITEM DESCRIPTION IN (CM) VOLTAGE WATTS AMPS PLUG CASE LOT 3 3 3 72055 Model T43R without drain 13 ⁄ 4 x 28 ⁄ 4 x 9 ⁄ 4 120 AC 1600 13.3 5-20P 1 (34.9 x 73 x 24.8) 72056 Model TD43R with drain 133⁄ 4 x 283⁄ 4 x 135⁄ 16 120 AC 1600 13.3 5-20P 1 (34.9 x 73 x 33.7) 19188 Adaptor plate with three 83⁄ 8 (21.3 cm) diameter holes for 71⁄ 4 qt round insets (inset item #78184) 1 75012 Adaptor bars, 1 x 1215⁄ 16 x 1⁄ 4 (2.5 x 32.9 x 0.6 cm) 12 Note: Pans, insets and adaptor bars sold separately, see pages 6-3 to 6-6 and 6-9 to 6-20 3-11
- 75. vollrathco.com Countertop Warming and Display Cayenne® Dual Warmer Q Two independently controlled warmers featuring Vollrath's exclusive Direct Contact Heating System Q Lowest energy usage of any dual full-size warmer on the market - draws only 11.6 amps, allowing unit to plug into any 15A outlet Q Drain hose and controls are concealed behind front panel for easy access and finished look - can be used for front-of-house applications Q Stainless steel exterior for long life and durability Q Lighted main power switch Receptacle controls power to both wells 120V MAXIMUM DIMENSIONS (W X D X H) ITEM DESCRIPTION IN (CM) VOLTAGE WATTS AMPS PLUG CASE LOT 72789 Dual Warmer 301⁄ 2 x 121⁄ 2 x 241⁄ 2 (77.5 x 31.8 x 61) 120 AC 1400 11.6 5-15P 1 Cayenne® Nitro™ Power Rethermalizer Q High-efficiency 1440W element that operates on standard 15A circuit Q Direct contact element concentrates energy directly into the well for maximum efficiency Q Almost twice the water capacity of other countertop models, reducing need to refill the well as often Q Holds with wet or dry heat — moist heat always recommended for best performance and preserving food quality — NSF4 listed when using moist heat Q Heavy-duty bulb and capillary thermostat with overtemp protection for accuracy and safety Q Adjustable 1 (2.5 cm) feet Q 6' (183 cm) cord and plug Q 300 series stainless steel well Q See page 3-21 for a full line of accessories Receptacle Performance Criteria: Cayenne® Nitro™ Rethermalizers 120V Nitro Cookers are designed to take a container of cooked food from a chilled state (below 40° F [4.4° C]) through the HACCP “danger zone” of 165˚ F (73.9˚ C) in less than 90 minutes. The performance standard is measured using the NSF mixture chilled to 35° F (1.7° C). The electric unit will raise the temperature of this product above 165˚ F (73.9˚ C) in less than 90 minutes. The temperature will be maintained above 150° F (65.6° C) when the food product and pan or inset are used with a standard pan or inset cover, the proper water level is maintained in the well, and the food product is stirred regularly. DIMENSIONS (W X D X H) CASE ITEM DESCRIPTION IN (CM) VOLTAGE WATTS AMPS PLUG LOT 72090 Model PC-21, rethermalizer 14 x 22 x 91⁄ 2 (35.6 x 55.9 x 24.1) 120 AC 1440 12.0 5-15P 1 3-12
- 76. Countertop Warming andDisplay The Vollrath Company, LLC Cayenne® Model 2000 Warmer Q 300 series stainless steel 61⁄2 (16.6 cm) deep well Q Stainless steel exterior for easy cleaning and longer life Q Meets NSF4 performance standards when using moist heat Available as Drop-In See page 4-21 for details. Receptacle 120V US/Canada Models DIMENSIONS (W X D X H) CASE ITEM DESCRIPTION IN (CM) VOLTAGE WATTS AMPS PLUG LOT 72000 Model 2000 warmer, stainless 14 x 22 x 81⁄ 2 (35.6 x 55.9 x 21.6) 120 AC 1000 8.3 5-15P 1 Cayenne® Warmer with Drain Q 300 series brushed stainless steel well Q Stainless exterior for easy cleaning Q Rivetless design looks clean and minimizes food traps Q Wide-range temperature control knob Q On/off indicator light Q Drain valve provides for easy cleanup and prevents accidental opening Q Must be used with water for maximum energy transfer Receptacles 230V 230V International Models – Available for export only DIMENSIONS (W X D X H) CASE ITEM DESCRIPTION IN (CM) VOLTAGE WATTS AMPS PLUG LOT 72958 Warmer with drain 14 x 22 x 10 (35.5 x 55.8 x 25.4) 230 AC 1200 5.2 UK 1 72959 Warmer with drain 14 x 22 x 10 (35.5 x 55.8 x 25.4) 230 AC 1200 5.2 Schuko 1 3-13
- 77. vollrathco.com Countertop Warming and Display Cayenne® Model 1001 Warmer Q Features Vollrath's exclusive Direct Contact Heating System - see page 3-7 for details Q Wide no-drip lip keeps countertop dry Q Thermostatic control vs infinite control supplies power only when needed for maximum efficiency Q Low-water indicator light eliminates guesswork Q Standard black well and brushed stainless exterior Q Must be used with water for maximum energy transfer Q Overall dimensions: 133⁄4W x 213⁄4D x 9H (33 x 55 x 23 cm) Q Bottom exit power cord allows for universal positioning Q 6' (183 cm) cord and plug Q See page 3-21 for accessories Lowest Operating Cost 120V Receptacles 230V 230V Warmer on the Market! See page 3-7 for details. US/Canada Models ITEM DESCRIPTION VOLTAGE WATTS AMPS PLUG CASE LOT 71001 Model 1001 Full-size warmer only 120 AC 700 5.8 5-15P 1 International Models — available for export only INT’L ITEM DESCRIPTION VOLTAGE WATTS AMPS PLUG CASE LOT 72620 Model 1001 Full-size warmer only 230 AC 700 3.0 Schuko 1 72553 Model 1001 Full-size warmer only 230 AC 700 3.0 UK 1 72622 Model 1001 Soup package with warmer, adaptor plate, two each 230 AC 700 3.0 Schuko 1 of 7 qt (6.6 L) insets, hinged covers, 4 oz (118.3 ml) ladles Optional Color Selections — Special Order Only 72625 Model 1001 Warmer with black exterior 230 AC 700 3.0 Schuko 1 72626 Model 1001 Warmer with white exterior 230 AC 700 3.0 Schuko 1 Cayenne® Model SS-4 Warmer Q Ideal for ice cream toppings and nacho cheese sauce Q Non stick coated aluminum well for easy cleaning and longer life Q Holds 41⁄8 quart (3.9 L) insets Q Sized for #10 cans and pump for dispensing hot fudge or toppings Q 350W, 3.0A Q Meets NSF4 performance standards MAXIMUM DIMENSIONS (DIAMETER X H) CASE Receptacle ITEM DESCRIPTION IN (CM) PLUG LOT 120V 72425 Warmer only 83⁄ 4 x 77⁄ 8 5-15P 1 (22.2 x 20) 72430 Warmer and inset (78164) and 5-15P 1 72425 hinged cover (47486) 3-14
- 78. Countertop Warming andDisplay The Vollrath Company, LLC Cayenne® Model CM-24 Twin Well 4-Qt Rethermalizer Q Individual thermostatic controls for merchandising soups with different temperature requirements Q 6' (183 cm) power cord attached on underside of unit for ease of countertop placement Q Coated aluminum wells offer easy cleaning and longer life Q Holds two 41⁄8 qt insets (Inset item #78164) Q Replaces Vollrath Models TW-665 and TW-24 Q Meets NSF4 performance standards Q Stainless exterior for easy cleaning 72040 Receptacle 72045 120V MAXIMUM DIMENSIONS (W X D X H) ITEM DESCRIPTION IN (CM) VOLTAGE WATTS AMPS PLUG CASE LOT 72045 Twin Well 4 qt Rethermalizer 91⁄ 4 x 171⁄ 4 x 83⁄ 4 120 AC 550 9.2 5-15P 1 (23.5 x 43.8 x 22.2) per well 72040 Twin Well 4 qt Rethermalizer, package with two insets 91⁄ 4 x 171⁄ 4 x 121⁄ 4 120 AC 550 9.2 5-15P 1 (78164) and two hinged covers (47486){ (23.5 x 43.8 x 31.1) per well { Hinged cover is not NSF certified Cayenne® Model TW-27R Twin Well 7-Quart Rethermalizer The twin 7 qt rethermalizer was designed to provide optimum serving temperature for two different food products. Q Features Vollrath's exclusive Direct Contact Heating System - see page 3-7 for details Q Individual thermostatic controls for optimal control of each well Q Low-water indicator light eliminates guesswork Q Knob guards to prevent damage to thermostat or accidental changes in temperature settings Q Holds two 71⁄4 qt insets (Inset #78184) Q Independent rethermalizing timer for each warmer Q Meets NSF4 performance standards Q Stainless exterior for easy cleaning Receptacle Timer Feature 120V Timer provides a rethermalizing function. When you set the timer, element will run on high setting to rethermalize product. When timer reaches zero, the temperature is controlled by the adjustable thermostat. Convert to 4 qt with 72221 Adaptor Rings. (Rings, insets and covers sold separately.) MAXIMUM DIMENSIONS (W X D X H) ITEM DESCRIPTION IN (CM) VOLTAGE WATTS AMPS PLUG CASE LOT 1 1 72028 Model TW-27R Twin Well 7 qt Rethermalizer 13 ⁄ 2 x 23 x 11 ⁄ 2 120 AC 700 11.7 5-15P 1 (34.3 x 58.4 x 29.2) per well 72029 Model TW-27R Twin Well 7 qt Rethermalizer package with 131⁄ 2 x 23 x 111⁄ 2 120 AC 700 11.7 5-15P 1 (2) 71⁄ 4 qt insets (78184), (2) Hinged Kool-Touch® Covers (34.3 x 58.4 x 29.2) per well (47488) and (2) 4 oz Heavy-Duty Ladles (4980420) 72221 Adaptor ring — Allows use of 4 qt inset (78164) with 7 qt twin well merchandiser 2 3-15
- 79. vollrathco.com Countertop Warming and Display Cayenne® Soup Merchandisers 01 - Ladles 05 - Seaside 02 - Tuscan 06 - Homestyle 03 - Country Kitchen 07 - Variety Your Custom Graphic See below for details 04 - White Bowl Custom Graphics Custom Graphics Program** Available on Twin Well and Full-Size Soup Merchandisers Artwork 1) The customer is supplied with merchandiser line drawings 2) Customer supplies graphics in Illustrator or EPS format* See next page for product selection * Additional charge if graphics are not properly sized or provided in required format **Custom Graphics cannot be canceled or returned 3-16
- 80. Countertop Warming andDisplay The Vollrath Company, LLC Cayenne® Soup Merchandisers Cayenne® Twin Well Soup Merchandisers Model TSM-27 Rethermalizer Base Q Two wells with individual controls - holds two 71⁄4 qt insets Q Recessed controls prevent accidental changes Q Low-water light eliminates guesswork Q NSF listed for hot holding and rethermalizing Stainless Steel Menu Board Q Durable and magnetic for soup cards or merchandising items Q Clear graphic coating to resist chips and wear Q See previous page for graphic options Canopy Q Powder-coated 1 tubular uprights for solid menu board and canopy support Q Halogen light fixture option with high/low switch { Q Receptacle for lights is located in back of base for safety Accessory Pack Q Provides setups for either two 71⁄4 quart insets or adapt for 4 quart insets - see table below for details | See page 3-16 for graphic options Ratings: Receptacle 120V Q 120V AC Country Kitchen: 72032-03 Q 700W per well (Order insets, covers and Q 11.7A ladles (2) separately) Q Plug: 5-15P Soup Merchandisers LADLES TUSCAN COUNTRY KITCHEN WHITE BOWL SEASIDE HOMESTYLE VARIETY DIMENSIONS (W X D X H) DESCRIPTION ITEM ITEM ITEM ITEM ITEM ITEM ITEM IN (CM) TSM-27 Base Unit, Menu 7203201 7203202 7203203 7203204 7203205 7203206 7203207 249⁄16 x 149⁄16 x 4731⁄32 Board, Canopy with Light (62.4 x 36.9 x 121.8) TSM-27 Base Unit with 7203101 7203102 7203103 7203104 7203105 7203106 7203107 249⁄16 x 149⁄16 x 331⁄8 Menu Board (62.4 x 36.9 x 84.2) TSM-27 Base Unit only 7203001 7203002 7203003 7203004 7203005 7203006 7203007 249⁄16 x 149⁄16 x 119⁄16 (62.4 x 36.9 x 29.3) Accessories CASE ITEM DESCRIPTION LOT 72231 Accessory Kit: includes (2) 71⁄4 qt insets (78184), (2) hinged Kool-Touch® covers (47488), and (2) 4 oz ladles (4980420) 1 72221 Adaptor ring allows use of 4 qt inset (78164) with 7 qt twin well merchandiser 1 {Replacement bulb: 35W, 120V, Type T4 |See page 3-21 for information on insets and covers and page 8-13 to 8-16 for information on ladles 3-17
- 81. vollrathco.com Countertop Warming and Display Cayenne® Soup Merchandisers Cayenne® Full-Size Merchandisers Model 1220 Rethermalizer Base Q Lighted on/off switch and recessed controls prevent accidental changes Q Low water light eliminates guesswork Q NSF listed for hot holding and rethermalizing Q See page 3-10 for more details Stainless Steel Menu Board Q Durable and magnetic for soup cards or merchandising items Q Easily removed without tools for cleaning Q Can be flipped to show the reverse side, allowing two alternative messaging options Q See previous page for graphic options Accessory Pack Q Provides setups for either two 71⁄4 quart insets or three 4 quart insets - see table below for details See page 3-16 for graphic options Seaside: 720201105 base with Menu Board and 4 qt Accessory Pack To determine complete item number, add 2 digit graphics suffix to base item number. (See graphic options on page 3-16). Example: 720200001 – Base only with Ladles Graphics DIMENSIONS US/CANADA INTERNATIONAL ADD DESCRIPTION (W X D X H) IN (CM) BASE ITEM – PLUG BASE ITEM – PLUG GRAPHIC SUFFIX 1220 Base Unit 26 x 181⁄ 4 x 11 7202000 – 5-15P 7263000 – SCHUKO (66 x 46.4 x 27.9) 7255000 – UK 1220 Base with 4 qt Accessory 261⁄ 4 x 181⁄ 2 x 133⁄ 4 7202010 – 5-15P 7263010 – SCHUKO 01 - Ladles Pack (66.7 x 47 x 35) 7255010 – UK 02 - Tuscan 1 1 3 1220 Base with 7 qt 26 ⁄ 4 x 18 ⁄ 2 x 13 ⁄ 4 7202020 – 5-15P 7263020 – SCHUKO 03 - Country Kitchen Accessory Pack (66.7 x 47 x 35) 7255020 – UK 04 - White Bowl 1220 Base with Menu Board 261⁄ 4 x 181⁄ 2 x 251⁄ 2 7202001 – 5-15P 7263001 – SCHUKO (66.7 x 47 x 64.8) 7255001 – UK 05 - Seaside 1220 Base with Menu Board 261 1 ⁄ 4 x 18 ⁄ 2 x 25 ⁄ 2 1 7202011 – 5-15P 7263011 – SCHUKO 06 - Homestyle with 4 qt Accessory pack (66.7 x 47 x 64.8) 7255011 – UK 07 - Variety 1220 Base with Menu Board 261⁄ 4 x 181⁄ 2 x 251⁄ 2 7202021 – 5-15P 7263021 – SCHUKO with 7 qt Accessory Pack (66.7 x 47 x 64.8) 7255021 – UK Accessory Pack includes FULL SIZES Adaptor Plate 4 QT (1) 72228 7 QT (1) 19192 Ratings: Receptacle 120V Ratings: 230V Receptacle 230V Q 120V AC Q 230V AC Insets (3) 78164 (2) 78184 Q 1000W per well Q 1000W per well Hinged Cover* (3) 47486 (2) 47488 Q 8.3A Q 4.3A Q Plug: 5-15P Q Plug: Schuko/UK Ladles (3) 4980320 (2) 4980420 *Hinged cover is not NSF certified 3-18
- 82. Countertop Warming andDisplay The Vollrath Company, LLC Soup Kiosks Enhance your soup presentation with Vollrath’s Soup Kiosk! Q Stainless steel base with black laminate for extra durability Q Includes soup merchandiser base, menu board and canopy with light Q Storage can be located on front or back for ease of access Item 3702803 Q Order insets, covers and Hinged door with lock for secure storage ladles separately Q Heavy-duty stainless countertop for durability Q Self-leveling dispensers for disposable cups or bowls allow easy self-service Q Six inch deep pan for holding napkins or disposable spoons Q Sized to hold Vollrath Soup Merchandisers for effective point of sale marketing Q Single cord and plug for added safety Q 4 locking casters for increased stability Q Compact size minimizes space requirements Q Dimensions: 34W x 28D x 78H (86.4 x 71.1 x 198.1 cm) Merchandised Soup – A Great Revenue Generator! LADLES TUSCAN COUNTRY KITCHEN WHITE BOWL SEASIDE HOMESTYLE VARIETY CASE DESCRIPTION ITEM ITEM ITEM ITEM ITEM ITEM ITEM LOT Kiosk Base Unit includes 3702801 3702802 3702803 3702804 3702805 3702806 3702807 1 Model TSM-27, Menu Board, Canopy with Light Kiosk Base Unit only 3702800 - Sold separately, 34W x 28D x 34H (86.4 x 71.1 x 86.4 cm) 1 72231 - includes (2) 71⁄4 qt insets (78184), (2) hinged Kool-Touch® covers (47488), Accessory kit 1 and (2) 4 oz. ladles (4980420) NOTE: Custom equipment orders cannot be cancelled or returned Serving Soup? Vollrath offers a variety of options to keep and warm soups. Super Pan® Super Shapes - See pages 6-3 to 6-4 Miramar™ Pans Templates - ramar™ Soup Merchandiser Carts - See pages 9-9 to 9-14 See page 5-13 3-19
- 83. vollrathco.com Countertop Warming and Display Cayenne® Colonial Kettles™ New Color Finish – Vollrath's Cayenne® Colonial Kettle™ warmers and rethermalizers are designed Burnt Copper! to increase soup sales at any location. Q Durable cast four-leg design is more stable Q Low profile allows easy access Q Epoxy-coated cast aluminum body Q Recessed controls prevent accidental temperature setting changes Q Uses shouldered vegetable insets that are easier and safer to transport than bain maries Q Comes complete with inset and hinged cover Q Bottom exit power cord for universal 72166 counter placement Q Note: Hinged cover is not NSF certified Receptacles 120V 230V 230V 72165 US/Canada Models DIMENSIONS (DIAMETER X H) ITEM DESCRIPTION IN (CM) VOLTAGE WATTS AMPS PLUG CASE LOT Model 1776-11 Colonial Kettle™ 11 qt warmer package with 11 qt (10.4 L) inset, cover with hinge, soup cards, and soup’r clip 72165 Black warmer 153⁄ 4 x 111⁄ 2 (40.0 x 29.2) 120 AC 650 5.5 5-15P 1 72166 Burnt copper warmer 153⁄ 4 x 111⁄ 2 (40.0 x 29.2) 120 AC 650 5.5 5-15P 1 Model 1776-7 Colonial Kettle™ 7 qt warmer package with 7 qt (6.6 L) inset, cover with hinge, adaptor ring, soup cards, and soup’r clip 72170 Black warmer 153⁄ 4 x 111⁄ 2 (40.0 X 29.2) 120 AC 650 5.5 5-15P 1 72171 Burnt copper warmer 153⁄ 4 x 111⁄ 2 (40.0 x 29.2) 120 AC 650 5.5 5-15P 1 Model 1777-11 Colonial Kettle™ 11 qt rethermalizer package with 11 qt (10.4 L) inset, cover with hinge, soup cards, and soup’r clip 72175 Black rethermalizer 153⁄ 4 x 111⁄ 2 (40.0 x 29.2) 120 AC 900 7.5 5-15P 1 72176 Burnt copper rethermalizer 153⁄ 4 x 111⁄ 2 (40.0 x 29.2) 120 AC 900 7.5 5-15P 1 Model 1777-7 Colonial Kettle™ 7 qt rethermalizer package with 7 qt (6.6 L) inset, cover with hinge, adaptor ring, soup cards, and soup’r clip 72180 Black rethermalizer 153⁄ 4 x 111⁄ 2 (40.0 x 29.2) 120 AC 900 7.5 5-15P 1 72181 Burnt copper rethermalizer 153⁄ 4 x 111⁄ 2 (40.0 x 29.2) 120 AC 900 7.5 5-15P 1 International Models — available for export only INT'L DIMENSIONS (DIAMETER X H) ITEM DESCRIPTION IN (CM) VOLTAGE WATTS AMPS PLUG CASE LOT Model 1776-11 Colonial Kettle™ 11 qt warmer package with 11 qt (10.4 L) inset, cover with hinge, soup cards, and soup’r clip 72459 Black warmer 153⁄ 4 x 111⁄ 2 (40.0 x 29.2) 230 AC 600 2.6 Schuko 1 72542 Black warmer 153⁄ 4 x 111⁄ 2 (40.0 x 29.2) 230 AC 600 2.6 UK 1 Model 1776-7 Colonial Kettle™ 7 qt warmer package with 7 qt (6.6 L) inset, cover with hinge, adaptor ring, soup cards, and soup’r clip 72511 Black warmer 153⁄ 4 x 111⁄ 2 (40.0 X 29.2) 230 AC 600 2.6 Schuko 1 Model 1777-11 Colonial Kettle™ 11 qt rethermalizer package with 11 qt (10.4 L) inset, cover with hinge, soup cards, and soup’r clip 72462 Black rethermalizer 153⁄ 4 x 111⁄ 2 (40.0 x 29.2) 230 AC 900 4.0 Schuko 1 Model 1777-7 Colonial Kettle™ 11 qt rethermalizer package with 7 qt (6.6 L) inset, cover with hinge, adaptor ring, soup cards, and soup’r clip 72543 Black rethermalizer 153⁄ 4 x 111⁄ 2 (40.0 x 29.2) 230 AC 900 4.0 UK 1 Cayenne® Colonial Kettle™ Replacement Parts ITEM DESCRIPTION ITEM DESCRIPTION 72185 Black top ring for 7 qt (6.6 L) inset 78184 71⁄ 4 qt (6.9 L) inset 72190 Black top ring for 11 qt (10.4 L) inset 78204 11 qt (10.4 L) inset 44367 Copper top ring for 11 qt (10.4 L) inset 47488 95⁄8 dia (24.4) x 15⁄16 h (2.4) cover 72196 11 qt (10.4 L) to 7 qt (6.6 L) adaptor ring 47490 117⁄16 dia (29.1) x 15⁄16 h (2.4) cover 3-20
- 84. Countertop Warming andDisplay The Vollrath Company, LLC Hinged Inset Covers Flip-Top Cover Hinge Q Mirror-finished stainless steel Q Flip hinge Q Welded clips on stationary side of Q Fits 4 qt (3.8 L), 7 qt (6.6 L), and 11 qt (10.4 L) cover hold it securely in place insets and covers Q Kool-Touch® phenolic Q Dishwasher safe knob handle Q Includes hinge, Q Slot for ladles or spoons clip-lip, springlock when cover is closed assembly and Q Easy one-hand operation black knob — inset and cover not included 47488 47490 DIAMETER HEIGHT CASE ITEM DESCRIPTION CASE LOT ITEM IN (CM) IN (CM) FITS LOT 47486 71⁄ 2 (19.0) 7 ⁄ 8 (2.2) 78164 6 72222 Flip top cover hinge 1 47488 95⁄ 8 (24.4) 15 ⁄ 16 (2.4) 46063, 77070, 78184 6 7 15 47490 11 ⁄ 16 (29.1) ⁄ 16 (2.4) 77110, 78204 6 Additional Accessories* Adaptor Stainless Steel Bars Insets Covers Adaptor Rings Adaptor Plates Assorted Covers *See pages 6-16 to 6-21 for more information. 3-21
- 85. vollrathco.com Countertop Warming and Display Cayenne® Heat Strips with Pre-installed Cord and Plug Hard wire and flange mount options available, see page 4-15 See features and benefits on 4-14 1) Select wattage 2) Select length and lights 3) Select accessories Low Wattage Medium Wattage Supplied with toggle switch control. Note: Wattage recommendations are based on enclosed pass-throughs as required by UL. Individual performance may vary based on the conditions of each individual environment. 8 - 11 11 - 16 Cayenne® Ordering Notes Note: All heat strips are custom ordered and up to 20 wide up to 20 wide therefore cannot be cancelled or returned per Vollrath Terms Conditions. Note: Low value is UL's required distance to non-combustible surface. High value is maximum height to retain food quality under ideal conditions. LOW WATTAGE MEDIUM WATTAGE LENGTH WITHOUT LIGHTS WITHOUT LIGHTS CALROD WATTAGE WITH LIGHTS ITEM NO.* PLUG TYPE CALROD WATTAGE WITH LIGHTS ITEM NO.* PLUG TYPE ITEM NO. ITEM NO. 18 (47.7cm) 300 72671019 72671119 5-15P 415 72672019 72672119 5-15P 24 (60.9 cm) 400 72674019 72674119 5-15P 550 72675019 72675119 5-15P 30 (76.2 cm) 510 72677019 72677119 5-15P 690 72678019 72678119 5-15P 36 (91.4 cm) 610 72680019 72680119 5-15P 825 72681019 72681119 5-15P 42 (106.6 cm) 720 72683019 72683119 5-15P 965 72684019 72684119 5-15P 48 (121.9 cm) 820 72686019 72686119 5-15P 1100 72687019 72687119 5-15P 54 (137.1 cm) 925 72689019 72689119 5-15P 1240 72690019 72690119 5-20P 60 (152.4 cm) 1025 72692019 72692119 5-15P 1380 72693019 72693119 5-20P *See page 4-20 for lighted section amp draw and bulb quantity supplied. Hot Ship Items - these are stock items and ship within one business day of order receipt. Stainless Steel Legs Accessories and Options See page 4-20 for details and ordering information. Kool-Touch® Trim for All Styles Q Offers a low cost method to help prevent burns by incidental contact with heat strip side surface Q Enhances the visual appearance Stainless Steel C Legs of the heat strips or light strips Q Field retrofittable Teflon®-Coated Shatterproof Light Bulbs Q See page 4-20 for recommended 14 3⁄8 (36 .5 cm) number of bulbs and total amperage information Stainless Steel T Legs 3-22
- 86. Countertop Warming andDisplay The Vollrath Company, LLC Cayenne Heated Shelves ® Q 33% to 66% energy savings during off peak times by only heating the zone which is needed Q Thermostatically controlled unit maintains even and accurate temperature Q Stainless steel outer construction provides years of dependable service HEATED SHELVES Q Smooth top with welded corners provides an easy to clean surface free from grease and dirt traps Q Aluminum core provides even heat distribution Q Durable rope-style heating element for even heating and longer life The Best of Both Worlds! Stainless steel top provides years of service Cutaway View Aluminum core provides even heat distribution Why heat this... Exclusive Energy Saving Design Peak Times (Uses front back zones) Off Peak When you only need this? Times (Uses front zone only) 3-23
- 87. vollrathco.com Countertop Warming and Display Cayenne® Heated Shelves Receptacle 120V Approximate Dimensions – Shown in inches (cm) HEATED SHELVES Lengths Lengths 24 (61), 36 (91.4), 48 (121.9), 60 (152.4) 24 (61), 36 (91.4), 48 (121.9), 60 (152.4) Back Zone 6.6 (16.8) Back Zone 6.6 (16.8) 20 (50.8) 20 (50.8) Front Zone 13.4 (34) Front Zone 13.4 (34) Left Aligned Right Aligned 2.7 (6.9) - 24 36 Units 2.7 (6.9) - 24 36 Units 5.7 (14.5) - 48 60 Units 5.7 (14.5) - 48 60 Units 1 (2.5) - 24 36 Units 1 (2.5) - 24 36 Units 4 (10.2) - 48 60 Units 4 (10.2) - 48 60 Units Left Aligned Items { Right Aligned Items | WIDTH CASE WIDTH CASE ITEM IN (CM) VOLTAGE WATTS AMPS PLUG LOT ITEM IN (CM) VOLTAGE WATTS AMPS PLUG LOT 7277024 24 (61) 120 AC 350 2.9 5-15 1 7277124 24 (61) 120 AC 350 2.9 5-15 1 7277036 36 (91.4) 120 AC 535 4.5 5-15 1 7277136 36 (91.4) 120 AC 535 4.5 5-15 1 7277048 48 (121.9) 120 AC 720 6.0 5-15 1 7277148 48 (121.9) 120 AC 720 6.0 5-15 1 7277060 60 (152.4) 120 AC 905 7.5 5-15 1 7277160 60 (152.4) 120 AC 905 7.5 5-15 1 { Stocked Items | 3 Day Lead Time Cayenne® OHC-500 Heat Lamp Q Stainless hood directs heat evenly over 12 x 20 (30.5 x 50.8 cm) area Q Wide base assembly will hold standard 12 x 20 (30.5 x 50.8 cm) pan or Vollrath 71001 warmer Q Chrome-plated legs and uprights Q Adjustable height lamp assembly — minimum 121⁄2 to 201⁄2 (31.8 to 52 cm) above counter Shown with pan 30026 Q Cord mounted on/off switch Q Shatterproof white bulbs standard Receptacle Q Non-skid feet for firm placement on countertop 120V Q 120V, 500W, 4.2A Q Pan not included MAXIMUM DIMENSIONS (W X D X H) CASE ITEM DESCRIPTION IN (CM) PLUG LOT 71500 OHC-500 heat lamp — white bulbs 14 x 19 x 283⁄ 4 (35.6 x 48.3 x 73) 5-15P 1 72500 OHC-500 heat lamp — red bulbs 14 x 19 x 283⁄ 4 (35.6 x 48.3 x 73) 5-15P 1 ACCESSORIES 72242 White infrared bulb, 250W, 120V — 12 72241 Red infrared bulb, 250W, 120V — 12 3-24
- 89. Fabricator Components Complete Cayenne® Display Cabinets Display Cabinets can be used Fabricator Heat Strips as a drop-in or as a freestanding Cayenne heat strips provide the largest Solutions heat zone in the industry - 33% larger than countertop unit, in refrigerated or Full line of component heated versions. Combine with our competitors! New hard wire options parts for the other Fabricator Components, allow more flexibility when designing your foodservice industry. Countertop Equipment, and project. Vollrath's patented adjustable Smallwares to create the ultimate reflector design allows more usable space merchandising lineup. vs standard fixed focus heat strips. Vollrath “Green” Facts for Equipment: Cayenne® Heat Strips increase warming area for a 33% larger “Food Safe” zone. This allows operators to order lower-wattage elements and use less energy. Induction Ranges use cutting-edge technology, providing efficiencies of 90% or more. Approximately 40% more efficient than electric or gas ranges. Induction conserves energy use in HVAC by dramatically decreasing the amount of waste heat that is lost into the surrounding room. Vollrath Modular Drop-Ins utilize extra dense insulation to keep hot foods hot and cold foods cold while using less energy. For more details on Vollrath’s green products, visit www.vollrathco.com/green 4-2
- 90. Fabricator Components The Vollrath Company, LLC Modular Drop-Ins Distinctive Energy-Efficient Design Q Standardized cutout dimensions for installation flexibility Q Detachable control unit for remote mounting Q Six-foot power cord and flexible control conduit Q Drain with ball valve standard (on one well models) Q High-density insulation Q Individual drain shut-offs standard (on 2 through 6 well modules) Q Deep drawn 300 series stainless steel Q Manifold drain option (on 2 through 6 well modules) wells are 63⁄8 (16.2 cm) deep Q Infinite or thermostatic control (on 1 through 6 well modules) Q Cord and plug configuration eliminates need for electrician Q NSF4 listed Q Adjustable mounting clips Q Full 1-year parts and labor guarantee Q Auto-fill option available Q 5-year compressor warranty on refrigerated models Q Zero clearance for flexibility in installation 300 series stainless steel for Multiple well configurations Zero clearance for corrosion resistance, longevity, available – refer to selection tables flexibility in installation and efficient cleaning Full perimeter gasket provided with all units Drip-free flange contains moisture and spills to prevent food contamination Galvanized steel on side panels Unique energy- efficient design 4' flexible offers superior control conduit performance Standard individual well drain or optional manifold Multiple wattages available drain offers flexibility in cleaning and operation Lower wattage option Detachable control uses smaller circuit and unit for flexibility when reduces operation costs mounting controls Pre-assembled cord and plug Drop-In Retractable configuration eliminates need Mounting clips adjust to varying countertop Dripless Chafers for electrician and reduces thicknesses. Clips designed to work with See Page 9-17 laminate and solid surface countertops costs and installation time Height With Standard Drain Hot Well 3⁄8 (1 cm) Dimensions 151⁄8 11 (27.9 cm) Above Counter 81⁄2 (21.6 cm) Q Opening cutout — must have 7⁄8 (38.4 cm) (2.22 cm) corner radius 6' power cord 4' control 23 conduit (58.4 cm) 20 (50.8 cm) Top 12 Height With 185⁄8 (47.5 cm) View (30.5 cm) Manifold Drain 23 (58.4 cm) 4-3
- 91. vollrathco.com Fabricator Components Short Side Hot Drop-Ins Q Short side drop-ins turn full size pans sideways for a more narrow presentation and easy reach Q Ideal for when you pull food forward or are tight 20 (50.8 cm) on counter space depth Q Zero clearance for flexibility in installation Receptacles 120V 120V 208-240V 208-240V 208-240V 120V 12 (30.5 cm) For Refrigerated Short Side Drop-Ins, see page 4-8 1000W 1000W 1000W 1000W 625W 625 625W 6250W PER WELL VOLTAGE AMPS PLUG PER WELL VOLTAGE AMPS PLUG CONTROL DRAIN TWO WELL: OVERALL DIMENSIONS: 451⁄2 X 18 (115.4 X 45.8 CM) – CUTOUT DIMENSIONS: 4411⁄16 X 171⁄4 (113.4 X 43.9 CM){ 36646 208-240 7.2 - 8.3 6-15P 36640 120 10.4 5-15P Thermostatic Standard 3664620 208-240 7.2 - 8.3 6-15P 3664020 120 10.4 5-15P Thermostatic Manifold 3664630 208-240 7.2 - 8.3 6-15P 3664030 120 10.4 5-15P Thermostatic Manifold Autofill 36647 208-240 7.2 - 8.3 6-15P 36641 120 10.4 5-15P Infinite Standard 3664720 208-240 7.2 - 8.3 6-15P 3664120 120 10.4 5-15P Infinite Manifold 3664730 208-240 7.2 - 8.3 6-15P 3664130 120 10.4 5-15P Infinite Manifold Autofill THREE WELL: OVERALL DIMENSIONS: 667⁄8 X 18 (169.8 X 45.8 CM) – CUTOUT DIMENSIONS: 661⁄16 X 171⁄4 (167.9 X 43.9 CM){ 36648 208-240 10.8 - 12.5 6-20P 36642 120 15.6 5-20P Thermostatic Standard 3664820 208-240 10.8 - 12.5 6-20P 3664220 120 15.6 5-20P Thermostatic Manifold 3664830 208-240 10.8 - 12.5 6-20P 3664230 120 15.6 5-20P Thermostatic Manifold Autofill 36649 208-240 10.8 - 12.5 6-20P 36643 120 15.6 5-20P Infinite Standard 3664920 208-240 10.8 - 12.5 6-20P 3664320 120 15.6 5-20P Infinite Manifold 3664930 208-240 10.8 - 12.5 6-20P 3664330 120 15.6 5-20P Infinite Manifold Autofill FOUR WELL OVERALL DIMENSIONS: 881⁄4 X 18 (224.2 X 45.8 CM) – CUTOUT DIMENSIONS: 871⁄2 X 171⁄4 (222.3 X 43.9 CM){ 36650 208-240 14.4 - 16.7 6-30P 36644 120 20.8 5-30P Thermostatic Standard 3665020 208-240 14.4 - 16.7 6-30P 3664420 120 20.8 5-30P Thermostatic Manifold 3665030 208-240 14.4 - 16.7 6-30P 3664430 120 20.8 5-30P Thermostatic Manifold Autofill 36651 208-240 14.4 - 16.7 6-30P 36645 120 20.8 5-30P Infinite Standard 3665120 208-240 14.4 - 16.7 6-30P 3664520 120 20.8 5-30P Infinite Manifold 3665130 208-240 14.4 - 16.7 6-30P 3664530 120 20.8 5-30P Infinite Manifold Autofill { With 7⁄8 (2.2 cm) corner radius Note: Modular Drop-Ins cannot be cancelled or returned. Bain Marie Hot Drop-Ins{| Q Open design allows use of templates Q Thermostat controls temperature accurately and maintains steam for safe food warming Note: Modular Drop-Ins cannot Q Dripless design helps prevent condensation on be cancelled or returned. counter – keeping counters clean Q Deep stainless well holds up to 6 deep food pans Receptacles Q Holds standard steam table pans 120V 208-240V 208-240V 208-240V 120V Q Zero clearance required for installation with lower energy costs and faster heating times Q Well depth: 65⁄8 (16.8 cm) 120V 208V 240V OVERALL DIMENSIONS CUTOUT DIMENSIONS* D INTERIOR LENGTH DESCRIPTION WATTS ITEM AMPS PLUG ITEM AMPS PLUG ITEM AMPS PLUG IN (CM) IN (CM) IN (CM) Two-pan 1250 36500 10.4 5-15P 36501208 6 6-15P 36501240 5.2 6-15P 29 x 26 273⁄ 4 x 243⁄ 4 243⁄ 4 (73.7 x 66) (70.5 x 62.9) (62.9) Three-pan 1875 36502 15.6 5-20P 36503208 9 6-15P 36503240 7.8 6-15P 411⁄ 2 x 26 41 x 243⁄ 4 371⁄ 2 (105.4 x 66) (104.1 x 62.9) (95.3) Four-pan 2500 — — — 36504208 12 6-20P 36504240 10.4 6-15P 543⁄ 4 x 26 541⁄4 x 243⁄ 4 501⁄ 4 (139.1 x 66) (137.8 x 62.9) (127.6) Five-pan 3125 — — — 36505208 15 6-20P 36505240 13 6-20P 68 x 26 671⁄ 2 x 243⁄ 4 63 (172.7 x 66) (171.5 x 62.9) (160) Six-pan 3750 — — — 36506208 18 6-30P 36506240 15.6 6-20P 811⁄ 4 x 26 803⁄ 4 x 243⁄ 4 753⁄ 4 (206.4 x 66) (205.1 x 62.9) (192.4) { With 7⁄8 (2.2 cm) corner radius | Designed for warming food pans only–not for use as a rethermalizing water vessel Note: Modular Drop-Ins cannot be cancelled or returned. 4-4
- 92. Fabricator Components The Vollrath Company, LLC One Well Hot Modules Q Overall dimensions: 15 x 26 (38 x 66 cm) Q Cutout dimensions: 141⁄4 x 251⁄4 (36.2 x 64.1 cm) Receptacles – with 7⁄8 (2.2 cm) corner radius 120V 208-240V Q Zero clearance for flexibility in installation 1000W 1000W 1000W 625W 625 625W AUTO 1000W 625W PER WELL VOLTAGE AMPS PER WELL VOLTAGE AMPS CONTROL DRAIN FILL{ PLUG PLUG 3646601 120 8.3 36466 120 5.2 Infinite Standard — 5-15P 5-15P 3646661 120 8.3 3646660 120 5.2 Infinite Manifold Yes 5-15P 5-15P 3646611 120 8.3 3646610 120 5.2 Thermostatic Standard — 5-15P 5-15P 3646681 120 8.3 3646680 120 5.2 Thermostatic Manifold Yes 5-15P 5-15P 36467 208 2.3 Infinite Standard — 6-15P 3646760 208 2.3 Infinite Manifold Yes 6-15P 3646710 208 2.3 Thermostatic Standard — 6-15P 3646780 208 2.3 Thermostatic Manifold Yes 6-15P 3646701 208-240 3.6 - 4.2 Infinite Standard — 6-15P 3646761 208-240 3.6 - 4.2 Infinite Manifold Yes 6-15P 3646711 208-240 3.6 - 4.2 Thermostatic Standard — 6-15P 3646781 208-240 3.6 - 4.2 Thermostatic Manifold Yes 6-15P 36471 240 2.6 Infinite Standard — 6-15P 3647160 240 2.6 Infinite Manifold Yes 6-15P 3647110 240 2.6 Thermostatic Standard — 6-15P 3647180 240 2.6 Thermostatic Manifold Yes 6-15P See Page 4-3 for additional dimensions { See Page 4-11 for auto-fill information Note: Modular Drop-Ins cannot be cancelled or returned. Two Well Hot Modules Q Overall dimensions: Q Manifold drain option 281⁄4 x 26 (71.8 x 66 cm) Q Zero clearance for Receptacles Q Cutout dimensions: flexibility in installation 120V 120V 208-240V 271⁄2 x 251⁄4 (69.9 x 64.1 cm) – with 7⁄8 (2.2 cm) corner radius Q Individual drain shut-offs standard 1000W 1000W 1000W 625W 625W 625W AUTO 1000W 625 625W TWO WELL BASE COMPATIBLE PER WELL VOLTAGE AMPS PER WELL VOLTAGE AMPS CONTROL DRAIN FILL{ PLUG PLUG BREATH GUARD ITEMS 3639901 120 16.7 36399 120 10.4 Infinite Standard — 5-30P 5-15P To designate an NSF 3639951 120 16.7 3639950 120 10.4 Infinite Manifold — 5-30P 5-15P Breath Guard item add 3639961 120 16.7 3639960 120 10.4 Infinite Manifold Yes 5-30P 5-15P an N prefix to the base 3639911 120 16.7 3639910 120 10.4 Thermostatic Standard — 5-30P 5-15P item number 3639971 120 16.7 3639970 120 10.4 Thermostatic Manifold — 5-30P 5-15P Double-Sided Buffet 3639981 120 16.7 3639980 120 10.4 Thermostatic Manifold Yes 5-30P 5-15P (PB89285, CB98663, 36400 208 4.5 Infinite Standard — 6-15P GB98400, RB98445) 3640050 208 4.5 Infinite Manifold — 6-15P Single-Sided Buffet 3640060 208 4.5 Infinite Manifold Yes 6-15P with Top Shelf 3640010 208 4.5 Thermostatic Standard — 6-15P (PB89280, CB98662, 3640070 208 4.5 Thermostatic Manifold — 6-15P GB98405, RB98450) 3640080 208 4.5 Thermostatic Manifold Yes 6-15P Single-Sided Buffet 3640001 208-240 7.2 - 8.3 Infinite Standard — 6-15P (PB89270, CB98661, 3640051 208-240 7.2 - 8.3 Infinite Manifold — 6-15P GB98410, RB98455) 3640061 208-240 7.2 - 8.3 Infinite Manifold Yes 6-15P 3640011 208-240 7.2 - 8.3 Thermostatic Standard — 6-15P Cafeteria with Top Shelf (PB89265, CB98660, 3640071 208-240 7.2 - 8.3 Thermostatic Manifold — 6-15P FB89400, GB98415, 3640081 208-240 7.2 - 8.3 Thermostatic Manifold Yes 6-15P RB98460) 36472 240 5.2 Infinite Standard — 6-15P 3647250 240 5.2 Infinite Manifold — 6-15P Vertical (PB89260) 3647260 240 5.2 Infinite Manifold Yes 6-15P 3647210 240 5.2 Thermostatic Standard — 6-15P For more information on 3647270 240 5.2 Thermostatic Manifold — 6-15P Breath Guards see pages 4-23 through 4-28 3647280 240 5.2 Thermostatic Manifold Yes 6-15P See Page 4-3 for additional dimensions { See Page 4-11 for auto-fill information Note: Modular Drop-Ins cannot be cancelled or returned. 4-5
- 93. vollrathco.com Fabricator Components Three Well Hot Modules Receptacles Q Overall dimensions: 411⁄2 x 26 (105.4 x 66 cm) 120V 120V 208-240V 208-240V Q Cutout dimensions: 403⁄4 x 251⁄4 (103.5 x 64.1 cm) – with 7⁄8 (2.2 cm) corner radius Q Individual drain shut-offs standard Q Manifold drain option Q Zero clearance for flexibility in installation 1000W 1000W 1000W 625W 625W 625W AUTO 1000W 625W THREE WELL BASE COMPATIBLE PER WELL VOLTAGE AMPS PER WELL VOLTAGE AMPS CONTROL DRAIN FILL{ PLUG PLUG BREATH GUARD ITEMS 3640401 120 25 36404 120 15.6 Infinite Standard — 5-50P 5-20P To designate an NSF 3640451 120 25 3640450 120 15.6 Infinite Manifold — 5-50P 5-20P Breath Guard item add 3640461 120 25 3640460 120 15.6 Infinite Manifold Yes 5-50P 5-20P an N prefix to the base 3640411 120 25 3640410 120 15.6 Thermostatic Standard — 5-50P 5-20P item number 3640471 120 25 3640470 120 15.6 Thermostatic Manifold — 5-50P 5-20P Double-Sided Buffet 3640481 120 25 3640480 120 15.6 Thermostatic Manifold Yes 5-50P 5-20P (PB89286, CB98637, 36405 208 6.8 Infinite Standard — 6-15P GB98401, RB98446) 3640550 208 6.8 Infinite Manifold — 6-15P Single-Sided Buffet 3640560 208 6.8 Infinite Manifold Yes 6-15P with Top Shelf 3640510 208 6.8 Thermostatic Standard — 6-15P (PB89281, CB98651, 3640570 208 6.8 Thermostatic Manifold — 6-15P GB98406, RB98451) 3640580 208 6.8 Thermostatic Manifold Yes 6-15P Single-Sided Buffet 3640501 208-240 10.8 - 12.5 Infinite Standard — 6-20P (PB89271, CB98633, 3640551 208-240 10.8 - 12.5 Infinite Manifold — 6-20P GB98411, RB98456) 3640561 208-240 10.8 - 12.5 Infinite Manifold Yes 6-20P 3640511 208-240 10.8 - 12.5 Thermostatic Standard — 6-20P Cafeteria with Top Shelf (PB89266, CB98650, 3640571 208-240 10.8 - 12.5 Thermostatic Manifold — 6-20P FB89401, GB98416, 3640581 208-240 10.8 - 12.5 Thermostatic Manifold Yes 6-20P RB98461) 36473 240 7.8 Infinite Standard — 6-15P 3647350 240 7.8 Infinite Manifold — 6-15P Vertical (PB89261) 3647360 240 7.8 Infinite Manifold Yes 6-15P 3647310 240 7.8 Thermostatic Standard — 6-15P For more information on 3647370 240 7.8 Thermostatic Manifold — 6-15P Breath Guards see pages 4-23 through 4-28 3647380 240 7.8 Thermostatic Manifold Yes 6-15P See Page 4-3 for additional dimensions { See Page 4-11 for auto-fill information Note: Modular Drop-Ins cannot be cancelled or returned. Four Well Hot Modules Receptacles Q Overall dimensions: 54 ⁄ x 26 (139.1 x 66 cm) 34 120V 208-240V 208-240V Q Cutout dimensions: 54 x 251⁄4 (137.2 x 64.1 cm) – with 7⁄8 (2.2 cm) corner radius Q Individual drain shut-offs standard Q Manifold drain option Q Zero clearance for flexibility in installation 1000W 1000W 1000W 625W 624W 625W AUTO 1000W 625W FOUR WELL BASE COMPATIBLE PER WELL VOLTAGE AMPS PER WELL VOLTAGE AMPS CONTROL DRAIN FILL{ PLUG PLUG BREATH GUARD ITEMS 36406 120 20.8 Infinite Standard — 5-30P 3640650 120 20.8 Infinite Manifold — 5-30P To designate an NSF 3640660 120 20.8 Infinite Manifold Yes 5-30P Breath Guard item add an N prefix to the base 3640610 120 20.8 Thermostatic Standard — 5-30P item number 3640670 120 20.8 Thermostatic Manifold — 5-30P 3640680 120 20.8 Thermostatic Manifold Yes 5-30P Double-Sided Buffet (PB89287, CB98638, 36407 208 9.0 Infinite Standard — 6-15P GB98402, RB98447) 3640750 208 9.0 Infinite Manifold — 6-15P 3640760 208 9.0 Infinite Manifold Yes 6-15P Single-Sided Buffet with Top Shelf 3640710 208 9.0 Thermostatic Standard — 6-15P (PB89282, CB98652, 3640770 208 9.0 Thermostatic Manifold — 6-15P GB98407, RB98452) 3640780 208 9.0 Thermostatic Manifold Yes 6-15P 3640701 208-240 14.4 - 16.7 Infinite Standard — 6-30P Single-Sided Buffet (PB89272, CB98634, 3640751 208-240 14.4 - 16.7 Infinite Manifold — 6-30P GB98412, RB98457) 3640761 208-240 14.4 - 16.7 Infinite Manifold Yes 6-30P 3640711 208-240 14.4 - 16.7 Thermostatic Standard — 6-30P Cafeteria with Top Shelf (PB89267, CB98626, 3640771 208-240 14.4 - 16.7 Thermostatic Manifold — 6-30P FB89402, GB98417, 3640781 208-240 14.4 - 16.7 Thermostatic Manifold Yes 6-30P RB98462) 36474 240 10.4 Infinite Standard — 6-15P Vertical 3647450 240 10.4 Infinite Manifold — 6-15P (PB89262) 3647460 240 10.4 Infinite Manifold Yes 6-15P 3647410 240 10.4 Thermostatic Standard — 6-15P For more information on Breath Guards see pages 3647470 240 10.4 Thermostatic Manifold — 6-15P 4-23 through 4-28 3647480 240 10.4 Thermostatic Manifold Yes 6-15P See Page 4-3 for additional dimensions { See Page 4-11 for auto-fill information Note: Modular Drop-Ins cannot be cancelled or returned. 4-6
- 94. Fabricator Components The Vollrath Company, LLC Five Well Hot Modules Q Overall dimensions: 68 x 26 (172.7 x 66 cm) Q Cutout dimensions: 671⁄4 x 251⁄4 (170.8 x 64.1 cm) Receptacles – with 7⁄8 (2.2 cm) corner radius 208-240V 208-240V Q Individual drain shut-offs standard Q Manifold drain option Q Zero clearance for flexibility in installation 1000W 1000W 1000W 625W 625W 625W AUTO 1000W 625W FIVE WELL BASE COMPATIBLE PER WELL VOLTAGE AMPS PER WELL VOLTAGE AMPS CONTROL DRAIN FILL{ PLUG PLUG BREATH GUARD ITEMS 36408 208 11.3 Infinite Standard — 6-20P To designate an NSF Breath 3640850 208 11.3 Infinite Manifold — 6-20P Guard item add an N prefix to 3640860 208 11.3 Infinite Manifold Yes 6-20P the base item number 3640810 208 11.3 Thermostatic Standard — 6-20P 3640870 208 11.3 Thermostatic Manifold — 6-20P Double-Sided Buffet (PB89288, CB98639, GB98403, RB98448) 3640880 208 11.3 Thermostatic Manifold Yes 6-20P 3640801 208-240 18 - 20.8 Infinite Standard — 6-30P Single-Sided Buffet with Top Shelf (PB89283, 3640851 208-240 18 - 20.8 Infinite Manifold — 6-30P CB98653, GB98408, RB98453) 3640861 208-240 18 - 20.8 Infinite Manifold Yes 6-30P 3640811 208-240 18 - 20.8 Thermostatic Standard — 6-30P Single-Sided Buffet (PB89273, CB98635, GB98413, RB98458) 3640871 208-240 18 - 20.8 Thermostatic Manifold — 6-30P 3640881 208-240 18 - 20.8 Thermostatic Manifold Yes 6-30P Cafeteria with Top Shelf 36475 240 13.0 Infinite Standard — 6-20P (PB89268, CB98627, FB89403, GB98418, RB98463) 3647550 240 13.0 Infinite Manifold — 6-20P 3647560 240 13.0 Infinite Manifold Yes 6-20P Vertical 3647510 240 13.0 Thermostatic Standard — 6-20P (PB89263) 3647570 240 13.0 Thermostatic Manifold — 6-20P For more information on Breath Guards see pages 4-23 through 4-28 3647580 240 13.0 Thermostatic Manifold Yes 6-20P See Page 4-3 for additional dimensions { See Page 4-11 for auto-fill information Note: Modular Drop-Ins cannot be cancelled or returned. Six Well Hot Modules Q Overall dimensions: 811⁄4 x 26 (206.4 x 66 cm) Q Cutout dimensions: Receptacles 801⁄2 x 251⁄4 (204.5 x 64.1 cm) – with 7⁄8 (2.2 cm) corner radius 208-240V 208-240V 208-240V Q Individual drain shut-offs standard Q Manifold drain option Q Zero clearance for flexibility in installation 1000W 1000W 1000W 625W 625W 625W AUTO 1000W 625W SIX WELL BASE COMPATIBLE PER WELL VOLTAGE AMPS PER WELL VOLTAGE AMPS CONTROL DRAIN FILL{ PLUG PLUG BREATH GUARD ITEMS 36409 208 13.6 Infinite Standard — 6-30P To designate an NSF breath 3640950 208 13.6 Infinite Manifold — 6-30P guard item add an N prefix to the base item number 3640960 208 13.6 Infinite Manifold Yes 6-30P 3640910 208 13.6 Thermostatic Standard — 6-30P Double-Sided Buffet (PB89289, 3640970 208 13.6 Thermostatic Manifold — 6-30P CB98640, GB98404, RB98449) 3640980 208 13.6 Thermostatic Manifold Yes 6-30P Single-Sided Buffet 3640901 208-240 21.6 - 25 Infinite Standard — 6-50P with Top Shelf 3640951 208-240 21.6 - 25 Infinite Manifold — 6-50P (PB89284, CB98654, GB98409, 3640961 208-240 21.6 - 25 Infinite Manifold Yes 6-50P RB98454) 3640911 208-240 21.6 - 25 Thermostatic Standard — 6-50P Single-Sided Buffet (PB89274, 3640971 208-240 21.6 - 25 Thermostatic Manifold — 6-50P CB98636, GB98414, RB98459) 3640981 208-240 21.6 - 25 Thermostatic Manifold Yes 6-50P Cafeteria with Top Shelf 36476 240 15.6 Infinite Standard — 6-20P (PB89269, CB98628, FB89404, 3647650 240 15.6 Infinite Manifold — 6-20P GB98419, RB98464) 3647660 240 15.6 Infinite Manifold Yes 6-20P Vertical 3647610 240 15.6 Thermostatic Standard — 6-20P (PB89264) 3647670 240 15.6 Thermostatic Manifold — 6-20P For more information on Breath 3647680 240 15.6 Thermostatic Manifold Yes 6-20P Guards see pages 4-23 through 4-28 See Page 4-3 for additional dimensions { See Page 4-11 for auto-fill information Note: Modular Drop-Ins cannot be cancelled or returned. 4-7
- 95. vollrathco.com Fabricator Components Refrigerated Short Side Drop-Ins Q Thick polyurethane foam insulation Q 3 (7.6 cm) recessed shoulder for NSF7 units Q Display well 65⁄8 (16.8 cm) deep Q Drain plug included Q Cold drop-ins are best used for holding periods up to 4 hours — for best performance, stainless steel containers are recommended Q Zero clearance for flexibility in installation NSF7 Refrigerated Refrigerated Short Side Drop-In Short Side Drop-In Receptacles 120V STANDARD OVERALL DIMENSIONS CUTOUT DIMENSIONS{ DISPLAY AREA ITEM DESCRIPTION (L X W X H) IN (CM) IN (CM) IN (CM) COMPRESSOR VOLTAGE AMPS PLUG REFRIGERATED SHORT SIDE DROP-INS 457⁄16 x 181⁄16 x 2213⁄16 4411⁄16 x 175⁄16 403⁄4 x 117⁄8 1 36652 Two-pan ⁄ 4 hp 120 4.9 5-15P (115.4 x 45.9 x 58) (113.5 x 44) (103.5 x 30.2) 667⁄8 x 181⁄16 x 2213⁄16 661⁄8 x 175⁄16 611⁄2 x 117⁄8 1 36655 Three-pan ⁄ 4 hp 120 4.9 5-15P (170 x 45.9 x 58) (168 x 44) (156.2 x 30.2) 885⁄16 x 181⁄16 x 2213⁄16 879⁄16 x 175⁄16 821⁄4 x 117⁄8 1 36658 Four-pan ⁄ 3 hp 120 4.9 5-15P (224.3 x 45.9 x 58) (222.4 x 44) (209 x 30.2) NSF7 REFRIGERATED SHORT SIDE DROP-INS 457⁄16 x 181⁄16 x 241⁄4 4411⁄16 x 175⁄16 403⁄4 x 117⁄8 1 36653 Two-pan ⁄ 4 hp 120 4.9 5-15P (115.4 x 45.9 x 61.3) (113.5 x 44) (103.5 x 30.2) 6613⁄16 x 181⁄16 x 241⁄4 661⁄8 x 175⁄16 611⁄2 x 117⁄8 1 36656 Three-pan ⁄ 4 hp 120 4.9 5-15P (169.7 x 45.9 x 61.3) (168 x 44) (156.2 x 30.2) 881⁄4 x 181⁄16 x 241⁄4 879⁄16 x 175⁄16 821⁄4 x 117⁄8 1 36659 Four-pan ⁄ 2 hp 120 4.9 5-15P (224.2 x 45.9 x 61.3) (222.3 x 44) (209 x 30.2) Note: Modular Drop-Ins cannot be cancelled or returned. Non-Refrigerated Short Side Cold Pans Q 18-8 stainless steel construction Q 8 (20.3 cm) deep well Q Thick polyurethane foam insulation Q Full perimeter drip edge contains spills and condensation Q 1 (2.5 cm) integrated drain standard Q Narrow space-saving design 12 (30.5 cm) Q Sized for standard steam table pan sizes For additional Non-Refrigerated Q Drain plug included Cold Well Drop-Ins, see page 4-10 Q Zero clearance for flexibility in installation OVERALL DIMENSIONS CUTOUT DIMENSIONS{ CASE NON-REFRIGERATED PANS IN (CM) IN (CM) LOT 36654 Two 45.42 x 18 (115.36 x 45.79) 44.67 x 17.25 (114.36 x 43.81) 1 36657 Three 66.84 x 18 (169.77 x 45.79) 66.09 x 17.25 (167.87 x 43.81) 1 36660 Four 88.27 x 18 (224.2 x 45.79) 87.52 x 17.25 (222.3 x 43.81) 1 { With 7⁄8 (2.2 cm) corner radius Note: Modular Drop-Ins cannot be cancelled or returned. 4-8
- 96. Fabricator Components The Vollrath Company, LLC NSF7 Refrigerated | Now offered Cold Pans as remote! Q Thick polyurethane foam insulation Q Cold drop-ins are best used for holding Q Shoulder is recessed 3 (7.6 cm) periods up to 4 hours—for best Q NSF7 listed performance, stainless steel containers are recommended Q Display well 65⁄8 (16.8 cm) deep Q Zero clearance for flexibility in installation Q Drain plug included Receptacle 120V 120V | Remote units available but not shown, please reference spec sheet. Remote units do not include compressor STANDARD REMOTE | OVERALL DIMENSIONS CUTOUT DIMENSIONS { D INTERIOR LENGTH ITEM ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) COMPRESSOR VOLTAGE AMPS PLUG 36456 36456R One-pan 18 x 26 (45.7 x 66) 171⁄ 4 x 251⁄ 4 (43.8 x 64.1) 12 (30.5) 1 ⁄ 5 hp 120 3.8 5-15P 36429 36429R Two-pan 29 x 26 (73.7 x 66) 281⁄ 4 x 251⁄ 4 (71.8 x 64.1) 243⁄ 4 (62.9) 1⁄ 4 hp 120 4.9 5-15P 36430 36430R Three-pan 411⁄ 2 x 26 (105.4 x 66) 3 1 40 ⁄ 4 x 25 ⁄ 4 (103.5 x 64.1) 1 37 ⁄ 2 (95.3) 1 ⁄ 4 hp 120 4.9 5-15P 36434 36434R Four-pan 543⁄ 4 x 26 (139.1 x 66) 54 x 251⁄ 4 (137.2 x 64.1) 501⁄ 4 (127.6) 1 ⁄ 3 hp 120 7.2 5-15P 36436 36436R Five-pan 68 x 26 (172.7 x 66) 671⁄ 4 x 251⁄ 4 (170.8 x 64.1) 63 (160) 1 ⁄ 2 hp 120 11.0 5-20P 36438 36438R Six-pan 811⁄ 4 x 26 (206.4 x 66) 801⁄ 2 x 251⁄ 4 (204.5 x 64.1) 753⁄ 4 (192.4) 1⁄ 2 hp 120 11.0 5-20P For compatible breath guard items see pages 4-23 through 4-28 { With 7⁄8 (2.2 cm) corner radius | Accessories available for remote installation Note: Modular Drop-Ins cannot be cancelled or returned. Standard Refrigerated Cold Pan | Q 8 (20.3 cm) deep well Now offe offered Q Thick polyurethane foam insulation as remot remote! Q Drain plug included Q Cold drop-ins are best used for holding periods up to 4 hours—for best performance, stainless steel containers are recommended Q Zero clearance for flexibility in installation Receptacle 120V | Remote units available but not shown, please reference spec sheet. Remote units do not include compressor STANDARD REMOTE OVERALL DIMENSIONS CUTOUT DIMENSIONS{ D INTERIOR LENGTH ITEM ITEM| DESCRIPTION IN (CM) IN (CM) IN (CM) COMPRESSOR VOLTAGE AMPS PLUG 36490 36490R One-pan 15 x 26 (38.1 x 66) 141⁄ 4 x 251⁄ 4 (36.2 x 64.1) 12 (30.4) 1⁄ 5 hp 120 3.8 5-15P 36441 36441R Two-pan 29 x 26 (73.7 x 66) 281⁄ 4 x 251⁄ 4 (71.8 x 64.1) 243⁄ 4 (62.9) 1⁄ 5 hp 120 3.8 5-15P 36442 36442R Three-pan 411⁄ 2 x 26 (105.4 x 66) 403⁄ 4 x 251⁄ 4 (103.5 x 64.1) 371⁄ 2 (95.3) 1⁄ 5 hp 120 3.8 5-15P 36444 36444R Four-pan 543⁄ 4 x 26 (139.1 x 66) 54 x 251⁄ 4 (137.2 x 64.1) 501⁄ 4 (127.6) 1⁄ 4 hp 120 4.9 5-15P 36446 36446R Five-pan 68 x 26 (172.7 x 66) 671⁄ 4 x 251⁄ 4 (170.8 x 64.1) 63 (160) 1⁄ 4 hp 120 4.9 5-15P 36448 36448R Six-pan 811⁄ 4 x 26 (206.4 x 66) 801⁄ 2 x 251⁄ 4 (204.5 x 64.1) 753⁄ 4 (192.4) 1⁄ 3 hp 120 7.2 5-15P For compatible breath guard items see pages 4-23 through 4-28 { With ⁄ (2.2 cm) corner radius 78 | Accessories available for remote installation Note: Modular Drop-Ins cannot be cancelled or returned. 4-9
- 97. vollrathco.com Fabricator Components Non-Refrigerated Cold Pans Q 18-8 stainless steel construction Q 1 (2.5 cm) integrated drain standard Q 8 (20.3 cm) deep well Q Drain plug included Q Thick polyurethane foam insulation Q Zero clearance for flexibility in installation Q Full perimeter drip edge contains spills and condensation For compatible breath guard items see the cross reference chart below. For Short Side Non-Refrigerated Cold Pans, see page 4-8. OVERALL DIMENSIONS CUTOUT DIMENSIONS{ D INTERIOR LENGTH CASE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) LOT 36491 One-pan 15 x 26 (38.1 x 66) 141⁄ 4 x 251⁄ 4 (36.2 x 64.1) 12 (30.4) 1 36450 Two-pan 29 x 26 (73.7 x 66) 281⁄ 4 x 251⁄ 4 (71.8 x 64.1) 243⁄ 4 (62.9) 1 36451 Three-pan 411⁄ 2 x 26 (105.4 x 66) 403⁄ 4 x 251⁄ 4 (103.5 x 64.1) 371⁄ 2 (95.3) 1 36452 Four-pan 543⁄ 4 x 26 (139.1 x 66) 54 x 251⁄ 4 (137.2 x 64.1) 501⁄ 4 (127.6) 1 1 1 36453 Five-pan 68 x 26 (172.7 x 66) 67 ⁄ 4 x 25 ⁄ 4 (170.8 x 64.1) 63 (160) 1 36454 Six-pan 811⁄ 4 x 26 (206.4 x 66) 801⁄ 2 x 251⁄ 4 (204.5 x 64.1) 753⁄ 4 (192.4) 1 { With 7⁄8 (2.2 cm) corner radius Note: Modular Drop-Ins cannot be cancelled or returned. Refrigerated Frost-Tops Q Recessed drip flange with integral drain for cleaner operation Q Display area flush with counter surface Q Zero clearance for flexibility in installation Receptacles 120V 120V For compatible breath guard items see the cross reference chart below. OVERALL DIMENSIONS CUTOUT DIMENSIONS{ D DISPLAY AREA CASE ITEM DESCRIPTION IN (CM) IN (CM) LENGTH: IN (CM) COMPRESSOR VOLTAGE AMPS PLUG LOT 36419 Two-pan 281⁄ 4 x 26 (71.8 x 66) 26 x 233⁄ 4 (66 x 60.3) 221⁄ 4 (56.5) 1 ⁄ 4 hp 120 4.9 5-15P 1 1 1 3 1 1 36420 Three-pan 41 ⁄ 2 x 26 (105.4 x 66) 39 ⁄ 4 x 23 ⁄ 4 (99.7 x 60.3) 35 ⁄ 2 (90.2) ⁄ 3 hp 120 5.9 5-15P 1 36424 Four-pan 543⁄ 4 x 26 (139.1 x 66) 521⁄ 2 x 233⁄ 4 (133.3 x 60.3) 483⁄ 4 (123.8) 1 ⁄ 3 hp 120 5.9 5-15P 1 36426 Five-pan 68 x 26 (172.7 x 66) 653⁄ 4 x 233⁄ 4 (167 x 60.3) 62 (157.5) 1⁄ 2 hp 120 12.9 5-20P 1 36428 Six-pan 811⁄ 4 x 26 (206.4 x 66) 79 x 233⁄ 4 (200.7 x 60.3) 751⁄ 4 (190.5) 1⁄ 2 hp 120 12.9 5-20P 1 { With ⁄ (2.2 cm) corner radius 78 Note: Modular Drop-Ins cannot be cancelled or returned. Cold Pan and Frost Top Compatible Breath Guards To designate an NSF Breath Guard item add an N prefix to the base item number SINGLE SIDED BUFFET CAFETERIA DESCRIPTION DOUBLE SIDED BUFFET WITH TOP SHELF SINGLE SIDED BUFFET WITH TOP SHELF VERTICAL PB89285, CB98663, PB89280, CB98662, PB89270, CB98661, PB89265, CB98660, FB89400, Two-Pan PB89260 GB98400, RB98445 GB98405, RB98450 GB98410, RB98455 GB98415, RB98460 PB89286, CB98637, PB89281, CB98651, PB89271, CB98633, PB89266, CB98650, FB89401, Three-Pan PB89261 GB98401, RB98446 GB98406, RB98451 GB98411, RB98456 GB98416, RB98461 PB89287, CB98638, PB89282, CB98652, PB89272, CB98634, PB89267, CB98626, FB89402, Four-Pan PB89262 GB98402, RB98447 GB98407, RB98452 GB98412, RB98457 GB98417, RB98462 PB89288, CB98639, PB89283, CB98653, PB89273, CB98635, PB89268, CB98627, FB89403, Five-Pan PB89263 GB98403, RB98448 GB98408, RB98453 GB98413, RB98458 GB98418, RB98463 PB89289, CB98640, PB89284, CB98654, PB89274, CB98636, PB89269, CB98628, FB89404, Six-Pan PB89264 GB98404, RB98449 GB98409, RB98454 GB98414, RB98459 GB98419, RB98464 For more information on Breath Guards see pages 4-23 through 4-28 4-10
- 98. Fabricator Components The Vollrath Company, LLC Soup Well Modular Drop-Ins Mounting brackets standard Q 6-foot (183 cm) power cord and 4-foot (122 cm) control cord Q Double wall construction Q Deep drawn stainless wells Q Receptacles High-density glass fiber insulation Q 3⁄4 (1.9 cm) drain with ball valve shut-off 120V 208-240V Q Well height: 7 11⁄16 (19.5 cm) Q Auto-fill option available –see below Q NSF4 listed INFINITE THERMOSTATIC DIAMETER DIAMETER WELL OUTER CONTROL CONTROL OVER FLANGE CUTOUT DIAMETER CASE ITEM ITEM HOLDS INSET SIZE IN (CM) IN (CM) IN (CM) WATTS VOLTAGE AMPS PLUG LOT 36462 3646210 71⁄ 4 qt (6.9 L) 113⁄ 16 (28.4) 109⁄ 16 (26.8) 105⁄ 16 (26.2) 720 120 6 5-15P 1 36464 3646410 11 qt (10.5 L) 1213⁄ 16 (32.5) 121⁄ 4 (31.1) 12 (30.5) 720 120 6 5-15P 1 36463 3646310 71⁄ 4 qt (6.9 L) 113⁄ 16 (28.4) 109⁄ 16 (26.8) 105⁄ 16 (26.2) 720-960 208-240 3.5-4 6-15P 1 36465 3646510 11 qt (10.5 L) 1213⁄ 16 (32.5) 121⁄ 4 (31.1) 12 (30.5) 720-960 208-240 3.5-4 6-15P 1 Note: Modular Drop-Ins cannot be cancelled or returned. Top-Mount Fabricator Well Q Designed for top-mount installation and requires hard wiring Q High-density glass fiber insulation allows use of 1000W elements Q Meets NSF4 performance standards Q Zero clearance for flexibility in installation Q Available for 120V, 208-240V power Q Beveled edge for easy cleaning Q 4-foot flexible control cable Q Thermostatic control Q Hard-wired input power connections OVERALL DIMENSIONS CUTOUT DIMENSIONS{ CASE ITEM IN (CM) IN (CM) WATTS VOLTAGE AMPS LOT 36368 15 x 23 (38.1 x 58.4) 13.75 x 21.75 (34.9 x 55.2) 1000 120 8.3 1 36369 15 x 23 (38.1 x 58.4) 13.75 x 21.75 (34.9 x 55.2) 750-1000 208-240 3.6 - 4.2 1 Note: Modular Drop-Ins cannot be cancelled or returned. { With 7⁄8 (2.2 cm) corner radius Auto-fill Option/Accessory Unique design installs on the manifold Q Install multiple wells on one autofill drain line to maintain the integrity of Q Eliminates the need to monitor well and add water — reducing labor and operating costs the well. This allows for easy cleaning, Q 120V cord and plug does not require hard wiring Q Check valve/siphon brake prevents cross contamination of drain and potable water maintenance and trouble shooting. Q May be ordered with new drop-in as an option or separately for an existing installation Remote installation Q With manifold drain, for use with two or more wells control box with Q light indicating Adjustable water level 17 16 ⁄ Auto Fill On 1 4 Q 6-foot (183 cm) power cord Safety over flow ⁄ 3 16 connection ⁄ hose barb 3 8 5⁄ 1 Q 2 May be remote mounted in cabinet 11⁄2 Sensor Auto-Fill Reservoir Control 15⁄8 21⁄4 Box 6' Power Cord 6 120 VAC, 15 Amp If water falls below 91⁄8 Receptacle sensor, auto-fill is Water supply 120V connection Water supply to drop in activated. Water is added 3 ⁄8 hose barb units via drain (3⁄8 hose 3' flexible conduit barb) with 6' of water to wells until the water hose supplied Key slot mounting holes In-line level reaches the sensor. for 3⁄4 height adjustment sediment filter Anti-back to Fine Tune water level flow valve on installations that are out of level Install reservoir with bottom level to Water Control the hot well drop in units the autofill Solenoid system is supplying water to 4-11
- 99. vollrathco.com Fabricator Components Mirage® Drop-In Induction Ranges Q Designed for light commercial sauté and warming stations Q Cutting-edge dial control with high-speed power and temperature level adjustment — includes 1-180 minute timer function Q Bright LED digital readout is easy to see Q Temperature memory — powers up to the last used temperature setting Q Compact, no maintenance Q Smart component placement means cord and fans are located under the top case assembly, improving appearance 59501/5950145 Q Tough stainless steel case with 100% framed ceramic top for durability Q 100% factory bench tested for ultimate quality control Q Hot warning display for safety Q 6' (183 cm) cord and plug Receptacles Countertop Q 3' (91.4 cm) remote control cord 230V 230V 230V 120V Q Control Box Cutout Dimensions: Units 59500P – See 5 x 211⁄16 (12.7 x 6.9 cm) pages 2-3 to 2-5 for more information Ranges MAX PAN SIZE DIMENSIONS (L X W X H) CUTOUT DIMENSIONS CASE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) VOLTAGE KW AMPS PLUG LOT 59501 US 14 (35.6) 141⁄ 2 x 121⁄ 2 x 27⁄ 8 (36.8 x 31.8 x 7.3) 133⁄ 8 x 113⁄ 4 (33.9 x 29.9) 120 AC 1.4 12 5-15P 1 59601 Europe 14 (35.6) 141⁄ 2 x 121⁄ 2 x 27⁄ 8 (36.8 x 31.8 x 7.3) 133⁄ 8 x 113⁄ 4 (33.9 x 29.9) 230 AC 1.8 7.8 Schuko 1 59602 UK 14 (35.6) 141⁄ 2 x 121⁄ 2 x 27⁄ 8 (36.8 x 31.8 x 7.3) 133⁄ 8 x 113⁄ 4 (33.9 x 29.9) 230 AC 1.8 7.8 UK 1 59603 China 14 (35.6) 141⁄ 2 x 121⁄ 2 x 27⁄ 8 (36.8 x 31.8 x 7.3) 133⁄ 8 x 113⁄ 4 (33.9 x 29.9) 230 AC 1.8 7.8 China 1 Warmers{ MAX PAN SIZE DIMENSIONS (L X W X H) CUTOUT DIMENSIONS CASE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) VOLTAGE KW AMPS PLUG LOT 5950145 US 14 (35.6) 141⁄ 2 x 121⁄ 2 x 27⁄ 8 (36.8 x 31.8 x 7.3) 133⁄ 8 x 113⁄ 4 (33.9 x 29.9) 120 AC .45 3.8 5-15P 1 59641 Europe 14 (35.6) 1 1 7 3 3 14 ⁄ 2 x 12 ⁄ 2 x 2 ⁄ 8 (36.8 x 31.8 x 7.3) 13 ⁄ 8 x 11 ⁄ 4 (33.9 x 29.9) 230 AC .65 2.8 Schuko 1 59642 UK 14 (35.6) 141⁄ 2 x 121⁄ 2 x 27⁄ 8 (36.8 x 31.8 x 7.3) 133⁄ 8 x 113⁄ 4 (33.9 x 29.9) 230 AC .65 2.8 UK 1 59643 China 14 (35.6) 141⁄ 2 x 121⁄ 2 x 27⁄ 8 (36.8 x 31.8 x 7.3) 133⁄ 8 x 113⁄ 4 (33.9 x 29.9) 230 AC .65 2.8 China 1 { Warming unit only – not a cooking range Note: See pages 2-3 to 2-5 for countertop units Would you like Visit www.vollrathco.com and take advantage of to know more? more standard-setting Induction training tools. Reduce Energy Costs Compared to Butane, Induction: With Induction Q Offers more accurate control 59501/5950145 Vollrath Induction Range Energy Consumption Q Heats faster and hotter LENGTH Q Is more durable rable KILOWATTS OF TIME COST COST COST COST MODEL KW MULTIPLY HRS/DAY MULTIPLY KW/HR| EQUALS PER DAY PER MONTH PER YEAR Q Is SAFER 59500 1.8 X 8 X $0.10 = $1.44 $43.20 $518.40 |Electric costs may vary Butane Energy Consumption Save Over $ MODEL FULL TANK CAPACITY LENGTH OF TIME HRS/DAY AMOUNT USED MULTIPLY COST PER TANK EQUALS COST PER DAY COST PER MONTH COST PER YEAR $ 650.00 00 0 The more you use induction – Butane 6 Hrs. 8 1.3 X $2.50 = $3.25 $97.50 $1170.00 Canister the more you will save! 4-12
- 100. Fabricator Components The Vollrath Company, LLC Professional Series Drop-In Induction Ranges Q Designed for sauté, sauce pots and small stock pots Q 100 settings for precise cooking control — set to power level or temperature setting 69521 Q Continuous duty induction circuitry for non-stop cooking Q Firewall protected circuitry with oversized fans and 18 gauge heavy-duty 18-8 stainless steel casing Q 1-180 minute timer — unit shuts off at end of cycle Q Digital display 69524 — no knobs to collect food Q HOT warning display for safety Q Three-foot remote control cord on drop-in models Q FCC Part 18 Approved Q Two year parts and labor warranty Receptacles Countertop Q 6' (183 cm) cord and plug 120V 208/240V 208/240V Units Q See page 2-7 for countertop units 6954301 – See page 2-7 for more information MAX PAN SIZE DIMENSIONS (L X W X H) CUTOUT DIMENSIONS CASE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) VOLTAGE KW AMPS PLUG LOT 69521{ Drop-In 14 161⁄ 2 x 173⁄ 8 x 43⁄ 4 161⁄ 8 x 151⁄ 8 208/240 AC 2.5 - 2.9 12.1 6-20P 1 (35.6) (41.9 x 43.2 x 12) (40.9 x 38.4) 69524{ Dual Hob Drop-in 12 173⁄ 8 x 277⁄ 8 x 51⁄ 8 263⁄ 8 x 157⁄ 8 208/240 AC 2.5 - 2.9 24.1 6-30P 1 Front to Back (30.5) (44.1 x 70.8 x 13) (67 x 40.3) per hob { 69521 and 69524 Control Box Cutout Dimensions: 71⁄4 x 37⁄8 (18.4 x 9.8 cm) Ultra Series Drop-In Induction Ranges Q Designed for large volume and heavy-duty usage Q 100 power settings for precise cooking control Q Controlled high-end temperatures for sauté, stir fry, stock-pot and sauce pot applications Q Sensitive low-end control for cooking delicate 69505 sauces, crémes, and chocolates Q Continuous duty induction circuitry for non-stop cooking Q 92+% efficiency versus 35% for gas stoves Receptacles Q Double oversized fans for longer life 208/240V 208/240V Q Digital display 69508 Q HOT warning display for safety Countertop Q Drop-in Cutout Dimensions (L x W): Q Two year parts and labor warranty Units 69505: 151⁄8 x 161⁄8 (38.4 x 40.9 cm) Q 6' (183 cm) cord and plug 69504 – See 69508: 157⁄8 x 263⁄8 (40.3 x 67 cm) Q 3' (91.4 cm) remote control cord page 2-8 for more information Q FCC Part 18 Approved Q See page 2-6 for countertop units MAX PAN SIZE DIMENSIONS (L X W X H) CASE ITEM DESCRIPTION IN (CM) IN (CM) VOLTAGE KW AMPS PLUG LOT 69505 Drop-in 14 (35.6) 161⁄ 2 x 173⁄ 8 x 43⁄ 4 (41.9 x 43.2 x 12) 208/240 AC 3.0 - 3.5 14.6 6-20P 1 69508 Dual Hob Drop-In Front to Back 12 (30.5) 277⁄ 8 x 173⁄ 8 x 51⁄ 8 (70.8 x 44.1 x 13) 208/240 AC 3.0 - 3.5| 29.2 6-50P 1 | Per Hob 69505/69508 Control Box Cutout Dimensions: 71⁄4 x 37⁄8 (18.4 x 9.8 cm) – Note: 1 Control Per Hob 4-13
- 101. vollrathco.com Fabricator Components Cayenne Heat Light Strips ® Hard Wired see page 4-15 Flange Mount see page 4-17 Light Strips see page 4-19 Accessories see page 4-20 Cord and Plug see page 3-4 ® Cayenne Heat Strips Maintaining even heat at your food holding station is critical to food quality and safety. Vollrath’s line of Cayenne® Heat Strips incorporates a unique heating design that disperses heat more evenly over the entire food holding area. Q Heat end to end—minimizing the 6 to 9” cold zones found in other models Q 33% larger “food safe” zone allows you to hold more food at safe, consistent temperatures °C °F 65.6 150 60.0 140 54.4 130 48.9 120 43.3 110 37.8 100 32.2 90 26.7 80 21.1 70 Cayenne® Heat Strip Model Thermal images of heat profile radiating from aluminum surface after 3-hour use—36 heat strip units from 11 high. Optional Kool-Touch Recessed dovetail thermoplastic trim dramatically provides strength and Sheathed style reduces facia temperature for allows for easy installation Fixed or remote controls allow element for dependability safer operation and enhances of decorative trim installation flexibility for your and longer life visual appearance operation—available with infinite or toggle switch Unique heating design offers even heat dispersion for more effective warming Cayenne® Infinite Control Light Strips also available see page 4-19 for more information Structurally engineered aluminum heater housing offers maximum strength Anodized aluminum with minimal weight heat reflector generates more Toggle controls come even heat over food holding area standard with boots for cool-to-touch switches Patented reflector assembly is field-adjustable Quick service access to allowing operator to direct element with removal heat pattern where needed of only two screws Centered Left Right 4-14
- 102. Fabricator Components The Vollrath Company, LLC Cayenne® Hard Wired Heat Strips See features and benefits on 4-14 Complete Ordering Catalog Number Example To build item number: 72723 32 61 1) Select wattage - (low, medium or high) 60 Medium 208V Dual Remote Toggle 2) Then select length to find base number Wattage Hard Wired with lights 3) Add voltage and control suffixes to end of item number Cayenne® Ordering Notes Note: All heat strips are custom ordered and therefore cannot be cancelled or returned per Vollrath Terms Conditions. Note: Wattage recommendations are based on enclosed pass-throughs as required by UL. Individual performance may vary based on the conditions of each individual environment. Select wattage and single or dual Note: Low value is UL's required distance to non-combustible surface - see page 4-19 for additional UL required clearances. High value is maximum height to retain food quality under ideal conditions. Accessories and Options See page 4-20 for details and ordering information. Wire Box Mounting Options Mounting Options End-Mounted Wiring Box: Top Surface Center Available when ordering No Control, Remote Toggle, or Remote Infinite Switch control options. Center mount bracket recommended on wiring box end. Front-Mounted Wiring Box: Available when ordering No Control, Remote Toggle, or Remote Infinite Switch control options. Note: Dual units require two sets Hard Wired Onboard Toggle: Available when ordering Onboard Toggle control option – supplied with 6 leads. Kool-Touch® Trim for All Styles On-board Q Offers a low cost method to help prevent burns toggle shown by incidental contact with heat strip side surface Q Enhances the visual appearance of the heat strips or light strips Teflon®-Coated Shatterproof Light Bulbs Q Field retrofittable Q See page 4-20 for recommended number of bulbs and total amperage information 4-15
- 103. vollrathco.com Fabricator Components Low Wattage - Hard Wired Select length and base number Add voltage suffix Add control suffix CALROD-WATTAGE CONTROL AND WIRING BOX WITHOUT LIGHTS WITH LIGHTS{ BASE MOUNTING LOCATION| LENGTH SINGLE DUAL NUMBER END MOUNT FRONT MOUNT 18 300 600 72701 120V 208V 240V 120V 208/120V 240/120V WIRING BOX WIRING BOX SUFFIX SUFFIX SUFFIX SUFFIX SUFFIX SUFFIX 24 400 800 72704 SUFFIX} SUFFIX 30 510 1020 72707 36 610 1220 72710 ONBOARD TOGGLE N/A 9 42 720 1440 72713 48 820 1640 72716 SINGLE 01 02 03 SINGLE 11 12 13 54 925 1850 72719 REMOTE TOGGLE 6 61 60 1025 2050 72722 66 1120 2240 72725 72 1230 2460 72728 84 1440 2880 72731 REMOTE INFINITE SWITCH 7 71 96 1640 3280 72734 108 1850 3700 72737 DUAL 21 22 23 DUAL 31 32 33 120 2050 4100 72740 NO CONTROL 132 2240 4480 72743 (OEM APPLICATIONS) 5 51 144 2460 4920 72746 { See page 4-20 for lighted section | Controls cannot be retro fitted. Note: Heat Strips cannot be cancelled or returned. amp draw and bulb quantity supplied. } Adds 2 to overall length of unit - refer to spec sheet. Medium Wattage - Hard Wired Select length and base number Add voltage suffix Add control suffix CALROD-WATTAGE WITHOUT LIGHTS WITH LIGHTS{ CONTROL AND WIRING BOX BASE MOUNTING LOCATION| LENGTH SINGLE DUAL NUMBER 18 415 830 72702 END MOUNT FRONT MOUNT 120V 208V 240V 120V 208/120V 240/120V WIRING BOX WIRING BOX SUFFIX SUFFIX SUFFIX SUFFIX SUFFIX SUFFIX 24 550 1100 72705 SUFFIX} SUFFIX 30 690 1380 72708 36 825 1650 72711 ONBOARD TOGGLE N/A 9 42 965 1930 72714 48 1100 2200 72717 SINGLE 01 02 03 SINGLE 11 12 13 54 1240 2480 72720 60 1380 2760 72723 REMOTE TOGGLE 6 61 66 1515 3030 72726 72 1660 3320 72729 84 1930 3860 72732 REMOTE INFINITE SWITCH 7 71 96 2200 4400 72735 108 2480 4960 72738 DUAL 21 22 23 DUAL 31 32 33 120 2760 5520 72741 NO CONTROL 132 3030 6060 72744 (OEM APPLICATIONS) 5 51 144 3320 6640 72747 { See page 4-20 for lighted section | Controls cannot be retro fitted. Note: Heat Strips cannot be cancelled or returned. amp draw and bulb quantity supplied. } Adds 2 to overall length of unit - refer to spec sheet. High Wattage - Hard Wired Select length and base number Add voltage suffix Add control suffix CALROD-WATTAGE CONTROL AND WIRING BOX WITHOUT LIGHTS WITH LIGHTS{ BASE MOUNTING LOCATION| LENGTH SINGLE DUAL NUMBER END MOUNT FRONT MOUNT 18 540 1080 72703 120V 208V 240V 120V 208/120V 240/120V WIRING BOX WIRING BOX SUFFIX SUFFIX SUFFIX SUFFIX SUFFIX SUFFIX 24 720 1440 72706 SUFFIX} SUFFIX 30 900 1800 72709 36 1080 2160 72712 42 1260 2520 72715 REMOTE TOGGLE 6 61 48 1435 2870 72718 SINGLE 01 02 03 SINGLE 11 12 13 54 1615 3230 72721 60 1800 3600 72724 66 1980 3960 72727 REMOTE INFINITE 7 71 SWITCH 72 2160 4320 72730 84 2520 5040 72733 96 2870 5740 72736 108 3230 6460 72739 DUAL 21 22 23 DUAL 31 32 33 120 3600 7200 72742 NO CONTROL (OEM APPLICATIONS) 5 51 132 3960 7920 72745 144 4320 8640 72748 Note: 66 to 144 length units are not available in 120V. { See page 4-20 for lighted section | Controls cannot be retro fitted. Note: Heat Strips cannot be cancelled or returned. amp draw and bulb quantity supplied. } Adds 2 to overall length of unit - refer to spec sheet. 4-16
- 104. Fabricator Components The Vollrath Company, LLC Cayenne® Flange Mount Heat Strips See features and benefits on 4-14 To build item number: Lead Leg Height configuration: 1) Select wattage - (low, medium or high) represents the Supplied with lead distance from wires and conduit the bottom of 2) Then select length to find base number through legs and an the heat strip to additional 18 lead the work surface. 3) Add voltage, control and leg suffixes wire encased in 12 of flexible conduit at to end of item number bottom of leg. Complete Ordering Catalog Number Example Cayenne® Ordering Notes Note: All heat strips are custom ordered and therefore cannot 72923 32 6 8 be cancelled or returned per Vollrath Terms Conditions. 60 Medium 208V Dual Remote Toggle 24 Direct Wattage Flange with lights Mount Legs Mount Note: Wattage recommendations are based on enclosed pass-throughs as required by UL. Individual performance may vary based on the conditions of each individual environment. Select wattage and single or dual Note: Low value is UL's required distance to non-combustible surface - see page 4-19 for additional UL required clearances. High value is maximum height to retain food quality under ideal conditions. Accessories and Options See page 4-20 for details and ordering information. Kool-Touch® Trim for All Styles Teflon®-Coated Q Offers a low cost method to help Shatterproof Light Bulbs prevent burns by incidental contact Q See page 4-20 for with heat strip side surface recommended number Q Enhances the visual appearance of bulbs and total of the heat strips or light strips amperage information Q Field retrofittable 4-17
- 105. vollrathco.com Fabricator Components Low Wattage - Flange Mount Select length and base number Add voltage suffix Add control suffix Add leg suffix} CALROD-WATTAGE SUFFIX WITHOUT LIGHTS WITH LIGHTS{ CONTROL| SUFFIX NO. LEG HEIGHT BASE NO. LENGTH SINGLE DUAL NUMBER 18 300 600 72901 120V 208V 240V 120V 208/120V 240/120V 8 (20.3 cm) 0 SUFFIX SUFFIX SUFFIX SUFFIX SUFFIX SUFFIX 24 400 800 72904 ONBOARD TOGGLE 9 10 (25.4 cm) 1 30 510 1020 72907 12 (30.3 cm) 2 36 610 1220 72910 SINGLE 01 02 03 SINGLE 11 12 13 14 (35.5 cm) 3 REMOTE TOGGLE 6 42 720 1440 72913 16 (40.6 cm) 4 48 820 1640 72916 18 (45.7 cm) 5 REMOTE INFINITE 54 925 1850 72919 SWITCH 7 } Dual Flange Mount heat strips ar are shipped with two sets of legs. 60 1025 2050 72922 DUAL 21 22 23 DUAL 31 32 33 66 1120 2240 72925 NO CONTROL 5 (OEM APPLICATIONS) 72 1230 2460 72928 Note: Heat Strips cannot be cancelled or returned. { See page 4-20 for lighted section | Controls cannot be retro fitted. amp draw and bulb quantity supplied. Medium Wattage - Flange Mount Select length and base number Add voltage suffix Add control suffix Add leg suffix} CALROD-WATTAGE SUFFIX WITHOUT LIGHTS WITH LIGHTS{ CONTROL| SUFFIX NO. LEG HEIGHT BASE NO. LENGTH SINGLE DUAL NUMBER 18 415 830 72902 120V 208V 240V 120V 208/120V 240/120V 12 (30.3 cm) 2 SUFFIX SUFFIX SUFFIX SUFFIX SUFFIX SUFFIX 24 550 1100 72905 ONBOARD TOGGLE 9 14 (35.5 cm) 3 30 690 1380 72908 16 (40.6 cm) 4 36 825 1650 72911 SINGLE 01 02 03 SINGLE 11 12 13 18 (45.7 cm) 5 REMOTE TOGGLE 6 42 965 1930 72914 20 (50.8 cm) 6 48 1100 2200 72917 22 (55.8 cm) 7 REMOTE INFINITE 54 1240 2480 72920 SWITCH 7 24 (60.9 cm) 8 60 1380 2760 72923 DUAL 21 22 23 DUAL 31 32 33 } Duall Flange Mount h t strips D Fl M t heat t i 66 1515 3030 72926 OEM CONTROL 5 are shipped with two sets of legs. ar 72 1660 3320 72929 { See page 4-20 for lighted section | Controls cannot be retro fitted. amp draw and bulb quantity supplied. High Wattage - Flange Mount Select length and base number Add voltage suffix Add control suffix Add leg suffix} CALROD-WATTAGE SUFFIX WITHOUT LIGHTS WITH LIGHTS{ CONTROL| SUFFIX NO. LEG HEIGHT BASE NO. LENGTH SINGLE DUAL NUMBER 18 540 1080 72903 120V 208V 240V 120V 208/120V 240/120V 16 (40.6 cm) 4 SUFFIX SUFFIX SUFFIX SUFFIX SUFFIX SUFFIX 24 720 1440 72906 18 (45.7 cm) 5 REMOTE TOGGLE 6 30 900 1800 72909 20 (50.8 cm) 6 36 1080 2160 72912 SINGLE 01 02 03 SINGLE 11 12 13 22 (55.8 cm) 7 42 1260 2520 72915 24 (60.9 cm) 8 REMOTE INFINITE SWITCH 7 48 1435 2870 72918 26 (66.0 cm) 9 54 1615 3230 72921 } Dual Flange Mount heat strips are shipped with two sets of legs. 60 1800 3600 72924 DUAL 21 22 23 DUAL 31 32 33 66 1980 3960 72927 OEM CONTROL 5 72 2160 4320 72930 Note: 66 and 72 length units are not available in 120V. { See page 4-20 for lighted section | Controls cannot be retro fitted. amp draw and bulb quantity supplied. Note: Heat Strips cannot be cancelled or returned. 4-18
- 106. Fabricator Components The Vollrath Company, LLC Cayenne® Light Strips Cayenne® Light Strips are to be used to illuminate food serving display areas or food preparation areas. TH NG LE Q Structurally engineered aluminum Light Strip 2.88 housing offers maximum strength with minimal weight 40 Watt Standard Bulb 3 Q Standard polished stainless steel light 40 WATT STANDARD SOCKETS AND BULBS 40 WATT STANDARD BULBS reflector directs maximum light to the WITH EXTRA BULBS display area LENGTH MODEL NO. TOTAL NO. OF AMP DRAW MODEL NO. TOTAL NO. OF AMP DRAW BULBS BULBS Q Includes shatterproof bulbs — available 18 (47.7cm) 7286000 2 0.7 n/a n/a n/a in either 40 watt standard or 60 watt 24 (60.9 cm) 7286100 2 0.7 n/a n/a n/a display styles 30 (76.2 cm) 7286200 2 0.7 7286201 4 1.4 Q 120V, single-phase 36 (91.4 cm) 7286300 4 1.4 7286301 6 2 Q Includes on-board toggle switch controls 42 (106.6 cm) 7286400 4 1.4 7286401 6 2 — located on the operator's left 48 (121.9 cm) 7286500 4 1.4 7286501 8 2.7 Q 6 (15.24 cm) pigtail leads — located on the operator's left 54 (137.1 cm) 7286600 6 2 7286601 8 2.7 Q 60 (152.4 cm) 7286700 6 2 7286701 10 3.4 Recessed dovetail channel allows for installation of optional Kool-Touch 66 (167.6 cm) 7286800 6 2 7286801 10 3.4 decorative trim 72 (182.8 cm) 7286900 6 2 7286901 10 3.4 Q Replacement bulbs available (Item 23236 - Note: All light strips are custom ordered and therefore cannot 40W Standard / Item 23026 - 60W Display) be cancelled or returned per Vollrath Terms Conditions. Q Includes chain mounting tabs and a set of 1 top mounting brackets Q One-year parts and labor warranty Light Strip 60 Watt Display Bulb Accessories LENGTH 60 WATT DISPLAY BULBS TOTAL NO. OF 60 WATT DISPLAY SOCKETS AND BULBS WITH EXTRA BULBS TOTAL NO. OF MODEL NO. AMP DRAW MODEL NO. AMP DRAW Kool-Touch® Trim for All Styles BULBS BULBS 18 (47.7cm) 7286002 2 1 n/a n/a n/a Q Offers a low cost method to help 24 (60.9 cm) 7286102 2 1 n/a n/a n/a prevent burns by incidental contact with light strip side surface 30 (76.2 cm) 7286202 2 1 7286203 4 2 Note: Please see page 4-20 for ordering information 36 (91.4 cm) 7286302 4 2 7286303 6 3 42 (106.6 cm) 7286402 4 2 7286403 6 3 48 (121.9 cm) 7286502 4 2 7286503 8 4 Additional Mounting Options Q Center mount 1 (2.54 cm) 54 (137.1 cm) 7286602 6 3 7286603 8 4 Note: Please see page 4-20 for ordering information 60 (152.4 cm) 7286702 6 3 7286703 10 5 item number 44140 66 (167.6 cm) 7286802 6 3 7286803 10 5 Case Lot 1 72 (182.8 cm) 7286902 6 3 7286903 10 5 Note: All light strips are custom ordered and therefore cannot be cancelled or returned per Vollrath Terms Conditions. Mounting Clearances for Cayenne® Hard Wired and Flange Mount Heat Strips SINGLE DUAL SINGLE DUAL MINIMUM CLEARANCES NON-COMBUSTIBLE COMBUSTIBLE SURFACE NON-COMBUSTIBLE COMBUSTIBLE SURFACE SURFACE SURFACE A Top of strip to surface above (minimum) 1 (2.5 cm) 2 (5.1 cm) 1 (2.5 cm) 2 (5.1 cm) low wattage 8 (20.3 cm) 11 (27.9 cm) 13 (33.0 cm) 16 (40.6 cm) B Bottom of strip to surface medium wattage 11 (27.9 cm) 13 (33.0 cm) 18 (45.7 cm) 20 (50.8 cm) below high wattage 16 (40.6 cm) 16 (40.6 cm) 24 (60.9 cm) 25 (63.5 cm) C Side of strip to adjacent surface (minimum) 1 (2.5 cm) 5 (12.7 cm) 1 (2.5 cm) 5 (12.7 cm) Setback from front opening on pass through application: maximum of 8 (20.3 cm) 4-19
- 107. vollrathco.com Fabricator Components Cayenne® Heat and Light Strips Options and Accessories Kool-Touch® Black Trim Q Offers a low cost method to help prevent burns by incidental contact with heat strip side surface Q Enhances the visual appearance of the heat strips or light strips Q Field retrofittable TRIM LENGTH ITEM CASE LOT Note: All heat strips are custom ordered and therefore cannot be cancelled or returned per Vollrath Terms Conditions. 18 (47.7cm) 1789718 2 24 (60.9 cm) 1789724 2 30 (76.2 cm) 1789730 2 Teflon®-Coated Shatterproof Light Bulbs 36 (91.4 cm) 1789736 2 Q Replacement bulbs - item 23236, Case Lot 4 42 (106.6 cm) 1789742 2 48 (121.9 cm) 1789748 2 UNIT NUMBER OF 40 WATT TOTAL AMP LENGTH SHATTERPROOF BULBS (120V) 54 (137.1 cm) 1789754 2 60 (152.4 cm) 1789760 2 18 - 30 2 .7 66 (167.6 cm) 1789766 2 36 - 48 4 1.4 72 (182.8 cm) 1789772 2 54 - 72 6 2.1 84 - 108 8 2.8 F For llengths over 72 (182 8 cm), order trim in two pieces that h (182.8 ) d i i i h equal the desired length. Some field trimming required. N120 - 144 12 Note: Replacement Bulbs – Item 23236 Case Lot 4 ote: 4.2 Mounting Options Hard Wired Mounting Options Cord and Plug Mounting Options Top Surface Center Note: Dual units require two sets BRACKET STYLE ITEM NO. CASE LOT Stainless Steel C Legs Top surface mount 1 (2.54 cm) 44545 2 3 14 ⁄8 (36 (2 per set) 2 (5.08 cm) 44546 2 .5 cm) 1 (2.54 cm) 44140 1 Center mount 2 (5.08cm) 44145 1 Stainless Steel T Legs Non-combustible surfaces may use 1 clearance. LEG STYLE ITEM NUMBER FOR USE WITH Combustible surfaces require 2 clearance. Center Mount brackets are suggested for units over 72 (182.8 cm) in length. C-LEG They may be used alone or in combination with Top Surface Mount brackets. 4450609 Low Wattage Units 9 (22.8 CM) Recommended Number of Center Mount Brackets C-LEG Medium Wattage Q For dual units, double the recommended number of brackets 4450613 13 (33.0 CM) Units T-Leg UNIT LENGTH # OF BRACKETS UNIT LENGTH # OF BRACKETS Low or Medium Adjustable 8 to 15 44504 18 (45.7 cm) 2 84 (213.4 cm) 6 Wattage Units (22.8 to 38.1 cm) 18 (45.7 cm) 3 96 (243.8 cm) 7 Note: UL requires all cord and plug heat strips, from all manufacturers be mounted 42 (106.7 cm) 4 120 (304.8 cm) 8 on legs. All heat strips are custom ordered and therefore cannot be cancelled or 60 (152.4 cm) 5 132 (335.3 cm) 9 returned per Vollrath Terms Conditions. 4-20
- 108. Fabricator Components The Vollrath Company, LLC Cayenne® Drop-In Warmers Thermoset Fiber-Reinforced Resin Well — self-insulating for maximum energy efficiency Q 6-foot cord and plug Q Drain models allow or hardwired* for easy cleaning Q Top mounts Q Recommend using up to Q Low-water indicator light 4 (10.2 cm) deep pans — eliminates guesswork full and fractional sizes 72104 72107 Receptacles 120V 208V 120V 230V 230V Drop-Ins See pages 4-3 to 4-11 for Vollrath's 72109* full line of Drop-Ins. US Models CUTOUT DIMENSIONS DIMENSIONS (L X W X H) CASE ITEM DESCRIPTION IN (CM) IN (CM) VOLTAGE WATTS AMPS PLUG LOT 72105* Model 3001D drop-in warmer with drain, 127⁄8 x 207⁄8 213⁄4 x 133⁄4 x 9 120 AC 700 5.8 5-15P 1 unit mounted control (32.7 x 53) (55 x 33 x 23) 72107* Model 3002D drop-in warmer with drain, front mounted 133⁄16 x 213⁄16 213⁄4 x 133⁄4 x 9 120 AC 700 5.8 Hard 1 control panel with flexible conduit control panel cutout (33.5 x 53.8) (55 x 33 x 23) Wire dimensions: 5 x 31⁄2 (12.7 x 8.9 cm)} 72109{ Model TD43R-DI 4/3 thermoset drop-in warmer with integral 131⁄4 x 281⁄4 283⁄4 x 133⁄4 x 131⁄16 120 AC 1600 13.3 5-15P 1 drain, front mounted control panel with flexible conduit (33.6 x 71.7) (73 x 34.9 x 33.2) control panel dimensions: 55⁄8 x 51⁄2 (14.3 x 14 cm) 72112| Model TD43R-DI 4/3 thermoset drop-in warmer with integral 131⁄4 x 281⁄4 283⁄4 x 133⁄4 x 131⁄16 240 AC 1600 7.7 6-15P 1 drain, front mounted control panel with flexible conduit (33.6 x 71.7) (73 x 34.9 x 33.2) control panel dimensions: 55⁄8 x 51⁄2 (14.3 x 14 cm) { 5-foot cord and plug | US and Canadian Model } No low-water indicator light Canada Model - available for Canada only CANADA CUTOUT DIMENSIONS DIMENSIONS (L X W X H) CASE ITEM DESCRIPTION IN (CM) IN (CM) VOLTAGE WATTS AMPS PLUG LOT 72111 Model TD43R-DI 4/3 thermoset drop-in warmer with 131⁄4 x 281⁄4 283⁄4 x 133⁄4 x 131⁄16 120 AC 1600 13.3 5-20P 1 integral drain, front mounted control panel with flexible (33.6 x 71.7) (73 x 34.9 x 33.2) conduit Control Panel Dimensions: 55⁄8 x 51⁄2 (14.3 x 14 cm) International Models — available for export only INT'L DIMENSIONS (L X W X H) CASE ITEM DESCRIPTION IN (CM) VOLTAGE WATTS AMPS PLUG LOT 72610 Model 3001 drop-in warmer 213⁄4 x 133⁄4 x 9 (55 x 33 x 23) 230 AC 700 3.0 Schuko 1 72560 Model 3001D drop-in warmer with drain 213⁄4 x 133⁄4 x 9 (55 x 33 x 23) 230 AC 700 3.0 UK 1 Cayenne® Model 2001 Drop-In Warmer Q Stainless steel 61⁄2 (16.6 cm) deep well Q 6' cord and plug — no wiring required Q Stainless steel exterior for longer life Q 120V, 1000W, 8.3A Q Instant drop-in without permanent wiring, Q Meets NSF4 performance standards plumbing or installation costs Receptacle Q Positioning pins hold unit in place 120V CUTOUT DIMENSIONS DIMENSIONS (L X W X H) CASE ITEM IN (CM) IN (CM) PLUG LOT 72001 239⁄16 x 147⁄16 (75.1 x 36.7) 24 x 15 x 85⁄8 (61 x 38.1 x 21.9) 5-15P 1 4-21 21

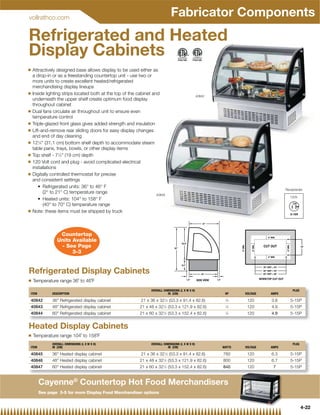

- 109. vollrathco.com Fabricator Components Refrigerated and Heated Display Cabinets Q Attractively designed base allows display to be used either as a drop-in or as a freestanding countertop unit - use two or more units to create excellent heated/refrigerated merchandising display lineups Q Inside lighting strips located both at the top of the cabinet and 40842 underneath the upper shelf create optimum food display throughout cabinet Q Dual fans circulate air throughout unit to ensure even temperature control Q Triple-glazed front glass gives added strength and insulation Q Lift-and-remove rear sliding doors for easy display changes and end of day cleaning Q 121⁄4 (31.1 cm) bottom shelf depth to accommodate steam table pans, trays, bowls, or other display items Q Top shelf - 71⁄2 (19 cm) depth Q 120 Volt cord and plug - avoid complicated electrical installations Q Digitally controlled thermostat for precise and consistent settings Receptacles (2° to 21° C) temperature range 40845 120V (40° to 70° C) temperature range Q Note: these items must be shipped by truck Countertop Units Available - See Page 3-3 Refrigerated Display Cabinets Q Temperature range 36˚ to 46˚F OVERALL DIMENSIONS (L X W X H) PLUG ITEM DESCRIPTION IN (CM) HP VOLTAGE AMPS 40842 36 Refrigerated display cabinet 21 x 36 x 321⁄2 (53.3 x 91.4 x 82.6) 1 ⁄5 120 3.8 5-15P 40843 48 Refrigerated display cabinet 21 x 48 x 32 ⁄2 (53.3 x 121.9 x 82.6) 1 1 ⁄4 120 4.9 5-15P 40844 60 Refrigerated display cabinet 21 x 60 x 321⁄2 (53.3 x 152.4 x 82.6) 1 ⁄4 120 4.9 5-15P Heated Display Cabinets Q Temperature range 104˚ to 158˚F OVERALL DIMENSIONS (L X W X H) OVERALL DIMENSIONS (L X W X H) PLUG ITEM IN (CM) IN (CM) WATTS VOLTAGE AMPS 40845 36 Heated display cabinet 21 x 36 x 321⁄2 (53.3 x 91.4 x 82.6) 760 120 6.3 5-15P 40846 48 Heated display cabinet 21 x 48 x 321⁄2 (53.3 x 121.9 x 82.6) 800 120 6.7 5-15P 40847 60 Heated display cabinet 21 x 60 x 321⁄2 (53.3 x 152.4 x 82.6) 840 120 7 5-15P Cayenne® Countertop Hot Food Merchandisers See page 3-5 for more Display Food Merchandiser options 4-22
- 110. Fabricator Components The Vollrath Company, LLC Certified Breath Guards Introducing Vollrath® NSF Certified Breath Guards. Get the unique designs and colors/finishes you’ve come to expect from Vollrath now in NSF certified models. Vollrath NSF Certified Breath Guards meet more strict requirements in food safety for buffet and cafeteria foodservice operations. Offering a safer, more complete coverage of unpackaged food items from contamination by the customer. For more information and detailed dimensions, please reference our spec sheets at www.vollrathco.com Get Increased Coverage with NSF Certified Breath Guards Same Color/Finish Options as Standard Vollrath Q NSF Certified Breath Guards offer more complete Breath Guards horizontal and vertical coverage of food without obstructing the customers view. Q End panels are enclosed with 1/4 inch Enclosed 1/4 Plexi Glass Plexi Glass Q All models offer the same quality End Panels of construction and color/finish selection you expect from Vollrath Q For more information and dimensions, please reference our spec sheets at www.vollrathco.com For product selection details see pgs. 4-25 Longer Overhang through 4-30 with Shorter Front Model NGB98402 shown in Black 80% Gloss Access Opening Model NPB89282 for Increased shown in Black 80% Gloss Food Safety Progressive Style NSF Certified and Standard Breath Guards ITEM: ADD N OVERALL WIDTH IN (CM) OVERALL DEPTH: IN (CM) OVERALL HEIGHT: IN (CM) DESCRIPTION WELL/PAN SIZE PREFIX FOR NSF NSF ITEM STANDARD ITEM NSF ITEM STANDARD ITEM NSF ITEM STANDARD ITEM GB98400 2 Well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 391⁄4 (99.7) 341⁄2 (87.6) 233⁄4 (60.3) 211⁄8 (53.7) GB98401 3 Well or 3 Pan 47 (119.4) 47 (119.4) 391⁄4 (99.7) 341⁄2 (87.6) 233⁄4 (60.3) 211⁄8 (53.7) PLEXI GLASS Double-Sided END PANEL ON NSF GB98402 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 391⁄4 (99.7) 341⁄2 (87.6) 233⁄4 (60.3) 211⁄8 (53.7) MODEL ONLY Buffet GB98403 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 391⁄4 (99.7) 341⁄2 (87.6) 233⁄4 (60.3) 211⁄8 (53.7) GB98404 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 391⁄4 (99.7) 341⁄2 (87.6) 233⁄4 (60.3) 211⁄8 (53.7) GB98405 2 Well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 301⁄4 (76.8) 265⁄8 (67.6) 233⁄4 (60.3) 211⁄8 (53.7) GB98406 Single-Sided 3 Well or 3 Pan 47 (119.4) 47 (119.4) 301⁄4 (76.8) 265⁄8 (67.6) 233⁄4 (60.3) 211⁄8 (53.7) PLEXI GLASS END PANEL ON NSF GB98407 Buffet with 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 301⁄4 (76.8) 265⁄8 (67.6) 233⁄4 (60.3) 211⁄8 (53.7) MODEL ONLY GB98408 Top Shelf 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 301⁄4 (76.8) 265⁄8 (67.6) 233⁄4 (60.3) 211⁄8 (53.7) GB98409 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 301⁄4 (76.8) 265⁄8 (67.6) 233⁄4 (60.3) 211⁄8 (53.7) GB98410 2 well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 223⁄4 (57.8) 147⁄8 (37.8) 233⁄4 (60.3) 223⁄8 (56.8) GB98411 3 Well or 3 Pan 47 (119.4) 47 (119.4) 223⁄4 (57.8) 147⁄8 (37.8) 233⁄4 (60.3) 223⁄8 (56.8) PLEXI GLASS Single-Sided END PANEL GB98412 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 223⁄4 (57.8) 147⁄8 (37.8) 233⁄4 (60.3) 223⁄8 (56.8) ON NSF Buffet MODEL ONLY GB98413 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 223⁄4 (57.8) 147⁄8 (37.8) 233⁄4 (60.3) 223⁄8 (56.8) GB98414 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 223⁄4 (57.8) 147⁄8 (37.8) 233⁄4 (60.3) 223⁄8 (56.8) GB98415 2 Well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 16 (40.6) 11 (27.9) 131⁄8 (33.3) 141⁄4 (36.2) GB98416 3 Well or 3 Pan 47 (119.4) 47 (119.4) 16 (40.6) 11 (27.9) 131⁄8 (33.3) 141⁄4 (36.2) Cafeteria with PLEXI GLASS GB98417 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 16 (40.6) 11 (27.9) 131⁄8 (33.3) 141⁄4 (36.2) END PANEL Top Shelf ON NSF MODEL ONLY GB98418 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 16 (40.6) 11 (27.9) 131⁄8 (33.3) 141⁄4 (36.2) GB98419 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 16 (40.6) 11 (27.9) 131⁄8 (33.3) 141⁄4 (36.2) 4-23

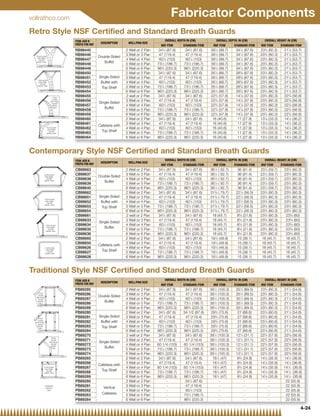

- 111. vollrathco.com Fabricator Components Retro Style NSF Certified and Standard Breath Guards Item: Add N overAll WIdth IN (cm) overAll depth: IN (cm) overAll heIght: IN (cm) deScrIptIoN Well/pAN SIze prefIx for NSf NSf Item StANdArd Item NSf Item StANdArd Item NSf Item StANdArd Item RB98445 2 Well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 391⁄2 (99.7) 341⁄2 (87.6) 233⁄4 (60.3) 211⁄8 (53.7) RB98446 3 Well or 3 Pan 47 (119.4) 47 (119.4) 391⁄2 (99.7) 341⁄2 (87.6) 233⁄4 (60.3) 211⁄8 (53.7) PLEXI GLASS Double-Sided END PANEL ON NSF RB98447 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 391⁄2 (99.7) 341⁄2 (87.6) 233⁄4 (60.3) 211⁄8 (53.7) MODEL ONLY Buffet RB98448 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 391⁄2 (99.7) 341⁄2 (87.6) 233⁄4 (60.3) 211⁄8 (53.7) RB98449 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 391⁄2 (99.7) 341⁄2 (87.6) 233⁄4 (60.3) 211⁄8 (53.7) ITEM NO. NCB98639 RB98450 2 Well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 261⁄4 (66.7) 265⁄8 (67.6) 233⁄4 (60.3) 211⁄8 (53.7) RB98451 Single-Sided 3 Well or 3 Pan 47 (119.4) 47 (119.4) 261⁄4 (66.7) 265⁄8 (67.6) 233⁄4 (60.3) 211⁄8 (53.7) PLEXI GLASS END PANEL ON NSF RB98452 Buffet with 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 261⁄4 (66.7) 265⁄8 (67.6) 233⁄4 (60.3) 211⁄8 (53.7) MODEL ONLY RB98453 Top Shelf 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 261⁄4 (66.7) 265⁄8 (67.6) 233⁄4 (60.3) 211⁄8 (53.7) RB98454 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 261⁄4 (66.7) 265⁄8 (67.6) 233⁄4 (60.3) 211⁄8 (53.7) ITEM NO. PLEXI RB98455 2 well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 223⁄4 (57.8) 147⁄8 (37.8) 233⁄4 (60.3) 223⁄8 (56.8) NCB98639 GLASS RB98456 3 Well or 3 Pan 47 (119.4) 47 (119.4) 223⁄4 (57.8) 147⁄8 (37.8) 233⁄4 (60.3) 223⁄8 (56.8) END PANEL ON NSF Single-Sided MODEL RB98457 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 223⁄4 (57.8) 147⁄8 (37.8) 233⁄4 (60.3) 223⁄8 (56.8) ONLY Buffet RB98458 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 223⁄4 (57.8) 147⁄8 (37.8) 233⁄4 (60.3) 223⁄8 (56.8) RB98459 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 223⁄4 (57.8) 147⁄8 (37.8) 233⁄4 (60.3) 223⁄8 (56.8) RB98460 2 Well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 16 (40.6) 11 (27.9) 131⁄8 (33.3) 141⁄4 (36.2) RB98461 3 Well or 3 Pan 47 (119.4) 47 (119.4) 16 (40.6) 11 (27.9) 131⁄8 (33.3) 141⁄4 (36.2) Cafeteria with PLEXI GLASS RB98462 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 16 (40.6) 11 (27.9) 131⁄8 (33.3) 141⁄4 (36.2) END PANEL Top Shelf ON NSF MODEL ONLY RB98463 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 16 (40.6) 11 (27.9) 131⁄8 (33.3) 141⁄4 (36.2) RB98464 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 16 (40.6) 11 (27.9) 131⁄8 (33.3) 141⁄4 (36.2) ITEM NO. NCB98639 Contemporary Style NSF Certified and Standard Breath Guards Item: Add N overAll WIdth IN (cm) overAll depth: IN (cm) overAll heIght: IN (cm) deScrIptIoN Well/pAN SIze prefIx for NSf NSf Item StANdArd Item NSf Item StANdArd Item NSf Item StANdArd Item CB98663 2 Well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 361⁄2 ( 92.7) 36 (91.4) 231⁄2 (59.7) 233⁄4 (60.3) CB98637 3 Well or 3 Pan 47 (119.4) 47 (119.4) 361⁄2 ( 92.7) 36 (91.4) 231⁄2 (59.7) 233⁄4 (60.3) PLEXI GLASS END PANEL Double-Sided ON NSF CB98638 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 361⁄2 ( 92.7) 36 (91.4) 231⁄2 (59.7) 233⁄4 (60.3) MODEL ONLY Buffet CB98639 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 361⁄2 ( 92.7) 36 (91.4) 231⁄2 (59.7) 233⁄4 (60.3) CB98640 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 361⁄2 ( 92.7) 36 (91.4) 231⁄2 (59.7) 233⁄4 (60.3) CB98662 2 Well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 313⁄8 ( 79.7) 221⁄4 (56.5) 233⁄4 (60.3) 233⁄4 (60.3) ITEM NO. NCB98639 CB98651 Single-Sided 3 Well or 3 Pan 47 (119.4) 47 (119.4) 313⁄8 ( 79.7) 221⁄4 (56.5) 233⁄4 (60.3) 233⁄4 (60.3) PLEXI GLASS END PANEL ON NSF CB98652 Buffet with 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 313⁄8 ( 79.7) 221⁄4 (56.5) 233⁄4 (60.3) 233⁄4 (60.3) MODEL ONLY CB98653 Top Shelf 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 313⁄8 ( 79.7) 221⁄4 (56.5) 233⁄4 (60.3) 233⁄4 (60.3) CB98654 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 313⁄8 ( 79.7) 221⁄4 (56.5) 233⁄4 (60.3) 233⁄4 (60.3) ITEM NO. NCB98639 CB98661 2 well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 18 (45.7) 85⁄8 (21.8) 233⁄4 (60.3) 235⁄8 (60) CB98633 3 Well or 3 Pan 47 (119.4) 47 (119.4) 18 (45.7) 85⁄8 (21.8) 233⁄4 (60.3) 235⁄8 (60) Single-Sided PLEXI GLASS CB98634 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 18 (45.7) 85⁄8 (21.8) 233⁄4 (60.3) 235⁄8 (60) END PANEL Buffet ON NSF MODEL ONLY CB98635 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 18 (45.7) 85⁄8 (21.8) 233⁄4 (60.3) 235⁄8 (60) CB98636 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 18 (45.7) 85⁄8 (21.8) 233⁄4 (60.3) 235⁄8 (60) CB98660 2 Well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 191⁄4 (48.9) 15 (38.1) 18 (45.7) 18 (45.7) CB98650 3 Well or 3 Pan 47 (119.4) 47 (119.4) 191⁄4 (48.9) 15 (38.1) 18 (45.7) 18 (45.7) ITEM NO. NCB98639 Cafeteria with PLEXI GLASS CB98626 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 191⁄4 (48.9) 15 (38.1) 18 (45.7) 18 (45.7) END PANEL Top Shelf ON NSF MODEL ONLY CB98627 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 191⁄4 (48.9) 15 (38.1) 18 (45.7) 18 (45.7) CB98628 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 191⁄4 (48.9) 15 (38.1) 18 (45.7) 18 (45.7) ITEM NO. NCB98639 Traditional Style NSF Certified and Standard Breath Guards Item: Add N overAll WIdth IN (cm) overAll depth: IN (cm) overAll heIght: IN (cm) deScrIptIoN Well/pAN SIze prefIx for NSf NSf Item StANdArd Item NSf Item StANdArd Item NSf Item StANdArd Item PB89285 2 Well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 391⁄2 (100.3) 351⁄4 (89.5) 233⁄4 (60.3) 211⁄2 (54.6) PLEXI PB89286 3 Well or 3 Pan 47 (119.4) 47 (119.4) 391⁄2 (100.3) 351⁄4 (89.5) 233⁄4 (60.3) 211⁄2 (54.6) GLASS Double-Sided PB89287 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 391⁄2 (100.3) 351⁄4 (89.5) 233⁄4 (60.3) 211⁄2 (54.6) END PANEL ON NSF MODEL Buffet ONLY PB89288 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 391⁄2 (100.3) 351⁄4 (89.5) 233⁄4 (60.3) 211⁄2 (54.6) PB89289 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 391⁄2 (100.3) 351⁄4 (89.5) 233⁄4 (60.3) 211⁄2 (54.6) PB89280 2 Well or 2 Pan 341⁄2 (87.6) 34 1/2 (87.6) 293⁄4 (75.6) 27 (68.6) 237⁄8 (60.6) 211⁄2 (54.6) PLEXI PB89281 Single-Sided 3 Well or 3 Pan 47 (119.4) 47 (119.4) 293⁄4 (75.6) 27 (68.6) 237⁄8 (60.6) 211⁄2 (54.6) GLASS END PANEL PB89282 Buffet with 4 Well or 4 Pan 601⁄4 (153) 601⁄4 (153) 293⁄4 (75.6) 27 (68.6) 237⁄8 (60.6) 211⁄2 (54.6) ON NSF MODEL ONLY PB89283 Top Shelf 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 293⁄4 (75.6) 27 (68.6) 237⁄8 (60.6) 211⁄2 (54.6) PB89284 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 293⁄4 (75.6) 27 (68.6) 237⁄8 (60.6) 211⁄2 (54.6) PB89270 2 well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 391⁄2 (100.3) 121⁄4 (31.1) 223⁄4 (57.8) 223⁄8 (56.8) PLEXI GLASS PB89271 3 Well or 3 Pan 47 (119.4) 47 (119.4) 391⁄2 (100.3) 121⁄4 (31.1) 223⁄4 (57.8) 223⁄8 (56.8) END PANEL Single-Sided ON NSF PB89272 4 Well or 4 Pan 60 1/4 (153) 60 1/4 (153) 391⁄2 (100.3) 121⁄4 (31.1) 223⁄4 (57.8) 223⁄8 (56.8) MODEL Buffet ONLY PB89273 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 391⁄2 (100.3) 121⁄4 (31.1) 223⁄4 (57.8) 223⁄8 (56.8) PB89274 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 391⁄2 (100.3) 121⁄4 (31.1) 223⁄4 (57.8) 223⁄8 (56.8) PB89265 2 Well or 2 Pan 341⁄2 (87.6) 341⁄2 (87.6) 181⁄2 (47) 93⁄4 (24.8) 141⁄8 (35.9) 141⁄2 (36.8) PB89266 3 Well or 3 Pan 47 (119.4) 47 (119.4) 181⁄2 (47) 93⁄4 (24.8) 141⁄8 (35.9) 141⁄2 (36.8) Cafeteria with PLEXI GLASS PB89267 4 Well or 4 Pan 60 1/4 (153) 60 1/4 (153) 181⁄2 (47) 93⁄4 (24.8) 141⁄8 (35.9) 141⁄2 (36.8) END PANEL Top Shelf ON NSF MODEL ONLY PB89268 5 Well or 5 Pan 731⁄2 (186.7) 731⁄2 (186.7) 181⁄2 (47) 93⁄4 (24.8) 141⁄8 (35.9) 141⁄2 (36.8) PB89269 6 Well or 6 Pan 863⁄4 (220.3) 863⁄4 (220.3) 181⁄2 (47) 93⁄4 (24.8) 141⁄8 (35.9) 141⁄2 (36.8) ITEM NO. PB89260 2 Well or 2 Pan - 341⁄2 (87.6) - - - 22 (55.9) NCB98639 STANDARD PB89261 Vertical 3 Well or 3 Pan - 47 (119.4) - - - 22 (55.9) MODELS ONLY PB89262 4 Well or 4 Pan - 601⁄4 (153) - - - 22 (55.9) PB89263 Cafeteria 5 Well or 5 Pan - 731⁄2 (186.7) - - - 22 (55.9) PB89264 6 Well or 6 Pan - 863⁄4 (220.3) - - - 22 (55.9) 4-24
- 112. Fabricator Components The Vollrath Company, LLC Breath Guards Five Styles - Traditional, Available in both Contemporary, Frameless, Progressive and Retro standard or NSF2 Certified styles Q Engineered and sized to work with Vollrath drop-ins Q Accessories include fluorescent lights, Q Standard sizes: 2 thru 6 well lengths fit many popular incandescent lights, Cayenne® heat strips and drop-in models – custom sizes also available Cayenne® heat strips with lights. Electrical Q Important: Contact Vollrath for Specification Sheet appliances are UL and CUL listed Q Foodsafe and meets sanitation requirements Dimensions prior to ordering Progressive Style Double-sided Buffet Single-sided Buffet Single-sided Buffet Cafeteria with with Top Shelf Top Shelf Retro Style Double-sided Buffet Single-sided Buffet Single-sided Buffet Cafeteria with with Top Shelf Top Shelf Contemporary Style Double-sided Buffet Single-sided Buffet Single-sided Buffet Single-sided Cafeteria with Top Shelf with Top Shelf Traditional Style Double-sided buffet Single-sided buffet Single-sided buffet Single-sided cafeteria Vertical cafeteria with top shelf with top shelf Frameless Style 4-25

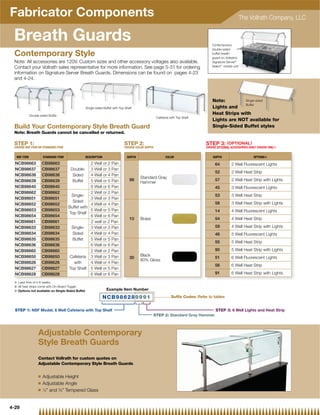

- 113. vollrathco.com Fabricator Components Breath Guards Optional colors - same price as standard color. Simply add 2-Digit Suffix to base item number when ordering optional colors. 30 Black 80% Gloss 20 Black Hammer 00 Polished 50 Copper Vein 70 Black/White Semi-Gloss Chrome 40 White Hammer 10 Brass 60 Silver Vein 80 Silver Hammertone Progressive Style Q End frames constructed of 3⁄8 (1 cm) water-jet cut aluminum with extruded aluminum glass frames. Progressive style breath guards are both lightweight for easy installation and strong for long-term use Q 99 Standard 1 ⁄4” (6.4 mm) tempered glass is secured in a tight-fitting channel, Gray Hammer creating a continuous, clean line from framework to glass Semi-Gloss Q (standard) Available in standard Gray Hammer Semi-Gloss (99) or 9 stylish powder-coated colors (00, 10, 20, 30, 40, 50, 60, 70, 80) Retro Style Q End frames constructed of 3⁄8 (1 cm) water-jet cut aluminum with extruded aluminum glass frames. Retro style breath guards are both lightweight for easy installation and strong for long-term use Q 1 ⁄4” (6.4 mm) tempered glass is secured in a tight-fitting channel, 99 Standard Traditional double-sided buffet breath Gray Hammer guard with heat strip on Vollrath's creating a continuous, clean line from framework to glass Semi-Gloss Signature Server® Select™ Mobile Unit Q Available in standard Gray Hammer Semi-Gloss (99) or 9 stylish (standard) powder-coated colors (00, 10, 20, 30, 40, 50, 60, 70, 80) Contemporary Q 1” (2.5 cm) stainless steel tubular construction is sleek, durable, Q Easy to assemble and install - instructions easy to clean and enhances the food presentation and mounting materials included Q 3 ⁄8” (9.5 mm) tempered glass with polished ends protect food Q Mounts to stainless steel, solid surface Q Available in brushed Stainless Steel (99), Brass (10) or Black (30) and laminate countertops Q Q 2 optional colors available (10 or 30) Shipped knocked down for lower shipping costs 99 Stainless Steel (standard) Traditional Q Constructed of 11⁄2” (3.2 cm) extruded aluminum, Q Shipped pre-assembled in a sturdy crate Traditional breath guards are both lightweight for easy Q Mounts to stainless steel, solid surface installation and strong for long-term use and laminate countertops – easy to Q 1 ⁄4” (6.4 mm) tempered glass is secured in a follow mounting instructions included tight-fitting channel, creating a continuous, clean Q 1 year warranty line from framework to glass 99 Aluminum (standard) Q Available in natural Aluminum finish (99) or 6 stylish powder-coated colors (00, 10, 30, 40, 50, 60) Frameless Q Extruded aluminum mounting clips securely Q Shipped knocked down to reduce freight cost grasp 3⁄8 (9.5 mm) thick tempered glass Q Easy to assemble with included hex tool Q Frameless design showcases food presentation Q Black Clip optional (30) Q Easy to install plated, extruded aluminum clips in Q Important: Specify 14 gauge standard Chrome finish (99) or optional Black (30) stainless steel countertops when Chrome Clip Q (standard) End panels are included using Frameless Breath Guards 4-26
- 114. Fabricator Components The Vollrath Company, LLC Breath Guards Progressive Style{ Note: All accessories are 120V. Custom sizes and other accessory voltages also available. Contact your Vollrath sales representative for more information. See page 5-31 for ordering information on Signature Server Breath Guards. Dimensions can be found on pages 4-23 and 4-24. Note: Single-sided Buffet Lights and Single-sided Buffet with Top Shelf Double-sided Buffet Heat Strips with Cafeteria with Top Shelf Lights are NOT available for Build Your Progressive Style Breath Guard Single-Sided Buffet styles Note: Breath Guards cannot be cancelled or returned. STEP 1: STEP 2: STEP 3: ( OPTIONAL ) CHOOSE NSF ITEM OR STANDARD ITEM CHOOSE COLOR SUFFIX CHOOSE OPTIONAL ACCESSORIES (ONLY CHOOSE ONE)} NSF ITEM STANDARD ITEM DESCRIPTION SUFFIX COLOR SUFFIX OPTIONS| NGB98400 GB98400 2 Well or 2 Pan Standard Gray 25 2 Well Fluorescent Lights 99 NGB98401 GB98401 Double- 3 Well or 3 Pan Hammer 15 2 Well Incandescent Lights NGB98402 GB98402 Sided 4 Well or 4 Pan Polished 35 2 Well Heat Strip 00 NGB98403 GB98403 Buffet 5 Well or 5 Pan Chrome 12 2 Well Heat Strip with Lights NGB98404 GB98404 6 Well or 6 Pan 26 3 Well Fluorescent Lights 10 Brass NGB98405 GB98405 2 Well or 2 Pan 31 3 Well Incandescent Lights Single- NGB98406 GB98406 3 Well or 3 Pan Black Hammer 36 3 Well Heat Strip Sided 20 NGB98407 GB98407 4 Well or 4 Pan Semi-Gloss 41 3 Well Heat Strip with Lights Buffet with NGB98408 GB98408 5 Well or 5 Pan Black 27 4 Well Fluorescent Lights Top Shelf 30 NGB98409 GB98409 6 Well or 6 Pan 80% Gloss 32 4 Well Incandescent Lights NGB98410 GB98410 2 well or 2 Pan 37 4 Well Heat Strip 40 White Hammer NGB98411 GB98411 Single- 3 Well or 3 Pan 42 4 Well Heat Strip with Lights NGB98412 GB98412 Sided 4 Well or 4 Pan 28 5 Well Fluorescent Lights 50 Copper Vein NGB98413 GB98413 Buffet 5 Well or 5 Pan 33 5 Well Incandescent Lights NGB98414 GB98414 6 Well or 6 Pan 38 5 Well Heat Strip 60 Silver Vein NGB98415 GB98415 2 Well or 2 Pan 43 5 Well Heat Strip with Lights NGB98416 GB98416 Cafeteria 3 Well or 3 Pan 29 6 Well Fluorescent Lights 70 Black/White NGB98417 GB98417 with 4 Well or 4 Pan 34 6 Well Incandescent Lights NGB98418 GB98418 Top Shelf 5 Well or 5 Pan Silver 39 6 Well Heat Strip 80 NGB98419 GB98419 6 Well or 6 Pan Hammertone 44 6 Well Heat Strip with Lights { Lead time of 4 6 weeks L d ti f 4-6 k Example Item Number | All heat strips come with On-Board Toggle } Options not available on Single-Sided Buffet NGB98400 3015 Suffix Codes: Refer to tables STEP 1: NSF Model, 2 Well Double-Sided Buffet STEP 3: 2 Well Incandescent Lights STEP 2: Black 80% Gloss Frameless Style See page 5-31 for ordering information on Signature Server Breath Guards. WIDTH INSIDE FLANGE TO WIDTH OUTSIDE FLANGE TO DEPTH OUTSIDE FLANGE TO HEIGHT COUNTER TO ITEM DESCRIPTION INSIDE FLANGE: IN (CM) OUTSIDE FLANGE: IN (CM) OUTSIDE FLANGE: IN (CM) TOP OF BREATH GUARD: IN (CM) FB89400 2 Well or 2 Pan 301⁄2 (77.5) 33 (83.8) 103/4 (27.3) 13 (33) FB89401 3 Well or 3 Pan 43 (109.2) 451/2 (115.6) 103/4 (27.3) 13 (33) FB89402 Single-Sided 4 Well or 4 Pan 561⁄4 (142.9) 583/4 (149.2) 103/4 (27.3) 13 (33) FB89403 5 Well or 5 Pan 691⁄2 (176.5) 72 (182.9) 103/4 (27.3) 13 (33) FB89404 6 Well or 6 Pan 823⁄4 (210) 851/4 (216.5) 103/4 (27.3) 13 (33) 1 Breath guards ship FOB factory. (Canandaigua, NY) Note: Breath Guards cannot be cancelled or returned. 4-27
- 115. vollrathco.com Fabricator Components Breath Guards Retro Style Note: All accessories are 120V. Custom sizes and other accessory voltages also available. Contact your Vollrath sales representative for more information. See page 5-31 for ordering information on Signature Server Breath Guards. Dimensions can be found on pages 4-23 and 4-24. Note: Single-sided Buffet with Top Shelf Lights and Single-sided Buffet Double-sided Buffet Heat Strips with s Cafeteria with Top Shelf Lights are NOT available for O Build Your Retro Style Breath Guard Single-Sided Buffet styles Note: Breath Guards cannot be cancelled or returned. STEP 1: STEP 2: STEP 3: ( OPTIONAL ) CHOOSE NSF ITEM OR STANDARD ITEM CHOOSE COLOR SUFFIX CHOOSE OPTIONAL ACCESSORIES (ONLY CHOOSE ONE)} NSF ITEM STANDARD ITEM DESCRIPTION SUFFIX COLOR SUFFIX OPTIONS| NRB98445 RB98445 2 Well or 2 Pan Standard Gray 16 2 Well Fluorescent Lights 99 NRB98446 RB98446 Double- 3 Well or 3 Pan Hammer 75 2 Well Incandescent Lights NRB98447 RB98447 Sided 4 Well or 4 Pan Polished 17 2 Well Heat Strip 00 NRB98448 RB98448 Buffet 5 Well or 5 Pan Chrome 85 2 Well Heat Strip with Lights NRB98449 RB98449 6 Well or 6 Pan 71 3 Well Fluorescent Lights 10 Brass NRB98450 RB98450 2 Well or 2 Pan 76 3 Well Incandescent Lights Single- NRB98451 RB98451 3 Well or 3 Pan Black Hammer 81 3 Well Heat Strip Sided 20 NRB98452 RB98452 4 Well or 4 Pan Semi-Gloss 86 3 Well Heat Strip with Lights Buffet with NRB98453 RB98453 5 Well or 5 Pan Black 72 4 Well Fluorescent Lights Top Shelf 30 NRB98454 RB98454 6 Well or 6 Pan 80% Gloss 77 4 Well Incandescent Lights NRB98455 RB98455 2 well or 2 Pan 82 4 Well Heat Strip 40 White Hammer NRB98456 RB98456 Single- 3 Well or 3 Pan 87 4 Well Heat Strip with Lights NRB98457 RB98457 Sided 4 Well or 4 Pan 73 5 Well Fluorescent Lights 50 Copper Vein NRB98458 RB98458 Buffet 5 Well or 5 Pan 78 5 Well Incandescent Lights NRB98459 RB98459 6 Well or 6 Pan 83 5 Well Heat Strip 60 Silver Vein NRB98460 RB98460 2 Well or 2 Pan 88 5 Well Heat Strip with Lights NRB98461 RB98461 Cafeteria 3 Well or 3 Pan 74 6 Well Fluorescent Lights 70 Black/White NRB98462 RB98462 with 4 Well or 4 Pan 79 6 Well Incandescent Lights NRB98463 RB98463 Top Shelf 5 Well or 5 Pan Silver 84 6 Well Heat Strip 80 NRB98464 RB98464 6 Well or 6 Pan Hammertone 89 6 Well Heat Strip with Lights { Lead ti L d time of 4 6 weeks f 4-6 k Example Item Number | All heat strips come with On-Board Toggle } Options not available on Single-Sided Buffet NRB984508017 Suffix Codes: Refer to tables STEP 1: NSF Model, 2 Well Single-Sided Buffet STEP 3: 2 Well Heat Strip with Top Shelf STEP 2: Silver Hammertone NSF 2 Breath Guards For more information see overview on pages 4-23 and 4-24 and visit www.vollrathco.com for specification sheets. 4-28
- 116. Fabricator Components The Vollrath Company, LLC Breath Guards Contemporary double-sided Contemporary Style buffet breath guard on Vollrath’s Note: All accessories are 120V. Custom sizes and other accessory voltages also available. Signature Server® Contact your Vollrath sales representative for more information. See page 5-31 for ordering Select™ mobile unit information on Signature Server Breath Guards. Dimensions can be found on pages 4-23 and 4-24. Note: Single-sided Buffet Single-sided Buffet with Top Shelf Lights and Double-sided Buffet s Heat Strips with Cafeteria with Top Shelf Lights are NOT available for Build Your Contemporary Style Breath Guard Single-Sided Buffet styles Note: Breath Guards cannot be cancelled or returned. STEP 1: STEP 2: STEP 3: ( OPTIONAL ) CHOOSE NSF ITEM OR STANDARD ITEM CHOOSE COLOR SUFFIX CHOOSE OPTIONAL ACCESSORIES (ONLY CHOOSE ONE)} NSF ITEM STANDARD ITEM DESCRIPTION SUFFIX COLOR SUFFIX OPTIONS| NCB98663 CB98663 2 Well or 2 Pan 64 2 Well Fluorescent Lights NCB98637 CB98637 Double- 3 Well or 3 Pan 52 2 Well Heat Strip NCB98638 CB98638 Sided 4 Well or 4 Pan Standard Gray NCB98639 CB98639 Buffet 5 Well or 5 Pan 99 57 2 Well Heat Strip with Lights Hammer NCB98640 CB98640 6 Well or 6 Pan 45 3 Well Fluorescent Lights NCB98662 CB98662 2 Well or 2 Pan Single- 53 3 Well Heat Strip NCB98651 CB98651 3 Well or 3 Pan Sided 58 3 Well Heat Strip with Lights NCB98652 CB98652 4 Well or 4 Pan Buffet with NCB98653 CB98653 5 Well or 5 Pan 14 4 Well Fluorescent Lights Top Shelf NCB98654 CB98654 6 Well or 6 Pan 10 Brass 54 4 Well Heat Strip NCB98661 CB98661 2 well or 2 Pan NCB98633 CB98633 Single- 3 Well or 3 Pan 59 4 Well Heat Strip with Lights NCB98634 CB98634 Sided 4 Well or 4 Pan 46 5 Well Fluorescent Lights NCB98635 CB98635 Buffet 5 Well or 5 Pan 55 5 Well Heat Strip NCB98636 CB98636 6 Well or 6 Pan NCB98660 CB98660 2 Well or 2 Pan 90 5 Well Heat Strip with Lights NCB98650 CB98650 Cafeteria 3 Well or 3 Pan Black 30 51 6 Well Fluorescent Lights 80% Gloss NCB98626 CB98626 with 4 Well or 4 Pan 56 6 Well Heat Strip NCB98627 CB98627 Top Shelf 5 Well or 5 Pan NCB98628 CB98628 6 Well or 6 Pan 91 6 Well Heat Strip with Lights { Lead time of 4 6 weeks L d ti f 4-6 k | All heat strips come with On-Board Toggle } Options not available on Single-Sided Buffet Example Item Number NCB986289991 Suffix Codes: Refer to tables STEP 1: NSF Model, 6 Well Cafeteria with Top Shelf STEP 3: 6 Well Lights and Heat Strip STEP 2: Standard Gray Hammer Adjustable Contemporary Style Breath Guards Contact Vollrath for custom quotes on Adjustable Contemporary Style Breath Guards Q Adjustable Height Q Adjustable Angle Q 1 ⁄4 and 3⁄8 Tempered Glass 4-29
- 117. vollrathco.com Fabricator Components Breath Guards Traditional Style Note: All accessories are 120V. Custom sizes and other accessory voltages also available. Contact your Vollrath sales representative for more information. See page 5-31 for ordering information on Signature Server Breath Guards. Dimensions can be found on pages 4-23 and 4-24. Single-sided Buffet Vertical cafeteria Double-sided Buffet Single-sided Buffet with Top Shelf Cafeteria with Top Shelf Note: Lights and Heat Strips with Lights Build Your Traditional Style Breath Guard are NOT available for Single-Sided Buffet Note: Breath Guards cannot be cancelled or returned. and Vertical Cafeteria styles. STEP 1: STEP 2: STEP 3: ( OPTIONAL ) CHOOSE NSF ITEM OR STANDARD ITEM CHOOSE COLOR SUFFIX CHOOSE OPTIONAL ACCESSORIES (ONLY CHOOSE ONE)} NSF ITEM STANDARD ITEM DESCRIPTION SUFFIX COLOR SUFFIX OPTIONS| NPB89285 PB89285 2 Well or 2 Pan 66 2 Well Fluorescent Lights NPB89286 PB89286 Double- 3 Well or 3 Pan Standard 99 05 2 Well Incandescent Lights NPB89287 PB89287 Sided 4 Well or 4 Pan Aluminum 95 2 Well Heat Strip NPB89288 PB89288 Buffet 5 Well or 5 Pan NPB89289 PB89289 6 Well or 6 Pan 13 2 Well Heat Strip with Lights Polished NPB89280 PB89280 2 Well or 2 Pan 00 67 3 Well Fluorescent Lights Single- Chrome NPB89281 PB89281 3 Well or 3 Pan Sided 06 3 Well Incandescent Lights NPB89282 PB89282 4 Well or 4 Pan Buffet with 68 3 Well Heat Strip NPB89283 PB89283 5 Well or 5 Pan Top Shelf 10 Brass NPB89284 PB89284 6 Well or 6 Pan 01 3 Well Heat Strip with Lights NPB89270 PB89270 2 well or 2 Pan 92 4 Well Fluorescent Lights NPB89271 PB89271 Single- 3 Well or 3 Pan Black 07 4 Well Incandescent Lights NPB89272 PB89272 Sided 4 Well or 4 Pan 30 80% Gloss 97 4 Well Heat Strip NPB89273 PB89273 Buffet 5 Well or 5 Pan NPB89274 PB89274 6 Well or 6 Pan 02 4 Well Heat Strip with Lights NPB89265 PB89265 2 Well or 2 Pan 93 5 Well Fluorescent Lights 40 White Hammer NPB89266 PB89266 Cafeteria 3 Well or 3 Pan 08 5 Well Incandescent Lights NPB89267 PB89267 with 4 Well or 4 Pan 98 5 Well Heat Strip NPB89268 PB89268 Top Shelf 5 Well or 5 Pan NPB89269 PB89269 6 Well or 6 Pan 50 Copper Vein 03 5 Well Heat Strip with Lights — PB89260 2 Well or 2 Pan 94 6 Well Fluorescent Lights — PB89261 3 Well or 3 Pan Vertical 09 6 Well Incandescent Lights — PB89262 4 Well or 4 Pan Cafeteria 60 Silver Vein 11 6 Well Heat Strip — PB89263 5 Well or 5 Pan — PB89264 6 Well or 6 Pan 04 6 Well Heat Strip with Lights { Lead time of 4-6 weeks Example Item Number | All heat strips come with On-Board Toggle } Options not available on Single-Sided NPB89280 3005 Suffix Codes: Refer to tables Buffet or Vertical Cafeteria STEP 1: NSF Model, 2 Well Double Sided Buffet STEP 3: 2 Well Incandescent Lights STEP 2: Black 80% Gloss NSF 2 Breath Guards For more information see overview on pages 4-23 and 4-24 and visit www.vollrathco.com for specification sheets. 4-30
- 119. Mobile Serving Equipment MilestoneCustom ™ Signature Server 2.0 ® Merchandising Serving Equipment Mobile Serving Food Carts and Find the right solution for your Equipment Custom Kiosks serving needs with these innovative The ultimate modular serving line Vollrath merchandising mobile equipment stations. carts maximize your equipment - available in rectangle and curved bases. sales and profits. Vollrath “Green” Facts for Mobile Serving Equipment: Due to their higher efficiency, Signature Server® units use a 625W heating element instead of 1000 - 1600W elements used by competitors, conserving energy. The ACM material used in carts and kiosks is manufactured with 85% recycled aluminum content. Vollrath Modular Drop-Ins utilize extra dense insulation to keep hot foods hot and cold foods cold while using less energy. Induction Buffet Tables integrate energy efficient induction technology. For more details on Vollrath’s green products, visit www.vollrathco.com/green 5-2

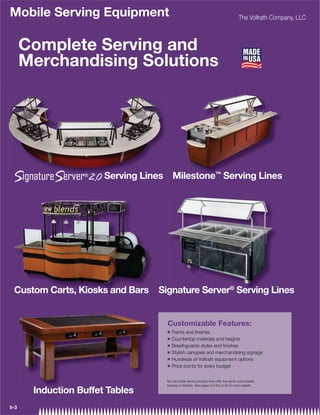

- 120. Mobile Serving Equipment The Vollrath Company, LLC Complete Serving and Merchandising Solutions Serving Lines Milestone™ Serving Lines Custom Carts, Kiosks and Bars Signature Server® Serving Lines gnature r Serving Li r Customizable Features: Q Paints and finishes Q Countertop materials and heights Q Breathguards styles and finishes Q Stylish canopies and merchandising signage Q Hundreds of Vollrath equipment options Q Price points for every budget Not all mobile serving product lines offer the same customizable features or finishes. See pages 5-5 thru 5-52 for more details. Induction Buffet Tables I d ti B ff t T bl 5-3
- 121. vollrathco.com Mobile Serving Equipment Vollrath’s vast selection of mobile serving equipment and merchandising carts and kiosks make it possible to create complete solutions for your buffet or foodservice retail operations. Let Vollrath help you create your space, combining our expertise, with a wide variety of high quality Vollrath standard Photo Gallery view photo and custom equipment options. samples online at vollrathco.com See how it all ties together at Vollrath University Online www.vollrathco.com A Full Suite of Standard and Custom Solutions! 5-4
- 122. Mobile Serving Equipment The Vollrath Company, LLC Complete Custom Kiosk Solutions Vollrath Custom Kiosks are the marriage of form and function. Vollrath’s state-of-the-art manufacturing capabilities create striking geometries, using the latest materials, incorporating the foodservice equipment you select. In-house designers help you create your vision and take your ideas and make them reality. Merchandised food simply sells better. And nothing merchandises your food items better than a Custom Kiosk. Contact your Vollrath sales representative who will help you specify the kiosk for your specific operation. Available in four distinct ct WCM finishes. shes. Food Court Style Kiosk Standard Features: Q Prepainted black or silver base available in innovative lightweight ACM (aluminum composite materials) or industry standard WCM (wood composite materials) Q Black polyform countertops and work surfaces (NSF) Q Matching toekick Q Heavy-duty casters Back View of Food Court Style Kiosk Customizable Features: Q Custom paint for base, custom base graphics - front, and custom laminate covered base Q Stainless steel, laminated or Corian® countertops Q 15/20 amp, 30 amp, 60 amp or 100 amp electrical service Q ACM storage doors with locking paddle latches (2) Q Self-contained water system including, heater, tanks and plumbing or self-contained water system with hand sink (includes heater, tanks and plumbing) Q Track lights includes 20A electrical service Q Pull-out water system with water heater and pump, 5 gallon fresh and 71⁄2 gallon waste tanks, 20A electrical service Q Built-in refrigerator Coffee Kiosk 5-5
- 123. vollrathco.com Mobile Serving Equipment The Mobile Serving Equipment that Fits: ACM and WCM Construction ACM WCM Aluminum Composite Material Wood Composite Material Q Polyethelyne core Q Wood particle core between thermobonded between prelaminate skins two aluminum skins Q Approximately 3⁄4 thick Q Approximately 3⁄16 thick Indoor and outdoor use - resists moisture VENUE Indoor use only other elements 10+ year lifespan* 5-10 year lifespan* Ideal material for COST 15-30% less merchandising up-front cost ⁄3 the weight of WCM 1 Straight and Best for straight, curved designs DESIGN standard designs Laminates, custom Laminate only paint vinyl graphics *With Proper Care. *With Proper Care. 5-6
- 124. Mobile Serving Equipment The Vollrath Company, LLC Mobile Carts from Vollrath Vollrath’s modular system allows you to create the cart you need. Choose from hundreds of color choices, and numerous features and merchandising options. Your vision and Vollrath carts will create a dynamic foodservice profit center. All within a budget that is affordable for any foodservice operation. Key categories of carts available : Find more information about Vollrath Carts and Kiosks at Vollrath University Q Coffee Online. www.vollrathco.com Q Soup It’s as simple as 1-2-3 Q Condiment Q Retail Merchandising Style Q Cashier 1 Q Handwashing Sinks Q Mobile Bars First define your cart. Q Beverage Tubs Choose from a wide variety of standard carts available. Shown is a base merchandising cart. 2 Add options and color. Shown is the vinyl graphic option. You can provide the artwork or we can help you design it. Options could include shelving and electric supply. 3 Voila! Add merchandising options. Canopies and Once you add your sellable items, you are ready for business. signage complete the image you are looking for. You will be amazed at the volume of customers professionally merchandised carts create! 5-7
- 125. vollrathco.com Mobile Serving Equipment Merchandising Carts Standard Features: Q Available in cost effective WCM (wood composite material) or lightweight ACM (aluminum composite material). Standard ACM carts are available in black, white, or silver. Standard WCM carts are available in Harvest Cherry, Natural Maple, Castle Oak, or Black Q Black toe kick or painted to match pre- Item 75675 shown with painted white or silver ACM bases modular options Q Open storage (server side) Q Heavy-duty casters Q 1 bumper (all sides) Q Polyform or laminate countertop (laminate color must be specified) Item 75675 Modular Options: Q Heavy-duty paddle latch doors (qty. 2 for 6', qty. 5 for 8', qty. 6 for 10') Q Adjustable undercounter shelving Q Base color options - laminate (one color) on 3 sides, painted base (ACM construction only) - one color on 3 sides (back remains black), digital graphics (artwork supplied by customer) on 3 sides Q Wrap style canopy with two adjustable poles (color matching base) Q Aluminum tubular canopy (bulkhead) with two adjustable poles (powder coated - color specified) Q Signage for wrap-style and tubular canopy. Vinyl graphics (artwork provided by customer) Back view – Item 75675 Q Track lighting for canopies (Requires at least 120V 15 AMP service) shown with modular options Q 15 amp 120V electrical service (NEMA 5-15P) Q 20 amp 120V electrical service (NEMA 5-20P) Q 30 amp electrical service (NEMA #L14-30P) Q 60 amp electrical service (plug #460-12W) Q 100 amp electrical service (plug #4100P - 12W) Q Countertop grommet holes Q Umbrella ITEM DESCRIPTION CONSTRUCTION DIMENSIONS: IN (CM) (L X W X H) 75674 6' Merchandising cart ACM 72 x 32 x 38 (182.9 x 81.3 x 96.5) 75674W 6' Merchandising cart WCM 72 x 32 x 38 (182.9 x 81.3 x 96.5) 75690 8' Merchandising cart ACM 96 x 32 x 38 (243.8 x 81.3 x 96.5) Receptacles 120V 120V 120-208/240V 125/250V 125/250V 75674W 8' Merchandising cart WCM 96 x 32 x 38 (243.8 x 81.3 x 96.5) 75675 10' Merchandising cart ACM 120 x 32 x 38 (304.8 x 81.3 x 96.5) 75675W 10' Merchandising cart WCM 120 x 32 x 38 (304.8 x 81.3 x 96.5) L 5-8
- 126. Mobile Serving Equipment The Vollrath Company, LLC Coffee Carts Standard Features: Q Available in cost effective WCM (wood composite Item 75681 shown with material) or lightweight ACM (aluminum composite modular options material). Standard ACM carts are available in black, white, or silver. Standard WCM carts are available in Harvest Cherry, Natural Maple, Castle Oak, or Black Q Black toe kick or painted to match pre-painted white or silver ACM bases Q Open storage (server side) Q Polyform or laminate countertop (laminate color must be specified) Coffee Q Heavy-duty casters Cart shown with Q 1 black bumper custom canopy and custom multi-color laminated base Item 75681 shown with modular options Back view – Item 75681 shown with Item 75681 optional water system and refrigeration Modular Options: Q Heavy-duty paddle latch doors (qty. 2 for 6', qty. 5 for 8', qty. 6 for 10') Q Track lighting for canopies (requires at least Q Base color options - laminate (one color) on 3 sides, painted base 120V 15 amp service) (ACM construction only) one color on 3 sides (back remains black), Q 15 amp 120V electrical service (NEMA 5-15P) digital graphics (artwork supplied by customer) on 3 sides, digital Q 20 amp 120V electrical service (NEMA 5-20P) graphics (artwork supplied by customer) on front only Q 30 amp electrical service (NEMA #L14-30P) Q Wrap-style canopy with two adjustable poles (color matching base) Q 60 amp electrical service (plug #460P-12W) Q Aluminum tubular canopy (bulkhead) with two adjustable poles Q 100 amp electrical service (plug #4100P-12W) (powder coated - color specified) Q Undercounter refrigeration Q Signage for wrap-style and tubular canopy. Vinyl graphics (artwork Q Self-contained pull-out water system (single bay sink) provided by customer) Q Countertop grommet holes Q Umbrella ITEM DESCRIPTION CONSTRUCTION DIMENSIONS: IN (CM) (L X W X H) Q Adjustable undercounter shelving 75680 6' Coffee cart ACM 72 x 32 x 38 (182.9 x 81.3 x 96.5) 75680W 6' Coffee cart WCM 72 x 32 x 38 (182.9 x 81.3 x 96.5) 75681 8' Coffee cart ACM 96 x 32 x 38 (243.8 x 81.3 x 96.5) Receptacles 75681W 8' Coffee cart WCM 96 x 32 x 38 (243.8 x 81.3 x 96.5) 120V 120V 120-208/240V 125/250V 125/250V 75682 10' Coffee cart ACM 120 x 32 x 38 (304.8 x 81.3 x 96.5) 75682W 10' Coffee cart WCM 120 x 32 x 38 (304.8 x 81.3 x 96.5) L 5-9
- 127. vollrathco.com Mobile Serving Equipment 5' Snack Merchandiser Cart Standard Features: Q Available in cost effective WCM (wood composite material) or lightweight ACM (aluminum composite material). Standard ACM carts are available in black, white, or silver. Standard WCM carts are available in Harvest Cherry, Natural Maple, Castle Oak, or Black Q Black toe kick or painted to match pre-painted white or silver ACM bases Q Indoor cart base with heavy-duty casters, mobile for transport or for floor cleaning Q Shelves for snack boxes display case quantities of snack items Q 1 bumper (black only) Q Wing wall door with lock, allows for storage and protects against theft Modular Options: Q Laminated base (ALL SIDES, interior remains black) Q ACM sign with vinyl graphic attached to top of cabinet Item 75734 shown Q 15 amp electrical service (NEMA 5-15P), lights available with modular options ITEM DESCRIPTION CONSTRUCTION DIMENSIONS: IN (CM) (L X W X H) Receptacle 75734 5' Snack merchandising cabinet ACM 60 x 84 x 28 (152 x 213 x 71) 120V Item 75734, open, shown with modular options 75734W 5' Snack merchandising cabinet WCM 60 x 84 x 28 (152 x 213 x 71) 3' Chip Merchandiser Standard Features: Q Available in cost effective WCM (wood composite material) or lightweight ACM (aluminum composite material). Standard ACM carts are available in black, white, or silver. Standard WCM carts are available in Harvest Cherry, Natural Maple, Castle Oak, or Black Q Black toe kick or painted to match pre-painted white or silver ACM bases Q ACM backwall Q Weathered gray or global pine slatwall accepts standard hooks to merchandise snack items Q Heavy-duty paddle latch door provides locking storage Item 75733, opposite angle, shown with Q Laminated countertop modular options Q Indoor cart base with heavy-duty casters Q 1 bumper (black only) Modular Options: Q Laminated base (three sides only, backside remains black) Q Custom painted base (ACM construction only) one color, three sides, backside remains black Q Vinyl graphics applied directly to ACM backwall topper ITEM DESCRIPTION CONSTRUCTION DIMENSIONS: IN (CM) (L X W X H) 75733 3' Chip merchandiser ACM 32 x 36 x 76 (81.3 x 91.4 x 193) 75733W 3' Chip merchandiser WCM 32 x 36 x 76 (81.3 x 91.4 x 193) Item 75733 shown with modular options 5-10
- 128. Mobile Serving Equipment The Vollrath Company, LLC 4 x 4 Locker Box Retail Cart Standard Features: Q All aluminum composite material (ACM) construction Q Pre-painted black, white, or silver ACM toe kick Q 1 black bumper molding Q (2) stainless steel tie down rings Q Indoor/outdoor cart base with heavy duty casters Q Weathered gray or global pine slatwall in main compartment and wing walls Q (2) locking wing walls **CUSTOMER TO SUPPLY PADLOCK** Q Fluorescent lighting in main canopy Q Heavy-duty locking paddle latch ACM door Q Polyform countertop Q 15 amp electrical service (NEMA 5-15P) Item 75732 open, shown Modular Options: with modular options Q Custom painted base Q Vinyl graphics applied to back of wing wall (approx. 2' x 3') Receptacle 120V ITEM DESCRIPTION DIMENSIONS: IN (CM) (L X W X H)* 75732 4x4 locker box retail cart 132 x 67 x 120 (335.3 x 170.2 x 304.8) Item 75732 closed, shown with modular options *Dimensions when open Condiment Cart Standard Features: Q Available in cost effective WCM (wood composite material) or lightweight ACM (aluminum composite material). Standard ACM carts are available in black, white, or silver. Standard WCM carts are available in Harvest Cherry, Natural Maple, Castle Oak, or Black Q Black toe kick or painted to match pre-painted white or silver ACM bases Q Heavy-duty casters Q Open storage (front) Item 75670 with optional paddle latch doors Q Polyform countertop Q 1 black bumper Q Includes (5) - 78730 Vollrath 31⁄2 qt Bain Marie Modular Options: Q Heavy-duty paddle latch door (qty. 2) Q Raised polyform shelf Q Signage with powder coated uprights Receptacle Q Base color options - laminate (one color) all sides, painted 120V base (ACM construction only) one color all sides, digital graphics (artwork supplied by customer) all sides Q 15 amp electrical service ITEM DESCRIPTION CONSTRUCTION DIMENSIONS: IN (CM) (L X W X H) 75670 Standard condiment cart ACM 43 x 28 x 35 (109 x 71 x 89) Item 75670 shown with modular options 75670W Standard condiment cart WCM 43 x 28 x 35 (109 x 71 x 89) 5-11
- 129. vollrathco.com Mobile Serving Equipment Cashier/Merchandising Station Standard Features: Q Available in cost effective WCM (wood composite material) or lightweight ACM (aluminum composite material). Standard ACM carts are available in black, white, or silver. Standard WCM carts are available in Harvest Cherry, Natural Maple, Castle Oak, or Black Q Black toe kick or painted to match pre-painted white or silver ACM bases Item 75679 Q Heavy-duty casters Q Open storage (server side) Q Polyform countertop Q 1 bumper (all sides) Q Open recessed area for merchandising on customer front Modular Options: Q Heavy-duty paddle latch door (qty. 1) Q Item 75679 shown with Heavy-duty paddle latch locking drawer modular options Back view – Item 75679 Q Adjustable undercounter shelving (black plastic) shown with modular options Q Merchandise area melamine shelving (qty. 2) Receptacles Q Base color options - laminate (one color) on 3 sides, painted base (ACM construction 120V 120V 120-208/240V only) one color on 3 sides (back remains black), digital graphics (artwork supplied by customer) on 3 sides, digital graphics (artwork supplied by customer) front only Q Fold-down polyform tray/plate rests (specify location) L Q 15 amp electrical service (NEMA 5-15P) ITEM DESCRIPTION CONSTRUCTION DIMENSIONS: IN (CM) (L X W X H) Q 20 amp electrical service (NEMA 5-20P) 75679 Cashier/merchandising station ACM 32 x 36 x 34 (81.3 x 91.5 x 86.4) Q 30 amp electrical service (NEMA L14-30P) Q Countertop grommet holes 75679W Cashier/merchandising station WCM 32 x 36 x 34 (81.3 x 91.5 x 86.4) Mobile Cashier Station Standard Features: Q Available in cost effective WCM (wood composite material) or lightweight ACM (aluminum composite material). Standard ACM carts are available in black, white, or silver. Standard WCM carts are available in Harvest Cherry, Natural Maple, Castle Oak, or Black Q Black toe kick or painted to match pre-painted white or silver ACM bases Q Indoor cart base with heavy-duty casters or adjustable leveling legs Q 1 bumper (black only) Receptacles Q Open storage on server side 120V 120V 120-208/240V Q Laminated countertop Item 75700, back Q Countertop grommet view, shown with modular options Q No electrical service included L Modular Options: Q Laminated base (customer sides only, server side remains black) Q 30 amp electrical service (NEMA L14-30P) Q Upgrade from laminate countertop to stainless steel Q Custom painted base (customer sides only) Q Upgrade from laminate countertop to Corian Q Heavy-duty locking paddle latch doors and Q 15 amp electrical service (NEMA 5-15P) drawers (server side-each) Q 20 amp electrical service (NEMA 5-20P) SHAPE ITEM DESCRIPTION CONSTRUCTION DIMENSIONS: IN (CM) (L X W X H) 75700 Left L shaped cashier station ACM 72 x 44 x 38 (182.9 x 111.8 x 96.5) 75700W Left L shaped cashier station WCM 72 x 44 x 38 (182.9 x 111.8 x 96.5) 75701 Right L shaped cashier station ACM 72 x 44 x 38 (182.9 x 111.8 x 96.5) Item 75700, front view, shown 75701W Right L shaped cashier station WCM 72 x 44 x 38 (182.9 x 111.8 x 96.5) with modular options 5-12
- 130. Mobile Serving Equipment The Vollrath Company, LLC Soup Merchandiser Carts Standard Features: Q All aluminum composite material construction Q 75677 (30) includes Q Standard black, white, or silver (specify) (1) Vollrath 72028 soup Q Matching toe kick rethermalizer and accessory kit Q Heavy-duty casters Q 75676 (48) includes Q Open storage (front) (2) Vollrath 72028 soup Q 1 bumper (all sides) rethermalizers and Q Polyform countertop accessory kits Q Raised polyform front shelf (cup rest area) Q Raised back shelf Modular Options: Q Heavy-duty paddle latch doors (qty. 2 for 48, qty. 1 for 30) Q Fold down shelves (specify plain or with pan-cutouts) (qty. 2) Q Cup dispensers Q Bain-maries for condiment areas (qty. 4 for 48, qty. 2 for 30) Q Base color option - laminate (one color) three sides Q Base color option - painted base (one color) three sides Item 75676 shown Q with modular options Base color option - digital graphics (artwork supplied by customer) three sides Q Base color option - digital graphics (artwork supplied by customer) front side only Q Aluminum framed aluminum composite backboard Q Vinyl sign applied to backboard (artwork supplied by customer) Q Additional signage, aluminum composite backed with vinyl graphic (artwork supplied by customer) Q Refer to specification sheet for electrical service Q 1 ⁄6 size pans for condiment area Half Round Merchandiser Q See Vollrath price list for features and options Contact your Vollrath representative for more information! Item 75677 Item 75678{ Item 75677 shown with modular options Item 75705 shown with modular options ITEM DESCRIPTION DIMENSIONS: IN (CM) (L X W X H) 75678W{ Economy soup merchandiser 34 x 34 x 311⁄2 (86 x 86 x 80) 75677 30 Deluxe soup merchandiser 30 x 34 x 71 (76 x 86 x 180) DIMENSIONS: IN (CM) ITEM DESCRIPTION (L X W X H) 75676 48 Deluxe soup merchandiser 48 x 34 x 71 (122 x 86 x 180) 75705 Half round soup station 72 x 32 x 56 (183 x 82 x 142 ) { Item 75678W is WCM 5-13
- 131. vollrathco.com Mobile Serving Equipment Beverage Tubs Modular, flexible, affordable off-the-shelf solution for your beverage point-of-sale requirements. Standard Features: Q Heavy duty rotationally molded tub Q Capacity: 850-12 oz cans, 564-16 oz bottles, or 427-20 oz bottles Q Easy product access Q 3 integral storage wells Q Tapered drainage system Q Integral center dividers prevent bowing Q Closed cell foam insulation — no voids Q Aluminum, non-corrosive caster frame Q 5 heavy duty casters — 2 fixed, 2 swivel with brakes Q Standard color: black ITEM DESCRIPTION DIMENSIONS: IN (CM) (L X W X H) 75515 Portable beverage 72 x 36 x 35 unit black (183 x 91 x 89) Shown with optional features, including custom graphics Modular Options: Q Bottle opener Q Cap catcher Q 3-sided ACM wrap (pre-painted black, white or silver) Q 3-sided custom painted panels Q Large graphic format (artwork supplied by customer) Q Custom décor Q Custom graphics Q Optional tub colors (minimum order of 25) Q Custom canopy or umbrella Q Lighting Q Theft guard/serving shelf Q Stainless steel counter top Q Internal product stand raises product for easy access – sold individually Q Push bar Q Locking lid Q Individual well covers create instant work surfaces Basic Portable Beverage Unit Standard Hand Sink Cart Standard Features: Q Available in cost effective WCM (wood composite material) or lightweight ACM (aluminum composite material). Standard ACM carts are available in black, white, or silver. Standard WCM carts are available in Harvest Cherry, Natural Maple, Castle Oak, or Black Q Black toe kick or painted to match pre-painted white or silver ACM bases Q Heavy-duty casters Q Open storage (front) Item 75671 Q Polyform countertop Q Heavy-duty paddle latch door Receptacle Q Permanent counter-mounted water system including 5 gallon 120V fresh water tank, 71⁄2 gallon wastewater tank, 21⁄2 gallon water heater, pump, and plumbing Q Choice of single, double, or triple bay sink Q 1 bumper (all sides) Q Matching backsplash Q 120V, 20 amp cord/plug, NEMA 5-20P Item 75673 shown with modular options ITEM DESCRIPTION CONSTRUCTION DIMENSIONS: IN (CM) (L X W X H) 75671 Single bay hand sink cart ACM 30 x 30 x 46 (76.2 x 76.2 x 116.8) Modular Options: 75671W Single bay hand sink cart WCM 30 x 30 x 46 (76.2 x 76.2 x 116.8) Q 16 x 16 fold-down polyform shelf 75672 Double bay hand sink cart ACM 42 x 30 x 46 (106.7 x 76.2 x 116.8) Q Base color options - laminate (one color) all 75672W Double bay hand sink cart WCM 42 x 30 x 46 (106.7 x 76.2 x 116.8) sides, painted base (one color) all sides (ACM 75673 Triple bay hand sink cart ACM 42 x 30 x 46 (106.7 x 76.2 x 116.8) construction only), or digital graphics (artwork supplied by customer) all sides 75673W Triple bay hand sink cart WCM 42 x 30 x 46 (106.7 x 76.2 x 116.8) 5-14
- 132. Mobile Serving Equipment The Vollrath Company, LLC Utility Counter – Countertop Equipment Island Item 75739 shown with modular options Receptacles 120V 120-208/240V 125/250V 125/250V Item 75739 shown with modular options L Standard Features: Modular Options: Q Available in cost effective WCM (wood composite material) or Q Laminated base (all sides) lightweight ACM (aluminum composite material). Standard ACM Q Upgrade from laminated countertop to stainless steel carts are available in black, white, or silver. Standard WCM carts or Corian are available in Harvest Cherry, Natural Maple, Castle Oak, or Black Q Custom painted base (ACM construction only) one Q Black toe kick or painted to match pre-painted white color on three sides (back remains black) or silver ACM bases Q Acrylic trash chutes Q Oversized indoor cart base with heavy-duty casters or adjustable Q 15 amp electrical service (NEMA 5-15P) leveling legs Q 30 amp electrical service (NEMA L14-30P) Q 1 bumper (black only) Q 60 amp electrical service (MENNEKES ME460P12W) Q Heavy-duty paddle latch doors Q 100 amp electrical service (MENNEKES ME4100P12W) Q Oversized laminated or polyform countertop with recessed area Q Countertop grommets Q Open storage Q No electrical service Q *Doorway openings MUST be 44 or more to accommodate unit ITEM DESCRIPTION CONSTRUCTION DIMENSIONS: IN (CM) (L X W X H) 75739 9' Utility counter – countertop equipment island ACM 108 x 43 x 34 (247.3 x 109.2 x 86.4) 75739W 9' Utility counter – countertop equipment island WCM 108 x 43 x 34 (247.3 x 109.2 x 86.4) 5-15
- 133. vollrathco.com Mobile Serving Equipment Mobile Utility/Beverage Counters 1 75728, front, shown with modular options It’s as easy as 1-2-3 to dress up your Mobile Counter 2 with Vollrath! 75728 with modular options, shown with 7203201 Soup Merchandiser (See page 3-17 for more information) 3 75728 with modular options, shown with 7203201 Soup Merchandiser (See page 3-17 for more information) and 40821 Hot Dog Roller Grill (See page 2-16 for more information) Standard Features: Modular Options: Q Available in cost effective WCM (wood composite material) Q Laminated base (door side ends only, wall side remains black) or lightweight ACM (aluminum composite material). Standard Q Upgrade from laminate countertop to stainless steel or Corian ACM carts are available in black, white, or silver. Standard Q 15 amp electrical service (NEMA 5-15P) WCM carts are available in Harvest Cherry, Natural Maple, Q 30 amp electrical service (NEMA L14-30P) Castle Oak, or Black Q 60 amp electrical service (MENNEKES ME460P12W) Q Indoor cart base with heavy-duty casters Q 100 amp electrical service (MENNEKES ME4100P12W) Q 1 bumper (black only) Q Custom painted base (customer sides only) Q Laminated or polyform countertop Q Cup dispenser, napkin dispenser, or condiment organizer Q Heavy-duty paddle latch doors or raised panel doors Q No electrical service ITEM DESCRIPTION CONSTRUCTION DIMENSIONS: IN (CM) (L X W X H) 75728 6' Beverage cart ACM 72 x 32 x 34 (182.9 x 81.3 x 86.4) 75728W 6' Beverage cart WCM 72 x 32 x 34 (182.9 x 81.3 x 86.4) Receptacles 75729 8' Beverage cart ACM 96 x 32 x 34 (243.8 x 81.3 x 86.4) 120V 120-208/240V 125/250V 125/250V 75729W 8' Beverage cart WCM 96 x 32 x 34 (243.8 x 81.3 x 86.4) 75730 10' Beverage cart ACM 120 x 32 x 34 (304.8 x 91.4 x 86.4) 75730W 10' Beverage cart WCM 120 x 32 x 34 (304.8 x 91.4 x 86.4) L 5-16
- 134. Mobile Serving Equipment The Vollrath Company, LLC Demonstration Table/Action Station 75710 with modular options Standard Features: Q Available in cost effective WCM (wood composite material) or lightweight ACM (aluminum composite material). Standard ACM carts are available in black, white, or silver. Standard WCM carts are available in Harvest Cherry, Natural Maple, Castle Oak, or Black Q Black toe kick or painted to match pre-painted white or silver ACM bases 75710, back, with Q Indoor cart base with heavy-duty casters modular options and 40716 Electric Flat Q 1 bumper (black only) Top Griddle (See Q Open storage on server side page 2-12 for more Q Laminated or polyform countertop (if not equipped with a hot drop-in) information) Q Countertop grommet Q No electrical service Modular Options: Q Laminated base (customer sides only, server side remains black) Q Upgrade from laminate countertop to stainless steel or Corian Q 15 amp electrical service (NEMA 5-15P) Receptacles Q 30 amp electrical service (NAME L14-30P) 120V 120-208/240V 125/250V 125/250V Q 60 amp electrical service (MENNEKES ME460P12W) Q 100 amp electrical service (MENNEKES ME4100P12W) Q Custom painted base (ACM construction only) one color, L customer sides only, back remains black Q Heavy-duty locking paddle latch doors (server side) Q Upright style breath guard (powder coated) or Cafeteria style 75713, front and back, breath guard (powder coated) with modular options Q Beverage Air UCR27A undercounter refrigeration Q Rotation demonstration mirror with adjustable poles ITEM DESCRIPTION CONSTRUCTION DIMENSIONS: IN (CM) (L X W X H) 75710 34 Range/griddle station ACM 34 x 32 x 38 (86.4 x 81.3 x 96.5) 75710W 34 Range/griddle station WCM 34 x 32 x 38 (86.4 x 81.3 x 96.5) 75711 48 Action station ACM 48 X 32 X 38 (121.9 X 81.3 X 96.5) 75711W 48 Action station WCM 48 X 32 X 38 (121.9 X 81.3 X 96.5) 75713 6' Action station ACM 72 X 32 X 38 (182.9 X 81.3 X 96.5) 75713W 6' Action station WCM 72 X 32 X 38 (182.9 X 81.3 X 96.5) 75714 8' Action station ACM 96 x 32 x 38 (243.8 x 81.3 x 96.5) 75714W 8' Action station WCM 96 x 32 x 38 (243.8 x 81.3 x 96.5) Note: Not all options are available for the 34 Griddle Station. Please reference spec sheet. 5-17
- 135. vollrathco.com Mobile Serving Equipment Hot or Cold Prep Station 75717 with modular options 75717, side, with modular options Receptacles 120V 120-208/240V 125/250V 125/250V 75717 shown and 75710 Action Station – both shown with modular options L Standard Features: Modular Options: Q Choose hot or cold –for more information on Vollrath drop-ins see pages Q Laminated base (customer sides only, 4-3 through 4-10 server side remains black) Q Available in cost effective WCM (wood composite material) or lightweight Q Upgrade from laminate countertop to ACM (aluminum composite material). Standard ACM carts are available stainless steel or Corian in black, white, or silver. Standard WCM carts are available in Harvest Q 15 amp electrical service (NEMA 5-15P) Cherry, Natural Maple, Castle Oak, or Black Q 30 amp electrical service (NEMA L14-30P) Q Black toe kick or painted to match pre-painted white or silver ACM bases Q 60 amp electrical service (MENNEKES Q Oversized indoor cart base with heavy-duty casters ME460P12W) Q 1 Boston bumper (black only) Q Open storage on server side Q 100 amp electrical service (MENNEKES Q Laminated or polyform (cold only) countertop Q No electrical service ME410012W) Q Custom painted base (ACM construction ITEM DESCRIPTION CONSTRUCTION DIMENSIONS: IN (CM) (L X W X H) only) - one color, customer sides only, 75716 5' Three well prep station ACM 60 x 32 x 38 (152.4 x 81.3 x 96.5) back remains black 75716W 5' Three well prep station WCM 60 x 32 x 38 (152.4 x 81.3 x 96.5) Q Heavy-duty locking paddles latch doors 75717 6' Four well prep station ACM 72 X 32 X 38 (182.9 X 81.3 X 96.5) (server side) Q Cafeteria style breath guard - powder coated 75717W 6' Four well prep station WCM 72 X 32 X 38 (182.9 X 81.3 X 96.5) Q Optional folding operator work shelf or 75718 7' Five well prep station ACM 84 X 32 X 38 (213.4 X 81.3 X 96.5) customer plate rest 75718W 7' Five well prep station WCM 84 X 32 X 38 (213.4 X 81.3 X 96.5) 75719 8' Six well prep station ACM 96 x 32 x 38 (243.8 x 81.3 x 96.5) 75719W 8' Six well prep station WCM 96 x 32 x 38 (243.8 x 81.3 x 96.5) 5-18
- 136. Mobile Serving Equipment The Vollrath Company, LLC ACM Garbage Can Storage Standard Features: Q All aluminum composite material (ACM) construction Q Pre-painted black, white, or silver ACM base Q Indoor/outdoor base (no casters or legs) Q ACM door trash swing door Q Polyform countertop with tray stops on end Q Includes garbage can Modular Options: Q Three-sided full digital base wrap Q Custom painted base 75725 with three sided Q Custom laminated base (ALL SIDES) digital base wrap ITEM DESCRIPTION DIMENSIONS: IN (CM) (L X W X H) 75725 ACM garbage can storage 23 x 23 x 53 (58.4 x 58.4 x 134.6 ) 76999 Trash receptacle liner for garbage can storage WCM Garbage Can Storage Standard Features: Q Wood composite material construction Q Choice of 4 pre-laminate colors – Harvest Cherry (shown), Natural Maple, Castle Oak, or Black Q Indoor cabinet construction Q Trash chute swing door can access door Q Laminated countertop Q Includes garbage can Modular Options: 75726 with Q Laminated base optional laminate Q Upgrade from laminated countertop to Corian ITEM DESCRIPTION DIMENSIONS: IN (CM) (L X W X H) 75726 WCM garbage can storage 23 x 23 x 47 (58.4 x 58.4 x 119.4) 76999 Trash receptacle liner for garbage can storage 5-19
- 137. vollrathco.com Mobile Serving Equipment Mobile Bars: Curved and Straight Style Standard Features: Q All aluminum composite material construction (ACM) Q Standard black, white, or silver (specify) Q Matching toe kick Item 75685 shown with Q Heavy-duty casters optional Formica Choco Figured Mahogany Q Open storage (#6933-43) Q Built in polyform speed rails Q Polyform work and service counters Q Includes: Modular Options: Q Base color option - laminate (one color) three sides Q Base color option - painted base (one color) three sides Q Base color option - digital graphics (artwork supplied by customer) three sides Q Adjustable black plastic undercounter shelving Q ACM wrap-style canopy with two adjustable poles (color matching base) Q Aluminum tubular canopy (bulkhead) with two adjustable poles (powder coated - color specified) Q Signage for wrap-style and tubular canopies Vinyl graphics on ACM (artwork provided by customer) Q Track lighting for tubular canopies (bulkhead) (Requires at least 120V 15 AMP service) Q 15 amp 120V electrical service (NEMA 5-15P) 98744-5 Q 20 amp 120V electrical service (NEMA 5-20P) Q 30 amp electrical service (NEMA L14-30P) Q 60 amp electrical service (MENNEKES ME460P12W) Q 100 amp electrical service (MENNEKES ME4100P12W) Q Countertop grommet holes Q Umbrella Q Stainless steel speed rail Q Bottle cap catcher/opener Receptacles 120V 120-208/240V 125/250V 125/250V 120V L ITEM DESCRIPTION DIMENSIONS: IN (CM) (L X W X H) 75683 5' Curved bar 60 x 331⁄2 x 44 (152.4 x 85 x 112) 75685 8' Curved bar 94 x 451⁄2 x 44 (238 x 115.6 x 112) Back view – 98744-5 shown with optional 98744-5 5' Straight style bar package 611⁄2 x 323⁄4 x 45 (156.2 x 83.2 x 114.3) stainless steel speed rail Painted units Find more information about Vollrath are safe for Carts and Kiosks at Vollrath University Online. www.vollrathco.com outdoor use Visit www.vollrathco.com to view additional bar carts Note: Custom equipment orders cannot be cancelled or returned. 5-20
- 138. Mobile Serving Equipment The Vollrath Company, LLC Milestone™ Serving Lines +++++ Features Customized Mobile Serving Equipment Professionally merchandised serving lines simply sell more food and allow for higher average ticket prices. Milestone™ is the turning point in the way mobile serving line equipment is designed and manufactured, to best support your objectives and ultimately lead to the success of your foodservice operation. Milestone™ is THE new standard. Choose Milestone™ for the ultimate in customization including cut-a-way and multi-level counters, visually striking canopies and signage, with multiple colors and materials in bases. Choice of Custom Options: Q Design experience – leverage our 20+ years experience creating branded mobile equipment for top consumer brands, your finished product will look incredible and it will be built tough Q Bases standard in aluminum composite material, a lightweight, durable material found in architectural facades – also available as custom quote in WCM Q Specify custom canopies and signage – do not make the mistake of creating great line-ups, and let poor signage ruin the image you are trying to create Q Vollrath drop-in equipment and the foodservice industry’s top equipment brands – we recommend Vollrath drop-ins, but also use the industry’s top brands for pastry cases, undercounter refrigeration, Custom Milestone™ Soup and Salad and various appliances Serving Unit shown with Progressive Q Custom serving lines cannot be Double-sided Breath Guard and modular options cancelled or returned Laminates Ideal for: Photo Gallery view photo Q High Level BI, Colleges and Universities, Casinos and Clubs samples online at vollrathco.com Solid Surface Breath Guard Options: Traditional, Progressive, Retro Contemporary Frameless Types Available: Q New NSF2 Breath Guards Q Double-sided buffet Q Single-sided buffet with top shelf Q Single-sided buffet Q Single-sided cafeteria with top shelf Q Vertical cafeteria Traditional Progressive Retro Contemporary (Traditional only) Type Available: See pages 4-23 to 4-30 for product selection Q Cafeteria 5-21
- 139. vollrathco.com Mobile Serving Equipment Standard Features: What our customers are saying. Q Traditional styling with classic lines From concept to completion, Vollrath provided innovative concepts, creative Q Raised or inset doors for a solutions, and outstanding quality and performance. The Vollrath team stylish presentation understood our customers and helped design our operations to meet our customers’ needs and expectations. We are very delighted with the results. Q Single or multi-colored bases for a classic look Scott Hoffland DIRECTOR, RESTAURANT OPERATIONS Q Create your own bases, corner UNIVERSITY OF WISCONSIN-MILWAUKEE stations, cashier or carving stations Choose popular Vollrath Drop-ins including: Hot Wells, Induction Ranges, Specify open counter space Soup Wells, and Frost Tops Choose from Vollrath Drop-In End shelf Chafer Line New York New York® in Round or Rectangular Shape Standard or NSF 7 Cold Drop-ins Choose between Countertops, Tray slides, and Plate rests in Solid Surface or Laminate Shown with modular options NOTE: Milestone™ equipment orders cannot be cancelled or returned. Vollrath’s Concept™ Equipment Configurator Configure Vollrath’s Milestone™ or Signature Server® lines online. Check out these incredible features: Q Design individual serving line units or complete line-ups Q Choose from hundreds of equipment options NEW AND Q A wide variety of material and color options are available IMPROVED Q Created for use by foodservice dealers, consultants, and designers Q Outputs drawing packages in PDF or DWG file formats Q Outputs quotes with line item detail Q Log onto www.vollrathco.com and click on Concept to register today! 5-22
- 140. Mobile Serving Equipment The Vollrath Company, LLC ++++ Features Vollrath introduces a new line of modular mobile food serving equipment to add “curve” appeal to your food serving operation. Our new curved and rectangular bases are easy to design, specify, and order. Choose from laminate and solid surface counters to create your own style or match any décor. Select our highest quality drop-ins and breath guards to complete your line-up along with accessories such as signage, menu board, plate rests, and tray slides. Signature Server® 2.0 Features: Q Striking new curved and rectangular base shapes Q Functional and stylish breath guard options in standard and new 2011 NSF2 versions: Traditional, Contemporary, Progressive, Retro and Frameless Q Laminate and solid-surface counters, plate rests and tray slides in hundreds of color and texture options Q Choose from Vollrath’s large selection of hot, cold, frost top, and soup Modular Drop-Ins—distinctive and energy efficient Curved Q Backed by Vollrath’s one-year parts and labor warranty bases allow for Q Create Your Signature Server® 2.0 line-up in AutoQuotes endless line-up configurations! Ideal for: Choose from hundreds of Choose from dozens of Q Upscale K-12 available counter colors in breath guard styles. Q Mid-level Colleges solid surface or laminate. Q BI Q Healthcare Plate rests or tray slides for Bases constructed from easy customer access. durable stainless steel. Base finishes include laminates, brushed stainless Standard 34 (86.4cm) height or printed graphics on vinyl. complies with ADA guidelines. NOTE: Signature Server® 2.0 equipment orders cannot be cancelled or returned. 5-23
- 141. vollrathco.com Mobile Serving Equipment Curved Bases Rectangular Bases ITEM DESCRIPTION OVERALL DIMENSIONS{ DIMENSIONS L X W: IN (CM) ITEM DESCRIPTION L X W: IN (CM) 97330 3 Well hot - base 81 x 36 (206 x 91) 97030 3 Well hot - base 48 x 32 (122 x 81) 97340 4 Well hot - base 97 x 38 (246 x 97) 97040 4 Well hot - base 62 x 32 (157 x 81) 97350 5 Well hot - base 107 x 40 (272 x 102) 97050 5 Well hot - base 76 x 32 (193 x 81) 97347 3 Well hot bain marie 81 x 36 (206 x 91) 97060 6 Well hot - base 90 x 32 (229 x 81) 97357 4 Well hot bain marie 97 x 38 (246 x 97) 97047 3 Well hot bain marie - base 48 x 32 (122 x 81) 97367 5 Well hot bain marie 107 x 40 (272 x 102) 97057 4 Well hot bain marie - base 62 x 32 (157 x 81) 97346 3 Pan NSF7 cold base 81 x 36 (206 x 91) 97067 5 Well hot bain marie - base 76 x 32 (193 x 81) 97366 4 Pan NSF7 Cold base 97 x 38 (246 x 97) 97077 6 Well hot bain marie - base 90 x 32 (229 x 81) 97376 5 Pan NSF7 Cold base 107 x 40 (272 x 102) 97046 3 Pan NSF7 cold - base 48 x 32 (122 x 81) 97345 3 Pan std-ref. base 81 x 36 (206 x 91) 97066 4 Pan NSF7 cold - base 62 x 32 (157 x 81) 97365 4 Pan std-ref. base 97 x 38 (246 x 97) 97076 5 Pan NSF7 cold - base 76 x 32 (193 x 81) 97375 5 Pan std-ref. base 107 x 40 (272 x 102) 97086 6 Pan NSF7 cold - base 90 x 32 (229 x 81) 97343 3 Pan non-ref. base 81 x 36 (206 x 91) 97043 3 Pan std-ref. - base 48 x 32 (122 x 81) 97360 4 Pan non-ref. base 97 x 38 (246 x 97) 97061 4 Pan std-ref. - base 62 x 32 (157 x 81) 97370 5 Pan non-ref. base 107 x 40 (272 x 102) 97070 5 Pan std-ref. - base 76 x 32 (193 x 81) 97391 81 Utility - base 81 x 36 (206 x 91) 97080 6 Pan std-ref. - base 90 x 32 (229 x 81) 97392 97 Utility - base 97 x 38 (246 x 97) 97045 3 Pan non-ref. - base 48 x 32 (122 x 81) 97393 107 Utility - base 107 x 40 (272 x 102) 97065 4 Pan non-ref. - base 62 x 32 (157 x 81) 97312 81 Frost top - base 81 x 36 (206 x 91) 97075 5 Pan non-ref. - base 76 x 32 (193 x 81) 97313 97 Frost top - base 97 x 38 (246 x 97) 97084 6 Pan non-ref. - base 90 x 32 (229 x 81) 97314 107 Frost top - base 107 x 40 (272 x 102) 97220 32 Utility - base 32 x 32 (81 x 81) { Counter Width for all units is 32 (81 cm) 97221 48 Utility - base 48 x 32 (122 x 81) 97222 62 Utility - base 62 x 32 (157 x 81) 97223 76 Utility - base 76 x 32 (193 x 81) 97233 90 Utility - base 90 x 32 (229 x 81) 97025 48 Beverage - base 48 x 32 (122 x 81) 97026 62 Beverage - base 62 x 32 (157 x 81) 97027 76 Beverage - base 76 x 32 (193 x 81) 97212 48 Frost top - base 48 x 32 (122 x 81) 97013 62 Frost top - base 62 x 32 (157 x 81) 97014 76 Frost top - base 76 x 32 (193 x 81) 97216 90 Frost top - base 90 x 32 (229 x 81) 97085 Corner station 32 x 32 (81 x 81) 97215 Cashier station 32 x 32 (81 x 81) Features: Q Dial controls Curved Base - front view Q Corner trim in stainless steel Q 8 foot power cord standard Q Heavy-duty 4 (10.2cm) swivel locking casters Signature Server® 2.0 Options Colors and Textures ..........................................see page 5-30 Curved Base - back view Breath Guards and Accessories .......see pages 5-30 to 5-40 Electrical..............................................see pages 5-41 to 5-42 Additional Options ..............................see pages 5-43 to 5-44 Color options are endless! See Page 5-30 for details. 5-24
- 142. Mobile Serving Equipment The Vollrath Company, LLC Signature Server® Classic Mobile Serving Equipment Breath +++ Features guards available Signature Server® Classic is the choice when functionality and modular in Standard and ease of use is your top priority. Signature Server® Serving Equipment is 2011 NSF2 an industry standard, with updated features to better serve the operator. style Ideal for: Choose from dozens of breath guard styles including the tempered glass Q K-12 Contemporary, Traditional, Progressive, Q Mid-level Colleges Retro or Frameless breath guards Q BI Q Healthcare New options include textured stainless counters or tubular tray slides Optional dial controls Upgrade your Signature Server® unit with a variety of great options! Discreet access panel hides convenient drain hose and valve Full line of laminates including wood and metals NOTE: Signature Server® equipment orders Access® acrylic cannot be cancelled breath guard panels or returned. flip up for easy Folding plate rests or re-stocking and tray slides for easy cleaning Color options are endless! customer access See Page 5-30 for details. Corner trim in Photo Gallery Standard 34 stainless steel view photo (86.4cm) height samples online at vollrathco.com complies with ADA guidelines Entire base constructed of corrosion resistant 18 gauge stainless steel with standard black laminate. Choose optional brushed stainless steel or color Heavy-duty 4 laminates (see color options on Page 5-30) (10.2cm) casters with operator side locking brakes 8 foot power Hot well digital controls: easy to use, bright LEDS cord standard make it easy to read – includes low water indicator 5-25
- 143. vollrathco.com Mobile Serving Equipment Configure your next Foodserving Line-Up Online! Concept™ Equipment Configurator Check out these incredible features: Q Design individual serving line units or complete line-ups NOW Q Choose from hundreds of material, color and equipment options ONLINE! Q Created for use by foodservice dealers, consultant, and designers Q Outputs drawing packages in PDF or DWG file formats Q Outputs quotes with line item detail Q Log onto www.vollrathco.com and click on Concept to register today! Concept is a trademark of Configure One, L.L.C. To Create Signature Server® Classic Line-ups: Bases B P Pages 5-27 thru 5-29 E Electrical Colors and Textures C P Pages 5-41 and 5-42 P Page 5-30 C Counter Accessories Breath Guards B P Page 5-43 and Accessories d Pages 5-30 thru 5-40 A Additional Options P Page 5-44 Note: Signature Server® equipment orders cannot be cancelled or returned. 5-26
- 144. Mobile Serving Equipment The Vollrath Company, LLC ® Signature Server Q Optional 14 gauge work surface available Q Optional brushed stainless steel exterior finish or choose from hundreds of laminate finishes Classic Bases Q Upgraded 18 gauge stainless steel base Q Q Q 18 or 16 gauge 300 series stainless steel counters and wells 300 series stainless steel work surfaces Heavy-duty 4 (10 cm) swivel casters with brakes with standard black laminate Q 51⁄4 (13.3 cm) clearance between floor and bottom of unit Hot Food Bases with Bain Marie Hot Station Touch-Temp® Panel Color options are endless! See Page 5-30 for details. Q High-density fiberglass insulation Q High-density glass Q Single dial control with fiber insulation thermostat control Q Touch-Temp® Q Single drain electronic control Q 625W heating elements Q Optional dial controls Q Drain hose on operator Q Manifold hot well side of base drains are standard Q NSF4 listed Q Energy efficient 625W elements Q Drain hose on operator side of base Color options are endless! Q NSF4 listed See Page 5-30 for details. DIMENSIONS ITEM ITEM ITEM DIMENSIONS ITEM ITEM ITEM DESCRIPTION L X W: IN (CM) H: 34 IN (86 CM) H: 27 IN (69 CM) H: 30 IN (76 CM) DESCRIPTION L X W: IN (CM) H: 34 IN (86 CM) H: 27 IN (69 CM) H: 30 IN (76 CM) 3-well 46 x 28 37030 36230 36130 3-well 46 x 28 37047 36347 36447 (117 x 71) (117 x 71) 4-well 60 x 28 37040 36240 36140 4-well 60 x 28 37057 36357 36457 (152 x 71) (152 x 71) 5-well 74 x 28 37050 36250 36150 5-well 74 x 28 37067 36367 36468 (188 x 71) (188 x 71) 6-well 88 x 28 98888 — — 6-well 88 x 28 37077 36377 36477 (224 x 71) (224 x 71) NSF7 Cold Stations Cold Food Stations Q NSF7 listed: Hold food Q R134A refrigerant Q 8 (20.3 cm) deep well temperatures between 33˚F Q Storage not available Q 11⁄2 (3.2 cm) drain standard and 41˚F (0.6˚C and 5˚C) Q Drain hose and valve on Q Foamed-in-place Q Recessed display well is 3 operator side of base polyurethane insulation (7.6 cm) below the work surface Q Drain hose and valve on Q Refrigeration coils surround sides operator side of base of recess and display well Q R134A refrigerant Q Foamed-in-place polyurethane insulation Q Display depth: 65⁄8 (16.8 cm) Q 11⁄2 (3.2 cm) drain standard Color options are endless! Unit shown with See Page 5-30 for details. steam table pans — order separately page 6-5 through 6-9. Color options are endless! See Page 5-30 for details. ITEM ITEM ITEM COLD PAN DIMENSIONS H: 34 IN H: 27 IN H: 30 IN DIMENSIONS ITEM ITEM DESCRIPTION (L X W) IN (CM) H: 86 CM H: 69 CM H: 76 CM DESCRIPTION L X W: IN (CM) H: 34 IN (86 CM) H: 30 IN (76 CM) Non-refrigerated{| 46 x 28 (117 x 71) 37043 36243 36143 Refrigerated 46 x 28 37046 36146 NSF7 station (117 x 71) Refrigerated| 46 x 28 (117 x 71) 37045 36245 36145 Non-refrigerated{ 60 x 28 (152 x 71) 37060 36260 36160 Refrigerated 60 x 28 37066 36166 NSF7 station (152 x 71) Refrigerated 60 x 28 (152 x 71) 37065 36265 36165 Non-refrigerated{ 74 x 28 (188 x 71) 37070 36270 36170 Refrigerated 74 x 28 37076 36176 NSF7 station (188 x 71) Refrigerated 74 x 28 (188 x 71) 37075 36275 36175 Refrigerated 88 x 28 98710 — Non-refrigerated{ 88 x 28 (224 x 71) 98707 — — NSF7 station (224 x 71) Refrigerated 88 x 28 (224 x 71) 98708 — — Note: Signature Server® equipment orders { NSF Certified | Storage not available on 46 cold pans cannot be cancelled or returned. 5-27
- 145. vollrathco.com Mobile Serving Equipment Signature Server® Classic Bases Hot/Cold Food Stations Utility Stations Q Three 12 x 20 x 65⁄8 deep Q R134A refrigerant Q 16 gauge 300 (30.5 x 50.8 x 16.8 cm) hot well Q Separate drain hoses series stainless openings and one 243⁄4 x 193⁄8 and valves on operator steel work surface x 8 deep (62.9 x 49.2 x 20.3 side of base Q Optional storage cm) cold pan opening (2 pan) available Q High-density fiberglass insulation surrounds hot wells Q Energy efficient 625W elements Q Touch-Temp® electronic control Color options are endless! See Page 5-30 for details. Q Cold Pan: 11⁄2 (3.2 cm) drain standard DIMENSIONS ITEM ITEM ITEM DESCRIPTION L X W: IN (CM) H: 34 IN (86 CM) H: 27 IN (69 CM) H: 30 IN (76 CM) Q Foamed-in-place polyurethane insulation Utility 28 x 28 37020 36220 36120 surrounds cold well Color options are endless! station (71 x 71) See Page 5-30 for details. Utility 46 x 28 37021 36221 36121 DIMENSIONS ITEM ITEM ITEM DESCRIPTION L X W: IN (CM) H: 34 IN (86 CM) H: 27 IN (69 CM) H: 30 IN (76 CM) station (117 x 71) Hot/cold Non- 74 x 28 37091 36291 36191 Utility 60 x 28 37022 36222 36122 Refrigerated station* (188 x 71) station (152 x 71) Hot/cold 74 x 28 37095 36295 36195 Utility 74 x 28 37023 36223 36123 Refrigerated station (188 x 71) station (188 x 71) *NSF Certified, Storage not available Utility 88 x 28 98711 — — Note: Signature Server® equipment orders station (224 x 71) cannot be cancelled or returned. Beverage Counters Universal Corner Station Q 16 gauge 300 series stainless steel work surface Q 16 gauge 300 series stainless Q Drain and full-length louvered drip trough steel work surface Q Q Use as inside or outside corner Undercounter reinforcing channel Q Optional storage shelf and sliding doors Color options are endless! See Page 5-30 for details. ITEM ITEM ITEM DESCRIPTION H: 34 IN (86 CM) H: 27 IN (69 CM) H: 30 IN (76 CM) Corner station 37085 36285 36185 Entree Cart Q 65⁄8 (16.8 cm) deep well standard Q Energy efficient 625W element Q Complete with perforated rack, spiked meat holder, poly cutting board, drip pan, and au jus pan Q Infinite control Color options are endless! Q NSF4 listed See Page 5-30 for details. Unit shown with optional tray slides DIMENSIONS (L X W) ITEM ITEM (page 5-43) and breath guard (pages Color options are endless! DESCRIPTION IN (CM) H: 34 IN (86 CM) H: 30 IN (76 CM) 5-30 through 5-40) — order separately. See Page 5-30 for details. Beverage counter 46 x 28 (117 x 71) 37025 36125 DIMENSIONS ITEM Beverage counter 60 x 28 (152 x 71) 37026 36126 DESCRIPTION L X W: IN (CM) H: 34 IN (86 CM) Beverage counter 74 x 28 (188 x 71) 37027 36127 Entree cart 28 x 28 (71 x 71) 37080 ® Note: Signature Server equipment orders cannot be cancelled or returned. 5-28
- 146. Mobile Serving Equipment The Vollrath Company, LLC Signature Server® Classic Bases Milk Stations Frost Top Stations Q Double wall construction Q Self-leveling dispenser with Q Display area fits flush Q 1 (2.5 cm) wide drip trough Q Foamed-in-place deep molded trays with work surface with drain polyurethane insulation Q Self leveling dispensers Q Full frost pattern on Q R134A refrigerant Q Double wall sliding doors designed for plastic trays, not display surface crates — trays included Color options are endless! See Page 5-30 for details. DIMENSIONS ITEM ITEM ITEM DESCRIPTION L X W: IN (CM) H: 34 IN (86 CM) H: 27 IN (69 CM) H: 30 IN (76 CM) Frost top 46 x 28 37012 36212 36112 (117 x 71) Frost top 60 x 28 37013 36213 36113 Color options are endless! See Page 5-30 for details. (152 x 71) Frost top 74 x 28 37014 36214 36114 WIDTH CASE/CARTON TRAY/CARTON (188 x 71) ITEM IN (CM) CAPACITY* CAPACITY 37001 60 (152) 6/288 10/360 Frost top 88 x 28 36115 36116 36117 37002 74 (188) 8/384 15/450 (224 x 71) *Does not use self-dispensers Storage not available on Frost Top Bases Cashier Station Tray and Flatware Cart Q Operator side open Q Standard with twelve perforated cylinders Q Stainless steel bottom shelf Q Corner base bumpers standard Q Accepts optional cash drawer Q Available with standard stainless – or choose custom color Q Optional cord cutout in work surface with Q Tray bottom receptacle inside base dimension: 221⁄2 x 33 (57.2 x 83.8 cm) Color options are endless! Color options are endless! See Page 5-30 for details. See Page 5-30 for details. ITEM DESCRIPTION DIMENSIONS (L X W): IN (CM) ITEM DESCRIPTION DIMENSIONS (L X W X H): IN (CM) 37015 Cashier station 28 x 28 (71 x 71) 99305 Tray and flatware cart 38 x 221⁄2 x 34 (97 x 57 x 86) Note: Signature Server® equipment orders cannot be cancelled or returned. 5-29
- 147. vollrathco.com Mobile Serving Equipment Signature Server® 2.0 Classic Colors and Textures Color Choices All Signature Server® base units come standard with 18 gauge stainless steel and black laminate. Optional color laminates available. Color chips are available through local building supply vendors with hundreds of color selections, to fit any décor. Laminate veneers available at an additional cost. Manufacturers laminate number and description must be provided at time of order entry. We can cover your unit with your choice of Formica®, Nevamar®, Pionite® and Wilsonart® laminate finishes. Allow 18 days to manufacture when adding a laminate finish. Units can also be ordered with all stainless steel construction. OPTIONAL MATTE OPTIONAL OPTIONAL DESCRIPTION LAMINATE ITEM WOODGRAIN ITEM STAINLESS ITEM Corner Station and 36680 36687 36693 46-48 (117-122 cm) units 60-62 (152-157 cm) units 36681 36688 36694 74-76 (188-193 cm) units 36682 36689 36695 88-90 (224-229 cm) units 98835 98835 98836 28-32 (71-81 cm) 36683 36690 36696 Utility and Entree Cart Traditional double-sided Cashier Station 36685 36691 36697 buffet breath guard on Vollrath's Signature Server® Tray and Flatware 36686 36692 — Select™ Mobile Unit Color Options Are Endless! Visit the following websites to select from a wide variety of laminates: Textures Signature Server® Options now include textures on stainless steel construction. Select™ Option! Contemporary textures are perfect for BI and college buffet set-ups. Manufactured by the foodservice experts in stainless – Vollrath! OPTIONAL FEATURE ITEM Crescent Textured Countertop 98616 Crescent Textured Plate Rest (each) 98617 5-30
- 148. Mobile Serving Equipment The Vollrath Company, LLC Signature Server® 2.0 Classic Breath Guards Choose from: Q Progressive Q Retro Q Contemporary Q Traditional Q Frameless Q Classic Standard and NSF Certified versions Get Increased Coverage with NSF Certified Breath Guards Q NSF Certified Breath Guards offer more complete horizontal and vertical coverage of food without obstructing the customers view. Q End panels are enclosed with 1/4 inch Plexi Glass Same Color/Finish Options Q All models offer the same quality of construction as Standard Vollrath and color/finish selection you expect from Vollrath® Breath Guards Q For more information and dimensions, please reference our spec sheets at www.vollrathco.com For product selection details see pgs. 5-33 through 5-40 Longer Overhang Enclosed 1/4 with Shorter Front Plexi Glass Access Opening for End Panels Increased Food Safety Model NGB98402 shown in Black 80% Gloss Model NPB89272 shown in Black 80% Gloss Note: Standard models do not include end panels. 5-31
- 149. vollrathco.com Mobile Serving Equipment Progressive Style PLEXI GLASS PLEXI GLASS PLEXI GLASS PLEXI GLASS END PANEL END PANEL END PANEL END PANEL ON NSF ON NSF ON NSF ON NSF MODEL ONLY MODEL ONLY MODEL ONLY MODEL ONLY Double-Sided Single-Sided w/Top Shelf Single-Sided Cafeteria w/Top Shelf NSF Certified Model NSF Certified Model NSF Certified Model NSF Certified Model Retro Style PLEXI GLASS PLEXI GLASS PLEXI GLASS PLEXI GLASS END PANEL END PANEL END PANEL END PANEL ON NSF ON NSF ON NSF ON NSF MODEL ONLY MODEL ONLY MODEL ONLY MODEL ONLY Double-Sided Single-Sided w/Top Shelf Single-Sided Cafeteria w/Top Shelf NSF Certified Model NSF Certified Model NSF Certified Model NSF Certified Model Contemporary Style PLEXI GLASS PLEXI GLASS PLEXI GLASS PLEXI GLASS END PANEL END PANEL END PANEL END PANEL ON NSF ON NSF ON NSF ON NSF MODEL ONLY MODEL ONLY MODEL ONLY MODEL ONLY Double-Sided Single-Sided w/Top Shelf Single-Sided Cafeteria w/Top Shelf NSF Certified Model NSF Certified Model NSF Certified Model NSF Certified Model Traditional Style PLEXI PLEXI PLEXI GLASS GLASS GLASS END END END PANEL PANEL PANEL PLEXI GLASS ON NSF ON NSF ON NSF END PANEL MODEL MODEL MODEL ON NSF ONLY ONLY ONLY MODEL ONLY Double-Sided Single-Sided w/Top Shelf Single-Sided Cafeteria w/Top Shelf NSF Certified Model NSF Certified Model NSF Certified Model NSF Certified Model 5-32
- 150. Mobile Serving Equipment The Vollrath Company, LLC Signature Server® 2.0 Classic Breath Guards – Progressive, Retro Contemporary, Traditional and Frameless Q Important: Contact Vollrath for Specification Sheet Dimensions prior to ordering Available in both Q Accessories include fluorescent lights, incandescent lights, Cayenne® heat strips and Cayenne® heat strips with lights – electrical appliances are UL and CUL listed standard or NSF2 Q Foodsafe and meets sanitation requirements Certified styles Progressive Style Double-sided Buffet Single-sided Buffet Single-sided Buffet Cafeteria with with Top Shelf Top Shelf Retro Style Double-sided Buffet Single-sided Buffet Single-sided Buffet Cafeteria with with Top Shelf Top Shelf Contemporary Style Double-sided Buffet Single-sided Buffet Single-sided Buffet Single-sided Cafeteria with Top Shelf with Top Shelf Traditional Style Double-sided buffet Single-sided buffet Single-sided buffet Single-sided cafeteria Vertical cafeteria with top shelf with top shelf Frameless Style 5-33
- 151. vollrathco.com Mobile Serving Equipment Signature Server® 2.0 Optional colors - same price as standard color. Simply add 2-Digit 30 Black Suffix to base item number when Classic Breath Guards ordering optional colors. 80% Gloss 20 Black Hammer 00 Polished 50 Copper Vein 70 Black/White Semi-Gloss Chrome 40 White Hammer 10 Brass 60 Silver Vein 80 Silver Hammertone Progressive Style Q End frames constructed of 3⁄8 (1 cm) water-jet cut aluminum with extruded aluminum glass frames. Progressive style breath guards are both lightweight for easy installation and strong for long-term use Q 99 Standard 1 ⁄4” (6.4 mm) tempered glass is secured in a tight-fitting channel, Gray Hammer creating a continuous, clean line from framework to glass Semi-Gloss Q (standard) Available in standard Gray Hammer Semi-Gloss (99) or 9 stylish powder-coated colors (00, 10, 20, 30, 40, 50, 60, 70, 80) Retro Style Q End frames constructed of 3⁄8 (1 cm) water-jet cut aluminum with extruded aluminum glass frames. Retro style breath guards are both lightweight for easy installation and strong for long-term use Q 1 ⁄4” (6.4 mm) tempered glass is secured in a tight-fitting channel, 99 Standard Traditional double-sided buffet breath Gray Hammer guard with heat strip on Vollrath's creating a continuous, clean line from framework to glass Semi-Gloss Signature Server® Classic Mobile Unit Q Available in standard Gray Hammer Semi-Gloss (99) or 9 stylish (standard) powder-coated colors (00, 10, 20, 30, 40, 50, 60, 70, 80) Contemporary Q 1” (2.5 cm) stainless steel tubular construction is sleek, durable, Q Easy to assemble and install - instructions easy to clean and enhances the food presentation and mounting materials included Q 3 ⁄8” (9.5 mm) tempered glass with polished ends protect food Q Mounts to stainless steel, solid surface Q Available in brushed Stainless Steel (99), Brass (10) or Black (30) and laminate countertops Q Q 2 optional colors available (10 or 30) Shipped knocked down for lower shipping costs 99 Stainless Steel (standard) Traditional Q Constructed of 11⁄2” (3.2 cm) extruded aluminum, Q Shipped pre-assembled in a sturdy crate Traditional breath guards are both lightweight for easy Q Mounts to stainless steel, solid surface installation and strong for long-term use and laminate countertops – easy to Q 1 ⁄4” (6.4 mm) tempered glass is secured in a follow mounting instructions included tight-fitting channel, creating a continuous, clean Q 1 year warranty line from framework to glass 99 Aluminum (standard) Q Available in natural Aluminum finish (99) or 6 stylish powder-coated colors (00, 10, 30, 40, 50, 60) Frameless Q Extruded aluminum mounting clips securely Q Shipped knocked down to reduce freight cost grasp 3⁄8 (9.5 mm) thick tempered glass Q Easy to assemble with included hex tool Q Frameless design showcases food presentation Q Black Clip optional (30) Q Easy to install plated, extruded aluminum clips in Q Important: Specify 14 gauge standard Chrome finish (99) or optional Black (30) stainless steel countertops when Chrome Clip Q (standard) End panels are included using Frameless Breath Guards 5-34
- 152. Mobile Serving Equipment The Vollrath Company, LLC Signature Server® 2.0 Classic Breath Guards Progressive Style{ Note: All accessories are 120V. Custom sizes and other accessory voltages also available. Contact your Vollrath sales representative for more information. See page 5-31 for ordering information on Signature Server® Breath Guards. Dimensions can be found on spec sheets at www.vollrathco.com. Note: Single-sided Buffet Lights and Single-sided Buffet with Top Shelf Double-sided Buffet Heat Strips with Lights are NOT available for Build Your Progressive Style Breath Guard Cafeteria with Top Shelf Single-Sided Buffet styles Note: Breath Guards cannot be cancelled or returned. *Standard item is shown. To STEP 1: select NSF item, please add N STEP 2: STEP 3: ( OPTIONAL ) CHOOSE NSF* ITEM OR STANDARD ITEM prefix to base item number CHOOSE COLOR SUFFIX CHOOSE OPTIONAL ACCESSORIES (ONLY CHOOSE ONE)} SIGNATURE SIGNATURE SERVER® CLASSIC DESCRIPTION SUFFIX COLOR SUFFIX OPTIONS| SERVER® 2.0 — GB98400 2 Well or 2 Pan Standard Gray 25 2 Well Fluorescent Lights 99 98401 GB98401 Double- 3 Well or 3 Pan Hammer 15 2 Well Incandescent Lights 98402 GB98402 Sided 4 Well or 4 Pan Polished 35 2 Well Heat Strip 00 98403 GB98403 Buffet 5 Well or 5 Pan Chrome 12 2 Well Heat Strip with Lights 98404 GB98404 6 Well or 6 Pan 26 3 Well Fluorescent Lights 10 Brass — GB98405 2 Well or 2 Pan 31 3 Well Incandescent Lights Single- 98406 GB98406 3 Well or 3 Pan Black Hammer 36 3 Well Heat Strip Sided 20 98407 GB98407 4 Well or 4 Pan Semi-Gloss 41 3 Well Heat Strip with Lights Buffet with 98408 GB98408 5 Well or 5 Pan Black 27 4 Well Fluorescent Lights Top Shelf 30 98409 GB98409 6 Well or 6 Pan 80% Gloss 32 4 Well Incandescent Lights — GB98410 2 well or 2 Pan 37 4 Well Heat Strip 40 White Hammer 98411 GB98411 Single- 3 Well or 3 Pan 42 4 Well Heat Strip with Lights 98412 GB98412 Sided 4 Well or 4 Pan 28 5 Well Fluorescent Lights 50 Copper Vein 98413 GB98413 Buffet 5 Well or 5 Pan 33 5 Well Incandescent Lights 98414 GB98414 6 Well or 6 Pan 38 5 Well Heat Strip 60 Silver Vein — GB98415 2 Well or 2 Pan 43 5 Well Heat Strip with Lights 98416 GB98416 Cafeteria 3 Well or 3 Pan 29 6 Well Fluorescent Lights 70 Black/White 98417 GB98417 with 4 Well or 4 Pan 34 6 Well Incandescent Lights 98418 GB98418 Top Shelf 5 Well or 5 Pan Silver 39 6 Well Heat Strip 80 98419 GB98419 6 Well or 6 Pan Hammertone 44 6 Well Heat Strip with Lights { Lead time of 4 6 weeks L d ti f 4-6 k Example Item Number | All heat strips come with On-Board Toggle } Options not available on Single-Sided Buffet NGB984003015 Suffix Codes: Refer to tables STEP 1: NSF* Model, 2 Well Double Sided Buffet STEP 3: 2 Well Incandescent Lights for Signature Server® 2.0 STEP 2: Black 80% Gloss Frameless Style See page 5-31 for ordering information on Signature Server Breath Guards. SIGNATURE SIGNATURE WIDTH INSIDE FLANGE TO WIDTH OUTSIDE FLANGE TO DEPTH OUTSIDE FLANGE TO HEIGHT COUNTER TO SERVER® CLASSIC SERVER® 2.0 DESCRIPTION INSIDE FLANGE: IN (CM) OUTSIDE FLANGE: IN (CM) OUTSIDE FLANGE: IN (CM) TOP OF BREATH GUARD: IN (CM) — FB89400 2 Well or 2 Pan 301⁄2 (77.5) 33 (83.8) 103⁄4 (27.3) 13 (33) 89401 FB89401 3 Well or 3 Pan 43 (109.2) 451⁄2 (115.6) 103⁄4 (27.3) 13 (33) Single- 89402 FB89402 4 Well or 4 Pan 561⁄4 (142.9) 583⁄4 (149.2) 103⁄4 (27.3) 13 (33) Sided 89403 FB89403 5 Well or 5 Pan 691⁄2 (176.5) 72 (182.9) 103⁄4 (27.3) 13 (33) 89404 FB89404 6 Well or 6 Pan 823⁄4 (210) 851⁄4 (216.5) 103⁄4 (27.3) 13 (33) 1 Breath guards ship FOB factory. (Canandaigua, NY) Note: Breath Guards cannot be cancelled or returned. 5-35
- 153. vollrathco.com Mobile Serving Equipment Signature Server® 2.0 Classic Breath Guards Retro Style{ Note: All accessories are 120V. Custom sizes and other accessory voltages also available. Contact your Vollrath sales representative for more information. See page 5-31 for ordering information on Signature Server® Breath Guards. Dimensions can be found on spec sheets at www.vollrathco.com. Note: Lights and Single-sided Buffet Single-sided Buffet with Top Shelf Double-sided Buffet Heat Strips with s Lights are NOT available for O Cafeteria with Top Shelf Build Your Retro Style Breath Guard Single-Sided Buffet styles Note: Breath Guards cannot be cancelled or returned. *Standard item is shown. To STEP 1: select NSF item, please add N STEP 2: STEP 3: ( OPTIONAL ) CHOOSE NSF* ITEM OR STANDARD ITEM prefix to base item number CHOOSE COLOR SUFFIX CHOOSE OPTIONAL ACCESSORIES (ONLY CHOOSE ONE)} SIGNATURE SIGNATURE DESCRIPTION SUFFIX COLOR SUFFIX OPTIONS| SERVER® CLASSIC SERVER® 2.0 — RB98445 2 Well or 2 Pan Standard Gray 16 2 Well Fluorescent Lights 99 98446 RB98446 Double- 3 Well or 3 Pan Hammer 75 2 Well Incandescent Lights 98447 RB98447 Sided 4 Well or 4 Pan Polished 17 2 Well Heat Strip 00 98448 RB98448 Buffet 5 Well or 5 Pan Chrome 85 2 Well Heat Strip with Lights 98449 RB98449 6 Well or 6 Pan 71 3 Well Fluorescent Lights 10 Brass — RB98450 2 Well or 2 Pan 76 3 Well Incandescent Lights Single- 98451 RB98451 3 Well or 3 Pan Black Hammer 81 3 Well Heat Strip Sided 20 98452 RB98452 4 Well or 4 Pan Semi-Gloss 86 3 Well Heat Strip with Lights Buffet with 98453 RB98453 5 Well or 5 Pan Black 72 4 Well Fluorescent Lights Top Shelf 30 98454 RB98454 6 Well or 6 Pan 80% Gloss 77 4 Well Incandescent Lights — RB98455 2 well or 2 Pan 82 4 Well Heat Strip 40 White Hammer 98456 RB98456 Single- 3 Well or 3 Pan 87 4 Well Heat Strip with Lights 98457 RB98457 Sided 4 Well or 4 Pan 73 5 Well Fluorescent Lights 50 Copper Vein 98458 RB98458 Buffet 5 Well or 5 Pan 78 5 Well Incandescent Lights 98459 RB98459 6 Well or 6 Pan 83 5 Well Heat Strip 60 Silver Vein — RB98460 2 Well or 2 Pan 88 5 Well Heat Strip with Lights 98461 RB98461 Cafeteria 3 Well or 3 Pan 74 6 Well Fluorescent Lights 70 Black/White 98462 RB98462 with 4 Well or 4 Pan 79 6 Well Incandescent Lights 98463 RB98463 Top Shelf 5 Well or 5 Pan Silver 84 6 Well Heat Strip 80 98464 RB98464 6 Well or 6 Pan Hammertone 89 6 Well Heat Strip with Lights { Lead time of 4 6 weeks 4-6 Example Item Number | All heat strips come with On-Board Toggle } Options not available on Single-Sided Buffet NRB984458017 Suffix Codes: Refer to tables STEP 1: NSF Model, 2 Well Double-Sided Buffet STEP 3: 2 Well Heat Strip with Top Shelf for Signature Server® 2.0 STEP 2: Silver Hammertone NSF 2 Breath Guards For more information see overview on pages 5-31 and 5-32 and visit www.vollrathco.com for specification sheets. 5-36
- 154. Mobile Serving Equipment The Vollrath Company, LLC Signature Server® 2.0 Classic Breath Guards Contemporary double-sided buffet breath Contemporary Style{ guard on Vollrath’s Signature Server® Select™ mobile unit Note: All accessories are 120V. Custom sizes and other accessory voltages also available. Contact your Vollrath sales representative for more information. See page 5-31 for ordering information on Signature Server® Breath Guards. Dimensions can be found on spec sheets at www.vollrathco.com. Note: Single-sided Buffet Single-sided Buffet with Top Shelf Lights and Double-sided Buffet s Heat Strips with Cafeteria with Top Shelf Lights are NOT available for Build Your Contemporary Style Breath Guard Single-Sided Buffet styles Note: Breath Guards cannot be cancelled or returned. *Standard item is shown. To STEP 1: select NSF item, please add N STEP 2: STEP 3: ( OPTIONAL ) CHOOSE NSF* ITEM OR STANDARD ITEM prefix to base item number CHOOSE COLOR SUFFIX CHOOSE OPTIONAL ACCESSORIES (ONLY CHOOSE ONE)} SIGNATURE SIGNATURE DESCRIPTION SUFFIX COLOR SUFFIX OPTIONS| SERVER® CLASSIC SERVER® 2.0 — CB98663 2 Well or 2 Pan 64 2 Well Fluorescent Lights 98637 CB98637 Double- 3 Well or 3 Pan 52 2 Well Heat Strip 98638 CB98638 Sided 4 Well or 4 Pan Standard Gray 98639 CB98639 Buffet 5 Well or 5 Pan 99 57 2 Well Heat Strip with Lights Hammer 98640 CB98640 6 Well or 6 Pan 45 3 Well Fluorescent Lights — CB98662 2 Well or 2 Pan Single- 53 3 Well Heat Strip 98651 CB98651 3 Well or 3 Pan Sided 58 3 Well Heat Strip with Lights 98652 CB98652 4 Well or 4 Pan Buffet with 98653 CB98653 5 Well or 5 Pan 14 4 Well Fluorescent Lights Top Shelf 98654 CB98654 6 Well or 6 Pan 10 Brass 54 4 Well Heat Strip — CB98661 2 well or 2 Pan 98633 CB98633 Single- 3 Well or 3 Pan 59 4 Well Heat Strip with Lights 98634 CB98634 Sided 4 Well or 4 Pan 46 5 Well Fluorescent Lights 98635 CB98635 Buffet 5 Well or 5 Pan 55 5 Well Heat Strip 98636 CB98636 6 Well or 6 Pan — CB98660 2 Well or 2 Pan 90 5 Well Heat Strip with Lights 98650 CB98650 Cafeteria 3 Well or 3 Pan Black 30 51 6 Well Fluorescent Lights 80% Gloss 98626 CB98626 with 4 Well or 4 Pan 56 6 Well Heat Strip 98627 CB98627 Top Shelf 5 Well or 5 Pan 98628 CB98628 6 Well or 6 Pan 91 6 Well Heat Strip with Lights { Lead time of 4 6 weeks L d ti f 4-6 k | All heat strips come with On-Board Toggle Example Item Number } Options not available on Single-Sided Buffet NCB986289991 Suffix Codes: Refer to tables STEP 1: NSF Model, 6 Well Cafeteria with Top Shelf STEP 3: 6 Well Lights and Heat Strip for Signature Server® 2.0 STEP 2: Standard Gray Hammer Adjustable Contemporary Style Breath Guards Contact Vollrath for custom quotes on Adjustable Contemporary Style Breath Guards Q Adjustable Height Q Adjustable Angle Q 1 ⁄4 and 3⁄8 Tempered Glass 5-37
- 155. vollrathco.com Mobile Serving Equipment Signature Server® 2.0 Classic Breath Guards Traditional Style{ Note: All accessories are 120V. Custom sizes and other accessory voltages also available. Contact your Vollrath sales representative for more information. See page 5-31 for ordering information on Signature Server® Breath Guards. Dimensions can be found on spec sheets at www.vollrathco.com. Single-sided Buffet Double-sided Buffet Single-sided Buffet with Top Shelf Cafeteria with Top Shelf Vertical cafeteria Build Your Traditional Style Breath Guard Note: Lights and Heat Strips with Lights Note: Breath Guards cannot be cancelled or returned. are NOT available for Single-Sided Buffet and Vertical Cafeteria styles. STEP 1: *Standard item is shown. CHOOSE NSF* ITEM OR STANDARD ITEM To select NSF item, please add N prefix to – VERTICAL CAFETERIA BREATH GUARDS ARE base item number STEP 2: STEP 3: ( OPTIONAL ) NOT AVAILABLE WITH AN NSF 2 CERTIFICATION CHOOSE COLOR SUFFIX CHOOSE OPTIONAL ACCESSORIES (ONLY CHOOSE ONE)} SIGNATURE SIGNATURE DESCRIPTION SUFFIX COLOR SUFFIX OPTIONS| SERVER® CLASSIC SERVER® 2.0 — PB89285 2 Well or 2 Pan 66 2 Well Fluorescent Lights 89286 PB89286 Double- 3 Well or 3 Pan Standard 99 05 2 Well Incandescent Lights 89287 PB89287 Sided 4 Well or 4 Pan Aluminum 95 2 Well Heat Strip 89288 PB89288 Buffet 5 Well or 5 Pan 89289 PB89289 6 Well or 6 Pan 13 2 Well Heat Strip with Lights Polished — PB89280 2 Well or 2 Pan 00 67 3 Well Fluorescent Lights Single- Chrome 89281 PB89281 3 Well or 3 Pan Sided 06 3 Well Incandescent Lights 89282 PB89282 4 Well or 4 Pan Buffet with 68 3 Well Heat Strip 89283 PB89283 5 Well or 5 Pan Top Shelf 10 Brass 89284 PB89284 6 Well or 6 Pan 01 3 Well Heat Strip with Lights — PB89270 2 well or 2 Pan 92 4 Well Fluorescent Lights 89271 PB89271 Single- 3 Well or 3 Pan Black 07 4 Well Incandescent Lights 89272 PB89272 Sided 4 Well or 4 Pan 30 80% Gloss 97 4 Well Heat Strip 89273 PB89273 Buffet 5 Well or 5 Pan 89274 PB89274 6 Well or 6 Pan 02 4 Well Heat Strip with Lights — PB89265 2 Well or 2 Pan 93 5 Well Fluorescent Lights 40 White Hammer 89266 PB89266 Cafeteria 3 Well or 3 Pan 08 5 Well Incandescent Lights 89267 PB89267 with 4 Well or 4 Pan 98 5 Well Heat Strip 89268 PB89268 Top Shelf 5 Well or 5 Pan 89269 PB89269 6 Well or 6 Pan 50 Copper Vein 03 5 Well Heat Strip with Lights — PB89260 2 Well or 2 Pan 94 6 Well Fluorescent Lights 89261 PB89261 3 Well or 3 Pan Vertical 09 6 Well Incandescent Lights 89262 PB89262 4 Well or 4 Pan Cafeteria 60 Silver Vein 11 6 Well Heat Strip 89263 PB89263 5 Well or 5 Pan 89264 PB89264 6 Well or 6 Pan 04 6 Well Heat Strip with Lights { Lead time of 4-6 weeks Example Item Number | All heat strips come with On-Board Toggle } Options not available on Single-Sided NPB89285 3005 Suffix Codes: Refer to tables Buffet or Vertical Cafeteria STEP 1: NSF Model, 2 Well Double Sided Buffet STEP 3: 2 Well Incandescent Lights for Signature Server® 2.0 STEP 2: Black 80% Gloss NSF 2 Breath Guards For more information see overview on pages 5-31 and 5-32 and visit www.vollrathco.com for specification sheets. 5-38
- 156. Mobile Serving Equipment The Vollrath Company, LLC Signature Server® Classic Breath Guards Accessories Classic Cafeteria Access® Breath Guards Breath Guards Q Stainless steel uprights Q 12 (30.5 cm) Q and end caps serving opening Stainless steel construction Double-Shelf Q 18 gauge stainless steel Q *Optional height Q 1 (2.5 cm) square tubular breath guard wrapper adjustment without tools stainless uprights Q 1⁄4 (.64 cm) acrylic Q *9 to 15 (22.9 to 38.1 cm) Q 300 series stainless steel top shelf breath guard panels that serving opening Q 1⁄4 (.6 cm) acrylic breath guard panels flip up for easy access height adjustment Q Double-shelf model has adjustable and cleaning front breath guard panels with middle acrylic shelf Single-Shelf ITEM ITEM ITEM ITEM ITEM ITEM ITEM ITEM ITEM ITEM L: 28 IN L: 46 IN L: 60 IN L: 74 IN L: 88 IN L: 28 IN L: 46 IN L: 60 IN L: 74 IN L: 88 IN DESCRIPTION L: 71 CM L: 117 CM L: 152 CM L: 188 CM L: 224 CM DESCRIPTION L: 71 CM L: 117 CM L: 152 CM L: 188 CM L: 224 CM Single-shelf cafeteria 37310 37311 37312 37313 9861006 Access buffet, 36339 36343 36363 36373 — adjustable* NSF2 Single-shelf N37310 N37311 N37312 N37313 N9861006 NSF2 Access buffet, N36339 N36343 N36363 N36373 — cafeteria adjustable* Double-shelf cafeteria 37320 37321 37322 37323 9861707 Access buffet, 36337 36341 36361 36371 9860206 non-adjustable NSF2 Double-shelf N37320 N37321 N37322 N37323 N9861707 NSF2 Access buffet, N36337 N36341 N36361 N36371 N9860206 cafeteria non-adjustable Classic Economy Classic Speed Serve Options Buffet Breath GuardS Q Angled serving shelves Q Frame welded Q 1 (2.5 cm) stainless steel tubing at each seam Q 18 gauge, 1 (2.5 cm) square tubular 300 series stainless steel uprights Q Stainless steel reinforcing center bracket Q 1⁄4 (.64 cm) acrylic breath guard panels 36393 - 36397 - Single Two Shelf Shelf with Lights *Baskets not included ITEM DESCRIPTION ITEM ITEM ITEM ITEM ITEM 36392 46 (117 cm) two shelf L: 28 IN L: 46 IN L: 60 IN L: 74 IN L: 88 IN DESCRIPTION L: 71 CM L: 117 CM L: 152 CM L: 188 CM L: 224 CM 36393 60 (162 cm) two shelf Buffet breath 36300 36301 36302 36303 98607 36394 74 (188 cm) two shelf guard 36395 88 (224 cm) two shelf NSF2 Buffet N36300 N36301 N36302 N36303 N98607 36396 46 (117 cm) single shelf with lights breath guard 36397 60 (162 cm) single shelf with lights 36398 74 (188 cm) single shelf with lights Note: Signature Server® equipment orders cannot be cancelled or returned. 36390 88 (224 cm) single shelf with lights 5-39
- 157. vollrathco.com Mobile Serving Equipment Signature Server® Classic Breath Guards Accessories Incandescent/Infrared* Lights Fluorescent* Lights Q Master On/Off Switch Q Cone shaped reflector Q Stainless steel mounting assembly Q Accepts standard shields concentrate heat Q On/Off switch base incandescent over well Q Clear plastic tube shield bulbs or heat lamps Q Incandescent/infrared up to 250W lamps cannot be specified Q 18-8 stainless steel for standard cafeteria mounting assembly breath guards ITEM ITEM ITEM ITEM ITEM ENTREE L: 46 IN L: 60 IN L: 74 IN L: 88 IN DESCRIPTION UNIT L: 117 CM L: 152 CM L: 188 CM L: 224 CM Incandescent/ 36440 36431 36432 36433 98625 ITEM ITEM ITEM ITEM L: 46 IN L: 60 IN L: 74 IN L: 88 IN infrared DESCRIPTION L: 117 CM L: 152 CM L: 188 CM L: 224 CM *Bulbs and lamps not supplied – order separately. Fluorescent 36421 36422 36423 98622 White 250W Bulb - Item 72242. Red 500W Bulb - Item 72241 *Bulbs and lamps not supplied Cayenne® Heat Strips Customize Your Q Available as heat strip or heat strip with lights Q Q Includes onboard toggle switches Heat strip with lights cannot be specified for Signature Server® Q cafeteria breath guards Heat strips cannot be specified for double shelf Lineup with Signage cafeteria breath guard Q ACM construction Q For more information on Cayenne® Heat Strips, Q Customer must provide artwork in one of the following formats: see pages 3-22 and 4-14 to 4-20 Q Contact your Vollrath representative for more details ITEM ITEM ITEM ITEM L: 46 IN L: 60 IN L: 74 IN L: 88 IN DESCRIPTION L: 117 CM L: 152 CM L: 188 CM L: 224 CM Heat strip 36401 36402 36403 98623 Heat strip with lights 36411 36412 36413 98624 Note: Signature Server® equipment orders cannot be cancelled or returned. 5-40
- 158. Mobile Serving Equipment The Vollrath Company, LLC Signature Server® 2.0 Classic — Electrical Instructions 1 NOTES: When suffix begins with “E,” electrical rating same as when suffix begins Select Model of unit: with “B.” Example: EFA is rated same as BFA. AMPS listed are for Total Unit — all wells and lighting. See next page for receptacle configuration. If model number 1. Select Breath Guard type begins with 36_ _ _, unit is 35 high and manufactured prior to 1994. If model 2. Select Breath Guard, Lights/Heater option number begins with 361 or 362, the unit is either 27 or 30 high respectively. 3. Select Voltage 2 For other types, contact Vollrath technical support Note: Signature Server® equipment Model Number orders cannot be cancelled or returned. XXXXX - XXXXX - — — — Suffix: Refer to tables Voltage 3 Color Breath Guard 3. A = 120 B = 208 Number Type of Breath Lights/Heater Option C = 240 F = 120/208 5 Digit Base Number Guard Option 2 N = None 2. H = Heat Strip W = Heat Strip w/light G = 120/240 Example: 37047 for 3-Well 34˝ high Bain Marie Hot Station 1. C = Cafeteria, Single F = Fluorescent I = Incandescent N = None D = Cafeteria, Double B = Buffet, Double I = Infrared 3 SINGLE A = Economy N = None Important: For 2011 NSF2 Breath Guards, the Phase Only same electrical requirements will apply. E = Access/Adjustable 1 F = Entree Hot Wells (625W per well) Note: Electrical continues on page 5-40. 3-WELL 4-WELL 5-WELL 6-WELL TOTAL NEMA TOTAL NEMA TOTAL NEMA TOTAL NEMA SUFFIX VOLTS PH VOLTS PH VOLTS PH VOLTS PH AMPS RECEPTACLE AMPS RECEPTACLE AMPS RECEPTACLE AMPS RECEPTACLE AFA 120 16 1 5-20R 120 21.4 1 5-30R — — — — — — — — BFA 120 16 1 5-20R 120 21.4 1 5-30R — — — — — — — — CFA 120 16 1 5-20R 120 21.4 1 5-30R — — — — — — — — DFA 120 16 1 5-20R 120 21.4 1 5-30R — — — — — — — — AHA 120 20.8 1 5-30R 120 28.1 1 5-50R — — — — — — — — BHA 120 20.8 1 5-30R 120 28.1 1 5-50R — — — — — — — — CHA 120 20.8 1 5-30R 120 28.1 1 5-50R — — — — — — — — AIA 120 21.9 1 5-30R 120 29.2 1 5-50R — — — — — — — — BIA 120 21.9 1 5-30R 120 29.2 1 5-50R — — — — — — — — ANA 120 15.6 1 5-20R 120 20.8 1 5-30R — — — — — — — — BNA 120 15.6 1 5-20R 120 20.8 1 5-30R — — — — — — — — CNA 120 15.6 1 5-20R 120 20.8 1 5-30R — — — — — — — — DNA 120 15.6 1 5-20R 120 20.8 1 5-30R — — — — — — — — NNA 120 15.6 1 5-20R 120 20.8 1 5-30R — — — — — — — — AWA 120 22.5 1 5-30R — — — — — — — — — — — — BWA 120 22.5 1 5-30R — — — — — — — — — — — — AHB 208 11.8 1 6-15R 208 15.9 1 6-20R 208 20.6 1 6-30R 208 23.9 1 6-50R BHB 208 11.8 1 6-15R 208 15.9 1 6-20R 208 20.6 1 6-30R 208 23.9 1 6-50R CHB 208 11.8 1 6-15R 208 15.9 1 6-20R 208 20.6 1 6-30R 208 23.9 1 6-50R ANB 208 9 1 6-15R 208 12 1 6-15R 208 15 1 6-20R 208 18 1 6-30R BNB 208 9 1 6-15R 208 12 1 6-15R 208 15 1 6-20R 208 18 1 6-30R CNB 208 9 1 6-15R 208 12 1 6-15R 208 15 1 6-20R 208 18 1 6-30R DNB 208 9 1 6-15R 208 12 1 6-15R 208 15 1 6-20R 208 18 1 6-30R NNB 208 9 1 6-15R 208 12 1 6-15R 208 15 1 6-20R 208 18 1 6-30R AHC 240 10.4 1 6-15R 240 14 1 6-20R 240 18.3 1 6-30R 240 20.7 1 6-30R BHC 240 10.4 1 6-15R 240 14 1 6-20R 240 18.3 1 6-30R 240 20.7 1 6-30R CHC 240 10.4 1 6-15R 240 14 1 6-20R 240 17.9 1 6-30R 240 20.7 1 6-30R ANC 240 7.8 1 6-15R 240 10.4 1 6-15R 240 13 1 6-20R 240 15.6 1 6-20R BNC 240 7.8 1 6-15R 240 10.4 1 6-15R 240 13 1 6-20R 240 15.6 1 6-20R CNC 240 7.8 1 6-15R 240 10.4 1 6-15R 240 13 1 6-20R 240 15.6 1 6-20R DNC 240 7.8 1 6-15R 240 10.4 1 6-15R 240 13 1 6-20R 240 15.6 1 6-20R NNC 240 7.8 1 6-15R 240 10.4 1 6-15R 240 13 1 6-20R 240 15.6 1 6-20R AFF 120/208 9.6 1 14-20R 120/208 12.6 1 14-20R 120/208 15.6 1 14-20R 120/208 18.6 1 14-30R BFF 120/208 9.6 1 14-20R 120/208 12.6 1 14-20R 120/208 15.6 1 14-20R 120/208 18.6 1 14-30R CFF 120/208 9.6 1 14-20R 120/208 12.6 1 14-20R 120/208 15.4 1 14-20R 120/208 18.6 1 14-30R DFF 120/208 9.6 1 14-20R 120/208 12.6 1 14-20R 120/208 15.4 1 14-20R 120/208 18.6 1 14-30R AIF 120/208 13.2 1 14-20R 120/208 16.2 1 14-30R 120/208 21.3 1 14-30R 120/208 30.5 1 14-50R BIF 120/208 13.2 1 14-20R 120/208 16.2 1 14-30R 120/208 21.3 1 14-30R 120/208 30.5 1 14-50R AWF 120/208 13.4 1 14-20R 120/208 18 1 14-30R 120/208 23.3 1 14-30R 120/208 26 1 14-50R BWF 120/208 13.4 1 14-20R 120/208 18 1 14-30R 120/208 23.3 1 14-30R 120/208 26 1 14-50R AFG 120/240 8.4 1 14-20R 120/240 11 1 14-20R 120/240 13.6 1 14-20R 120/240 16.2 1 14-30R BFG 120/240 8.4 1 14-20R 120/240 11 1 14-20R 120/240 13.6 1 14-20R 120/240 16.2 1 14-30R CFG 120/240 8.4 1 14-20R 120/240 11 1 14-20R 120/240 13.4 1 14-20R 120/240 16.2 1 14-30R DFG 120/240 8.4 1 14-20R 120/240 11 1 14-20R 120/240 13.4 1 14-20R 120/240 16.2 1 14-30R AIG 120/240 12 1 14-20R 120/240 14.6 1 14-20R 120/240 19.3 1 14-30R 120/240 28.1 1 14-30R BIG 120/240 12 1 14-20R 120/240 14.6 1 14-20R 120/240 19.3 1 14-30R 120/240 28.1 1 14-30R AWG 120/240 12.1 1 14-20R 120/240 16.2 1 14-30R 120/240 20.3 1 14-30R 120/240 23.6 1 14-50R BWG 120/240 12.1 1 14-20R 120/240 16.2 1 14-30R 120/240 20.3 1 14-30R 120/240 23.6 1 14-50R 5-41 -41
- 159. vollrathco.com Mobile Serving Equipment Signature Server® 2.0 Classic — Electrical Hot/NonRefrigerated Cold Wells Utility Stations NEMA 46 UTILITY 60 UTILITY 74 UTILITY 88 UTILITY NEMA SUFFIX VOLTS AMPS PH RECEPTACLE SUFFIX VOLTS PH AMPS AMPS AMPS AMPS RECEPTACLE NNA 120 15.6 1 5-20R AFA 120 1 0.6 0.5 0.5 0.5 5-15R ANA 120 15.6 1 5-20R BFA 120 1 0.6 0.5 0.5 0.5 5-15R AIA 120 22.3 1 5-30R CFA 120 1 0.6 0.5 0.5 0.5 5-15R AFA 120 15.9 1 5-20R DFA 120 1 0.6 0.5 0.5 0.5 5-15R NNB 208 9 1 6-15R AHA 120 1 5.2 7.3 10.5 10.2 5-15R ANB 208 9 1 6-15R BHA 120 1 5.2 7.3 10.5 10.2 5-15R NNC 240 7.8 1 6-15R CHA 120 1 5.2 7.3 10.5 10.2 5-15R ANC 240 7.8 1 6-15R AIA 120 1 6.3 8.3 10.4 12.5 5-15R AIF 120/208 13.2 1 14-20R BIA 120 1 6.3 8.3 10.4 12.5 5-15R AFF 120/208 9.3 1 14-20R AWA 120 1 6.9 9.4 13.2 13 5-20R AIG 120/240 12 1 14-20R BWA 120 1 6.9 9.4 13.2 13 5-20R AFG 120/240 8.3 1 14-20R Non-Refrigerated Cold Pans Hot/Refrigerated Cold Wells SUFFIX VOLTS PH 46 STATION AMPS 60 STATION AMPS 74 STATION AMPS 88 STATION AMPS NEMA RECEPTACLE NEMA AIA 120 1 0.6 0.8 1 1.3 5-15R SUFFIX VOLTS AMPS PH RECEPTACLE AFA 120 1 0.6 0.5 0.5 0.3 5-15R NNA 120 19.4 1 5-30R BIA 120 1 0.6 0.8 1 1 5-15R ANA 120 19.4 1 5-30R BFA 120 1 0.6 0.5 0.3 0.3 5-15R AIA 120 26.1 1 5-50R CFA 120 1 0.6 0.5 0.3 0.3 5-15R AFA 120 19.9 1 5-30R DFA 120 1 0.6 0.5 0.3 0.3 5-15R CNA 120 19.4 1 5-30R CFA 120 19.9 1 5-30R NNF 120/208 12.8 1 14-20R Refrigerated Cold Pans ANF 120/208 12.8 1 14-20R 46 STATION 60 STATION 74 STATION 88 STATION NEMA AIF 120/208 15.3 1 14-20R SUFFIX VOLTS PH AMPS AMPS AMPS AMPS RECEPTACLE AFF 120/208 13 1 14-20R AFA 120 1 4.1 5.5 5.5 7.8 5-15R CNF 120/208 12.8 1 14-20R BFA 120 1 4.1 5.5 5.5 7.8 5-15R CFF 120/208 13 1 14-20R CFA 120 1 4.1 5.5 5.5 7.8 5-15R NNG 120/240 11.6 1 14-20R DFA 120 1 4.1 5.5 5.5 7.8 5-15R ANG 120/240 11.6 1 14-20R EFA 120 1 4.1 5.5 5.5 7.8 5-15R AIG 120/240 14.1 1 14-20R AIA 120 1 4.2 6 6.2 8.4 5-15R AFG 120/240 11.8 1 14-20R BIA 120 1 4.2 6 6.2 8.4 5-15R CNG 120/240 11.6 1 14-20R EIA 120 1 4.2 6 6.2 8.4 5-15R CFG 120/240 11.8 1 14-20R ANA 120 1 3.8 5.2 5.2 7.2 5-15R BNA 120 1 3.8 5.2 5.2 7.2 5-15R CNA 120 1 3.8 5.2 5.2 7.2 5-15R DNA 120 1 3.8 5.2 5.2 7.2 5-15R ENA 120 1 3.8 5.2 5.2 7.2 5-15R NNA 120 1 3.8 5.2 5.2 7.2 5-15R Note: See previous page (5-41) for ordering instructions NSF7 Cold Pans 46 STATION 60 STATION 74 STATION NEMA 88 STATION NEMA Note: Signature Server® equipment SUFFIX VOLTS PH AMPS AMPS AMPS RECEPTACLE AMPS RECEPTACLE orders cannot be cancelled or returned. AFA 120 1 4.1 5.5 7.5 5-15R 11.6 5-20R BFA 120 1 4.1 5.5 7.5 5-15R 11.6 5-20R Receptacle Configurations CFA 120 1 4.1 5.5 7.5 5-15R 11.6 5-20R DFA 120 1 4.1 5.5 7.5 5-15R 11.6 5-20R EFA 120 1 4.1 5.5 7.5 5-15R 11.6 5-20R AIA 120 1 4.4 6 8.4 5-15R 12.2 5-20R BIA 120 1 4.4 6 8.4 5-15R 12.2 5-20R EIA 120 1 4.4 6 8.4 5-15R 12.2 5-20R ANA 120 1 3.8 5.2 7.2 5-15R 11 5-20R BNA 120 1 3.8 5.2 7.2 5-15R 11 5-20R CNA 120 1 3.8 5.2 7.2 5-15R 11 5-20R DNA 120 1 3.8 5.2 7.2 5-15R 11 5-20R ENA 120 1 3.8 5.2 7.2 5-15R 11 5-20R NNA 120 1 3.8 5.2 7.2 5-15R 11 5-20R 60 and 74 Milk Cooler Entree Carts NEMA NEMA SUFFIX VOLTS AMPS PH RECEPTACLE SUFFIX VOLTS AMPS PH RECEPTACLE NNA 120 4.9 1 5-15R NNA 120 5.2 1 5-15R FNA 120 5.2 1 5-15R FIA 120 7.3 1 5-15R 5-42
- 160. Mobile Serving Equipment The Vollrath Company, LLC Signature Server® Classic — Counter Accessories Plate Rest End Shelf Q Overall width: 7 (17.8 cm) Q Fold-down mounting kit Q 300 series stainless steel Q Locking tabs on ends Q Add 4 (10.16 cm) to width Q 40 lb (18.2 kg) capacity Q Removable without tools for of unit in folded position Q Fold-down mounting kit easy transport Q Add 41⁄2 (11.4 cm) to length of unit in folded position Q Not recommended for attachment to entrée cart, cashier station or 28 (7.1 cm) utility station ITEM ITEM ITEM ITEM ITEM L: 28 IN L: 46 IN L: 60 IN L: 74 IN L: 88 IN DESCRIPTION L: 71 CM L: 117 CM L: 152 CM L: 188 CM L: 224 CM Plate rest with 37511 37512 37513 37514 98829 mounting kit ITEM DESCRIPTION 37509 Corner station plate rest — inside corner ITEM DESCRIPTION 37510 Corner station plate rest — outside corner 37570 End shelf — 18 x 28 (46 x 71 cm) Cutting Board Tray Slides Q Maple hardwood or polyethylene construction Q 300 series stainless steel Q Removable for easy transport Q Fold-down mounting brackets Q Overall width: 12 (30.5 cm) Q Fold-down mounting kit Q Adds 4 (10.2 cm) to width of unit in folded position Q Tray surface width: 111⁄2 (29 cm) Q Interlocking brackets on ends Q Overall width: 8 (20.3 cm) Q Four inverted V ribs on surface Q Adds 4 (10.16 cm) to width of unit in folded position V-rib Tubular tray slides tray slides ITEM ITEM ITEM ITEM ITEM L: 28 IN L: 46 IN L: 60 IN L: 74 IN L: 88 IN DESCRIPTION L: 71 CM L: 117 CM L: 152 CM L: 188 CM L: 224 CM V-rib tray slides 37521 37522 37523 37524 98831 Tubular tray slides 9882001 9882003 9882004 9882005 9882006 ITEM ITEM ITEM ITEM L: 46 IN L: 60 IN L: 74 IN L: 88 IN DESCRIPTION L: 117 CM L: 152 CM L: 188 CM L: 224 CM ITEM DESCRIPTION Wood 37551 37552 37553 98851 37519 Corner station V-rib tray slide — inside corner Poly 37561 37562 37563 98852 37520 Corner station V-rib tray slide — outside corner 9882007 Corner station tubular tray slide — inside corner Note: Signature Server® equipment orders cannot be cancelled or returned. 9882008 Corner station tubular tray slide — outside corner 5-43
- 161. vollrathco.com Mobile Serving Equipment Signature Server® 2.0 Classic — O Options Storage Modules False Bottoms Q 300 series stainless steel Q 300 series stainless steel Q Available with 34 (86.4 cm) Q Maintains ice longer high bases only Q 1 (2.5 cm) above well bottom Q With or without doors Q Perforated for easy draining Q Key lock for sliding doors standard Q Opening height of module is: 161⁄2 (42 cm) Q Depth: 251⁄2 (64.8 cm) Note: Not available on Signature Server® 2.0 curved bases. ITEM ITEM WIDTH WITH WITHOUT DESCRIPTION IN (CM) DOORS DOORS Fits 3-well hot, 60 24 36930 36931 (152.4 cm) cold, 46 (61) (116.8 cm) beverage Fits 4-well hot, 46 (116.8 cm) 36 36936 36937 utility, 74 (188 cm) cold, (91.4) 60 (152.4 cm) beverage Fits 5-well hot, 60 50 36938 36939 (152.4 cm) utility, 74 (127) ITEM DESCRIPTION (188 cm) beverage 36913 Perforated false bottom, combination hot/cold food station Fits 6-well hot, 74 (188 cm) 64 36940 36941 36914 Perforated false bottom, 46 (116.8 cm) cold food station utility station (162.6) 36915 Perforated false bottom, 60 (152.4 cm) cold food station Fits 88 (224 cm) 64 36938-2 36939-2 36916 Perforated false bottom, 74 (188 cm) cold food station utility station (162.6) 98855-2 Perforated false bottom, 88 (224 cm) cold food station Bag in Box Stationary Legs Q Stainless or galvanized Q Stainless steel shelf options Q Adjustable for leveling Q Stainless steel door frame Q Open storage without doors provides easy access Q Access Concept™ Configurator at www.vollrathco.com for a full list of accessories including intermediate shelves STAINLESS GALVANIZED LENGTH CASE ITEM ITEM IN (CM) LOT 36981 36982 46 (116.8) 1 36983 36984 60 (152.4) 1 ITEM DESCRIPTION 36985 36986 74 (188) 1 98790 — 88 (224) 1 36921 Adjustable 4 - 5 2897451-2 4 Leg Note: Signature Server® equipment orders cannot be cancelled or returned. 2897452-2 6 Leg Additional Accessories: See Pages 6-3 to 6-22 5-44
- 162. Mobile Serving Equipment The Vollrath Company, LLC Affordable Portable™ Lighting A great value in mobile serving equipment. Q Factory installed option, 120V Q Bulbs Not Included new Optional UL listed Deluxe incandescent/infrared Style lighting assembly showcases food in a dramatic light Thermoset Wells Easy access, fully enclosed clear acrylic breath guard – 12 (30.5cm) clearance , NSF2 Certified Seamless one-piece 20 gauge 300 series stainless steel work surface Individual thermostat control knob per well on Deluxe unit Individual drain inside each Manifold Drain – well on Deluxe unit for Deluxe units Direct Water Heating System – for Deluxe units Scratch resistant vinyl clad 20 gauge carbon steel in four colors 8' Power Cord Standard Deluxe Affordable Portable Black Shown Color Options Q Granite Q Black Q Cherry Woodgrain Q Walnut Woodgrain Electrical Plug Specifications for Affordable Portable™ Deluxe Hot Units (Thermoset Wells) 120V WITHOUT LIGHTS 120V WITH LIGHTS 208-240V WITHOUT LIGHTS 120/208-240V WITH LIGHTS ELECTRICAL ELECTRICAL ELECTRICAL ELECTRICAL DESCRIPTION AMPS RECEPTACLE SERVICE (A) AMPS RECEPTACLE SERVICE (A) AMPS RECEPTACLE SERVICE (A) AMPS RECEPTACLE SERVICE (A) 3-well 12 5-15R 15 18.3 5-30R 30 8.7 - 10 6-15R 15 12.9 - 14.2 14-20R 20 4-well 16 5-20R 20 24.3 5-50R 50 11.5 - 13.3 6-20R 20 15.6 - 17.5 14-30R 30 Electrical Plug Specifications for Standard Affordable Portable™ Hot Units (Spillage Pans) 120V WITHOUT LIGHTS 120V WITH LIGHTS 208-240V WITHOUT LIGHTS 120/208-240V WITH LIGHTS ELECTRICAL ELECTRICAL ELECTRICAL ELECTRICAL DESCRIPTION AMPS RECEPTACLE SERVICE (A) AMPS RECEPTACLE SERVICE (A) AMPS RECEPTACLE SERVICE (A) AMPS RECEPTACLE SERVICE (A) 3-well 13.1 5-20R 20 19.4 5-30R 30 8.8 6-15R 15 13 14-20R 20 4-well 17.5 5-30R 30 25.8 5-50R 50 11.7 6-15R 15 15.9 14-20R 20 Receptacle Configurations Storage Opening Heat Lamp Bulbs DESCRIPTION DIMENSIONS (L X W X H): IN (CM) ITEM DESCRIPTION 60 unit 50 x 23 x 161⁄ 2 (127 x 58 x 42) 72242 White, 250W 46 unit 36 x 23 x 161⁄ 2 (91.5 x 58 x 42) 72241 Red, 250W Order heat lamp bulbs separately Note: Affordable Portable™ equipment orders cannot be cancelled or returned. 5-45
- 163. vollrathco.com Mobile Serving Equipment Affordable Portable™ Hot Food Stations Deluxe Q Upgraded thermoset well with high efficiency Q Unit depth: 24 (61 cm) { 480W in-water heating element. Q Standard models come with buffet breath guards Q Sealed well - no spillage pans required Q New cafeteria breath guard style now available Q Manifolded drains Q 120V, 208-240V, 600-800W versions available * + Q Thermostatically controlled temperature Q See spec sheet for cord/plug specifications DIMENSIONS (L X H) WALNUT CHERRY DESCRIPTION IN (CM) BLACK WOODGRAIN GRANITE WOODGRAIN 3 WELL HOT FOOD STATION – 120V Solid base * 46 X 35 (117 X 89) T38707 T38935 T38727 T38767 Solid w/lights + 46 X 35 (117 X 89) T3870746 T3893546 T3872746 T3876746 Open storage * 46 X 35 (117 X 89) T38708 T38936 T38728 T38768 Open w/lights + 46 X 35 (117 X 89) T3870846 T3893646 T3872846 T3876846 Storage w/door * 46 X 35 (117 X 89) T38709 T38937 T38729 T38769 Storage w/door, w/lights + 46 X 35 (117 X 89) T3870946 T3893746 T3872946 T3876946 Cafeteria Unit X 46 X 35 (117 X 89) T39707 T39935 T39727 T39767 * Cafeteria Unit w/open storage X 46 X 35 (117 X 89) T39708 T39936 T39728 T39768 * Black Shown Cafeteria Unit w/storage door 46 X 35 (117 X 89) T39709 T39937 T39729 T39769 *X 4 WELL HOT FOOD STATION – 120V Solid base * 60 X 35 (152 X 89) T38710 T38945 T38730 T38770 Solid w/lights + 60 X 35 (152 X 89) T3871060 T3894560 T3873060 T3877060 Open storage * 60 X 35 (152 X 89) T38711 T38946 T38731 T38771 Open w/lights + 60 X 35 (152 X 89) T3871160 T3894660 T3873160 T3877160 { Overall depth with breath 60 X 35 (152 X 89) T38712 T38947 T38732 T38772 guard: 391⁄2 (100 cm) Storage w/door * Storage w/door, w/lights + 60 X 35 (152 X 89) T3871260 T3894760 T3873260 T3877260 Cafeteria Unit X 60 X 35 (152 X 89) T39710 T39945 T39730 T39770 * For 208-240Vmodel number. add 2 to the without lights * + For 120/208-240V units with lights add 4 to the model number. Cafeteria Unit w/open storage X 60 X 35 (152 X 89) T39711 T39948 T39731 T39771 X Includes Cafeteria breath guard * with acrylic panel. Cafeteria Unit w/storage door 60 X 35 (152 X 89) T39712 T39947 T39732 T39772 *X Affordable Portable™ Refrigerated Cold Food Stations Q Q Includes NSF 2 breath guard Standard mechanically refrigerated cold well Q Q 1 (2.54 cm) drain 18 gauge stainless steel work surface Q Q 120V, NEMA 5-15P plug Foamed in-place polyurethane foam insulation Q Unit depth: 24 (61 cm) { DIMENSIONS (L X H) WALNUT CHERRY DESCRIPTION IN (CM) BLACK WOODGRAIN GRANITE WOODGRAIN 46 COLD FOOD STATION BASE – 120V Solid base 46 X 35 (117 X 89) R38713 R38950 R38733 R38773 Solid w/lights 46 X 35 (117 X 89) R3871346 R3895046 R3873346 R3877346 Open storage 46 X 35 (117 X 89) R38714 R38951 R38734 R38774 Open w/lights 46 X 35 (117 X 89) R3871446 R3895146 R3873446 R3877446 Storage w/door 46 X 35 (117 X 89) R38715 R38952 R38735 R38775 Storage w/door, w/lights 46 X 35 (117 X 89) R3871546 R3895246 R3873546 R3877546 Cafeteria Unit X 46 X 35 (117 X 89) R39713 R39950 R39733 R39773 Cafeteria Unit w/open storage X 46 X 35 (117 X 89) R39714 R39951 R39734 R39774 Black Shown Cafeteria Unit w/storage door X 46 X 35 (117 X 89) R39715 R39952 R39735 R39775 60 COLD FOOD STATION BASE – 120V Solid base 60 X 35 (152 X 89) R38716 R38960 R38736 R38776 Receptacle Solid w/lights 60 X 35 (152 X 89) R3871660 R3896060 R3873660 R3877660 120V Open storage 60 X 35 (152 X 89) R38717 R38961 R38737 R38777 Open w/lights 60 X 35 (152 X 89) R3871760 R3896160 R3873760 R3877760 Storage w/door 60 X 35 (152 X 89) R38718 R38962 R38738 R38778 Storage w/door, w/lights 60 X 35 (152 X 89) R3871860 R3896260 R3873860 R3877860 Cafeteria Unit X 60 X 35 (152 X 89) R39716 R39959 R39736 R39776 { Overall depth with breath Cafeteria Unit w/open storage X 60 X 35 (152 X 89) R39717 R39961 R39737 R39777 guard: 391⁄2 (100 cm) Cafeteria Unit w/storage door X 60 X 35 (152 X 89) R39718 R39962 R39738 R39778 X Includes Cafeteria breath guard with acrylic panel. ™ Note: Affordable Portable equipment orders cannot be cancelled or returned. 5-46
- 164. Mobile Serving Equipment The Vollrath Company, LLC Affordable Portable™ Hot Food Stations Q Each well supplied with 120V, 525W Q Unit depth: 24 (61 cm) exposed heating element Q Standard models come with buffet breath guards Q High-density glass fiber insulation Q New cafeteria breath guard style now available Q Spillage pans required – sold separately Q 208-240V options now available * + Q Infinite control switches Q Light/Heat options DIMENSIONS (L X H) WALNUT CHERRY DESCRIPTION IN (CM) BLACK WOODGRAIN GRANITE WOODGRAIN 3 WELL HOT FOOD STATION – 120V Solid base * 46 X 35 (117 X 89) 38707 38935 38727 38767 Solid w/lights + 46 X 35 (117 X 89) 3870746 3893546 3872746 3876746 Granite Shown Open storage * 46 X 35 (117 X 89) 38708 38936 38728 38768 Open w/lights + 46 X 35 (117 X 89) 3870846 3893646 3872846 3876846 Storage w/door * 46 X 35 (117 X 89) 38709 38937 38729 38769 Storage w/door, w/lights + 46 X 35 (117 X 89) 3870946 3893746 3872946 3876946 Cafeteria Unit X 46 X 35 (117 X 89) 39707 39935 39727 39767 * Cafeteria Unit w/open storage X 46 X 35 (117 X 89) 39708 39936 39728 39768 * Cafeteria Unit w/storage door 46 X 35 (117 X 89) 39709 39937 39729 39769 *X 4 WELL HOT FOOD STATION – 120V Solid base * 60 X 35 (152 X 89) 38710 38945 38730 38770 Solid w/lights + 60 X 35 (152 X 89) 3871060 3894560 3873060 3877060 Open storage * 60 X 35 (152 X 89) 38711 38946 38731 38771 Black Shown Open w/lights + 60 X 35 (152 X 89) 3871160 3894660 3873160 3877160 With Cafeteria Breath Guard Storage w/door * 60 X 35 (152 X 89) 38712 38947 38732 38772 Storage w/door, w/lights + 60 X 35 (152 X 89) 3871260 3894760 3873260 3877260 Cafeteria Unit X 60 X 35 (152 X 89) 39710 39945 39730 39770 * Cafeteria Unit w/open storage * X 60 X 35 (152 X 89) 39711 39948 39731 39771 * For 120/208-240V unitslightslights2addthe model number. + For 208-240V without with add to 4 to the model number. Cafeteria Unit w/storage door 60 X 35 (152 X 89) 39712 39947 39732 39772 *X X Includes Cafeteria breath guard with acrylic panel. Affordable Portable™ Cold Food Stations Q 20 gauge stainless steel work surface Q Unit depth: 24 (61 cm) { Q Non-refrigerated 6 (15.2 cm) deep well Q Standard models come with buffet breath guards Q Foamed-in-place polyurethane foam insulation Q New cafeteria breath guard style now available Q 1 (2.54 cm) drain makes cleanup easy DIMENSIONS (L X H) WALNUT CHERRY DESCRIPTION IN (CM) BLACK WOODGRAIN GRANITE WOODGRAIN 46 COLD FOOD STATION BASE – 120V Solid base 46 X 35 (117 X 89) 38713 38950 38733 38773 Solid w/lights 46 X 35 (117 X 89) 3871346 3895046 3873346 3877346 Open storage 46 X 35 (117 X 89) 38714 38951 38734 38774 Open w/lights 46 X 35 (117 X 89) 3871446 3895146 3873446 3877446 Storage w/door 46 X 35 (117 X 89) 38715 38952 38735 38775 Storage w/door, w/lights 46 X 35 (117 X 89) 3871546 3895246 3873546 3877546 Cafeteria Unit X 46 X 35 (117 X 89) 39713 39950 39733 39773 Cafeteria Unit w/open storage X 46 X 35 (117 X 89) 39714 39951 39734 39774 Cafeteria Unit w/storage door X 46 X 35 (117 X 89) 39715 39952 39735 39775 60 COLD FOOD STATION BASE – 120V Solid base 60 X 35 (152 X 89) 38716 38960 38736 38776 Black Shown Solid w/lights 60 X 35 (152 X 89) 3871660 3896060 3873660 3877660 Open storage 60 X 35 (152 X 89) 38717 38961 38737 38777 Open w/lights 60 X 35 (152 X 89) 3871760 3896160 3873760 3877760 { Overall depth with breath guard: 391⁄2 (100 cm) Storage w/door 60 X 35 (152 X 89) 38718 38962 38738 38778 X Includes Cafeteria breath guard with acrylic panel. Storage w/door, w/lights 60 X 35 (152 X 89) 3871860 3896260 3873860 3877860 Cafeteria Unit X 60 X 35 (152 X 89) 39716 39959 39736 39776 Note: Affordable Portable™ Cafeteria Unit w/open storage X 60 X 35 (152 X 89) 39717 39961 39737 39777 equipment orders cannot be Cafeteria Unit w/storage door X 60 X 35 (152 X 89) 39718 39962 39738 39778 cancelled or returned. 5-47
- 165. vollrathco.com Mobile Serving Equipment Affordable Portable™ Utility Stations Q Wide, solid reinforced stainless steel work surface Q Standard models come with Q One-piece top construction for easy cleaning buffet breath guards Q Q New cafeteria breath guard Ideal for dispensers or large food displays Q Unit depth: 24 (61 cm) { style now available DIMENSIONS (L X H) WALNUT CHERRY DESCRIPTION IN (CM) BLACK WOODGRAIN GRANITE WOODGRAIN 46 UTILITY STATION – 120V Solid base 46 X 35 (117 X 89) 38701 38926 38721 38761 Solid w/lights 46 X 35 (117 X 89) 3870146 3892646 3872146 3876146 Open storage 46 X 35 (117 X 89) 38702 38927 38722 38762 Black Shown Open w/lights 46 X 35 (117 X 89) 3870246 3892746 3872246 3876246 Storage w/door 46 X 35 (117 X 89) 38703 38928 38723 38763 Storage w/door, w/lights 46 X 35 (117 X 89) 3870346 3892846 3872346 3876346 Cafeteria Unit X 46 X 35 (117 X 89) 39701 39926 39721 39761 Cafeteria Unit w/open storage X 46 X 35 (117 X 89) 39702 39927 39722 39762 Cafeteria Unit w/storage door X 46 X 35 (117 X 89) 39703 39928 39723 39763 60 UTILITY STATION – 120V Solid base 60 X 35 (152 X 89) 38704 38930 38724 38764 Solid w/lights 60 X 35 (152 X 89) 3870460 3893060 3872460 3876460 Open storage 60 X 35 (152 X 89) 38705 38931 38725 38765 Open w/lights 60 X 35 (152 X 89) 3870560 3893160 3872560 3876560 Storage w/door 60 X 35 (152 X 89) 38706 38932 38726 38766 Granite Shown Storage w/door, w/lights 60 X 35 (152 X 89) 3870660 3893260 3872660 3876660 Cafeteria Unit X 60 X 35 (152 X 89) 39704 39930 39724 39764 { Overall depth with breath guard: 391⁄2 (100 cm) Cafeteria Unit w/open storage X 60 X 35 (152 X 89) 39705 39931 39725 39765 Cafeteria Unit w/storage door X 60 X 35 (152 X 89) 39706 39932 39726 39766 X Includes Cafeteria breath guard with acrylic panel. Affordable Portable™ Spillage Pans 99780 Cashier Station Q Stainless steel Q Stable stainless steel work surface or aluminum Q Wide enough for almost any Q Accepts standard register or terminal size pans Q Open base and bottom shelf Q Can use with adaptor for extra storage plates or insets Walnut Q Cash drawer not available Q Suitable for bulk storage Woodgrain Q Unit depth: 24 (61 cm) shown DIMENSIONS (L X W X D) CASE ITEM DESCRIPTION IN (CM) LOT DIMENSIONS (L X H) WALNUT CHERRY DESCRIPTION IN (CM) BLACK WOODGRAIN GRANITE WOODGRAIN 99765 Standard edge S/S 19.8 x 11.9 x 6.4 (50.3 x 30.2 x 16.3) 1 Cashier 24 X 35 38700 38905 38720 38760 99780 Dripless S/S 19.8 x 11.9 x 6.6 (50.3 x 30.2 x 16.8) 1 station (60.9 X 89) 99785 Aluminum 19.9 x 11.9 x 6.4 (50.5 x 30.2 x 16.3) 1 Tray Slides and Plate Rests Q Stainless steel Cutting Boards Q Designed for Affordable Q Polyethylene cutting boards Portable™ only Q 300 series stainless tray slide Q Surface width: 7 (17.8 cm) Q Fold-down mounting brackets Q Removable Q Cutting boards add 4 (10.2 cm) and tray slides add 51⁄2 (14 cm) to width of unit in folded position TRAY SLIDE CUTTING BOARD DESCRIPTION CASE LOT ITEM DESCRIPTION CASE LOT ™ 39924* 39824* Fits 24 (61 cm) Affordable Portable 1 38992* 24 (61 cm) plate rest with mounting kit 1 39946* 39846* Fits 46 (117 cm) Affordable Portable™ 1 38993* 46 (117 cm) plate rest with mounting kit 1 39960* 39860* Fits 60 (152 cm) Affordable Portable™ 1 38994* 60 (152 cm) plate rest with mounting kit 1 *Add NF in front of the item number for non-folding model *Add NF in front of the item number for non-folding model Note: Affordable Portable™ equipment orders cannot be cancelled or returned. 5-48
- 166. Mobile Serving Equipment The Vollrath Company, LLC Induction Buffet Table Q Solid maple construction, 5 standard stain colors Q Durable ceramic glass imprinted counter Q Available in 60 lengths with 3 induction hob stations, - elegant black granite or 76 with 4 induction hob stations Q Made to Order - Allow 6 weeks lead time Q Features Vollrath 5950145 induction warmers, Q Use Miramar® Cookware and Intrigue Induction mounted undercounter for seamless look, 5 Chafers for an incredible presentation - level controls on front face of table Q Overall Height: 34 or 36 with or without casters Generous 30˝ table width provides Equipped with Vollrath’s cutting-edge Ceramic Counter - plenty of space for large capacity Mirage® Commercial Drop-In Induction Receptacle Black Granite Color with induction chafers as well as a Warmers (item # 5950145) 120V matching wood trim dinner plate rest area Available with wood laminate or solid surface tops that provide clean, sleek presentation Available Standard Stain (1) Clear Maple (2) Standard Walnut Finishes (laminate match (laminate match Wilsonart 7909-60) Wilsonart 7922-07) 7552284 Available in 34˝ and (3) Dark Cherry (4) Medium Oak (5) Dark Red Mahogany 36˝ heights with or (laminate match (laminate match (laminate match without casters Wilsonart 7935-07) Wilsonart 7951-38) Wilsonart 71122T-07) DIMENSIONS (L X W) ITEM DESCRIPTION IN (CM) CASTERS TABLE STAIN COLOR PLUG CASE LOT 7552280 3-Mirage® model 5950145 450W 60 x 30 (1) Clear Maple 5-20P 1 Yes undercounter induction warmers (152.4 x 76.2) 7552281 3-Mirage® model 5950145 450W 60 x 30 (2) Standard Walnut 5-20P 1 Yes undercounter induction warmers (152.4 x 76.2) 7552282 3-Mirage® model 5950145 450W 60 x 30 (3) Dark Cherry 5-20P 1 Yes undercounter induction warmers (152.4 x 76.2) 7552283 3-Mirage® model 5950145 450W 60 x 30 (4) Medium Oak 5-20P 1 Yes undercounter induction warmers (152.4 x 76.2) 7552284 3-Mirage® model 5950145 450W 60 x 30 (5) Dark Red Mahogany 5-20P 1 Yes undercounter induction warmers (152.4 x 76.2) 7552380 4-Mirage® model 5950145 450W 76 x 30 (1) Clear Maple 5-20P 1 Yes undercounter induction warmers (177.8 x 76.2) 7552381 4-Mirage® model 5950145 450W 76 x 30 (2) Standard Walnut 5-20P 1 Yes undercounter induction warmers (177.8 x 76.2) 7552382 4-Mirage® model 5950145 450W 76 x 30 (3) Dark Cherry 5-20P 1 Yes undercounter induction warmers (177.8 x 76.2) 7552383 4-Mirage® model 5950145 450W 76 x 30 (4) Medium Oak 5-20P 1 Yes undercounter induction warmers (177.8 x 76.2) 7552384 4-Mirage® model 5950145 450W 76 x 30 (5) Dark Red Mahogany 5-20P 1 Yes undercounter induction warmers (177.8 x 76.2) 60 x 30 Your Your 75522 Custom table only Your choice 1 (152.4 x 76.2) Choice Choice 76 x 30 Your Your 75523 Custom table only Your choice 1 (177.8 x 76.2) Choice Choice 60 x 30 Your Your 75524 Custom table only Your choice 1 (152.4 x 76.2) Choice Choice 76 x 30 Your Your 75525 Custom table only Your choice 1 (177.8 x 76.2) Choice Choice Made to order – please allow 6 weeks lead time. Configure your own custom tables using model numbers 75522, 75523, 75524, 75525 in Autoquotes. Note: Induction buffet table orders can not be returned or cancelled 5-49
- 167. vollrathco.com Mobile Serving Equipment Induction Buffet Table Use the Induction Buffet Table with Miramar® Cookware M and Intrigue Induction Chafers I for an incredible presentation! Complement your Buffet Table with: Q Miramar® Display Cookware Q Intrigue™ Induction Chafers For more information and product selection see pages 9-5 through 9-7 and 9-15 through 9 16 hrough 9-16. 5-50
- 168. Mobile Serving Equipment The Vollrath Company, LLC Servewell® SL Hot Food Tables ServeWell® SL hot food tables are streamlined versions of the original, providing incredible value, with the rugged performance you've grown to expect. We build each ServeWell® SL unit with heavy-gauge stainless steel and engineer the body, legs and base for strength and durability. Q Designed to hold heated prepared foods at temperatures above the HACCP danger zone of 140°F (60°C) Q Accept full-size or fractional pans to 4 (10.2 cm) deep, and can be used with standard adaptor plates and insets for serving flexibility Q Thermoset Fiber-Reinforced Resin Wells are self-insulating and maximum energy efficiency – will not rust or pit Q Thermostatic Heat Controls - automatically adjust for water temperature and food volume changes to reduce food waste Q Low-water Indicator Light - eliminates guesswork Q Dome Heating Elements - use up to 25% less energy and concentrate energy into the wells Q Non-stick surface on heating elements prevents scale build-up for easy cleaning and longer operating life Q 61⁄4 (15.875cm) wide x 3⁄8 (9.5mm) thick polyethylene NSF-approved cutting board optional Q 10 ft (3 meters) power cord bottom-mounted Q Standard adjustable stationary legs or optional caster set Receptacle Configurations Q Shipped knocked down 120V 120V 208 240V 208 240V 208 240V 120V 120V Q Optional casters - 38099 WATTS WATTS ELECTRICAL ITEM DESCRIPTION DIMENSIONS: IN (CM) VOLTS** PER WELL TOTAL SERVICE (A) AMPS PLUG 480W/120V 38203 3-well 46 x 291⁄2 x 34 (116.8 x 74.9 x 86) 120V 480 1440 15 12 5-15P 38204 4-well 611⁄4 x 291⁄2 x 34 (155.6 x 74.9 x 86) 120V 480 1920 20 16 5-20P 38205 5-well 76 x 291⁄2 x 34 (193 x 74.9 x 86) 120V 480 2400 30 20 5-30P 700W/120V 38213 3-well 46 x 291⁄2 x 34 (116.8 x 74.9 x 86) 120V 700 2100 30 17.5 5-30P 38214 4-well 61 ⁄4 x 29 ⁄2 x 34 (155.6 x 74.9 x 86) 1 1 120V 700 2800 30 23.3 5-30P 38215 5-well 76 x 291⁄2 x 34 (193 x 74.9 x 86) 120V 700 3500 50 29.2 5-50P 600-800W/208-240V 38217 3-well 46 x 291⁄2 x 34 (116.8 x 74.9 x 86) 208-240V 600-800 1800-2400 15 10 6-15P 38218 4-well 611⁄4 x 291⁄2 x 34 (155.6 x 74.9 x 86) 208-240V 600-800 2400-3200 20 13.3 6-20P 38219 5-well 76 x 291⁄2 x 34 (193 x 74.9 x 86) 208-240V 600-800 3000-4000 30 16.6 6-30P Notes: Dedicated circuit may be required for higher currents. Note: ServeWell® Hot Food Table orders cannot be cancelled or returned 5-51
- 169. vollrathco.com Mobile Serving Equipment ServeWell® Food Stations ServeWell® stations offer innovative design in value-priced mobile serving equipment. Low-water indicator light eliminates guesswork One piece thermoset well insulates and concentrates the heat into water bath Dome elements transfer energy directly into water bath Four guide holes per side for Breath Guard attachment Equipped with standard 480W, 700W or 800W elements Standard 10' power cord Each well is equipped with a brass drain valve Plate shelf and cutting board Low-Water Indicator Light standard on hot food unit 8 wide cutting board Stainless steel construction includes legs and undershelf Brass Drain Valve Automatic 3⁄8 thick 71⁄2 wide Standard adjustable stationary Shipped knockdown thermostatic controls cutting board plate shelf legs or optional caster set ServeWell® Hot Food Tables* Q Thermoset wells cannot pit or rust Receptacle Configurations Q Recommended for use with up to 4 (10.2 cm) deep full or fractional size pans. Well depth is 61⁄4 Q Use standard adaptor plates and insets for serving flexibility Q 38099: Optional Caster Set has four 4 (10.2 cm) swivel wheels — two with brakes WATTS WATTS ELECTRICAL ITEM DESCRIPTION DIMENSIONS: IN (CM) VOLTS** PER WELL TOTAL SERVICE (A) AMPS PLUG 700W/120V 38102 2-well hot food table 32 x 32 x 34 (81.3 x 81 x 86) 120V 700 1400 15 11.7 5-15P 38103 3-well hot food table 46 x 32 x 34 (116.8 x 81 x 86) 120V 700 2100 30 17.5 5-30P 38104 4-well hot food table 611⁄4 x 32 x 34 (155.6 x 81 x 86) 120V 700 2800 30 23.3 5-30P 38105 5-well hot food table 76 x 32 x 34 (193 x 81 x 86) 120V 700 3500 50 29.2 5-50P 480W/120V 38002 2-well hot food table 32 x 32 x 34 (81.3 x 81 x 86) 120V 480 960 15 8 5-15P 38003 3-well hot food table 46 x 32 x 34 (116.8 x 81 x 86) 120V 480 1440 15 12 5-15P 38004 4-well hot food table 611⁄4 x 32 x 34 (155.6 x 81 x 86) 120V 480 1920 20 16 5-20P 38005 5-well hot food table 76 x 32 x 34 (193 x 81 x 86) 120V 480 2400 30 20 5-30P 600-800W/208-240V 38116 2-well hot food table 32 x 32 x 34 (81.3 x 81 x 86) 208-240V 600-800 1200-1600 15 6.7 6-15P 38117 3-well hot food table 46 x 32 x 34 (116.8 x 81 x 86) 208-240V 600-800 1800-2400 15 10 6-15P 38118 4-well hot food table 611⁄4 x 32 x 34 (155.6 x 81 x 86) 208-240V 600-800 2400-3200 20 13.3 6-20P 38119 5-well hot food table 76 x 32 x 34 (193 x 81 x 86) 208-240V 600-800 3000-4000 30 16.6 6-30P *Dedicated circuit may be required for higher currents **Single phase only ® Note: Servewell Hot Food Table orders cannot be cancelled or returned. 5-52
- 170. Mobile Serving Equipment The Vollrath Company, LLC ServeWell® Cold Food Tables 2 Pan 32 3 Pan 4 Pan Q Stainless steel body, shelf and legs 27 (81.3 cm 47 1⁄2 5 Pan ) (119.4 cm 61 1⁄4 (68.6 cm) ) 76 Q Stainless steel 6 (15.2 cm) ice well with drain (157 cm) (194.3 cm ) Q Accommodates full and fractional size steam table pans ITEM DESCRIPTION WELL LENGTH: IN (CM) 34 38012 Two pan cold food table 243⁄ 4 (63) (87.7 cm) 38013 Three pan cold food table 371⁄ 2 (95) 38014 Four pan cold food table 501⁄ 4 (128) 38015 Five pan cold food table 63 (160) Note: Servewell® Cold Table orders cannot be cancelled or returned. ServeWell® Accessories Option: Buffet Breath Guard† Operator's side polyethylene cutting board standard on hot food tables* Option: Work/Overshelf – Single or Double Deck (without acrylic panel) Option: Single Deck Option: Fixed Plate Rests Cafeteria Guard (with acrylic panel) Option: Caster Set: 4 (10.2 cm) swivel wheels with brakes Note: Heat strips are not an option Buffet Breath Guards† Work/Single Overshelf Single Deck Cafeteria ITEM DESCRIPTION (L X W X H): IN (CM) without Acrylic Panel Guards with Acrylic Panel 38062 32 x 353⁄ 8 x 231⁄ 2 (81.3 x 89.8 x 59.7) ITEM DESCRIPTION (L X W X H): IN (CM) ITEM DESCRIP DESCRIPTION DESCRIPTION (L X W X H): IN (CM) H) (CM (CM) 38063 46 x 353⁄ 8 x 231⁄ 2 (116.8 x 89.8 x 59.7) 38042 32 x 10 x 13 (81.3 x 25.4 x 33) 38052 32 x 10 x 13 (81.3 x 25.4 x 33) 38064 611⁄ 4 x 353⁄ 8 x 231⁄ 2 (155.6 x 89.8 x 59.7) 38043 46 x 10 x 13 (116.8 x 25.4 x 33) 38053 46 x 10 x 13 (116.8 x 25.4 x 33) 38065 76 x 353⁄ 8 x 231⁄ 2 (193 x 89.8 x 59.7) 38044 611⁄ 4 x 10 x 13 (155.6 x 25.4 x 33) 38054 611⁄ 4 x 10 x 13 (155.6 x 25.4 x 33) †For units only with 4 guide holes per side 38045 76 x 10 x 13 (193 x 25.4 x 33) 38055 76 x 10 x 13 (193 x 25.4 x 33) Plate Rests Optional Customer Side ITEM DESCRIPTION (L X W X H): IN (CM) Double Deck Overshelf Poly Cutting Boards with 38092 32 x 8 x 1 (81.3 x 20.3 x 2.5) without Acrylic Panel 38093 46 x 8 x 1 (116.8 x 20.3 x 2.5) Mounting Kit** 38094 611⁄ 4 x 8 x 1 (155.6 x 20.3 x 2.5) ITEM DESCRIPTION (L X W X H): IN (CM) ITEM DESCRIPTION (L X W X H): IN (CM) 38095 76 x 8 x 1 (193 x 20.3 x 2.5) 38032 32 x 10 x 26 (81.3 x 25.4 x 66) 38072 32 x 8 x 1 (81.3 x 20.3 x 2.5) 38033 46 x 10 x 26 (116.8 x 25.4 x 66) 38073 46 x 8 x 1 (116.8 x 20.3 x 2.5) Caster Set 1 1 38034 61 ⁄ 4 x 10 x 26 (155.6 x 25.4 x 66) 38074 61 ⁄ 4 x 8 x 1 (155.6 x 20.3 x 2.5) ITEM DESCRIPTION 38035 76 x 10 x 26 (193 x 25.4 x 66) 38075 76 x 8 x 1 (193 x 20.3 x 2.5) 38099 4 caster set, two w/brakes **Replacement part 5-53
- 171. vollrathco.com Photo Gallery If you can dream it, Vollrath® can build it. Vollrath carts, kiosks and serving lines are the choice of thousands of foodservice establishments every year. Vollrath designs and delivers exceptional equipment to top colleges and universities, K-12, healthcare providers, corporate headquarters, casinos, and hospitality. No other manufacturer provides the breadth of line for every budget, always offering the quality and merchandising expertise to make that foodservice location successful. See our photo gallery at www.vollrathco.com, and create your own foodservice masterpiece! P Photo Gallery v view more photo sa samples online at vollrathco.com 5-54
- 172. Smallwares New Products The Vollrath Company, LLC Discover what’s for 2011-2012. Super Pan® Super Shapes Pages 6-3 6-4 NOW AVAILABLE IN 19 DIFFERENT SHAPES SIZES Centurion® Cookware Optio™ Cookware Pages 7-11 to 7-14 Pages 7-18 to 7-20 WearEver® Cookware C k Arkadia™ Cookware Pages 7-24 to 7-46 Pages 7-39 to 7-40
- 173. Steam Table Accessories vollrathco.com Pans Colored Double Wall Serving Bowls Pages 9-3 to 9-4 and 9-43 Cookware Intrigue® Square Induction Chafers Page 9-16 Essentials Kitchen Somerville™ Chafer Line Page 9-18 Tabletop Buffet Service SMALLWARES Warewashing Handling Fluted Double Wall Serving Bowls Page 9-44
- 174.
- 175. Steam Table Pans and Accessories Super Pan® Super Pan 3® Stainless Steel Super Shapes Steam Table Pans Vegetable Insets Provides an upscale look that The unique ramp allows for quick Ideal for round steam table lets customers know you offer and easy removal of pan for openings and soup merchandisers. only the best. Super Shape pans efficient operation. Reinforced Use them with a variety of complement your existing inventory corners provide exceptional adapter plates for greater flexibility. of steam table pans. Now with durability and long life. deeper pans and new shapes. Vollrath “Green” Facts for Steam Table Pans Accessories: Super Pan® Super Shapes provide dramatic presentation with portions that offer better food quality and reduced food waste. Super Pan 3® flattened edges keep steam from escaping, giving them 38% higher efficiency than the competition with bent edges. Stainless steel is continuously recycled in a sustainable closed loop system. Accurate portion control utensils control food costs and reduce food waste. For more details on Vollrath’s green products, visit www.vollrathco.com/green 6-2
- 176. Steam Table Pansand Accessories The Vollrath Company, LLC Super Pan® A cost effective method to upscale the presentation of food in chafers, heated or refrigerated buffet lines, display cases, and more. By using your existing inventory of steam table pans, and replacing a few pieces of the line-up with the Super Shapes pans, your whole line-up gets an upscale presentation. Super Shape steam table pans are built to look great and hold up to the most demanding commercial kitchen environments. Patented. Super Shapes Features: Shape Options: Q Upscale food presentation with minimal investment Q Wild Pan Long Q Shapes provide dramatic presentation with portions Q Wild Pan Short that offer better food quality and reduced food waste Q Wild Pan - Third Inner Q Pans stack neatly within themselves for easy storage Q Q Wild Pan - Third Outer 300 series stainless provides great durability, cleanability and thermal transfer Q 22 gauge pan for durability Q Oval Full-Size Q Full- and Half-size units fit with Super Pan 3® covers and flexible lids Q Oval Half-Size Q Oval Third-Size Q Kidney Full-Size Q Kidney Half-Size Create striking steam Q Hexagon Full-size table buffet presentations Q Hexagon Half-Size guaranteed to entice your customers! Now In 19 Shapes and Sizes! Various pan depths now available. 6-3
- 177. vollrathco.com Steam Table Pans and Accessories Super Pan® Give your buffet a Line-up makeover. See the difference for yourself. Pans stack for easy storage Use two 3100320 and one Use two each 3100020 or 3100321 1⁄3 inner/outer Wild Pans 3100220 Wild Pans in a in a chafer and dress it up while chafer and dress it up while Super Shape Pans p pe offering three separate dishes! offering two separate dishes! PAN DIMENSIONS BRIMFUL PAN COVER CAPACITY CASE SOLID SLOTTED FLEX CASE ITEM DESCRIPTION 1 OZ PORTION L X W: IN (MM) HEIGHT: IN (MM) QT (L) LOT COVER COVER COVER LOT 3101020 Oval - Full 155 201⁄4 x 1213⁄16 (530 x 325) 21⁄2 (65) 4.8 (4.6) 6 93100 94100 52430 6 3102020 Oval - Half 69 10 ⁄ x 12 ⁄ (265 x 325) 14 13 16 2 ⁄ (65) 12 2.2 (2.1) 6 93200 94200 n/a 6 3101120 Kidney - Full 162 201⁄4 x 1213⁄16 (530 x 325) 21⁄2 (65) 5.1 (4.8) 6 93100 94100 52430 6 3102120 Kidney - Half 71 101⁄4 x 1213⁄16 (265 x 325) 21⁄2 (65) 2.2 (2.1) 6 93200 94200 n/a 6 3101220 Hexagon - Full 170 20 ⁄ x 12 ⁄ (530 x 325) 14 13 16 2 ⁄ (65) 12 5.8 (5) 6 93100 94100 52430 6 3102220 Hexagon - Half 71 101⁄4 x 1213⁄16 (265 x 325) 21⁄2 (65) 2.2 (2.1) 6 93200 94200 n/a 6 3100020 Wild Pan - Long 120 20 ⁄ x 12 ⁄ (530 x 325){ 14 13 16 2 ⁄ (65) 12 3.7 (3.5) 6 n/a n/a n/a - 3100220 Wild Pan - Short 134 201⁄4 x 1213⁄16 (530 x 325){ 21⁄2 (65) 4.1 (3.9) 6 n/a n/a n/a - 3100320 Wild Pan - Third Outer 82 201⁄4 x 1213⁄16 (530 x 325)| 21⁄2 (65) 2.6 (2.5) 6 n/a n/a n/a - 3100321 Wild Pan - Third Inner 82 20 ⁄ x 12 ⁄ (530 x 325)| 14 13 16 2 ⁄ (65) 12 2.6 (2.5) 6 n/a n/a n/a - 3101040 Oval - Full 270 201⁄4 x 1213⁄16 (530 x 325) 4 (102) 8.2 (7.8) 6 93100 94100 52430 6 3102040 Oval - Half 118 10 ⁄ x 12 ⁄ (265 x 325) 14 13 16 4 (102) 3.7 (3.5) 6 93200 94200 n/a 6 3103040 Oval - Third 69 615⁄16 x 1213⁄16 (176 x 325) 4 (102) 2.2 (2.1) 6 93300 94300 n/a 6 3101240 Hexagon - Full 298 201⁄4 x 1213⁄16 (530 x 325) 4 (100) 9.3 (8.8) 6 93100 94100 52430 - 3102240 Hexagon - Half 122 10 ⁄ x 12 ⁄ (265 x 325) 14 13 16 4 (100) 3.8 (3.6) 6 93200 94200 n/a - 3100040 Wild Pan - Long 163 201⁄4 x 1213⁄16 (530 x 325){ 31⁄2 (89) 5 (4.8) 6 n/a n/a n/a - 3100240 Wild Pan - Short 205 201⁄4 x 1213⁄16 (530 x 325){ 4 (100) 6.4 (6.1) 6 n/a n/a n/a - 3100340 Wild Pan - Third Outer 122 201⁄4 x 1213⁄16 (530 x 325)| 4 (100) 3.8 (3.6) 6 n/a n/a n/a - 3100341 Wild Pan - Third Inner 122 201⁄4 x 1213⁄16 (530 x 325)| 4 (100) 3.8 (3.6) 6 n/a n/a n/a - ADAPTOR BAR 75015 Adaptor Bar for Wild Pan - Long, use with 3100020 and 3100040 - - 12 - - - - Adaptor Bar for Wild Pan - Short and Wild Pan - Third, use with 75013 - - 12 - - - - 3100220, 3100240, 3100320, 3100340 and 3100341 { Overall di O ll dimensions for a set of 2 i f t f | Overall dimensions for t outer pans and one inner pan O ll di i f two t d i 3102040 3101020 3101120 3100020 (Two Shown) 3100220 3100340 3101220 (Two Shown) 3100341 6-4
- 178. Steam Table Pansand Accessories The Vollrath Company, LLC Super Pan 3® Stainless Steel The Worldwide Pan! Flattened Pan Edges — prevent bending and provide Integral frame enhances Sturdy 22 gauge (.8 mm), a wider grasp when removing food presentation 300 series stainless steel construction Angled Ramp — pull-and-lift pans with ease Anti-jam Stacking Lugs — separate and dry pans without any hassle Reinforced Spouted-Shape Corners — add strength where your pan gets the most abuse and stop the spilling and the mess when pouring EN631-1 Compliant — for Worldwide use Super Pan 3® Stainless Steel Pans DEPTH BRIMFUL CAPACITY PAN SOLID SLOTTED WIRE FALSE CASE PAN SIZE AND DIMENSIONS ITEM IN (MM) QT (L) CASE LOT COVER COVER GRATE BOTTOM LOT 3⁄ 4 (20) 6 92002{ TRAY NA — — — — 92012{ 11⁄ 2 (40) 12.6 (11.9) 6 92002 — — — 6 92052{ 2 (55) 17.3 (16.3) 6 92002 — — — 6 92022{ 21⁄ 2 (65) 20.2 (19.1) 6 92002 — — — 6 DOUBLE SIZE 92042{ 4 (100) 31.1 (29.4) 6 92002 — — — 6 25 9⁄16 X 20 7⁄8 IN 650 X 530 MM 92062{ 6 (150) 46.1 (43.7) 6 92002 — — — 6 2/1 92082{ 8 (200) 60.7 (57.5) 6 92002 — — — 6 90002 3⁄ 4 (20) TRAY 6 — — 74100 70100 6 90012 11⁄ 2 (40) 5.7 (5.4) 6 93100 94100 74100 70100 6 FULL-SIZE 90052 2 (55) 7.7 (7.3) 6 93100 94100 74100 70100 6 20 7⁄8 X 12 13⁄16 IN 530 X 325 MM 90022 21⁄ 2 (65) 9 (8.5) 6 93100 94100 74100 70100 6 1/1 90042 4 (100) 14.2 (13.4) 6 93100 94100 74100 70100 6 90062 6 (150) 20.1 (19.9) 6 93100 94100 74100 70100 6 90082 8 (200) 27.5 (26.1) 3 93100 94100 74100 70100 6 90102 3 ⁄ 4 (20) TRAY 6 — — — 70110 6 90112 11⁄ 2 (40) 3.6 (3.4) 6 93110 94110 — 70110 6 TWO-THIRDS SIZE 13 15⁄16 X 12 13⁄16 IN 90122 21 ⁄ 2 (65) 5.7 (5.4) 6 93110 94110 — 70110 6 354 X 325 MM 90142 4 (100) 8.5 (8) 6 93110 94110 — 70110 6 2/3 90162 6 (150) 12.6 (11.9) 6 93110 94110 — 70110 6 90182| 8 (200) 16.4 (15.5) 3 93110 94110 — 70110 6 { Imported For Super Pan 3® Accessories, see pages 6-9 to 6-10 and 6-16 to 6-17. For Portion Control and Cutout Dimensions see page 6-22. For Pan Layouts, see page 6-21. 6-5
- 179. vollrathco.com Steam Table Pans and Accessories 38% Save on Energy Costs! MORE EFFICIENT HOURLY KWH TOTAL ANNUAL TOTAL ANNUAL PRICE PER TOTAL ANNUAL Save an annual average of STEAM TABLE PAN USAGE HRS. KWH KWH COST Super Pan 3® $ $ 0.20 2488 497.60 0.1153 57.33 30* on energy costs Competitor w/bent edges 0.32 2488 Average Annual Savings of $34.46 !* 796.11 0.1153 $ 91.79 PER FULL-SIZE PAN OPENING! with Full-Size Super Pan 3® *Third Party Testing. Total hours based on 8 hours a day/311 days a year. Average Commercial Retail Price of Electricity = $0.1153/kWh as of Sept. '10 per U.S. Dept. of energy website. www.eia.doe.gov Super Pan 3® Stainless Steel Pans DEPTH BRIMFUL CAPACITY PAN SOLID SLOTTED WIRE FALSE CASE PAN SIZE AND DIMENSIONS ITEM IN (MM) QT (L) CASE LOT COVER COVER GRATE BOTTOM LOT 90202 3 ⁄4 (20) TRAY 6 — — 74200 70200 6 90212 11⁄2 (40) 2.6 (2.4) 6 93200 94200 74200 70200 6 HALF-SIZE 12 13⁄16 x 10 7⁄16 in. 90252 2 (55) 3.5 (3.3) 6 93200 94200 74200 70200 6 325 x 265 mm 90222 2 ⁄2 (65) 1 4 (3.8) 6 93200 94200 74200 70200 6 1/2 90242 4 (100) 6.3 (6) 6 93200 94200 74200 70200 6 90262 6 (150) 9.4 (8.9) 6 93200 94200 74200 70200 6 90282 8 (200) 12.2 (11.6) 3 93200 94200 74200 70200 6 90502 3 ⁄4 (20) TRAY 6 — — — 70500 6 90512 1 ⁄2 (40) 1 2.5 (2.4) 6 93500 94500 — 70500 6 HALF-LONG SIZE 20 7⁄8 x 6 3⁄8 in. 90552 2 (55) 3.3 (3.1) 6 93500 94500 — 70500 6 530 x 162 mm 90522 21⁄2 (65) 3.9 (3.7) 6 93500 94500 — 70500 6 2/4 90542 4 (100) 6 (5.7) 3 93500 94500 — 70500 6 90562 6 (150) 8.7 (8.2) 3 93500 94500 — 70500 6 90302 3 ⁄4 (20) TRAY 6 — — 74300 70300 6 90312 11⁄2 (40) 1.7 (1.6) 6 93300 94300 74300 70300 6 THIRD-SIZE 90352 2 (55) 2.1 (2) 6 93300 94300 74300 70300 6 6 15⁄16 x 12 13⁄16 in. 176 x 325 mm 90322 2 ⁄2 (65) 1 2.5 (2.4) 6 93300 94300 74300 70300 6 1/3 90342 4 (100) 3.9 (3.7) 6 93300 94300 74300 70300 6 90362 6 (150) 5.8 (5.5) 6 93300 94300 74300 70300 6 90382 8 (200) 7.5 (7.1) 3 93300 94300 74300 70300 6 90402 3 ⁄4 (20) TRAY 6 — — — 70400 6 90412 1 ⁄2 (40) 1 1.2 (1.1) 6 93400 94400 — 70400 6 FOURTH-SIZE 90452 2 (55) 1.6 (1.5) 6 93400 94400 — 70400 6 6 3⁄8 x 10 7⁄16 in. 162 x 265 mm 90422 21⁄2 (65) 1.8 (1.7) 6 93400 94400 — 70400 6 1/4 90442 4 (100) 2.7 (2.6) 6 93400 94400 — 70400 6 90462 6 (150) 4 (3.8) 6 93400 94400 — 70400 6 90482 8 (200) 5.1 (4.8) 3 93400 94400 — 70400 6 90622 21⁄2 (65) 1.1 (1.1) 6 93600 94600 — 70600 6 SIXTH-SIZE 6 15⁄16 x 6 3⁄8 in. 90642 4 (100) 1.7 (1.6) 6 93600 94600 — 70600 6 176 x 162 mm 90662 6 (150) 2.4 (2.3) 6 93600 94600 — 70600 6 1/6 90682 8 (200) 3.2 (3) 3 93600 94600 — 70600 6 90922 21⁄2 (65) 0.6 (0.6) 6 93900 94900 — 70600 6 NINTH-SIZE 6 15⁄16 x 4 1⁄4 in. 90942 4 (100) 0.9 (0.8) 6 93900 94900 — 70600 6 176 x 108 mm 1/9 For Super Pan 3® Accessories, see pages 6-9 to 6-10 and 6-16 to 6-17. For Portion Control and Cutout Dimensions see page 6-22. For Pan Layouts, see page 6-21. Specifications: Super Pan 3® shall be 300 series stainless Steel. Corner on top of flange shall be designed with built-in concave, indentation for impact resistance. All depths 2 and deeper shall have anti-jamming design to prevent pans from sticking together. 2/1, full, two-thirds, half, half-long and third sizes shall have ramped sides for easy removal from wells. Reverse formed edge shall be flattened for consistent tangent to well opening and for hand comfort. Pans shall have a “framing shoulder” on short sides around the interior body of the pan, accenting the food product and providing an appealing presentation. Pan size and capacity to be marked on all pans. NSF certified. Meets gastronorm (EN 631-1) standard. 6-6
- 180. Steam Table Pansand Accessories The Vollrath Company, LLC Super Pan® Plastic Low-Temperature Plastic Pans Q Temperature range is -40°F to 210°F (-40˚C to 98.9˚C) Q Polycarbonate construction Q Unique ramp Q Built-in anti-jam stacking lugs Q Specially designed reinforced corners Q Integral frame enhances food presentation Q Plastic pans available in clear or black Q Plastic covers and false bottoms available in clear only Q Ideal for storage and cold applications Q Not for use in steam environments For Super Pan® Accessories, see pages 6-9 to 6-10 and 6-16 to 6-17. For Portion Control and Cutout Dimensions see page 6-22. For Pan Super Pan® Low-Temp Plastic Pans Layouts, see page 6-21. DEPTH BRIMFUL CAPACITY PAN CLEAR SOLID CLEAR SLOTTED CLEAR PLASTIC CASE PAN SIZE AND DIMENSIONS CLEAR ITEM BLACK ITEM IN (MM) QT (L) CASE LOT COVER COVER FALSE BOTTOM LOT 8002410 8002420 21⁄2 (65) 8.8 (8.3) 6 31100 32100 29100 6 FULL-SIZE 20 7⁄8 x 12 13⁄16 in. 8004410 8004420 4 (100) 13.6 (12.9) 6 31100 32100 29100 6 530 x 325 mm 8006410 8006420 6 (150) 20.2 (19.2) 6 31100 32100 29100 6 1/1 8008410 8008420 8 (200) 26.5 (25.1) 3 31100 32100 29100 6 8022410 8022420 2 ⁄2 (65) 1 3.9 (3.7) 6 31200 32200 29200 6 HALF-SIZE 10 3⁄8 x 12 13⁄16 in. 8024410 8024420 4 (100) 5.9 (5.6) 6 31200 32200 29200 6 265 x 325 mm 8026410 8026420 6 (150) 8.6 (8.1) 6 31200 32200 29200 6 1/2 8028410 8028420 8 (200) 11 (10.4) 3 31200 32200 29200 6 8052410 8052420 21⁄2 (65) 3.8 (3.6) 6 31500 — — — HALF-LONG SIZE 20 7⁄8 x 6 3⁄8 in. 8054410 8054420 4 (100) 5.7 (5.4) 3 31500 — — — 530 x 162 mm 2/4 8032410 8032420 21⁄2 (65) 2.4 (2.3) 6 31300 32300 29300 6 THIRD-SIZE 6 15⁄16 x 12 13⁄16 in. 8034410 8034420 4 (100) 3.6 (3.4) 6 31300 32300 29300 6 176 x 325 mm 8036410 8036420 6 (150) 5.3 (5.1) 6 31300 32300 29300 6 1/3 8038410 8038420 6.8 (6.5) 3 31300 32300 29300 6 8 (200){ 8042410 8042420 21⁄2 (65) 1.8 (1.7) 6 31400 32400 29400 6 FOURTH-SIZE 6 3⁄8 x 10 7⁄16 in. 8044410 8044420 4 (100) 2.7 (2.5) 6 31400 32400 29400 6 162 x 265 mm 8046410 8046420 6 (150) 3.8 (3.6) 6 31400 32400 29400 6 1/4 8062410 8062420 21⁄2 (65) 1.1 (1) 6 31600 32600 29600 6 SIXTH-SIZE 6 15⁄16 x 6 3⁄8 in. 8064410 8064420 4 (100) 1.6 (1.5) 6 31600 32600 29600 6 176 x 162 mm 8066410 8066420 6 (150) 2.2 (2.1) 6 31600 32600 29600 6 1/6 8092410 8092420 21⁄2 (65) 0.6 (0.6) 6 31900 — — 6 NINTH-SIZE 6 15⁄16 x 4 1⁄4 in. 8094410 8094420 4 (100) 0.9 (0.9) 6 31900 — — 6 176 x 108 mm 1/9 6-7
- 181. vollrathco.com Steam Table Pans and Accessories Super Pan® Plastic High-Temperature Plastic Pans Q Temperature range is -40°F to 375°F (-40˚C to 190.6˚C) Q High-temperature resin Q Unique ramp Q Built-in anti-jam stacking lugs Q Specially designed reinforced corners Q Integral frame enhances food presentation Q Plastic pans available in amber or black Q Plastic covers and false bottoms available in amber only Q For use in hot steam tables or microwaves Q Not recommended for use in ovens, combi-steamers or convection ovens For Super Pan® Accessories, see pages 6-9 to 6-10 and 6-16 to 6-17. For Portion Control and Cutout Dimensions see page 6-22. For Pan Layouts, see page 6-21. Super Pan® High-Temp Plastic Pans DEPTH BRIMFUL CAPACITY PAN AMBER SOLID AMBER SLOTTED AMBER CASE PAN SIZE AND DIMENSIONS AMBER ITEM BLACK ITEM IN (MM) QT (L) CASE LOT COVER COVER FALSE BOTTOM LOT 9002410 9002420 21⁄2 (65) 8.8 (8.3) 6 33100 34100 23100 6 FULL-SIZE 20 7⁄8 X 12 13⁄16 in. 9004410 9004420 4 (100) 13.6 (12.9) 6 33100 34100 23100 6 530 x 325 mm 9006410 9006420 6 (150) 20.2 (19.2) 6 33100 34100 23100 6 1/1 9008410 - 8 (200) 26.5 (25.1) 3 33100 34100 23100 6 9022410 9022420 2 ⁄2 (65) 1 3.9 (3.7) 6 33200 34200 23200 6 HALF-SIZE 10 3⁄8 x 12 13⁄16 in. 9024410 9024420 4 (100) 5.9 (5.6) 6 33200 34200 23200 6 265 x 325 mm 9026410 9026420 6 (150) 8.6 (8.1) 6 33200 34200 23200 6 1/2 9028410 9028420 11 (10.4) 3 33200 34200 23200 6 8 (200){ 9052410 9052420 21⁄2 (65) 3.8 (3.6) 6 33500 — — — HALF-LONG SIZE 20 7⁄8 x 6 3⁄8 in. 9054410 9054420 4 (100) 5.7 (5.4) 3 33500 — — — 530 x 162 mm 2/4 9032410 9032420 21⁄2 (65) 2.4 (2.3) 6 33300 34300 23300 6 THIRD-SIZE 6 15⁄16 x 12 13⁄16 in. 9034410 9034420 4 (100) 3.6 (3.4) 6 33300 34300 23300 6 176 x 325 MM 9036410 9036420 6 (150) 5.3 (5.1) 6 33300 34300 23300 6 1/3 9038410 9038420 8 (200) 6.8 (6.5) 3 33300 34300 23300 6 9042410 9042420 21⁄2 (65) 1.8 (1.7) 6 33400 34400 23400 6 FOURTH-SIZE 6 3⁄8 x 10 7⁄16 in. 9044410 9044420 4 (100) 2.7 (2.5) 6 33400 34400 23400 6 162 x 265 mm 9046410 9046420 6 (150) 3.8 (3.6) 6 33400 34400 23400 6 1/4 9062410 9062420 21⁄2 (65) 1.1 (1) 6 33600 34600 23600 6 SIXTH-SIZE 6 15⁄16 x 6 3⁄8 in. 9064410 9064420 4 (100) 1.6 (1.5) 6 33600 34600 23600 6 176 x 162 mm 9066410 9066420 6 (150) 2.2 (2.1) 6 33600 34600 23600 6 1/6 9092410 9092420 21⁄2 (65) 0.6 (0.6) 6 33900 — — 6 NINTH-SIZE 6 15⁄16 x 4 1⁄4 in. 9094410 9094420 4 (100) 0.9 (0.9) 6 33900 — — 6 176 x 108 mm 1/9 Specifications: Super Pan® shall be constructed of polycarbonate (low temperature: -40°F to 210°F) or high-temperature resin (high temperature: -40°F to 375°F) material. Corner of top of flange shall be designed with built-in concave, indentation for impact resistance. All depths shall have anti-jamming design to prevent pans from sticking together. Full, two-thirds, half, half-long and third sizes shall have ramped sides for easy removal from wells. Reverse formed edge shall be flattened for consistent tangent to well opening and for hand comfort. Pans shall have a “framing shoulder” around the interior body of the pan, accenting the food product and providing an appealing presentation. The low temperature line is available in clear or black and the high temperature line is available in amber or black. Pan size and capacity to be marked on all pans. NSF certified. Meets gastronorm (EN 631-1) standard. 6-8
- 182. Steam Table Pansand Accessories The Vollrath Company, LLC Super Pan 3® Perforated Pans 90143 Q 22 gauge (.8 mm) Q 300 series stainless steel 1 Q ⁄ 4 (6mm) holes{ drain quickly, but sized to retain most foods Q Ideal for steaming foods or draining away fats, juices or moisture PAN SIZE ITEM DEPTH: IN (MM) CASE LOT 1/1 90013 11⁄ 2 (40) 6 90053 2 (55) 6 90023 21⁄ 2 (65) 6 90043 4 (100) 6 90063 6 (150) 6 90243 1 1/2 90213 1 ⁄ 2 (40) 6 90223 21⁄ 2 (65) 6 90243 4 (100) 6 90263 6 (150) 6 1/3 90313 11⁄ 2 (40) 6 90323 21⁄ 2 (65) 6 90343 4 (100) 6 90363 6 (150) 6 90343 { For 1 ⁄2, 2 and 2 ⁄2 depths, drain holes located in bottom only. 1 1 For 4” and 6 drain holes in sides and bottom. See pages 8-10, 8-19, 8-20, Nylon Utensils – Super Pan 3® with 8-22 8-24 Great for use with Non-Stick Pans! Non-Stick Interior Q 300 series stainless steel Q Dramatic black interior enhances both cold and hot food presentations Q Triple bonded layer coating is the finest available Q Cook, serve and display in the same pan Q Interior surface is stain resistant Q Temperature tolerance of -20˚ to 450˚ F (-28˚ to 230˚ C) 90047 Q Dishwasher safe Q Not for use with metal utensils PAN SIZE ITEM DEPTH: IN (MM) CAPACITY: QT. (L) CASE LOT 2/4 90527 21⁄ 2 (65) 3.9 (3.7) 6 90547 4 (100) 6 (5.7) 3 1/3 90327 21⁄ 2 (65) 2.5 (2.4) 6 PAN SIZE ITEM DEPTH: IN (MM) CAPACITY: QT. (L) CASE LOT 90347 4 (100) 3.9 (3.7) 6 1/1 90017 11⁄ 2 (40) 5.7 (5.4) 6 90367 6 (150) 5.8 (5.5) 6 90027 21⁄ 2 (65) 9 (8.5) 6 1/4 90427 21⁄ 2 (65) 1.8 (1.7) 6 90047 4 (100) 14.2 (13.4) 6 90447 4 (100) 2.7 (2.6) 6 1/2 90217 11⁄ 2 (40) 2.6 (2.4) 6 1/6 90627 21⁄ 2 (65) 1.1 (1.1) 6 90227 21⁄ 2 (65) 4 (3.8) 6 90647 4 (100) 1.7 (1.6) 6 90247 4 (100) 6.3 (6) 6 90667 6 (150) 2.4 (2.3) 6 Super Pan 3® Full-Size Flex Lid Q Low-density polyethylene Q Safe to use in temperatures ranging Q Translucent lids allow stacking for easy storage from -20˚F to 190˚F (-28˚C to 88˚C) Q Q Ideal for cold food storage Sanitary and easy to clean Q Non-staining and dishwasher safe ITEM DESCRIPTION DIMENSIONS: IN (CM) CASE LOT 52430 Full-size 2015⁄ 16 x 127⁄ 8 x 1⁄ 2 (53.2 x 32.7 x 1.3) 6 Note: For use with Full Size Super Shapes Steam Table Pans, see page 6-3 6-4 6-9
- 183. vollrathco.com Steam Table Pans and Accessories Super Pan 3® Solid and Slotted Covers Q Stainless steel Q Reinforced edges provide added strength to the perimeter of the cover Q Slotted covers are NSF certified — Vollrath exclusive 93100 Q For use with Super Pan 3® and Super Pan II® — Ninth size Super Pan 3® covers do not fit ninth size Super Pan II® pans PAN SIZE SOLID ITEM SLOTTED ITEM CASE LOT 1/1 93100 94100 6 2/3 93110 94110 6 1/2 93200 94200 6 2/4 93500 94500 6 1/3 93300 94300 6 1/4 93400 94400 6 94100 1/6 93600 94600 6 1/9 93900 94900 6 Super Pan 3® Only Wire Grate Cook-Chill Cover Super Pan 3® on the market Q Wire Grates made of Stainless Steel! Stainless steel Q Heavy-duty 300 Q Specially designed for use in series stainless steel the Cook-Chill process wire construction Q Provides rapid, Q Ample finger room for uniform chilling easy removal from pan and rethermalization 95100 Q Use for cooling, icing, display, or drying rack PAN SIZE ITEM CASE LOT PAN DIMENSIONS CASE 1/1 95100 12 SIZE ITEM IN (CM) LOT 1/2 95200 12 1/1 74100 171⁄ 8 x 913⁄ 16 x 27 ⁄ 32 (43.5 x 24.9 x 2.1) 6 1/3 95300 12 1/2 74200 913⁄ 16 x 611⁄ 16 x 27 ⁄ 32 (24.9 x 17 x 2.1) 6 1/6 95600 12 1/3 74300 9 x 315⁄ 16 x 27 ⁄ 32 (22.9 x 10 x 2.1) 6 Super Pan 3® False Bottoms Super Pan 3® Q 300 series stainless steel Plastic False Bottoms Q Hold foods above pan Q Amber high-temperature resin: -40°F to 375°F (-40˚C to 190.6˚C) bottom for draining Q Clear low-temperature polycarbonate: Q Finger holes provide -40°F to 210°F (-40˚C to 98.9˚C) for easy removal Q Holds food above pan from pan bottom for draining Q Diameter of small Q Finger holes provide for 23100 holes: 3⁄ 8 (9.5mm) easy removal from pan PAN DIMENSIONS CASE Q Not recommended for use in oven SIZE ITEM IN (CM) LOT 1/1 70100 171⁄ 8 x 913⁄ 16 x 9⁄ 16 (43.5 x 24.9 x 1.4) 6 PAN AMBER CLEAR DIMENSIONS CASE 2/3 70110 101⁄ 2 x 913⁄ 16 x 9⁄ 16 (26.5 x 24.9 x 1.4) 6 SIZE ITEM ITEM IN (CM) LOT 1/2 70200 613⁄ 16 x 913⁄ 16 x 9⁄ 16 (17.3 x 24.9 x 1.4) 6 1/1 23100 29100 171⁄ 8 x 913⁄ 16 x 5⁄ 8 (43.5 x 24.9 x 1.6) 6 2/4 70500 173⁄ 4 x 33⁄ 4 x 9⁄ 16 (45 x 9.6 x 1.4) 6 1/2 23200 29200 913⁄ 16 x 611⁄ 16 x 5⁄ 8 (24.9 x 17 x 1.6) 6 1/3 70300 93⁄ 16 x4x 9⁄ 16 (23.3 x 10.2 x 1.4) 6 1/3 23300 29300 1 15 5 9 ⁄ 16 x 3 ⁄ 16 x ⁄ 8 (23 x 10 x 1.6) 6 1/4 70400 71⁄ 8 x 33⁄ 4 x 9⁄ 16 (18.1 x 9.5 x 1.4) 6 1/4 23400 29400 611⁄ 16 x 33⁄ 8 x 5⁄ 8 (17 x 8.6 x 1.6) 6 1/6 70600 47⁄ 16 x 4 x 9⁄ 16 (11.2 x 10.2 x 1.4) 6 1/6 23600 29600 413⁄ 32 x 33⁄ 8 x 5⁄ 8 (10.6 x 8.6 x 1.6) 6 6-10
- 184. Steam Table Pansand Accessories The Vollrath Company, LLC ® Super Pan II Stainless Steel Q 300 series stainless steel Q 22 gauge The Reinforcer® corner, a Vollrath exclusive, withstands more impact than ordinary pans. Since corners won’t bend, the pan sits flat in steam table wells — saving energy and improving the look and cleanliness of your buffet line. The anti-jamming design is a real labor saver. The stacking lugs prevent pans from sticking together when stored, eliminating the need to pry pans apart before use. And the air space between pans eliminates vacuum seal for faster drying. Flat edges and corners keep pans tight in the well, sealing in heat and cold to keep temperatures even. You also get a more comfortable grip and reduce the risk of spilled food from dropped pans. Coved interior corners are shaped to the spoon, making scooping easier while maximizing serving yield. Coved corners also allow for quick clean-up. Slotted Cover Capacity is stamped on the bottom of every pan as an easy reference for accurate yield and portion control. Covers with reinforced edge stay flat longer and fit securely to help prevent seepage or spills during transport. Solid Cover 6-11
- 185. vollrathco.com Steam Table Pans and Accessories Super Pan II® Stainless Steel Pans DEPTH BRIMFUL CAPACITY PAN SOLID CASE SLOTTED CASE WIRE CASE FALSE CASE PAN SIZE AND DIMENSIONS ITEM IN (MM) QT (L) CASE LOT COVER LOT COVER LOT GRATE LOT BOTTOM LOT 30012 11⁄ 4 (35) 3.9 (3.7) 6 77250 6 75210 6 20028 12 20000 6 FULL-SIZE 20 3⁄4 X 12 3⁄4 IN 527 X 324 MM 30022 21⁄ 2 (65) 8.3 (7.9) 6 77250 6 75210 6 20028 12 20000 6 30042 4 (100) 14 (13.3) 6 77250 6 75210 6 20028 12 20000 6 1/1 30062 6 (150) 21 (19.9) 6 77250 6 75210 6 20028 12 20000 6 30112 11⁄ 4 (35) 3 (2.8) 6 75110 6 — — — — — — TWO-THIRDS SIZE 13 7⁄8 X 12 3⁄4 IN 352 X 324 MM 30122 21⁄ 2 (65) 5.6 (5.3) 6 75110 6 — — — — — — 30142 4 (100) 9.3 (8.8) 6 75110 6 — — — — — — 2/3 30162 6 (150) 14 (13.3) 3 75110 6 — — — — — — 30212 11 ⁄ 4 (35) 2.1 (2) 6 75120 6 75220 6 20228 12 20200 6 HALF-SIZE 10 3⁄8 X 12 3⁄4 IN 30222 21⁄ 2 (65) 4.3 (4.1) 6 75120 6 75220 6 20228 12 20200 6 264 X 324 MM 30242 4 (100) 6.7 (6.3) 6 75120 6 75220 6 20228 12 20200 6 1/2 30262 6 (150) 10 (9.5) 6 75120 6 75220 6 20228 12 20200 6 30512 11⁄ 4 (35) 1.9 (1.8) 6 75050 3 — — — — HALF-LONG SIZE 20 3⁄4 X 6 7⁄16 IN 527 X 164 MM 30522 21⁄ 2 (65) 3.7 (3.5) 6 75050 3 — — — — 30542 4 (100) 5.7 (5.4) 3 75050 3 — — — — 2/4 30562 6 (150) 8.2 (7.8) 3 75050 3 — — — — 30312 11⁄ 4 (35) 1.3 (1.2) 6 75130 6 75230 6 20328 6 20300 6 THIRD-SIZE 6 7⁄8 X 12 3⁄4 IN 175 X 324 MM 30322 21⁄ 2 (65) 2.6 (2.5) 6 75130 6 75230 6 20328 6 20300 6 30342 4 (100) 4.1 (3.9) 6 75130 6 75230 6 20328 6 20300 6 1/3 30362 6 (150) 6.1 (5.8) 6 75130 6 75230 6 20328 6 20300 6 30422 21⁄ 2 (65) 1.8 (1.7) 6 75140 6 75240 6 — — 20400 6 FOURTH SIZE 6 3⁄8 X 10 3⁄8 IN 30442 4 (100) 3 (2.8) 6 75140 6 75240 6 — — 20400 6 162 X 264 MM 30462 6 (150) 4.5 (4.3) 6 75140 6 75240 6 — — 20400 6 1/4 30622 21⁄ 2 (65) 1.2 (1.1) 6 75160 6 75260 6 — — 20600 6 SIXTH-SIZE 6 7⁄8 X 6 1⁄4 IN 30642 4 (100) 1.8 (1.7) 6 75160 6 75260 6 — — 20600 6 175 X 159 MM 30662 6 (150) 2.7 (2.5) 6 75160 6 75260 6 — — 20600 6 1/6 30922 2 (50) 0.6 (0.5) 6 75360 6 75460 6 — — — — NINTH-SIZE 6 7⁄8 X 4 1⁄4 IN 30942 4 (100) 1.1 (1) 6 75360 6 75460 6 — — — — 175 X 108 MM 1/9 Specifications: Super Pan II®, Item No. _______, size _______, shall be _______-gauge (specify standard or heavy), 300 series stainless steel. Top outside corners shall be designed with built-in concave, diagonal groove; i.e., Reinforcer® For Super Pan II® Accessories, see pages 6-13 to 6-18. for impact resistance. All depths of solid pans shall have anti-jamming design to prevent pans from sticking together. For Portion Control and Cutout Dimensions see page 6-22. Reverse formed edge shall be buff polished and flattened for consistent tangent to well opening and for hand comfort. For Pan Layouts, see page 6-21. Pan capacity and portion yield to be stamped on pan. NSF Certified. Super Pan II® Accessories Complement your steam table pans with Cook Chill Covers False Bottoms Wire Grates See Page 6-13 See Page 6-15 See Page 6-15 Vollrath’s wide variety of accessories. 6-12
- 186. Steam Table Pansand Accessories The Vollrath Company, LLC Super Pan II® Cook-Chill Pans and Covers Q Stainless steel Q Provides rapid, uniform chilling and retherm Q Q 77350 Specifically designed for Covers available with or without handles use in Cook-Chill process PORTIONS TRANSPORTED CAPACITY: QT (L) 2 OZ 22⁄3 OZ 4 OZ 8 OZ SIZE COVERED UNCOVERED 60 ML 75 ML 120 ML 235 ML Full-Size 6.6 (6.3) 8.3 (7.9) 107 80 53 26 Half-Size 3.5 (3.3) 4.3 (4.1) 56 42 28 14 Third-Size 2.1 (2) 2.6 (2.5) 34 25 17 8 Note: Portion control capacities are stamped on every pan for accurate yield. PAN 20 GAUGE 22 GAUGE DEPTH CAPACITY CASE COVER W/OUT HANDLES COVER W/HANDLES CASE SIZE ITEM ITEM IN (MM) QT (L) LOT ITEM ITEM LOT 1/1 30020 — 21⁄ 2 (65) 8.3 (7.9) 6 77450 77350 12 1/2 30220 — 21⁄ 2 (65) 4.3 (4.1) 6 75450 — 12 1/3 — 30322 21⁄ 2 (65) 2.6 (2.5) 6 75430 — 12 Heavy-Duty Super Pan II® Steam Table Pans Q Heavy-duty 20 gauge 300 series stainless steel Q Anti-jamming design Q Reinforced corner for extra durability Q Flat edge and corners keep pans tight in well PAN DEPTH CAPACITY CASE SOLID SLOTTED CASE SIZE ITEM IN (MM) QT (L) LOT COVER COVER LOT 1/1 30020 21⁄ 2 (65) 8.3 (7.9) 6 77250 75210 6 1/1 30040 4 (100) 14.0 (13.3) 6 77250 75210 6 1/1 30060 6 (150) 21.0 (19.9) 6 77250 75210 6 1/2 30220 21⁄ 2 (65) 4.3 (4.1) 6 75120 75220 6 1/2 30240 4 (100) 6.7 (6.3) 6 75120 75220 6 1/2 30260 6 (150) 10.0 (9.5) 6 75120 75220 6 Super Pan II® Transport Pans Q Heavy-duty 20 gauge 300 series stainless steel Q Stepped shoulder designed pans with matching covers seal tightly to prevent seepage Q Securely stack together to reduce slipping during transport Q Tight fitting covers make these pans ideal for refrigerator or freezer storage Q Flat rolled pan edges improve carrying comfort DEPTH CAPACITY: QT (L) ITEM IN (MM) COVERED UNCOVERED CASE LOT FULL-SIZE — 203⁄ 4 X 123⁄ 4 (527 X 324 MM) 30015{ 11⁄ 4 (35) — 4 (3.8) 6 30025 21⁄ 2 (65) 5 (4.7) 8 (7.6) 6 30045 4 (100) 10 (9.5) 14 (13.3) 6 Super Pan II® Transport Pan Capacities 30065 6 (150) 14 (13.3) 20 (19) 6 PORTIONS TRANSPORTED 30088 8 (200) 22 (20.9) 28 (26.6) 4 DEPTH CAPACITY: QT (L) 2 OZ 2 2⁄3 OZ 4 OZ 8 OZ HALF-SIZE — 103⁄ 8 X 123⁄ 4 (264 X 324 MM) IN (MM) COVERED UNCOVERED 60 ML 75 ML 120 ML 235 ML FULL-SIZE 30225 21⁄ 2 (65) 2 (1.9) 4 (3.8) 6 30245 4 (100) 4 (3.8) 6 (5.7) 6 21⁄ 2 (65) 5 (4.7) 8 (7.6) 76 60 38 19 30265 6 (150) 7 (6.6) 10 (9.5) 6 4 (100) 10 (9.5) 14 (13.3) 161 120 80 40 30288 8 (200) 10 (9.5) 11 (10.4) 6 6 (150) 14 (13.3) 20 (19) 266 180 133 66 8 (200) 22 (20.9) 28 (26.6) 400 300 200 100 { Stacking lug is not incorporated in Item 30015. HALF-SIZE Food Transport Covers| — Seal securely to prevent spillage. 21⁄ 2 (65) 2 (1.9) 4 (3.8) 32 24 16 8 ITEM DESCRIPTION CASE LOT 4 (100) 4 (3.8) 6 (5.7) 64 48 32 16 70005 Full-size 6 6 (150) 7 (6.6) 10 (9.5) 112 84 56 28 75025 One-half size 3 8 (200) 10 (9.5) 11 (10.4) 190 142 95 47 | Will only fit transport pans 6-13
- 187. vollrathco.com Steam Table Pans and Accessories Super Pan II® with Non-Stick Interior Q 22 gauge Q 300 series stainless steel Q Dramatic black interior enhances both cold and hot food presentations Q Triple bonded layer coating is the finest available Q Cook, serve and display in the same pan Q Interior surface is stain resistant Q Temperature tolerance of -20˚ to 450˚ F (-28˚ to 230˚ C) Q Dishwasher safe Q Not for use with metal utensils Nylon Utensils – Great for use with Non-Stick Pans! See pages 8-10, 8-19, 8-20, 8-22 8-24 PAN DEPTH BRIMFUL CAPACITY CASE SIZE ITEM IN (MM) QT (L) LOT PAN DEPTH BRIMFUL CAPACITY CASE 1/1 70012 11⁄ 2 (40) 3.9 (3.7) 6 SIZE ITEM IN (MM) QT (L) LOT 70022 21⁄ 2 (65) 8.3 (7.9) 6 1/3 70322 21⁄ 2 (65) 2.6 (2.5) 6 70042 4 (100) 14 (13.3) 6 70342 4 (100) 4.1 (3.9) 6 2/3 70122 21⁄ 2 (65) 5.6 (5.3) 6 70362 6 (150) 6.1 (5.8) 6 1/2 70212 11⁄ 4 (35) 2.1 (2) 6 1/4 70422 21⁄ 2 (65) 1.8 (1.7) 6 70222 21⁄ 2 (65) 4.3 (4.1) 6 70442 4 (100) 3 (2.8) 6 70242 4 (100) 6.7 (6.3) 6 1/6 70622 21⁄ 2 (65) 1.2 (1.1) 6 2/4 70522 21⁄ 2 (65) 3.7 (3.5) 6 70642 4 (100) 1.8 (1.7) 6 70542 4 (100) 5.7 (5.4) 6 70662 6 (150) 2.7 (2.5) 6 Super Pan II® Perforated Pans Super Pan II® Pans Q 22 gauge Q Ideal for steaming foods or draining away fats, with Handles Q 300 series stainless steel Q 15⁄ 64 (6mm) holes drain juices or moisture Q 22 gauge Q 300 series stainless steel quickly, but sized to retain most foods Q Retractable handles let you lift and carry pans with ease Q Handles fit flush over the top edge for neat appearance and to help reduce steam release Q Handles are oven safe 30066 30046 PAN SIZE ITEM DIMENSIONS (L X W): IN (MM) DEPTH: IN (MM) CASE LOT 1/1 30013 207⁄ 8 x 1213⁄ 16 (650 x 530) 11⁄ 4 (35) 6 7 13 30023 20 ⁄ 8 x 12 ⁄ 16 (650 x 530) 21⁄ 2 (65) 6 PAN ITEM DEPTH BRIMFUL CAPACITY CASE 30043 207⁄ 8 x 1213⁄ 16 (650 x 530) 4 (100) 6 SIZE IN (MM) QT (L) LOT 30063 207⁄ 8 x 1213⁄ 16 (650 x 530) 6 (150) 6 1/1 30026 21⁄ 2 (65) 8.3 (7.9) 6 1/2 30223 1213⁄ 16 x 107⁄ 16 (325 x 265) 21⁄ 2 (65) 6 30046 4 (100) 14 (13.3) 3 30243 1213⁄ 16 x 107⁄ 16 (325 x 265) 4 (100) 6 30066 6 (150) 21 (19.9) 3 6-14
- 188. Steam Table Pansand Accessories The Vollrath Company, LLC Super Pan II® Solid and Slotted Covers Q Reinforced edges provide added strength to the perimeter of the cover Q Stainless steel Q For use with Super Pan II® and Super Pan 3® 75210 PAN SIZE SOLID{ ITEM SLOTTED ITEM CASE LOT 1/1 77250 75210 6 2/3 75110 — 6 1/2 75120 75220 6 2/4 75050 — 3 1/3 75130 75230 6 1/4 75140 75240 6 1/6 75160 75260 6 1/9 75360| 75460| 6 { Solid covers are NSF Certified 77250 | Ninth size Super Pan II® covers do not fit ninth size Super Pan 3® pans Super Pan II® Cold Cover Super Pan II® Flexible Pan Lids Q 300 series stainless steel Q Low-density polyethylene Q Store in freezer overnight and use in place of standard Q Translucent lids allow stacking transport covers to keep cold foods chilled for easy storage Q Use on serving line for juices, ice cream or fresh vegetables Q Sanitary and easy to clean Q Non-staining and dishwasher safe Q Safe to use in temperatures ranging from -20˚F to 190˚F (-28˚C to 88˚C) Q Ideal for cold food storage PAN SIZE ITEM CASE LOT 1/1 52430 6 1/2 52431 6 Cold cover will only fit Super Pan II® transport pans 1/3 52432 6 1/4 52433 6 PAN SIZE ITEM CASE LOT 1/6 52434 6 1/1 70009 6 1/9 52435 6 Super Pan II® False Bottoms Super Pan II® Wire Grates Q 300 series Q Heavy-duty 300 series stainless steel stainless steel 20028 Q Hold foods above pan wire construction bottom for draining Q Ample finger room in Q Finger holes provide grate corner for easy easy removal from pan removal from pan Q Q Use for cooling, icing, Diameter of small holes: 3⁄ 8 (9.5mm) display, or drying rack 20228 PAN SIZE ITEM DIMENSIONS: IN (CM) CASE LOT STEAM TABLE DIMENSIONS CASE PAN SIZE ITEM IN (CM) LOT 1/1 20000 1713⁄ 16 x 915⁄ 16 x 9⁄ 16 (45.3 x 25.2 x 1.5) 6 1/1 20028 18 x 10 x 3⁄ 4 (45.7 x 25.4 x 1.9) 12 1/2 20200 71⁄ 2 x 101⁄ 2 x 7⁄ 16 (19.1 x 26.8 x 1.0) 6 1/2 20228 111⁄ 8 x 813⁄ 16 x 3⁄ 4 (28.2 x 22.4 x 1.9) 12 2/4 20100 183⁄ 16 x 33⁄ 4 x 11 ⁄ 16 (46.2 x 9.6 x 1.7) 6 1/3 20328 107⁄ 8 x 51⁄ 8 x 3⁄ 4 (27.5 x 12.9 x 1.9) 6 1/3 20300 101⁄ 8 x 413⁄ 16 x 1⁄ 2 (25.7 x 12.2 x 1.2) 6 BUN PAN SIZE 1/4 20400 83⁄ 8 x 41⁄ 16 x 3⁄ 4 (21.3 x 10.3 x 1.9) 6 1/1 20038 24 x 161⁄ 2 x 7⁄ 8 (60.9 x 41.9 x 2.2) 6 1 3 5 1/6 20600 5 ⁄ 16 x 4 ⁄ 8 x ⁄ 8 (12.9 x 11.1 x 1.5) 6 1/2 20248 161⁄ 2 x 113⁄ 4 x 7⁄ 8 (41.9 x 29.8 x 2.2) 6 6-15
- 189. vollrathco.com Steam Table Pans and Accessories Super Pan 3® and Super Pan II® Accessories Angled Adaptor Plates Elevates pans to enhance food presentation! See available Super Shapes Steam Pans on page 6-3 6-4. Dual-Sided Angled Adaptor Plate Q 300 series stainless steel construction Single-Sided Angled Adaptor Plate Q Flanged base fits firmly inside standard well opening Q Seamless top flange prevents steam loss Q 300 series stainless steel construction Q Holds two half-size pans Q Elevates pan to enhance display and serving Q Offers menu flexibility Q Six-degree slope front to rear Q 8.2° angle enhances food presentation Q Holds full-size and fractional pans DIMENSIONS CASE DIMENSIONS CASE ITEM DESCRIPTION IN (CM) LOT ITEM DESCRIPTION IN (CM) LOT 19196 Single angled adaptor plate 207⁄ 8 x 123⁄ 4 x 213⁄ 16 2 19184 Dual-sided angled adaptor 207⁄ 8 x 123⁄ 4 x 21⁄ 8 1 (53 x 32.4 x 7.2) plate, holds half-size pans (53 x 32.4 x 5.4) Adaptor Bars 16 Deli Pans and Covers Q Mirror-finished 300 series stainless steel Q 24 gauge 300 series stainless steel Q Fits standard opening for combination of smaller fractional pans Q T-shaped bar holds 2 fourth-size and 1 half-size pans 75012 75020 56680 Eliminates gaps to prevent steam loss sss and reduce energyy 75015 consumption! ITEM DIMENSIONS: IN (CM) CASE LOT ITEM DEPTH: IN (CM) QT (L) CASE LOT FLAT COVER ITEM 75012 1215⁄ 16 x1x 1⁄ 4 (32.9 x 2.5 x 0.6) 12 FULL-SIZE PAN — 16 ⁄ X 9 ⁄ (41.5 X 25 CM) 38 13 16 75020 2015⁄ 16 x 1 x 1⁄ 4 (53.2 x 2.5 x 0.6) 12 74262 21⁄ 2 (65) 5 (4.7) 12 77150 56680 103⁄ 4 x 123⁄ 4 x 5⁄ 16 (27.3 x 32.3 x 0.8) 6 74264 4 (100) 81⁄ 8 (7.7) 12 77150 75013{ Adaptor Bar for Short Wild Pan, use with 3100220 12 HALF-SIZE PAN — 97⁄8 X 81⁄8 (25 X 20.5 CM) 75015 Adaptor Bar for Long Wild Pan, use with 3100020 12 75202 21⁄ 2 (65) 21⁄ 2 (2.3) 12 — { Not Shown 75204 4 (100) 4 (3.8) 12 — 6-16
- 190. Steam Table Pansand Accessories The Vollrath Company, LLC Super Pan 3® and Super Pan II® Accessories PanaMax™ Dome Cover Solid Dome Cover Q Patented low profile Q Satin-finished 300 series stainless steel design complements Q Black Kool-Touch® Handle stays comfortable to 220˚F (104.4˚C) any chafer, serving line Q Dome is 21⁄ 2 (6.3 cm) high or buffet application Q Durable ergonomic nylon handle offers comfortable grip — heat resistant up to 475˚F (246˚C) Q Mirror-finished stainless, looks great and is easy to clean and maintain ITEM DESCRIPTION DIMENSIONS: IN (CM) CASE LOT ITEM DESCRIPTION DIMENSIONS: IN (CM) CASE LOT 77200 Full-size 21 x 127⁄ 8 x 33⁄ 4 (53.3 x 32.7 x 9.5) 1 49339 Full-size 21 x 13 x 41⁄ 2 (53.3 x 33 x 11.4) 1 77500 Half-size 127⁄ 8 x 105⁄ 8 x 33⁄ 4 (32.7 x 27 x 9.5) 1 Hinged Dome Cover Flat Hinged Covers Q 300 series Q Convenient hinge allows easy Q Stainless steel stainless steel access to food without having Q Convenient hinge allows easy Q Welded handles to remove entire cover access to food without having to remove entire cover ITEM DESCRIPTION DIMENSIONS: IN (CM) CASE LOT ITEM DESCRIPTION DIMENSIONS: IN (CM) CASE LOT 77400 Full-size 21 x 127⁄ 8 x 21⁄ 2 (53.3 x 32.7 x 6.4) 1 77430 Full-size 2015⁄ 16 x 127⁄ 8 x 1⁄ 2 (53.2 x 32.7 x 1.3) 3 Cover-All™ Aluminum Covers Kool-Touch® Clip-On Handle Q 3004 aluminum Q Insulated black handle clips 68020 on the recessed handle on Q Use in place of foil or plastic wrap to eliminate stainless steel stock pot ongoing disposable costs covers, inset covers, Q Handle on one end bain marie covers and makes removal easier steam table pan covers and safer (down to sixth-size) Q Sure and comfortable grip Q Two half-size covers fit 68010 Q Easily removed for cleaning full-size pan Q Recessed for more secure stacking Note: Not recommended as an and nesting alternative to stainless steel covers. ITEM DESCRIPTION DIMENSIONS: IN (CM) CASE LOT 68020 Full-size 203⁄ 4 x 123⁄ 4 (52.7 x 32.4) 6 ITEM DESCRIPTION DIMENSIONS: IN (CM) CASE LOT 68010{ Half-size 103⁄ 8 x 123⁄ 4 (26.4 x 32.4) 6 52970 Clip-on handle 2 x 7⁄ 8 x 15⁄ 8 (5 x 2.2 x 4.1) 12 { Two per full size pan recommended 6-17
- 191. vollrathco.com Steam Table Pans and Accessories Q Stainless Adaptor Plates 300 series stainless steel Q Fits standard steam table openings to hold insets and bain maries in prep and serving areas Q Cutout dimensions — see page 6-20 Two-Opening Adaptor Plates ITEM DESCRIPTION CASE LOT 19190 With two 63⁄ 8 (16.2 cm) inset holes, fits 78164 (41⁄ 8 qt/3.9 L) inset 4 19191 With one 63⁄ 8 (16.2 cm) and one 83⁄ 8 (21.3 cm) inset holes, fits 4 19190 one 78164 (41⁄ 8 qt/3.9 L) and one 78184 (71⁄ 4 qt/6.9 L) insets 19192 With two 83⁄ 8 (21.3 cm) inset holes, fits 78184 (71⁄ 4 qt/6.9 L) inset 4 1 1 72227 With one 8 ⁄ 2 (21.6 cm) and one 10 ⁄ 2 (26.7 cm) inset holes, fits 1 19188 one 78184 (71⁄ 4 qt/6.9 L) and one 78204 (11 qt/10.4 L) inset Three-Opening Adaptor Plates {|} ITEM DESCRIPTION CASE LOT 19193 19193{ With one 47⁄ 8 3 (12.4 cm) and two 6 ⁄ 8 (16.2 cm) inset holes, fits 4 one 78154 (21⁄ 2 qt/2.4 L) and two 78164 (41⁄ 8 qt/3.9 L) insets 72228| With three 61⁄ 2 (16.5 cm) inset holes, fits 78164 (41⁄ 8 qt/3.9 L) inset 1 19188} With three 83⁄ 8 (21.3 cm) inset holes, fits 78184 (71⁄ 4 qt/6.9 L) inset 1 {Fits Standard Steam Table Stainless Wells only |Fits Thermoset Wells only }Fits 4/3 Rethermalizers and 4/3 Drop-Ins only Six-Opening Adaptor Plate ITEM DESCRIPTION CASE LOT 1 1 19195 With six 4 ⁄ 4 (10.8 cm) holes for 78710 (1 ⁄ 4 qt/1.2 L) bain marie 4 19195 Single-Opening Adaptor Plate ITEM DESCRIPTION CASE LOT 19189 With one 101⁄ 2 (26.8 cm) hole for 78204 (11 qt/10.4 L) inset 4 Half-Size Adaptor Plates ITEM DESCRIPTION CASE LOT 19197 With one 63⁄ 8 (16.2 cm) inset hole, fits 78164 (41⁄ 8 qt/3.9 L) inset 2 19197 19198 With one 83⁄ 8 (21.3 cm) inset hole, fits 78184 (71⁄ 4 qt/6.9 L) inset 2 Sheet Pan Adaptor Plate Stainless Adaptor Ring Q 300 series stainless steel Q 300 series stainless steel Q Accommodates full-size Q Lift and hold shouldered insets to avoid scorching of sheet pans and fits over soups and sauces when used with adaptor plates two hot wells Q Allows food items to be warmed by either moist 19199 or dry heat Q Excellent way to serve pizza just out of the oven Q Designed to hold both open and closed bead bun pans of any gauge 19186 ITEM DESCRIPTION CASE LOT ITEM DESCRIPTION CASE LOT ® 19199 Sheet pan adaptor plate for Signature Server 4 19194 Fits 19192, 19188 and 19198 adaptor plates — 2 19186 Two hot well sheet pan adaptor plate for drop-ins 4 83⁄ 16 (20.8 cm) diameter; 3 (7.6 cm) height 6-18
- 192. Steam Table Pansand Accessories The Vollrath Company, LLC Stainless Steel Insets Covers Q Satin-finished 300 series stainless steel insets Q Insets nest together for compact storage when not in use Q 6 (15.2cm) depth under the shoulder Q Solid or slotted flat covers reduce heat loss Q Sharp radius between sleeves rests securely in opening without tipping Q Short insets deliver portions that offer better food quality and reduced food waste ITEM CAPACITY FITS OPENING DIAMETER X DEPTH INSET SLOTTED SOLID| HINGED| COVER QT (L) IN (CM) IN (CM) CASE LOT COVER ITEM COVER ITEM COVER ITEM CASE LOT 78154 21⁄ 2 (2.4) 5 (12.7) 55⁄ 8 x 713⁄ 16 (14.3 x 19.8) 6 78150{ 79040 — 6 1 1 78164 4 ⁄ 8 (3.9) 6 ⁄ 2 (16.5) 77⁄ 16 x 83⁄ 16 (18.9 x 20.8) 6 78160{ — 47486{ 6 78174 41⁄ 8 (3.9) 81⁄ 2 (21.6) 97⁄ 16 x 47⁄ 8 (24 x 12.4) 6 78180{ 77072 47488{ 6 78184 71⁄ 4 (6.9) 81⁄ 2 (21.6) 97⁄ 16 x 83⁄ 16 (24 x 20.8) 6 78180{ 77072 47488{ 6 78194 71⁄ 4 (6.9) 101⁄ 2 (26.7) 115⁄ 16 x 55⁄ 8 (28.7 x 14.3) 6 78200{ 77112 47490{ 6 78194 1 78204 11 (10.4) 10 ⁄ 2 (26.7) 115⁄ 16 x 83⁄ 16 (28.7 x 20.8) 6 78200{ 77112 47490{ 6 78174 { Not NSF Certified | Stainless steel covers Hinged Inset Covers Inset False Bottom Q Mirror-finished 47488 stainless steel Q Welded clips on stationary side of cover hold it securely in place Q Kool-Touch® phenolic knob handle Q Slot for ladles or spoons Q 300 series stainless steel when cover is closed Q Three welded feet Q Easy one-hand operation Q Two finger holes for easy removal 47490 Q Holds food above the inset bottom to improve draining and DIAMETER HEIGHT INSET CAP. CASE reduce risk of burning ITEM IN (CM) IN (CM) FITS INSET ITEM QT (L) LOT Q Diameter of small holes: 3⁄ 16 (4.8mm) 1 7 47486 7 ⁄ 2 (19.0) ⁄ 8 (2.2) 78164 41⁄ 8 (3.9) 6 47488 95⁄ 8 (24.4) 15⁄ 16 (2.4) 46063-2, 47073-2, 71⁄ 4 (6.9) 6 ITEM DIMENSIONS: IN (CM) FITS CASE LOT 77070, 78184, 78174 72255 71⁄ 4 dia. x 1 h. (18.4 dia. x 2.5 h.) 78184 1 47490 117⁄ 16 (29.1) 15⁄ 16 (2.4) 77110, 78194, 78204 11 (10.4) 6 72256 91⁄ 4 dia. x 1 h. (23.5 dia. x 2.5 h.) 78204 1 Stainless Steel Bain Maries Q Satin-finished 300 series stainless steel bain maries Q Sanitary open bead on edge Q Ideal for salad bar, dressing, and condiment service Q Recessed stainless steel covers for sanitary storage FITS OUTSIDE OVERBEAD BAIN MARIE COVER CAPACITY OPENING DIAMETER DEPTH DIAMETER CASE COVER CASE ITEM QT (L) IN (CM) IN (CM) IN (CM) IN (CM) LOT ITEM} LOT 78710 11⁄ 4 (1.2) 41⁄ 4 (10.8) 41⁄ 8 (10.5) 53⁄ 4 (14.6) 43⁄ 4 (12.1) 6 79020 6 78720 2 (1.9) 5 (12.7) 47⁄ 8 (12.4) 63⁄ 4 (17.1) 51⁄ 2 (14) 6 79040 6 78725 2 (1.9) 61⁄ 4 (15.9) 61⁄ 8 (15.6) 4 (10.1) 63⁄ 4 (17.1) 6 79080 6 78730 31⁄ 2 (3.3) 61⁄ 4 (15.9) 61⁄ 8 (15.6) 71⁄ 4 (18.4) 63⁄ 4 (17.1) 6 79080 6 78740 41⁄ 4 (4) 65⁄ 8 (16.8) 61⁄ 2 (16.5) 75⁄ 8 (19.4) 71⁄ 8 (18.1) 6 79100 6 78760 6 (5.7) 73⁄ 8 (18.7) 71⁄ 4 (18.4) 85⁄ 8 (21.9) 715⁄ 16 (20.2) 6 79120 6 78780 81⁄ 4 (7.8) 81⁄ 8 (20.6) 8 (20.3) 93⁄ 4 (24.5) 83⁄ 4 (22.2) 4 79170 4 78820 12 (11.4) 91⁄ 8 (23.2) 9 (22.9) 107⁄ 8 (27.6) 93⁄ 4 (24.8) 4 79220 4 } Stainless steel covers 6-19
- 193. vollrathco.com Steam Table Pans and Accessories Adaptor Plate Accessories Adaptor plates work in conjunction with Insets Hinged Covers Bain Maries Heavy-Duty Ladles See Page 6-19 See Page 6-19 See Page 6-19 See Page 8-13 a wide variety of Vollrath’s accessories. Adaptor Plate Cutout Dimensions 19190 19191 19192 123⁄ 4 123⁄ 4 123⁄ 4 32.4cm 32.4cm 32.4cm 203⁄ 4 Fits 41⁄8 qt 203⁄ 4 Fits 71⁄4 41⁄8 qt insets 203⁄ 4 Fits 71⁄4 qt 52.7cm inset (78164) 52.7cm (78184 78164) 52.7cm inset (78184) 19194 19193 Fits 71⁄4 qt 123⁄ 4 123⁄ 4 inset (78184) 32.4cm 32.4cm 72227 3 7.6cm 3 20 ⁄ 4 Fits 11 71⁄4 qt insets 203⁄ 4 Fits 41⁄8 21⁄2 qt insets (Height) 52.7cm (78204 78184) 52.7cm (78164 78154) 19195 19189 123⁄ 4 123⁄ 4 123⁄ 4 32.4cm 32.4cm 32.4cm 72228 20 3⁄ 4 Fits 41⁄8 qt 203⁄ 4 Fits 11⁄4 qt bain 203⁄ 4 Fits 11 qt 52.7cm inset (78164) 52.7cm marie (78710) 52.7cm inset (78204) 19197 19198 19188{ 13 105⁄ 16 105⁄ 16 ___cm 26.2cm 26.2cm 125⁄ 8 Fits 41⁄8 qt 125⁄ 8 Fits 71⁄4 qt 32.1cm inset (78164) 32.1cm inset (78184) 28 Fits 71⁄4 qt 71.1 cm inset (78184) ITEM OPENINGS CASE LOT 19190 With two 63⁄ 8 (16.2 cm) inset holes — Fits 78164 (41⁄ 8 qt/3.9 L) 4 19191 With one 63⁄ 8 (16.2 cm) and one 83⁄ 8 (21.3 cm) inset holes — Fits 78164 (41⁄ 8 qt/3.9 L) 78184 (71⁄ 4 qt/6.9 L) 4 19192 With two 83⁄ 8 (21.3 cm) inset holes — Fits 78184 (71⁄ 4 qt/6.9 L) 4 19194 Adaptor ring fits 19192, 19188 and 19198 adaptor plates — Fits 78184 (71⁄ 4 qt/6.9 L) 4 72227 With one 83⁄ 8 (21.3 cm) and one 103⁄ 8 (26.4 cm) inset holes — Fits 78184 (71⁄ 4 qt/6.9 L) 78204 (11 qt/10.4 L) 1 19193 With one 47⁄ 8 (12.4 cm) and two 63⁄ 8 (16.2 cm) inset holes — Fits 78154 (21⁄ 2 qt/2.4 L) two 78164 (41⁄ 8 qt/3.9 L) 4 72228 With three 61⁄ 2 (16.5 cm) inset holes — Fits 78164 (41⁄ 8 qt/3.9 L) — Fits thermoset wells only 1 19188{ With three 83⁄ 8 (21.3 cm) inset holes, fits 78184 (71⁄ 4 qt/6.9 L) — For use with items 72050/72051 1 19195 With six 41⁄ 4 (10.8 cm) holes — Fits 78710 (11⁄ 4 qt/1.2 L) 4 19189 With one 101⁄ 2 (26.8 cm) hole — Fits 78204 (11 qt/10.4 L) 4 19197 With one 63⁄ 8 (16.2 cm) hole — Fits 78164 (41⁄ 8 qt/3.9 L) 4 19198 With one 83⁄ 8 (21.3 cm) hole — Fits 78184 (71⁄ 4 qt/6.9 L) 4 { Fits 4/3 rethermalizers and 4/3 drop-ins only 6-20
- 194. Steam Table Pansand Accessories The Vollrath Company, LLC Pan Layouts for Adaptor Bar Reference Super Pan and 75020 75012 Super Shapes 56680 75015 75013 A variety of options for your 12 x 20 (30.5 x 50.8 cm) opening. Enhance Your Buffet with Miramar® Decorative Pans, Templates Cookware See pages 9-6 to 9-11 6-21
- 195. vollrathco.com Steam Table Pans and Accessories Flange and Opening Sizes for Steam Table Pans “A” “A” “B” OPENING “B” OPENING WIDTH WIDTH OPENING OPENING LENGTH ® LENGTH Super Pan 3 Super Pan II® FLANGE OPENING FLANGE OPENING PAN SIZE “A”: IN (CM) “B”: IN (CM) LENGTH{: IN (CM) WIDTH{: IN (CM) PAN SIZE “A”: IN (CM) “B”: IN (CM) LENGTH|: IN (CM) WIDTH|: IN (CM) Full 207⁄ 8 (53) 123⁄ 4 (32.4) 197⁄ 8 (50.5) 113⁄ 4 (29.8) Full 2027⁄ 32 (52.9) 1225⁄ 32 (32.5) 193⁄ 4 (50.2) 1111⁄ 16 (29.7) Two-Thirds 137⁄ 8 (35) 123⁄ 4 (32.4) 127⁄ 8 (32.7) 113⁄ 4 ( 29.8) Two-Thirds 1329⁄ 32 (35.3) 1213⁄ 16 ( 32.5) 13 (33) 1115⁄ 16 ( 30.3) 3 3 7 1 5 5 7 Half 12 ⁄ 4 (32.4) 10 ⁄ 8 (26.4) 11 ⁄ 8 (30.2) 9 ⁄ 2 (24.1) Half 12 ⁄ 8 (32.1) 10 ⁄ 16 (26.2) 11 ⁄ 8 (30.2) 99⁄ 16 (24.3) 13 5 7 5 27 7 13 Half-Long 20 ⁄ 16 (52.9) 6 ⁄ 16 (16) 19 ⁄ 8 ( 50.5) 5 ⁄ 16 (13.5) Half-Long 20 ⁄ 32 (52.9) 6 ⁄ 16 (16.4) 19 ⁄ 16 ( 50.3) 53⁄ 8 (13.7) Third 123⁄ 4 (32.4) 67⁄ 8 (17.5) 121⁄ 8 (30.8) 63⁄ 16 (15.7) Third 125⁄ 8 (32.1) 627⁄ 32 (17.4) 117⁄ 8 (30.2) 61⁄ 8 (15.6) Fourth 103⁄ 8 (26.4) 65⁄ 16 (16) 91⁄ 2 (24.1) 57⁄ 16 (13.8) Fourth 109⁄ 32 (26.1) 69⁄ 32 (16) 99⁄ 16 (24.3) 59⁄ 16 (14.13) Sixth 67⁄ 8 (17.5) 65⁄ 16 (16) 6 (15.2) 57⁄ 16 (13.8) Sixth 627⁄ 32 (17.4) 69⁄ 32 (16) 6 1⁄ 8 (15.6) 59⁄ 16 (14.1) Ninth 615⁄ 16 (17.6) 41⁄ 4 (10.8) 6 (15.2) 35⁄ 16 (8.4) Ninth 67⁄ 8 (17.5) 41⁄ 4 (10.8) 63⁄ 16 (15.7) 39⁄ 16 (9) { Tolerances on opening dimensions are +1⁄16, -0; | Tolerances on opening dimensions are +1⁄16, -0; Flange dimensions (“A” and “B”) are ±1⁄32; Flange dimensions (“A” and “B”) are ±1⁄32; Note: Corner should be 1⁄4 to 7⁄8 radius Note: Corner should be 1⁄4 to 7⁄8 radius Portion Control Portion Control for Super Pan® Super Pan 3® and Super Pan II® Super Shapes – See page 6-4. Pan Sizing Guide/Number of Servings — Stainless Steel Pans NUMBER OF SERVINGS PER PAN CAPACITY PRODUCT PORTION SIZE PAN DEPTH 1 OZ PORTION 2 OZ PORTION 3 OZ PORTION 4 OZ PORTION 6 OZ PORTION 8 OZ PORTION SIZE IN (MM) SP3 SPII SP3 SPII SP3 SPII SP3 SPII SP3 SPII SP3 SPII 1/1 21⁄ 2 (65) 294 268 147 134 98 89 74 67 49 44 37 33 4 (100) 448 452 228 226 149 150 112 113 75 75 56 56 6 (150) 672 684 338 342 224 228 168 171 112 114 84 85 2/3 21⁄ 2 (65) 182 176 91 88 60 58 45 44 30 29 22 22 4 (100) 270 296 135 148 90 98 67 74 45 49 33 37 6 (150) 402 452 201 226 134 150 100 113 67 75 50 56 1/2 21⁄ 2 (65) 128 136 64 68 42 45 32 34 21 22 16 17 4 (100) 202 214 101 107 67 71 51 53 34 35 25 26 6 (150) 301 322 151 161 100 107 75 80 50 53 38 40 2/4 21⁄ 2 (65) 125 120 62 60 41 40 31 30 20 20 15 15 4 (100) 192 184 96 92 64 61 48 46 32 30 24 23 6 (150) 277 264 138 132 92 88 69 66 46 44 34 33 1/3 21⁄ 2 (65) 81 85 40 42 27 28 20 21 13 14 10 10 4 (100) 125 134 62 67 41 44 31 33 20 22 15 16 6 (150) 185 197 92 98 61 66 46 49 30 32 23 24 1/4 21⁄ 2 (65) 57 60 28 30 19 20 14 15 9 10 7 7 4 (100) 84 96 42 48 28 32 21 24 14 16 10 12 6 (150) 128 146 64 73 42 48 32 36 21 24 16 18 1 1/6 2 ⁄ 2 (65) 37 40 18 20 12 13 9 10 6 6 4 5 4 (100) 55 60 28 30 18 20 14 15 9 10 7 7 6 (150) 78 87 39 43 26 29 20 21 13 14 10 10 6-22
- 196. Foodservice equipment supplies Vollrath 2010 Cook ware
- 197. Cookware TriVent® Handle Tribute® 3-Ply Wear-Ever® Choose the Grip that Grabs You. Cookware Bakeware Vollrath cookware is available in a The ultimate chef’s cookware. Vollrath has a greatly expanded variety of handles to ensure the perfect All the benefits of 18-8 stainless line of 3004 aluminum bakewear fit for your use. Vollrath Cookware now steel and 3004 aluminum as well to better serve all of your cooking comes equipped with the innovative as a Lifetime Warranty. and baking needs. TriVent® Handle – ergonomic, cooler to touch and extremely durable. Ever- Tite™ Riveting System offers a lifetime warranty against loose rivets. Vollrath “Green” Facts for Cookware: Stainless steel is continuously recycled in a sustainable closed loop system. 50% of new stainless steel and aluminum products are made from recycled material. Aluminum is a lightweight, easier to recreate renewable material. Jacob’s Pride® lifetime warranty cookware is guaranteed to last longer, reducing waste. Induction-ready cookware unlocks significant energy savings when used with induction ranges. Snug fitting lids speed cooking time, reducing energy costs. For more details on Vollrath’s green products, visit www.vollrathco.com/green 7-2
- 198. Cookware The Vollrath Company, LLC Cookware Types Q Curved side walls for easy stirring and sliding food out of the pan Q Ideal for frying, scrambling, sautéing or searing Fry Pan Q Sloped sides prevent steam from forming in the pan Q Wide bottom area for maximum heat conduction Q Ideal for sautéing, searing, deglazing, poaching, and stir frying Q Straight, tall sides help contain food and expose all sides to heat Sauté Pan and minimize spattering Q Ideal for stir frying or wok applications Q Deep curved sides promote excellent food movement Q Stir Fry Pan flat bottom sits level on cooking surface as Stir Fry Pan opposed to a wok's rounded bottom Q Hybrid sauce pan and fry pan Q Sauté, brown, poach, create a stir-fry and build a sauce Saucier Q Curved sides allow for thorough and efficient whisking of ingredients Q Wide bottom area for maximum heat conduction Straight Sided Q Ideal for creating and reducing sauces and cooking vegetables Sauce Pan Q Use with a lid to control evaporation and accelerate cooking Q Small bottom diameter for less heat exposure Tapered Q Flared sides allow for good stirring action Sauce Pan Q Ideal for cooking at lower temperatures for a longer time Q Wide heating surface allows the cooking of meats and vegetables in limited amounts of liquid Q Ideal for long, slow cooking which allows the liquid to add juices and flavor Q Also used as a hot bath in conjunction with tapered sauce pans for melting butters, heating sauces or for blanching vegetables Q Braziers have a large diameter and short side walls that make Brazier/Rondo them a great multi use pot for all kitchens Q Wide bottom area for maximum heat conduction Q Ideal for slow cooking stews, sauces, soups, casseroles and roasts while reducing the content Q Two loop handles for easier pouring and movement Q Sauce pots are shorter and wider than stock pots to make Sauce Pot it easier to work over the pot Q Thick base for a good slow simmer Q Ideal for stocks, soups, pastas, bulk vegetables and seafood Q Smaller diameter and taller height of pot preserves liquids longer and forces the liquid to bubble up through Stock Pot the ingredients, maximizing flavor transfer Q Wide flat bottom for maximum cooking area Q Designed to heat or brown foods Griddle Q Ideal for eggs, grilled cheese, quesadillas, sandwiches 7-3
- 199. vollrathco.com Cookware General Care and Use Tips for all types of Cookware Aluminum — Wear-Ever®, Arkadia™ Stainless Steel — Intrigue®, Centurion®, Optio™ Multi-Ply — Tribute®, Tri-Ply Q Before using for the first time, remove all labels and wash in hot soapy water to remove any manufacturing lubricants on new cookware. Q Never leave cookware on heat source without food or liquid inside. Overheating in this manner may cause warping or delamination of metal layers and could void warranty. Q For safety and to prevent warping, allow cookware to cool before cleaning or immersion in water. Q Direct contact with salt can cause pitting. Add salt to boiling water to dissolve it. Q Salt solutions, acidic products like tomatoes, disinfectants, or bleaches can corrode cookware. Never store these items in cookware and avoid prolonged exposure. Q All cookware will last longer and look better if washed by hand with hot soapy water. Always scrub in the direction of the material grain. Rinse thoroughly and allow to air dry completely. Q Use of plastic, wooden or rubber utensils is recommended. Q If label adhesive remains on cookware, wipe off with WD-40 and clean with warm soapy water. Q To remove white film caused by starch or water minerals, rub with sponge that has been dipped in lemon juice or vinegar, then wash with hot, soapy water. Q To remove food burnt to the bottom of cookware, boil a mild solution of vinegar and water for 10 minutes to dislodge food particles. Non-Stick Coatings (CeramiGuard®, WearGuard®, PowerCoat2™ and Steelcoat x3™) Allow non-stick coating to cool before cleaning. Hand wash in hot soapy water and dry immediately to preserve appearance. Use a non-woven scouring pad to remove burnt food. Avoid using abrasive cleaners, metal scouring pads, and strong solvents. When stacking pans, place liners between pans to avoid scratching non-stick surfaces. Note: Warranty - 90 days on all non-stick cookware. Seasoning Non-Coated Aluminum and Stainless Steel Cookware Season cookware before its first use. Clean and dry cookware. Spray the inside of the pan lightly with vegetable oil or use a small amount of shortening. Place cookware on burner at medium for 5-10 minutes, until light smoke or heat waves appear. When the oil/shortening turns a deep amber color, turn the burner off and allow to cool. Pour out liquid oil/shortening and wipe down pan with paper towels until all oil/shortening is removed. Cleaning with a mild soapy solution after each use will not affect the “seasoning” of the pan. O.K. to repeat this procedure as often as needed without doing damage to the cookware. Carbon Steel Cookware Pans are shipped with mineral oil applied to the pan. Wipe down oil and clean the pan using hot soapy water. Dry immediately. After each use, clean and season. Wipe the inside and outside of the pan with unsalted cooking oil or shortening to prevent oxidation. The pan will turn a dark color as seasoning occurs after repeated use. For more detailed seasoning instructions, visit www.vollrathco.com Removing Discoloration from Aluminum Cookware Boil a solution of two tablespoons of cream of tartar to each quart of water in the cookware for ten minutes. 7-4
- 200. Cookware The Vollrath Company, LLC Vollrath Cookware - We Have You Covered Vollrath offers the most complete line of commercial cookware available. Whether you prefer stainless or aluminum, we have the product you need, always with the quality you expect from Vollrath. Designed…tested…and proven in commercial kitchens. Choose the cookware lines that Set the Standard. Choose Vollrath. TRIBUTE® COOKWARE: Three bonded layers: 3-Ply construction provides a non-reactive THE ULTIMATE CHEF'S COOKWARE 18-8 stainless steel cooking surface and even heating from base interior 3004 aluminum to rim. Tribute's 3-ply construction means no core 18-0 stainless hot-spots, incredible durability, and the best exterior cookware for any application. Induction Electric Gas MIRAMAR™ DISPLAY COOKWARE: Three bonded layers 3-Ply construction provides a non-reactive cooking with a layer of aluminum surface and even heating from base to rim while between stainless steel our stylish and attractive styling makes Miramar™ Cookware ideal for demonstration cooking and can also be used for stove to table service. 3-ply protects against hot-spots and is perfect for energy Induction Electric Gas efficient induction cooking. CENTURION® COOKWARE: Crafted of fine Centurion® 1⁄4 aluminum bottom provides quick, COMMERCIAL STAINLESS stainless steel in the even heat distribution for consistently good European tradition cooking. A thin bottom wafer of stainless steel with aluminum base prevents denting and scratching and makes all Centurion® cookware with a suitable bottom Induction Electric Gas diameter induction-ready. Centurion® is heavy gauge cookware with Italian made quality. INTRIGUE® COOKWARE: COMMERCIAL STAINLESS 18-8 stainless steel Versatile cookware for presentation or cookware with 3004 back-of-the-house. Used for a variety of cooking aluminum base techniques. European-inspired design. Induction Electric Gas OPTIO™ COOKWARE: Stainless steel Constructed of high quality stainless steel and COMMERCIAL STAINLESS cookware with featuring an aluminum-clad bottom for quick aluminum base and even heat distribution. All Optio™ Cookware is induction ready and perfect for use on any type of stove. Provides value and an affordable Induction Electric Gas way for restaurants to use stainless cookware. Optio™ cookware is an economy line designed for lighter duty cooking WEAR-EVER™ COOKWARE: Extra dent-resistant Wear-Ever® is a heavy gauge aluminum cookware line COMMERCIAL ALUMINUM 3004 aluminum that offers many exclusive features like concavity in our cookware and bakeware for even heat distribution and warp-resistance, spot-welded handles for leakproof performance, TriVent® and Cool Touch® handles, CeramiGuard®II, SteelCoat x3™, WearGuard® and Electric Gas PowerCoat2™ non-stick coatings. ARKADIA™ COOKWARE: Heavy-gauge aluminum Arkadia™ offers a complete collection of HEAVY-GAUGE ALUMINUM aluminum frying pans, sauce pans, stock pots, and sauce pots to meet the demands of your kitchen. Arkadia™ cookware is a light gauge aluminum cookware designed for light duty. Electric Gas Check out our newest Cookware line! Miramar™ Display Cookware See pages 9-5 through 9-7 7-5
- 201. vollrathco.com Cookware TriVent® Handle TriVent® handles, now available on select Vollrath® cookware, feature a cooler-to-touch and comfortable-to-hold design. This incredible upgrade uses a vented handle design to maintain surface temperatures cooler than conventional handles. And because it’s available in a natural finish or oven-safe silicone, you can choose the kind of cool you want for your kitchen. They’re extremely ™ durable too, manufactured with the revolutionary EverTite Rivet System — giving you unmatched protection against loosening handles. Stay cooler, longer, with TriVent® handles. TriVent® Handle Features: Q Unique ergonomic design reduces stress and fatigue Q Vented handle design reduces heat transfer from pan to handle, maximizing operator comfort Over Q Rivet platform is designed to reduce surface contact area Q to the pan, reducing heat transfer from pan to handle Non-linear four rivet attachment provides 20° F elimination of any potential twisting of handle cooler than Q EverTite™ Riveting System provides for lifetime use conventional without loose rivets handles! Q Superior plating provides excellent corrosion resistance Q Silicone handle oven safe up to 450˚F (232˚C) continuous use, 600˚F (315˚C) intermittent use Thermal Comparison: 10 Aluminum Fry Pan with Natural Finish Old handle TriVent® design handle design 31˚F Cooler Lifetime Warranty against loose rivets! EverTite™ Riveting System eliminates loose rivets and Note: Both pans contained 16 oz of cooking oil and were handle twisting left on the burner for 30 minutes. Pan body temperatures reached approximately 400˚F (204.4˚C) Ergonomic design reduces stress and fatigue, and limits heat transfer from pan to handle for maximum comfort 7-6
- 202. Cookware The Vollrath Company, LLC Tribute® 3-Ply Cookware Induction Electric Gas Cook on color and flavor neutral 18-8 stainless steel with Tribute®! With 3-ply from the base to the rim, Tribute® cookware heats evenly without hot spots. The stainless steel cooking surface won't change the color or flavor of delicate foods like aluminum cookware can. The exterior is 18-0 stainless steel — easy to clean and ideal for gas, electric and induction. Top chefs rave about the unmatched performance of Tribute®. Heat Distribution Hotspots Even Heating Even Heating Stock pots, sauce pots and braziers have heavy-duty ergonomic handles with Conventional Cookware 3-Ply Cookware durable stainless rivets TriVent® handle designed for comfort durability while providing a unique vented appearance Available with cooler to touch silicone – oven safe to 450˚F (232˚C) EverTite™ Riveting System offers a lifetime warranty against loose rivets Easy cleaning 18-8 stainless steel interior does not affect colors and flavors of food — Preferred for delicate sauces 18-0 stainless steel exterior — Induction ready and easy to clean Durable 3004 Aluminum core provides even heat on bottom of pan AND side walls Maintains proper shape under constant commercial use due to 3-Ply construction Note: Jacob's Pride® Warranty does not cover silicone on handle or non-stick coatings 18-8 stainless steel interior does not affect color or flavors The Ultimate Chef’s Cookware. of food 3004 aluminum core provides even heat on bottom of pan and side walls All covers packed 1 per carton. See page 18-0 stainless steel exterior for 7-10 for more details durability and for use with gas, electric or induction ranges 7-7
- 203. vollrathco.com Cookware Tribute® 3-Ply Cookware Induction Electric Gas Tribute® Fry Pans with Natural Finish Q Ideal for frying, sautéing or searing Q TriVent® handle designed for comfort and durability while providing a unique vented appearance Q Available with cooler to touch silicone insulated handle — oven safe to 450°F (232°C) Q EverTite™ Riveting System offers a lifetime 69810 warranty against loose rivets SILICONE PLATED TOP DIA BOTTOM DIA HEIGHT CASE COVER HANDLE HANDLE IN (CM) IN (CM) IN (CM) GAUGE LOT ITEM 69807 69207 7 (17.8) 43⁄4 (12.7) 13⁄4 (4.4) 10 6 69327 69808 69208 8 (20.3) 5 ⁄ (14.6) 34 17⁄8 (4.8) 10 6 69328 69810 69210 10 (25.4) 75⁄8 (19.4) 21⁄8 (5.4) 8 6 69410 69210 69812 69212 12 (30.5) 93⁄4 (24.8) 21⁄2 (6.4) 8 2 69412 69814 69214 14 (35.6) 10 ⁄ (27.6) 78 2 ⁄ (7) 34 6 1 69414 Note: Jacob's Pride® Warranty does not cover silicone on handle Tribute® Fry Pans with Interior Q Ideal for frying, sautéing or searing 69610 Q TriVent® handle designed for comfort and durability while providing a unique vented appearance Q Available with cooler to touch silicone insulated handle — oven safe to 450°F (232°C) Q EverTite™ Riveting System offers a lifetime warranty against loose rivets Q SteelCoat x3™ non-stick interior — triple layer coating provides unmatched durability and food release SILICONE PLATED TOP DIA BOTTOM DIA HEIGHT CASE COVER HANDLE HANDLE IN (CM) IN (CM) IN (CM) GAUGE LOT ITEM 69107 69607 7 (17.8) 43⁄4 (12.7) 13⁄4 (4.4) 10 6 69327 69108 69608 8 (20.3) 53⁄4 (14.6) 17⁄8 (4.8) 10 6 69328 69110 69610 10 (25.4) 75⁄8 (19.4) 21⁄8 (5.4) 8 6 69410 69110 69112 69612 12 (30.5) 93⁄4 (24.8) 21⁄2 (6.4) 8 2 69412 69114 69614 14 (35.6) 107⁄8 (27.6) 23⁄4 (7) 6 1 69414 Note: Jacob's Pride® Warranty does not cover silicone on handle or non-stick coatings Tribute® Sauciers Tribute® Sauce Pans Q Curved sides allow for thorough and Q Ideal for sauces, vegetables, rice, cereals or soups efficient whisking of ingredients Q TriVent® handle designed for comfort and durability Q TriVent® handle designed for comfort while providing a unique vented appearance and durability while providing a unique Q Available with cooler to touch silicone insulated vented appearance handle — oven safe to 450°F (232°C) Q Available with cooler Q Case Lot: 1 to touch silicone insulated handle Helper — oven safe to Handle 450°F (232°C) SILICONE CAPACITY DIAMETER DEPTH COVER HANDLE QT (L) IN (CM) IN (CM) GAUGE ITEM 77739 11⁄ 2 (1.4) 6 (15.2) 3 (7.6) 10 69325 SILICONE CAPACITY DIAMETER DEPTH CASE COVER HANDLE QT (L) IN (CM) IN (CM) GAUGE LOT ITEM 77740 21⁄ 2 (2.4) 7 (17.8) 31⁄ 2 (8.9) 8 69327 77790{ 1 (.9) 61⁄2 (16.5) 21⁄4 (5.7) 10 1 69326 77741 31⁄ 2 (3.3) 8 (20.3) 41⁄ 8 (10.5) 8 69328 77791 2 (1.9) 8 (20.3) 23⁄8 (6.0) 8 1 69328 77742 41⁄ 2 (4.2) 9 (22.9) 41⁄ 8 (10.5) 8 69329 77792 3 (2.8) 10 (25.4) 31⁄4 (8.3) 8 1 69410 77743{ 7 (6.6) 10 (25.4) 513⁄ 32 (13.7) 8 69410 {Not induction ready Note: Jacob's Pride® Warranty does not cover silicone on handle {With helper handle Note: Jacob's Pride® Warranty does not cover silicone on handle 7-8
- 204. Cookware The Vollrath Company, LLC Tribute® 3-Ply Cookware Induction Electric Gas Tribute® Sauce/Stock Pots Q Designed for preparing stocks, soups and liquids or reducing liquids Q Tall and narrow shape allows liquids to bubble up through 77520 the food, extracting maximum flavor Q Heavy-duty ergonomic handles with durable stainless rivets Q Case Lot: 1 CAPACITY DIAMETER DEPTH COVER ITEM QT (L) IN (CM) IN (CM) GAUGE ITEM 77780 41⁄ 2 (4.2) 9 (22.9) 41⁄ 8 (10.5) 8 69329 77519 6 (5.6) 9 (22.9) 53⁄4 (14.6) 8 69329 77520 8 (7.5) 10 (25.4) 6 (15.2) 8 69410 77521 12 (11.4) 12 (30.5) 61⁄4 (15.9) 8 69412 77522 16 (15.1) 12 (30.5) 81⁄2 (21.6) 8 69412 77521 77523 22 (20.8) 14 (35.6) 81⁄2 (21.6) 8 69414 Tribute® Sauté Pans Q Ideal for sautéing, stir-frying and browning Q Tall sides minimize spattering Q TriVent® handle designed for comfort and durability while providing a unique vented appearance Helper Handle Q Available with cooler to touch silicone insulated handle — oven safe to 450°F (232°C) Q Case Lot: 1 SILICONE CAPACITY DIAMETER DEPTH COVER HANDLE QT (L) IN (CM) IN (CM) GAUGE ITEM 77744 2 (1.9) 8 (20.3) 23⁄ 8 (6.0) 8 69328 77745 3 (2.8) 10 (25.4) 23⁄ 8 (6.0) 8 69410 77746{ 6 (5.6) 12 (30.5) 211⁄ 16 (6.8) 8 69412 77747{ 71⁄ 2 (7.1) 14 (35.6) 27⁄ 8 (7.3) 8 69414 {With helper handle Note: Jacob's Pride® Warranty does not cover silicone on handle Stainless Steel Pasta Basket for Stock Pots Q Basket is 7 (18 cm) deep and intended for use in a 12 qt/11.4L stock pot, holds up to 3 servings (2.5 qt/2.3L) Q Hole diameter: 3⁄16 (0.5 cm) Q TriVent® silicone insulated handle - rated at 450°F (232°C) for stovetop or oven use Q Ideal for use on gas, electric or induction ranges Q Designed to be used with 77521, 77522, 47732 or 47733 ITEM DESCRIPTION GAUGE CASE LOT 68134 Stainless steel pasta basket 22 1 7-9
- 205. vollrathco.com Cookware Tribute® 3-Ply Cookware Induction Electric Gas Tribute® Braziers Q Perfect for long, slow cooking Q Wide heating surface allows for cooking of meats and vegetables in limited amounts of liquid Q Heavy-duty ergonomic handles with durable stainless rivets Q The large diameter and short side wall make this a great multi-use pot in any kitchen CAPACITY DIAMETER DEPTH CASE COVER ITEM QT (L) IN (CM) IN (CM) GAUGE LOT ITEM 77760 10 (9.4) 12 (30.5) 513⁄32 (13.7) 8 1 69412 77761 15 (14.1) 14 (35.6) 519⁄32 (14.2) 8 1 69414 Tribute® Griddle with Tribute® Stir Fry Pans Interior Q Ideal for stir-frying or wok applications Q Flat bottom sits level on cooking surface Q TriVent® handle designed for comfort and Q Ideal for grilled cheese durability while providing a unique vented appearance sandwiches, quesadillas, french Q Available with cooler to touch silicone insulated toast, pancakes and eggs handle — oven safe to 450°F (232°C) Q SteelCoat x3™ non-stick interior — Q EverTite™ Riveting System offers lifetime warranty triple layer coating against loose rivets provides exceptional Q Case Lot: 1 durability Q TriVent® silicone insulated Nylon Tip handle — rated at 450°F (232°C) for stovetop Tongs – or oven use Great for Q Case Lot: 1 use with See page 8-22 Non-Stick Pans! SILICONE CAPACITY DIAMETER DEPTH COVER HANDLE QT (L) IN (CM) IN (CM) GAUGE ITEM SILICONE HANDLE DIMENSIONS: IN (CM) GAUGE CASE LOT 77750 43⁄4 (4.5) 11 (27.9) 31⁄2 (8.9) 8 — 77530 12 (30) square 8 1 77754 103⁄32 (9.6) 14 (36) 43⁄8 (11.1) 8 69414 Note: Jacob's Pride® Warranty does not cover silicone on handle or non-stick coatings Note: Jacob's Pride® Warranty does not cover silicone on handle Tribute® Covers Q 20 gauge stainless steel Q Welded Torogard™ dipped handle — stays cool to the touch and heat resistant up to 180˚F (82˚C) and is equipped with Agion® antimicrobial protection{ Q Easy grasp handle design for safety and hanging convenience Q Handle length: 311⁄16 (9.4 cm) TOROGARD™ HANDLE DIAMETER: IN (CM) CASE LOT 69325 6 (15.2) 1 69410 69326 61⁄2 (16.5) 1 69327 7 (17.8) 1 69328 8 (20.3) 1 69329 9 (22.9) 1 69410 10 (25.4) 1 {See page 8-3 for more information on 69412 12 (30.5) 1 Agion® antimicrobial protection. 69414 14 (35.6) 1 Note: Jacob's Pride® Warranty does not cover plastisol coating on handle 7-10
- 206. Cookware The Vollrath Company, LLC Centurion® Cookware Induction Electric Gas Nothing complements the skill and artistry of professional cooking like fine Centurion® cookware. Centurion® cookware is heavy gauge cookware with Italian made quality. Crafted of fine stainless steel in the European tradition, the Centurion® ¼ aluminum bottom provides quick, even heat distribution for consistently good cooking. A thin bottom wafer of stainless steel prevents denting and scratching and makes all Centurion® cookware induction ready. Centurion® cookware is impervious to acidic foods and won't pit, discolor or carry over flavors. All this plus a limited lifetime warranty makes Centurion® cookware the choice of professionals. Stay Cool® handles are a single piece Heavy-duty 18-8 (EU 18-10) stainless steel construction will not pit of hollow, airtight, waterproof stainless or discolor or carry over flavors from previously cooked foods. steel, which stay cool for cooking safety. Brushed stainless steel surface attracts and distributes heat quickly Stay Cool® handles are welded and will not come loose or leak Large radius corners minimize food waste and permit easy cleaning ¼-thick aluminum-clad bottom provides The bottom is protected by a thin quick and even distribution of heat wafer of stainless steel to prevent denting and scratching 7-11
- 207. vollrathco.com Cookware Centurion® Cookware Induction Electric Gas Centurion® Fry Pans Q Rolled edge adds strength and durability Q Ideal for frying small tender foods such as eggs, fish, chicken pieces, pork chops, and soft vegetables TOP DIA HEIGHT CASE DOMED COVER ITEM IN (CM) IN (CM) GAUGE LOT ITEM 3409 91/2 (24.1) 13/4 (4.4) 18 1 3709C 3411 11 (27.9) 21/4 (5.7) 16 1 3711C 3412 121/2 (31.8) 21/2 (6.4) 16 1 3712C 3414* 14 (35.6) 21/2 (6.4) 15 1 3714C * Assist loop handle provided Centurion® Non-Stick Fry Pans Q Rolled edge adds strength and durability Q 90-day warranty on non-stick coating Q Ideal for frying, scrambling, sauteing or searing TOP DIA HEIGHT CASE DOMED COVER ITEM IN (CM) IN (CM) GAUGE LOT ITEM N3408 8 (20.3) 11/2 (3.8) 20 1 3708C 1 N3409 9 /2 (24.1) 13/4 (4.4) 18 1 3709C N3411 11 (27.9) 21/4 (5.7) 16 1 3711C N3412 121/2 (31.8) 21/2 (6.4) 16 1 3712C N3414 14 (35.6) 21/2 (6.4) 16 1 3714C Centurion® Sauté Pans Centurion® Curved Q Ideal for stir-frying, sautéing food in fat or liquid, Saucier/Sauté Pans browning vegetables, quick stewing and poaching Q Ideal for quick-cooking foods with a small amount of oil and high heat Q Perfect for browning meats and poultry, stir-frying, lightly browning vegetables, quick-stewing and poaching CAPACITY DIAMETER DEPTH CASE DOMED COVER CAPACITY DIAMETER DEPTH CASE DOMED COVER ITEM QT (L) IN (CM) IN (CM) GAUGE LOT ITEM ITEM QT (L) IN (CM) IN (CM) GAUGE LOT ITEM 3601 11/2 (1.4) 61/4 (15.9) 21/2 (6.4) 15 1 3706C 3150 13/4 (1.7) 7 (17.8) 23/4 (7) 16 1 — 3602 1 2 /2 (2.4) 8 (20.3) 1 3 /4 (8.9) 15 1 3708C 3151 21/4 (2.1) 73/4 (19.7) 3 (7.6) 16 1 3708C 3604 41/2 (4.3) 91/2 (24.1) 33/4 (9.5) 14 1 3709C 3152 31/4 (3.1) 91/2 (24.1) 31/4 (8.3) 16 1 3709C 1 1 3607* 7 (6.7) 11 (27.9) 1 4 /2 (11.4) 14 1 3711C 3153 4 /4 (4) 10 /8 (25.7) 31/2 (8.9) 16 1 — * Assist loop handle provided 7-12
- 208. Cookware The Vollrath Company, LLC Centurion® Cookware Induction Electric Gas Centurion® French Omelet Pans Centurion® Sauce Pans Q Two-handled style with short, sloping sides is ideal Q The self-basting, domed lid retains moisture, allowing food to for quick-cooking omelets and paella be cooked with little liquid or fat Q Curved sides allow food to be moved about Q Ideal for cooking any food that has liquid in it, such as soup, quickly and easily vegetables, and sauces CAPACITY DIAMETER DEPTH CASE DOMED COVER CAPACITY DIAMETER DEPTH CASE DOMED COVER ITEM QT (L) IN (CM) IN (CM) GAUGE LOT ITEM ITEM QT (L) IN (CM) IN (CM) GAUGE LOT ITEM 3154 13/4 (1.7) 91/2 (24.1) 13/4 (4.4) 18 1 3709C 3702 21/4 (2.1) 61/4 (15.9) 41/4 (10.8) 15 1 3706C 1 1 1 3155 2 /4 (2.1) 11 (27.9) 2 /8 (5.4) 16 1 3711C 3704 4 /4 (4) 8 (20.3) 51/4 (13.3) 15 1 3708C 3156 31/4 (3.1) 121/2 (31.8) 23/8 (6) 16 1 3712C 3707 7 (6.7) 91/2 (24.1) 6 (15.2) 14 1 3709C 3157 41/4 (4) 14 (35.6) 23/8 (6) 15 1 3714C 3711* 111/2 (10.9) 11 (27.9) 7 (17.8) 14 1 3711C * Assist loop handle provided Centurion® Sauce Pots Q Ideal for simmering soup, beans, stews and for cooking pasta CAPACITY DIAMETER DEPTH DOMED COVER ITEM QT (L) IN (CM) IN (CM) GAUGE CASE LOT ITEM 3202 7 (6.7) 91/2 (24.1) 6 (15.2) 14 1 3709C 3203 111/2 (10.9) 11 (27.9) 7 (17.8) 14 1 3711C 3204 163/4 (15.9) 121/2 (31.8) 73/4 (19.7) 14 1 3712C 3206 23 (21.9) 14 (35.6) 81/2 (21.6) 14 1 3714C 3208 323/4 (31.1) 153/4 (40) 91/2 (24.1) 10 1 3715C 3212 463/4 (44.4) 173/4 (45.1) 103/4 (27.3) 10 1 3717C Centurion® Stock Pots Q Ideal for preparing large quantities of liquids that are seasoned by beef, chicken or vegetables. Also excellent for cooking pasta, or bulky vegetables such as corn and artichokes, or for steaming or boiling lobsters CAPACITY DIAMETER DEPTH DOMED COVER ITEM QT (L) IN (CM) IN (CM) GAUGE CASE LOT ITEM 3101 61/2 (6.2) 8 (20.3) 8 (20.3) 15 1 3708C 3103 101/2 (10) 91/2 (24.1) 91/2 (24.1) 14 1 3709C 3104 171/2 (16.6) 11 (27.9) 11 (27.9) 14 1 3711C 3106 251/2 (24.2) 121/2 (31.8) 121/2 (31.8) 14 1 3712C 3109 38 (36.1) 14 (35.6) 14 (35.6) 10 1 3714C 3113 53 (50.4) 153/4 (40) 153/4 (40) 10 1 3715C 3118 74 (70.3) 173/4 (45.1) 173/4 (45.1) 10 1 3717C 7-13
- 209. vollrathco.com Cookware Centurion® Cookware Induction Electric Gas Centurion® Stainless Steel Braziers/Casseroles Q Ideal for slowly browning meat or vegetables in liquid CAPACITY DIAMETER DEPTH DOMED COVER ITEM QT (L) IN (CM) IN (CM) GAUGE CASE LOT ITEM 3304 41/2 (4.3) 91/2 (24.1) 33/4 (9.5) 14 1 3709C 1 3307 7 (6.7) 11 (27.9) 4 /2 (11.4) 14 1 3711C 3310 101/2 (10) 121/2 (31.8) 5 (12.7) 14 1 3712C 3315 15 (14.3) 14 (35.6) 51/2 (13.3) 14 1 3714C 3 3320 20 (19) 15 /4 (40) 6 (15.2) 10 1 3715C 3328 281/2 (27.1) 173/4 (45.1) 63/4 (17.1) 10 1 3717C Centurion® Pasta Inserts Q Inserts add speed and convenience for fast cooking and reheating of pasta in Centurion® sauce pots Q Lift and remove one insert at a time to keep up to four types of pasta cooking at once. Drain, empty and start a new batch immediately in the same hot water Q Hang hook for easy draining Q Sauce pot sold separately Hang Hook ITEM DESCRIPTION CASE LOT 1 3158 Qty. 4-5 /2 Qt. (5.2 L), Fits #3206 Sauce Pot 4 3159 Qty. 4-71/2 Qt. (7.1 L), Fits #3208 Sauce Pot 4 Centurion® Domed Covers Q Self-basting, domed covers are designed to fit all Centurion® stock pots, braziers/casseroles, sauce pots, sauce pans, sauté pans and fry pans Q Spot-welded handles for strength and durability Q Domed cover allows moisture to condense and fall back onto food 3706C CASE ITEM DESCRIPTION LOT 3706C 61/2 (16.5 cm) - Fits: 3601, 3702 1 3708C 8 (20.3 cm)- Fits: 3101, 3151, 3602, 3704, N3408 1 3709C 91/2 (24.1 cm)- Fits: 3103, 3152, 3154, 3202, 3304, 3409, 3604, 3707, N3409 1 3711C 111/2 (29.2 cm)- Fits: 3104, 3155, 3203, 3307, 3411, 3607, 3711, N3411 1 3712C 121/2 (31.8 cm)- Fits: 3106, 3156, 3204, 3310, 3412, N3412 1 3714C 14 (35.6 cm)- Fits: 3109, 3157, 3206, 3315, 3414, N3414 1 3715C 153/4 (40 cm)- Fits: 3113, 3208, 3320 1 3717C 173/4 (45.1 cm)- Fits: 3118, 3212, 3328 1 7-14
- 210. Cookware The Vollrath Company, LLC Intrigue® Stainless Steel Induction Electric Gas Heavy-Duty Professional Cookware Intrigue is a commercial line of heavy-duty stainless steel cookware. European styling with combinations of satin and mirror finishes make Intrigue ideal for kitchen or demonstration cooking. Q Heavy-duty 18-8 (EU 18-10) stainless steel construction Q Pots and braziers feature heavy-duty stainless steel loop handles Q Pans feature comfortable hollow handles that stay cool Q Fry pans feature SteelCoat x3™ non-stick coating — reduces need for cooking oil and cleans up easily Q Mirror-finish — great look and easy clean-up Q Oven and dishwasher safe Q Case Lot: 1 per each item Q Rounded lip makes pouring easy and adds strength where it counts 1.2 or 1.5 mm 18-8 Stainless Steel Body Q Permanently bonded, 1⁄4 (6.6 mm) thick bottom layer made of aluminum and stainless steel for even heating and ⁄ (6 mm) Aluminum Disk 14 exceptional durability 0.6 mm Ferrous Disk Cook With Safety and Style Intrigue® Cookware is ideal for use with Vollrath induction ranges. 59500P For more information on Vollrath induction ranges see Pages 2-3 through 2-10. 7-15
- 211. vollrathco.com Cookware Intrigue® Cookware Intrigue® Stainless Steel Intrigue® Stainless Steel Fry Pans with Interior Fry Pans with Plain Finish Q Ideal for frying, scrambling, sautéing or searing Q Ideal for frying, scrambling, sautéing or searing Q Ideal for use on 208V induction range Q Warranty on all non-stick fry pans — 90 days 47753 INSIDE DIAMETER INSIDE DEPTH COVER INSIDE DIAMETER INSIDE DEPTH COVER ITEM IN (CM) IN (CM) GAUGE ITEM ITEM IN (CM) IN (CM) GAUGE ITEM 47755 713⁄ 16 (20) 111⁄ 16 (4.3) 18 47771 47750 713⁄ 16 (20) 111⁄ 16 (4.3) 18 47771 47756 93⁄ 8 (24) 13⁄ 4 (4.5) 18 47773 47751 93⁄ 8 (24) 13⁄ 4 (4.5) 18 47773 47757 1015⁄ 16 (28) 115⁄ 16 (5) 18 47774 47752 1015⁄ 16 (28) 115⁄ 16 (5) 18 47774 1⁄ 2 21⁄ 2 1⁄ 2 21⁄ 2 47758{ 12 (32) (6.4) 18 47776 47753{ 12 (32) (6.4) 18 47776 {Includes helper handle {Includes helper handle Note: Jacob's Pride Warranty does not cover non-stick coatings Intrigue® Stainless Steel Stainless Steel Pasta Basket Sauce Pots Q Basket is 7 (18 cm) deep and intended for use in a 12 qt/11.4 L stock pot, Q Ideal for reducing liquids holds up to 3 servings (2.5 qt/2.3L) Q Hole diameter: 3⁄16 (0.5 cm) Q TriVent® silicone insulated handle Q Rated at 450°F (232°C) for stovetop or oven use CAPACITY INSIDE DIAMETER INSIDE DEPTH COVER ITEM QT (L) IN (CM) IN (CM GAUGE ITEM Q Ideal for use on gas, electric or induction ranges Q Designed to be used with 77521, 77522, 47732 47730 7 (6.6) 93⁄ 8 (24) 53⁄ 4 (14.8) 18 47773 47731 9 (8.5) 1015⁄ 16 (28) 51⁄ 2 (13.9) 18 47774 or 47733 47732 12 (11.4) 1111⁄ 16 (30) 65⁄ 16 (16.2) 18 47775 47733 17 (16.1) 121⁄ 2 (32) 713⁄ 16 (20.1) 16 47776 47734 24 (22.8) 141⁄ 16 (36) 9 (23) 16 47777 ITEM DESCRIPTION GAUGE CASE LOT 47735 33 (31.4) 155⁄ 8 (40) 93⁄ 4 (25) 16 47778 68134 Stainless steel pasta basket 22 1 Intrigue® Stainless Steel Stock Pots Q Designed for preparing stocks, soups and liquids Q Tall and narrow shape allows liquids to bubble up through the food, extracting maximum flavor CAPACITY INSIDE DIAMETER INSIDE DEPTH COVER ITEM QT (L) IN (CM) IN (CM) GAUGE ITEM 47720 61⁄ 2 (6.1) 713⁄ 16 (20) 713⁄ 16 (20) 18 47771 47721 12 (11.4) 93⁄ 8 (24) 93⁄ 4 (25) 18 47773 47722 18 (17) 1015⁄ 16 (28) 1015⁄ 16 (28) 18 47774 47723| 27 (25.5) 121⁄ 2 (32) 121⁄ 2 (32) 16 47776 47724| 38 (36) 141⁄ 16 (36) 141⁄ 16 (36) 16 47777 47725| 53 (50.1) 155⁄ 8 (40) 155⁄ 8 (40) 16 47778 47726| 76 (71.9) 1715⁄ 16 (46) 163⁄ 4 (43) 16 47779 |Satin finished inside 7-16
- 212. Cookware The Vollrath Company, LLC Intrigue® Cookware Intrigue® Stainless Steel Intrigue® Stainless Steel Sauce Pans Sauciers Q Ideal for sauces, Q Curved sides allow for thorough and vegetables, rice, efficient whisking cereals or of ingredients soups CAPACITY INSIDE DIAMETER INSIDE DEPTH COVER ITEM QT (L) IN (CM) IN (CM) GAUGE ITEM CAPACITY INSIDE DIAMETER INSIDE DEPTH COVER 47740 21⁄ 4 (2.1) 71⁄ 16 (18) 33⁄ 8 (8.7) 18 47770 ITEM QT (L) IN (CM) IN (CM) GAUGE ITEM 47741 31⁄ 4 (3.1) 713⁄ 16 (20) 313⁄ 16 (9.8) 18 47771 47790{ 1 (0.95) 61⁄ 4 (16) 21⁄ 4 (5.7) 18 47780 1 9 1 47742{ 4 ⁄ 4 (4) 8 ⁄ 16 (22) 4 ⁄ 8 (10.6) 18 47772 47791 2 (1.9) 713 ⁄ 16 (20) 23⁄ 4 (7.1) 18 47771 47743{ 7 (6.6) 93⁄ 8 (24) 53⁄ 4 (14.8) 18 47773 47792 3 (2.85) 93⁄ 8 (24) 3 (7.6) 18 47773 {Includes helper handle {Not induction ready Intrigue® Stainless Steel Intrigue® Stainless Steel Braziers Sauté Pans Q Perfect for long, slow cooking Q Ideal for sautéing, stir-frying and browning Q Tall sides minimize spattering CAPACITY INSIDE DIAMETER INSIDE DEPTH COVER CAPACITY INSIDE DIAMETER INSIDE DEPTH COVER ITEM QT (L) IN (CM) IN (CM) GAUGE ITEM ITEM QT (L) IN (CM) IN (CM) GAUGE ITEM 47745 3 (2.8) 93⁄ 8 (24) 21⁄ 2 (6.4) 18 47773 47760 12 (11.4) 141⁄ 16 (36) 43⁄ 8 (11.3) 16 47777 15 5 5 47746{ 6 (5.7) 10 ⁄ 16 (28) 3 ⁄ 8 (9.3) 18 47774 47761 18 (17) 15 ⁄ 8 (40) 55⁄ 16 (13.7) 16 47778 47747{ 91⁄ 2 (9) 141⁄ 16 (36) 31⁄ 2 (8.9) 16 47777 47762 24 (22.7) 1715⁄ 16 (46) 55⁄ 16 (13.7) 16 47779 {Includes helper handle 47779 Intrigue® Stainless Steel Covers Q Mirror finished inside, satin finished outside NOMINAL DIAMETER DIMENSION “A” THICKNESS CASE ITEM IN (CM) IN (CM) IN (CM) GAUGE LOT Dimension “A” 47780 65⁄ 16 (16) 111⁄ 16 (.4) 1 ⁄ 16 (1.2) 18 1 47770 73⁄ 32 (18) 111⁄ 16 (.4) 1⁄ 16 (1.2) 18 1 47771 729⁄ 32 (20) 111⁄ 16 (.4) 1⁄ 16 (1.2) 18 1 47772 823⁄ 32 (22) 111⁄ 16 (.4) 1⁄ 16 (1.2) 18 1 47776 47773 913⁄ 32 (24) 111⁄ 16 (.4) 1⁄ 16 (1.2) 18 1 47774 11 (28) 131⁄ 32 (.5) 1⁄ 16 (1.2) 18 1 47775 1113⁄ 16 (30) 131⁄ 32 (.5) 1⁄ 16 (1.2) 18 1 47776 125⁄ 8 (32) 131⁄ 32 (.5) 1⁄ 16 (1.2) 18 1 47777 147⁄ 32 (36) 131⁄ 32 (.5) 1⁄ 16 (1.2) 16 1 47778 1523⁄ 32 (40) 131⁄ 32 (.5) 1⁄ 16 (1.2) 16 1 47779 183⁄ 32 (46) 131⁄ 32 (.5) 1⁄ 16 (1.2) 16 1 47780 7-17
- 213. vollrathco.com Cookware Optio™ Cookware Induction Electric Gas Optio™ stainless steel cookware is specifically designed for the value conscious chef. Constructed of stainless steel and featuring an aluminum-clad bottom for quick and even heat distribution, all Optio™ Cookware is induction ready. Optio™ Cookware is an economy line designed for lighter duty cooking. High quality stainless steel construction will not pit or discolor or carry flavors. Brushed stainless steel surface distributes heat quickly Large radius corners minimize food waste and permit easy cleaning Aluminum-clad bottom provides quick and even distribution of heat The bottom is protected by a thin wafer of stainless steel to prevent denting and scratching Optio™ Natural Finish Fry Pans Q Ideal for frying, sauteing or searing TOP DIA BOTTOM DIA HEIGHT COVER ITEM IN (CM) IN (CM) IN (CM) GAUGE CASE LOT ITEM 3808 8 (20.3) 5 3/4 (15) 11/2 (3.8) 21 6 3908C 1 5 3809 9 /2 (24.1) 7 /8 (19) 13/4 (4.4) 21 6 3910C 3811 11 (27.9) 9 3/4 (25) 2 (5.1) 21 2 3911C 3812 121/2 (31.8) 107/8 (28) 21/4 (5.7) 21 2 3912C Optio™ Non-Stick Fry Pans Q Ideal for frying, sauteing or searing TOP DIA BOTTOM DIA HEIGHT CASE COVER ITEM IN (CM) IN (CM) IN (CM) GAUGE LOT ITEM N3817 7 (17.8) 4¾ (13) 1¾ (4.4) 21 4 3907C N3808 8 (20.3) 5¾ (15) 11/2 (3.8) 21 6 3908C N3809 91/2 (24.1) 75/8 (19) 13/4 (4.4) 21 6 3910C N3811 11 (27.9) 9 ¾ (25) 2 (5.1) 21 2 3911C N3812 121/2 (31.8) 107/8 (28) 21/4 (5.7) 21 2 3912C 7-18
- 214. Cookware The Vollrath Company, LLC Optio™ Cookware Induction Electric Gas Optio™ Sauté Pans Optio™ Sauce Pans Q Ideal for stir-frying, quick-stewing, and poaching Q Sauce pans ship complete with domed cover Q Domed cover retains moisture while cooking Q Ideal for making sauces, soups, and simmering of all liquids CAPACITY DIAMETER DEPTH CASE COVER ITEM QT (L) IN (CM) IN (CM) GAUGE LOT ITEM 3800 1 (.95) 5½ (14) 2¾ (7) 21 6 3900C CAPACITY DIAMETER DEPTH CASE COVER ITEM QT (L) IN (CM) IN (CM) GAUGE LOT ITEM 3802 23/4 (2.6) 7 (17.8) 41/8 (10.5) 21 6 3907C 3801 21/2 (2.4) 8 (20.3) 3 (7.6) 21 2 3908C 3803 4 (3.8) 8 (20.3) 43/4 (12.1) 21 6 3908C 3804 4 (3.8) 91/2 (24.1) 41/4 (10.8) 21 2 3910C 3806 63/4 (6.4) 91/2 (24.1) 63/8 (16.2) 21 6 3910C 3807 6 (5.7) 11 (27.9) 31/2 (8.9) 21 2 3911C 3813 101/2 (10) 11 (27.9) 7 (17.8) 21 6 3911C Optio™ Sauce Pots Q Sauce pots ship complete with domed cover Q Domed cover retains moisture while cooking Q Ideal for simmering soups and stews CAPACITY DIAMETER DEPTH COVER ITEM QT (L) IN (CM) IN (CM) GAUGE CASE LOT ITEM 3902 63/4 (6.4) 91/2 (24.1) 63/8 (16.2) 21 2 3910C 3903 10 (9.5) 11 (27.9) 71/8 (18.1) 21 2 3911C 3904 16 (15.2) 121/2 (31.8) 8 (20.3) 21 2 3912C 3905 22 (20.9) 14 (35.6) 81/2 (21.6) 21 2 3914C Optio™ Stock Pots Q Stock pots ship complete with domed cover Q Domed cover retains moisture while cooking Q Ideal for cooking pasta, or preparing large quantities of liquids CAPACITY DIAMETER DEPTH COVER ITEM QT (L) IN (CM) IN (CM) GAUGE CASE LOT ITEM 3501 8 (7.6) 81/2 (21.6) 8 (20.3) 21 2 3909C 3503 11 (10.5) 91/2 (24.1) 91/2 (24.1) 21 2 3910C 3504 18 (17.1) 11 (27.9) 11 (27.9) 21 2 3911C 3506 27 (25.7) 121/2 (31.8) 121/2 (31.8) 21 1 3912C 3509 38 (36.1) 14 (35.6) 141/4 (36.2) 21 1 3914C 3513 53 (50.4) 153/4 (40) 157/8 (40.3) 18 1 3915C 7-19
- 215. vollrathco.com Cookware Optio™ Cookware Induction Electric Gas Optio™ Braziers Q Large diameter cooking area allows for braising large pieces of meat, while the shallow height permits small amounts of liquid to be used CAPACITY DIAMETER DEPTH COVER ITEM QT (L) IN (CM) IN (CM) GAUGE CASE LOT ITEM 3810 10 (9.5) 121/2 (31.8) 41/3 (11) 21 2 3912C 3814 14 (13.3) 14 (35.6) 51/2 (14) 21 2 3914C 3819 19 (18.1) 153/4 (40) 6 (15.2) 18 1 3915C Optio™ Cookware Sets Q Conveniently packaged as complete sets ITEM DESCRIPTION 3820 Deluxe 6-Piece Cookware Set: 2.75 qt. (2.6 L) Sauce Pan (3802) with Lid (3907C) 4 qt. (3.8 L) Sauce Pan (3803) with Lid (3908C) 9.5 (24.1 cm) Non-Stick Fry Pan (N3809), Stainless Steel with Lid (3910C) 3822 Deluxe 7-Piece Cookware Set: 1 qt. (.95 L) Sauce Pan (3800) with Lid (3900C) 2.75 qt. (2.6 L) Sauce Pan (3802) with Lid (3907C) 6.75 qt. (6.4 L) Sauce Pot (3902) with Lid (3910C) 9.5 (24.1 cm) Stainless Steel Fry Pan (3809), (Note: the 3910C Lid fits the 3809 Fry Pan) 3822 Optio™ Covers Q Covers for Optio™ Cookware SIZE ITEM IN (CM) FITS CASE LOT 3900C 5½ (14) 3800 12 3908C 3907C 7 (17.8) 3802, N3817 6 3908C 8 (20.3) 3808, N3808, 3801, 3803, 3501 6 3909C 81/2 (21.6) 3805, 3501 6 3910C 91/2 (24.1) 3809, N3809, 3804, 3806, 3503, 3902 6 3911C 11 (27.9) 3811, 3813, N3811, 3807, 3504, 3903 6 3912C 121/2 (31.8) 3812, N3812, 3810, 3506, 3904 6 3914C 14 (35.6) 3509, 3814, 3905 6 3915C 153/4 (40) 3513, 3810, 3819 6 7-20
- 216. Cookware The Vollrath Company, LLC Tri-Ply Stainless Steel Stock Pots Q Carbon steel core bonded with layers of 18-8 stainless steel Q Solid welded stainless steel Induction handles for durability and easy cleaning Q Liquid measure capacities chemically etched in English Electric and metric on inside walls Q For use with conventional or induction ranges Q Stainless steel interiors Gas clean easily and will not react with food Q Ideal for stocks and storage Q Case Lot: 1 each per item CAPACITY DIAMETER DEPTH COVER ITEM QT (L) IN (CM) IN (CM) GAUGE ITEM{ 77560 10 (9.5) 10 (25.4) 81⁄ 16 (20.5) 18 77572 77580 12 (11.4) 10 (25.4) 91⁄ 2 (24.1) 18 77572 77600 16 (15.1) 12 (30.5) 81⁄ 2 (21.6) 16 77662 77610 20 (18.9) 12 (30.5) 109⁄ 16 (26.8) 16 77662 77620 24 (22.7) 12 (30.5) 123⁄ 8 (31.4) 16 77662 1 77630 38 ⁄ 2 (36.4) 14 (35.6) 15 (38.1) 16 77682 77640 571⁄ 2 (54.4) 16 (40.6) 17 (43.2) 16 77702 {Covers Sold Separately Classic™ Stainless Steel Stainless Steel Double Boiler Stock Pots and Q Straight handles with cover Storage Containers| Q Ideal for melting chocolates or preparing delicate sauces Q Q 18-8 stainless steel Solid welded stainless steel handles Electric Gas for durability and easy cleaning Q Handle length: Q 18-8 stainless steel 613⁄16 (17.3 cm) Q Feature an arc-sprayed Q Will not color delicate foods aluminum bottom Q Not induction ready to distribute heat evenly Q Case Lot: INSET CAPACITY BODY CAPACITY CASE LOT ITEM DESCRIPTION QT (L) QT (L) 1 each per item 77020{ Complete set 2 (1.9) 2 (1.9) 1 {NSF Certified Cover/Inset/Bottom UPPER LOWER CAPACITY DIAMETER DEPTH COVER DIA. DIA. DEPTH CASE ITEM* QT (L) IN (CM) IN (CM) GAUGE ITEM{ ITEM DESCRIPTION IN (CM) IN (CM IN (CM) GAUGE FITS LOT 78560 71⁄ 2 (7.1) 83⁄ 8 (21.3) 83⁄ 4 (22.2) 24 77072 77022 Solid double — — — 24 77020 1 78580 111⁄ 2 (10.9) 103⁄ 8 (26.4) 87⁄ 8 (22.5) 20 77112 boiler cover 78600 16 (15.1) 121⁄ 4 (31.1) 9 (22.9) 20 78672 77023 Double boiler 61⁄ 8 531⁄ 32 431⁄ 32 24 77020 1 78610 20 (18.9) 121⁄ 4 (31.1) 11 (27.9) 20 78672 inset w/round (15.6) (15.2) (12.6) 78620 24 (22.7) 121⁄ 4 (31.1) 13 (33) 20 78672 bottom 78630 381⁄ 2 (36.4) 137⁄ 8 (35.2) 153⁄ 4 (40) 20 78682 77021 Double boiler 61⁄ 8 — 45⁄ 16 24 77020 1 78640 60 (56.8) 16 (40.6) 18 (45.7) 18 78702 bottom (15.6) (11) {Covers Sold Separately |Not recommended for use on induction ranges 7-21
- 217. vollrathco.com Cookware Stainless Steel Double Boilers Q 18-8 stainless steel Q Ideal for delicate food preparation, reheating, preheating and moisture-free cooking Q Solid welded stainless steel loop handles for durability and easy cleaning Q Rounded corners on inset pan for easy mixing Q Feature conductive bottoms that distribute heat evenly Q Insets fit snug to speed cooking time Q Complete set includes inset, pot and cover 78200 Q Will not color delicate foods INSET BODY INSET OUTSIDE INSET AND POT INSET SOLID SLOTTED COMPLETE CAPACITY CAPACITY DIAMETER HEIGHT INSET ONLY DEPTH BOTTOM POT ONLY COVER COVER SET ITEM QT (L) QT (L) IN (CM) IN (CM) ITEM IN (CM) STYLE GAUGE ITEM GAUGE ITEM ITEM 77070 7 (6.6) 71⁄ 2 (7.1) 93⁄ 8 (23.8) 11 (27.9) 77073{ 87⁄ 16 (21.4) Round 24 78560 24 77072 78180{ 1 7 77110 11 (10.4) 11 ⁄ 2 (10.9) 11 ⁄ 16 (29.1) 11 (27.9) 77113{ 83⁄ 4 (22.2) Flat 24 78580 20 77112 78200{ 77130 20 (18.9) 20 (18.9) 1213⁄ 16 (32.5) 14 (35.6) 77133{ 11 (10.4) Flat 24 78610 20 78672 — Double boiler sets, insets, solid covers and bottoms packed 1 per carton, slotted covers packed 6 per carton. {Insets and Covers are Not NSF Certified Heavy-Duty Stainless Steel Tapered Sauce Pans Q Heavy-duty 18-8, 18-gauge stainless steel Q Tapered design for thorough stirring Q Available with the permanently bonded TriVent® silicone insulated handle or nickel chrome plated steel handle Q Stainless steel rivets SILICONE PLATED CAPACITY TOP DIAMETER HEIGHT HANDLE CASE COVER CASE HANDLE HANDLE QT (L) IN (CM) IN (CM) IN (CM) LOT ITEM LOT 78421{ 78321{ 2 (1.9) 71⁄ 4 (18.4) 39⁄ 16 (9.1) 61⁄ 2 (16.5) 6 — — 78431 78331 3 (2.8) 715⁄ 16 7 (20.2) 4 ⁄ 16 (11.3) 61⁄ 2 (16.5) 6 79120 6 78441 78341 41⁄ 2 (4.3) 97⁄ 16 (24) 51⁄ 4 (13.3) 73⁄ 4 (19.7) 4 79220 4 78451 78351 51⁄ 2 (5.2) 101⁄ 8 (25.7) 55⁄ 8 (14.3) 73⁄ 4 (19.7) 4 69410 1 78471{| 78371{| 7 (6.6) 109⁄ 16 (26.8) 61⁄ 4 (15.9) 111⁄ 4 (28.6) 4 — — {Cover Not Available |With Helper Handle Carbon Steel Fry Pans Induction Fry Pans with Q Carbon steel conducts heat quickly and evenly Induction Interior Induction Q Classic French style Q Permanently welded balanced handle Q Carbon steel Q Safe for use in oven or under broiler conducts heat Q For seasoning of pan, quickly and evenly see page 7-4 Q SteelCoat x3™ premium non-stick coating — easy clean-up, reduces use of fats and oils Q TriVent® Silicone insulated handle — rated at 450°F (232°C), for stove top or oven use Q For use with conventional ranges or only 120V induction ranges — 1.8 kW or less Nylon Utensils – Great for use with Induction Ranges Non-Stick Pans! (Pages 2-3 through 2-10) See pages 8-10, 8-19, 8-20, 8-22 8-24 DIAMETER HEIGHT CASE ITEM IN (CM) IN (CM) GAUGE LOT SILICONE DIAMETER HEIGHT CASE 58900 81⁄2 (21.6) 13⁄4 (4.4) 16 12 HANDLE IN (CM) IN (CM) GAUGE LOT 58910 93⁄8 (23.8) 17⁄8 (4.8) 16 6 59900 81⁄2 (21.6) 13⁄4 (4.4) 16 6 58920 11 (27.9) 115⁄16 (4.9) 16 6 59910 93⁄8 (23.8) 17⁄8 (4.8) 16 6 58930 121⁄2 (31.8) 21⁄8 (5.4) 16 6 59920 11 (27.9) 115⁄16 (4.9) 16 2 Note: Covers Not Available Note: Covers Not Available 7-22
- 218. Cookware The Vollrath Company, LLC Stir Fry Pans Q Q Flat bottom sits level on cooking surface Riveted plated steel handle with TriVent® silicone grip permanently Q TriVent® silicone insulated handle — rated at 450°F (232°C) for stovetop or oven use and Dome Cover bonded stays cool to the touch Q For use with conventional or induction ranges Tribute® Heavy-Duty Aluminum Stir Fry Pan Stir Fry Pan with Interior Q Ideal for stir-frying or Q SteelCoat x3™ wok applications premium non-stick 68120 Q Flat bottom sits level coating — easy on cooking surface clean-up, reduces Q TriVent® silicone use of fats and oils 77750 insulated handle — rated at Q 3004 Aluminum 450°F (232°C) for stovetop or oven use Q TriVent® silicone Electric insulated handle — rated at 450°F (232°C) for stovetop or oven use Induction Electric Gas Gas Carbon Steel Stir Fry Pan Carbon Steel Stir Fry Pan Q Triple low-profile stainless rivets with Interior 59950 permanently attach handle to pan Q SteelCoat x3™ premium Q TriVent® Silicone insulated non-stick coating handle — rated — easy clean-up, reduces 59949 at 450°F (232°C) use of fats and oils for stovetop or oven use Q TriVent® silicone insulated handle — rated at 450°F (232°C) for stovetop or oven use Q For use with induction range — 1.8 kW or less Induction Electric Gas Induction Electric Gas Wear-Ever® Stir Fry Pan Stir Fry Domed Cover with HardCoat® Interior Q HardCoat® a unique electro- Q Reduces splatters and speeds cooking chemical bonding process Q Z-shaped Torogard™ dipped handle unites the anodized surface allows safe and comfortable use with the aluminum base, — heat resistant up to creating a non-porous 180˚F (82˚C) surface that is 400% Q Cover can also be used on harder than aluminum H4015 griddles to finish dishes Q Exclusive Cool Handle® Q Coated handle is equipped with included Agion® antimicrobial protection| Q Ideal for all your stir frying Q 3004 Aluminum 68121 and sautéing needs Electric Gas CAPACITY DIAMETER DEPTH CASE LOT DOMED ITEM DESCRIPTION QT (L) IN (CM) IN (CM) GAUGE COVER 77750 Tribute® stir fry pan with TriVent® silicone handle 43⁄4 (4.5) 11 (27.9) 31⁄2 (8.9) 8 1 — ® ® 77754 Tribute stir fry pan with TriVent silicone handle 10 ⁄ (9.6) 3 32 14 (36) 43⁄8 (11.1) 8 1 — 59950 Carbon steel stir fry pan with SteelCoat x3™ non-stick 41⁄2 11 3 1 ⁄2 18 1 68121 and silicone handle (4.3) (27.9) (8.9) 59949 Carbon steel stir fry pan with silicone handle 41⁄2 (4.3) 11 (27.9) 31⁄2 (8.9) 18 1 68121 68120 Aluminum stir fry pan with SteelCoat x3™ non-stick 41⁄2 11 3 1 ⁄2 7 1 68121 and TriVent® silicone handle (4.3) (27.9) (8.9) 68121 Domed cover fits (above) Vollrath stir fry pan items: 59950, 59949 — 11 (27.9) 5 (12.7){ 12 1 — and 68120 (does not fit item 77754 or 77750) H4015 Wear-Ever® stir fry pan with HardCoat® Interior — 111⁄2 (29.2) 4 (10.2) 10 1 4348C {Height with handle |See page 8-3 for more information on Agion® antimicrobial protection 7-23
- 219. vollrathco.com Cookware Wear-Ever® Aluminum Cookware Wear-Ever® Cookware is the highest quality aluminum cookware in the industry. Designed and manufactured in the United States, Wear-Ever® cookware is built for commercial kitchen use with special features like silicone bonded TriVent® handles with lifetime warranted rivets or slip-on replaceable Cool Handle® silicone sleeves, extra dent and warp resistant 3004 aluminum and the best commercial non-stick coatings in the industry. Voted Best in Class Foodservice Electric Gas equipment supplies – Cookware for five years running, it is clear our reputation is built into every Vollrath piece of the Wear-Ever® cookware we make. Available with two silicone options – 2010 oven safe to 450°F (232°C) or 600°F Cook ware (316°C) intermittently TriVent® ® Cool Handle has excellent bonded handle insulation from heat and is is vented for easily replaced cooler touch TriVent® Handle features an ergonomically designed vented handle for comfort and a cooler touch Extra dent-resistant 3004 aluminum alloy to ensure uniform side thickness, exceptional strength and durability Sanitary open beading adds strength and durability Beveled double-thick top edges for added strength and durability Welded handles won't loosen, leak or trap food 7-24
- 220. Cookware The Vollrath Company, LLC TriVent® Handle Cookware TriVent® handles, now available on select Vollrath® Wear-Ever® cookware, feature a cooler-to-touch and comfortable-to-hold design. This incredible upgrade uses a vented handle design to maintain surface temperatures cooler than conventional handles. And because it’s available in a natural finish or oven-safe silicone, you can choose the kind of cool you want for your kitchen. They’re extremely ™ durable too, manufactured with the revolutionary EverTite Rivet System — giving you unmatched protection against loosening handles. Stay cooler, longer, with TriVent® handles. TriVent® Handle Features: Q Unique ergonomic design reduces stress and fatigue Over Q Vented handle design reduces heat transfer from pan Q to handle, maximizing operator comfort Rivet platform is designed to reduce surface contact area to the pan, reducing heat transfer from pan to handle 20° F cooler than Q Non-linear four rivet attachment provides conventional elimination of any potential twisting of handle Q EverTite™ Riveting System provides for lifetime use handles! without loose rivets Q Superior plating provides excellent corrosion resistance Q Silicone handle oven safe up to 450˚F (232˚C) continuous use, 600˚F (315˚C) intermittent use Thermal Comparison: 10 Aluminum Fry Pan with Natural Finish Old handle TriVent® design handle design 31˚F Cooler Lifetime Warranty against loose rivets! EverTite™ Riveting System eliminates loose rivets and handle twisting Note: Both pans contained 16 oz of cooking oil and were Ergonomic design reduces stress and left on the burner for 30 minutes. Pan body temperatures fatigue, and limits heat transfer from reached approximately 400˚F (204.4˚C) pan to handle for maximum comfort 7-25
- 221. vollrathco.com Cookware Cool Handle® Cookware Cool Handle®, now available on select Vollrath® Wear-Ever® cookware, features a Cool Handle® replaceable silicone sleeve which offers excellent insulation and a ™ comfortable grip all chefs can appreciate. EverTite Riveting System provides for lifetime use without loose rivets. Cool Handle® Features: Q Only Wear-Ever® fry pans and sauce pans have the exclusive Cool Handle® Q Even when placed in the oven or on the stove top with an open flame, the Cool Handle® will not burn, smoke or smolder Q Meets FDA requirements Q Easy to remove for cleaning Q Three sizes to fit most industry fry, saute auce and sauce pans Q Oven safe to 600°F (316°C) intermittently Replacement Handles LENGTH ITEM DESCRIPTION IN (CM) CASE LOT 3009 Cool Handle® I 61/2 (16.5) 12 3010 Cool Handle® II 41/2 (11.4) 12 3011 Cool Handle® III 4 (10.2) 12 *Cool Handles® are sold only in full case packs of 12. 7-26
- 222. Cookware The Vollrath Company, LLC Wear-Ever® Cookware Electric Gas Ever-Smooth™ interior surface ensures easier cooking and less interference from rivet heads which eliminates food and bacteria collection areas Ever-Smooth™ Story Q Eliminates Food and Bacteria Collection Areas: Smooth interior Q Superior Strength: Our unique, patent-pending manufacturing surface helps eliminate potential food and bacteria collection process ensures super-strong handle adhesion areas from the cooking zone Q Ever-Smooth™ has all the standard advantages you expect Q Easier Cooking/Less Interference: Smooth interior surface from Vollrath Wear-Ever® quality products, including superior ensures easier cooking and less interference from rivet heads cold-draw processing, 3004 aluminum, detailed finishing Q Easy to Clean: Cleaning is simplified. Your kitchen staff will operations and the industry's best non-stick coatings love Ever-Smooth™ Cookware Wear-Ever® Ever-Smooth™ Fry Pans Natural WearGuard® CeramiGuard®II Q CeramiGuard®II is a coating system that finally offers both superior durability and release qualities, even in high-heat applications. CeramiGuard®II better withstands the abuse of metal utensils Q WearGuard® is a new and improved coating that releases better and scratches less Q Exclusive Cool Handle® included CeramiGuard®II Finish CERAMIGUARD® TOP DIA BOTTOM DIA HEIGHT CASE FLAT DOMED COVER ITEM IN (CM) IN (CM) IN (CM) GAUGE LOT COVER COVER CASE LOT EZ4007 7 (17.8) 43/4 (12) 11/2 (3.8) 8 6 67327 67427 1 3 EZ4008 8 (20.3) 5 /4 (14) 17/8 (4.8) 10 6 67312 67412 1 EZ4010 10 (25.4) 75/8 (20) 2 (5.1) 8 6 67509 67409 1 EZ4012 12 (30.5) 93/4 (25) 21/4 (5.7) 8 2 67521 67421 1 EZ4014 14 (35.6) 107/8 (28) 21/2 (6.4) 6 2 67541 67441 1 WearGuard® Finish WEARGUARD® TOP DIA BOTTOM DIA HEIGHT CASE FLAT DOMED COVER ITEM IN (CM) IN (CM) IN (CM) GAUGE LOT COVER COVER CASE LOT ES4007 7 (17.8) 43/4 (12) 11/2 (3.8) 8 6 67327 67427 1 ES4008 8 (20.3) 53/4 (14) 17/8 (4.8) 10 6 67312 67412 1 ES4010 10 (25.4) 75/8 (20) 2 (5.1) 8 6 67509 67409 1 ES4012 12 (30.5) 93/4 (25) 21/4 (5.7) 8 2 67521 67421 1 ES4014 14 (35.6) 107/8 (28) 21/2 (6.4) 6 2 67541 67441 1 Natural Finish NATURAL TOP DIA BOTTOM DIA HEIGHT CASE FLAT DOMED COVER ITEM IN (CM) IN (CM) IN (CM) GAUGE LOT COVER COVER CASE LOT E4007 7 (17.8) 43/4 (12) 11/2 (3.8) 8 6 67327 67427 1 3 E4008 8 (20.3) 5 /4 (14) 17/8 (4.8) 10 6 67312 67412 1 E4010 10 (25.4) 75/8 (20) 2 (5.1) 8 6 67509 67409 1 E4012 12 (30.5) 93/4 (25) 21/4 (5.7) 8 2 67521 67421 1 E4014 14 (35.6) 107/8 (28) 21/2 (6.4) 6 2 67541 67441 1 7-27
- 223. vollrathco.com Cookware Wear-Ever® Cookware Electric Gas Wear-Ever ® Fry Pans with CeramiGuard®II Interior CeramiGuard®II is a coating system that offers both superior durability and release qualities, even in high-heat applications Note: Warranty CeramiGuard®II better withstands - 90 days on all the abuse of metal utensils non-stick fry pans. Exclusive Cool Handle® included Heavy-duty TOP DIA BOTTOM DIA HEIGHT FLAT DOMED COVER impact-resistant ITEM IN (CM) IN (CM) IN (CM) GAUGE CASE LOT COVER COVER CASE LOT 3004 aluminum Z4007 7 (17.8) 43/4 (12) 11/2 (3.8) 8 6 67327 67427 1 3 Z4008 8 (20.3) 5 /4 (14) 17/8 (4.8) 10 6 67312 67412 1 Z4010 10 (25.4) 75/8 (20) 2 (5.1) 8 6 67509 67409 1 Ideal for Z4012 12 (30.5) 93/4 (25) 21/4 (5.7) 8 2 67521 67421 1 heavy-duty frying Z4014 14 (35.6) 107/8 (28) 21/2 (6.4) 6 2 67541 67441 1 Wear-Ever ® Fry Pans with WearGuard® Interior Q Exclusive Cool Handle® included Q Ideal for frying, sauteing or searing Q WearGuard® is a new and improved coating that releases better and scratches less Q EverTite™ Riveting System provides for lifetime use without loose rivets TOP DIA BOTTOM DIA HEIGHT FLAT DOMED COVER ITEM IN (CM) IN (CM) IN (CM) GAUGE CASE LOT COVER COVER CASE LOT S4007 7 (17.8) 43/4 (12) 11/2 (3.8) 8 6 67327 67427 1 S4008 8 (20.3) 3 5 /4 (14) 7 1 /8 (4.8) 10 6 67312 67412 1 S4010 10 (25.4) 75/8 (20) 2 (5.1) 8 6 67509 67409 1 S4012 12 (30.5) 3 9 /4 (25) 1 2 /4 (5.7) 8 2 67521 67421 1 S4014 14 (35.6) 107/8 (28) 21/2 (6.4) 6 2 67541 67441 1 Wear-Ever ® Fry Pans with Natural Finish Interior Q Exclusive Cool Handle® included Q Ideal for frying and browning Q EverTite™ Riveting System provides for lifetime use without loose rivets TOP DIA BOTTOM DIA HEIGHT FLAT DOMED COVER ITEM IN (CM) IN (CM) IN (CM) GAUGE CASE LOT COVER COVER CASE LOT 4007 7 (17.8) 43/4 (12) 11/2 (3.8) 8 6 67327 67427 1 3 4008 8 (20.3) 5 /4 (14) 17/8 (4.8) 10 6 67312 67412 1 4010 10 (25.4) 75/8 (20) 2 (5.1) 8 6 67509 67409 1 4012 12 (30.5) 93/4 (25) 21/4 (5.7) 8 2 67521 67421 1 4014 14 (35.6) 107/8 (28) 21/2 (6.4) 6 2 67541 67441 1 7-28
- 224. Cookware The Vollrath Company, LLC About HardCoat® Cookware HardCoat® is a surface-hardening application achieved through a unique electro-chemical bonding process. The aluminum is united with the anodized surface to create a hardened, non-porous and non-reactive surface. The anodizing process causes a natural reaction between the aluminum and the chemicals called oxidation, a process which occurs spontaneously in nature. During this process, the product is dipped in a large vat of chemicals and then electrically charged, resulting in the ultimate combination of heat conductivity and warp resistance. This reaction creates a hardened protective layer that penetrates 0.001 below the original aluminum surface and builds 0.001 outward from the original aluminum surface. 0.002 0.002 HardCoat® Cookware Improved Warp Resistance The HardCoat® surface slows the expansion rate of aluminum by 5 times and increases the melting point by 30%. This combination provides superior warp resistance over natural aluminum, even 2.6 when exposed to higher heat conditions. Warp 2.5 Measurement 2.4 To test this theory, a natural and a HardCoat® pan were subjected 2.3 to severe heating and cooling conditions. Both pans were tested 2.2 by heating, on a high flame setting, to a surface temperature of 2.1 650-700°F and then submerged in cold water at 60-65°F. We 2 15 25 35 45 repeated this cycle 45 times, which resulted in a severely warped Starting Height ® HardCoat Aluminum Natural Aluminum natural aluminum pan and a minimally warped HardCoat® pan (as shown in the photo and graph to the right). Wear-Ever ® Fry Pans with HardCoat® Strength Q HardCoat® a unique electro-chemical bonding process unites the anodized surface with the aluminum base, creating a non-porous surface that is 400% harder than aluminum for dent resistance Q Exclusive Cool Handle® included Q Ideal for frying and browning Q EverTite™ Riveting System provides for lifetime use without loose rivets Q Must be hand washed to preserve unique HardCoat® surface TOP DIA BOTTOM DIA HEIGHT FLAT DOMED COVER ITEM IN (CM) IN (CM) IN (CM) GAUGE CASE LOT COVER COVER CASE LOT H4007 7 (17.8) 43/4 (12) 11/2 (3.8) 8 6 67327 67427 1 H4008 8 (20.3) 53/4 (14) 17/8 (4.8) 10 6 67312 67412 1 H4010 10 (25.4) 75/8 (20) 2 (5.1) 8 6 67509 67409 1 3 1 H4012 12 (30.5) 9 /4 (25) 2 /4 (5.7) 8 2 67521 67421 1 H4014 14 (35.6) 107/8 (28) 21/2 (6.4) 6 2 67541 67441 1 7-29
- 225. vollrathco.com Cookware Wear-Ever® Fry Pans with interior Note: Warranty - 90 days on all non-stick fry pans. Triple-layer coating provides exceptional durability TriVent® Handles Q Silicone Handle: Patented black handle — permanently bonded TriVent® handle designed for comfort Q Will not slide off durability while providing a unique Q Eliminates food traps vented appearance and cleaning headaches Superior food release for Q Oven safe to 450°F (232°C) greater cooking efficiency EverTite™ Riveting Wear-Ever® Fry Pans with SteelCoat x3™ Coating System offers a SILICONE PLATED TOP DIA BOTTOM DIA HEIGHT CASE FLAT DOMED COVER lifetime warranty HANDLE HANDLE IN (CM) IN (CM) IN (CM) GAUGE LOT COVER COVER CASE LOT against loose rivets 67607 67627 7 (18) 43⁄4 (12) 13⁄4 (4.4) 8 6 67327 67427 1 67608 67628 8 (20) 53⁄4 (14) 17⁄8 (4.8) 10 6 67312 67412 1 Body is manufactured from 67610 67630 10 (25) 75⁄8 (20) 21⁄8 (5.4) 8 6 67509 67409 1 heavy-duty impact-resistant 67612 67632 12 (30) 93⁄4 (25) 21⁄2 (6.4) 8 2 67521 67421 1 3004 aluminum 67614 67634 14 (36) 107⁄8 (28) 23⁄4 (7) 6 1 67541 67441 1 Wear-Ever ® Fry Pans with PowerCoat2™ Interior Q PowerCoat2™ dual-layer ceramic-reinforced coating Q Constructed from heavy-duty impact resistant 3004 aluminum Q EverTite™ Riveting System offers a lifetime warranty against loose rivets Q Excellent commercial performance at an affordable price Q Low-profile rivets are coated for easy clean-up Q Available with TriVent® silicone or chrome-plated steel handle SILICONE PLATED TOP DIA BOTTOM DIA HEIGHT CASE FLAT DOMED COVER HANDLE HANDLE IN (CM) IN (CM) IN (CM) GAUGE LOT COVER COVER CASE LOT 67807 67007 7 (18) 43⁄4 (12) 13⁄4 (4.4) 8 6 67327 67427 1 67808 67008 8 (20) 5 ⁄ (14) 34 17⁄8 (4.8) 10 6 67312 67412 1 67810 67010 10 (25) 75⁄8 (20) 21⁄8 (5.4) 8 6 67509 67409 1 67812 67012 12 (30) 93⁄4 (25) 21⁄2 (6.4) 8 2 67521 67421 1 67814 67014 14 (36) 107⁄8 (28) 23⁄4 (7) 6 1 67541 67441 1 Wear-Ever ® Fry Pans with Natural Finish Q Constructed from heavy-duty impact resistant 3004 aluminum Q EverTite™ Riveting System offers a lifetime warranty against loose rivets Q Available with TriVent® silicone or chrome-plated steel handle Q See page 7-4 for seasoning information SILICONE PLATED TOP DIA BOTTOM DIA HEIGHT CASE FLAT DOMED COVER HANDLE HANDLE IN (CM) IN (CM) IN (CM) GAUGE LOT COVER COVER CASE LOT 67907 67107 7 (18) 43⁄4 (12) 13⁄4 (4.4) 8 6 67327 67427 1 67908 67108 8 (20) 53⁄4 (14) 17⁄8 (4.8) 10 6 67312 67412 1 67910 67110 10 (25) 75⁄8 (20) 21⁄8 (5.4) 8 6 67509 67409 1 67912 67112 12 (30) 93⁄4 (25) 21⁄2 (6.4) 8 2 67521 67421 1 67914 67114 14 (36) 10 ⁄ (28) 78 2 ⁄ (7) 34 6 1 67541 67441 1 Note: Available in Carbon Steel and Induction, see page 7-22 7-30
- 226. Cookware The Vollrath Company, LLC Wear-Ever ® Classic Select® Heavy-Duty Cookware Q Heavy-gauge impact resistant 3004 aluminum Q Double-thick bottom heats evenly and eliminates hot spots Q Smooth surface for easy cleaning Q Flat and domed covers available Q 2 Gauge — 1⁄4 (.63 cm) thick Solid welded aluminum handles Double-thick top for durability and stands up to tough easy cleaning knocks Wear-Ever ® Classic Select® Heavy-Duty Aluminum Stock Pots Q Designed for preparing stocks, soups, and liquids Q Tall and narrow shape allows liquids to bubble up through the food, extracting maximum flavor Q Solid welded aluminum handles for durability and easy interior cleaning Q Available with heavy-duty faucets WITH CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE FLAT DOMED COVER ITEM FAUCET* QT (L) IN (CM) IN (CM) GAUGE LOT COVER} COVER} CASE LOT 68616 — 15 (14.3) 10 (25.5) 113⁄8 (29.1) 2 1 67509 67409 1 68620 — 20 (18.9) 12 (30.6) 103⁄8 (26.5) 2 1 67521 67421 1 68624 — 25 (23.8) 12 (30.6) 131⁄8 (33.4) 2 1 67521 67421 1 68633 68631{| 32 (30.3) 13 (33.2) 143⁄8 (36.7) 2 1 67533 67433 1 68640 68641{| 40 (37.9) 14 (35.7) 15 (38.3) 2 1 67541 67441 1 68660 68661{| 60 (56.8) 16 (40.8) 171⁄2 (44.6) 2 1 67561 67461 1 68680 68681{| 80 (75.7) 18 (45.9) 183⁄16 (46.4) 2 1 67581 67481 1 68690 68691{| 100 (94.7) 20 (51) 19 (48.5) 2 1 67691 67491 1 68700 68701{| 120 (113.6) 20 (51) 23 (58.7) 2 1 67691 67491 1 {Not NSF Certified |Jacob's Pride® Warranty does not cover stock pots with faucets }Covers sold separately Replacement Items: 23231: Faucet, 23627: Screen, 44360-2: Gasket Kit Wear-Ever ® Classic Select® Heavy-Duty Sauce Pots Q Ideal for reducing liquids Q Solid welded aluminum handles for Q Wider diameter and lower sides provide greater surface durability and easy interior cleaning area for preparing soups, stews and sauces CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE FLAT DOMED COVER ITEM QT (L) IN (CM) IN (CM) GAUGE LOT COVER COVER CASE LOT 68408 81⁄2 (8) 10 (25.5) 61⁄2 (16.6) 2 2 67509 67409 1 68413 12 (11.4) 12 (30.6) 63⁄8 (16.3) 2 2 67521 67421 1 68414 14 (13.3) 12 (30.6) 73⁄8 (18.9) 2 2 67521 67421 1 68420 20 (18.9) 13 (33.2) 9 (23) 2 2 67533 67433 1 68426 26 (24.7) 14 (35.7) 101⁄8 (25.8) 2 1 67541 67441 1 68434 34 (32.3) 16 (40.8) 101⁄8 (25.8) 2 1 67561 67461 1 68444 44 (41.8) 18 (45.9) 103⁄8 (26.5) 2 1 67581 67481 1 68460 60 (56.8) 20 (51) 113⁄8 (29.1) 2 1 67691 67491 1 7-31
- 227. vollrathco.com Cookware Wear-Ever® Cookware Electric Gas Wear-Ever ® Classic Select® Heavy-Duty Aluminum Braziers Q Perfect for long, slow cooking Q Solid welded aluminum handles for Q Wide heating surface allows the cooking of durability and easy interior cleaning meats and vegetables in limited amounts of liquid CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE FLAT DOMED COVER ITEM QT (L) IN (CM) IN (CM) GAUGE LOT COVER COVER CASE LOT 68215 15 (14.3) 14 (35.7) 55⁄8 (14.3) 6 1 67541 67441 1 68218 18 (17) 16 (40.8) 5 ⁄ (13.8) 38 6 1 67561 67461 1 68224 24 (22.7) 18 (45.9) 51⁄2 (14) 6 1 67581 67481 1 67228 28 (26.5) 20 (51) 51⁄2 (14) 6 1 67691 67491 1 Wear-Ever ® Classic Select® Heavy-Duty Straight Sided Sauce Pans with TriVent® Handle Q Ideal for sauces, vegetables, Q Available with TriVent® silicone handle rice, cereals, or soups or chrome-plated steel handle, oven Q Large radius corners for easy safe to 450˚F (232˚C) stirring and cleaning Q 6 gauge SILICONE PLATED CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE FLAT DOMED COVER HANDLE HANDLE QT (L) IN (CM) IN (CM) GAUGE LOT COVER COVER CASE LOT 69442 69402 21⁄2 (2.4) 71⁄4 (18.5) 35⁄8 (9.2) 6 2 67327 67427 1 69444 69404 41⁄2 (4.3) 713⁄16 (19.9) 513⁄16 (14.8) 6 2 67312 67412 1 69446 69406 61⁄2 (6.2) 10 (25.5) 5 (12.8) 6 2 67509 67409 1 69448 69408 81⁄2 (8.1) 10 (25.5) 61⁄2 (16.6) 6 1 67509 67409 1 Note: Jacob's Pride® Warranty does not cover silicone on handle Wear-Ever ® Classic Select® Deep Sauce Pans with Traditional Handle Q Double-thick top edges and bottoms for maximum wear Q Ideal for making sauces, soups and for simmering and boiling foods in liquids Q The best cooking sauce pan for heavy use CAPACITY DIAMETER DEPTH CASE ITEM QT (L) IN (CM) IN (CM) GAUGE LOT COVER 1 7 4107 2 /2 (2.4) 7 (17.8) 3 /8 (9.8) 6 2 67327 4108 41/2 (4.3) 8 (20.3) 51/4 (13.3) 6 2 67312 4109 61/2 (6.2) 9 (22.9) 6 (15.2) 5 2 67313 4110 81/2 (8.1) 10 (25.4) 63/8 (16.2) 5 1 67315 Wear-Ever ® Classic Select® Heavy-Duty Sauté Pans Traditional Silicone Plated Q Ideal for sautéing, stir-frying, and browning Q Available with TriVent® silicone handle, oven safe to 450˚F (232˚C) SILICONE PLATED TRADITIONAL CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE FLAT DOMED COVER HANDLE HANDLE HANDLE QT (L) IN (CM) IN (CM) GAUGE LOT COVER COVER CASE LOT — — 4068 2 (1.9) 8 (20.3) 23⁄8 (6) 8 2 67312 — 1 68733 68743 4070 3 (2.8) 10 (25.5) 23⁄8 (6.1) 6 2 67509 67409 1 68735 68745 4072 5 (4.7) 12 (30.6) 23⁄4 (6.9) 2 2 67521 67421 1 68737{ 68747{ 4074 71⁄2 (7.1) 14 (35.7) 25⁄8 (6.6) 2 1 67541 67441 1 {Helper handle standard Note: Jacob's Pride® Warranty does not cover silicone on handle 7-32
- 228. Cookware The Vollrath Company, LLC Wear-Ever ® Q Q Standard gauge impact-resistant energy-efficient 3004 aluminum Heat is spread evenly along base and sidewalls Classic™ Q Q Double-thick rims remain round for a better cover fit Double-thick bottoms help resist denting Aluminum Q Q Beadless rims for easy cleaning Flat and domed covers available Cookware Wear-Ever ® Classic™ Aluminum Stock Pots Q Designed for preparing stocks, soups, and liquids Q Tall and narrow shape allows liquids to bubble up through the food, extracting maximum flavor Q Solid welded aluminum handles for durability and easy interior cleaning CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE FLAT DOMED CASE ITEM QT (L) IN (CM) IN (CM) GAUGE LOT COVER COVER LOT 67508 81⁄2 (8) 10 (25.4) 61⁄2 (16.5) 8 1 67509 67409 1 67510 10 (9.5) 10 (25.4) 75⁄8 (19.4) 8 1 67509 67409 1 67512 12 (11.4) 10 (25.4) 9 (22.9) 8 1 67509 67409 1 67516 16 (15.1) 10 (25.4) 12 (30.5) 8 1 67509 67409 1 67520 20 (18.9) 12 (30.5) 101⁄2 (26.7) 8 1 67521 67421 1 67524 24 (22.7) 12 (30.5) 123⁄16 (30.9) 8 1 67521 67421 1 67532 32 (30.3) 13 (33) 14 (35.6) 8 1 67533 67433 1 67540 40 (37.9) 14 (35.6) 15 (38.1) 8 1 67541 67441 1 67560 60 (56.8) 16 (40.6) 17 (43.2) 6 1 67561 67461 1 67580 80 (75.7) 18 (45.7) 181⁄4 (46.4) 6 1 67581 67481 1 Wear-Ever ® Classic™ Aluminum Sauce Pots Q Wider diameter and lower sides provide greater Q Solid welded aluminum handles room for preparing soups, stews and sauces for durability and easy cleaning Q Ideal for reducing liquids CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE FLAT DOMED CASE ITEM QT (L) IN (CM) IN (CM) GAUGE LOT COVER COVER LOT 67414 14 (13.3) 12 (30.5) 71⁄2 (19.1) 8 2 67521 67421 1 67420 20 (18.9) 13 (33) 9 (22.9) 8 2 67533 67433 1 67426 26 (24.6) 14 (35.6) 10 (25.4) 8 2 67541 67441 1 67434 34 (32.2) 16 (40.6) 10 (25.4) 6 1 67561 67461 1 Wear-Ever ® Classic™ Rolled Edge Stock Pots Q Extra dent-resistant 3004 aluminum alloy Q Easy to clean Q Spot-welded handles prevent leakage Q Rolled edges maintain strength CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE ITEM QT (L) IN (CM) IN (CM) GAUGE LOT COVER 4302 9 (8.6) 9 (22.9) 85/8 (21.9) 8 2 67313 4303 12 (11.4) 10 (25.4) 9 (22.9) 8 2 67315 4305 20 (19) 12 (30.5) 11 (27.9) 8 2 67521 4306 24 (22.8) 12 (30.5) 121/2 (31.8) 6 1 67521 430712 30 (28.5) 13 (33) 137/8 (35.2) 6 1 67533 4310 40 (38) 14 (35.6) 16 (40.6) 6 1 67541 4315 60 (57) 16 (40.6) 18 (45.7) 6 1 67561 4320 80 (76) 18 (45.7) 19 (48.3) 6 1 67581 7-33
- 229. vollrathco.com Cookware Wear-Ever ® Cookware Electric Gas Wear-Ever ® Rolled Edge Sauce Pots Q All with sanitary, open bead and spot-welded loop handles Q Extra dent-resistant 3004 aluminum alloy Q Uniform thickness provides even cooking for years of excellent service Q Rolled edges maintain strength CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE ITEM QT (L) IN (CM) IN (CM) GAUGE LOT COVER 1 4332 14 (13.3) 12 (30.5) 7 /2 (19.1) 8 2 67521 4333 20 (19) 13 (33) 9 (22.9) 6 2 67533 4334 26 (24.7) 14 (35.6) 10 (25.4) 8 2 67541 Wear-Ever ® Aluminum Sauté Pans with TriVent® Handle Q Ideal for sautéing, stir-frying, and browning Q Tall side minimizes spattering versus a fry pan Q Available with TriVent® silicone insulated handle or chrome-plated steel handle, silicone is oven safe to 450˚F (232˚C) SILICONE PLATED CAPACITY DIAMETER INSIDE DEPTH CASE FLAT DOMED CASE HANDLE HANDLE QT (L) IN (CM) IN (CM) GAUGE LOT COVER COVER LOT 67733 67133 3 (2.8) 10 (25.4) 23⁄8 (6) 10 2 67509 67409 1 67735 67135 5 (4.7) 12 (30.5) 211⁄16 (6.8) 8 2 67521 67421 1 67737 67137 71⁄2 (7.1) 14 (35.6) 27⁄8 (7.3) 8 2 67541 67441 1 Wear-Ever ® Egg Poacher Q Designed for medium to heavy use Q The classic 8 natural finish fry pan comes with the exclusive Cool Handle® Q Replacement cups and covers available Q Quick-release cup surfaces with non-stick coating increase efficiency CASE ITEM DESCRIPTION LOT 4 cup egg poacher set 56507 1 (includes pan, poacher insert, cups and cover.) 566445 Egg poacher cup, non-stick, 3 (7.6 cm) top diameter 1 67412 Replacement cover 6 Wear-Ever ® Shallow-Style Sauce Pans with Traditional Handle Q Double-thick top edges and bottoms for maximum wear Q Ideal for making sauces, soups and for simmering and boiling foods in liquids CAPACITY DIAMETER DEPTH CASE ITEM QT (L) IN (CM) IN (CM) GAUGE LOT COVER 4018 21/2 (2.4) 8 (20.3) 21/8 (5.4) 10 2 67312 4020 5 (4.8) 10 (25.4) 4 (10.2) 8 2 67315 4023 111/2 (10.9) 13 (33) 5 (12.7) 8 1 67533 7-34
- 230. Cookware The Vollrath Company, LLC Wear-Ever ® Cookware Electric Gas Wear-Ever ® Tapered Sauce Pans with CeramiGuard®II Interior and Cool Handle® Q CeramiGuard®II is a coating system that offers both superior durability and release qualities, even in high-heat applications. CeramiGuard®II better withstands the abuse of metal utensils Q Coated rivets for easy cleanup Q Domed covers are available Q Exclusive Cool Handle® included Q Ideal for making sauces and soups Q 11 gauge CAPACITY TOP DIAMETER BOTTOM DIAMETER INSIDE DEPTH CASE FLAT DOMED ITEM QT (L) IN (CM) IN (CM) IN (CM) LOT COVER COVER 1 Z434112 1 /2 (1.4) 6 (15.2) 6 (15.2) 4 (10.2) 6 67311 67411 Z434212 23/4 (2.6) 73/4 (19.7) 73/4 (19.7) 41/2 (11.4) 6 67312 67412 Z434312 33/4 (3.6) 83/4 (22.2) 83/4 (22.2) 41/2 (11.4) 6 67313 67413 Z434412 41/2 (4.3) 91/4 (23.5) 91/8 (23.2) 5 (12.7) 6 67314 67424 Wear-Ever ® Tapered Sauce Pans with Interior Q SteelCoat x3™ premium non-stick coating — easy Q EverTite™ Riveting System clean-up, reduces need for cooking oil offers a lifetime warranty Q Riveted plated steel handles with TriVent® silicone against loose rivets insulated handle — rated at 450°F (232°C), stay cool Q 11 gauge to the touch SILICONE CAPACITY TOP DIAMETER BOTTOM DIAMETER INSIDE DEPTH CASE FLAT DOMED CASE HANDLE QT (L) IN (CM) IN (CM) IN (CM) LOT COVER COVER LOT 69301 11⁄2 (1.4) 6 (15.2) 51⁄4 (13.3) 4 (10.2) 6 67311 67411 1 69302 2 ⁄ (2.6) 34 7 ⁄ (19.7) 34 61⁄2 (16.5) 41⁄4 (10.8) 6 67312 67412 1 69303 33⁄4 (3.5) 83⁄4 (22.2) 71⁄8 (18.1) 41⁄2 (11.4) 6 67313 67413 1 69304 41⁄2 (4.3) 91⁄4 (23.5) 79⁄16 (19.2) 5 (12.7) 6 67314 67424 1 69305 51⁄2 (5.2) 97⁄8 (25.1) 75⁄8 (19.4) 51⁄2 (14) 6 67315 67409 1 69307{ 7 (6.6) 10 ⁄ (27) 58 8 ⁄ (21.9) 58 55⁄8 (14.3) 6 67317 67417 1 69308{ 81⁄2 (8) 115⁄16 (28.7) 93⁄4 (24.8) 53⁄4 (14.6) 6 67318 67418 1 69310{ 10 (9.5) 121⁄16 (30.6) 101⁄2 (26.7) 61⁄4 (15.9) 3 67320 67421 1 {With helper handle Wear-Ever ® Tapered Sauce Pans with Natural Finish Interior Q Versatile tool for stirring, beating, or making Plated Silicone Cool Handle® ravies, sauces and cereals Q Available with TriVent® silicone or chrome-plated steel handle or Cool Handle®, oven safe to 450˚F (232˚C) Q EverTite™ Riveting System offers a lifetime warranty against loose rivets {Helper handle Q 11 gauge SILICONE TRIVENT® PLATED TRIVENT® COOL CAPACITY TOP DIAMETER BOTTOM DIAMETER INSIDE DEPTH CASE FLAT DOMED CASE HANDLE HANDLE HANDLE® QT (L) IN (CM) IN (CM) IN (CM) LOT COVER COVER LOT 68301 67301 434112 11⁄2 (1.4) 6 (15.2) 51⁄4 (13.3) 4 (10.2) 6 67311 67411 1 68302 67302 434212 2 ⁄ (2.6) 34 7 ⁄ (19.7) 34 61⁄2 (16.5) 41⁄4 (10.8) 6 67312 67412 1 68303 67303 434312 33⁄4 (3.5) 83⁄4 (22.2) 71⁄8 (18.1) 41⁄2 (11.4) 6 67313 67413 1 68304 67304 434412 41⁄2 (4.3) 91⁄4 (23.5) 79⁄16 (19.2) 5 (12.7) 6 67314 67424 1 68305 67305 434512 51⁄2 (5.2) 97⁄8 (25.1) 75⁄8 (19.4) 51⁄2 (14) 6 67315 67409 1 68307{ 67307{ 4347 7 (6.6) 10 ⁄ (27) 58 8 ⁄ (21.9) 58 55⁄8 (14.3) 6 67317 67417 1 68308{ 67308{ 434812 81⁄2 (8) 115⁄16 (28.7) 93⁄4 (24.8) 53⁄4 (14.6) 6 67318 67418 1 68310{ 67310{ 4350 10 (9.5) 121⁄16 (30.6) 101⁄2 (26.7) 61⁄4 (15.9) 3 67320 67421 1 {With helper handle 7-35
- 231. vollrathco.com Cookware Wear-Ever ® Cookware Electric Gas Wear-Ever ® Aluminum Double Boilers Q Ideal for delicate food preparation, reheating, preheating and moisture free cooking Q Eliminates the need for constant stirring Q Solid welded aluminum handles for durability and easy interior cleaning Q Ships complete with pot, inset and cover ADDITIONAL COMPLETE CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE PARTS SET ITEM SECTION QT (L) IN (CM) IN (CM) GAUGE LOT ITEM NOS. 67708 Inset 81⁄2 (8) 10 (25.4) 67⁄8 (17.5) 8 1 43047-2 Pot 10 (9.5) 10 (25.4) 75⁄8 (19.4) 8 — 67510 Cover{ — — — — 67509 67711 Inset 11 (10.4) 10 (25.4) 813⁄16 (22.4) 8 1 43048-2 Pot 12 (11.4) 10 (25.4) 9 (22.9) 8 — 67512 Cover{ — — — — 67509 67717 Inset 171⁄2 (16.6) 12 (30.5) 97⁄16 (24) 8 1 43049-2 Pot 20 (18.9) 12 (30.5) 101⁄2 (26.7) 8 — 67520 Cover{ — — — — — 67521 {See page 8-3 for more information on Agion® antimicrobial protection. Wear-Ever ® Pasta and Vegetable Cooker Q Includes 181⁄2 qt (17.5 L) 3004 aluminum pot Q TriVent® silicone insulated handle and four perforated stainless steel inserts is oven safe to 450˚F (232˚C) Q Inserts (3 qt/2.9 L) hold up to 3 servings of pasta Q Pot: Welded handles for easy Q Perfect for blanching vegetables clean-up and durability Q Q Hole diameter: 3⁄16 (0.5 cm) Hanging clip for easy draining ITEM DESCRIPTION GAUGE CASE LOT 68127 Pasta cooker set — complete — 1 REPLACEMENT PARTS 68130 Perforated stainless wedge — inset only — 1 68129 Pot only — inside diameter 14 (35.6 cm), inside depth 7 (17.8 cm) 8 1 Wear-Ever ® Boiler/Fryer Sets Q 3004 aluminum Q Bail handle for easy removal from pot and quick draining Q Ideal for boiling lobster, clams, shrimp, or fish, as well as deep-frying turkeys Q Set includes pot, perforated basket with bail handle, and cover POT POT BASKET BASKET BASKET INSIDE INSIDE INSIDE INSIDE MAXIMUM WIDTH COVER CAPACITY DIAMETER DEPTH POT DIAMETER DEPTH AT BAIL DIAMETER CASE ITEM DESCRIPTION QT (L) IN (CM) IN (CM) GAUGE IN (CM) IN (CM) IN (CM) IN (CM) LOT 68271 Boiler/fryer set 20 (18.9) 131⁄16 (33.2) 9 (22.9) 8 111⁄4 (28.6) 71⁄4 (18.4) 121⁄2 (31.8) 135⁄8 (34.6) 1 68269 Boiler/fryer set 32 (30.3) 131⁄16 (33.2) 14 (35.6) 8 111⁄4 (28.6) 107⁄8 (27.6) 121⁄2 (31.8) 135⁄8 (34.6) 1 68270 Boiler/fryer set 40 (37.9) 14 (35.6) 151⁄16 (38.3) 8 121⁄2 (31.8) 113⁄4 (29.8) 133⁄4 (34.9) 147⁄8 (37.8) 1 68272 Boiler/fryer set 60 (56.8) 163⁄4 (42.5) 157⁄8 (40.3) 10 151⁄2 (39.4) 113⁄4 (29.8) 1611⁄16 (42.4) 173⁄4 (45.1) 1 68273 Boiler/fryer set 80 (75.7) 163⁄4 (42.5) 211⁄4 (54) 10 151⁄2 (39.4) 163⁄4 (42.5) 1611⁄16 (42.4) 173⁄4 (45.1) 1 Wear-Ever ® Baskets{ ITEM* REPLACEMENT BASKET FOR: FITS CASE LOT Q 68289 68271 20 qt sauce pots 1 3004 aluminum baskets with bail handle, 3⁄8 (1 cm) embossed feet and 1⁄2 (1.3 cm) holes 68290 68269 32 qt stock pots 1 68291 68270 40 qt stock pots 1 68292 68272 60 qt stock pots 1 68293 68273 80 qt stock pots 1 {Not recommended for use with stainless steel pots 7-36
- 232. Cookware The Vollrath Company, LLC Wear-Ever ® Cookware Electric Gas Wear-Ever ® Fryers Wear-Ever ® Footed Basket Q Heavy-duty 3004 aluminum pan with aluminum fryer basket Q 3004 aluminum Q Hanging clip on basket for easy draining Q Fits all 10 (25.4 cm) dia pots Q Long handle on basket for easier removal from fryer Q Basket has 3⁄32 (0.24 cm) Q Pan: Riveted plated steel handles bottom holes and 3⁄16 Q TriVent® handle designed for comfort (0.48 cm) side holes Q Perfect for steaming and durability while providing a unique vented appearance vegetables Q Basket holes, 3⁄16 (0.5 cm), promote vigorous deep-fry action for crispier food Q Basket Depth: OUTER LEG 4 (10.2 cm) INNER DIA DIA | HEIGHT HEIGHT CASE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) IN (CM) LOT 68288 Footed basket 91⁄4 95⁄8 7 1 1 ⁄2 1 with bail (22.5) (24.5) (17.8) (3.8) |Diameter with handle PAN PAN BASKET Stainless Steel Spaghetti COMPLETE SET ITEM CAPACITY QT (L) INSIDE IN (CM) INSIDE DIAMETER DEPTH PAN IN (CM) GAUGE INSIDE DIAMETER IN (CM) CASE LOT COVER{ COVER CASE LOT Cooker/Strainer Q Stainless steel 68227 9 12 47⁄8 10 11 1 67521 1 Q Welded stainless (8.5) (30.5) (12.4) (27.9) steel handle 68228 12 14 41⁄2 8 127⁄8 1 67541 1 Q Helper hook attaches (11.4) (35.6) (11.4) (32.7) to side of pot {Cover for use with pot only. Q Ideal for cooking and draining spaghetti portions Wear-Ever ® Additional Baskets Q Hole size: 1⁄8 (.32 cm) Dia. ITEM DESCRIPTION CASE LOT HEIGHT DIAMETER CASE 43041 Individual basket fits (68227) 9 qt (8.5 l ) fryer pan 1 ITEM CAPACITY IN (CM) IN (CM) LOT 43042 Individual basket fits (68228) 12 qt (11.4 l ) fryer pan 1 47960 3 qt, 11 oz (3.2 L) 4 (10.2) 81⁄2 (21.6) 6 Wear-Ever ® Steamers/Cookers 68123 Q 18 gauge, 3004 aluminum Q Fit tightly together to retain the maximum steam heat Q Choose style that fits your 68125 cooking demands Q Sold as complete set only Q Ideal for lightweight cooking applications 68122 68126 CAPACITY HEIGHT W/O COVER HEIGHT W/COVER CASE ITEM DESCRIPTION SET COMES WITH: QT (L) IN (CM) IN (CM) GAUGE LOT 68122 Rice/vegetable steamer 3-piece set with base, perforated section and cover 3 (2.8) 83⁄16 (20.8) 111⁄16 (28) 18 1 68123 Rice/vegetable steamer 3-piece set with base, perforated section and cover 5 (4.7) 91⁄8 (23.3) 12 (30.5) 18 1 68125 3-tier vegetable steamer 4-piece set with base, two steamer trays and cover 5 (4.7) 195⁄16 (26.2) 125⁄16 (31.3) 18 1 68126 Pasta cooker/ 4-piece set with high base pot, boiling basket, 8 (7.6) 8 ⁄ (20.8) 3 16 10 ⁄ (26) 14 18 1 vegetable steamer steamer insert w/bail handle and cover w/vent 7-37
- 233. vollrathco.com Cookware Wear-Ever ® Cookware Electric Gas Wear-Ever ® Covers for Aluminum Cookware Q 14 gauge 3004 Aluminum Q Welded Torogard™ dipped handle — stays cool to the touch and heat resistant up to 180˚F (82˚C) Q Easy grasp handle design for safety and hanging convenience Q Coated handle is equipped with Agion® 67521 antimicrobial protection{ Q Flat covers: Height with handle: 15⁄8” (4.1 cm) Q Domed covers: Deep satin finish Q Case Lot: 1 each per item 67433 FLAT OUTSIDE DIA INSIDE DIA DOMED OUTSIDE DIA INSIDE DIA HEIGHT W/ HANDLE COVERS IN (CM) IN (CM COVERS IN (CM) IN (CM) IN (CM) 67311 65⁄8 (16.8) 61⁄16 (15.4) 67411 6 5 ⁄8 (16.8) 5 7 ⁄8 (14.9) 21⁄16 (5.2) 67327 77⁄8 (20) 71⁄8 (18.1) 67427 77⁄8 (20) 71⁄8 (18.1) 21⁄16 (5.2) 67312 85⁄16 (21.1) 77⁄8 (20) 67412 8 3 ⁄8 (21.3) 71 ⁄2 (19.1) 21⁄8 (5.4) Flat covers allow moisture to escape 67313 93⁄16 (23.3) 813⁄16 (22.3) 67413 93 ⁄8 (23.8) 81 ⁄2 (21.6) 21⁄8 (5.4) 67314 913⁄16 (24.9) 95⁄16 (23.6) 67424 10 (25.4) 8 3 ⁄4 (22.2) 23⁄16 (5.6) Inside Dia. 67315 101⁄2 (26.7) 97⁄8 (25) — — — — Outside Dia. 67509 103⁄4 (27.3) 101⁄8 (25.7) 67409 10 3 ⁄4 (27.3) 9 3 ⁄4 (24.8) 21⁄4 (5.7) 67317 113⁄16 (28.4) 1011⁄16 (27.1) 67417 11 3 ⁄8 (28.9) 101 ⁄2 (26.7) 23⁄16 (5.6) 67318 12 (30.5) 117⁄16 (29.1) 67418 121 ⁄8 (30.8) 111 ⁄4 (28.6) 23⁄16 (5.6) 67320 123⁄8 (31.4) 1113⁄16 (30.1) — — — — Domed covers hold 67521 123⁄4 (32.4) 121⁄8 (30.7) 67421 127 ⁄8 (32.7) 113 ⁄4 (29.8) 25⁄16 (5.8) moisture in pot or pan 67533 139⁄16 (34.4) 131⁄8 (33.3) 67433 139⁄16 (34.4) 131⁄8 (33.3) 25⁄16 (5.8) 67541 147⁄8 (37.8) 143⁄16 (36) 67441 147⁄8 (37.8) 143⁄16 (36) 27⁄16 (6.2) Inside Dia. 67561 171⁄8 (43.5) 161⁄4 (41.3) 67461 171⁄8 (43.5) 161⁄4 (41.3) 27⁄16 (6.2) Outside Dia. 67581 187⁄8 (47.9) 183⁄16 (46.1) 67481 187⁄8 (47.9) 183⁄16 (46.1) 29⁄16 (6.5) 67691 20 ⁄ (53) 78 20 ⁄ (51.2) 3 16 67491 20 ⁄ (53) 78 20 ⁄ (51.2) 3 16 29⁄16 (6.5) {See page 8-3 for more information on Agion antimicrobial protection. ® Wear-Ever® Cover Cross Reference Chart Flat Covers Dome Covers ITEM # PREVIOUS ITEM # FITS ITEM # PREVIOUS ITEM # FITS 67327 4187 6-7 pans 67411 4341C 6 pans 67312 4188 8 pans 67412 4342C 7-8 pans 67313 4189 9-10 pans 67413 4343C 8-9 pans 67509/67315 4190 10-11 pans 67424 4344C 9-10 pans 67521 4191 11-11.5 pans 67409 4345C 10 Pans 67521 4192 12 pans 67417 4347C 10.5 pans 67533 4193 13 pans 67418 4348C 11.25 pans 67541 4194 14 pans 67020 4350C 12.2 pans 67561 4196 16 pans 67581 4198 18 pans 67691 4200 20 Pans 7-38
- 234. Cookware The Vollrath Company, LLC Arkadia™ Cookware Electric Gas Arkadia™ offers a complete economy collection of aluminum frying pans, sauce pans, stock pots, and sauce pots to meet the demands of your kitchen. Designed for the value conscious customer. Constructed of 3000 series aluminum with riveted handles Arkadia™ Fry Pans Q Available in natural and non-stick finishes 7010 NATURAL NON-STICK TOP DIA BOTTOM DIA HEIGHT CASE FINISH ITEM ITEM IN (CM) IN (CM) IN (CM) GAUGE LOT 7007 N7007 7 (17.8) 43/4 (12) 13/8 (3.5) 9 6 3 7008 N7008 8 (20.3) 5 /4 (14) 13/4 (4.4) 9 6 N7010 7010 N7010 10 (25.4) 75/8 (20) 13/4 (4.4) 8 6 3 3 7012 N7012 12 (30.5) 9 /4 (25) 2 /16 (5.6) 8 6 7014 N7014 14 (35.6) 107/8 (28) 21/2 (6.4) 8 6 Arkadia™ Silicone Grips Q Three sizes to fit Arkadia™ Fry Pans FITS LENGTH CASE ITEM N (CM) IN (CM) LOT Q Heat resistant up to 400˚F Q Easy removal for cleaning 7109 12 (30.5) 14 (35.6) Pans 6½ (16.5) 12 7110 8 (20.3) 10 (25.4) Pans 5 (12.7) 12 7111 7 (17.8) Pans 4 (10.2) 12 Arkadia™ Sauce Pans CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE ITEM QT (L) IN (CM) IN (CM) GAUGE LOT COVER 1 3 3 7341 1 /2 (1.4) 5 /4 (14.6) 3 /4 (9.5) 9 12 7341C 7342 23/4 (2.6) 75/8 (19.4) 41/4 (10.8) 9 12 7342C 7343 33/4 (3.6) 83/4 (22.2) 4 (10.2) 9 12 7343C 7344 41/2 (4.3) 9 (22.9) 45/8 (11.7) 9 12 7344C 1 7345 5 /2 (5.2) 9 (22.9) 5 (12.7) 9 12 7345C 7347 7 (6.7) 103/8 (26.4) 51/4 (13.3) 9 6 7347C 1 5 7348 8 /2 (8.1) 11 /16 (28.7) 55/16 (13.5) 9 6 7348C 7350* 10 (9.5) 113/4 (29.8) 53/4 (14.6) 9 6 7350C *Assist Loop Handle 7-39
- 235. vollrathco.com Cookware Arkadia™ Cookware Electric Gas Arkadia™ Stock Pots Q Ideal for preparing stocks, soups, and liquids CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE ITEM QT (L) IN (CM) IN (CM) GAUGE LOT COVER 7302 10 (9.5) 91/8 (23.2) 75/8 (19.4) 6 1 7389 7303 12 (11.4) 91/8 (23.2) 9 (22.9) 6 1 7389 7304 16 (15.2) 10 (25.4) 12 (30.5) 6 1 7389 7305 20 (19) 113/4 (29.8) 103/8 (26.4) 6 1 7393 7306 24 (22.8) 113/4 (29.8) 115/16 (28.7) 6 1 7393 7308 32 (30.4) 131/8 (33.3) 111/2 (29.2) 6 1 7351C 7310 40 (38) 131/8 (33.3) 147/8 (37.8) 6 1 7351C 7315 60 (57) 151/8 (38.4) 171/2 (44.5) 6 1 7396 7320 80 (76) 181/4 (46.4) 181/4 (46.4) 6 1 — 7360 100 (96) 203/8 (51.8) 171/8 (43.5) 6 1 7355C Arkadia™ Sauce Pots Q Ideal for reducing liquids CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE ITEM QT (L) IN (CM) IN (CM) GAUGE LOT COVER 7371 81/2 (8.1) 10 (25.4) 63/8 (16.2) 6 1 7389 7372 10 (9.5) 115/8 (29.5) 51/8 (13) 6 1 7392 7373 14 (13.3) 117/8 (30.2) 75/8 (19.4) 6 1 7393 5 7374 20 (19) 13 (33) 7 /8 (19.4) 6 1 — 7375 26 (24.7) 14 (35.6) 10 (25.4) 6 1 7351C Arkadia™ Braziers Q Ideal for long, slow cooking CAPACITY INSIDE DIAMETER INSIDE DEPTH CASE ITEM QT (L) IN (CM) IN (CM) GAUGE LOT COVER 7351 15 (14.3) 13¾ (34.9) 5½ (14) 6 1 7351C 7352 18 (17.1) 16 (40.6) 5¹⁄³ (13.5) 6 1 7352C 7353 24 (22.8) 18 (45.7) 5½ (14) 6 1 7353C 7354 28 (26.6) 20 (50.8) 5½ (14) 6 1 7354C 7355 35 (33.3) 21¾ (52.7) 5½ (14) 6 1 7355C 7356 40 (38) 22¾ (57.8) 5½ (14) 6 1 7356C Arkadia™ Covers FITS CASE ITEM QT (L) LOT 7341C 11/2 (1.4) sauce pan cover 6 7342C 23/4 (2.6) sauce pan cover 6 7343C 33/4 (3.6) sauce pan cover 6 FITS CASE 7344C 41/2 (4.3) sauce pan cover 6 ITEM QT (L) LOT 7345C 51/2 (5.2) sauce pan cover 6 7354C 28 (26.6) brazier cover 6 7347C 7 (6.7) sauce pan cover 6 7355C 35 (33.3) brazier cover 6 7348C 81/2 (8.1) sauce pan cover 6 7356C 40 (38) brazier cover 6 7350C 10 (9.5) sauce pan cover 6 7389 10/12/16 (9.5/11.4/15.2) pot cover 6 7392 10 (9.5) sauce pan cover 6 7393 14/20/24 (13.3/19/22.8) pot cover 6 7351C 15 (14.3) brazier cover 6 7351C 26/32/40 (24.7/30.4/38) pot cover 6 7352C 18 (17.1) brazier cover 6 7396 60 (57) pot cover 6 7353C 24 (22.8) brazier cover 6 7355C 100 (95) pot cover 6 7-40
- 236. Cookware The Vollrath Company, LLC Wear-Ever® Bakeware Wear-Ever® Heavy-Duty Sheet Pans Q Impact-resistant 3000 series aluminum Q Closed bead includes galvanized non-rusting rod for reinforcements Q Tapered design for easy stacking Q Concave bottoms flatten during heating for even heat distribution Q Sized to fit standard baker's racks Q Coated with non-stick coating for easy food release and cleaning Q Perforated pans for oven broiling and baking ITEM SIZE GAUGE DESCRIPTION DIMENSIONS IN (CM) CASE LOT Open bead, Natural 18 x 26 x 1 5315 Full 12 6 NSF Certified (45.1 x 65.4 x 2.54) Open bead, Non-Stick 18 x 26 x 1 S5315 Full 12 6 NSF Certified (45.1 x 65.4 x 2.54) 18 x 26 x 1 N5300 Full 14 Closed bead, Natural 12 (45.1 x 65.4 x 2.54) 18 x 26 x 1 9001 Full 16 Closed bead, Natural 12 (45.1 x 65.4 x 2.54) 18 x 26 x 1 9002 Full 18 Closed bead, Natural 12 (45.1 x 65.4 x 2.54) Closed bead, Natural 18 x 26 x 1 9002P Full 18 12 Perforated (45.1 x 65.4 x 2.54) 18 x 26 x 1 9003 Full 19 Closed bead, Economy 12 (45.1 x 65.4 x 2.54) Vollrath’s Wear-Ever® ITEM SIZE GAUGE DESCRIPTION DIMENSIONS IN (CM) CASE LOT smooth edge Open bead, Natural 18 x 13 x 1 corner 5314 Half 13 12 NSF Certified (45.1 x 32.7 x 2.54) 18 x 13 x 1 5303 Half 18 Closed bead, Natural 12 Competitor’s (45.1 x 32.7 x 2.54) crimped edge 18 x 13 x 1 corner S5303 Half 18 Closed bead, Non-Stick 6 (45.1 x 32.7 x 2.54) Closed bead, Natural 18 x 13 x 1 5303P Half 18 12 Perforated (45.1 x 32.7 x 2.54) 18 x 13 x 1 9303 Half 19 Closed bead, Economy 12 (45.1 x 32.7 x 2.54) Open bead ITEM SIZE GAUGE DESCRIPTION DIMENSIONS IN (CM) CASE LOT 91⁄2 x 13 x 1 5220 Quarter 16 Closed bead, Natural 12 (24.1 x 33 x 2.54) Closed bead 91⁄2 x 13 x 1 S5220 Quarter 16 Closed bead, Non-Stick 12 (24.1 x 33 x 2.54) Stainless Steel Wire Grates Q Heavy-duty 300 series stainless steel wire construction minimizes rust Q Ample finger room for easy removal from pan Q Use for cooling, icing, display, or drying rack Q Only stainless steel wire grates in the industry DIMENSIONS CASE ITEM SIZE DESCRIPTION IN (CM) LOT 24 x 161⁄ 2 x 7⁄ 8 20038 Full For full-size sheet pan 6 (61 x 41.9 x 2.2) 20038 161⁄ 2 x 113⁄ 4 x 7⁄ 8 20248 Half For half-size sheet pan 6 (41.9 x 29.8 x 2.2) 7-41
- 237. vollrathco.com Cookware Wear-Ever ® Bakeware Wear-Ever ® Heavy-Duty Aluminum Roasters Q Extra dent-resistances 3004 aluminum Q Easy-to-grab loop handle on all four sides of pan Q Traditional standard with the military Q Cover can be used as a griddle PREVIOUS CAPACITY DIMENSIONS CASE ITEM ITEM # DESCRIPTION QT (L) IN (CM) GAUGE LOT 68390 — Pan with 42 (39.7) 207⁄ 8 x 173⁄ 8 x 9 4 1 cover (53 x 44.1 x 22.9) 68391 4493 Pan only 42 (39.7) 207⁄ 8 x 173⁄ 8 x 7 4 1 (53 x 44.1 x 17.8) 68392 4492 Cover 14 (13.2) 215⁄ 8 x 181⁄ 8 x 23⁄ 8 4 1 only (54.9 x 46 x 6) Wear-Ever ® Aluminum Roasters 68363 Q Heavy-gauge 3004 aluminum with 68360 beadless rims Q When used as double roasters, 68365 section fits snugly to seal in steam Q Top or bottom sections may be used individually for open pan roasting 68361 Q Protective chrome-plated steel straps on 68360, 68361, and 68362 Q 68366 Loop handles for durability Q Heats evenly and efficiently — recommend reducing oven 68362 temperature by 25˚F (-3.9˚C) to reduce energy costs 68367 68360 PREVIOUS DIMENSIONS CAPACITY CASE ITEM ITEM # DESCRIPTION IN (CM) QT (L) GAUGE LOT 68360 — Double roaster set top and bottom with straps 201⁄ 8 x 161⁄ 8 x 93⁄ 4 (51.1 x 41 x 24.8) 231⁄ 4 (22) 12 1 4482 — Strapped roast pan top for 68360 201⁄ 8 x 161⁄ 8 x 41⁄ 2 (51.1 x 41 x 11.4) 111⁄ 2 (10.8) 12 2 448212 — Strapped roast pan bottom for 68360 201⁄ 8 x 161⁄ 8 x 41⁄ 2 (51.1 x 41 x 11.4) 111⁄ 2 (10.8) 12 2 68361 4483 Roasting pan — top with straps 24 x 18 x 43⁄ 4 (61 x 45.7 x 12.1) 291⁄ 2 (27.9) 10 2 68362 448312 Roasting pan — bottom with straps 24 x 18 x 43⁄ 4 (61 x 45.7 x 12.1) 291⁄ 2 (27.9) 10 2 68363 4432 Roasting pan top 1913⁄ 16 x 2113⁄ 16 x 23⁄ 8 (50.3 x 55.4 x 6) 16 (15.1) 12 6 68364 4433 Roasting pan top 1913⁄ 16 x 2113⁄ 16 x 35⁄ 8 (50.3 x 55.4 x 9.2) 231⁄ 2 (22.2) 12 2 68365 4436 Roasting pan bottom 221⁄ 8 x 201⁄ 8 x 69⁄ 16 (56.2 x 51.1 x 16.6) 421⁄ 2 (40.2) 10 2 68366 4423 Roasting pan top 193⁄ 4 x 107⁄ 8 x 35⁄ 8 (50.2 x 27.6 x 9.2) 111⁄ 4 (10.6) 14 2 1⁄ 8 51⁄ 2 173⁄ 4 68367 4426 Roasting pan bottom 20 x 11 x (50.8 x 28.3 x 14) (16.8) 12 2 7-42
- 238. Cookware The Vollrath Company, LLC Wear-Ever® Bakeware Wear-Ever ® Bake Roast Pans Q Extra dent resistant, heavy-duty impact-resistant 3004 aluminum 68358 Q Solid welded aluminum handles for durability and easy cleaning Q Standard sizes for most commercial applications 68250 Q Solid welded loop handles Q Easy to clean natural finish 68257 Q The superb quality of Wear-Ever® bake pans is known in every commercial kitchen 68252 68369 SATIN FINISH PREVIOUS CAPACITY DIMENSIONS CASE W/TAPERED SIDES ITEM # QT (L) IN (CM) GAUGE LOT 68251 4412 — 41⁄ 2 (4.3) 93⁄ 4 x 131⁄ 4 x 21⁄ 4 (24.8 x 33.7 x 5.7) 16 6 68369 4457 — 121⁄ 2 (11.9) 23 x 125⁄ 8 x 23⁄ 4 (58.4 x 32.1 x 7) 12 6 68257 4415 71⁄ 2 (7.1) 175⁄ 8 x 113⁄ 4 x 27⁄ 16 (44.8 x 29.9 x 6.2) 14 6 68357{ 6 5312 15 (14.2) 253⁄ 4 x 173⁄ 4 x 21⁄ 4 (65.4 x 45.1 x 5.7) 12 NSF Certified 68358 68253 5313 231⁄ 2 (22.2) 253⁄ 4 x 173⁄ 4 x 39⁄ 16 (65.4 x 45.1 x 9.1) 12 4 NSF Certified 68250 4414 53⁄ 8 (5.1) 107⁄ 8 x 157⁄ 8 x 21⁄ 4 (27.6 x 40.3 x 5.7) 12 3 68251 — 111⁄ 8 (10.5) 163⁄ 4 x 13 x 35⁄ 8 (42.5 x 33 x 9.2) 14 3 68252 4458 177⁄ 8 (16.9) 24 x 14 x 31⁄ 2 (60.9 x 35.6 x 8.9) 12 3 68253 4456 815⁄ 16 (8.5) 227⁄ 8 x 131⁄ 2 x 2 (58.1 x 34.3 x 5.1) 14 3 POLISHED/NATURAL FINISH WITH STRAIGHT SIDES 68369 — 81⁄ 8 (7.7) 189⁄ 16 x 129⁄ 16 x 21⁄ 8 (47.2 x 31.9 x 5.4) 14 3 Handles lift and lower for ease of use and storage! {Without handles Stainless Steel Bake and Roast Pans Q 18-8 stainless steel Q Standard sizes for most commercial applications CAPACITY DIMENSIONS CASE ITEM QT (L) IN (CM) GAUGE LOT 61230 31⁄ 2 (3.3) 147⁄ 8 x 101⁄ 4 x 2 (37.8 x 26 x 5.1) 22 3 61250 43 ⁄ 4 (4.5) 161⁄ 8 x 111⁄ 8 x 21⁄ 4 (41 x 28.3 x 5.7) 22 3 61270 61⁄ 2 (6.2) 181⁄ 8 x 123⁄ 8 x 23⁄ 8 (46 x 31.4 x 6) 22 3 Wear-Ever ® Economy Bake and Roast Pans Q 3004 aluminum Q Lightweight for easier handling and storage Q Available with convenient hinged loop handles PREVIOUS CAPACITY DIMENSIONS CASE ITEM ITEM # QT (L) IN (CM) GAUGE LOT 153⁄ 8 x 107⁄ 8 x 23⁄ 8 68078{ — 61⁄ 4 (5.9) 18 3 (39.1 x 27.6 x 6) 175⁄ 8 x 113⁄ 4 x 23⁄ 8 68080{ — 71⁄ 2 (7.1) 16 3 68076 (44.8 x 29.9 x 6) 9 x 13 x 21⁄ 4 68076 4410 37⁄ 8 (3.7) 18 3 (22.9 x 33 x 5.7) {With handles 7-43
- 239. vollrathco.com Cookware Wear-Ever® Bakeware Wear-Ever ® Party Pan Wear-Ever ® Professional Q Impact resistant 3004 aluminum Cheesecake Pans Q Ideal for brownies, jelly roll, or Q 3000 series aluminum other baked favorites Q Ideal for puddings, soufflés, cobblers and casseroles, as well as cheesecake Q Straight sides are designed to produce uniform pieces Q Natural finish Q Preferred everywhere for its consistency in producing uniform finished desserts ITEM DIMENSIONS: IN (CM) CASE LOT ITEM DIMENSIONS: IN (CM) GAUGE CASE LOT 5274 173/4 x 253/4 x 3 (45.1 x 65.4 x 7.6) 2 68100 151⁄ 2 x 101⁄ 2 x 1 (39.4 x 26.7 x 2.5) 18 6 5275 173/4 x 127/8 x 3 (45.1 x 32.7 x 7.6) 2 Wear-Ever ® Professional Wear-Ever ® Biscuit and Cake Pan Angel Cake/Loaf Pan Q 3000 series aluminum Q 3000 series aluminum Q Seamless construction with tapered sides provides a versatile, easy to Q Versatile long pan enables the user to clean bake pan bake cakes or bread for slicing Q The perfect size for baking Q Chefs prefer the cakes, biscuits, baked versatility of this pan apples and more Q Quality household weight when smaller quantities are needed ITEM CAPACITY DIMENSIONS: IN (CM) GAUGE CASE LOT ITEM DIMENSIONS: IN (CM) GAUGE CASE LOT 5216 11/2 Lbs. 41/2 x 16 x 41/8 (11.4 x 40.6 x 10.5) 16 6 51066 123/4 x 9 x 2 (32.4 x 22.9 x 5.1) 20 6 Wear-Ever ® Cookie Sheets Q Heavy-gauge 3004 aluminum heats rapidly and evenly Q Available in natural finish aluminum or coated with SteelCoat x3™ premium non-stick for easy release of delicate baked goods Source: Cook's of Grail Illustrated and Holy NBC® Today® Show, s! Sheet aired May 2008 DIMENSIONS CASE e Cooki ITEM FINISH IN (CM) GAUGE LOT NBC and Today Show are 68085 Natural 17 x 14 (43.2 x 35.6) 10 6 registered trademarks of National Broadcasting 68084 SteelCoat x3™ 17 x 14 (43.2 x 35.6) 10 6 Company, Inc. 7-44
- 240. Cookware The Vollrath Company, LLC Wear-Ever® Bakeware Wear-Ever ® Meat Loaf/Bread Stainless Steel and “Slice Size” Pans Loaf Pan Q 3000 series aluminum Q 22 gauge Q Seamless loaf pans with Q 18-8 stainless steel easy-to-clean corners Q 6 lb. (2.7 kg) capacity Q Sanitary open bead Q Ideal for frozen desserts, nut breads, meat loaf, pound cake and fruit cake Q Economy weight ITEM DIMENSIONS: IN (CM) GAUGE CASE LOT 51008 91/4 x 51/4 x 2 3/4 (23.5 x 13.3 x 7) 18 6 ITEM CAPACITY: QT (L) DIMENSIONS: IN (CM) CASE LOT 2773L 1 1 3 11 /4 x 4 /2 x 2 /4 (28.6 x 11.4 x 7) 18 6 3 1 72060 3 (2.8) 10 ⁄ 8 x 5 ⁄ 2 x 4 (26.4 x 14 x 10.1) 6 Wear-Ever ® Professional Standard Strength Loaf Pans Q 3000 series aluminum Q Sanitary and easy to clean Q Available in natural, non-stick and anodized finishes DIMENSIONS CAPACITY CASE ITEM FINISH IN (CM) LB (KG) GAUGE LOT 5431 Natural 33/8 x 5 x 21/2 (8.6 x 12.7 x 6.4) 1 (.45) 12 12 5433 Anodized 41/4 x 81/2 x 31/8 (10.8 x 21.6 x 8) 3 (1.36) 12 24 S5433 Non-Stick 41/4 x 81/2 x 31/8 (10.8 x 21.6 x 8) 3 (1.36) 12 12 5431 S5435 5435 Anodized 5 x 10 x 4 (12.7 x 25.4 x 10.2) 5 (2.27) 12 6 S5435 Non-Stick 5 x 10 x 4 (12.7 x 25.4 x 10.2) 5 (2.27) 12 6 5436 Natural 41/8 x 83/8 x 23/8 (10.5 x 21.5 x 6) 2 (.91) 12 18 Unique Meatloaf/Bread Pan Q 300 series stainless provides great durability, cleanability and thermal transfer Q 22 gauge pan for durability Q Unique shape design enhances food presentation 3100341 3103040 PAN DIMENSIONS PAN BRIMFUL CAPACITY CASE ITEM DESCRIPTION 1 OZ PORTION L X W: IN (MM) HEIGHT: IN (MM) QT (L) LOT 3100341 Wild Pan 122 615⁄16 x 1213⁄16 (176 x 325) 4 (102) 3.8 (3.6) 6 3103040 Oval 69 6 ⁄ x 12 ⁄ (176 x 325) 15 16 13 16 4 (102) 2.2 (2.1) 6 7-45
- 241. vollrathco.com Cookware Wear-Ever® Bakeware Wear-Ever ® Cake Pan Q 3000 series aluminum PREVIOUS OUTSIDE DIAMETER DEPTH GAUGE CASE ITEM ITEM # FINISH IN (CM) IN (CM) LOT 5347 — Natural 9 (22.9) 2 (5.1) — 24 S5347 — Non-Stick 9 (22.9) 2 (5.1) — 12 68099 51003 Natural 95⁄ 8 (24.5) 11⁄ 2 (3.8) 18 6 51016 — Natural 10 (25.4) 2 (5.1) 20 6 Wear-Ever ® Pie Plates Q 3000 series aluminum Q Standard sizes for commercial applications OUTSIDE DIAMETER DEPTH CASE ITEM FINISH IN (CM) IN (CM) GAUGE LOT N5834 Natural 9 (22.9) 1 (2.5) 20 24 2844L Anodized 9 (22.9) 11⁄ 4 (3.2) 22 6 68089 Natural 93⁄ 4 (24.8) 11⁄ 4 (3.2) 18 6 OUTSIDE DIAMETER DEPTH CASE 51045 Anodized 10 (25.4) 11⁄ 4 (3.2) 20 6 ITEM FINISH IN (CM) IN (CM) GAUGE LOT 68090 Natural 111⁄ 4 (28.6) 11⁄ 4 (3.2) 18 6 N5844 Economy 93⁄ 4 (24.8) 11⁄ 4 (3.2) 22 24 Egg Poachers Q Stainless steel Q Complete with pan, plate, cover and lift-out aluminum poaching cups Q Can be used to hold juice glasses on cold buffet bar Q Hole diameter: 223⁄32 (6.9 cm) 75060 complete Full-Size COMPLETE SET ITEM DESCRIPTION CASE LOT Non-Stick Egg 75060 Egg poacher/juice glass holder 1 set Poacher Pan 42100 ADDITIONAL PARTS Q 22 gauge 75062 15-hole plate 6 Q Stainless steel 75080{ Aluminum egg cups 12 Q Fits standard and gastronorm sized full-size pans 75061 Flat cover with knob 6 Q SteelCoat x3™ premium non-stick coating — easy clean-up Q Ideal for use in steam and combi-ovens Q Fits in standard hot or cold wells with 12 x 20 One-Half Size (30.5 x 50.8 cm) opening COMPLETE ITEM DIMENSIONS: IN (CM) CASE LOT SET ITEM DESCRIPTION CASE LOT 42100 207⁄ 8 x 1213⁄ 16 x 13⁄ 16 (53 x 32.5 x 2) 6 75070 Egg poacher/juice glass holder 1 set ADDITIONAL PARTS 75072 8-hole plate 6 75080{ Aluminum egg cups 12 Egg Poacher 75071 Flat cover with knob 6 See page 7-34 {Imported item 7-46
- 243. Kitchen Essentials Antimicrobial Antimicrobial Antimicrobial Spoodle® Utensils Dishers Ladles Our Jacob's Pride® Spoodle Utensils now Our Jacob’s Pride® Dishers All coated-handle ladles now have have Agion® all natural antimicrobial now have Agion® all natural Agion® all natural antimicrobial built into the handles. Heavy-duty oval and antimicrobial built into the handles. built into the coating. Color-coding round mirror-finished bowls and ergonomic, Color-coding allows for no-guess provides easy identification for color-coded handles combine to create a portion selection. controlled food portions. must-have utensil for any kitchen. Vollrath “Green” Facts for Kitchen Essentials: Stainless steel is continuously recycled in a sustainable closed loop system. Jacob’s Pride® lifetime warranty utensils are guaranteed to last longer, reducing waste. Agion® Antimicrobial incorporates natural, environmentally friendly materials while offering breakthrough technology to the foodservice industry. Accurate portion control utensils control food costs and reduce food waste. For more details on Vollrath’s green products, visit www.vollrathco.com/green 8-2
- 244. Kitchen Essentials The Vollrath Company, LLC Utensils with Nature’s Antimicrobial Fight Off Nasty Microbes Invading microbes are a fact of life in any commercial kitchen environment. It’s not hard to imagine how many of these nasty microbes can get transferred to serving utensils. And because dirty utensils and food do not get along, you need the power of Vollrath’s exclusive Agion® Silver Ion Antimicrobial Technology. While untreated surfaces allow microbes to collect and multiply, microbes are attacked by the silver Fighting on all fronts at once. ions in Vollrath’s antimicrobial utensils! Unlike chemical or man-made antimicrobials which generally interact with only one specific site on a microbe, the silver-based antimicrobial compound attacks multiple How It Works targets on the microbe: Positive ions present in moisture exchange with silver ions Q Prevents cell reproduction on the zeolite. The exchanged silver ions are now Q Obstructs cell respiration available to control microbial growth. Q Starves the bacteria Surface film of moisture Bacteria Available on these products: Coated Ladles - See pages 8-13 to 8-16 Color-Coded Dishers - See page 8-17 Waves of Coated Tongs - See page 8-21 antimicrobial Spoodle® Utensils - See pages 8-8 to 8-9 silver ions Handle material Heavy-Duty Spoons - See page 8-19 attacking with embedded Agion® zeolite Agion® zeolites releasing silver ions Agion® is registered with the EPA, FDA, USDA, NSF, European FSA, and the European BPD 8-3
- 245. vollrathco.com Kitchen Essentials Jacob's Pride® Lifetime Warranty utensils are guaranteed to last longer, reducing waste. All Jacob's Pride® products offer a Lifetime Warranty! NSF NSF COOKWARE CERTIFIED - see pages 7-7 to 7-17 and 7-31 to 7-32 DISHERS - see page 8-17 NSF NSF ONE-PIECE HEAVY-DUTY HEAVY-DUTY STAINLESS SPOODLE® STEEL - see pages 8-8 and 8-9 BASTING SPOONS - see pages 8-19 and 8-20 NSF CERTIFIED NSF NYLON ONE-PIECE STAINLESS TONGS HANDLE WHIPS - see pages 8-21 and 8-22 - see pages 8-11 and 8-12 NSF ONE-PIECE HEAVY-DUTY HEAVY-DUTY ONE-PIECE LADLES SKIMMERS - see pages 8-13 through 8-15 - see page 8-25 8-4
- 246. Kitchen Essentials The Vollrath Company, LLC What is HACCP? A Hazard Analysis Critical Control Point food safety system helps you: Q Identify the foods and procedures that are most likely to cause foodborne illness Q Build in procedures that reduce risk of foodborne outbreaks Q Monitor all procedures to ensure food safety Source: Serving Safe Food: Certification Coursebook © 1995 HACCP – The Vollrath Way Protect your Employees and Customers with a HACCP program that utilizes these Vollrath products. Color-Coded Nylon Prep Spoons - See page 8-19 Q Color coding provides easy identification for controlled food contact Q High temperature nylon — heat resistant to 400˚F (204˚C) Color-Coded Kool-Touch® Tongs - See page 8-21 Q Color coding provides easy identification for controlled food contact Q Springless design helps eliminate bacteria-prone food traps Color-Coded Basting Spoons - See page 8-19 Q Color coding provides easy identification for controlled food contact Q One-piece design helps eliminate bacteria-prone food traps Color-Coded Cutting Boards - See page 8-26 Q Color coding provides easy identification for controlled food contact Q High density non-porous surface will not stain or absorb juices High Temperature Utensils - See page 8-27 Q Heat resistant to the required high temperatures for cooking eggs and meats Q Unique blade design lifts the blade off the counter to reduce risk of cross-contamination Antimicrobial Utensils - See pages 8-8, 8-9, 8-13 to 8-17, 8-21 to 8-23 Q Fights the growth of microbes in three ways Q Agion silver ions are built into the handle Steam Table Pans with Covers - See pages 6-3 to 6-22 Q Going from freezer to oven to service line without re-panning reduces food handling and risks of cross contamination Q Unique reinforced corners and flat edges resist bending so pan seals the steam in the well for accurate temperature control Cookware with TriVent® Handles - See pages 7-6 to 7-36 Q Permanently bonded handles help eliminate slide-on handle food traps Warewashing Racks - See pages 10-3 to 10-16 Q Open design exposes the maximum surface area for proper sanitation Cayenne® Heat N Serve Merchandisers - See pages 3-7 to 3-11 Q Take prepared foods from frozen or refrigerated to piping hot quickly Q Maintain temperatures in excess of 140°F necessary for safe food service 8-5
- 247. vollrathco.com Kitchen Essentials Portion Control Menu Planner Delivering proper nutrition and controlling your food costs demands accurate, repeatable portion sizing. The trouble is, i i Th how do you ensure that your kitchen staff and servers are using the proper size utensil? Vollrath simplifies portion control with a complete system of serving utensils, color-coded for quick and easy size selection. Your menu calls for 2 ounces of vegetables, tell your staff to use the blue Spoodle®. Serving 4 ounces of stuffing? Use a gray disher. It’s that simple. No more searching through a drawer of look-alike utensils trying to read the capacity stamps. APPROX. SERVINGS ROUND SPOODLE| OVAL SPOODLE| LADLE| Color CAPACITY (ounces) CAPACITY (cups) PER QUART DISHER| VOLLRATH ITEM NUMBER VOLLRATH ITEM NUMBER ONE-PIECE SOLID/PERF. TWO-PIECE SOLID/PERF. VOLLRATH ITEM NUMBER ONE-PIECE SOLID/PERF VOLLRATH ITEM NUMBER ONE-PIECE TWO-PIECE ⁄ 34 ⁄ 3 32 40 47147 6433120/6432120 6412120/6422120 4980120 1 18⁄ 30 47146 61147/61145 58011 11⁄3 1⁄6 24 47145 15⁄8 7⁄32 20 47144 6433230/6432230 6412230/6422230 4980230 2 1⁄4 16 47143 62157/62155 58322 22⁄3 1⁄3 12 47142 6433335/6432335 6412335/6422335 4980335 3{ 3 8{ ⁄ 10 47141 62167/62165 58333 6433445/6432445 6412445/6422445 4980445 4 ⁄ 12 8 47140 62172/62170 58344 51⁄3 2⁄3 6 47139 6433655/6432655 6412655/6422655 4980655 6 3⁄4 5 62177/62175 58355 6433865/6432865 6412865/6422865 4980865 8 1 4 62182/62180 58366 {Disher Capacity: 31⁄4 oz. (2⁄5 cup) |See page 8-3 for more information on Agion® antimicrobial protection SERVING FULL SIZE TWO THIRDS SIZE HALF SIZE HALF SIZE LONG ONE THIRD SIZE ONE FOURTH SIZE ONE SIXTH SIZE SIZE 203⁄4 X 123⁄4 137⁄8 X 123⁄4 103⁄8 X 123⁄4 203⁄4 X 67⁄16 67⁄8 X 123⁄4 63⁄8 X 103⁄8 67⁄8 X 61⁄4 STEAM TABLE PAN (OZ.) DEPTH (INCHES) DEPTH (INCHES) DEPTH (INCHES) DEPTH (INCHES) DEPTH (INCHES) DEPTH (INCHES) DEPTH (INCHES) 21⁄2 4 6 21⁄2 4 6 21⁄2 4 6 21⁄2 4 6 21⁄2 4 6 21⁄2 4 6 21⁄2 4 6 Super Pan II® 1 268 452 684 176 296 452 136 214 322 120 184 264 85 134 197 60 96 146 40 60 87 Super Pan 3® 1 294 448 672 182 270 402 128 202 301 125 192 277 81 125 185 57 84 128 37 55 78 Super Pan II® 2 134 226 342 88 148 226 68 107 161 60 92 132 42 67 98 30 48 73 20 30 43 Super Pan 3® 2 147 228 338 91 135 201 64 101 151 62 96 138 40 62 92 28 42 64 18 28 39 Super Pan II® 3 89 150 228 58 98 150 45 71 107 40 61 88 28 44 66 20 32 48 13 20 29 Super Pan 3® 3 98 149 224 60 90 134 42 67 100 41 64 92 27 41 61 19 28 42 12 18 26 Super Pan II® 4 67 113 171 44 74 113 34 53 80 30 46 66 21 33 49 15 24 36 10 15 21 Super Pan 3® 4 74 112 168 45 67 100 32 51 75 31 48 69 20 31 46 14 21 32 9 14 20 Super Pan II® 6 44 75 114 29 49 75 22 35 53 20 30 44 14 22 32 10 16 24 6 10 14 Super Pan 3® 6 49 75 112 30 45 67 21 34 50 20 32 46 13 20 30 9 14 21 6 9 13 Super Pan II® 8 33 56 85 22 37 56 17 26 40 15 23 33 10 16 24 7 12 18 5 7 10 Super Pan 3® 8 37 56 84 22 33 50 16 25 38 15 24 34 10 15 23 7 10 16 4 7 10 Find in-depth portion control training Light Blue = Super Pan II® modules at www.vollrathco.com. Dark Blue = Super Pan 3® 8-6
- 248. Kitchen Essentials The Vollrath Company, LLC Consistency That Keeps Them Coming Back! A major issue facing all food service operators is portion control. The proper portion size can create the eye appeal necessary to develop repeat customers. Alternatively, improper portioning can create ill will among those customers. Both operators and customers alike stand to benefit from portion control. When your livelihood depends on portion control, go with Vollrath portion control products. Q Manufactured according to rigid specifications, insuring consistency in every lot Q Variety of utensils to aid in proper portioning Q Color-coded system uses specific colors to denote each utensil's capacity Check out Vollrath's extensive line of portion control utensils. NSF One-Piece Heavy-Duty Spoodle® Utensils NSF One Piece Ladles See pages 8-8 and 8-9 See pages 8-13 to 8-15 Super Pan® Super Shapes See pages 6-3 and 6-4 Find information on starting your portion control program NSF Certified Dishers at www.vollrathco.com. See page 8-17 Save Money With Portion Control! “Consistently over-portioning a $6.00-per-pound product just 1⁄2 an ounce adds almost 19¢ to the serving cost. If you do that 100 times a day, you lose $133.00 a week or almost $7,000.00 a year — and that’s just one product.” Jim Laub — restaurantowner.com 8-7
- 249. vollrathco.com Kitchen Essentials One-Piece Heavy-Duty Spoodle® Utensil Capacities clearly stamped on shaft for easy size identification Note: See page 8-3 for more information on Agion® antimicrobial protection One-piece construction is Mirror-finished stainless durable and sanitary steel shafts and bowls — resistant to corrosion High temperature patented nylon handle — heat resistant Unique oval bowl design fits into to 450°F (232°C) corners of Super Pan 3® steam table pans — reducing waste and maximizing serving efficiency Textured surface prevents slippage while in use Color-coded for quick size identification Built-in stopper notch prevents Spoodle® from sliding into food product Ergonomic design offers comfort and reduces hand fatigue Oval Spoodle – see page 8-9 One-Piece Round Spoodle® Utensil Color-Coded Spoodle® Utensil - Round Bowl SOLID PERFORATED COLOR CAPACITY OVERALL LENGTH BOWL DIAMETER CASE ITEM ITEM HANDLE OZ (ML) IN (CM) IN (CM) LOT 6433120 6432120 Black 1 (29.6) 123⁄16 (30.9) 21⁄16 (5.2) 12 6433230 6432230 Blue 2 (59.1) 12 ⁄ (32.1) 11 16 21⁄2 (6.5) 12 6433335 6432335 Ivory 3 (88.7) 131⁄16 (33.1) 215⁄16 (7.4) 12 6433445 6432445 Gray 4 (118) 135⁄16 (33.8) 31⁄4 (8.2) 12 6433655 6432655 Teal 6 (177.4) 13 ⁄ (35) 34 311⁄16 (9.3) 12 6433865 6432865 Orange 8 (236) 143⁄16 (35.9) 4 (10.2) 12 Black Handle Spoodle® Utensil - Round Bowl SOLID PERFORATED OVERALL LENGTH BOWL DIAMETER CASE ITEM ITEM CAPACITY IN (CM) IN (CM) LOT 6433120 6432120 1 (29.6) 123⁄16 (30.9) 21⁄16 (5.2) 12 6433220 6432220 2 (59.1) 1211⁄16 (32.1) 21⁄2 (6.5) 12 6433320 6432320 3 (88.7) 131⁄16 (33.1) 215⁄16 (7.4) 12 6433420 6432420 4 (118) 135⁄16 (33.8) 31⁄4 (8.2) 12 6433520 6432520 5 (147.9) 131⁄2 (34.4) 31⁄2 (8.8) 12 6433620 6432620 6 (177.4) 133⁄4 (35) 311⁄16 (9.3) 12 See page 8-6 for Portion Control Chart 6433820 6432820 8 (236) 143⁄16 (35.9) 4 (10.2) 12 8-8
- 250. Kitchen Essentials The Vollrath Company, LLC Product Specifications: One-Piece Round and Oval Spoodle® Utensil Spoodle® to be constructed of 20 gauge stainless steel with nylon ergonomic handle. Handles equipped with Agion® antimicrobial protection. Handle shall have textured surface and built-in stopper notch to prevent slippage. Construction shall be a one-piece design with no crevices to collect water or bacteria. Bowl dimensions shall be exact in order to insure consistent capacities within 5%. Capacities must be clearly stamped on the top side of the Spoodle® for easy identification. Bowl design to be either round or oval shaped; with or without perforations. Spoodle® to be available with both black handles and color-coded options. Spoodle® must have a limited lifetime warranty. NSF certified. Note: See page 8-3 for more information on Agion® antimicrobial protection Unique oval bowl design fits into corners of Super Pan 3® steam table pans — reducing waste and maximizing serving efficiency One-Piece Oval Spoodle® Utensil Color-Coded Spoodle® Utensil – Oval Bowl SOLID PERFORATED COLOR CAPACITY OVERALL LENGTH BOWL DIMENSIONS (L X W) CASE ITEM ITEM HANDLE OZ (ML) IN (CM) IN (CM) LOT 6412120 6422120 Black 1 (29.6) 121⁄2 (31.6) 25⁄16 x 21⁄8 (6.0 x 5.5) 12 6412230 6422230 Blue 2 ( 59.1) 13 ⁄ (33.1) 1 16 2 ⁄ x 2 ⁄ (7.5 x 6.8) 15 16 11 16 12 6412335 6422335 Ivory 3 (88.7) 131⁄2 (34.2) 33⁄8 x 31⁄16 (8.5 x 7.8) 12 6412445 6422445 Gray 4 (118) 1313⁄16 (35.1) 311⁄16 x 33⁄8 (9.4 x 8.6) 12 6412655 6422655 Teal 6 (177.4) 143⁄8 (36.4) 41⁄4 x 313⁄16 (10.7 x 9.8) 12 6412865 6422865 Orange 8 (236) 14 ⁄ (37.5) 34 45⁄8 x 41⁄4 (11.8 x 10.7) 12 Black Handle Spoodle® Utensil – Oval Bowl SOLID PERFORATED CAPACITY OVERALL LENGTH BOWL DIMENSIONS (L X W) CASE ITEM ITEM OZ (ML) IN (CM) IN (CM) LOT 6412120 6422120 1 (29.6) 121⁄2 (31.6) 25⁄16 x 21⁄8 (6.0 x 5.5) 12 6412220 6422220 2 (59.1) 131⁄16 (33.1) 215⁄16 x 211⁄16 (7.5 x 6.8) 12 6412320 6422320 3 (88.7) 131⁄2 (34.2) 33⁄8 x 31⁄16 (8.5 x 7.8) 12 6412420 6422420 4 (118) 1313⁄16 (35.1) 311⁄16 x 33⁄8 (9.4 x 8.6) 12 6412520 6422520 5 (147.9) 141⁄16 (35.8) 4 x 35⁄8 (10.1 x 9.2) 12 6412620 6422620 6 (177.4) 143⁄8 (36.4) 41⁄4 x 313⁄16 (10.7 x 9.8) 12 6412820 6422820 8 (236) 143⁄4 (37.5) 45⁄8 x 41⁄4 (11.8 x 10.7) 12 See page 8-6 for Portion Control Chart 8-9
- 251. vollrathco.com Kitchen Essentials High Heat Nylon Spoodle® Utensil Q High-temperature nylon — heat resistant to 475˚F (246˚C) Q Ideal for non-stick cookware and will not scratch or mar surfaces Q Ergonomic handle is comfortable and reduces hand fatigue Q One-piece construction is extremely durable and has no crevices to collect water or bacteria Q Built-in stopper notch prevents utensils from sliding into food product Q Textured surface on handle prevents slippage while in use Q Capacities clearly stamped on utensil for easy size identification Oval Spoodle Round Nylon Spoodle® Utensil WHITE BLACK CAPACITY LENGTH BOWL DIAMETER CASE ITEM ITEM DESCRIPTION OZ (ML) IN (CM) IN (CM) LOT 5283515 5283520 Solid 3 (88.7) 121⁄8 (30.7) 213⁄16 (7.1) 12 5283615 5283620 Perforated 3 (88.7) 12 ⁄ (30.7) 18 213⁄16 (7.1) 12 5283715 5283720 Solid 4 (118.3) 123⁄8 (31.4) 35⁄16 (8.4) 12 5283815 5283820 Perforated 4 (118.3) 123⁄8 (31.4) 35⁄16 (8.4) 12 5283915 5283920 Solid 6 (177.4) 129⁄16 (31.9) 39⁄16 (9.1) 12 5284015 5284020 Perforated 6 (177.4) 129⁄16 (31.9) 39⁄16 (9.1) 12 ® Oval Nylon Spoodle Utensil WHITE BLACK CAPACITY LENGTH DIMENSIONS (L X W) CASE ITEM ITEM DESCRIPTION OZ (ML) IN (CM) IN (CM) LOT Matching Spoons 5292615 5292620 Solid 3 (88.7) 121⁄8 (30.7) 31⁄2 x 3 (8.9 x 7.6) 12 (page 8-20) and Turner (page 8-35) 5292715 5292720 Perforated 3 (88.7) 121⁄8 (30.7) 31⁄2 x 3 (8.9 x 7.6) 12 Prep Spoon 5292815 5292820 Solid 4 (118.3) 12 ⁄ (31.4) 38 33⁄4 x 31⁄4 (9.5 x 8.3) 12 (page 8-19) 5292915 5292920 Perforated 4 (118.3) 123⁄8 (31.4) 33⁄4 x 31⁄4 (9.5 x 8.3) 12 5293315 5293320 Solid 6 (177.4) 129⁄16 (31.9) 47⁄16 x 33⁄4 (11.3 x 9.5) 12 5293415 5293420 Perforated 6 (177.4) 129⁄16 (31.9) 47⁄16 x 33⁄4 (11.3 x 9.5) 12 Spoodle® Utensil with Grip ‘N Serv® Handles Q Ease of serving with a spoon and the accurate portion control of a ladle Q Color-coded handle for no-guess size selection Q Stainless steel shaft and bowl Q Handle's thumb notch and stopper provide greater control Q Stopper prevents Spoodle® from sliding into pan when not in use Q Plastic handles are heat resistant to 230˚F (110˚C) Q Portion control chart, see page 8-6 Color-Coded Spoodle® Utensil SOLID PERFORATED CAPACITY LENGTH CASE ITEM ITEM COLOR OZ (ML) IN (CM) LOT 61147 61145 Black 1 (29.6) 127⁄16 (31.6) 12 62157 62155 Blue 2 (59.1) 12 ⁄ (31.8) 12 12 62167 62165 Ivory 3 (88.7) 131⁄16 (33.2) 12 62172 62170 Gray 4 (118.3) 131⁄2 (34.3) 12 62177 62175 Teal 6 (177.4) 1313⁄16 (35.1) 12 62182 62180 Orange 8 (236.6) 141⁄8 (35.9) 12 ® Black Spoodle Utensil SOLID PERFORATED CAPACITY LENGTH BOWL DIAMETER CASE Note: See page 8-3 for more information ITEM ITEM OZ (ML) IN (CM) IN (CM) LOT on Agion® antimicrobial protection 61147 61145 1 (29.6) 127⁄16 (31.6) 21⁄4 (5.7) 12 61157 61155 2 (59.1) 12 ⁄ (31.8) 12 23⁄8 (6) 12 61167 61165 3 (88.7) 131⁄16 (33.2) 27⁄8 (7.3) 12 61172 61170 4 (118.3) 131⁄2 (34.3) 33⁄8 (8.6) 12 61174 — 5 (148) 13 ⁄ (35.1) 13 16 31⁄2 (8.9) 12 61177 61175 6 (177.4) 1313⁄16 (35.1) 35⁄8 (9.2) 12 See page 8-6 for Portion Control Chart 61182 61180 8 (236.6) 141⁄8 (35.9) 4 (10.2) 12 8-10
- 252. Kitchen Essentials The Vollrath Company, LLC NSF Certified Nylon Handle Whips Vollrath introduces a unique patent-pending ergonomic whip with NSF certification. The one-piece handle is completely sealed with no crevices to collect food or bacteria. Vollrath backs up the durability of these whips with their Limited Lifetime Warranty. One-piece ergonomic handle with comfort nubs for sure grip Center reinforcement wire eliminates bending, Piano Whip twisting and deforming Wires are constructed from stainless steel to resist Knob end to corrosion and rusting Nylon handle is prevent slippage heat resistant to while in use 475˚ F (246˚C) French Whip Color-coded for easy identification — Purple for Piano Style, Aqua for French Style Product Specifications: Nylon Handle Whips Whips to be constructed of stainless steel wires with nylon ergonomic handle having a heat resistance to 475˚ F (246˚ C). Handle shall have color-coded textured surface with knob end to prevent slippage. Handle construction shall be a one-piece design with no crevices to collect water or bacteria. Wires must be securely held in place and have a center reinforcement wire to eliminate bending, twisting and deforming. Whips must have a limited lifetime warranty. NSF certified. French Whips Q Thicker wires for mixing heavy food products ITEM OVERALL LENGTH IN (CM) HANDLE LENGTH IN (CM) CASE LOT Piano Whips Q Fine wires for mixing or aerating thinner food products 47090 10 (25.4) 45⁄8 (11.8) 12 47091 12 (30.5) 4 ⁄ (11.8) 58 12 OVERALL LENGTH HANDLE LENGTH CASE 47092 14 (35.6) 45⁄8 (11.8) 12 ITEM IN (CM) IN (CM) LOT 47093 16 (40.6) 57⁄16 (13.8) 12 47002 10 (25.4) 45⁄8 (11.8) 12 47094 18 (45.7) 5 ⁄ (13.8) 7 16 12 47003 12 (30.5) 45⁄8 (11.8) 12 47095 20 (50.8) 57⁄16 (13.8) 12 47004 14 (35.6) 45⁄8 (11.8) 12 47096 22 (55.9) 65⁄16 (16) 12 47005 16 (40.6) 45⁄8 (11.8) 12 47097 24 (61) 16 (40.6) 12 47006 18 (45.7) 45⁄8 (11.8) 12 8-11 -11
- 253. vollrathco.com Kitchen Essentials NSF Certified Stainless Handle Whips Q Available with Piano or French style wires Q Securely welded–eliminates food traps Piano Whip Integral nubs for sure grip Center reinforcement Wires are constructed from wire eliminates bending, stainless steel to resist twisting and deforming corrosion and rusting One-piece stainless French Whip steel handle Product Specifications: Stainless Steel NSF Whips Whips to be made from 300 series stainless steel. Handle to have raised textured areas for comfort and sure grip. Handle shall be seamless construction so no gap exists between end-cap and vertical side walls. There shall be no crevices to collect water or bacteria. Stainless steel wires must be securely held in place and have a center reinforcement wire to eliminate bending, twisting and deforming. Whips must have a limited lifetime warranty. NSF certified. French Whips Q Thicker wires for mixing heavy food products ITEM OVERALL LENGTH IN (CM) HANDLE LENGTH IN (CM) CASE LOT Piano Whips Q Fine wires for mixing or aerating thinner food products 47280 10 (25.4) 45⁄8 (11.8) 12 47281 12 (30.5) 45⁄8 (11.8) 12 OVERALL LENGTH HANDLE LENGTH CASE 47282 14 (35.6) 45⁄8 (11.8) 12 ITEM IN (CM) IN (CM) LOT 47283 16 (40.6) 57⁄16 (13.8) 12 47255 10 (25.4) 45⁄8 (11.8) 12 47284 18 (45.7) 57⁄16 (13.8) 12 47256 12 (30.5) 45⁄8 (11.8) 12 47285 20 (50.8) 57⁄16 (13.8) 12 47257 14 (35.6) 45⁄8 (11.8) 12 47286 22 (55.9) 65⁄16 (16) 12 47258 16 (40.6) 45⁄8 (11.8) 12 47287 24 (61) 65⁄16 (16) 12 47259 18 (45.7) 45⁄8 (11.8) 12 8-12
- 254. Kitchen Essentials The Vollrath Company, LLC One-Piece Heavy-Duty Ladles { Q One-piece construction for easy cleaning Q Accurate bowl dimensions insure consistent capacities Plastic-coated handles are Hooked handle heat resistant to 180˚F (82˚C) to prevent sliding and for easy storage Coated handles are equipped with Agion® antimicrobial protection{ for food safety Capacities clearly stamped on product for easy identification Grooved handle for added strength Heavy-gauge stainless steel shafts and bowls for longer life Color-Coded Mirror-finished bowls, satin-finished handles Kool-Touch® Handles Q Color-coded handle for no-guess size selection CAPACITY BOWL DIAMETER HANDLE LENGTH CASE ITEM COLOR OZ (ML) IN (CM) IN (CM) LOT 4980120 Black 1 (29.6) 13⁄4 (4.4) 97⁄8 (25.1) 12 4980230 Blue 2 (59.1) 2 ⁄ (6) 38 97⁄8 (25.1) 12 Note: See page 8-3 for 4980335 Ivory 3 (88.7) 27⁄8 (7.3) 125⁄8 (32.1) 12 more information on Agion® antimicrobial protection 4980445 Gray 4 (118.3) 33⁄8 (8.6) 125⁄8 (32.1) 12 4980655 Teal 6 (177.4) 31⁄2 (8.9) 123⁄8 (31.4) 12 4980865 Orange 8 (236.6) 4 (10.2) 125⁄8 (32.1) 12 Stainless Steel and Black Kool-Touch® Handles Q All stainless steel or black plastisol grip for comfort and safety BLACK STAINLESS CAPACITY BOWL DIAMETER HANDLE LENGTH CASE ITEM ITEM OZ (ML) IN (CM) IN (CM) LOT 4980020 4980010 ⁄ (14.8) 12 13⁄4 (4.4) 6 (15.2) 12 4987520 4987510 ⁄ (22.2) 34 12⁄3 (3.4) 9 (22.9) 12 4980120 4980110 1 (29.6) 13⁄4 (4.4) 97⁄8 (25.1) 12 4981520 4981510 11⁄2 (44.4) 23⁄8 (6) 97⁄8 (25.1) 12 Product Specifications: 4980220 4980210 2 (59.1) 23⁄8 (6) 97⁄8 (25.1) 12 One-Piece Heavy-Duty Ladles 4980320 4980310 3 (88.7) 27⁄8 (7.3) 125⁄8 (32.1) 12 Ladles to be constructed of stainless steel. Coated handles equipped with 4980420 4980410 4 (118.3) 3 ⁄ (8.6) 38 125⁄8 (32.1) 12 Agion® antimicrobial protection. Ladle bowls to be heavy-duty 18 gauge. Design shall be a seamless one-piece construction with no crevices to collect 4980520 4980510 5 (147.9) 33⁄8 (8.6) 121⁄2 (31.8) 12 water or bacteria. Bowl dimensions shall be exact in order to insure consistent 4980620 4980610 6 (177.4) 31⁄2 (8.9) 123⁄8 (31.4) 12 capacities within 5%. Capacities must be clearly marked on top side of ladles for easy identification. Satin-finished handles required to minimize appearance 4980820 4980810 8 (236.6) 4 (10.2) 125⁄8 (32.1) 12 of wear. Ladles to be available in both plain stainless steel and color-coded 4981220 4981210 12 (354.9) 43⁄8 (11.1) 121⁄8 (30.8) 6 options. Ladles must have a limited lifetime warranty. NSF certified. 4982420 4982410 24 (709.8) 6 (15.2) 181⁄8 (46) 6 4987220 4987210 72 (2129.3) 81⁄8 (20.6) 17 (43.2) 3 { Jacob’s Pride™ Warranty does not cover Kool-Touch® coating See page 8-6 for Portion Control Chart 8-13
- 255. vollrathco.com Kitchen Essentials Stainless Steel Ladles Q Stainless steel Q Attractive bright finish Q Handles available in plain or coated Q Hooked handle to prevent sliding and for easy storage One-Piece Heavy-Duty Ladles with Short Handles Q One-piece construction – sanitary and very durable Q Exact bowl dimensions insure consistent capacities Q Coated handle is equipped with Agion® antimicrobial protection{ Q Capacities clearly stamped on product in both ounces and milliliters for easy size identification Q Short 6” (15.2 cm) handles available in plain stainless or black Kool-Touch® coating BLACK STAINLESS CAPACITY BOWL DIAMETER CASE ITEM ITEM OZ (ML) IN (CM) LOT 4980020 4980010 ⁄ (14.8) 12 13⁄4 (4.4) 12 4970120 4970110 1 (29.5) 127⁄32 (4.7) 12 4971520 4971510 11⁄2 (44.3) 229⁄64 (6.2) 12 Mini-Ladles 4970220 4970210 2 (59.0) 215⁄32 (6.3) 12 (page 8-27) 4970320 4970310 3 (88.5) 261⁄64 (7.5) 12 4970420 4970410 4 (118.0) 327⁄64 (8.7) 12 4970520 4970510 5 (147.5) 3 ⁄ (8.7) 13 32 12 { See page 8-3 for more information on Agion® 4970620 4970610 6 (177.0) 3 ⁄ (9.1) 19 32 12 antimicrobial protection Ladles with Kool-Touch® Handles Q Cool grip for comfort and safety Q Capacities are permanently stamped on the handle Q Coated handle is equipped with Agion® antimicrobial protection{ Q Kool-Touch® handles are heat resistant to 180˚F (82˚C) Q Grooved handle for added strength Q Dishwasher safe Q Portion control chart, see page 8-6 Color-Coded Handles Q Color-coded handle for no-guess size selection Q Coated handle is equipped with Agion® antimicrobial protection{ CAPACITY BOWL DIAMETER HANDLE LENGTH CASE ITEM COLOR OZ (ML) IN (CM) IN (CM) LOT 58011 Black 1 (29.6) 113⁄16 (4.6) 10 (25.4) 12 See page 8-6 58322 Blue 2 (59.1) 21⁄4 (5.7) 97⁄8 (25.1) 12 Stainless Steel Ladles for Portion Control Chart 58333 Ivory 3 (88.7) 211⁄16 (6.8) 125⁄8 (32.1) 12 Q Grooved handle for added strength 58344 Gray 4 (118.3) 27⁄8 (7.3) 125⁄8 (32.1) 12 CAPACITY BOWL DIAMETER HANDLE LENGTH CASE 58355 Teal 6 (177.4) 35⁄8 (9.1) 123⁄8 (31.4) 12 ITEM OZ (ML) IN (CM) IN (CM) LOT 58366 Orange 8 (236.6) 4 (10.2) 125⁄8 (32.1) 12 58000 12 ⁄ (14.8) 15⁄8 (4.2) 6 (15.2) 12 58410 1 (29.6) 113⁄16 (4.6) 67⁄8 (17.5) 12 Black Handles 58510 1 (29.6) 113⁄16 (4.6) 10 (25.4) 12 Q Black, plastic-coated handles 58520 1 ⁄ (44.4) 12 2 ⁄ (5.3) 3 32 9 ⁄ (25.1) 78 12 Q Coated handle is equipped with Agion® antimicrobial protection{ 58620 2 (59.1) 21⁄4 (5.7) 97⁄8 (25.1) 12 58430 3 (88.7) 211⁄16 (6.8) 125⁄8 (32.1) 12 CAPACITY BOWL DIAMETER HANDLE LENGTH CASE ITEM OZ (ML) IN (CM) IN (CM) LOT 58440 4 (118.3) 27⁄8 (7.3) 125⁄8 (32.1) 12 58011 1 (29.6) 113⁄16 (4.6) 10 (25.4) 12 58450 5 (147.9) 33⁄16 (8.1) 121⁄2 (31.8) 12 58022 2 (59.1) 21⁄4 (5.7) 97⁄8 (25.1) 12 58460 6 (177.4) 35⁄8 (9.1) 123⁄8 (31.4) 12 58033 3 (88.7) 211⁄16 (6.8) 125⁄8 (32.1) 12 58480 8 (236.6) 4 (10.2) 125⁄8 (32.1) 12 58044 4 (118.3) 27⁄8 (7.3) 125⁄8 (32.1) 12 58500 12 (354.9) 43⁄8 (11.1) 121⁄8 (30.8) 6 58055 6 (177.4) 35⁄8 (9.1) 123⁄8 (31.4) 12 58540 24 (709.8) 6 (15.2) 181⁄8 (46) 6 58066 8 (236.6) 4 (10.2) 125⁄8 (32.1) 12 58600 72 (2129.3) 81⁄8 (20.6) 17 (43.2) 3 { See page 8-3 for more information on Agion® antimicrobial protection 8-14
- 256. Kitchen Essentials The Vollrath Company, LLC One-Piece Ergo Grip™ Ladles with Kool-Touch® Handles Q One-piece construction Q Stainless steel Q Coated handle is equipped with Agion® antimicrobial protection{ Q Offset handle for more comfortable use Q Shorter overall length permits easy serving under low profile breath guards Q Handle stopper keeps the ladle from sliding into serving container CAPACITY BOWL DIAMETER OVERALL LENGTH |HANDLE LENGTH CASE ITEM OZ (ML) IN (CM) IN (CM) IN (CM) LOT 4980322 3 (88.7) 27⁄8 (7.3) 131⁄8 (33.3) 107⁄8 (27.6) 6 4980422 4 (118.3) 3 ⁄ (7.9) 18 13 ⁄ (33.3) 18 107⁄8 (27.6) 6 4980622 6 (177.4) 33⁄8 (8.6) 131⁄4 (33.6) 107⁄8 (27.6) 6 4980822 8 (236.6) 41⁄16 (10.3) 141⁄4 (36.2) 111⁄2 (29.2) 6 | Length from bowl bottom to bend in handle { See page 8-3 for more information on Agion® antimicrobial protection Economy One-Piece Ladles Economy Two-Piece Ladles Q Mirror-finished stainless steel Q Stainless steel Q One-piece construction resists breaking and is more sanitary Q Hooked handle Q Hooked handle for easy storage and to prevent sliding Q Capacity marked for portion control Q Capacity permanently marked on handle Q Grooved handle for added strength CAPACITY BOWL DIAMETER HANDLE LENGTH CASE ITEM OZ (ML) IN (CM) IN (CM) LOT 46900 ⁄ (14.8) 12 13⁄4 (4.4) 107⁄8 (27.6) 24 CAPACITY BOWL DIAMETER HANDLE LENGTH CASE ITEM OZ (ML) IN (CM) IN (CM) LOT 46901 1 (29.6) 17⁄8 (4.8) 107⁄8 (27.6) 24 46810 12⁄ (14.8) 115⁄16 (4.9) 11 (27.9) 24 46915 11⁄2 (44.4) 27⁄16 (6.1) 83⁄8 (21.3) 12 46819 3 ⁄4 (22) 115⁄16 (4.9) 11 (27.9) 24 46902 2 (59.1) 29⁄16 (6.5) 111⁄4 (28.6) 24 46811 1 (29.6) 115⁄16 (4.9) 11 (27.9) 24 46903 3 (88.7) 3 (7.6) 111⁄2 (29.2) 24 46812 2 (59.1) 2 ⁄ (6.4) 17 32 11 (27.9) 24 46904 4 (118.3) 31⁄4 (8.2) 121⁄2 (31.8) 12 46813 3 (88.7) 213⁄16 (7.1) 11 (27.9) 24 46906 6 (177.4) 31⁄2 (8.9) 121⁄2 (31.8) 12 46814 4 (118.3) 3 ⁄ (7.9) 18 12 ⁄ (31.8) 12 12 46908 8 (236.6) 4 (10.2) 123⁄4 (32.4) 12 46816 6 (177.4) 3 ⁄ (8.6) 38 12 ⁄ (31.8) 12 12 46912 12 (354.9) 4 ⁄ (11.6) 9 16 15 ⁄ (39.4) 12 12 46818 8 (236.6) 41⁄16 (10.3) 121⁄2 (31.8) 12 46924 24 (709.8) 6 (15.3) 14 (35.6) 6 46822 12 (354.9) 411⁄16 (11.9) 13 (33) 12 46932 32 (946.4) 65⁄8 (16.8) 153⁄4 (40) 6 8-15
- 257. vollrathco.com Kitchen Essentials Professional Transfer Ladles PREP and Dippers Q Dent-resistant 3004 COOK aluminum alloy Q Seamless construction Q Welded handles SERVE E CAPACITY LENGTH CASE ITEM OZ (L) IN (CM) LOT 5330 30 (0.9) 111⁄2 (29.2) 3 Solved. 4752 5332 64 (1.9) 64 (1.9) 12 3⁄4 (32.4) 135⁄8 (34.3) 3 3 Oval Ladle with Hooked-Handle Utensils Kool-Touch® Handle Q Heavy-gauge 300 series stainless steel Q One-piece construction Q Stainless steel Q Long handle for large vessel Q Unique shape provides directional pour when Q Hooked-handle for convenience serving chili or soup Q 8 ounce portion-sized for most popular china, plastic, and disposable soup cups Q Kool-Touch® handle is equipped with Agion® antimicrobial protection{ for comfort and safety — heat resistant to 180˚F (82˚C) { See page 8-3 for more information on Agion® antimicrobial protection CAPACITY BOWL SIZE: L X W X H HANDLE LENGTH CASE ITEM OZ (ML) IN (CM) IN (CM) LOT FORK SOLID SPOON SLOTTED SPOON HANDLE LENGTH CASE ITEM ITEM ITEM IN (CM) LOT 56728 8 (236) 411⁄16 x 31⁄4 x 113⁄16 121⁄2 (31.8) 12 60180 — — 15 (38.1) 12 (11.9 x 8.3 x 4.6) 60190 60170 60175 21 (53.3) 12 One-Quart Bicolite Ladle Hooked-Handle Dipper Q Clear plastic is heat resistant to 180˚F (82˚C) Q Stainless steel Q Welded hooked-handle prevents dipper from sliding into container Q Makes hanging storage convenient Q Graduations marked clearly inside and outside Q Bowl Top Diameter: 63⁄8 (16.2 cm) Q Bowl Base Diameter: 43⁄4 (12 cm) CAPACITY OVERALL LENGTH HANDLE LENGTH BOWL HEIGHT CASE CAPACITY BOWL DIAMETER LENGTH CASE ITEM QT (L) IN (CM) IN (CM) IN (CM) LOT ITEM OZ (ML) IN (CM) IN (CM) LOT 58700 1 (0.9) 15 (38.1) 12 (30.5) 31⁄2 (8.9) 6 52908 ⁄ (14.8) 12 15⁄8 (4.1) 61⁄2 (16.5) 72 8-16
- 258. Kitchen Essentials The Vollrath Company, LLC NSF Certified Dishers — One-Piece Color-Coded Handles Q Accurate portions Extended grooved Q Dishwasher safe handle provides a sure grip for comfortable use Coated handles Product Specifications: are equipped with Agion® Blade extends Domestic NSF Dishers antimicrobial beyond bowl to Dishers to be constructed of a fully color-coded protection{ for prevent sticking polypropylene handle with component parts to be made food safety from stainless steel. Handle shall have ribbed surface and built-in stopper notch to prevent slippage. Handle equipped with Agion® antimicrobial protection. Handle Stainless steel bowl and construction shall be a one-piece design with no crevices components to prevent corrosion to collect water or bacteria. Each size disher to have a and insure longer life different handle color to denote capacity. Bowl dimensions shall be exact to insure consistent capacities within 5%. Capacities must be clearly stamped on the top side of Color-coded handle for no-guess the gear rack for easy identification; disher number to be stamped on the sweep. Dishers must have a limited size selection lifetime warranty. Made in U.S.A. NSF certified. Molded one-piece handle SOLID CAPACITY BOWL DIAMETER OVERALL LENGTH CASE improves durability, makes ITEM COLOR SIZE OZ (ML) IN (CM) IN (CM) LOT cleaning easy and prevents 47139 White 6 51⁄3 (157.7) 31⁄8 (7.9) 97⁄8 (25) 12 handle from coming apart 47140 Gray 8 4 (118.3) 2 ⁄ (7.1) 13 16 9 ⁄ (24.3) 9 16 12 47141 Ivory 10 31⁄4 (96.1) 25⁄8 (6.7) 93⁄8 (23.8) 12 47142 Green 12 22⁄3 (78.9) 27⁄16 (6.2) 93⁄16 (23.3) 12 47143 Dark Blue 16 2 (59.1) 2 3⁄16 (5.6) 815⁄16 (22.8) 12 47144 Yellow 20 15⁄8 (48.1) 2 (5.2) 83⁄4 (22.3) 12 47145 Red 24 11⁄3 (39.4) 17⁄8 (4.8) 810⁄16 (22) 12 47146 Black 30 1 (29.6) 13⁄4 (4.4) 81⁄2 (21.6) 12 47147 Orchid 40 ⁄ (22.2) 34 19⁄16 (4) 85⁄16 (21.1) 12 { See page 8-3 for more information on Agion® antimicrobial protection ITEM DESCRIPTION CASE LOT 23612 Replacement Spring 1 See page 8-6 for Portion Control Chart Round Squeeze Dishers ITEM SIZE CAPACITY OZ (ML) BOWL DIAMETER IN (CM) OVERALL LENGTH IN (CM) CASE LOT Q Constructed entirely of stainless steel 47150 8 4 (118.3) 23⁄4 (6.7) 91⁄8 (23.2) 12 Q Blade extends beyond bowl to prevent sticking 47151 10 31⁄8 (92.4) 29⁄16 (6.5) 87⁄8 (22.5) 12 Q For use with either left or right hand 47152 12 23⁄4 (81.3) 27⁄16 (6.2) 87⁄8 (22.5) 12 47153 16 2 (59.1) 23⁄16 (5.6) 81⁄2 (21.6) 12 47154 20 11⁄2 (44.4) 21⁄16 (5.2) 81⁄2 (21.6) 12 47155 24 13⁄8 (40.7) 115⁄16 (4.9) 81⁄4 (21) 12 47156 30 11⁄4 (37) 17⁄8 (4.8) 81⁄4 (21) 12 47157 40 ⁄ (25.9) 78 15⁄8 (4.1) 8 (20.3) 12 47158 50 ⁄ (18.5) 58 11⁄2 (3.8) 77⁄8 (20) 12 47159 60 ⁄ (16.6) 9 16 15⁄16 (3.3) 73⁄4 (19.7) 12 47160 70 ⁄ (14.3) 12 13⁄8 (3.5) 73⁄4 (19.7) 12 47161 100 ⁄ (11.1) 38 1 ⁄ (2.9) 18 71⁄2 (19.1) 12 Did You Know… ITEM DESCRIPTION CASE LOT The disher size denotes the number of servings per quart. 47162 Replacement Spring 1 8-17
- 259. vollrathco.com Kitchen Essentials Shaped Dishers Q Four unique bowl shapes for interesting and appealing food presentations Q Heavy duty stainless steel construction is strong, durable and resistant to corrosion Q Heavy duty stainless steel spring enables smooth and easy squeeze action and resists pitting Q The 11⁄4 oz (37 ml) bowls are the perfect size for attractive plated presentations Q An ambidextrous squeeze handle design works equally well in the left or right hand BOWL SIZE CAPACITY LENGTH X WIDTH OVERALL LENGTH CASE ITEM SHAPE OZ (ML) IN (CM) IN (CM) LOT 47245 Triangle 11⁄4 (37) 13⁄4 x 17⁄8 (4.5 x 4.8) 87⁄8 (22.5) 10 47246 Diamond 11⁄4 (37) 25⁄8 x 113⁄16 (6.7 x 4.6) 91⁄4 (23.5) 10 47247 Rectangle 11⁄4 (37) 23⁄16 x 15⁄8 (5.6 x 4.1) 97⁄16 (24) 10 47245 47246 47248 Half-Moon 11⁄4 (37) 13⁄16 x 23⁄16 (3 x 5.6) 81⁄4 (20.9) 10 Enhance Enhance Your Food Your Food Presentation! Presentation! 47247 47248 Size number clearly stamped on bowl sweep Oval Squeeze for easy identification Dishers Q Oval bowl shape provides variety for presentation of food Heavy-duty, die-cast Q Squeeze handle for use with either left or right hand stainless steel Q Short squeeze distance reduces hand fatigue Oval bowl shape provides variety for Q Cast part with no crevices — more sanitary presentation of food Short squeeze BOWL SIZE OVERALL CAPACITY LENGTH X WIDTH LENGTH CASE distance reduces ITEM SIZE OZ (ML) IN (CM) IN (CM) LOT hand fatigue 47169 14 25⁄16 23⁄4 x 25⁄32 101⁄4 10 (68) (7 x 5.5) (26) Heavy-duty stainless steel 47170 20 15⁄8 21⁄2 x 17⁄8 10 10 spring provides (46) (6.3 x 4.8) (25.4) smooth and easy 47171 24 15⁄16 29⁄32 x 113⁄16 9 3 ⁄4 10 squeeze action (38) (5.8 x 4.6) (24.8) 47172 30 15⁄16 23⁄32 x 15⁄8 9 5 ⁄8 10 (28) (5.3 x 4.1) (24.5) Squeeze handle for 47200 40 3⁄4 2 x 17⁄16 9 1 ⁄2 10 use with either left or right hand (22.2) (5 x 3.6) (24.1) 8-18
- 260. Kitchen Essentials The Vollrath Company, LLC Heavy-Duty Stainless Steel Basting Spoons with Ergo Grip™ Handles Q Heavy-gauge stainless steel shaft and bowls — resistant to corrosion High-temperature Q One-piece construction is extremely durable patented nylon handle — heat resistant to and has no crevices to collect water or bacteria 450˚F (232˚C) Q 3-sided spoon has one straight edge for cutting to aid in serving Unique bowl shape solid, sticky, or cheesy with contoured end food products fits corner of pans — Note: See page 8-3 for more information Heavy-gauge reducing food waste on Agion® antimicrobial protection stainless steel shaft and maximizing serving and bowls — resistant efficiencies Ergonomic handle is comfortable to corrosion and reduces hand fatigue Textured surface Built-in stopper notch on handle prevents prevents spoon from slippage while in use sliding into food product Product Specifications: Spoons with Ergo Grip™ Handles Spoons to be constructed of 20-gauge type stainless steel with nylon ergonomic handle having a heat resistance to 450˚ F (232˚ C). Handles equipped with Agion® antimicrobial protection. Handle shall have textured surface and built-in stopper notch to prevent slippage. Construction shall be a one-piece design with no crevices to collect water or bacteria. Bowl design to be solid, perforated, slotted, and 3-sided. Spoons must have a limited lifetime warranty. NSF certified. HACCP Colored Spoons BLACK WHITE BLUE RED YELLOW GREEN LENGTH CASE DESCRIPTION ITEM ITEM ITEM ITEM ITEM ITEM IN (CM) LOT Solid 64130 6414015 6414030 6414040 6414050 6414070 1313⁄16 (35.1) 12 Perforated 64132 6414215 6414230 6414240 6414250 6414270 1313⁄16 (35.1) 12 Slotted 64134 — — — — — 1313⁄16 (35.1) 12 3-Sided Solid 64136 — — — — — 135⁄16 (33.8) 12 3-Sided Perforated 64138 — — — — — 135⁄16 (33.8) 12 Nylon Prep Spoons Q Available in five colors for use in HACCP programs Q Available in three lengths to fit a variety of needs Q Handles feature a hanging hole for easy storage Q High-temperature nylon — heat resistant to 400˚F (204˚C) Q Ideal for non-stick cookware and will not scratch or mar surfaces Q One-piece construction is extremely durable and has no crevices to collect water or bacteria ITEM COLOR LENGTH : IN (CM) CASE LOT 4689760 Tan 8 ⁄ (21.6) 12 12 4689815 White 12 (30.5) 12 4689830 Blue 12 (30.5) 12 4689840 Red 12 (30.5) 12 4689850 Yellow 12 (30.5) 12 4689860 Tan 12 (30.5) 12 4689960 Tan 15 (38.1) 12 8-19
- 261. vollrathco.com Kitchen Essentials Heavy-Duty Stainless Steel Basting Spoons Q Stainless steel — resistant to corrosion Q One-piece construction is durable and sanitary Q Patented handle with unique turned-down design for unrivaled strength and comfort Q Satin-finish minimizes appearance of wear, hides finger prints and offers tough commercial look Q Unique perforation and slot patterns for optimal draining and faster, more efficient service Product Specifications: Heavy-Duty Stainless Steel Basting Spoons Spoons to be constructed of 16-gauge stainless steel with turned-down handle for SOLID PERFORATED SLOTTED LENGTH CASE ITEM ITEM ITEM IN (CM) LOT added strength and comfort. Construction shall be a one-piece design with no crevices to collect water or bacteria. Bowl design to be solid, slotted or perforated. Satin-finish 64400 64401 64402 113⁄4 (29.8) 12 required to minimize appearance of wear. Spoons to be available in three lengths: 111⁄2, 13”, and 15”. Hanging hole required in end of spoons. Spoons must have a limited 64403 64404 64405 131⁄4 (33.7) 12 lifetime warranty. NSF certified. 64406 64407 64408 151⁄2 (39.4) 12 Standard Stainless Steel High Heat Basting Spoons Nylon Spoons Matching Q 18-gauge stainless steel Spoodle® (page Q High-temperature nylon 8-10) and Turner Q Handle is deep grooved (page 8-24) — heat resistant to 475˚F (246˚C) for strength Q Ideal for non-stick cookware — will not scratch or mar surface Q One-piece construction is Grip ‘N Serv ® extremely durable and has no crevices to collect water or bacteria Handles Q Textured surface on handle Q Thumb notch for comfortable use and to prevents slippage while in use prevent spoon from sliding into pan Q Capacities clearly stamped on Q Handles heat resistant to 230˚F (110˚C) utensil for easy size identification Q 3-sided spoons offer flat cutting edge SOLID PERFORATED SLOTTED LENGTH CASE ITEM ITEM ITEM IN (CM) LOT Patented ergonomic handle 46961 46962 46963 11 (27.9) 12 is comfortable and 46973 46975 46976 13 (33) 12 reduces hand 46981 46983 46985 15 (38.1) 12 fatigue 46990 — — 18 (45.7) 12 Built-in stopper 46995 — — 21 (53.3) 12 notch prevents WITH GRIP 'N SERVE® HANDLES utensils from sliding into food 46945 Solid 14 (35.6) 12 product 46946 Perforated 14 (35.6) 12 WHITE BLACK LENGTH CASE 46947 Slotted 14 (35.6) 12 ITEM ITEM DESCRIPTION IN (CM) LOT 46948 3-sided Solid 133⁄4 (34.9) 12 5284215 5284220 Solid 131⁄4 (33.7) 12 46949 3-sided Perforated 133⁄4 (34.9) 12 5284315 5284320 Slotted 131⁄4 (33.7) 12 8-20
- 262. Kitchen Essentials The Vollrath Company, LLC One-Piece Color-Coded Kool-Touch® Tongs{| One-piece Q 20-gauge stainless steel Construction Q Reduce risk of food borne illness resulting from cross-contamination Q Ideal for maximizing your HACCP program Q Two grip designs: Utility (scalloped) or VersaGrip® Q Available in three sizes Scalloped Grip Features concave ends and gently scalloped teeth. Ideal for almost No pinch design for safer use any area of the kitchen. Open Channel Coated handles are heat VersaGrip® resistant to 180˚F (82˚C) Features flattened ends and gripper and are equipped with teeth. Perfect for grills and broilers. Unique springless design Agion® antimicrobial protection} for food safety eliminates bacteria-prone SCALLOPED VERSAGRIP® LENGTH CASE food traps ITEM ITEM COLOR IN (CM) LOT 4780920 4790920 Black 91⁄2 (24.1) 12 4781220 4791220 Black 12 (30.5) 12 Kool-Touch® color-coded handles provide easy 4781620 4791620 Black 16 (40.6) 12 identification for controlled food contact 4780930 4790930 Blue 91⁄2 (24.1) 12 4781230 4791230 Blue 12 (30.5) 12 Red 4781630 4791630 Blue 16 (40.6) 12 Black 4780940 4790940 Red 91⁄2 (24.1) 12 4781240 4791240 Red 12 (30.5) 12 4781640 4791640 Red 16 (40.6) 12 4780950 4790950 Yellow 91⁄2 (24.1) 12 4781250 4791250 Yellow 12 (30.5) 12 Yellow 4781650 4791650 Yellow 16 (40.6) 12 Tan 4780960 4790960 Tan 91⁄2 (24.1) 12 4781260 4791260 Tan 12 (30.5) 12 Blue 4781660 4791660 Tan 16 (40.6) 12 Green 4780970 4790970 Green 91⁄2 (24.1) 12 4781270 4791270 Green 12 (30.5) 12 4781670 4791670 Green 16 (40.6) 12 { Jacob’s Pride Warranty does not cover Kool-Touch coating ® ® Multi-Pack | See page 8-22 for product specification } See page 8-3 for more information on Agion® antimicrobial protection Color-Coded NSF Utility Tong Color-Coding Q Vollrath's 91⁄2 (24.1 cm) scalloped A convenient and easy way to control food contact and utility-style color-coded tongs cross-contamination. Ideal for HACCP programs. Q Multi-Pack includes 6 color-coded Raw Meats Cooked Foods tongs — one each of black, blue, red, yellow, tan and green Uncooked Fruits and Poultry Vegetables LENGTH CASE ITEM DESCRIPTION IN (CM) LOT Fish Miscellaneous 4780911 Utility Style Multi-Pack 91⁄2 (24.1) 3 Color-Coded Tongs 8-21
- 263. vollrathco.com Kitchen Essentials High Temperature Nylon End One-Piece Tongs Q High-temperature nylon is heat resistant up to 450°F (232°C) * Q Nylon end will not scratch or mar non-stick surfaces Q Coated handle is equipped with Agion® antimicrobial protection{ Q Ergonomic design is comfortable to use and reduces hand fatigue Q One-piece body construction with over-molded end is sanitary and will not come apart Q Concave scalloped utility end gently grips food product Q Heavy-gauge stainless steel body is resistant to corrosion and rusting Q No spring design is safe and sanitary Q Optional black plastisol-coated handle provides cool, comfortable grip and is heat resistant up to 180°F (82°C) Q Dishwasher safe Ideal for non-stick cookware *Warranty does not cover nylon end or plastisol coating DIMENSIONS CASE ITEM DESCRIPTION (LENGTH) - IN (CM) LOT 4780912 Utility Tong w/Nylon End 91⁄ 2 (24.1) 12 4781212 Utility Tong w/Nylon End 12 (30.5) 12 4781612 Utility Tong w/Nylon End 16 (40.6) 12 4780922 Utility Tong w/Nylon End Coated Handle 91⁄ 2 (24.1) 12 4781222 Utility Tong w/Nylon End Coated Handle 12 (30.5) 12 4781622 Utility Tong w/Nylon End Coated Handle 16 (40.6) 12 { See page 8-3 for more information on Agion® antimicrobial protection Heavy-Duty One-Piece Product Specifications: One-Piece Utility and VersaGrip® Tongs Stainless Steel Tongs Tongs to be constructed of 20 gauge stainless steel with turned down handle for added strength and comfort. Construction shall be a one-piece design with no spring or crevices to collect water or Q Special stainless steel for bacteria. Tongs to have “built in memory” so that if opened horizontally they will easily return to their closed state. Handles to be available in plain stainless steel or with Kool touch color-coded layer to enhanced performance complement HACCP programs. Coated handle will be equipped with Agion® antimicrobial protection. Q Unique springless design eliminates Tongs must have a limited lifetime warranty. Made in U.S.A. NSF certified. bacteria-prone food traps Utility Tongs VersaGrip® Heavy-Duty Tongs Q 20-gauge stainless steel Q Ideal for heavy use operations Economy Tongs Q 24-gauge stainless steel Utility HEAVY-DUTY ECONOMY LENGTH CASE ITEM ITEM IN (CM) LOT UTILITY VERSAGRIP® LENGTH CASE ITEM ITEM DESCRIPTION IN (CM) LOT — 47007 7 (17.8) 12 4780910 4790910 Stainless steel tong 91⁄2 (24.1) 12 47309 47110 91⁄2 (24.1) 12 4781210 4791210 Stainless steel tong 12 (30.5) 12 47312 47113 12 (30.5) 12 4781610 4791610 Stainless steel tong 16 (40.6) 12 47316 47116 16 (40.6) 12 8-22
- 264. Kitchen Essentials The Vollrath Company, LLC Heavy-Duty Scissor Tongs Q Chrome-plated wire design 47117 {See page 8-3 for more information Q Extra long length reaches deep into containers on Agion® antimicrobial protection Q Handles are heat resistant to 180˚F (82˚C) Q Available with Kool-Touch® insulated handle — equipped with Agion® antimicrobial protection{ LENGTH CASE ITEM DESCRIPTION IN (CM) LOT 47117 Plated handle 15 (38.1) 12 47325 47325 Kool-Touch® handle 15 (38.1) 12 Tender-Touch Pastry Tongs Spaghetti Tongs 47105 Q Mirror-finished, 16-gauge stainless steel Q Elegant way to enhance your Q Unique ribbed gripping surface holds firmly without exception pasta or salad presentation Q Q Mirror-finished, heavy- Ideal for chicken, fish, and pastry Q Will not tear food duty stainless steel which provides elegance, durability and easy cleaning Q Springless one-piece design eliminates food traps and is dishwasher safe 46988 46989 47107 LENGTH CASE ITEM IN (CM) LOT 47105 8 (20) 12 LENGTH GRIPPING SURFACE CASE ITEM IN (CM) IN (CM) LOT 46988 9 (22.9) 12 47107 91⁄4 (23.5) 11⁄2 x 23⁄4 (3.8 x 7) 12 46989 111⁄2 (29.2) 12 Pom Tongs Heavy-Duty Tongs Q Heavy 20-gauge, stainless steel Q One-piece construction Economy Tongs Q 24-gauge stainless steel Kool-Touch® HEAVY-DUTY HEAVY-DUTY LENGTH ECONOMY ECONOMY ITEM CASE LOT IN (CM) ITEM CASE LOT Heavy-Duty Tongs 47046 36 6 (15.2) 47106 60 Q Heavy 20 gauge stainless steel 47049 24 9 (22.9) 47109 48 Q Cool, comfortable grip 47042 12 12 (30.5) 47112 12 Q Insulated coating permanently bonded to tongs, it will not slip or peel off CASE Q Coated handles are heat resistant to 180˚F (82˚C) and ITEM DESCRIPTION LENGTH IN (CM) LOT equipped with Agion® antimicrobial protection{ 47326 Kool-Touch® pom tongs 6 (15.2) 12 Q Complements most decors 47329 Kool-Touch® pom tongs 9 (22.9) 12 Q Dishwasher safe 47322 Kool-Touch® pom tongs 12 (30.5) 12 Q Kool-Touch® Buffetware — See Page 9-37 { See page 8-3 for more information on Agion® antimicrobial protection 8-23
- 265. vollrathco.com Kitchen Essentials Heavy-Duty Stainless Steel Turners with Ergo Grip™ Handles Q Ergonomic handle is comfortable and reduces hand fatigue Q High-temperature patented nylon handle – heat resistant to 450˚F (232˚C) Q Heavy-gauge stainless steel blade and shaft – resistant to corrosion WHITE BLACK BLADE DIMENSIONS: L X W OVERALL LENGTH CASE ITEM ITEM BLADE IN (CM) IN (CM) LOT 4808715 4808720 Solid, beveled 6 x 3 (15.2 x 7.6) 131⁄2 (34.3) 12 4808815 4808820 Solid 81⁄4 x 27⁄8 (21 x 7.3) 161⁄2 (41.9) 12 4808915 4808920 Perforated 81⁄4 x 27⁄8 (21 x 7.3) 161⁄2 (41.9) 12 High Heat Nylon Turner Pancake Turners Q High-temperature nylon — heat resistant to 475˚F (246˚C) Q Stainless steel flexible blade Q Ideal for non-stick cookware and will not scratch or mar surface Q Welded construction Q Ergonomic handle is comfortable and reduces hand fatigue Q Blade: 31⁄32 x 6 Q One-piece construction (7.7 x 15.2 cm) Q Built-in stopper notch prevents utensils from sliding OVERALL LENGTH CASE Q Textured surface on handle ITEM DESCRIPTION IN (CM) LOT prevents slippage while in use 46933 Solid blade 133⁄4 (34.9) 12 Q 41⁄4L x 31⁄4W 46934 Slotted blade 133⁄4 (34.9) 12 (10.8 x 7.3 cm) blade Small Blade Turner with Grip ‘N Serv® Handle Q 24-gauge stainless steel flexible blade Q Ideal for tortes, lasagna, or other delicate food items WHITE BLACK OVERALL LENGTH CASE Q Grip 'N Serv® black handle is heat resistant ITEM ITEM DESCRIPTION IN (CM) LOT to 230˚F (110˚C) and is equipped with 5284115 5284120 Slotted turner 131⁄2 (34.3) 12 Agion® antimicrobial protection{ Q Blade: 17⁄8 x 33⁄4 (4.8 x 9.5 cm) { See page 8-3 for more Hamburger Turners information on Agion® antimicrobial protection Q Stainless steel OVERALL LENGTH CASE Q Satin-finished blade with ITEM DESCRIPTION IN (CM) LOT riveted wood handle 48085 Small blade turner 101⁄2 (26.7) 12 48081 Stainless Steel Spatula Q 18-gauge stainless steel beveled blade 48080 easily slides under food product Q Tapered nylon handle for sure grip Q Handle is heat resistant up to 475˚F (246˚C) 48082 Q Blade: 47⁄16 x 31⁄8 (11.3 x 7.9 cm) BLADE DIMENSIONS: L X W OVERALL LENGTH CASE ITEM BLADE IN (CM) IN (CM) LOT 48080 Solid, beveled 43⁄4 x 3 (12.1 x 7.6) 11 (27.9) 12 OVERALL DIMENSIONS (L X W) CASE 48081 Solid 73⁄4 x 3 (19.7 x 7.6) 14 (35.6 ) 12 ITEM DESCRIPTION IN (CM) LOT 48082 Perforated 73⁄4 x 3 (19.7 x 7.6) 14 (35.6) 12 46931 Scraper w/black nylon handle 911⁄16 x 31⁄8 (24.6 x 7.9) 12 8-24
- 266. Kitchen Essentials The Vollrath Company, LLC Heavy-Duty Heavy-Duty Long Handle One-Piece Wire Mesh Skimmers Skimmers Q Heavy-duty stainless steel Q One-piece design Q Stainless steel Q Extra thick gauge handle with Q One-piece construction center reinforcing rib provides Q Mirror-finished blade, strength and durability satin-finished handle Q Satin-finished handle hides scratches and wear 46970 Q Hooked handle for convenience Q Long handle for ease of use and safety 46969 HANDLE LENGTH BLADE DIAMETER CASE ITEM IN (CM) IN (CM) LOT HANDLE LENGTH BLADE DIAMETER CASE ITEM IN (CM) IN (CM) LOT 47717 14 (35.6) 61⁄2 (16.5) 12 46969 113⁄4 (29.8) 4 (10.2) 6 47718 14 (35.6) 8 (20.3) 6 46970 125⁄8 (32.1) 6 (15.3) 6 47719 172⁄3 (44.9) 92⁄3 (24.5) 6 Stainless Steel Scoop Two-Piece Skimmers Q Heavy-duty, stainless steel Q Stainless steel Q Mirror-finished inside, satin-finished outside Q Welded construction HANDLE LENGTH BLADE DIAMETER CASE ITEM IN (CM) IN (CM) LOT CAPACITY BOWL SIZE HANDLE LENGTH CASE ITEM OZ (ML) IN (CM) IN (CM) LOT 46972 113⁄4 (29.8) 41⁄2 (11.4) 6 92110 52 (1537.8) 7 ⁄ x 5 ⁄ (20 x 13.3) 78 14 4 (10.2) 6 47175 12 ⁄ (32.4) 34 65⁄16 (16) 6 Cast Aluminum Scoops Ice Cream/Utility Spade Q One-piece construction with capacity Q Stainless steel stamped on handle Q Black plastic handle Q Rounded handle with ergonomic finger grips CAPACITY BOWL SIZE CASE ITEM OZ (ML) IN (CM) LOT 46890 5 (147.9) 43⁄4 x 23⁄8 (12.1 x 6) 24 46891 12 (354.9) 61⁄4 x 31⁄8 (15.9 x 7.9) 24 5280 18 (532.2) 51⁄2 x 3 (14 x 7.6) 6 46892 23 (680.2) 8 x 4 (20.3 x 10.2) 24 46893 40 (1183) 9 x 43⁄4 (22.9 x 12.1) 24 46894 55 (1626.7) 101⁄2 x 51⁄2 (26.7 x 14) 20 ITEM LENGTH: IN (CM) CASE LOT 46895 86 (2543.4) 12 x 6 ⁄ (30.5 x 15.9) 14 20 47165 9 (22.9) 12 8-25
- 267. vollrathco.com Kitchen Essentials Color-Coded Cutting Boards Why Vollrath Cutting Boards? Q High-density, non-porous surface will not stain or absorb juices Vollrath cutting boards are extruded and not injected — Q Color-coded system reduces risk of foodborne illness resulting they will keep their shape after repeated use! from cross-contamination Q Ideal system for maximizing HACCP program ITEM DESCRIPTION: IN (CM) CASE LOT Q 1⁄2 (1.3 cm) thick Q 5200011{ Multi Color Set — 12 x 18 (30.5 x 45.7) 1 Separate rack available (52100) — stainless steel, welded construction, holds up to six boards 5200211{ Multi Color Set — 15 x 20 (38.1 x 50.8) 1 of 3⁄4 (1.9 cm) thickness 5200311{ Multi Color Set — 18 x 24 (45.7 x 60.9) 1 5200000 White — 12 x 18 (30.5 x 45.7) 6 5200200 White — 15 x 20 (38.1 x 50.8) 6 5200300 White — 18 x 24 (45.7 x 60.9) 6 5200030 Blue — 12 x 18 (30.5 x 45.7) 6 5200230 Blue — 15 x 20 (38.1 x 50.8) 6 5200330 Blue — 18 x 24 (45.7 x 60.9) 6 5200040 Red — 12 x 18 (30.5 x 45.7) 6 5200240 Red — 15 x 20 (38.1 x 50.8) 6 5200340 Red — 18 x 24 (45.7 x 60.9) 6 5200050 Yellow — 12 x 18 (30.5 x 45.7) 6 5200250 Yellow — 15 x 20 (38.1 x 50.8) 6 5200350 Yellow — 18 x 24 (45.7 x 60.9) 6 5200060 Tan — 12 x 18 (30.5 x 45.7) 6 5200260 Tan — 15 x 20 (38.1 x 50.8) 6 5200360 Tan — 18 x 24 (45.7 x 60.9) 6 5200070 Green — 12 x 18 (30.5 x 45.7) 6 5200270 Green — 15 x 20 (38.1 x 50.8) 6 5200370 Green — 18 x 24 (45.7 x 60.9) 6 52100 Cutting board rack - 8 x 10 x 9 (20.3 x 25.4 x 27.8) 1 { Includes six boards — one of each color Rocker Knife Q Stainless steel knife Q Polypropylene handle Q Ideal for quick and efficient cutting LENGTH CASE ITEM IN (CM) LOT 68720 20 x 4 (51 x 10) 2 Ensure Safe Food Handling 1. Require strict personal hygiene for all employees 5. Chill cooked food to 40˚F (4˚C) within four hours Follow HACCP guidelines for preventing Reheat food to an internal temperature of at least 2. 6. cross-contamination and storing and handling food 165˚F (74˚C) within two hours 3. Cook or heat food to above the recommended 7. Clean and sanitize food-contact surfaces and equipment before and minimum temperature after every use and at least every four hours during continual use 4. Keep hot foods hot: 140˚F (60˚C) and cold foods cold: 40˚F (4˚C) 8. Use Vollrath products to maximize food safety in your operation 8-26
- 268. Kitchen Essentials The Vollrath Company, LLC High-Temperature Utensils Q Ideal for use with non-stick cookware Q Dishwasher safe Non-scratching silicone rubber spoon/blade is stain and odor resistant Spatulas Nylon handle and silicone blade heat resistant to 500˚F (260˚C) Molded together to form sanitary seal — eliminates food traps Unique contoured handle offers comfortable grip and hangs conveniently Molded silicone rubber nubs keep blade off counter High-Temp Spatulas High-Temp SoftSpoon™ Q Contoured flexible blade for use Q Spoon shaped blade for convenient with any shape container scooping of food products LENGTH CASE LENGTH CASE ITEM IN (CM) LOT ITEM IN (CM) LOT 52010 10 (25.4) 6 58110 10 (25.4) 6 52023 131⁄2 (34.3) 6 58123 131⁄2 (34.3) 6 SoftSpoon™ 52026 16 ⁄ (41.9) 12 6 58126 16 ⁄ (41.9) 12 6 With their non-abrasive, high heat, and stain Non-Stick resistant blades, our high temperature utensils are ideal for use with non-stick cookware. Cookware See pages 7-8, 7-16 to 7-18 and 7-22 Plastic Spatula and SoftSpoon™ Utensils Q Thermoplastic blade and Spatulas strong polypropylene handle Q Contoured flexible blade for molded together to form a use with any shape container sanitary seal Q Flexible blade retains its LENGTH CASE ITEM IN (CM) LOT shape up to 212˚F (100˚C) Q Dishwasher safe 52009 95⁄8 (24.4) 6 52013 135⁄8 (34.6) 6 52016 165⁄8 (42.2) 6 SoftSpoon™ Q Spoon shaped blade for convenient scooping of food products LENGTH CASE ITEM IN (CM) LOT 52109 91⁄2 (24.1) 6 52113 131⁄2 (34.3) 6 52116 161⁄2 (41.9) 6 8-27
- 269. vollrathco.com Kitchen Essentials Stainless Steel Transfer Vessels/Ramekins Q Stainless steel — resistant to corrosion and dishwasher safe Q One-piece construction is durable and easy to clean Q Capacities clearly stamped on product Q Spouted bowl provides directional pour — no mess Q Transfer vessels have gradation lines for easy measurement, ramekins have no measurement markings Q Comfortable round handle for a sure grip Q Mirror-finished exterior provides upscale look Q Satin-finished interior and bottom minimizes wear and scratches Q Ideal for dry or wet ingredients TRANSFER CAPACITY BOWL HEIGHT BOWL DIAMETER HANDLE LENGTH CASE VESSEL OZ (ML) IN (CM) IN (CM) IN (CM) LOT 46656 4 (118) 11⁄2 (3.7) 31⁄16 (7.9) 13 16⁄ (2.0) 12 46657 8 (236) 1 ⁄ (4.9) 15 16 3 ⁄ (9.8) 78 78 ⁄ (2.2) 12 46658 12 (354) 23⁄16 (5.5) 47⁄16 (11.2) 15 16⁄ (2.4) 12 46659 16 (473) 27⁄16 (6.1) 47⁄8 (12.3) 11⁄8 (2.9) 12 CAPACITY BOWL HEIGHT BOWL DIAMETER HANDLE LENGTH CASE RAMEKIN OZ (ML) IN (CM) IN (CM) IN (CM) LOT 46654 2 (59.1) 11⁄ 4 (3.1) 27⁄ 16 (6.1) 13 ⁄ 16 (2.0) 12 3 3 7 46655 3 (88.7) 1 ⁄ 8 (3.5) 2 ⁄ 4 (7.1) ⁄ 8 (2.2) 12 46661 4 (118.0) 11⁄ 2 (3.7) 3 (7.6) 13⁄ 16 (2.0) 12 Measuring Ladles Six-Piece Oval Q Small capacity bowls for measuring/serving small portion items Measuring Spoon Set Q Bowl shape is ideal for getting into small openings Q Q Stainless steel Short 6 (15.2cm) handles easily fit into tight areas Q Q Unique oval bowl for easy pouring Stainless steel is resistant to corrosion and rusting Q and getting into small openings Capacities clearly stamped on product in both ounces and Q Capacities clearly stamped on milliliters for easy size identification Q product for easy identification Ladle set includes all five sizes and is secured with stainless Q Set is secured with stainless steel ring steel ring for convenient storage ITEM DESCRIPTION CASE LOT 46588 6-piece measuring spoon set, 1 Tbsp (15 ml), 12 2 tsp (10 ml), 1 tsp (5 ml), 1⁄2 tsp (2.5 ml), 1⁄4 tsp (1.25 ml), 1⁄8 tsp (.625 ml) Four-Piece Measuring Spoon Sets Q Stainless steel Q Capacities clearly 47118 stamped on product for easy identification Q Set is secured with stainless steel ring CAPACITY CASE ITEM SIZE (ML) LOT Q 46589 provides straight 46589 44567 1 ⁄ 8 tsp (0.5) 6 edge for leveling ingredients 44568 1⁄ 4 tsp (1) 6 1⁄ 2 CASE 44569 tsp (2.5) 6 ITEM DESCRIPTION LOT 44570 1 tsp (5) 6 47118 4-piece round measuring spoon set, 1 Tbsp (15 ml), 12 44571 1 Tbsp (15) 6 1 tsp (5 ml), 1⁄2 tsp (2.5 ml), 1⁄4 tsp (1.25 ml) 44572 5 pc. Measuring Set, 1/ea. 1⁄ 8 tsp (0.5 ml), 1⁄ 4 tsp 12 Sets 46589 4-piece straight-sided measuring spoon set, 1 Tbsp 12 (1 ml), 1⁄ 2 tsp (2.5 ml), 1 tsp (5 ml), 1 Tbsp (15 ml) (15 ml), 2 tbsp (30 ml), 2 tsp (10 ml), 1 tsp (5 ml) 8-28
- 270. Kitchen Essentials The Vollrath Company, LLC Long Handled Heavy-Duty Round Measuring Spoons Measuring Spoons Q 14 long handled spoons designed for commercial size spice jars Q Round spoons ideal for spices, coffee and tea Q Seamless construction for greater durability and easy cleaning Q Seamless construction for greater durability and easy cleaning Q Heavy-gauge stainless steel Q Heavy-gauge stainless steel Q Capacities clearly stamped for easy identification Q Capacities clearly stamped for easy identification CAPACITY LENGTH CASE ITEM TSP/TBSP (ML) IN (CM) LOT 47025 ⁄ tsp (1.25) 14 151⁄4 (38.7) 12 47026 ⁄ tsp (2.5) 12 153⁄8 (39.1) 12 CAPACITY LENGTH CASE 47027 1 tsp (5) 159⁄16 (39.6) 12 ITEM TSP/TBSP (ML) IN (CM) LOT 47028 1 Tbsp (15) 16 (40.7) 12 47075 1 tsp (5ml) 6 (15.2) 24 47029 2 Tbsp (30) 165⁄16 (41.5) 12 47076 1 Tbsp (15ml) 61⁄2 (16.4) 24 47031 5-piece measuring spoon set, one of each — 12 47077 2 Tbsp (30ml) 63⁄4 (17.2) 24 2 Tbsp (30 ml), 1 Tbsp (15 ml), 1 tsp (5 ml), sets 47078 3-piece measuring spoon set, one of each — 12 1⁄2 tsp (2.5 ml), 1⁄4 tsp (1.25 ml) 2 Tbsp (30 ml), 1 Tbsp (15 ml), 1 tsp (5 ml) sets Heavy-Duty Oval Four-Piece Measuring Scoops Measuring Cup Set Q Oval scoops ideal for batters Q Stainless steel and thick food product Q Welded stainless rod handles Q One-piece construction for Q Capacities stamped in both English and metric scales easy cleaning Q Integral spout makes no-spill pouring a breeze Q Heavy-gauge stainless steel Q Cups nest for convenient storage Q 47055 Capacities clearly stamped Q All cups graduated with smaller sizes for easy identification Q Dishwasher safe Q Tapered bowl allows for easy pouring 47054 - Set CAPACITY LENGTH CASE ITEM CUP (ML) IN (CM) LOT 47055 ⁄ cup (30ml) 18 83⁄4 (22.1) 12 47056 ⁄ cup (60ml) 14 91⁄16 (23.1) 12 47057 ⁄ cup (80ml) 13 93⁄4 (24.7) 12 ITEM DESCRIPTION CASE LOT 47058 ⁄ cup (120ml) 12 101⁄16 (25.5) 12 47059 1 cup (240ml) 11 (27.9) 12 47119 4-piece measuring cup set, 1 cup (240 ml), 12 1⁄2 cup (120 ml), 1⁄3 cup (80 ml), 1⁄4 cup (60 ml) 47054 Set of one each — ⁄ , ⁄ , and ⁄ cup 18 14 12 5 sets 8-29
- 271. vollrathco.com Kitchen Essentials Mobile Bowl Stands 79301 Q All-welded, tubular heavy-gauge stainless steel construction Q 4 diameter swivel casters with 2 locking casters on 79302 and 79301; 4 locking casters on 79818 Q No assembly required 79302: 30 qt (28.4 L) Mobile Bowl Stand with Tray Slides Q Holds up to four full-size sheet pans Q Horizontal width between tray risers: 171⁄4 (44 cm) Q Vertical distance between tray risers: 411⁄16 (12 cm) 79302 DIMENSIONS CASE ITEM DESCRIPTION IN (CM) LOT Stand w/one 30 qt 223⁄8 x 22 x 321⁄4 1 79301 (28.4 L) 79300 bowl (56.8 x 55.9 x 81.9) 79001 Open 30 qt Stand only — 1 79300 30 qt (28.4 L) bowl only 215⁄8 Dia. x 77⁄8 H. (54.9 x 20) 1 Stand w/one 30 qt 22 ⁄ x 22 x 32 ⁄ 38 14 1 79302 (28.4 L) 79300 bowl (56.8 x 55.9 x 81.9) 79002 Tray Slide 30 qt Stand only — 1 79300 30 qt (28.4 L) bowl only 215⁄8 Dia. x 77⁄8 H. (54.9 x 20) 1 Stand w/one 80 qt 301⁄8 x 323⁄8 x 321⁄2 1 79818 (75.7 L) 79800 bowl (76.5 x 82.2 x 82.6) 79818 79018 80 qt Stand only — 1 79800{ 80 qt (75.7 L) bowl only 305⁄8 Dia. x 111⁄2 H. (77.8 x 29.2) 1 { Round bottom Heavy-Duty Stainless Steel Mixing Bowls Q Heavy-gauge 300 series stainless steel Q Precise capacities Q Concave bottoms sit flat on countertop Q Consistent size and dimensions make nested storage easy Q Satin-finished interior Q Stain and scratch resistant Q Proper weighting prevents tipping when in use CAPACITY DIAMETER DEPTH CASE CAPACITY DIAMETER DEPTH CASE ITEM QT (L) IN (CM) IN (CM) LOT ITEM QT (L) IN (CM) IN (CM) LOT 68750 ⁄ (0.5) 12 51⁄4 (13.3) 2 (5.1) 12 69080 8 (7.6) 131⁄4 (33.7) 53⁄8 (13.7) 3 69006 ⁄ (0.7) 34 6 ⁄ (15.9) 14 2 ⁄ (6) 38 6 69130 13 (12.3) 16 (40.6) 6 (15.2) 3 69014 11⁄2 (1.4) 73⁄4 (19.7) 3 (7.6) 6 79300| 30 (28.4) 215⁄8 (54.9) 77⁄8 (20) 1 69030 3 (2.8) 9 ⁄ (23.8) 38 4 (10.2) 6 79450| 45 (42.6) 25 ⁄ (64.1) 14 81⁄2 (21.6) 1 69040 4 (3.8) 103⁄8 (26.4) 41⁄4 (10.8) 6 79800|} 80 (75.7) 305⁄8 (77.8) 111⁄2 (29.2) 1 69050 5 (4.7) 113⁄4 (29.8) 41⁄2 (11.4) 6 | NSF certified } Round bottom 8-30
- 272. Kitchen Essentials The Vollrath Company, LLC Economy Stainless Steel Four-Quart Urn Cup Mixing Bowls Q Heavy-gauge, 300 series stainless steel Q Graduated in quarts Q Bright mirror-finished stainless steel Q Comfortable tubular handle Q Beaded edge Q Flared edge makes pouring easy Q Dishwasher safe Q Flat bottoms sit flat on countertops CAPACITY DIAMETER CASE ITEM QT (L) IN (CM) LOT 47930 ⁄ (0.7) 34 61⁄2 (16.5) 12 47932 1 ⁄ (1.4) 12 73⁄4 (19.7) 12 47933 3 (2.8) 9 (22.9) 12 47934 4 (3.8) 1011⁄16 (27.1) 12 47935 5 (4.7) 113⁄4 (29.8) 12 47938 8 (7.6) 131⁄2 (34.3) 12 CAPACITY DIMENSIONS: DIAMETER X H CASE 47943 13 (12.3) 16 (40.6) 6 ITEM QT (L) IN (CM) LOT 47946 16 (15.1) 171⁄2 (44.5) 6 4 71⁄4 x 61⁄8 79540 4 47949 20 (18.9) 19 (48.3) 6 (3.8) (18.4 x 15.6) Stainless Steel Aluminum Measures Graduated Measures Q Impact-resistant 3004 aluminum Q Specially designed lip for no-spill pouring Q 18 gauge 300 series stainless steel Q Each embossed bar denotes 1⁄4 of measurement Q Easy-to-read graduation marks in ounces and cc's on inside Q Welded handles Q Pouring spout and welded comfortable handle for ease of use Q Beveled lip CAPACITY OVERALL HEIGHT CASE ITEM QT (L) IN (CM) GAUGE LOT 5350 1 ⁄4 (0.24) 3 (7.6) 18 6 CAPACITY CAPACITY HEIGHT TOP DIA. HANDLE LENGTH CASE ITEM QT (L) OZ (ML) IN (CM) IN (CM) IN (CM) LOT 68297{ 12 ⁄ (0.5) 43⁄16 (10.6) 18 6 95160 ⁄ (0.5) 16 (473.2) 12 45⁄8 (11.7) 33⁄4 (9.5) 39⁄16 (9) 6 68296 1 (0.9) 57⁄16 (14) 18 6 95320 1 (0.9) 32 (946.4) 51⁄4 (13.3) 45⁄8 (11.6) 39⁄16 (9) 6 68351 2 (1.9) 71⁄16 (18) 17 6 95640 2 (1.9) 64 (1892.7) 63⁄4 (17.1) 59⁄16 (14) 45⁄16 (10.9) 6 68352 4 (3.8) 91⁄4 (23.5) 16 6 { Not NSF Certified 8-31
- 273. vollrathco.com Kitchen Essentials Aluminum Colanders Stainless Steel Colanders Q Heavy-gauge, impact-resistant 3004 aluminum Q Stainless steel Q Full-ring welded base for added stability Q All-welded construction Q Thick rim and walls resist denting Q Strong side handles for easy transport Q Strong riveted handles make transport easy Q Full-ring base for added stability CAPACITY DIAMETER DEPTH CASE ITEM QT (L) IN (CM) IN (CM) LOT 47963 3 (2.8) 83⁄4 (22.2) 31⁄4 (8.3) 6 SIZE TOP DIAMETER OVERALL HEIGHT CASE ITEM QT (L) IN (CM) IN (CM) GAUGE LOT 47965 5 (4.7) 11 ⁄4 (28.6) 1 33⁄4 (9.5) 6 68298 11 (10.4) 153⁄16 (38.6) 83⁄16 (20.8) 10 2 47969 8 (7.6) 135⁄16 (33.8) 41⁄4 (10.8) 6 68350 16 (15.1) 167⁄16 (41.8) 91⁄2 (24.1) 8 1 47974 14 (13.2) 163⁄16 (41.1) 51⁄2 (14) 6 Wire Mesh Strainers China Caps Q Retinned wire mesh strainers Q Stainless steel Q Reinforced wire rims for added strength Q Comfortable welded handle Q Double pan hooks Q Convenient bowl clip Q Lacquered wooden handles Q Fine mesh: 1⁄16 (1.6 mm) perforations Q Coarse mesh: 3⁄32 (2.4 mm) perforations FINE COARSE DIAMETER DEPTH LENGTH CASE ITEM ITEM IN (CM) IN (CM) IN (CM) LOT 47166 47176 8 (20.3) 8 (20.3) 18 (45.7) 6 47167 47177 93⁄4 (24.8) 10 (25.4) 20 (50.8) 6 47168 47178 12 (30.5) 12 (30.5) 22 (55.9) 6 Professional Strainer Q Aluminum Q Hole diameter: 1⁄16 (0.2 cm) Q Ideal for draining pasta, stocks, DIAMETER HANDLE LENGTH CASE ITEM IN (CM) IN (CM) LOT or vegetables FINE 47188 61⁄4 (15.9) 6 (15.2) 12 CAPACITY DIAMETER CASE 47189 8 (20.3) 61⁄2 (16.5) 12 ITEM QT (L) IN (CM) LOT 47190 101⁄4 (26) 9 (22.9) 12 4605 5 (4.7) 111⁄4 (28.6) 4 FINE DOUBLE 47191 61⁄4 (15.9) 6 (15.2) 12 47192 8 (20.3) 61⁄2 (16.5) 12 Professional China 47193 MEDIUM 101⁄4 (26) 9 (22.9) 12 Cap Strainer Q 3004 Aluminum 47194 61⁄4 (15.9) 6 (15.2) 12 Q Hole diameter: 1⁄16 (0.2 cm) 47195 8 (20.3) 61⁄2 (16.5) 12 Q Equipped with two hooks for hanging 47196 101⁄4 (26) 9 (22.9) 12 MEDIUM DOUBLE over the edge of a stock pot 47197 61⁄4 (15.9) 6 (15.2) 12 CAPACITY DIAMETER CASE 47198 8 (20.3) 61⁄2 (16.5) 12 ITEM QT (L) IN (CM) LOT 47199 101⁄4 (26) 9 (22.9) 12 4700 5.5 (5.2) 103⁄4 (27.3) 4 8-32
- 274. Kitchen Essentials The Vollrath Company, LLC Stainless Steel Tapered Dairy or Utility Pails Food Containers Q 300 series stainless steel Q 300 series Q Pails clean easily to reduce the danger of bacteria growth stainless steel Q 58161 pail with side tilting handle available Q Welded handles Q 58030 hook-on pail cover sold separately Q Smooth, seamless construction makes pans ideal for food preparation 58030 CAPACITY DIAMETER DEPTH CASE ITEM QT (L) IN (CM) IN (CM) LOT 72120 12 (11.4) 161⁄2 (41.9) 51⁄8 (13) 3 72240 24 (22.7) 21 ⁄ (55.2) 34 6 ⁄ (15.5) 18 3 58130 Covered Ice Cream or 59120 Tote Pail 58161 Q 22 gauge 300 series stainless steel Tapered Dairy Pails Q Seamless construction CAPACITY TOP DIAMETER X HEIGHT CASE for easy cleaning ITEM QT (L) IN (CM) GAUGE LOT Q Comes with one 58130 121⁄2 (11.8) 12 x 10 (30.5 x 25.4) 18 3 cover that can hang 58160 143⁄4 (13.9) 12 x 101⁄8 (30.5 x 25.7) 18 3 on side of pail 58200 23 (21.8) 147⁄8 x 117⁄8 (37.8 x 30.2) 18 3 Utility Pails CAPACITY TOP DIAMETER X HEIGHT CASE CAPACITY TOP DIAMETER X HEIGHT CASE ITEM QT (L) IN (CM) LOT ITEM QT (L) IN (CM) GAUGE LOT 59200 20 (18.9) 97⁄32 x 1613⁄16 (24.2 x 42.7) 1 59120 13 (12.3) 113⁄8 x 93⁄8 (28.9 x 23.8) 20 3 59202 Extra cover for tote pail 1 59150 16 (15.1) 117⁄8 x 93⁄4 (30.2 x 25.8) 20 3 Tapered Dairy Pails - with Side Tilting Handle Stainless Steel CAPACITY TOP DIAMETER X HEIGHT CASE ITEM QT (L) IN (CM) GAUGE LOT Funnels 58161 143⁄4 (13.9) 12 x 101⁄8 (30.5 x 25.7) 16 1 Q Stainless steel Q Hanging ring for Hook-On Pail Cover easy storage ITEM DESCRIPTION GAUGE CASE LOT Q Capacity markings for easier selection 58030 Pail cover for 58161, 58130 58160 16 3 TOP VENT VENT CAPACITY DIAMETER HEIGHT LENGTH DIAMETER{ CASE ITEM OZ (ML) IN (CM) IN (CM) IN (CM) IN (CM) LOT 84740 63⁄8 41⁄8 43⁄8 11⁄2 5⁄8 6 (188.5) (10.5) (11.1) (3.8) (.63) 84750 13 5 53⁄8 11⁄2 5⁄8 6 (384.5) (12.7) (13.7) (3.8) (.63) 84760 221⁄4 6 63⁄8 11⁄2 5⁄8 6 (658) (15.2) (16.2) (3.8) (.63) 84770 32 63⁄4 71⁄4 21⁄2 1 6 84780 (946.4) 64 (17.1) 83⁄8 (18.4) 83⁄4 (6.4) 21⁄2 (2.5) 1 6 Quality (1892.7) { Outer vent diameter (21.3) (22.2) (6.4) (2.5) you can Trust … since 1874 8-33
- 275. vollrathco.com Kitchen Essentials Aluminum Dredges Q 18-gauge aluminum Q 68181/68182: Q Available with or without riveted handle Hole diameter — .075 (.19 cm) Q Q 68183/68184: Ideal for shaking salt, spices, and powdered sugar Hole diameter — .047 (.12 cm) Q 155 holes HOLE DIAMETER OVERALL SIZE CAPACITY CASE ITEM DESCRIPTION IN (CM) IN (CM) OZ (ML) GAUGE LOT 68181 Large hole w/o handle .075 (.19) 23⁄4 x 33⁄4 (7 x 9.5) 10 (295.7) 18 12 68182 Large hole w/handle .075 (.19) 23⁄4 x 33⁄4 (7 x 9.5) 10 (295.7) 18 12 68183 Small hole w/o handle .047 (.12) 23⁄4 x 33⁄4 (7 x 9.5) 10 (295.7) 18 12 68184 68183 68184 Small hole w/handle .047 (.12) 2 ⁄ x 3 ⁄ (7 x 9.5) 34 34 10 (295.7) 18 12 Flat Bottom Steak Weights Grid Bottom Steak Weights Q Q Wood handle Stainless steel construction for long life Q Q Speed cooking of meats and Plastisol-coated handle improves heat resistance Q bacon without curling - saving Color-coded handle helps reduce cross contamination time and reducing waste Q Welded handle provides durability 47709 Q Flat bottom with no crevices for food to collect 47708 56852 57502 Note: See page 8-3 for more information on Agion® antimicrobial protection WEIGHT SIZE CASE WEIGHT SIZE CASE ITEM DESCRIPTION LBS (KG) IN (CM) LOT ITEM DESCRIPTION LBS (KG) IN (CM) LOT 56852 Red Handle 1.6 9 x 41⁄2 12 47708 Stamped, chrome- 21⁄2 9 x 41⁄2 12 (0.73) (22.9 x 11.4) plated steel (1.13) (22.9 x 11.4) 57502 Yellow Handle 1.6 9 x 41⁄2 12 47709 Cast aluminum 11⁄4 9 x 41⁄2 12 (0.73) (22.9 x 11.4) (.57) (22.9 x 11.4) Griddle Stone System Meat Tenderizer Q Cannot mar the griddle Q Cast aluminum mallet Q Does not absorb Q One side has coarse prongs, other grease or odor side fine prongs Q Optional aluminum Q Solid hardwood handle griddle stone handle provides a firm grip SIZE: L X W X H CASE ITEM DESCRIPTION IN (CM) LOT OVERALL LENGTH MALLET SIZE CASE 47710 Stone only 9 x 4 x 4 (22.9 x 10.2 x 10.2) 12 ITEM IN (CM) IN (CM) LOT 47711 Aluminum handle only — fits 47710 stone 6 47712 13 (33) 3 x 25⁄8 (7.6 x 6.7) 12 8-34
- 276. Kitchen Essentials The Vollrath Company, LLC Pie Markers Egg Slicer Q Mark your pies for repeatable portions Q Heavy-duty cast aluminum body Q Reduce waste and control costs Q 10 wires Q Cast aluminum with plastic handle DIAMETER CASE ITEM DESCRIPTION IN (CM) LOT 47050 6-cut 711⁄16 (19.5) 6 47051 7-cut 73⁄16 (18.3) 6 ITEM DIAMETER: IN (CM) CASE LOT 47052 8-cut 7 ⁄ (19.4) 58 6 47040 4 ⁄ (11.4) 12 12 Cheese Cutter Hamburger Q Heavy-duty chrome-plated handle Patty Mold Q Aluminum roller Q Q Heavy-duty chrome-plated Adjustable rust-proof wire Q Maximum cutting width: 4 (10.1 cm) ITEM WIDTH: IN (CM) CASE LOT ITEM DIAMETER: IN (CM) CASE LOT 47700 5 (12.7) 12 47705 4 ⁄ (12.1) 34 12 Sauce Dispenser Holder Stainless Steel Batter Can Q 300 series stainless steel Q Heavy-duty, mirror-finished Q Cool, hollow handle Q All welded construction stainless steel Q Large, hinged cover Q Q Ideal for batters during and easy pour spout Designed to be dropped into 1 ⁄9 size opening in counter food preparation or Q Accommodates two 12 table service ounce squeeze dispensers{ Q Containers can be placed tip down, ensuring product will drain to the tip, ready to serve Q Attached drip pan will catch product that leaks Q Holder can be easily removed for cleaning ITEM DESCRIPTION CASE LOT ITEM CAPACITY: QT (L) HEIGHT: IN (CM) CASE LOT 56116 Squeeze bottle holder 6 46572 2 (1.9) 81⁄2 (21.6) 6 { Dispensers not included, see Page 9-66 8-35
- 277. vollrathco.com Kitchen Essentials Potato Cutters Sanitary Drain Box Q Heavy, strong, nickel-plated ductile cast iron frame Q Impact-resistant, natural color, high-density polyethylene and sure grip handle Q Set includes 5 (12.7 cm) deep drain box and 7 (17.8 cm) Q Screw holes on base of legs for permanent deep holding box and cover mounting to table or wall Q Ideal for thawing and draining Q Clean and durable stainless steel V trough fish, poultry, fruits and guarantees smooth operation vegetables or keeping Q Dimensions: prepared foods iced 1⁄2 (29.2 cm) long at base before serving 1⁄2 (87.6 cm) long x 23 (58.4 cm) high with open handle ITEM DESCRIPTION CASE LOT Wall hanger bracket holds potato cutters securely 52618 Complete set drain box kit — natural 1 on wall to save counter space 1 each, 52616, 52657, 52422 52616 Perforated drain box only — natural 6 20 x 15 x 5 (50.8 x 38.1 x 12.7 cm) 47703 Stainless Skewers Q Stainless steel Q Oval design for easy insertion and additional holding power 47713 Q Cleans easily and promotes faster cooking ITEM DESCRIPTION CASE LOT 47703 Wedge cut, 8-cut 1 47713 French fry, 3⁄8 (1 cm) cut size 1 47714 French fry, 7⁄16 (1.1) cut size 1 LENGTH CASE 47715 French fry, 9⁄32 (0.7) cut size 1 ITEM IN (CM) LOT 45682{ Potato cutter wall hanger bracket 1 47173 10 (25.4) 36 { Screws not included Note: Replacement blades and parts available 47174 12 (30.5) 36 E-Z Juice Extractor Milk Stirrer/Masher Q Superior leverage for Q Perforated blade with maximum juice output extra long welded handle Q Heavy-duty enamel-coated Q Stainless steel blade cast iron base and handle Q Rubber feet assure no-slide use Q Requires minimal 8 x 9 (20.3 x 22.9 cm) tabletop space Q Overall height: 26 (66 cm) with handle in upright position HANDLE LENGTH BLADE DIAMETER HOLE DIAMETER CASE ITEM DESCRIPTION CASE LOT ITEM IN (CM) IN (CM) IN (CM) LOT 47704 Juice extractor 1 92320 26 (66) 5 (12.7) 11⁄16 (2.7) 6 8-36
- 279. Buffet and TabletopService Miramar® Display Miramar® Templates Colored Double Cookware and Pans Wall Bowls Fresh from the kitchen to the Add elegance to your buffet In many beautiful styles and many customer – cook and serve in the same presentation. Ideal for hot and convenient sizes, these bowls vessel. Tri-ply material provides heat cold applications provide a practical and elegant dissipation up the sides of the pan. presentation for hot or cold food. Vollrath “Green” Facts for Buffet and Table Top Service: Vollrath’s Stainless Steel Electric Chafer Heater cuts food warming costs by 93% ($840 per year per chafer), eliminating the high cost and waste of using canned heat. Double Wall Bowls offer a unique insulated design to keep hot foods hot and cold foods cold for longer, preventing needless energy loss. Stainless steel is continuously recycled in a sustainable closed loop system. For more details on Vollrath’s green products, visit www.vollrathco.com/green 9-2
- 280. Buffet and TabletopService The Vollrath Company, LLC Colored Double Wall Insulated Serving Bowls Add a splash of color to your buffet, display case or tabletop with Vollrath’s new Colored Double Wall Insulated Serving Bowls. Choose from twelve different colors/finishes, and mix and match to create a theme for any occasion. Perfect for serving hot or cold menu items. Available in five different sizes in round or square shapes. See pages 9-43 for more information We have the selection you need to create nearly any display. Eleven colors. Available in Round .75 Qt. (.7 L), 1.7 Qt. (1.6 L), 3.4 Qt. (3.2 L), 6.9 Qt. (6.6 L) and 10.1 Qt. (9.6 L) or Square .75 Qt. (.7 L), 1.8 Qt. (1.7L), 3.2 Qt. (3L), 5.2 Qt. (4.9L) and 8.2 Qt. (7.8L) Q Bowls won't sweat Q Maintains temperature of hot or cold foods Square Beehive Double Wall Round Beehive Double Wall Q Satin-finished stainless steel interior Insulated Bowl Insulated Bowl Q Dishwasher safe Twelve Colors/Finishes to choose from. Metallic Colors Classic Colors Cabernet (20), Lemon Lime (30), Dazzle Red (15), Tangelo (10) Black Black (60), Nugget Yellow (45), Fire Engine Red (55), and Cobalt Blue (25)(Polished Green Apple (35), Pearl White (50) and Brazilian Blue (40) stainless steel available) 9-3
- 281. vollrathco.com Buffet and Tabletop Service Beautiful Colors. Beautiful Food. It’s easy to create enticing buffets and displays for themed events and parties with Vollrath’s Colored Double Wall Bowls. From Black Tie events to festive holidays colors, you can choose from the eleven different colors/finishes to create a unique presentation for any occasion. For product selection details see pg 9-43 . Black Tie Event Fourth of July Party New Year’s Eve Grocery Store Display Case 9-4
- 282. Buffet and TabletopService The Vollrath Company, LLC Miramar® Display Cookware Fresh from the kitchen to the customer! Miramar Display Cookware makes it possible to cook and serve in the same vessel. Give your customers the Induction impression of home-cooked foods with an elegant presentation. Electric Gas The display cookware that really cooks! Goes from the Kitchen… 49418 12 Stir Fry Pan 49411 5 qt Casserole 49433 49410 Large Food Pan 3 qt Casserole w/Handles 49435 Small Food Pan w/ Handles 49425 12 Brazier Pan 82506XX 49424 Template French Omelet Pan 82507XX Template 82508XX Template …to the customer! Cookware items have satin-finished interior and exterior Miramar® Cookware Features: Q with mirror-finished handles Q Extremely durable - thick 3-ply construction provides product longevity Q Au Gratin, Food Pans and French Oven have full mirrored finish 18-8 stainless steel interior does not affect color or flavors of food Q Unique handle design allows for easy removal from templates 3004 aluminum core provides even Q Handle design serves as a convenient cover rest on heat on bottom of pan and side walls Casseroles, Sauté Pan and French Omelet Pan 18-0 stainless steel exterior for durability and Q Use in any typical display areas: heated shelves, steam use with gas, electric or induction ranges table with templates and induction ranges ... but with quality only seen in commercial cookware. 9-5
- 283. vollrathco.com Buffet and Tabletop Service 49428 13 Stir Fry Server 49418 12 Stir Fry Pan 49425 12 Brazier Pan 49413 10 Sauté Pan 49410 49411 Casseroles 49424 10 French Omelette Pan 49430 49412 1 qt Butter Melter 12 Oval Au Gratin 49432 49434 49435 49433 49431 ® Miramar Cookware Q See pages 9-8 through 9-13 for more Miramar® Pans and Templates CAPACITY PAN ONLY DIMENSIONS (INNER DIMENSIONS, ID) DIMENSIONS W/ HANDLE (OVERALL DIMENSIONS, OD) CASE DESCRIPTION ITEM QUART LITER LENGTH IN (CM) WIDTH IN (CM) HEIGHT IN (CM) LENGTH IN (CM) WIDTH IN (CM) HEIGHT IN (CM) LOT 49410 Casserole 3 qt with low dome cover 3 2.9 77⁄8 (20) 77⁄8 (20) 33⁄4 (9.5) 121⁄4 (31.1) 81⁄4 (20.9) 51⁄2 (14) 1 49411 Casserole 5 qt with low dome cover 5 4.8 9 ⁄ (24.1) 12 9 ⁄ (24.1) 12 4 ⁄ (11.3) 7 16 13 ⁄ (35) 34 9 ⁄ (24.8) 34 61⁄4 (15.9) 1 49412{ Oval au gratin 12 25⁄8 2.5 12 (30.5) 81⁄2 (21.6) 2 (5.1) 16 (40.6) 91⁄4 (23.5) 3 (7.6) 1 49413 Sauté pan 10 21⁄4 2.1 101⁄4 (26) 101⁄4 (26) 17⁄8 (4.8) 22 (55.9) 101⁄2 (26.7) 3 (7.6) 1 49424 French omelet pan 10 3⁄ 1 16 2.9 10 ⁄ (26) 14 10 ⁄ (26) 14 2 ⁄ (6.4) 12 15 (38.1) 101⁄2 (26.7) 3 (7.6) 1 49418 Stir fry pan 12 53⁄16 4.9 117⁄8 (30.2) 117⁄8 (30.2) 311⁄16 (9.4) 233⁄4 (60.3) 121⁄2 (31.8) 41⁄4 (10.8) 1 49425 Brazier pan 12” 65⁄16 6 1113⁄16 (30) 1113⁄16 (30) 31⁄2 (8.9) 161⁄2 (42) 121⁄4 (31.1) 33⁄4 ((9.5) 1 49428 Stir fry server 13” 65⁄16 6 125⁄8 (32.1) 125⁄8 (32.1) 35⁄8 (9.2) 171⁄2 (43.8) 131⁄4 (33.7) 4 (10.2) 1 49430 Butter warmer 1 qt 1 0.9 5 ⁄ (14) 12 5 ⁄ (14) 12 2 ⁄ (6.8) 11 16 12 ⁄ (32.4) 34 53⁄4 (14.6) 41⁄4 (10.8) 1 49434 Small food pan w/o handle 2.8 2.6 11.6 (291⁄2) 9.3 (23.6) 2 (5.1) - - - 1 49435 Small food pan w/ handle 2.8 2.6 11.6 (291⁄2) 9.3 (23.6) 2 (5.1) 11.6 (291⁄2) 9.3 (23.6) 2.7 (6.9) 1 49432 Large food pan w/o handle 4.6 4.4 14.7 (37.3) 11.8 (30) 2 (5.1) - - - 1 49433 Large food pan w/ handle 4.6 4.4 14.7 (37.3) 11.8 (30) 2 (5.1) 14.7 (37.3) 11.8 (30) 2.7 (6.9) 1 49431 French oven 7 qt w/ cover 7 6.6 14.3 (36.3) 11.1 (28.2) 3.8 (9.7) 14.3 (36.3) 11.1 (28.2) 41⁄2 (11.4) 1 49429 High dome cover 13 fits 49428 - - - - - 14 (35.6) 14 (35.6) 43⁄4 (12) 1 49426 High dome cover 12 fits 49418 and 49425 - - - 123⁄4 (32.4) 123⁄4 (32.4) 4 (10.2) 1 49423 Low dome cover 10 fits 49413 and 49424 - - - 103⁄4 (27.3) 103⁄4 (27.3) 2 (5.1) 1 {Mirror-finished interior 9-6
- 284. Buffet and TabletopService The Vollrath Company, LLC Miramar® Templates 82420XX 82421XX 82422XX 82423XX 82424XX 82425XX 82426XX 82427XX 82429XX 82430XX 82428XX Single Size Templates — Overall Dimensions 21 ⁄ x 12 ⁄ (53.6 x 32.4 cm) 1 8 3 4 STAINLESS STEEL STAINLESS STEEL NIGHT SKY OYSTER CUT-OUT CASE PLAIN ITEM SATIN EDGE ITEM ITEM ITEM DESCRIPTION ACCOMMODATES LOT 8242014 8242016 8242010 8242012 One large and one small round (1) 49411 and (1) 49410 1 8242114 8242116 8242110 8242112 One large round (1) 49424 1 8242214 8242216 8242210 8242212 Two small round (2) 49430 1 8242314 8242316 8242310 8242312 One large oval (1) 49412 1 8242414 8242416 8242410 8242412 One large and one small round (1) 49430 and (1) 49424 1 8242514 8242516 — — Two large rounds (2) 49411 1 8242614 8242616 8242610 8242612 One large round (1) 49418 1 8242714 8242716 8242710 8242712 One large oval (1) 49431 1 8242814 8242816 8242810 8242812 One small food pan (1) 49435 1 8242914 8242916 — — One large food pan (1) 49433 1 8243014 8243016 — — Two small food pans (2) 49435 1 82506XX 82507XX 82508XX Double Size Templates{ — Overall Dimensions 21 ⁄ x 25 ⁄ (53.6 x 65 cm) 1 8 5 8 STAINLESS STEEL STAINLESS STEEL NIGHT SKY OYSTER CUT-OUT CASE PLAIN ITEM SATIN EDGE ITEM ITEM ITEM DESCRIPTION ACCOMMODATES LOT 8250614 8250616 - - Three rounds (1) 49410, (1) 49413 and (1) 49411 1 8250714 8250716 - - Two large rounds (1) 49425 and (1) 49418 1 8250814 8250816 - - One large and one small food pan (1) 49435 and (1) 49433 1 {Above items cut to order. Please allow 10 days for delivery. Note: Templates cannot be returned 9-7
- 285. vollrathco.com Buffet and Tabletop Service Give Your Next Buffet an Extreme Makeover! Vollrath offers three ways to upscale your buffet presentation. Choose from our new lines: Super Pan® Super Shapes, Miramar® Decorative Pans and Templates, and Miramar® Display Cookware Super Pan® Super Shapes Q Variety of shapes that fit full size openings Q Incorporate with standard Super Pan® pans Q See pages 6-3 and 6-4 Miramar® Decorative Pans and Templates Q Templates available in Stainless Steel, Oyster or Night Sky (shown) Q Variety of shapes with embossed pattern rims Q See pages 9-8 to 9-13 Miramar® Display Cookware Q Cookware goes straight from the kitchen to your buffet in the same vessel Q Variety of cookware items for any menu Q See pages 9-5 to 9-7 9-8
- 286. Buffet and TabletopService The Vollrath Company, LLC Miramar® Pans Templates Note: Custom Templates See page 9-14 Decorative Pans Miramar® Resin Templates See pages 9-12 and 9-13 for product selection Q Durable FDA approved thermoset resin construction – ideal for hot or cold applications Q Heat resistant to 300°F (148.8°C) Miramar® Q Will not warp or fade Q Pattern minimizes the appearance of wear Stainless Steel Templates Q Underside integral rib design for extra strength Q Durable 12 gauge stainless steel material and securing template in well Q Available in single well and double well size Q Available in Night Sky or Oyster – provides Q Easy to clean great contrast to the mirror-finished pans and Q Many standard precut styles available for quicker compliments many styles of décor buffet selection Q Special cut-outs available on a make-to-order Q Special cut-outs available on a make-to-order basis - contact your Vollrath sales representative basis - contact your Vollrath sales representative Q Fits in all standard 12 x 20 hot/cold wells Q Single templates fit standard hot and cold wells (including NSF 7), warmers and chafers (including NSF 7) Q Dishwasher safe Q Integral corner design on bottom to ensure Q Use non-abrasive cleaners and sponges secure fit in well opening Q See page 9-11 for product selection Q See pages 9-10 and 9-11 for product selection See our website at www.vollrathco.com for in-depth information on Miramar® buffet and tabletop service 9-9
- 287. vollrathco.com Buffet and Tabletop Service Miramar® Templates Miramar® Stainless Steel Double Well Templates Plain Stainless Stainless/Satin Edge PLAIN STAINLESS STAINLESS/SATIN- CASE ITEM FINISH EDGE ITEM DESCRIPTION ACCOMMODATES LOT 8250014 8250016 Blank double template –— 1 8250114 8250116 Three small ovals (3) 8230110 or (3) 8230210 1 8250214 8250216 Two rectangles (3⁄ 4 size) (2) 8231520 1 8250314 8250316 Two casseroles (2) 8203510 or (2) 8230510 1 8250414 8250416 One large oval and two half ovals (1) 8231420 or 8231320 (1) 8230620 1 8250514 8250516 One large oval, one small oval (1) 8231420 or 8231320 (1) 8230110 1 and one half oval or 8230210 (1) 8230620 Approximate Dimensions - Shown in inches (cm) — Overall Dimensions 211/8 x 253/4 (53.6 x 65.4cm) 25 3/ 4˝ (65.6cm) 25 3/ 4˝ (65.6cm) 25 3/ 4˝ (65.6cm) Accepts 8231520 6 15/16˝ ( 17.6c m ) 8 7/ 8˝ (22.5cm) 21 1/ 8˝ ( 53.6c m ) 21 1/ 8˝ ( 53.6c m ) 21 1/ 8˝ ( 53.6c m ) 14 15/ 16˝ ( 37.9c m ) 9 1/ 2˝ (24.1cm) Accepts 8230110 or 8230210 82500XX 82501XX 82502XX For use with Cold Wells (2 Well or more) or Bain Marie Hot Wells 25 3/ 4˝ (65.6cm) 25 3/ 4˝ (65.6cm) 25 3/ 4˝ (65.6cm) 14 1/ 2˝ (36.8cm) Accepts 8231420 or 8231320 8 9/ 16˝ ( 21.7c m ) Accepts 8203510 or 8230510 Accepts Accepts ( 36.8c m ) 8230620 8230620 Accepts 8231420 or 8231320 14 1/ 2˝ 21 1/ 8˝ ( 53.6c m ) 21 1/ 8˝ ( 53.6c m ) 21 1/ 8˝ ( 53.6c m ) 7 1/ 4˝ ( 18.3c m ) 89/ 16˝ (21.7cm) Accepts ) 8230620 9 3/ 8˝ (23.8cm) m .2c ( 26 6 15/16˝ ( 17.6c m ) 5 / 16 ˝ 10 Accepts 8230110 4 13/16˝ or 8230210 (12.2cm) 82503XX 82504XX 82505XX 9-10
- 288. Buffet and TabletopService The Vollrath Company, LLC Miramar® Templates Q Miramar® Single Well Templates Top view – Night Sky Underside integral Plain Stainless Stainless/Satin Edge Night Sky Oyster rib design for extra strength securing template in well PLAIN STAINLESS STAINLESS/SATIN- NIGHT SKY OYSTER CASE ITEM FINISH EDGE ITEM ITEM ITEM DESCRIPTION ACCOMMODATES LOT 8240014 8240016 8240010 8240012 Blank template –— 1 8240114 8240116 8240110 8240112 One large oval (1) 8231420 or (1) 8231320 1 8240214 8240216 8240210 8240212 Oval and 1⁄ 2 oval (1) 8230110 or 8230210 (1) 8230620 1 8240314 8240316 8240310 8240312 Two small ovals (2) 8230110 or 8230210 1 8240414 8240416 8240410 8240412 One oval and two half ovals (1) 8230110 or 8230210 (2) 8230620 1 8240514 8240516 8240510 8240512 One rectangle ( 3⁄ 4 size) (1) 8231520 1 8240614 8240616 8240610 8240612 One medium round (1) 8230010 1 8240714 8240716 8240710 8240712 One large round (1) 8231220 1 8240914 8240916 8240910 8240912 Three 6 (15.2 cm) rounds (3) 47342 or 47343 or 47344 1 8241114 8241116 8241110 8241112 Bowed rectangle (1) 47333 or 47334 or 47335 1 8241214 8241216 8241210 8241212 Curved pan (1) 47330 or 47331 or 47332 1 8241314 8241316 8241310 8241312 1 Four ⁄ 2 ovals (4) 8230620 1 8241414 8241416 8241410 8241412 One casserole and one half oval (1) 8203510 or 8230510 (1) 8230620 1 8241514 8241516 8241510 8241512 2 Triangles (2) 47667 1 8241914 8241916 8241910 8241912 Six 41⁄ 4 (10.8 cm) bain maries (6) 78710 1 Approximate Dimensions- Shown in inches (cm) — Overall Dimensions 211⁄8 x 123⁄4 (53.6 x 32.4cm) Accepts Accepts 8230620 Accepts 8231520 8231420 or 8231320 R15/16 43/16 (10.7) 95/8 (24.4) (2.3) R313/16 (9.7) 41/8 (10.4) 71/8 (18) Accepts Accepts 8231220 8230110 or 8230210 Accepts Accepts 8230620 8230010 813/16 (22.4) Accepts 815/16 (22.6) 8230110 or 8230210 Accepts 8230110 or 8230210 1415/16 (37.2) 1413/16 (37.6) 71/8 (18) 71/8 (18) 81/3 (21.2) 101/4 (26) 95/8 (24.4) 95/8 (24.4) 95/8 (24.4) 71/8 (18) 82401XX 82402XX 82403XX 82404XX 82405XX 82406XX 82407XX R15/16 43/16 (10.7) Accepts R35/8 (2.3) (9.1) REF 47330, 47331 or 47332 41/8 (10.4) Accepts 8230620 Accepts 6 (15.2) 6.4 (16.3) Accepts 47342, 47343 Accepts 8230620 8203510 or 8230510 or 47344 R15/16 105/16 (26.2) 17.4 (44.2) (2.3) 41/8 (10.4) 82409XX 82411XX 82412XX 82413XX 82414XX 82415XX 82419XX 9-11
- 289. vollrathco.com Buffet and Tabletop Service Miramar® Decorative Pans Miramar® Stainless Steel Decorative Plain Pans Q 18-8 high-polished stainless steel construction in 1.2mm and 1.5mm thicknesses – durable and easy to clean Q Q Multiple shapes and capacities for a variety of foods and more appealing presentations Decorative pans have a stylish embossed pattern on rim adding elegance and style to Great for Q your buffet presentation Various sized pans to fit in standard well opening or in templates Chafers, too! Valhalla™ Chafers sold separately—see page 9-23 Q Safe for direct food contact – will not affect color or flavor of foods Q Dishwasher safe Q New 1⁄6 size pans with satin 8231120 finish and mirror polished rims 8230705 8230920 8230305 8230720 8230410 8231105 8231520 8262220 8262205 8266220 8266205 Decorative embossed pattern Miramar® Decorative and Plain Rectangular Pans DECORATIVE PLAIN CAPACITY DIMENSIONS (L X W X H) CASE ITEM ITEM DESCRIPTION QT (L) IN (CM) LOT 8230310{ 8230305{ Full-size - 11⁄ 4 (3.2 cm) deep 2.9 (2.7) 211⁄ 2 x 135⁄ 16 x 11⁄ 4 (54.6 x 33.8 x 3.2) 1 1 8230410{ 8230405{ Full-size - 2 ⁄ 2 (6.4 cm) deep 6.3 (6.1) 211⁄ 2 x 135⁄ 16 x 21⁄ 2 (54.6 x 33.8 x 6.4) 1 3⁄ 4-Size 21⁄ 4 191⁄ 2 21⁄ 4 8231520 — (5.7 cm) deep 4.1 (3.9) x 12 x (49.5 x 30.5 x 5.7) 1 8231820 — Half-size 11⁄ 2 (3.8 cm) deep 2.15 (2) 131⁄ 16 x 105⁄ 8 x 11⁄ 2 (33.2 x 27.0 x 3.8) 1 8230720 8230705 Half-size 23⁄ 4 (7.0 cm) deep 3.4 (3.2) 131⁄ 16 x 105⁄ 8 x 23⁄ 4 (33.2 x 27.0 x 7.0) 1 8230820 8230805 Half-size long 23 ⁄ 4 (7.0 cm) deep 3 (2.8) 15 1 3 20 ⁄ 16 x 6 ⁄ 2 x 2 ⁄ 4 (53.2 x 16.5 x 7.0) 1 8230920 8230905 Half-size long 4 (10.2 cm) deep 4.4 (4.1) 2015⁄ 16 x 61⁄ 2 x 4 (53.2 x 16.5 x 10.2) 1 1 1 1 8231120 8231105 Third-size 2 ⁄ 2 (6.4 cm) deep 1.9 (1.8) 13 ⁄ 16 x 7 x 2 ⁄ 2 (33.2 x 17.8 x 6.4) 1 8231020 8231005 Third-size 4 (10.2 cm) deep 2.7 (2.5) 131⁄ 16 x 7 x 4 (33.2 x 17.8 x 10.2) 1 8262220 8262205 Sixth-size 21⁄ 2 (6.4 cm) deep .86 (.81) 61⁄2 x 7 x 21⁄2 (16.5 x 17.8 x 6.4) 1 8264220 8264205 Sixth-size 4 (10.2 cm) deep 1.24 (1.17) 61⁄2 x 7 x 4 (16.5 x 17.8 x 10.2) 1 8266220 8266205 Sixth-size 6 (15.2 cm) deep 1.79 (1.7) 61⁄2 x 7 x 6 (16.5 x 17.8 x 15.2) 1 {Material thickness is 1.5mm, all others 1.2mm Decorative Pan selection continues on next page. ® Miramar Bowed and Curved Rectangular Pans DEPTH DIMENSIONS—L X W VOLUME CAPACITY CASE ITEM DESCRIPTION INCHES (CM) INCHES (CM) QT (L) LOT 47334 Bowed food pan - 11⁄2 11⁄2 (3.8) 139⁄16 x 97⁄16 (34.4 x 23.9) 2.3 (2.18) 6 47333 Bowed food pan - 21⁄2 21⁄2 (6.4) 139⁄16 x 97⁄16 (34.4 x 23.9) 3.8 (3.6) 6 47335 Bowed water pan 313⁄16 (9.7) 139⁄16 x 97⁄16 (34.4 x 23.9) 5.9 (5.58) 2 47331 Curved food pan - 11⁄2 11⁄2 (3.8) 193⁄4 x 85⁄16 (50.1 x 21.1) 1.3 (1.23) 6 47330 Curved food pan - 21⁄2 21⁄2 (6.4) 193⁄4 x 85⁄16 (50.1 x 21.1) 3.7 (3.5) 6 47332 Curved water pan 313⁄16 (9.7) 193⁄4 x 85⁄16 (50.1 x 21.1) 6.2 (5.87) 2 9-12
- 290. Buffet and TabletopService The Vollrath Company, LLC Miramar® Decorative Pans Q Refer to page 9-12 for product features Miramar® Soup Insets Covers Brass Knob Cover Q Welded hinge on cover Q Hollow knob stays cool to touch Q Covers are not NSF INSET CAPACITY DIMENSIONS (DIA X H) ITEM DESCRIPTION QT (L) IN (CM) 8230010 Soup inset 7 (6.6) 101⁄ 2 x 85⁄ 16 (26.7 x 21.1) 8231220{ Soup inset 10 (9.5) 12 x 77⁄ 8 (30.5 x 20.0) BRASS CHROME DIMENSIONS (Dia x H) KNOB ITEM KNOB ITEM DESCRIPTION IN (CM) 8231620| 8231610| Hinged cover for — 109⁄ 16 x 3 7 qt (6.6 L) soup inset (26.8 x 7.6) 8261720| 8261710| Hinged cover for — 12 x 3 10 qt (9.5 L) soup inset (30.5 x 7.6) 8230010 with 8231610 inset cover Note: Material thickness – Suffix “10” denotes 1.5mm and suffix “20” denotes 1.2mm {No embossed pattern on rim |Not NSF Miramar® Decorative Miramar® Decorative Oval Half Oval Pans Casserole Pans 8203510 DEPTH CAPACITY DIMENSIONS (L X W X H) ITEM IN (CM) QT (L) IN (CM) 8230620 8230210 8203510 21⁄ 2 (6.4) 2.4 (2.3) 12 x 13 x 21⁄ 2 (30.5 x 33.0 x 6.4) 8230510 4 (10.2) 4.1 (3.9) 12 x 13 x 4 (30.5 x 33.0 x 10.2) Note: Material thickness – Suffix “10” denotes 1.5mm and suffix “20” denotes 1.2mm 8231420 CAPACITY DIMENSIONS (L X W X H) ITEM DESCRIPTION QT (L) IN (CM) 8230210 Small oval - 21⁄ 2 2 131⁄ 8 x 87⁄ 8 x 21⁄ 2 (6.4 cm) deep (1.9) (33.3 x 22.5 x 6.4) Miramar® Round 8230110 Small oval - 4 (10.2 cm) deep 3.4 (3.2) 131⁄ 8 x 87⁄ 8 x 4 (33.3 x 22.5 x 10.2) Bowl Pans 8231420 Large oval - 2 3 191⁄ 16 x 117⁄ 8 x 2 (5.1 cm) deep (2.8) (48.4 x 30.2 x 5.1) CAPACITY TOP OUTSIDE DIAMETER DEPTH CASE ITEM DESCRIPTION QT (L) IN (CM) IN (CM) LOT 8231320 Large oval - 4 6.4 191⁄ 16x 117⁄ 8 x4 (10.2 cm) deep (6.1) (48.4 x 30.2 x 10.2) 47343 Food pan .5 (.5) 63⁄ 4 (17.1) 11⁄ 2 (3.8) 6 3 8230620 Half oval - 41⁄ 2 1.7 87⁄ 8 x 61⁄ 2 x 41⁄ 2 47342 Food pan .9 (.8) 6 ⁄ 4 (17.1) 21⁄ 2 (6.4) 6 (10.8 cm) deep (1.6) (22.5 x 16.5 x 11.4) 47344 Water pan 1.7 (1.6) 15 6 ⁄ 16 (17.6) 11 3 ⁄ 16 (9.4) 2 Note: Material thickness – Suffix “10” denotes 1.5mm and suffix “20” denotes 1.2mm Decorative embossed pattern Great for Chafers, too! Valhalla™ Chafers sold separately—see page 9-23 9-13
- 291. vollrathco.com Custom Miramar Templates Creating your own personalized buffet is as easy as 1 2 3! Vollrath® can help you create exactly the food display you need to fit your menu offering. Custom Miramar™ templates are available in four finish/surface materials and can be custom configured in hundreds of combinations to create attractive and efficient buffets. We also create templates for non-Vollrath products too! See below for complete instructions. Select your Miramar Pans or Cookware. 1 Request a Miramar Template Request Form from your Vollrath Sales Representative. Choose which Miramar pans or cookware components you require for your buffet menu from our extensive selection. Make sure to consider how many of each component can fit into a single-, or double-well. Or, mix and match different components into each available well space. Provide the cut-out sizes needed or a list of the products to be incorporated. When configuring your custom template, keep in mind that the cutouts need to be inset from the edge to accommodate the integral rib that secures the template in place. The actual live area for a single well template is 11” x 19” (27.94 cm x 48.26 cm). Refer to Drawing A and the charts on the previous pages for product dimensions. Drawing A Select your Template finish/material. 2 Available in four distinct finishes/ materials designed to complement your Miramar product selection. Each selection is durable, easy to clean and is dishwasher safe. Stainless Steel Stainless Steel/ Night Sky Oyster Satin Edge Submit your order form to us. 3 After receiving your custom order form, we will review your request to confirm the template can be produced as specified. We then will provide you a price quote. Final drawings are provided for your review and approval. Once approved, submit to us a puchase order and manufacturing of your custom template will begin. Your order will be shipped within 3 weeks from the receipt of your purchase order. We create custom templates for non-Vollrath product too! For all non-Vollrath requests, you must provide to us a sample of each of the products to be incorporated, the critical dimension shown in Drawing B (dimension indicates the desired height the product will extend above the template), and a rough sketch of the positioning/orientation desired for the non-Vollrath product. Drawing B 9-14
- 292. Buffet and TabletopService The Vollrath Company, LLC Intrigue™ Induction Chafers Induction Vollrath introduces the Intrigue™ line of Induction chafers. This elegant yet versatile chafer offers a low profile design for better presentation of food — its prime objective! 46120 Q New glass top version allows viewing of food without opening chafer – maintaining food quality Q Mirror-finished 18-8 stainless steel food pan constructed for durability and easy cleaning Q Low profile design keeps food lower to countertop surface for easier self-serve applications Q Mirror-finished 18-0 stainless steel water pan for use with induction heaters and easy cleaning Q Available in brass plated or mirror-finished stainless steel accents to complement your decor Q Removable cover with baffle, slow-moving hinge 46120 design holds cover in closed, 45° or 90° position shown with Q Reinforced bracket with rubber table feet porcelain food pan for longer life and to keep chafer in place Q Available with stainless steel or porcelain food pans 46125 Drop-In Buffet 46121 shown with stainless Induction Induction food pan Ranges Tables 46114 S/S Stand 46549 Stand accepts canned fuel accepts canned fuel Intrigue™ Induction Equipped with Vollrath’s cutting- or Vollrath’s universal or Vollrath’s universal Ranges are the perfect edge Mirage® Commercial chafer heater chafer heater match for Vollrath’s Drop-In Induction Warmers! Intrigue™ Induction 46123 Chafers! 46121 69501 shown in use See pages 2-5 to 2-7 for more information 5 49 5 50 See pages 5-49 and 5-50 Round Intrigue™ Induction Chafers ITEM DESCRIPTION DIMENSIONS ( W X H): IN (CM) CASE LOT TOTE BOX 46120 Large round 6 qt (5.8 L), brass trim with porcelain food pan 151⁄ 2 x 35⁄ 32 (39.4 x 8.0) 1 52645 46121 Large round 6 qt (5.8 L), brass trim with S/S food pan 151⁄ 2 x 35⁄ 32 (39.4 x 8.0) 1 52645 46124 Large round 6 qt (5.8 L), brass trim with S/S food pan 151⁄ 2 x 35⁄ 32 (39.4 x 8.0) 1 52645 46122 Large round 6 qt (5.8 L), S/S trim with porcelain food pan 151⁄ 2 x 35⁄ 32 (39.4 x 8.0) 1 52645 46123 Large round 6 qt (5.8 L), S/S trim with S/S food pan 151⁄ 2 x 35⁄ 32 (39.4 x 8.0) 1 52645 46125 Large round 6 qt (5.8 L), S/S trim with S/S food pan 151⁄ 2 x 35⁄ 32 (39.4 x 8.0) 1 52645 46130 Replacement porcelain food pan 6 qt (5.8 L) 151⁄ 2 x 23⁄ 4 (39.4 x 7.0) 1 52645 46131 Replacement S/S food pan 6 qt (5.8 L) 151⁄ 2 x 23⁄ 4 (39.4 x 7.0) 1 52645 46126 Replacement glass lid – brass trim – 1 52645 46127 Replacement glass lid – stainless steel trim – 1 52645 46549 Round black chafer stand { – 1 – 46114 Round S/S stand { – 1 – {Stand requires a fuel cup or universal chafer heater – order separately 9-15
- 293. vollrathco.com Buffet and Tabletop Service Intrigue™ Induction Chafers Vollrath expands the Intrigue™ line to include Square Induction Chafers Induction and new display stands. These elegant yet versatile chafers offer a low profile design for better presentation of food – their prime objective! Q New glass top version allows viewing of food without opening chafer – maintaining food quality Q Mirror-finished 18-8 stainless steel food pan constructed for durability and easy cleaning Q Low profile design keeps food lower to countertop surface for easier self-serve applications Q Mirror-finished 18-0 stainless steel water pan for use with induction heaters and easy cleaning Q Available in brass plated or mirror-finished stainless steel accents to complement your decor Q Removable cover with baffle, slow-moving hinge design holds cover in closed, 45° or 90° position Q Reinforced bracket with rubber table feet for longer life and to keep chafer in place 46134 Q Available with stainless steel or porcelain food pans 46132 shown 46134 with 46113 S/S Stand 46112 Black Stand shown with and without 46132 Chafer 46132 46132 shown with stainless food pan Square Intrigue™ Induction Chafers ITEM DESCRIPTION DIMENSIONS ( W X H): IN (CM) CASE LOT TOTE BOX 46132 Square 6 qt (5.8 L) S/S Chafer w/Solid Top S/S Food Pan 15.28 x 7.09 (38.8 x 18.0) 1 52645 46134 Square 6 qt (5.8 L) S/S Chafer w/Glass Top S/S Food Pan 15.28 x 7.09 (38.8 x 18.0) 1 52645 46133 Square 6 qt (5.8 L) S/S Chafer w/Solid Top Porcelain Food Pan 15.28 x 7.09 (38.8 x 18.0) 1 52645 46135 Square 6 qt (5.8 L) S/S Chafer w/Glass Top Porcelain Food Pan 15.28 x 7.09 (38.8 x 18.0) 1 52645 46136 Replacement Porcelain Food Pan - Square 6 qt (5.8 L) 15.43 x 2.48 (39.2 x 6.3 1 52645 46137 Replacement S/S Food Pan - Square 6 qt (5.8 L) 15.43 x 2.48 (39.2 x 6.3) 1 52645 46112 Square Black Chafer Stand { – 1 – 46113 Square S/S Stand { – 1 – {Stand requires a fuel cup or universal chafer heater – order separately 9-16
- 294. Buffet and TabletopService The Vollrath Company, LLC Vollrath® Premier Chafer Lines Vollrath offers some of the finest, complete sets of chafer lines featuring heavy duty, 18-8 mirror-finished stainless steel, full 3-position hinge operation and dripless cover and water pan designs. Somerville™ See page 9-18 Attractive presentations and unique design features set the standard. Q Heavy-duty 18-8 mirror-finished stainless steel Q Durable construction Q Use standard fuel or Vollrath’s Universal Electric Heater (sold separately, see page 9-32) Q A full offering of matching buffet components also available N York, New Y k® New Y k N See page 9-20 York Valhalla™ See page 9-23 Unique features Unique features u Channeled Cover Dripless Breakthrough Removable Windguard Condensation gets Water Pan Hinge Design Cover Shields fuel from wind and channeled to the water Extra wide rim keeps Hinge stops in closed, Cover removes completely creates a more attractive pan instead of on food. food from dropping below 90-degree and fully-open for easy cleaning. appearance. onto table. positions with little force. 9-17
- 295. vollrathco.com Buffet and Tabletop Service Somerville™ Buffet Service Vollrath is proud to introduce a new line of buffet service - Somerville™. Inspirational design that also offers functionality and high quality. The stunning finish and unique accent features bring an upscale image to any décor. 4635510 4635210 4635810 4635110 4634010 Q Elegant mirror-finished stainless steel Q Heavy duty and easy to clean Q Durable solid legs and welded construction Q New hinge design works in the closed, 90°degree, and fully-open position using only moderate force to change position – no levers or switches required to operate Q 9 qt rectangular chafers include Super Pan 3® food pan Q Included windguard shields fuel from wind for outdoor use and for more attractive presentations 4634010 Q Use standard fuel or Vollrath's Universal Electric Heater (sold separately, see page 9-32) ITEM DESCRIPTION DIMENSIONS (L X W X H): IN (CM) CASE LOT TOTE BOX 4634010 Fully retractable 9 qt rectangular chafer - w/dripless 261⁄4 x 187⁄8 x 183⁄4 1 52647 water pan, 3-position dome cover (66.7 x 47.9 x 47.6) 4635710 Soup urn, 7 qt (6.6 L) 13 x 11 x 231⁄2 (33 x 27.9 x 59.7) 1 52645 4635410 Gravy/sauce urn, 4 qt (4.4 L) 13 x 11 x 193⁄4 (33 x 27.9 x 50.2) 1 52645 4635310 Coffee urn, 3 gal (11.4 L) 13 x 131⁄2 x 22 (33 x 34 x 56) 1 — 4635510 Coffee urn, 5 gal (18.9 L) 13 x 131⁄2 x 273⁄8 (33 x 34 x 70 ) 1 — 4635110 Milk dispenser, 5 qt (4.8 L) 8 x 127⁄8 x 163⁄8 (20 x 33 x 42) 1 — 4635810 Juice/cold beverage dispenser, 8 qt (7.6 L) 127⁄8 x 8 x 225⁄8 (33 x 20 x 57) 1 — 4635210 Double cereal dispenser, each 4 qt (3.8 L) 12 x 83⁄4 x 235⁄8 (31 x 22 x 60) 1 — 4634110 Round drop-in chafer, 6 qt (5.7 L) 21 x 21 x 153⁄4 (53 x 53 x 40) 1 — Somerville™ Accessories CHAFER ITEM FOOD PAN WATER PAN FUEL HOLDER DOME COVER TOTE BOX 4634010 90022 46259 46864 4634020-1 52647 4635710 4635730-1 — 46864 4635720-1 52645 4635410 4635430-1 — 46864 4635420-1 52645 9-18
- 296. Buffet and TabletopService The Vollrath Company, LLC Windway® Dripless Countertop Buffet Service Q Heavy-duty bright mirror-finished For the ultimate experience in fine dining, Vollrath is pleased to 18-8 stainless steel construction offer the complete line of Windway® chafers and buffetware. Q Clear coated brass trim to deter discoloration Q 9 qt rectangular chafers include Super Pan 3® food pan Q 6 qt round chafers include food pan – divided food pan available Q Countertop chafers use standard fuel or Vollrath's Universal Electric Heater (sold separately – see page 9-32) Q Chafer windguard shields fuel from wind for outdoor use and for more attractive presentations Q Coffee urns offer an elegant tapered design with a removable faucet for easy cleaning 46290 46193 46293 SILVERPLATE DIMENSIONS (L X W X H) CASE TOTE ITEM ITEM{ DESCRIPTION IN (CM) LOT BOX 46290 49590{ Fully retractable rectangular chafer 9 qt w/dripless water pan 25 x 171⁄ 2 x 19 (63.5 x 44.45 x 48.26) 1 52647 46293 49593{ Fully retractable round chafer 6 qt w/dripless water pan 231⁄ 2 x 201⁄ 2 x 20 (59.69 x 52.07 x 50.8) 1 – 46193 48593{ Medium coffee urn, 3 / 77 / 11.4 (Gal / Cup / L) capacity 121⁄ 2 x 141⁄ 2 x 203⁄ 4 (31.7 x 36.8 x 52.7) 1 – 46194 48594{ Large coffee urn, 5 / 128 / 18.9 (Gal / Cup / L) capacity 121⁄ 2 x 141⁄ 2 x 251⁄ 2 (31.7 x 36.8 x 64.7) 1 – {For silverplate information, see page 9-37 Windway® Accessories| CHAFER ITEM FOOD PAN WATER PAN COVER FUEL HOLDER TOTE BOX 46290 90022 46259 46864 52647 46293 46862 or 46861 (divided) 46269 46864 — 46193 — — 46198 46864 52645 46194 — — 46198 46864 52645 |Refer to www.vollrathco.com for additional replacement part information 9-19
- 297. vollrathco.com Buffet and Tabletop Service ® Q New York, New York Brilliant mirror-finished 18-8 stainless steel Q Durable solid legs and welded construction Q Clear coated brass trim to deter discoloration Dripless Countertop Buffet Service When the most elegant dining atmosphere is needed, choose the line that sets the standard — New York, New York®. A favorite of hotels, restaurants and caterers who desire quality, elegance and value. Q 9 qt rectangular chafers include Super Pan 3® food pan Q 6 qt round chafers include food pan — divided food pan available Q Use standard fuel or Vollrath's Universal Electric Heater (sold separately, see page 9-32) Q Standard New York, New York® Chafer dome covers only open to the 90° 46255 46265 46070 New York, New York Drop-in Style Chafers (Page 9-22) SILVERPLATE DIMENSIONS (L X W X H) CASE TOTE ITEM ITEM{ DESCRIPTION IN (CM) LOT BOX 46255 48755{ Fully retractable rectangular chafer 9 qt w/dripless water pan, 25 x 171⁄ 2 x 181⁄ 2 1 52647 3-position dome cover (63.5 x 44.45 x 47) 46265 48765{ Fully retractable round chafer 6 qt w/dripless water pan, 19 x 19 x 181⁄ 2 1 52647 3-position dome cover (48.26 x 48.26 x 47) 46080 48780{ Full-size rectangular chafer 9 qt w/standard water pan, 251⁄ 2 x 181⁄ 2 x 181⁄ 2 1 52647 dome cover only opens to the 90° (64.8 x 47 x 47) 46070 48770{ Round chafer 6 qt w/standard water pan, 181⁄ 2 x 18 x 183⁄ 4 1 52647 dome cover only opens to the 90° (47 x 45.7 x 47.6) {For silverplate information, see page 9-37 9-20
- 298. Buffet and TabletopService The Vollrath Company, LLC New York, New York® New York, New York® 2-Gallon Coffee Service Cold Beverage Dispenser Q Stainless steel ice tube| features Q Stainless steel to provide complete, matching buffet service convenient handle for easy sanitary removal Q Removable faucet for Q Keeps beverages cold easy cleaning Q Two gallon (7.6 L) clear polycar- Q Hinged cover allows for one-handed refilling bonate beverage container with fill line indicator 46285 Q 18-8 stainless steel mirror-finished 46280 SILVERPLATE CAPACITY DIMENSIONS (L X W X H) CASE TOTE base, cover and ice tube ITEM ITEM{ GAL/CUPS/L IN (CM) LOT BOX 46093 48793{ 3/77/11.4 123⁄ 4 x 13 x 193⁄ 4 1 52647 CAPACITY DIMENSIONS (L X W X H) } CASE TOTE ITEM DESCRIPTION GAL/CUPS/L IN (CM) LOT BOX (32.4 x 33.0 x 50.2) 46280 Brass 2/51/7.6 21 x 8 dia/11 1 52645 46094 48794{ 5/128/18.9 151⁄ 2 x 161⁄ 2 x 213⁄ 4 1 52647 accents (53.3 x 20.3 dia/27.9) (39.4 x 41.9 x 55.2) 46285 Chrome 2/51/7.6 21 x 8 dia/11 1 52645 {For silverplate information, see page 9-37 accents (53.3 x 20.3 dia/27.9) |For maximum performance, use crushed ice in ice cylinder. } Dimensions at faucet New York, New York® Note: See replacement parts information below Soup and New York, Gravy Chafers New York® Q Hinged cover allows for Punch Bowl one-handed refilling 46090 Q Mirror-finished stainless steel 46095 Q Large capacity — ideal for punch SILVERPLATE DIMENSIONS CASE TOTE or salads ITEM ITEM{ DESCRIPTION IN (CM) LOT BOX Q Adds an elegant touch to your 46090 48790{ Soup chafer 123⁄ 4 x 101⁄ 4 x 193⁄ 4 1 52645 buffet presentation 7 qt (6.6 L) (32.4 x 26.0 x 50.2) SILVERPLATE DIMENSIONS CASE 46095 48795{ Gravy/sauce 123⁄ 4 x 101⁄ 4 x 15 1 52648 ITEM ITEM{ DESCRIPTION IN (CM) LOT chafer 21⁄ 2 qt (32.4 x 26.0 x 38.1) 46072 48772{ Punch bowl, 17 x 111⁄ 2 1 (2.4 L) 5-gal (18.9 L) (43.2 x 29.2) {For silverplate information, see page 9-37 {For silverplate information, see page 9-37 New York, New York® Accessories CHAFER ITEM FOOD PAN WATER PAN FUEL HOLDER DOME COVER TOTE BOX 46255 90022 46259 46864 46261, 46263 52647 46080 90022 46082 46864 46084 52647 46265 46862 46269 46864 46262, 46276 52647 46070 46862 46073 46864 — 52647 46090 46088 — 46864 46089 52645 46093 — — 46864 46089 52647 46094 — — 46864 46087 52647 46095 46104 — 46864 46089 52648 Note: Refer to www.vollrathco.com for replacement part information Replacement parts for 46280 and 46285 New York, New York® 2-Gallon Cold Beverage Dispenser Colored Double S/S CHROME DESCRIPTION CASE LOT Wall Insulated 46271 46830 46271 46830 Base, mirror-finished stainless steel Replacement polycarbonate container 1 1 Display Bowls 46272 46283 Cover and knob, mirror-finished stainless steel 1 A perfect 46273 46284 Knob only — for cover 1 complement for 46274 46287 Spigot with handle 1 your tabletop or buffet setting. 46275 46288 Handle only — for spigot 1 See pages 9-43 for more information 46831 46381 Ice tube, mirror-finished stainless steel 1 9-21 -21
- 299. vollrathco.com Buffet and Tabletop Service Drop-In Retractable The drop-in chafers are ideal for food serving stations such as Vollrath or other countertops. Dripless Chafers Channeled Cover Breakthrough Condensation accumulates Hinge Design in the dome cover and is New hinge design works transferred through the channel in the closed, 90˚, and in the cover back into the water fully-open position using only 46268 pan. Keeps the water out of moderate force to change the food and off the table. position. No levers or switches required to operate. 46281 Rectangle 46282 Round Dripless Water Pan Removable Cover The extra wide rim of the water pan Retrofit Kits Easy Installation The new design includes does not allow food or water to drop Adapter plates available for retrofit Secures easily to any a removable cover for below the chafer onto the table and installations. Refer to specification countertop with two clips easy cleaning. creates a more stylish appearance. sheet for cut-out dimensions. and screws (included). Q Mirror-finished 18-8 stainless steel for durability and easy cleaning For New York, Q New York® Clear coated brass trim to deter discoloration Countertop Q Available in round or rectangular New York, New York® styles chafers see page 9-20 Q 9 qt rectangular chafers include Super Pan 3® food pan Q 6 qt round chafers include food pan — divided food pan available Q Drop-In chafers require Vollrath's Universal Electric Heater{ (1 per chafer — sold separately) {For electric heater information see page 9-32 Universal Electric Heater Required Operates without open flame for a safe operation. Sold separately. See page 9-32 for more information. New York, New York® Drop-In 46258 Retractable Dripless Chafers SILVERPLATE DIMENSIONS (L X W X H) CASE ITEM ITEM{ DESCRIPTION IN (CM) LOT Accessories 46258 48758| Rectangular 9 qt w/dripless 251⁄ 2 x 18 x 181⁄ 2 1 ITEM FOOD PAN WATER PAN water pan dome cover (64.77 x 45.72 x 47) 46258 90022 46259 46268 48768| Round 6 qt w/dripless 19 x 19 x 81⁄ 4 1 water pan dome cover (48.26 x 48.26 x 20.96) 46268 46862 46269 |For silverplate information, see page 9-37 Note: Refer to www.vollrathco.com for replacement part information 9-22
- 300. Buffet and TabletopService The Vollrath Company, LLC Valhalla™ Dripless Countertop Buffet Service Vollrath introduces the new Valhalla™ Countertop Buffet Service in two attractive looking styles. Select from either black or burnt maple accents for a contemporary elegance for your upscale buffet presentation. Q Heavy-duty mirror-finished 18-8 stainless steel construction — durable and easy to clean Q Chrome-plated or black powder-coated aluminum hardware is durable and complements stainless construction and accents Q Hardwood cover handles and chafer legs in black or burnt maple for a stylish upgrade Q Mirror-finished leg support brackets offer extra support as well as an elegant accent Q Hardwood handles are cool to touch Q Windguard shields fuel from wind for outdoor use and more attractive presentations Q Coffee Urns have elegant tapered design and removable faucet for easy cleaning Q Coffee Urns have a capacity of 3 / 77 / 11.4 (Gal / Cup / L) 49855 46834 49965 46833 DIMENSIONS (L X W X H) FOOD PAN WATER PAN CASE TOTE ITEM DESCRIPTION IN (CM) INCLUDED INCLUDED LOT BOX 49855 Rectangular 9 qt with black and burnt maple accents 26 x 201⁄ 2 x 181⁄ 2 (66 x 52 x 47) 90022 46259 1 49865 Round 6 qt with black and burnt maple accents 191⁄ 2 x 191⁄ 2 x 19 (49.5 x 49.5 x 48.26) 46862 46269 1 52647 49955 Rectangular 9 qt with chrome and black hardwood accents 26 x 201⁄ 2 x 181⁄ 2 (66 x 52 x 47) 90022 46259 1 49965 Round 6 qt with chrome and black hardwood accents 191⁄ 2 x 191⁄ 2 x 19 (49.5 x 49.5 x 48.26) 46862 46269 1 52647 46833 Coffee Urn with chrome and black hardwood accents 121⁄ 8 x 13 x 227⁄ 16 (30.7 x 33.1 x 56.8) – – 1 – 46834 Coffee Urn with black and burnt maple accents 121⁄ 8 x 13 x 227⁄ 16 (30.7 x 33.1 x 56.8) – – 1 – 9-23
- 301. vollrathco.com Buffet and Tabletop Service Orion® Buffet Service Understated elegance complements any buffet setting. Distinctive curves and profile create a style that accentuates any presentation from casual to fine dining. Q Heavy-duty, mirror-finished stainless steel Q All welded construction Orion® Retractable Chafers Q Full three position operation Q Baffled hinge for smooth cover action Q Perforated cover helps reduce condensation Q Windguard for outdoor use Q Removable cover for easy cleaning Q Chafers include food pan, water 46520 pan and fuel holder(s) Electric Chafer (46529) { 46530 Q Ships with a 46682 full size electric water pan, rated 120V, 450W Q Automatically regulates to maintain water temperature at approximately 180˚ – 200˚F (82.2˚ – 93.3˚C) - does not require an adjustable thermostat Q 6 foot cord and plug DIMENSIONS (L X W X H) CASE TOTE ITEM DESCRIPTION IN (CM) LOT BOX 46520 Full-size rectangular 17 x 25 x 16 1 52647 9.0 qt (8.6 L) (43.2 x 63.5 x 40.6) 46529 Receptacle 46529 Full-size rectangular 17 x 25 x 16 1 52647 120V w/electric heater (43.2 x 63.5 x 40.6) 46530 Round retractable 181⁄ 2 x 18 1 52647 6 qt (5.7 L) (47 x 46) {UL listing applies to electric water pan only Gravity level switch allows 90° New windguard prevents your Attractive legs add to the style Perforated cover helps reduce and fully open cover. Specially heat source from blowing out. of the Orion chafers. condensation in the cover. designed hinge included for smooth cover travel. Orion® Accessories CHAFER ITEM FOOD PAN WATER PAN FUEL HOLDER COVER COVER HOLDER TOTE BOX 46518 46519 46331 46864 46531 46431 52647 46500 46504 46332 46864 46532 46432 52645 46501 46505 46333 46864 46533 46433 52645 46502 46506 46334 46864 46534 46434 52646 46503 46507 46335 46864 46535 46435 52646 46520 46519 46082 46864 — — 52647 46530 46862 46073 46864 — — 52647 9-24
- 302. Buffet and TabletopService The Vollrath Company, LLC Integral dome cover holder for convenient storage 46518 Orion® Lift-Off Chafers 46500 Q Feature mirror-finished dripless pans Q Complete with built-in cover holder designed for convenient storage Q Includes cover holder, water pan, food pan, dome cover and fuel holder(s) DIMENSIONS (L X W X H) CASE TOTE ITEM DESCRIPTION IN (CM) LOT BOX 46518 Full size oblong chafer 27 x 14 x 131⁄ 2 1 52647 9.0 qt (8.6 L) — complete (67.5 x 35 x 33.8) 46500 Large oval chafer 213⁄ 4 x 171⁄ 2 x 133⁄ 8 1 52645 6 qt (5.7 L) (55.2 x 44.5 x 34) 46501 Small oval chafer 181⁄ 2 x 151⁄ 4 x 1211⁄ 16 1 52645 4 qt (3.8 L) (47.0 x 38.7 x 32.2) 46502 46502 Large round chafer 19 x 191⁄ 4 x 131⁄ 2 1 52646 6 qt (5.7 L) (48.3 x 48.9 x 34.3) 46503 Small round chafer 151⁄ 2 x 151⁄ 2 x 121⁄ 2 1 52646 4 qt (3.8 L) (39.4 x 39.4 x 31.9) Orion™ Beverage Service Round Add the finishing touch to your Orion® Buffet Service with this fine Serving line of beverage service products Bowls See page 9-59 for more information See page 9-49 for more information 9-25
- 303. vollrathco.com Buffet and Tabletop Service Maximillian Steel™ Chafers Features: Q Mirror-finished stainless steel ™ Vollrath’s Maximillian Steel Chafer Line exudes contemporary elegance....at an — durable and easy to clean Q Contemporary styling affordable price. Maximillian Steel™ features all stainless appearance. Maximize Q Rectangular chafer features Vollrath cover the excitement of your buffet offerings with the Maximillian Chafer line. ™ holder and Super Pan 3® food pan Maximillian Steel™ Chafers 49520 Showing cover holder 49525 49524 49522 49523 49520 49521 49520 49529 MAXIMILLIAN STEEL™ DESCRIPTION DIMENSIONS (L X W X H): IN (CM) CASE LOT TOTE BOX 49520 Full-size rectangular 9 qt (8.6 L) 231⁄ 2 x 17 x 121⁄ 2 (59.69 x 43.18 x 31.75) 1 52645 49529 Half-size rectangular 4.1 qt (3.8 L) 1527⁄ 32 x 115⁄ 8 x 123⁄ 16 (40.24 x 29.53 x 31) 1 52645 49521{ Medium round 4.2 qt (4 L) 15 dia x 111⁄ 2 (38.1 x 38.1 x 29.21) 1 52645 49522{ Large round 6 qt (5.8 L) 18 dia x 13 (45.7 x 33) 1 52645 49523 Marmite - 4.2 qt (4 L) 11 dia x 16 (27.9 dia x 40.6) 1 52645 49524 Marmite - 7.4 qt (7 L) 11 dia x 16 (27.9 dia x 40.6) 1 52645 49525 Coffee urn - 11.6 qt (11 L) 13 x 131⁄ 2 x 19 (33.02 x 34.29 x 48.26) 1 52645 {Round chafers include round food pan and round water pan 9-26
- 304. Buffet and TabletopService The Vollrath Company, LLC ™ Panacea Chafers ™ Features: Q Mirror-finished stainless steel — durable and easy to clean Vollrath’s Panacea chafer line offers unforgettable style and elegance. Q 24k gold accents add elegance and style Inspired by classic architecture, the unique chafer line features 24K gold Q Classic styling accents on mirror-finished stainless steel. Q Rectangular chafer features Vollrath cover holder and Super Pan 3® food pan 48327 48328 48322 Showing cover holder 48324 48326 48322 48323 Optional Divided Food Pan 49334 for 4 qt 46861 for 6 qt 48322 48329 ITEM DESCRIPTION DIMENSIONS (L X W X H): IN (CM) CASE LOT TOTE BOX 48322 Full-size rectangular 9 qt (8.6 L) 24 x 17 x 131⁄ 2 (60.96 x 43.18 x 34.29) 1 52645 48329 Half-size rectangular 4.1 qt (3.8 L) 165⁄ 8 x 115⁄ 8 x 123⁄ 4 (42.2 x 29.5 x 32.4) 1 52648 48323{ Medium round 4.2 qt (4 L) 16 x 15 x 111⁄ 2 (40.64 x 38.1 x 29.21) 1 52645 48324{ Large round 6 qt (5.8 L) 18 dia x 13 (45.7 dia x 33.0) 1 52645 48326 Marmite - 4.2 qt (4 L) 111⁄ 2 dia x 151⁄ 2 (29.2 dia x 39.4) 1 52645 48327 Marmite - 7.4 qt (7 L) 111⁄ 2 dia x 151⁄ 2 (29.2 dia x 39.4) 1 52645 48328 Coffee urn 11.6 qt (11 L) 131⁄ 2 x 12 x 191⁄ 2 (34.29 x 30.48 x 49.53) 1 52645 {Round chafers include round food pan and round water pan Accessories for Panacea™ Chafers Accessories for Maximillian Steel™ Chafers ITEM DESCRIPTION COVER WATER PAN FOOD PAN ITEM DESCRIPTION COVER WATER PAN FOOD PAN 48322 Full-size rectangular 9 qt 49330 49331 90022 49520 Full size rectangular 9 qt 46463-1 49331 90022 48329 Half-size 4.2 qt 49530 46441 90222 49529 Half-size rectangular 4.2 qt 49531 46441 90222 49323 Medium round 4.2 qt 49332 49335 49333 49521 Medium round 4.2 qt 46465-1 49335 49333 48324 Large round 6 qt 46453-1 46073-2 46862 49522 Large round 6 qt 46467-1 46073-2 46862 48326 Marmite - 4.2 qt 46455-1 46448-1 46458-1| 49523 Marmite - 4.2 qt 46469-1 46448-1 46458-1| 48327 Marmite - 7.4 qt 46451-1 46448-1 46447-1| 49524 Marmite - 7.4 qt 46470-1 46448-1 46447-1| |Inset |Inset 9-27
- 305. vollrathco.com Buffet and Tabletop Service Classic Brass Trim Buffet Service Classic style, attention to detail and Vollrath craftsmanship make this line a perennial favorite. Q Solid cast brass leg and handles Q Mirror-finished 18-8 stainless steel Q Clear coated brass trim to deter discoloration 46045 46029 46075 46035 46050 46030 Classic Brass Trim Roll Top Chafer (46051) Q Add the elegance of a roll top cover to this Classic Brass chafer Q Smooth rolling cover opens a full 90° to allow easy access Q Cover (46052) fits most full-size chafers that use standard 46051 46052 dripless water pan securely without clips or brackets and lifts off for quick food replenishment Classic Brass Trim Electric Chafers Classic Brass Trim Coffee Urn (46029) (46040, 46045) Q Fully adjustable non-thermostatic heat control Q Removable faucet for easy cleaning Q Six foot grounded plug Receptacle Q 120V, 700W, 6 Amp, AC only Classic Brass Trim Soup Marmite (46075) 120V Q Water pan is welded to unitized frame Q Includes{ separate inset, water pan, cover and fuel holder Q Frame and control are non-immersible Q Notched cover so serving utensil can remain in vessel for maximum sanitation Q Option to use with fuel or electric ITEM DESCRIPTION DIMENSIONS (L X W X H): IN (CM) CASE LOT TOTE BOX 46050{ Full-size chafer — 9.0 qt (8.6 L) 251 1 ⁄ 4 x 14 ⁄ 2 x 15 (64.1 x 36.8 x 38.1) 1 52645 46035{ One-half size chafer — 4.1 qt (3.8 L) 163⁄ 4 x 111⁄ 2 x 141⁄ 2 (42.5 x 29.2 x 36.8) 1 52645 46030{ Round chafer — 5.8 qt (5.5 L) 181⁄ 2 x 151⁄ 4 x 141⁄ 4 (47.0 x 38.7 x 36.2) 1 52645 46051{ Roll top chafer — 9.0 qt (8.6 L) — complete 251⁄ 4 x 151⁄ 2 x 193⁄ 4 (64.1 x 36.8 x 50.2) 1 52647 46052 Roll top cover only 211⁄ 8 x 147⁄ 8 x 95⁄ 8 (53.7 x 37.8 x 24.5) 1 52645 46029 Coffee urn — 3/77/11.4 (Gal/Cups/L 123⁄ 4 x 12 x 213⁄ 4 (32.4 x 30.5 x 55.2) 1 52648 46075 Marmite — 71⁄ 4 qt (6.9 L) 113⁄ 4 x 101⁄ 4 x 131⁄ 4 (29.8 x 26.0 x 33.7) 1 52647 46040 Long side receptacle electric chafer 251⁄ 4 x 181⁄ 4 x 15 (64.1 x 46.4 x 38.1) 1 52647 46045 Short side receptacle electric chafer 211⁄ 4 x 141⁄ 2 x 15 (69.2 x 36.8 x 38.1) 1 52647 {Chafers include food pan, water pan, dome cover and fuel holder(s) Classic Brass Trim Accessories ITEM FOOD PAN WATER PAN COVERS FUEL HOLDER TOTE BOX 46051 90022 46059 46052 46864 52647 46050 90022 46059 46043 46864 52645 46040 90022 — 46043 46864 52647 46045 90022 — 46043 46864 52647 46035 90222 46858 46036 46864 52645 46075 46063-2 46077 46062-2 46864 52647 46030 46862/46861 (divided) 46487 46033-2 46864 52645 9-28
- 306. Buffet and TabletopService The Vollrath Company, LLC Royal Crest™ Buffet Service A matching ensemble of ornate style and design. Q Satin-finished 18-8 stainless steel Q Solid wood side handles Q Ultra durable stand for long life 46847 46880 46860 46884 ™ Royal Crest Lift-Off Chafers DIMENSIONS (L X W X H) CASE TOTE ITEM DESCRIPTION IN (CM) LOT BOX 46880 Full-size oblong 9.0 qt (8.6 L) — complete 26 x 141⁄ 4 x 17 (66.0 x 36.2 x 43.2) 1 52647 46860 Round 5.8 qt (5.5 L) — complete 19 x 151⁄ 4 x 161⁄ 2 (48.3 x 38.7 x 41.9) 1 52645 46847 Half-size 4.1 qt (3.8 L) — complete 171⁄ 4 x 11 x 161⁄ 2 (43.8 x 27.9 x 41.9) 1 52645 Royal Crest™ Coffee Urn Q Removable faucet for easy cleaning CAPACITY DIMENSIONS (L X W X H) CASE TOTE ITEM GAL/CUPS/L IN (CM) LOT BOX 46884 3/77/11.4 133⁄ 4 x 12 x 21 (34.9 x 30.5 x 53.3) 1 52648 Royal Crest™ Accessories CHAFER ITEM FOOD PAN WATER PAN COVER FUEL HOLDER TOTE BOX 46880 90022 99745 46881 46864 52647 46860 46862/46861 (divided) 46488 46863 46864 52645 46847 30222 46855 46877 46864 52645 46884 — — 46889-1 46864 52648 Odyssey® Chafer Q Mirror-finished stainless steel with 24K gold-plated legs and handles Q All welded construction for added strength Q Full-size dome covers can be conveniently stored inside cover holder Integrated dome cover holder on full-size DIMENSIONS (L X W X H) CASE TOTE ITEM DESCRIPTION IN (CM) LOT BOX 46320{ Full-size chafer 231⁄ 4 x 14 x 133⁄ 4 1 52645 — 9.0 qt (8.6 L) (59.1 x 35.6 x 34.9) {Includes integrated dome cover holder 9-29
- 307. vollrathco.com Buffet and Tabletop Service Avenger® Economy Roll-Top Chafer Q Mirror-finished 18-8 stainless steel construction – durable and easy to clean Q Fully-retractable perforated cover – works in closed, 90° and fully open position for serving flexibility Q Windguard shields fuel from wind for outdoor use and for more attractive presentations 46350 Q 46350 includes Vollrath Super Pan 3® 21⁄ 2 deep rectangular pan with integral ramp for quick and easy removal Q Use standard fuel or Vollrath’s Universal electric heater 46360 ITEM DESCRIPTION DIMENSIONS (L X W X H): IN (CM) CASE LOT WATER PAN INCLUDED FOOD PAN TOTE BOX SOLD SEPARATELY 46350 Rectangular 9 qt (8.6 L) 17 x 25 x 16 (43.2 x 63.5 x 40.6) 1 46082 90022 52647 46360 Round 6 qt (5.7 L) 181⁄ 2 x 18 (47 x 45.7) 1 46073 46862 52647 Replacement Parts for Avenger® Chafers ITEM DESCRIPTION CASE LOT 46498 Stainless steel handle for rectangular 9 qt (8.6 L) 1 46499 Stainless steel handle for round 6 qt (5.7 L) 1 Cover Perforations Windguard Dakota™ Chafer Designed to specifically make your buffet more appealing. The combination of polished tubular frame, molded handles and embossed legs makes this the most stylish and economical chafer ever. Q Stacking frame takes up less space when not in use (see page 9-31) Q Includes Super Pan 3® food pan, water pan, dome cover, frame and fuel holder Q Tubular design frame adds style and structural integrity to frame Q Stainless steel matte-finished embossed legs for strength and style Q Molded high temperature nylon handles on frame for easy transport Q Kool-Touch® nylon cover handle is easy to grip and stays cool to touch 99860 DIMENSIONS (L X W X H) FOOD WATER FUEL CASE TOTE ITEM DESCRIPTION IN (CM) PAN PAN HOLDER COVER LOT BOX 99860 Rectangular 9 qt (8.6 L) — complete 255⁄ 8 x 145⁄ 16 x 139⁄ 16 (65.1 x 36.3 x 34.5) 90022 99745 46864 99873 1 52647 99870 Half size 4.1 qt (3.8 L) — complete 181⁄ 16 x 121⁄ 16 x 137⁄ 32 (45.9 x 30.6 x 33.6) 90222 46858 46864 99869 1 52648 Accessories for Dakota™ Chafers ITEM FOOD PAN WATER PAN FUEL HOLDER COVER TOTE BOX 99860 90022 99745 46864 99873 52647 99870 90222 46858 46864 99869 52648 Trimline II Chafer Q Welded frame is stackable for compact storage Q Fuel holders can be removed with water pan in place Q Dome cover with Kool Touch® handle DIMENSIONS (L X W X H) CASE TOTE ITEM DESCRIPTION IN (CM) LOT BOX Trimline II Chafer 9.0 qt 231⁄ 4 x 141⁄ 4 x 141⁄ 4 99850 1 52645 (8.6 L) — complete (59.1 x 36.2 x 36.2) 77200 Dome cover — 1 — 46864 Fuel holder — 1 — 9-30
- 308. Buffet and TabletopService The Vollrath Company, LLC PanaMax™ Dome Cover Q Patented low profile design complements any chafer, serving line or buffet application Q Durable ergonomic nylon handle offers comfortable grip – heat resistant to 475°F (246°C) Q Mirror-finished stainless steel, looks great and is easy to clean and maintain ITEM DESCRIPTION DIMENSIONS (L X W X H): IN (CM) CASE LOT 49339 Full-size 21 x 13 x 41⁄ 2 (53.3 x 33 x 11.4) 1 Soup Accessory Kit Q Increase the flexibility of chafers with these accessories Q Kit does not include chafer frame, water pan, or fuel cups ITEM DESCRIPTION CASE LOT 99880 Double soup buffet accessory kit includes: full-size adaptor plate (19192), 1 two adaptor rings (19194), two 71⁄ 4 qt (6.9 L) vegetable insets (78184), two hinged covers (47488), two 4 oz (118.0 ml) Kool Touch® ladles (58044) 99880 Stackable Chafer Racks Trimline II (46885) Q Compact storage — 12 stacked racks are 21 (53.3cm) high Q Sturdy welded frame with integral fuel cup holder Q Holds standard or dripless water pan Q Fuel cups can be removed with water pan in place 46885 46886 ™ Dakota (46886) ITEM DIMENSIONS (L X W X H): IN (CM) CASE LOT Q Stainless steel matte finish embossed legs for strength and style Q 46885{ 235⁄ 8 x 131⁄ 4 x 101⁄ 4 (60.6 x 33.7 x 26.0) 3 Tubular design frame adds style and structural integrity to frame 5 5 1 Q Molded high temperature nylon handles on frame for easy transport 46886 25 ⁄ 8 x 14 ⁄ 16 x 9 ⁄ 4 (65.1 x 36.3 x 23.5) 4 Q Stacking frame takes up less space when not in use {Not designed for use with aluminum foil water pans Super Pan 3® Food Pan Divided Food Pans Q 300 series stainless steel Q Heavy-duty 18-8 stainless steel Q 22 gauge (.8 mm) Q 46861: use with chafers 46030, Q Unique patented ramp 46070, 46260, 46265, 46268, Q 46293, 46298, 46860, 46360, Built-in anti-jam stacking lugs 46120, 46121, 46122, 46123, Q Specially designed reinforced corners 46124, 46125 46861 Q Integral frame enhances food presentation Q 46853: use with all full-size chafers Q 49334: use with chafers 48323, OVERALL DIMENSIONS INSIDE DIMENSIONS CASE ITEM IN (CM) IN (CM) LOT 49321, 49521 90022{ 207⁄ 8 x 1213⁄ 16 x 21⁄ 2 1927⁄ 32 x 117⁄ 8 x 43⁄ 8 6 (53 x 32.5 x 6.4) (50 x 30 x 11) {For additional sizes see pages 6-5 and 6-6 Water Pans 46853 Q 300 series stainless steel ITEM DESCRIPTION DIMENSIONS: IN (CM) CASE LOT Q Dripless style (with lip) prevents 46861 Round, 2.6 qt (2.5 L) 151⁄ 8dia x 27⁄ 16 h. 1 condensation from dripping onto table capacity per side (38.4 dia x 6.2 h.) 99745 99740 Q 1927⁄32 x 117⁄8 x 43⁄8 (50 x 30 x 11 cm) 49334 Round, 1.2 qt (1.2 L) 133⁄ 8 dia. x 21⁄ 8 h. 1 ITEM DESCRIPTION OVERALL DIMENSIONS: IN (CM) CASE LOT capacity per side (34.0 dia. x 5.4 h.) 99745 Dripless, 221⁄ 16 x 143⁄ 32 x 43⁄ 8 (56 x 36 x 11) 2 46853 Full-size, 3.4 qt (3.3 L) 203⁄ 4 x 123⁄ 4 x 21⁄ 2 6 99740 Standard 2023⁄ 32 x 123⁄ 4 x 43⁄ 8 (52.5 x 32.5 x 11) 2 capacity per side (53 x 32.5 x 6.4) 9-31
- 309. vollrathco.com Buffet and Tabletop Service Universal Electric Chafer Heater Q Designed to maintain the proper serving temperature without the need for open flame Q Sized to fit standard fuel cup openings Q Spring-loaded element maintains full contact with the water pan for efficient heat transfer Q Lighted switch glows when heater is turned on (US model) Q Choose from two power settings — use low setting for all coffee urns Q 6 foot long grounded cord Q Only one chafer heater needed per full-size chafer if set on high and water level does not exceed 1⁄3 (0.8 cm) Receptacles Domestic Models 120V ITEM DESCRIPTION VOLTAGE WATTS AMPS PLUG CASE LOT 46060| Domestic 120 160/275 2.3 NEMA 5-15P 1 International Models - available for export only 230V 230V ITEM DESCRIPTION VOLTAGE WATTS AMPS PLUG CASE LOT 46110| Europe 230 120/230 1.0 SCHUKO 1 46115| UK 230 120/230 1.0 UK 1 |Fits all Vollrath chafers except for 46030, 46328, 46430, 46850 Stackable Chafer Cover Wire Rack Holder Q Stand is stackable Q 18-8 stainless steel for compact storage Q Attaches quickly to Q Heavy-duty chrome chafer rack| plated steel rack holds Q Disassembles easily for up to 3 fuel holders compact storage Q 1⁄4 (.6mm) wire diameter Note: 46852 Q Provides convenient Q attaches on Holds one dripless water pan storage for dome cover long end ITEM DESCRIPTION CASE LOT ITEM DESCRIPTION CASE LOT 46872{ Wire stand only 3 46852 Fits full-size, long end 1 {Not designed for use with aluminum foil water pans |Does not fit wire chafer stand (46872) or electric chafers Chafer Name Plates Fuel Holder with Cover Q Chrome-plated brass with Q 18-8 stainless steel engraved lettering Q Fits all chafer stands Q Includes three 18 (45.7cm) silver-toned chains Q Dimensions: 4 x 11⁄2 (10.2 x 3.8cm) ITEM DESCRIPTION USED WITH CASE LOT 46098 “Coffee” 46093, 46094 1 ITEM DESCRIPTION DIMENSIONS DIA x H: IN (CM) HANDLE: IN (CM) CASE LOT 46099 “Decaf” 46093, 46094 1 46864 Fuel holder 3 ⁄8 x 2 ⁄16 5 7 2 ⁄16 11 12 46100 “Hot Water” 46093, 46094 1 w/cover} (9.1 x 6.2) (6.8) }Cover cannot be ordered separately 9-32
- 310. Buffet and TabletopService The Vollrath Company, LLC Tote ‘N Store® Chafer Boxes Q Heavy-duty impact resistant plastic construction with integral handles Q Nestable and stackable Q Permanently affixed hinged lids open and close easily Q Integral holes allow for totes to be padlocked 52645 52648 52646 52647 Chafer Totes INSIDE TOP DIMENSIONS INSIDE BOTTOM DIMENSIONS CASE ITEM COLOR FITS ITEM NUMBER (L X W X H): IN (CM) (L X W): IN (CM) LOT 52648 Blue 46029, 46075, 46095, 46884, 48329, 48795, 99870 201⁄ 8 x 113⁄ 8 x 123⁄ 8 187⁄ 8 x 101⁄ 8 3 (51.1 x 28.9 x 31.4) (47.9 x 25.7) 52645 Red 46030, 46035, 46050, 46052, 46090, 46120, 46121, 46122, 251⁄ 8 x 151⁄ 2 x 115⁄ 8 235⁄ 8 x 137⁄ 8 3 46123, 46193, 46194, 46280, 46320, 46321, 46322, (63.8 x 39.4 x 29.5) (60.0 x 35.2) 46500, 46501, 46833, 46834, 46847, 46860, 48322, 48323, 48324, 48326, 48327, 48328, 48790, 49322, 49323, 49329, 49520, 49521, 49522, 49523, 49524, 49525, 49529, 99850, 4635710, 4635410 52647 Gray 46040, 46045, 46051, 46070, 46075, 46080, 46093, 46094, 283⁄ 4 x 203⁄ 4 x 183⁄ 4 265⁄ 8 x 185⁄ 8 1 46255, 46265, 46290, 46350, 46360, 46518, 46520, 46530, (73.0 x 52.7 x 47.6) (67.6 x 47.3) 46880, 48780, 48770, 48793, 48794, 49865,49965, 99860, 4634010 52646{ Gray 46094, 46193, 46502, 46503 213⁄ 4 x 207⁄ 8 x 13 217⁄ 16 x 201⁄ 2 1 (55.2 x 53.0 x 33.0) (54.5 x 52.1) {Includes removable lid and foam base Buffetware Box Q Ideal for transporting hollow handle buffetware and table service accessories 52649 ITEM COLOR DESCRIPTION INSIDE TOP DIMENSIONS: (L X W X H) IN (CM) INSIDE BOTTOM DIMENSIONS: (L X W) IN (CM) CASE LOT 52649 Gray Buffetware box 201⁄ 8 x 141⁄ 4 x 45⁄ 8 (51.1 x 36.2 x 11.8) 183⁄ 4 x 131⁄ 4 (47.6 x 33.7) 3 9-33
- 311. vollrathco.com Buffet and Tabletop Service Stainless Steel Serving Trays Q Heavy-gauge stainless steel – highly resistant Q Dishwasher safe to corrosion, pitting, and rusting Q Oval trays have integral handles and triangular trays Q Satin-finished rim and mirror-finished interior creates have raised flange for safer carrying comfort a visual contrast that accentuates the food product Q Integral handles for safer carrying and comfort Q Contemporary geometric styling fits a variety of decors Round Trays Square Trays Oval Trays Rectangular Trays Triangular Trays ITEM DESCRIPTION DIMENSIONS (L X W OR DIA): IN (CM) CASE LOT 82093 Small rectangular 12 x 9 (30.5 x 22.9) 3 82094 Medium rectangular 18 x 10 (45.7 x 25.4) 3 82095 Large rectangular 21 x 12 (53.3 x 30.5) 3 82090 Small square 113⁄ 4 x 113⁄ 4 (29.8 x 29.8) 3 82091 Medium square 153⁄ 4 x 153⁄ 4 (40 x 40) 3 82092 Large square 181⁄ 2 x 181⁄ 2 (47 x 47) 3 82096 Small round 12 (30.5) dia 3 82097 Medium round 14 (35.5) dia 3 82098 Large round 16 (40.6) dia 3 82060 Small oval w/integral handles 143⁄ 4 x 107⁄ 8 (37.5 x 27.6) 3 82061 Medium oval w/integral handles 175⁄ 8 x 13 (44.8 x 33.0) 3 82062 Large oval w/integral handles 211⁄ 8 x 151⁄ 2 (53.7 x 39.4) 3 82066 Small triangular 13 (33.0) dia 3 82067 Medium triangular 15 (38.1) dia 3 82068 Large triangular 17 (43.2) dia 3 9-34
- 312. Buffet and TabletopService The Vollrath Company, LLC Esquire™ Fluted Trays Q Q Mirror-finished heavy-duty 18-10 stainless steel Center embossing enhances style and minimizes noticeable wear From the elegant fluted design, to the high quality Q Food-safe contact area so trays will not pit or discolor workmanship you expect from Vollrath, you will be amazed Q Dishwasher safe how Esquire trays enhance any buffet presentation. 82170 82173 82172 82169 82167 82171 82166 82168 DIMENSIONS (L X W OR DIA) CASE ITEM DESCRIPTION IN (CM) LOT 82166 Rectangular fluted tray 181⁄ 4 x 121⁄ 2 (46.4 x 31.8) 3 82167 Rectangular fluted tray 21 x 141⁄ 4 (53.3 x 36.2) 3 82168 Round fluted tray 12 (30.5) dia 6 82169 Round fluted tray 14 (35.6) dia 3 Esquire™ 82170 Round fluted tray 16 (40.6) dia 3 82171 Oval fluted tray 143⁄ 4 x 107⁄ 8 (37.5 x 27.6) 3 Fluted Tray 82172 Oval fluted tray 175⁄ 8 x 13 (44.8 x 33.0) 3 Detail 82173 Oval fluted tray 211⁄ 8 x 151⁄ 2 (53.6 x 39.4) 3 Super Pan 3® Trays Q 300 series stainless steel construction Q 22 gauge (.8 mm) Q Unique patented ramp Q Built-in anti-jam stacking lugs Q Specially designed reinforced corners Q Integral frame enhances food presentation DIMENSIONS (L X W) CASE ITEM IN (MM) LOT 92002 259⁄ 16 x 207⁄ 8 (650 x 530) 6 90002 207⁄ 8 x 1213⁄ 16 (530 x 325)) 6 90102 1315⁄ 16 x 1213⁄ 16 (354 x 325) 6 90202 1213⁄ 16 x 107⁄ 16 (325 x 265) 6 90502 207⁄ 8 x 63⁄ 8 (530 x 162) 6 90302 615⁄ 16 x 1213⁄ 16 (176 x 325) 6 90402 63⁄ 8 x 107⁄ 16 (162 x 265) 6 9-35
- 313. vollrathco.com Buffet and Tabletop Service Elegant Reflections™ Serving Trays Add serving convenience and a touch of class to your buffet table with these Elegant Reflections™ serving trays. Q Mirror-finished heavy-duty 18-8 stainless steel Q Dishwasher safe Q Scalloped gadroon edge Q Center embossing enhances style and minimizes noticeable wear Q Food-safe surface is easy to clean and maintain Round Serving Trays Oval Serving Trays SILVERPLATE DIAMETER CASE ITEM ITEM{ DESCRIPTION IN (CM) LOT SILVERPLATE DIMENSIONS (L X W) CASE 82100 82366{ Round tray 123⁄ 8 (31.4) 1 ITEM ITEM{ DESCRIPTION IN (CM) LOT 82101 82367{ Round tray 151⁄ 4 (38.7) 1 82110 82369{ Oval tray 16 x 115⁄ 8 (40.6 x 29.5) 1 82102 82368{ Round tray 185⁄ 8 (47.3) 1 82111 82370{ Oval tray 213⁄ 4 x 16 (55.2 x 40.6) 1 {For silverplate information, see page 9-37 {For silverplate information, see page 9-37 Oblong Serving Trays Round Gallery Trays Trays without handles are NSF Certified Complement your serving trays with cake stands! (Page 9-49) SILVERPLATE DIMENSIONS (L X W) CASE ITEM ITEM{ DESCRIPTION IN (CM) LOT SILVERPLATE DIMENSIONS (L X W) CASE 82122 82372{ With handles| 177⁄ 8 x 137⁄ 8 (45.4 x 35.2) 1 ITEM ITEM{ DESCRIPTION IN (CM) LOT 82123 82373{ With handles| 231⁄ 2 x 181⁄ 2 (59.7 x 47) 1 82130 82374{ Round tray 13 x 11⁄ 2 (33 x 3.8) 1 82120} 82380{ Without handles 177⁄ 8 x 137⁄ 8 (45.4 x 35.2) 1 82131 82375{ Round tray 151⁄ 4 x 11⁄ 2 (38.7 x 3.8) 1 82121} 82371{ Without handles 231⁄ 2 x 181⁄ 2 (59.7 x 47) 1 82132 82376{ Round tray 18 x 11⁄ 2 (45.7 x 3.8) 1 {For silverplate information, see page 9-37 {For silverplate information, see page 9-37 |Does not include handle dimensions }NSF Certified 9-36
- 314. Buffet and TabletopService The Vollrath Company, LLC Odyssey™ Serving Trays These value priced trays complement casual or formal banquet applications and are ideal for catered events. Various styles to meet your serving needs. Q Tough chrome plating provides long life Q Premium product at an economy price {Not dishwasher safe. Recommend Q Mirror-finish Q Handwash only{ cleaning with sponge, mild detergent, and Q Surface safe for direct food contact warm water 47263 47266 47267 47261 47260 47265 47264 47262 Gold Trim Trays Q 24K gold trim DIMENSIONS (L X W) CASE Silverplate Your ITEM 47260 DESCRIPTION Rectangular tray IN (CM) 181⁄ 4 x 1213⁄ 64 (46.3 x 31.3) LOT 6 Buffet and Table 47266 47264 Rectangular tray Oval tray 191⁄ 2 x 14 (50 x 35.5) 133⁄ 4 x 10 (35 x 25.5) 6 12 Service 47265 Oval tray 181⁄ 8 x 13 (46 x 33) 12 Vollrath offers silverplating as an optional finish on many popular pieces of buffetware and table service. Refer to specific product pages for item numbers: Classic Round Tray DIMENSIONS (DIA) CASE ITEM DESCRIPTION IN (CM) LOT 47262 Round tray 14 (35.7) 6 8-Sided Trays Q Normal order procedure is 35 day lead time DIMENSIONS (L X W) CASE Q Minimum order quantity is one — ideal for ordering samples or ITEM DESCRIPTION IN (CM) LOT small quantities 47261 8-sided tray 171⁄ 8 x 10 (43.5 x 25.5) 6 Q 3 micron, 99.9% pure Silverplate 3 47263 8-sided tray 20 x 13 ⁄ 4 (50.5 x 34.5) 6 Q Silverplate provides extremely durable plating with average life of 5 to 10 years Victorian Rectangular Tray Q Easy maintenance against tarnishing Q All sales on silverplated items are final – cannot be cancelled DIMENSIONS (L X W) CASE ITEM DESCRIPTION IN (CM) LOT or returned Q Items can be re-plated by Vollrath on a special order basis 47267 Rectangular tray 213⁄ 4 x 15 (55.3 x 38) 6 9-37
- 315. vollrathco.com Buffet and Tabletop Service Oval Platters Round Trays Q Mirror-finished 18-8 stainless steel Q Mirror-finished 18-8 stainless steel Q Surface safe for direct food contact Q Special on the buffet line or at tableside Q Sanitary open bead design DIMENSIONS (L X W X H) CASE ITEM IN (CM) LOT 47232 12 x 71⁄ 8 x 7⁄ 8 (30.5 x 20.0 x 2.2) 6 DIMENSIONS (DIA X H) CASE 3 1 7 47234 13 ⁄ 4 x 9 ⁄ 8 x ⁄ 8 (34.9 x 23.2 x 2.2) 6 ITEM IN (CM) LOT 47236 153⁄ 4 x 103⁄ 8 x 1 (40.0 x 26.4 x 2.5) 6 47212 12 x 3⁄ 4 (30.5 x 1.9) 12 47238 18 x 12 x 1 (45.7 x 30.5 x 2.5) 6 47214 137⁄ 8 x 3⁄ 4 (35.2 x 1.9) 12 47242 211⁄ 2 x 131⁄ 2 x 7⁄ 8 (54.6 x 34.3 x 2.2) 6 47216 157⁄ 8 x 7⁄ 8 (40.3 x 2.2) 12 Oblong Serving Cater Trays and Display Trays Q Mirror-finished 18-8 stainless steel Q Delicate edging adds touch of elegance Q Satin-finished stainless steel — heavy-duty construction Q Smooth rounded corners and seamless construction DIMENSIONS (L X W X H) CASE ITEM IN (CM) GAUGE LOT 80130 135⁄ 8 x 93⁄ 4 x 5⁄ 8 (34.6 x 24.8 x 1.6) 22 6 80150 151⁄ 8 x 101⁄ 2 x 5⁄ 8 (38.4 x 26.7 x 1.6) 22 6 DIMENSIONS (L X W X H) CASE 80170 171⁄ 8 x 115⁄ 8 x 5⁄ 8 (43.5 x 29.5 x 1.6) 22 6 ITEM IN (CM) LOT 80190 19 x 121⁄ 2 x 5⁄ 8 (48.3 x 31.8 x 1.6) 22 6 47251 19 x 123⁄ 8 x 1⁄ 2 (48.3 x 31.4 x 1.3) 6 Stainless Steel Plates Did you know? Q Satin pewter-look 18-8 stainless steel Q Perfect way to present appetizers and desserts 18-8 Stainless steel is Q Dishwasher safe Q Safe for direct food contact Q Very durable Q Won’t tarnish or peel DIMENSIONS (DIA) CASE ITEM IN (CM) LOT 47656 6 (15.2) 12 9-38
- 316. Buffet and TabletopService The Vollrath Company, LLC Windway® Hollow Handle Buffetware Q One-piece, mirror-finished 18-8 stainless steel Q Thick handles with finger grips fit the hand comfortably H. A. Q Gold-plated swirl accent G. B. OVERALL LENGTH CASE ITEM DESCRIPTION IN (CM) LOT C. 1 A. 46653 Oval ladle 6 oz (177.4 ml) 15 ⁄ 4 (38.7) 12 I. D. B. 46641 Ladle 4 oz (118.3 ml) 125⁄ 8 (32) 12 E. J. C. 46642 Perforated turner 145⁄ 8 (37.1) 12 F. D. 46647 Solid serving spoon 121⁄ 4 (31.2) 12 K. E. 46646 Notched serving spoon 121⁄ 4 (31.2) 12 L. 1 M. F. 46650 Slotted serving spoon 12 ⁄ 4 (31.2) 12 7⁄ 8 G. 46645 Buffet tong 11 (30.2) 6 N. H. 46640 Ladle with spout 2 oz (59.1 ml) 125⁄ 8 (32) 12 I. 46643 Pie server 113⁄ 4 (29.9) 12 J. 46644 Pastry server 111⁄ 2 (29.2) 12 K. 46651 Slicing knife 133⁄ 4 (34.9) 12 Spoon L. 46652 Carving knife 129⁄ 16 (31.9) 12 M. 46648 Pot fork 2-tine 111⁄ 2 (29.2) 12 Rest N. 46649 Cold meat fork 4-tine 107⁄ 16 (26.4) 12 Q Mirror-finished stainless steel See Page 9-51 Enhance your buffet presentation with Hollow Handle Utensils. Windway Buffet Service, Orion Buffet Service, Page 9-19 Pages 9-24 and 9-25 Hollow Handle Buffetware Q One-piece, mirror-finished stainless steel Q Comfortable handles 46909 with finger grips Q Well-balanced design 46936 46907 46952 46950 46955 46930 46905 46935 46937 46960 46956 48145 48146 OVERALL LENGTH CASE ITEM DESCRIPTION IN (CM) LOT 46905 Ladle with spout 1 oz (29.6 ml) 119⁄ 16 (29.4) 12 OVERALL LENGTH CASE 46907 Ladle with spout 2 oz (59.1 ml) 129⁄ 16 (31.9 12 ITEM DESCRIPTION IN (CM) LOT 46909 Ladle 4 oz (118.3 ml) 129⁄ 16 (31.9 12 46960 Slotted serving spoon 12 (30.5) 12 46930 Perforated turner 143⁄ 16 (36.0 12 46950 Notched serving spoon 115⁄ 8 (29.5) 12 46935 Pie server 113⁄ 16 (28.4 12 46956 Cold meat fork 4-tine 103⁄ 8 (26.4) 12 3 46936 Pastry server 11 (27.9 12 46955 Pot fork 2-tine 11 ⁄ 16 (28.4) 12 46937 Cheese plane 11 (27.9 12 48145 Slicing knife with 9 (22.9 cm) blade 133⁄ 4 (34.9) 12 46952 Solid serving spoon 115⁄ 8 (29.5 12 48146 Carving knife with 8 (20.3 cm) blade 123⁄ 4 (32.4) 12 9-39
- 317. vollrathco.com Buffet and Tabletop Service Kool Touch® Buffetware Q Attractive black Kool Touch® coating insulates to provide a cool grip Q Heat resistant to 180°F (82.2°C) Q 18-8 stainless steel with hollow handles OVERALL LENGTH CASE ITEM DESCRIPTION IN (CM) LOT 46916 Ladle 4 oz (118.3 ml) 129⁄ 16 (31.9) 12 46918 Pot fork 2-tine 113⁄ 16 (28.4) 12 46919 Slotted serving spoon 12 (30.5) 12 46917 Solid serving spoon 115⁄ 8 (29.5) 12 46920 Notched serving spoon 115⁄ 8 (29.5) 12 Stainless Steel Buffet Serving Tongs Q One-piece, mirror-finished stainless steel Q Stylishly designed for durability and function 46929 46928 46926 46927 46925 SILVERPLATE OVERALL LENGTH CASE ITEM ITEM{ DESCRIPTION IN (CM) LOT 46938 46929 48429{ Pastry tongs 8 (20) 24 46928 48428{ Bread tongs 91⁄ 4 (23.5) 12 46927 48427{ Scalloped serving tongs 10 (25) 12 46926 48426{ Serving tongs 81⁄ 4 (21) 12 46925| 48425{| Scissors salad tongs 10 (25) 12 46988 — Spaghetti tongs 9 (22.9) 12 46989 — Spaghetti tongs 111⁄ 2 (29.2) 12 46938 — Buffet tongs 12 (30.5) 6 46989 7 46645 — Buffet tongs} 11 ⁄ 8 (30.2) 6 46988 {For silverplate information, see page 9-37 |Two piece construction }See page 9-39 Stainless Steel Serving Utensils Stainless Steel Q Elegant embossed pattern Serving Ladles OVERALL LENGTH CASE ITEM DESCRIPTION IN (CM) LOT 46942 Ladle 2 oz (59.1 ml) 9 (22.9) 12 CAPACITY OVERALL LENGTH CASE 46944 Ladle 4 oz (118.3 ml) 12 (30.5) 12 ITEM OZ (ML) IN (CM) LOT 1 46954 Fork 13 (33) 12 46940 ⁄ 2 (14.8) 6 (15.2) 12 46951 Spoon 111⁄ 2 (29.2) 12 46941 1 (29.6) 65⁄ 8 (16.8) 12 46953 Spoon 13 (33) 12 47892 6 (177.4) 12 (30.5) 24 9-40
- 318. Buffet and TabletopService The Vollrath Company, LLC Mobile Breath Guards Ideal for Single or Q Double Sided Buffets! Adjustable height 14¼ to 25¼ (36.20cm x 64.14cm) and angle works with most counter-top serving pieces, chafers, and warmers Q Rugged steel base with powder coating Q Curved acrylic glass which is durable and contemporary Q 3 standard sizes 3' - 4' - 5' (91.44cm - 121.92cm -152.4cm) sized for standard banquet tables, works as single or back to back Q Shipped knocked-down — easy to assemble ITEM DESCRIPTION LENGTH: IN (CM) CASE LOT MB98719 Chrome/Black 24 (61) 1 MB98720 Chrome/Black 36 (91) 1 MB98721 Chrome/Black 48 (122) 1 MB98722 Chrome/Black 60 (152) 1 Replacement Parts ITEM DESCRIPTION LENGTH: IN (CM) CASE LOT 98703 Upright (1) — 1 98704 Table mount collars (2) — 1 9870524 Base frame 24 (61) 1 9870536 Base frame 36 (91.4) 1 9870548 Base frame 48 (121.9) 1 9870560 Base frame 60 (152.4) 1 9870624 Acrylic panel 24 (61) 1 9870636 Acrylic panel 36 (91.4) 1 9870648 Acrylic panel 48 (121.9) 1 9870660 Acrylic panel 60 (152.4) 1 98709 Acrylic knob and washer (1) 1 Back to back arrangement Dimensions - Shown in inches (cm) Top View Drawing Side View Drawing MODEL A B C MB98719 24 (61) 221⁄8 (56.2) 181⁄8 (46) MB98720 36 (91.4) 341⁄8 (86.7) 301⁄8 (76.5) MB98721 48 (121.9) 461⁄8 (117.2) 461⁄8 (117.2) MB98722 60 (152.4) 581⁄8 (147.6) 541⁄8 (137.5) Ideal For Use With These Vollrath Food Serving Products Cayenne® Heated Shelves Cayenne® Food Warmers Rethermalizers Double Wall Insulated Serving Bowls 9-41
- 319. vollrathco.com Buffet and Tabletop Service Elevation Stands Q Durable heavy duty wire stand with black semi-gloss finish Q Added height makes buffet visually appealing while providing vertical serving space Q Various adaptor plates allow you to use different sizes and shaped bowls Q Utilize bowl covers to add more versatility to your buffet Q Each ring has 9 (22.9cm) inside diameter 46540 Q Customize and achieve the specific look you want for a variety of menu presentations Q Locator tab properly positions adaptor plate for secure fit 46541 Q Lifetime warranty on stand welds Medium accepts Small accepts 47659 47619 46665 and 46590 Medium accepts 47672 and 47632 Induction Chafer Small accepts 46665 and 46587 Large accepts 47674 47634 Stand See page 9-15 and 9-16 Round Adaptor Plates Square Adaptor Plates Round trays/bowl covers available - order separately - see page 9-46 RING HEIGHTS ACCEPTS DIMENSIONS (L X W X H) CASE ITEM DESCRIPTION IN (CM) BOWLS IN (CM) LOT 46540 Staggered style elevation stand only 51⁄ 2 (13.97), 73⁄ 8 (18.73), 46667, 46591 203⁄ 4 x 223⁄ 8 x 811⁄ 16 1 91⁄ 2 (24.13) (52.7 x 56.8 x 22.1) 46541 Ladder style elevation stand only 3 (7.62), 85⁄ 8 (21.9), 46667, 46591 251⁄ 2 x 91⁄ 2 x 137⁄ 8 1 137⁄ 8 (35.2) (64.77 x 24.13 x 35.24) 46542 ABS Adaptor plate - round - Medium 46666, 46590 7 (17.78) inside diameter 1 1 46543 ABS Adaptor plate - round - Small 46665, 46587 5 ⁄ 2 (13.97) inside diameter 1 46545 ABS Adaptor plate - square - Large 47674, 47634 73⁄ 8 (18.73) square cutout 1 46546 ABS Adaptor plate - square - Medium 47672, 47632 61⁄ 4 (15.88) square cutout 1 1 46547 ABS Adaptor plate - square - Small 47659, 47619 5 ⁄ 16 (12.86) square cutout 1 Double Wall Conical Stainless Steel Beverage Bins Floor Beverage Stand Q Moves beverages off of the tabletop – leaving more room for food presentation/serving 47225 bin shown 47225 w/46548 stand Q Double wall construction won’t sweat Q Black color stand matches any décor Q Perfect for both self-serve applications or behind a bar Q Makes a great complementary piece to Vollrath’s tabletop elevation stands Q Lifetime warranty on stand welds OUTSIDE DIMENSIONS CASE ITEM DESCRIPTION IN (CM) LOT 47226 Tabletop beverage bin 141⁄ 2 (36.8) top dia x 1 111⁄ 4 (28.6) bottom dia x 7 (17.8) high 47225 Double wall conical 181⁄ 2 (47) top dia x 1 beverage bin 147⁄ 8 (37.8) bottom dia x 8.2 (20.8) high 46548 Floor stand for 26 (66) high x 133⁄ 4 (34.9) dia 1 47226 beverage bin 47225 9-42
- 320. Buffet and TabletopService The Vollrath Company, LLC Q Colored Double Double wall construction provides insulation to maintain proper food temperature — hot or cold Q Durable color finishes enhance buffet presentation Wall Insulated Q Q Q Dishwasher safe Will not sweat Requires no preheating or chilling Serving Bowls Q Q Heavy-gauge stainless steel will not affect taste or color of food Satin-finished interior hides scratches and wear Colored Round Double Wall Bowls Colored Square Double Wall Bowls For product overview, see pg 9-3 and 9-4. Square bowl group shown in Cobalt Blue Round bowl group shown in Fire Engine Red Colored Square Colored Round Double Wall Bowls Double Wall Bowls Add suffix to base item number to indicate color selection Add suffix to base item number to indicate color selection Metallic Colors: Tangelo (10), Dazzle Red (15), Caber- Metallic Colors: Tangelo (10), Dazzle Red (15), Caber- net (20), Cobalt Blue (25), Lemon Lime (30) net (20), Cobalt Blue (25), Lemon Lime (30) Classic Colors: Green Apple (35), Brazilian Blue (40), Classic Colors: Green Apple (35), Brazilian Blue (40), Nugget Yellow (45), Pearl White (50), Fire Engine Red (55), Nugget Yellow (45), Pearl White (50), Fire Engine Red (55), Black Black (60) Black Black (60) CAPACITY DIMENSIONS (L X W X H) CASE CAPACITY DIMENSIONS (DIA X H) CASE ITEM QT (L) IN (CM) LOT ITEM QT (L) IN (CM) LOT 47619XX .75 (.71) 51⁄2 x 51⁄2 x 23⁄4 (13.9 x 13.9 x 7) 6 46587XX .75 (.7) 511⁄16 x 3 (14.4 x 7.6) 6 47632XX 1.8 (1.7) 7 ⁄4 x 7 ⁄4 x 3 ⁄16 (18.4 x 18.4 x 8.7) 1 1 7 12 46590XX 1.7 (1.6) 71⁄4 x 4 (18.4 x 10.3) 6 47634XX 3.2 (3) 81⁄2 x 81⁄2 x 41⁄4 (21.6 x 21.6 x 10.8) 6 46591XX 3.4 (3.2) 91⁄2 x 5 (24.1 x 12.9) 6 47635XX 5.2 (4.9) 103⁄16 x 103⁄16 x 51⁄8 (25.8 x 25.8 x 13) 4 46592XX 6.9 (6.6) 1113⁄16 x 61⁄2 (30 x 16.5) 3 47637XX 8.2 (7.9) 11 ⁄16 x 11 ⁄16 x 5 ⁄16 (29.9 x 29.9 x 15) 13 13 15 3 46569XX 10.1 (9.6) 13 ⁄4 x 6 ⁄8 (35 x 17.5) 3 7 2 9-43
- 321. vollrathco.com Buffet and Tabletop Service Q Fluted Double Double wall construction provides insulation to maintain proper food temperature — hot or cold Q Dishwasher safe Wall Insulated Q Q Q Will not sweat Requires no preheating or chilling Heavy-gauge stainless steel will not affect taste or color of food Serving Bowls Q Q Mirror-finished exterior for an upscale look Satin-finished interior hides scratches and wear For cold retention test details see pg 9-45. Fluted Square Bowls Fluted Round Bowls CAPACITY DIMENSIONS (L X W X H) CASE CAPACITY DIMENSIONS (DIA X H) CASE ITEM QT (L) IN (CM) LOT ITEM QT (L) IN (CM) LOT 47680 .75 (.71) 51⁄2 x 51⁄2 x 23⁄4 (13.9 x 13.9 x 7) 6 47685 .75 (.7) 511⁄16 x 3 (14.4 x 7.6) 6 47681 1.8 (1.7) 7 ⁄4 x 7 ⁄4 x 3 ⁄16 (18.4 x 18.4 x 8.7) 1 1 7 12 47686 1.7 (1.6) 7 ⁄4 x 4 (18.4 x 10.3) 1 12 47682 3.2 (3) 81⁄2 x 81⁄2 x 41⁄4 (21.6 x 21.6 x 10.8) 6 47687 3.4 (3.2) 91⁄2 x 5 (24.1 x 12.9) 6 47683 5.2 (4.9) 103⁄16 x 103⁄16 x 51⁄8 (25.8 x 25.8 x 13) 4 47688 6.9 (6.6) 1113⁄16 x 61⁄2 (30 x 16.5) 4 47684 8.2 (7.9) 1113⁄16 x 1113⁄16 x 515⁄16 (29.9 x 29.9 x 15) 3 47689 10.1 (9.6) 133⁄4 x 67⁄8 (35 x 17.5) 3 9-44
- 322. Buffet and TabletopService The Vollrath Company, LLC Double Wall Insulated Serving Bowls Q Double wall construction provides insulation to Q Heavy-gauge stainless steel will not affect maintain proper food temperature — hot or cold taste or color of food Q Dishwasher safe Q Mirror-finished exterior for an upscale look Q Will not sweat Q Satin-finished interior hides scratches and wear Q Requires no preheating or chilling Does Double Wall Insulation work? See for yourself! Keep Hot Foods Hot and Cold Foods Cold! Test Protocol: December, 2004 1) Potato salad was placed in the various bowls so that they were 3⁄4 full. 2) Starting temp of the food was 33°F (0.6°C); room temp was 69°F (20.6°C). 3) Temperature in center of potato salad was recorded every 10 minutes. 4) Test was terminated when the food temp reached 41°F (5°C). Square Bowls Beehive Square Bowls 47659 47619 CAPACITY DIMENSIONS (L X W X H) CASE CAPACITY DIMENSIONS (L X W X H) CASE QT (L) IN (CM) LOT QT (L) IN (CM) LOT ITEM ITEM 47659 .75 qt (.71) 51⁄ 2 x 51⁄ 2 x 23⁄ 4 (13.9 x 13.9 x 7) 6 47619 .75 qt (.71) 51⁄ 2 x 51⁄ 2 x 23⁄ 4 (13.9 x 13.9 x 7) 6 47672 1.8 (1.7) 1 1 7 7 ⁄ 4 x 7 ⁄ 4 x 3 ⁄ 16 (18.4 x 18.4 x 8.7) 12 47632 1.8 (1.7) 7 ⁄ 16 x 75⁄ 16 x 31⁄ 2 (18.5 x 18.5 x 8.9) 5 12 47674 3.2 (3) 81⁄ 2 x 81⁄ 2 x 41⁄ 4 (21.6 x 21.6 x 10.8) 6 47634 3.2 (3) 85⁄ 8 x 85⁄ 8 x 41⁄ 4 (21.8 x 21.8 x 10.8) 6 47675 5.2 (4.9) 3 3 1 10 ⁄ 16 x 10 ⁄ 16 x 5 ⁄ 8 (25.8 x 25.8 x 13) 4 47635 5.2 (4.9) 95⁄ 8 x 95⁄ 8 x 53⁄ 16 (24.4 x 24.4 x 13.1) 4 47677 8.4 (7.9) 1113⁄ 16 x 1113⁄ 16 x 515⁄ 16 (29.9 x 29.9 x 15) 3 47637 8.2 (7.8) 1113⁄ 16 x 1113⁄ 16 x 515⁄ 16 (29.9 x 29.9 x 15) 3 9-45
- 323. vollrathco.com Buffet and Tabletop Service Double Wall Insulated Serving Bowls Satin-Finished Bowls Round Beehive Bowls with Contrasting Mirror-Finished Rings 46569 46587 46591 46592 46590 CAPACITY TOP DIAMETER X HEIGHT CASE CAPACITY TOP DIAMETER X HEIGHT CASE ITEM QT (L) IN (CM) LOT ITEM QT (L) IN (CM) LOT 46665{ .75 (.7) 511⁄ 16 x 3 (14.4 x 7.6) 6 46587{ .75 (.7) 511⁄ 16 x 3 (14.4 x 7.6) 6 1⁄ 4 46666{ 1.7 (1.6) 7 x 4 (18.4 x 10.3) 6 46590{ 1.7 (1.6) 71⁄ 4 x 4 (18.4 x 10.3) 6 46667{| 3.4 (3.2) 91⁄ 2 x 5 (24.1 x 12.9) 6 46591{| 3.4 (3.2) 91⁄ 2 x 5 (24.1 x 12.9) 6 13 1 46668{| 6.9 (6.6) 11 ⁄ 16 x 6 ⁄ 2 (30 x 16.5) 3 46592{| 6.9 (6.6) 1113⁄ 16 x 61⁄ 2 (30 x 16.5) 3 46669{ 10.1 (9.6) 133⁄ 4 x 67⁄ 8 (35 x 17.5) 2 46569{ 10.1 (9.6) 133⁄ 4 x 67⁄ 8 (35 x 17.5) 2 {See below for covers |See below for false bottom information {See below for covers |See below for false bottom information False Bottoms for Round Trays/Covers Double Wall Round Bowls for Double Wall Bowls Q Dome design drains liquid away from food product Q 18-8 stainless steel Q Finger hole for easy removal Q Combination satin/mirror Q Satin-finished stainless steel finish for beautiful food presentations Q Innovative way to display trayed foods while keeping them cold Q Tray can be used as cover for double wall bowl or as a stand- alone display item As shown in base of bowl ITEM DIAMETER IN (CM) FITS BOWL CASE LOT 82005 511/16 (14.4) 46587/46665 3 82006 71/4 (18.4) 46590/46666 3 TOP DIAMETER X HEIGHT CASE 82007 91/2 (24.1) 46591/46667 3 ITEM DESCRIPTION IN (CM) LOT 82008 113/16 (28.4) 46592/46668 3 46614 For 46591 46667 Bowls 6 x 5⁄ 8 (15.2 x 1.6) 6 46615 For 46592 46668 Bowls 63⁄ 4 x 13⁄ 16 (17.2 x 2.1) 6 82009 133/4 (35) 46569/46669 3 9-46
- 324. Buffet and TabletopService The Vollrath Company, LLC Double Wall Insulated Serving Bowls Angled Bowls Angled Beehive Bowls Q Angled design 47652 creates elegant presentation that features the food product and provides easy access CAPACITY TOP DIAMETER HEIGHT CASE CAPACITY TOP DIAMETER X HEIGHT CASE ITEM QT (L) IN (CM) IN (CM) LOT ITEM QT (L) IN (CM) LOT 47650 1 (.95) 73⁄ 8 (18.8) 51⁄ 2 (13.9) 6 46584 1 (.95) 73⁄ 8 x 51⁄ 2 (18.8 x 13.9) 6 47651 1.9 (1.8) 1 9 ⁄ 2 (24) 13 6 ⁄ 16 (17.3) 6 46585 1.9 (1.8) 97⁄ 16 x 613⁄ 16 (24 x 17.3) 6 47652 3.7 (3.5) 1113⁄ 16 (30) 57⁄ 8 (15) 2 46586 3.7 (3.5) 1113⁄ 16 x 81⁄ 4 ( 30 x 20.9) 2 47658 5 (4.7) 3 13 ⁄ 4 (35) 3 9 ⁄ 8 (23.8) 2 46582 5 (4.7) 133⁄ 4 x 93⁄ 8 ( 35 x 23.8) 2 Oval Bowls Oval Beehive Bowls CAPACITY DIMENSIONS (L X W X H) CASE CAPACITY DIMENSIONS (L X W X H) CASE ITEM QT (L) IN (CM) LOT ITEM QT (L) IN (CM) LOT 47653 1.8 (1.7) 63⁄ 8 x 89⁄ 16 x 37⁄ 8 (16.2 x 21.8 x 9.8) 6 46566 1.8 (1.7) 8.4 x 6.4 x 3.8 (21.3 x 16.2 x 9.7) 6 47654 3.8 (3.6) 83⁄ 8 x 11 x 51⁄ 8 (21.3 x 28 x 13) 6 46567 3.8 (3.6) 10.5 x 8.4 x 4.7 (26.6 x 21.3 x 12) 6 47655 7.1 (6.7) 105⁄ 8 x 133⁄ 8 x 61⁄ 2 (27 x 34 x 16.5) 2 46568 7.1 (6.7) 12.75 x 10.6 x 6.1 (32.4 x 27 x 15.6) 2 Triangular Bowls Rectangular Bowls Q Plain-sided mirror-finished exterior with scalloped top rim Q Sized to match capacity of standard 5 and 10 lb deli crocks CAPACITY DIMENSIONS (L X W X H) CASE ITEM QT (L) IN (CM) LOT CAPACITY DIMENSIONS (L X W X H) CASE 47667 2 (1.9) 133⁄ 16 x 81⁄ 4 x 211⁄ 16 (33.5 x 21 x 6.8) 6 ITEM QT (L) IN (CM) LOT 47668 2.8 (2.6) 153⁄ 4 x 91⁄ 2 x 21⁄ 2 (40 x 24.1 x 6.4) 4 47665 2 (1.9) 103⁄ 8 x 63⁄ 4 x 31⁄ 4 (26.2 x 17.1 x 8.3) 6 47669 4.3 (4.0) 201⁄ 8 x 1111⁄ 16 x 21⁄ 2 (51.5 x 29.6 x 6.4) 4 47666 4.3 (4.0) 13 x 105⁄ 16 x 31⁄ 4 (33 x 26.2 x 8.3) 4 9-47
- 325. vollrathco.com Buffet and Tabletop Service Double Wall Insulated Serving Bowls Conical Bowls Q 46579 Mirror-finished exterior and top edge 46577 46578 46576 46581 shown with 46575 46575 CAPACITY CASE QT (L) TOP DIAMETER X HEIGHT LOT ITEM IN (CM) 46575 .62 (.59) 65⁄ 16 x 23⁄ 4 (16 x 6.9) 1 46581 46576 1.4 (1.3) 73⁄ 4 x 31⁄ 2 (20 x 8.8) 1 46577 2.5 (2.4) 913⁄ 32 x 41⁄ 4 (24 x 10.8) 1 46578 2.8 (2.6) 11 x 37⁄ 8 (28 x 9.8) 1 46579 6.4 (6.1) 11 x 73⁄ 4 (28 x 19.7) 1 46581 1.7 (1.6) 13 x 2 (33 x 5.1) 1 Octagonal Bowls Trumpet Bowl Q Pedestal models provide elevation to create a more Q Mirror-finished exterior and inside rim exciting presentation and flexible serving options CAPACITY DIMENSIONS (DIAMETER X HEIGHT) CASE ITEM QT (L) IN (CM) LOT 47661{ 3.8 (3.6) 105⁄ 8 x 315⁄ 16 (27 x 10) 6 47662 3.8 (3.6) with 2 105⁄ 8 x 515⁄ 16 (27 x 15) 4 (5.1 cm) pedestal base CAPACITY TOP DIAMETER X HEIGHT CASE 47663 3.8 (3.6) with 5 105⁄ 8 x 9 (27 x 22.8) 3 ITEM QT (L) IN (CM) LOT (12.7 cm) pedestal base 47664 3.4 (3.2) 95⁄ 8 x 51⁄ 2 (24.5 x 14) 4 {NSF certified 9-48
- 326. Buffet and TabletopService The Vollrath Company, LLC Multi-Purpose Bowls Round Serving Bowls Q Stainless steel with Handles Q Mirror-finished outside and top rim Q Heavy-gauge Q Satin-finished interior mirror-finished for longer life stainless steel Q Ideal for punch, salads, Q Permanently welded fresh fruit or pasta stainless steel handles Q Ideal for use with sauces, 82144 salads, main dishes, bread or fruit Q Great on a tabletop or buffet CAPACITY TOP DIAMETER X HEIGHT CASE CAPACITY TOP DIAMETER X HEIGHT CASE ITEM QT (L) IN (CM) LOT ITEM QT (L) IN (CM) LOT 47608 5.5 (5.2) 131⁄ 2 x 7 (34.3 x 17.8) 1 46625 1 (.95) 61⁄ 8 x 23⁄ 4 (15.6 x 7) 1 82144 11 (10.6) 1519⁄ 32 x 81⁄ 2 (39.6 x 21.6) 1 46626 2 (1.89) 77⁄ 8 x 31⁄ 2 (20 x 8.9) 1 82146 17.5 (16.5) 18 x 913⁄ 16 (45.7 x 25) 1 46627 3.5 (3.31) 97⁄ 16 x 43⁄ 8 (24 x 11.1) 1 Oval Bowl and Salt Pepper Set ITEM DESCRIPTION CAPACITY OVERALL DIMENSIONS (L X W X H) IN (CM) CASE LOT Q Mirror-finished stainless steel basket is 46624 Oval Bowl 1011⁄ 16 x 7 x 25⁄ 16 1 ideal for breads, rolls, and fruit 1.7 qt (1.6 ml) (27.1 x 17.8 x 5.9) Q Mirror-finished salt pepper rack finishes the elegant presentation 46603 Salt Pepper Set 61⁄ 16 x 27⁄ 8 x 65⁄ 16 1 1 oz (1.6 l) (15.5 x 7.5 x 16)) Salt Pepper Set Replacement Parts ITEM DESCRIPTION DIMENSIONS: IN (CM) CASE LOT 46604 1 hole cover 11⁄2 (3.8) dia 1 46605 10 hole cover 11⁄2 (3.8) dia 1 46612 Glass for 46603 Shakers 11⁄2 (3.8) dia x 21⁄2 (6.4) h 24 Condiment Servers Elegant Reflections™ Cake Stand Q Stainless steel — resistant to corrosion, pitting and rusting Q Heavy-duty mirror-finished stainless steel Q Mirror-finished handle and inside of bowls offer upscale look Q All welded construction Q Satin-finished bottom and outside of bowls Q Embossed surface Q Ideal for nuts, mints, chocolate and candy — for bars and tables Q Maximizes the versatility of the Elegant Q Large enough to hold the right amount of product, Reflection family of trays but small enough to keep the product fresh Q Stainless steel hollow rod handle provides easy surface to grab and transport servers SINGLE BOWL OVERALL HEIGHT: BOWL DIAMETER CASE ITEM DESCRIPTION CAPACITY: OZ (L) IN (CM) IN (CM) LOT DIAMETER HEIGHT CASE 46635 2 bowl 4 (.12) 31⁄ 4 (8.3) 37⁄ 8 (9.8) 1 ITEM IN (CM) IN (CM) LOT 46636 3 bowl 4 (.12) 31⁄ 4 (8.3) 37⁄ 8 (9.8) 1 82150 125⁄ 16 (31.3) 41⁄ 2 (11.3) 1 9-49
- 327. vollrathco.com Buffet and Tabletop Service Wine Buckets Q Classic design and timeless styling Q Satin-finished inside for longer life Q Heavy-duty mirror-finished stainless steel outside Q Stylish handles for easy transport 47620 ITEM SILVERPLATE ITEM{ DESCRIPTION DIMENSIONS (DIA X H): IN (CM) FITS STAND ITEM CASE LOT 47630 48330{ Bucket w/handles 81⁄ 4 x 8 (21 x 20.3) 47611 1 47625 48325{ Double bucket w/handles 97⁄ 8 x 91⁄ 8 (25.1 x 23.2) 47621 1 47630/47625 47620| 48320{| Bucket w/handles 81⁄ 4 x 73⁄ 4 (21 x 19.7) 47611 1 {For silverplate information, see page 9-37 |For use on tabletop or in stand Beehive Style Wine/Champagne Bucket Q Heavy-gauge stainless steel is resistant to corrosion, pitting and rusting Q Tapered body fits Q Mirror-finished exterior for an upscale look compactly on tabletop Q Dishwasher safe Q Satin-finished interior for durability ITEM TOP DIAMETER X HEIGHT: IN (CM) BOTTOM DIA.: IN (CM) CASE LOT 46609 71⁄ 2 x 77⁄ 8 (19 x 20) 53⁄ 8 (13.7) 1 Fluted Wine Bucket Wine Cooler Q Stainless steel with welded handles Q Black plastic with bail handle Q Mirror-finished interior and top rim Q 53⁄4 qt (5.3L) Q Ideal for use on tabletop or with Q Fits 47611, 46800 and the 47611 wine stand (above) 82075 stands 52930 47617 ITEM TOP DIAMETER X HEIGHT: IN (CM) BOTTOM DIA.: IN (CM) CASE LOT ITEM DIAMETER: IN (CM) DEPTH: IN (CM) CASE LOT 47617 97⁄ 16 x 83⁄ 4 (24 x 22.2) 61⁄ 2 (16.5) 1 52930 8 (20.3) 10 (25.4) 3 Wine Bucket Stands Wine Bucket Q Heavy weighted base and Stands Q Mirror-finished stainless steel Q Satin-finished Q Shipped knocked down in three Wine bucket (48320) not stainless steel pieces for quick assembly included bucket Q Stand accepts 46801 (Bucket only) all Vollrath wine buckets Q Sturdy tripod 46800 82075 stands are (Stand only) (Stand only) chrome-plated SILVERPLATE DIMENSIONS (DIA X H): CASE ITEM ITEM{ DESCRIPTION IN (CM) LOT CASE 47611} 48311{} Single bottle stand, 73⁄ 4 x 235⁄ 8 1 ITEM DESCRIPTION LOT for 46616, 47617, (19.7 x 60) 46801 Bucket only — 101⁄ 8 (25.7 cm) h, 8 qt (7.6 L), 6 47620, 47630, Top dia: 83⁄ 4 (22.2 cm), Bottom dia: 6 (15.2 cm) 52930 buckets 46800 Stand only, for 46801 and 52930 buckets 1 47621} 48321{} Double bottle stand, 85⁄ 8 x 235⁄ 8 1 82075 Stand only — 28 h (71 cm), for 46801 1 for 47625 bucket (21.9 x 60) and 52930 buckets {For silverplate information, see page 9-37 }Buckets and stands sold separately 9-50
- 328. Buffet and TabletopService The Vollrath Company, LLC Double Wall Champagne/ Beverage Bins Wine Bucket and Floor Q Stainless Steel Beverage Stand Q Q Moves beverages off of the Double wall construction provides insulation to keep tabletop – leaving more room champagne cold for food presentation/serving 47225 bin shown Q Double wall beverage bin w/46548 stand Q Satin-finished exterior and interior minimizes wear won’t sweat Q Black color stand matches Q Condensation will not form on exterior for clean presentation any décor Q Small footprint takes up little table space Q Durable and will not crack or break like plastic or marble buckets 47226 Q Ample room for use with ice but not required OUTSIDE DIMENSIONS CASE Q May be used with Vollrath ITEM DESCRIPTION IN (CM) LOT wine stand (Item ) Tabletop 141⁄ 2 (36.8) top dia x 47226 1 beverage bin 111⁄ 4 (28.6) bottom dia x 7 (17.8) h Double wall conical 18 (45.7) top dia x 47225 1 beverage bin 15 (38.1) bottom dia x 11 (27.9) h CAPACITY DIAMETER DEPTH CASE ITEM QT (L) IN (CM) IN (CM) LOT Floor stand for 46548 133⁄ 4 (34.9) dia x 26 (66) h 1 46616 2.1 (2) 8 (20.3) 7 (17.8) 6 beverage bin 47225 Double Wall Insulated Wine Coolers 47615 Beehive 47616 Q Stainless steel cooler Hourglass Q Keeps wines or champagnes chilled for up to 4 hours cooler Q No ice or pre-chilling required, no “sweat” Q Small footprint takes up very little table space 47605 Straight- Q Durable and will not crack or break like plastic or marble coolers sided cooler EXTERIOR INTERIOR DIMENSIONS (DIA X H) CASE ITEM DESCRIPTION FINISH FINISH IN (CM) LOT 47615 Double wall beehive cooler Mirror-finish Satin-finish 41⁄ 2 x 77⁄ 8 (11.4 x 20) 1 47605 Double wall straight-sided cooler Satin-finish Satin-finish 41⁄ 2 x 73⁄ 4 (11.4 x 19.7) 1 13⁄ 16 85⁄ 8 47616 Double wall hourglass cooler Mirror-finish Satin-finish 5 x (14.8 x 22) 1 Bottle Coaster/Spoon Rest Q Mirror-finished stainless steel Q Accommodates all standard wine bottles Q Wide rim design helps prevent spills onto tablecloth Q Ideal for use as a spoon rest or as a cover for small ice bucket (46621, page 9-54) ITEM DESCRIPTION DIAMETER: IN (CM) CASE LOT 46622 Bottle coaster/spoon rest 61⁄ 8 (15.6) 24 9-51
- 329. vollrathco.com Buffet and Tabletop Service Vacuum Wine Wine Stopper Saver/Stopper Q Unique PVC interior stopper provides tight seal and extends life of wine Q Maintains wine quality by Q Easy to put on and take removing excess oxygen off — saving Q Pump and wine time and effort stopper in one unit Q ABS plastic exterior is Q Creates vacuum seal durable, sanitary and – no leaking easy to clean Q Textured sides ensures sure grip Q Dishwasher safe Q Ideal for operators selling wine by the glass Q Allows for upright or horizontal storage Q Dishwasher safe ITEM DESCRIPTION DIMENSIONS: IN (CM) CASE LOT ITEM DESCRIPTION DIMENSIONS: IN (CM) CASE LOT 47609 Vacuum Wine 4 x 13⁄ 4 6 46773 Wine Stopper 15⁄ 8 x 11⁄ 2 12 packages Saver/Stopper (10.2 x 4.4) (4.1 x 3.8) (2 per package) Champagne Stopper Pulltap’s™ Waiter’s Corkscrew Q Patented double lever system makes Q Patented slide feature creates removing the cork effortless easy, quick seal on bottle Q Ergonomic curved handle Q Unique PVC interior stopper provides tight seal and Q Five turn Teflon® coated extends life of champagne forged steel Q Serrated capsule cutting Q Oval shape is easy to grab and hold onto blade provides easy removal of foil Q ABS plastic exterior Q Finest waiter's is durable, sanitary and easy to clean corkscrew you can buy Q Dishwasher safe Q Custom imprinting available, contact Open Closed your Vollrath representative for more details position position ITEM DESCRIPTION DIMENSIONS: IN (CM) CASE LOT SCREW LENGTH OVERALL LENGTH{ CASE ITEM DESCRIPTION IN (CM) IN (CM) LOT 46774 Champagne 25⁄ 8x 17⁄ 8 x 11⁄ 2 12 packages 47602 Hinged design 2 (5.1) 45⁄ 8 (11.7) 10 Stopper (6.7 x 4.8 x 3.8) (2 per package) {Closed position Champagne Stopper Corkscrews 46789 Q Mirror-finished stainless steel Waiter’s Corkscrew Q For use with champagne, sparkling Q Stainless steel wine and mineral bottles Q Pocket style with knife, Q Spring-loaded design creates a cork and cap lifter tight fit for better sealing Winged Corkscrew Q Gear lever action lifter affords easy removal of cork Q 46788 Imported from Italy ITEM DESCRIPTION LENGTH: IN (CM) CASE LOT ITEM DESCRIPTION CASE LOT 46789 Waiter's corkscrew 45⁄ 8 (11.7) 12 47603 Butterfly style champagne stopper, stainless steel 12 46788 Winged corkscrew and cap lifter 71⁄ 4 (18.4) 12 9-52
- 330. Buffet and TabletopService The Vollrath Company, LLC Double Wall Insulated Shakers Q Stainless steel for durability Q Double wall construction eliminates condensation for a secure and comfortable grip Q Rubber gasket prevents leaking Q Easy pull-off top for quick removal Q Dishwasher safe for easy clean-up Q Three unique and attractive shaker styles Square Oval Fluted 47614 Martini glass not included 47618 47623 DIMENSIONS: (DIA X H) CASE ITEM DESCRIPTION IN (CM) LOT 47614 16 oz (.45L) Matte Black Pillar, Square 25⁄ 8 x 9 (6.7 x 22.9) 1 47618 12 oz (.36L) Brushed Nickel, Oval 27⁄ 8 x 73⁄ 4 (7.3 x 19.7) 1 47623 12 oz (.36L) Smoked Plum, Fluted 21⁄ 2 x 71⁄ 4 (6.4 x 18.4) 1 Replacement Parts SQUARE PILLAR ITEM OVAL ITEM FLUTED ITEM DESCRIPTION CASE LOT 4761401 4761801 4762301 Replacement Cover 1 4761402 4761802 4762302 Replacement Strainer/Gasket 1 3-piece Cocktail 47612 Shaker Sets Q Lustrous mirror-finished stainless steel Q Crimped top removes easily Q Simple yet elegant design Q Fun and whimsical beehive design — easy gripping Q Small size perfect for individual service DIMENSIONS: (DIA X H) CASE ITEM DESCRIPTION IN (CM) LOT 47622 47610 12 oz, Beehive style 21⁄ 2 x 7 (6.4 x 17.8) 10 47612 24 oz, Beehive style 31⁄ 2 x 9 (8.9 x 22.3) 5 47622 22 oz, Contemporary style 31⁄ 2 x 8 (8.9 x 20.3) 12 47610 Martini Glass Racks We've expanded our line to cover a variety of martini glass sizes. Unique design protects rims from chipping. See page 10-7 for more information. 9-53
- 331. vollrathco.com Buffet and Tabletop Service Four-Prong Cocktail Strainer Stainless Steel Scoops and Bar Spoon Q Heavy-duty stainless steel Q Mirror-finished inside, 92110 Q Stainless steel satin-finished outside Q Strainer has Q Use for ice, sugar or removable spring other dry ingredients for easy cleaning { {92110 only, Made in USA, NSF Certified 46790 SCOOP CAPACITY BOWL SIZE HANDLE LENGTH CASE ITEM OZ (ML) IN (CM) IN (CM) LOT 92110 52 (1537.8) 77⁄ 8 x 51⁄ 4 (20 x 13.3) 4 (10.2) 6 ITEM DESCRIPTION CASE LOT BAR SCOOP CAPACITY BOWL SIZE OVERALL LENGTH: CASE 46787 Strainer fits standard size bar shaker 12 ITEM OZ (ML) IN (CM) IN (CM) LOT 46784 Bar spoon measures 11 (27.9 cm) length 24 46790 51⁄ 2 (162.7) 5 x 21⁄ 2 (12.7 x 6.4) 91⁄ 2 (24.1) 24 Shakers and Malt Cup Cast Aluminum Scoops Q Mirror-finished Q One piece stainless steel construction with Q Reinforced bases capacity stamped Q Malt cup on handle Q Rounded handle fits Hamilton Beach mixers with ergonomic finger grips 48070 CAPACITY BOWL SIZE CASE ITEM OZ (ML) IN (CM) LOT 46791 46793 46890 5 (147.9) 43⁄ 4 x 23⁄ 8 (12.1 x 6) 24 46891 12 (354.9) 61⁄ 4 x 31⁄ 8 (15.9 x 7.9) 24 SHAKER CAPACITY TOP DIAMETER HEIGHT CASE ITEM OZ (ML) IN (CM) IN (CM) LOT 5280 18 (532.2) 51⁄2 x 3 (14 x 7.6) 6 46793 30 (887.2) 35⁄ 8 (9.2) 7 (17.8) 12 46892 23 (680.2) 8 x 4 (20.3 x 10.2) 24 46791 15 (443.6) 33⁄ 8 (8.6) 41⁄ 2 (11.4) 12 46893 40 (1183) 9 x 43⁄ 4 (22.9 x 12.1) 24 MALT CUP ITEM 46894 55 (1626.7) 101⁄ 2 x 51⁄ 2 (26.7 x 14) 20 48070 30 (887.2) 4 (10.2) 63⁄ 4 (17.1) 12 46895 86 (2543.4) 12 x 61⁄ 4 (30.5 x 15.9) 20 Stainless Steel Bowl Stainless Steel Ice Bucket Q Mirror-finished exterior, satin-finished All Purpose Bowl interior, stainless steel Q Stainless steel Q Welded handles for easy transportation Q All purpose bowl is ideal for Q Compact design fits neatly on table mixing, storing, and serving top or perfect for room service Ice Bowl Q Mirror-finished Ice Tongs stainless steel Q Stainless steel Q Gadroon top is ideal Q Beautiful hammered finish for ice, drink garnishes, and bar snacks ICE BUCKET CAPACITY: QT (L) DIMENSIONS (DIA X H): IN (CM) CASE LOT 46621 1.6 (1.5) 57⁄ 8 x 51⁄ 2 (15 x 14) 24 ITEM DESCRIPTION CAPACITY: OZ (ML) DIMENSIONS (W X H): IN (CM) CASE LOT 54422 All Purpose 24 (709.8) 5 x 31⁄ 4 (12.7 x 8.3) 24 ICE TONGS LENGTH: IN (CM) CASE LOT 47914 Ice Bowl 40 (1182.9) 7 x 31⁄ 4 (17.8 x 8.3) 12 47104 61⁄ 4 (15.9) 12 9-54
- 332. Buffet and TabletopService The Vollrath Company, LLC Mariner Flatware Brocade Flatware Q Elegant scalloped pattern Q 18% chrome stainless steel Q Elegant trim Q Mirror-finished, extra heavyweight Q Mirror-finished, heavyweight Q 18% chrome stainless steel ITEM DESCRIPTION LENGTH: IN (CM) CASE LOT 48200 Teaspoon 61⁄ 8 (15.6) 1 dz ITEM DESCRIPTION LENGTH: IN (CM) CASE LOT 48203 Dessert spoon 7 (17.8) 1 dz 48220 Teaspoon 63⁄ 8 (16.2) 1 dz 48205 Bouillon spoon 61⁄ 8 (15.6) 1 dz 48223 Dessert spoon 73⁄ 8 (18.7) 1 dz 48204 Iced teaspoon 71⁄ 2 (19.1) 1 dz 48225 Bouillon spoon 61⁄ 8 (15.6) 1 dz 48208 Serving spoon 81⁄ 4 (21) 1 dz 48224 Iced teaspoon 73⁄ 8 (18.7) 1 dz 48201 Dinner fork 75⁄ 8 (19.4) 1 dz 48228 Serving spoon 81⁄ 4 (21) 1 dz 48207 4-tine salad fork 7 (17.8) 1 dz 48221 Dinner fork 71⁄ 2 (19.1) 1 dz 48206 Oyster/shrimp fork 55⁄ 8 (14.3) 1 dz 48227 4-tine salad fork 61⁄ 2 (16.5) 1 dz 48202 Dinner knife, solid handle 83⁄ 4 (22.2) 1 dz 48226 Oyster/shrimp fork 53⁄ 4 (14.6) 1 dz 48209 Butter knife, solid handle 61⁄ 8 (15.6) 1 dz 48222 Dinner knife, solid handle 87⁄ 8 (22.5) 1 dz Thornhill™ Flatware Queen Anne™ Flatware Q Traditional design Q 18% chrome stainless steel Q Traditional colonial design Q 18% chrome stainless steel Q Matte finish, heavyweight Q Satin-finished, heavyweight ITEM DESCRIPTION LENGTH: IN (CM) CASE LOT ITEM DESCRIPTION LENGTH: IN (CM) CASE LOT 48150 Teaspoon 6 (15.2) 1 dz 48100 Teaspoon 6 (15.2) 1 dz 48151 Dessert spoon 7 (17.8) 1 dz 48101 Dessert spoon 7 (17.8) 1 dz 48153 Bouillon spoon 6 (15.2) 1 dz 48102{ Bouillon spoon 61⁄ 8 (15.6) 1 dz 48154 Iced teaspoon 75⁄ 8 (19.4) 1 dz 48103 Iced teaspoon 71⁄ 2 (19.1) 1 dz 48152 Serving spoon 8 (20.3) 1 dz 48104 Serving spoon 83⁄ 8 (21.3) 1 dz 48162 Dinner fork 71⁄ 4 (18.4) 1 dz 48110{ Dinner fork 8 (20.3) 1 dz 48161 4-tine salad fork 6 (15.2) 1 dz 48112{ 4-tine dinner fork 71⁄ 2 (19.1) 1 dz 48160 Oyster/shrimp fork 51⁄ 2 (14) 1 dz 48114 4-tine salad fork 65⁄ 8 (16.8) 1 dz 48171 Dinner knife, solid handle 8 1⁄ 2 (21.6) 1 dz 48113 3-tine salad fork 65⁄ 8 (17.2) 1 dz 48115 Oyster/shrimp fork 55⁄ 8 (14.3) 1 dz 48116 Serving fork 85⁄ 8 (21.9) 1 dz 48122{ Dinner knife, solid flat handle 9 (22.9) 1 dz 48131 Dinner knife, hollow handle 9 (22.9) 1 dz 48133 Dinner knife, hollow handle 93⁄ 8 (23.8) 1 dz 48130 Steak knife, hollow handle 91⁄ 16 (23) 1 dz 48125 Butter knife, hollow handle 7 (17.8) 1 dz {Not shown 9-55
- 333. vollrathco.com Buffet and Tabletop Service Steak Knives Vollrath offers a wide selection of steak knives, styled to match every table setting. All are designed for customer comfort and long life. Q Stainless steel blades Q Wave serrations for easy cutting Jumbo Handle Knives Wood Handle Q Jumbo size, rounded tip, Steak Knives hollow ground blade Q Rounded tip, hollow ground blade Q Black plastic or hardwood handle Q Rosewood or hardwood handle Q Black plastic handle knife Q Rosewood handle for elegance is dishwasher safe 49 47 481 481 48 44 481 481 BLADE LENGTH OVERALL LENGTH CASE BLADE LENGTH OVERALL LENGTH CASE ITEM DESCRIPTION IN (CM) IN (CM) LOT ITEM DESCRIPTION IN (CM) IN (CM) LOT 48144 Black plastic handle 47⁄ 8 (12.4) 911⁄ 16 (24.6) 12 48147 Riveted wood handle 41⁄ 8 (10.5) 85⁄ 16 (21.1) 24 48148 Riveted wood handle 5 (12.7) 97⁄ 8 (25.5) 12 48149 Riveted rosewood handle 41⁄ 8 (10.5) 81⁄ 4 (21) 24 Plastic Handle Queen Anne™ Steak Knife Steak Knife Q Rounded tip, hollow ground blade Q Well-balanced stainless steel Q Textured plastic handle hollow handle Q Dishwasher safe BLADE LENGTH OVERALL LENGTH CASE BLADE LENGTH OVERALL LENGTH CASE ITEM IN (CM) IN (CM) LOT ITEM IN (CM) IN (CM) LOT 48143 43⁄ 4 (12.1) 83⁄ 4 (22.3) 24 48130 5 (12.7) 91⁄ 16 (23) 12 Laminated Wood Wood Handle Handle Knife Steak Knives Q Pointed tip, hollow ground blade Q Pointed tip, hollow ground blade Q Laminated wood handle Q Hardwood handle 41 40 481 481 BLADE LENGTH OVERALL LENGTH CASE ITEM DESCRIPTION IN (CM) IN (CM) LOT BLADE LENGTH OVERALL LENGTH CASE ITEM IN (CM) IN (CM) LOT 48140 Hollow ground blade 43⁄ 8 (11.2) 85⁄ 16 (21.1) 24 1 48142 4 (10.2) 85⁄ 8 (21.9) 12 48141 Pointed tip blade 4 ⁄ 8 (10.5) 85⁄ 16 (21.1) 24 9-56
- 334. Buffet and TabletopService The Vollrath Company, LLC Stainless Steel Plate Covers Q Plate covers keep food at its ideal serving temperature for improved customer satisfaction Q 41 stock sizes to choose from or Vollrath can custom make your plate covers Q Stainless steel Q Satin-finish keeps covers looking better longer Q Mirror-finished polish is available at additional charge Q Hemmed finger hole Q In stock for immediate delivery Q Minimum order is 12 Custom Covers See page 9-58 Ordering Instructions Samples are required for orders greater than 144 but are recommended for all orders. Plate Cover Warewashing Racks SATIN FITS PLATES HEIGHT CASE See Page 10-9 ITEM IN (CM) IN (CM) LOT 62308 101⁄16 to 101⁄8 (25.6 to 25.7) 25⁄16 (5.9) 12 62309 10 ⁄ to 10 ⁄ (25.9 to 26) 3 16 14 25⁄16 (5.9) 12 SATIN FITS PLATES HEIGHT CASE ITEM IN (CM) IN (CM) LOT 62310 105⁄16 to 103⁄8 (26.2 to 26.4) 25⁄16 (5.9) 12 62332 711⁄16 to 73⁄4 (19.5 to 19.7) 25⁄16 (5.9) 12 62311 107⁄16 to 101⁄2 (26.5 to 26.7) 25⁄16 (5.9) 12 62333 713⁄16 to 77⁄8 (19.8 to 20) 25⁄16 (5.9) 12 62312 109⁄16 to 105⁄8 (26.8 to 27) 25⁄16 (5.9) 12 62334 715⁄16 to 8 ( 20.2 to 20.3) 25⁄16 (5.9) 12 62313 1011⁄16 to 103⁄4 (27.1 to 27.3) 25⁄16 (5.9) 12 62335 81⁄16 to 81⁄8 (20.4 to 20.6) 25⁄16 (5.9) 12 62314 1013⁄16 to 107⁄8 (27.5 to 27.6) 25⁄16 (5.9) 12 62336 83⁄16 to 81⁄4 (20.8 to 21.0) 25⁄16 (5.9) 12 62315 1015⁄16 to 11 (27.8 to 27.9) 25⁄16 (5.9) 12 62337 85⁄16 to 83⁄8 (21.1 to 21.3) 25⁄16 (5.9) 12 62318 111⁄16 to 111⁄8 (28.1 to 28.3) 213⁄16 (5.9) 12 62338 87⁄16 to 81⁄2 (21.4 to 21.6) 25⁄16 (5.9) 12 62319 113⁄16 to 111⁄4 (28.4 to 28.6) 213⁄16 (5.9) 12 62339 8 ⁄ to 8 ⁄ (21.7 to 21.9) 9 16 58 2 ⁄ (5.9) 5 16 12 62320 11 ⁄ to 11 ⁄ (28.7 to 28.9) 5 16 38 213⁄16 (5.9) 12 62340 811⁄16 to 83⁄4 (22 to 22.2) 25⁄16 (5.9) 12 62321 117⁄16 to 111⁄2 (29.1 to 29.2) 213⁄16 (5.9) 12 62341 813⁄16 to 87⁄8 (22.4 to 22.5) 25⁄16 (5.9) 12 62322 119⁄16 to 115⁄8 (29.4 to 29.5) 213⁄16 (5.9) 12 62342 815⁄16 to 9 (22.7 to 22.9) 25⁄16 (5.9) 12 62323 1111⁄16 to 113⁄4 (29.7 to 29.8) 213⁄16 (5.9) 12 62300 9 to 91⁄8 (22.9 to 23.2) 25⁄16 (5.9) 12 62324 1113⁄16 to 117⁄8 (30 to 30.2) 213⁄16 (5.9) 12 62301 93⁄16 to 91⁄4 (23.3 to 23.5) 25⁄16 (5.9) 12 62325 1115⁄16 to 12 (30.3 to 30.5) 213⁄16 (5.9) 12 62302 95⁄16 to 93⁄8 (23.7 to 23.8) 25⁄16 (5.9) 12 62326 121⁄16 to 121⁄8 (30.6 to 30.8) 213⁄16 (5.9) 12 62303 97⁄16 to 91⁄2 (24 to 24.1) 25⁄16 (5.9) 12 62327 123⁄16 to 121⁄4 (31 to 31.1) 213⁄16 (5.9) 12 62304 99⁄16 to 95⁄8 (24.3 to 24.4) 25⁄16 (5.9) 12 62328 125⁄16 to 123⁄8 (31.3 to 31.4) 213⁄16 (5.9) 12 62305 911⁄16 to 93⁄4 (24.6 to 24.8) 25⁄16 (5.9) 12 62329 127⁄16 to 121⁄2 (31.6 to 31.8) 213⁄16 (5.9) 12 62306 913⁄16 to 97⁄8 (24.9 to 25.1) 25⁄16 (5.9) 12 62330 129⁄16 to 125⁄8 (31.9 to 32.1) 213⁄16 (5.9) 12 62307 915⁄16 to 10 (25.2 to 25.4) 25⁄16 (5.9) 12 62331 1211⁄16 to 123⁄4 (32.2 to 32.4) 213⁄16 (5.9) 12 9-57
- 335. vollrathco.com Buffet and Tabletop Service Custom Platter Plate Covers Sizing and Imprinting Vollrath introduces stainless steel oval platter covers to its line of custom covers. Platter plate covers keep food at proper serving temperature for customer satisfaction. Q Satin-finished stainless steel for longer life Q Custom fit for stability during transport Q Tapered side walls to ensure stackability when in storage Q Finger hole for easy removal Q Optional mirror-finish for adding elegance Q Extended heights available on request Oval Platter Cover Ordering Instructions: Minimum order quantity is 24 Oval Platter Covers Round Plate Covers 1) Measure width length of plate. 1) Measure five plates at their widest point. Choose the largest one. 2) Check the PLC range where both dimensions fall and select the proper part number and note this on your 2) Select the part number based on purchase order. Note: If plate falls into two PLC plate diameter. ranges, select the higher PLC part number. COVER HEIGHT PART CASE PLATE DIAMETER: IN (CM) IN (CM) NUMBER LOT PLATTER WIDTH PLATTER LENGTH COVER HEIGHT PART CASE IN (CM) IN (CM) IN (CM) NUMBER LOT 711⁄ 16 to 9 (19.5 to 22.86) 25⁄ 16 (5.9) PLC-08 12 81⁄ 4 to 111⁄ 4 93⁄ 8 to 123⁄ 8 2 PLC-15 12 9 to 10 (22.9 to 25.4) 25⁄ 16 (5.9) PLC-09 12 (20.9 to 28.5) (23.8 to 31.4) (5.08) 101⁄ 16 to 11 (25.6 to 27.9) 25⁄ 16 (5.9) PLC-10 12 95⁄ 8 to 123⁄ 8 105⁄ 8 to 133⁄ 8 2 PLC-16 12 111⁄ 16 to 12 (28.1 to 30.5) 213⁄ 16 (7.1) PLC-11 12 (24.4 to 31.4) (26.9 to 33.9) (5.08) 121⁄ 16 to 123⁄ 4 (30.6 to 32.4) 213⁄ 16 (7.1) PLC-12 12 107⁄ 8to 133⁄ 8 121⁄ 8to 155⁄ 8 23⁄ 4 PLC-17 12 (27.6 to 34.0) (30.8 to 39.7) (6.99) Instructions Continue Below Instructions Continue Below Round Plate Cover 3) Send the largest platter/plate sample with your purchase order to The Vollrath Company, L.L.C. Attn: Customer Service, 1236 N. 18th St., Door #1, Sheboygan, WI 53082-0611. Samples are required for orders greater than 144 but are recommended for all orders. 4) After we receive the sample and purchase order, we will acknowledge the order with a new part number. 5) We will confirm model numbers and pricing. Vollrath will only guarantee pricing on orders that have been submitted with sample plates. Order fulfillment is not guaranteed. 6) Custom covers will be slightly larger in diameter 8) Mirror-finish: Add -M to part number. (ie: PLC-15-M) than sample plate provided to compensate for Additional charge applies. normal variations. We cannot guarantee our platter Note: Custom Plate Covers cannot be cancelled or returned. Custom covers will stack solidly if platters are warped. product orders are completed with over/under shipments not to exceed 7) Lead time: 3 Weeks after receipt of purchase order. plus or minus 10% of the original order quantity 9-58
- 336. Buffet and TabletopService The Vollrath Company, LLC Triennium® Beverage Service The unique look of this collection will create a memorable impression for all patrons. Your choice of mirror-finished or satin-finished provides the opportunity to match almost any decor. Q Stainless steel is resistant to corrosion, pitting and rusting Q Sturdy hidden hinge design for greater durability Q Unique triangular body design elevates the overall appearance Q Seamless spouts offer an elegant look, precise directional of any establishment pouring and easy cleaning Q Satin-finished interior minimizes the appearance of wear — Q Offered in a variety of sizes to accommodate individual table extends life of product service as well as a buffet presentation Q Knob top lid for easy refilling Q Dishwasher safe 46303 Mirror-finished Triennium® 46306 46304 46309 46302 46301 46307 46400 46308 46300 MIRROR-FINISHED SATIN-FINISHED DESCRIPTION HEIGHT IN (CM) CASE LOT 46200 46300 Coffee pot 10 oz (.3 L) 77⁄ 8 (20) 1 46201 46301 Coffee pot 20 oz (.6 L) 51⁄ 4 (13.3) 1 1 46202 46302 Coffee pot 34 oz (1.0 L) 6 ⁄ 8 (15.6) 1 46203 46303 Coffee pot 2.3 qt (2.2 L) 83⁄ 8 (21.3) 1 46204 46304 Water pitcher, 2.3 qt (2.2 L) 77⁄ 8 (20) 1 46206 46306 Water pitcher with ice guard 2.3 qt (2.2 L) 77⁄ 8 (20) 1 46207 46307 Tea pot 12 oz (.35 L) 3 (7.6) 1 Triennium® bottom view 3 46208 46308 Open creamer 9 oz (.29 L) 3 ⁄ 4 (9.5) 12 46209 46309 Covered creamer 9 oz (.29 L) 33⁄ 4 (9.5) 8 46000 46400 Covered sugar bowl 8.5 oz (.25 L) 21⁄4 (5.7) 12 46595 ™ Orion Beverage Service Q Stainless steel Q Gooseneck spouts for easy pouring while offering an elegant design Q Hollow tubular handle is easy to grip and stays cool Q Sturdy hinge for greater durability 46596 Q Mirror-finished exterior, satin-finished interior 46598 CAPACITY HEIGHT CASE ITEM DESCRIPTION OZ (L) IN (CM) LOT 46593 Coffee pot 12 (.35) 41⁄ 2 (11.4) 1 46594 Coffee pot 20 (.6) 51⁄ 8 (13.0) 1 46594 46595 Coffee pot 34 (1) 57⁄ 8 (15.0) 1 46596 Coffee pot 68 (2) 711⁄ 16 (19.5) 1 46597 Sugar server 12 (.35) 33⁄ 8 (8.5) 1 46593 46598 Covered creamer 12 (.35) 41⁄ 2 (11.4) 1 46634 46633 Open creamer 8 (.25) 31⁄ 2 (8.9) 1 46634 Water pitcher 68 (2) 63⁄ 4 (17.1) 1 46633 46597 9-59
- 337. vollrathco.com Buffet and Tabletop Service Bell-Shaped Pitchers Water Pitcher Q High-quality stainless steel Q Mirror-finished exterior, to resist rusting satin-finished interior, and pitting stainless steel Q All welded handles Q Welded base provides stability Q Seamless to reduce tipping and spilling construction Q Welded ice guard allows for 82020 and satin-finished easy pouring Q Hollow handle Q Welded hollow tubular handle stays cool for easy and stable gripping 92020 CAPACITY HEIGHT CASE ITEM QT (L) IN (CM) LOT 82020 21⁄ 8 (2) 8 (20.3) 4 82030 31⁄ 8 (2.9) 9 (22.9) 4 CAPACITY HEIGHT CASE 82040 41⁄ 8 (3.9) 103⁄ 8 (26.4) 4 ITEM QT (L) IN (CM) LOT 92020 21⁄ 8 (2) 8 (20.3) 4 46599 1.9 (1.8) 91⁄ 16 (23) 1 Water Pitchers Stainless Steel Pitcher Q Stainless steel Q Heavy-gauge stainless steel Q Ice guard reduces Q Mirror-finished exterior splashing and spills for Q Satin-finished interior hides trouble-free pouring scratches and wear Q 46402 has comfortable Q Welded base for stability hollow handle Q Welded ice guard allows for easy pouring 46403 Q Welded hollow tubular handle for easy and comfortable grip 46402 CAPACITY HEIGHT CASE ITEM QT (L) IN (CM) LOT CAPACITY HEIGHT DIAMETER CASE 46403 2 (1.9) 91⁄ 4 (23.5) 1 ITEM QT (L) IN (CM) IN (CM) LOT 46402 2 (1.9) 71⁄ 4 (18.4) 6 46623 1 (.95) 71⁄ 16 (18) 315⁄ 16 (10) 1 Straight-Sided Aluminum Pitcher Water Q Bright finish, 300 series Pitcher with stainless steel Ice Guard Q Without ice guard Q Satin-finished Q Riveted handle Q Handwashing recommended CAPACITY HEIGHT DIAMETER CASE CAPACITY HEIGHT CASE ITEM QT (L) IN (CM) IN (CM) LOT ITEM QT (L) IN (CM) LOT 81020 2 (1.9) 63⁄ 8 (16.2) 51⁄ 8 (13) 4 68174 21⁄ 8 (2) 77⁄ 8 (20.1) 12 9-60
- 338. Buffet and TabletopService The Vollrath Company, LLC SwirlServe® Beverage Servers Note: Not for use in microwave SwirlServe insulated server keeps beverages hot or cold for hours. Customer customization, exclusively available from Vollrath, easily identifies decaffeinated and regular coffee and other drinks like milk or tea. Q Orange, brown, and white tabs allow for easy differentiation Q Exterior looks like porcelain but is actually impact-resistant plastic Q Durable polycarbonate inner liner is odorless and stain resistant Q Handwash only Q Polyurethane insulation in body and cover Tilt Pour® SwirlServe® Beverage Servers Q Unique pouring system lets you pour without pressing buttons Q Self-closing spout disassembles for easy cleaning BLACK ITEM WHITE ITEM CAPACITY: OZ (ML) CASE LOT 52126 52124 10 (295) 12 52142 52132 20 (591) 12 52140 52130 42 (1242) 12 52144 52134 64 (1892) 6 Additional Covers{ for Tilt Pour® BLACK ITEM WHITE ITEM CAPACITY: OZ (ML) CASE LOT 52127 52125 10 (295) 6 52143 52133 20 (591) 6 52141 52131 42 (1242) 6 52145 52135 64 (1892) 6 {Covers are interchangeable with SwirlServe® covers SwirlServe® Hot-N-Cold Beverage Servers Tilt Pour® Cover SwirlServe® Beverage Server Heat Retention Test 190˚F. 180˚F. 170˚F. BLACK ITEM WHITE ITEM CAPACITY: OZ (ML) CASE LOT Temperature ˚F 52122 52120 10 (295) 12 160˚F. 52172 52162 20 (591) 12 52170 52160 42 (1242) 12 150˚F. 52174 52164 64 (1892) 6 140˚F. Additional Covers{ for SwirlServe® 130˚F. BLACK ITEM WHITE ITEM CAPACITY: OZ (ML) CASE LOT 52123 52121 10 (295) 6 52173 52163 20 (591) 6 1 2 3 4 52171 52161 42 (1242) 6 Hours 52175 52165 64 (1892) 6 Average Loss: 0.188˚F per minute over a 4 hour span {Covers are interchangeable with Tilt Pour® covers 9-61
- 339. vollrathco.com Buffet and Tabletop Service Coffee Server with Coffee Decanters Gadroon Base Q Mirror-finished stainless steel Q Mirror-finished stainless Q Comfortable black steel will not tarnish plastic handle Q Wide gadroon base Q Designed to fit Q Hollow handle standard stove top Q Thumb tab for single-handed and coffee warmers cover opening Q Available plain or with permanently stamped DECAF on neck band CAPACITY HEIGHT CASE ITEM DESCRIPTION QT (L) IN (CM) LOT SILVERPLATE CAPACITY HEIGHT CASE ITEM ITEM{ QT (L) IN (CM) LOT 46570 Plain 2 (1.9) 61⁄ 2 (16.5) 1 46565 48365{ 2 (1.9) 81⁄ 2 (21.6) 6 46580 Decaf 2 (1.9) 61⁄ 2 (16.5) 1 {For silverplate information, see page 9-37 Tea and Coffee Server Bell Creamers Q Mirror-finished Q Mirror-finished stainless steel stainless steel Q Built-in strainer Q Excellent choice for serving tea for serving cream, Q 46370 hollow sauces, and handle insulates dressings for comfortable pouring 46370 46314 CAPACITY HEIGHT CASE ITEM OZ (ML) IN (CM) LOT CAPACITY HEIGHT CASE ITEM DESCRIPTION OZ (ML) IN (CM) LOT 46003 3 (89) 2 (5.1) 24 46314 Flat Handle 10 (296) 41⁄ 4 (10.8) 12 46005 5 (148) 23⁄ 4 (7) 12 46370 Hollow Handle 12 (355) 4 (10.2) 12 46008 8 (237) 31⁄ 8 (7.9) 12 Gooseneck Servers Creamer/Servers 46516 Q Mirror-finished Q Mirror-finished stainless steel stainless steel Q Elegance in Q Hinged lid with traditional or thumb tab for gadroon edge styles single-handed Q Hinged cover for refilling easy refilling Q Wide gadroon 46310 Q Hollow handle base for greater insulates for stability 46560 46205 comfortable and cool pouring 46312 SILVERPLATE CAPACITY HEIGHT CASE ITEM ITEM{ DESCRIPTION OZ (ML) IN (CM) LOT 46205 — Gadroon base 5 (148) 31⁄ 2 (8.9) 12 SILVERPLATE CAPACITY HEIGHT CASE ITEM ITEM{ DESCRIPTION OZ (ML) IN (CM) LOT 46516 — Standard 10 (296) 4 (10.2) 12 46310 — Traditional 10 (296) 41⁄ 4 (10.8) 12 46560 48360{ Gadroon base 10 (296) 41⁄ 2 (11.4) 12 46312 48312{ Gadroon edge 10 (296) 43⁄ 4 (12.1) 12 46517 48317{ Gadroon base 16 (473) 51⁄ 2 (14) 12 {For silverplate information, see page 9-37 {For silverplate information, see page 9-37 9-62
- 340. Buffet and TabletopService The Vollrath Company, LLC Economy Double Wall Servers 46212 Insulated Server Q Mirror-finished Q Mirror-finished stainless steel stainless steel Q Hinged lid with thumb Q Double wall tab for single-handed construction for easy refilling moisture free exteriors Q Stacking server has and excellent recessed cover design temperature retention to allow stacking for Q Easy cleaning compact storage 46211 seamless interiors 46210 CAPACITY HEIGHT CASE ITEM DESCRIPTION OZ (ML) IN (CM) LOT CAPACITY HEIGHT CASE ITEM DESCRIPTION OZ (ML) IN (CM) LOT 46210 Closed handle 10 (296) 4 (10.2) 12 46211 Open handle 10 (296) 4 (10.2) 12 46613 Server with hinged 10 (296) 31⁄ 4 (8.3) 12 46212 Stacking server 10 (296) 3 1⁄ 4 (8.3) 12 insulated cover Condiment Jar Cover Table Joiner Q Mirror-finished Q Plated steel stainless steel Q Adjusts from 24 to 42 (61 to 106 cm) Q Features spoon slot Q Top view Two piece construction for no-mess service Q For square or rectangular tables Q Fits 61⁄2 oz (192 ml) jar Bottom view 25 (64 cm) ITEM DIAMETER: IN (CM) CASE LOT ITEM DESCRIPTION CASE LOT 47648 31⁄ 8 (7.9) 48 97299 Table joiner 3 Gravy Boats Tureen Q Mirror-finished stainless steel Q Stainless steel Q Gadroon edge base Q For elegant service Q Easy to use pouring spout of beverages, Q All welded construction soups or your special dish Q Sturdy welded base and side handles SILVERPLATE CAPACITY CASE ITEM ITEM{ OZ (ML) LOT 47573 48373{ 3 (89) 12 CAPACITY HEIGHT W/BASE CASE 47575 48375{ 5 (148) 12 ITEM QT (L) IN (CM) LOT 47578 48378{ 8 (236) 12 47845 5 (4.7) 47⁄ 8 (12.4) 6 {For silverplate information, see page 9-37 9-63
- 341. vollrathco.com Buffet and Tabletop Service Stainless Steel Ramekins and Transfer Vessels 46661 Q Stainless steel is resistant to corrosion and dishwasher safe Q One piece construction is durable and easy to clean Q Spouted bowl provides directional pour — no mess 46655 Q Comfortable round handle for a sure grip Q Mirror-finished exterior provides upscale look Q Satin-finished interior and bottom minimizes wear and scratches Q Ideal for sauces, salad dressing, and other condiments — dry or wet ingredients Q Will not stain, pit, or crack like plastic or china ramekins CAPACITY BOWL HEIGHT BOWL DIAMETER HANDLE LENGTH CASE RAMEKIN OZ (ML) IN (CM) IN (CM) IN (CM) LOT 46654 2 (59.1) 11⁄ 4 (3.1) 27⁄ 16 (6.1) 13⁄ 16 (2.0) 12 46659 46655 3 (88.7) 1 3⁄ 8 (3.5) 23⁄ 4 (7.1) 7⁄ 8 (2.2) 12 46661 4 (118.0) 11⁄ 2 (3.7) 3 (7.6) 13 ⁄ 16 (2.0) 12 TRANSFER CAPACITY BOWL HEIGHT BOWL DIAMETER HANDLE LENGTH CASE VESSEL OZ (ML) IN (CM) IN (CM) IN (CM) LOT 46656 4 (118) 11⁄2 (3.7) 31⁄16 (7.9) ⁄ (2.0) 13 16 12 46657 8 (236) 1 ⁄ (4.9) 15 16 3 ⁄ (9.8) 78 78 ⁄ (2.2) 12 46658 12 (354) 23⁄16 (5.5) 47⁄16 (11.2) ⁄ (2.4) 15 16 12 46659 16 (473) 27⁄16 (6.1) 47⁄8 (12.3) 11⁄8 (2.9) 12 Stainless Steel Sauce Cup Au Gratins Q Stainless steel Q Mirror-finished outside, Q Mirror-finished stainless steel satin-finished inside Q Go straight from oven or Q Sized for individual condiment service broiler to table Q Retains temperature longer and helps Q Integral handle for carrying reduce food waste or gripping CAPACITY HEIGHT TOP DIAMETER CASE ITEM OZ (ML) IN (CM) IN (CM) LOT CAPACITY OVERALL DIMENSIONS INSIDE DIAMETER CASE ITEM OZ (ML) IN (CM) IN (CM) LOT 46713 3 (89) 15⁄ 8 (4.1) 29⁄ 16 (6.5) 12 47428 8 (236) 8 x 41⁄2 x 11⁄8 (20.3 x 11.4 x 2.9) 6 (15.2){ 12 47422 12 (355) 9 x 5 x 13⁄8 (22.9 x 12.7 x 3.5) 71⁄ 8 (18.1){ 12 47425 15 (443) 101⁄2 x 53⁄4 x 13⁄8 (26.7 x 14.6 x 3.5) 81⁄ 4 (21){ 12 47429 20 (591) 101⁄2 x 6 x 13⁄8 (26.7 x 15.2 x 3.5) 81⁄ 4 (21){ 12 Sauce Bowl, 51⁄ 2 (14) 47406 6 (177) 47408 8 (236) 63⁄4 (17.1) outside diameter 71⁄4 (18.4) outside diameter 53⁄ 4 (14.6) Sherbet and {Inside top diameter Dessert Cup 46772 Q Mirror-finished Paneled Sherbet Dishes Q stainless steel 46772/48372 Sauce 48003 and Bowl Bowl and 48003/48303 Q Mirror-finished stainless steel Sherbet have gadroon Q 48013 and 48015 dishes 48013 top edge have scalloped top Q 46704 Dessert Cup Q Wide gadroon base for 46701 has paneled design for 46704 added stability and style sauces, relishes, or butter SILVERPLATE CAPACITY HEIGHT CASE ITEM ITEM| OZ (ML) IN (CM) LOT SILVERPLATE CAPACITY HEIGHT TOP DIAMETER CASE ITEM ITEM{ OZ (ML) IN (CM) IN (CM) LOT 48013 48313| 31⁄ 2 (103) 17⁄ 8 (4.8) 12 46772 48372{ 2 (59) 3 (7.6) 3 (7.6) 72 48015 48315| 5 (148) 21⁄ 4 (5.7) 12 48003 48303{ 31⁄ 2 (103) 2 (5.1) 313⁄ 16 (9.6) 72 46701 48301| 16 (473) 33⁄ 8 (8.6) 12 46704 — 4 (118) 15⁄ 8 (4.1) 35⁄ 8 (9.3) 48 |For silverplate information, see page 9-37 {For silverplate information, see page 9-37 9-64
- 342. Buffet and TabletopService The Vollrath Company, LLC Cake/Pie Server Cake Stands 48023 Q Stainless steel blade 48023: Q Riveted durable rosewood handle Q Mirror-finished stainless steel Q Elevates desserts to add visual interest and conserve room on buffet line Q Shipped knocked down and assembles easily 82150: Q All welded construction 82150 Q Stainless steel Q Embossed surface DIAMETER HEIGHT W/BASE CASE ITEM IN (CM) IN (CM) LOT ITEM OVERALL LENGTH: IN (CM) CASE LOT 48023 13 (33) 65⁄ 8 (16.8) 1 3 5 48083 10 ⁄ 4 (27) 12 82150 12 ⁄ 16 (31.3) 41⁄ 2 (11.3) 1 Tulip Sundae Napkin Holder Q Q Mirror-finished stainless steel Mirror-finished stainless steel Q Spring loaded holders Q Gadroon edge base dispense napkins one at a time Q Q Rubber feet will not mar or Ideal for an attractive dessert presentation discolor table or countertop CAPACITY HEIGHT CASE DIMENSIONS CASE ITEM QT (ML) IN (CM) LOT ITEM DESCRIPTION IN (CM) LOT 48060 6 (177) 45⁄ 8 (12) 12 46798 135 napkin capacity 31⁄ 2 x 7 (8.9 x 17.8) 12 Counter Menu Holder Condiment and Card Holder Q Stainless steel Q Stainless steel Q Screw-on assembly Q Sanitary, rounded corners Q Set includes brackets Q 151⁄2 (39.4cm) DIMENSIONS (L X W X H) CASE ITEM ABOVE COUNTER HEIGHT: IN (CM) CASE LOT ITEM IN (CM) LOT 46797 4 (10.2) 12 46796 21⁄ 2 x 11⁄ 2 x 11⁄ 2 (6.4 x 3.8 x 3.8) 24 9-65
- 343. vollrathco.com Buffet and Tabletop Service Card and Menu Holders Tray Card Holder Q Stainless steel Q Ideal for hospital trays Q 46795: Weighted cast base adds stability 46795 92070 46794 DIAMETER HEIGHT CASE ITEM IN (CM) IN (CM) LOT 46795 11⁄ 8 (2.9) 11⁄ 2 (3.8) 36 1 46794 2 ⁄ 4 (5.7) 13⁄ 4 (4.4) 60 ITEM HEIGHT: IN (CM) CASE LOT 1⁄ 8 3⁄ 4 92070 2 (5.4) 13⁄ 4 (4.4) 72 92080 (1.9) 72 Oyster Plate and Seafood Shell Snail Plate Q Mirror-finished Q Mirror-finished stainless steel stainless steel Q Six embosses ideal for Q Go from oven to escargot, house specialties the table for faster or deviled eggs service 46745 46735 CASE ITEM DESCRIPTION DIAMETER: IN (CM) LOT ITEM DIMENSIONS: IN (CM) CASE LOT 46745 Oyster plate, 6 well 103⁄ 8 dia (26.3) 12 7 7 3 46735 Seafood shell 5 x 51⁄ 2 x 5⁄ 8 (12.7 x 14.0 x 1.6) 12 46746 6 ⁄ 8 x 5 ⁄ 16 x ⁄ 4 (17.5 x 13.8 x 1.8) 24 Snail Tong Supreme Set Q Mirror-finished stainless steel Q Mirror-finished stainless steel Q Provides a comfortable and Q Set consists of 46701, 46704, secure grip on slippery shells and 46706 or 46701 Q Durable self-closing spring and 46709 Q Order parts separately DIMENSIONS: OUTSIDE DIA. ITEM DESCRIPTION CASE LOT IN (CM) 1 46701 16 oz (473 ml) paneled 5 ⁄ 8 (12.8) 12 bowl with gadroon base 46704 4 oz (119 ml) paneled cup 311⁄ 16 (9.2) 48 ITEM HEIGHT: IN (CM) CASE LOT 46706 Slotted ring 53⁄ 16 (13.0) 12 46760 6 (15.2) 12 46709 1-piece slotted ring and cup 53⁄ 16 (13.0) 12 9-66
- 344. Buffet and TabletopService The Vollrath Company, LLC Lobster/Nut Crackers Butter Melter Q Both styles offer comfortable grip and smooth-acting hinge Q Stainless steel base Q Forged stainless steel cracker offers superb durability with oval vents Q Stainless steel pan 46764 with rosewood handle and pouring spout 46763 CAPACITY HEIGHT CASE ITEM OZ (ML) IN (CM) LOT 46777 4.25 (125.7) 35⁄ 8 (9.2) 1 5 ITEM DESCRIPTION LENGTH: IN (CM) CASE LOT 45710 Pan only, outside dia. 3 ⁄ 8 (9.2 cm), 12 46763 Stainless steel, forged 61⁄ 4 (15.9) 12 handle 27⁄ 8 (7.3 cm) 46764 Polished chrome-plated 6 (15.2) 24 45711 Candle cup only 12 Butter Melters Butter Melter Q Chrome-plated Q Chrome-plated welded welded wire stand wire stand Q Same stand – flip Q Includes glass candle one way for 46771, holder, candle and pan flip over for 46770 Q Complete with butter 46770 pan or cup, candle 46771 holder and candle CAPACITY HEIGHT CASE ITEM DESCRIPTION OZ (ML) IN (CM) LOT 46770 With pan 5 (148) 55⁄ 8 (14.3) 1 CAPACITY HEIGHT CASE ITEM OZ (ML) IN (CM) LOT 5 46771 With #13200 3 oz (89 ml) cup 3 (89) 5 ⁄ 8 (14.3) 6 46776 3.25 (96) 5 (12.7) 12 45691{ Pan only — stainless steel 12 ITEM DESCRIPTION DIAMETER: IN (CM) HANDLE: IN (CM) CASE LOT 45690 Stand only — chrome 12 46781 Pan only 31⁄ 2 (8.9) 31⁄ 4 (8.2) 12 45801 Candle holder only — glass 12 1 13200 3 oz cup only 3 ⁄ 8 (7.8) – 12 {Top dia. 3 ⁄ 4 (8.2 cm), Bot. dia. 2 ⁄ 8 (6.6 cm), Handle 1 ⁄ 4 (3.2 cm) 1 5 1 Utility Servers Three-Way Revolving Server Q Rack revolves for easy access Q Chrome-plated Q 99637 includes three 10 oz welded wire rack Q (295 ml) stainless steel bowls Stainless steel bowls Q Stainless steel base Q 99615, 47633 with convenient plastic 47631: Full Sets carry handle include 1 rack 99615 and 3 bowls 47633 CASE ITEM DESCRIPTION LOT 99615{ Dimensions (W x H): 8 x 73⁄ 8 (20.3 x 18.7 cm) 1 69260 Bowl only — 6 oz (177 ml) 3 x 17⁄ 8 (7.6 x 4.7 cm) 12 99262 Replacement cover — fits 69260 bowls 12 47633 Dimensions (W x H): 81⁄ 2 x 83⁄ 4 (21.6 x 22.2) 6 47601 Bowl only — 10 oz (295 ml) 31⁄ 2 x 21⁄ 2 (9 x 6.4 cm) 12 ITEM DESCRIPTION CASE LOT 47631 Dimensions (W x H): 91⁄ 2 x 83⁄ 4 (24.1 x 22.2) 6 99637 Server (W x H): 81⁄ 4 x 53⁄ 4 (20.9 x 14.6 cm) 1 47522 Bowl only — 12 oz (355 ml) 41⁄ 8 x 23⁄ 16 (10.4 x 5.5 cm) 12 99636 Bowl: 10 oz (295 ml) 4 x 21⁄ 2 (10 x 6.3 cm) 12 {Includes bowl covers 9-67
- 345. vollrathco.com Buffet and Tabletop Service Six-Compartment Tray Tumbler Q Heavy-duty stainless steel with stacking lugs Q Mirror-finished 300 Q Mirror-finished stainless steel series stainless steel Stacking Lugs on underside DIMENSIONS (L X W X D) CASE CAPACITY TOP DIAMETER BOTTOM DIAMETER HEIGHT CASE ITEM IN (CM) LOT ITEM OZ (ML) IN (CM) IN (CM) IN (CM) LOT 47252 151⁄ 2 x 115⁄ 8 x 3⁄ 4 (39.4 x 29.5 x 1.9) 24 68520 12 (354) 31⁄ 8 (8) 21⁄ 16 (5.2) 49⁄ 16 (11.5) 12 Sizzling Platter and Underliner Drink or Soup Cup Q Heavy-duty 16 gauge stainless steel for greater durability Q Mirror-finished stainless steel Q Constructed from high temperature polyester, underliner helps maintain temperature for greater customer satisfaction Q One-piece construction with Q Features built-in handles for easy, comfortable handling integral handle Q Underliner resists chipping and breaking Q Dishwasher safe CAPACITY DIAMETER HEIGHT CASE ITEM OZ (ML) IN (CM) IN (CM) LOT 47555 9 (266) 31⁄ 2 (8.9) 27⁄ 32 (5.6) 12 1 47556 11 (325) 3 ⁄ 2 (8.9) 23⁄ 8 (6) 12 Soup Bowl Q Mirror-finished stainless steel DIMENSIONS CASE ITEM DESCRIPTION IN (CM) LOT 81170 Oval platter 133⁄ 4 x 85⁄ 16 12 with underliner (34.9 x 21.1) 81180 Oval platter only 113⁄ 4 x 73⁄ 4 12 (29.8 x 19.7) CAPACITY OUTSIDE DIAMETER HEIGHT CASE 81190 Oval underliner only 133⁄ 4 x 85⁄ 16 12 ITEM OZ (ML) IN (CM) IN (CM) LOT (34.9 x 21.1) 47536 16.3 (482) 6 (15.2) 13⁄ 4 (4.5) 12 Squeeze Dispensers Sauce Dispenser Q No-drip design helps prevent table and counter mess Holder Q Available in red (ketchup), yellow (mustard) and clear (all purpose) Q 12 oz (354 ml) bottles - use with item 56116 bottle holder Q Low density polyethylene ITEM COLOR CAPACITY: OZ (ML) DIAMETER: IN (CM) HEIGHT: IN (CM) CASE LOT 52060 Clear 8 (236) 2 (5.1) 71⁄ 4 (18.4) 12 52061 Red 8 (236) 2 (5.1) 71⁄ 4 (18.4) 12 52062 Yellow 8 (236) 2 (5.1) 71⁄ 4 (18.4) 12 56116 52063 Clear 12 (354) 21⁄ 4 (5.7) 81⁄ 8 (20.6) 12 Fits 12 oz (354 ml) 52064 Red 12 (354) 21⁄ 4 (5.7) 81⁄ 8 (20.6) 12 squeeze dispensers 1⁄ 4 – see page 8-35 52065 Yellow 12 (354) 2 (5.7) 81⁄ 8 (20.6) 12 9-68
- 346. Buffet and TabletopService The Vollrath Company, LLC Cork-Lined Laminated Serving Trays and Liners Q Multi-layer construction with molded-in cork surface Q Helps prevent slipping even when wet Q Liner will not peel or warp for longer life Q Self-adhesive non-skid cork liners for trays 86360 without cork surface Q Tray color: Brown 86338 DIMENSIONS CASE ITEM DESCRIPTION IN (CM) LOT Cork Tray Liners 86326 Rectangular 12 x 16 (30.5 x 40.6) 12 FITS TRAYS LINER DIMENSIONS CASE 86328 Rectangular 14 x 18 (35.6 x 45.7) 12 ITEM IN (CM) IN (CM) LOT 86330 Rectangular 15 x 20 (38.1 x 50.8) 12 ROUND LINERS 86331 Rectangular 16 x 22 (40.6 x 55.9) 12 86350 11 (27.9) 91⁄ 8 (23.2) 12 86333 Oval 20 x 25 (50.8 x 63.5) 6 86351 12 (30.5) 11 (27.9) 12 86334 Oval 23 x 28 (58.4 x 71.1) 6 86352 14 (35.6) 121⁄ 8 (30.8) 12 86336 Round 11 (27.9) 12 86353 16 (40.6) 1215⁄ 16 (32.9) 12 86339 Round 14 (35.6) 12 OVAL LINERS 86341 Round 16 (40.6) 12 86360 20 x 25 (50.8 x 63.5) 161⁄ 4 x 21 (41.3 x 53.3) 12 1 86338 Beer tray, round 12 ⁄ 2 (31.8) 12 86361 23 x 28 (58.4 x 71.1) 191⁄ 8 x 235⁄ 8 (48.6 x 60) 12 Baskets Q Constructed from plastic and vinyl material Q Durable and easy to clean Q Dishwasher safe 47205 DIMENSIONS CASE ITEM DESCRIPTION IN (CM) LOT TAN PLASTIC RATTAN 47204 Oblong 9 x 31⁄ 2 x 2 (22.9 x 8.9 x 5.1) 12 47205 Round 9 x 23⁄ 4 (22.9 x 7) 12 47206 Oval 91⁄ 2 x 61⁄ 2 x 3 (24.1 x 16.5 x 7.6) 12 47208 BLACK VINYL WITH GOLD TRIM 47204 47208 Oval 9 x 61⁄ 4 x 23⁄ 8 (22.9 x 15.9 x 6) 12 Tip Trays Serving Bowls{ Q Attractive scratch-resistant material Q Dishwasher safe, impact-resistant, Q Color: Black melamine construction Q In compliance with FDA standards Q Ideal for salad, chips, and condiments Q Heat resistant up to 187°F (86°C) DIMENSIONS CAPACITY CASE ITEM DESCRIPTION IN (CM) OZ (ML) LOT 52860 Birchwood 53⁄ 4 (14.6) 12 (354) 48 52861 Black 53⁄ 4 (14.6) 12 (354) 48 52866 Birchwood 6 (15.2) 14 (413) 48 52867 Black 6 (15.2) 14 (413) 48 ITEM DIMENSION: IN (CM) CASE LOT 52869 Birchwood 8 (20.3) 34 (1005) 48 86280 4 x 6 (10.2 x 15.2) 36 52870 Black 8 (20.3) 34 (1005) 48 86282 5 x 7 (12.7 x 17.8) 36 {Not for use in microwave ovens 9-69
- 347. vollrathco.com Buffet and Tabletop Service Polypropylene Fast Food Trays Q Thick reinforced rim with corner ribs add impact strength - reducing breakage and minimizing warping Q Four stacking lugs speed drying and prevent sticking Q Semi-gloss, weave-grain textured finish provides a reduced-slip surface Q Recyclable to reduce landfill waste Q Heat resistant up to 187°F (86°C) 10 X 14 IN CASE 12 X 16 IN CASE 14 X 18 IN CASE COLOR 25.4 X 35.6 CM LOT 30.5 X 40.6 CM LOT 35.6 X 45.7 CM LOT Red 86100 24 86110 24 86120 12 Brown 86101 24 86111 24 86121 12 Burgundy 86103 24 86113 24 86123 12 Orange 86104 24 86114 24 86124 12 Gray 86105 24 86115 24 86125 12 Almond 86106 24 86116 24 86126 12 Royal blue 86107 24 86117 24 86127 12 Black 86108 24 86118 24 86128 12 Teal 86109 24 86119 24 86129 12 Printing Colors Standard colors (brown, black, and white) can be used with silk screen printing. Silk Screen Charges There is a one-time silk screen charge for each item ordered with an imprint. Samples Personalized Custom Imprinting A net charge equal to the silk screen charge must be paid in advance for request for an imprint sample. To Order Custom Printing Select the size and color of the item to be imprinted; then provide us with camera-ready artwork of your specified size Minimum Quantities and positioning. Minimum quantity of 288 each per tray size. Imprint Area Terms Fast-food trays can accept the following size imprints: Delivery of plus or minus 10% within the quantity ordered constitutes fulfillment of the order, and payment shall be TRAY SIZE MAXIMUM IMPRINT AREA made on the basis of the actual quantity delivered. 10 x 14 inch (25.4 x 35.6 cm) 51⁄ 2 x 81⁄ 2 inch (14.0 x 21.6 cm) 12 x 16 inch (30.5 x 40.6 cm) 61⁄ 2 x 105⁄ 8 inch (16.5 x 27.0 cm) Returns 1⁄ 2 x 111⁄ 2 inch (21.6 x 29.2 cm) 14 x 18 inch (35.5 x 45.7 cm) 8 Custom imprinted or private label products are not accepted for exchange or refund. Camera-Ready Artwork Camera-ready art is ready for photographic reproduction and must be a sharp black-and-white image enlarged or reduced Prices to proper size. When more than one color is specified, artwork Imprinting charges are a net charge added to the price must be individually separated for the screen printing process. of the item. Appropriate artist fees will be charged if artwork is incomplete. Since the design possibilities are governed by the product to be imprinted, details of all artwork must be submitted to Vollrath for Lead Time approval before an order can be accepted. Allow 20 working days for screen preparation and printing. 9-70
- 349. Warewashing Handling 20 and 30 Martini/Margarita Dish Boxes Compartment Rack Glass Rack Strong, extra wide handles stand up to the abuse of the busiest Lemon Drop™ design provides a Solid bottom divider protects the institutions. Reinforcing ribs on top natural grip which is the best in the rim of the glasses from chipping. rim and bottom add strength and industry for fast, efficient removal of Designed for a variety of martini and extend box’s life. glassware from racks. margarita glasses. Vollrath “Green” Facts for Warewashing: Vollrath’s open rack design promotes better washing action, complete rinsing, and faster drying, reducing overall water consumption. Stainless steel is continuously recycled in a sustainable closed loop system. For more details on Vollrath’s green products, visit www.vollrathco.com/green 10-2
- 350. Warewashing Handling The Vollrath Company, LLC Warewashing Vollrath offers a complete selection of racks and accessories to provide the flexibility needed in today’s food service operation. Vollrath warewashing and storage racks offer outstanding strength, adaptability, versatility and durability. When combined with their low cost per year of use, they also become an unbeatable value. Lemon Drop™ 20 and 30 Quicker loading, better cleaning and Compartment Racks drying, and safer Q Provide expanded capacity over the transportation traditional rack options and storage. Q Incorporate all the features expected from the finest line of warewashing racks Q Strategically located compartment dividers offer premium glass protection while providing the open design – ideal for maximizing cleaning performance Vollrath’s exclusive Lemon Drop™ design provides finger gripping area for the most efficient loading and unloading of glassware of any 20 or 30 compartment rack on the market! Vollrath Competitor Lemon Drop™ Design Design 10-3
- 351. vollrathco.com Warewashing Handling Our Industry Leading Features Come Standard! Durable Construction Unique rack design Color coding Manufactured from corrosion Incorporates stainless screws and a Color coding allows you to indicate resistant polypropylene, dish racks wide variety of interchangeable risers the style of glass or stemware, or will withstand temperatures up to and dividers, allowing hundreds of the facility where the rack is used 187˚F (86.1˚C). custom configurations to fit your needs. for quick identification. Peg corner design Peg corner design provides secure stacking with Vollrath and most competitors’ racks, keeping your tableware and glasses safe during storage and transportation. Open design Vollrath’s open design promotes better washing and rinsing, and faster drying. No more rewashing tableware, getting it back into service quicker. Glasses cool faster, helping to prevent thermal shock. Four-way tracking Item Number Rack imprinting Four-way tracking on all full-size Hot Stamped Rack imprinting available racks allows fast dish machine Each rack is hot stamped as additional identification. Choose loading in either direction. No more with item number for easy from a library of symbols and imprints or lifting and turning before loading. identification and reorder. custom imprint with your company name and logo. 10-4
- 352. Warewashing Handling The Vollrath Company, LLC Full-Size Rack Compartment Racks Imprinting For color and imprinting options, see page 10-13. Q Individual compartments help prevent chipping and breakage Q Wide range of sizes, capacities, and interchangeable dividers and risers Q Ideal for storage and machine washing, provide excellent protection and minimize costly replacement Q Outside dimensions: 193⁄4 x 193⁄4 (50 x 50 cm) Q Open design promotes thorough washing action, complete rinsing, Q See Page 10-6 for sizing guide rapid drying and quick glass cooling for spot-free glassware Dimensions Shown Below: Maximum Inside Compartment x Diagonal Compartment 52763 52720 52757 52712 9-Compartment 16-Compartment 20-Compartment 25-Compartment 5 ⁄8 sq. x 8 ⁄16 7 5 4 ⁄8 sq. x 6 ⁄16 3 3 Lemon Drop™ 31⁄2 sq. x 415⁄16 315⁄16 diameter (14.9 cm x 21.1 cm) (11.1 cm x 15.7 cm) (8.9 cm x 12.5 cm) (10.0 cm) Rack Colors Light Green (1) Cocoa (2) Red (3) Light Blue (4) 52812 52715 52784 Gold (5) 30-Compartment 36-Compartment 49-Compartment Gray (6) Lemon Drop™ 27⁄8 sq. x 41⁄16 27⁄16 sq. x 37⁄16 Royal Blue (7) 33⁄16 diameter (7.3 cm x 10.3 cm) (6.2 cm x 8.7 cm) Burgundy (9) (8.1 cm) OVERALL HEIGHT INSIDE HEIGHT CASE 9-COMP 16-COMP 20-COMP{ 25-COMP 30-COMP{ 36-COMP 49-COMP DESCRIPTION IN (CM) IN (CM) LOT 52726 52694 52691 52684 52790 52689 52699 Short 41⁄8 (10.5) 213⁄16 (7.1) 6 52760 52766 52692 52772 52811 52778 52784 Short plus 4 ⁄8 (12.4) 7 31⁄4 (8.3) 5 52727 52718 52693 52710 52812 52714 52722 Medium 55⁄8 (14.3) 45⁄16 (11) 4 52761 52767 52702 52773 52813 52779 52785 Medium plus 63⁄8 (16.2) 413⁄16 (12.2) 4 52728 52719 52703 52711 52816 52715 52723 Tall 7 (17.8) 511⁄16 (14.4) 3 52762 52768 52704 52774 52817 52780 52786 Tall plus 73⁄4 (19.7) 61⁄4 (15.9) 3 52730 52720 52706 52712 52832 52716 52724 X-tall 81⁄2 (21.6) 71⁄8 (18.1) 3 52763 52769 52707 52775 52844 52781 52787 X-tall plus 91⁄4 (23.5) 711⁄16 (19.5) 2 52729 52721 52708 52713 52845 52717 52725 XX-tall 97⁄8 (25.1) 81⁄2 (21.6) 2 52764 52770 52709 52776 52846 52782 52788 XX-tall plus 10 ⁄16 (26.8) 9 91⁄16 (23) 2 52731 52732 52754 52733 52847 52734 52735 XXX-tall 115⁄16 (28.7) 915⁄16 (25.2) 2 52765 52771 52755 52777 52848 52783 52789 XXX-tall plus 121⁄8 (30.8) 109⁄16 (26.8) 2 52736 52737 52757 52738 52849 52739 52740 XXXX-tall 123⁄4 (32.4) 113⁄8 (28.9) 2 {Lemon Drop™ Design – see page 10-3 and 10-4 for details 10-5
- 353. Full Size Warewashing Handling Rack Selection Guide Height{ 10 ⁄16 9 Full-Size Rack XXX-Tall Plus 268.28 mm 915⁄16 Sizing Template XXX-Tall 252.42 mm DETERMINING RACK HEIGHT: Place the base of glass or stemware piece on bottom edge of this page. Or remove page 91⁄16 and stand it on edge on a flat surface next to your glass or stemware. Then select rack type with appropriate number of risers by referring to the crossbar immediately above your glassware piece on the chart. 81⁄2 DETERMINING NUMBER OF COMPARTMENTS: Place an inverted glass on the diagram. Looking directly downward on the XX-Tall Plus 230.18 mm glass, make sure the greatest diameter of the glass or stemware is within the appropriate square. When measuring cups or mugs, be sure to allow for extension of handles. All Vollrath compartment racks have dividers of equal dimension top and bottom to protect glassware during the vigorous wash cycle. 711⁄16 Compartment Size XX-Tall 215.9 mm Full-Size Compartment Racks Inside Height of Compartment 71⁄8 57/8 (149.22) 9 X-Tall Plus 195.26 mm 61⁄8 X-Tall 180.97 mm 511⁄16 43/8 (111.12) 16 Tall Plus 158.75 mm 315⁄16 (100.01) 20 413⁄16 Tall 144.46 mm 31/2 (88.90) 25 43⁄16 33⁄16 (80.96) 30 Medium Plus 122.23 mm 27/8 (73.02) 36 27/16 (61.91) 49 Medium 109.53 mm GLASSWARE OR STEMWARE Short Plus 31/4 (82.55 mm) 0 Short 213/16 (71.43 mm) 27/16 27/8 33⁄16 31/2 315⁄16 43/8 57/8 { Because of height limitations, (61.91) (73.02) (80.96) (88.9) (100.01) (111.12) (149.22) XXXX-Tall cannot be shown on this chart. Compartment Width XXXX-Tall is 113/8 (288.92 mm) Inch (mm) 10-6
- 354. Warewashing Handling The Vollrath Company, LLC Martini/Margarita Glass Rack Q Designed for a variety of martini and margarita glasses Q Solid bottom divider protects the rim of glasses from chipping Q Outside dimensions: 193⁄4 x 193⁄4 (50 x 50 cm) Q For glass sizing info, see page 10-6 Q Protect your investment 9-COMP 16-COMP 25-COMP INSIDE INSIDE INSIDE OVERALL INSIDE COMP SIZE COMP SIZE COMP SIZE HEIGHT HEIGHT CASE 57⁄8 (14.9 CM) 43⁄8 (11.1 CM) 31⁄2 (8.9 CM) DESCRIPTION IN (CM) IN (CM) LOT 52963 52965 52798 52966 Medium 55⁄8 45⁄16 4 (14.3) (11) Solid Dividers 52963 52956 52795 Tall 7 511⁄16 3 (17.8) (14.4) 52964 52799 52794 X-Tall 81⁄2 71⁄8 3 (21.6) (18.1) 52962 52957 52793 XX-Tall 97⁄8 81⁄2 2 (25.1) (21.6) 52961 52958 52796 XXX-Tall 115⁄16 915⁄16 2 (28.7) (25.2) 52960 52959 52797 XXXX-Tall 123⁄4 113⁄8 2 (32.4) (28.9) Full-Size Open Racks Rack Colors for Q Designed for uniquely shaped or oversized Full-Size Racks Red (3) Gray (6) dishes, utensils and cookware Light Green (1) Light Blue (4) Royal Blue (7) Q Outside dimensions: 193⁄4 x 193⁄4 (50 x 50 cm) Cocoa (2) Gold (5) Burgundy (9) Cream Soup Cup Rack Q Designed to wash and store delicate two-handled cream soup cups, au gratins and accessory pieces Q Solid dividers protect each cup from touching Q Outside dimensions: 193⁄4 x 193⁄4 x 41⁄8 (50 x 50 x 10.5 cm) 52670 INSIDE OVERALL INSIDE COMPARTMENT HEIGHT HEIGHT CASE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) LOT 52670 Short 18 x 18 41⁄8 213⁄16 6 (45.7 x 45.7) (10.5) (7.1) 52696 Extended 18 x 18 47⁄8 31⁄4 5 (45.7 x 45.7) (12.4) (8.3) 52791 52680 Medium 18 x 18 51⁄2 41⁄8 4 (45.7 x 45.7) (14) (10.5) INSIDE COMPARTMENT OVERALL INSIDE 52681 Tall 18 x 18 67⁄8 51⁄2 3 COMPARTMENT DIAGONAL HEIGHT HEIGHT CASE (45.7 x 45.7) (17.5) (14) ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) IN (CM) LOT 52682 X-Tall 18 x 18 83⁄16 613⁄16 3 52791 Nine 57⁄8 x 57⁄8 85⁄16 41⁄8 213⁄16 6 (45.7 x 45.7) (20.8) (17.3) compartment (14.9 x 14.9) (21.1) (10.5) (7.1) 52683 XX-Tall 18 x 18 99⁄16 81⁄4 2 52792 Twelve 515⁄16 x 43⁄8 73⁄4 41⁄8 213⁄16 6 (45.7 x 45.7) (24.3) (21) compartment (15.1 x 11.1) (19.7) (10.5) (7.1) 10-7
- 355. vollrathco.com Warewashing Handling Full-Size Plate Racks Full-Size Flatware Rack Q Holds plates and trays upright for the ideal cleaning angle n Tight lattice bottom grid prevents Q Plate lock to keep plates from touching, reducing flatware from falling through chipping and breakage n Outside dimensions: 193⁄4 x 193⁄4 Q Extended height rack has taller pegs and sidewalls to (50 x 50 cm) accommodate larger plates Q Outside dimensions: 193⁄4 x 193⁄4 (50 x 50 cm) Q Distance between pegs: 19⁄16 x 19⁄16 (4 x 4 cm) 52695 INSIDE OVERALL INSIDE PEG COMPARTMENT HEIGHT HEIGHT HEIGHT CASE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) IN (CM) LOT INSIDE OVERALL INSIDE 52672 Standard 19⁄ 16 x 181⁄ 16 31⁄ 4 23⁄ 4 27⁄ 16 6 COMPARTMENT HEIGHT HEIGHT CASE ITEM IN (CM) IN (CM) IN (CM) LOT height (4 x 45.9) (9.5) (7) (6.2) 52695 Extended 19⁄ 16 x 181⁄ 16 47⁄ 8 31⁄ 4 35⁄ 32 5 52671 181⁄ 16 x 181⁄ 16 41⁄ 8 25⁄ 8 6 height (4 x 45.9) (12.4) (8.3) (8.0) (45.9 x 45.9) (10.5) (6.7) Rack Color Selection Full-Size Cup Racks Guide for Plate, Flatware n Holds most standard-sized cups and Cup Racks n Extra-high, molded compartments prevent chipping and breakage n Molded tilting device prevents water from pooling in bottom of cup n Outside dimensions: 193⁄4 x 193⁄4 (50 x 50 cm) Light Green (1) Cocoa (2) 52675 Tilting Device INSIDE OVERALL INSIDE COMPARTMENT HEIGHT HEIGHT CASE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) LOT Red (3) 52674 16-cup 45⁄ 16 x 45⁄ 16 41⁄ 8 23⁄ 4 6 short (11 x 11) (10.5) (7) 52676 16-cup 45⁄ 16 x 45⁄ 16 59⁄ 16 41⁄ 8 4 medium (11 x 11) (14.1) (10.5) 52675 20-cup 37⁄ 16 x 45⁄ 16 41⁄ 8 211⁄ 16 6 short (8.7 x 11) (10.5) (6.8) Royal Blue (7) Gray (6) 52677 20-cup 37⁄ 16 x 45⁄ 16 51⁄ 2 41⁄ 8 4 medium (8.7 x 11) (14) (10.5) 10-8
- 356. Warewashing Handling The Vollrath Company, LLC Full-Size Open-End Racks Sheet Pan Rack Q Ideal for washing trays Q Holds three full-size sheet pans Q Item 52678 has a stainless steel-reinforced channel to support Q Designed to fit standard height openings for all fiberglass and laminated trays or metal items conveyor type dishwashers Q Item 52673 designed only for fast food trays Q Chrome-plated wire insert holds pans at proper angle Q Outside dimensions: 193⁄4 x 193⁄4 (50 x 50 cm) Q Outside dimensions: 193⁄4 x 193⁄4 (50 x 50 cm) Q Space between dividers: 21⁄4 (5.7 cm) ITEM DESCRIPTION CASE LOT 52678 52664 Open end sheet pan rack 1 Color Selection for Open End, Sheet Pan, INSIDE COMPARTMENT OVERALL HEIGHT INSIDE HEIGHT CASE Plate Cover, and Insulated Tray Racks ITEM IN (CM) IN (CM) IN (CM) LOT 52678{ 19⁄ 16 x 181⁄ 16 (4 x 45.9) 33⁄ 4 (9.5) 23⁄ 4 (7) 6 Light Green (1) Red (3) 9 1 3 52673| 1 ⁄ 16 x 18 ⁄ 16 (4 x 45.9) 3 ⁄ 4 (9.5) 23⁄ 4 (7) 6 Cocoa (2) Gray (6) Royal Blue (7) {With Channel |Without Channel Plate Platter Cover Racks Insulated Tray and Steam Q Designed to keep plate covers upright during washing Table Pan Racks Q Prevents covers from rolling during washing Q Designed to wash insulated food service trays and Q Outside dimensions: 193⁄4 x 193⁄4 (50 x 50 cm) 21⁄2 deep (6.5 cm) steam table pans Q Chrome-plated insert height: 43⁄8 (11.1 cm) Q Chrome-plated wire insert holds pans and trays upright Q Space between dividers: Q Open end rack with steel channel supports heavy 3 (7.6 cm) oversized trays and steam table pans Q Outside dimensions: 193⁄4 x 193⁄4 (50 x 50 cm) Q Space between dividers: 3 (7.6 cm) 52669 52698 CAPACITY CASE ITEM DESCRIPTION IN (CM) LOT 52698 Plate cover rack with insert — 10 covers to 1 open end standard height 113⁄ 16 (28.4) dia ITEM DESCRIPTION CASE LOT 52667 Plate cover rack with insert — 10 covers to 1 52668 Tray rack with insert — standard height 1 closed end medium height 101⁄ 8 (25.7) dia 52667 Tray rack with insert — medium height 1 52668 Plate cover rack with insert — 10 covers to 1 52669 Tray rack with insert — standard height open end 1 closed end standard height 101⁄ 8 (25.7) dia with stainless channel, insert is free-floating 52665 Insert only — chrome plated — 1 52666 Open end rack only with S/S channel support 1 52697 Open end rack only — no insert — 1 52665 Insert only — chrome plated 1 10-9
- 357. vollrathco.com Warewashing Handling Compartment Size Full-Size Cup Racks 16-Cup Rack 45/16 x 45/16 (109.5 x 109.5 mm) Medium 4 1/8˝ (104.77 mm) CUP RACK Short 2 3/4˝ (69.85 mm) 20-Cup Rack 37/16 x 45/16 (87.31 x 109.5 mm) Specialty Half-Size Rack Q 32-compartment half-size rack is easy to store in Online Glass Rack the bar area or in set-up stations Q Easy to transport from one location to another Selection Guide Q Includes special corner compartment for washing of shaker tops Q Optional hold-down grid (see page 5-15) ensures shaker tops stay in rack Find the Vollrath Glass Rack to Match Q Ideal for storage and washing of salt and pepper shakers, bud vases, shot glasses, and votive candle holders Your Glassware in Just Two Clicks! Q Available in light green and cocoa Light Green (1) Q Compartment size: 21⁄16 x 21⁄16 (5.2 x 5.2 cm) Cocoa (2) Q Find the online Outside dimensions: 10 x 193⁄4 (25.4 x 50 cm) Glass Rack Guide in the Warewashing category on our website. Q Look up glasses 52815 by manufacturer OVERALL HEIGHT INSIDE HEIGHT CASE or enter custom ITEM DESCRIPTION IN (CM) IN (CM) LOT glass dimensions 52815 Short 41⁄ 8 (10.5) 27⁄ 8 (7.3) 6 Q Print your results 11 52819 Medium 5 ⁄ 16 (14.4) 49⁄ 16 (11.6) 4 52828 Tall 73⁄ 16 (18.3) 61⁄ 16 (15.4) 3 7⁄ 8 711⁄ 16 (19.5) 52829 X-Tall 8 (22.5) 3 52834 XX-Tall 103⁄ 8 (26.4) 93⁄ 16 (23.3) 2 10-10
- 358. Warewashing Handling The Vollrath Company, LLC Q Half-Size Racks Sized for areas where full-size racks won't fit Q Superior storage, handling and ware protection for compact areas Q Offer stacking lugs for safe storage or transport Q Comfortable handles for easy lifting Light Green (1) Q Available in green and cocoa Cocoa (2) Q Overall outside dimensions: 10 x 191⁄4 (25.4 x 50.2 cm) Half-Size Flatware Rack Half-Size Cup Racks Q Tight lattice bottom grid prevents Q Eight-cup compartment size: 43⁄8 x 45⁄16 (11.1 x 11 cm) flatware from falling through Q Ten-cup compartment size: 37⁄16 x 43⁄8 (8.7 x 11.1 cm) Q Molded 1 (2.5 cm) high divider keeps cups in place 52805 OVERALL HEIGHT INSIDE HEIGHT CASE ITEM DESCRIPTION IN (CM) IN (CM) LOT INSIDE COMPARTMENT OVERALL HEIGHT INSIDE HEIGHT CASE ITEM IN (CM) IN (CM) IN (CM) LOT 52805 8-cup 41⁄ 8 (10.5) 27⁄ 8 (7.3) 6 1 1 5 1 52804 9 x 18 ⁄ 8 (22.9 x 46) 4 ⁄ 8 (10.5) 2 ⁄ 8 (6.7) 6 52806 10-cup 4 ⁄ 8 (10.5) 211⁄ 16 (6.8) 6 Half-Size Open Racks Half-Size Compartment Racks Q Designed for uniquely shaped dishes and utensils Q Ten-compartment size: 31⁄2 x 45⁄16 (8.9 x 11 cm) Q Inside compartment size: 9 x 181⁄16 (22.9 x 45.9 cm) Q Eighteen-compartment size: 215⁄16 x 213⁄16 (7.5 x 7.1 cm) Q Also used for transporting silverware cylinders 52821 52801 52814 OVERALL HEIGHT INSIDE HEIGHT CASE ITEM DESCRIPTION IN (CM) IN (CM) LOT OVERALL HEIGHT INSIDE HEIGHT CASE 52800 Short 41⁄ 8 (10.5) 23⁄ 4 (7) 6 10-COMP 18-COMP DESCRIPTION IN (CM) IN (CM) LOT 52801 Medium 59⁄ 16 (14.1) 41⁄ 4 (10.8) 4 52810 52814 Short 41⁄ 8 (10.5) 27⁄ 8 (7.3) 6 52802{ Tall 71 ⁄ 8 (18.1) 5 3⁄ 4 (14.6) 3 52820 52823 Medium 511⁄ 16 (14.5) 41⁄ 2 (11.4) 4 52803 X-tall 89⁄ 16 (21.7) 75⁄ 16 (18.6) 3 52821 52824 Tall 73⁄ 16 (18.3) 61⁄ 16 (15.4) 3 52807 XX-tall 10 1⁄ 8 (25.7) 813⁄ 16 (22.4) 2 52822 52825 X-tall 87⁄ 8 (22.5) 711⁄ 16 (19.5) 3 3⁄ 8 93⁄ 16 {Ideal for transporting silverware cylinders (52633, 52643 and 52642), see Page 10-17 52818 52826 XX-tall 10 (26.4) (23.3) 2 10-11
- 359. vollrathco.com Warewashing Handling Caterack® System Caterack stacking lugs OD: 193⁄4 (50 cm) square nest with all Vollrath racks for added stability. Vollrath’s exclusive “V” shaped plate Vinyl coated wire guides make loading easier. Plate is insert is fastened guided into compartment to reduce for stability. chipping and abrasions. Cateracks are designed for comfortable transport Open design promotes of china inventory. better washing action and faster drying. Transport 52745 Double wall construction cushions and protects your china. Double-wall construction and deep wire dividers keep your fine china safe during transporting. Rack Colors Wash Light Green (1) Plates go straight from the table Cocoa (2) to the dishroom without extra 52741 handling, while upright position Red (3) ensures a spotless finish. Light Blue (4) Store Gold (5) Gray (6) Racks stack for easy, compact 52752 Royal Blue (7) storage – clean and ready to go to your next off-site event. Burgundy (9) 52750 RACK HEIGHT PLATE SIZE RANGE PLATE DEPTH PLATES CASE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) PER RACK LOT 52741 Small plate 711⁄ 16 (19.5) 5 to 61⁄ 8 (12.7 to 15.6) Up to 3⁄ 4 (1.9) 40 2 1 1 1 52751 Extended small plate 9 ⁄ 16 (23) 6 ⁄ 8 to 6 ⁄ 2 (15.6 to 16.5) Up to 3⁄ 4 (1.9) 40 2 52742 Saucer plate 711⁄ 16 (19.5) 5 to 61⁄ 8 (12.7 to 15.6) Up to 1 (2.5) 30 2 52752 Extended saucer plate 91⁄ 16 (23) 61⁄ 8 to 61⁄ 2 (15.6 to 16.5) Up to 1 (2.5) 30 2 52743 Medium plate 91⁄ 16 (23) 61⁄ 2 to 71⁄ 2 (16.5 to 19.1) Up to 3⁄ 4 (1.9) 40 2 52753 Extended medium plate 107⁄ 16 (26.5) 71⁄ 2 to 73⁄ 4 (19.1 to 19.7) Up to 3⁄ 4 (1.9) 40 2 13 1 52744 Large plate 11 ⁄ 16 (30) 9 to 10 ⁄ 4 (22.9 to 26) Up to 1 (2.5) 20 2 52745 Extra large plate 133⁄ 16 (33.5) 101⁄ 4 to 11 (26 to 27.9 ) Up to 1 (2.5) 20 2 52746 XX large plate 107⁄ 16 (26.5) 103⁄ 4 to 115⁄ 16 (27.3 to 28.7) Up to 13⁄ 8 (3.5) 14 1 52756 XX large extended plate 145⁄ 8 (37.1) 115⁄ 16 to 121⁄ 2 (28.7 to 31.8) Up to 13⁄ 8 (3.5) 14 1 7 1 1 52750 Soup/Salad bowl 10 ⁄ 16 (26.5) 7 ⁄ 2 to 8 ⁄ 4 (19.1 to 21) Up to 19⁄ 16 (4) 20 2 52747{ Rim soup bowl 1113⁄ 16 (30) 9 to 101⁄ 4 (22.9 to 26) Up to 13⁄ 4 (4.4) 13 2 {Special order item – please call for information regarding lead time. Note: Plate sizes indicated are only a recommendation by Vollrath. End-user must determine his or her own suitability and sizes. 10-12
- 360. Warewashing Handling The Vollrath Company, LLC Step 5. Custom Imprinting You can have your racks personalized with your company name, logo or any other text. Maximum size of imprint is 6 (15.2 cm) wide by 1 (2.5 cm) high in white ink only. Camera-ready art required. There is a one-time charge for preparation of the screen plus a nominal charge per rack personalized. Allow 10 working days for screen preparation. Example 52711-11 AB = Beer Mug 52715-66 BE = White Wine The above number represents the rack ordered, the color selected, the top riser color, and the symbol imprinting. If both a custom logo and a glass symbol are specified, the logo will appear on one side and the glass symbol on the other. How to Order Note: Imprinted racks cannot be returned or cancelled the Right Rack Delivery All racks will be shipped within three working days from receipt of order. Custom racks, or personalized racks will be shipped within 7 working Step 1. Select Your Rack days from receipt of order. Contact the Vollrath office or your district Begin by selecting the type of basic rack you need by the standard sales manager regarding lead times on initial personalization orders. five-digit item number found on pages 10-5 to 10-14. Available Symbols| Step 2. Color Selection Code Code Select the color of the basic Color Sixth Digit rack. Add the sixth digit Light Green. . . . . . . . . 1 AA Beer AQ Hi-Ball to the basic rack number. Cocoa. . . . . . . . . . . . . 2 (Full-size racks are available Red. . . . . . . . . . . . . . . 3 AB Beer Mug AR Iced Tea in all eight colors — shown Light Blue . . . . . . . . . . 4 on page 10-9. One-half size Gold . . . . . . . . . . . . . . 5 AC Brandy AS Margarita racks are available in light Gray . . . . . . . . . . . . . . 6 green or cocoa only.) Royal Blue . . . . . . . . . 7 Burgundy . . . . . . . . . . 9 AD Champagne AT Martini Champagne Old AE AU Step 3. Color-Coded Top Riser Flute Fashioned To indicate the style of glass/stemware or the facility where Coffee the rack is used, you can color code the top riser of Vollrath AF AV Pilsner Mug compartment racks. Just code the seventh digit of the item Red number with the desired color number listed above. A perfect AG Collins AW Wine system for resorts, hotels, clubs, and institutions. Optional methods of color coding are available upon request. AH Cordial AX Rocks (footed style){ AJ Creamer Rocks AZ (tumbler style){ Example 5 2 7 1 6 3 6 { AK Cup BA Sherry Red rack is Code 3 Gray top is Code 6 Basic 36 Red Gray AL Decanter BB Sorbet Compartment Base Top X-Tall Rack Riser Water BC (footed style){ AM Flatware Water Step 4. Standard Imprinting BD (tumbler style){ Vollrath gives you the option for additional identification by imprinting AN Goblet BE White Wine the glass symbol and name on each rack. Letters will appear in white ink only, 1⁄2 high. There is a nominal charge for each rack imprinted with the symbol and name. To order symbol imprinting, simply identify AP Grande BF Wine the symbol code after the seven-digit rack model number. Also available in Spanish. {Wording in parenthesis will not imprint |Additional symbols available. Contact your Vollrath representative 10-13
- 361. vollrathco.com Warewashing Handling Full-Size Compartment Racks NUMBER OF COMPARTMENTS 9 16 20 25 30 36 49 RACK COMPARTMENT SIZE: IN (CM) 57⁄ 8 (14.9) 43⁄ 8 (10.0) 315⁄ 16 (11.1) 31⁄ 2 (8.9) 33⁄ 16 (8.1) 27⁄ 8 (7.3) 27⁄ 16 (6.2) COMPONENTS SHORT Overall Ht. 41⁄ 8 (10.5) 52726 52694 52691 52684 52790 52689 52699 No Risers Inside Ht. 213⁄ 16 (7.1) One Divider SHORT PLUS Overall Ht. 47⁄ 8 (12.4) 52760 52766 52692 52772 52811 52778 52784 Inside Ht. 31⁄ 4 (8.3) MEDIUM{ One Riser Overall Ht. 55⁄ 8 (14.3) 52727 52718 52693 52710 52812 52714 52722 One Full Divider Inside Ht. 45⁄ 16 (11) One Trim Divider MEDIUM PLUS{ Overall Ht. 63⁄ 8 (16.2) 52761 52767 52702 52773 52813 52779 52785 Inside Ht. 413⁄ 16 (12.2) TALL Overall Ht. 7 (17.8) 52728 52719 52703 52711 52816 52715 52723 Two Risers Inside Ht. 511⁄ 16 (14.4) Two Dividers TALL PLUS Overall Ht. 73⁄ 4 (19.7) 52762 52768 52704 52774 52817 52780 52786 Inside Ht. 61⁄ 4 (15.9) X TALL{ Three Risers Overall Ht. 81⁄ 2 (21.6) 52730 52720 52706 52712 52832 52716 52724 Two Full Dividers Inside Ht. 71⁄ 8 (18.1) One Trim Divider X TALL PLUS{ Overall Ht. 91⁄ 4 (23.5) 52763 52769 52707 52775 52844 52781 52787 Inside Ht. 711⁄ 16 (19.5) XX TALL Four Risers Overall Ht. 97⁄ 8 (25.1) 52729 52721 52708 52713 52845 52717 52725 Three Full Dividers Inside Ht. 81⁄ 2 (21.6) XX TALL PLUS Overall Ht. 109⁄ 16 (26.8) 52764 52770 52709 52776 52846 52782 52788 Inside Ht. 91⁄ 16 (23) XXX TALL{ Five Risers Overall Ht. 115⁄ 16 (28.7) 52731 52732 52754 52733 52847 52734 52735 Three Full Dividers Inside Ht. 915⁄ 16 (25.2) One Trim Divider XXX TALL PLUS{ Overall Ht. 121⁄ 8 (30.8) 52765 52771 52755 52777 52848 52783 52789 Inside Ht. 109⁄ 16 (26.8) XXXX TALL Six Risers Overall Ht. 123⁄ 4 (32.4) 52736 52737 52757 52738 52849 52739 52740 Four Full Dividers Inside Ht. 113⁄ 8 (28.9) {Requires trimmed divider Note: Trim dividers are used with one riser. Full dividers are used with two risers. Martini/Margarita Compartment Racks NUMBER OF COMPARTMENTS 9 16 25 RACK COMPONENTS INSIDE COMPARTMENT SIZE: IN (CM) 57⁄ 8 (14.9) 43⁄ 8 (11.1) 31⁄ 2 (8.9) MEDIUM Overall Height: 55⁄ 8 (14.3) 52965 9 52798 16 52966 25 One Riser One Trim Divider Inside Height: 45⁄ 16 (11) Compartments Compartments Compartments TALL Overall Height: 7 (17.8) 52963 52956 52795 Two Risers One Full Divider Inside Height: 511⁄ 16 (14.4) X-TALL Overall Height: 81⁄ 2 (21.6) Three Risers, One Full Divider 52964 52799 52794 Inside Height: 71⁄ 8 (18.1) One Trim Divider Requires 2 Requires 3 Requires 4 XX-TALL Solid Top Solid Top Solid Top Overall Height: 97⁄ 8 (25.1) Four Risers 52962 Dividers 52957 Dividers 52793 Dividers Inside Height: 81⁄ 2 (21.6) Two Full Dividers (35339) (35339) (35339) XXX-TALL 2 Solid Bottom 3 Solid Bottom 4 Solid Bottom Overall Height: 115⁄ 16 (28.7) Dividers Dividers Dividers Five Risers, One Full Divider 52961 52958 52796 Inside Height: 915⁄ 16 (25.2) (35338) (35338) (35338) Two Trim Dividers XXXX-TALL Overall Height: 123⁄ 4 (32.4) Six Risers 52960 52959 52797 Inside Height: 113⁄ 8 (28.9) Three Full Dividers 10-14
- 362. Warewashing Handling The Vollrath Company, LLC Ordering Rack Component Parts Rack Assembly Screws Set of sixteen screws in various lengths to fit all sizes of Vollrath racks. FOR USE WITH RACK PART NUMBERS SCREW LENGTH: IN (CM) SCREW ITEM STYLE 52684, 52689, 52691, 52692, 52694, 52699, 52726, 1⁄ 2 (1.3) 52355 Short Compt. 52760, 52766, 52772, 52778, 52784, 52790, 52810, 52811, 52814 52676, 52677, 52680 17⁄ 8 (4.8) 52356 Medium Open 52693, 52702, 52727, 52718, 52710, 52714, 52722, 52761, 52767, 2 (5.1) 52357 Medium Compt. 52773, 52779, 52785, 52798, 52812, 52813, 52965, 52966 52801 Med. Open 52820, 52823 21⁄ 4 (5.7) 52358 Medium Compt. 52681 31⁄ 4 (8.3) 52359 Tall, No Compt. 52741, 52742, 52748 Caterack 52703, 52704, 52711, 52715, 52719, 52728, 52723, 52762, 52768, 31⁄ 2 (8.9) 52360 Tall Compt. 52774, 52780, 52786, 52794, 52816, 52817, 52956, 52963 52802 Tall Open, No Compt. 52821, 52824 33⁄ 4 (9.5) 52367 Tall Compt. 52682 45⁄ 8 (11.8) 52362 X-Tall 52743, 52751, 52752, 52758, 52700 Caterack 52706, 52707, 52730, 52720, 52712, 52716, 52724, 52763, 52769, 47⁄ 8 (12.4) 52368 X-Tall Compt. 52775, 52781, 52787, 52794, 52799, 52832, 52844, 52964 52803 X-Tall Open 52822, 52825 53⁄ 8 (13.7) 52366 X-Tall Compt. 52683 57⁄ 8 (14.9) 52369 XX-Tall Open 52753 Caterack 52708, 52709, 52713, 52717, 52721, 52725, 52729, 63⁄ 8 (16.2) 52363 XX-Tall 52764, 52770, 52776, 52782, 52788, 52844, 52846, 52793, 52957, 52962 52818, 52826 63⁄ 4 (17.1) 52371 XX-Tall Compt. 52807 XX-Tall Open 52744, 52747 73⁄ 8 (18.7) 52373 Caterack 52731, 52732, 52733, 52734, 52735, 52754, 52755, 52765, 713⁄ 16 (19.8) 52370 XXX-Tall 52771, 52777, 52783, 52789, 52844, 52846, 52847, 52848, 52796, 52958, 52961 52745, 52746 811⁄ 16 (22.1) 52375 Caterack 52736, 52737, 52738, 52739, 52740, 91⁄ 4 (23.5) 52372 XXXX-Tall 52757, 52797, 52849, 52959, 52960 52756 101⁄ 8 (25.7) 52374 Caterack 10-15
- 363. vollrathco.com Warewashing Handling Rack Component Parts Ordering Rack Component Parts Individual parts are available if one wishes to change either the For Full-Size Racks compartment configuration or rack height to accommodate different types ITEM DESCRIPTION CASE LOT of glassware or stemware. See page 10-9 for rack color selection. 52305 9-compartment Divider 6 52306 9-compartment Trimmed Divider 6 For Full-Size Racks (cont'd.) 52300 16-compartment Divider 6 ITEM DESCRIPTION CASE LOT 52307 16-compartment Trimmed Divider 6 52316 20-compartment Trim Divider 6 52304 Riser 6 52317 20-compartment Divider 6 3533880 Top Martini Rack Divider (Solid) 6 52318 20-compartment plus Base Divider 6 3533980 Bottom Martini Rack Divider (Solid) 6 52301 25-compartment Divider 6 52308 25-compartment Trimmed Divider 6 52320 30-compartment Trim Divider 6 For Half-Size Racks 52321 30-compartment Divider 6 ITEM DESCRIPTION CASE LOT 52322 30-compartment plus Base Divider 6 52313 10-compartment Divider 6 52302 36-compartment Divider 6 52311 10-compartment Trimmed Divider 6 52309 36-compartment Trimmed Divider 6 52314 18-compartment Divider 6 52303 49-compartment Divider 6 52312 18-compartment Trimmed Divider 6 52310 49-compartment Trimmed Divider 6 52315 Riser 6 Plastic Rack Dollies Hold Down Grids 52385 Q Provides smooth, safe transport for all full-size racks Q Specialized formulation of polypropylene designed to resist rust and corrosion and withstand elevated temperatures Q Available in two configurations using 52395 3 (7.6 cm) non-marking casters Q Optional removable, carbon steel, chrome-plated 27 (68.6 cm) handle Q Optional black ABS plastic insert catches drainage Q Plastisol coating on grids protects rack items when transporting wet racks, or serves as a cover to keep dust off when storing DIMENSIONS CASE Q Overall height: with ITEM DESCRIPTION IN (CM) LOT Handle 33 (83.8 cm); 52385 Full-size 177⁄ 8 x 177⁄ 8 (45.4 x 45.4) 12 Dolly only: 511⁄16 52395 Half-size 191⁄ 4 x 91⁄ 4 (48.9 x 23.5) 6 (14.5 cm) Q Weight capacity: 200 lbs. (90 kg) Steel Rack Dolly Q Handle and insert sold separately Q Constructed from heavy-gauge steel Q Holds full-size racks Q Zinc-plated carbon steel dolly absorbs shock Q Use as a can dolly or stack chair dolly Q 4 (10.2 cm) non-marking casters Q Overall height: with Handle 33 (83.8 cm); Dolly only: 57⁄8 (14.9 cm) Q Weight capacity: 200 lbs. (90 kg) PLATFORM DIMENSIONS CASE ITEM DESCRIPTION IN (CM) LOT Q Handle sold 52290 Dolly only with 4 20 x 20 1 separately swivel casters (50.8 x 50.8) PLATFORM DIMENSIONS CASE 52292 Dolly only with 2 swivel (back) 20 x 20 1 ITEM DESCRIPTION GAUGE IN (CM) LOT and 2 fixed (front) casters (50.8 x 50.8) 97190 Dolly without handle 12 201⁄ 2 x 201⁄ 2 1 52293 Handle only 1 (52.1 x 52.1) 52291 Dishrack dolly insert and cover 1 97191 Handle only, chrome plated 18 — 1 10-16
- 364. Warewashing Handling The Vollrath Company, LLC 8-Compartment Flatware Basket Q For presorting, soaking and washing your flatware Q Two baskets fit full-size open rack Q Baskets nest for compact storage Q Outside dimensions: 181⁄32 x 719⁄32 (45.8 x 19.3 cm) INSIDE COMPARTMENT OVERALL HEIGHT INSIDE HEIGHT CASE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) LOT 52640 Without handles 39⁄ 16 x 39⁄ 16 (9 x 9) 79⁄ 32 (18.4) 41⁄ 4 (10.8) 4 9 9 9 52641 With handles 3 ⁄ 16 x 3 ⁄ 16 (9 x 9) 13 ⁄ 16 (34.5) 41⁄ 4 (10.8) 4 Cylinders Cylinder Rack 52633 Q Fits all Silv-A-Tainers Q Ideal for washing and transporting cylinders Q Heavy-duty, long wearing Q Accommodates all Vollrath cylinders Q Available in green or cocoa Q Outside dimensions: 10 x 193⁄4 x 511⁄16 (25.4 x 50 x 14.4 cm) 52642 99710* 52643 CUTOUT DIAMETER HEIGHT DIAMETER CASE ITEM DESCRIPTION IN (CM) IN (CM) IN (CM) LOT 52633 Plastic, black 33⁄ 4 (9.5) 55⁄ 8 (14.3) 41⁄ 32 (10.2) 12 COMPARTMENT SIZE (L X W X H) CASE 52643 Plastic, white 33⁄ 4 (9.5) 55⁄ 8 (14.3) 41⁄ 32 (10.2) 12 ITEM DESCRIPTION IN (CM) LOT 52642 Nylon 33⁄ 4 (9.5) 55⁄ 8 (14.3) 41⁄ 32 (10.2) 12 52808 8-compartment 43⁄ 8 x 43⁄ 8 x 41⁄ 2 4 99710{ Stainless steel 33⁄ 4 (9.5) 55⁄ 8 (14.3) 41⁄ 32 (10.2) 12 (11.1 x 11.1 x 11.4) {Not NSF Certified, Imported Cylinder Transport Rack Silv-A-Tainer Q Heavy-duty stainless steel Q 97240 and 97241 are Q Cylinders sold separately mirror-finished 300 series stainless steel with rubber feet Q 52644 is tough gray plastic for easy cleaning 52644 Q Cylinders sold separately 97240* DIMENSIONS (L X W X H) CASE ITEM DESCRIPTION IN (CM) LOT Shown with cylinders 97241| Stainless steel, 6-cylinder 147⁄ 8 x 111⁄ 2 x 81⁄ 2 1 (item 99710) – sold separately (37.8 x 29.2 x 21.6) 97240| Stainless steel, 4-cylinder 101⁄ 8 x 111⁄ 2 x 81⁄ 2 1 DIMENSIONS (L X W X H) CASE ITEM DESCRIPTION IN (CM) LOT (25.7 x 29.2 x 21.6) 99720 6-cylinder 15 x 10 x 111⁄ 8 1 52644 Plastic, 6-cylinder 151⁄ 8 x 103⁄ 4 x 11 1 (38.1 x 25.4 x 28.3) (38.4 x 27.3 x 27.9) |Imported 10-17
- 365. vollrathco.com Warewashing Handling Rack and Tub Flatware Flatware Washing System Soak System Q Clean, efficient and sanitary system for handling flatware Q Employees handle only the system containers for safer Q Rack’s tight lattice bottom and more sanitary conditions keeps flatware in place with free-flow solution Q Rack transfers directly to dishwasher Q Available stainless steel stand allows for three tubs with minimal use of counter space Q Overall dimensions: 271⁄16 x 249⁄16 x 143⁄8 (68.7 x 62.4 x 36.5 cm) (3) 52827 and (1) 97300 shown Q Tub dimensions: 249⁄16 x 131⁄2 x 57⁄16 (62.3 x 34.3 x 13.8 cm) ITEM DESCRIPTION CASE LOT ITEM DESCRIPTION CASE LOT 97285 Flatware system includes: 1 52827 Soak system half-rack and tub 1 3 of 52830 (soak tubs) 52830 Half-size soak tub only 1 6 of 52804 (flatware racks) 52804 Half-size flatware rack only 6 3 of 52802 (open racks) 97300 Soak system stand only 1 8 of 52643 (white plastic cylinders) Silverware Soak System Q Soak flatware without using a sink Q Box with drain holes nests into soaking pan for pre-cleaning Q Safely keeps hands away from harsh chemicals and sharp knives Q System includes drain box (52617), bus box (52612) , and cover (52424) ITEM DESCRIPTION CASE LOT Silverware soak system, gray, includes 52612, 52619 1 52424 and 52617 52617 Perforated drain box only, gray 6 20 x 15 x 5 (50.8 x 38.1 x 12.7 cm) Sanitizing Your Flatware Step 1. Presoaking Sorted Flatware Step 3. Final Sanitizing Presoak sorted flatware in three rack and tub Place the flatware, handle-side-down, in the combinations (52827). Presoaking removes most of the flatware cylinders (52643). Place eight cylinders food particles from the flatware prior to the wash cycle. in a half-size open tall rack (52802) or less than (If counter space is limited, use the soak system stand eight cylinders in a 52808. Return the rack to to save space.) the dishwasher for final washing. This procedure ensures proper washing and drying, resulting in sparkling clean, spotless flatware. Step 2. Washing Step 4. Transferring Flatware Remove racks from the soak tubs and put Transfer flatware from one cylinder to another them through the dishwasher. During this – without ever having to touch the flatware! wash cycle any remaining food particles Flatware will be handle-side-up for easy access should be removed. and for continuous sanitation during table set-up. 10-18
- 366. Warewashing Handling The Vollrath Company, LLC Dish Boxes Q Strong, extra wide handle for more durability and easy transport Q Rounded handles provide sure grip Q Reinforcing ribs on top rim and bottom add strength and extend life Q Dishwasher safe Q Bottom ribs provide greater stability and help prevent sliding Q Stacking ribs prevent sticking together and allow for quicker drying Heavy-Duty Single Compartment Q High-density polyethylene Q Smooth bottom interior Q Ribbed bottom exterior Q 52657 is NSF approved for food contact DIMENSIONS (L X W X H) CASE ITEM COLOR IN (CM) LOT 52611 Black 20 x 15 x 5 (50.8 x 38.1 x 12.7) 12 52612 Gray 20 x 15 x 5 (50.8 x 38.1 x 12.7) 12 52614 Brown 20 x 15 x 5 (50.8 x 38.1 x 12.7) 12 Dish Box Cover – 52424 52615 Natural 20 x 15 x 5 (50.8 x 38.1 x 12.7) 12 52660 Black 20 x 15 x 7 (50.8 x 38.1 x 17.8) 12 Dish Box Cover for Above 52661 Gray 20 x 15 x 7 (50.8 x 38.1 x 17.8) 12 DIMENSIONS (L X W) CASE 52662 Brown 20 x 15 x 7 (50.8 x 38.1 x 17.8) 12 ITEM COLOR IN (CM) LOT 52657 Natural 20 x 15 x 7 (50.8 x 38.1 x 17.8) 12 52422 Natural 20 x 15 (50.8 x 38.1) 12 52621 Gray 20 x 17 x 5 (50.8 x 43.2 x 12.7) 12 52424 Gray 20 x 15 (50.8 x 38.1) 12 52622 Black 20 x 17 x 5 (50.8 x 43.2 x 12.7) 12 52420 Black 20 x 15 (50.8 x 38.1) 12 Heavy-Duty Under Counter Dish Box Two Compartment Q High density polyethylene Q Compact size fits narrow spaces Q High density Q Smooth bottom interior polyethylene Q Q Ribbed bottom exterior Smooth bottom interior Q Ribbed bottom exterior DIMENSIONS (L X W X H) CASE ITEM COLOR IN (CM) LOT DIMENSIONS (L X W X H) CASE 52632 Gray 23 x 171⁄ 2 x 6 (58.4 x 44.5 x 15.2) 6 ITEM COLOR IN (CM) LOT 52634 Black 23 x 171⁄ 2 x 6 (58.4 x 44.5 x 15.2) 6 52629 Gray 20 x 12 x 6 (50.8 x 30.5 x 15.2) 12 Cutlery Cutlery Bins Boxes Q Heavy-duty stainless steel Q model has four rounded High density compartments polyethylene Overflow Cutout Q Plastic bin model has Q Heavy-duty plastic 52653 integral handles for easy with four rounded 99700 transport –polypropylene compartments material Q May also use for storing packaged straws and 52651 condiment packets DIMENSIONS (L X W X H) CASE 52652 ITEM COLOR IN (CM) LOT 5 7 3 52653 Black 21 ⁄ 8 x 11 ⁄ 8 x 3 ⁄ 4 (54.9 x 30.2 x 9.5) 12 DIMENSIONS (L X W X H) CASE 52654 Gray 215⁄ 8 x 117⁄ 8 x 33⁄ 4 (54.9 x 30.2 x 9.5) 12 ITEM DESCRIPTION IN (CM) LOT WITH OVERFLOW CUTOUT 99700 Stainless Steel 17 x 101⁄ 4 x 33⁄ 4 (43.2 x 26 x 9.5) 6 3 9 52652 Plastic, Brown 20 x 10 x 4 (50.8 x 25.4 x 10.2) 6 52651 Gray 21 ⁄ 8 x 11 ⁄ 16 x 4 (54.3 x 29.4 x 10.2) 6 10-19
- 367. vollrathco.com Warewashing Handling Stainless Steel Utility Carts Q Heavy-duty welded construction Q Three stainless steel shelves Q ABS handle helps prevent damage to walls and doors Q Rated load capacity is weight distributed evenly on all shelves Q Swivel casters Gauge Reference Table SHELF GAUGE ITEM BOTTOM MIDDLE TOP UPRIGHT 97120/97320 22 22 22 20 97121 22 22 22 16 97140 97125 22 22 20 16 97121 97126/97326 22 22 20 16 97120 97140 20 22 20 16 CAPACITY CASTER SIZE MAXIMUM DIMENSIONS SHELF SIZE HEIGHT BETWEEN SHELVES CASE WEIGHT CASE ITEM DESCRIPTION LB (KG) IN (CM) (L X W X H) – IN (CM) IN (CM) IN (CM) LBS (KG) LOT 97120{ Medium-Duty 300 31⁄ 2 271⁄ 2 x 151⁄ 2 x 325⁄ 8 151⁄ 2 x 24 12 28.1 1 (135) (9) (70 x 40 x 84) (39.4 x 60.9) (30) (12.7) 97121 Medium-Duty 300 31⁄ 2 307⁄ 8 x 173⁄ 4 x 333⁄ 4 173⁄ 4 x 27 12 35.4 1 (135) (9) (79 x 45 x 86) (45 x 69) (30) (16.1) 97125 Heavy-Duty 400 4 271⁄ 2 x 151⁄ 2 x 325⁄ 8 151⁄ 2 x 24 12 36.3 1 (180) (10) (70 x 40 x 84) (39.4 x 60.9) (30) (16.5) 97126 Heavy-Duty 400 4 307⁄ 8 x 173⁄ 4 x 333⁄ 4 173⁄ 4 x 27 12 43.3 1 (180) (10) (79 x 45 x 86) (45 x 69) (30) (19.6) 97140 Extra Heavy-Duty 500 4 391⁄ 2 x 21 x 331⁄ 4 21 x 35 121⁄ 2 57.9 1 (225) (10) (100 x 54 x 84) (54 x 90) (31.3) (26.3) {Shippable via FedEx® or UPS® Note: For replacement part information, refer to www.vollrathco.com Knocked-Down Stainless Steel Utility Carts Q Heavy-duty construction Q Three stainless steel shelves Q ABS handle helps prevent damage to walls and doors Q Rated load capacity is weight distributed evenly on all shelves Q Swivel casters for easy transport Q Compact packaging reduces freight expense and is designed for secure, safe shipping Q Base dolly is pre-assembled for reduced assembly time Q Shelves, uprights and handle are easy to attach Q Shippable via FedEx® or UPS® 97320 shown knocked down CAPACITY CASTER SIZE MAXIMUM DIMENSIONS SHELF SIZE HEIGHT BETWEEN SHELVES CASE WEIGHT SHIPPING CASE ITEM DESCRIPTION LB (KG) IN (CM) (L X W X H) – IN (CM) IN (CM) IN (CM) LBS (KG) CUBE LOT 97320 Medium-Duty 300 31⁄ 2 271⁄ 2 x 151⁄ 2 x 325⁄ 8 151⁄ 2 x 24 12 31.8 4.34 1 (135) (9) (70 x 40 x 84) (39.4 x 60.9) (30) (14.3) 97326 Heavy-Duty 400 4 307⁄ 8 x 173⁄ 4 x 333⁄ 4 173⁄ 4 x 27 12 44.6 4.34 1 (180) (10) (79 x 45 x 86) (45 x 69) (30) (20.1) Note: For replacement part information, refer to www.vollrathco.com For gauge information, see table at top of page. 10-20
- 368. Warewashing Handling The Vollrath Company, LLC Heavy-Duty Stainless Steel Carts Q Extended height tubular stainless steel handles with comfort coating Q Frames and shelves welded for strength and durability Q Stainless steel shelves Q 1 (2.5 cm) square stainless tubular frame Q Two 5 (12.7 cm) swivel casters, one with brake Q Two 8 (20.3 cm) fixed wheels Q Ergonomic (raised lower shelf) and standard versions 97201 97200 97205 97211 CAPACITY SHELF SIZE (W X L) MAXIMUM DIMENSIONS (L X W X H ) SHELF CASE WEIGHT CASE ITEM DESCRIPTION LB (KG) IN (CM) IN (CM) GAUGE LBS (KG) LOT TWO-SHELF CARTS WITH RAISED LOWER SHELF: HEIGHT BETWEEN SHELVES 181⁄ 2 (46.9 CM) 97200 2-shelf — Ergonomic 650 (295) 20 x 30 (50.7 x 76.1) 39 x 20 x 441⁄ 2 (98.9 x 50.7 x 113) 16 71 (32.2) 1 97202 2-shelf — Ergonomic 900 (405) 23 x 35 (58.4 x 88.8) 44 x 23 x 441⁄ 2 (112 x 58.4 x 113) 16 84 (38.1) 1 TWO-SHELF CARTS WITH STANDARD LOWER SHELF: HEIGHT BETWEEN SHELVES 30 (76.2 CM) 97205 2-shelf — Standard 650 (295) 20 x 30 (50.7 x 76.1) 39 x 20 x 441⁄ 2 (98.9 x 50.7 x 113) 16 71 (32.2) 1 97207 2-shelf — Standard 900 (405) 23 x 35 (58.4 x 88.8) 44 x 23 x 441⁄ 2 (112 x 58.4 x 113) 16 84 (38.1) 1 THREE-SHELF CARTS WITH RAISED LOWER SHELF: HEIGHT BETWEEN SHELVES LOWER: 87⁄ 8 (22.5 CM) UPPER: 77⁄ 8 (19.9 CM) 97201 3-shelf — Ergonomic 650 (295) 20 x 30 (50.7 x 76.1) 39 x 20 x 441⁄ 2 (98.9 x 50.7 x 113) 16 80 (36.3) 1 97203 3-shelf — Ergonomic 900 (405) 23 x 35 (58.4 x 88.8) 44 x 23 x 441⁄ 2 (112 x 58.4 x 113) 16 102 (46.3) 1 THREE-SHELF CARTS WITH STANDARD LOWER SHELF: HEIGHT BETWEEN SHELVES LOWER: 15 (38.1 CM) UPPER: 15 (38.1 CM) 97206 3-shelf — Standard 650 (295) 20 x 30 (50.7 x 76.1) 39 x 20 x 441⁄ 2 (98.9 x 50.7 x 113) 16 80 (36.3) 1 97208 3-shelf — Standard 900 (405) 23 x 35 (58.4 x 88.8) 44 x 23 x 441⁄ 2 (112 x 58.4 x 113) 16 102 (46.3) 1 HEAVY-DUTY KNOCK-DOWN (K.D.) CART: HEIGHT BETWEEN SHELVES: LOWER: 10 (25.4 CM) UPPER: 101⁄ 16 (25.6 CM) 97211 3-shelf 650 (295) 20 x 30 (50.7 x 76.1) 373⁄ 4 x 211⁄ 8 x 421⁄ 4 (95.9 x 53.7 x 107.3) 18 80 (36.3) 1 Note: For replacement part information, refer to www.vollrathco.com 10-21
- 369. vollrathco.com Warewashing Handling Caravelle Cart Thrift-I-Cart Q U-shaped tubular stainless steel frame Q Chrome-plated tubular Q Capacity: 500 lb. (226.2 kg) steel frame Q Q One-piece drawn Stainless steel drawn shelves Q 20 gauge shelves stainless steel shelves Q 20 gauge shelves Q 4 (10 cm) casters Q 4 (10 cm) casters Q Shelves: 33 x 21 (85 x 54 cm) Q Overall height: Q Height between shelves: 81⁄2 (22 cm) 361⁄2 (92.7 cm) Q Height between shelves: 97160/61— 19 (47.5 cm) 97166/67 — 87⁄8 (22.2 cm) 97160 SHELF CAPACITY DIMENSIONS CASE WEIGHT CASE ITEM DESCRIPTION LB (KG) IN (CM) LBS (KG) LOT 97160 2-shelf 400 24 x 16 32.3 1 (180) (61 x 41) (14.7) 97166 3-shelf 400 24 x 16 37.7 1 (180) (61 x 41) (17.1) 97161{ 2-shelf 500 33 x 21 25.4 1 MAXIMUM DIMENSIONS (225) (85 x 54) (11.5) (L X W X H) CASE WEIGHT CASE ITEM DESCRIPTION IN (CM) LBS (KG) LOT 97167 3-shelf 500 33 x 21 53.8 1 97168 3-shelf 371⁄ 2 x 21 x 351⁄ 2 56.6 1 (225) (85 x 54) (24.4) tubular cart (95 x 54 x 90) (25.7) {Not recommended for use with refuse bin Cantilever Bussing Cart Money Saver Knocked Q Chrome tubular steel frame Down (K.D.) Cart Q Three-shelf cart holds up to three standard tote boxes Q Chrome-plated tubular frame Q 4 (10 cm) casters Q Stainless steel shelves Q Height between shelves: 13 (33 cm) Q 20 gauge shelves Q Shippable via FedEx® or UPS® Q 4 (10 cm) casters Q Overall height: 361⁄2 (92.7 cm) Q Height between shelves: 81⁄2 (22 cm) Q Shippable via FedEx® or UPS® CAPACITY SHELF DIMENSIONS CASE WEIGHT SHIPPING CASE MAXIMUM DIMENSIONS CASE ITEM DESCRIPTION LB (KG) IN (CM) LBS (KG) CUBE LOT (L X W X H) WEIGHT CASE HANGER ITEM DESCRIPTION IN (CM) LBS (KG) LOT ROD 97105 3-shelf 400 24 x 16 36 1.904 1 97186 3-shelf 5 3 1 26 ⁄ 8 x 15 ⁄ 4 x 34 ⁄ 2 31.9 1 97272 (180) (61 x 41) (16.3) cart (67.6 x 40 x 87.6) (14.5) 97106 3-shelf 500 33 x 21 49.6 2.283 1 (225) (85 x 54) (22.5) Note: For replacement part information, refer to www.vollrathco.com 10-22
- 370. Warewashing Handling The Vollrath Company, LLC Multi-Purpose Carts Q Front of the house appearance with back of the house durability Q Polypropylene shelves and handles are durable and lightweight Q Satin-finished aluminum uprights are durable and minimize wear Q Textured shelves reduce product shifting in transit Q 4 (10.1 cm) swivel non-marking casters allow for easy maneuverability Q Easy to clean Q Easy to store and assemble Q Shipped knocked down 97007 via FedEx® or UPS® 97004 Bus boxes and refuse bins sold separately – see page E8-7 MAXIMUM CASE HEIGHT BLACK GRAY CAPACITY CASTER SIZE DIMENSIONS SHELF WEIGHT SHIPPING BETWEEN SHELVES CASE ITEM ITEM LBS. (KG) IN (CM) (L X W X H) - IN (CM) SIZE LB (KG) CUBE IN (CM) LOT 97006 97004 300 (135) 4 33 x 1613⁄ 16 x 37 161⁄ 2 x 26 24.3 2.994 113⁄ 4 1 (10) (83.8 x 42.7 x 94.0) (41.3 x 66) (11) (29.8) 97007 97005 300 (135) 4 401⁄ 4 x 197⁄ 8 x 37 191⁄ 4 x 291⁄ 2 35.8 4.336 113⁄ 4 1 (10) (102.2 x 50.5 x 94.0) (48.9 x 74.9) (16.2) (29.8) Note: For replacement part information, refer to www.vollrathco.com Plastic Utility Carts Q Structural foam shelves Q 4 (10 cm) swivel casters Q Textured gray finish masks scratches Q Shelves: 29 x 181⁄2 (74 x 47 cm) 97111 and resists fading and discoloration Q Shipped knocked down Q 200 lb (90.7 kg) overall capacity via FedEx® or UPS® Enclosed Utility Cart Q Plastic uprights Q Enclosed end panels Q Height between shelves: 101⁄2 (26.7 cm) MAXIMUM CASE DIMENSIONS WEIGHT SHIPPING CASE HANGER ITEM DESCRIPTION IN (CM) LBS (KG) CUBE LOT ROD 97111 Closed-end 301⁄ 2 x 181⁄ 2 x 39 53.5 4.422 1 97273 97102 utility cart (78 x 47 x 99) (24.2) 97112 Open Utility Carts with Chrome Uprights Q Mirror-finished chrome-plated uprights and handle Q Open Utility Cart with Height between shelves: 97101: 231⁄2 (60 cm), 97102: 101⁄2 (26.7 cm) Plastic Uprights Q Open four sides MAXIMUM CASE DIMENSIONS WEIGHT SHIPPING CASE HANGER Q Height between shelves: 101⁄2 (26.7 cm) ITEM DESCRIPTION IN (CM) LBS (KG) CUBE LOT ROD 97101 2-shelf 301⁄ 2 x 181⁄ 2 x 36 38 4.464 1 97273 MAXIMUM CASE DIMENSIONS WEIGHT SHIPPING CASE HANGER utility cart (78 x 47 x 92) (17.2) ITEM DESCRIPTION IN (CM) LBS (KG) CUBE LOT ROD 97102 3-shelf 301⁄ 2 x 181⁄ 2 x 36 45 4.460 1 97273 97112 Open 301⁄ 2 x 181⁄ 2 x 39 47.5 4.541 1 97273 utility cart (78 x 47 x 92) (20.4) utility cart (78 x 47 x 99) (21.5) Note: For replacement part information, refer to www.vollrathco.com 10-23
- 371. vollrathco.com Warewashing Handling Bussing Carts Q Stainless steel construction Q ABS handle Q Attractive, durable black vinyl finish Q Enclosed on three sides 97180 97181 97182 CAPACITY CASTER SIZE MAXIMUM DIMENSIONS (L X W X H) SHELF SIZE HEIGHT BETWEEN SHELVES CASE WEIGHT CASE ITEM DESCRIPTION LB (KG) IN (CM) IN (CM) IN (CM) IN (CM) LBS (KG) LOT 97180{ 4-shelf 300 31⁄ 2 271⁄ 2 x 151⁄ 2 x 335⁄ 8 24 x 151⁄ 2 Top shelf — 81⁄ 2 (21.6) 47.1 1 (135) (9) (70 x 40 x 86) (61 x 39) Bottom shelf — 8 (20) (21.4) 97181 3-shelf 300 4 307⁄ 8 x 173⁄ 4 x 333⁄ 4 27 x 173⁄ 4 121⁄ 2 57 1 (135) (10) (78 x 45 x 86) (45 x 69) (31.7) (25.8) 97182 3-shelf 500 4 391⁄ 4 x 21 x 343⁄ 4 35 x 21 121⁄ 2 75.4 1 (225) (10) (100 x 54 x 88) (54 x 89) (31.7) (34.2) {Shippable via FedEx® or UPS® Note: For replacement part information, refer to www.vollrathco.com Complete Bussing Refuse Bins System Kit Q High density polyethylene Q Integral full-width hook Q Kit includes fits over raised edge of one refuse bin, cart top shelf or over one silver bin cart handle and three bus boxes (52612) CASE ITEM DESCRIPTION LOT ITEM FITS CASE LOT 97286 Complete gray bussing 1 9728810 Refuse bin — black 6 system kit for standard carts 9728820 Refuse bin — gray 6 Silver Bins Mobile Bowl Q Fits all standard size carts and trucks Stands Q Dimensions: Q All-welded, tubular 151⁄2 x 63⁄8 x 61⁄2 heavy-gauge (40 x 16 x 17 cm) stainless steel construction Q 4 diameter swivel casters with 2 locking casters on 79302 and 79301; 4 locking casters on 79818 ITEM DESCRIPTION CASE LOT Q No assembly required 97280 Silver bin, gray 6 See page 8-30 for more information 97290 Silver bin, black 6 10-24
- 372. Warewashing Handling The Vollrath Company, LLC 97036 L’Elegance Captain’s Carts Q All wood construction Q Stain-resistant finish Q 7 (18 cm) drop leaf Q 5 (13 cm) casters with brass plated horns Q 97037 comes with 9 (23 cm) high hinged acrylic dome cover Q Height between shelves: 103⁄4 (27.3 cm) MAXIMUM DIMENSIONS (L X W X H) CASE WEIGHT CASE ITEM DESCRIPTION IN (CM) LBS (KG) LOT 97036 Captain's cart 463⁄ 8 x 165⁄ 32 x 321⁄ 2 58 1 (119 x 42 x 83) (26.3) 97037 Captain's dessert 463⁄ 8 x 165⁄ 32 x 411⁄ 2 69.3 1 cart w/dome cover (119 x 42 x 106) (31.4) 97037 Note: For replacement part information, refer to www.vollrathco.com Sculptura Trolleys Q Wood grain laminate-covered shelves Q Brass-plated uprights and trim Q 5 (13 cm) swivel casters Q Dessert trolley: 9 (23 cm) high hinged acrylic dome cover Q Captain’s trolley: 8 (20 cm) drop leaf Q Height between shelves: 103⁄4 (27.3 cm) 97008 97009 MAXIMUM DIMENSIONS (L X W X H) CASE WEIGHT CASE ITEM DESCRIPTION IN (CM) LBS (KG) LOT 97008 Dessert trolley w/ 46 x 16 x 42 72 1 dome cover (118 x 41 x 108) (32.7) 97035 97009 Pastry trolley 46 x 16 x 571⁄ 4 102 1 (118 x 41 x 147) (46.3) 97035 Captain's trolley 46 x 16 x 33 69 1 (118 x 41 x 85) (31.3) Note: For replacement part information, refer to www.vollrathco.com 10-25
- 373. vollrathco.com Reference Aluminum: Sheet Metal Gauges Weights, Measures INCHES DEC. MM GAUGE* INCHES DEC. MM GAUGE* and Metric Equivalents 1 ⁄64 .15625 — – 7 ⁄64 .109375 2.778 – .0201 — 24 .1144 — 9 LINEAR MEASURE .0226 — 23 .11811 3.000 – 1 mil = 0.001 inch = 0.0254 millimeter .0253 — 22 1 ⁄8 .1250 3.175 – 1 inch = 1,000 mils = 2.54 centimeter .0285 — 21 .1285 — 8 12 inches = 1 foot = 0.3048 meter 1 ⁄32 .03125 .794 – .137795 3.500 – .031496 .800 – 9 ⁄64 .140625 3.571 – 3 feet = 1 yard = 0.9144 meter .0320 — 20 .1443 — 7 .0359 — 19 5 ⁄32 .15625 3.968 – .03937 1.000 – .15748 4.000 6.25 SQUARE MEASURE .0403 — 18 .1620 — 6 .0453 — 17 11 ⁄64 .171875 4.365 – 1 square inch = 6.452 square centimeters 3 ⁄64 .046875 1.190 – .177165 4.500 – 1 inch = 1 square foot = 2.54 centimeter .0508 — 16 .1819 — 5 12 inches = 1 square yard = 0.3048 meter .0571 — 15 3 ⁄16 .1875 4.762 – 1 ⁄16 .0625 1.587 – .19685 5.000 – .063 — – 13 ⁄64 .203125 5.159 – .0641 — 14 .2043 — 4 CUBIC MEASURE .0720 — 13 .216535 5.500 – 1 cubic inch = 16.387 cubic centimeters 5 ⁄64 .078125 1.984 – 7 ⁄32 .21875 5.556 – 1.728 cubic inches = 1 cubic foot = 0.0283 cubic meters .07874 2.000 – .2294 — 3 27 cubic feet = 1 cubic yard = 0.7646 cubic meter .0808 — 12 15 ⁄64 .234375 5.953 – .0907 — 11 .23622 6.000 – 3 ⁄32 .09375 2.381 – 1 ⁄4 .250 6.350 – .098425 2.500 – .2576 — 2 CONVERSION FORMULAS .1019 — 10 .2893 — 1 Inches x 25.4 = mm mm x .03937 = Inches *American or Brown Sharpe Wire Gauges (Machinery Handbook, 21st Ed., 1981, Pgs. 464 465) Inches x 2.54 = cm cm x .3937 = Inches Meters x 3937 = Inches S/S: Steel Sheet Gauges Meters x 3.2809 = Feet INCHES DEC. MM GAUGE* INCHES DEC. MM GAUGE* 1⁄64 .0149 – 28 5⁄64 .078125 1.984 – .015625 .396 – .07874 2.0 – DRY MEASURE .015748 .4 – .086614 2.2 – .0179 – 26 .0897 – 13 1 pint 33.6 cubic inches = 0.5506 liter .0209 – 25 3⁄32 .09375 2.381 – 2 pints (1 quart) = 67.2 cubic inches = 1.1012 liters .023622 .6 – .094488 2.4 – 8 quarts = 537.61 cubic inches = 8.8098 liters .0239 – 24 .098425 2.5 – .0269 – 23 .1046 – 12 .027559 .7 – .106299 2.7 – .0299 – 22 7⁄64 .109375 2.778 – LIQUID MEASURE 1⁄32 .03125 .794 – .11811 3.0 – 1 fluid ounce = 1.805 cubic inches = 29.57 ml .031496 .8 – .1196 – 11 4 fluid ounces = 7.219 cubic inches = 0.1183 liter .0329 – 21 1⁄8 .125 3.175 – .035433 .9 – .1345 – 10 1 pint = 28.875 cubic inches = 0.4732 liter .0359 – 20 .1495 – 9 2 pints (1 quart) = 57.75 cubic inches = 0.9464 liter .03937 1.0 – 5⁄32 .15625 3.968 – 4 pints (1 quart) = 231 cubic inches = 3.7854 liters .0418 – 19 .15748 4.000 – 3⁄64 .046875 1.19 – .1644 – 8 .047244 1.2 – .1793 – 7 .0478 – 18 3⁄16 .1875 4.762 – AVOIRDUPOIS WEIGHT .0538 – 17 .188976 4.8 – 1 ounce = .0625 pound = 28.3495 grams .059055 1.5 – .192913 4.9 – 16 ounces = 1 pound = 453.59 grams .0598 – 16 .1943 – 6 100 pounds = 1 hundredweight = 45.36 kilograms 1⁄16 .0625 1.567 – 13⁄64 .203125 5.159 – .0673 – 15 .2092 – 5 .0747 – 14 .2242 – 4 .23622 6.0 – .2391 – 3 1⁄4 .250 6.35 – **Manufacturer’s Standard Gauge for Sheet Steel (Based on 41.82 lbs. per sq. foot per in. thick – Machinery Handbook, 21st Ed., 1981, Pgs. 464 465) A-1
- 374. Numerical Index *Not a complete item number – refer to page noted. { Previous item number –see product page for new item number The Vollrath Company, LLC ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE 064 1837................ 1-23 3708C ............ 7-12, 4072................ 7-32 5274................ 7-44 7350C ............. 7-39 15061.............. 1-16 19197.....6-18, 6-20 0643N ............. 1-20 1851................ 1-23 ...............7-13, 7-14 4074................ 7-32 5275................ 7-44 7351................ 7-40 15062.............. 1-16 19198.....6-18, 6-20 0643SGN ......... 1-20 1853................ 1-23 3709C ............ 7-12, 4107................ 7-32 5280.......8-25, 9-54 7351C ............. 7-40 15063.............. 1-16 19199.............. 6-18 0644N ............. 1-20 2773L.............. 7-45 ...............7-13, 7-14 4108................ 7-32 5303................ 7-41 7352................ 7-40 15064.............. 1-16 20000.............. 6-15 0644SGN ......... 1-20 2844L.............. 7-46 3711................ 7-13 4109................ 7-32 5303P ............. 7-41 7352C ............. 7-40 15065.............. 1-16 20028.............. 6-15 0645N ............. 1-20 2900................ 1-21 3711C ............ 7-12, 4110................ 7-32 5312{ ............ 7-43 7353................ 7-40 15067.............. 1-16 20038.....6-15, 7-41 0646N ............. 1-20 3000 ...............7-13, 7-14 4187{ ............ 7-38 5313{ ............ 7-43 7353C ............. 7-40 15068.............. 1-16 20100.............. 6-15 0647................ 1-20 3009................ 7-26 3712C ............ 7-12, 4188{ ............ 7-38 5314................ 7-41 7354................ 7-40 15069.............. 1-16 20200.............. 6-15 0648................ 1-20 3010................ 7-26 ...............7-13, 7-14 4189{ ............ 7-38 5315................ 7-41 7354C ............. 7-40 15070.............. 1-16 20228.............. 6-15 0652................ 1-20 3011................ 7-26 3714C ............ 7-12, 4190{ ............ 7-38 5330................ 8-16 7355................ 7-40 15071.............. 1-16 20248.....6-15, 7-41 0653................ 1-20 3101................ 7-13 ...............7-13, 7-14 4191{ ............ 7-38 5332................ 8-16 7355C ............. 7-40 15072.............. 1-16 20300.............. 6-15 0654................ 1-20 3103................ 7-13 3715C ....7-13, 7-14 4192{ ............ 7-38 5347................ 7-46 7356C ............. 7-40 15073.............. 1-16 20328.............. 6-15 0656................ 1-20 3104................ 7-13 3717C ....7-13, 7-14 4193{ ............ 7-38 5350................ 8-31 7360................ 7-40 15075.............. 1-16 20400.............. 6-15 0694N ............. 1-20 3106................ 7-13 3800 4194{ ............ 7-38 5431................ 7-45 7371................ 7-40 15076.............. 1-16 20600.............. 6-15 300 3109................ 7-13 3800................ 7-19 4196{ ............ 7-38 5433................ 7-45 7372................ 7-40 15077.............. 1-16 23100.............. 6-10 306.................. 1-17 3113................ 7-13 3801................ 7-19 4198{ ............ 7-38 5435................ 7-45 7373................ 7-40 15078.............. 1-16 23200.............. 6-10 308.................. 1-17 3118................ 7-13 3802................ 7-19 4200{ ............ 7-38 5436................ 7-45 7374................ 7-40 15079.............. 1-16 23300.............. 6-10 336.................. 1-17 3150................ 7-12 3803................ 7-19 4302................ 7-33 6003................ 1-22 7375................ 7-40 15080.............. 1-16 23400.............. 6-10 338.................. 1-17 3151................ 7-12 3804................ 7-19 4303................ 7-33 6004................ 1-22 7389................ 7-40 15081.............. 1-16 23600.............. 6-10 400N ............... 1-21 3152................ 7-12 3806................ 7-19 4305................ 7-33 6005................ 1-22 7392................ 7-40 15082.............. 1-16 23612.............. 8-17 401N ............... 1-21 3153................ 7-12 3807................ 7-19 4306................ 7-33 6006................ 1-22 7393................ 7-40 15083.............. 1-16 23850.............. 1-10 402NC ............. 1-21 3154................ 7-13 3808................ 7-18 4310................ 7-33 6011................ 1-22 7394................ 7-40 15084.............. 1-16 23852.............. 1-10 403N ............... 1-21 3155................ 7-13 3809................ 7-18 4315................ 7-33 6012................ 1-22 7396................ 7-40 15085.............. 1-16 23854.............. 1-10 434.................. 1-21 3156................ 7-13 3810................ 7-20 4320................ 7-33 6013................ 1-22 7398................ 7-40 15086.............. 1-16 29000 435.................. 1-21 3157................ 7-13 3811................ 7-18 4332................ 7-34 6014................ 1-22 7400................ 7-40 15087.............. 1-16 29100.............. 6-10 484C ............... 1-21 3158................ 7-14 3812................ 7-18 4333................ 7-34 6015................ 1-22 7656................ 7-40 15100.............. 1-16 29200.............. 6-10 485.................. 1-21 3159................ 7-14 3813................ 7-19 4334................ 7-34 6016................ 1-22 9001................ 7-41 15102.............. 1-19 29300.............. 6-10 500N ............... 1-18 3202................ 7-13 3814................ 7-20 4341C{ .......... 7-38 7000 9002................ 7-41 15103.............. 1-19 29400.............. 6-10 501N ............... 1-18 3203................ 7-13 3819................ 7-20 4342C{ .......... 7-38 7007................ 7-39 9002P ............. 7-41 15104.............. 1-19 29600.............. 6-10 502N ............... 1-18 3204................ 7-13 3820................ 7-20 4343C{ .......... 7-38 7008................ 7-39 9003................ 7-41 15105.............. 1-19 30012.............. 6-12 503N ............... 1-18 3206................ 7-13 3822................ 7-20 4345C{ .......... 7-38 7010................ 7-39 9303................ 7-41 15112.............. 1-19 30013.............. 6-14 509.................. 1-18 3208................ 7-13 3900C ....7-19, 7-20 4347................ 7-35 7012................ 7-39 10000 15113.............. 1-19 30015.............. 6-13 510.................. 1-18 3212................ 7-13 3902................ 7-19 4347C{ .......... 7-38 7014................ 7-39 13200.....9-65, 9-67 15114.............. 1-19 30020.............. 6-13 511.................. 1-18 3304................ 7-14 3903................ 7-19 4348C{ ......... 7-23, 7109................ 7-39 15000.............. 1-16 15115.............. 1-19 30022.............. 6-12 512.................. 1-18 3307................ 7-14 3904................ 7-19 ........................ 7-38 7110................ 7-39 15001.............. 1-16 15125.............. 1-16 30023.............. 6-14 606N ............... 1-17 3310................ 7-14 3905................ 7-19 4350................ 7-35 7111................ 7-39 15002.............. 1-16 15149.............. 1-24 30025.............. 6-13 700 3315................ 7-14 3907C ............ 7-18, 4350C{ .......... 7-38 7302................ 7-40 15003.............. 1-16 15202.............. 1-19 30026.............. 6-14 700-1 .............. 1-17 3320................ 7-14 ...............7-19, 7-20 4400 7303................ 7-40 15005.............. 1-16 15203.............. 1-19 30040.............. 6-13 700-4 .............. 1-17 3328................ 7-14 3908C ...7-18, 7-19, 4400N ............. 1-21 7304................ 7-40 15006.............. 1-16 15204.............. 1-19 30042.............. 6-12 704.................. 1-17 3409................ 7-12 7-20 4408................ 1-21 7305................ 7-40 15007.............. 1-16 15205.............. 1-19 30043.............. 6-14 706.................. 1-17 3411................ 7-12 3909C ....7-19, 7-20 4410{ ............ 7-43 7306................ 7-40 15008.............. 1-16 15206.............. 1-19 30045.............. 6-13 708.................. 1-17 3412................ 7-12 3910C ............ 7-18, 4414{ ............ 7-43 7308................ 7-40 15009.............. 1-16 15207.............. 1-19 30046.............. 6-14 712.................. 1-17 3414................ 7-12 ...............7-19, 7-20 4415{ ............ 7-43 7310................ 7-40 15010.............. 1-16 15208.............. 1-19 30060.............. 6-13 808N ............... 1-17 3500 3911C ............ 7-18, 4423{ ............ 7-42 7315................ 7-40 15016.............. 1-16 15209.............. 1-19 30062.............. 6-12 808SG ............. 1-17 3501................ 7-19 ...............7-19, 7-20 4426{ ............ 7-42 7320................ 7-40 15017.............. 1-16 15600 30063.............. 6-14 1101................ 1-24 3503................ 7-19 3912C ............ 7-18, 4432{ ............ 7-42 7341................ 7-39 15018.............. 1-16 15600.............. 1-18 30065.............. 6-13 1102R ............. 1-24 3504................ 7-19 ...............7-19, 7-20 4433{ ............ 7-42 7341C ....7-39, 7-40 15019.............. 1-16 15601.............. 1-18 30066.............. 6-14 1400................ 1-20 3506................ 7-19 3914C ....7-19, 7-20 4436{ ............ 7-42 7342................ 7-39 15021.............. 1-16 15602.............. 1-18 30088.............. 6-13 1401................ 1-20 3509................ 7-19 3915C ....7-19, 7-20 4456{ ............ 7-43 7342C ....7-39, 7-40 15022.............. 1-16 19184.............. 6-16 30112.............. 6-12 1776-7 ............ 3-20 3513................ 7-19 4000 4458{ ............ 7-43 7343................ 7-39 15023.............. 1-16 19186.............. 6-18 30122.............. 6-12 1776-11 .......... 3-20 3601................ 7-12 4007................ 7-28 4482................ 7-42 7343C ....7-39, 7-40 15024.............. 1-16 19188............. 3-11, 30142.............. 6-12 1777-7 ............ 3-20 3602................ 7-12 4008................ 7-28 4483{ ............ 7-42 7344................ 7-39 15026.............. 1-16 ...............6-18, 6-20 30162.............. 6-12 1777-11 .......... 3-20 3604................ 7-12 4010................ 7-28 4492{ ............ 7-42 7344C ....7-39, 7-40 15050.............. 1-16 19189.....6-18, 6-20 30200 1801................ 1-24 3607................ 7-12 4012................ 7-28 4493{ ............ 7-42 7345................ 7-39 15052.............. 1-16 19190.....6-18, 6-20 30212.............. 6-12 1802................ 1-24 3702................ 7-13 4014................ 7-28 4605................ 8-32 7345C ....7-39, 7-40 15053.............. 1-16 19191.....6-18, 6-20 30220.............. 6-13 1803................ 1-24 3704................ 7-13 4018................ 7-34 4700 7347................ 7-39 15054.............. 1-16 19192.....6-18, 6-20 30222.....6-12, 9-29 1811................ 1-23 3706C ............ 7-12, 4020................ 7-34 4700................ 8-32 7347C ....7-39, 7-40 15055.............. 1-16 19193.....6-18, 6-20 30223.............. 6-14 1812................ 1-23 ...............7-13, 7-14 4023................ 7-34 4752................ 8-16 7348................ 7-39 15058.............. 1-16 19194.....6-18, 6-20 30225.............. 6-13 1823................ 1-23 3707................ 7-13 4068................ 7-32 5216................ 7-44 7348C ....7-39, 7-40 15059.............. 1-16 19195.....6-18, 6-20 30240.............. 6-13 4070................ 7-32 5220................ 7-41 7350................ 7-39 15060.............. 1-16 19196.............. 6-16 30242.............. 6-12 A-2
- 375. vollrathco.com *Not a complete item number – refer to page noted. { Previous item number –see product page for new item number Numerical Index ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE 30243.............. 6-14 36240.............. 5-27 36428.............. 4-10 36646................ 4-4 37020.............. 5-28 38013.............. 5-53 38714.............. 5-47 38960.............. 5-47 30245.............. 6-13 36243.............. 5-27 36429................ 4-9 36647................ 4-4 37021.............. 5-28 38014.............. 5-53 38715.............. 5-47 38961.............. 5-47 30260.............. 6-13 36245.............. 5-27 36429R ............. 4-9 36648................ 4-4 37022.............. 5-28 38015.............. 5-53 38716.............. 5-47 38962.............. 5-47 30262.............. 6-12 36250.............. 5-27 36430................ 4-9 36649................ 4-4 37023.............. 5-28 38032.............. 5-53 38717.............. 5-47 38992.............. 5-48 30265.............. 6-13 36260.............. 5-27 36430R ............. 4-9 36650................ 4-4 37025.............. 5-28 38033.............. 5-53 38718.............. 5-47 38993.............. 5-48 30288.............. 6-13 36265.............. 5-27 36431.............. 5-40 36651................ 4-4 37026.............. 5-28 38034.............. 5-53 38720.............. 5-48 38994.............. 5-48 30312.............. 6-12 36270.............. 5-27 36432.............. 5-40 36652................ 4-8 37027.............. 5-28 38035.............. 5-53 38721.............. 5-48 39701.............. 5-48 30322.....6-12, 6-13 36275.............. 5-27 36433.............. 5-40 36653................ 4-8 37030.............. 5-27 38042.............. 5-53 38722.............. 5-48 39702.............. 5-48 30342.............. 6-12 36285.............. 5-28 36434................ 4-9 36654................ 4-8 37040.............. 5-27 38043.............. 5-53 38723.............. 5-48 39703.............. 5-48 30362.............. 6-12 36291.............. 5-28 36434R ............. 4-9 36655................ 4-8 37043.............. 5-27 38044.............. 5-53 38724.............. 5-48 39704.............. 5-48 30422.............. 6-12 36295.............. 5-28 36436................ 4-9 36656................ 4-8 37045.............. 5-27 38045.............. 5-53 38725.............. 5-48 39705.............. 5-48 30442.............. 6-12 36300.............. 5-39 36436R ............. 4-9 36657................ 4-8 37046.............. 5-27 38052.............. 5-53 38726.............. 5-48 39706.............. 5-48 30462.............. 6-12 36301.............. 5-39 36438................ 4-9 36658................ 4-8 37047.............. 5-27 38053.............. 5-53 38727.............. 5-47 39707.............. 5-47 30512.............. 6-12 36302.............. 5-39 36438R ............. 4-9 36659................ 4-8 37050.............. 5-27 38054.............. 5-53 38728.............. 5-47 39708.............. 5-47 30522.............. 6-12 36303.............. 5-39 36440.............. 5-40 36660................ 4-8 37057.............. 5-27 38055.............. 5-53 38729.............. 5-47 39709.............. 5-47 30542.............. 6-12 36337.............. 5-39 36441................ 4-9 36680.............. 5-30 37060.............. 5-27 38062.............. 5-53 38730.............. 5-47 39710.............. 5-47 30562.............. 6-12 36339.............. 5-39 36441R ............. 4-9 36681.............. 5-30 37065.............. 5-27 38063.............. 5-53 38731.............. 5-47 39711.............. 5-47 30622.............. 6-12 36341.............. 5-39 36442................ 4-9 36682.............. 5-30 37066.............. 5-27 38064.............. 5-53 38732.............. 5-47 39712.............. 5-47 30642.............. 6-12 36343.............. 5-39 36442R ............. 4-9 36683.............. 5-30 37067.............. 5-27 38065.............. 5-53 38733.............. 5-47 39713.............. 5-47 30662.............. 6-12 36347.............. 5-27 36444................ 4-9 36685.............. 5-30 37070.............. 5-27 38072.............. 5-53 38734.............. 5-47 39714.............. 5-47 30922.............. 6-12 36357.............. 5-27 36444R ............. 4-9 36686.............. 5-30 37075.............. 5-27 38073.............. 5-53 38735.............. 5-47 39715.............. 5-47 30942.............. 6-12 36361.............. 5-39 36446................ 4-9 36687.............. 5-30 37076.............. 5-27 38074.............. 5-53 38736.............. 5-47 39716.............. 5-47 36112.............. 5-29 36363.............. 5-39 36446R ............. 4-9 36688.............. 5-30 37077.............. 5-27 38075.............. 5-53 38737.............. 5-47 39717.............. 5-47 36113.............. 5-29 36367.............. 5-27 36447.............. 5-27 36689.............. 5-30 37080.............. 5-28 38092.............. 5-53 38738.............. 5-47 39718.............. 5-47 36114.............. 5-29 36368.............. 4-11 36448................ 4-9 36690.............. 5-30 37085.............. 5-28 38093.............. 5-53 38760.............. 5-48 39721.............. 5-48 36115.............. 5-29 36369.............. 4-11 36448R ............. 4-9 36691.............. 5-30 37091.............. 5-28 38094.............. 5-53 38761.............. 5-48 39722.............. 5-48 36116.............. 5-29 36371.............. 5-39 36450.............. 4-10 36692.............. 5-30 37095.............. 5-28 38095.............. 5-53 38762.............. 5-48 39723.............. 5-48 36117.............. 5-29 36373.............. 5-39 36451.............. 4-10 36693.............. 5-30 37310.............. 5-39 38099.............. 5-53 38763.............. 5-48 39724.............. 5-48 36120.............. 5-28 36377.............. 5-27 36452.............. 4-10 36694.............. 5-30 37311.............. 5-39 38102.............. 5-52 38764.............. 5-48 39725.............. 5-48 36121.............. 5-28 36390.............. 5-39 36453.............. 4-10 36695.............. 5-30 37312.............. 5-39 38103.............. 5-52 38765.............. 5-48 39726.............. 5-48 36122.............. 5-28 36392.............. 5-39 36454.............. 4-10 36696.............. 5-30 37313.............. 5-39 38104.............. 5-52 38766.............. 5-48 39727.............. 5-47 36123.............. 5-28 36393.............. 5-39 36456................ 4-9 36697.............. 5-30 37320.............. 5-39 38105.............. 5-52 38767.............. 5-47 39728.............. 5-47 36125.............. 5-28 36394.............. 5-39 36456R ............. 4-9 36900 37321.............. 5-39 38116.............. 5-52 38768.............. 5-47 39729.............. 5-47 36126.............. 5-28 36395.............. 5-39 36457.............. 5-27 36913.............. 5-44 37322.............. 5-39 38117.............. 5-52 38769.............. 5-47 39730.............. 5-47 36127.............. 5-28 36396.............. 5-39 36462.............. 4-11 36914.............. 5-44 37323.............. 5-39 38118.............. 5-52 38770.............. 5-47 39731.............. 5-47 36130.............. 5-27 36397.............. 5-39 36463.............. 4-11 36915.............. 5-44 37509.............. 5-43 38119.............. 5-52 38771.............. 5-47 39732.............. 5-47 36140.............. 5-27 36398.............. 5-39 36464.............. 4-11 36916.............. 5-44 37510.............. 5-43 38200 38772.............. 5-47 39733.............. 5-47 36143.............. 5-27 36399................ 4-5 36465.............. 4-11 36921.............. 5-44 37511.............. 5-43 38203.............. 5-51 38773.............. 5-47 39734.............. 5-47 36145.............. 5-27 36400 36466................ 4-5 36930.............. 5-44 37512.............. 5-43 38204.............. 5-51 38774.............. 5-47 39735.............. 5-47 36146.............. 5-27 36400................ 4-5 36467................ 4-5 36931.............. 5-44 37513.............. 5-43 38205.............. 5-51 38775.............. 5-47 39736.............. 5-47 36150.............. 5-27 36401.............. 5-40 36468.............. 5-27 36936.............. 5-44 37514.............. 5-43 38213.............. 5-51 38776.............. 5-47 39737.............. 5-47 36160.............. 5-27 36402.............. 5-40 36471................ 4-5 36937.............. 5-44 37519.............. 5-43 38214.............. 5-51 38777.............. 5-47 39738.............. 5-47 36165.............. 5-27 36403.............. 5-40 36472................ 4-5 36938.............. 5-44 37520.............. 5-43 38215.............. 5-51 38778.............. 5-47 39761.............. 5-48 36166.............. 5-27 36404................ 4-6 36473................ 4-6 36938-2 .......... 5-44 37521.............. 5-43 38217.............. 5-51 38900 39762.............. 5-48 36170.............. 5-27 36405................ 4-6 36474................ 4-6 36939.............. 5-44 37522.............. 5-43 38218.............. 5-51 38905.............. 5-48 39763.............. 5-48 36175.............. 5-27 36406................ 4-6 36475................ 4-7 36939-2 .......... 5-44 37523.............. 5-43 38219.............. 5-51 38926.............. 5-48 39764.............. 5-48 36176.............. 5-27 36407................ 4-6 36476................ 4-7 36940.............. 5-44 37524.............. 5-43 38700.............. 5-48 38927.............. 5-48 39765.............. 5-48 36185.............. 5-28 36408................ 4-7 36477.............. 5-27 36941.............. 5-44 37551.............. 5-43 38701.............. 5-48 38928.............. 5-48 39766.............. 5-48 36191.............. 5-28 36409................ 4-7 36490................ 4-9 36981.............. 5-44 37552.............. 5-43 38702.............. 5-48 38930.............. 5-48 39767.............. 5-47 36195.............. 5-28 36411.............. 5-40 36490R ............. 4-9 36982.............. 5-44 37553.............. 5-43 38703.............. 5-48 38931.............. 5-48 39768.............. 5-47 36200 36412.............. 5-40 36491.............. 4-10 36983.............. 5-44 37561.............. 5-43 38704.............. 5-48 38932.............. 5-48 39769.............. 5-47 36212.............. 5-29 36413.............. 5-40 36500 36984.............. 5-44 37562.............. 5-43 38705.............. 5-48 38935.............. 5-47 39770.............. 5-47 36213.............. 5-29 36419.............. 4-10 36500................ 4-4 36985.............. 5-44 37563.............. 5-43 38706.............. 5-48 38936.............. 5-47 39771.............. 5-47 36214.............. 5-29 36420.............. 4-10 36502................ 4-4 36986.............. 5-44 37570.............. 5-43 38707.............. 5-47 38937.............. 5-47 39772.............. 5-47 36220.............. 5-28 36421.............. 5-40 36640................ 4-4 37001.............. 5-29 38000 38708.............. 5-47 38945.............. 5-47 39773.............. 5-47 36221.............. 5-28 36422.............. 5-40 36641................ 4-4 37002.............. 5-29 38002.............. 5-52 38709.............. 5-47 38946.............. 5-47 39774.............. 5-47 36222.............. 5-28 36423.............. 5-40 36642................ 4-4 37012.............. 5-29 38003.............. 5-52 38710.............. 5-47 38947.............. 5-47 39775.............. 5-47 36223.............. 5-28 36424.............. 4-10 36643................ 4-4 37013.............. 5-29 38004.............. 5-52 38711.............. 5-47 38950.............. 5-47 39776.............. 5-47 36230.............. 5-27 36426.............. 4-10 36644................ 4-4 37014.............. 5-29 38005.............. 5-52 38712.............. 5-47 38951.............. 5-47 39777.............. 5-47 36645................ 4-4 37015.............. 5-29 38012.............. 5-53 38713.............. 5-47 38952.............. 5-47 39778.............. 5-47 A-3
- 376. Numerical Index *Not a complete item number – refer to page noted. { Previous item number –see product page for new item number The Vollrath Company, LLC ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE 39800 40737.............. 2-13 40806................ 1-9 44568.............. 8-28 46122.............. 9-15 46303.............. 9-59 46532.............. 9-24 46626.............. 9-49 39824.............. 5-48 40738.............. 2-13 40807................ 1-9 44569.............. 8-28 46123.............. 9-15 46304.............. 9-59 46533.............. 9-24 46627.............. 9-49 39846.............. 5-48 40739.............. 2-13 40812.............. 1-10 44570.............. 8-28 46124.............. 9-15 46306.............. 9-59 46534.............. 9-24 46633.............. 9-59 39860.............. 5-48 40740.............. 2-13 40813.............. 1-10 44571.............. 8-28 46125.............. 9-15 46307.............. 9-59 46535.............. 9-24 46634.............. 9-59 39924.............. 5-48 40741.............. 2-13 40814.............. 1-10 44572.............. 8-28 46126.............. 9-15 46308.............. 9-59 46540.............. 9-42 46635.............. 9-49 39926.............. 5-48 40742.............. 2-13 40815.............. 1-10 45682.....1-12, 8-36 46127.............. 9-15 46309.............. 9-59 46541.............. 9-42 46636.............. 9-49 39927.............. 5-48 40743.............. 1-11 40816.............. 1-10 45690.............. 9-67 46130.............. 9-15 46310.............. 9-62 46542.............. 9-42 46640.............. 9-39 39928.............. 5-48 40744.............. 1-11 40817.............. 1-10 45691.............. 9-67 46131.............. 9-15 46312.............. 9-62 46543.............. 9-42 46641.............. 9-39 39930.............. 5-48 40746.............. 1-11 40818.............. 1-10 45710.............. 9-67 46132.............. 9-16 46314.............. 9-62 46545.............. 9-42 46642.............. 9-39 39931.............. 5-48 40747.............. 1-11 40819.............. 2-15 45711.............. 9-67 46133.............. 9-16 46320.............. 9-29 46546.............. 9-42 46643.............. 9-39 39932.............. 5-48 40748.............. 1-11 40820.............. 2-16 45801.............. 9-67 46134.............. 9-16 46331.............. 9-24 46547.............. 9-42 46644.............. 9-39 39935.............. 5-47 40749.............. 1-11 40821.............. 2-16 46000 46135.............. 9-16 46332.............. 9-24 46548.....9-42, 9-51 46645.....9-39, 9-40 39936.............. 5-47 40750.............. 1-11 40822.............. 2-16 46000.............. 9-59 46136.............. 9-16 46333.............. 9-24 46549.............. 9-15 46646.............. 9-39 39937.............. 5-47 40751.............. 1-11 40823.............. 2-16 46003.............. 9-62 46137.............. 9-16 46334.............. 9-24 46560.............. 9-62 46647.............. 9-39 39945.............. 5-47 40752.............. 1-11 40824.............. 2-16 46005.............. 9-62 46193.............. 9-19 46335.............. 9-24 46565.............. 9-62 46648.............. 9-39 39946.............. 5-48 40753.............. 1-11 40825.............. 2-16 46008.............. 9-62 46194.............. 9-19 46350.............. 9-30 46566.............. 9-47 46649.............. 9-39 39947.............. 5-47 40755................ 1-4 40826.............. 1-11 46029.............. 9-28 46198.............. 9-19 46360.............. 9-30 46567.............. 9-47 46650.............. 9-39 39948.............. 5-47 40756................ 1-4 40830 46030.............. 9-28 46200 46370.............. 9-62 46568.............. 9-47 46651.............. 9-39 39950.............. 5-47 40757................ 1-4 40830.............. 2-15 46033-2 .......... 9-28 46200.............. 9-59 46381.............. 9-21 46569* ...9-43, 9-46 46652.............. 9-39 39951.............. 5-47 40758................ 1-4 40837.............. 2-11 46035.............. 9-28 46201.............. 9-59 46400.............. 9-59 46570.............. 9-62 46653.............. 9-39 39952.............. 5-47 40759................ 1-4 40838.............. 2-11 46036.............. 9-28 46202.............. 9-59 46402.............. 9-60 46572.............. 8-35 46654.....8-28, 9-64 39959.............. 5-47 40760................ 1-4 40839.............. 2-12 46040.............. 9-28 46203.............. 9-59 46403.............. 9-60 46575.............. 9-48 46655.....8-28, 9-64 39960.............. 5-48 40761................ 1-5 40840.............. 2-12 46043.............. 9-28 46204.............. 9-59 46431.............. 9-24 46576.............. 9-48 46656.....8-28, 9-64 39961.............. 5-47 40762................ 1-5 40841.............. 2-15 46045.............. 9-28 46205.............. 9-62 46432.............. 9-24 46577.............. 9-48 46657.....8-28, 9-64 39962.............. 5-47 40763................ 1-5 40842.......3-4, 4-22 46050.............. 9-28 46206.............. 9-59 46433.............. 9-24 46578.............. 9-48 46658.....8-28, 9-64 40000 40764................ 1-5 40843.......3-4, 4-22 46051.............. 9-28 46207.............. 9-59 46434.............. 9-24 46579.............. 9-48 46659.....8-28, 9-64 40700.............. 2-16 40765................ 1-5 40844.......3-4, 4-22 46052.............. 9-28 46208.............. 9-59 46435.............. 9-24 46580 46661.....8-28, 9-64 40701.............. 2-14 40766................ 1-5 40845.......3-4, 4-22 46059.............. 9-28 46209.............. 9-59 46441.............. 9-27 46580.............. 9-62 46665.............. 9-46 40702.............. 2-14 40767................ 1-5 40846.......3-4, 4-22 46060.............. 9-32 46210.............. 9-63 46447-1 .......... 9-27 46581.............. 9-48 46666.............. 9-46 40703.............. 2-14 40768................ 1-5 40847.......3-4, 4-22 46062-2 .......... 9-28 46211.............. 9-63 46448-1 .......... 9-27 46582.............. 9-47 46667.............. 9-46 40704.............. 2-15 40769................ 1-5 40848.............. 2-16 46063-2 .......... 9-28 46212.............. 9-63 46451-1 .......... 9-27 46584.............. 9-47 46668.............. 9-46 40705.............. 2-18 40770................ 1-5 40849.........1-7, 1-8 46070.............. 9-20 46255.............. 9-20 46453-1 .......... 9-27 46585.............. 9-47 46669.............. 9-46 40706.............. 2-18 40771................ 1-5 40850.............. 1-10 46072.............. 9-21 46258.............. 9-22 46455-1 .......... 9-27 46586.............. 9-47 46700 40707.............. 2-18 40772................ 1-5 40851.............. 1-10 46073....9-21, 9-24, 46259....9-18, 9-19, 46458-1 .......... 9-27 46587* ...9-43, 9-46 46701.....9-64, 9-66 40708.............. 2-18 40773................ 1-5 40852................ 3-3 9-30 ..... 9-21, 9-22, 9-23 46463-1 .......... 9-27 46588.............. 8-28 46704.....9-64, 9-66 40709.............. 2-18 40774................ 1-5 40853................ 3-3 46073-2 .......... 9-27 46261.............. 9-21 46465-1 .......... 9-27 46589.............. 8-28 46706.............. 9-66 40710.............. 2-18 40775................ 1-5 40854................ 3-3 46075.............. 9-28 46262.............. 9-21 46467-1 .......... 9-27 46590* ...9-43, 9-46 46709.............. 9-66 40711.............. 2-18 40776................ 1-5 40855................ 3-3 46077.............. 9-28 46263.............. 9-21 46469-1 .......... 9-27 46591* ...9-43, 9-46 46713.............. 9-64 40712.............. 2-18 40777................ 1-5 40856................ 3-3 46080.............. 9-20 46265.............. 9-20 46470-1 .......... 9-27 46592* ...9-43, 9-46 46735.............. 9-66 40713.............. 2-18 40778................ 1-5 40857................ 3-3 46082............. 9-21, 46268.............. 9-22 46487.............. 9-28 46593.............. 9-59 46745.............. 9-66 40714.............. 2-18 40779................ 1-5 40858.............. 1-10 ...............9-24, 9-30 46269............. 9-19, 46488.............. 9-29 46594.............. 9-59 46746.............. 9-66 40715.............. 2-12 40780................ 1-5 40862................ 3-3 46084.............. 9-21 ...............9-21, 9-23 46498.............. 9-30 46595.............. 9-59 46760.............. 9-66 40716.............. 2-12 40785................ 1-5 40863................ 3-3 46087.............. 9-21 46271.............. 9-21 46499.............. 9-30 46596.............. 9-59 46763.............. 9-67 40717.............. 2-12 40786................ 1-5 40864................ 3-3 46088.............. 9-21 46272.............. 9-21 46500 46597.............. 9-59 46764.............. 9-67 40718.............. 2-12 40787................ 1-5 40865................ 3-3 46089.............. 9-21 46273.............. 9-21 46500.............. 9-25 46598.............. 9-59 46770.............. 9-67 40719.............. 2-12 40788................ 1-5 40866................ 3-3 46090.............. 9-21 46274.............. 9-21 46501.............. 9-25 46599.............. 9-60 46771.............. 9-67 40720.............. 2-12 40790.............. 2-17 40867................ 3-3 46093.............. 9-21 46275.............. 9-21 46502.............. 9-25 46603.............. 9-49 46772.............. 9-64 40721.............. 2-12 40791.............. 2-17 42100.............. 7-46 46094.............. 9-21 46276.............. 9-21 46503.............. 9-25 46604.............. 9-49 46773.............. 9-52 40722.............. 2-12 40792.............. 2-17 43041.............. 7-37 46095.............. 9-21 46280.............. 9-21 46504.............. 9-24 46605.............. 9-49 46774.............. 9-52 40723.............. 2-12 40793.............. 2-17 43042.............. 7-37 46098.............. 9-32 46283.............. 9-21 46505.............. 9-24 46609.............. 9-50 46776.............. 9-67 40728.............. 2-11 40794.............. 2-17 43047-2 .......... 7-36 46099.............. 9-32 46284.............. 9-21 46506.............. 9-24 46612.............. 9-49 46777.............. 9-67 40729.............. 2-11 40795.............. 2-17 43048-2 .......... 7-36 46100.............. 9-32 46285.............. 9-21 46507.............. 9-24 46613.............. 9-63 46781.............. 9-67 40730.............. 2-11 40799.........1-7, 1-8 43049-2 .......... 7-36 46104.............. 9-21 46287.............. 9-21 46516.............. 9-62 46614.............. 9-46 46784.............. 9-54 40731.............. 2-11 40800 44140.............. 4-20 46110.............. 9-32 46288.............. 9-21 46517.............. 9-62 46615.............. 9-46 46787.............. 9-54 40732................ 3-6 40800.........1-7, 1-8 44145.............. 4-20 46112.............. 9-16 46290.............. 9-19 46518.............. 9-25 46616.............. 9-51 46788.............. 9-52 40733................ 3-5 40801.........1-7, 1-8 44367.............. 3-20 46113.............. 9-16 46293.............. 9-19 46519.............. 9-24 46621.............. 9-54 46789.............. 9-52 40734................ 3-5 40802.........1-7, 1-9 44504.............. 4-20 46114.............. 9-15 46300 46520.............. 9-24 46622.............. 9-51 46790.............. 9-54 40735................ 3-5 40803.........1-7, 1-9 44545.............. 4-20 46115.............. 9-32 46300.............. 9-59 46529.............. 9-24 46623.............. 9-60 46791.............. 9-54 40736.............. 2-13 40804.........1-7, 1-9 44546.............. 4-20 46120.............. 9-15 46301.............. 9-59 46530.............. 9-24 46624.............. 9-49 46793.............. 9-54 44567.............. 8-28 46121.............. 9-15 46302.............. 9-59 46531.............. 9-24 46625.............. 9-49 46794.............. 9-66 A-4
- 377. vollrathco.com *Not a complete item number – refer to page noted. { Previous item number –see product page for new item number Numerical Index ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE 46795.............. 9-66 46908.............. 8-15 47004.............. 8-11 47153.............. 8-17 47257.............. 8-12 47610.............. 9-53 47709.............. 8-34 47932.............. 8-31 46796.............. 9-65 46909.............. 9-39 47005.............. 8-11 47154.............. 8-17 47258.............. 8-12 47611.............. 9-50 47710.............. 8-34 47933.............. 8-31 46797.............. 9-65 46912.............. 8-15 47006.............. 8-11 47155.............. 8-17 47259.............. 8-12 47612.............. 9-53 47711.............. 8-34 47934.............. 8-31 46798.............. 9-65 46915.............. 8-15 47007.............. 8-22 47156.............. 8-17 47260.............. 9-37 47614.............. 9-53 47712.............. 8-34 47935.............. 8-31 46800 46916.............. 9-40 47025.............. 8-29 47157.............. 8-17 47261.............. 9-37 47615.............. 9-51 47713.....1-12, 8-36 47938.............. 8-31 46800.............. 9-50 46917.............. 9-40 47026.............. 8-29 47158.............. 8-17 47262.............. 9-37 47616.............. 9-51 47714.....1-12, 8-36 47943.............. 8-31 46801.............. 9-50 46918.............. 9-40 47027.............. 8-29 47159.............. 8-17 47263.............. 9-37 47617.............. 9-50 47715.....1-12, 8-36 47946.............. 8-31 46810.............. 8-15 46919.............. 9-40 47028.............. 8-29 47160.............. 8-17 47264.............. 9-37 47618.............. 9-53 47717.............. 8-25 47949.............. 8-31 46811.............. 8-15 46920.............. 9-40 47029.............. 8-29 47161.............. 8-17 47265.............. 9-37 47619* ...9-43, 9-45 47718.............. 8-25 47960.............. 7-37 46812.............. 8-15 46924.............. 8-15 47031.............. 8-29 47162.............. 8-17 47266.............. 9-37 47620.............. 9-50 47719.............. 8-25 47963.............. 8-32 46813.............. 8-15 46925.............. 9-40 47040.............. 8-35 47165.............. 8-25 47267.............. 9-37 47621.............. 9-50 47720.............. 7-16 47965.............. 8-32 46814.............. 8-15 46926.............. 9-40 47042.............. 8-23 47166.............. 8-32 47280.............. 8-12 47622.............. 9-53 47721.............. 7-16 47969.............. 8-32 46816.............. 8-15 46927.............. 9-40 47046.............. 8-23 47167.............. 8-32 47281.............. 8-12 47623.............. 9-53 47722.............. 7-16 47974.............. 8-32 46818.............. 8-15 46928.............. 9-40 47049.............. 8-23 47168.............. 8-32 47282.............. 8-12 47625.............. 9-50 47723.............. 7-16 48000 46819.............. 8-15 46929.............. 9-40 47050 47169.............. 8-18 47283.............. 8-12 47630.............. 9-50 47724.............. 7-16 48003.............. 9-64 46822.............. 8-15 46930.............. 9-39 47050.............. 8-35 47170.............. 8-18 47284.............. 8-12 47631.............. 9-67 47725.............. 7-16 48013.............. 9-64 46830.............. 9-21 46931.............. 8-24 47051.............. 8-35 47171.............. 8-18 47285.............. 8-12 47632* ...9-43, 9-45 47726.............. 7-16 48015.............. 9-64 46831.............. 9-21 46932.............. 8-15 47052.............. 8-35 47172.............. 8-18 47286.............. 8-12 47633.............. 9-67 47730.............. 7-16 48023.............. 9-65 46833.............. 9-23 46933.............. 8-24 47054.............. 8-29 47173.............. 8-36 47287.............. 8-12 47634* ...9-43, 9-45 47731.............. 7-16 48060.............. 9-65 46834.............. 9-23 46934.............. 8-24 47055.............. 8-29 47174.............. 8-36 47300 47635* ...9-43, 9-45 47732.............. 7-16 48070.............. 9-54 46847.............. 9-29 46935.............. 9-39 47056.............. 8-29 47175.............. 8-25 47309.............. 8-22 47637* ...9-43, 9-45 47733.............. 7-16 48080.............. 8-24 46852.............. 9-32 46936.............. 9-39 47057.............. 8-29 47176.............. 8-32 47312.............. 8-22 47648.............. 9-63 47734.............. 7-16 48081.............. 8-24 46853.............. 9-31 46937.............. 9-39 47058.............. 8-29 47177.............. 8-32 47316.............. 8-22 47650 47735.............. 7-16 48082.............. 8-24 46855.............. 9-29 46938.............. 9-40 47059.............. 8-29 47178.............. 8-32 47322.............. 8-23 47650.............. 9-47 47740.............. 7-17 48083.............. 9-65 46858.....9-28, 9-30 46940.............. 9-40 47075.............. 8-29 47188.............. 8-32 47325.............. 8-23 47651.............. 9-47 47741.............. 7-17 48085.............. 8-24 46860.............. 9-29 46941.............. 9-40 47076.............. 8-29 47189.............. 8-32 47326.............. 8-23 47652.............. 9-47 47742.............. 7-17 48100.............. 9-55 46861.....9-19, 9-31 46942.............. 9-40 47077.............. 8-29 47190.............. 8-32 47329.............. 8-23 47653.............. 9-47 47743.............. 7-17 48101.............. 9-55 46862....9-19, 9-21, 46944.............. 9-40 47078.............. 8-29 47191.............. 8-32 47330.............. 9-12 47654.............. 9-47 47745.............. 7-17 48102.............. 9-55 .... 9-22, 9-23, 9-24, 46945.............. 8-20 47090.............. 8-11 47192.............. 8-32 47331.............. 9-12 47655.............. 9-47 47746.............. 7-17 48103.............. 9-55 ...............9-27, 9-30 46946.............. 8-20 47091.............. 8-11 47193.............. 8-32 47332.............. 9-12 47656.............. 9-38 47747.............. 7-17 48104.............. 9-55 46862/46861 . 9-28, 46947.............. 8-20 47092.............. 8-11 47194.............. 8-32 47333.............. 9-12 47658.............. 9-47 47750.............. 7-16 48110.............. 9-55 ........................ 9-29 46948.............. 8-20 47093.............. 8-11 47195.............. 8-32 47334.............. 9-12 47659.............. 9-45 47751.............. 7-16 48112.............. 9-55 46863.............. 9-29 46949.............. 8-20 47094.............. 8-11 47196.............. 8-32 47335.............. 9-12 47661.............. 9-48 47752.............. 7-16 48113.............. 9-55 46864....9-18, 9-19, 46950 47095.............. 8-11 47197.............. 8-32 47342.............. 9-13 47662.............. 9-48 47753.............. 7-16 48114.............. 9-55 .... 9-21, 9-24, 9-28, 46950.............. 9-39 47096.............. 8-11 47198.............. 8-32 47343.............. 9-13 47663.............. 9-48 47755.............. 7-16 48115.............. 9-55 ..... 9-29, 9-30, 9-32 46951.............. 9-40 47097.............. 8-11 47199.............. 8-32 47344.............. 9-13 47664.............. 9-48 47756.............. 7-16 48116.............. 9-55 46872.............. 9-32 46952.............. 9-39 47104.............. 9-54 47200 47406.............. 9-64 47665.............. 9-47 47757.............. 7-16 48122.............. 9-55 46877.............. 9-29 46953.............. 9-40 47105.............. 8-23 47200.............. 8-18 47408.............. 9-64 47666.............. 9-47 47758.............. 7-16 48125.............. 9-55 46880.............. 9-29 46954.............. 9-40 47106.............. 8-23 47204.............. 9-69 47422.............. 9-64 47667.............. 9-47 47760 48130.....9-55, 9-56 46881.............. 9-29 46955.............. 9-39 47107.............. 8-23 47205.............. 9-69 47425.............. 9-64 47668.............. 9-47 47760.............. 7-17 48131.............. 9-55 46884.............. 9-29 46956.............. 9-39 47109.............. 8-23 47206.............. 9-69 47428.............. 9-64 47669.............. 9-47 47761.............. 7-17 48133.............. 9-55 46885.............. 9-31 46960.............. 9-39 47110.............. 8-22 47208.............. 9-69 47429.............. 9-64 47672.............. 9-45 47762.............. 7-17 48140.............. 9-56 46886.............. 9-31 46961.............. 8-20 47112.............. 8-23 47212.............. 9-38 47486.....3-21, 6-19 47674.............. 9-45 47770.............. 7-17 48141.............. 9-56 46889-1 .......... 9-29 46962.............. 8-20 47113.............. 8-22 47214.............. 9-38 47488....3-20, 3-21, 47675.............. 9-45 47771.....7-16, 7-17 48142.............. 9-56 46890.....8-25, 9-54 46963.............. 8-20 47116.............. 8-22 47216.............. 9-38 ....................... 6-19 47677.............. 9-45 47772.............. 7-17 48143.............. 9-56 46891.....8-25, 9-54 46969.............. 8-25 47117.............. 8-23 47225.....9-42, 9-51 47490....3-20, 3-21, 47680.............. 9-44 47773.....7-16, 7-17 48144.............. 9-56 46892.....8-25, 9-54 46970.............. 8-25 47118.............. 8-28 47226.....9-42, 9-51 ........................ 6-19 47681.............. 9-44 47774.....7-16, 7-17 48145.............. 9-39 46893.....8-25, 9-54 46972.............. 8-25 47119.............. 8-29 47232.............. 9-38 47522.............. 9-67 47682.............. 9-44 47775.....7-16, 7-17 48146.............. 9-39 46894.....8-25, 9-54 46973.............. 8-20 47139.............. 8-17 47234.............. 9-38 47536.............. 9-68 47683.............. 9-44 47776.....7-16, 7-17 48147.............. 9-56 46895.....8-25, 9-54 46975.............. 8-20 47140.............. 8-17 47236.............. 9-38 47555.............. 9-68 47684.............. 9-44 47777.....7-16, 7-17 48148.............. 9-56 46900 46976.............. 8-20 47141.............. 8-17 47238.............. 9-38 47556.............. 9-68 47685.............. 9-44 47778.....7-16, 7-17 48149.............. 9-56 46900.............. 8-15 46981.............. 8-20 47142.............. 8-17 47242.............. 9-38 47573.............. 9-63 47686.............. 9-44 47779.....7-16, 7-17 48150.............. 9-55 46901.............. 8-15 46983.............. 8-20 47143.............. 8-17 47245.............. 8-18 47575.............. 9-63 47687.............. 9-44 47780.............. 7-17 48151.............. 9-55 46902.............. 8-15 46985.............. 8-20 47144.............. 8-17 47246.............. 8-18 47578.............. 9-63 47688.............. 9-44 47790.............. 7-17 48152.............. 9-55 46903.............. 8-15 46988.....8-23, 9-40 47145.............. 8-17 47247.............. 8-18 47601.............. 9-67 47689.............. 9-44 47791.............. 7-17 48153.............. 9-55 46904.............. 8-15 46989.....8-23, 9-40 47146.............. 8-17 47248.............. 8-18 47602.............. 9-52 47700.............. 8-35 47792.............. 7-17 48154.............. 9-55 46905.............. 9-39 46990.............. 8-20 47147.............. 8-17 47251.............. 9-38 47603.............. 9-52 47703.....1-12, 8-36 47845.............. 9-63 48160.............. 9-55 46906.............. 8-15 46995.............. 8-20 47150.............. 8-17 47252.............. 9-68 47605.............. 9-51 47704.....1-12, 8-36 47892.............. 9-40 48161.............. 9-55 46907.............. 9-39 47002.............. 8-11 47151.............. 8-17 47255.............. 8-12 47608.............. 9-49 47705.............. 8-35 47914.............. 9-54 48162.............. 9-55 47003.............. 8-11 47152.............. 8-17 47256.............. 8-12 47609.............. 9-52 47708.............. 8-34 47930.............. 8-31 48171.............. 9-55 A-5
- 378. Numerical Index *Not a complete item number – refer to page noted. { Previous item number –see product page for new item number The Vollrath Company, LLC ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE 48200 48793.............. 9-21 52100 52318............ 10-16 52647....9-18, 9-19, 52716...10-5, 10-14 52779...10-5, 10-14 52848...10-5, 10-14 48200.............. 9-55 48794.............. 9-21 52100.............. 8-26 52320............ 10-16 .... 9-20, 9-21, 9-23, 52717...10-5, 10-14 52780...10-5, 10-14 52849...10-5, 10-14 48201.............. 9-55 48795.............. 9-21 52109.............. 8-27 52321............ 10-16 .... 9-24, 9-25, 9-28, 52718...10-5, 10-14 52781...10-5, 10-14 52860 48202.............. 9-55 49330.............. 9-27 52113.............. 8-27 52322............ 10-16 ..... 9-29, 9-30, 9-33 52719...10-5, 10-14 52782...10-5, 10-14 52860.............. 9-69 48203.............. 9-55 49331.............. 9-27 52116.............. 8-27 52355............ 10-15 52648....9-21, 9-27, 52720...10-5, 10-14 52783...10-5, 10-14 52861.............. 9-69 48204.............. 9-55 49332.............. 9-27 52120.............. 9-61 52356............ 10-15 .... 9-28, 9-29, 9-30, 52721...10-5, 10-14 52784...10-5, 10-14 52866.............. 9-69 48205.............. 9-55 49333.............. 9-27 52121.............. 9-61 52357............ 10-15 ........................ 9-33 52722...10-5, 10-14 52785...10-5, 10-14 52867.............. 9-69 48206.............. 9-55 49334.............. 9-31 52122.............. 9-61 52358............ 10-15 52649.............. 9-33 52723...10-5, 10-14 52786...10-5, 10-14 52869.............. 9-69 48207.............. 9-55 49335.............. 9-27 52123.............. 9-61 52359............ 10-15 52651............ 10-19 52724...10-5, 10-14 52787...10-5, 10-14 52870.............. 9-69 48208.............. 9-55 49339.....6-17, 9-31 52124.............. 9-61 52360............ 10-15 52652............ 10-19 52725...10-5, 10-14 52788...10-5, 10-14 52908.............. 8-16 48209.............. 9-55 49410................ 9-6 52125.............. 9-61 52362............ 10-15 52653............ 10-19 52726...10-5, 10-14 52789...10-5, 10-14 52930.............. 9-50 48220.............. 9-55 49411................ 9-6 52126.............. 9-61 52363............ 10-15 52654............ 10-19 52727...10-5, 10-14 52790...10-5, 10-14 52956...10-7, 10-14 48221.............. 9-55 49412................ 9-6 52127.............. 9-61 52366............ 10-15 52657............ 10-19 52728...10-5, 10-14 52791.............. 10-7 52957...10-7, 10-14 48222.............. 9-55 49413................ 9-6 52130.............. 9-61 52367............ 10-15 52660............ 10-19 52729...10-5, 10-14 52792.............. 10-7 52958...10-7, 10-14 48223.............. 9-55 49418................ 9-6 52131.............. 9-61 52368............ 10-15 52661............ 10-19 52730...10-5, 10-14 52793...10-7, 10-14 52959...10-7, 10-14 48224.............. 9-55 49423................ 9-6 52132.............. 9-61 52369............ 10-15 52662............ 10-19 52731...10-5, 10-14 52794...10-7, 10-14 52960...10-7, 10-14 48225.............. 9-55 49424................ 9-6 52133.............. 9-61 52370 52664.............. 10-9 52732...10-5, 10-14 52795...10-7, 10-14 52961...10-7, 10-14 48226.............. 9-55 49425................ 9-6 52134.............. 9-61 52370............ 10-15 52665.............. 10-9 52733...10-5, 10-14 52796...10-7, 10-14 52962...10-7, 10-14 48227.............. 9-55 49426................ 9-6 52135.............. 9-61 52371............ 10-15 52666.............. 10-9 52734...10-5, 10-14 52797...10-7, 10-14 52963...10-7, 10-14 48228.............. 9-55 49428................ 9-6 52140.............. 9-61 52372............ 10-15 52667.............. 10-9 52735...10-5, 10-14 52798...10-7, 10-14 52964...10-7, 10-14 48301.............. 9-64 49429................ 9-6 52141.............. 9-61 52373............ 10-15 52668.............. 10-9 52736...10-5, 10-14 52799...10-7, 10-14 52965...10-7, 10-14 48303.............. 9-64 49430................ 9-6 52142.............. 9-61 52374............ 10-15 52669.............. 10-9 52737...10-5, 10-14 52800 52966...10-7, 10-14 48311.............. 9-50 49431................ 9-6 52143.............. 9-61 52375............ 10-15 52670.............. 10-7 52738...10-5, 10-14 52800............ 10-11 52970.............. 6-17 48312.............. 9-62 49432................ 9-6 52144.............. 9-61 52385............ 10-16 52671.............. 10-8 52739...10-5, 10-14 52801............ 10-11 54422.............. 9-54 48313.............. 9-64 49433................ 9-6 52145.............. 9-61 52395............ 10-16 52672.............. 10-8 52740 52802............ 10-11 55000 48315.............. 9-64 49434................ 9-6 52160.............. 9-61 52420............ 10-19 52673.............. 10-9 52740...10-5, 10-14 52803............ 10-11 55000.............. 1-15 48317.............. 9-62 49435................ 9-6 52161.............. 9-61 52422............ 10-19 52674.............. 10-8 52741............ 10-12 52804........... 10-11, 55001.............. 1-15 48320.............. 9-50 49500 52162.............. 9-61 52424............ 10-19 52675.............. 10-8 52742............ 10-12 ...................... 10-18 55002.............. 1-15 48321.............. 9-50 49520.............. 9-26 52163.............. 9-61 52430.......6-9, 6-15 52676.............. 10-8 52743............ 10-12 52805............ 10-11 55011.............. 1-15 48322.............. 9-27 49521.............. 9-26 52164.............. 9-61 52431.............. 6-15 52677.............. 10-8 52744............ 10-12 52806............ 10-11 55012.............. 1-15 48323.............. 9-27 49522.............. 9-26 52165.............. 9-61 52432.............. 6-15 52678.............. 10-9 52745............ 10-12 52807............ 10-11 55013.............. 1-15 48324.............. 9-27 49523.............. 9-26 52170.............. 9-61 52433.............. 6-15 52680.............. 10-7 52746............ 10-12 52808............ 10-17 55059.............. 1-15 48325.............. 9-50 49524.............. 9-26 52171.............. 9-61 52434.............. 6-15 52681.............. 10-7 52747............ 10-12 52810............ 10-11 55060.............. 1-15 48326.............. 9-27 49525.............. 9-26 52172.............. 9-61 52435.............. 6-15 52682.............. 10-7 52750............ 10-12 52811...10-5, 10-14 55061.............. 1-15 48327.............. 9-27 49529.............. 9-26 52173.............. 9-61 52611............ 10-19 52683.............. 10-7 52751............ 10-12 52812...10-5, 10-14 55062.............. 1-15 48328.............. 9-27 49530.............. 9-27 52174.............. 9-61 52612............ 10-19 52684...10-5, 10-14 52752............ 10-12 52813...10-5, 10-14 55063.............. 1-15 48329.............. 9-27 49531.............. 9-27 52175.............. 9-61 52614............ 10-19 52689...10-5, 10-14 52753............ 10-12 52814............ 10-11 55064.............. 1-15 48330.............. 9-50 49590.............. 9-19 52290............ 10-16 52615............ 10-19 52691...10-5, 10-14 52754...10-5, 10-14 52815............ 10-10 55066.............. 1-15 48360.............. 9-62 49593.............. 9-19 52291............ 10-16 52616.............. 8-36 52692...10-5, 10-14 52755...10-5, 10-14 52816...10-5, 10-14 55074.............. 1-15 48365.............. 9-62 49855.............. 9-23 52292............ 10-16 52617............ 10-18 52693...10-5, 10-14 52756............ 10-12 52817...10-5, 10-14 55087.............. 1-15 48372.............. 9-64 49865.............. 9-23 52293............ 10-16 52618.............. 8-36 52694...10-5, 10-14 52757...10-5, 10-14 52818............ 10-11 55088.............. 1-15 48373.............. 9-63 49955.............. 9-23 52300............ 10-16 52619............ 10-18 52695.............. 10-8 52760...10-5, 10-14 52819............ 10-10 55089.............. 1-15 48375.............. 9-63 49965.............. 9-23 52301............ 10-16 52621............ 10-19 52696.............. 10-7 52761...10-5, 10-14 52820............ 10-11 55090.............. 1-15 48378.............. 9-63 51003{ .......... 7-46 52302............ 10-16 52622............ 10-19 52697.............. 10-9 52762...10-5, 10-14 52821............ 10-11 56116.............. 8-35 48425.............. 9-40 51008.............. 7-45 52303............ 10-16 52629............ 10-19 52698.............. 10-9 52763...10-5, 10-14 52822............ 10-11 56507.............. 7-34 48426.............. 9-40 51016.............. 7-46 52304............ 10-16 52632............ 10-19 52699...10-5, 10-14 52764...10-5, 10-14 52823............ 10-11 56680.............. 6-16 48427.............. 9-40 51045.............. 7-46 52305............ 10-16 52633............ 10-17 52700 52765...10-5, 10-14 52824............ 10-11 56728.............. 8-16 48428.............. 9-40 51066.............. 7-44 52306............ 10-16 52634............ 10-19 52702...10-5, 10-14 52766...10-5, 10-14 52825............ 10-11 56852.............. 8-34 48429.............. 9-40 52009.............. 8-27 52307............ 10-16 52640............ 10-17 52703...10-5, 10-14 52767...10-5, 10-14 52826............ 10-11 57502.............. 8-34 48593.............. 9-19 52010.............. 8-27 52308............ 10-16 52641............ 10-17 52704...10-5, 10-14 52768...10-5, 10-14 52827............ 10-18 58000.............. 8-14 48594.............. 9-19 52013.............. 8-27 52309............ 10-16 52642............ 10-17 52706...10-5, 10-14 52769...10-5, 10-14 52828............ 10-10 58011.............. 8-14 48755.............. 9-20 52016.............. 8-27 52310............ 10-16 52643............ 10-17 52707...10-5, 10-14 52770...10-5, 10-14 52829............ 10-10 58022.............. 8-14 48758.............. 9-22 52023.............. 8-27 52311............ 10-16 52644............ 10-17 52708...10-5, 10-14 52771...10-5, 10-14 52830............ 10-18 58030.............. 8-33 48765.............. 9-20 52026.............. 8-27 52312............ 10-16 52645....9-15, 9-16, 52709...10-5, 10-14 52772...10-5, 10-14 52832...10-5, 10-14 58033.............. 8-14 48768.............. 9-22 52060.............. 9-68 52313............ 10-16 .... 9-18, 9-19, 9-21, 52710...10-5, 10-14 52773...10-5, 10-14 52834............ 10-10 58044.............. 8-14 48770.............. 9-20 52061.............. 9-68 52314............ 10-16 ... 9-24, 9-25, 9-26, 52711...10-5, 10-14 52774...10-5, 10-14 52844...10-5, 10-14 58055.............. 8-14 48772.............. 9-21 52062.............. 9-68 52315............ 10-16 .... 9-27, 9-28, 9-29, 52712...10-5, 10-14 52775...10-5, 10-14 52845...10-5, 10-14 58066.............. 8-14 48780.............. 9-20 52063.............. 9-68 52316............ 10-16 ........................ 9-33 52713...10-5, 10-14 52776...10-5, 10-14 52846...10-5, 10-14 58110.............. 8-27 48790.............. 9-21 52064.............. 9-68 52317............ 10-16 52646....9-24, 9-25, 52714...10-5, 10-14 52777...10-5, 10-14 52847...10-5, 10-14 58123.............. 8-27 52065.............. 9-68 ........................ 9-33 52715...10-5, 10-14 52778...10-5, 10-14 A-6
- 379. vollrathco.com *Not a complete item number – refer to page noted. { Previous item number –see product page for new item number Numerical Index ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE 58126.............. 8-27 61147.............. 8-10 62335.............. 9-57 67327....7-27, 7-28, 67541....7-27, 7-28, 68174.............. 9-60 68444.............. 7-31 69402.............. 7-32 58130.............. 8-33 61155.............. 8-10 62336.............. 9-57 .... 7-29, 7-30, 7-32, .... 7-29, 7-30, 7-31, 68181.............. 8-34 68460.............. 7-31 69404.............. 7-32 58160.............. 8-33 61157.............. 8-10 62337.............. 9-57 ........................ 7-38 .... 7-32, 7-33, 7-34, 68182.............. 8-34 68520.............. 9-68 69406.............. 7-32 58161.............. 8-33 61165.............. 8-10 62338.............. 9-57 67400 ...............7-37, 7-38 68183.............. 8-34 68616.............. 7-31 69408.............. 7-32 58200.............. 8-33 61167.............. 8-10 62339.............. 9-57 67409....7-27, 7-28, 67560.............. 7-33 68184.............. 8-34 68620.............. 7-31 69410........7-8, 7-9, 58322.............. 8-14 61170.............. 8-10 62340.............. 9-57 .... 7-29, 7-30, 7-31, 67561....7-31, 7-32, 68215.............. 7-32 68624.............. 7-31 ...............7-10, 7-22 58333.............. 8-14 61172.............. 8-10 62341.............. 9-57 .... 7-32, 7-33, 7-34, ...............7-33, 7-38 68218.............. 7-32 68631.............. 7-31 69412........7-8, 7-9, 58344.............. 8-14 61174.............. 8-10 62342.............. 9-57 ........................ 7-38 67580.............. 7-33 68224.............. 7-32 68633.............. 7-31 ........................ 7-10 58355.............. 8-14 61175.............. 8-10 64100 67411.....7-35, 7-38 67581....7-31, 7-32, 68227.............. 7-37 68640.............. 7-31 69414........7-8, 7-9, 58366.............. 8-14 61177.............. 8-10 64130.............. 8-19 67412....7-27, 7-28, ...............7-33, 7-38 68228.............. 7-37 68641.............. 7-31 ........................ 7-10 58410.............. 8-14 61180.............. 8-10 64132.............. 8-19 .... 7-29, 7-30, 7-32, 67600 68250.............. 7-43 68660.............. 7-31 69442.............. 7-32 58430.............. 8-14 61182.............. 8-10 64134.............. 8-19 ..... 7-34, 7-35, 7-38 67607.............. 7-30 68251.............. 7-43 68661.............. 7-31 69444.............. 7-32 58440.............. 8-14 61230.............. 7-43 64136.............. 8-19 67413.....7-35, 7-38 67608.............. 7-30 68252.............. 7-43 68680.............. 7-31 69446.............. 7-32 58450.............. 8-14 61250.............. 7-43 64138.............. 8-19 67414.....7-33, 7-35 67610.............. 7-30 68253.............. 7-43 68681.............. 7-31 69448.............. 7-32 58460.............. 8-14 61270.............. 7-43 64400.............. 8-20 67415.............. 7-35 67612.............. 7-30 68257.............. 7-43 68690.............. 7-31 69504................ 2-6 58480.............. 8-14 62155.............. 8-10 64401.............. 8-20 67417.....7-35, 7-38 67614.............. 7-30 68269.............. 7-36 68691.............. 7-31 69504F.............. 2-9 58500.............. 8-14 62157.............. 8-10 64402.............. 8-20 67418.....7-35, 7-38 67627.............. 7-30 68270.............. 7-36 68700 69505.......2-6, 4-13 58510.............. 8-14 62165.............. 8-10 64403.............. 8-20 67420.............. 7-33 67628.............. 7-30 68271.............. 7-36 68700.............. 7-31 69507................ 2-6 58520.............. 8-14 62167.............. 8-10 64404.............. 8-20 67421....7-27, 7-28, 67630.............. 7-30 68272.............. 7-36 68701.............. 7-31 69508.......2-6, 4-13 58540.............. 8-14 62170.............. 8-10 64405.............. 8-20 .... 7-29, 7-30, 7-31, 67632.............. 7-30 68273.............. 7-36 68720.............. 8-26 69520................ 2-7 58600.............. 8-14 62172.............. 8-10 64406.............. 8-20 .... 7-32, 7-33, 7-34, 67634.............. 7-30 68288.............. 7-37 68733.............. 7-32 69521.......2-7, 4-13 58620.............. 8-14 62175.............. 8-10 64407.............. 8-20 ........................ 7-38 67691....7-31, 7-32, 68289.............. 7-36 68735.............. 7-32 69523................ 2-7 58700.............. 8-16 62177.............. 8-10 64408.............. 8-20 67424.....7-35, 7-38 ........................ 7-38 68290.............. 7-36 68737.............. 7-32 69524.......2-7, 4-13 58900.............. 7-22 62180.............. 8-10 67007.............. 7-30 67426.............. 7-33 67708.............. 7-36 68291.............. 7-36 68743.............. 7-32 69607................ 7-8 58910.............. 7-22 62182.............. 8-10 67008.............. 7-30 67427....7-27, 7-28, 67711.............. 7-36 68292.............. 7-36 68745.............. 7-32 69608................ 7-8 58920.............. 7-22 62300 67010.............. 7-30 .... 7-29, 7-30, 7-32, 67717.............. 7-36 68293.............. 7-36 68747.............. 7-32 69610................ 7-8 58930.............. 7-22 62300.............. 9-57 67012.............. 7-30 ........................ 7-38 67733.............. 7-34 68296.............. 8-31 68750.............. 8-30 69612................ 7-8 59120.............. 8-33 62301.............. 9-57 67014.............. 7-30 67433....7-31, 7-33, 67735.............. 7-34 68297.............. 8-31 69006.............. 8-30 69614................ 7-8 59145................ 2-5 62302.............. 9-57 67020.....7-35, 7-38 ........................ 7-38 67737.............. 7-34 68298.............. 8-32 69014.............. 8-30 69807................ 7-8 59150.............. 8-33 62303.............. 9-57 67107.............. 7-30 67434.............. 7-33 67807.............. 7-30 68300 69030.............. 8-30 69808................ 7-8 59200.............. 8-33 62304.............. 9-57 67108.............. 7-30 67441....7-27, 7-28, 67808.............. 7-30 68301.............. 7-35 69040.............. 8-30 69810................ 7-8 59202.............. 8-33 62305.............. 9-57 67110.............. 7-30 .... 7-29, 7-30, 7-31, 67810.............. 7-30 68302.............. 7-35 69050.............. 8-30 69812................ 7-8 59300................ 2-4 62306.............. 9-57 67112.............. 7-30 .... 7-32, 7-33, 7-34, 67812.............. 7-30 68303.............. 7-35 69080.............. 8-30 69814................ 7-8 59310................ 2-4 62307.............. 9-57 67114.............. 7-30 ........................ 7-38 67814.............. 7-30 68304.............. 7-35 69107................ 7-8 70000 59500 62308.............. 9-57 67133.............. 7-34 67451.............. 7-33 67907.............. 7-30 68307.............. 7-35 69108................ 7-8 70005.............. 6-13 59500F.............. 2-9 62309.............. 9-57 67135.............. 7-34 67461....7-31, 7-32, 67908.............. 7-30 68308.............. 7-35 69110................ 7-8 70009.............. 6-15 59500P ............. 2-3 62310.............. 9-57 67137.............. 7-34 ...............7-33, 7-38 67910.............. 7-30 68310.............. 7-35 69112................ 7-8 70012.............. 6-14 59501.......2-5, 4-12 62311.............. 9-57 67228.............. 7-32 67481....7-31, 7-32, 67912.............. 7-30 68350.............. 8-32 69114................ 7-8 70022.............. 6-14 59510F.............. 2-9 62312.............. 9-57 67301.............. 7-35 ...............7-33, 7-38 67914.............. 7-30 68351.............. 8-31 69130.............. 8-30 70042.............. 6-14 59510P ............. 2-3 62313.............. 9-57 67302.............. 7-35 67491....7-31, 7-32, 68010.............. 6-17 68352.............. 8-31 69207................ 7-8 70100.............. 6-10 59601.............. 4-12 62314.............. 9-57 67303.............. 7-35 ........................ 7-38 68020.............. 6-17 68357.............. 7-43 69208................ 7-8 70110.............. 6-10 59602.............. 4-12 62315.............. 9-57 67304.............. 7-35 67508.............. 7-33 68076.............. 7-43 68358.............. 7-43 69210................ 7-8 70122.............. 6-14 59603.............. 4-12 62318.............. 9-57 67305.............. 7-35 67509....7-27, 7-28, 68078.............. 7-43 68360.............. 7-42 69212................ 7-8 70200.............. 6-10 59641.............. 4-12 62319.............. 9-57 67307.............. 7-35 .... 7-29, 7-30, 7-31, 68080.............. 7-43 68361.............. 7-42 69214................ 7-8 70212.............. 6-14 59642.............. 4-12 62320.............. 9-57 67308.............. 7-35 .... 7-32, 7-33, 7-34, 68084.............. 7-44 68362.............. 7-42 69260.............. 9-67 70222.............. 6-14 59643.............. 4-12 62321.............. 9-57 67310.............. 7-35 ...............7-36, 7-38 68085.............. 7-44 68363.............. 7-42 69301.............. 7-35 70242.............. 6-14 59650................ 2-5 62322.............. 9-57 67311.....7-35, 7-38 67509/67315 .. 7-38 68089.............. 7-46 68364.............. 7-42 69302.............. 7-35 70300.............. 6-10 59651................ 2-5 62323.............. 9-57 67312....7-27, 7-28, 67510.....7-33, 7-36 68090.............. 7-46 68365.............. 7-42 69303.............. 7-35 70322.............. 6-14 59652................ 2-5 62324.............. 9-57 .... 7-29, 7-30, 7-32, 67512.....7-33, 7-36 68099.............. 7-46 68366.............. 7-42 69304.............. 7-35 70342.............. 6-14 59900.............. 7-22 62325.............. 9-57 ..... 7-34, 7-35, 7-38 67516.............. 7-33 68100.............. 7-44 68367.............. 7-42 69305.............. 7-35 70362.............. 6-14 59910.............. 7-22 62326.............. 9-57 67313....7-32, 7-33, 67520.....7-33, 7-36 68120.............. 7-23 68369.............. 7-43 69307.............. 7-35 70400.............. 6-10 59920.............. 7-22 62327.............. 9-57 ...............7-35, 7-38 67521....7-27, 7-28, 68121.............. 7-23 68390.............. 7-42 69308.............. 7-35 70422.............. 6-14 59949.............. 7-23 62328.............. 9-57 67314.....7-35, 7-38 .... 7-29, 7-30, 7-31, 68122.............. 7-37 68391.............. 7-42 69310.............. 7-35 70442.............. 6-14 59950.............. 7-23 62329.............. 9-57 67315....7-32, 7-33, .... 7-32, 7-33, 7-34, 68123.............. 7-37 68392.............. 7-42 69325.......7-8, 7-10 70500.............. 6-10 60170.............. 8-16 62330.............. 9-57 ..... 7-34, 7-35, 7-38 ..... 7-36, 7-37, 7-38 68125.............. 7-37 68408.............. 7-31 69326.......7-8, 7-10 70522.............. 6-14 60175.............. 8-16 62331.............. 9-57 67317.....7-35, 7-38 67524.............. 7-33 68126.............. 7-37 68413.............. 7-31 69327.......7-8, 7-10 70542.............. 6-14 60180.............. 8-16 62332.............. 9-57 67318....7-33, 7-34, 67532.............. 7-33 68127.............. 7-36 68414.............. 7-31 69328........7-8, 7-9, 70600.............. 6-10 60190.............. 8-16 62333.............. 9-57 ...............7-35, 7-38 67533....7-31, 7-33, 68129.............. 7-36 68420.............. 7-31 ........................ 7-10 70622.............. 6-14 61145.............. 8-10 62334.............. 9-57 67320.....7-35, 7-38 ...............7-34, 7-38 68130.............. 7-36 68426.............. 7-31 69329........7-8, 7-9, 70642.............. 6-14 67540.............. 7-33 68134.......7-9, 7-16 68434.............. 7-31 ........................ 7-10 70662.............. 6-14 A-7
- 380. Numerical Index *Not a complete item number – refer to page noted. { Previous item number –see product page for new item number The Vollrath Company, LLC ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE 71001.............. 3-14 72522.............. 3-10 72748* ............ 4-16 75202.............. 6-16 75719W .......... 5-18 77746................ 7-9 80150.............. 9-38 82371.............. 9-36 71500.............. 3-24 72542.............. 3-20 72788.............. 3-11 75204.............. 6-16 75725.............. 5-19 77747................ 7-9 80170.............. 9-38 82372.............. 9-36 72000 72543.............. 3-20 72789.............. 3-12 75210.............. 6-15 75726.............. 5-19 77750.....7-10, 7-23 80190.............. 9-38 82373.............. 9-36 72000.............. 3-13 72550.............. 3-10 72900 75220.............. 6-15 75728.............. 5-16 77754.....7-10, 7-23 81020.............. 9-60 82374.............. 9-36 72001.............. 4-21 72553.............. 3-14 72901* ............ 4-18 75230.............. 6-15 75728W .......... 5-16 77760.............. 7-10 81170.............. 9-68 82375.............. 9-36 72009.............. 3-10 72560.............. 4-21 72902* ............ 4-18 75240.............. 6-15 75729.............. 5-16 77761.............. 7-10 81180.............. 9-68 82376.............. 9-36 72017.............. 3-10 72610.............. 4-21 72903* ............ 4-18 75260.............. 6-15 75729W .......... 5-16 77780................ 7-9 81190.............. 9-68 82380.............. 9-36 72018.............. 3-10 72620.............. 3-14 72904* ............ 4-18 75360.............. 6-15 75730.............. 5-16 77790................ 7-8 82005.............. 9-46 84740.............. 8-33 72020.............. 3-10 72622.............. 3-14 72905* ............ 4-18 75460.............. 6-15 75730W .......... 5-16 77791................ 7-8 82006.............. 9-46 84750.............. 8-33 72021.............. 3-10 72625.............. 3-14 72906* ............ 4-18 75515.............. 5-14 75732.............. 5-11 77792................ 7-8 82007.............. 9-46 84760.............. 8-33 72023.............. 3-10 72626.............. 3-14 72907* ............ 4-18 75522.............. 5-49 75733.............. 5-10 78154.............. 6-19 82008.............. 9-46 84770.............. 8-33 72028.............. 3-15 72630.............. 3-10 72908* ............ 4-18 75523.............. 5-49 75733W .......... 5-10 78164.............. 6-19 82009.............. 9-46 84780.............. 8-33 72029.............. 3-15 72701* ............ 4-16 72909* ............ 4-18 75524.............. 5-49 75734.............. 5-10 78174.............. 6-19 82020.............. 9-60 86100 72040.............. 3-15 72702* ............ 4-16 72910* ............ 4-18 75525.............. 5-49 75734W .......... 5-10 78180.............. 7-22 82030.............. 9-60 86100.............. 9-70 72045.............. 3-15 72703* ............ 4-16 72911* ............ 4-18 75670.............. 5-11 75739.............. 5-15 78184.....3-20, 6-19 82040.............. 9-60 86101.............. 9-70 72050.............. 3-11 72704* ............ 4-16 72912* ............ 4-18 75670W .......... 5-11 75739W .......... 5-15 78194.............. 6-19 82060.............. 9-34 86103.............. 9-70 72051.............. 3-11 72705* ............ 4-16 72913* ............ 4-18 75671.............. 5-14 76999.............. 5-19 78200.............. 7-22 82061.............. 9-34 86104.............. 9-70 72055.............. 3-11 72706* ............ 4-16 72914* ............ 4-18 75671W .......... 5-14 77000 78204.....3-20, 6-19 82062.............. 9-34 86105.............. 9-70 72056.............. 3-11 72707* ............ 4-16 72915* ............ 4-18 75672.............. 5-14 77020.............. 7-21 78321.............. 7-22 82066.............. 9-34 86106.............. 9-70 72060.............. 7-45 72708* ............ 4-16 72916* ............ 4-18 75672W .......... 5-14 77021.............. 7-21 78331.............. 7-22 82067.............. 9-34 86107.............. 9-70 72090.............. 3-12 72709* ............ 4-16 72917* ............ 4-18 75673.............. 5-14 77022.............. 7-21 78341.............. 7-22 82068.............. 9-34 86108.............. 9-70 72105.............. 4-21 72710* ............ 4-16 72918* ............ 4-18 75673W .......... 5-14 77023.............. 7-21 78351.............. 7-22 82075.............. 9-50 86109.............. 9-70 72107.............. 4-21 72711* ............ 4-16 72919* ............ 4-18 75674................ 5-8 77070.............. 7-22 78371.............. 7-22 82090.............. 9-34 86110.............. 9-70 72109.............. 4-21 72712* ............ 4-16 72920* ............ 4-18 75674W ............ 5-8 77072.....7-21, 7-22 78421.............. 7-22 82091.............. 9-34 86111.............. 9-70 72111.............. 4-21 72713* ............ 4-16 72921* ............ 4-18 75675................ 5-8 77073.............. 7-22 78431.............. 7-22 82092.............. 9-34 86113.............. 9-70 72112.............. 4-21 72714* ............ 4-16 72922* ............ 4-18 75675W ............ 5-8 77110.............. 7-22 78441.............. 7-22 82093.............. 9-34 86114.............. 9-70 72120.............. 8-33 72715* ............ 4-16 72923* ............ 4-18 75676.............. 5-13 77112.....7-21, 7-22 78451.............. 7-22 82094.............. 9-34 86115.............. 9-70 72165.............. 3-20 72716* ............ 4-16 72924* ............ 4-18 75677.............. 5-13 77113.............. 7-22 78471.............. 7-22 82095.............. 9-34 86116.............. 9-70 72166.............. 3-20 72717* ............ 4-16 72925* ............ 4-18 75678W .......... 5-13 77130.............. 7-22 78560.....7-21, 7-22 82096.............. 9-34 86117.............. 9-70 72170.............. 3-20 72718* ............ 4-16 72926* ............ 4-18 75679.............. 5-12 77133.............. 7-22 78580.....7-21, 7-22 82097.............. 9-34 86118.............. 9-70 72171.............. 3-20 72719* ............ 4-16 72927* ............ 4-18 75679W .......... 5-12 77200.....6-17, 9-30 78600.............. 7-21 82098.............. 9-34 86119.............. 9-70 72175.............. 3-20 72720* ............ 4-16 72928* ............ 4-18 75680................ 5-9 77250.............. 6-15 78610.....7-21, 7-22 82100 86120.............. 9-70 72176.............. 3-20 72721* ............ 4-16 72929* ............ 4-18 75680W ............ 5-9 77400.............. 6-17 78620.............. 7-21 82100.............. 9-36 86121.............. 9-70 72180.............. 3-20 72722* ............ 4-16 72930* ............ 4-18 75681................ 5-9 77430.............. 6-17 78630.............. 7-21 82101.............. 9-36 86123.............. 9-70 72181.............. 3-20 72723* ............ 4-16 72958.............. 3-13 75681W ............ 5-9 77500.............. 6-17 78640.............. 7-21 82102.............. 9-36 86124.............. 9-70 72185.............. 3-20 72724* ............ 4-16 72959.............. 3-13 75682................ 5-9 77519................ 7-9 78672.....7-21, 7-22 82110.............. 9-36 86125.............. 9-70 72190.............. 3-20 72725* ............ 4-16 74100.............. 6-10 75682W ............ 5-9 77520................ 7-9 78682.............. 7-21 82111.............. 9-36 86126.............. 9-70 72196.....3-10, 3-20 72726* ............ 4-16 74200.............. 6-10 75683.............. 5-20 77521................ 7-9 78702.............. 7-21 82120.............. 9-36 86127.............. 9-70 72221....3-10, 3-15, 72727* ............ 4-16 74262.............. 6-16 75685.............. 5-20 77522................ 7-9 78710.............. 6-19 82121.............. 9-36 86128.............. 9-70 ........................ 3-17 72728* ............ 4-16 74264.............. 6-16 75690................ 5-8 77523................ 7-9 78720.............. 6-19 82122.............. 9-36 86129.............. 9-70 72222.............. 3-21 72729* ............ 4-16 74300 75700.............. 5-12 77530.............. 7-10 78725.............. 6-19 82123.............. 9-36 86280.............. 9-69 72227.....6-18, 6-20 72730* ............ 4-16 74300.............. 6-10 75700W .......... 5-12 77560.............. 7-21 78730.............. 6-19 82130.............. 9-36 86282.............. 9-69 72228.....6-18, 6-20 72731* ............ 4-16 75012.....3-11, 6-16 75701.............. 5-12 77572.............. 7-21 78740.............. 6-19 82131.............. 9-36 86300 72231.....3-17, 3-19 72732* ............ 4-16 75013.......6-4, 6-16 75701W .......... 5-12 77580.............. 7-21 78760.............. 6-19 82132.............. 9-36 86326.............. 9-69 72240.............. 8-33 72733* ............ 4-16 75015.......6-4, 6-16 75705.............. 5-13 77600 78780.............. 6-19 82144.............. 9-49 86328.............. 9-69 72241.....3-24, 5-45 72734* ............ 4-16 75020.............. 6-16 75710.............. 5-17 77600.............. 7-21 78820.............. 6-19 82146.............. 9-49 86330.............. 9-69 72242.....3-24, 5-45 72735* ............ 4-16 75025.............. 6-13 75710W .......... 5-17 77610.............. 7-21 79000 82150.....9-49, 9-65 86331.............. 9-69 72255.............. 6-19 72736* ............ 4-16 75050.............. 6-15 75711.............. 5-17 77620.............. 7-21 79001.............. 8-30 82166.............. 9-35 86333.............. 9-69 72256.............. 6-19 72737* ............ 4-16 75060.............. 7-46 75711W .......... 5-17 77630.............. 7-21 79002.............. 8-30 82167.............. 9-35 86334.............. 9-69 72425.............. 3-14 72738* ............ 4-16 75061.............. 7-46 75713.............. 5-17 77640.............. 7-21 79018.............. 8-30 82168.............. 9-35 86336.............. 9-69 72430.............. 3-14 72739* ............ 4-16 75062.............. 7-46 75713W .......... 5-17 77662.............. 7-21 79120.............. 7-22 82169.............. 9-35 86338.............. 9-69 72459.............. 3-20 72740* ............ 4-16 75070.............. 7-46 75714.............. 5-17 77682.............. 7-21 79220.............. 7-22 82170.............. 9-35 86339.............. 9-69 72462.............. 3-20 72741* ............ 4-16 75071.............. 7-46 75714W .......... 5-17 77702.............. 7-21 79300.............. 8-30 82171.............. 9-35 86341.............. 9-69 72500 72742* ............ 4-16 75072.............. 7-46 75716.............. 5-18 77739................ 7-8 79301.............. 8-30 82172.............. 9-35 86350.............. 9-69 72500.............. 3-24 72743* ............ 4-16 75080.............. 7-46 75716W .......... 5-18 77740................ 7-8 79302.............. 8-30 82173.............. 9-35 86351.............. 9-69 72511.............. 3-20 72744* ............ 4-16 75110.............. 6-15 75717.............. 5-18 77741................ 7-8 79450.............. 8-30 82366.............. 9-36 86352.............. 9-69 72517.............. 3-10 72745* ............ 4-16 75120.............. 6-15 75717W .......... 5-18 77742................ 7-8 79540.............. 8-31 82367.............. 9-36 86353.............. 9-69 72518.............. 3-10 72746* ............ 4-16 75130.............. 6-15 75718.............. 5-18 77743................ 7-8 79800.............. 8-30 82368.............. 9-36 86360.............. 9-69 72521.............. 3-10 72747* ............ 4-16 75140.............. 6-15 75718W .......... 5-18 77744................ 7-9 79818.............. 8-30 82369.............. 9-36 86361.............. 9-69 75160.............. 6-15 75719.............. 5-18 77745................ 7-9 80130.............. 9-38 82370.............. 9-36 89261* ............ 5-38 A-8
- 381. vollrathco.com *Not a complete item number – refer to page noted. { Previous item number –see product page for new item number Numerical Index ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE 89262* ............ 5-38 90262................ 6-6 93500.............. 6-10 97112............ 10-23 97370.............. 5-24 98653* ............ 5-37 1789772.......... 4-20 3640480............ 4-6 89263* ............ 5-38 90263................ 6-9 93600.............. 6-10 97120............ 10-20 97375.............. 5-24 98654* ............ 5-37 2100324P ....... 1-10 3640481............ 4-6 89264* ............ 5-38 90282................ 6-6 93900.............. 6-10 97121............ 10-20 97376.............. 5-24 98703.............. 9-41 2100325P ....... 1-10 3640501............ 4-6 89266* ............ 5-38 90302.......6-6, 9-35 94100.............. 6-10 97125............ 10-20 97391.............. 5-24 98704.............. 9-41 2100326P ....... 1-10 3640510............ 4-6 89267* ............ 5-38 90312................ 6-6 94110.............. 6-10 97126............ 10-20 97392.............. 5-24 98707.............. 5-27 2897451-2 ...... 5-44 3640511............ 4-6 89268* ............ 5-38 90313................ 6-9 94200.............. 6-10 97140............ 10-20 97393.............. 5-24 98708.............. 5-27 2897452-2 ...... 5-44 3640550............ 4-6 89269* ............ 5-38 90322................ 6-6 94300.............. 6-10 97160............ 10-22 98400 98709.............. 9-41 3100000 3640551............ 4-6 89271* ............ 5-38 90323................ 6-9 94400.............. 6-10 97161............ 10-22 98401* ............ 5-35 98710.............. 5-27 3100020............ 6-4 3640560............ 4-6 89272* ............ 5-38 90327................ 6-9 94500.............. 6-10 97166............ 10-22 98402* ............ 5-35 98711.............. 5-28 3100040............ 6-4 3640561............ 4-6 89273* ............ 5-38 90342................ 6-6 94600.............. 6-10 97167............ 10-22 98403* ............ 5-35 98744-5 .......... 5-20 3100220............ 6-4 3640570............ 4-6 89274* ............ 5-38 90343................ 6-9 94900.............. 6-10 97168............ 10-22 98404* ............ 5-35 98790.............. 5-44 3100240............ 6-4 3640571............ 4-6 89281* ............ 5-38 90347................ 6-9 95000 97180............ 10-24 98406* ............ 5-35 98829.............. 5-43 3100320............ 6-4 3640580............ 4-6 89282* ............ 5-38 90352................ 6-6 95100.............. 6-10 97181............ 10-24 98407* ............ 5-35 98831.............. 5-43 3100321............ 6-4 3640581............ 4-6 89283* ............ 5-38 90362................ 6-6 95160.............. 8-31 97182............ 10-24 98408* ............ 5-35 98835.............. 5-30 3100340............ 6-4 3640610............ 4-6 89284* ............ 5-38 90363................ 6-9 95200.............. 6-10 97186............ 10-22 98409* ............ 5-35 98836.............. 5-30 3100341...6-4, 7-45 3640650............ 4-6 89286* ............ 5-38 90367................ 6-9 95300.............. 6-10 97190............ 10-16 98411* ............ 5-35 98851.............. 5-43 3101020............ 6-4 3640660............ 4-6 89287* ............ 5-38 90382................ 6-6 95320.............. 8-31 97191............ 10-16 98412* ............ 5-35 98852.............. 5-43 3101040............ 6-4 3640670............ 4-6 89288* ............ 5-38 90402.......6-6, 9-35 95600.............. 6-10 97200............ 10-21 98413* ............ 5-35 98855-2 .......... 5-44 3101120............ 6-4 3640680............ 4-6 89289* ............ 5-38 90412................ 6-6 95640.............. 8-31 97201............ 10-21 98414* ............ 5-35 98888.............. 5-27 3101220............ 6-4 3640701............ 4-6 89401.............. 5-35 90422................ 6-6 97004............ 10-23 97202............ 10-21 98416* ............ 5-35 99000 3101240............ 6-4 3640710............ 4-6 89402.............. 5-35 90427................ 6-9 97005............ 10-23 97203............ 10-21 98417* ............ 5-35 99262.............. 9-67 3102020............ 6-4 3640711............ 4-6 89403.............. 5-35 90442................ 6-6 97006............ 10-23 97205............ 10-21 98418* ............ 5-35 99305.............. 5-29 3102040............ 6-4 3640750............ 4-6 89404.............. 5-35 90447................ 6-9 97007............ 10-23 97206............ 10-21 98419* ............ 5-35 99615.............. 9-67 3102120............ 6-4 3640751............ 4-6 90000 90452................ 6-6 97008............ 10-25 97207............ 10-21 98446* ............ 5-36 99636.............. 9-67 3102220............ 6-4 3640760............ 4-6 90002.......6-5, 9-35 90462................ 6-6 97009............ 10-25 97208............ 10-21 98447* ............ 5-36 99637.............. 9-67 3102240............ 6-4 3640761............ 4-6 90012................ 6-5 90482................ 6-6 97013.............. 5-24 97211............ 10-21 98448* ............ 5-36 99700............ 10-19 3103040...6-4, 7-45 3640770............ 4-6 90013................ 6-9 90502.......6-6, 9-35 97014.............. 5-24 97212.............. 5-24 98449* ............ 5-36 99710............ 10-17 3533880........ 10-16 3640771............ 4-6 90017................ 6-9 90512................ 6-6 97025.............. 5-24 97215.............. 5-24 98451* ............ 5-36 99720............ 10-17 3533980........ 10-16 3640780............ 4-6 90022......6-5, 9-18, 90522................ 6-6 97026.............. 5-24 97216.............. 5-24 98452* ............ 5-36 99740.............. 9-31 3639901............ 4-5 3640781............ 4-6 .... 9-19, 9-21, 9-22, 90527................ 6-9 97027.............. 5-24 97220.............. 5-24 98453* ............ 5-36 99745....9-29, 9-30, 3639910............ 4-5 3640801............ 4-7 .... 9-23, 9-27, 9-28, 90542................ 6-6 97030.............. 5-24 97221.............. 5-24 98454* ............ 5-36 ........................ 9-31 3639911............ 4-5 3640810............ 4-7 ..... 9-29, 9-30, 9-31 90547................ 6-9 97035............ 10-25 97222.............. 5-24 98456* ............ 5-36 99765.............. 5-48 3639950............ 4-5 3640811............ 4-7 90023................ 6-9 90552................ 6-6 97036............ 10-25 97223.............. 5-24 98457* ............ 5-36 99780.............. 5-48 3639951............ 4-5 3640850............ 4-7 90027................ 6-9 90562................ 6-6 97037............ 10-25 97233.............. 5-24 98458* ............ 5-36 99785.............. 5-48 3639960............ 4-5 3640851............ 4-7 90042................ 6-5 90622................ 6-6 97040.............. 5-24 97240............ 10-17 98459* ............ 5-36 99850.............. 9-30 3639961............ 4-5 3640860............ 4-7 90043................ 6-9 90627................ 6-9 97043.............. 5-24 97241............ 10-17 98461* ............ 5-36 99860.............. 9-30 3639970............ 4-5 3640861............ 4-7 90047................ 6-9 90642................ 6-6 97045.............. 5-24 97280............ 10-24 98462* ............ 5-36 99869.............. 9-30 3639971............ 4-5 3640870............ 4-7 90052................ 6-5 90647................ 6-9 97046.............. 5-24 97285............ 10-18 98463* ............ 5-36 99870.............. 9-30 3639980............ 4-5 3640871............ 4-7 90053................ 6-9 90662................ 6-6 97047.............. 5-24 97286............ 10-24 98464* ............ 5-36 99873.............. 9-30 3639981............ 4-5 3640880............ 4-7 90062................ 6-5 90667................ 6-9 97050.............. 5-24 97290............ 10-24 98607.............. 5-39 99880.............. 9-31 3640000 3640881............ 4-7 90063................ 6-9 90682................ 6-6 97057.............. 5-24 97299.............. 9-63 98616.............. 5-30 430000 3640001............ 4-5 3640901............ 4-7 90082................ 6-5 90922................ 6-6 97060.............. 5-24 97300 98617.............. 5-30 430712............ 7-33 3640010............ 4-5 3640910............ 4-7 90100 90942................ 6-6 97061.............. 5-24 97300............ 10-18 98622.............. 5-40 434112............ 7-35 3640011............ 4-5 3640911............ 4-7 90102.......6-5, 9-35 92002.......6-5, 9-35 97065.............. 5-24 97312.............. 5-24 98623.............. 5-40 434212............ 7-35 3640050............ 4-5 3640950............ 4-7 90112................ 6-5 92012................ 6-5 97066.............. 5-24 97313.............. 5-24 98624.............. 5-40 434312............ 7-35 3640051............ 4-5 3640951............ 4-7 90122................ 6-5 92020.............. 9-60 97067.............. 5-24 97314.............. 5-24 98625.............. 5-40 434412............ 7-35 3640060............ 4-5 3640960............ 4-7 90142................ 6-5 92022................ 6-5 97070.............. 5-24 97320............ 10-20 98626* ............ 5-37 434512............ 7-35 3640061............ 4-5 3640961............ 4-7 90162................ 6-5 92042................ 6-5 97075.............. 5-24 97326............ 10-20 98627* ............ 5-37 434812............ 7-35 3640070............ 4-5 3640970............ 4-7 90182................ 6-5 92052................ 6-5 97076.............. 5-24 97330.............. 5-24 98628* ............ 5-37 448212............ 7-42 3640071............ 4-5 3640971............ 4-7 90202.......6-6, 9-35 92062................ 6-5 97077.............. 5-24 97340.............. 5-24 98633* ............ 5-37 448312{ ........ 7-42 3640080............ 4-5 3640980............ 4-7 90212................ 6-6 92070.............. 9-66 97080.............. 5-24 97343.............. 5-24 98634* ............ 5-37 566445............ 7-34 3640081............ 4-5 3640981............ 4-7 90213................ 6-9 92080.............. 9-66 97084.............. 5-24 97345.............. 5-24 98635* ............ 5-37 1789718.......... 4-20 3640401............ 4-6 3646210 90217................ 6-9 92082................ 6-5 97085.............. 5-24 97346.............. 5-24 98636* ............ 5-37 1789724.......... 4-20 3640410............ 4-6 3646210.......... 4-11 90222................ 6-6 92110.....8-25, 9-54 97086.............. 5-24 97347.............. 5-24 98637* ............ 5-37 1789730.......... 4-20 3640411............ 4-6 3646310.......... 4-11 90223................ 6-9 92320.............. 8-36 97100 97350.............. 5-24 98638* ............ 5-37 1789736.......... 4-20 3640450............ 4-6 3646410.......... 4-11 90227................ 6-9 93100.............. 6-10 97101............ 10-23 97357.............. 5-24 98639* ............ 5-37 1789742.......... 4-20 3640451............ 4-6 3646510.......... 4-11 90242................ 6-6 93110.............. 6-10 97102............ 10-23 97360.............. 5-24 98640* ............ 5-37 1789748.......... 4-20 3640460............ 4-6 3646601............ 4-5 90243................ 6-9 93200.............. 6-10 97105............ 10-22 97365.............. 5-24 98650* ............ 5-37 1789754.......... 4-20 3640461............ 4-6 3646610............ 4-5 90247................ 6-9 93300.............. 6-10 97106............ 10-22 97366.............. 5-24 98651* ............ 5-37 1789760.......... 4-20 3640470............ 4-6 3646611............ 4-5 90252................ 6-6 93400.............. 6-10 97111............ 10-23 97367.............. 5-24 98652* ............ 5-37 1789766.......... 4-20 3640471............ 4-6 3646660............ 4-5 A-9
- 382. Numerical Index *Not a complete item number – refer to page noted. { Previous item number –see product page for new item number The Vollrath Company, LLC ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE 3646661............ 4-5 3665000 3877160.......... 5-47 4780920.......... 8-21 4970510.......... 8-14 5200311.......... 8-26 6420000 7203006.......... 3-17 3646680............ 4-5 3665020............ 4-4 3877260.......... 5-47 4780922.......... 8-22 4970520.......... 8-14 5200330.......... 8-26 6422120............ 8-9 7203007.......... 3-17 3646681............ 4-5 3665030............ 4-4 3877346.......... 5-47 4780930.......... 8-21 4970610.......... 8-14 5200340.......... 8-26 6422220............ 8-9 7203101.......... 3-17 3646701............ 4-5 3665120............ 4-4 3877446.......... 5-47 4780940.......... 8-21 4970620.......... 8-14 5200350.......... 8-26 6422230............ 8-9 7203102.......... 3-17 3646710............ 4-5 3665130............ 4-4 3877546.......... 5-47 4780950.......... 8-21 4971510.......... 8-14 5200360.......... 8-26 6422320............ 8-9 7203103.......... 3-17 3646711............ 4-5 3702800.......... 3-19 3877660.......... 5-47 4780960.......... 8-21 4971520.......... 8-14 5200370.......... 8-26 6422335............ 8-9 7203104.......... 3-17 3646760............ 4-5 3702801.......... 3-19 3877760.......... 5-47 4780970.......... 8-21 4980000 5283515.......... 8-10 6422420............ 8-9 7203105.......... 3-17 3646761............ 4-5 3702802.......... 3-19 3877860.......... 5-47 4781210.......... 8-22 4980010......... 8-13, 5283520.......... 8-10 6422445............ 8-9 7203106.......... 3-17 3646780............ 4-5 3702803.......... 3-19 3890000 4781212.......... 8-22 ........................ 8-14 5283615.......... 8-10 6422520............ 8-9 7203107.......... 3-17 3646781............ 4-5 3702804.......... 3-19 3892646.......... 5-48 4781220.......... 8-21 4980020......... 8-13, 5283620.......... 8-10 6422620............ 8-9 7203201.......... 3-17 3647110............ 4-5 3702805.......... 3-19 3892746.......... 5-48 4781222.......... 8-22 ........................ 8-14 5283715.......... 8-10 6422655............ 8-9 7203202.......... 3-17 3647160............ 4-5 3702806.......... 3-19 3892846.......... 5-48 4781230.......... 8-21 4980110.......... 8-13 5283720.......... 8-10 6422820............ 8-9 7203203.......... 3-17 3647180............ 4-5 3702807.......... 3-19 3893060.......... 5-48 4781240.......... 8-21 4980120.......... 8-13 5283815.......... 8-10 6422865............ 8-9 7203204.......... 3-17 3647210............ 4-5 3870146.......... 5-48 3893160.......... 5-48 4781250.......... 8-21 4980210.......... 8-13 5283820.......... 8-10 6432120............ 8-8 7203205.......... 3-17 3647250............ 4-5 3870246.......... 5-48 3893260.......... 5-48 4781260.......... 8-21 4980220.......... 8-13 5283915.......... 8-10 6432220............ 8-8 7203206.......... 3-17 3647260............ 4-5 3870346.......... 5-48 3893546.......... 5-47 4781270.......... 8-21 4980230.......... 8-13 5283920.......... 8-10 6432230............ 8-8 7203207.......... 3-17 3647270............ 4-5 3870460.......... 5-48 3893646.......... 5-47 4781610.......... 8-22 4980310.......... 8-13 5284015.......... 8-10 6432320............ 8-8 7255000.......... 3-18 3647280............ 4-5 3870560.......... 5-48 3893746.......... 5-47 4781612.......... 8-22 4980320.......... 8-13 5284020.......... 8-10 6432335............ 8-8 7255001.......... 3-18 3647310............ 4-6 3870660.......... 5-48 3894560.......... 5-47 4781620.......... 8-21 4980322.......... 8-15 5284115.......... 8-24 6432420............ 8-8 7255010.......... 3-18 3647350............ 4-6 3870746.......... 5-47 3894660.......... 5-47 4781622.......... 8-22 4980335.......... 8-13 5284120.......... 8-24 6432445............ 8-8 7255011.......... 3-18 3647360............ 4-6 3870846.......... 5-47 3894760.......... 5-47 4781630.......... 8-21 4980410.......... 8-13 5284215.......... 8-20 6432520............ 8-8 7255020.......... 3-18 3647370............ 4-6 3870946.......... 5-47 3895046.......... 5-47 4781640.......... 8-21 4980420.......... 8-13 5284220.......... 8-20 6432620............ 8-8 7255021.......... 3-18 3647380............ 4-6 3871060.......... 5-47 3895146.......... 5-47 4781650.......... 8-21 4980422.......... 8-15 5284315.......... 8-20 6432655............ 8-8 7263000.......... 3-18 3647410............ 4-6 3871160.......... 5-47 3895246.......... 5-47 4781660.......... 8-21 4980445.......... 8-13 5284320.......... 8-20 6432820............ 8-8 7263001.......... 3-18 3647450............ 4-6 3871260.......... 5-47 3896060.......... 5-47 4781670.......... 8-21 4980510.......... 8-13 5292615.......... 8-10 6432865............ 8-8 7263010.......... 3-18 3647460............ 4-6 3871346.......... 5-47 3896160.......... 5-47 4790910.......... 8-22 4980520.......... 8-13 5292620.......... 8-10 6433120............ 8-8 7263011.......... 3-18 3647470............ 4-6 3871446.......... 5-47 3896260.......... 5-47 4790920.......... 8-21 4980610.......... 8-13 5292715.......... 8-10 6433220............ 8-8 7263020.......... 3-18 3647480............ 4-6 3871546.......... 5-47 4450609.......... 4-20 4790930.......... 8-21 4980620.......... 8-13 5292720.......... 8-10 6433230............ 8-8 7263021.......... 3-18 3647510............ 4-7 3871660.......... 5-47 4450613.......... 4-20 4790940.......... 8-21 4980622.......... 8-15 5292815.......... 8-10 6433320............ 8-8 7270000 3647550............ 4-7 3871760.......... 5-47 4634010.......... 9-18 4790950.......... 8-21 4980655.......... 8-13 5292820.......... 8-10 6433335............ 8-8 7277024.......... 3-24 3647560............ 4-7 3871860.......... 5-47 4634020-1 ...... 9-18 4790960.......... 8-21 4980810.......... 8-13 5292915.......... 8-10 6433420............ 8-8 7277036.......... 3-24 3647570............ 4-7 3872146.......... 5-48 4634110.......... 9-18 4790970.......... 8-21 4980820.......... 8-13 5292920.......... 8-10 6433445............ 8-8 7277048.......... 3-24 3647580............ 4-7 3872246.......... 5-48 4635110.......... 9-18 4791210.......... 8-22 4980822.......... 8-15 5293315.......... 8-10 6433520............ 8-8 7277060.......... 3-24 3647610............ 4-7 3872346.......... 5-48 4635210.......... 9-18 4791220.......... 8-21 4980865.......... 8-13 5293320.......... 8-10 6433620............ 8-8 7277124.......... 3-24 3647650............ 4-7 3872460.......... 5-48 4635310.......... 9-18 4791230.......... 8-21 4981210.......... 8-13 5293415.......... 8-10 6433655............ 8-8 7277136.......... 3-24 3647660............ 4-7 3872560.......... 5-48 4635410.......... 9-18 4791240.......... 8-21 4981220.......... 8-13 5293420.......... 8-10 6433820............ 8-8 7277148.......... 3-24 3647670............ 4-7 3872660.......... 5-48 4635420-1 ...... 9-18 4791250.......... 8-21 4981510.......... 8-13 5950145........... 2-5, 6433865............ 8-8 7277160.......... 3-24 3647680............ 4-7 3872746.......... 5-47 4635430-1 ...... 9-18 4791260.......... 8-21 4981520.......... 8-13 ........................ 4-12 6950020............ 2-8 7286000.......... 4-19 3664020............ 4-4 3872846.......... 5-47 4635510.......... 9-18 4791270.......... 8-21 4982410.......... 8-13 6412120............ 8-9 6951020............ 2-8 7286002.......... 4-19 3664030............ 4-4 3872946.......... 5-47 4635710.......... 9-18 4791610.......... 8-22 4982420.......... 8-13 6412220............ 8-9 6954301............ 2-7 7286100.......... 4-19 3664120............ 4-4 3873060.......... 5-47 4635720-1 ...... 9-18 4791620.......... 8-21 4987210.......... 8-13 6412230............ 8-9 6954302............ 2-7 7286102.......... 4-19 3664130............ 4-4 3873160.......... 5-47 4635730-1 ...... 9-18 4791630.......... 8-21 4987220.......... 8-13 6412320............ 8-9 6954303............ 2-7 7286200.......... 4-19 3664220............ 4-4 3873260.......... 5-47 4635810.......... 9-18 4791640.......... 8-21 4987510.......... 8-13 6412335............ 8-9 6954304............ 2-7 7286201.......... 4-19 3664230............ 4-4 3873346.......... 5-47 4689760.......... 8-19 4791650.......... 8-21 4987520.......... 8-13 6412420............ 8-9 6954701............ 2-7 7286202.......... 4-19 3664320............ 4-4 3873446.......... 5-47 4689815.......... 8-19 4791660.......... 8-21 5200000 6412445............ 8-9 6954702............ 2-7 7286203.......... 4-19 3664330............ 4-4 3873546.......... 5-47 4689830.......... 8-19 4791670.......... 8-21 5200000.......... 8-26 6412520............ 8-9 6954703............ 2-7 7286300.......... 4-19 3664420............ 4-4 3873660.......... 5-47 4689840.......... 8-19 4808715.......... 8-24 5200011.......... 8-26 6412620............ 8-9 6954704............ 2-7 7286301.......... 4-19 3664430............ 4-4 3873760.......... 5-47 4689850.......... 8-19 4808720.......... 8-24 5200030.......... 8-26 6412655............ 8-9 7200000 7286302.......... 4-19 3664520............ 4-4 3873860.......... 5-47 4689860.......... 8-19 4808815.......... 8-24 5200040.......... 8-26 6412820............ 8-9 7202000* ........ 3-18 7286303.......... 4-19 3664530............ 4-4 3876146.......... 5-48 4689960.......... 8-19 4808820.......... 8-24 5200050.......... 8-26 6412865............ 8-9 7202001* ........ 3-18 7286400.......... 4-19 3664620............ 4-4 3876246.......... 5-48 4760000 4808915.......... 8-24 5200060.......... 8-26 6414015.......... 8-19 7202010* ........ 3-18 7286401.......... 4-19 3664630............ 4-4 3876346.......... 5-48 4761401.......... 9-53 4808920.......... 8-24 5200070.......... 8-26 6414030.......... 8-19 7202011* ........ 3-18 7286402.......... 4-19 3664720............ 4-4 3876460.......... 5-48 4761402.......... 9-53 4970110.......... 8-14 5200200.......... 8-26 6414040.......... 8-19 7202020* ........ 3-18 7286403.......... 4-19 3664730............ 4-4 3876560.......... 5-48 4761801.......... 9-53 4970120.......... 8-14 5200211.......... 8-26 6414050.......... 8-19 7202021* ........ 3-18 7286500 3664820............ 4-4 3876660.......... 5-48 4761802.......... 9-53 4970210.......... 8-14 5200230.......... 8-26 6414070.......... 8-19 7203001.......... 3-17 7286500.......... 4-19 3664830............ 4-4 3876746.......... 5-47 4762301.......... 9-53 4970220.......... 8-14 5200240.......... 8-26 6414215.......... 8-19 7203002.......... 3-17 7286501.......... 4-19 3664920............ 4-4 3876846.......... 5-47 4762302.......... 9-53 4970310.......... 8-14 5200250.......... 8-26 6414230.......... 8-19 7203003.......... 3-17 7286502.......... 4-19 3664930............ 4-4 3876946.......... 5-47 4780910.......... 8-22 4970320.......... 8-14 5200260.......... 8-26 6414240.......... 8-19 7203004.......... 3-17 7286503.......... 4-19 3877060.......... 5-47 4780911.......... 8-21 4970410.......... 8-14 5200270.......... 8-26 6414250.......... 8-19 7203005.......... 3-17 7286600.......... 4-19 4780912.......... 8-22 4970420.......... 8-14 5200300.......... 8-26 6414270.......... 8-19 7286601.......... 4-19 A-10
- 383. vollrathco.com *Not a complete item number – refer to page noted. { Previous item number –see product page for new item number Numerical Index ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE 7286602.......... 4-19 8062410............ 6-7 8240516.......... 9-11 8242600 9032420............ 6-8 72672019........ 3-22 CB98637* ........ 4-6, FB89403* ......... 4-7, 7286603.......... 4-19 8062420............ 6-7 8240610.......... 9-11 8242610............ 9-7 9034410............ 6-8 72672119........ 3-22 ..... 4-24, 4-29, 5-37 ...............4-27, 5-35 7286700.......... 4-19 8064410............ 6-7 8240612.......... 9-11 8242612............ 9-7 9034420............ 6-8 72674019........ 3-22 CB98638* ........ 4-6, FB89404* ......... 4-7, 7286701.......... 4-19 8064420............ 6-7 8240614.......... 9-11 8242614............ 9-7 9036410............ 6-8 72674119........ 3-22 ..... 4-24, 4-29, 5-37 ...............4-27, 5-35 7286702.......... 4-19 8066410............ 6-7 8240616.......... 9-11 8242616............ 9-7 9036420............ 6-8 72675019........ 3-22 CB98639* ........ 4-7, FFA7020.......... 2-18 7286703.......... 4-19 8066420............ 6-7 8240710.......... 9-11 8242710............ 9-7 9038410............ 6-8 72675119........ 3-22 ..... 4-24, 4-29, 5-37 FFA7110.......... 2-18 7286800.......... 4-19 8092410............ 6-7 8240712.......... 9-11 8242712............ 9-7 9038420............ 6-8 72677019........ 3-22 CB98640* ........ 4-7, FFA8020.......... 2-18 7286801.......... 4-19 8092420............ 6-7 8240714.......... 9-11 8242714............ 9-7 9042410............ 6-8 72677119........ 3-22 ..... 4-24, 4-29, 5-37 FFA8110.......... 2-18 7286802.......... 4-19 8094410............ 6-7 8240716.......... 9-11 8242716............ 9-7 9042420............ 6-8 72678019........ 3-22 CB98650* ........ 4-6, FFA8115.......... 2-18 7286803.......... 4-19 8094420............ 6-7 8240910.......... 9-11 8242810............ 9-7 9044410............ 6-8 72678119........ 3-22 ..... 4-24, 4-29, 5-37 FFA8130.......... 2-18 7286900.......... 4-19 8203510.......... 9-13 8240912.......... 9-11 8242812............ 9-7 9044420............ 6-8 72680019........ 3-22 CB98651* ........ 4-6, FMA7026 .......... 3-5 7286901.......... 4-19 8230010.......... 9-13 8240914.......... 9-11 8242814............ 9-7 9046410............ 6-8 72680119........ 3-22 ..... 4-24, 4-29, 5-37 FMA7036 .......... 3-5 7286902.......... 4-19 8230110.......... 9-13 8240916.......... 9-11 8242816............ 9-7 9046420............ 6-8 72681019........ 3-22 CB98652* ........ 4-6, FMA7048 .......... 3-5 7286903.......... 4-19 8230210.......... 9-13 8241000 8242914............ 9-7 9052410............ 6-8 72681119........ 3-22 ..... 4-24, 4-29, 5-37 FTA1024.......... 2-12 7552280.......... 5-49 8230305.......... 9-12 8241110.......... 9-11 8242916............ 9-7 9052420............ 6-8 72683019........ 3-22 CB98653* ........ 4-7, FTA1036.......... 2-12 7552281.......... 5-49 8230310.......... 9-12 8241112.......... 9-11 8243014............ 9-7 9054410............ 6-8 72683119........ 3-22 ..... 4-24, 4-29, 5-37 FTA7016.......... 2-12 7552282.......... 5-49 8230405.......... 9-12 8241114.......... 9-11 8243016............ 9-7 9054420............ 6-8 72684019........ 3-22 CB98654* ........ 4-7, FTA8024.......... 2-12 7552283.......... 5-49 8230410.......... 9-12 8241116.......... 9-11 8250014.......... 9-10 9062410............ 6-8 72684119........ 3-22 ..... 4-24, 4-29, 5-37 FTA8036.......... 2-12 7552284.......... 5-49 8230510.......... 9-13 8241210.......... 9-11 8250016.......... 9-10 9062420............ 6-8 72686019........ 3-22 CB98660* ........ 4-5, FTG9012 ......... 2-12 7552380.......... 5-49 8230620.......... 9-13 8241212.......... 9-11 8250114.......... 9-10 9064410............ 6-8 72686119........ 3-22 ..... 4-24, 4-29, 5-37 FTG9016 ......... 2-12 7552381.......... 5-49 8230705.......... 9-12 8241214.......... 9-11 8250116.......... 9-10 9064420............ 6-8 72687019........ 3-22 CB98661* ........ 4-5, FTG9024 ......... 2-12 7552382.......... 5-49 8230720.......... 9-12 8241216.......... 9-11 8250214.......... 9-10 9066410............ 6-8 72687119........ 3-22 ..... 4-24, 4-29, 5-37 FTG9036 ......... 2-12 7552383.......... 5-49 8230805.......... 9-12 8241310.......... 9-11 8250216.......... 9-10 9066420............ 6-8 72689019........ 3-22 CB98662* ........ 4-5, FTG9048 ......... 2-12 7552384.......... 5-49 8230820.......... 9-12 8241312.......... 9-11 8250314.......... 9-10 9092410............ 6-8 72689119........ 3-22 ..... 4-24, 4-29, 5-37 FTG9060 ......... 2-12 8000000 8230905.......... 9-12 8241314.......... 9-11 8250316.......... 9-10 9092420............ 6-8 72690019........ 3-22 CB98663* ........ 4-5, G 8002410............ 6-7 8230920.......... 9-12 8241316.......... 9-11 8250414.......... 9-10 9094410............ 6-8 72690119........ 3-22 ..... 4-24, 4-29, 5-37 GB98400* ........ 4-5, 8002420............ 6-7 8231005.......... 9-12 8241410.......... 9-11 8250416.......... 9-10 9094420............ 6-8 72692019........ 3-22 CBL9012 ......... 2-11 ..... 4-23, 4-27, 5-35 8004410............ 6-7 8231020.......... 9-12 8241412.......... 9-11 8250514.......... 9-10 9728810........ 10-24 72692119........ 3-22 CBL9016 ......... 2-11 GB98401* ........ 4-6, 8004420............ 6-7 8231105.......... 9-12 8241414.......... 9-11 8250516.......... 9-10 9728820........ 10-24 72693019........ 3-22 CBL9024 ......... 2-11 ..... 4-23, 4-27, 5-35 8006410............ 6-7 8231120.......... 9-12 8241416.......... 9-11 8250614............ 9-7 9860206.......... 5-39 72693119........ 3-22 CBL9036 ......... 2-11 GB98402* ........ 4-6, 8006420............ 6-7 8231220.......... 9-13 8241510.......... 9-11 8250616............ 9-7 9861006.......... 5-39 B CBL9048 ......... 2-11 ..... 4-23, 4-27, 5-35 8008410............ 6-7 8231320.......... 9-13 8241512.......... 9-11 8250714............ 9-7 9861707.......... 5-39 BCA7003 ......... 1-11 CBL9060 ......... 2-11 GB98403* ........ 4-7, 8008420............ 6-7 8231420.......... 9-13 8241514.......... 9-11 8250716............ 9-7 9870524.......... 9-41 BCO-1 ............. 1-26 CGA8008 ......... 2-15 ..... 4-23, 4-27, 5-35 8022410............ 6-7 8231520.......... 9-12 8241516.......... 9-11 8250814............ 9-7 9870536.......... 9-41 BCO-4 ............. 1-26 CGA8016 ......... 2-15 GB98404* ........ 4-7, 8022420............ 6-7 8231610.......... 9-13 8241910.......... 9-11 8250816............ 9-7 9870548.......... 9-41 BCO-10 ........... 1-26 COA7002 ......... 2-14 ..... 4-23, 4-27, 5-35 8024410............ 6-7 8231620.......... 9-13 8241912.......... 9-11 8261710.......... 9-13 9870560.......... 9-41 BCO-11 ........... 1-26 COA8004 ......... 2-14 GB98405* ........ 4-5, 8024420............ 6-7 8231820.......... 9-12 8241914.......... 9-11 8261720.......... 9-13 9870624.......... 9-41 BCO-12 ........... 1-26 COA8005 ......... 2-14 ..... 4-23, 4-27, 5-35 8026410............ 6-7 8240010.......... 9-11 8241916.......... 9-11 8262205.......... 9-12 9870636.......... 9-41 BCO-14 ........... 1-26 E GB98406* ........ 4-6, 8026420............ 6-7 8240012.......... 9-11 8242010............ 9-7 8262220.......... 9-12 9870648.......... 9-41 BCO-15 ........... 1-26 E4007.............. 7-27 ..... 4-23, 4-27, 5-35 8028410............ 6-7 8240014.......... 9-11 8242012............ 9-7 8264205.......... 9-12 9870660.......... 9-41 BCO-2000 ....... 1-26 E4008.............. 7-27 GB98407* ........ 4-6, 8028420............ 6-7 8240016.......... 9-11 8242014............ 9-7 8264220.......... 9-12 9882001.......... 5-43 BCO-3000 ....... 1-26 E4010.............. 7-27 ..... 4-23, 4-27, 5-35 8030000 8240110.......... 9-11 8242016............ 9-7 8266205.......... 9-12 9882003.......... 5-43 BCO-5000 ....... 1-26 E4012.............. 7-27 GB98408* ........ 4-7, 8032410............ 6-7 8240112.......... 9-11 8242110............ 9-7 8266220.......... 9-12 9882004.......... 5-43 BCO-6000 ....... 1-26 E4014.............. 7-27 ..... 4-23, 4-27, 5-35 8032420............ 6-7 8240114.......... 9-11 8242112............ 9-7 9000000 9882005.......... 5-43 BCO-7000 ....... 1-26 ES4007 ........... 7-27 GB98409* ........ 4-7, 8034410............ 6-7 8240116.......... 9-11 8242114............ 9-7 9002410............ 6-8 9882006.......... 5-43 BMA7103 .......... 3-6 ES4008 ........... 7-27 ..... 4-23, 4-27, 5-35 8034420............ 6-7 8240210.......... 9-11 8242116............ 9-7 9002420............ 6-8 9882007.......... 5-43 C ES4010 ........... 7-27 GB98410* ........ 4-5, 8036410............ 6-7 8240212.......... 9-11 8242210............ 9-7 9004410............ 6-8 9882008.......... 5-43 CB98626* ........ 4-6, ES4012 ........... 7-27 ..... 4-23, 4-27, 5-35 8036420............ 6-7 8240214.......... 9-11 8242212............ 9-7 9004420............ 6-8 36500000 ..... 4-24, 4-29, 5-37 ES4014 ........... 7-27 GB98411* ........ 4-6, 8038410............ 6-7 8240216.......... 9-11 8242214............ 9-7 9006410............ 6-8 36501208.......... 4-4 CB98627* ........ 4-7, EZ4007............ 7-27 ..... 4-23, 4-27, 5-35 8038420............ 6-7 8240310.......... 9-11 8242216............ 9-7 9006420............ 6-8 36501240.......... 4-4 ..... 4-24, 4-29, 5-37 EZ4008............ 7-27 GB98412* ........ 4-6, 8042410............ 6-7 8240312.......... 9-11 8242310............ 9-7 9008410............ 6-8 36503208.......... 4-4 CB98628* ........ 4-7, EZ4010............ 7-27 ..... 4-23, 4-27, 5-35 8042420............ 6-7 8240314.......... 9-11 8242312............ 9-7 9022410............ 6-8 36503240.......... 4-4 ..... 4-24, 4-29, 5-37 EZ4012............ 7-27 GB98413* ........ 4-7, 8044410............ 6-7 8240316.......... 9-11 8242314............ 9-7 9022420............ 6-8 36504208.......... 4-4 CB98633* ........ 4-6, EZ4014............ 7-27 ..... 4-23, 4-27, 5-35 8044420............ 6-7 8240410.......... 9-11 8242316............ 9-7 9024410............ 6-8 36504240.......... 4-4 ..... 4-24, 4-29, 5-37 F GB98414* ........ 4-7, 8046410............ 6-7 8240412.......... 9-11 8242410............ 9-7 9024420............ 6-8 36505208.......... 4-4 CB98634* ........ 4-6, FB89400* ......... 4-5, ..... 4-23, 4-27, 5-35 8046420............ 6-7 8240414.......... 9-11 8242412............ 9-7 9026410............ 6-8 36505240.......... 4-4 ..... 4-24, 4-29, 5-37 ...............4-27, 5-35 GB98415* ........ 4-5, 8052410............ 6-7 8240416.......... 9-11 8242414............ 9-7 9026420............ 6-8 36506208.......... 4-4 CB98635* ........ 4-7, FB89401* ......... 4-6, ..... 4-23, 4-27, 5-35 8052420............ 6-7 8240510.......... 9-11 8242416............ 9-7 9028410............ 6-8 36506240.......... 4-4 ..... 4-24, 4-29, 5-37 ...............4-27, 5-35 GB98416* ........ 4-6, 8054410............ 6-7 8240512.......... 9-11 8242514............ 9-7 9028420............ 6-8 72671019........ 3-22 CB98636* ........ 4-7, FB89402* ......... 4-6, ..... 4-23, 4-27, 5-35 8054420............ 6-7 8240514.......... 9-11 8242516............ 9-7 9032410............ 6-8 72671119........ 3-22 ..... 4-24, 4-29, 5-37 ...............4-27, 5-35 A-11
- 384. Numerical Index *Not a complete item number – refer to page noted. { Previous item number –see product page for new item number The Vollrath Company, LLC ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE ITEM . . . . . . . . . . PAGE GB98417* ........ 4-6, N7010 ............. 7-39 NGB98412* ..... 4-27 PB89265* ........ 4-5, R38737 ........... 5-46 R3896060 ....... 5-46 RDE8248 ........... 3-3 T39712............ 5-46 ..... 4-23, 4-27, 5-35 N7012 ............. 7-39 NGB98413* ..... 4-27 ..... 4-24, 4-30, 5-38 R38738 ........... 5-46 R3896160 ....... 5-46 RDE8260 ........... 3-3 T39727............ 5-46 GB98418* ........ 4-7, N7014 ............. 7-39 NGB98414* ..... 4-27 PB89266* ........ 4-6, R38773 ........... 5-46 R3896260 ....... 5-46 S T39728............ 5-46 ..... 4-23, 4-27, 5-35 N36300*.......... 5-39 NGB98415* ..... 4-27 ..... 4-24, 4-30, 5-38 R38774 ........... 5-46 RB98445* ........ 4-5, S4007 ............. 7-28 T39729............ 5-46 GB98419* ........ 4-7, N36301*.......... 5-39 NGB98416* ..... 4-27 PB89267* ........ 4-6, R38775 ........... 5-46 ..... 4-24, 4-28, 5-36 S4008 ............. 7-28 T39730............ 5-46 ..... 4-23, 4-27, 5-35 N36302*.......... 5-39 NGB98417* ..... 4-27 ..... 4-24, 4-30, 5-38 R38776 ........... 5-46 RB98446* ........ 4-6, S4010 ............. 7-28 T39731............ 5-46 H N36303*.......... 5-39 NGB98418* ..... 4-27 PB89268* ........ 4-7, R38777 ........... 5-46 ..... 4-24, 4-28, 5-36 S4012 ............. 7-28 T39732............ 5-46 H4007 ............. 7-29 N36337*.......... 5-39 NGB98419* ..... 4-27 ..... 4-24, 4-30, 5-38 R38778 ........... 5-46 RB98447* ........ 4-6, S4014 ............. 7-28 T39767............ 5-46 H4008 ............. 7-29 N36339*.......... 5-39 NPB89265* ..... 4-30 PB89269* ........ 4-7, R38950 ........... 5-46 ..... 4-24, 4-28, 5-36 S5220 ............. 7-41 T39768............ 5-46 H4010 ............. 7-29 N36341*.......... 5-39 NPB89266* ..... 4-30 ..... 4-24, 4-30, 5-38 R38951 ........... 5-46 RB98448* ........ 4-7, S5303 ............. 7-41 T39769............ 5-46 H4012 ............. 7-29 N36343*.......... 5-39 NPB89267* ..... 4-30 PB89270* ........ 4-5, R38952 ........... 5-46 ..... 4-24, 4-28, 5-36 S5315 ............. 7-41 T39770............ 5-46 H4014 ............. 7-29 N36361*.......... 5-39 NPB89268* ..... 4-30 ..... 4-24, 4-30, 5-38 R38960 ........... 5-46 RB98449* ........ 4-7, S5347 ............. 7-46 T39771............ 5-46 H4015 ............. 7-23 N36363*.......... 5-39 NPB89269* ..... 4-30 PB89271* ........ 4-6, R38961 ........... 5-46 ..... 4-24, 4-28, 5-36 S5433 ............. 7-45 T39772............ 5-46 HDE7136 ........... 3-4 N36371*.......... 5-39 NPB89270* ..... 4-30 ..... 4-24, 4-30, 5-38 R38962 ........... 5-46 RB98450* ........ 4-5, S5435 ............. 7-45 T39935............ 5-46 HDE7148 ........... 3-4 N36373*.......... 5-39 NPB89271* ..... 4-30 PB89272* ........ 4-6, R39713 ........... 5-46 ..... 4-24, 4-28, 5-36 SAA8003 ......... 2-16 T39936............ 5-46 HDE7160 ........... 3-4 N37310*.......... 5-39 NPB89272* ..... 4-30 ..... 4-24, 4-30, 5-38 R39714 ........... 5-46 RB98451* ........ 4-6, SLM0012/N....... 1-8 T39937............ 5-46 HDE8136 ........... 3-3 N37311*.......... 5-39 NPB89273* ..... 4-30 PB89273* ........ 4-7, R39715 ........... 5-46 ..... 4-24, 4-28, 5-36 SLR0012/N ....... 1-7 T39945............ 5-46 HDE8148 ........... 3-3 N37312*.......... 5-39 NPB89274* ..... 4-30 ..... 4-24, 4-30, 5-38 R39716 ........... 5-46 RB98452* ........ 4-6, SLR7009/N ...... 1-7, T39947............ 5-46 HDE8160 ........... 3-3 N37313*.......... 5-39 NPB89280* ..... 4-30 PB89274* ........ 4-7, R39717 ........... 5-46 ..... 4-24, 4-28, 5-36 .......................... 1-9 T39948............ 5-46 HDE8236 ........... 3-3 N37320*.......... 5-39 NPB89281* ..... 4-30 ...............4-24, 4-30 R39718 ........... 5-46 RB98453* ........ 4-7, SLR7010/N ...... 1-7, T3870746........ 5-46 HDE8248 ........... 3-3 N37321*.......... 5-39 NPB89282* ..... 4-30 PB89280* ........ 4-5, R39733 ........... 5-46 ..... 4-24, 4-28, 5-36 .......................... 1-9 T3870846........ 5-46 HDE8260 ........... 3-3 N37322*.......... 5-39 NPB89283* ..... 4-30 ..... 4-24, 4-30, 5-38 R39734 ........... 5-46 RB98454* ........ 4-7, SLR7012/N ...... 1-7, T3870946........ 5-46 HDR5005......... 2-16 N37323*.......... 5-39 NPB89284* ..... 4-30 PB89281* ........ 4-6, R39735 ........... 5-46 ..... 4-24, 4-28, 5-36 .......................... 1-8 T3871060........ 5-46 HDR5007......... 2-16 N98607*.......... 5-39 NPB89285* ..... 4-30 ..... 4-24, 4-30, 5-38 R39736 ........... 5-46 RB98455* ........ 4-5, SLR7312/N ...... 1-7, T3871160........ 5-46 HDR5009......... 2-16 N9860206*...... 5-39 NPB89286* ..... 4-30 PB89282* ........ 4-6, R39737 ........... 5-46 ...............4-28, 5-36 .......................... 1-9 T3871260........ 5-46 HPA1002 ......... 2-13 N9861006*...... 5-39 NPB89287* ..... 4-30 ..... 4-24, 4-30, 5-38 R39738 ........... 5-46 RB98456* ........ 4-6, SLR7512/N ...... 1-7, T3872746........ 5-46 HPA1004 ......... 2-13 N9861707*...... 5-39 NPB89288* ..... 4-30 PB89283* ........ 4-7, R39773 ........... 5-46 ...............4-28, 5-36 .......................... 1-8 T3872846........ 5-46 HPA1006 ......... 2-13 NCB98626* ..... 4-29 NPB89289* ..... 4-30 ..... 4-24, 4-30, 5-38 R39774 ........... 5-46 RB98457* ........ 4-6, SLR7912 ........... 1-8 T3872946........ 5-46 M NCB98627* ..... 4-29 NRB98445* ..... 4-28 PB89284* ........ 4-7, R39775 ........... 5-46 ...............4-28, 5-36 SLR7912/N ....... 1-7 T3873060........ 5-46 MB98719 ........ 9-41 NCB98628* ..... 4-29 NRB98446* ..... 4-28 ..... 4-24, 4-30, 5-38 R39776 ........... 5-46 RB98458* ........ 4-7, STA8002 ......... 2-13 T3873160........ 5-46 MB98720 ........ 9-41 NCB98633* ..... 4-29 NRB98447* ..... 4-28 PB89285* ........ 4-5, R39777 ........... 5-46 ...............4-28, 5-36 T T3873260........ 5-46 MB98721 ........ 9-41 NCB98634* ..... 4-29 NRB98448* ..... 4-28 ..... 4-24, 4-30, 5-38 R39778 ........... 5-46 RB98459* ........ 4-7, T38707............ 5-46 T3876746........ 5-46 MB98722 ........ 9-41 NCB98635* ..... 4-29 NRB98449* ..... 4-28 PB89286* ........ 4-6, R39950 ........... 5-46 ...............4-28, 5-36 T38708............ 5-46 T3876846........ 5-46 MIN0012 ......... 1-11 NCB98636* ..... 4-29 NRB98450* ..... 4-28 ..... 4-24, 4-30, 5-38 R39951 ........... 5-46 RB98460* ........ 4-5, T38709............ 5-46 T3876946........ 5-46 MIN0022 ......... 1-11 NCB98637* ..... 4-29 NRB98451* ..... 4-28 PB89287* ........ 4-6, R39952 ........... 5-46 ...............4-28, 5-36 T38710............ 5-46 T3877060........ 5-46 MIX1007 ........... 1-4 NCB98638* ..... 4-29 NRB98452* ..... 4-28 ..... 4-24, 4-30, 5-38 R39959 ........... 5-46 RB98461* ........ 4-6, T38711............ 5-46 T3877160........ 5-46 MIX1010 ........... 1-4 NCB98639* ..... 4-29 NRB98453* ..... 4-28 PB89288* ........ 4-7, R39961 .......... 5-46 ...............4-28, 5-36 T38712............ 5-46 T3877260........ 5-46 MIX1020 ........... 1-4 NCB98640* ..... 4-29 NRB98454* ..... 4-28 ..... 4-24, 4-30, 5-38 R39962 ........... 5-46 RB98462* ........ 4-6, T38727............ 5-46 T3893546........ 5-46 MIX1030 ........... 1-4 NCB98650* ..... 4-29 NRB98455* ..... 4-28 PB89289* ........ 4-7, R3871346 ....... 5-46 ...............4-28, 5-36 T38728............ 5-46 T3893646........ 5-46 MIX1040 ........... 1-4 NCB98651* ..... 4-29 NRB98456* ..... 4-28 ..... 4-24, 4-30, 5-38 R3871446 ....... 5-46 RB98463* ........ 4-7, T38729............ 5-46 T3893746........ 5-46 MIX1060 ........... 1-4 NCB98652* ..... 4-29 NRB98457* ..... 4-28 PLC-08 ............ 9-58 R3871546 ....... 5-46 ...............4-28, 5-36 T38730............ 5-46 T3894560........ 5-46 MWA7025 ....... 2-15 NCB98653* ..... 4-29 NRB98458* ..... 4-28 PLC-09 ............ 9-58 R3871660 ....... 5-46 RB98464* ........ 4-7, T38731............ 5-46 T3894660........ 5-46 MWA7125 ....... 2-15 NCB98654* ..... 4-29 NRB98459* ..... 4-28 PLC-10 ............ 9-58 R3871760 ....... 5-46 ...............4-28, 5-36 T38732............ 5-46 T3894760........ 5-46 N NCB98660* ..... 4-29 NRB98460* ..... 4-28 PLC-11 ............ 9-58 R3871860 ....... 5-46 RB98755* ....... 4-24 T38767............ 5-46 TSA7009 ......... 2-17 N844 ............... 7-46 NCB98661* ..... 4-29 NRB98461* ..... 4-28 PLC-12 ............ 9-58 R3873346 ....... 5-46 RB98756* ....... 4-24 T38768............ 5-46 TSA7012 ......... 2-17 N3408 ............. 7-12 NCB98662* ..... 4-29 NRB98462* ..... 4-28 PLC-15 ............ 9-58 R3873446 ....... 5-46 RB98757* ....... 4-24 T38769............ 5-46 TSA7109 ......... 2-17 N3409 ............. 7-12 NCB98663* ..... 4-29 NRB98463* ..... 4-28 PLC-16 ............ 9-58 R3873546 ....... 5-46 RB98758* ....... 4-24 T38770............ 5-46 TSA7309 ......... 2-17 N3411 ............. 7-12 NGB98400* ..... 4-27 NRB98464* ..... 4-28 PLC-17 ............ 9-58 R3873660 ....... 5-46 RB98759* ....... 4-24 T38771............ 5-46 TSI7001 .......... 2-17 N3412 ............. 7-12 NGB98401* ..... 4-27 P POA8002 ......... 2-16 R3873760 ....... 5-46 RB98760* ....... 4-24 T38772............ 5-46 TSI8002 .......... 2-17 N3414 ............. 7-12 NGB98402* ..... 4-27 PB89260* ........ 4-5, R R3873860 ....... 5-46 RB98761* ....... 4-24 T38935............ 5-46 Z N3808 ............. 7-18 NGB98403* ..... 4-27 ..... 4-24, 4-30, 5-38 R38713 ........... 5-46 R3877346 ....... 5-46 RB98762* ....... 4-24 T38936............ 5-46 Z4007.............. 7-28 N3809 ............. 7-18 NGB98404* ..... 4-27 PB89261* ........ 4-6, R38714 ........... 5-46 R3877446 ....... 5-46 RB98763* ....... 4-24 T38937............ 5-46 Z4008.............. 7-28 N3811 ............. 7-18 NGB98405* ..... 4-27 ..... 4-24, 4-30, 5-38 R38715 ........... 5-46 R3877546 ....... 5-46 RB98764* ....... 4-24 T38945............ 5-46 Z4010.............. 7-28 N3812 ............. 7-18 NGB98406* ..... 4-27 PB89262* ........ 4-6, R38716 ........... 5-46 R3877660 ....... 5-46 RDE7136 ........... 3-4 T38946............ 5-46 Z4012.............. 7-28 N3817 ............. 7-18 NGB98407* ..... 4-27 ..... 4-24, 4-30, 5-38 R38717 ........... 5-46 R3877760 ....... 5-46 RDE7148 ........... 3-4 T38947............ 5-46 Z4014.............. 7-28 N5300 ............. 7-41 NGB98408* ..... 4-27 PB89263* ........ 4-7, R38718 ........... 5-46 R3877860 ....... 5-46 RDE7160 ........... 3-4 T39707............ 5-46 Z434112.......... 7-35 N5834 ............. 7-46 NGB98409* ..... 4-27 ..... 4-24, 4-30, 5-38 R38733 ........... 5-46 R3895046 ....... 5-46 RDE8136 ........... 3-3 T39708............ 5-46 Z434212.......... 7-35 N7007 ............. 7-39 NGB98410* ..... 4-27 PB89264* ........ 4-7, R38734 ........... 5-46 R3895146 ....... 5-46 RDE8148 ........... 3-3 T39709............ 5-46 Z434312.......... 7-35 N7008 ............. 7-39 NGB98411* ..... 4-27 ..... 4-24, 4-30, 5-38 R38735 ........... 5-46 R3895246 ....... 5-46 RDE8160 ........... 3-3 T39710............ 5-46 Z434412.......... 7-35 R38736 ........... 5-46 RDE8236 ........... 3-3 T39711............ 5-46 A-12
- 385. vollrathco.com Alphabetical Index A C Condiment Servers 5-11, 6-19, 9-49, 9-62, 9-64, Adaptor Bars 6-16 Cake Pans 7-46 9-65, 9-68, 9-70 Adaptor Plates 6-16, 6-18, 6-20 Cake Server 9-65 Convection Ovens 2-14 Adaptor Rings 6-18 Cake Stand 9-49, 9-65 Cookers, Strainers 7-36, 7-37, 8-32 Affordable Portable™ 5-45 - 5-48 Can Openers 1-25 - 1-26 Cookie Sheets 7-44 Agitators, Mixer 1-5 Card/Napkin Holders 9-65, 9-66 Cookware, 3-Ply 7-7 - 7-10, 9-6 Aluminum Cookware 7-24 - 7-40 Carts 5-5 - 5-20, 10-20 - 10-25 Cookware, Aluminum 7-25 - 7-37 Au Gratins/Dishes 9-64 Carts, Bussing 10-22, 10-24 Cookware, Arkadia™ 7-39 - 7-40 Avenger® Chafer 9-30 Carts, Dessert 10-25 Cookware, Carbon Steel 7-22, 7-23 Carts, Heavy-Duty 10-20, 10-21 Cookware, Centurion® 7-11 - 7-14 B Carts, Knockdown 10-20, 10-22, 10-23 Cookware, Induction-Ready 7-7 -7-21, 9-6 Bain Maries 6-19 Cookware, Intrigue® 7-15 - 7-17 Carts, Merchandising 5-5 - 5-20 Bain Marie Drop-In 4-4 Cookware, Optio™ 7-18 - 7-20 Carts, Serving 10-25 Bain Marie Hot Display Case 3-6 Cookware, Stainless Steel 7-7 - 7-22 Carts, Utility 10-20 - 10-24 Bake and Roast Pans 7-42, 7-43 Cookware, Tribute® 7-7 -7-10 Caterack® 10-12 Bakeware 7-41 - 7-46 Cookware, Tri-Ply 7-7 - 7-21, 9-6 Cayenne® Colonial Kettles Food Warmer 3-20 Baking Sheets 7-41, 7-44 Cookware, Wear-Ever® 7-24 -7-38 Cayenne® Display Cases and Merchandisers 3-5 - 3-6 Bars / Kiosks 5-7 - 5-20 Corkscrews 9-52 Cayenne® Heated Shelves 3-23 -3-24 Bar Service 9-50 - 9-54 Countertop Mixers 1-4 Cayenne® Heat Lamp 3-24 Bar Trays 9-69 Covers, Dish Box 10-19 Cayenne® Heat Light Strips 3-22, 4-14 - 4-20 Baskets 7-9, 7-14, 7-16, 7-36, 7-37, 9-69, 10-17 Cover Hinge, Flip-Top 3-21 Cayenne® Warmers Rethermalizers 3-7 - 3-19 Batter Can 8-35 Covers, Aluminum 7-38 Cereal Dispenser 9-18 Bench Mixer 1-4 Covers, Electric Fryers 2-18 Chafers 9-15- 9-30 Beverage Service 9-59 - 9-63 Covers, Hinged Inset 3-21 Chafer Accessories 9-31 - 9-33 Beverage Bins 9-42 Covers, Intrigue® Cookware 7-17 Chafer Boxes 9-33 Beverage Bin Stands 9-42 Covers, Steam Table Pan 6-5 - 6-15, 6-17, 6-21 Chafer Heater 9-32 Boilers and Fryers (Cookware) 7-36, 7-37 Covers, Tribute® Cookware 7-10 Chafer Rack 9-31, 9-32 Bowl Stands 8-30, 9-42 Creamers 9-59, 9-62 Charbroilers 2-11 Bowls, Double Wall 9-43 - 9-48 CubeKing™ 1-23 Cheese Blocker™ 1-23 Bowls, Ice 9-54 Cup, Racks 10-8, 10-11 Cheese Cutter 8-35 Bowls, Mixing 8-30, 8-31 Cup, Soup 9-68 Cheese Melter 2-16 Bowls, Mixer 1-5 Custom Kiosks 5-5 Chicken Rotisserie Ovens 2-15 Bowls, Oval 9-47 Cutlery Boxes 10-19 China Cap Strainers 8-32 Bowls, Salad 9-43 - 9-48 Cutters 1-11, 8-35, 8-36 Classic Brass Trim Accessories 9-28 Bowls, Soup 9-63, 9-68 Cutting Boards 8-26, 5-41, 5-46 Classic Brass Trim Chafers 9-28 Brass Trim Chafers 9-27, 9-28 Cutting Board Rack 8-26 Cocktail Shaker Sets 9-53, 9-54 Braziers 7-10, 7-14, 7-17, 7-20, 7-32, 7-40, 9-6 Coffee and Tea Service 9-59, 9-61, 9-62, 9-63 Breath Guards 4-23 - 4-30, 5-31 - 5-39 Coffee Urn 9-18, 9-19, 9-21, 9-23, 9-26, 9-27, 9-28, 9-29 D Breath Guards, Hot Dog Roller 2-16 Dakota™ Chafer 9-30 Cold Drop-ins 4-8 - 4-10 Breath Guards, Mobile 9-41 Decorative Pans, Miramar® 9-12 - 9-13 Colonial Kettles™ Food Warmer 3-20 Buffet Induction Table 5-49- 5-50 Dessert Service 9-64 - 9-65 Colored Double Wall Bowls 9-43 Buffetware 9-5 - 9-40 Dish Boxes and Covers 10-19 Compartment Racks 10-5, 10-7, 10-8, 10-10, 10-11 Bun Pans 7-41 Dishers 8-17, 8-18 Compartment Trays 9-68 Bus Boxes 10-18, 10-19, 10-24 Dishers, Shaped 8-18 Components, Fabricator 4-1 - 4-30 Bussing Carts 10-22, 10-24 Dishracks 10-5 - 10-12 Concept™ Configuration Software 5-22 Butter Melter 9-67 Dishracks, Caterack® 10-12 A-13
- 386. Alphabetical Index The Vollrath Company, LLC Dishracks, Compartment 10-5, 10-7, 10-8, 10-10, 10-11 Flatware Boxes 10-19 High Temperature Utensils 8-27 Dishracks, Dollies 10-16 Flatware Cylinders 10-17 Hold Down Grids 10-16 Dishracks, Full-Size 10-5, 10-6 - 10-9 Flatware Handling Accessories 10-17 - 10-18 Hollow Handle Buffetware 9-39 Dishracks, Half-Size 10-10 - 10-11 Flexible Pan Lids 6-9, 6-15 Hooked Handle Dipper 8-16 Dishracks, Hold-Down Grids 10-16 Flip-Top Cover Hinge 3-21 Hooked Handle Utensils 8-16 Dishracks, Imprinting 10-4, 10-13 Floor Mixers 1-4 Hot Display Case, Bain Marie 3-6 Dishracks, Martini/Margarita 10-7 Fluted Double Wall Bowls 9-44 Hot Dog Roller Grills 2-16 Dispenser Holder, Sauce 8-35 Food Bars 5-5 - 5-20 Hot Food Merchandisers 3-5, 3-16 - 3-20 Dispensers, Beverage 9-18, 9-21 Food Container Pans 8-33 Hot Plates, Electric 2-13 Dispensers, Squeeze 9-68 Food Courts 5-5 Hot Plates, Gas 2-13 Display Bowls 9-43 - 9-49 Food Pans 9-31 Hot Well Drop-Ins 4-3 -4-7, 4-11 Display Cabinets 3-3 - 3-6, 4-22 Food Processors 1-11 - 1-26, 8-33 - 8-34, 8-36 Divided Food Pans 9-31 Fork, Long Handle 8-16 I Ice Bucket 9-54 Dome Covers 6-17, 7-38, 9-6, 9-31 French Whips 8-11 - 8-12 Ice Cream Spade 8-25 Double Boilers 7-21, 7-22, 7-36 Fry Pans 7-8, 7-12, 7-16, 7-18, 7-22, 7-27 to 7-30 Ice Scoop 8-25, 9-54 Double Wall Beverage Bins 9-42 Fryers (Cookware) 7-36, 7-37 Induction Buffet Table 5-49 - 5-50 Double Wall Serving Bowls 9-43 - 9-48 Fryers, Electric 2-18 Induction Ranges 2-3 - 2-10, 4-12 - 4-13 Double Wall Serving Bowls, Colored 9-43 Fuel Holders 9-32 Induction Ranges, Worldwide 2-5, 2-7, 4-12 Double Wall Serving Bowls, Fluted 9-44 Full-Size Racks 10-7 - 10-9 Induction-Ready Chafers 9-15 - 9-16 Drain Box 8-36,10-18 Funnels 8-33 Induction-Ready Cookware 7-5 - 7-20, 9-5 - 9-6 Dredges 8-34 Inset Covers, Hinged 3-21, 6-19 Drop-Ins, Hot and Cold 4-3 - 4-13, 4-21, 4-22, 9-22 G Garbage Can Storage 5-19 Insets, Vegetable 6-19 Drop-Ins, Short Side 4-4, 4-8 Gauge Reference Table A-1 InstaBloom® 1-18 Drop-Ins, Soup 4-11 Glass Racks 10-5 - 10-15 InstaCut™ 5.0 1-15 Dual Warmer 3-12 Gravy Boats 9-63 InstaCut™ 3.5 1-16 Griddles (Cookware) 7-10 InstaSlice™ 1-19 E EaziClean® Can Openers 1-25-1-26 Griddles, Electric 2-12 Intrigue™ Induction Chafers 9-15 - 9-16 Egg Poachers 7-46 Griddles, Gas 2-12 Intrigue™ Induction Cookware 7-15 -7-17 Egg Slicer 8-35 Griddle Stones 8-34 Electric Chafers 9-24, 9-28 Grills, Hot Dog Roller 2-16 J-K Jacob's Pride® Collection 7-7 - 7-17, 7-31 - 7-32, 8-4, Electric Chafer Heaters 9-32 Grills, Gas 2-11 8-13 - 8-15, 8-21, 8-22 Elegant Reflections™ Trays 9-36 Grill Tender® 1-24 Juice Extractors 1-12 Elevation Stands 9-42 Grinder Attachments, Mixer 1-5 King Kutter™ 1-22 Equipment Stands 2-13 Grinders and Accessories 1-11 Kiosks 3-19, 5-5 - 5-6 ErgoGrip™ Basting Spoons 8-19 Grip 'N Serv® Utensils 8-10, 8-20 Knives 9-56 ErgoGrip™ Ladles 8-15 Kool-Touch® Buffetware 8-13 - 8-16, 8-21 - 8-23 Esquire™ Trays 9-35 H Half-Size Racks 10-10 - 10-11 Kool-Touch® Handles 6-17, 6-19, 8-13 - 8-16, E-Z Juice Extractors 1-12 8-21 - 8-23, 9-40 Hamburger Patty Mold 8-35 F Kool-Touch® Hinged Covers 6-19 Fabricator Components 4-1 - 4-30 Heat 'N Serve™ Food Rethermalizers 3-8 - 3-11 Kool-Touch® Ladles 8-13 - 8-16 Fajita Skillet Heaters 2-9 Heated Display Cabinets 3-3 - 3-6, 4-22 Kool-Touch® Tongs 8-21, 8-23 False Bottoms 9-46 Heat Lamp 3-24 Flatware 9-55 - 9-56 Heat and Light Strips 3-22, 4-14 - 4-20 Flatware Baskets 10-17 Heated Shelves 3-23 - 3-24 A-14
- 387. vollrathco.com Alphabetical Index L N-O Portion Control 6-22, 8-6 - 8-7 Ladles 8-13 - 8-16 New York, New York® Accessories 9-21 Potato Cutters 1-12 Ladles, Bicolite 8-16 New York, New York® Chafer 9-20 - 9-21 Power Rethermalizer, Nitro™ 3-12 Ladles, Dressing 8-16 New York, New York® Replacement Parts 9-21 Presses, Sandwich 2-17 Ladles, ErgoGrip™ 8-15 Nitro™ Power Rethermalizer 3-12 Punch Bowl 9-21, 9-49 Ladles, Short Handle 8-14 Non-Stick Presentation Pan 6-9, 6-14 Lamp, Heat 3-24 Odyssey® Chafer 9-29 R Lettuce King® I 1-21 Odyssey® Trays 9-37 Rack Component Parts 10-15 - 10-16 Lettuce King® IV 1-21 Onion King® 1-18 Rack Dollies 10-16 Light Strips 4-19 - 4-20 Orion® Accessories 9-24 Ramekins 8-27, 9-64 Loaf Pan 7-44 - 7-45 Orion® Beverage Service 9-59 Redco® Processors 1-13 - 1-26 Lobster King™ 1-23 Orion® Chafers 9-24 - 9-25 Reducer Kits, Mixer 1-5 Ovens, Convection 2-14 Refrigerated Display Cabinets 3-3 - 3-4, 4-22 M Ovens, Microwave 2-15 Refuse Bins 10-24 Malt Cup 9-54 Rethermalizers 3-8 - 3-12, 3-15, 3-19 Ovens, Pizza/Bake 2-16 Martini/Margarita Racks 10-7 Roast Pans 7-42 - 7-43 Ovens, Rotisserie 2-15 Maximillian™ Steel Chafers 9-26 Roller Grills, Hot Dog 2-16 Oyster King™ 1-23 Measuring Cups/Ladles/Spoons 8-28 - 8-29, 8-31 Rotisserie Ovens 2-15 Meat Tenderizer 8-34 P Royal Crest™ Accessories 9-29 Menu Holder 9-65 Pails 8-32 Royal Crest™ Chafers 9-29 Merchandising Carts and Kioks 3-19, 5-5 - 5-20 Panacea™ Chafers 9-27 Microwave Ovens 2-15 Panini Presses 2-17 S Milk Dispenser 9-18 Pans, Aluminum Bakeware 7-41 - 7-46 Salad/Buffet Spoons 9-39 Milk Stirrer/Masher 8-36 Pans, Cookware 7-6 - 7-40 Salt Pepper Set 9-49 Milestone™ Serving Lines 5-21 - 5-22 Pans, Decorative 9-12 - 9-13 Sandwich Presses 2-17 Mirage® Induction Ranges 2-3 - 2-5, 2-9, 4-12 Pans, Non-Stick 7-8, 7-10, 7-12, 7-16, 7-18, Sauce Cups/Bowls 9-64 7-23, 7-27 - 7-30, 7-35, 7-39 Sauce Dispenser 9-68 Miramar® Decorative Pans 9-12 - 9-13 Pans, Perforated 6-9, 6-14, 7-27 Sauce Dispenser Holder 8-34 Miramar® Display Cookware 9-5 - 9-6 Pans, Plastic 6-7 - 6-8 Sauce Pans 7-8, 7-13, 7-17, 7-19, 7-22, 7-32, Miramar® Templates 9-7, 9-10 - 9-14 Pans, Prep and Holding 6-3 - 6-14 7-34, 7-35, 7-39 Mixers 1-3 - 1-6 Pans, Prep and Holding Accessories 6-9 - 6-22 Sauce Pots 7-9, 7-13, 7-19, 7-31, 7-33, 7-34 Mixer Accessories 1-5 Pans, Stainless Steel 6-3 - 6-6, 6-9 - 6-15, Sauciers 7-8, 7-12, 7-17, Mobile Breath Guards 9-41 6-21, 7-7 - 7-15 Saute Pans 7-9, 7-12, 7-17, 7-19, 7-32, 7-34 Mobile Food Bars 5-7 - 5-20, 5-24, 5-27 - 5-29 Party Pan 7-44 Scoops, Disher 8-17, 8-18 Model 1001 Food Warmer 3-14 Pasta Cooker 7-9, 7-14, 7-16, 7-36 - 7-37 Scoops, Ice 8-24, 8-52 Model 1220 Rethermalizer 3-10 Petrol Gel 1-24 Scrapers 8-26 Model 2000 Food Warmer 3-13 Piano Whips 8-11 - 8-12 Seafood Service 9-66, 9-67 Model CM-24 Twin Well Rethermalizer 3-15 Pie Markers 8-34 Servers, Condiment 5-11, 6-19, 9-49, 9-63, 9-64, Model HS-7 and HS-11 Rethermalizer 3-10 Pie Plates 7-46 9-65, 9-68, 9-69 Model PC-21 Rethermalizer 3-12 Pie Server 9-65 Servers, Portion 8-6 Model SS-4 Food Warmer 3-14 Pitchers 9-59 - 9-63 Servers, Revolving 9-67 Model TD43R Rethermalizer 3-11 Pizza/Bake Oven 2-16 Servers, Three-Way 9-67 Model TW-27R Twin Well Rethermalizer 3-15 Plastic Super Pan 3® 6-7 - 6-8 Servers, Two-Way 9-67 Modular Carts and Kiosks 5-5 - 5-20 Plate Covers 9-57 - 9-58 ServeWell® Food Stations 5-51 - 5-53 Modular Drop-Ins 4-3 - 4-11 Plate Racks 10-8, 10-9, 10-12 Service Plates 9-38 Platters 9-38, 9-68 Serving Bowls with Handles 9-49 A-15
- 388. Alphabetical Index The Vollrath Company, LLC Serving Cups 9-64 Steamers 7-37 U Serving Lines, Affordable Portable™ 5-44 - 5-48 Stir Fry Pans 7-10, 7-23, Universal Electric Heater 9-32 Serving Lines, Milestone™ 5-21 - 5-22 Stock Pots 7-13, 7-16, 7-19, 7-21, 7-31, 7-33, 7-46 Urn, Coffee 9-21, 9-23, 9-26, 9-27, 9-28, 9-29 Serving Lines, Signature Server® 5-25 - 5-44 Stoppers, Wine/Champagne 9-52 Utensils 8-8 - 8-28, 9-38 - 9-39 Shakers, Bar 9-53 Storage Containers 7-14, 9-33 Utility Carts 10-20 - 10-24 Shaped Dishers 8-18 Strainers and Colanders 8-31, 9-54 Sheet Pans 7-41 Super Pan 3® 6-5 - 6-10 V-W Valhalla™ Chafers 9-23 Shelves, Heated 3-23 -3-24 Super Pan II® 6-11 - 6-15 Vacuum Pack Bags 1-10 Short Side Drop-Ins 4-4, 4-8 Super Pan® Super Shapes 6-3 - 6-4 Vacuum Pack Machines 1-10 Signature Server® 2.0 5-23 - 5-24 SwirlServe® Beverage Servers 9-61 Vegetable Cooker 7-36 Signature Server® Mobile Serving Units 5-23 - 5-44 Vegetable Insets 6-19 Silv-A-Tainer 10-17 T Table, Buffet Induction 5-49 - 5-50 Vertical Cutter/Mixer 1-11 Skewers 8-36 Table Joiner 9-63 Wall Hanger Bracket 8-36 Skimmers 8-24 Tater King™ Scooper 1-24 Warewashing 10-3 - 10-19 Slicer Attachments, Mixer 1-5 Templates, Miramar™ 9-5, 9-7, 9-9 - 9-11, 9-14 Warmer Accessories 3-21 Slicers, Electric 1-7 - 1-9 Tenderizer 8-33 Warmers, Cayenne® 3-12 - 3-14, 3-20 SoftSpoon™ 8-26 Three-Way Servers 9-67 Warmer with Drain 3-11 Somerville™ Chafers 9-18 Tilt 'N Pour® Servers 9-61 Water Pans 9-31 Soup Drop-Ins 4-11 Tomato King® Scooper 1-20 Wedgemaster® 1-17 Soup Kiosks 3-19, 5-13 Tomato Pro™ 1-20 Wedgemaster® II 1-17 Soup Merchandisers 3-16, 3-20 Tongs, Buffet 9-39, 9-40 Whips, French and Piano 8-11 - 8-12 Soup Tureens 9-63 Tongs, Ice 9-54 Windway® Accessories 9-19 Spade, Ice Cream/Utility 8-24 Tongs, Kool-Touch® 8-21, 8-23 Windway® Buffetware 9-39 Spatulas 8-26, 8-35 Tongs, Pastry 8-23 Windway® Chafers 9-19 Spillage Pans 5-48 Tongs, Scissors 8-23, 8-39 Wine Service 9-50 - 9-54 Spoodle® Utensils 8-8 - 8-10 Tongs, Serving 8-21 - 8-23, 9-39, 9-40, 9-54 Wine Stoppers 9-52 Spoon, Bar 9-54 Tongs, Spaghetti 8-23, 9-40 Wire Grates 6-10, 6-15, 7-41 Spoons, Nylon 8-19, 8-20, 8-26 Tongs, Utility 8-22 Worldwide Induction Units 2-5, 2-7, 4-12 Spoons, Nylon Handles 8-19 Tote 'N Store Boxes 9-33 Windway® Accessories 9-14 Spoons, Preparation 8-19 Transfer Vessels 8-27 Windway® Buffetware 9-36 Spoons, Salad/Buffet 9-39 Trays, Beer 9-69 Windway® Chafers 9-14 Spoons, Serving 8-19, 8-20, 9-40, 9-54 Trays, Fast Food 9-70 Wine Service 9-45 - 9-48 Square Chafers 9-16 Trays, Plastic 9-69 - 9-70 Wine Stoppers 9-48 Squeeze Bottles 9-68 Trays, Serving 9-34 - 9-38, 9-69 Wire Grates 6-10, 6-15 Squeeze Bottle Holder 8-34 Trays, Tip 9-69 Workstations, ServeWell® Induction 5-52 Stainless Steel Cookware 7-7 - 7-23 Tribute® Cookware 7-7 - 7-10 Worldwide Induction Units 2-5, 2-7, 4-12 Stainless Steel Steam Table Pans 6-3 - 6-6, 6-9 - 6-15, 6-21 Triennium® Beverage Service 9-59 Stands, Beverage Bin 9-42 Trimline II Chafer 9-30 Stands, Elevation 9-42 Tri-Ply Stock Pots 7-21 Stands, Equipment 2-13 TriVent™ Cookware Handle 7-6 Stands, Wine 9-50, 9-51 Tumbler 9-68 Note: In the interest of continued product improvement, Vollrath Steak Knives 9-56 Turners 8-35, 9-36 reserves the right to change specifications without notice. Prices and availability also subject to change without notice. Steak Weights 8-33 Twin 7-Quart Rethermalizer 3-15 Dimensions listed in catalog are approximate and may vary. Contact your Vollrath representative for specific drawing details. Steam Table Pans 6-3 - 6-14, 6-21 A-16
- 389. vollrathco.com Warranty Warranty Policy for The Vollrath Co., L.L.C. The Vollrath Company LLC warrants the products it manufactures and distributes against defects in materials and workmanship for a period of one year, except as specifically provided below. The warranty runs 12 months from the date of original installation. (End user receipt) 1. Refrigeration compressors – The warranty period All products in the Jacob’s Pride® Items sold having no warranty: is 5 years. collection, including the following, Q Meat Grinder Knives 2. Replacement parts – The warranty period is 90 days. have a lifetime warranty: Q Light Bulbs in Convection Ovens 3. Fry pans and coated cookware – The warranty period Q NSF Certified One-Piece Dishers and Hot Food Merchandiser is 90 days Q Q NSF Certified Spoodle® Utensils Oven Door Seals 4. EverTite™ Riveting System – The warranty covers Q Q NSF Certified Heavy-Duty Spoons Oven Door Glass loose rivets only, forever. Q with Ergonomic Handle Hot Food Merchandisers / 5. Cayenne® Heat Strips – The warranty period is 1 year Q NSF Certified Heavy-Duty Basting Spoons Display Case Glass plus an additional 1 year period on heating element Q Q Heavy duty Turners with Ergonomic handle Calibration and set up of gas parts only. Q One-Piece Tongs* equipment 6. Ultra, Ultra Fajita, Mirage® Pro and Professional Q Q Heavy-Duty One-Piece Ladles* Slicer / Dicer blades (table top Induction Ranges – The warranty period is 2 years. Q Nylon Handle Whips food prep) – Redco and Vollrath 7. Mirage®, Mirage® Cadet, Mirage® Fajita and Q One-Piece Skimmers Commercial Induction Ranges - The warranty period Q Tribute®, Intrigue®, and Classic is 1 year. Select® Cookware* 8. ServeWell® Induction Workstations – The warranty period is 1 year on the workstation table and 2 years *Jacob’s Pride® warranty does not cover Kool-Touch®, on induction hobs. non stick coatings and silicone handles. 9. Slicers – The warranty period is 10 years on gears and 5 years on belts. 10. Mixers – The warranty period is 2 years, belts 5 years. 11. Extended warranties are available at the time of sale. 2011-2012 Catalog 12. Vollrath – Redco products – The warranty period is 2 years. Note: In the interest of continued product improvement, Vollrath reserves the right to change 13. Optio / Arkadia product lines – The warranty period specifications without notice. Prices and availability also subject to change without notice. is 90 days. Dimensions listed in catalog are approximate and may vary. 14. All non-stick products (i.e. fry pans and surfaces) Contact your Vollrath representative for specific drawing details. are 90 days for the non stick surfaces. THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE As The Vollrath Company LLC’s only responsibility and the purchaser’s only remedy, for any breach of warranty, The Vollrath Company LLC will repair or, at its option, replace the defective product or part without charge, except as otherwise provided below: For refrigeration compressors and the second year of the warranty on Cayenne® Heat Strips and mixers, The Vollrath Company LLC will provide the repaired or replacement part only; and the buyer will be responsible for all labor charges incurred in performing the repair or replacement. To obtain warranty service, the buyer will be responsible to return to The Vollrath Company LLC any product (other than gas equipment that is permanently installed) weighing less than 110 lbs. or located outside of a 50-mile radius of a certified technician designated by The Vollrath Company LLC to perform warranty repairs. If a Vollrath Technician cannot be contacted check the website for service contact points. (Please refer to the Product Catalogue for weights and sizes of product) No remedy will be available for products that have been damaged by accident, carelessness, improper installation, lack of proper setup or supervision when required, neglect, improper use, installation or operation contrary to installation and operating instructions or other causes not arising out of defects in materials or workmanship. At the buyer’s request, The Vollrath Company LLC will repair and or replace such products at a reasonable cost. No remedy will be available for slicers where blade has not been sharpened (Refer to owner’s manual for sharpening instructions) No remedy will be available for mixers damaged by changing gears while equipment is running or overloading, in either case as determined by a Vollrath Certified Technician Warranty work must be authorized in advance by The Vollrath Company LLC. See the operating and safety instructions for each product for detailed warranty claim procedures. No remedy will be available for product returned and found to be acceptable to the product specification. No remedy will be available under any warranty not registered as required below. LIMITATION OF LIABILITY: THE VOLLRATH COMPANY LLC SHALL HAVE NO LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER BASED UPON NEGLIGENCE OR OTHER TORT, BREACH OF WARRANTY, OR ANY OTHER THEORY. A-17
- 390. Custom Products The Vollrath Company, LLC Vollrath can custom build it for you! Didn’t find From specialized utensils designed for your menu to completely custom carts kiosks, Vollrath® will work with you to build exactly what you need. Our full-service what you were sales, design, manufacturing and customer service teams will work with you through every step, providing you with looking for? the solutions to make your foodservice business run smoothly and profitably. Your custom product is only a call away! Custom Equipment Custom Smallwares A-18
- 391. Beautiful Colors. BeautifulFood. Introducing Vollrath® Colored, Insulated Double Wall Bowls! Add a punch of color to your buffet or display case with a choice of twelve colors/finishes available in square or round shapes in variety of sizes. Keep hot food hot and cold food cold while creating a beautiful display to enhance your food offering.
