The VM-25 is a 1U rack mountable distribution amplifier that takes one composite video input signal and distributes it to 25 identical outputs while maintaining high bandwidth of 430MHz and low distortion. It provides looped input and output connections as well as controls for level and equalization. The unit is powered by a 12V DC power supply and measures 19" x 7" x 1U.

1. VM-25
1:25 Composite Video Distribution Amplifier
The VM-25 is a high-
performance distribution
amplifier for composite video
signals. It takes one input,
provides correct buffering and
isolation, and distributes the
signal to 25 identical RCA
outputs.

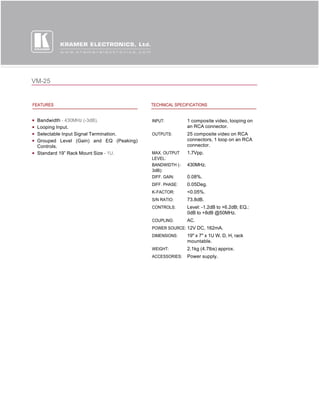

2. VM-25
FEATURES TECHNICAL SPECIFICATIONS
Bandwidth - 430MHz (-3dB). INPUT: 1 composite video, looping on
Looping Input. an RCA connector.
Selectable Input Signal Termination. OUTPUTS: 25 composite video on RCA
Grouped Level (Gain) and EQ (Peaking) connectors, 1 loop on an RCA
Controls. connector.
Standard 19” Rack Mount Size - 1U. MAX. OUTPUT 1.7Vpp.
LEVEL:
BANDWIDTH (- 430MHz.
3dB):
DIFF. GAIN: 0.08%.
DIFF. PHASE: 0.05Deg.
K-FACTOR: <0.05%.
S/N RATIO: 73.8dB.
CONTROLS: Level: -1.2dB to +6.2dB; EQ.:
0dB to +8dB @50MHz.
COUPLING: AC.
POWER SOURCE: 12V DC, 162mA.
DIMENSIONS: 19" x 7" x 1U W, D, H, rack
mountable.
WEIGHT: 2.1kg (4.7lbs) approx.
ACCESSORIES: Power supply.
