The 105VB is a 1-input, 5-output composite video distribution amplifier that takes a single composite video signal as input and distributes it to five identical outputs while providing correct buffering and isolation. It has a bandwidth of 400MHz, uses BNC connectors, and includes a level control as well as rack mounting options. The device is compact at 12cm x 7.5cm x 2.5cm and has technical specifications including a maximum output of 2Vpp, differential gain of 0.1%, and S/N ratio of 80dB.

1. 105VB
1:5 Composite Video Distribution Amplifier
The 105VB is a high-
performance distribution
amplifier for composite video
signals. It takes one input,
provides correct buffering and
isolation and distributes the
signal to five identical
outputs.

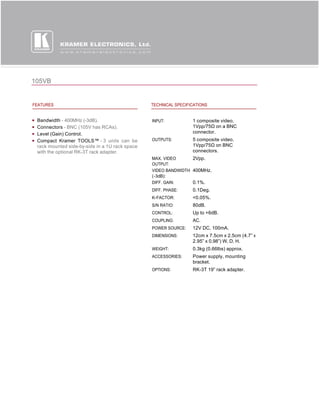

2. 105VB
FEATURES TECHNICAL SPECIFICATIONS
Bandwidth - 400MHz (-3dB). INPUT: 1 composite video,
Connectors - BNC (105V has RCAs). 1Vpp/75Ω on a BNC
Level (Gain) Control. connector.
Compact Kramer TOOLS™ - 3 units can be OUTPUTS: 5 composite video,
rack mounted side-by-side in a 1U rack space 1Vpp/75Ω on BNC
with the optional RK-3T rack adapter. connectors.
MAX. VIDEO 2Vpp.
OUTPUT:
VIDEO BANDWIDTH 400MHz.
(-3dB):
DIFF. GAIN: 0.1%.
DIFF. PHASE: 0.1Deg.
K-FACTOR: <0.05%.
S/N RATIO: 80dB.
CONTROL: Up to +6dB.
COUPLING: AC.
POWER SOURCE: 12V DC, 100mA.
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x
2.95” x 0.98”) W, D, H.
WEIGHT: 0.3kg (0.66lbs) approx.
ACCESSORIES: Power supply, mounting
bracket.
OPTIONS: RK-3T 19” rack adapter.
