The VM-100CB is a 1U rack mountable component video distribution amplifier that takes one component video input and distributes it to ten identical outputs. It provides high bandwidth distribution of up to 450MHz for HDTV signals, with level and equalization controls to adjust the output signal. The amplifier isolates and buffers the input signal to distribute identical copies to each of the ten BNC output connectors.

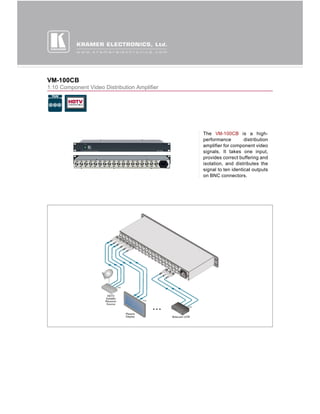

1. VM-100CB
1:10 Component Video Distribution Amplifier
The VM-100CB is a high-
performance distribution
amplifier for component video
signals. It takes one input,
provides correct buffering and
isolation, and distributes the
signal to ten identical outputs
on BNC connectors.

2. VM-100CB

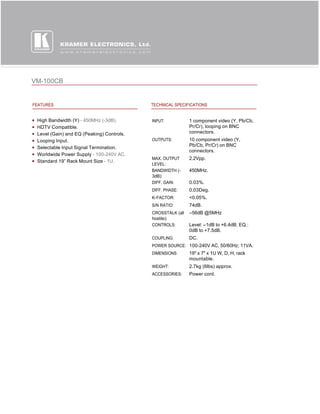

FEATURES TECHNICAL SPECIFICATIONS
High Bandwidth (Y) - 450MHz (-3dB). INPUT: 1 component video (Y, Pb/Cb,
HDTV Compatible. Pr/Cr), looping on BNC
Level (Gain) and EQ (Peaking) Controls. connectors.
Looping Input. OUTPUTS: 10 component video (Y,
Selectable Input Signal Termination. Pb/Cb, Pr/Cr) on BNC
connectors.
Worldwide Power Supply - 100-240V AC.
MAX. OUTPUT 2.2Vpp.
Standard 19” Rack Mount Size - 1U.
LEVEL:
BANDWIDTH (- 450MHz.
3dB):
DIFF. GAIN: 0.03%.
DIFF. PHASE: 0.03Deg.
K-FACTOR: <0.05%.
S/N RATIO: 74dB.
CROSSTALK (all –56dB @5MHz
hostile):
CONTROLS: Level: –1dB to +6.4dB; EQ.:
0dB to +7.5dB.
COUPLING: DC.
POWER SOURCE: 100-240V AC, 50/60Hz; 11VA.
DIMENSIONS: 19" x 7" x 1U W, D, H, rack
mountable.
WEIGHT: 2.7kg (6lbs) approx.
ACCESSORIES: Power cord.
