The VM-1045 is a 1U rack mountable component video distribution amplifier that can distribute either a composite video, s-video, or component video signal from one input across up to five outputs. It has a high bandwidth of 415MHz and features such as individually adjustable gain and equalization controls for each channel to optimize the signal quality across multiple displays. The VM-1045 is compatible with HDTV signals and provides high quality distribution of video with low differential gain, phase, and crosstalk between outputs.

1. VM-1045
1:5 Component Video Distribution Amplifier
The VM-1045 is a high-
performance distribution
amplifier for component video
signals. It can be configured
as a four 1:5 composite
video, two 1:5 s-Video (Y/C)
or one 1:5 component
(RGB/S) distribution
amplifier.

2. VM-1045

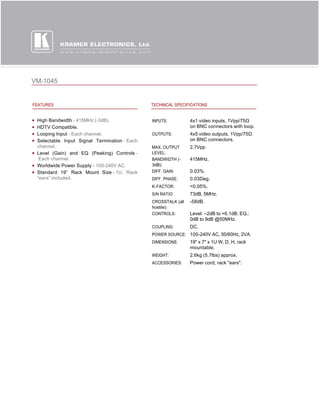

FEATURES TECHNICAL SPECIFICATIONS
High Bandwidth - 415MHz (-3dB). INPUTS: 4x1 video inputs, 1Vpp/75Ω
HDTV Compatible. on BNC connectors with loop.
Looping Input - Each channel. OUTPUTS: 4x5 video outputs, 1Vpp/75Ω
Selectable Input Signal Termination - Each on BNC connectors.
channel. MAX. OUTPUT 2.7Vpp
Level (Gain) and EQ (Peaking) Controls - LEVEL:
Each channel. BANDWIDTH (- 415MHz.
Worldwide Power Supply - 100-240V AC. 3dB):
Standard 19” Rack Mount Size - 1U. Rack DIFF. GAIN: 0.03%.
“ears” included. DIFF. PHASE: 0.03Deg.
K-FACTOR: <0.05%.
S/N RATIO: 73dB, 5MHz.
CROSSTALK (all -58dB.
hostile):
CONTROLS: Level: –2dB to +6.1dB; EQ.:
0dB to 9dB @50MHz.
COUPLING: DC.
POWER SOURCE: 100-240V AC, 50/60Hz, 2VA.
DIMENSIONS: 19" x 7" x 1U W, D, H, rack
mountable.
WEIGHT: 2.6kg (5.7lbs) approx.
ACCESSORIES: Power cord, rack "ears".
