The document discusses the Model-View-Controller (MVC) pattern and its core components - the model, view, and controller. It provides examples of how each component works together in a web application. The model handles the application's data and business logic. The view displays the data to the user. The controller links the model and view by handling user input and calling the model and view functions. The document also discusses related concepts like middleware that process data between components, caching for performance, and how MVC is applied in different frameworks and applications.

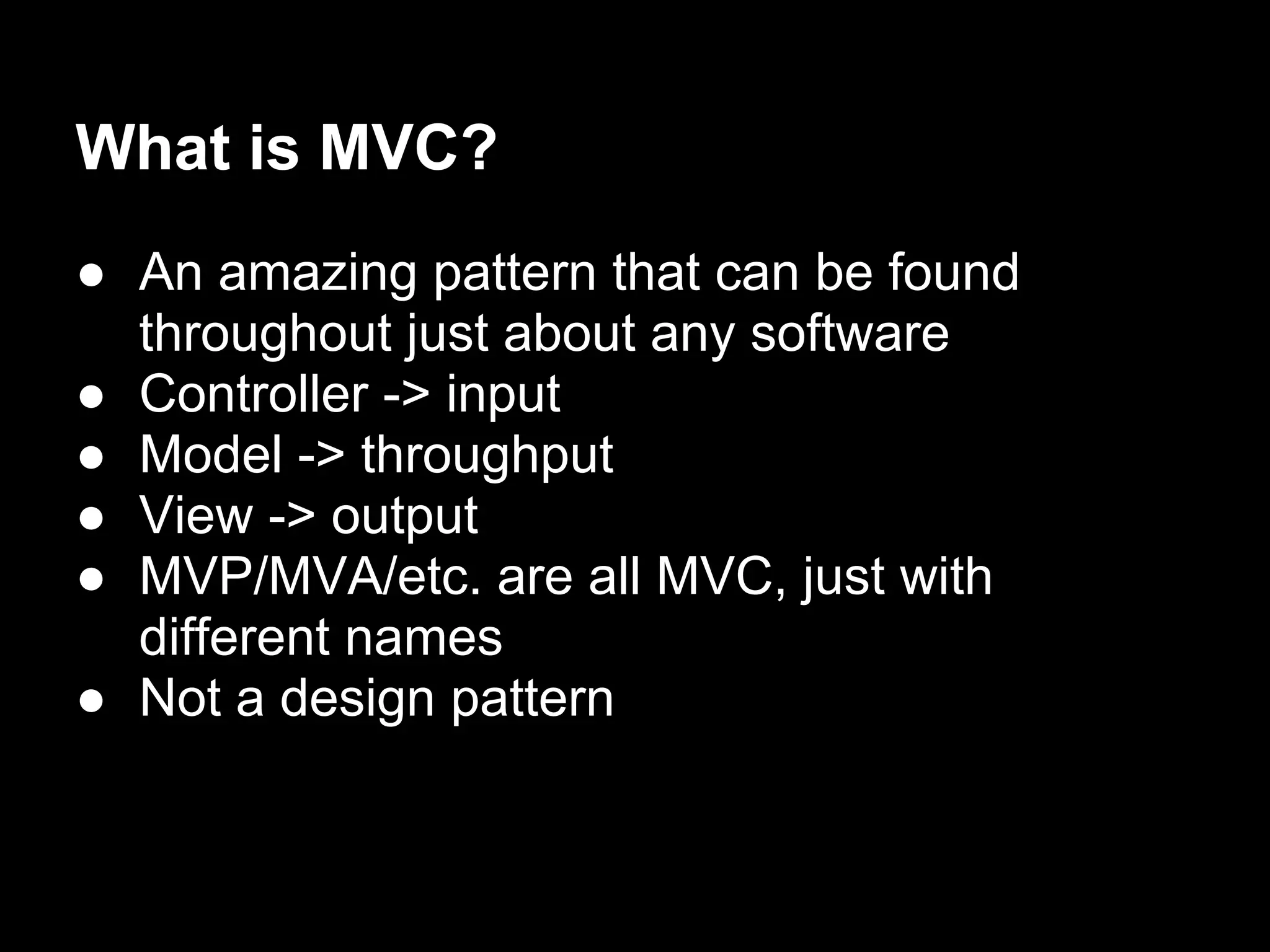

1. The colors of MVC

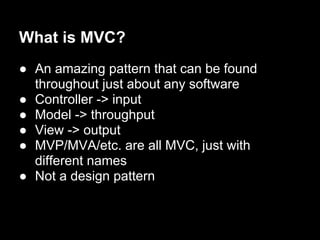

2. What is MVC?
● An amazing pattern that can be found
throughout just about any software
● Controller -> input
● Model -> throughput
● View -> output
● MVP/MVA/etc. are all MVC, just with
different names
● Not a design pattern

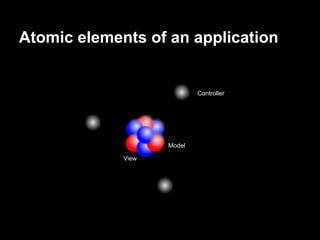

3. Atomic elements of an application
Controller
Model
View

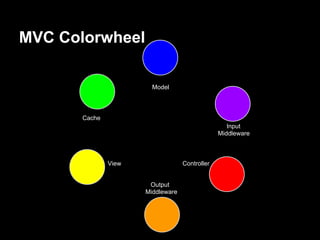

4. MVC Colorwheel
Model
Cache
Input
Middleware
View Controller
Output
Middleware

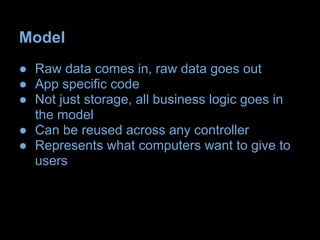

5. Model
● Raw data comes in, raw data goes out
● App specific code
● Not just storage, all business logic goes in
the model
● Can be reused across any controller
● Represents what computers want to give to
users

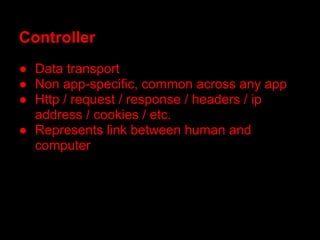

6. Controller
● Data transport
● Non app-specific, common across any app
● Http / request / response / headers / ip
address / cookies / etc.
● Represents link between human and
computer

7. Views
● Takes in raw data, returns 'visualized' data
● HTML, XML, JSON, JPEG
● Represents what humans want from the
cmputer

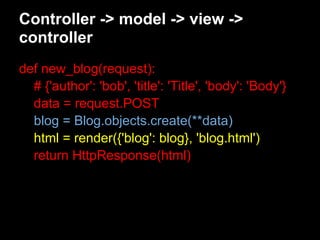

8. Controller -> model -> view ->
controller
def new_blog(request):
# {'author': 'bob', 'title': 'Title', 'body': 'Body'}
data = request.POST
blog = Blog.objects.create(**data)
html = render({'blog': blog}, 'blog.html')
return HttpResponse(html)

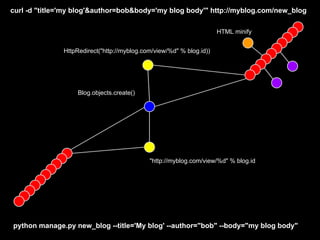

9. curl -d "title='my blog'&author=bob&body='my blog body'" http://myblog.com/new_blog
HTML minify
HttpRedirect("http://myblog.com/view/%d" % blog.id))
Blog.objects.create()
"http://myblog.com/view/%d" % blog.id
python manage.py new_blog --title='My blog' --author="bob" --body="my blog body"

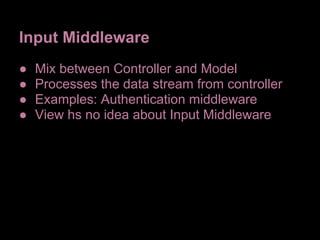

10. Input Middleware
● Mix between Controller and Model
● Processes the data stream from controller
● Examples: Authentication middleware
● View hs no idea about Input Middleware

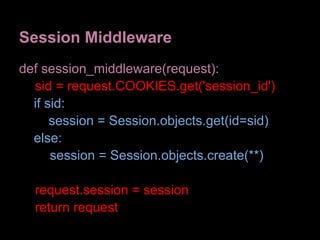

11. Session Middleware
def session_middleware(request):
sid = request.COOKIES.get('session_id')
if sid:
session = Session.objects.get(id=sid)
else:
session = Session.objects.create(**)
request.session = session
return request

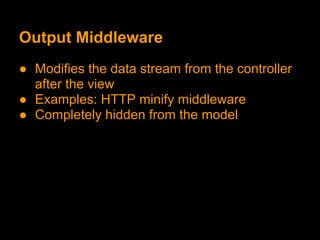

12. Output Middleware
● Modifies the data stream from the controller
after the view
● Examples: HTTP minify middleware
● Completely hidden from the model

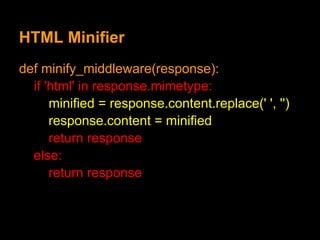

13. HTML Minifier
def minify_middleware(response):
if 'html' in response.mimetype:
minified = response.content.replace(' ', '')
response.content = minified
return response
else:
return response

14. Cache
● Short circuit of Model and View
● Performance improvement when you can get
away with returning pre-rendered data+html
● Primary usage of key/value stores
● Performance comes with a price, cache
invalidation is tough

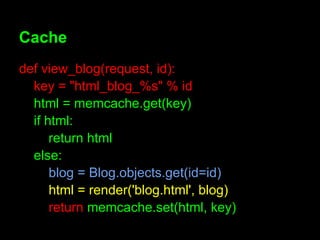

15. Cache
def view_blog(request, id):
key = "html_blog_%s" % id
html = memcache.get(key)
if html:
return html
else:
blog = Blog.objects.get(id=id)
html = render('blog.html', blog)
return memcache.set(html, key)

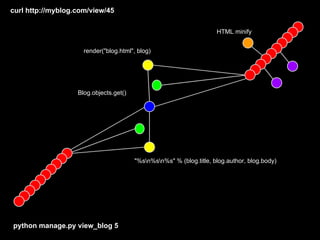

16. curl http://myblog.com/view/45
HTML minify
render("blog.html", blog)
Blog.objects.get()
"%sn%sn%s" % (blog.title, blog.author, blog.body)
python manage.py view_blog 5

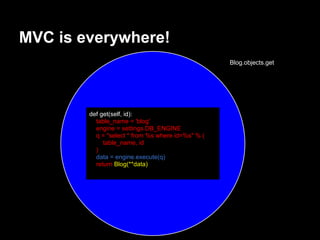

17. MVC is everywhere!
Blog.objects.get
def get(self, id):
table_name = 'blog'
engine = settings.DB_ENGINE
q = "select * from %s where id=%s" % (
table_name, id
)
data = engine.execute(q)
return Blog(**data)

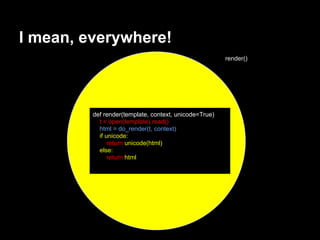

18. I mean, everywhere!
render()
def render(template, context, unicode=True)
t = open(template).read()
html = do_render(t, context)
if unicode:
return unicode(html)
else:
return html

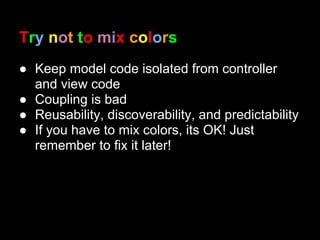

19. Try not to mix colors
● Keep model code isolated from controller
and view code
● Coupling is bad
● Reusability, discoverability, and predictability
● If you have to mix colors, its OK! Just
remember to fix it later!

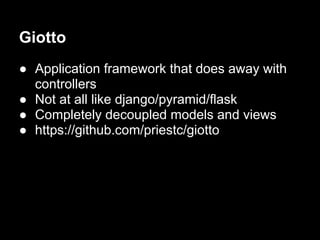

20. Giotto
● Application framework that does away with
controllers
● Not at all like django/pyramid/flask
● Completely decoupled models and views
● https://github.com/priestc/giotto

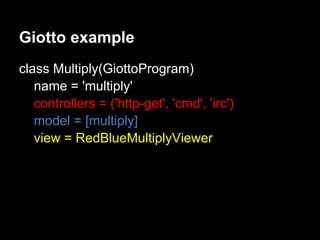

21. Giotto example
class Multiply(GiottoProgram)
name = 'multiply'
controllers = ('http-get', 'cmd', 'irc')
model = [multiply]
view = RedBlueMultiplyViewer

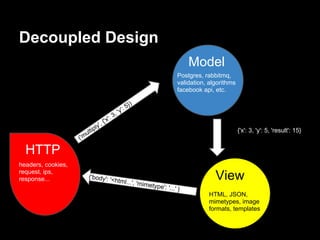

22. Decoupled Design
Model
Postgres, rabbitmq,
validation, algorithms
facebook api, etc.
5})
'y':
': 3,
', {'x
ly
ultip {{'x': 3, 'y': 5, 'result': 15}
('m
HTTP
headers, cookies,
request, ips,
response... {'body': '<
html...', 'm
imetype':
View
'...' }
HTML, JSON,
mimetypes, image
formats, templates

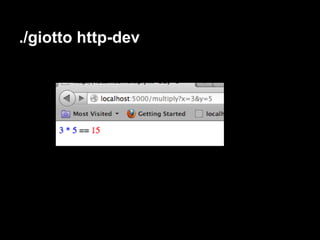

23. ./giotto http-dev

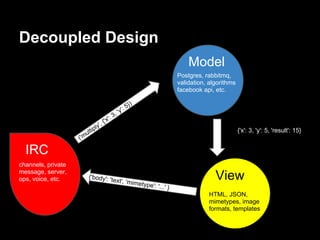

24. Decoupled Design
Model
Postgres, rabbitmq,
validation, algorithms
facebook api, etc.
5})
'y':
': 3,
', {'x
ly
ultip {{'x': 3, 'y': 5, 'result': 15}
('m
IRC
channels, private
message, server,
ops, voice, etc. {'body': 't
ext', 'mim
etype': '.
View
..' }
HTML, JSON,
mimetypes, image
formats, templates

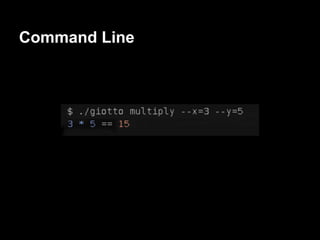

25. Command Line

26. Giotto example
class Multiply(GiottoProgram)
name = 'multiply'
controllers = ('http-get', 'cmd', 'irc')
model = [multiply]
cache = 3600
view = RedBlueMultiplyViewer

27. Automatic Cache
Model
Postgres, rabbitmq,
validation, algorithms
facebook api, etc.
{{'x': 3, 'y': 5, 'result': 15}
('multiply', {'x': 3, 'y': 5})
Controller Cache
{'body': 'text', 'mimetype': '...' }
View
HTML, JSON,
mimetypes, image
formats, templates

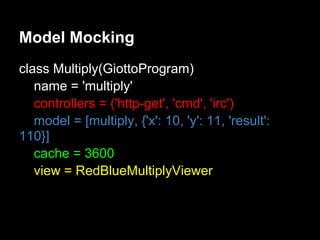

28. Model Mocking
class Multiply(GiottoProgram)
name = 'multiply'
controllers = ('http-get', 'cmd', 'irc')
model = [multiply, {'x': 10, 'y': 11, 'result':
110}]
cache = 3600
view = RedBlueMultiplyViewer

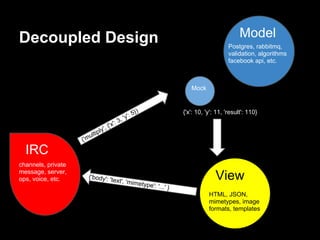

29. Decoupled Design Model
Postgres, rabbitmq,
validation, algorithms
facebook api, etc.
Mock
5}) {{'x': 10, 'y': 11, 'result': 110}
'y':
3,
x':
ly', {'
ltip
(' mu
IRC
channels, private
message, server,
ops, voice, etc. {'body': 't
ext', 'mim
etype': '.
View
..' }
HTML, JSON,
mimetypes, image
formats, templates

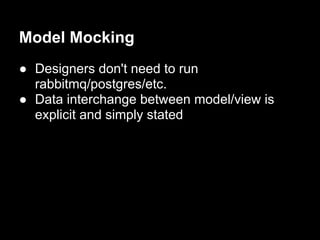

30. Model Mocking
● Designers don't need to run
rabbitmq/postgres/etc.
● Data interchange between model/view is
explicit and simply stated

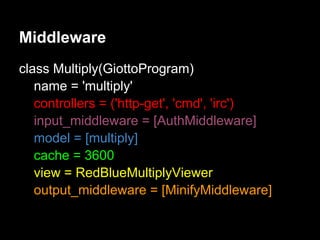

31. Middleware
class Multiply(GiottoProgram)
name = 'multiply'
controllers = ('http-get', 'cmd', 'irc')
input_middleware = [AuthMiddleware]
model = [multiply]
cache = 3600
view = RedBlueMultiplyViewer
output_middleware = [MinifyMiddleware]

32. Questions?
