Firewall Analyzer allows monitoring of virtual firewalls by resolving DNS names, enabling logging by context or vdom, and selecting syslog format. It generates context or vdom specific firewall reports on compliance, changes, and unused rules by using credentials for the base firewall. For support, contact the listed website, email, or demo site.

1. Monitoring Virtual Firewalls
With Firewall Analyzer

2. Pre-requisites
How to Monitor?

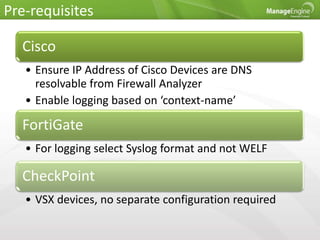

3. Pre-requisites
Cisco
• Ensure IP Address of Cisco Devices are DNS
resolvable from Firewall Analyzer
• Enable logging based on ‘context-name’
FortiGate
• For logging select Syslog format and not WELF
CheckPoint
• VSX devices, no separate configuration required

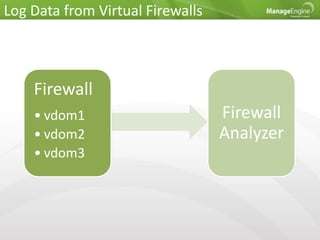

4. Log Data from Virtual Firewalls
Firewall
• vdom1 Firewall
• vdom2 Analyzer
• vdom3

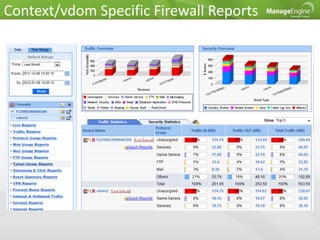

5. Context/vdom Specific Firewall Reports

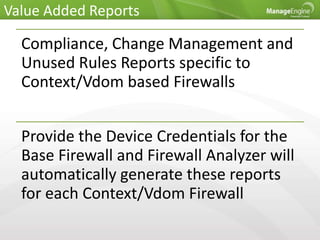

6. Value Added Reports
Compliance, Change Management and
Unused Rules Reports specific to
Context/Vdom based Firewalls
Provide the Device Credentials for the
Base Firewall and Firewall Analyzer will
automatically generate these reports
for each Context/Vdom Firewall

7. Contact Us
www.fwanalyzer.com
• fwanalyzer-support@manageengine.com
• http://demo.fwanalyzer.com
• http://www.facebook.com/LogAnalyzer
