The document provides an overview of the AC-6000 Fingerprint Identification System, including: 1. It uses a 1.3 megapixel CMOS image sensor, touchless button sensor, and 16-bit color LCD touch screen. 2. It has a Linux operating system and supports various authentication modes including fingerprint, card, password, and face detection. 3. It can store up to 200,000 templates and 524,000 event histories, and authenticate 7,000 templates per second.

1. AC-6000 Fingerprint Identification System

2. Technical Overview User Specification Operating System Camera Operation Finger Sensor Operation USB Operation User Interface Language Translations Future Expansion 1. Contents

3. 1.3megapixel CMOS image sensor Touch less button sensor (f1-f4, call button) 16bit Color TFT LCD Touch screen 4.8inch (display 800x480) 10/100mb Ethernet LAN USB Host 1.1/2.0 – (USB pen or Wireless) USB Device – (computer interface) Linux OS (operating system) Dynamic Language Change 2. Technical Overview

4. Customizable Screen Images Icons can change if needed Customizable Screen Messages per User User Authentication Message : server only (40 letters) Customizable Sound/Voices USB sound or MP3 files updating possible Global Message Broadcasting Main window display Programmable time for display : server only (128 letters) 2. Technical Overview

5. 13.56 MHz Smart Card Support (AC-6000SA) 125 KHz RF Card Support (AC-6000RF) Wiegand Interface ( Input 1ea, Output 1ea) RS-485 or RS-232 Interface ( Switch Selection) UV Protection (optional) Approach Detect Sensor Anti-pass back Support 11 Authentication Modes 524,000 Event History 200,000 Templates (100,000 fingerprints) 5 Fingerprints/user 5 Cards per user/user 3. User Specification

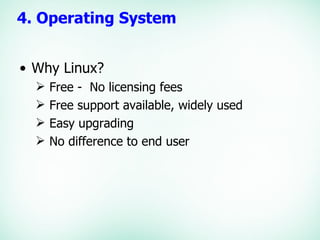

6. Why Linux? Free - No licensing fees Free support available, widely used Easy upgrading No difference to end user 4. Operating System

7. Direct interface to CPU (faster) 500ms-600ms capture time Picture size 320 x 480 jpeg @ 5k per picture 12,500 pictures (log and user database) User database picture Log picture Export to USB Server Real-time display Picture is taken immediately on access Three programmable options Display Picture (show picture on LCD) Authorized Users (save new picture to database) Unauthorized Users (save new picture to database) 5. Camera Sensor Operation

8. Direct interface to CPU Finger image displayed on LCD (visual quality check) 7,000 templates/second authentication time 200ms finger capture time Fake finger detection 6. Finger Sensor Operation

9. User Input (fingerprint/card/id/password) Authentication Picture LCD display result 7. Authentication Process

10. USB pen device Import to AC6000 (firmware upgrade, user background images, system settings, user data, languages) Export from AC6000 (system settings, user data, log data, picture data) Transfer from terminal to terminal or terminal to server program. 8. USB Operation

11. Designed by outsource company GUI (User Interface) All text is translatable to other languages Easy to use touch buttons Programmable LCD screen saver, turns off lcd after programmable period. 9. User Interface

12. Three New Options (checkbox) System Settings -> Face Detection * Card * Fingerprint * Password 10. Face Detection

13. Display Standard Success Windows Display Standard Failure Windows Start Face Detection YES YES Card/Fingerprint/Password Face Detection Option Enabled? NO Card /Fingerprint /Password Authorized? NO 10. Face Detection

14. Please. Align Face in Center of window # Show Type : Visible # Capture Method 1. Starting Face Analysis – Video ON. 2. Alignment Message Continue Count - Video “Please. Align Face in Center of window 3.2.1.” 3. Alignment Message Continue Count - Video 10. Face Detection

15. Still Picture Animation GIF 10. Face Detection

16. # Show Type : Visible # Analysing Method 1. Fingerprint Verification 2. Card Verification 3. ID Number Verification Face Analysis 10. Face Detection Analysing Face Image

17. Display Standard Result Window – Face Picture Voice Standard “You are Authorized” Fail Success # Show Type : Visible # Authorized Icon and Matching Time Display 1. Fingerprint Authorized Icon 2. Card Authorized Icon 3. ID Number Authorized Icon # Show Type : Visible # Return Point : Step 2. Card/Fingerprint /Password Authorized 10. Face Detection

18. Authorized Image Sample Failed Image Sample Mask Many Face Sunglass Blind eye Background Cap 10. Face Detection

19. Changeable custom background Moveable icons/time/date Option to display function keys on main window Option for daily background change Status icons (system trouble, approach, door, network, UV) Input ID button Access Button (time/attendance & meal mode) 10. Main Screen

20. Time/Attendance View 11. Main Screen

21. Time/Attendance with Function Keys 11. Main Screen

22. Icon Move-ability 11. Main Screen

23. Main 12. Configuration

24. User Programming 12. Configuration

25. Add User 12. Configuration

26. View User 12. Configuration

27. Terminal Information 12. Configuration

28. Theme 12. Configuration
