How to use natural building materials in your green home
- 1.

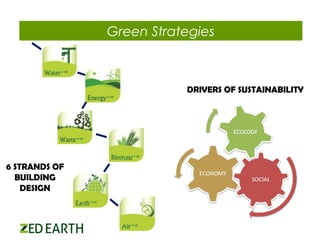

- 2. Green Strategies DRIVERS OFSUSTAINABILITY 6 STRANDS OF BUILDING DESIGN

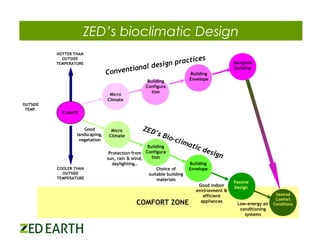

- 3. ZED’s bioclimatic Design HOTTERTHAN OUTSIDE TEMPERATURE OUTSIDE TEMP. ices n pract l desig entiona Conv Building Micro Climate Designed Building Envelope Building Configura tion CLIMATE Good landscaping, vegetation COOLER THAN OUTSIDE TEMPERATURE Micro Climate ZED ’s B io-c l ima tic Building Protection from Configura tion sun, rain & wind, daylighting… Choice of suitable building materials COMFORT ZONE des ign Building Envelope Good indoor environment & efficient appliances Passive Design Low-energy air conditioning systems Desired Comfort Conditions

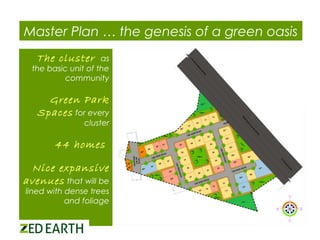

- 4. Master Plan …the genesis of a green oasis The cluster as the basic unit of the community Green Park Spaces for every cluster 44 homes Nice expansive avenues that will be lined with dense trees and foliage
- 5. Stay Cool inall seasons… Clusters that define your climate within your homes Green spreads within each cluster that would enable removal of heat

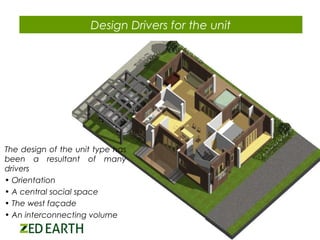

- 6. Design Drivers forthe unit The design of the unit type has been a resultant of many drivers • Orientation • A central social space • The west façade • An interconnecting volume

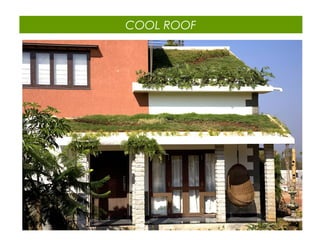

- 7.
- 8.

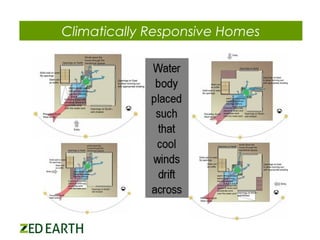

- 9.
- 10. Welcoming Double Spacein your Living Room Socio-Climatic Drivers: Double height space integrating the two floors to experience the volume.

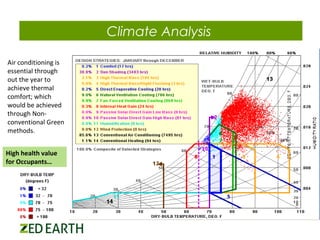

- 11. Climate Analysis Air conditioningis essential through out the year to achieve thermal comfort; which would be achieved through Nonconventional Green methods. High health value for Occupants…

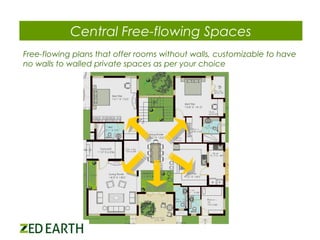

- 12. Central Free-flowing Spaces Free-flowingplans that offer rooms without walls, customizable to have no walls to walled private spaces as per your choice

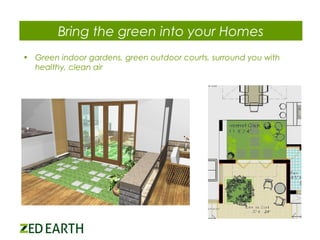

- 13. Bring the greeninto your Homes • Green indoor gardens, green outdoor courts, surround you with healthy, clean air

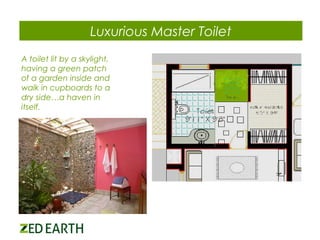

- 14. Luxurious Master Toilet Atoilet lit by a skylight, having a green patch of a garden inside and walk in cupboards to a dry side…a haven in itself.

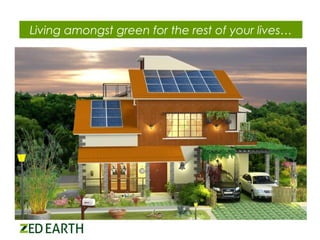

- 15. Living amongst greenfor the rest of your lives…
- 16. STRATEGY Reliability Economy Efficiency Function Finishes Environmental Compatibility Economic Efficiency Endoginety Equity Cost Aesthetic Function Easeof Execution Efficient Time Environmental Health 16
- 17. We use Geysers Synthetic fertilizersor pesticides Chemicals for treating water HCFC CFC or ODS toxic paints 17
- 18. We use Bricks, clayblocks, clay tiles, Ceramic tiles Incandescent lamps waste exported Forest timber Municipal water imported 18
- 19. We use LEDs, solarbased or hybrids for external lights Composites Shallow aquifers 19
- 20. Green Masonry blocks TexturedWall Hollow Block Homes are built with specially engineered masonry blocks for walls. These also include designer blocks. These are energy-efficient, and are part of microclimate architecture … Thermal Plaster
- 21. Demand side Management Supply side Management EnergyManagement Strategy
- 22. Green Air conditioning •ACs are to be used only when you need it. And so these homes at BCIL Zed Earth have been provided with 36 Watt low energy ceiling fans that reduce power consumption by a chunky 25%. Washrooms offer energy-efficient ventilators. • Energy-efficient air-conditioning that is innovative, easy-to-run, and saves 50 per cent on monthly energy bills.

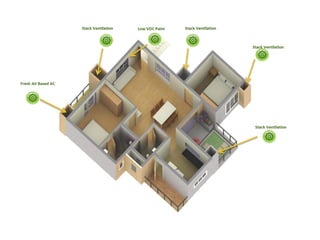

- 23. Green Air conditioning 27- 28 C ̊ ̊ MIST COOLING UNIT CAP 2000 CFMz FRESH AIR IN 28 ̊ – 32 ̊C BED ROOM 24 C ± ̊ BED ROOM 24 C ± ̊ BED ROOM 24 C ± ̊ BED ROOM 24 C ± ̊ SUPPLY AIR DUCT WITH THERMAL INSULATION

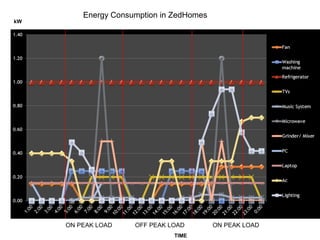

- 24. kW Energy Consumption inZedHomes ON PEAK LOAD OFF PEAK LOAD TIME ON PEAK LOAD

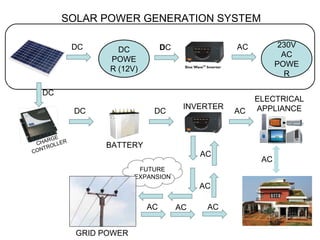

- 25. SOLAR POWER GENERATIONSYSTEM DC DC DC RGE CHA OLLER TR CON DC 230V AC POWE R AC DC DC POWE R (12V) INVERTER AC ELECTRICAL APPLIANCE BATTERY AC FUTURE EXPANSION AC AC GRID POWER AC AC AC
- 26. Bio-diesel for gensets oDiesel Gensets as supplementary power for all ZedHomes. o Gensets run on 30% bio-diesel (pongamia pinnata) o Reduce 2.5 tonnes of CO2 annually 26
- 27. Hot water withzero energy bills… • Every home at BCIL Zed Earth comes complete with a solar thermal hot water supply system. It’s backed up by a provision for a 15-litre, energyefficient geyser you can fit optionally in each washroom.
- 28.

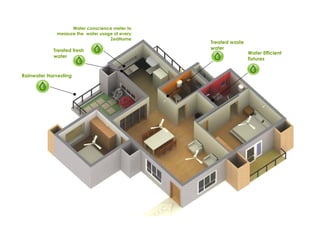

- 29. Water conscience meterto measure the water usage of every ZedHome Treated fresh water Rainwater Harvesting Treated waste water Water Efficient fixtures

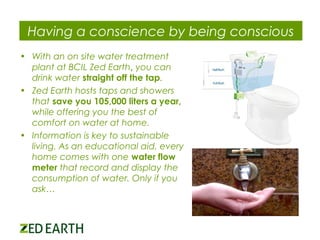

- 30. Having a conscienceby being conscious • With an on site water treatment plant at BCIL Zed Earth, you can drink water straight off the tap. • Zed Earth hosts taps and showers that save you 105,000 liters a year, while offering you the best of comfort on water at home. • Information is key to sustainable living. As an educational aid, every home comes with one water flow meter that record and display the consumption of water. Only if you ask…

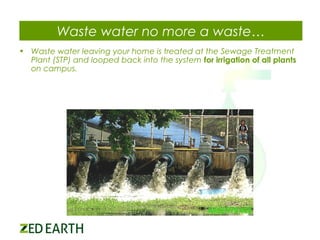

- 31. Waste water nomore a waste… • Waste water leaving your home is treated at the Sewage Treatment Plant (STP) and looped back into the system for irrigation of all plants on campus.

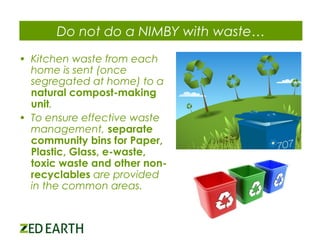

- 32. Do not doa NIMBY with waste… • Kitchen waste from each home is sent (once segregated at home) to a natural compost-making unit. • To ensure effective waste management, separate community bins for Paper, Plastic, Glass, e-waste, toxic waste and other nonrecyclables are provided in the common areas.
- 33.
