1. Videofied
Product/Service presented by
Cooperative Response Center, Inc.

2. Sheriffs’ Endorsement
Focusing on the human side of technology

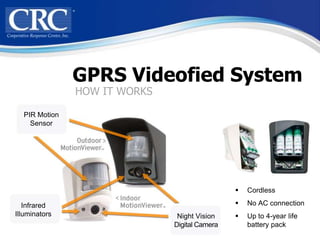

3. GPRS Videofied System
HOW IT WORKS
PIR Motion
Sensor
 Cordless
Infrared  No AC connection
Illuminators Night Vision  Up to 4-year life
Digital Camera battery pack

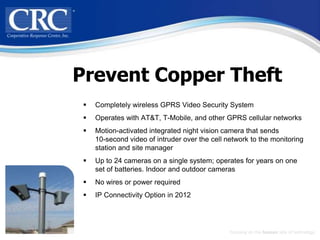

4. Prevent Copper Theft
 Completely wireless GPRS Video Security System
 Operates with AT&T, T-Mobile, and other GPRS cellular networks
 Motion-activated integrated night vision camera that sends
10-second video of intruder over the cell network to the monitoring
station and site manager
 Up to 24 cameras on a single system; operates for years on one
set of batteries. Indoor and outdoor cameras
 No wires or power required
 IP Connectivity Option in 2012
Focusing on the human side of technology

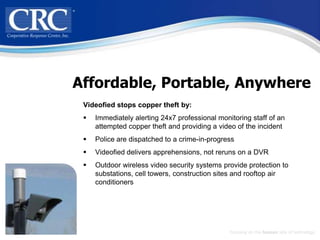

5. Affordable, Portable, Anywhere
Videofied stops copper theft by:
 Immediately alerting 24x7 professional monitoring staff of an
attempted copper theft and providing a video of the incident
 Police are dispatched to a crime-in-progress
 Videofied delivers apprehensions, not reruns on a DVR
 Outdoor wireless video security systems provide protection to
substations, cell towers, construction sites and rooftop air
conditioners
Focusing on the human side of technology

6. Substation Protection
Substation Arrest: Substation: Infrastructure:
Theft of transformer No prosecution needed Winter copper theft at
grounding rods. utility storage yard
Focusing on the human side of technology

7. Immediate Detect Priority Response
Cell Tower
Panel Hub
MotionViewer
Monitoring Station Responder

8. Numerous Applications
Special Applications Mainstream Surveillance
 Commercial Outdoor  Cell Upgrade  Blended Video
–Fenced lots –Video included –Enhanced
–Utilities surveillance
 Small Commercial
 Portable/Temporary
–Construction  Residential
–Municipal

9. IP Connectivity
ARRIVING JANUARY 2012

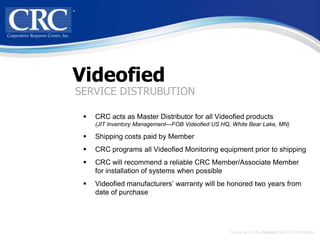

10. Videofied
SERVICE DISTRUBUTION
 CRC acts as Master Distributor for all Videofied products
(JIT Inventory Management—FOB Videofied US HQ, White Bear Lake, MN)
 Shipping costs paid by Member
 CRC programs all Videofied Monitoring equipment prior to shipping
 CRC will recommend a reliable CRC Member/Associate Member
for installation of systems when possible
 Videofied manufacturers’ warranty will be honored two years from
date of purchase
Focusing on the human side of technology

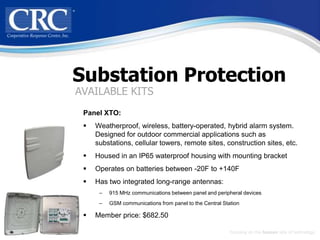

11. Substation Protection
AVAILABLE KITS
Panel XTO:
 Weatherproof, wireless, battery-operated, hybrid alarm system.
Designed for outdoor commercial applications such as
substations, cellular towers, remote sites, construction sites, etc.
 Housed in an IP65 waterproof housing with mounting bracket
 Operates on batteries between -20F to +140F
 Has two integrated long-range antennas:
– 915 MHz communications between panel and peripheral devices
– GSM communications from panel to the Central Station
 Member price: $682.50
Focusing on the human side of technology

12. Substation Protection
AVAILABLE KITS

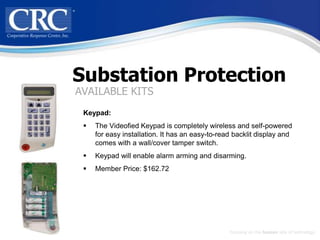

Keypad:
 The Videofied Keypad is completely wireless and self-powered
for easy installation. It has an easy-to-read backlit display and
comes with a wall/cover tamper switch.
 Keypad will enable alarm arming and disarming.
 Member Price: $162.72
Focusing on the human side of technology

13. Substation Protection
AVAILABLE KITS
Outdoor MotionViewer
 Combines a passive infrared motion sensor, digital camera, and
infrared illuminators into a single wireless battery-powered
security device.
 Ideal to secure outdoor assets and remote facilities.
 Includes: True night vision - IP 65 Weatherproof rated. -30° to
+60°C (-20° to +140°F). - UNPLUGGED: no wires or AC
power - Up to 4 year battery life. - 915/868/925 MHz
communication between MotionViewer / peripherals. - RF range
is up to 2,000 feet (700m).
 Member price: $374.47/MotionViewer
– 4 MotionViewers recommended per substation

14. Substation Protection
AVAILABLE KITS

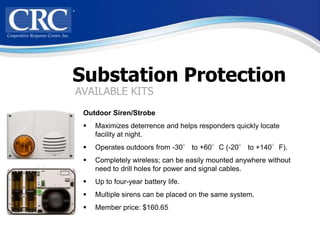

Outdoor Siren/Strobe
 Maximizes deterrence and helps responders quickly locate
facility at night.
 Operates outdoors from -30° to +60°C (-20° to +140°F).
 Completely wireless; can be easily mounted anywhere without
need to drill holes for power and signal cables.
 Up to four-year battery life.
 Multiple sirens can be placed on the same system.
 Member price: $160.65

15. Substation Protection
AVAILABLE KITS
Mounting Arm Kit
 Designed to facilitate the mounting of the Outdoor MotionViewer
and screws into the threaded socket in the rear of the device.
 Member price: $14.65

16. Substation Protection
AVAILABLE KITS

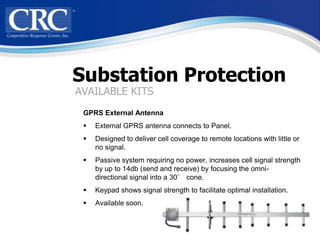

GPRS External Antenna
 External GPRS antenna connects to Panel.
 Designed to deliver cell coverage to remote locations with little or
no signal.
 Passive system requiring no power, increases cell signal strength
by up to 14db (send and receive) by focusing the omni-
directional signal into a 30° cone.
 Keypad shows signal strength to facilitate optimal installation.
 Available soon.

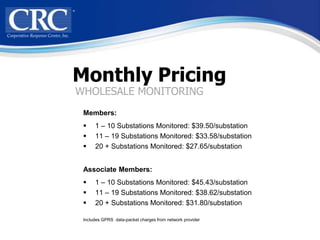

17. Monthly Pricing
WHOLESALE MONITORING
Members:
 1 – 10 Substations Monitored: $39.50/substation
 11 – 19 Substations Monitored: $33.58/substation
 20 + Substations Monitored: $27.65/substation
Associate Members:
 1 – 10 Substations Monitored: $45.43/substation
 11 – 19 Substations Monitored: $38.62/substation
 20 + Substations Monitored: $31.80/substation
Includes GPRS data-packet charges from network provider

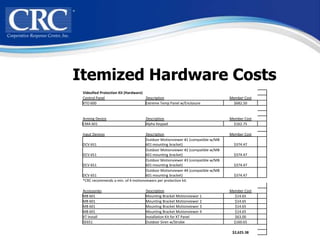

18. Itemized Hardware Costs
Videofied Protection Kit (Hardware)
Control Panel Description Member Cost
XTO 600 Extreme Temp Panel w/Enclosure $682.50
Arming Device Description Member Cost
CMA 601 Alpha Keypad $162.75
Input Devices Description Member Cost
Outdoor Motionviewer #1 (compatible w/MB
DCV 651 601 mounting bracket) $374.47
Outdoor Motionviewer #2 (compatible w/MB
DCV 651 601 mounting bracket) $374.47
Outdoor Motionviewer #3 (compatible w/MB
DCV 651 601 mounting bracket) $374.47
Outdoor Motionviewer #4 (compatible w/MB
DCV 651 601 mounting bracket) $374.47
*CRC recommends a min. of 4 motionviewers per protection kit.
Accessories Description Member Cost
MB 601 Mounting Bracket Motionviewer 1 $14.65
MB 601 Mounting Bracket Motionviewer 2 $14.65
MB 601 Mounting Bracket Motionviewer 3 $14.65
MB 601 Mounting Bracket Motionviewer 4 $14.65
XT Install Installation Kit for XT Panel $63.00
SE651 Outdoor Siren w/Strobe $160.65
$2,625.38

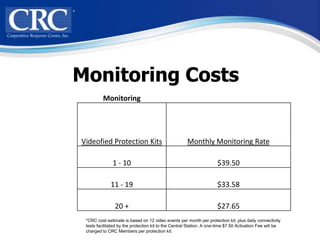

19. Monitoring Costs
Monitoring
Videofied Protection Kits Monthly Monitoring Rate
1 - 10 $39.50
11 - 19 $33.58
20 + $27.65
*CRC cost estimate is based on 12 video events per month per protection kit, plus daily connectivity
tests facilitated by the protection kit to the Central Station. A one-time $7.50 Activation Fee will be
charged to CRC Members per protection kit.
