vert.x 를 활용한 분산서버 개발하기
- 1. vert.x를 활용한 ! 대용량 트래픽처리를 위한! 분산 서버 개발하기! ! (vert.x & scalable architecture) 김요한 yohany@gmail.com

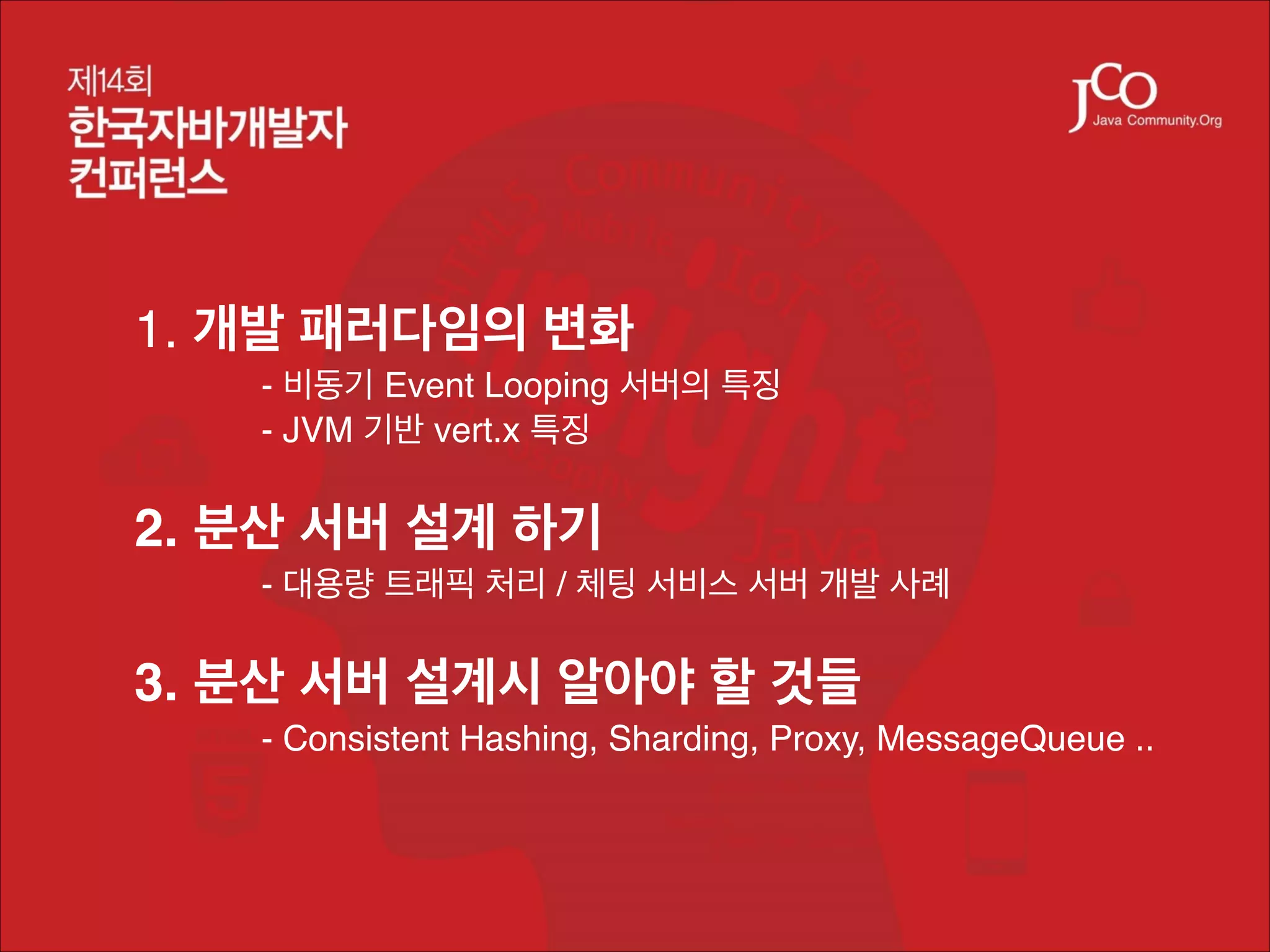

- 2. 1. 개발 패러다임의변화! ! ! - 비동기 Event Looping 서버의 특징! - JVM 기반 vert.x 특징! ! 2. 분산 서버 설계 하기! ! - 대용량 트래픽 처리 / 체팅 서비스 서버 개발 사례! ! 3. 분산 서버 설계시 알아야 할 것들! ! - Consistent Hashing, Sharding, Proxy, MessageQueue ..!
- 3. 1. 개발 패러다임의변화! ! ! - 비동기 Event Looping 서버의 특징! - JVM 기반 vert.x 특징
- 4. 1. 개발 패러다임의변화 Question 원하는 만큼 확장할 수 있나요 ?! 대용량 트래픽을 처리 할 수 있나요 ?! 기능 추가를 얼마나 빨리 할 수 있나요 ?! 쉽고 빨리 개발할 수 있나요 ?
- 5. 1. 개발 패러다임의변화 Answer background on the C10K problem! Event Looping! None Blocking I/O! Fault Tolerant! Scalability (Scala-Out)! ......
- 6. 비동기 서버의 특징 Shiftingfrom ! Threading to Asynchronous

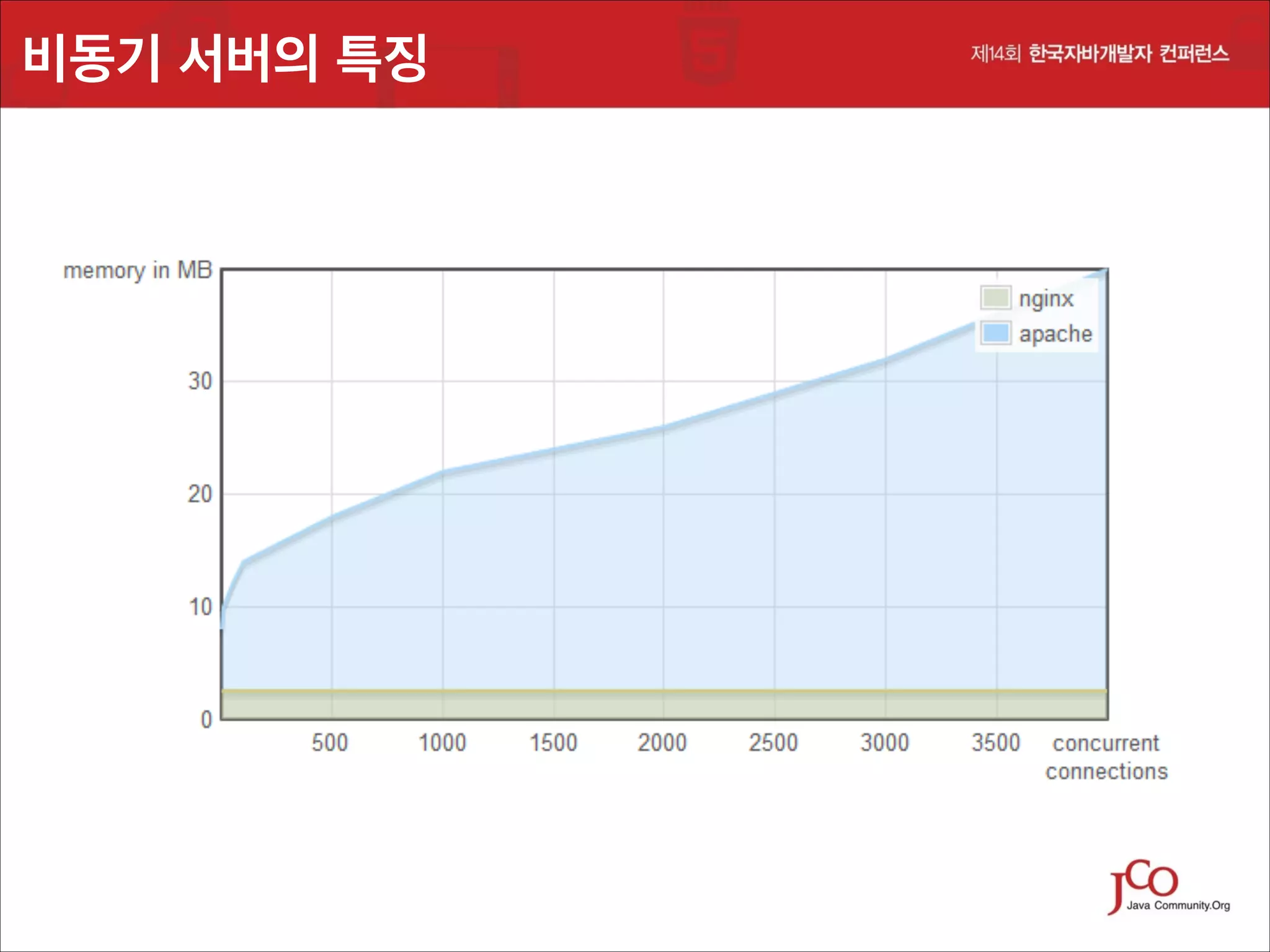

- 7.

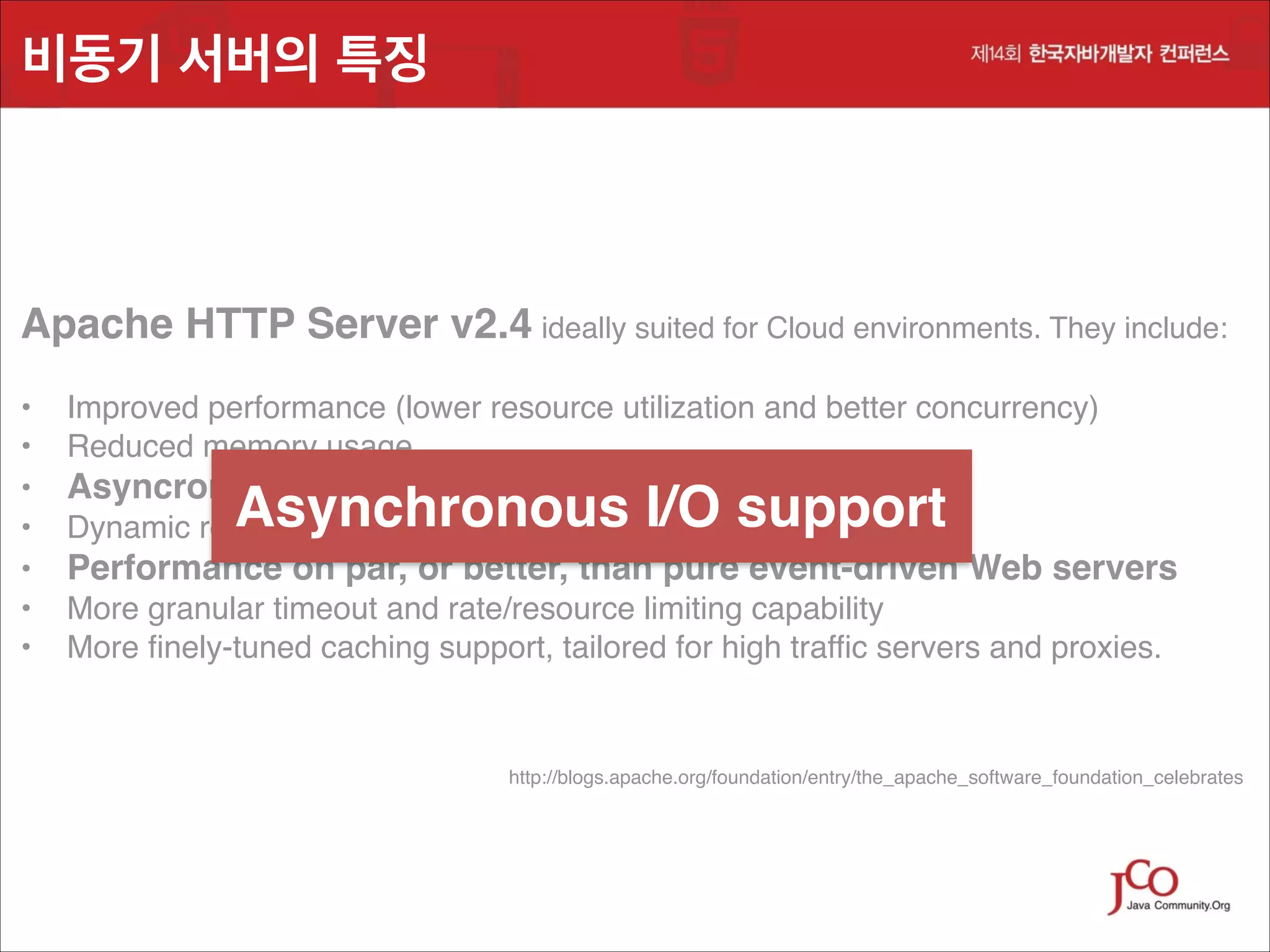

- 8. 비동기 서버의 특징 ApacheHTTP Server v2.4 ideally suited for Cloud environments. They include:! ! • • • • • • • Improved performance (lower resource utilization and better concurrency)! Reduced memory usage! Asyncronous I/O support! Dynamic reverse proxy configuration! Asynchronous I/O support Performance on par, or better, than pure event-driven Web servers! More granular timeout and rate/resource limiting capability! More finely-tuned caching support, tailored for high traffic servers and proxies. http://blogs.apache.org/foundation/entry/the_apache_software_foundation_celebrates

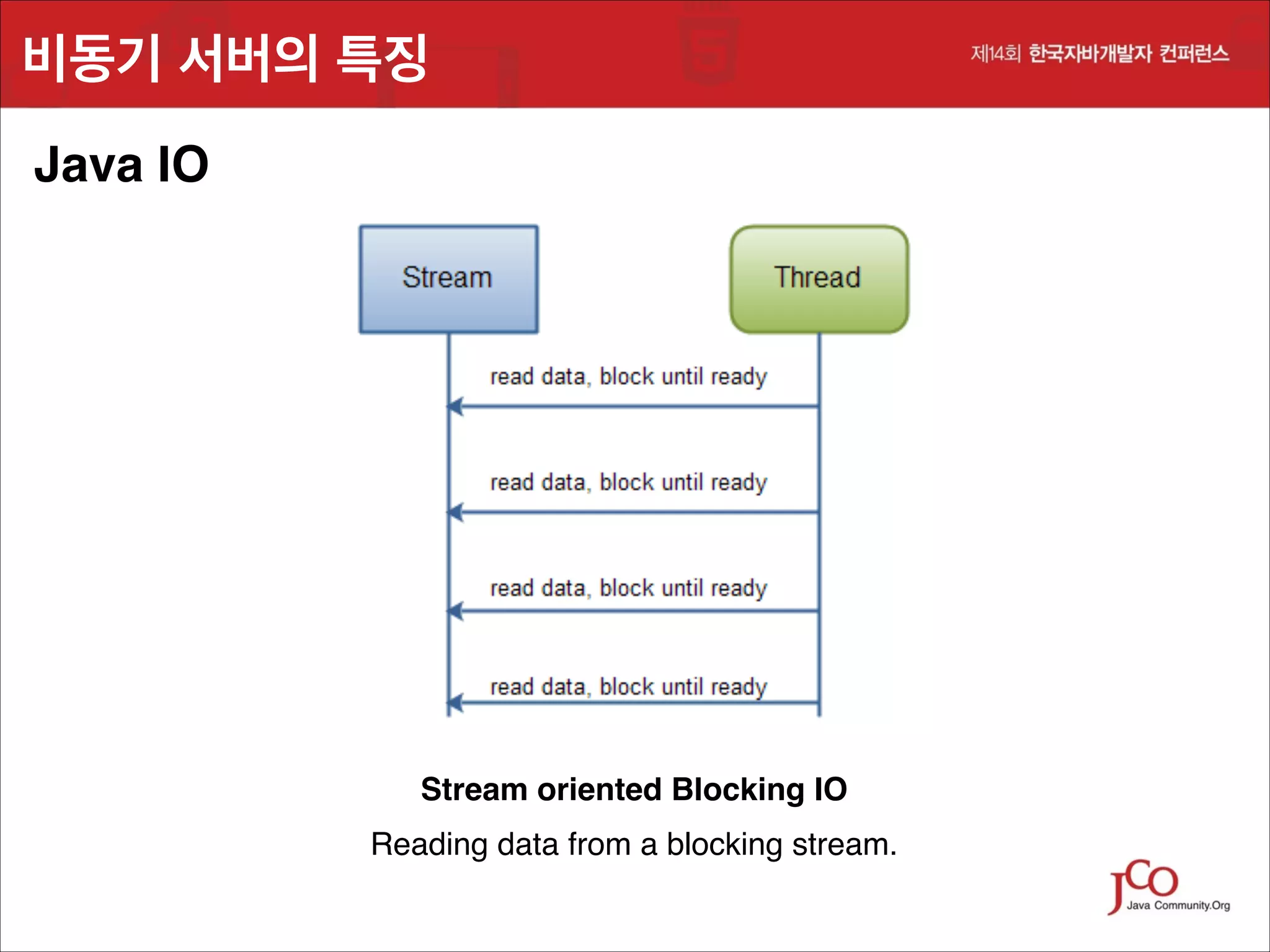

- 9. 비동기 서버의 특징 JavaIO Stream oriented Blocking IO Reading data from a blocking stream.

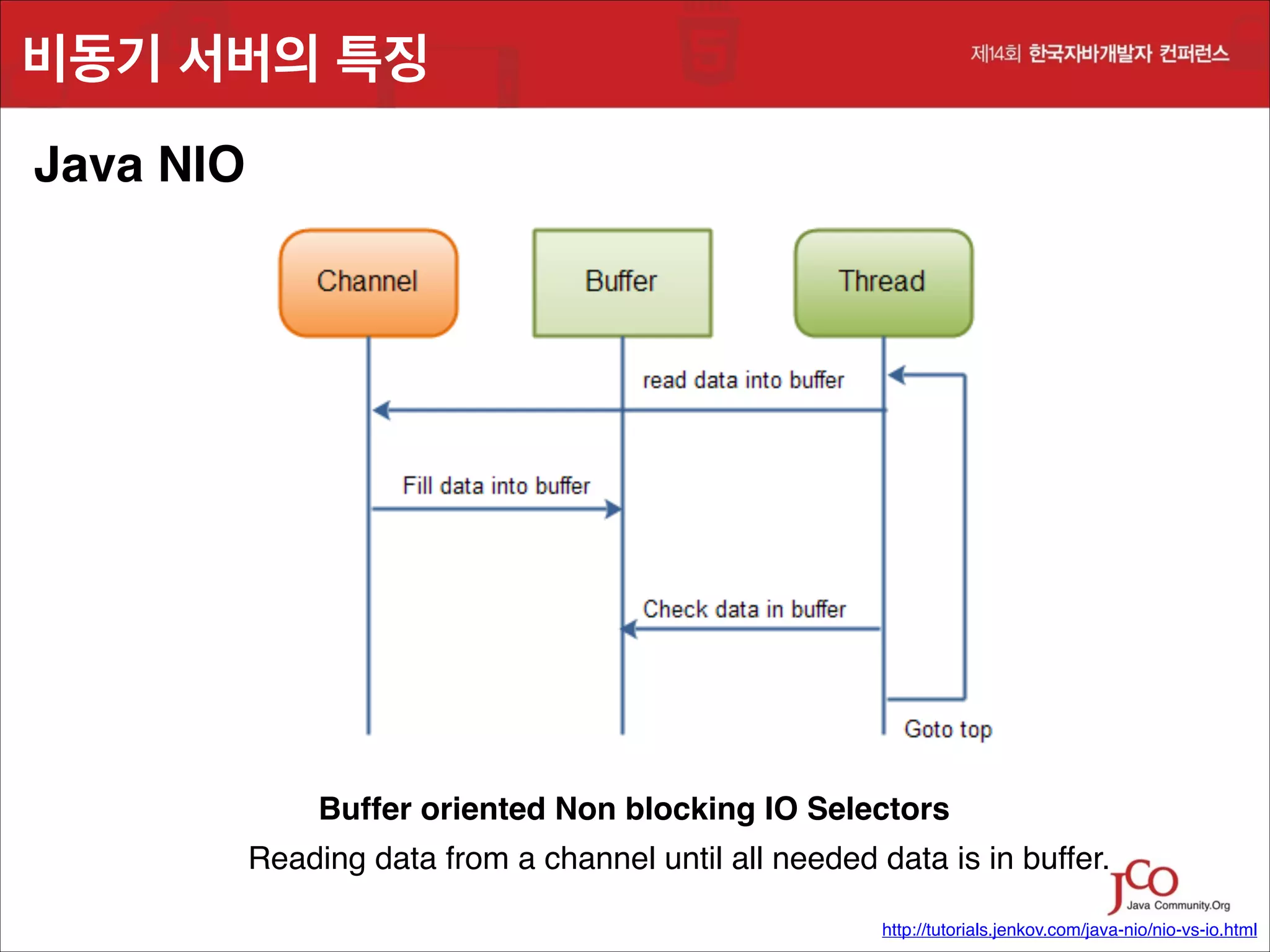

- 10. 비동기 서버의 특징 JavaNIO Buffer oriented Non blocking IO Selectors Reading data from a channel until all needed data is in buffer. http://tutorials.jenkov.com/java-nio/nio-vs-io.html
- 11. 비동기 서버의 특징 manymodularity paradigms
- 12.

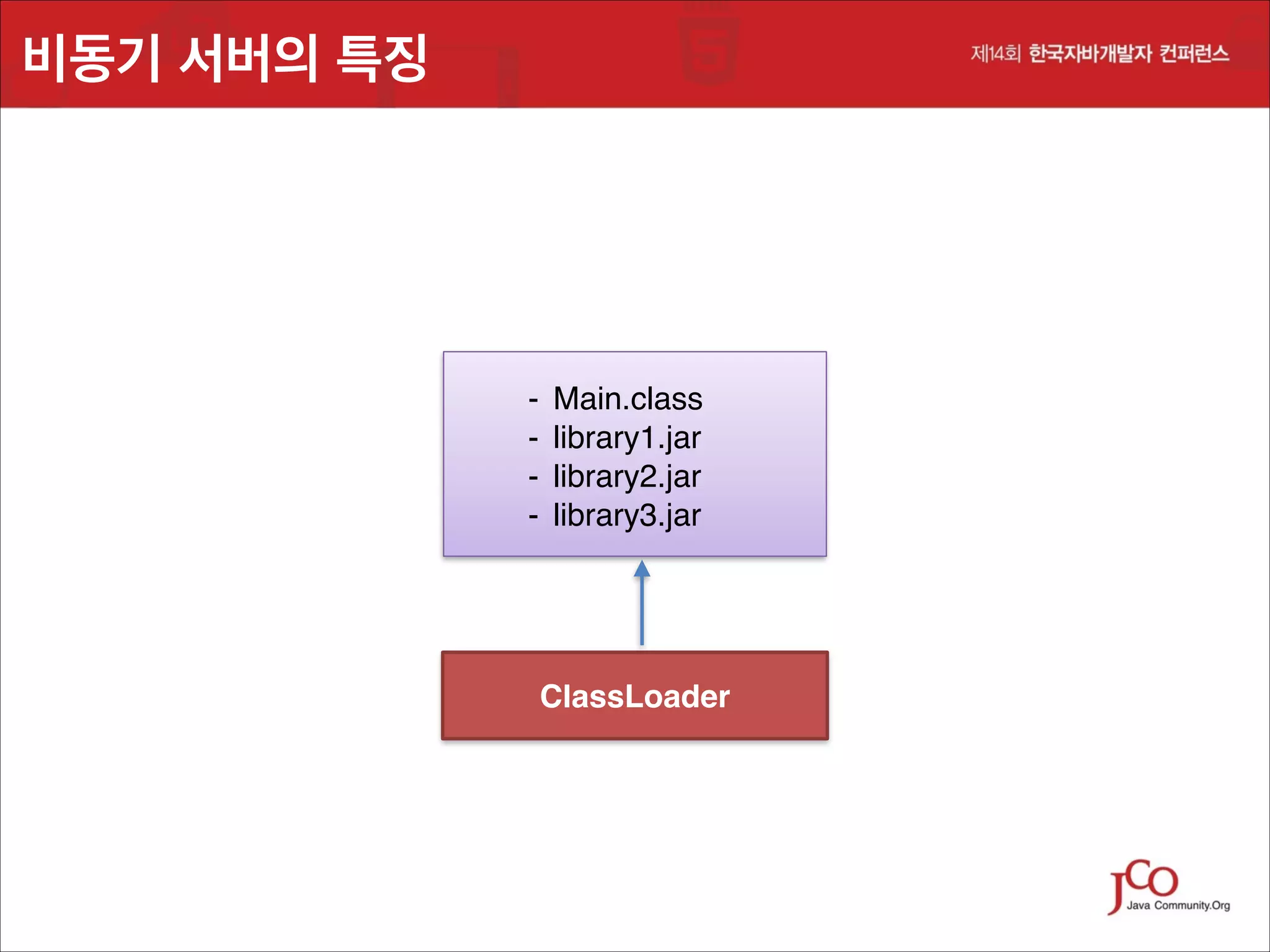

- 13. 비동기 서버의 특징 - Main.class! library1.jar! library2.jar! library3.jar JARLibrary ClassLoader

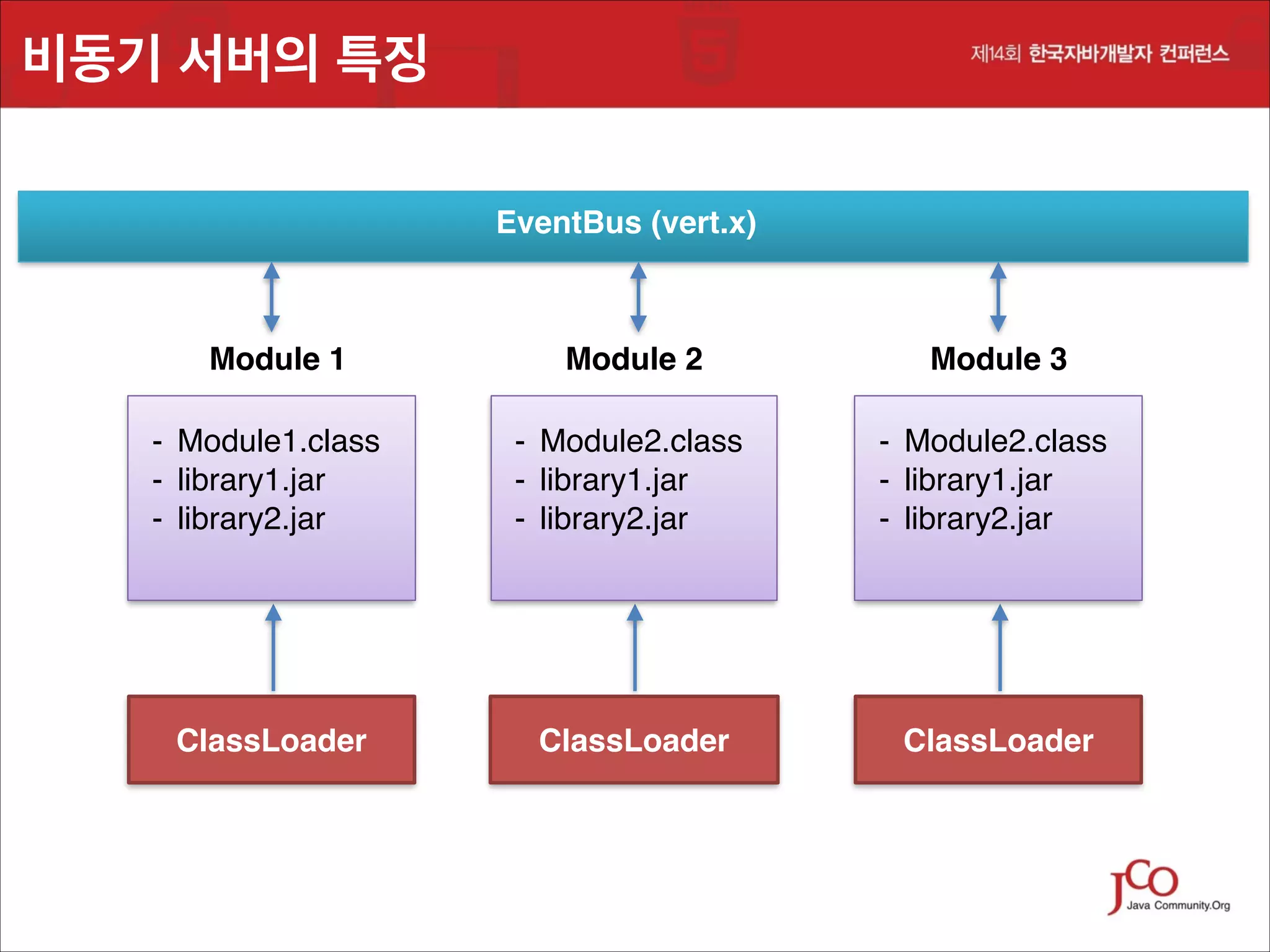

- 14. 비동기 서버의 특징 EventBus(vert.x) Module 1 Module 2 Module 3 - Module1.class! - library1.jar! - library2.jar - Module2.class! - library1.jar! - library2.jar - Module2.class! - library1.jar! - library2.jar ClassLoader ClassLoader ClassLoader
- 15. 비동기 서버의 특징 Polyglotor Multilingual
- 16. 비동기 서버의 특징 “Components + Scripts = Applications ” see John Ousterhout, IEEE Computer, March ’98 http://www.stanford.edu/~ouster/cgi-bin/papers/scripting.pdf

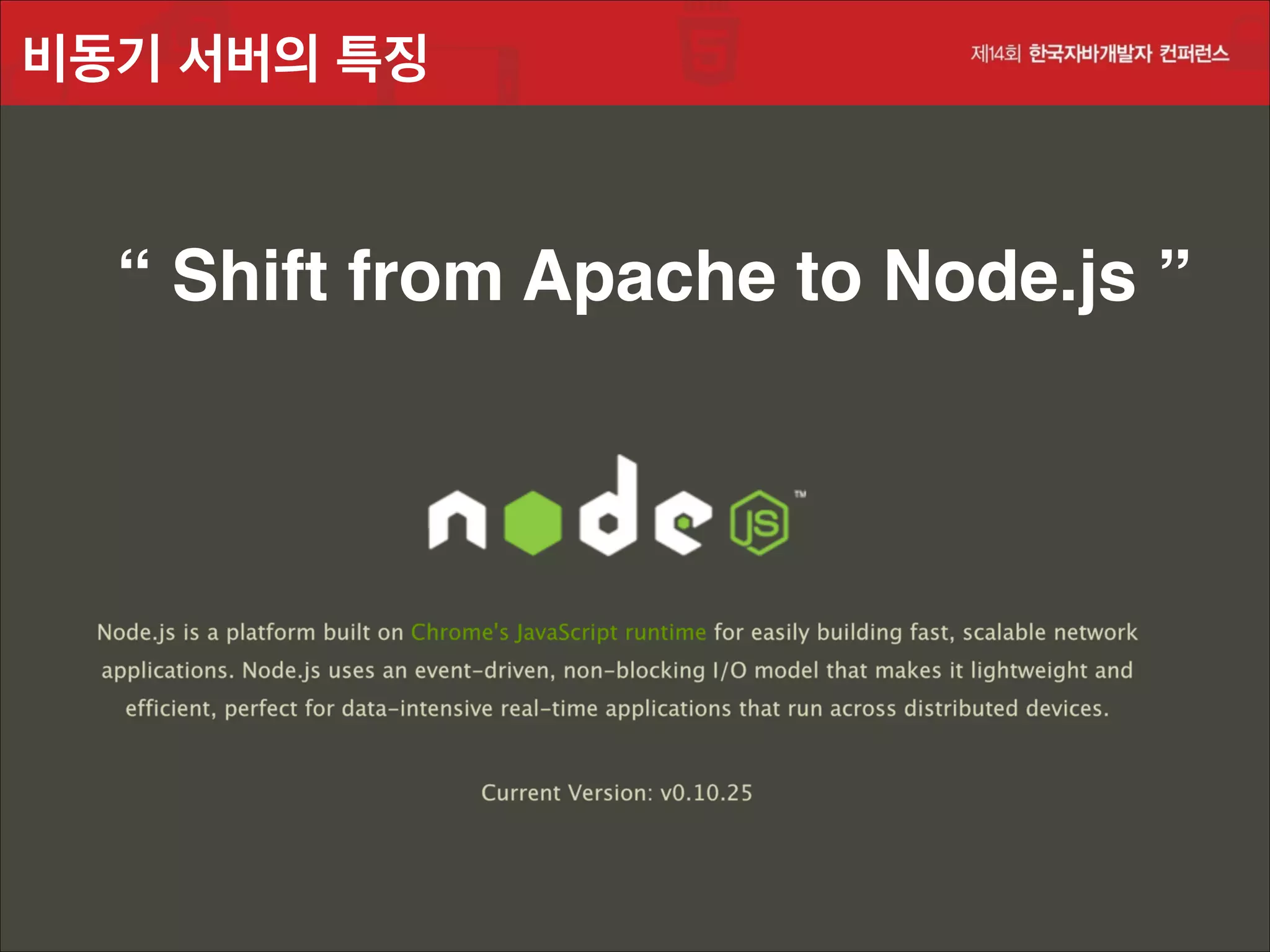

- 17. 비동기 서버의 특징 “Shift from Apache to Node.js ”
- 18. JVM 기반 VERT.X특징 based JVM

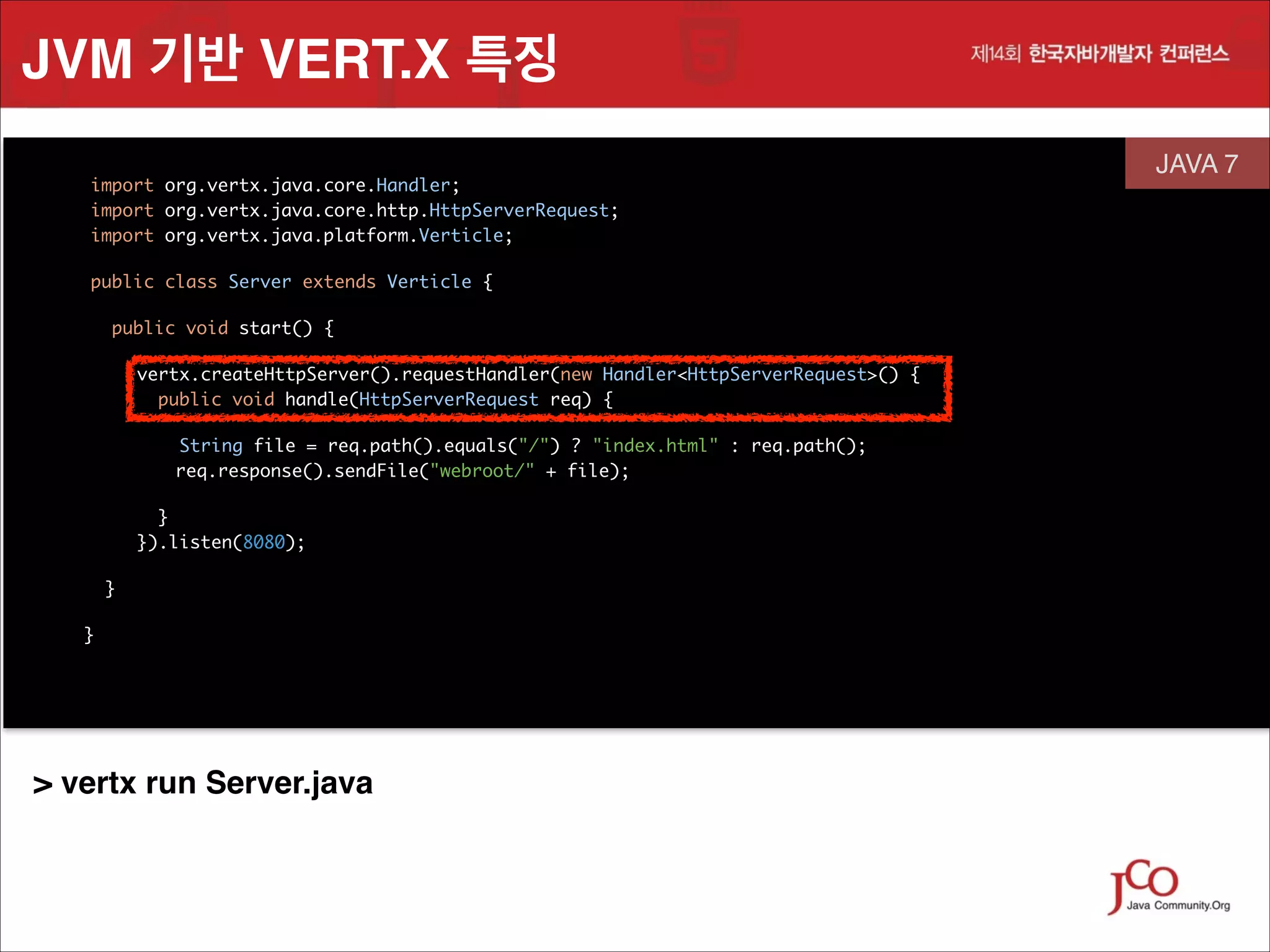

- 19. JVM 기반 VERT.X특징 import org.vertx.java.core.Handler; import org.vertx.java.core.http.HttpServerRequest; import org.vertx.java.platform.Verticle; public class Server extends Verticle { JAVA 7 public void start() { vertx.createHttpServer().requestHandler(new Handler<HttpServerRequest>() { public void handle(HttpServerRequest req) { String file = req.path().equals("/") ? "index.html" : req.path(); req.response().sendFile("webroot/" + file); } }).listen(8080); } } > vertx run Server.java

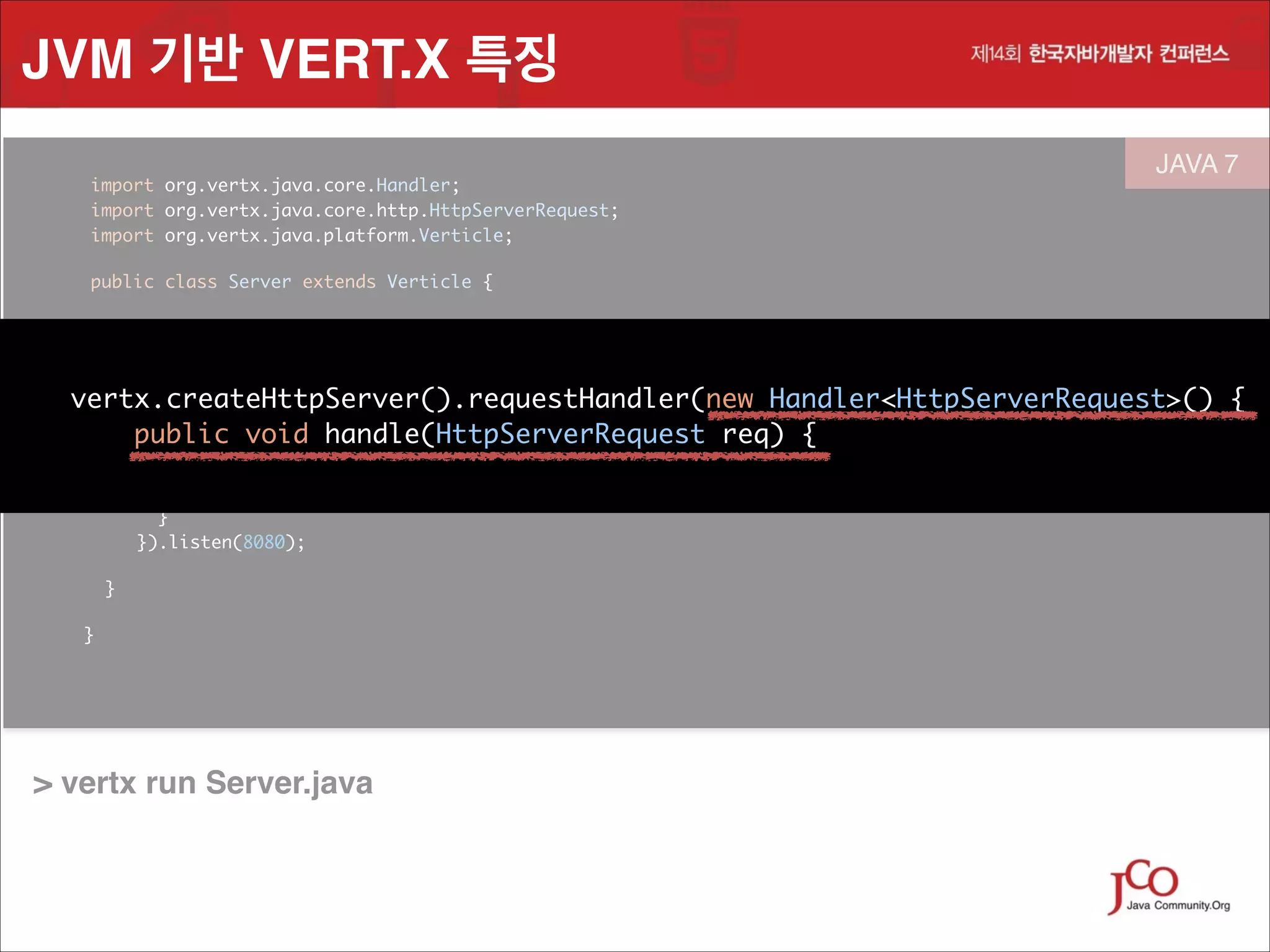

- 20. JVM 기반 VERT.X특징 import org.vertx.java.core.Handler; import org.vertx.java.core.http.HttpServerRequest; import org.vertx.java.platform.Verticle; public class Server extends Verticle { JAVA 7 public void start() { ! vertx.createHttpServer().requestHandler(new Handler<HttpServerRequest>() { public void handle(HttpServerRequest req) { vertx.createHttpServer().requestHandler(new Handler<HttpServerRequest>() public void= handle(HttpServerRequest req) { String file req.path().equals("/") ? "index.html" : req.path(); req.response().sendFile("webroot/" + file); } }).listen(8080); } } > vertx run Server.java {

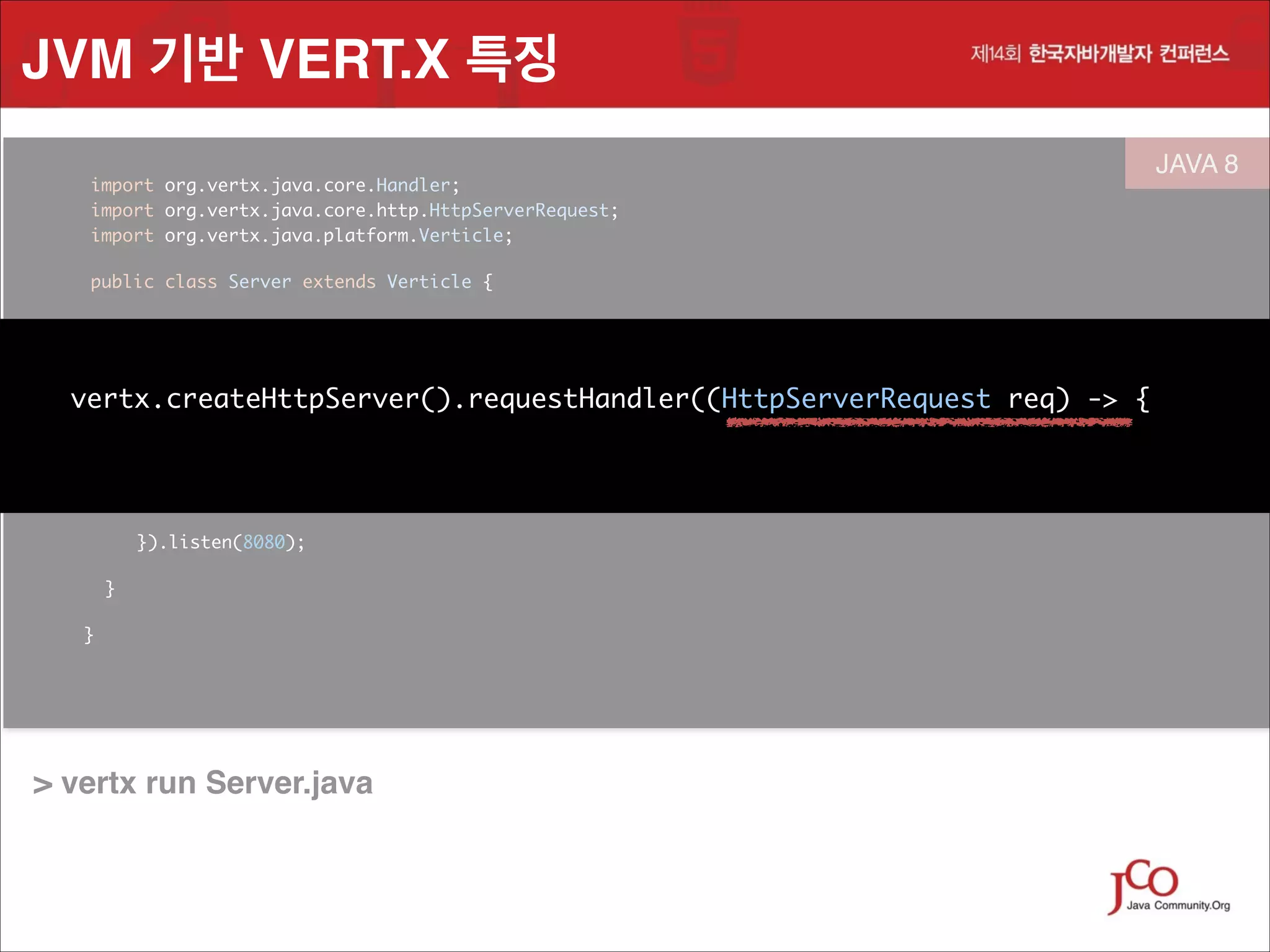

- 21. JVM 기반 VERT.X특징 import org.vertx.java.core.Handler; import org.vertx.java.core.http.HttpServerRequest; import org.vertx.java.platform.Verticle; public class Server extends Verticle { JAVA 8 public void start() { ! vertx.createHttpServer().requestHandler( (HttpServerRequest req) -> { vertx.createHttpServer().requestHandler((HttpServerRequest { String file = req.path().equals("/") ? "index.html" : req.path(); req.response().sendFile("webroot/" + file); }).listen(8080); } } > vertx run Server.java req) -> {

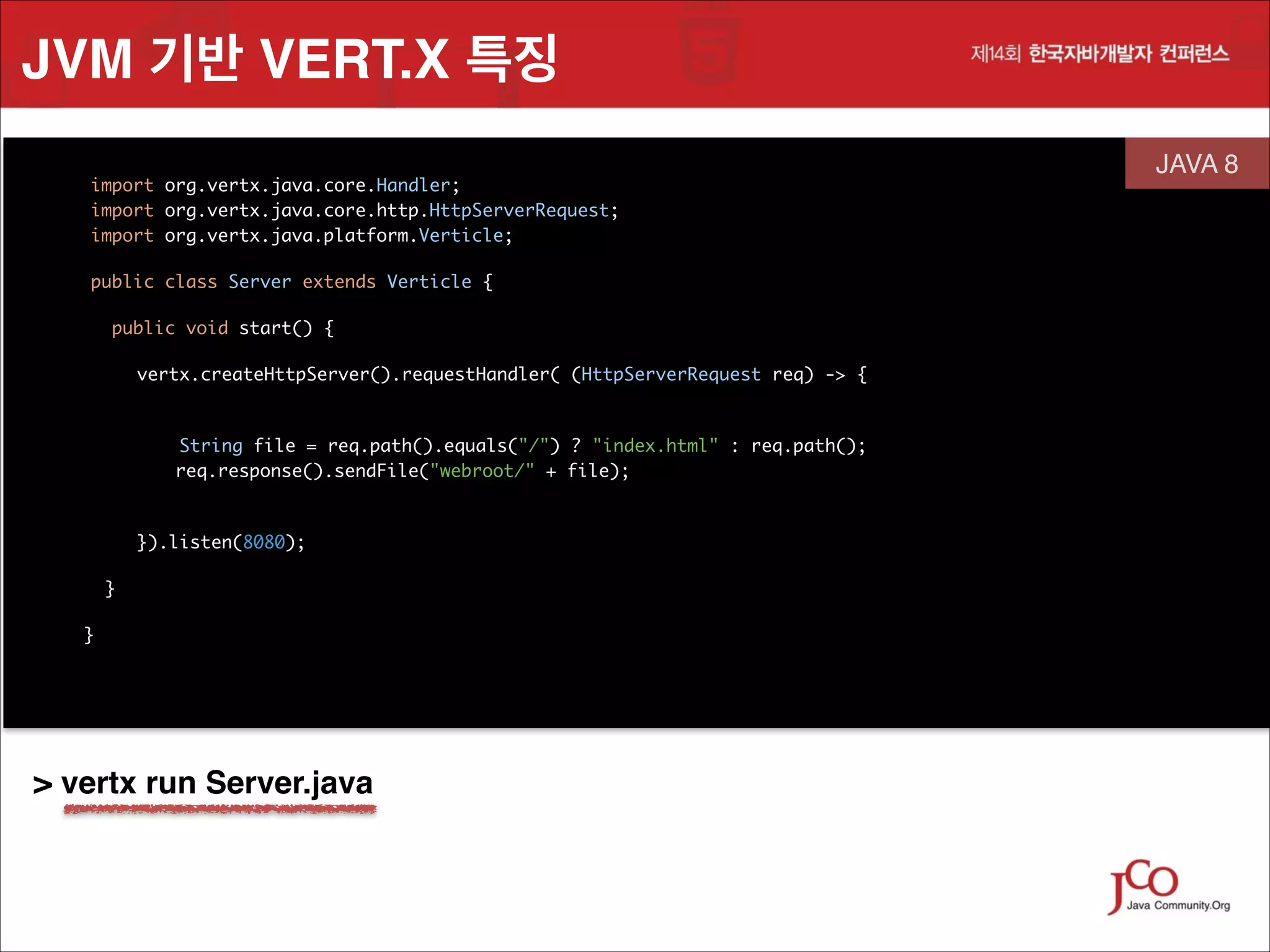

- 22. JVM 기반 VERT.X특징 import org.vertx.java.core.Handler; import org.vertx.java.core.http.HttpServerRequest; import org.vertx.java.platform.Verticle; public class Server extends Verticle { JAVA 8 public void start() { vertx.createHttpServer().requestHandler( (HttpServerRequest req) -> { String file = req.path().equals("/") ? "index.html" : req.path(); req.response().sendFile("webroot/" + file); }).listen(8080); } } > vertx run Server.java

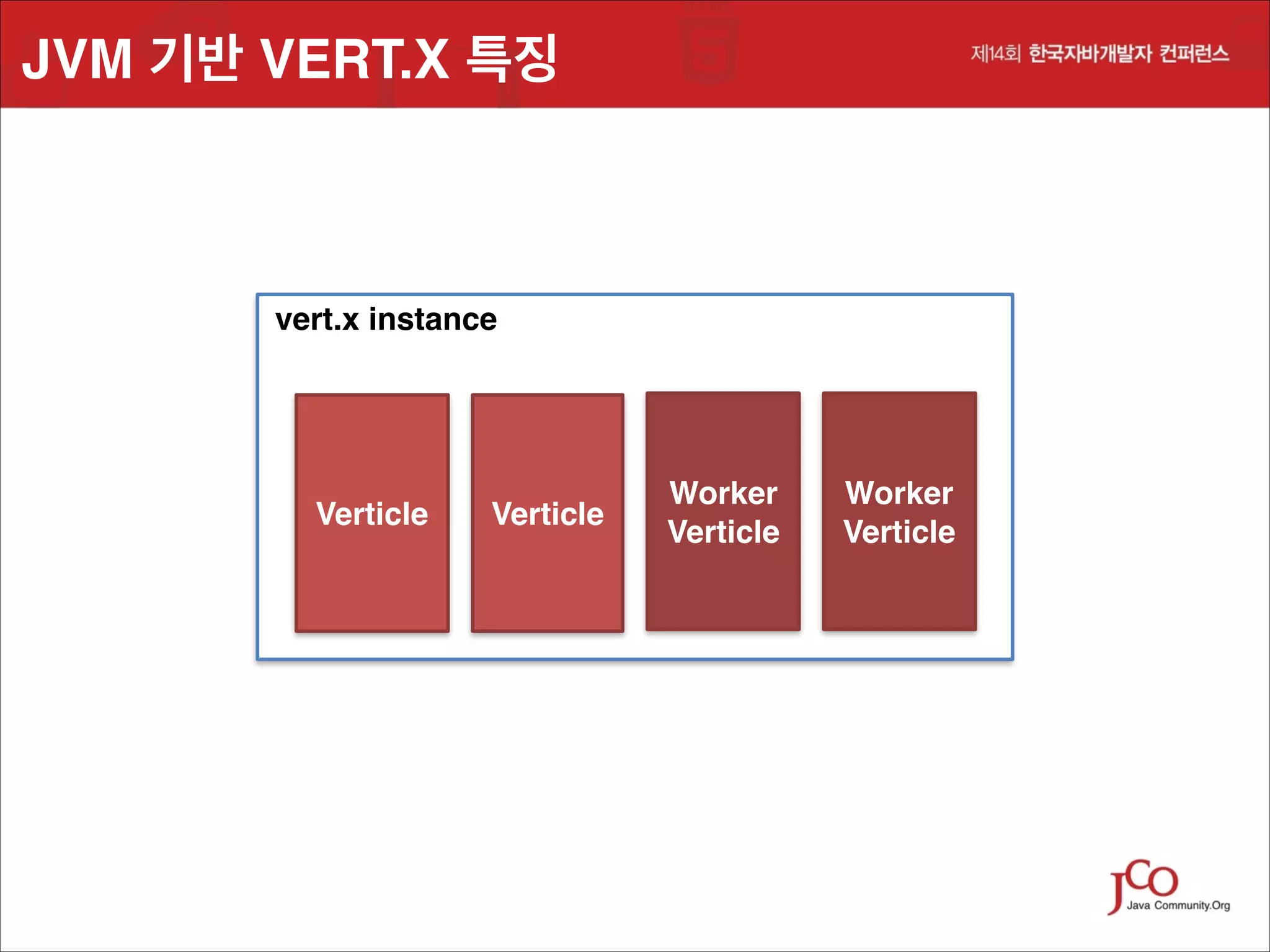

- 23. JVM 기반 VERT.X특징 vert.x instance Verticle Verticle Worker Verticle Worker Verticle

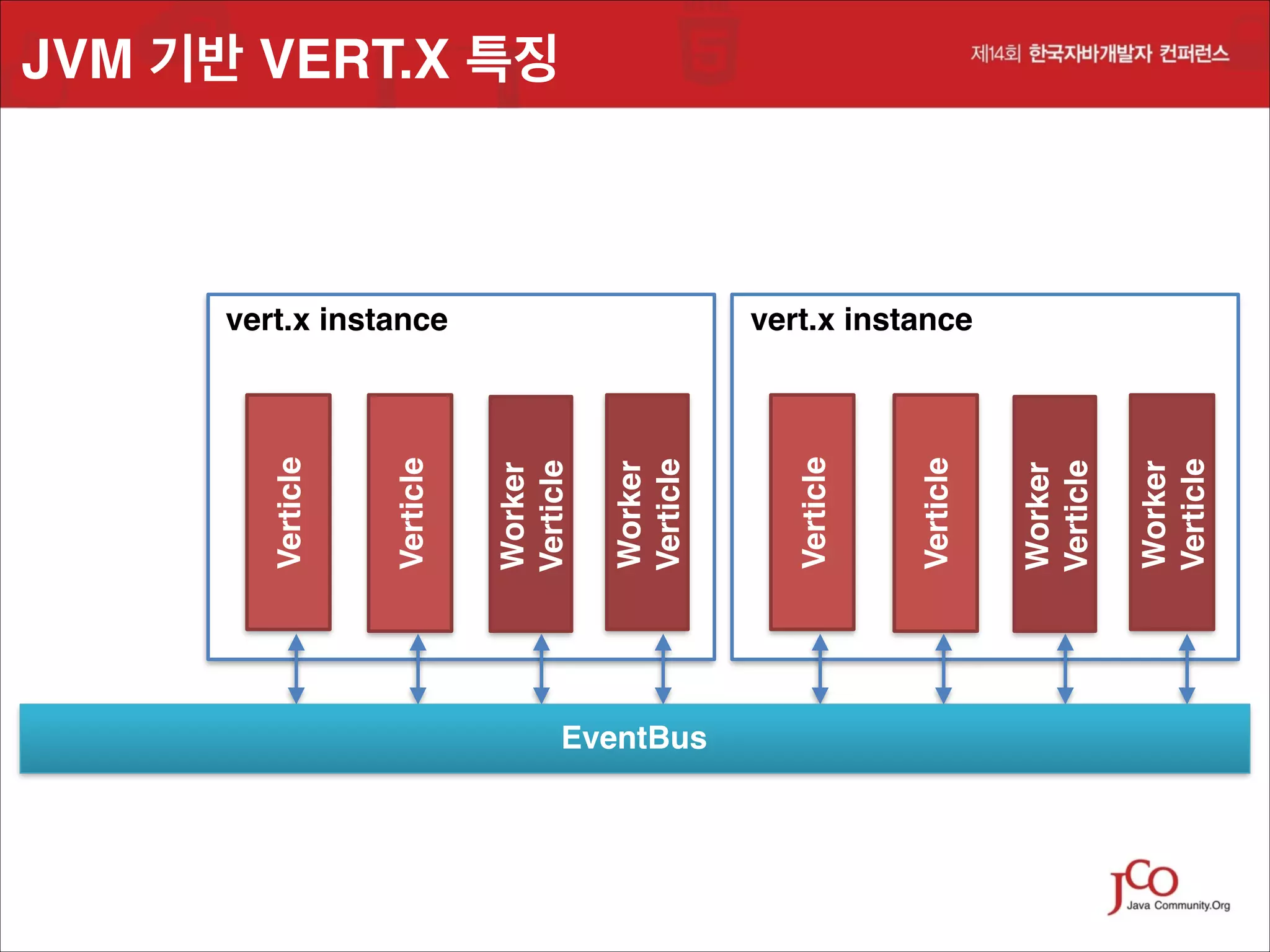

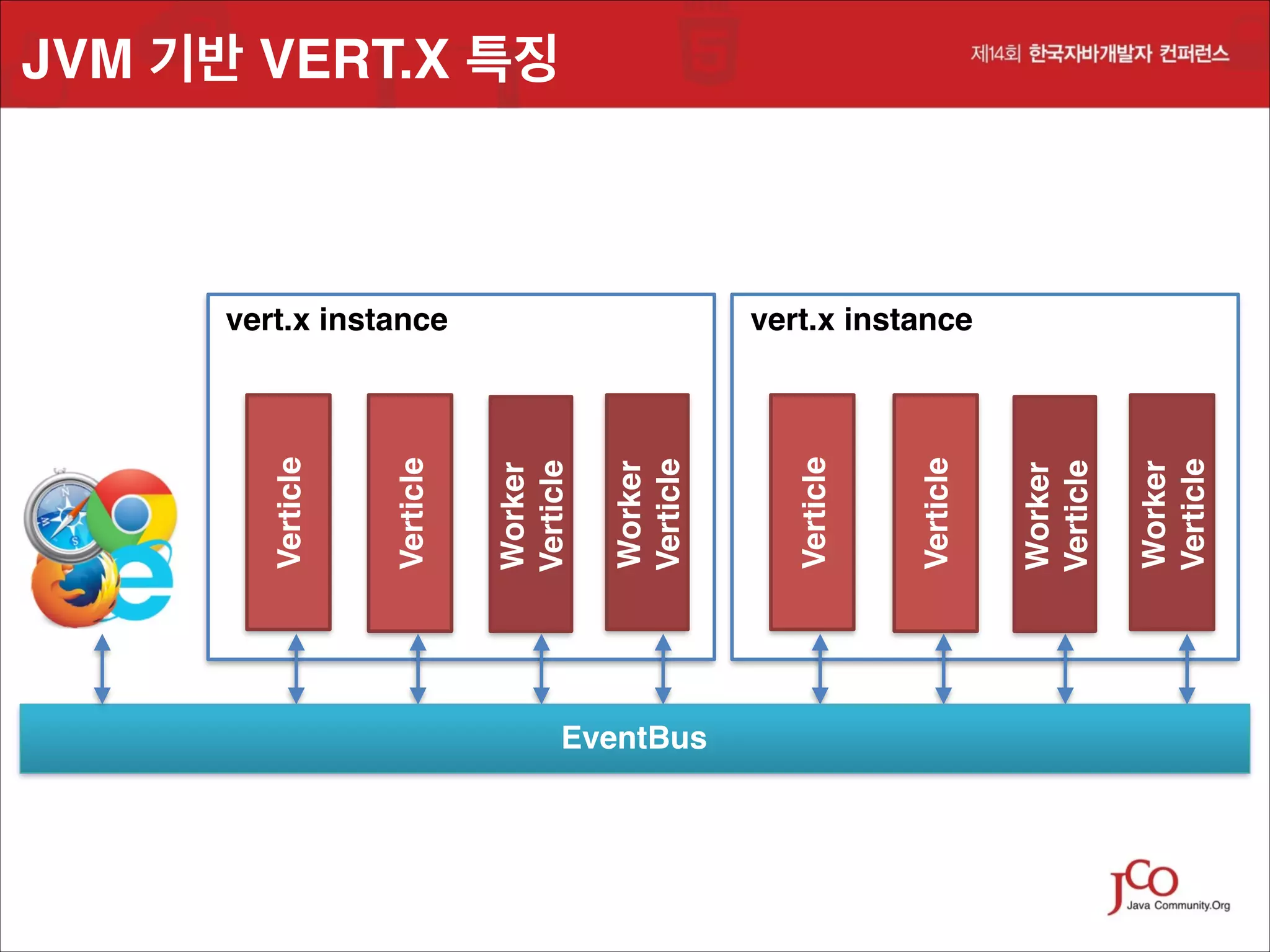

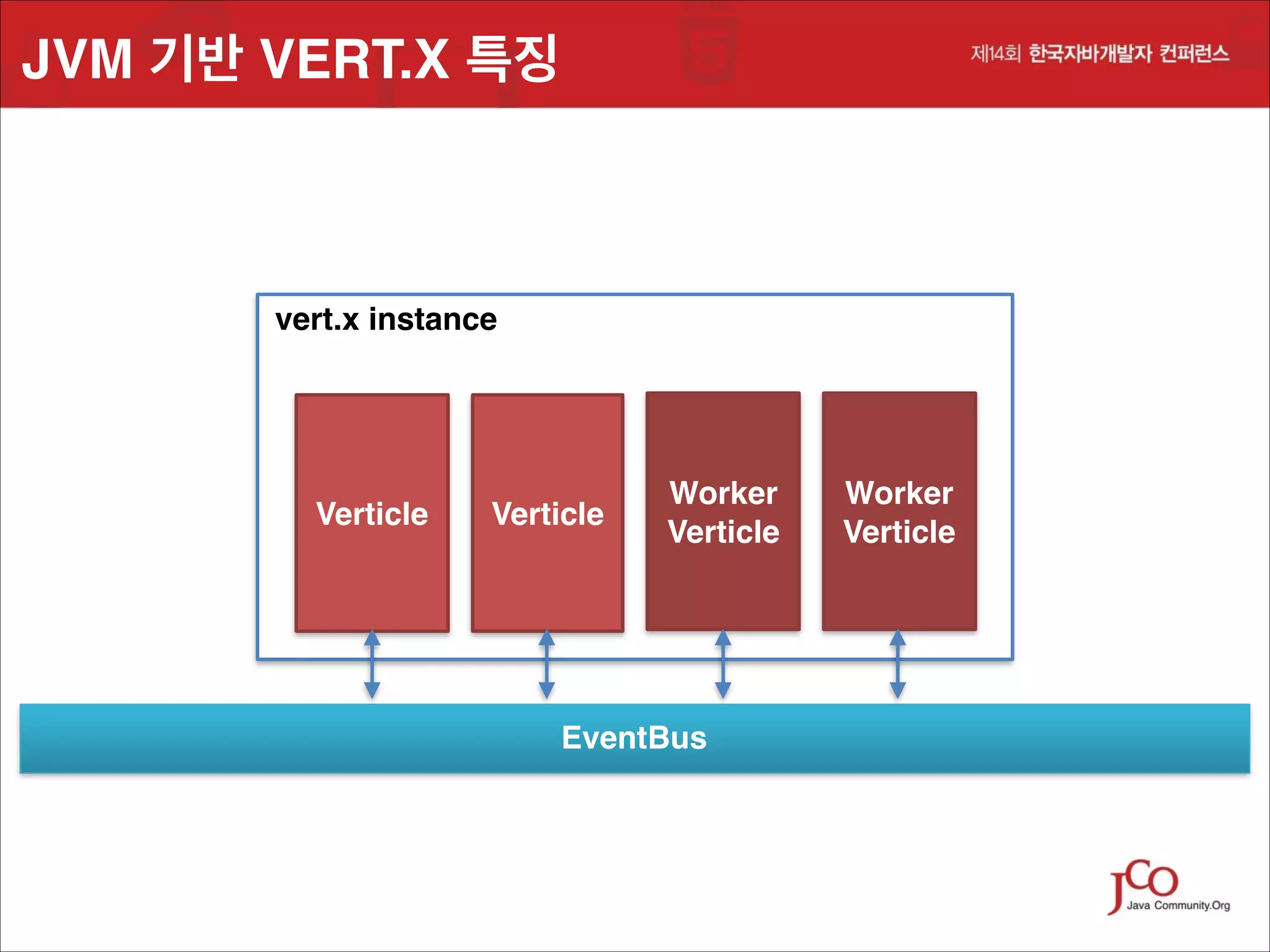

- 24. JVM 기반 VERT.X특징 vert.x instance Verticle Verticle Worker Verticle EventBus Worker Verticle

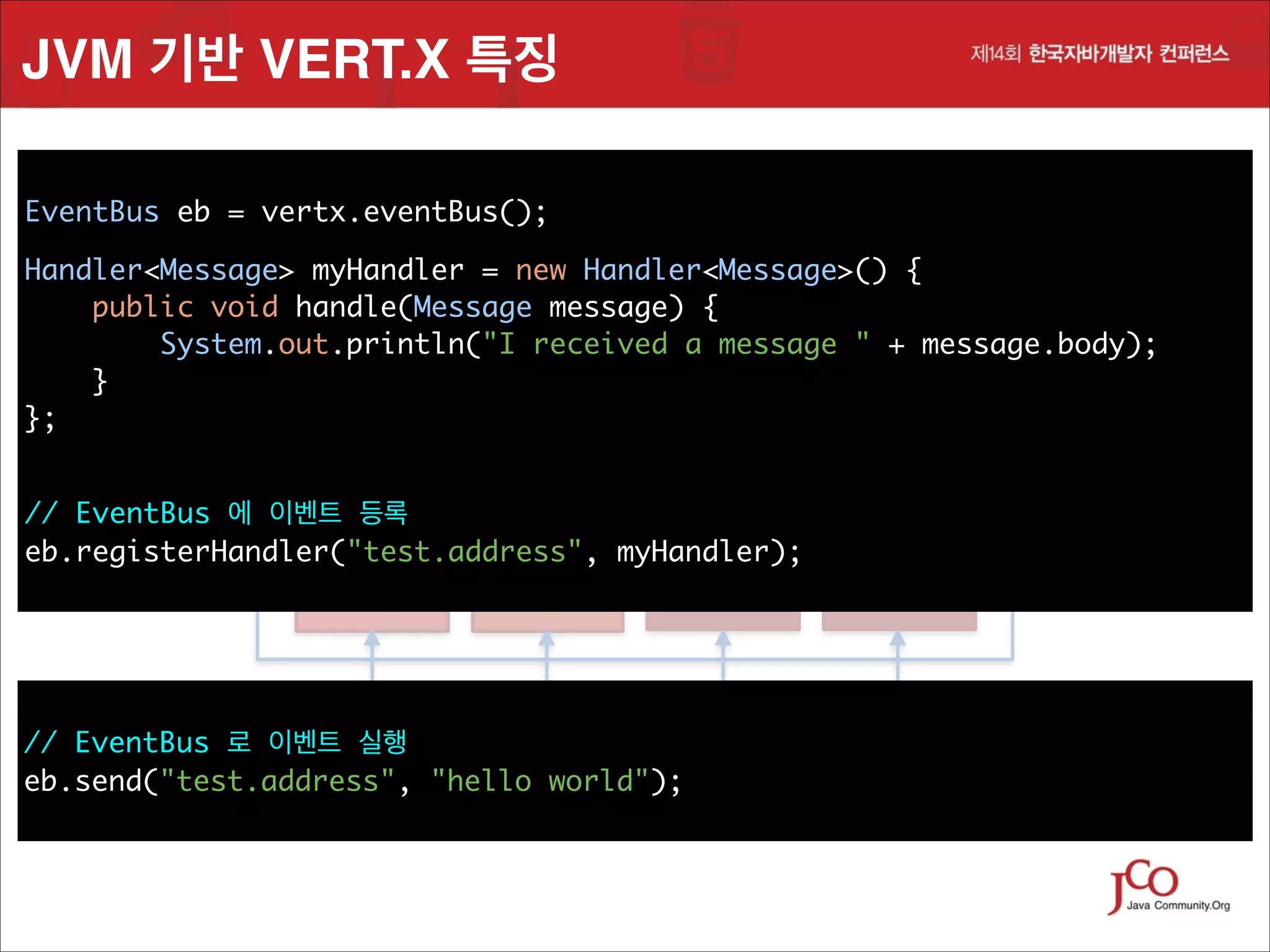

- 25. JVM 기반 VERT.X특징 EventBus eb = vertx.eventBus(); Handler<Message> myHandler = new Handler<Message>() { public voidvert.x instance handle(Message message) { System.out.println("I received a message " + message.body); } }; ! Worker // EventBus 에 이벤트 등록 Verticle Verticle Verticle eb.registerHandler("test.address", myHandler); EventBus // EventBus 로 이벤트 실행 eb.send("test.address", "hello world"); Worker Verticle
- 26.
- 27.

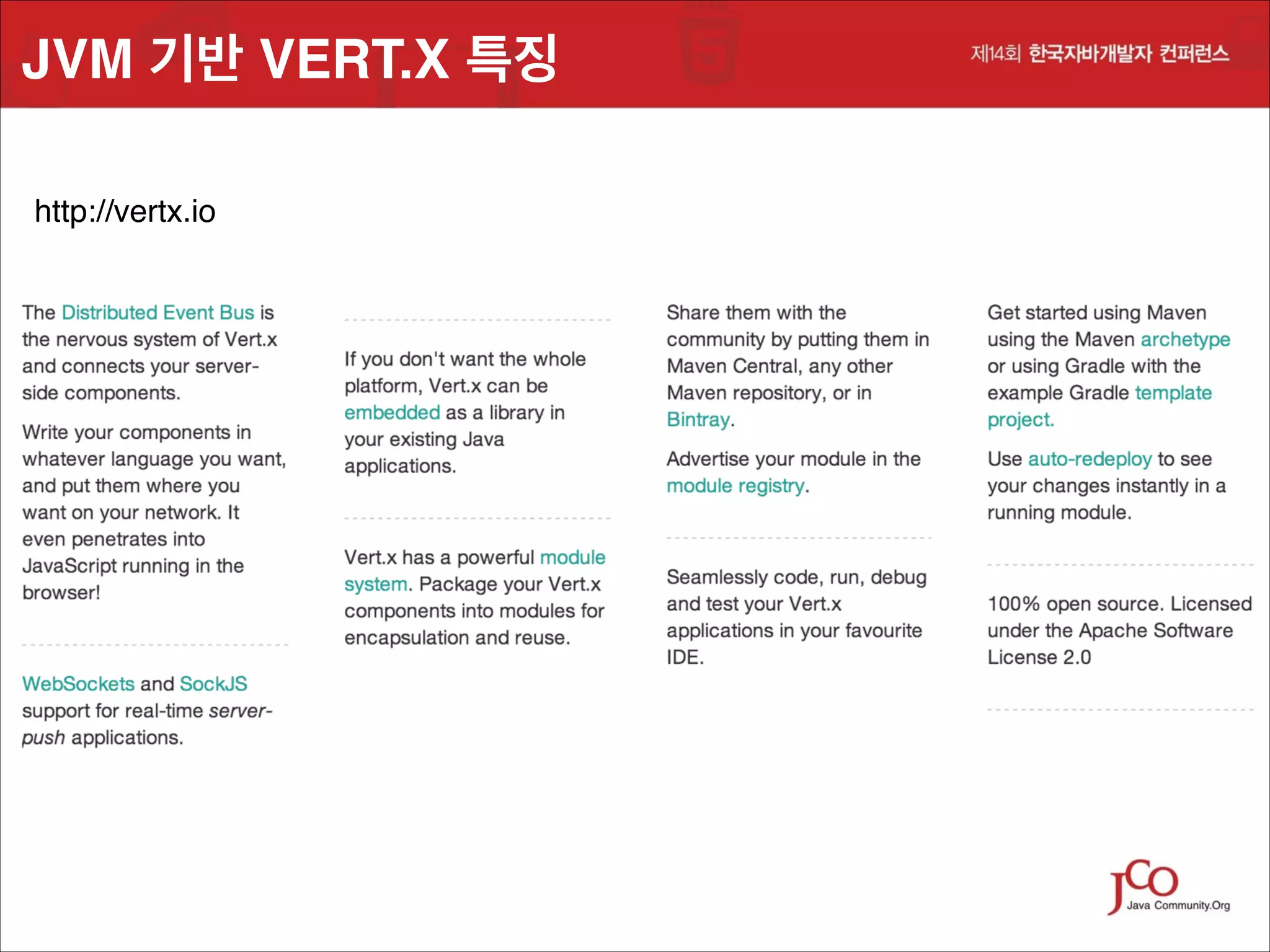

- 28. JVM 기반 VERT.X특징 http://vertx.io

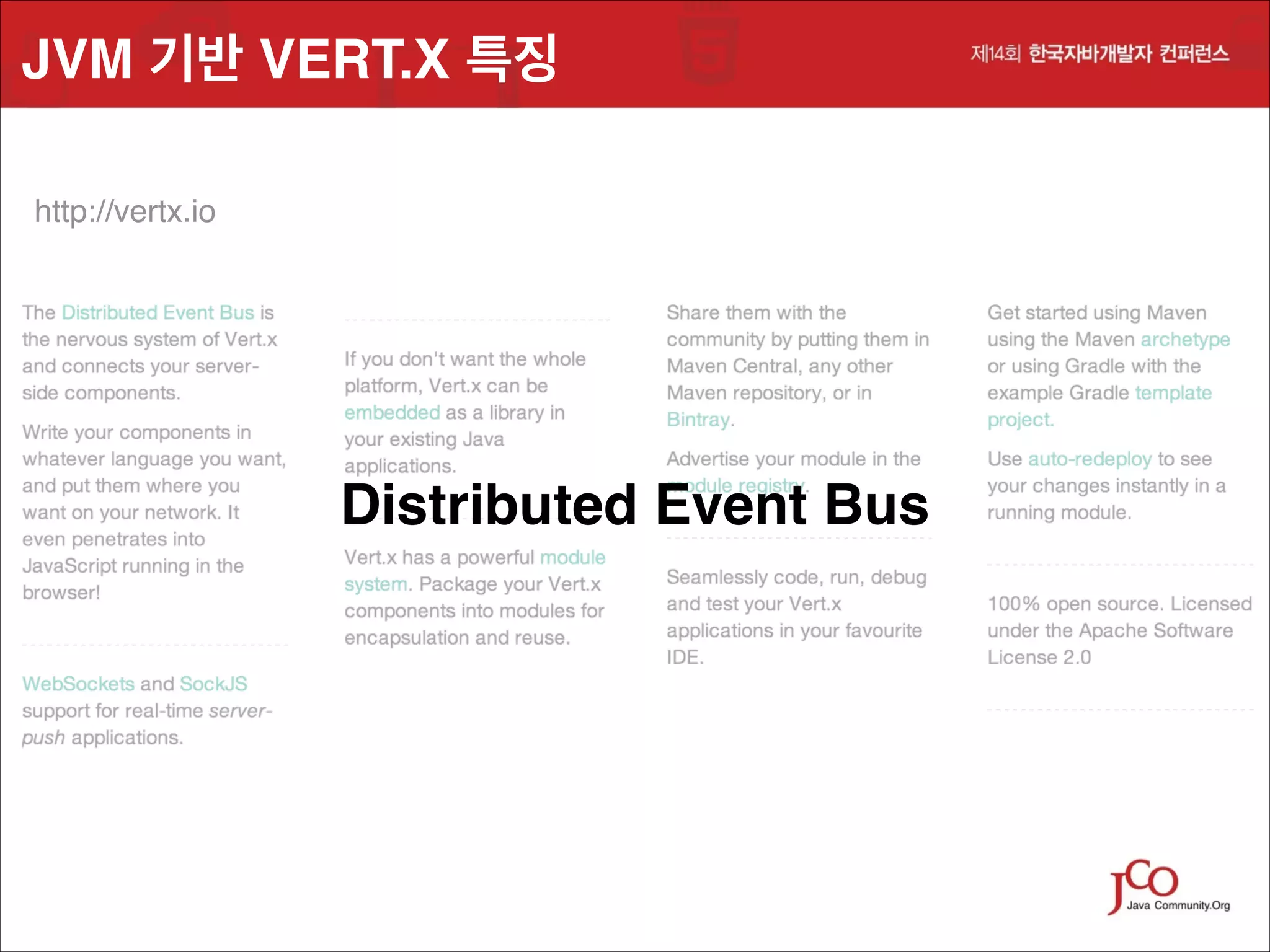

- 29. JVM 기반 VERT.X특징 http://vertx.io Distributed Event Bus

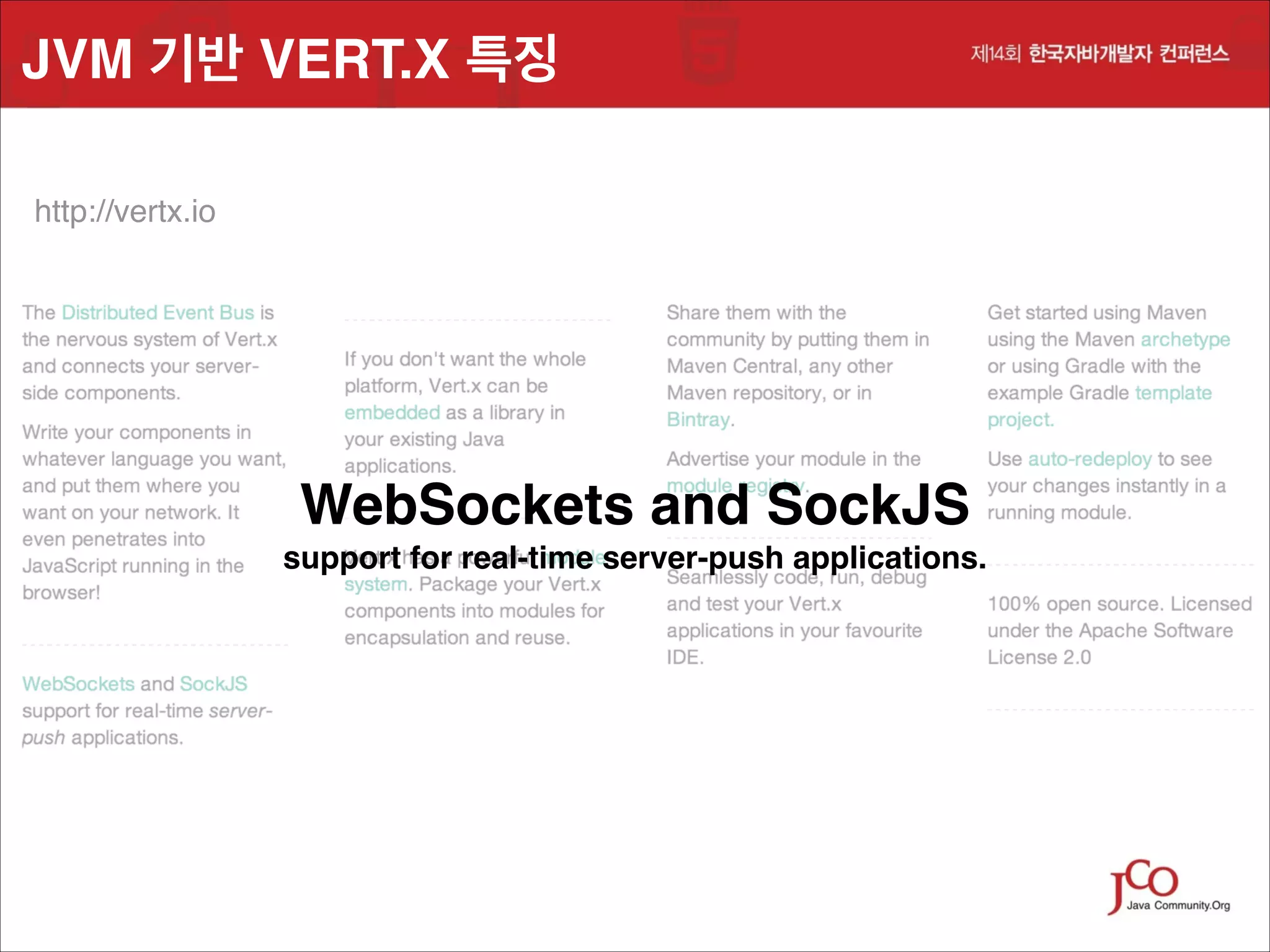

- 30. JVM 기반 VERT.X특징 http://vertx.io WebSockets and SockJS! support for real-time server-push applications.

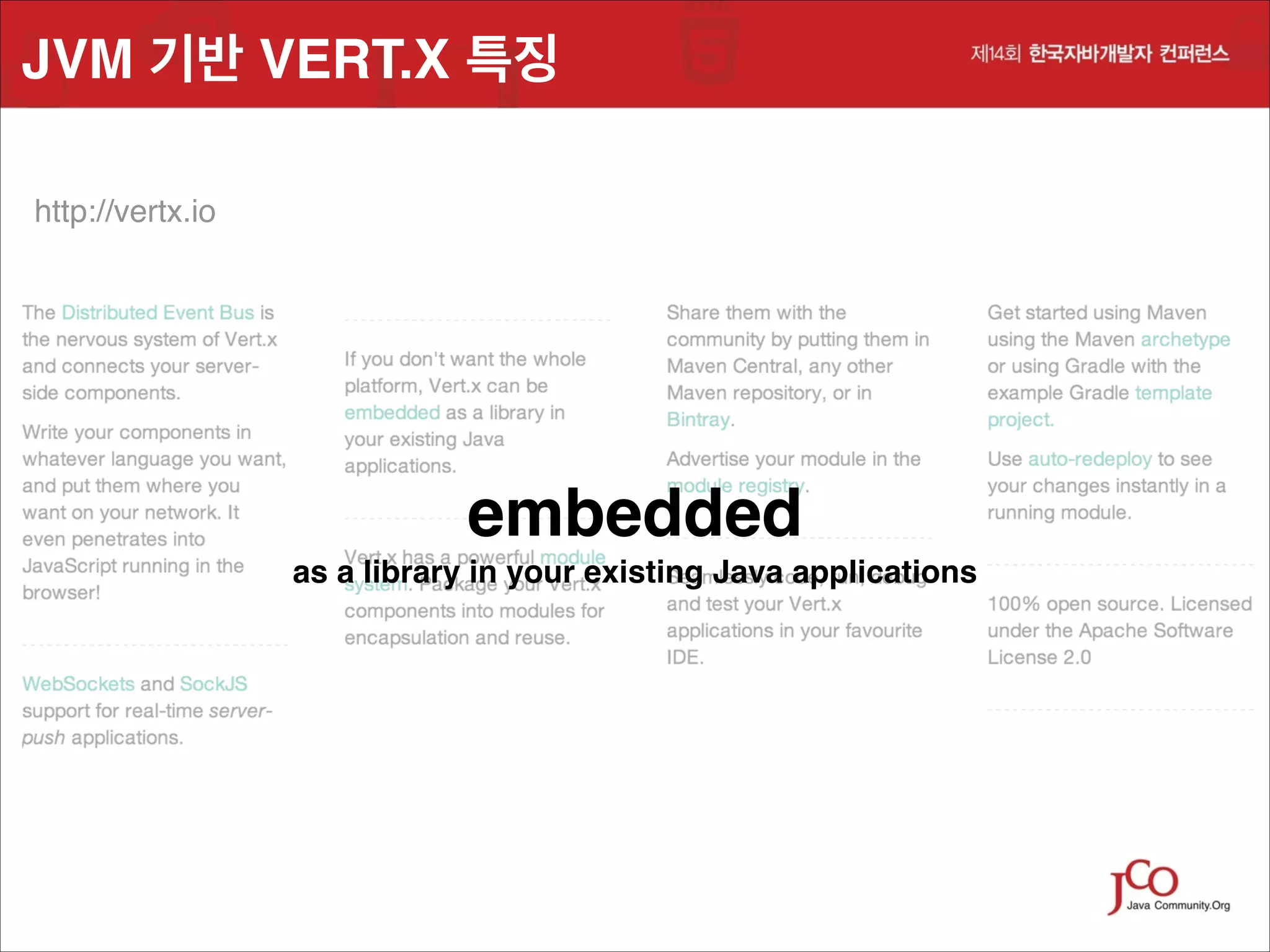

- 31. JVM 기반 VERT.X특징 http://vertx.io embedded ! as a library in your existing Java applications

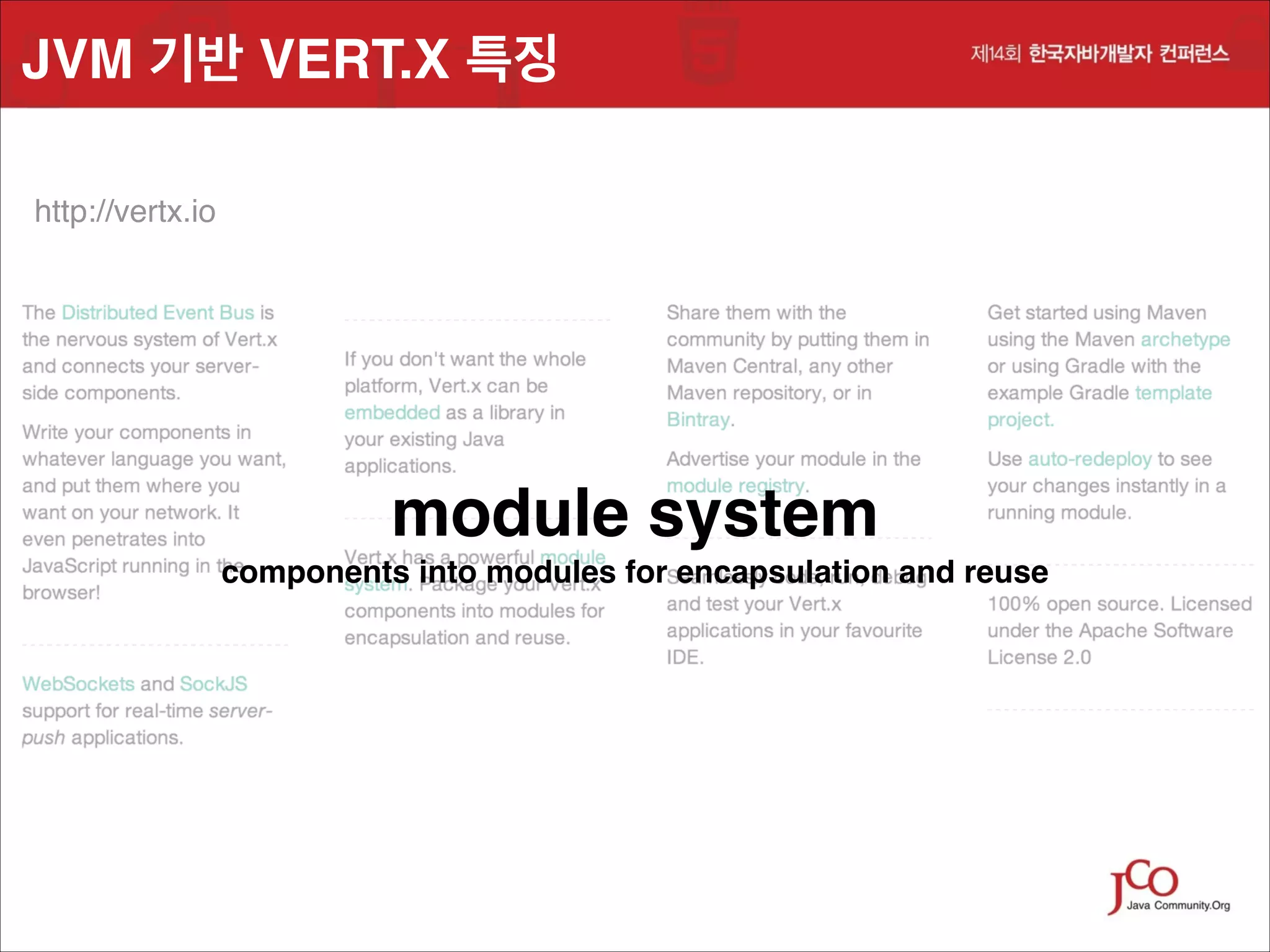

- 32. JVM 기반 VERT.X특징 http://vertx.io module system! components into modules for encapsulation and reuse

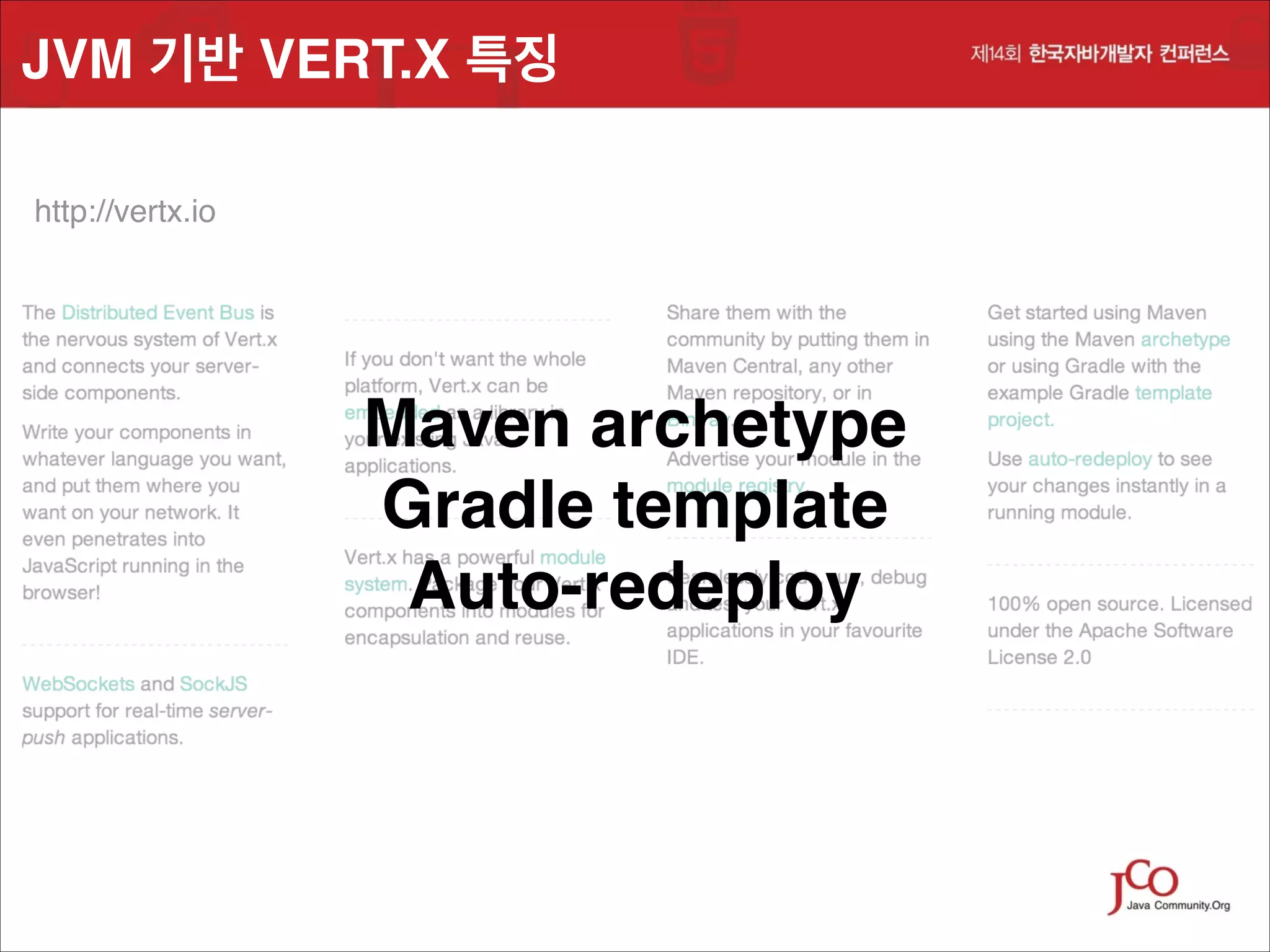

- 33. JVM 기반 VERT.X특징 http://vertx.io Maven archetype Gradle template Auto-redeploy

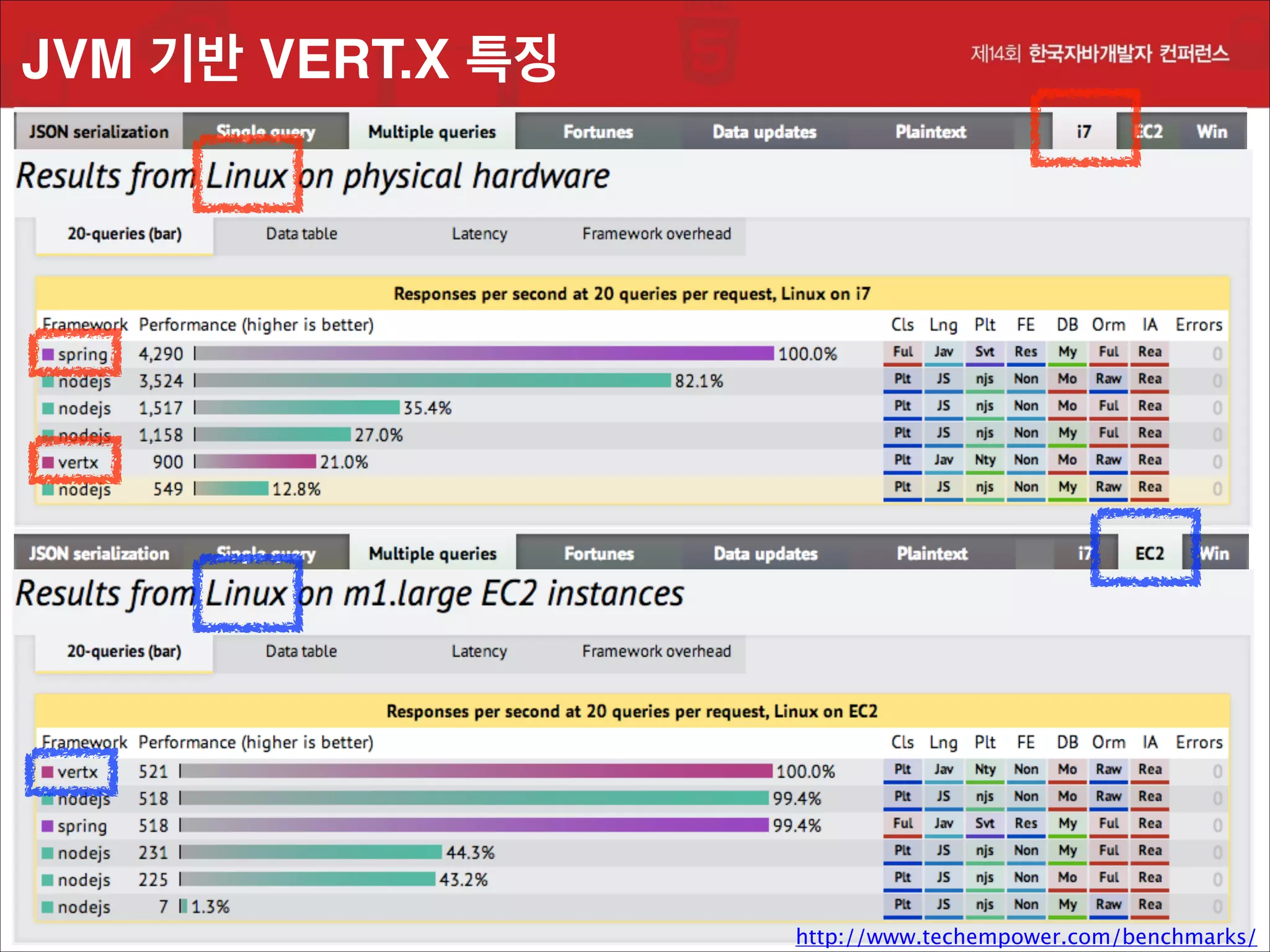

- 34. JVM 기반 VERT.X특징 34 http://www.techempower.com/benchmarks/

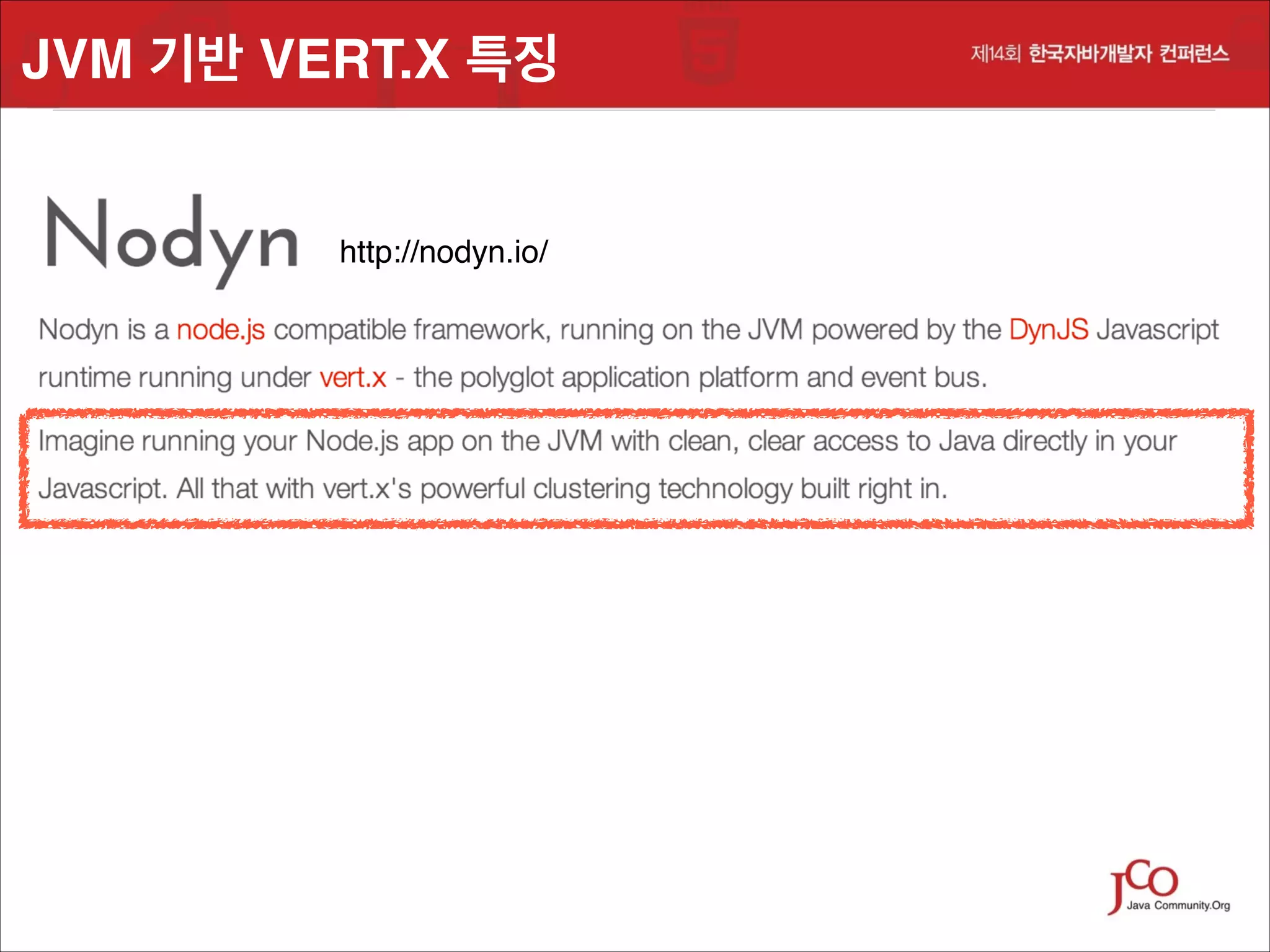

- 35. JVM 기반 VERT.X특징 http://nodyn.io/
- 36. 2. 분산 서버설계 하기! ! - 대용량 트래픽 처리 / 체팅 서비스 서버 개발 사례

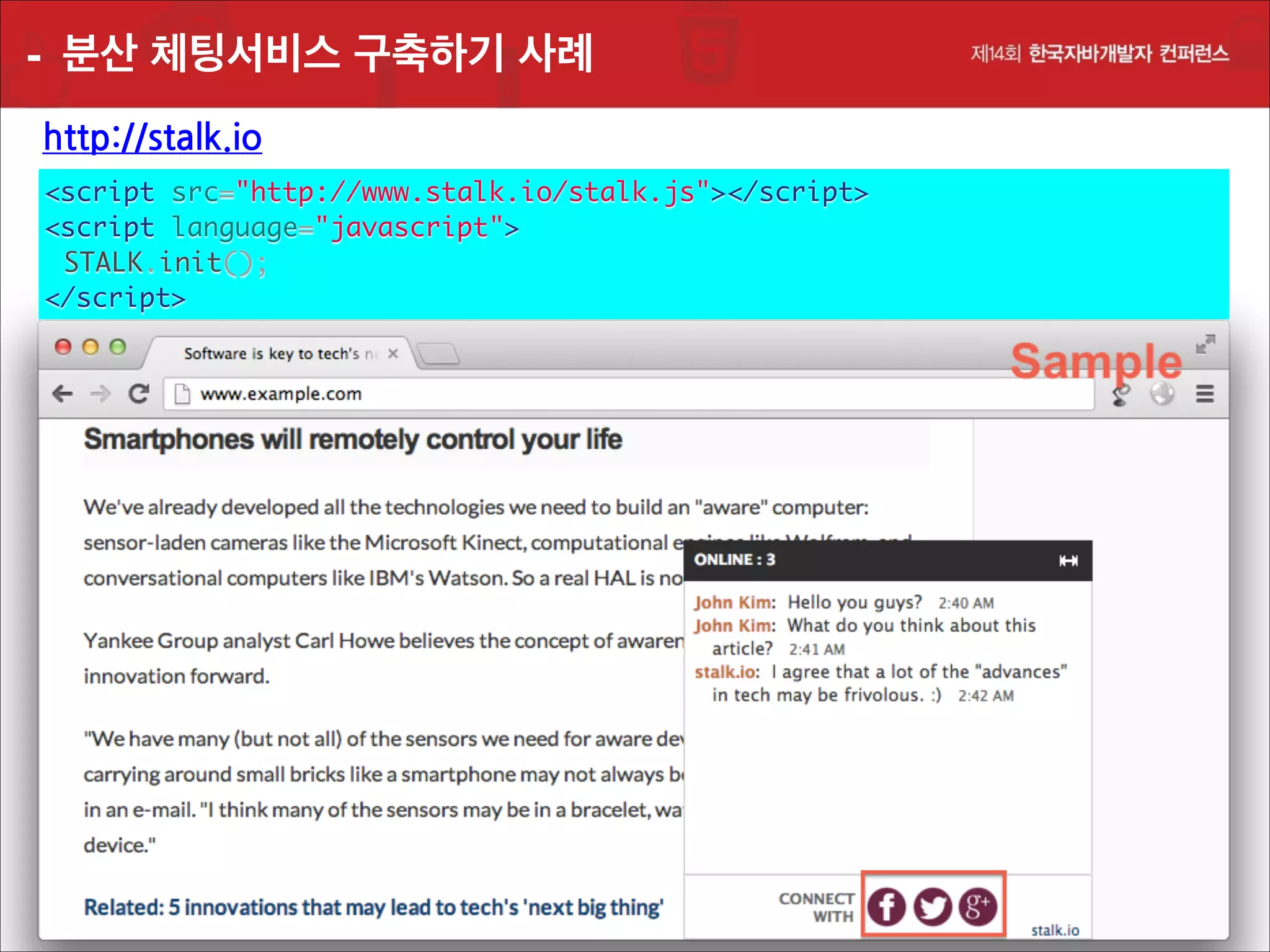

- 37. - 분산 체팅서비스구축하기 사례 http://stalk.io <script src="http://www.stalk.io/stalk.js"></script> <script language="javascript"> STALK.init(); </script>

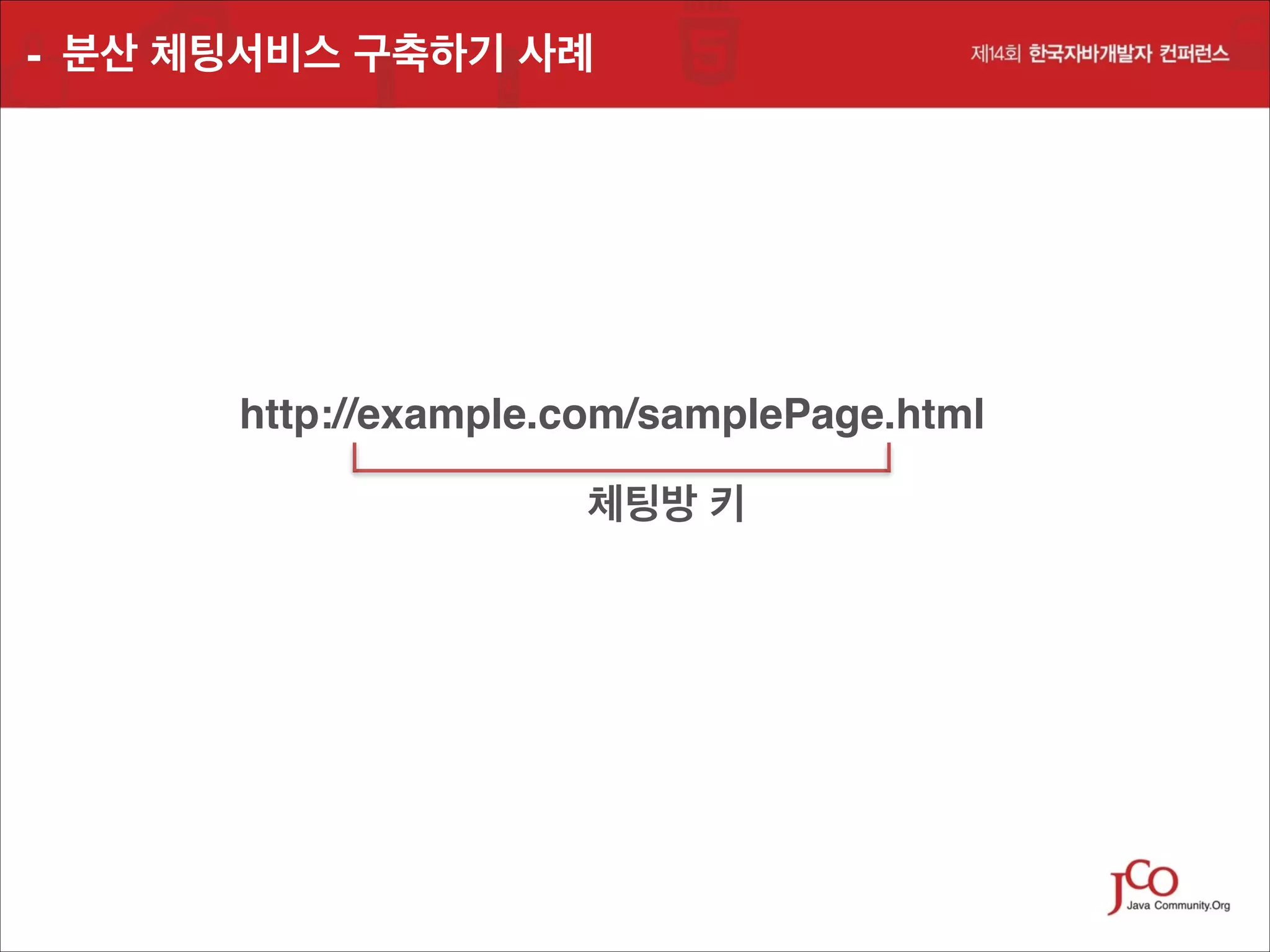

- 38. - 분산 체팅서비스구축하기 사례 http://example.com/samplePage.html 체팅방 키

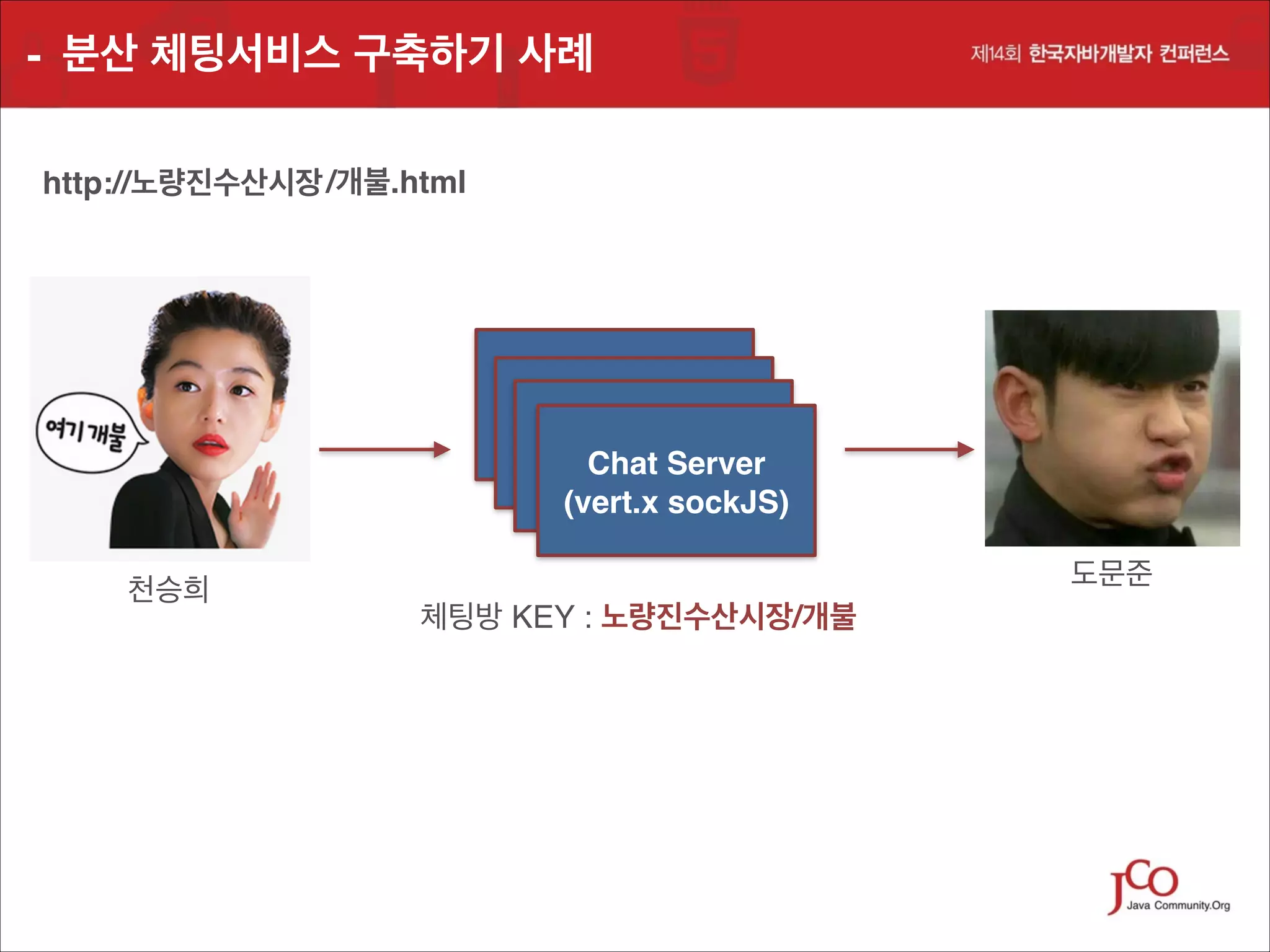

- 39. - 분산 체팅서비스구축하기 사례 http://노량진수산시장 /개불.html Chat Server Chat Server (vert.x sockJS) Chat Server (vert.x sockJS) Chat Server (vert.x sockJS) (vert.x sockJS) 천승희 도문준 체팅방 KEY : 노량진수산시장/개불

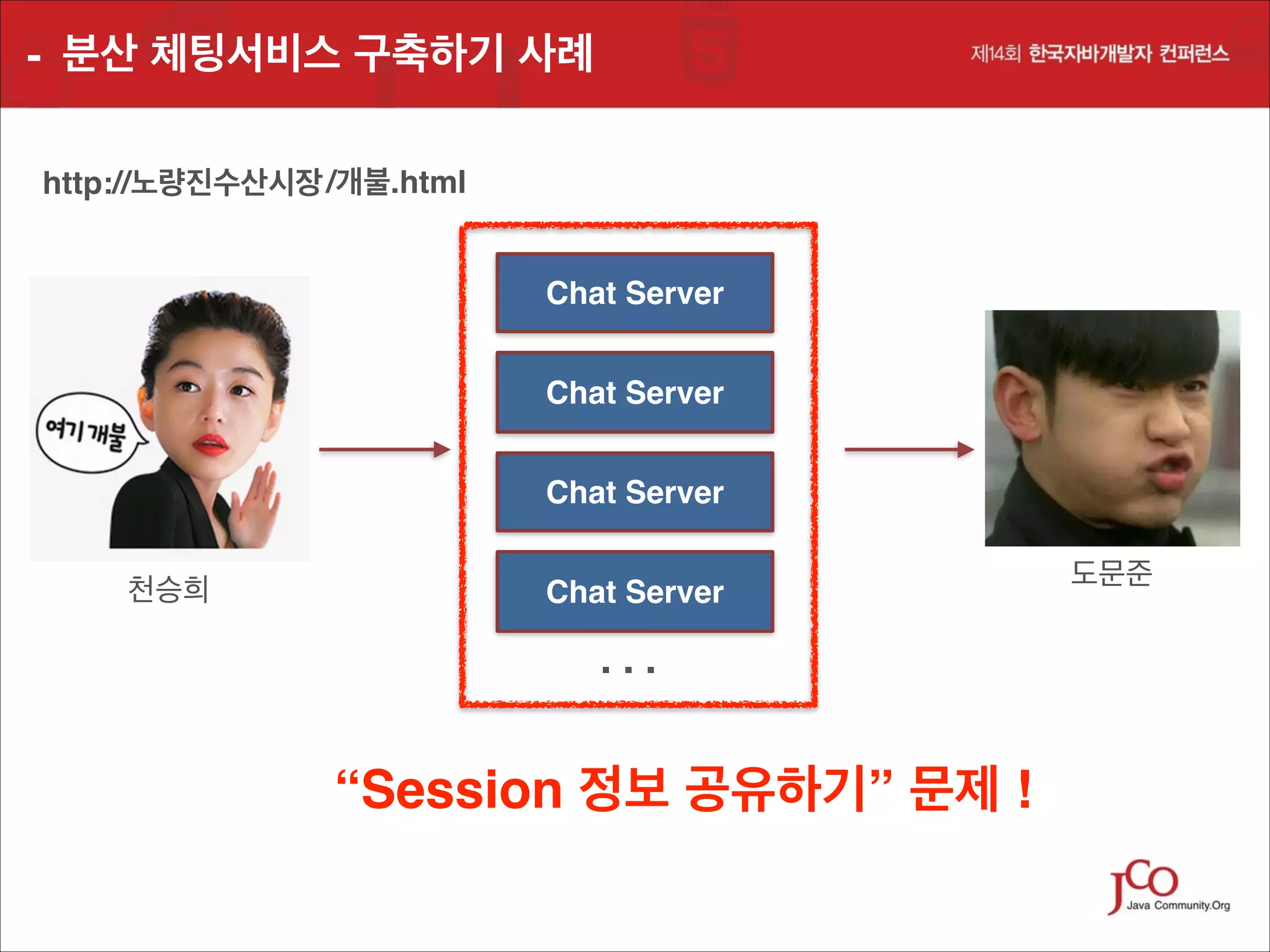

- 40. - 분산 체팅서비스구축하기 사례 http://노량진수산시장 /개불.html Chat Server Chat Server Chat Server 천승희 Chat Server . . .! “Session 정보 공유하기” 문제 ! 도문준

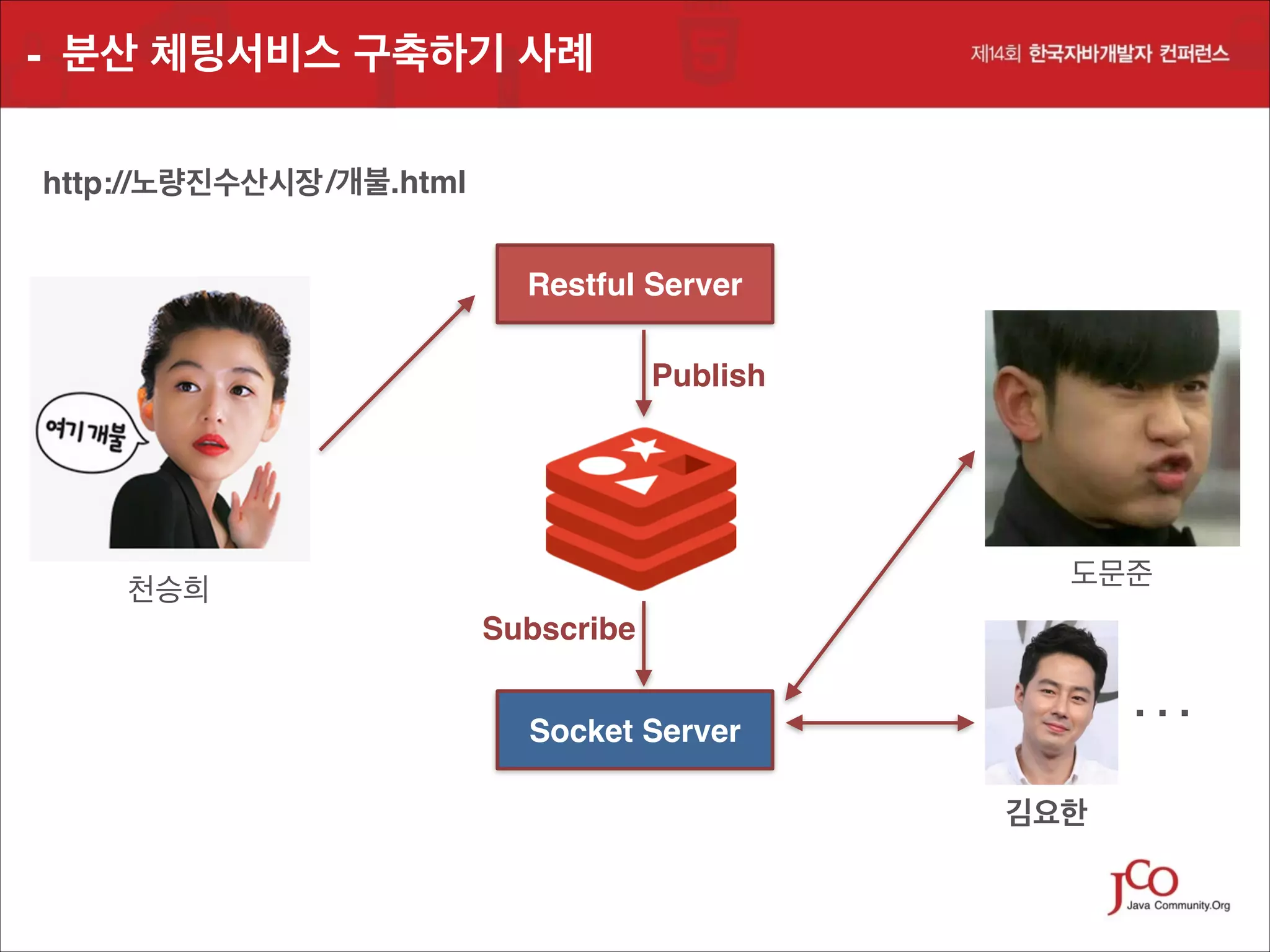

- 41. - 분산 체팅서비스구축하기 사례 http://노량진수산시장 /개불.html Restful Server Publish 도문준 천승희 Subscribe . . .! Socket Server 김요한

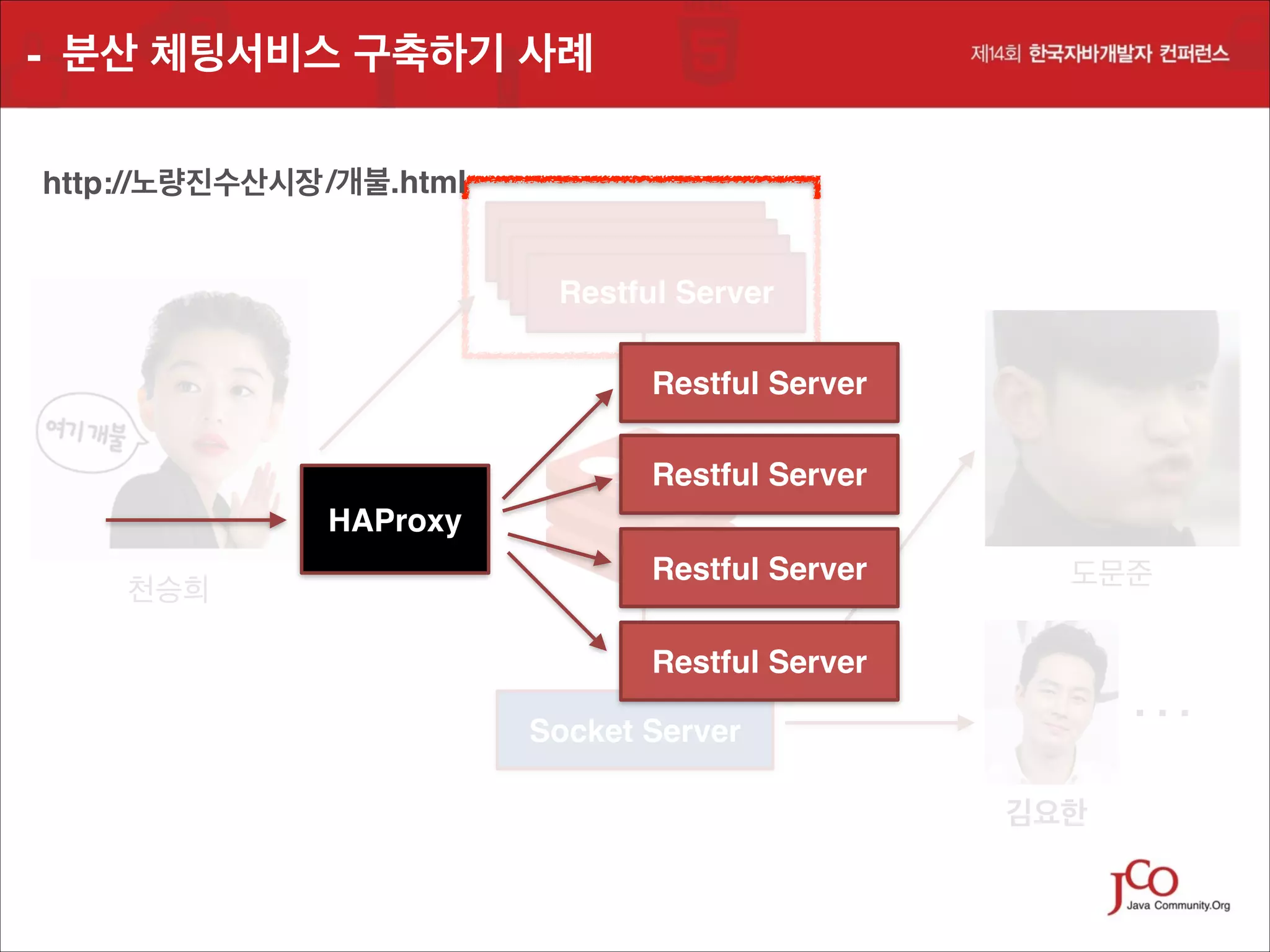

- 42. - 분산 체팅서비스구축하기 사례 http://노량진수산시장 /개불.html Restful Server Restful Server Restful Server Restful Server Restful Server Restful Server HAProxy 천승희 Restful Server 도문준 Restful Server . . .! Socket Server 김요한

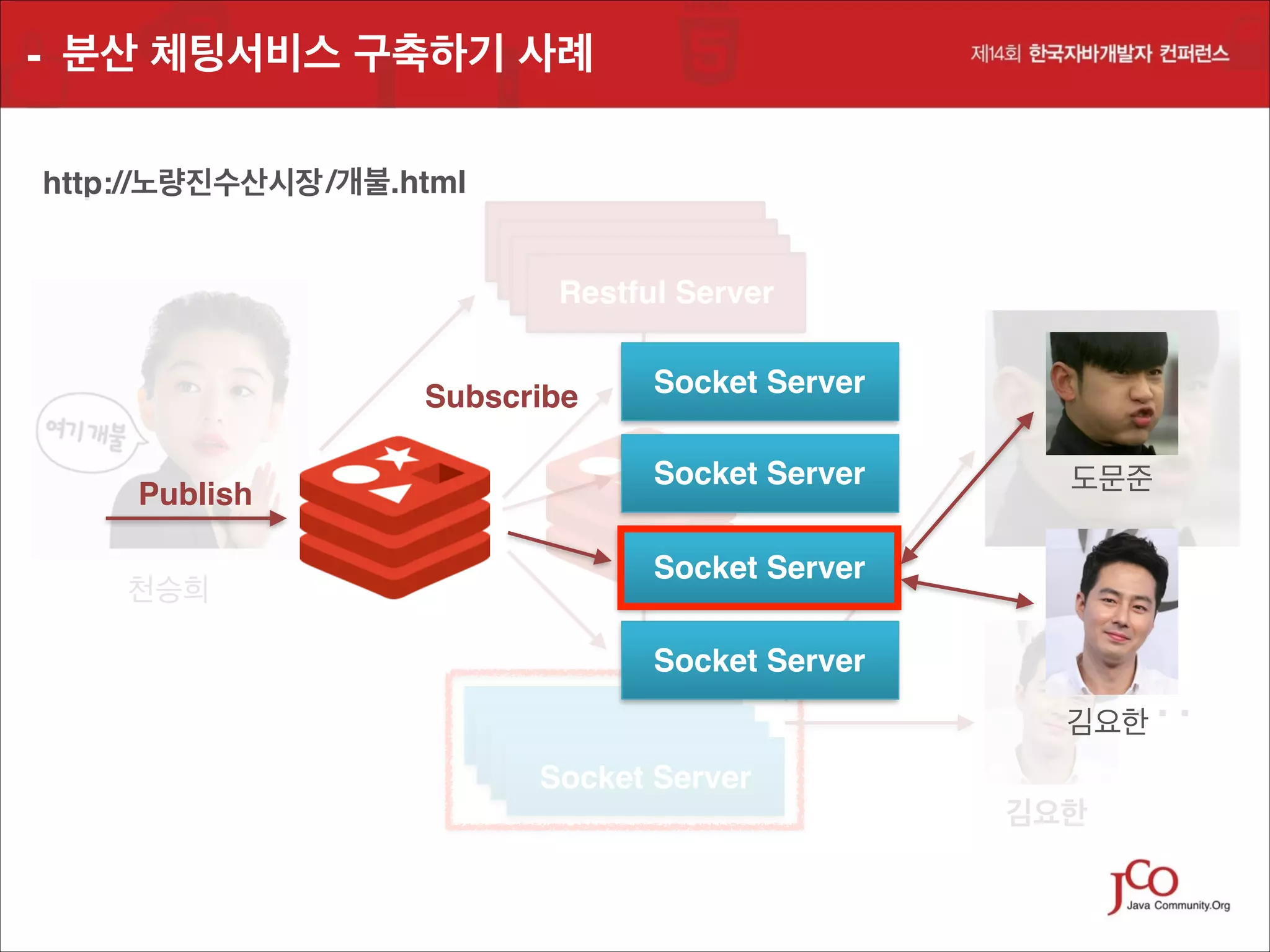

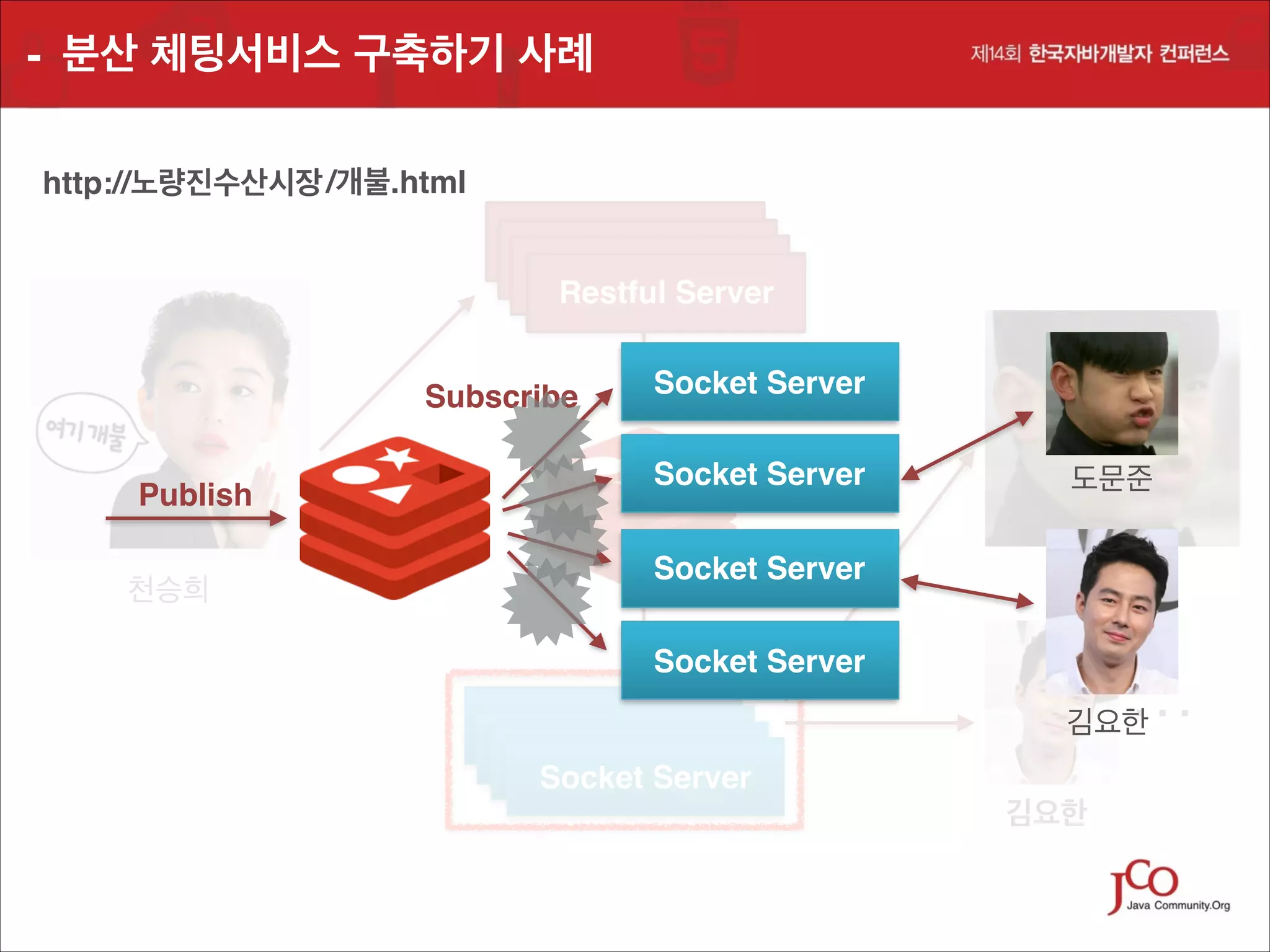

- 43. - 분산 체팅서비스구축하기 사례 http://노량진수산시장 /개불.html Restful Server Restful Server Restful Server Restful Server Subscribe Publish 천승희 Socket Server Socket Server 도문준 Socket Server 도문준 Socket Server Restful Server Restful Server Restful Server Socket Server . . .! 김요한 김요한
- 44. - 분산 체팅서비스구축하기 사례 http://노량진수산시장 /개불.html Restful Server Restful Server Restful Server Restful Server Subscribe Publish 천승희 Socket Server Socket Server 도문준 Socket Server 도문준 Socket Server Restful Server Restful Server Restful Server Socket Server . . .! 김요한 김요한

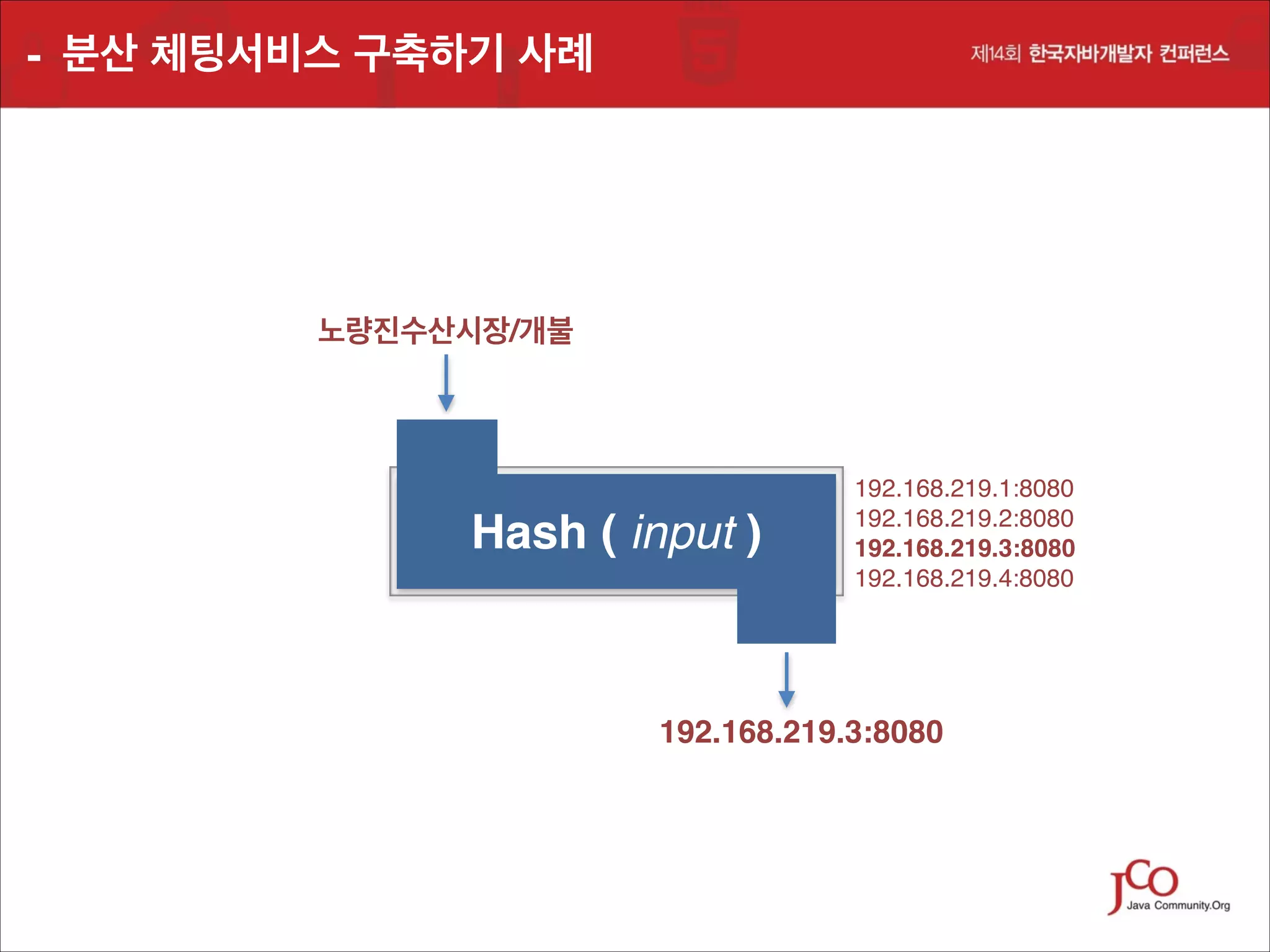

- 45. - 분산 체팅서비스구축하기 사례 노량진수산시장/개불 Hash ( input ) 192.168.219.1:8080 192.168.219.2:8080 192.168.219.3:8080 192.168.219.4:8080 192.168.219.3:8080

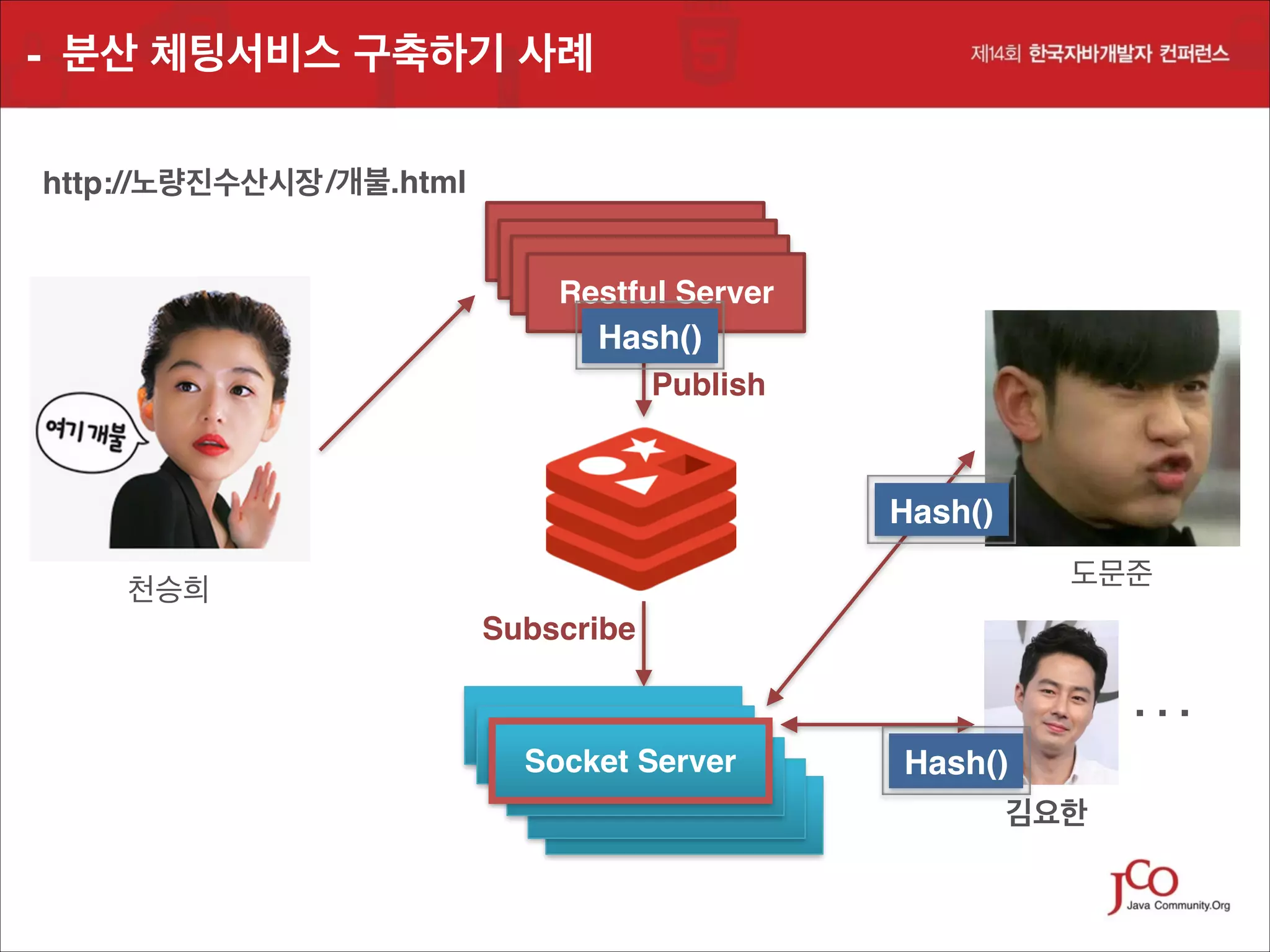

- 46. - 분산 체팅서비스구축하기 사례 http://노량진수산시장 /개불.html Restful Server Restful Server Restful Server Restful Server Hash() Publish Hash() 도문준 천승희 Subscribe Restful Server Restful Server Socket Server Restful Server Socket Server Socket Server Socket Server . . .! Hash() 김요한

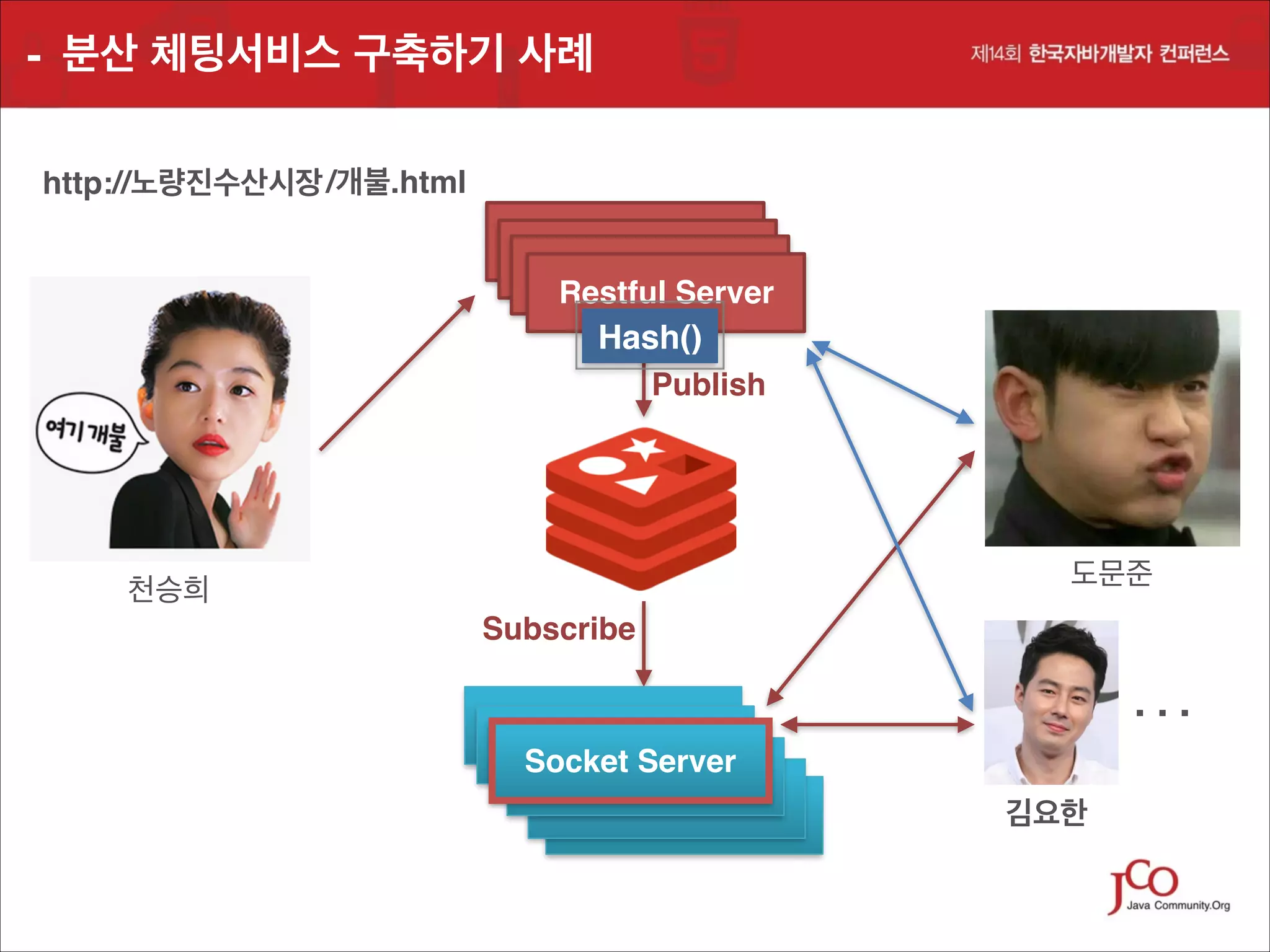

- 47. - 분산 체팅서비스구축하기 사례 http://노량진수산시장 /개불.html Restful Server Restful Server Restful Server Restful Server Hash() Publish 도문준 천승희 Subscribe Restful Server Restful Server Socket Server Restful Server Socket Server Socket Server Socket Server . . .! 김요한

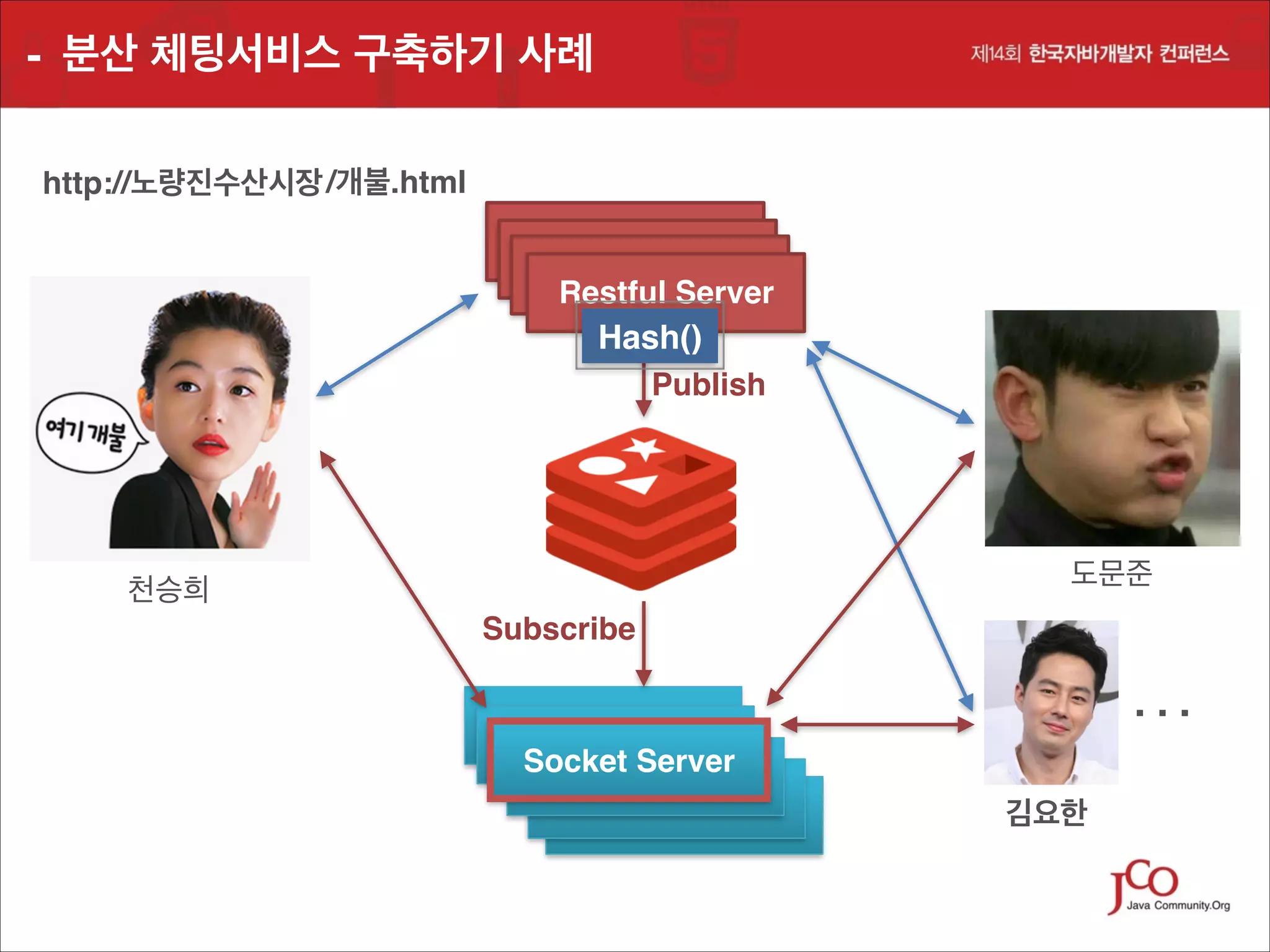

- 48. - 분산 체팅서비스구축하기 사례 http://노량진수산시장 /개불.html Restful Server Restful Server Restful Server Restful Server Hash() Publish 도문준 천승희 Subscribe Restful Server Restful Server Socket Server Socket Server Socket Server Socket Server . . .! 김요한

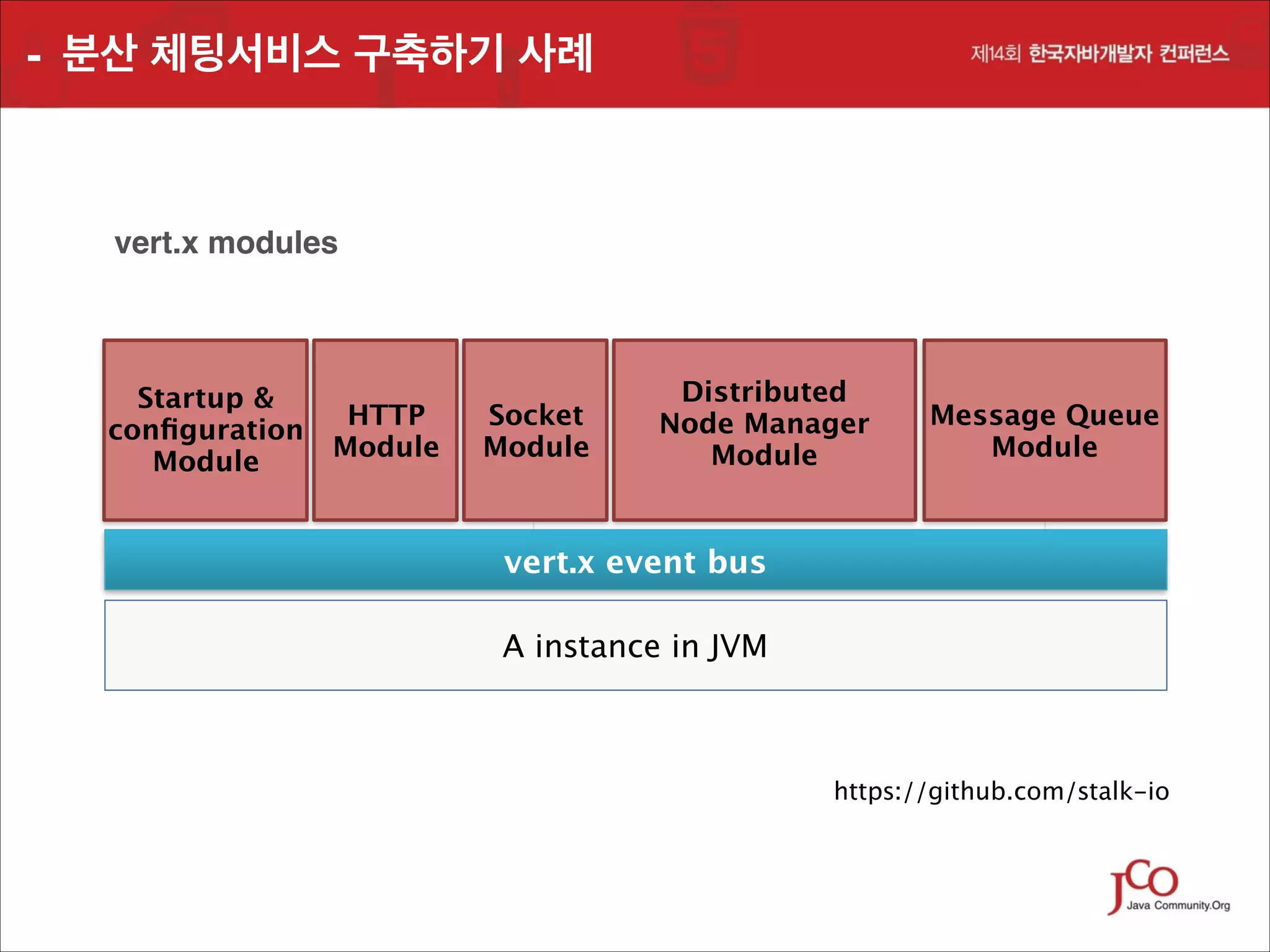

- 49. - 분산 체팅서비스구축하기 사례 vert.x modules Startup & HTTP configuration Module Module Socket Module Distributed Node Manager Module Message Queue Module vert.x event bus A instance in JVM https://github.com/stalk-io

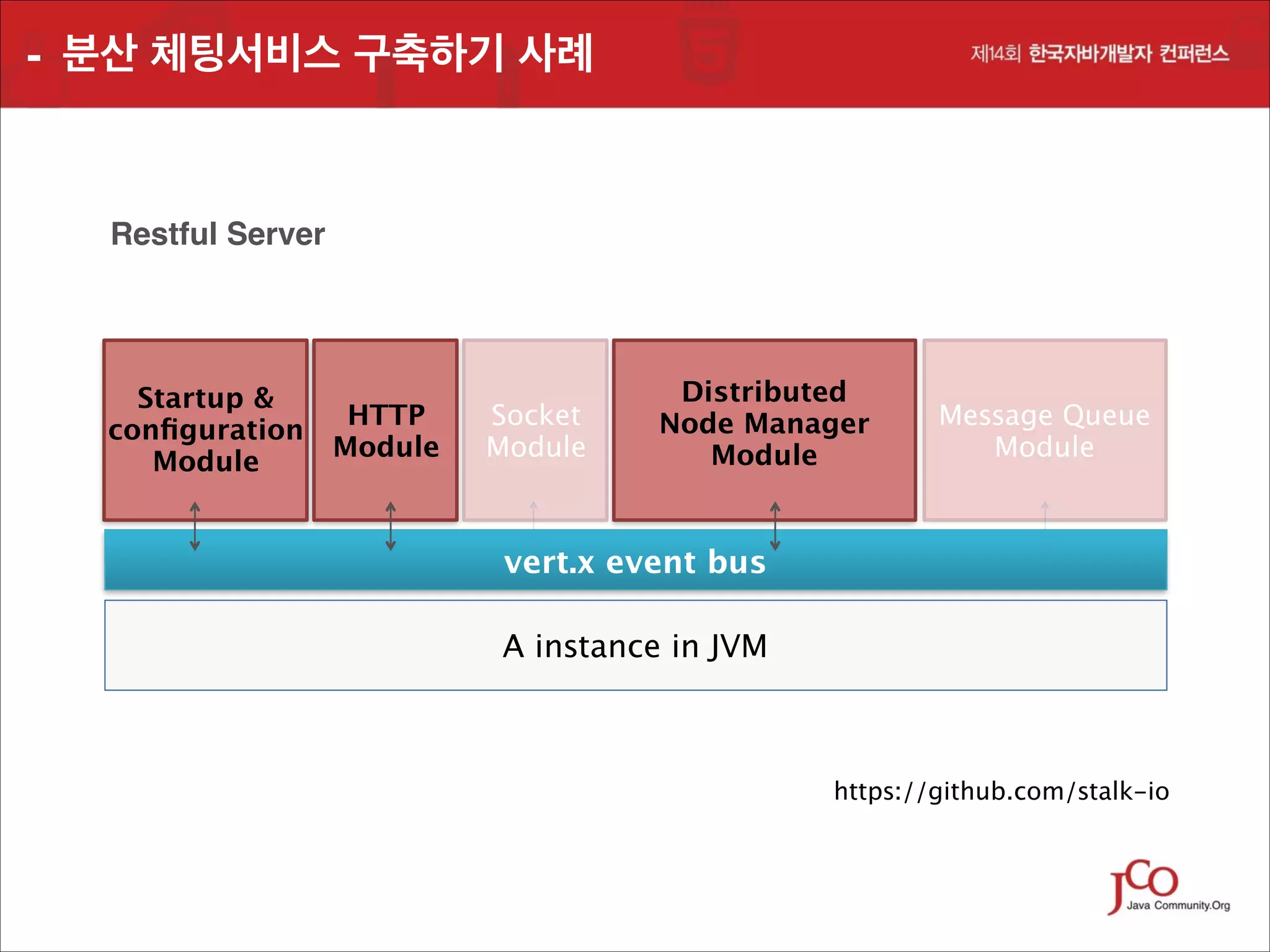

- 50. - 분산 체팅서비스구축하기 사례 Restful Server Startup & HTTP configuration Module Module Socket Module Distributed Node Manager Module Message Queue Module vert.x event bus A instance in JVM https://github.com/stalk-io

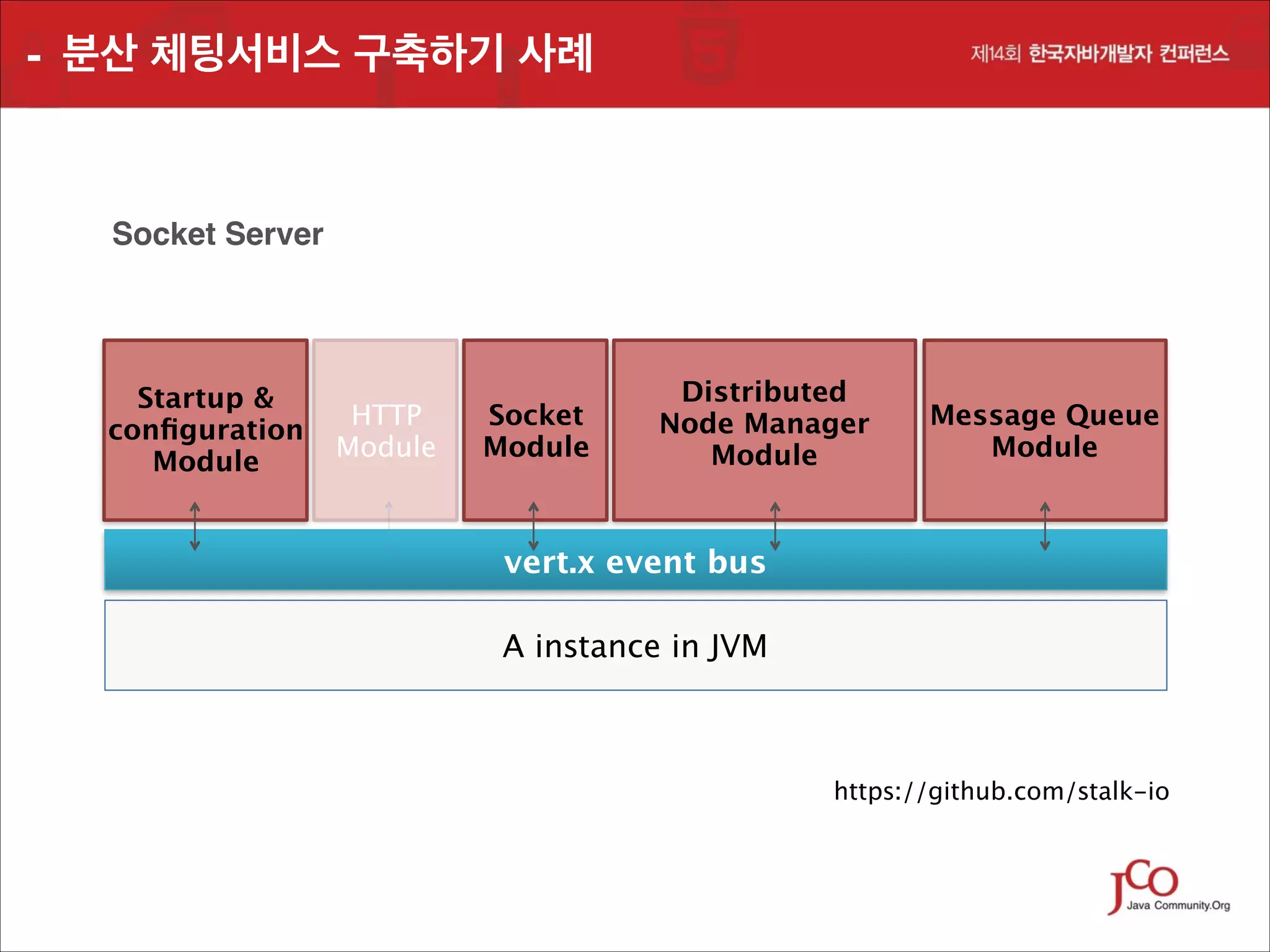

- 51. - 분산 체팅서비스구축하기 사례 Socket Server Startup & HTTP configuration Module Module Socket Module Distributed Node Manager Module Message Queue Module vert.x event bus A instance in JVM https://github.com/stalk-io
- 52. 3. 분산 서버설계시 알아야 할 것들! ! - Consistent Hashing, Sharding, Proxy, MessageQueue ..

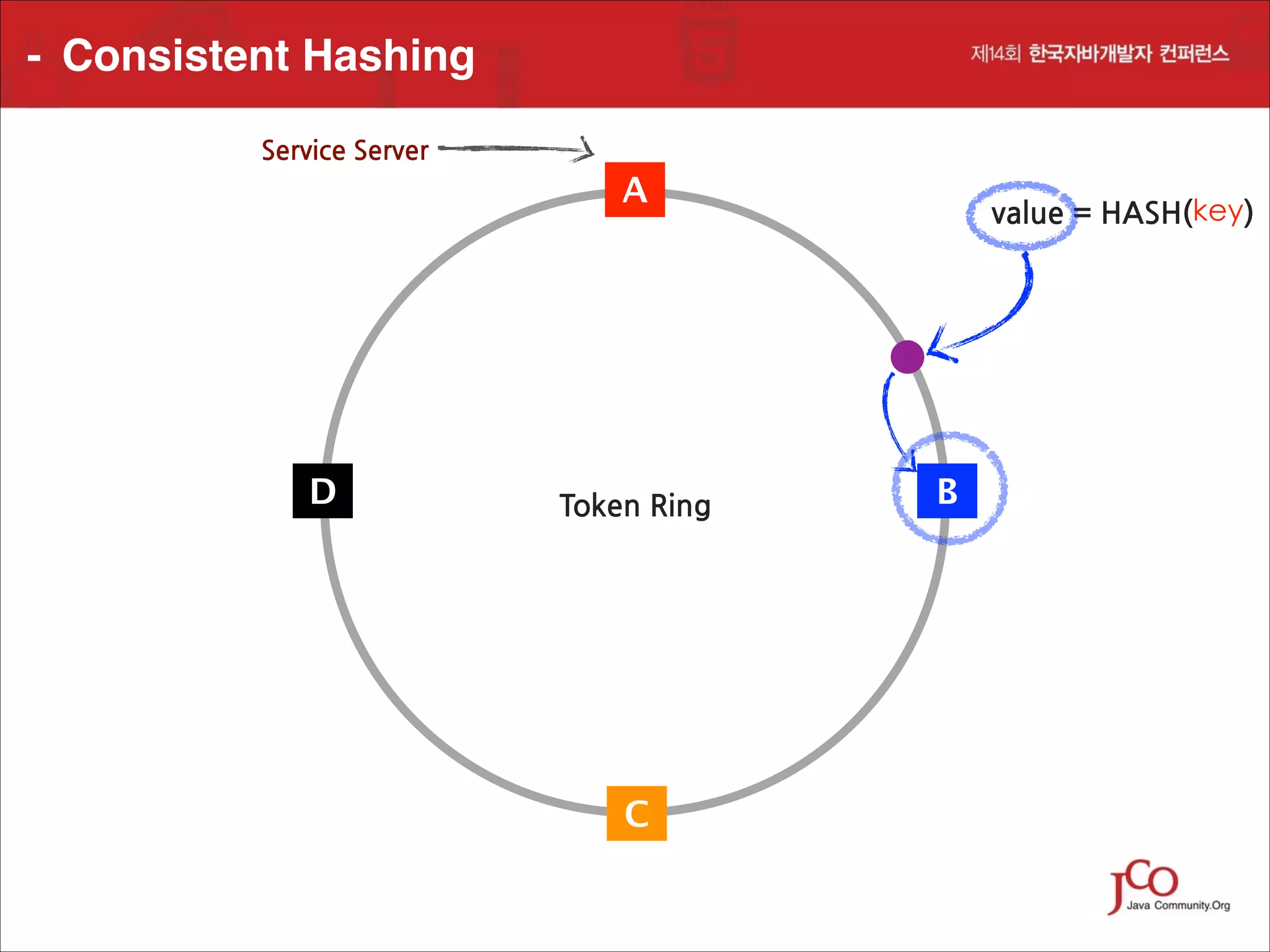

- 53.
- 54.
- 55.
- 56.
- 57.
- 58.
- 59.
- 60.
- 61.
- 62.
- 63.
- 64.
- 65.
- 66.
- 67.
- 68.
- 69.
- 70.
- 71.
- 72.
- 73.

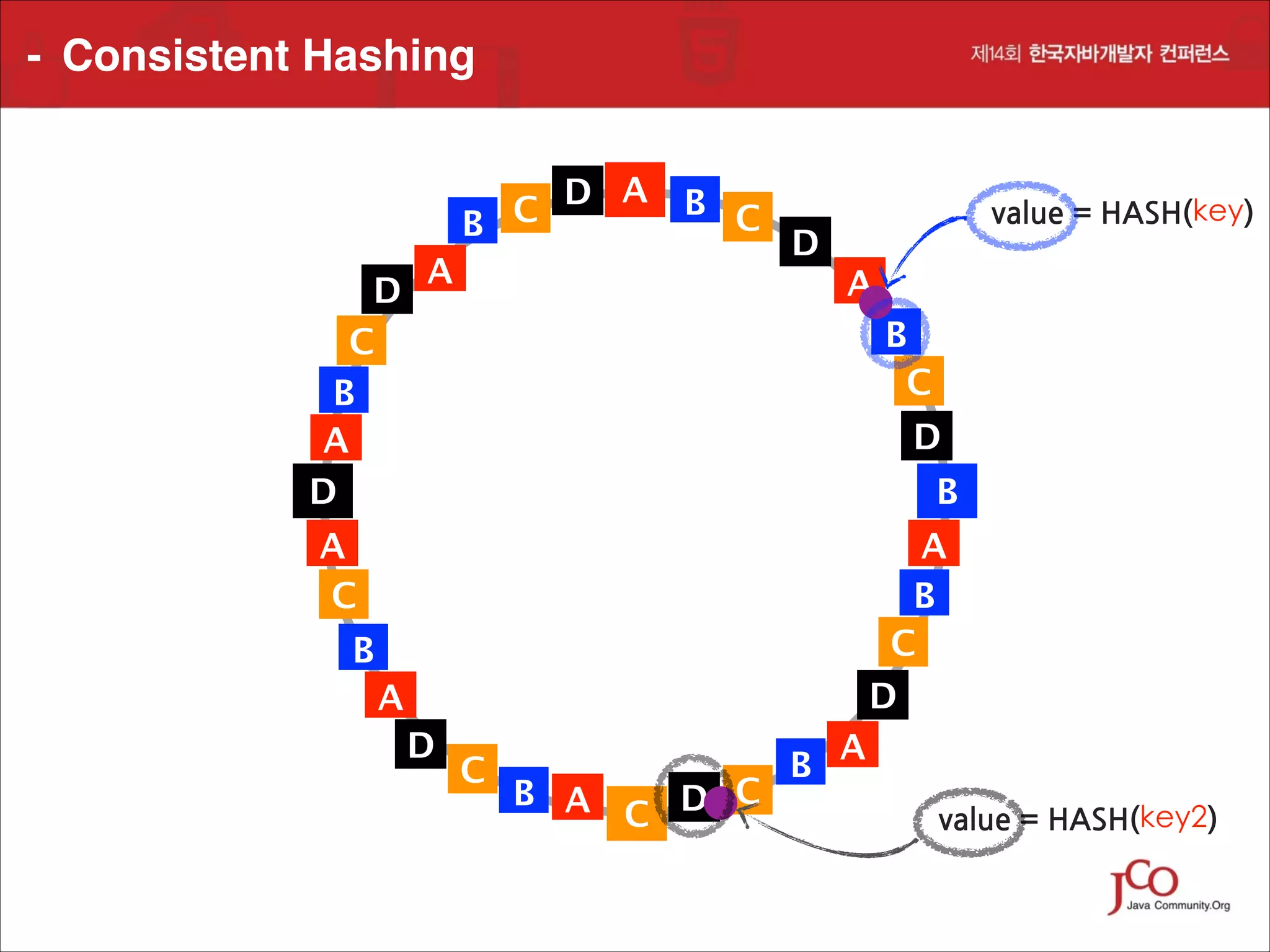

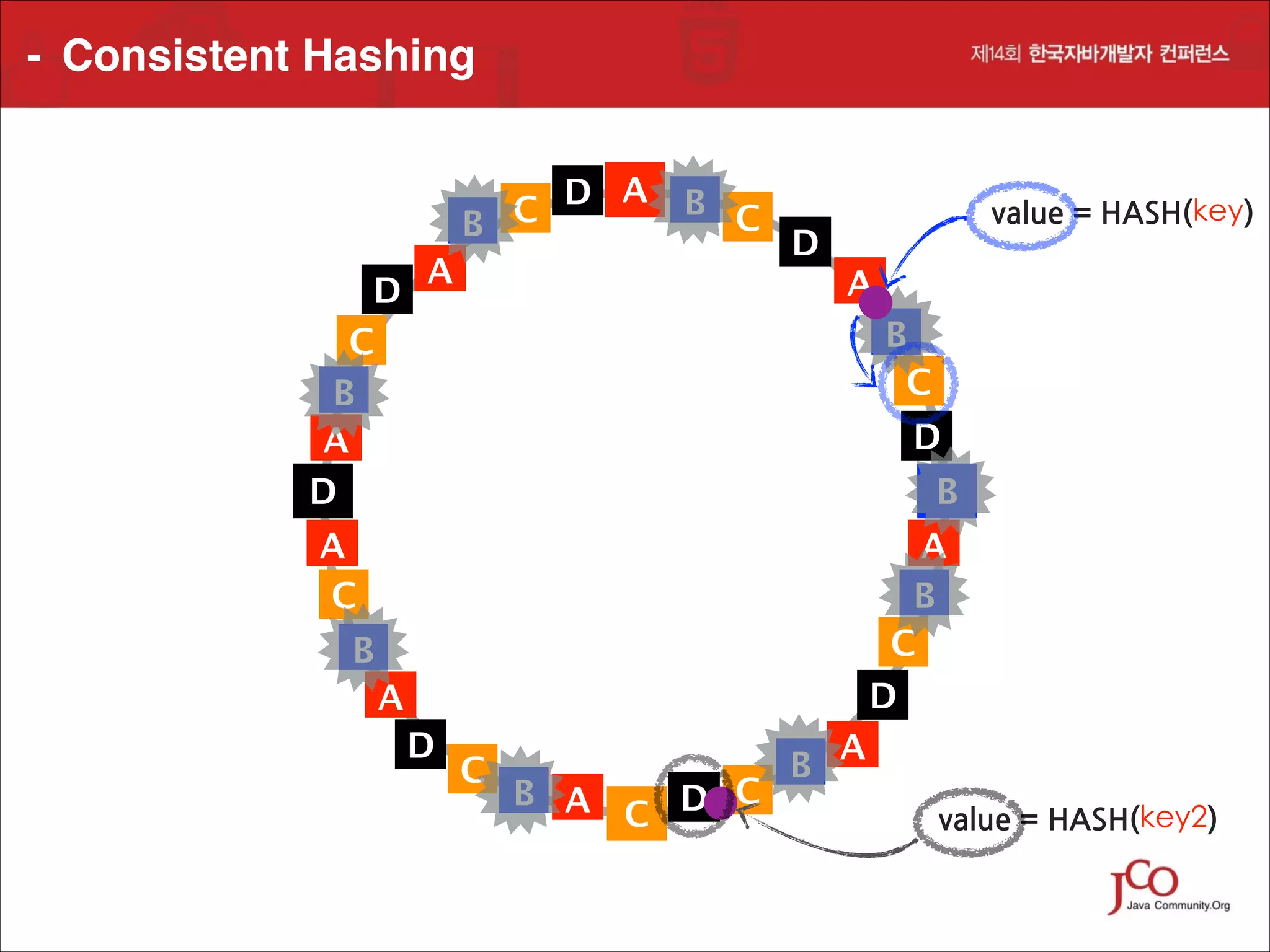

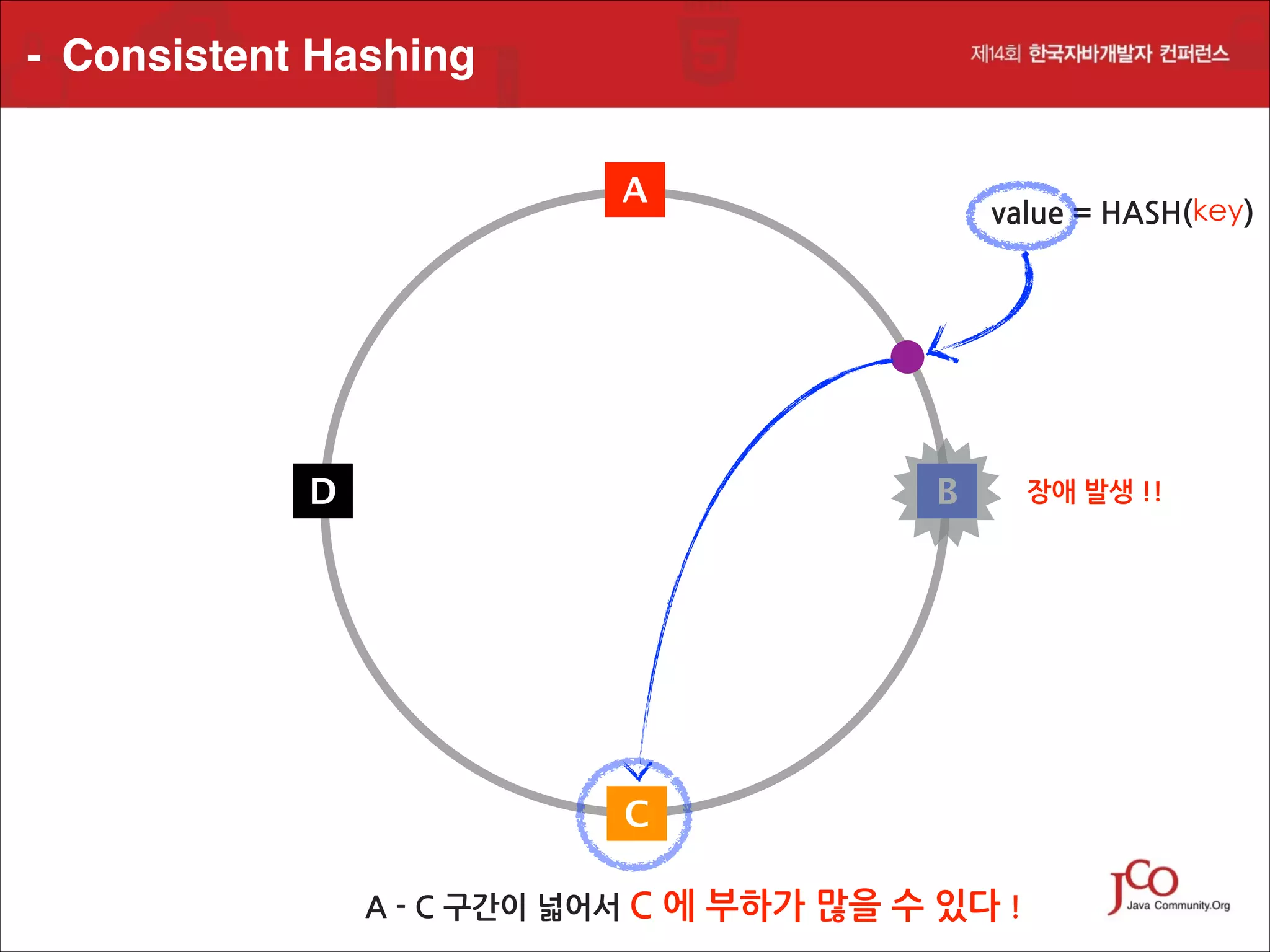

- 74. - Consistent Hashing A CD B D C B A D B C A D value
- 75.
- 76.
- 77.
- 78.
- 79. - Consistent Hashing A CD B D C B A D B C A D value
- 80.
- 81.
- 82.
- 83.

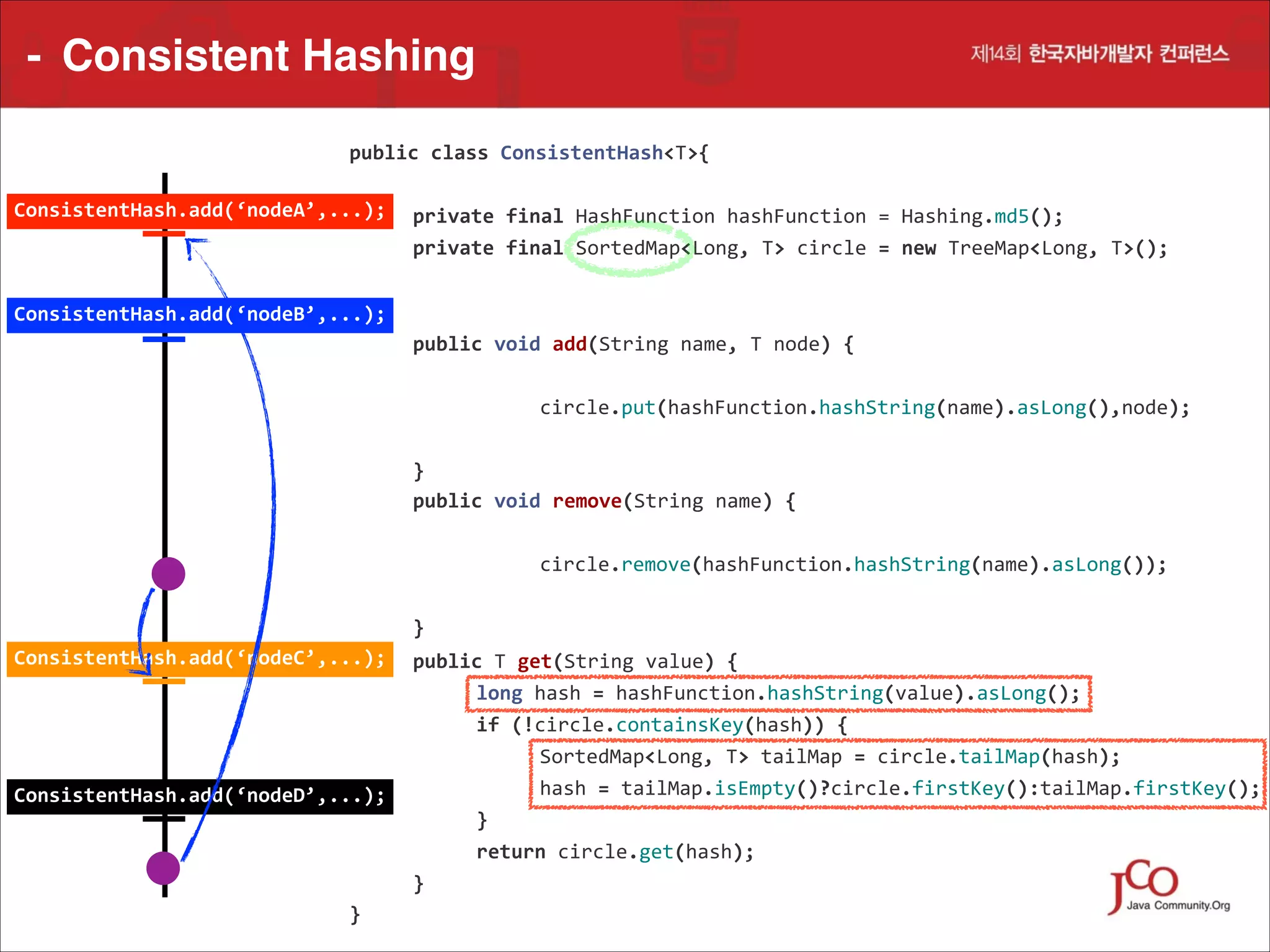

- 84. - Consistent Hashing public class ConsistentHashT{ ! ConsistentHash.add(‘nodeA’,...); ! ! ConsistentHash.add(‘nodeB’,...); ! ! ! ! ! ! ! ! ! ! ConsistentHash.add(‘nodeC’,...); ! ! ! ! ! ConsistentHash.add(‘nodeD’,...); ! ! ! } private final HashFunction hashFunction = Hashing.md5(); private final SortedMapLong, T circle = new TreeMapLong, T(); public void add(String name, T node) { circle.put(hashFunction.hashString(name).asLong(),node); } public void remove(String name) { circle.remove(hashFunction.hashString(name).asLong()); } public T get(String value) { long hash = hashFunction.hashString(value).asLong(); if (!circle.containsKey(hash)) { SortedMapLong, T tailMap = circle.tailMap(hash); } hash = tailMap.isEmpty()?circle.firstKey():tailMap.firstKey(); } return circle.get(hash);

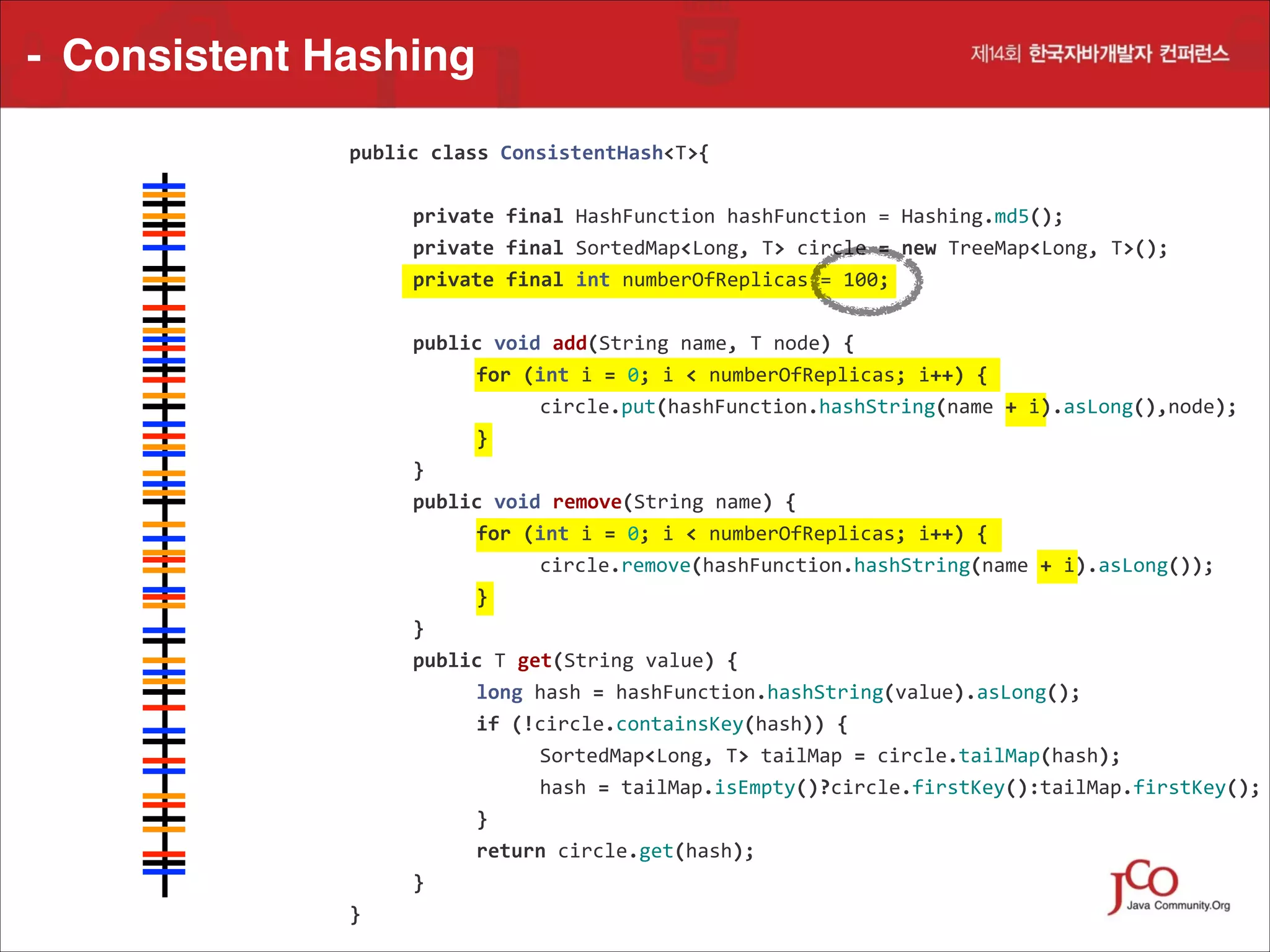

- 85. - Consistent Hashing public class ConsistentHashT{ ! private final HashFunction hashFunction = Hashing.md5(); private final SortedMapLong, T circle = new TreeMapLong, T(); private final int numberOfReplicas = 100; public void add(String name, T node) { for (int i = 0; i numberOfReplicas; i++) { circle.put(hashFunction.hashString(name + i).asLong(),node); } } public void remove(String name) { for (int i = 0; i numberOfReplicas; i++) { circle.remove(hashFunction.hashString(name + i).asLong()); } } public T get(String value) { long hash = hashFunction.hashString(value).asLong(); if (!circle.containsKey(hash)) { SortedMapLong, T tailMap = circle.tailMap(hash); } } ! hash = tailMap.isEmpty()?circle.firstKey():tailMap.firstKey(); } return circle.get(hash);

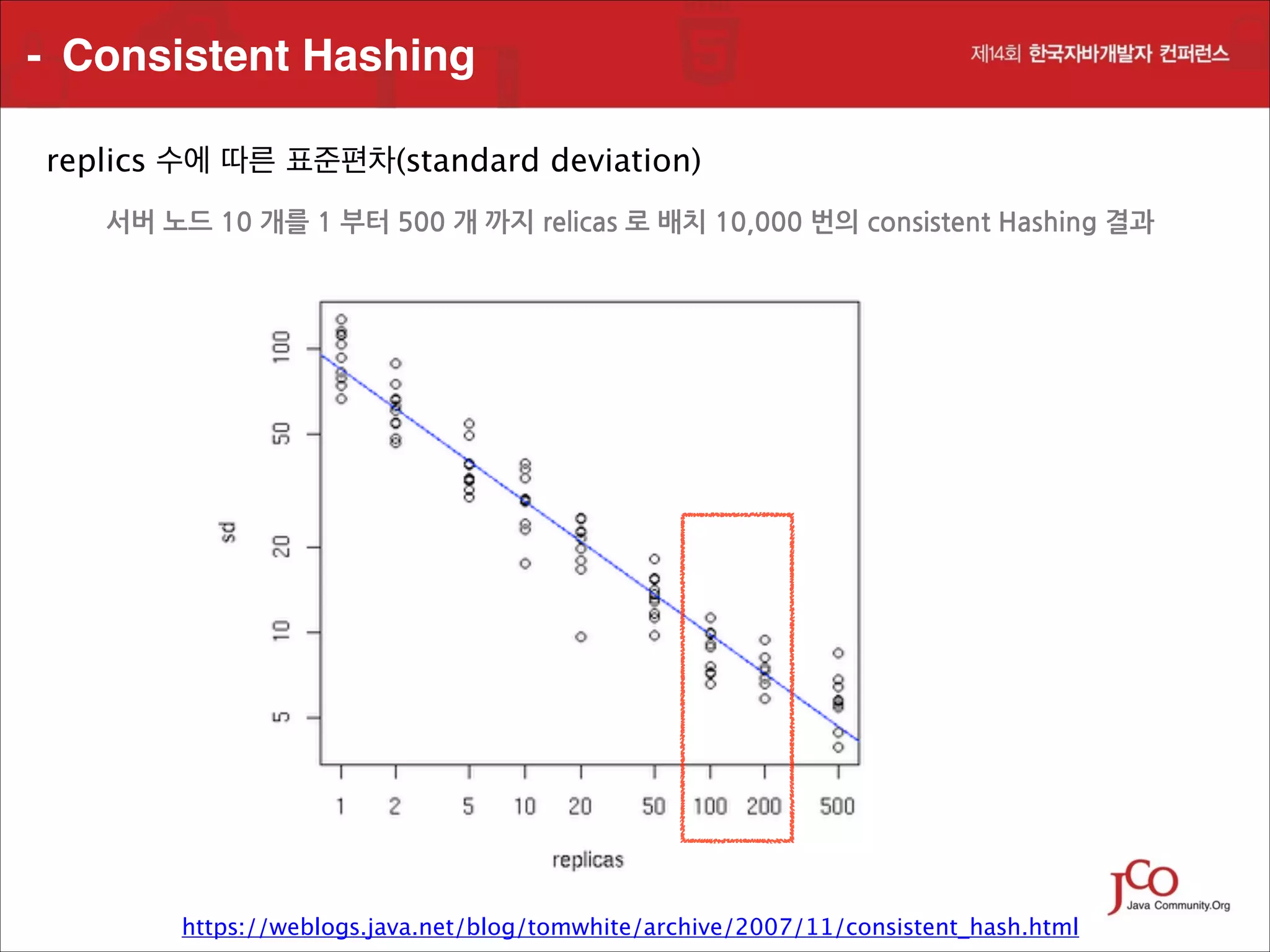

- 86. - Consistent Hashing replics수에 따른 표준편차(standard deviation) 서버
- 87.
- 88.
- 89.
- 90.
- 91.
- 92.
- 93.
- 94.
- 95.
- 96.
- 97.
- 98.
- 99.
- 100.
- 101.
- 102.

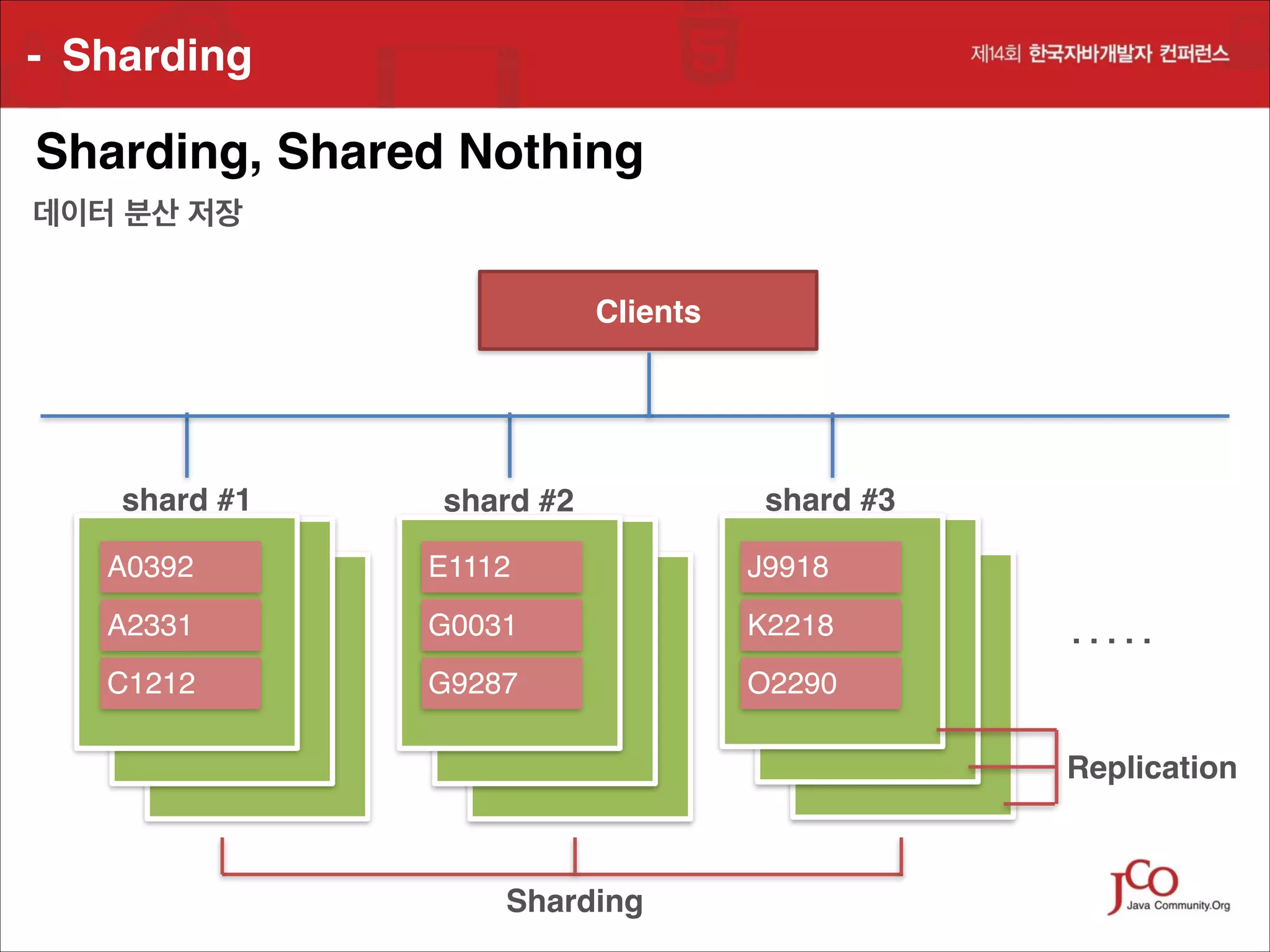

- 103. - Sharding Sharding, SharedNothing 데이터 분산 저장 Clients shard #1 shard #2 shard #3 A0392 E1112 J9918 A2331 G0031 K2218 C1212 G9287 O2290 ..... Replication Sharding

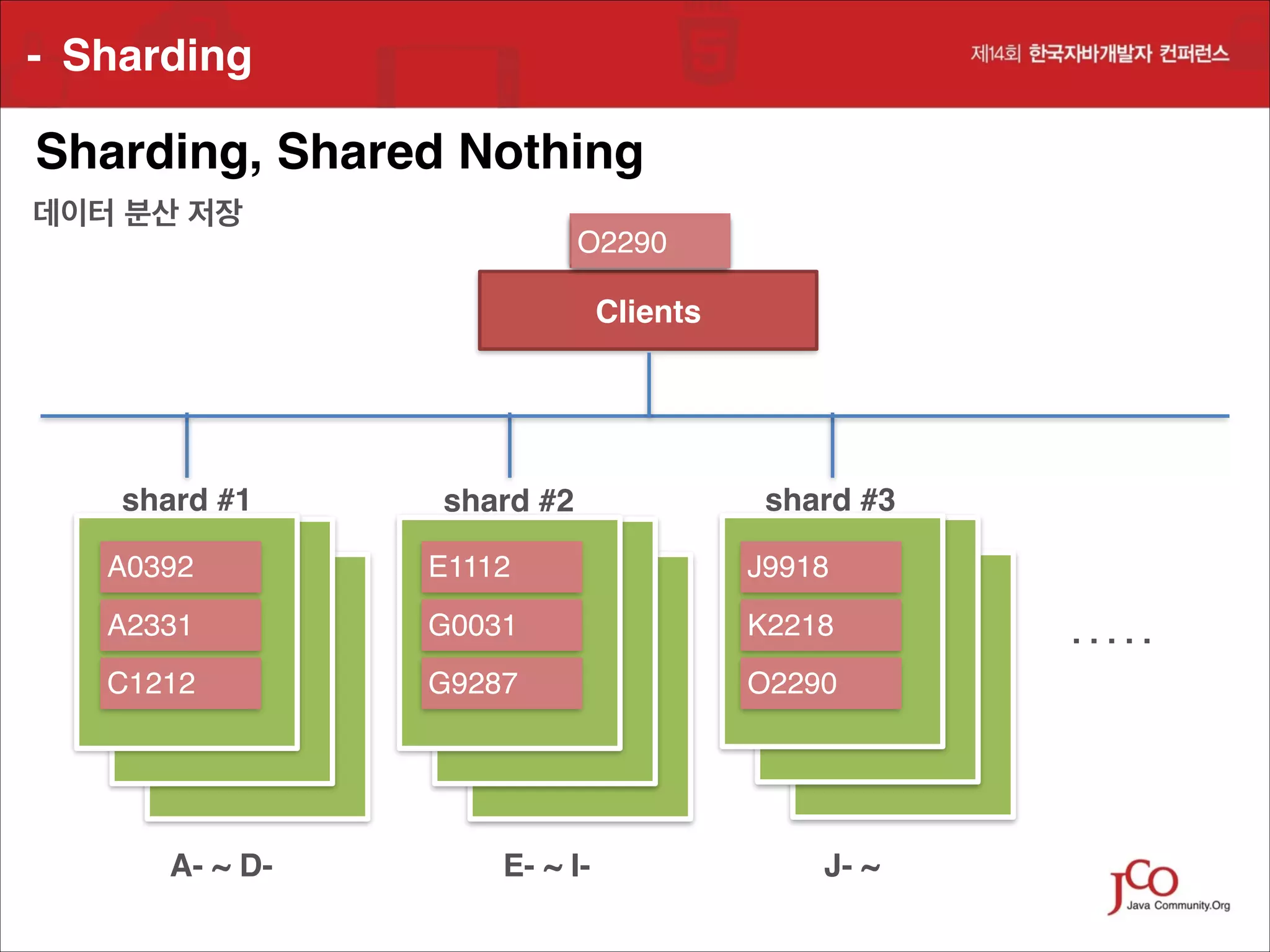

- 104. - Sharding Sharding, SharedNothing 데이터 분산 저장 G9287 C1212 O2290 Clients shard #1 shard #2 shard #3 A0392 E1112 J9918 A2331 G0031 K2218 C1212 G9287 O2290 A- ~ D- E- ~ I- J- ~ .....

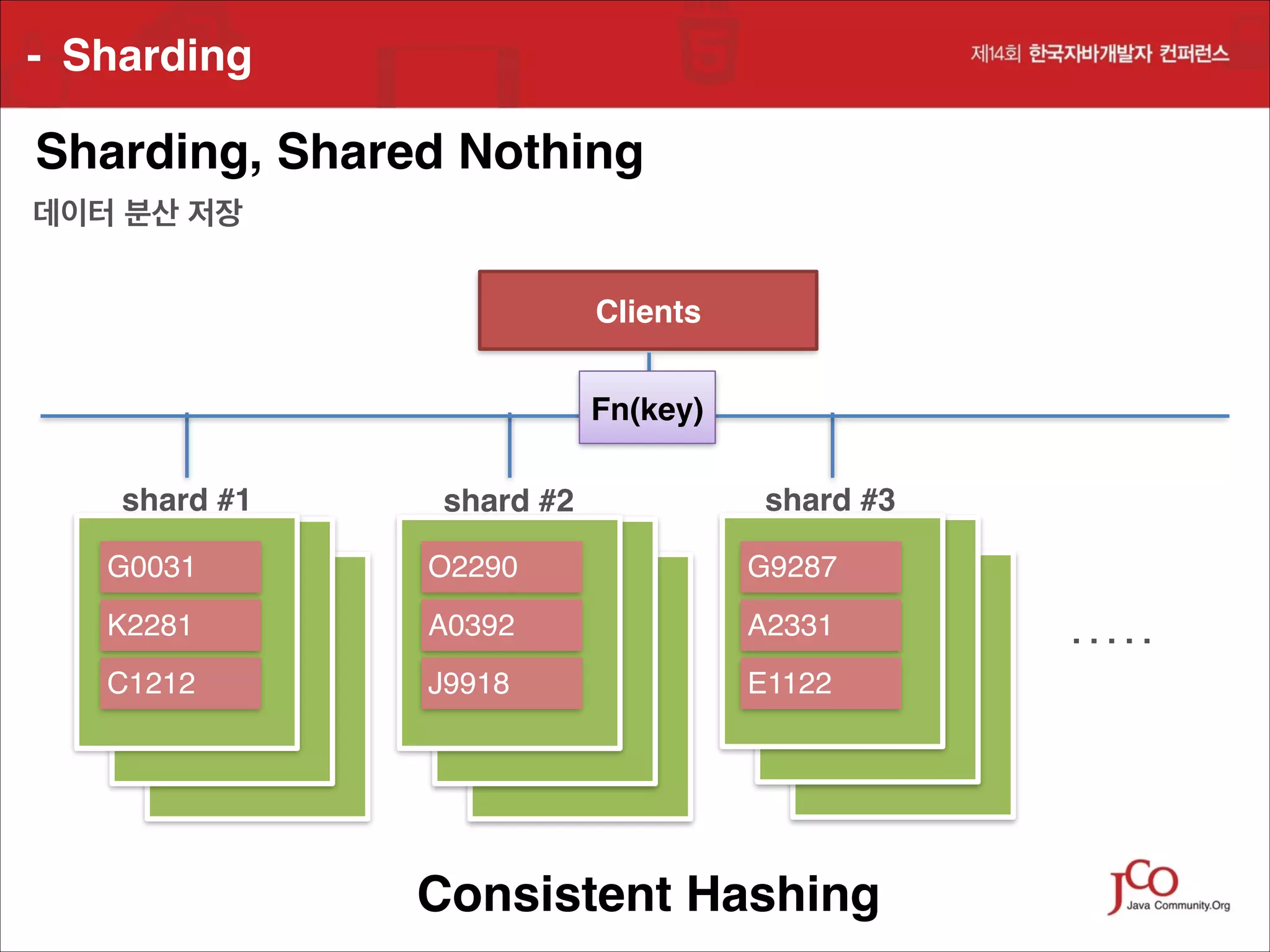

- 105. - Sharding Sharding, SharedNothing 데이터 분산 저장 Clients Fn(key) shard #1 shard #2 shard #3 G0031 O2290 G9287 K2281 A0392 A2331 C1212 J9918 E1122 Consistent Hashing .....

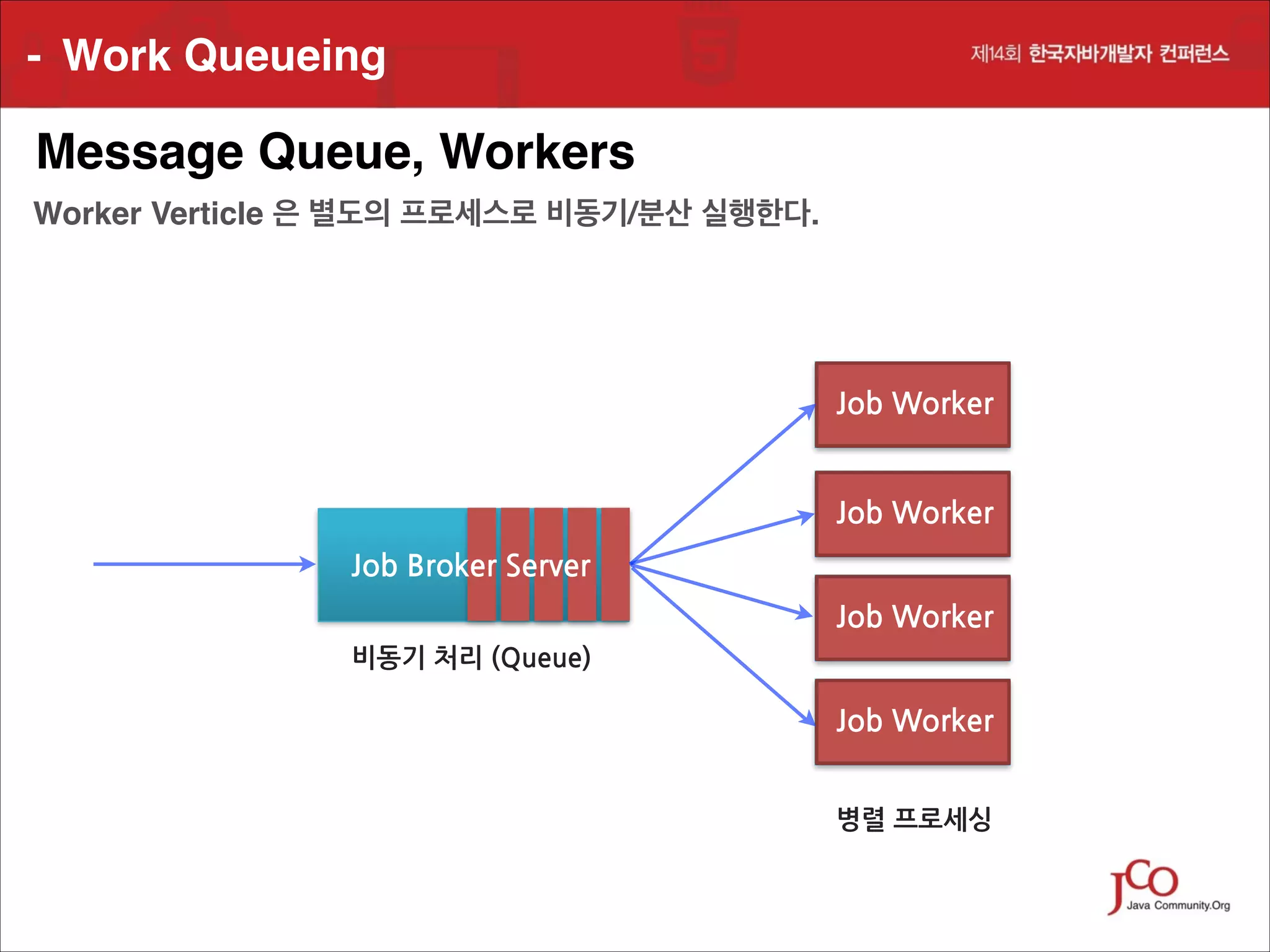

- 106. - Work Queueing MessageQueue, Workers Worker Verticle 은 별도의 프로세스로 비동기/분산 실행한다. Job
- 107.
- 108.
- 109.
- 110.
- 111.
- 112.

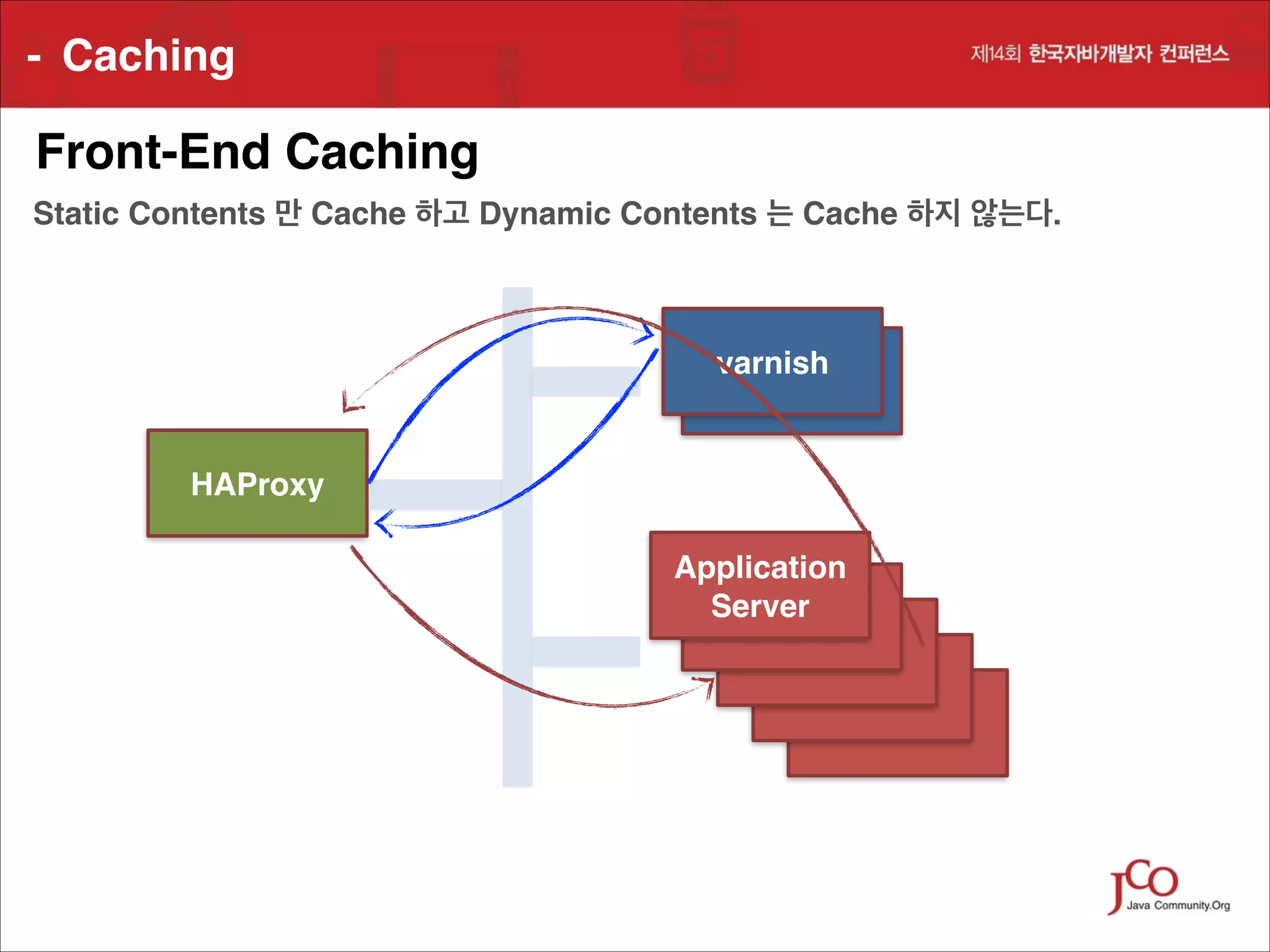

- 113. - Caching Front-End Caching StaticContents 만 Cache 하고 Dynamic Contents 는 Cache 하지 않는다. varnish varnish HAProxy Application Server HAProxy HAProxy HAProxy HAProxy
- 114.
- 115.
- 116.
- 117. - epilogue Object Oriented 에서 Programming Functional Programming 로 바뀌고 있는가 ? XML 말고, JSON 사용해야 하는가 ? Java 를 배우는가, Spring Framework 를 배우는가 ? VI 와 TMUX 를 사용하는가 ?
- 118. - Speaker 김요한! • LGCNS SI 프로젝트 분석/ 설계/개발/아키텍트 등 다양한 경험! • 최근 오픈소스를 활용한 분산 아키텍처 설계/ 개발 진행중! • 오픈소스포럼, S/W아키텍처대회, DEVIEW, JCO 등 발표! • NIPA 오픈프론티어 1기! • xpush 프로젝트 - 2014 06 release !! yohany@gmail.com! https://www.facebook.com/JohnKim0331!
