We propose a novel value function approximation technique for Markov decision processes that compactly represents the state-action value function using a low-rank and sparse matrix model. Under minimal assumptions, this decomposition is a Robust Principal Component Analysis problem that can be solved exactly via the Principal Component Pursuit convex optimization problem.

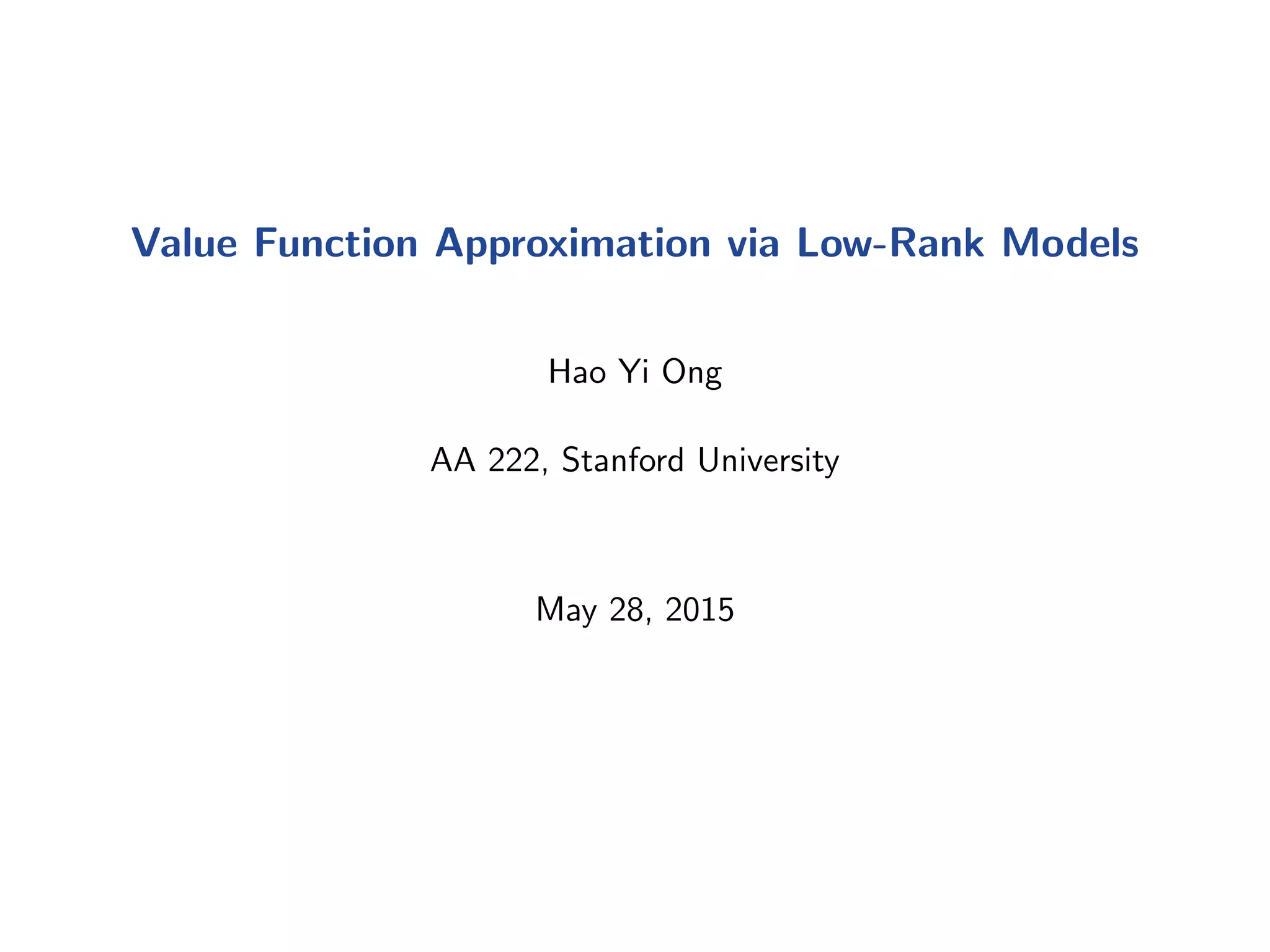

1. Value Function Approximation via Low-Rank Models
Hao Yi Ong
AA 222, Stanford University
May 28, 2015

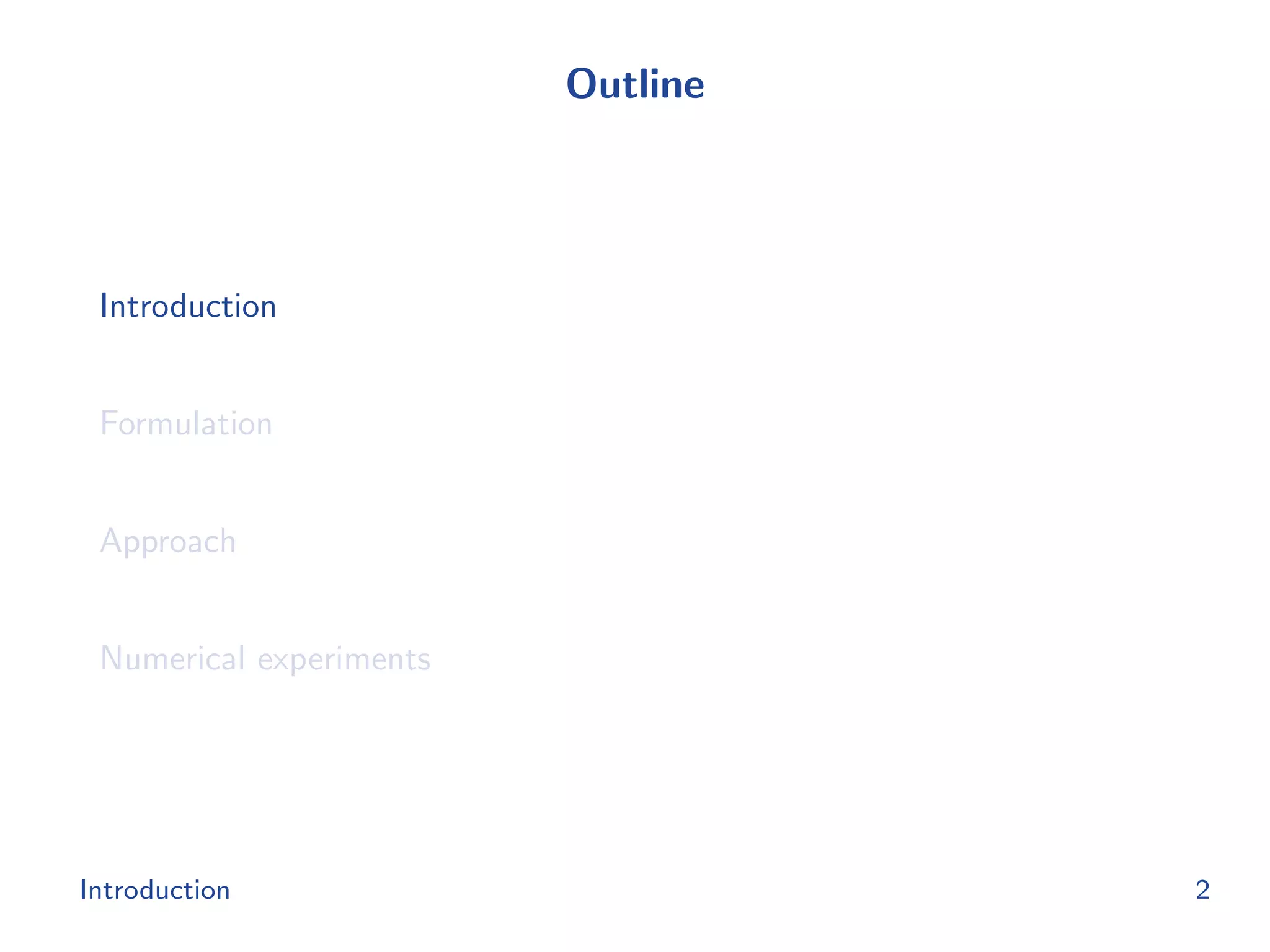

2. Outline
Introduction
Formulation
Approach
Numerical experiments
Introduction 2

3. Value function approximation
Markov decision process can be solved optimally given the
state-action value function
– value function gives utility for taking an action given a state; want to
find action that maximizes utility
– can be represented as a matrix for discrete problems
– typically millions or billions of dimensions for practical problems
value function approximation finds compact alternative
– basis functions used widely in reinforcement learning (RL)
– e.g., Gaussian radial basis function, neural network
Introduction 3

4. Value function decomposition
idea: approximate value function as low-rank plus sparse components
assumes intrinsic low-dimensionality
– i.e., value function can be captured by small set of features
– hinted by success of basis function approximation in RL
falls under category of Robust Principal Component Analysis (PCA)
– widely used in image/video analysis and collaborative filtering; e.g.,
Netflix challenge
– novel application of Robust PCA as far as author is aware
Introduction 4

5. Outline
Introduction
Formulation
Approach
Numerical experiments
Formulation 5

6. Markov decision process
defined by the tuple (S, A, T, R)
S and A are the sets of all possible states and actions, respectively
T gives the probability of transitioning into state s from taking
action a at the current state s, and is often denoted T (s, a, s )
R gives a scalar value indicating the immediate reward received for
taking action a at the current state s and is denoted R (s, a)
Formulation 6

7. Value iteration
want to find the optimal policy π (s)
returns action that maximizes the utility from any given state
related to state-action value function Q (s, a)
π (s) = argmax
a∈A
Q (s, a)
value iteration updates value function guess ˆQ until convergence
ˆQ (s, a) := R (s, a) +
s ∈S
T (s, a, s ) max
a ∈A
ˆQ (s , a )
Formulation 7

8. Matrix decomposition
suppose matrix M ∈ Rm×n
encodes Q (s, a)
– m and n are the cardinalities of the state and action spaces
approximate with decomposition M = L0 + S0
– L0 and S0 are the true low-rank and sparse components
why should this work?
– implicit assumption about correlation of utility values across actions
Formulation 8

9. Matrix decomposition
M
(m×n)
= AL0
(m×r)
BT
L0
(r×n)
+ S0
(m×n)
Formulation 9

10. Outline
Introduction
Formulation
Approach
Numerical experiments
Approach 10

11. Principal Component Pursuit (PCP)
best (known) convex estimate of Robust PCA
minimize L ∗ + λ S 1
subject to L + S = M
intuitively
– nuclear norm · ∗ is best convex approximation to minimizing rank
– 1-norm has sparsifying property
remarkably, solution to PCP decomposes M perfectly [CLMW11]
Approach 11

12. Outline
Introduction
Formulation
Approach
Numerical experiments
Numerical experiments 12

13. Mountain car
Numerical experiments 13

14. Inverted pendulum
Numerical experiments 14

15. Implementation
https://github.com/haoyio/LowRankMDP
Numerical experiments 15

16. References
Emmanuel J Candes, Xiaodong Li, Yi Ma, and John Wright.
Robust principal component analysis?
Journal of the Association for Computing Machinery, 58(3), 2011.
16
