1. VA TECH ELIN EBG Elektronik
>pDRIVE< MX Frequency Inverter
The Power Drives Company
E l e k t r o n i k

2. Everything in View – Everything under Control.
>pDRIVE< standard functions for optimum power in the shortest time
I Flexible display configuration
The large graphic display screen and the distinctive pictographs
on the keypad simplify the process of optimal parameterisation
and can be quickly adapted to the individual needs of the user.
The status of the equipment, the reference values and actual
values – everything has its place.
I Intelligent application macros
In order to guarantee the shortest startup times possible, our
>pDRIVE< MX inverters are equipped with sophisticated parameter
pre-settings for all standard applications. However, expert users
value the possibility of saving their own settings in user macros.
I Multifunctional motor protection
>pDRIVE< MX frequency inverters immediately recognize overloaded
and underloaded motors and react according to the respective
requirements. Moreover, >pDRIVE< features integrated heating to
protect the motor from condensation.
>pDRIVE< functions for individual applications
Reliable crane control
When the crane function is activated, parameters are automatically set to the respective hoisting and trolley functions.
These parameters can be more precisely adjusted to meet the needs of a particular application. The rotational speed
is automatically adjusted for lower loads (fast mode).
Controlled failure behaviour
Upon request, >pDRIVE< inverters can make attempts at minimizing damage in the event of system failures. The
inverter reacts to various types of failures, such as external or process failures, with an alarm, switching off or with
sending a digital signal to a PLC. >pDRIVE< takes no risk!
Protective emergency operation
The safety of the personnel is always more important than the protection of the inverter. In emergency situations
the >pDRIVE< MX deactivates several inverter protection functions in order to provide adequate personal protection.
Automatic balance control
If several inverters operate on the same load, a load balance process is essential because unavoidable inaccuracies
can arise even with speed-controlled devices. The >pDRIVE< balance control either produces an internal correction
signal or processes the reference value of an external control unit.
Economical braking method
>pDRIVE< frequency inverters are equipped with an internal “motor braking function” that provides braking power
without additional braking equipment. Alternatively, more stringent demands may require an external braking unit
that is reliably controlled and monitored by the >pDRIVE< MX.
The Power Drives Company >pDRIVE<
3

3. Simply Intelligent – the new MatriX 2.0 I Local control
Everything at a glance. The device status of
>pDRIVE< MX, all actual and reference values as
well as the status of the digital input signals are
available for monitoring purposes or for online control.
Computer-controlled systems have become the norm in the industry. We have expanded on this
basic requirement to include application-specific requirements of our customers and have developed
an unusually convenient and powerful software program called MatriX 2.0. The program guarantees
smooth and reliable communication between the >pDRIVE< MX frequency inverter and the control
I Actual-value recorder
computer. The Windows platform is used to modify and transmit parameters, thus significantly
The right instrument for startups. The user can select
reducing startup times.
either the analogue or digital status in real-time mode
during operation and record the data for later analysis.
The built-in trigger is valuable particularly for the
analysis of unplanned events.
I Parameter-Editor
Our concise user interface is available on personal
computers. All parameters can be queried and
changed online if necessary. The most significant
values are also displayed so the user has all the
required information.
I Docu mode
The input parameters and actual values are compactly
and concisely presented, stored or printed as
requested. Parameters that differ from default settings
are specially marked. The decisive advantage of this
function is that the user can define the settings for
one inverter and can transfer these settings auto-
matically to all the other inverters at the plant.
I Failure memory
Intelligent support is also available in the event of
failures: >pDRIVE< MX inverters make a detailed
data record of each problem. The failure memory
can easily be evaluated and archived with the help
of MatriX 2.0.
The Power Drives Company >pDRIVE<
5

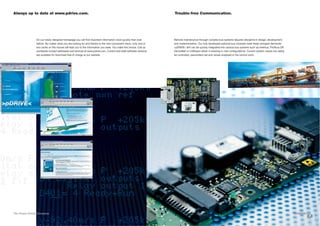

4. Always up to date at www.pdrive.com. Trouble-free Communication.
On our newly designed homepage you will find important information more quickly than ever Remote maintenance through complex bus systems requires discipline in design, development
before. No matter what you are looking for and thanks to the new convenient menu, only one or and implementation. Our fully developed optional bus modules meet these stringent demands.
two clicks on the mouse will lead you to the information you seek. You make the choice. Call up >pDRIVE< MX can be quickly integrated into various bus systems such as Interbus, Profibus DP,
worldwide contact addresses and services at www.pdrive.com. Current and older software versions DeviceNet or CANopen either in existing or new configurations. Current system values can easily
are available for download free of charge at our website. be controlled, parameters set and values analysed in the control room.
The Power Drives Company >pDRIVE<
7

5. >pDRIVE< MX basic – Unbeatably Simple.
>pDRIVE< Output current (400 V) Power
MX basic 15 / 18 32 / 38 A 15 / 18,5 kW
MX basic 18 / 22 38 / 46 A 18,5 / 22 kW
MX basic 22 / 30 49 / 59 A 22 / 30 kW
MX basic 30 / 37 61 / 73 A 30 / 37 kW
MX basic 37 / 45 75 / 90 A 37 / 45 kW
MX basic 45 / 55 88 / 106 A 45 / 55 kW
MX basic 55 / 75 117 / 140 A 55 / 75 kW
MX basic 75 / 90 142 / 170 A 75 / 90 kW
MX basic 90 / 110 172 / 206 A 90 / 110 kW
MX basic 110 / 132 208 / 250 A 110 / 132 kW
MX basic 132 / 160 250 / 300 A 132 / 160 kW
MX basic 160 / 200 325 / 390 A 160 / 200 kW
MX basic 200 / 250 404 / 485 A 200 / 250 kW
MX basic 250 / 315 475 / 570 A 250 / 315 kW
MX basic 315 / 380 583 / 700 A 315 / 380 kW
MX basic 315 / 400 617 / 740 A 315 / 400 kW
Modern frequency inverters must be as varied MX basic 400 / 500 767 / 920 A 400 / 500 kW
as the wishes of the user. Standard applications MX basic 500 / 630 904 / 1085 A 500 / 630 kW
require simple startup within the shortest time
possible. Simplified and more reliable monitoring General Data
is also necessary. The >pDRIVE< MX basic Mains voltage 3-phase 400 V -15 % +15 %; 50 / 60 Hz
series offers these advantages by means of a Maximum current 150 % for high overload / 120 % for high continuous load
(min. 60 s / 10 min)
sophisticated short menu to match your drive.
Control process AVC (auto vector control)
The result is that you can quickly and reliably
Design Built-in unit with protection degree IP20 / IP00
set the necessary parameters.
Interface Matrix keypad, extensible terminal strip, RS 232,
Profibus DP, Interbus, CANopen, DeviceNet
The high-precision measurement of the motor
Specific Automatic motor load limitation without switch off,
residual voltage forms the basis for a flying start functions underload recognition, motor heating, catch-on-the-fly function,
within a few milliseconds, irrespective of the emergency operation for fan applications, PID controller,
motor brake without braking unit
rotational direction. This method foregoes time-
consuming searches.
>pDRIVE< MX basic is the ideal drive for your
pumps, fans, compressors, conveyor belts,
stirrers and much more. Innovative and proven
a thousandfold and available ex warehouse.
The Power Drives Company >pDRIVE<
9

6. >pDRIVE< MX plus – Incredible Flexibility.
The continuous development of target-group
solutions is the deciding factor for the distinctive
capabilities of the >pDRIVE< MX plus series.
Even the greatest demands are fulfilled. With
features such as pure dynamics, adapted func-
tion modules and multi-functional options, the
applications of this inverter have very few
limitations. The numerous integrated special
functions of MX plus offer optimum benefits to
the user. In addition to the specific drive assign-
ments, the inverter takes on a number of
supplementary functions for plant control.
A separately adjustable software function
block with an integrated brake control makes
>pDRIVE< Output current (400 V) Power
it possible to precisely and reliably lift and lower
MX plus 04 10 / 11 A 4 kW
loads that weigh tons.
MX plus 05 12 / 13 A 5,5 kW
MX plus 07 16 / 18 A 7,5 kW
MX plus 11 22 / 24 A 11 kW
MX plus 15 / 18 32 / 38 A 15 / 18,5 kW
MX plus 18 / 22 38 / 46 A 18,5 / 22 kW
MX plus 22 / 30 49 / 59 A 22 / 30 kW
MX plus 30 / 37 61 / 73 A 30 / 37 kW
MX plus 37 / 45 75 / 90 A 37 / 45 kW
MX plus 45 / 55 88 / 106 A 45 / 55 kW
MX plus 55 / 75 117 / 140 A 55 / 75 kW
MX plus 75 / 90 142 / 170 A 75 / 90 kW
MX plus 90 / 110 172 / 206 A 90 / 110 kW
MX plus 110 / 132 208 / 250 A 110 / 132 kW
MX plus 132 / 160 250 / 300 A 132 / 160 kW
MX plus 160 / 200 325 / 390 A 160 / 200 kW
MX plus 200 / 250 404 / 485 A 200 / 250 kW
MX plus 250 / 315 475 / 570 A 250 / 315 kW
MX plus 315 / 380 583 / 700 A 315 / 380 kW
MX plus 315 / 400 617 / 740 A 315 / 400 kW
MX plus 400 / 500 767 / 920 A 400 / 500 kW
MX plus 500 / 630 904 / 1085 A 500 / 630 kW
General Data
Mains voltage 3-phase 400…500 V -15 % +10 %; 50 / 60 Hz
Maximum current 150 % for high overload / 120 % for high continuous load
(min. 60 s / 10 min)
Control process AVC (auto-vector-control) with and without encoder feedback
Design Built-in unit with protection degree IP20 / IP00
Interface Matrix keypad, extensible terminal strip, RS 232,
Profibus DP, Interbus, CANopen, DeviceNet
Specific Application specific parameter settings (macros),
functions load balance, crane control, load-dependent fast mode
The Power Drives Company >pDRIVE<
11

7. >pDRIVE< MX multi – Unequalled Individuality.
>pDRIVE< Output current (400 V) Power
MX multi 15 / 18 32 / 38 A 15 / 18,5 kW
MX multi 18 / 22 38 / 46 A 18,5 / 22 kW
MX multi 22 / 30 49 / 59 A 22 / 30 kW
MX multi 30 / 37 61 / 73 A 30 / 37 kW
MX multi 37 / 45 75 / 90 A 37 / 45 kW
MX multi 45 / 55 88 / 106 A 45 / 55 kW
MX multi 55 / 75 117 / 140 A 55 / 75 kW
MX multi 75 / 90 142 / 170 A 75 / 90 kW
MX multi 90 / 110 172 / 206 A 90 / 110 kW
MX multi 110 / 132 208 / 250 A 110 / 132 kW
MX multi 132 / 160 250 / 300 A 132 / 160 kW
MX multi 160 / 200 325 / 390 A 160 / 200 kW
MX multi 200 / 250 404 / 485 A 200 / 250 kW
MX multi 250 / 315 475 / 570 A 250 / 315 kW
As long as individual requests can be fulfilled, Problems with applications in heavily polluted MX multi 315 / 380 583 / 700 A 315 / 380 kW
the ideal situation for the customer, of course, locations are no longer an issue with the MX multi 315 / 400 617 / 740 A 315 / 400 kW
is ex works. Components for power supply, >pDRIVE< MX multi cubicle unit. To remedy MX multi 400 / 500 767 / 920 A 400 / 500 kW
control and operation are included in the such cases we have provided another design MX multi 500 / 630 904 / 1085 A 500 / 630 kW
>pDRIVE< MX multi inverters. To guarantee that features protection degree IP54 in addition
utmost efficiency and reliability it is also practical to the standard design with protection degree General Data
to additionally install a main switch, output motor IP23. Inverter series MX multi-basic: 3-phase 400 V -15 % +15 %; 50 / 60 Hz
filter or a complete line contactor control and MX multi-plus: 3-phase 400...500 V -15 % +10 %; 50 / 60 Hz
deliver ex works. Design Compact unit with protection degree IP54 (up to 75 / 90)
Cubicle unit with protection degree IP23 or IP54
Cubicle design System Rittal TS8 or Sarel S6000 in RAL 7032 structure
Dimensions IP23: height 2060 mm, width 500 or 600 mm
IP54: height 2260 mm, width 500 or 600 mm
Interface Matrix keypad, extensible terminal strip, RS 232,
Profibus DP, Interbus, CANopen, DeviceNet
Possible options Cubicle heating, main switch, motor distributing pole for auxiliary
The Power Drives Company drives, output motor filter, operation in the cubicle door, basement, >pDRIVE<
special lacquering, cubicle lighting, power socket 13

8. >pDRIVE< MX top – Reliable Size.
Complex high-tech solutions designed for 690 V
mains appear to exceed all possible limitations
in multiple applications. The electronic design
of >pDRIVE< MX is ideally suitable for capacities
of up to 1.5 MW. The control parameters are
optimised by setting the motor rating plate data
and auto-tuning during standstill. Special I A variable load balancing control prevents
functions tuned to the various applications imbalances in parallel motors with combined
increase the customer benefits as well as the loads.
operational safety: I Where required, the entire drive is connected
I The automatic motor load limitation protects by means of the automatic line contactor
the motor and prevents troublesome fault control to the mains via the control terminal
disconnections in pump and fan drives. strip or the field bus.
Options such as 12-pulse rectification, insulation
monitoring, Pt100 motor monitoring and many
more are possible with these devices.
>pDRIVE< Output current (690 V) Power
MX top 160 / 200 190 / 230 A 160 / 200 kW
MX top 200 / 250 230 / 275 A 200 / 250 kW
MX top 250 / 315 285 / 340 A 250 / 315 kW
MX top 315 / 400 350 / 420 A 350 / 400 kW
MX top 400 / 500 435 / 520 A 400 / 500 kW
MX top 500 / 630 550 / 660 A 500 / 630 kW
MX top 630 / 800 700 / 840 A 630 / 800 kW
MX top 800 / 1000 875 / 1050 A 800 / 1000 kW
MX top 1000 / 1200 1050 / 1260 A 1000 / 1200 kW
MX top 1200 / 1500 1320 / 1580 A 1200 / 1500 kW
General Data
Mains voltage 3-phase 690 V ±10 %; 50 / 60 Hz
Maximum current 150 % for high overload / 120 % for high continuous load
(min. 60 s / 10 min)
Control process AVC (auto vector control) with and without encoder feedback
Design Cubicle unit with protection degree IP23
Interface Matrix keypad, extensible terminal strip, RS 232,
Profibus DP, Interbus, CANopen, DeviceNet
Specific Line contactor control, emergency operation, motor heating,
functions catch-on-the-fly function, automatic motor load limitation, motor
brake without braking unit
The Power Drives Company >pDRIVE<
15

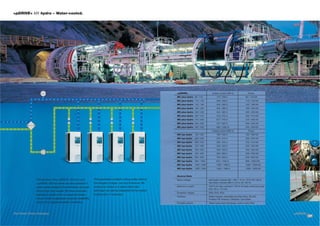

9. >pDRIVE< MX hydro – Water-cooled.
Foto: Herrenknecht
>pDRIVE< Output current (400 V) Power
MX plus-hydro 90 / 110 172 / 206 A 90 / 110 kW
MX plus-hydro 110 / 132 208 / 250 A 110 / 132 kW
MX plus-hydro 132 / 160 250 / 300 A 132 / 160 kW
MX plus-hydro 160 / 200 325 / 390 A 160 / 200 kW
MX plus-hydro 200 / 250 404 / 485 A 200 / 250 kW
MX plus-hydro 250 / 315 475 / 570 A 250 / 315 kW
MX plus-hydro 315 / 400 617 / 740 A 315 / 400 kW
MX plus-hydro 400 / 500 767 / 920 A 400 / 500 kW
MX plus-hydro 500 / 630 904 / 1085 A 500 / 630 kW
Output current (690 V) Power
MX top-hydro 160 / 200 190 / 230 A 160 / 200 kW
MX top-hydro 200 / 250 230 / 275 A 200 / 250 kW
MX top-hydro 250 / 315 285 / 340 A 250 / 315 kW
MX top-hydro 315 / 400 350 / 420 A 350 / 400 kW
MX top-hydro 400 / 500 435 / 520 A 400 / 500 kW
MX top-hydro 500 / 630 550 / 660 A 500 / 630 kW
MX top-hydro 630 / 800 700 / 840 A 630 / 800 kW
MX top-hydro 800 / 1000 875 / 1050 A 800 / 1000 kW
MX top-hydro 1000 / 1200 1050 / 1260 A 1000 / 1200 kW
MX top-hydro 1200 / 1500 1320 / 1580 A 1200 / 1500 kW
General Data
The devices in the >pDRIVE< MX plus and This guarantees constant cooling quality without Mains voltage plus-hydro: 3-phase 400…500 V -15 % +10 %; 50 / 60 Hz
>pDRIVE< MX top series are also available in the dangers of algae, rust and limestone. Re- top-hydro: 3-phase 690 V ±10 %; 50 / 60 Hz
water-cooled design for the elimination of power cooling by means of a water-water-heat Maximum current 150 % for high overload / 120 % for high continuous load
(min. 60 s / 10 min)
loss across long ranges. We have purposely exchanger can also be integrated into the cubicle
Protection degree IP00, IP23, IP54
selected a system with a closed secondary configuration if necessary.
Interface Matrix keypad, extensible terminal strips, RS 232,
circuit in order to guarantee maximum availability Profibus DP, Interbus, CANopen, DeviceNet
even in the roughest ambient conditions. Possible options Water-water-heat exchanger, output motor filter
The Power Drives Company >pDRIVE<
17

10. >pDRIVE< LX plus – Sinusoidal Energy Regeneration.
>pDRIVE< Nominal current (400 V) Power
LX plus 26 37 A 26 kVA
LX plus 42 60 A 42 kVA
LX plus 60 89 A 60 kVA
LX plus 100 144 A 100 kVA
LX plus 175 251 A 175 kVA
LX plus 340 488 A 340 kVA
LX plus 675 975 A 675 kVA
General Data
Mains voltage 3-phase 400…470 (500) V -40 % +15 %; 50 / 60 Hz
Maximum current 120 % for min. 60 s / 10 min
Design Built-in unit with protection degree IP00, line filter module and line choke
Interface Matrix keypad, extensible terminal strip, RS 232, Profibus DP
Specific Sinusoidal mains current, 2-staged line filter, user macros,
functions adjustable cos ␸, reactive current compensation
The regeneration capability ensures the shortest
amortization times in drives that operate fre-
quently in generatoric operation, such as test
stands, unreeling systems, hoisting devices, etc.
The >pDRIVE< LX can be used in connection
with a single drive as well as a supply / regener-
ative unit for a group drive.
The increasing demand for controlled drives has
led to enormous burdens on industrial mains.
With the >pDRIVE< LX plus we have made a
significant contribution to correcting this
situation.
The sinusoidal mains current in the device
ensures complete avoidance of the low-
frequency current harmonics. Moreover, the
available reserve of the device can be used for
reactive current compensation in the supplied
mains.
The Power Drives Company >pDRIVE<
19

11. The Power Drives Company
www.pdrive.com
8 074 051.01 HFHA – The right to make technical changes is reserved - Concept and design
VA TECH ELIN EBG Elektronik
GmbH & Co
Ruthnergasse 1
A-1210 Vienna, Austria
Phone: (+43/1) 29191-0
Fax: (+43/1) 29191-15
www.pdrive.com
E l e k t r o n i k
