The HD3000 is VCON's newest set-top videoconferencing system that provides high-definition video calling, multipoint conferencing, and streaming capabilities in a single device. It supports advanced video standards for life-like video quality and allows up to 4 participants to connect in a multipoint call through its embedded MCU. The HD3000 also enables streaming video conferences over the network through HD Simulcast technology and simultaneous sending of presentation data.

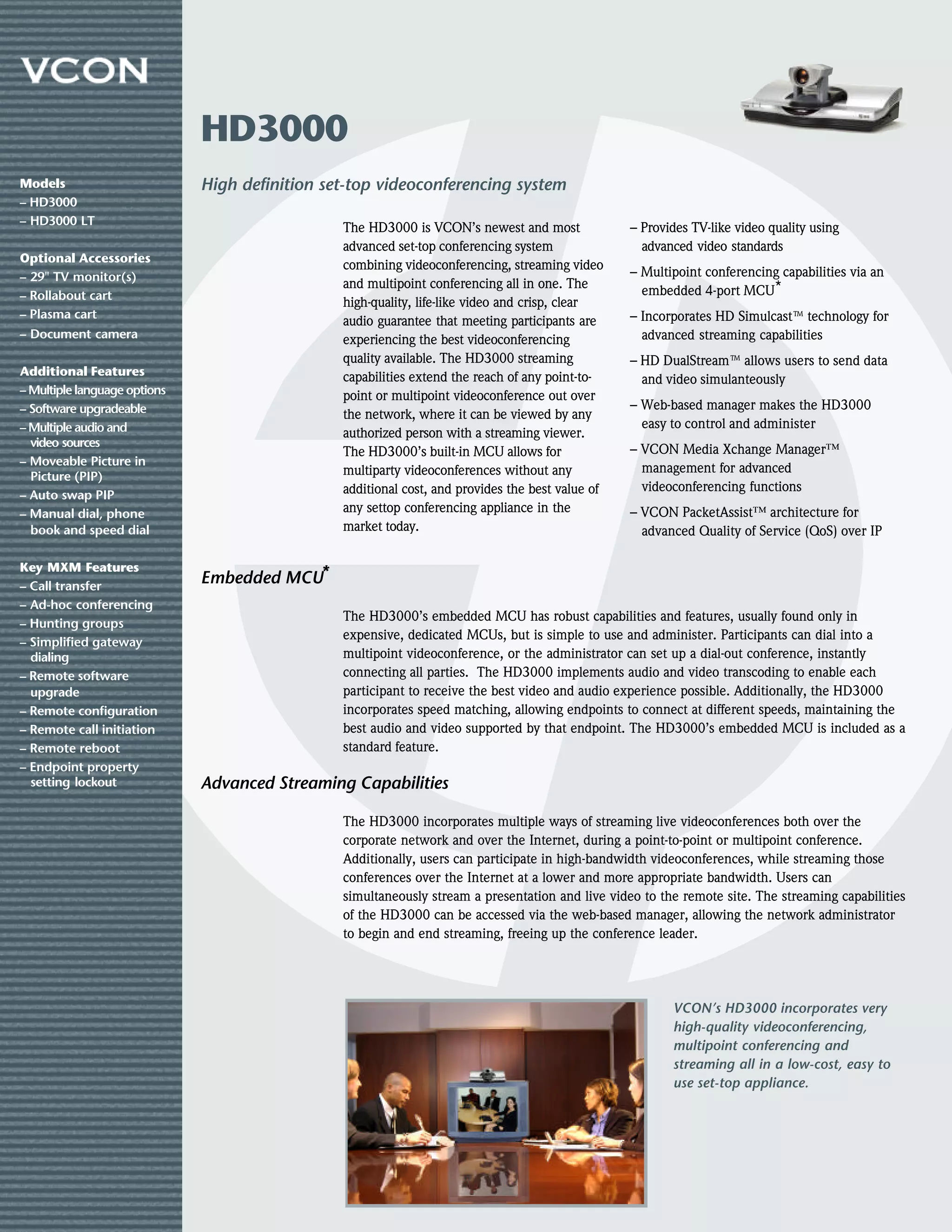

1. HD3000
Models High definition set-top videoconferencing system
– HD3000
– HD3000 LT
The HD3000 is VCON’s newest and most – Provides TV-like video quality using
advanced set-top conferencing system advanced video standards
Optional Accessories
combining videoconferencing, streaming video
– 29" TV monitor(s) – Multipoint conferencing capabilities via an
and multipoint conferencing all in one. The
– Rollabout cart embedded 4-port MCU*
high-quality, life-like video and crisp, clear
– Plasma cart – Incorporates HD Simulcast TM technology for
audio guarantee that meeting participants are
– Document camera experiencing the best videoconferencing advanced streaming capabilities
quality available. The HD3000 streaming – HD DualStream TM allows users to send data
Additional Features capabilities extend the reach of any point-to- and video simulanteously
– Multiple language options point or multipoint videoconference out over
– Software upgradeable – Web-based manager makes the HD3000
the network, where it can be viewed by any
– Multiple audio and easy to control and administer
authorized person with a streaming viewer.
video sources
The HD3000’s built-in MCU allows for – VCON Media Xchange Manager™
– Moveable Picture in
multiparty videoconferences without any management for advanced
Picture (PIP)
additional cost, and provides the best value of videoconferencing functions
– Auto swap PIP
– Manual dial, phone any settop conferencing appliance in the – VCON PacketAssist™ architecture for
book and speed dial market today. advanced Quality of Service (QoS) over IP
Key MXM Features
– Call transfer
Embedded MCU*
– Ad-hoc conferencing
The HD3000’s embedded MCU has robust capabilities and features, usually found only in
– Hunting groups
expensive, dedicated MCUs, but is simple to use and administer. Participants can dial into a
– Simplified gateway
dialing multipoint videoconference, or the administrator can set up a dial-out conference, instantly
– Remote software connecting all parties. The HD3000 implements audio and video transcoding to enable each
upgrade participant to receive the best video and audio experience possible. Additionally, the HD3000
– Remote configuration incorporates speed matching, allowing endpoints to connect at different speeds, maintaining the
– Remote call initiation best audio and video supported by that endpoint. The HD3000’s embedded MCU is included as a
– Remote reboot standard feature.
– Endpoint property
setting lockout Advanced Streaming Capabilities
The HD3000 incorporates multiple ways of streaming live videoconferences both over the
corporate network and over the Internet, during a point-to-point or multipoint conference.
Additionally, users can participate in high-bandwidth videoconferences, while streaming those
conferences over the Internet at a lower and more appropriate bandwidth. Users can
simultaneously stream a presentation and live video to the remote site. The streaming capabilities
of the HD3000 can be accessed via the web-based manager, allowing the network administrator
to begin and end streaming, freeing up the conference leader.
VCON’s HD3000 incorporates very
high-quality videoconferencing,
multipoint conferencing and
streaming all in a low-cost, easy to
use set-top appliance.

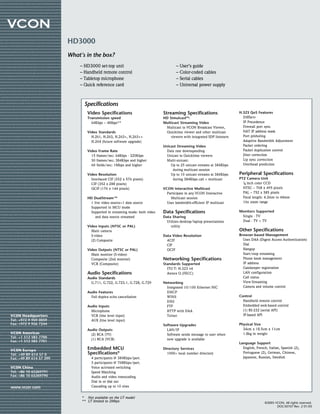

2. HD3000
What’s in the box?
– HD3000 set-top unit – User’s guide
– Handheld remote control – Color-coded cables
– Tabletop microphone – Serial cables
– Quick reference card – Universal power supply
Specifications
Video Specifications Streaming Specifications H.323 QoS Features
Transmission speed HD SimulcastTM: DiffServ
64Kbps – 4Mbps** Multicast Streaming Video IP Precedence
Multicast to VCON Broadcast Viewer, Firewall port sync
Video Standards Quicktime viewer and other multicast NAT IP address mask
H.261, H.263, H.263+, H.263++ viewers with integrated SDP listeners Port pinholing
H.264 (future software upgrade) Adaptive Bandwidth Adjustment
Unicast Streaming Video Packet ordering
Video Frame Rate Data rate downspeeding Packet duplication control
15 frames/sec: 64Kbps - 320Kbps Unicast to Quicktime viewers Jitter correction
30 frames/sec: 384Kbps and higher Multi-unicast: Lip sync correction
60 fields/sec: 1Mbps and higher Up to 25 unicast streams at 384Kbps Overhead prediction
during multicast session
Video Resolution Up to 10 unicast streams at 384Kbps Peripheral Specifications
Interlaced CIF (352 x 576 pixels) during 384Kbps call + multicast PTZ Camera Unit
1 inch color CCD
/
CIF (352 x 288 pixels) 4
QCIF (176 x 144 pixels) VCON Interactive Multicast NTSC – 768 x 495 pixels
Participate in any VCON Interactive PAL – 752 x 585 pixels
HD DualStream TM Multicast session Focal length: 4.2mm to 44mm
1 live video source+1 data source Uses bandwidth-efficient IP multicast 16x zoom range
Supported in MCU mode
Supported in streaming mode: both video Data Specifications Monitors Supported
and data source streamed Data Sharing Single - TV
Utilizes desktop/laptop presentations Dual - TV + TV
Video Inputs (NTSC or PAL) utility
Main camera Other Specifications
S-video Data Video Resolution Browser-based Management
(2) Composite 4CIF Uses DAA (Digest Access Authentication)
CIF Dial
Video Outputs (NTSC or PAL) QCIF Hangup
Main monitor (S-video) Start/stop streaming
Composite (2nd monitor) Networking Specifications Phone book management
VCR (Composite) Standards Supported IP address
ITU-T: H.323 v4 Gatekeeper registration
Audio Specifications Annex Q (FECC) LAN configuration
Audio Standards Call status
G.711, G.722, G.723.1, G.728, G.729 Networking View Streaming
Integrated 10/100 Ethernet NIC Camera and volume control
Audio Features DHCP
Full duplex echo cancellation WINS Control
DNS Handheld remote control
Audio Inputs FTP Embedded web-based control
Microphone HTTP with DAA (1) RS-232 (serial API)
VCON Headquarters VCR (line level input) Telnet IP-based API
Tel: +972 9 959 0059 AUX (line level input)
Fax: +972 9 956 7244 Software Upgrades Physical Size
Audio Outputs LAN/IP 34cm x 18.5cm x 11cm
VCON Americas (2) RCA (TV) Software sends message to user when 1.8kg in weight
Tel: +1 512 583 7700
(1) RCA (VCR) new upgrade is available
Fax: +1 512 583 7701
Language Support
VCON Europe Embedded MCU Directory Services English, French, Italian, Spanish (2),
Tel: +49 89 614 57 0 Specifications* 1000+ local number directory Portuguese (2), German, Chinese,
Fax: +49 89 614 57 399 4 participants @ 384Kbps/part. Japanese, Russian, Swedish
3 participants @ 768Kbps/part.
VCON China Voice activated switching
Tel: +86 10 65269791 Speed Matching
Fax: +86 10 65269790 Audio and video transcoding
Dial in or dial out
www.vcon com Cascading up to 10 sites
* Not available on the LT model
** LT limited to 2Mbps ©2005 VCON. All rights reserved.
DOC50107 Rev. 2 01/05
