Using the SDACK Architecture on Security Event Inspection

Using the SDACK Architecture on
Security Event Inspection
Darren Chen
Evans Ye
Sr. Software Engineer @ Trend Micro
Sr. Software Engineer @ Trend Micro
2016 DockerCon | Copyright© 2016 Trend Micro Inc.

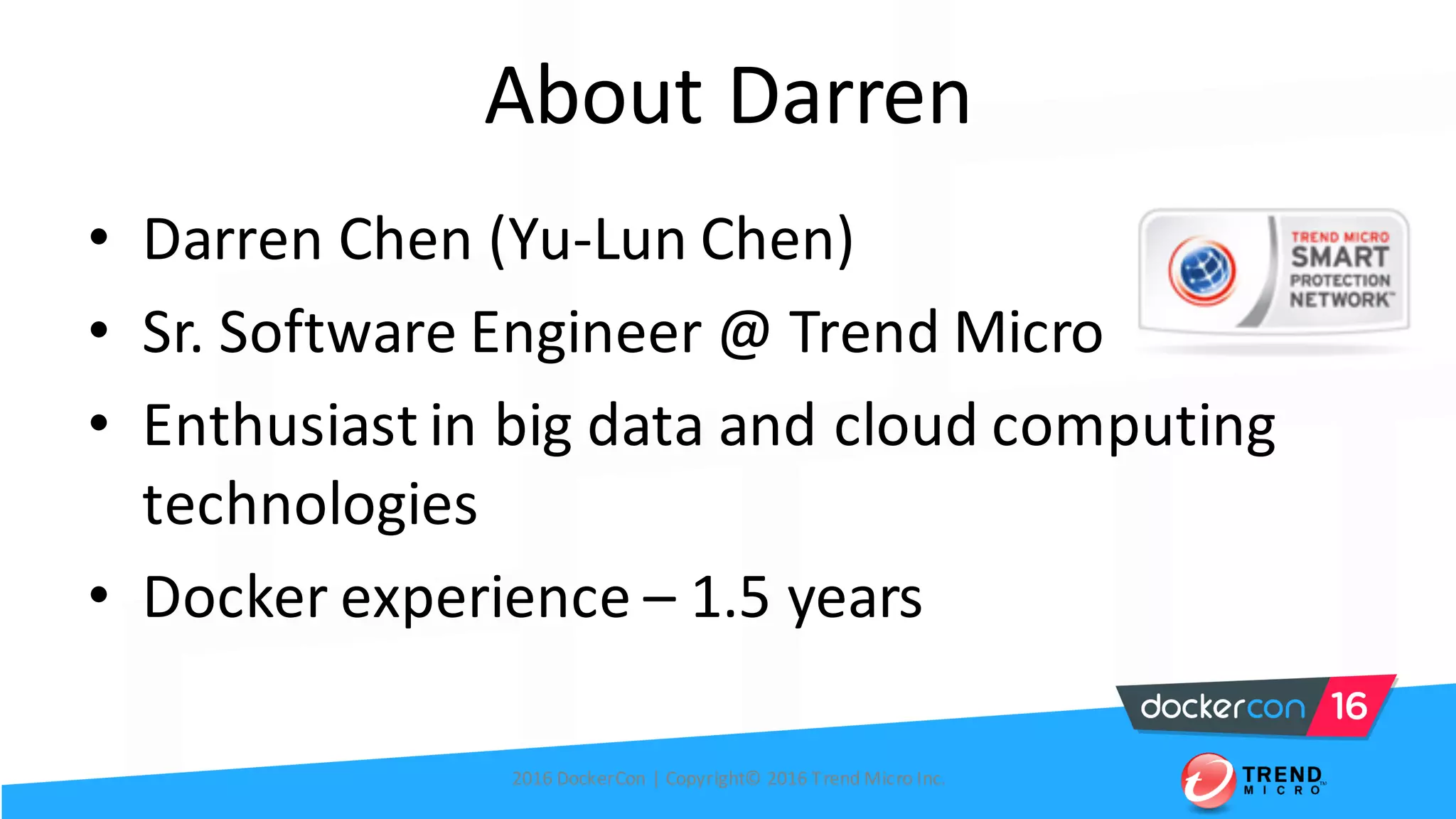

About Darren
• Darren Chen (Yu-Lun Chen)
• Sr. Software Engineer @ Trend Micro
• Enthusiast in big data and cloud computing
technologies
• Docker experience – 1.5 years

About Evans
• Evans Ye (Yu-Hsin Yeh)
• Sr. Software Engineer @ Trend Micro
• Apache Bigtop PMC member
• Develop big data apps & infra
• Docker experience – 2.5 years

How to make a software product ?

How to make a
Dockerize
software product ?

Before
Motivation
What is SDACK
Agenda
During
Why Dockerize
Security
Monitor
After
Lessons Learned
Conclusions
Q&A

Motivation

Target Scenario

Problems
• Too many log to investigate
• Lack of actionable, prioritized
recommendations

AD Windows
Event
DNS Proxy Web
server
…..
Threat
Analytic System

But we faced Twoproblems…….

How to deal with
Customers’ Private
data ?
Cloud On Premises

How to deal with Big Volume logs ?
2,000,000,000 per day

We need to build
an On-Premises product
which can deal with Big Data

Toolbox for building wide variety of big data product
SDACK Architecture

What is SDACK

SDACK
Source: http://www.slideshare.net/akirillov/data-processing-platforms-architectures-with-spark-mesos-akka-cassandra-and-kafka
fast and general engine for large-scale data processing
deployment and resource management
toolkit and runtime for building highly concurrent,
distributed, and resilient message-driven applications
distributed, highly available database designed
to handle large amounts of data across datacenters
high-throughput, low-latency distributed pub-sub
messaging system for real-time data feeds

Data Storage
Data Analysis
Data Preprocessing
Data PipelinePackage

Threat Analytic System
Architecture

Log
API
Server
Web
Server 2016 DockerCon | Copyright© 2016 Trend Micro Inc.

Medium-sized Enterprises

Large Enterprises

Fortune 500

With Docker
• Easy to scale
• Test once, run anywhere
• Widely supported by many platforms

Why Dockerize

Dockerize – Benefit
Deploy Develop
Test Scale

Deploy Develop
Test Scale
Dockerize – Benefit 1

APIWeb
Challenge
• Setup
• Operate
• Update

Dockerize Software Technologies

Docker Compose for Operation
Docker Compose
kafka:
build: .
ports:
- “9092:9092”
spark:
image: spark
port:
- “8080:8080”
……

Docker Hub for Updating
Docker Hub

Deploy Develop
Test Scale

Benefit for Development
• Docker provides two benefits in our Spark jobs
development
– Reproducibility
– Flexibility

Reproducibility
in
Spark Streaming Job Development

Dev Cluster
Data Streams

Local
Data Streams
Snapshot
Data Set
(Date : Jan. 04 ~ Jan. 08)
Freq. : 1 min
Batch size : 1000

Local
Data Streams
Snapshot
Data Set
(Date : Jan. 04 ~ Jan. 08)
Freq. : 1 min
Batch size : 1000
Freq. : 0.5 min
Batch size : 5000
Freq. : 1 min
Batch size : 50000
1
2
3

Quick Development Iteration
Local
LocalData Streams
Snapshot
Data Set
Local
Deploy
Test
Destroy
Modify
Job
Job

Flexibility
in
Hybrid Architecture

Data Research in Dev Cluster
2016 DockerCon | Copyright© 2016 Trend Micro Inc.2016 DockerCon | Copyright© 2016 Trend Micro Inc.
Dev ClusterData scientists
submit spark jobs
Job

Dev Cluster
Job
Result
Data scientists
submit spark jobs

Dev ClusterData scientists
submit spark jobs

Dev Cluster
Job
Other members
submit spark jobs

Dev Cluster
Job
Wrong
Result
Other members
submit spark jobs

Hybrid Architecture
Dev ClusterSubmit Spark Job
Job
Result
Local

What’s More
Dev Cluster
Web Service
Development
Local

Deploy Develop
Test Scale

• Test case 1
• sub-test 1a
• sub-test 1b
• Test case 2
• sub-test 2a
• sub-test 2b
• Test case n
• sub-test na
• sub-test nb
…
Clean & Consistent Environment

Deploy Develop
Test Scale

Distributed Software Components

Akka
• High performance concurrency framework
• Clustering mechanism available
• Leverage on Akka, we build up our Akka
cluster system

Our Akka Cluster System
Client
Master
LDAP
Server
1
2 3
4
Query account information
Send the job
Query LDAP ServerReturn the result LDAP
Service

Our Akka Cluster System
Master
LDAP
Host
Name
DB
Data
ProcessEndpoint
JobJobJob

Dockerize for Each Micro-service
LDAP
DB
Data
Process
Endpoint
Host
Name
Master

Dockerize for Scale Out
Data
Process
Host
Name
DB LDAP Endpoint
Data
Process
Data
Process

Security

Docker Vulnerabilities since 1st release
The only high severity vulnerability was fixed within 2 days.

Misconfiguration
Open it without ACL ?

Open Docker Registry
AU BE CA CN DE FI FR GB HK HR IE IR IT JP KR NL PL RU SE SG TW US ZA
0
10
20
30
40
50
60
70
80
90
Open Docker Registry w/o Access Control

Some tools can make your Dockerize product more secure

Docker Bench for Security
• Check
– Host configuration
– Docker daemon configuration
– Docker daemon configuration files
– Container images and build files
– Container runtime
https://github.com/docker/docker-bench-security

CoreOS Clair
• Static analysis of vulnerabilities
– Debian security bug tracker
– Ubuntu CVE tracker
– Red Hat security data
https://github.com/coreos/clair

Docker Cloud

Monitor

Monitor stack
Grafana
CPU, Memory, Network
Metrics

Monitor stack
Grafana
Metrics
APP
Metrics

Issue on cAdvisor
• cAdvisor can not send network usage correctly
to InfuxDB
– when the container use host network on a
multiple network cards machine
• Use Telegraf to fix this problem

Lessons Learned

Lessons Learned
• Mount the stuff you may change it frequently
to your Docker containers
– For example, on PoC, mount your configuration
files into Docker containers directly

On PoC
Change
Settings
Re-build
Images
Deploy

Mount configuration files
Host machine
Conf
Kafka container
Conf Conf
Spark container
Conf Conf Conf
Conf Conf Conf
Kafka Configurations
Conf Conf Conf
Spark Configurations

Conclusions

Summary
Dockerize
• Deploy
• Develop
• Test
• Scale
Security
• Misconfiguration
• Docker Bench
• CoreOS Clair
• Docker Cloud
Monitor
• Visibility
• cAdvisor
• InfluxDB
• Grafana
for Security

We Need To build
In the beginning …

We Need To build
Have Now
Build
Ship
Run
Conclusions

Go ahead
Dockerize your product

Thank you!

Q & A
