Securing Microservices in CloudFoundry
Brenden Blanco and Deepa Kalani!
Architects, CTO Office - PLUMgrid!

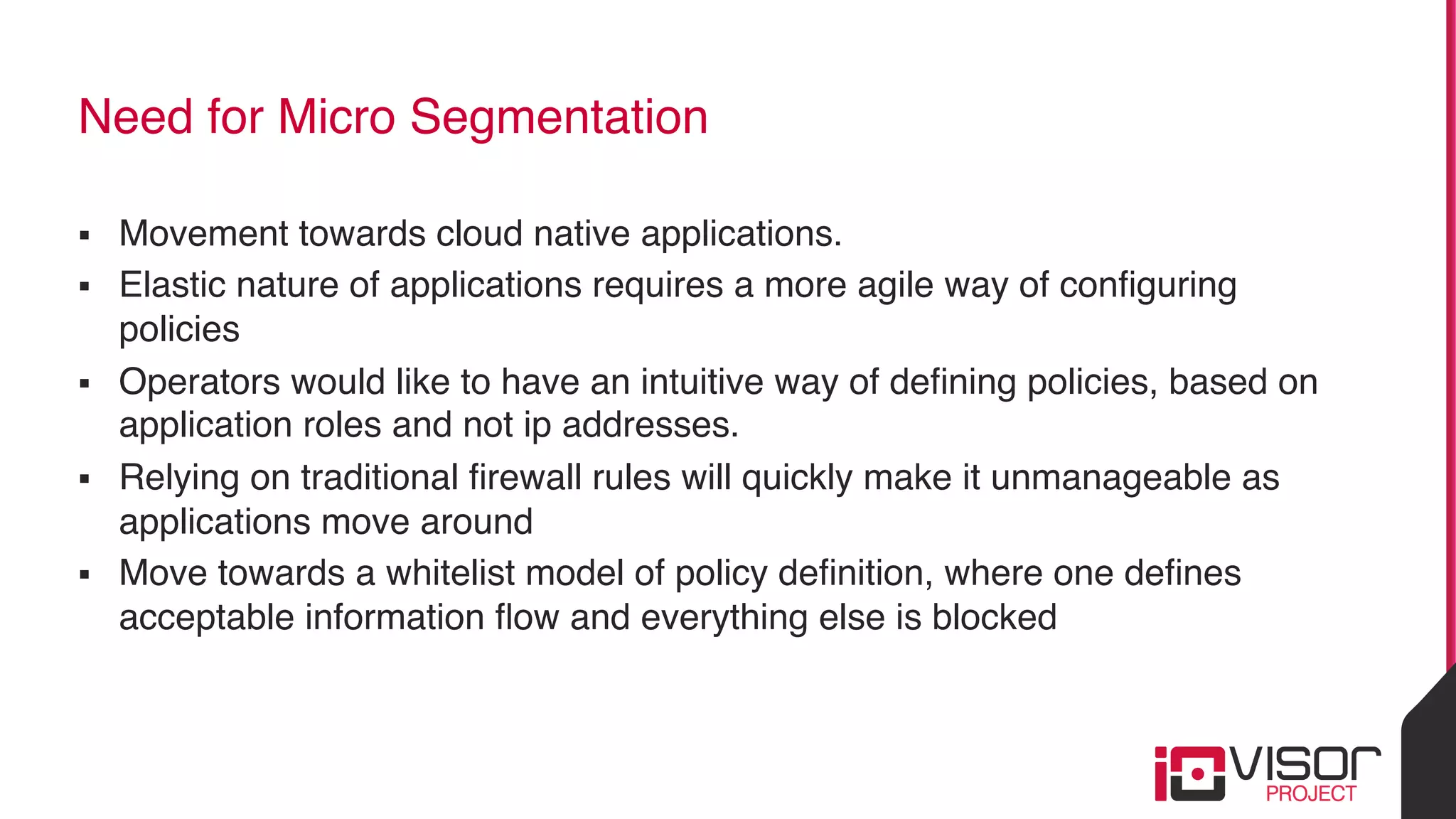

Need for Micro Segmentation
§  Movement towards cloud native applications.
§  Elastic nature of applications requires a more agile way of configuring
policies
§  Operators would like to have an intuitive way of defining policies, based on
application roles and not ip addresses.
§  Relying on traditional firewall rules will quickly make it unmanageable as
applications move around
§  Move towards a whitelist model of policy definition, where one defines
acceptable information flow and everything else is blocked
IPTables to define Endpoint Policy - State Explosion
IP1->IP3
IP1->IP5
IP1->IP7
IP1->IP8

IP3->IP1
IP3->IP5
IP3->IP7
IP3->IP8
IP2->IP4
IP2->IP6
IP2->IP9
IP2->IP10

IP4->IP6
IP4->IP2
IP4->IP9
IP4->IP10
IP2->IP4
IP2->IP6
IP2->IP9
IP2->IP10

IP4->IP6
IP4->IP2
IP4->IP9
IP4->IP10
IP5->IP1
IP5->IP3
IP5->IP7
IP5->IP8

IP7->IP1
IP7->IP5
IP7->IP3
IP7->IP8
IP8->IP3
IP8->IP5
IP8->IP7
IP8->IP1


IP9->IP4
IP9->IP6
IP9->IP2
IP9->IP10

IP10->IP2
IP10->IP6
IP10->IP4
IP10->IP9
IP	Table	Rules
Group Based Policy - secure, scalable, intent based
Green->Green
Red->Red
Green->Green
Red->Red
Green->Green
Red->Red
IP1,IP3->Green
IP2,IP4->	Red
IP5,IP7->Green
IP6->	Red
IP8->Green
IP9,IP10->	Red	Endpoint	Groups
Policies
Policy specification for Cloud Foundry Applications
§  Define Endpoints and EPGs (Applications are represented by Groups of
Endpoints)
§  Policy definition is in the nature of applications.
§  e.g. A_APP->A_DB 80 allow, B_APP->A_APP allow.
§  Envision policy as a graph of application connectivity
A_App
B_APP	 C_APP
A_DB
DB_Ext
www.iovisor.org
IO Module, users perspective
IO	Module
Management	interface
	-	REST	API
-	Cli	/	config	file
Interfaces
		-	Interface	Type	(Net,	Tracing,	Storage,	…)
Something	runs	in	kernel
Something	runs	in	user	space
Controllers	live	up	here	 IO	Modules
Catalog	Search	for	IO	Mod
Download	IO	Mod
Somewhere	in	the	cloud	(iovisor.org)
there	is	a	catalog	of	public	IO	Modules
www.iovisor.org
IO Module, developers perspective
IO	Modules
Catalog
Publish	new	Modules
Somewhere	in	the	cloud	(iovisor.org)
there	is	a	catalog	of	public	IO	Modules
Data	Plane
Management
interface
	-	REST	API
-	Cli	/	config	file
Interfaces
		-	Interface	Type	(Net,	Tracing,
Storage,	…)
Users	interact	with	the	Module
with:
User	space	helper
IO	Module
	Control	Plane
(user	space)
IO	Module
	Data	Plane
(kernel)
IO	Module
developer
IO	Module
IOVisor
SDK
Clang	/	P4
Python,	C,	C++,	Go,	JS	…
www.iovisor.org
IO Module, graph composition
IOVisor
Manager
Kernel	a^achment	points
Kernel	space
User	space
Open	repo	of
“IO	Modules”
Kernel
code
Kernel
code
•  extending	Linux	Kernel	capabilices
APIs	to	Controllers
Metadata
www.iovisor.org
Composing IO Modules
Policy Plugin with IO Visor
10
Overlay	–VXLAN
192.168.0.0/16	 192.168.1.0/16
Linux	Bridge
Vxlan	Dev
C	 C	 C
Garden/1	-	10.244.18.3	Garden/0	-	10.244.18.2
Linux	Bridge
Vxlan	Dev
C	 C	 C
Policy	boundary
Thank You!
www.iovisor.org
www.iovisor.org
Backup Slides
1
2
www.iovisor.org
Introducing IO Visor Project
1
3
Future	of	Linux	Kernel	IO
for	soDware	defined	services
Led	by	iniHal	contribuHons	from
PLUMgrid
(Upstreamed	since	Kernel	3.16)
EvoluHon	of	Kernel
BPF	&	eBPF
(Berkeley	Packet	Filter)
“IO	Visor	will	work	closely	with	the	Linux	kernel	community	to	advance	universal	IO	extensibility	for	Linux.
This	collabora=on	is	cri=cally	important	as	virtualiza=on	is	puAng	more	demands	on	flexibility,	performance
and	security.

Open	source	soFware	and	collabora=ve	development	are	the	ingredients	for	addressing	massive	change	in
any	industry.	IO	Visor	will	provide	the	essen:al	framework	for	this	work	on	Linux	virtualiza:on	and
networking.”
	 	 	 	 	 	 	 	 	 	 	Jim	Zemlin,
Execu:ve	Director,	The	Linux	Founda:on.
www.iovisor.org
IO Visor Project: What?
1
4

•  A programmable data plane and development tools to simplify the creation of new
infrastructure ideas
•  An open source project and a community of developers
•  Enables a new way to Innovate, Develop and Share IO and Networking functions
Open Source & Community
Programmable Data Plane
1
2

•  A place to share / standardize new ideas in the form of “IO Modules”
Repository of “IO Modules”
3
www.iovisor.org
IO Visor Project Use Cases Example: Networking
§  IO Visor is used to build a fully
distributed virtual network across
multiple compute nodes
§  All data plane components are
inserted dynamically in the kernel
§  No usage of virtual/physical
appliances needed
§  Example here
https://github.com/iovisor/bcc/tree/
master/examples/distributed_bridge
1
5
Virtual/Physical
Appliances
Virtual Network
Topology in
Kernel Space
