Using GeoScript
Groovy
Jared Erickson

CUGOS February 2014

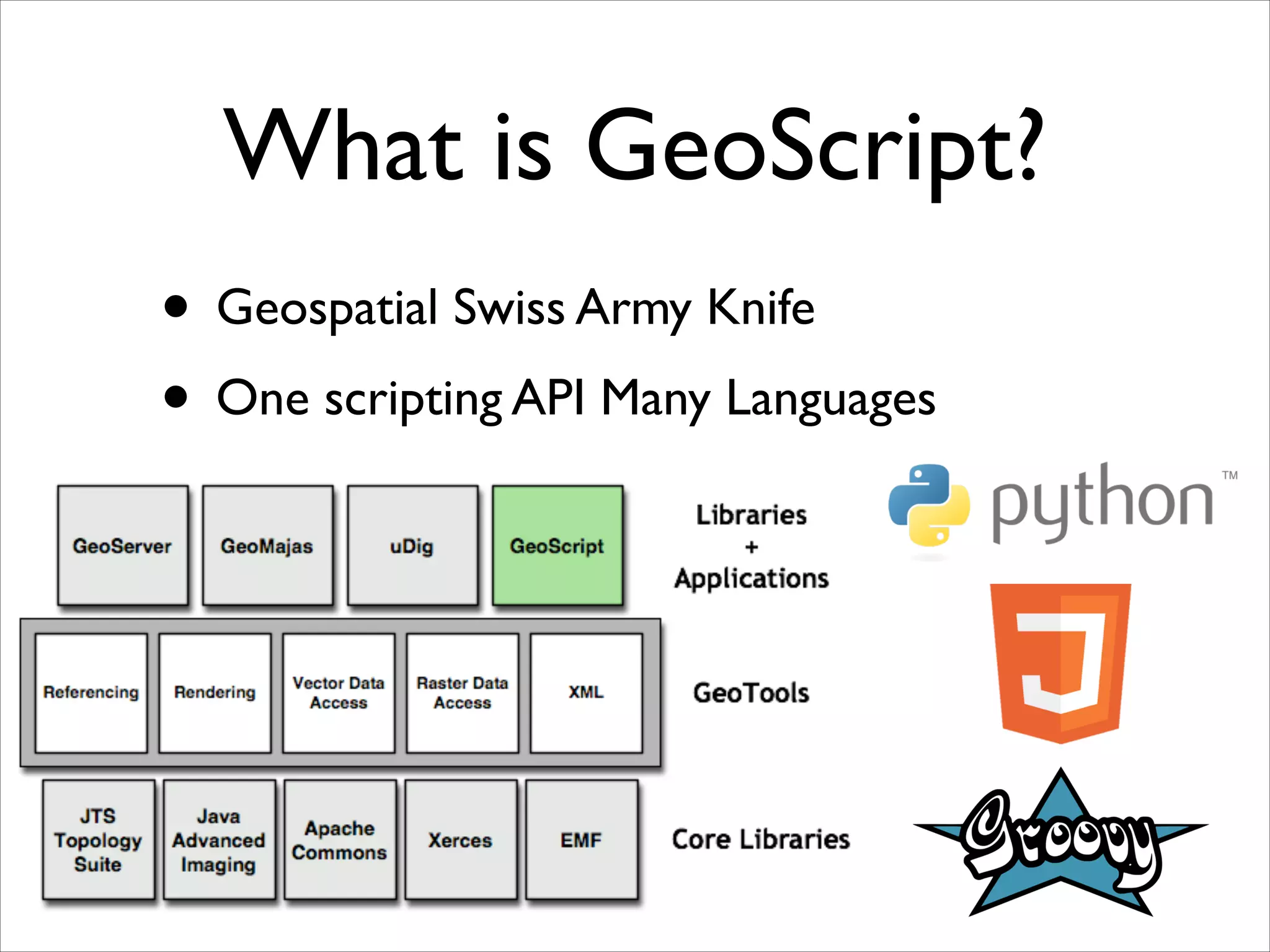

What is GeoScript?
• Geospatial Swiss Army Knife

• One scripting API Many Languages

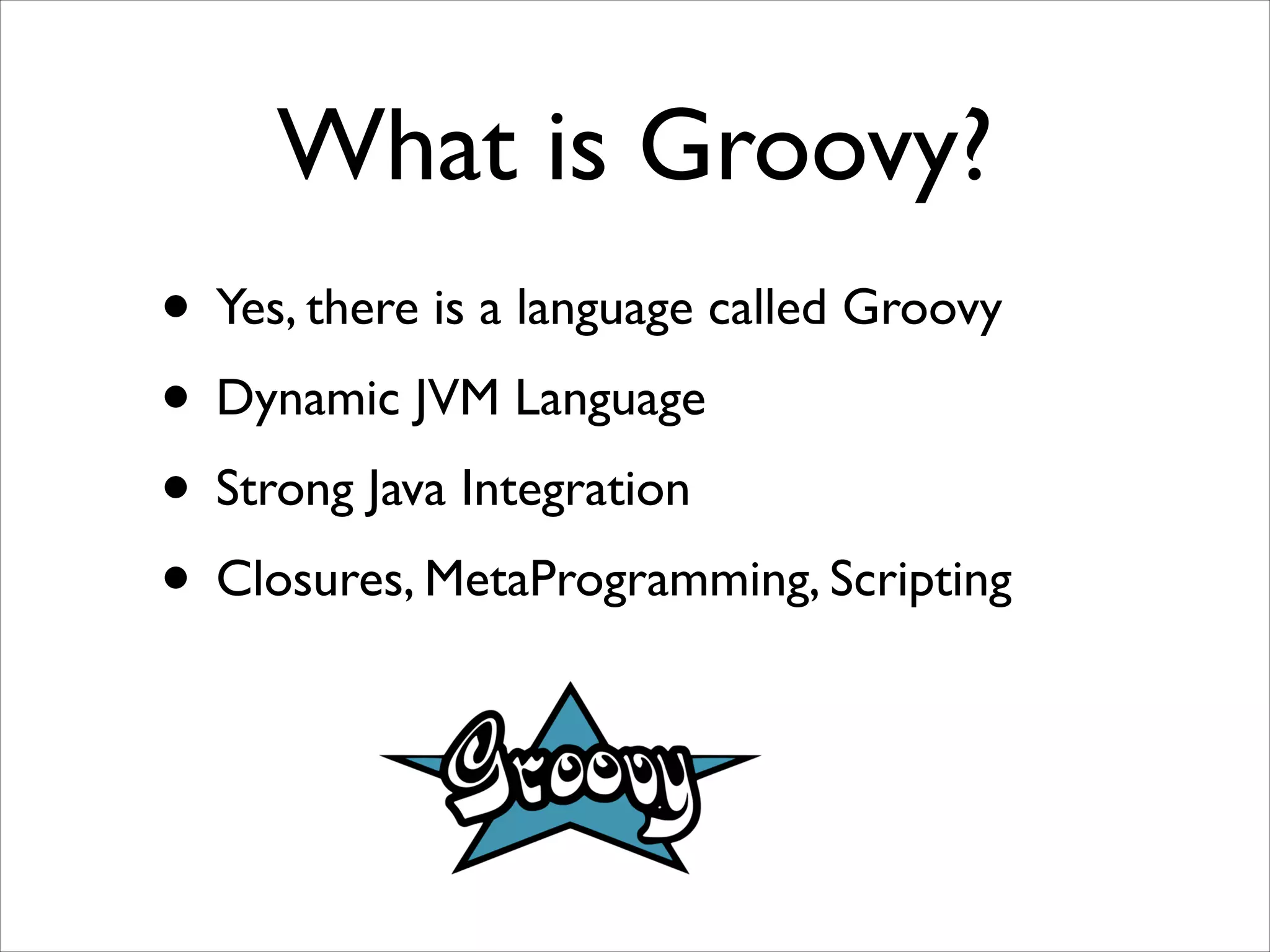

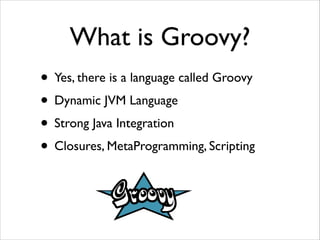

What is Groovy?
• Yes, there is a language called Groovy

• Dynamic JVM Language

• Strong Java Integration

• Closures, MetaProgramming, Scripting

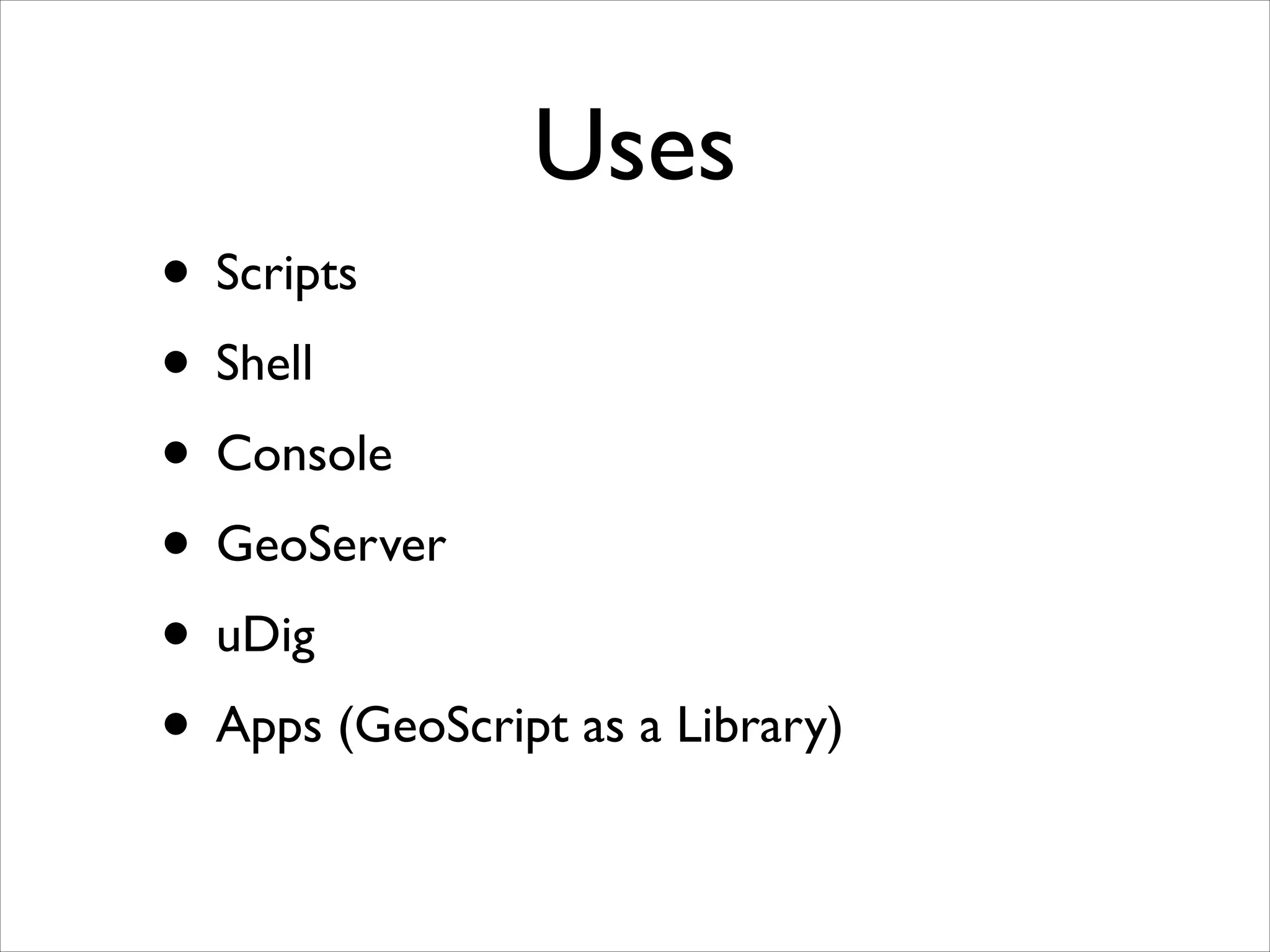

Uses
• Scripts

• Shell

• Console

• GeoServer

• uDig

• Apps (GeoScript as a Library)

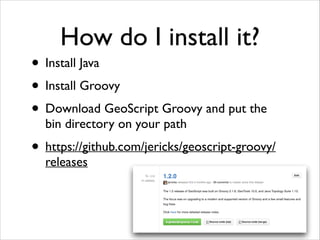

How do I install it?

• Install Java

• Install Groovy

• Download GeoScript Groovy and put the
bin directory on your path


• https://github.com/jericks/geoscript-groovy/
releases

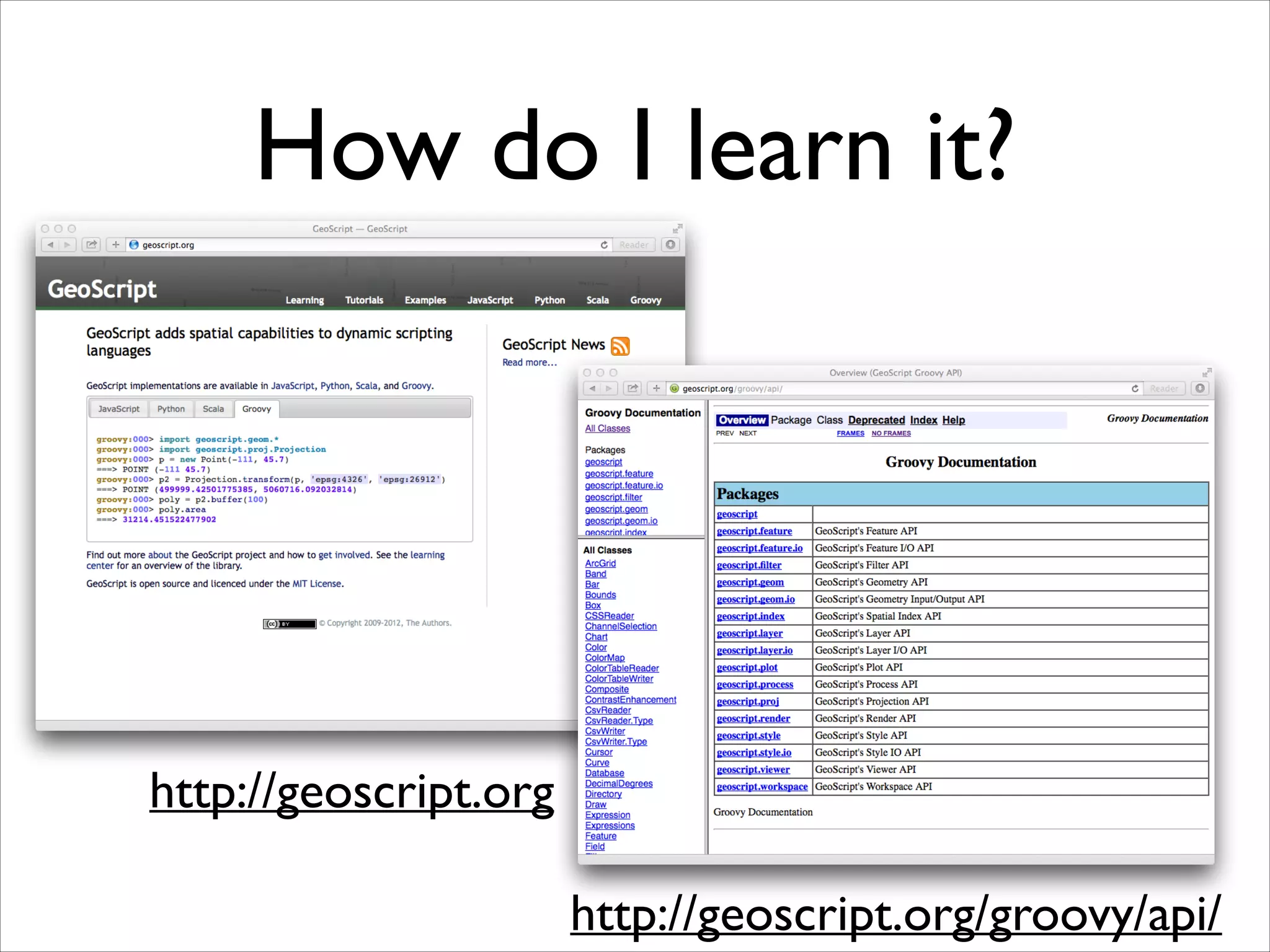

How do I learn it?

http://geoscript.org
http://geoscript.org/groovy/api/

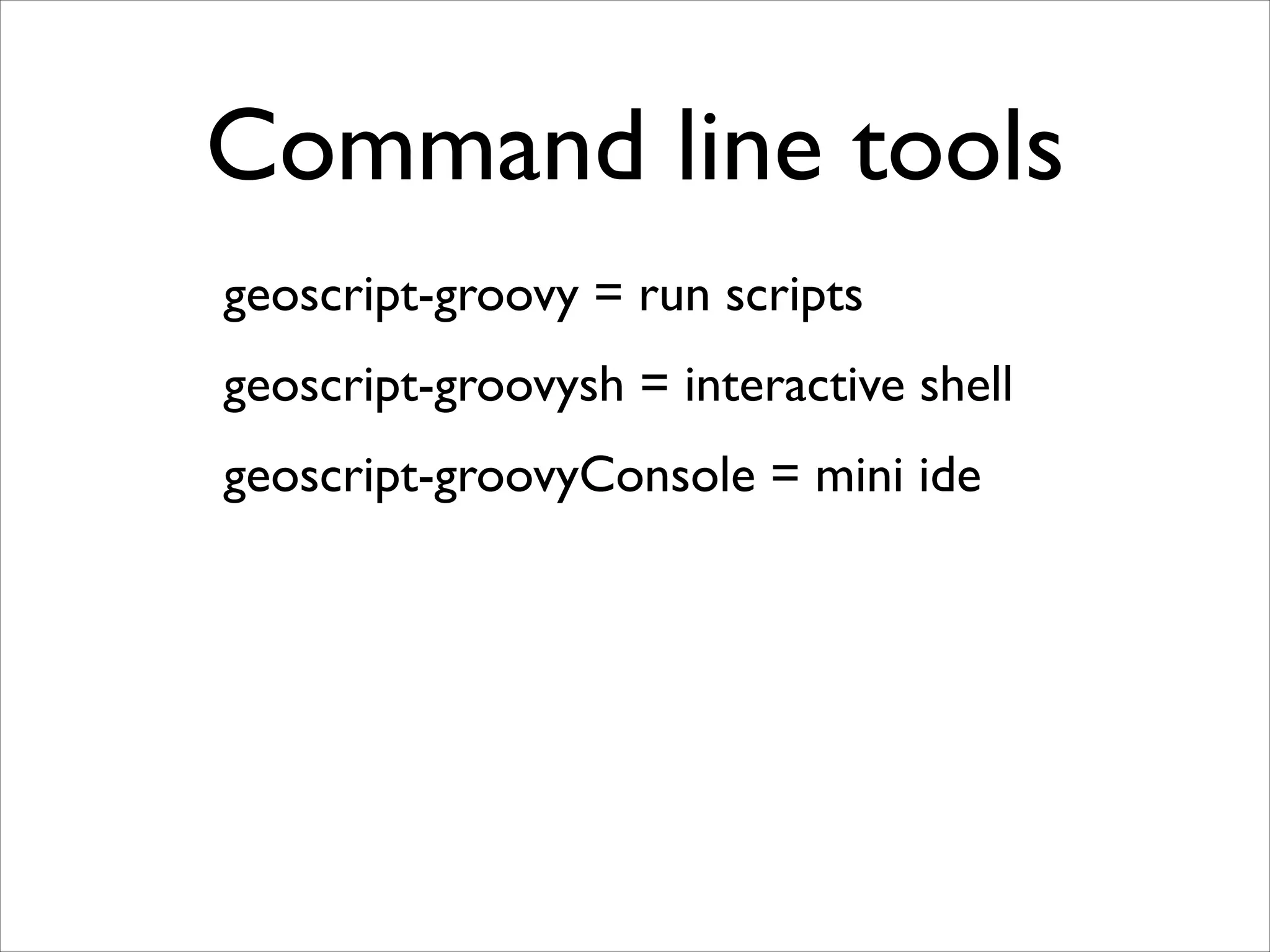

Command line tools
geoscript-groovy = run scripts

geoscript-groovysh = interactive shell

geoscript-groovyConsole = mini ide

!

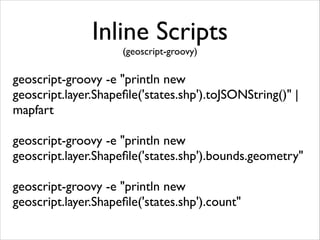

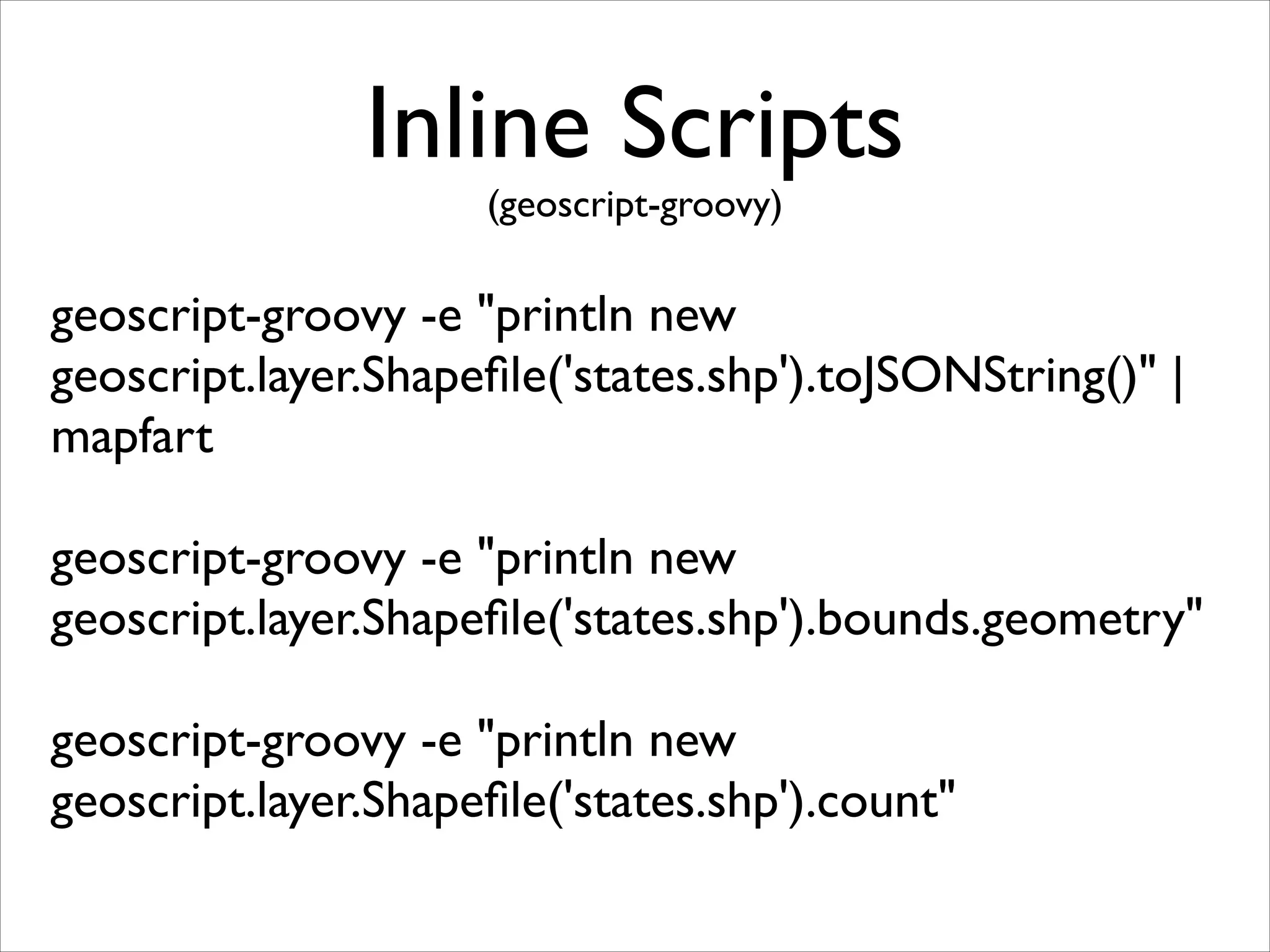

Inline Scripts

(geoscript-groovy)

geoscript-groovy -e "println new
geoscript.layer.Shapefile('states.shp').toJSONString()" |
mapfart

!

geoscript-groovy -e "println new
geoscript.layer.Shapefile('states.shp').bounds.geometry"

!

geoscript-groovy -e "println new
geoscript.layer.Shapefile('states.shp').count"

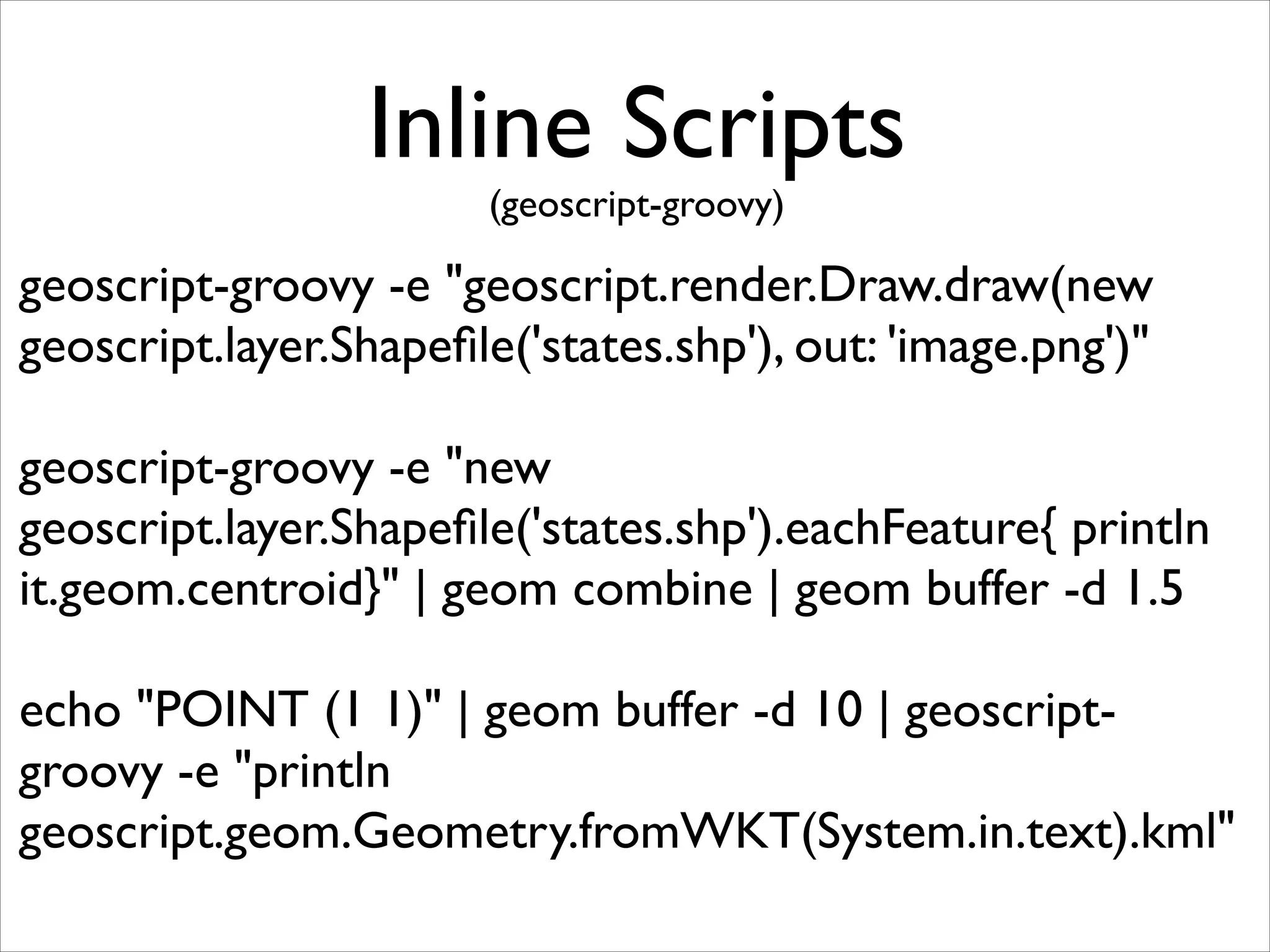

Inline Scripts

(geoscript-groovy)

geoscript-groovy -e "geoscript.render.Draw.draw(new
geoscript.layer.Shapefile('states.shp'), out: 'image.png')"

!

geoscript-groovy -e "new
geoscript.layer.Shapefile('states.shp').eachFeature{ println
it.geom.centroid}" | geom combine | geom buffer -d 1.5

!

echo "POINT (1 1)" | geom buffer -d 10 | geoscriptgroovy -e "println
geoscript.geom.Geometry.fromWKT(System.in.text).kml"

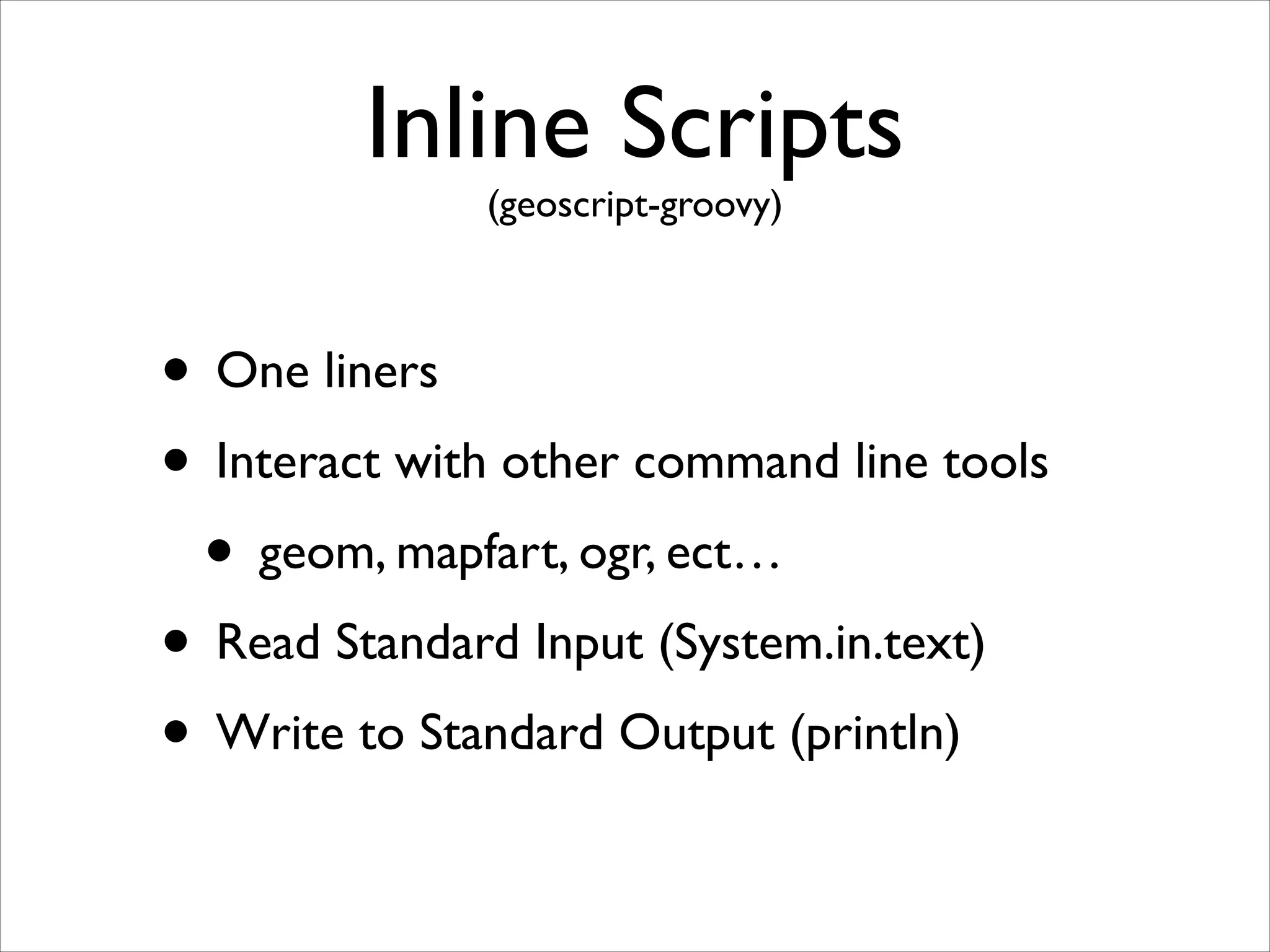

Inline Scripts

(geoscript-groovy)

• One liners

• Interact with other command line tools

• geom, mapfart, ogr, ect…

• Read Standard Input (System.in.text)

• Write to Standard Output (println)

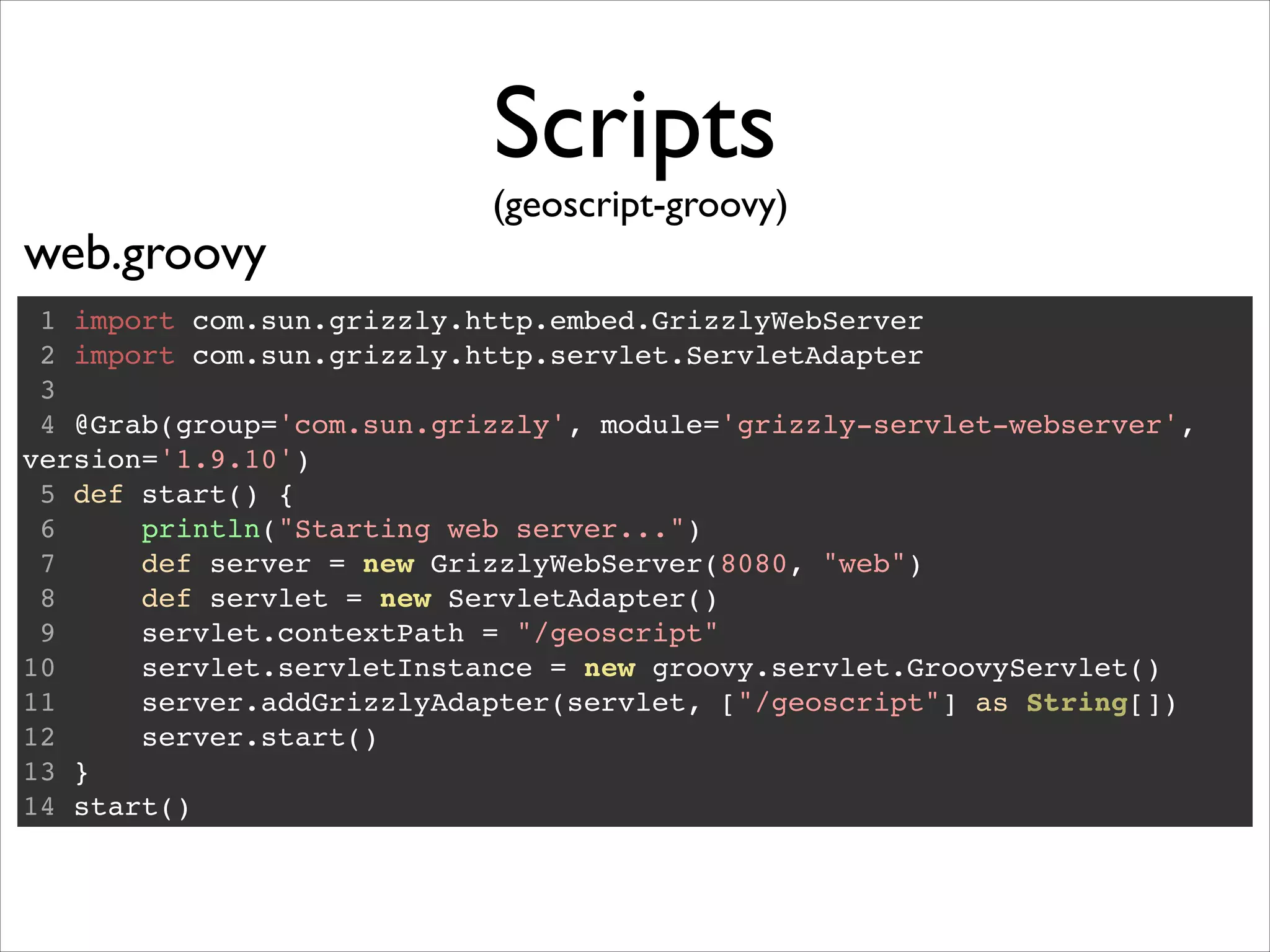

Scripts


web.groovy

(geoscript-groovy)

1 import com.sun.grizzly.http.embed.GrizzlyWebServer!
2 import com.sun.grizzly.http.servlet.ServletAdapter!
3 !
4 @Grab(group='com.sun.grizzly', module='grizzly-servlet-webserver',
version='1.9.10')!
5 def start() {!
6
println("Starting web server...")!
7
def server = new GrizzlyWebServer(8080, "web")!
8
def servlet = new ServletAdapter()!
9
servlet.contextPath = "/geoscript"!
10
servlet.servletInstance = new groovy.servlet.GroovyServlet()!
11
server.addGrizzlyAdapter(servlet, ["/geoscript"] as String[])!
12
server.start()!
13 }!
14 start()

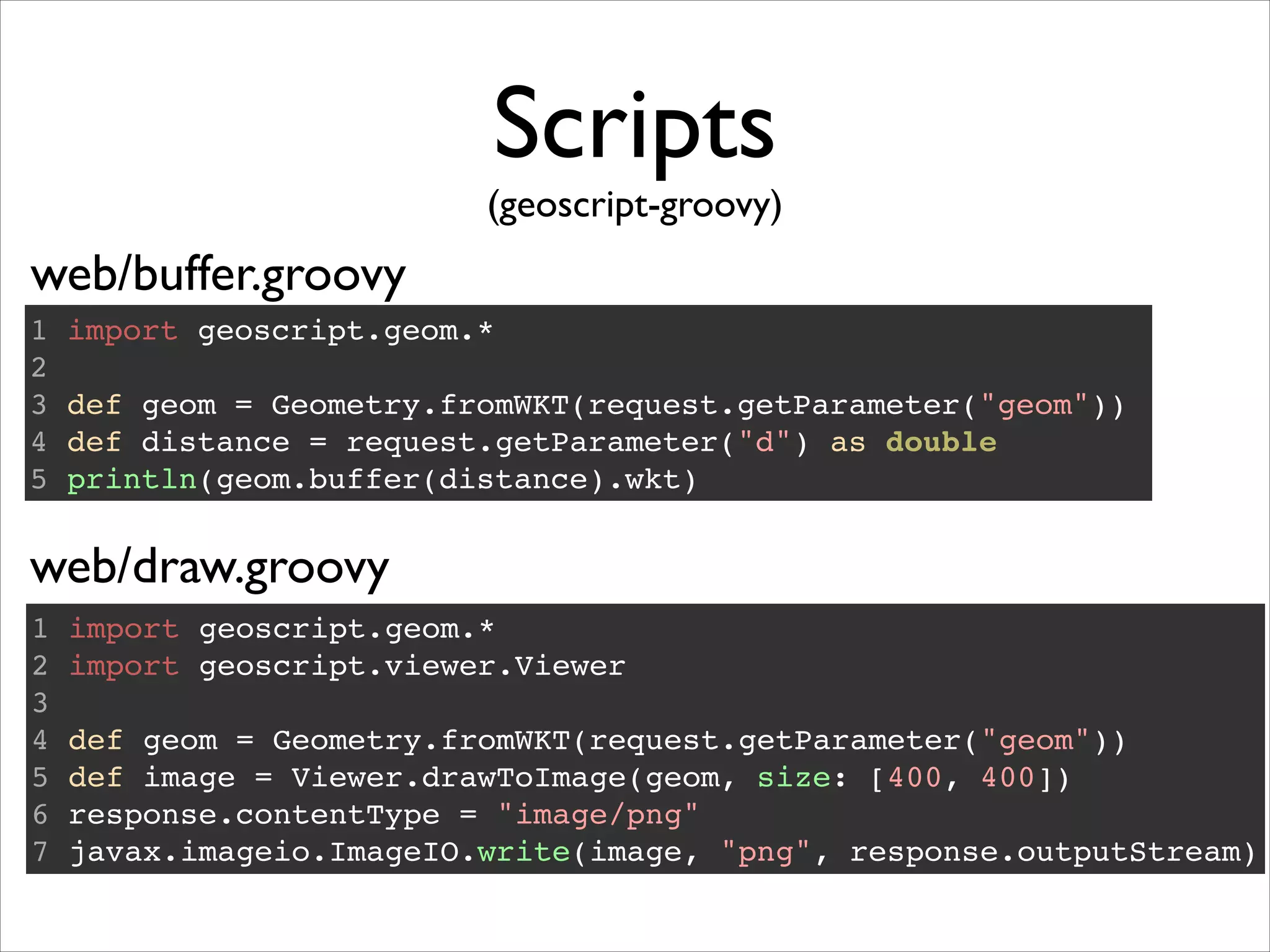

Scripts


(geoscript-groovy)

web/buffer.groovy
1
2
3
4
5

import geoscript.geom.*!
!
def geom = Geometry.fromWKT(request.getParameter("geom"))!
def distance = request.getParameter("d") as double!
println(geom.buffer(distance).wkt)

web/draw.groovy
1
2
3
4
5
6
7

import geoscript.geom.*!
import geoscript.viewer.Viewer!
!
def geom = Geometry.fromWKT(request.getParameter("geom"))!
def image = Viewer.drawToImage(geom, size: [400, 400])!
response.contentType = "image/png"!
javax.imageio.ImageIO.write(image, "png", response.outputStream)

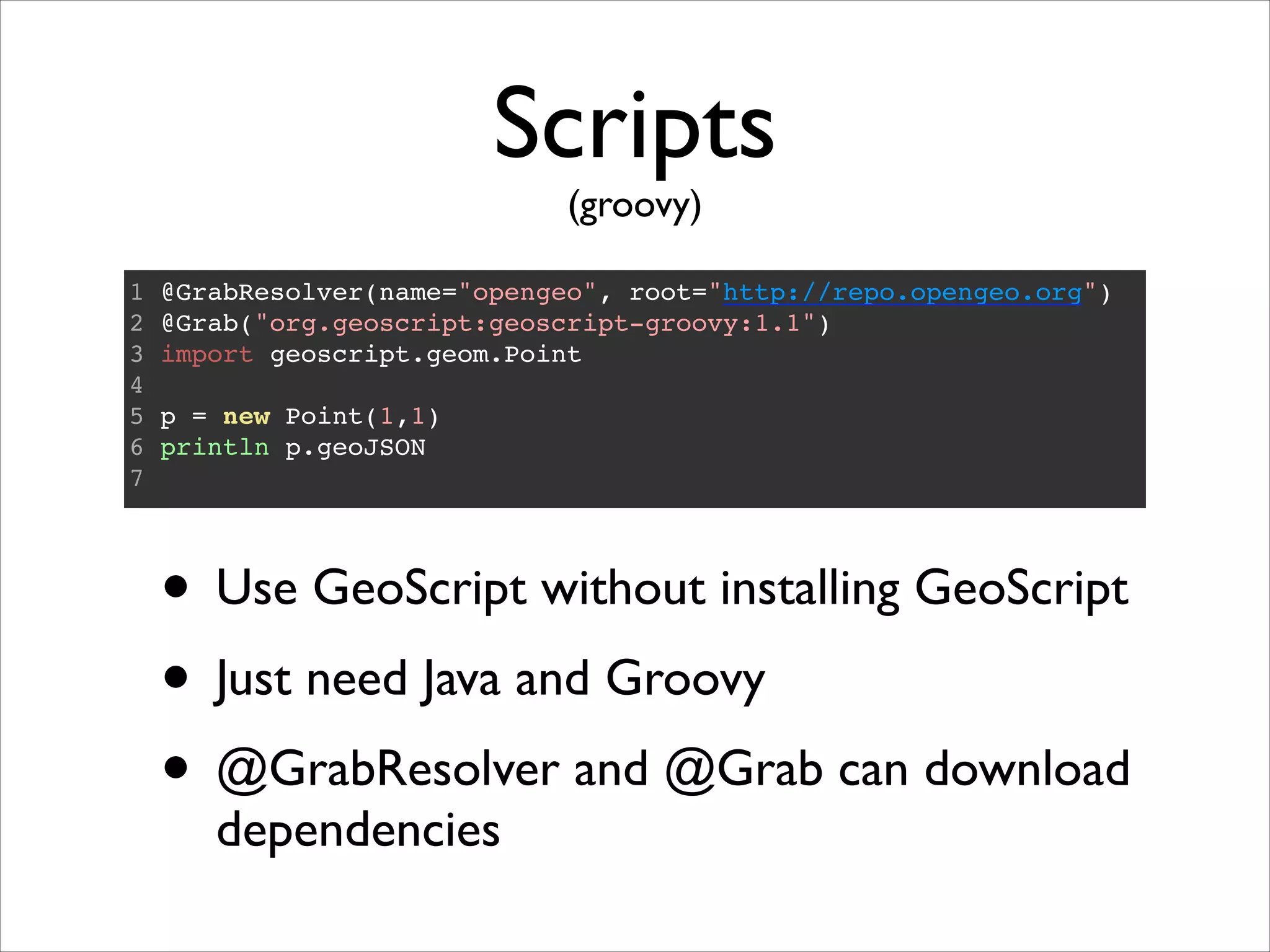

Scripts

(groovy)

1
2
3
4
5
6
7

@GrabResolver(name="opengeo", root="http://repo.opengeo.org")!
@Grab("org.geoscript:geoscript-groovy:1.1")!
import geoscript.geom.Point!
!
p = new Point(1,1)!
println p.geoJSON!

• Use GeoScript without installing GeoScript

• Just need Java and Groovy

• @GrabResolver and @Grab can download
dependencies

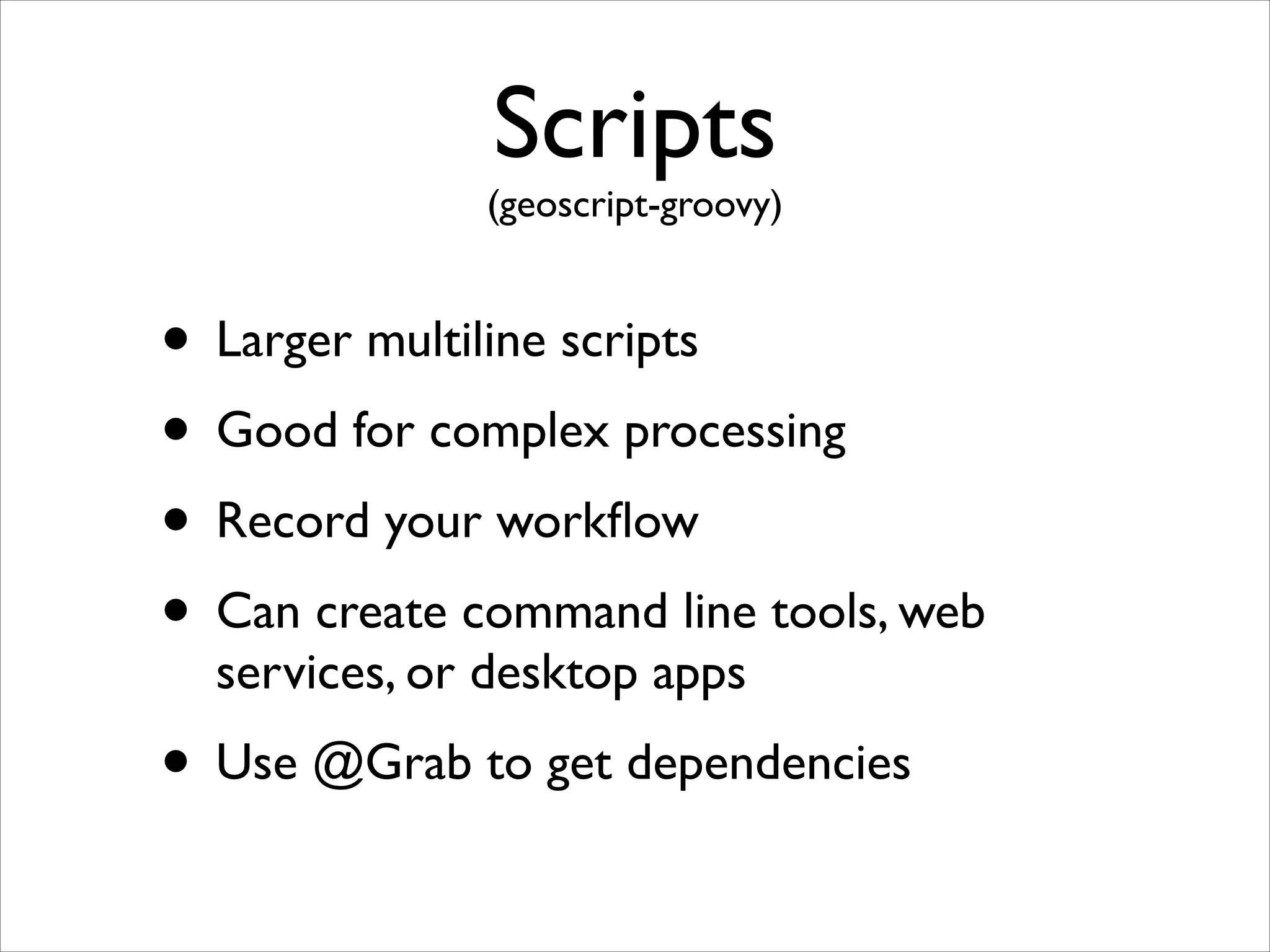

Scripts


(geoscript-groovy)

• Larger multiline scripts

• Good for complex processing

• Record your workflow

• Can create command line tools, web
services, or desktop apps


• Use @Grab to get dependencies

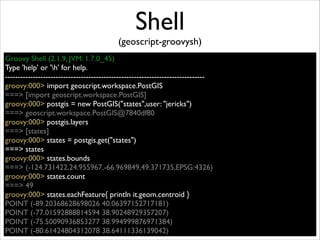

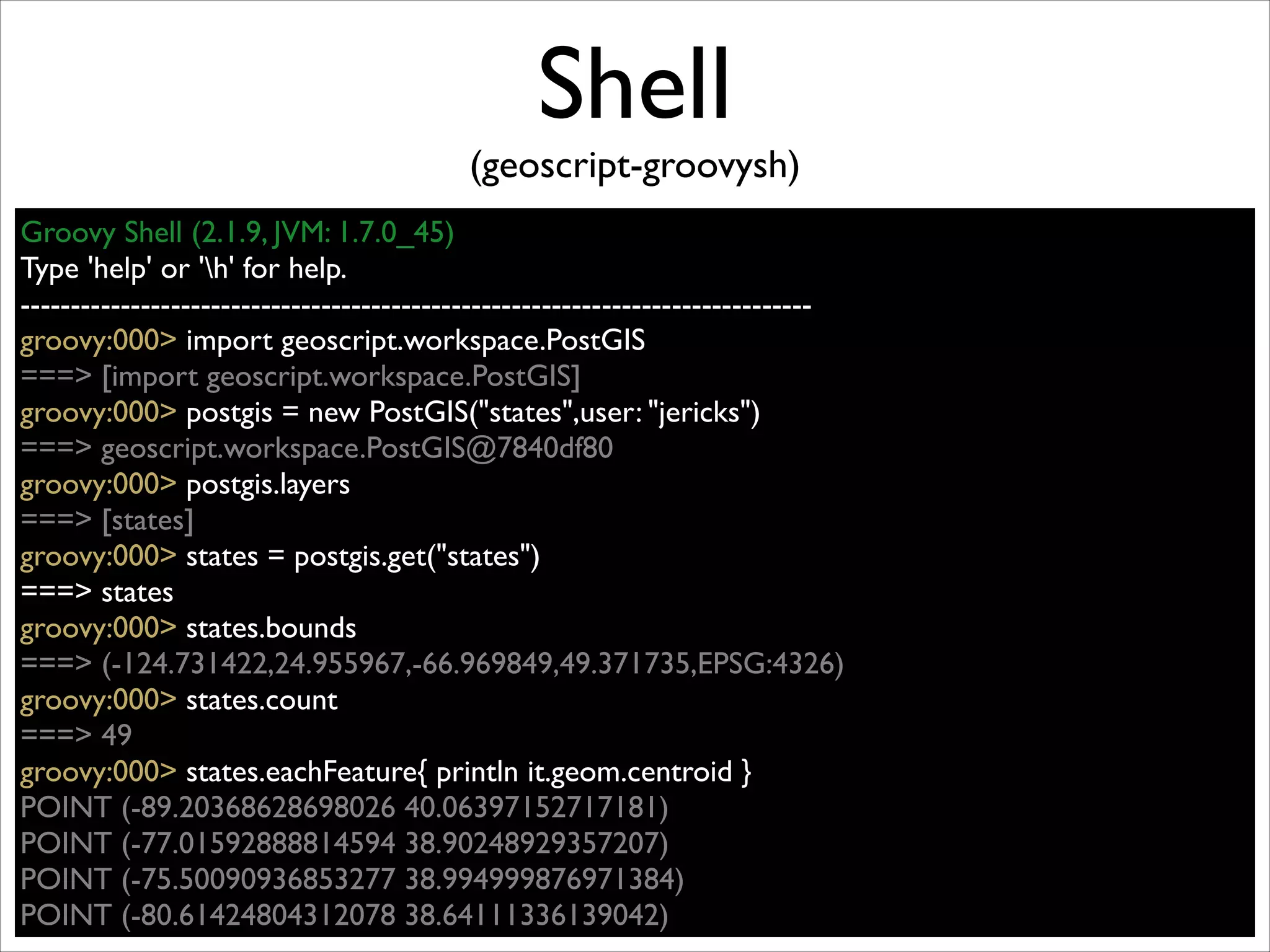

Shell


(geoscript-groovysh)
Groovy Shell (2.1.9, JVM: 1.7.0_45)

Type 'help' or 'h' for help.

-------------------------------------------------------------------------------

groovy:000> import geoscript.workspace.PostGIS

===> [import geoscript.workspace.PostGIS]

groovy:000> postgis = new PostGIS("states",user: "jericks")

===> geoscript.workspace.PostGIS@7840df80

groovy:000> postgis.layers

===> [states]

groovy:000> states = postgis.get("states")

===> states

groovy:000> states.bounds

===> (-124.731422,24.955967,-66.969849,49.371735,EPSG:4326)

groovy:000> states.count

===> 49

groovy:000> states.eachFeature{ println it.geom.centroid }

POINT (-89.20368628698026 40.06397152717181)

POINT (-77.01592888814594 38.90248929357207)

POINT (-75.50090936853277 38.994999876971384)

POINT (-80.61424804312078 38.64111336139042)

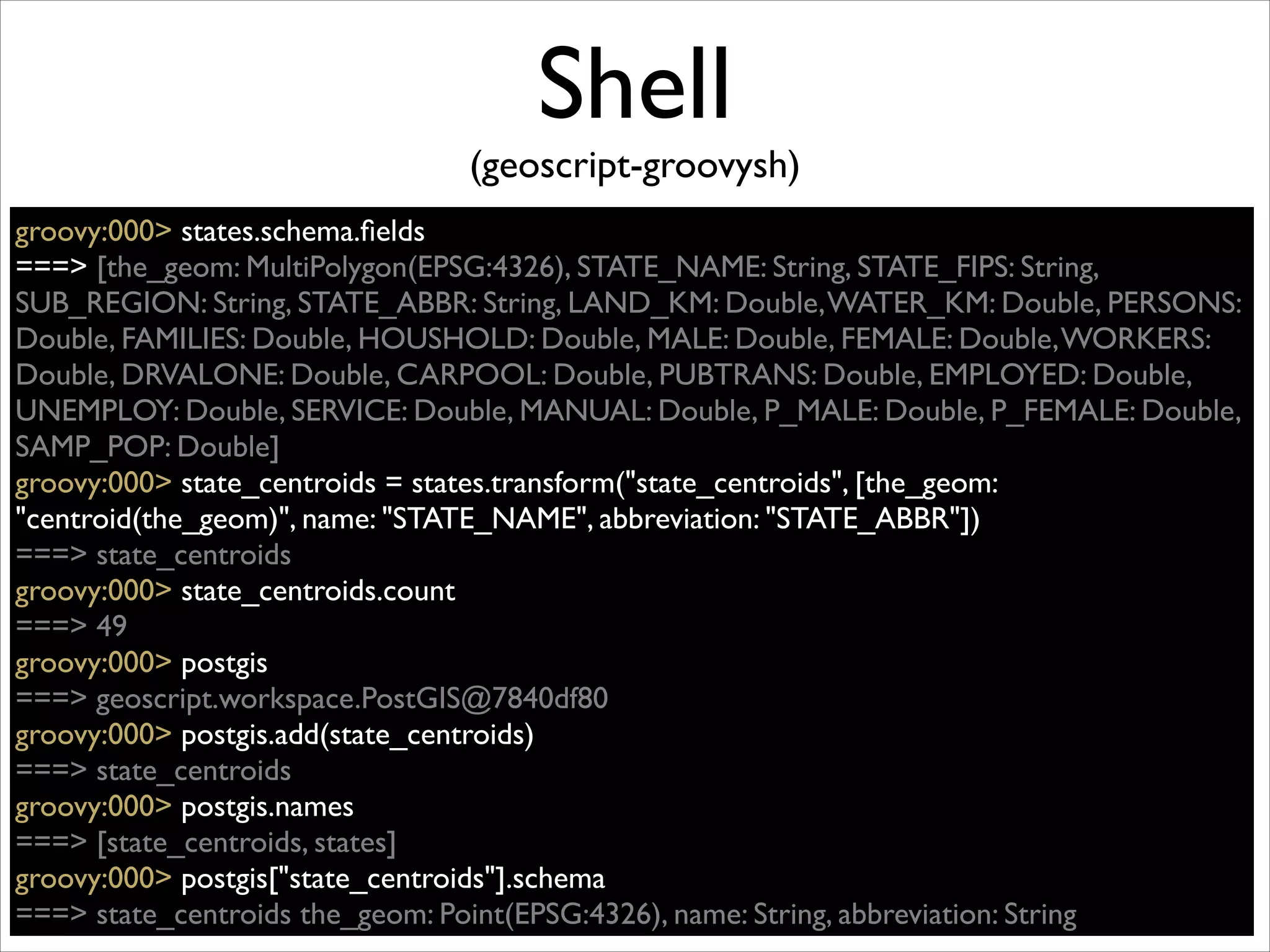

Shell


(geoscript-groovysh)
groovy:000> states.schema.fields

===> [the_geom: MultiPolygon(EPSG:4326), STATE_NAME: String, STATE_FIPS: String,
SUB_REGION: String, STATE_ABBR: String, LAND_KM: Double, WATER_KM: Double, PERSONS:
Double, FAMILIES: Double, HOUSHOLD: Double, MALE: Double, FEMALE: Double, WORKERS:
Double, DRVALONE: Double, CARPOOL: Double, PUBTRANS: Double, EMPLOYED: Double,
UNEMPLOY: Double, SERVICE: Double, MANUAL: Double, P_MALE: Double, P_FEMALE: Double,
SAMP_POP: Double]

groovy:000> state_centroids = states.transform("state_centroids", [the_geom:
"centroid(the_geom)", name: "STATE_NAME", abbreviation: "STATE_ABBR"])

===> state_centroids

groovy:000> state_centroids.count

===> 49

groovy:000> postgis

===> geoscript.workspace.PostGIS@7840df80

groovy:000> postgis.add(state_centroids)

===> state_centroids

groovy:000> postgis.names

===> [state_centroids, states]

groovy:000> postgis["state_centroids"].schema

===> state_centroids the_geom: Point(EPSG:4326), name: String, abbreviation: String

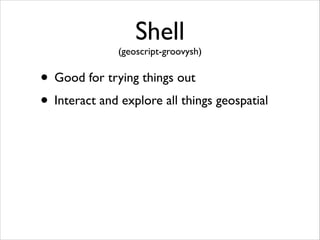

Shell


(geoscript-groovysh)

• Good for trying things out

• Interact and explore all things geospatial

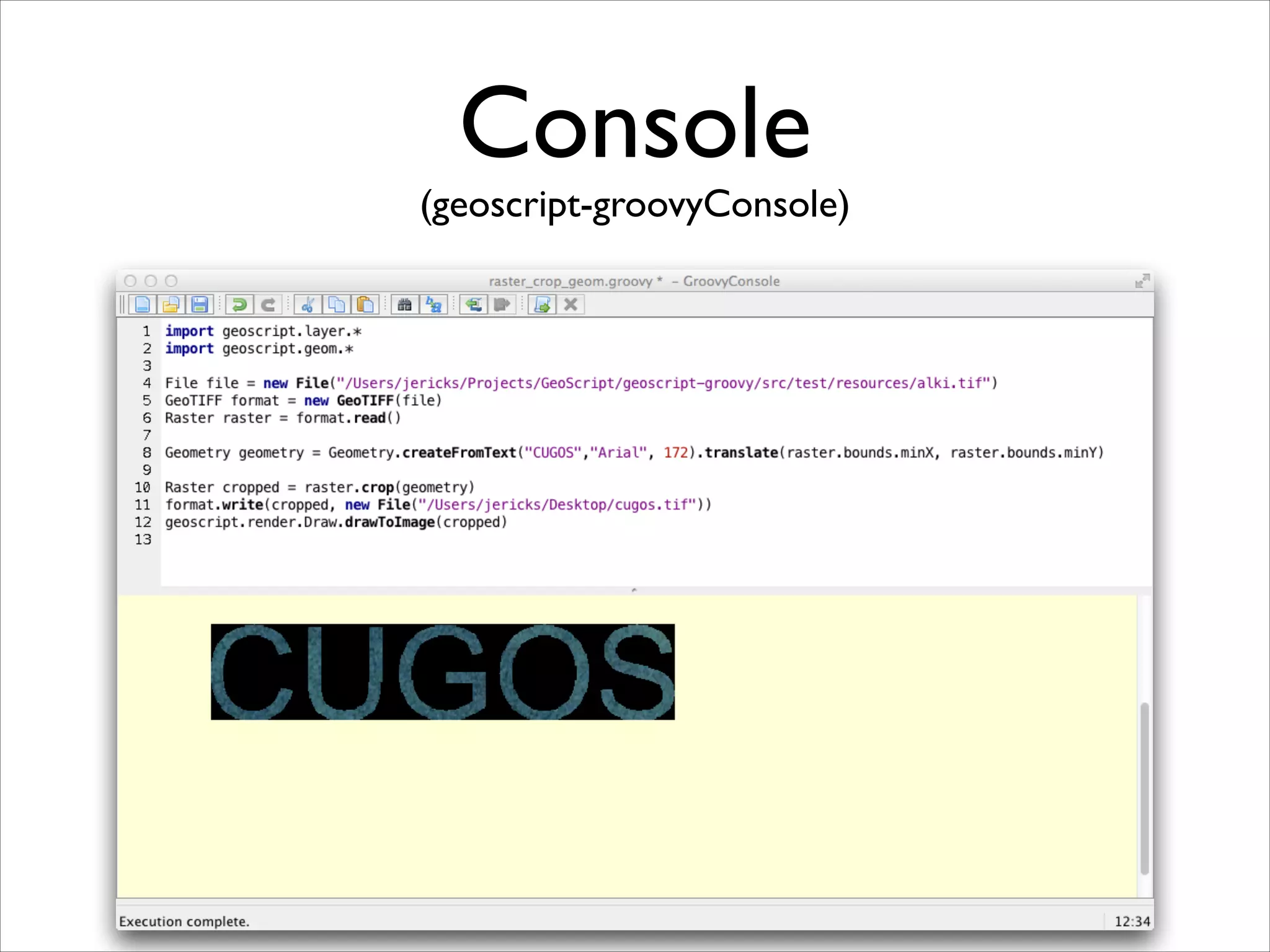

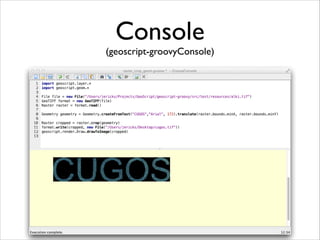

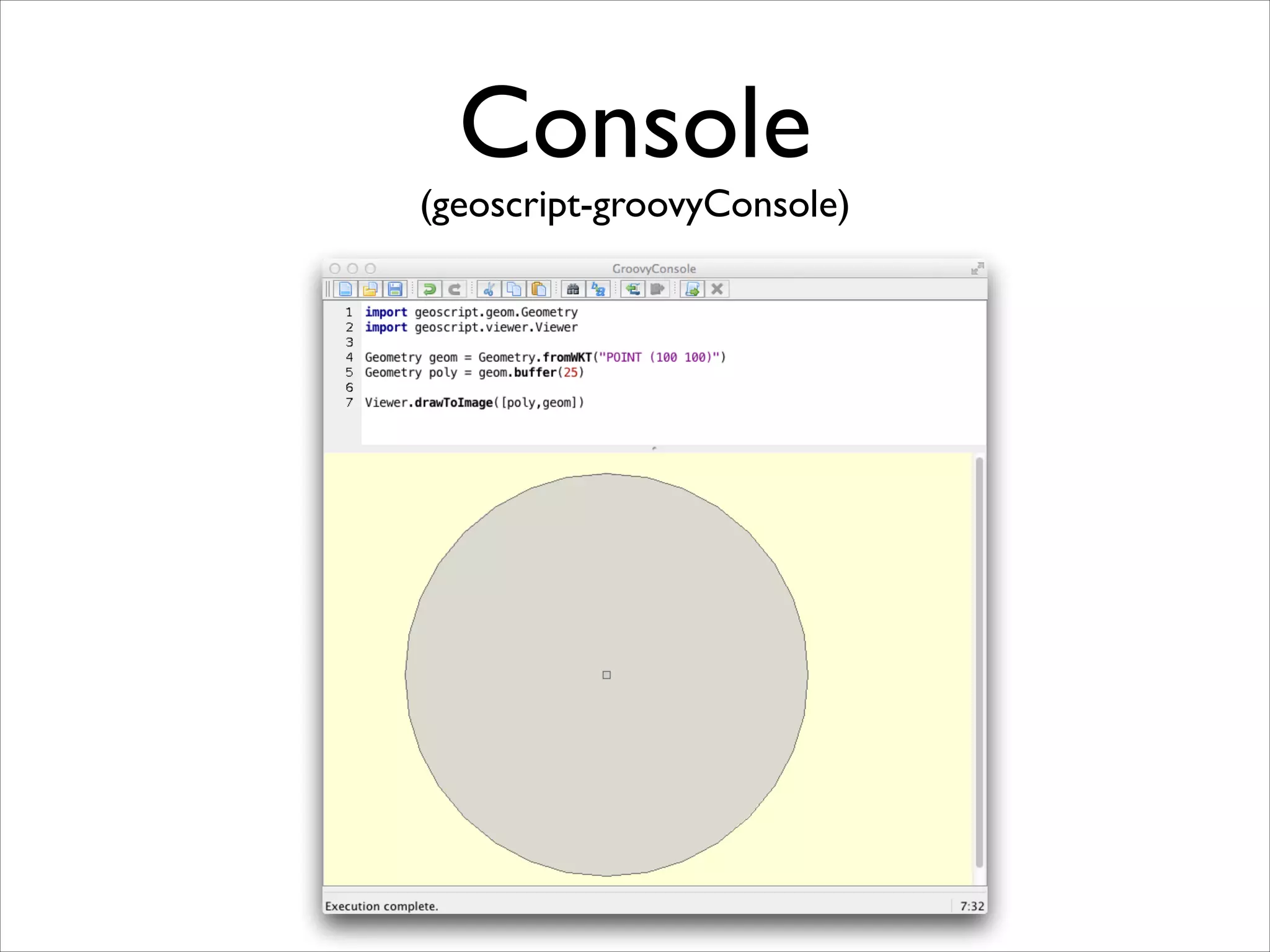

Console


(geoscript-groovyConsole)

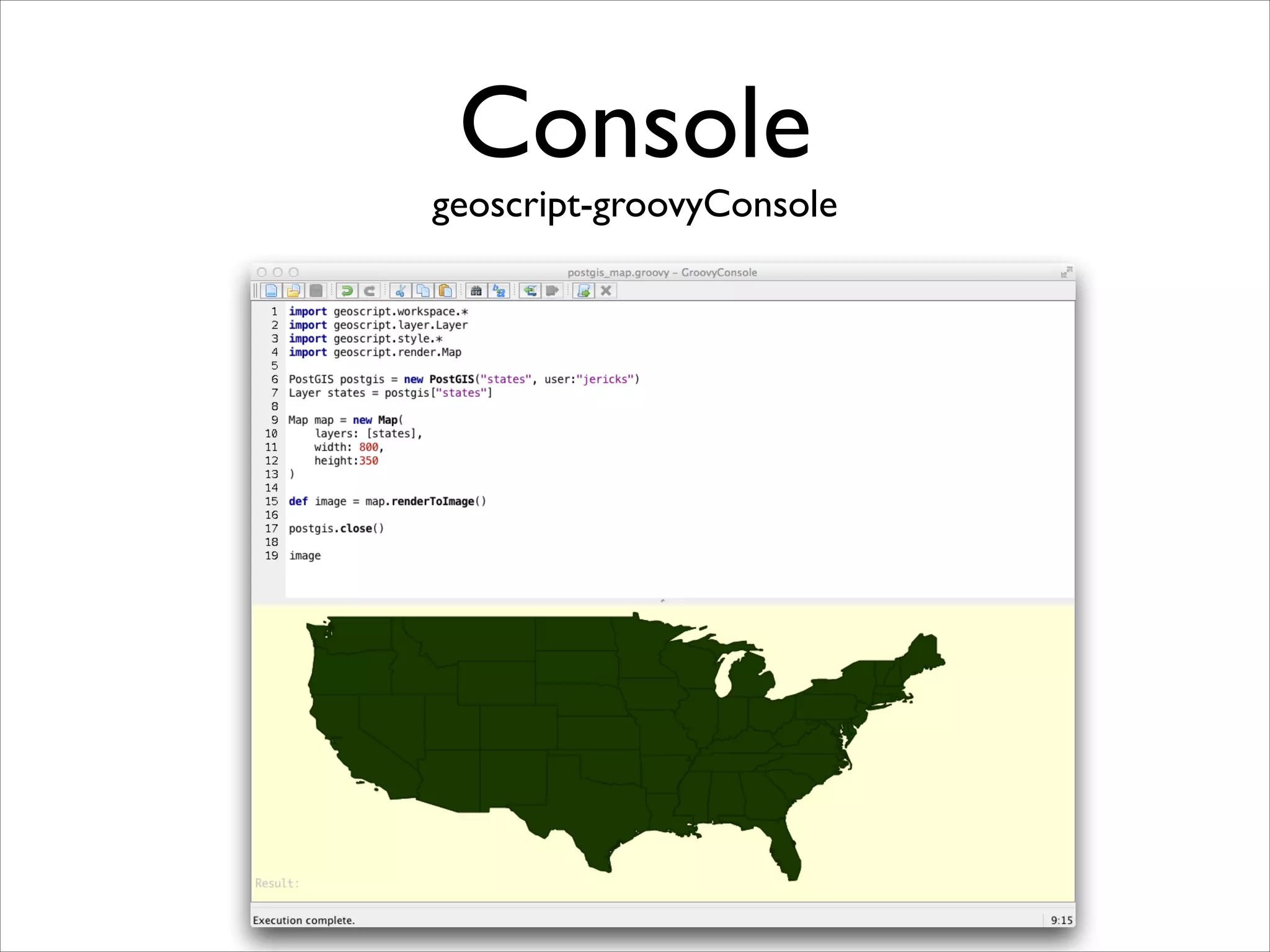

Console


(geoscript-groovyConsole)
Console


geoscript-groovyConsole

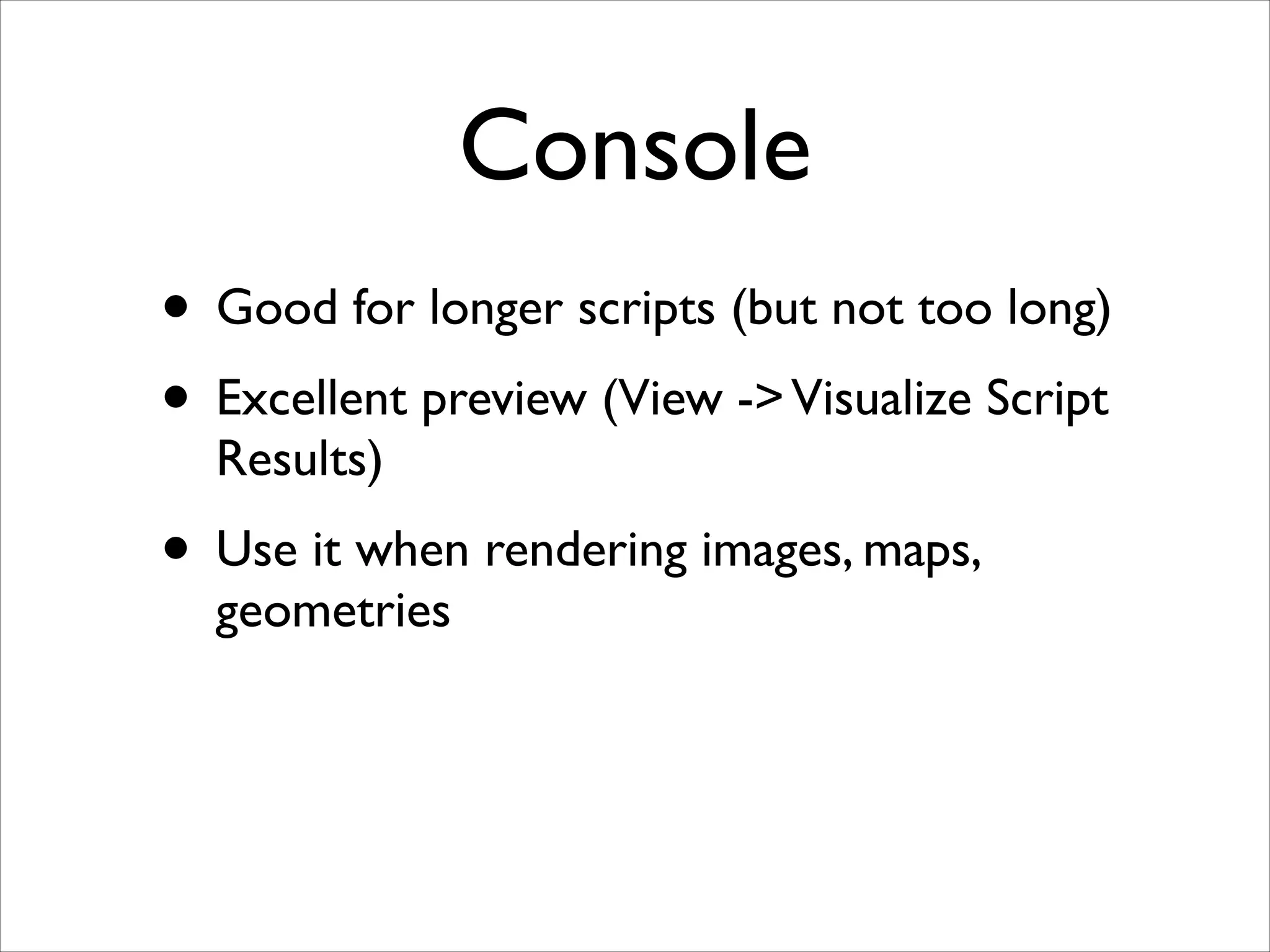

Console
• Good for longer scripts (but not too long)

• Excellent preview (View -> Visualize Script
Results)


• Use it when rendering images, maps,
geometries

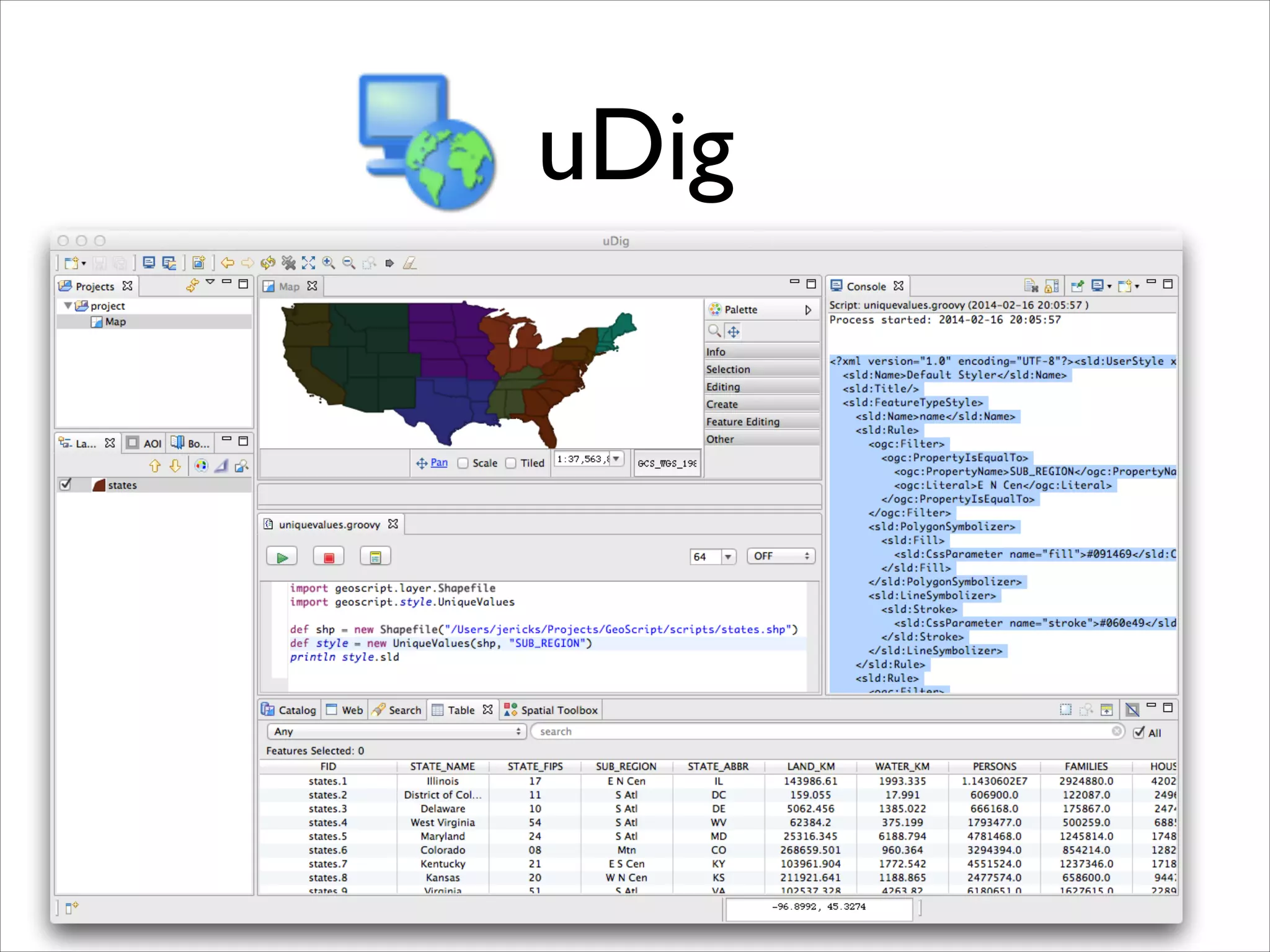

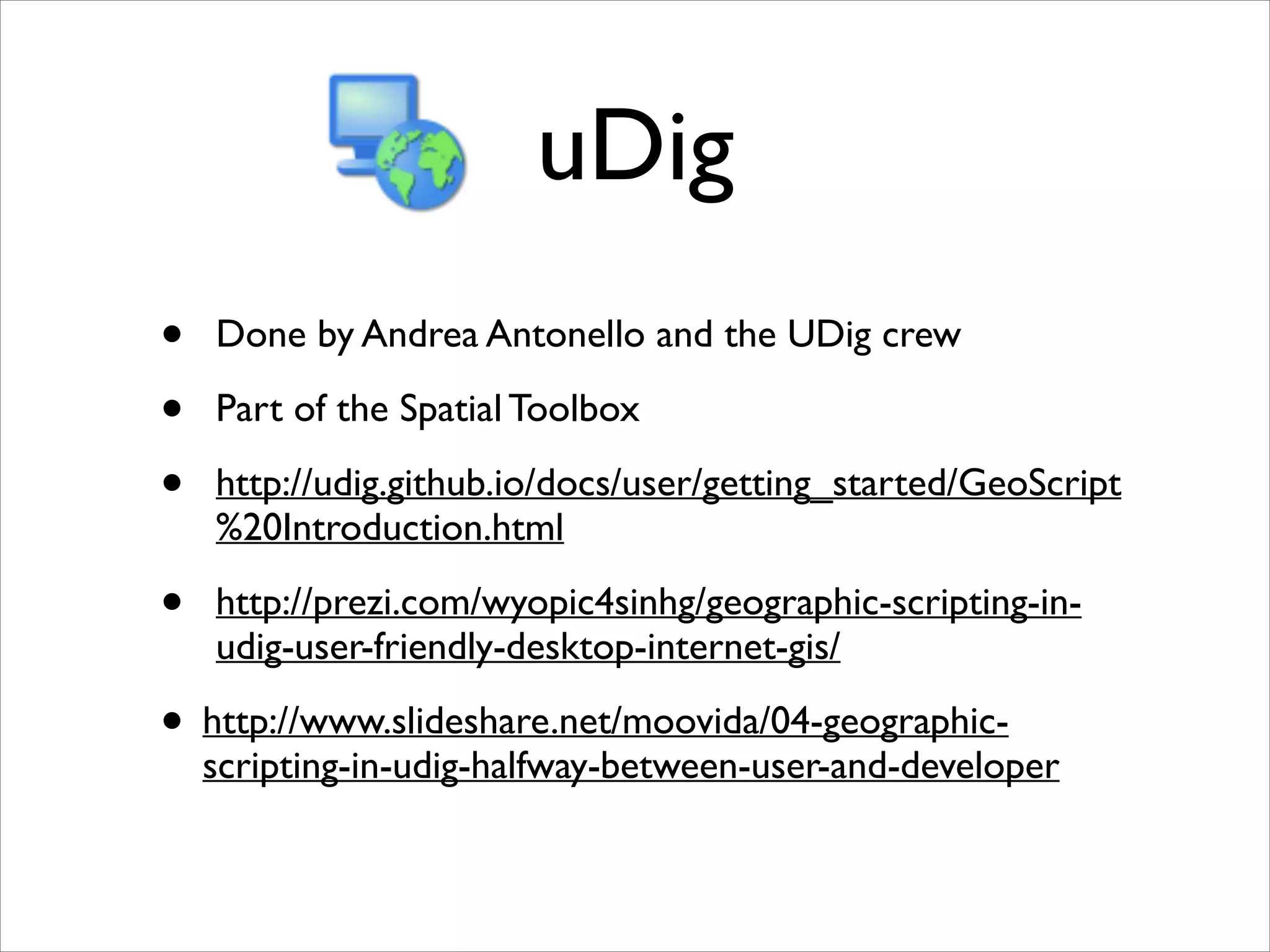

uDig
uDig
•
•
•

Done by Andrea Antonello and the UDig crew


•

http://prezi.com/wyopic4sinhg/geographic-scripting-inudig-user-friendly-desktop-internet-gis/


Part of the Spatial Toolbox

http://udig.github.io/docs/user/getting_started/GeoScript
%20Introduction.html


• http://www.slideshare.net/moovida/04-geographic-

scripting-in-udig-halfway-between-user-and-developer

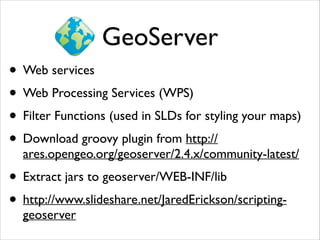

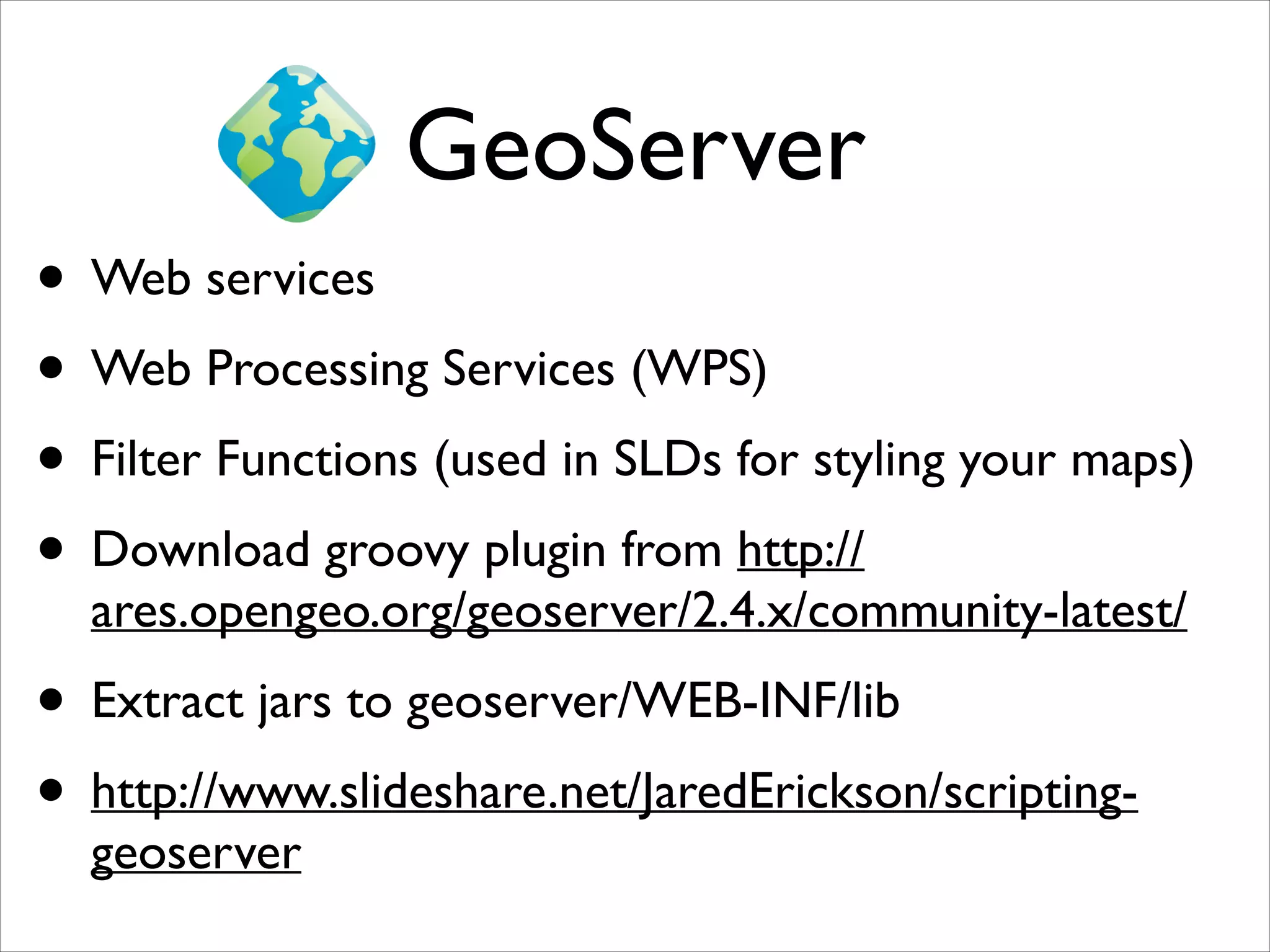

GeoServer
• Web services

• Web Processing Services (WPS)

• Filter Functions (used in SLDs for styling your maps)

• Download groovy plugin from http://
ares.opengeo.org/geoserver/2.4.x/community-latest/


• Extract jars to geoserver/WEB-INF/lib

• http://www.slideshare.net/JaredErickson/scriptinggeoserver

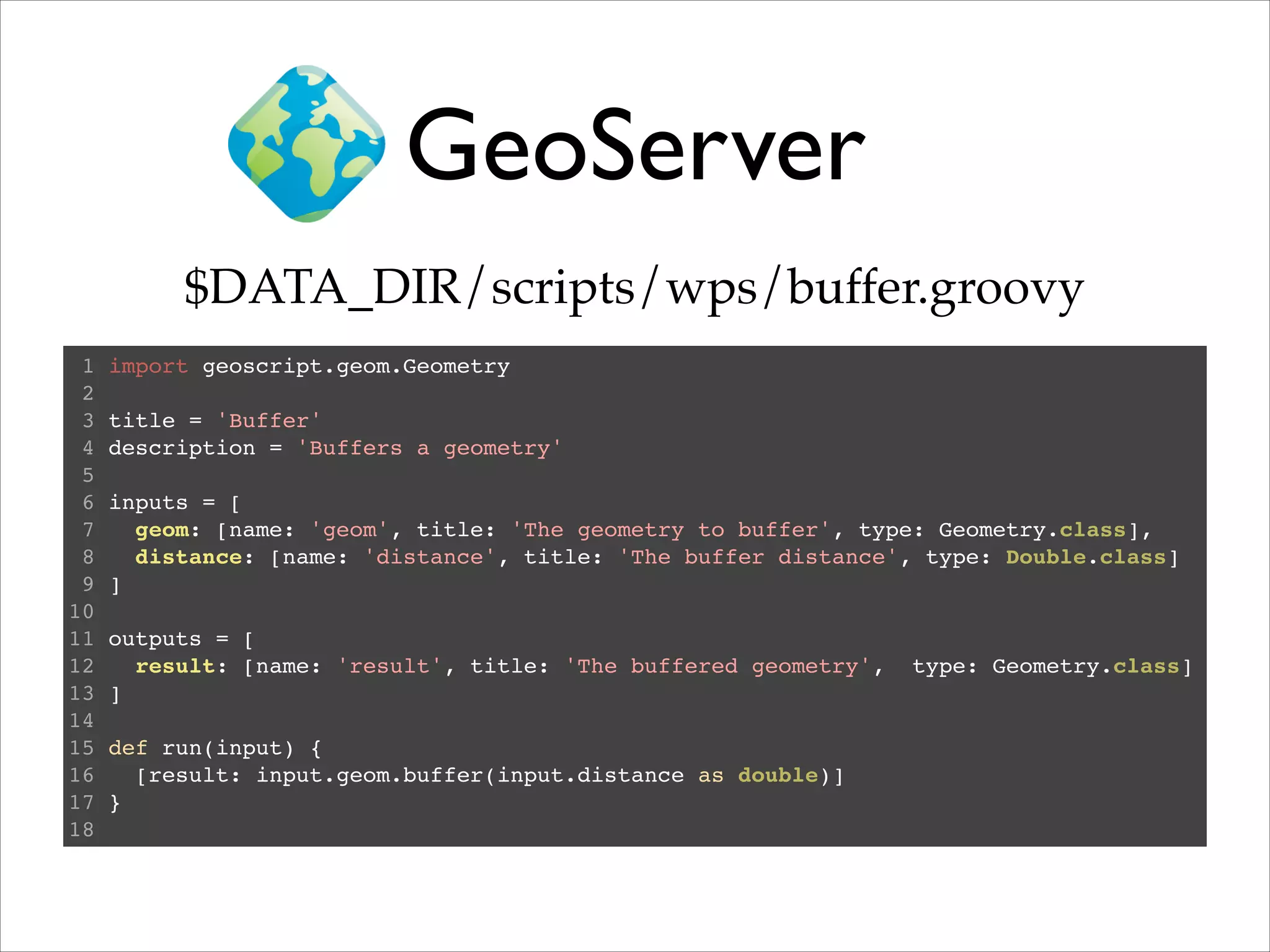

GeoServer
$DATA_DIR/scripts/wps/buffer.groovy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

import geoscript.geom.Geometry!
!
title = 'Buffer'!
description = 'Buffers a geometry'!
!
inputs = [!
geom: [name: 'geom', title: 'The geometry to buffer', type: Geometry.class],!
distance: [name: 'distance', title: 'The buffer distance', type: Double.class]!
]!
!
outputs = [!
result: [name: 'result', title: 'The buffered geometry', type: Geometry.class]!
]!
!
def run(input) {!
[result: input.geom.buffer(input.distance as double)]!
}!
GeoServer

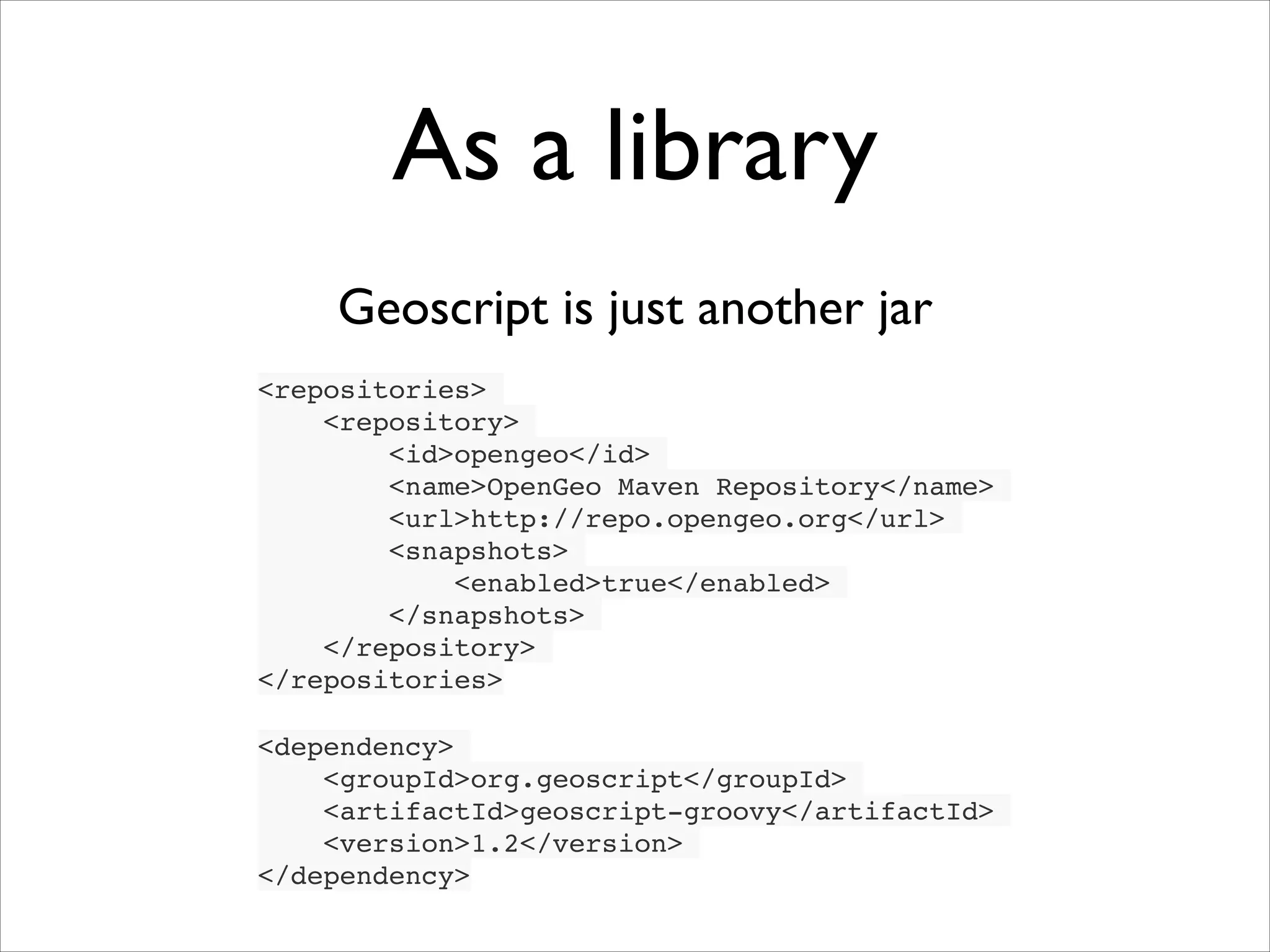

As a library
Geoscript is just another jar
<repositories>!
<repository>!
<id>opengeo</id>!
<name>OpenGeo Maven Repository</name>!
<url>http://repo.opengeo.org</url>!
<snapshots>!
<enabled>true</enabled>!
</snapshots>!
</repository>!
</repositories>
<dependency>!
<groupId>org.geoscript</groupId>!
<artifactId>geoscript-groovy</artifactId>!
<version>1.2</version>!
</dependency>

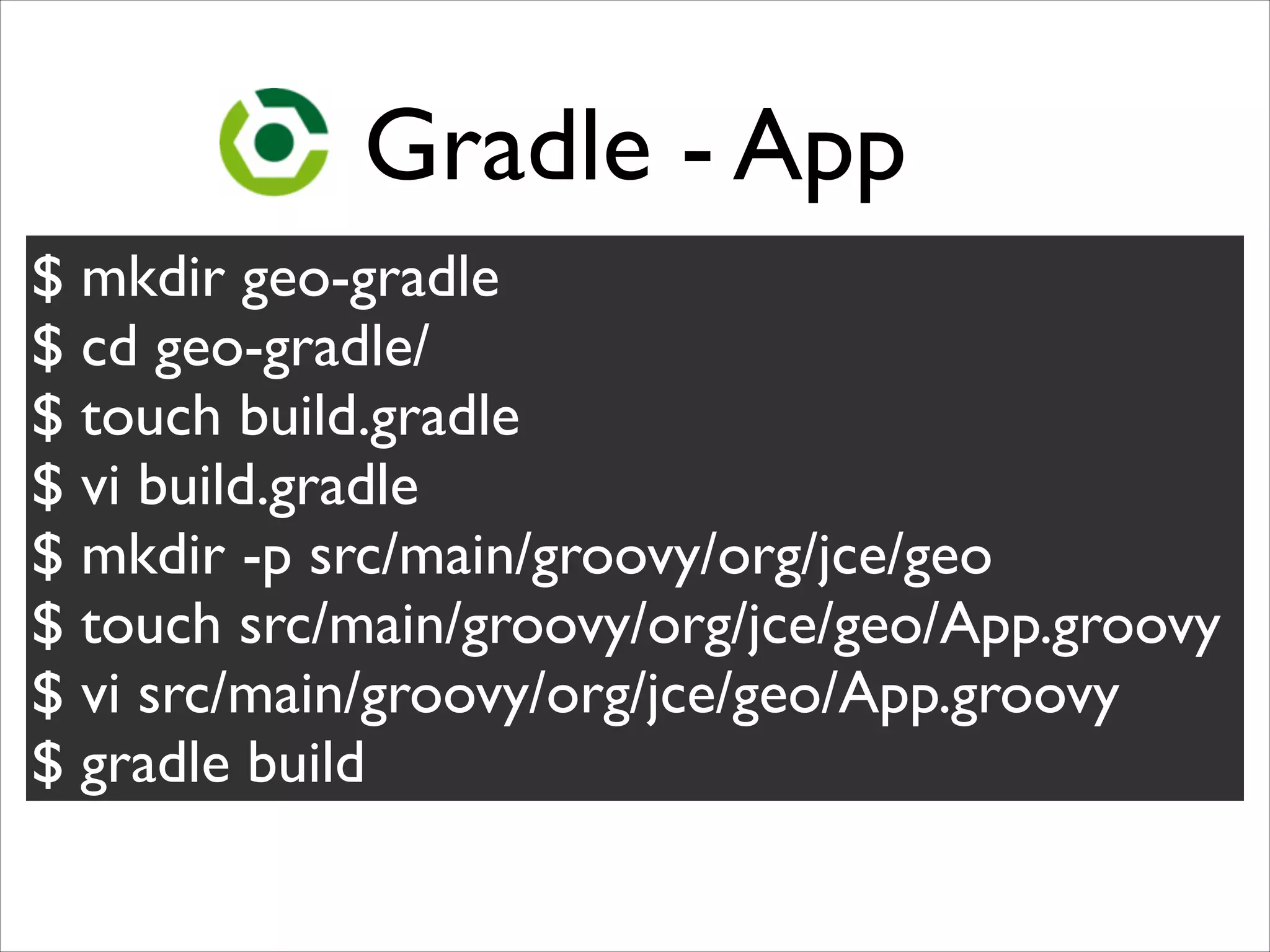

Gradle - App
$ mkdir geo-gradle

$ cd geo-gradle/

$ touch build.gradle

$ vi build.gradle

$ mkdir -p src/main/groovy/org/jce/geo

$ touch src/main/groovy/org/jce/geo/App.groovy

$ vi src/main/groovy/org/jce/geo/App.groovy

$ gradle build
Gradle - build.gradle
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

apply plugin: "groovy"!
apply plugin: "application"!
!
version = 0.1!
mainClassName = "org.jce.geo.App"!
!
repositories {!
maven {!
url "http://repo.opengeo.org"!
}!
maven {!
url "http://download.osgeo.org/webdav/geotools/"!
}!
mavenCentral()!
}!
!
dependencies {!
compile "org.codehaus.groovy:groovy-all:2.1.9"!
compile "org.geoscript:geoscript-groovy:1.2"!
}

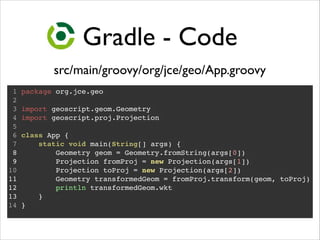

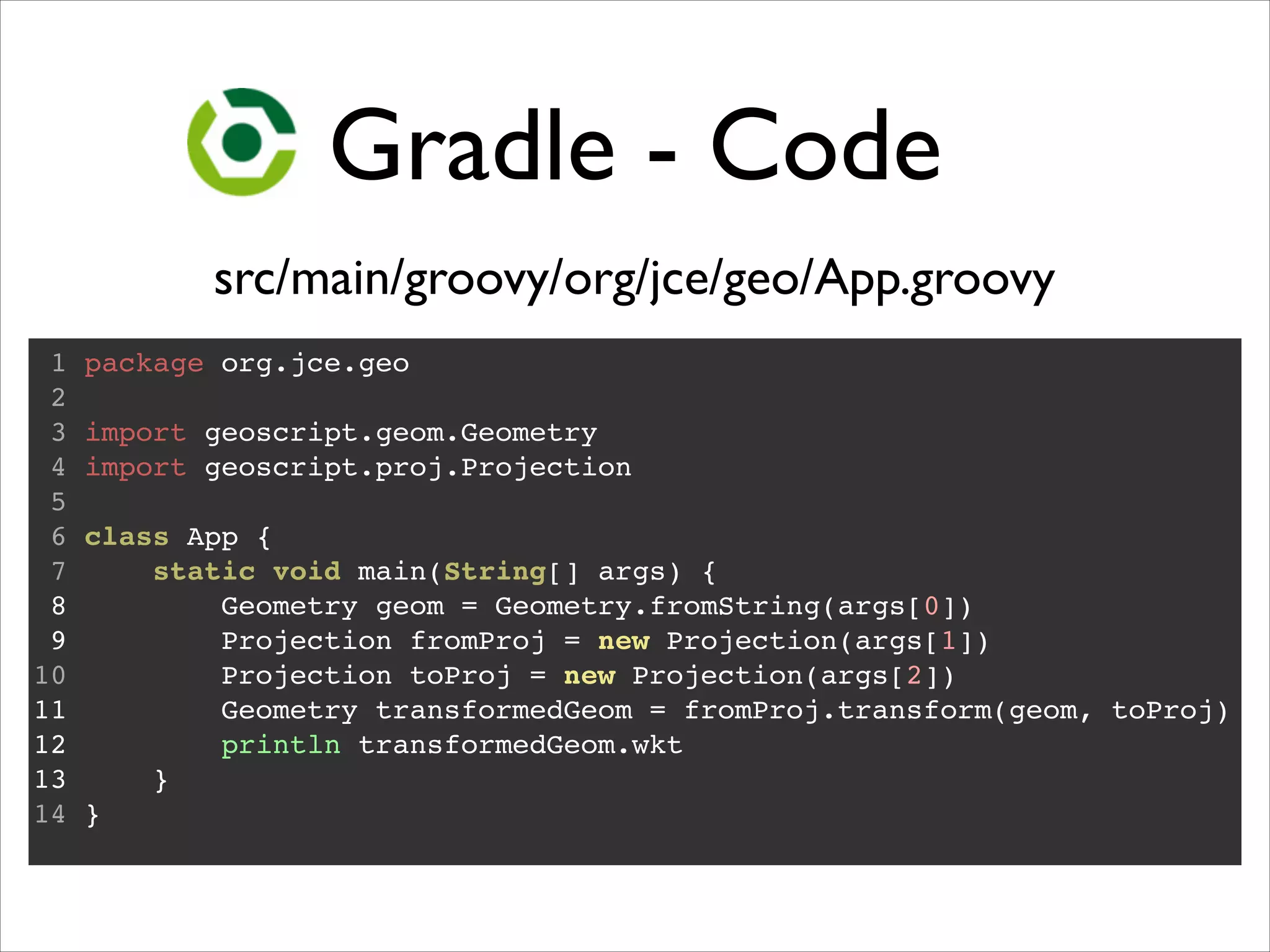

Gradle - Code
src/main/groovy/org/jce/geo/App.groovy
1
2
3
4
5
6
7
8
9
10
11
12
13
14

package org.jce.geo!
!
import geoscript.geom.Geometry!
import geoscript.proj.Projection!
!
class App {!
static void main(String[] args) {!
Geometry geom = Geometry.fromString(args[0])!
Projection fromProj = new Projection(args[1])!
Projection toProj = new Projection(args[2])!
Geometry transformedGeom = fromProj.transform(geom, toProj)!
println transformedGeom.wkt!
}!
}

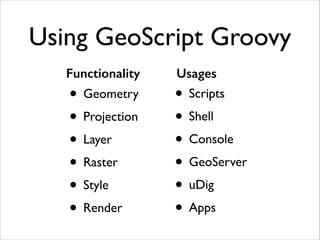

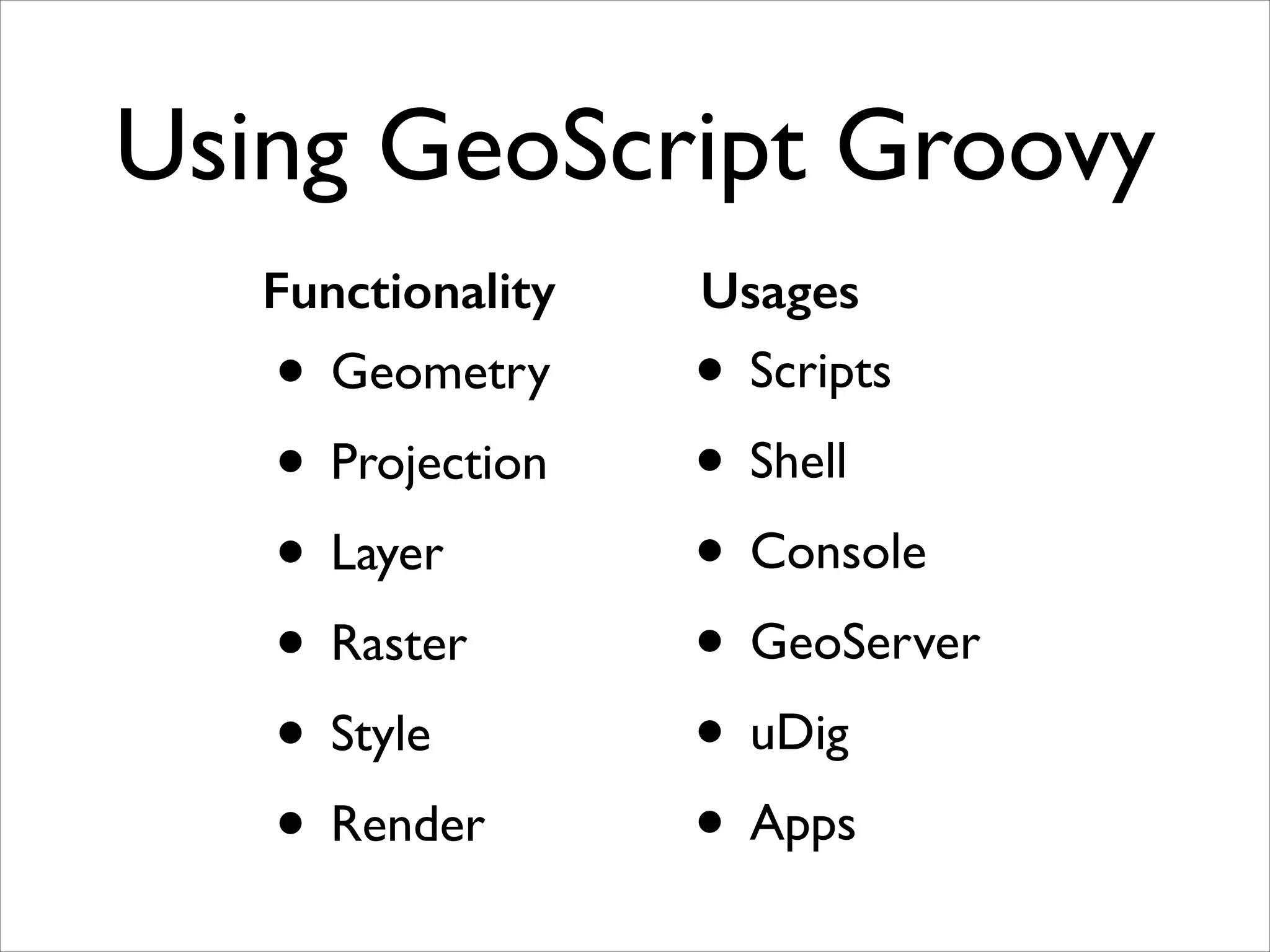

Using GeoScript Groovy
Functionality

• Geometry

• Projection

• Layer

• Raster

• Style

• Render


Usages

• Scripts

• Shell

• Console

• GeoServer

• uDig

• Apps
Thank you!

More Related Content

What's hot

[Image Results] Java Build Tools: Part 2 - A Decision Maker's Guide Compariso...
[Image Results] Java Build Tools: Part 2 - A Decision Maker's Guide Compariso...[Image Results] Java Build Tools: Part 2 - A Decision Maker's Guide Compariso...
[Image Results] Java Build Tools: Part 2 - A Decision Maker's Guide Compariso...
ZeroTurnaround

Rest, sockets em golang
Rest, sockets em golangRest, sockets em golang
Rest, sockets em golang
jefferson Otoni Lima

Continuous delivery w projekcie open source - Marcin Stachniuk
Continuous delivery w projekcie open source - Marcin StachniukContinuous delivery w projekcie open source - Marcin Stachniuk
Continuous delivery w projekcie open source - Marcin Stachniuk
MarcinStachniuk

Devfest 2021' - Artifact Registry Introduction (Taipei)
Devfest 2021' - Artifact Registry Introduction (Taipei)Devfest 2021' - Artifact Registry Introduction (Taipei)
Devfest 2021' - Artifact Registry Introduction (Taipei)
KAI CHU CHUNG

Lecture 8 - Qooxdoo - Rap Course At The University Of Szeged
Lecture 8 - Qooxdoo - Rap Course At The University Of SzegedLecture 8 - Qooxdoo - Rap Course At The University Of Szeged
Lecture 8 - Qooxdoo - Rap Course At The University Of Szeged
Fabian Jakobs

Into The Box 2018 Going live with commandbox and docker
Into The Box 2018 Going live with commandbox and dockerInto The Box 2018 Going live with commandbox and docker
Into The Box 2018 Going live with commandbox and docker
Ortus Solutions, Corp

Universal JS Web Applications with React - Luciano Mammino - Codemotion Rome ...
Universal JS Web Applications with React - Luciano Mammino - Codemotion Rome ...Universal JS Web Applications with React - Luciano Mammino - Codemotion Rome ...
Universal JS Web Applications with React - Luciano Mammino - Codemotion Rome ...
Luciano Mammino

Build microservice with gRPC in golang
Build microservice with gRPC in golangBuild microservice with gRPC in golang
Build microservice with gRPC in golang
Ting-Li Chou

LISA Qooxdoo Tutorial Handouts
LISA Qooxdoo Tutorial HandoutsLISA Qooxdoo Tutorial Handouts
LISA Qooxdoo Tutorial Handouts
Tobias Oetiker

Gradle: The Build system you have been waiting for
Gradle: The Build system you have been waiting forGradle: The Build system you have been waiting for
Gradle: The Build system you have been waiting for
Corneil du Plessis

Grunt & Front-end Workflow
Grunt & Front-end WorkflowGrunt & Front-end Workflow
Grunt & Front-end Workflow
Pagepro

Openshift operator insight
Openshift operator insightOpenshift operator insight
Openshift operator insight
Ryan ZhangCheng

以 Ktor 快速打造 Web 應用
以 Ktor 快速打造 Web 應用以 Ktor 快速打造 Web 應用
以 Ktor 快速打造 Web 應用
Shengyou Fan

Paris container day june17
Paris container day   june17Paris container day   june17
Paris container day june17
Paris Container Day

Web2.0 with jQuery in English
Web2.0 with jQuery in EnglishWeb2.0 with jQuery in English
Web2.0 with jQuery in English
Lau Bech Lauritzen

Google Web Toolkitのすすめ
Google Web ToolkitのすすめGoogle Web Toolkitのすすめ
Google Web ToolkitのすすめKaisei Hamamoto

Meetup - retour sur la DrupalCon Dublin 2016
Meetup - retour sur la DrupalCon Dublin 2016Meetup - retour sur la DrupalCon Dublin 2016
Meetup - retour sur la DrupalCon Dublin 2016
Yann Jajkiewicz


What's hot (19)

Tp web
Tp webTp web
Tp web

[Image Results] Java Build Tools: Part 2 - A Decision Maker's Guide Compariso...
[Image Results] Java Build Tools: Part 2 - A Decision Maker's Guide Compariso...[Image Results] Java Build Tools: Part 2 - A Decision Maker's Guide Compariso...
[Image Results] Java Build Tools: Part 2 - A Decision Maker's Guide Compariso...

Rest, sockets em golang
Rest, sockets em golangRest, sockets em golang
Rest, sockets em golang

Continuous delivery w projekcie open source - Marcin Stachniuk
Continuous delivery w projekcie open source - Marcin StachniukContinuous delivery w projekcie open source - Marcin Stachniuk
Continuous delivery w projekcie open source - Marcin Stachniuk

Devfest 2021' - Artifact Registry Introduction (Taipei)
Devfest 2021' - Artifact Registry Introduction (Taipei)Devfest 2021' - Artifact Registry Introduction (Taipei)
Devfest 2021' - Artifact Registry Introduction (Taipei)

Lecture 8 - Qooxdoo - Rap Course At The University Of Szeged
Lecture 8 - Qooxdoo - Rap Course At The University Of SzegedLecture 8 - Qooxdoo - Rap Course At The University Of Szeged
Lecture 8 - Qooxdoo - Rap Course At The University Of Szeged

Into The Box 2018 Going live with commandbox and docker
Into The Box 2018 Going live with commandbox and dockerInto The Box 2018 Going live with commandbox and docker
Into The Box 2018 Going live with commandbox and docker

Universal JS Web Applications with React - Luciano Mammino - Codemotion Rome ...
Universal JS Web Applications with React - Luciano Mammino - Codemotion Rome ...Universal JS Web Applications with React - Luciano Mammino - Codemotion Rome ...
Universal JS Web Applications with React - Luciano Mammino - Codemotion Rome ...

Build microservice with gRPC in golang
Build microservice with gRPC in golangBuild microservice with gRPC in golang
Build microservice with gRPC in golang

LISA Qooxdoo Tutorial Handouts
LISA Qooxdoo Tutorial HandoutsLISA Qooxdoo Tutorial Handouts
LISA Qooxdoo Tutorial Handouts

Gradle: The Build system you have been waiting for
Gradle: The Build system you have been waiting forGradle: The Build system you have been waiting for
Gradle: The Build system you have been waiting for

Grunt & Front-end Workflow
Grunt & Front-end WorkflowGrunt & Front-end Workflow
Grunt & Front-end Workflow

Openshift operator insight
Openshift operator insightOpenshift operator insight
Openshift operator insight

以 Ktor 快速打造 Web 應用
以 Ktor 快速打造 Web 應用以 Ktor 快速打造 Web 應用
以 Ktor 快速打造 Web 應用

Paris container day june17
Paris container day   june17Paris container day   june17
Paris container day june17

Web2.0 with jQuery in English
Web2.0 with jQuery in EnglishWeb2.0 with jQuery in English
Web2.0 with jQuery in English

Google Web Toolkitのすすめ
Google Web ToolkitのすすめGoogle Web Toolkitのすすめ
Google Web Toolkitのすすめ

Meetup - retour sur la DrupalCon Dublin 2016
Meetup - retour sur la DrupalCon Dublin 2016Meetup - retour sur la DrupalCon Dublin 2016
Meetup - retour sur la DrupalCon Dublin 2016

Gradle Introduction
Gradle IntroductionGradle Introduction
Gradle Introduction


Similar to Using Geoscript Groovy

Google App Engine Java, Groovy and Gaelyk
Google App Engine Java, Groovy and GaelykGoogle App Engine Java, Groovy and Gaelyk
Google App Engine Java, Groovy and Gaelyk
Guillaume Laforge

Saving Money with Open Source GIS
Saving Money with Open Source GISSaving Money with Open Source GIS
Saving Money with Open Source GIS
bryanluman

Building Android games using LibGDX
Building Android games using LibGDXBuilding Android games using LibGDX
Building Android games using LibGDX
Jussi Pohjolainen

Intro to Building Android Games using libGDX
Intro to Building Android Games using libGDXIntro to Building Android Games using libGDX
Intro to Building Android Games using libGDX
Jussi Pohjolainen

GIS User to Web-GIS Developer Journey
GIS User to Web-GIS Developer JourneyGIS User to Web-GIS Developer Journey
GIS User to Web-GIS Developer Journey
Tek Kshetri

React nativebeginner1
React nativebeginner1React nativebeginner1
React nativebeginner1
Oswald Campesato

Of Nodes and Maps (Web Mapping with Drupal - Part II)
Of Nodes and Maps (Web Mapping with Drupal - Part II)Of Nodes and Maps (Web Mapping with Drupal - Part II)
Of Nodes and Maps (Web Mapping with Drupal - Part II)
Ranel Padon

New Tools for Visualization in JavaScript - Sept. 2011
New Tools for Visualization in JavaScript - Sept. 2011New Tools for Visualization in JavaScript - Sept. 2011
New Tools for Visualization in JavaScript - Sept. 2011philogb

GAE_20100112
GAE_20100112GAE_20100112
GAE_20100112
Kosuke Matsuda

DevQuiz 2011 の模範解答 Android編
DevQuiz 2011 の模範解答 Android編DevQuiz 2011 の模範解答 Android編
DevQuiz 2011 の模範解答 Android編Makoto Yamazaki

Device系APIの全体図
Device系APIの全体図Device系APIの全体図
Device系APIの全体図
Kensaku Komatsu

Play Framework on Google App Engine
Play Framework on Google App EnginePlay Framework on Google App Engine
Play Framework on Google App Engine
Fred Lin

Geo script opengeo spring 2013
Geo script opengeo spring 2013Geo script opengeo spring 2013
Geo script opengeo spring 2013Ilya Rosenfeld

JavaScript on the Desktop
JavaScript on the DesktopJavaScript on the Desktop
JavaScript on the Desktop
Domenic Denicola

NLUUG Spring 2012 - OpenShift Primer
NLUUG Spring 2012 - OpenShift PrimerNLUUG Spring 2012 - OpenShift Primer
NLUUG Spring 2012 - OpenShift Primer
Eric D. Schabell

Grooscript gr8conf 2015
Grooscript gr8conf 2015Grooscript gr8conf 2015
Grooscript gr8conf 2015
Jorge Franco Leza

OpenShift State of the Union, brought to you by JBoss
OpenShift State of the Union, brought to you by JBossOpenShift State of the Union, brought to you by JBoss
OpenShift State of the Union, brought to you by JBoss
Eric D. Schabell

PyWPS at COST WPS Workshop
PyWPS at COST WPS WorkshopPyWPS at COST WPS Workshop
PyWPS at COST WPS WorkshopJachym Cepicky


Similar to Using Geoscript Groovy (20)

Google App Engine Java, Groovy and Gaelyk
Google App Engine Java, Groovy and GaelykGoogle App Engine Java, Groovy and Gaelyk
Google App Engine Java, Groovy and Gaelyk

Saving Money with Open Source GIS
Saving Money with Open Source GISSaving Money with Open Source GIS
Saving Money with Open Source GIS

Building Android games using LibGDX
Building Android games using LibGDXBuilding Android games using LibGDX
Building Android games using LibGDX

Intro to Building Android Games using libGDX
Intro to Building Android Games using libGDXIntro to Building Android Games using libGDX
Intro to Building Android Games using libGDX

GIS User to Web-GIS Developer Journey
GIS User to Web-GIS Developer JourneyGIS User to Web-GIS Developer Journey
GIS User to Web-GIS Developer Journey

Mobile native-hacks
Mobile native-hacksMobile native-hacks
Mobile native-hacks

React nativebeginner1
React nativebeginner1React nativebeginner1
React nativebeginner1

Of Nodes and Maps (Web Mapping with Drupal - Part II)
Of Nodes and Maps (Web Mapping with Drupal - Part II)Of Nodes and Maps (Web Mapping with Drupal - Part II)
Of Nodes and Maps (Web Mapping with Drupal - Part II)

GIS_Day_2016
GIS_Day_2016GIS_Day_2016
GIS_Day_2016

New Tools for Visualization in JavaScript - Sept. 2011
New Tools for Visualization in JavaScript - Sept. 2011New Tools for Visualization in JavaScript - Sept. 2011
New Tools for Visualization in JavaScript - Sept. 2011

GAE_20100112
GAE_20100112GAE_20100112
GAE_20100112

DevQuiz 2011 の模範解答 Android編
DevQuiz 2011 の模範解答 Android編DevQuiz 2011 の模範解答 Android編
DevQuiz 2011 の模範解答 Android編

Device系APIの全体図
Device系APIの全体図Device系APIの全体図
Device系APIの全体図

Play Framework on Google App Engine
Play Framework on Google App EnginePlay Framework on Google App Engine
Play Framework on Google App Engine

Geo script opengeo spring 2013
Geo script opengeo spring 2013Geo script opengeo spring 2013
Geo script opengeo spring 2013

JavaScript on the Desktop
JavaScript on the DesktopJavaScript on the Desktop
JavaScript on the Desktop

NLUUG Spring 2012 - OpenShift Primer
NLUUG Spring 2012 - OpenShift PrimerNLUUG Spring 2012 - OpenShift Primer
NLUUG Spring 2012 - OpenShift Primer

Grooscript gr8conf 2015
Grooscript gr8conf 2015Grooscript gr8conf 2015
Grooscript gr8conf 2015

OpenShift State of the Union, brought to you by JBoss
OpenShift State of the Union, brought to you by JBossOpenShift State of the Union, brought to you by JBoss
OpenShift State of the Union, brought to you by JBoss

PyWPS at COST WPS Workshop
PyWPS at COST WPS WorkshopPyWPS at COST WPS Workshop
PyWPS at COST WPS Workshop


Recently uploaded

FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdfFIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team
ControlCase

Generating a custom Ruby SDK for your web service or Rails API using Smithy
Generating a custom Ruby SDK for your web service or Rails API using SmithyGenerating a custom Ruby SDK for your web service or Rails API using Smithy
Generating a custom Ruby SDK for your web service or Rails API using Smithy
g2nightmarescribd

Essentials of Automations: Optimizing FME Workflows with Parameters
Essentials of Automations: Optimizing FME Workflows with ParametersEssentials of Automations: Optimizing FME Workflows with Parameters
Essentials of Automations: Optimizing FME Workflows with Parameters
Safe Software

Bits & Pixels using AI for Good.........
Bits & Pixels using AI for Good.........Bits & Pixels using AI for Good.........
Bits & Pixels using AI for Good.........
Alison B. Lowndes

GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...
GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...
GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...
Sri Ambati

Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdfSmart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
91mobiles

Connector Corner: Automate dynamic content and events by pushing a button
Connector Corner: Automate dynamic content and events by pushing a buttonConnector Corner: Automate dynamic content and events by pushing a button
Connector Corner: Automate dynamic content and events by pushing a button
DianaGray10

Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Tobias Schneck

Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...
BookNet Canada

From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
Product School

De-mystifying Zero to One: Design Informed Techniques for Greenfield Innovati...
De-mystifying Zero to One: Design Informed Techniques for Greenfield Innovati...De-mystifying Zero to One: Design Informed Techniques for Greenfield Innovati...
De-mystifying Zero to One: Design Informed Techniques for Greenfield Innovati...
Product School

Mission to Decommission: Importance of Decommissioning Products to Increase E...
Mission to Decommission: Importance of Decommissioning Products to Increase E...Mission to Decommission: Importance of Decommissioning Products to Increase E...
Mission to Decommission: Importance of Decommissioning Products to Increase E...
Product School

State of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 previewState of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 preview
Prayukth K V

Key Trends Shaping the Future of Infrastructure.pdf
Key Trends Shaping the Future of Infrastructure.pdfKey Trends Shaping the Future of Infrastructure.pdf
Key Trends Shaping the Future of Infrastructure.pdf
Cheryl Hung

Epistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI supportEpistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI support
Alan Dix

Elevating Tactical DDD Patterns Through Object Calisthenics
Elevating Tactical DDD Patterns Through Object CalisthenicsElevating Tactical DDD Patterns Through Object Calisthenics
Elevating Tactical DDD Patterns Through Object Calisthenics
Dorra BARTAGUIZ

UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3
DianaGray10

JMeter webinar - integration with InfluxDB and Grafana
JMeter webinar - integration with InfluxDB and GrafanaJMeter webinar - integration with InfluxDB and Grafana
JMeter webinar - integration with InfluxDB and Grafana
RTTS

When stars align: studies in data quality, knowledge graphs, and machine lear...
When stars align: studies in data quality, knowledge graphs, and machine lear...When stars align: studies in data quality, knowledge graphs, and machine lear...
When stars align: studies in data quality, knowledge graphs, and machine lear...
Elena Simperl


Recently uploaded (20)

FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdfFIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team

Generating a custom Ruby SDK for your web service or Rails API using Smithy
Generating a custom Ruby SDK for your web service or Rails API using SmithyGenerating a custom Ruby SDK for your web service or Rails API using Smithy
Generating a custom Ruby SDK for your web service or Rails API using Smithy

Essentials of Automations: Optimizing FME Workflows with Parameters
Essentials of Automations: Optimizing FME Workflows with ParametersEssentials of Automations: Optimizing FME Workflows with Parameters
Essentials of Automations: Optimizing FME Workflows with Parameters

Bits & Pixels using AI for Good.........
Bits & Pixels using AI for Good.........Bits & Pixels using AI for Good.........
Bits & Pixels using AI for Good.........

GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...
GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...
GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...

Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdfSmart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf

Connector Corner: Automate dynamic content and events by pushing a button
Connector Corner: Automate dynamic content and events by pushing a buttonConnector Corner: Automate dynamic content and events by pushing a button
Connector Corner: Automate dynamic content and events by pushing a button

Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024

Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...

From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...

De-mystifying Zero to One: Design Informed Techniques for Greenfield Innovati...
De-mystifying Zero to One: Design Informed Techniques for Greenfield Innovati...De-mystifying Zero to One: Design Informed Techniques for Greenfield Innovati...
De-mystifying Zero to One: Design Informed Techniques for Greenfield Innovati...

Mission to Decommission: Importance of Decommissioning Products to Increase E...
Mission to Decommission: Importance of Decommissioning Products to Increase E...Mission to Decommission: Importance of Decommissioning Products to Increase E...
Mission to Decommission: Importance of Decommissioning Products to Increase E...

State of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 previewState of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 preview

Key Trends Shaping the Future of Infrastructure.pdf
Key Trends Shaping the Future of Infrastructure.pdfKey Trends Shaping the Future of Infrastructure.pdf
Key Trends Shaping the Future of Infrastructure.pdf

Epistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI supportEpistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI support

Elevating Tactical DDD Patterns Through Object Calisthenics
Elevating Tactical DDD Patterns Through Object CalisthenicsElevating Tactical DDD Patterns Through Object Calisthenics
Elevating Tactical DDD Patterns Through Object Calisthenics

UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3

JMeter webinar - integration with InfluxDB and Grafana
JMeter webinar - integration with InfluxDB and GrafanaJMeter webinar - integration with InfluxDB and Grafana
JMeter webinar - integration with InfluxDB and Grafana

When stars align: studies in data quality, knowledge graphs, and machine lear...
When stars align: studies in data quality, knowledge graphs, and machine lear...When stars align: studies in data quality, knowledge graphs, and machine lear...
When stars align: studies in data quality, knowledge graphs, and machine lear...


Using Geoscript Groovy

  • 2. What is GeoScript? • Geospatial Swiss Army Knife • One scripting API Many Languages
  • 3. What is Groovy? • Yes, there is a language called Groovy • Dynamic JVM Language • Strong Java Integration • Closures, MetaProgramming, Scripting
  • 4. Uses • Scripts • Shell • Console • GeoServer • uDig • Apps (GeoScript as a Library)
  • 5. How do I install it? • Install Java • Install Groovy • Download GeoScript Groovy and put the bin directory on your path • https://github.com/jericks/geoscript-groovy/ releases
  • 6. How do I learn it? http://geoscript.org http://geoscript.org/groovy/api/
  • 7. Command line tools geoscript-groovy = run scripts geoscript-groovysh = interactive shell geoscript-groovyConsole = mini ide !
  • 8. Inline Scripts (geoscript-groovy) geoscript-groovy -e "println new geoscript.layer.Shapefile('states.shp').toJSONString()" | mapfart ! geoscript-groovy -e "println new geoscript.layer.Shapefile('states.shp').bounds.geometry" ! geoscript-groovy -e "println new geoscript.layer.Shapefile('states.shp').count"
  • 9. Inline Scripts (geoscript-groovy) geoscript-groovy -e "geoscript.render.Draw.draw(new geoscript.layer.Shapefile('states.shp'), out: 'image.png')" ! geoscript-groovy -e "new geoscript.layer.Shapefile('states.shp').eachFeature{ println it.geom.centroid}" | geom combine | geom buffer -d 1.5 ! echo "POINT (1 1)" | geom buffer -d 10 | geoscriptgroovy -e "println geoscript.geom.Geometry.fromWKT(System.in.text).kml"
  • 10. Inline Scripts (geoscript-groovy) • One liners • Interact with other command line tools • geom, mapfart, ogr, ect… • Read Standard Input (System.in.text) • Write to Standard Output (println)
  • 11. Scripts web.groovy (geoscript-groovy) 1 import com.sun.grizzly.http.embed.GrizzlyWebServer! 2 import com.sun.grizzly.http.servlet.ServletAdapter! 3 ! 4 @Grab(group='com.sun.grizzly', module='grizzly-servlet-webserver', version='1.9.10')! 5 def start() {! 6 println("Starting web server...")! 7 def server = new GrizzlyWebServer(8080, "web")! 8 def servlet = new ServletAdapter()! 9 servlet.contextPath = "/geoscript"! 10 servlet.servletInstance = new groovy.servlet.GroovyServlet()! 11 server.addGrizzlyAdapter(servlet, ["/geoscript"] as String[])! 12 server.start()! 13 }! 14 start()
  • 12. Scripts (geoscript-groovy) web/buffer.groovy 1 2 3 4 5 import geoscript.geom.*! ! def geom = Geometry.fromWKT(request.getParameter("geom"))! def distance = request.getParameter("d") as double! println(geom.buffer(distance).wkt) web/draw.groovy 1 2 3 4 5 6 7 import geoscript.geom.*! import geoscript.viewer.Viewer! ! def geom = Geometry.fromWKT(request.getParameter("geom"))! def image = Viewer.drawToImage(geom, size: [400, 400])! response.contentType = "image/png"! javax.imageio.ImageIO.write(image, "png", response.outputStream)
  • 13. Scripts (groovy) 1 2 3 4 5 6 7 @GrabResolver(name="opengeo", root="http://repo.opengeo.org")! @Grab("org.geoscript:geoscript-groovy:1.1")! import geoscript.geom.Point! ! p = new Point(1,1)! println p.geoJSON! • Use GeoScript without installing GeoScript • Just need Java and Groovy • @GrabResolver and @Grab can download dependencies
  • 14. Scripts (geoscript-groovy) • Larger multiline scripts • Good for complex processing • Record your workflow • Can create command line tools, web services, or desktop apps • Use @Grab to get dependencies
  • 15. Shell (geoscript-groovysh) Groovy Shell (2.1.9, JVM: 1.7.0_45) Type 'help' or 'h' for help. ------------------------------------------------------------------------------- groovy:000> import geoscript.workspace.PostGIS ===> [import geoscript.workspace.PostGIS] groovy:000> postgis = new PostGIS("states",user: "jericks") ===> geoscript.workspace.PostGIS@7840df80 groovy:000> postgis.layers ===> [states] groovy:000> states = postgis.get("states") ===> states groovy:000> states.bounds ===> (-124.731422,24.955967,-66.969849,49.371735,EPSG:4326) groovy:000> states.count ===> 49 groovy:000> states.eachFeature{ println it.geom.centroid } POINT (-89.20368628698026 40.06397152717181) POINT (-77.01592888814594 38.90248929357207) POINT (-75.50090936853277 38.994999876971384) POINT (-80.61424804312078 38.64111336139042)
  • 16. Shell (geoscript-groovysh) groovy:000> states.schema.fields ===> [the_geom: MultiPolygon(EPSG:4326), STATE_NAME: String, STATE_FIPS: String, SUB_REGION: String, STATE_ABBR: String, LAND_KM: Double, WATER_KM: Double, PERSONS: Double, FAMILIES: Double, HOUSHOLD: Double, MALE: Double, FEMALE: Double, WORKERS: Double, DRVALONE: Double, CARPOOL: Double, PUBTRANS: Double, EMPLOYED: Double, UNEMPLOY: Double, SERVICE: Double, MANUAL: Double, P_MALE: Double, P_FEMALE: Double, SAMP_POP: Double] groovy:000> state_centroids = states.transform("state_centroids", [the_geom: "centroid(the_geom)", name: "STATE_NAME", abbreviation: "STATE_ABBR"]) ===> state_centroids groovy:000> state_centroids.count ===> 49 groovy:000> postgis ===> geoscript.workspace.PostGIS@7840df80 groovy:000> postgis.add(state_centroids) ===> state_centroids groovy:000> postgis.names ===> [state_centroids, states] groovy:000> postgis["state_centroids"].schema ===> state_centroids the_geom: Point(EPSG:4326), name: String, abbreviation: String
  • 17. Shell (geoscript-groovysh) • Good for trying things out • Interact and explore all things geospatial
  • 21. Console • Good for longer scripts (but not too long) • Excellent preview (View -> Visualize Script Results) • Use it when rendering images, maps, geometries
  • 22. uDig
  • 23. uDig • • • Done by Andrea Antonello and the UDig crew • http://prezi.com/wyopic4sinhg/geographic-scripting-inudig-user-friendly-desktop-internet-gis/ Part of the Spatial Toolbox http://udig.github.io/docs/user/getting_started/GeoScript %20Introduction.html • http://www.slideshare.net/moovida/04-geographic- scripting-in-udig-halfway-between-user-and-developer
  • 24. GeoServer • Web services • Web Processing Services (WPS) • Filter Functions (used in SLDs for styling your maps) • Download groovy plugin from http:// ares.opengeo.org/geoserver/2.4.x/community-latest/ • Extract jars to geoserver/WEB-INF/lib • http://www.slideshare.net/JaredErickson/scriptinggeoserver
  • 25. GeoServer $DATA_DIR/scripts/wps/buffer.groovy 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 import geoscript.geom.Geometry! ! title = 'Buffer'! description = 'Buffers a geometry'! ! inputs = [! geom: [name: 'geom', title: 'The geometry to buffer', type: Geometry.class],! distance: [name: 'distance', title: 'The buffer distance', type: Double.class]! ]! ! outputs = [! result: [name: 'result', title: 'The buffered geometry', type: Geometry.class]! ]! ! def run(input) {! [result: input.geom.buffer(input.distance as double)]! }!
  • 27. As a library Geoscript is just another jar <repositories>! <repository>! <id>opengeo</id>! <name>OpenGeo Maven Repository</name>! <url>http://repo.opengeo.org</url>! <snapshots>! <enabled>true</enabled>! </snapshots>! </repository>! </repositories> <dependency>! <groupId>org.geoscript</groupId>! <artifactId>geoscript-groovy</artifactId>! <version>1.2</version>! </dependency>
  • 28. Gradle - App $ mkdir geo-gradle $ cd geo-gradle/ $ touch build.gradle $ vi build.gradle $ mkdir -p src/main/groovy/org/jce/geo $ touch src/main/groovy/org/jce/geo/App.groovy $ vi src/main/groovy/org/jce/geo/App.groovy $ gradle build
  • 29. Gradle - build.gradle 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 apply plugin: "groovy"! apply plugin: "application"! ! version = 0.1! mainClassName = "org.jce.geo.App"! ! repositories {! maven {! url "http://repo.opengeo.org"! }! maven {! url "http://download.osgeo.org/webdav/geotools/"! }! mavenCentral()! }! ! dependencies {! compile "org.codehaus.groovy:groovy-all:2.1.9"! compile "org.geoscript:geoscript-groovy:1.2"! }
  • 30. Gradle - Code src/main/groovy/org/jce/geo/App.groovy 1 2 3 4 5 6 7 8 9 10 11 12 13 14 package org.jce.geo! ! import geoscript.geom.Geometry! import geoscript.proj.Projection! ! class App {! static void main(String[] args) {! Geometry geom = Geometry.fromString(args[0])! Projection fromProj = new Projection(args[1])! Projection toProj = new Projection(args[2])! Geometry transformedGeom = fromProj.transform(geom, toProj)! println transformedGeom.wkt! }! }
  • 31. Using GeoScript Groovy Functionality • Geometry • Projection • Layer • Raster • Style • Render Usages • Scripts • Shell • Console • GeoServer • uDig • Apps
