1. Using and Extending the
Alfresco Content App
Denys Vuika
ACA Tech Lead and ADF developer
@DenysVuika

2. Introduction

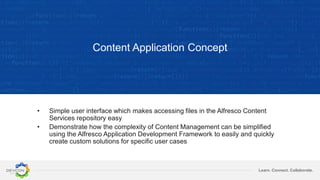

3. Learn. Connect. Collaborate.

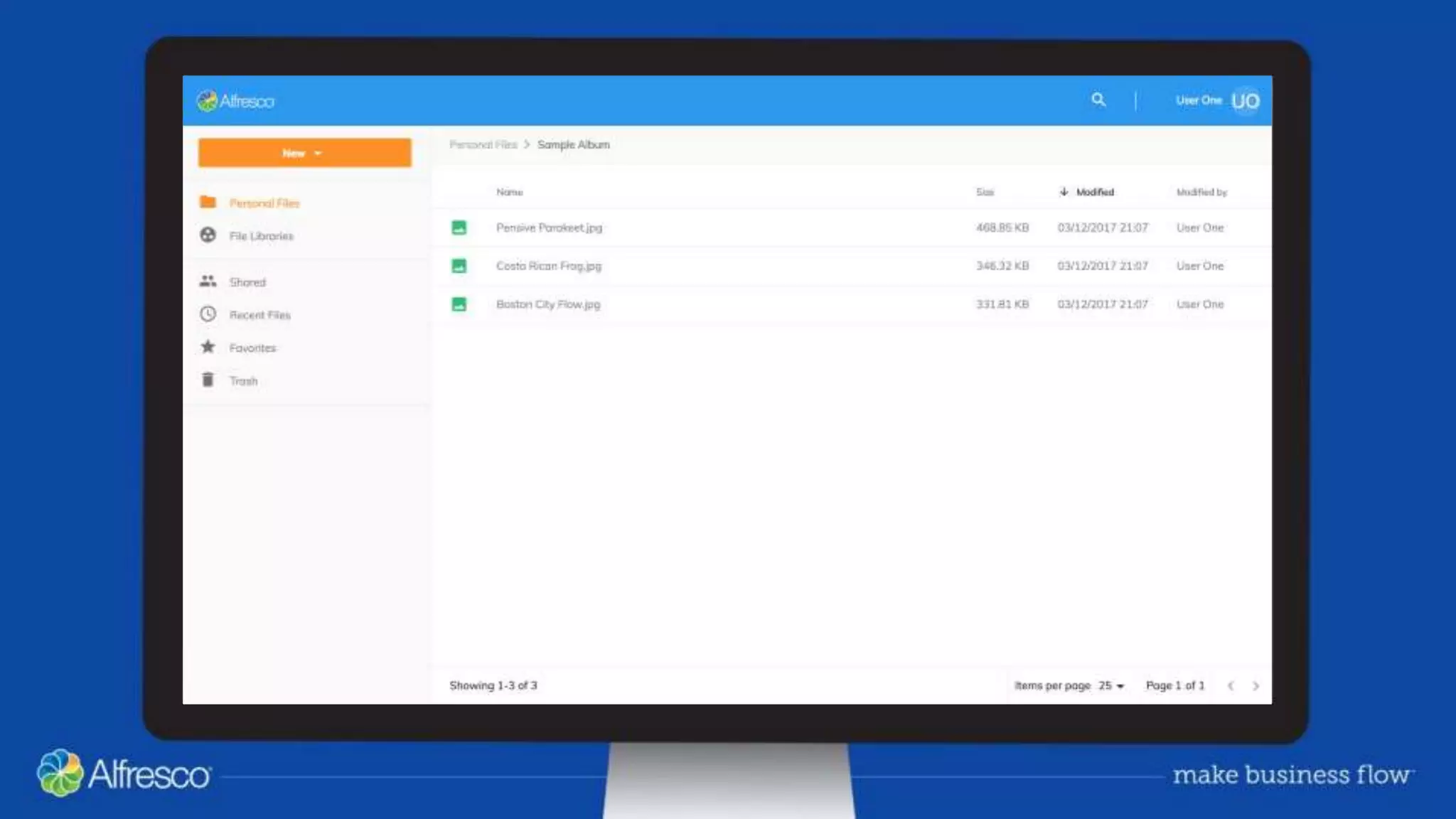

Content Application Concept
• Simple user interface which makes accessing files in the Alfresco Content
Services repository easy
• Demonstrate how the complexity of Content Management can be simplified
using the Alfresco Application Development Framework to easily and quickly
create custom solutions for specific user cases

5. Learn. Connect. Collaborate.

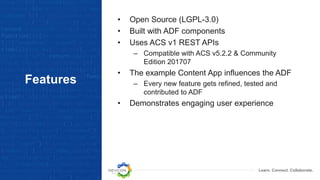

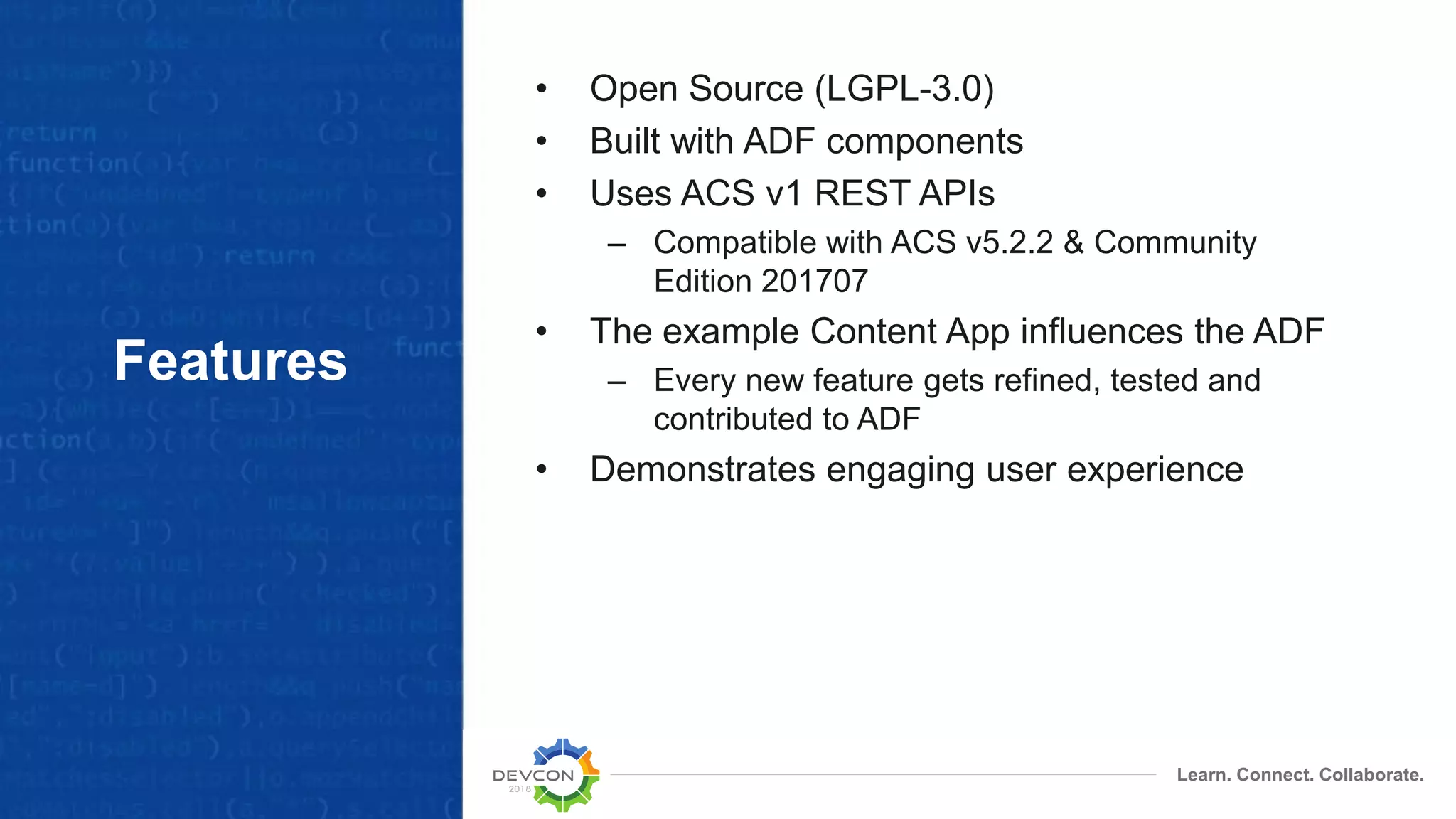

Features
• Open Source (LGPL-3.0)
• Built with ADF components
• Uses ACS v1 REST APIs
– Compatible with ACS v5.2.2 & Community
Edition 201707
• The example Content App influences the ADF
– Every new feature gets refined, tested and
contributed to ADF
• Demonstrates engaging user experience

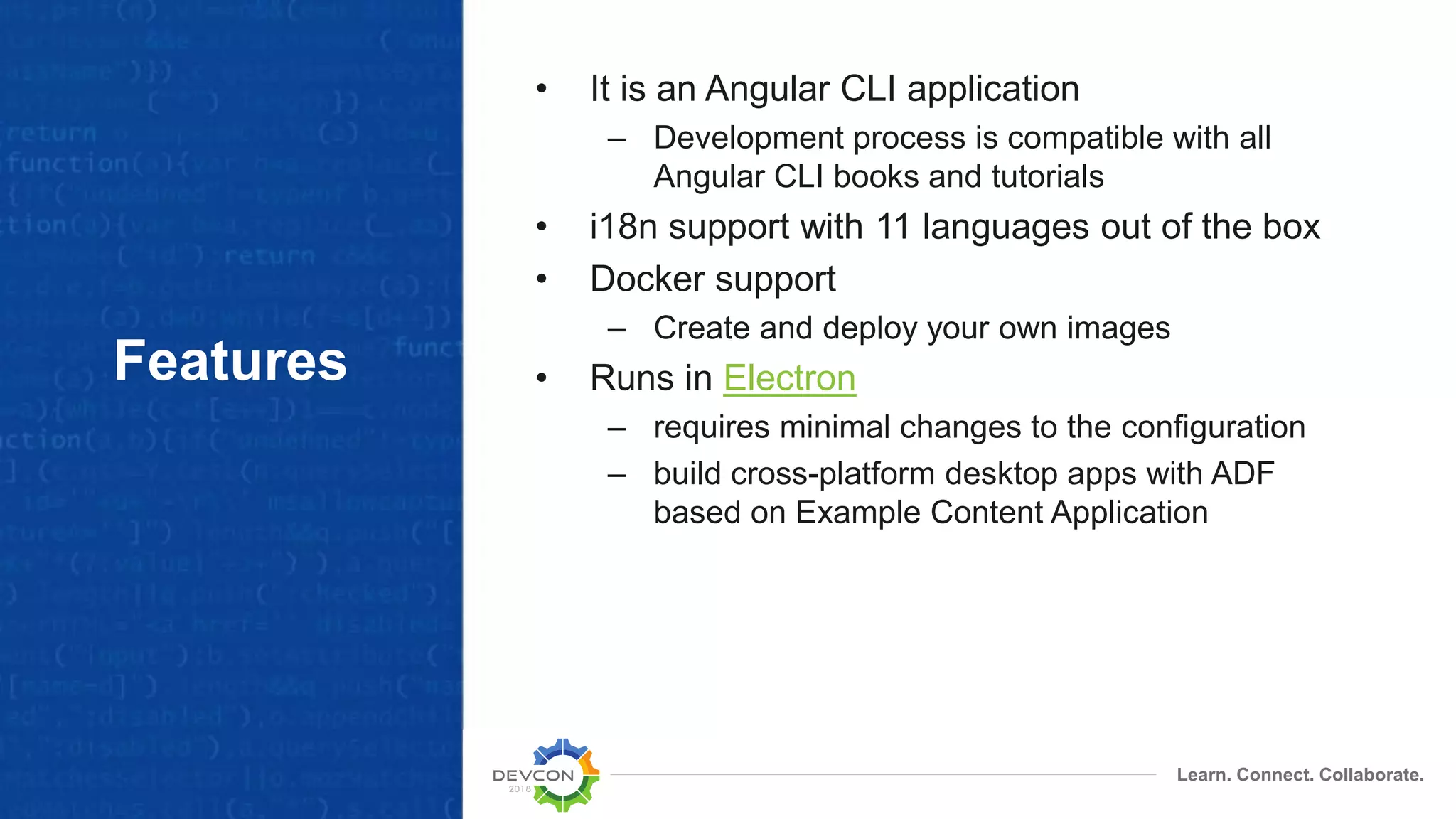

6. Learn. Connect. Collaborate.
Features
• It is an Angular CLI application
– Development process is compatible with all
Angular CLI books and tutorials
• i18n support with 11 languages out of the box
• Docker support
– Create and deploy your own images
• Runs in Electron
– requires minimal changes to the configuration
– build cross-platform desktop apps with ADF
based on Example Content Application

7. Getting Started

8. Learn. Connect. Collaborate.

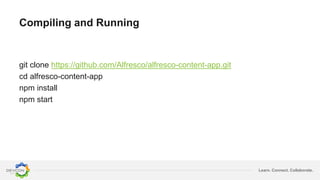

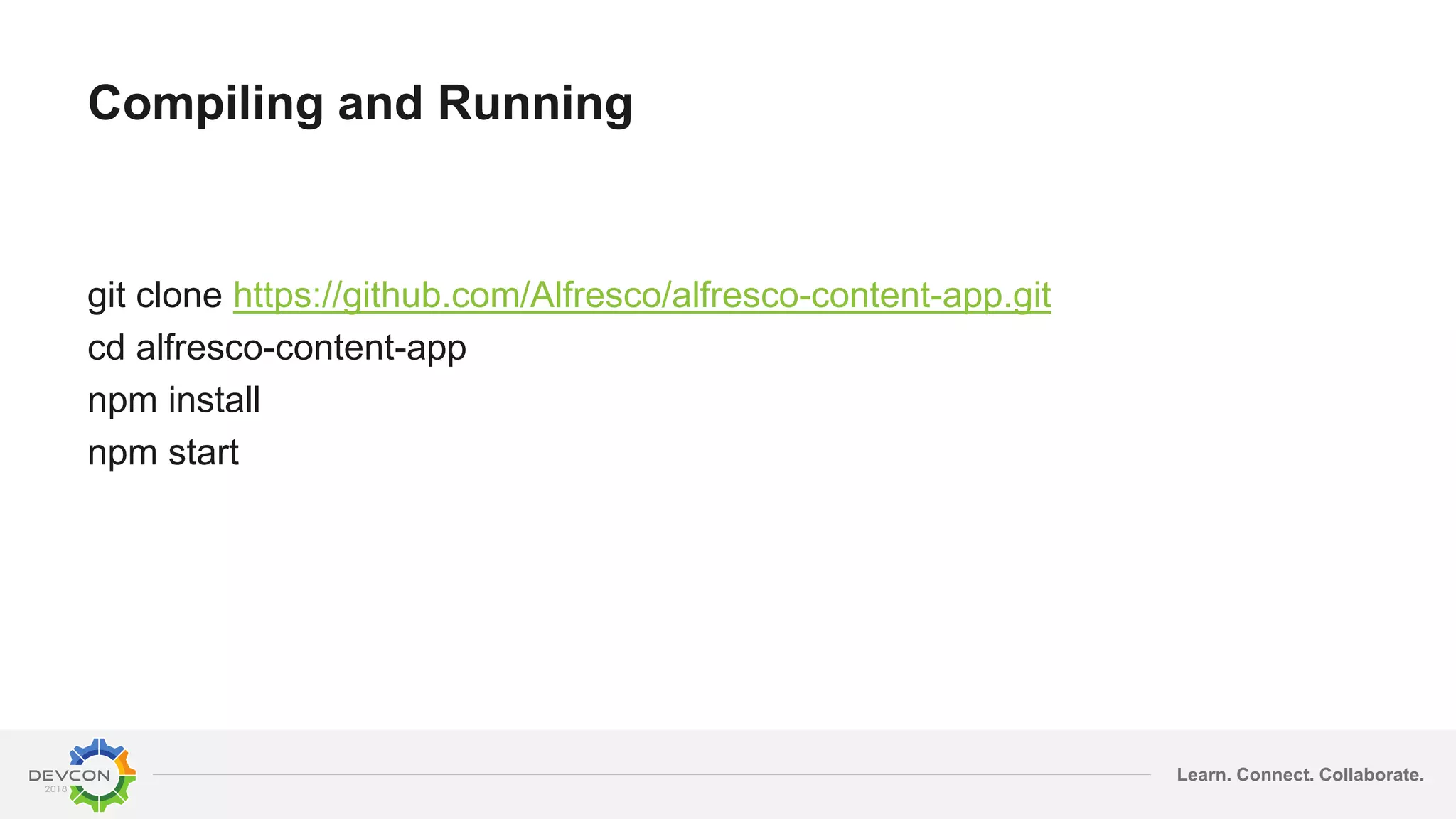

Compiling and Running
git clone https://github.com/Alfresco/alfresco-content-app.git
cd alfresco-content-app
npm install
npm start

9. Learn. Connect. Collaborate.

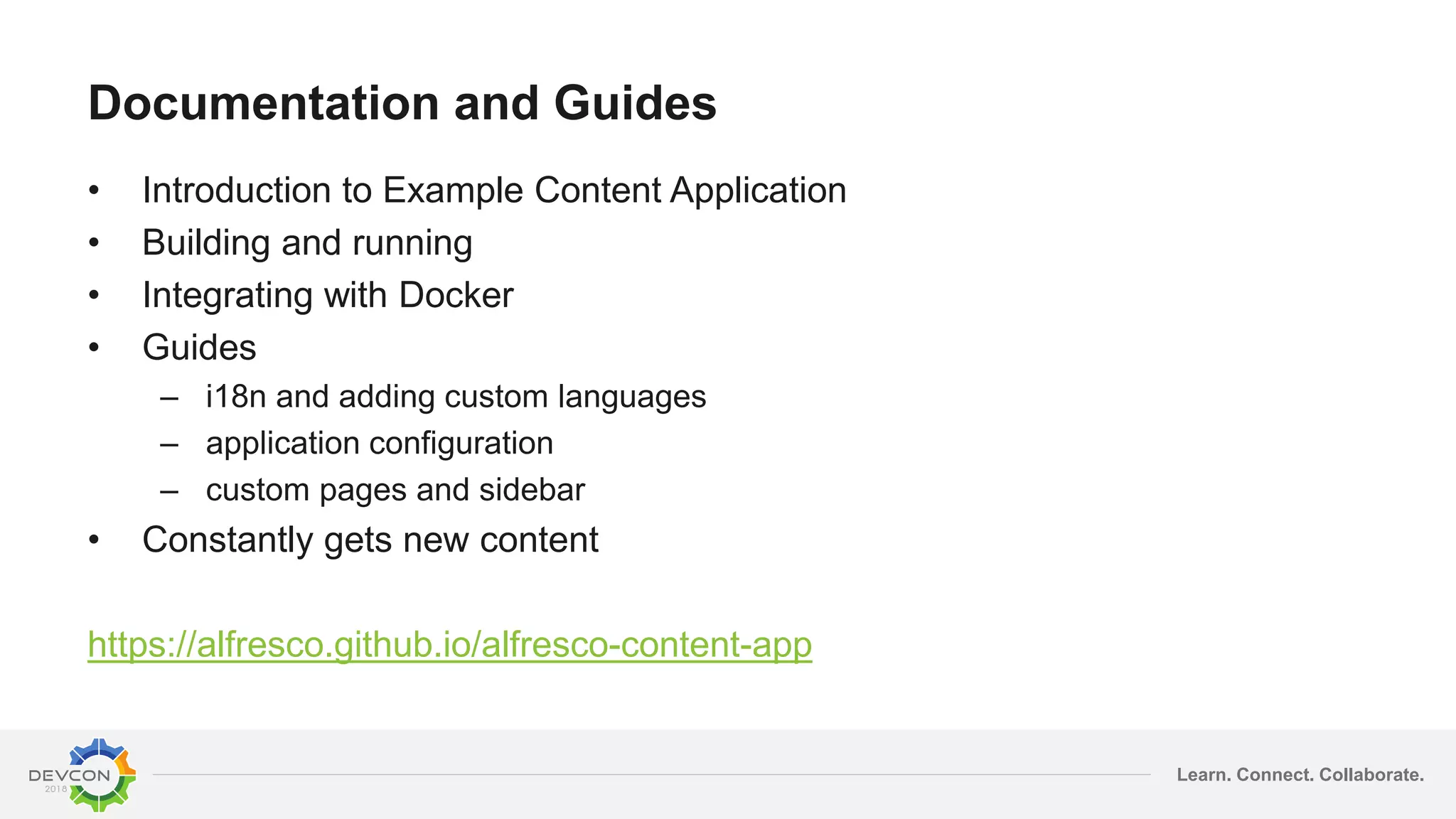

Documentation and Guides
• Introduction to Example Content Application
• Building and running
• Integrating with Docker
• Guides
– i18n and adding custom languages
– application configuration
– custom pages and sidebar
• Constantly gets new content
https://alfresco.github.io/alfresco-content-app

10. Demo

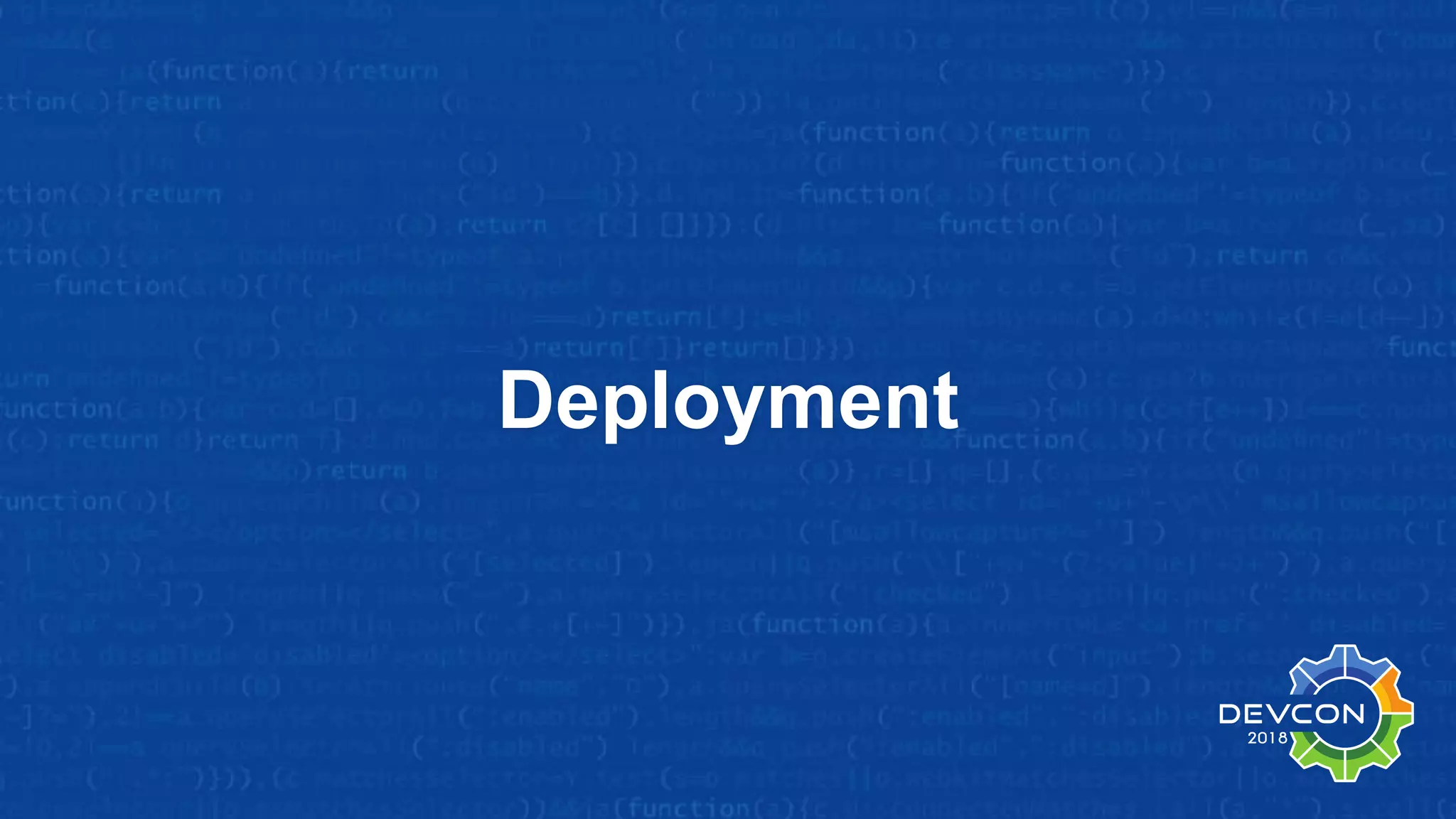

11. Deployment

12. Learn. Connect. Collaborate.

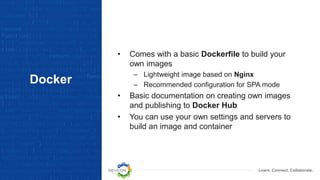

Docker
• Comes with a basic Dockerfile to build your
own images
– Lightweight image based on Nginx
– Recommended configuration for SPA mode
• Basic documentation on creating own images
and publishing to Docker Hub
• You can use your own settings and servers to
build an image and container

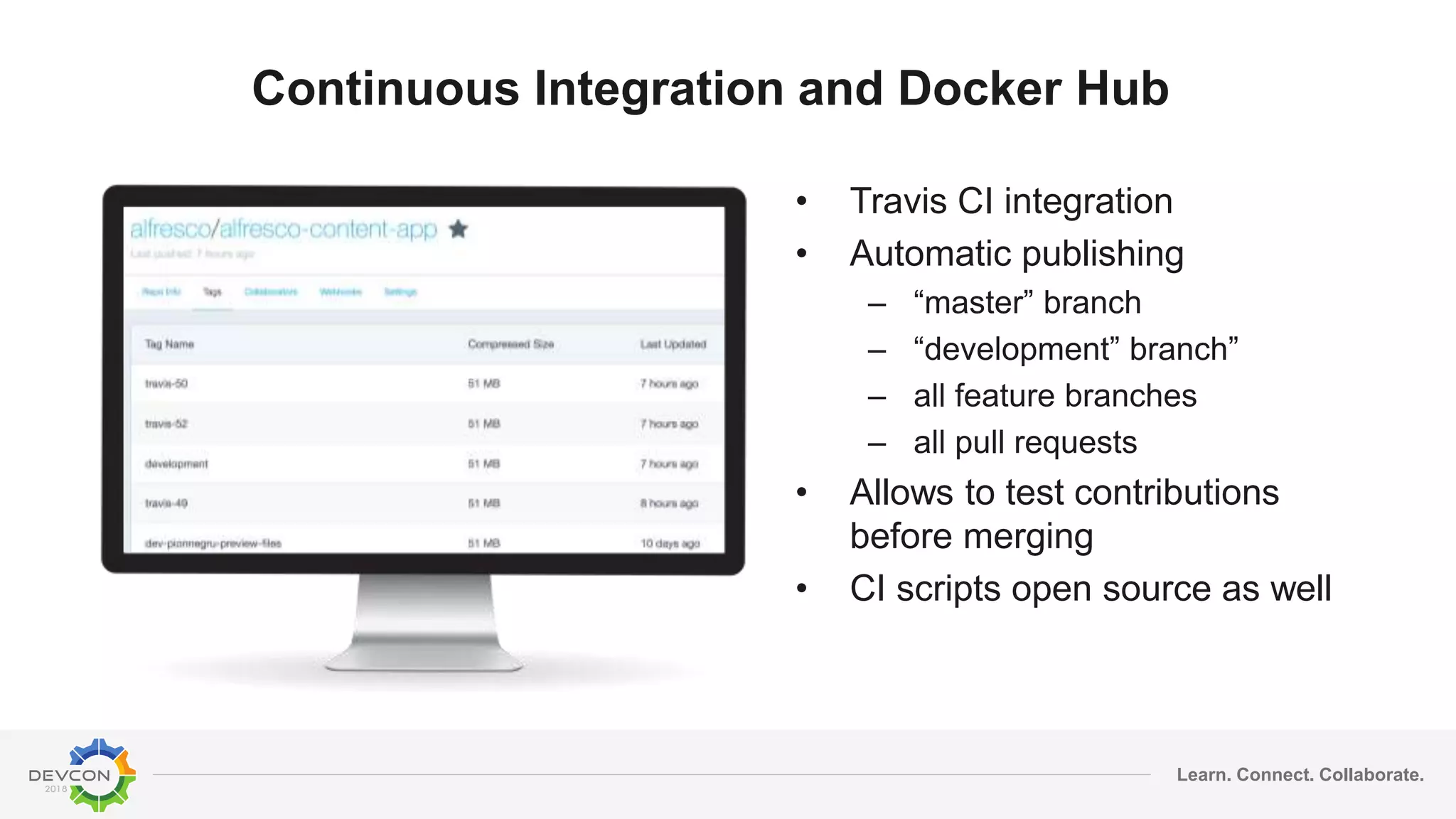

13. Learn. Connect. Collaborate.
• Travis CI integration
• Automatic publishing
– “master” branch
– “development” branch”
– all feature branches
– all pull requests
• Allows to test contributions
before merging
• CI scripts open source as well
Continuous Integration and Docker Hub

14. Community Edition?

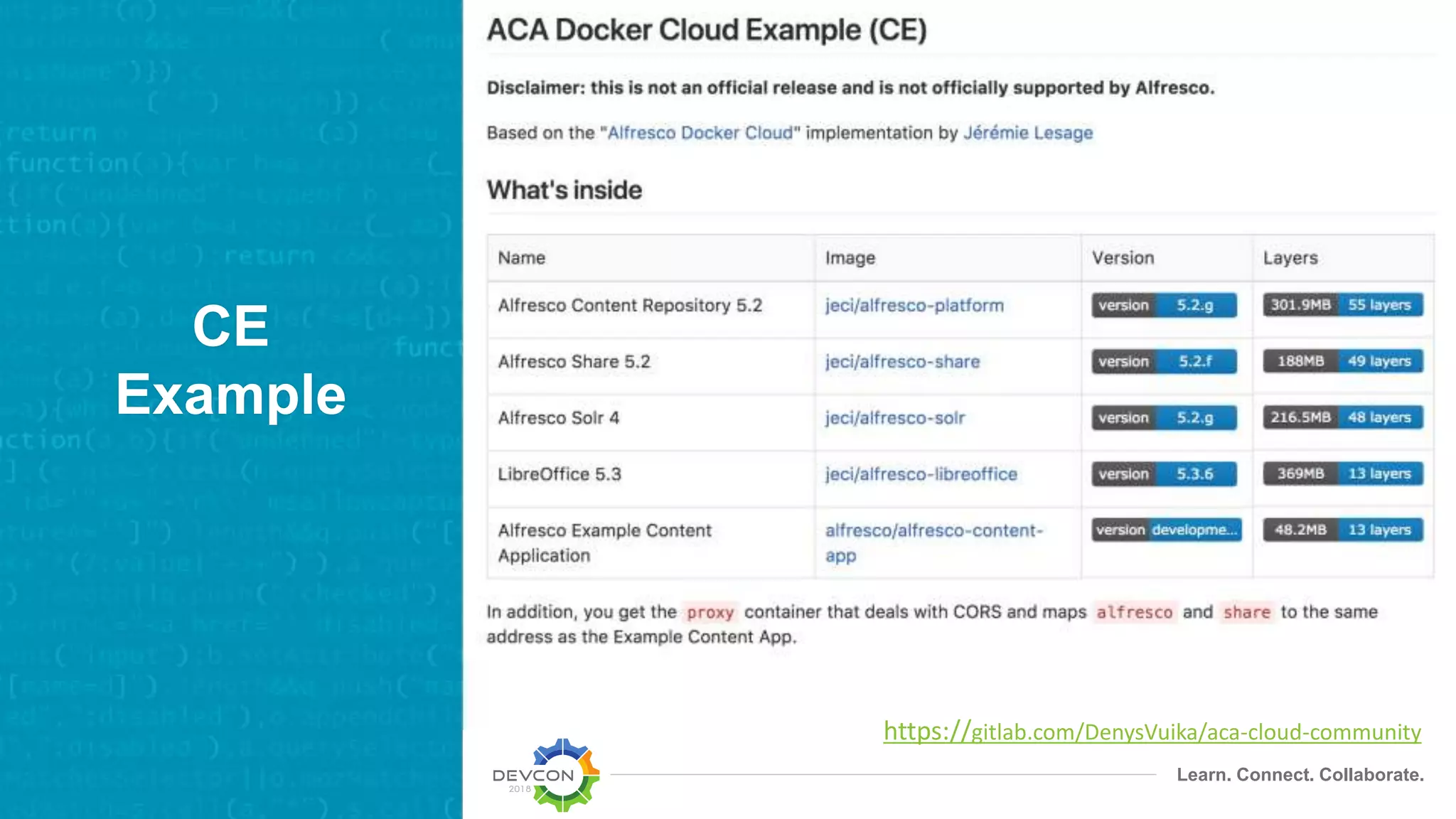

15. Learn. Connect. Collaborate.
CE
Example
https://gitlab.com/DenysVuika/aca-cloud-community

16. Learn. Connect. Collaborate.

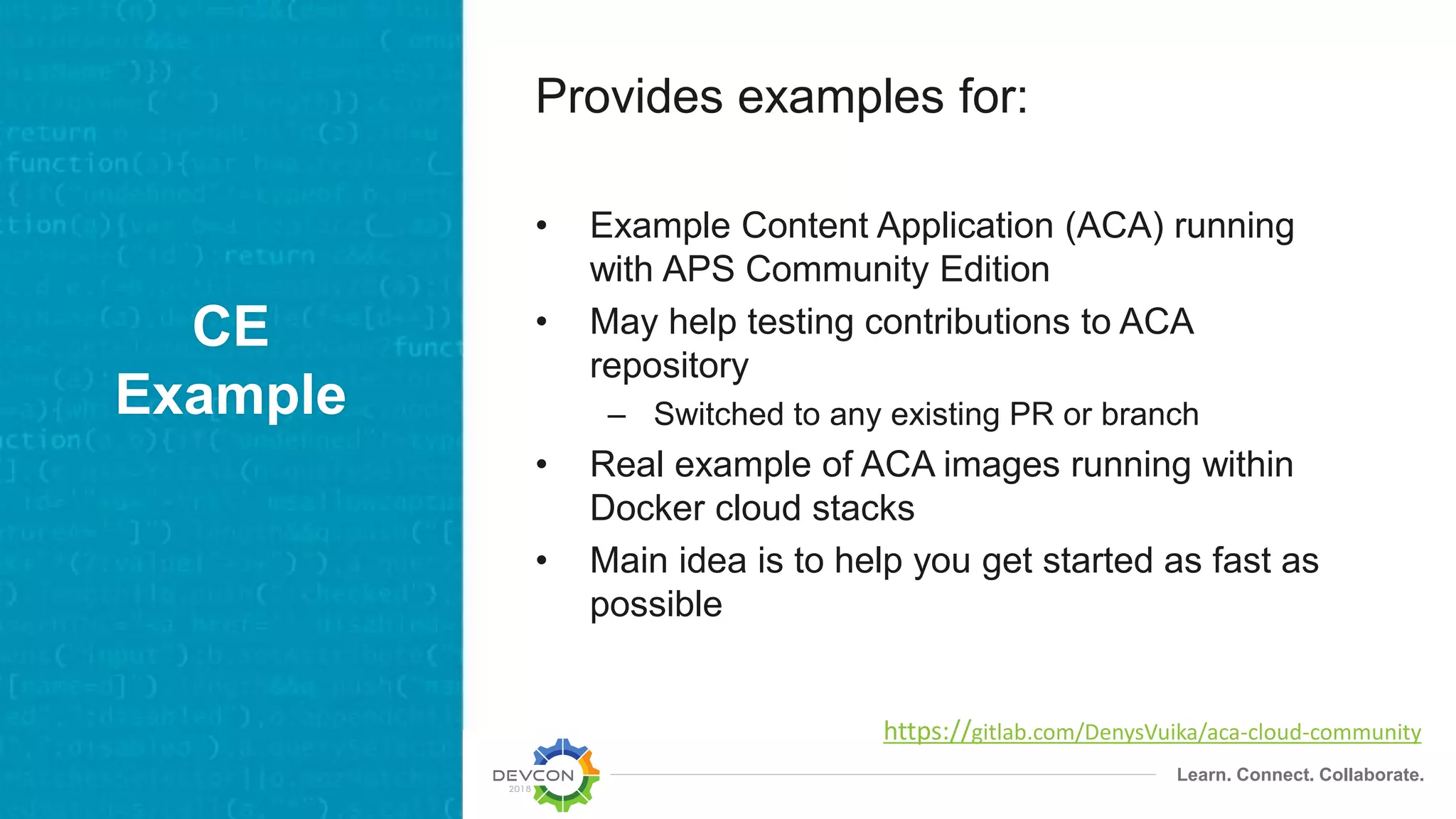

CE
Example
Provides examples for:
• Example Content Application (ACA) running
with APS Community Edition
• May help testing contributions to ACA
repository
– Switched to any existing PR or branch
• Real example of ACA images running within
Docker cloud stacks
• Main idea is to help you get started as fast as
possible
https://gitlab.com/DenysVuika/aca-cloud-community

17. Sidebar

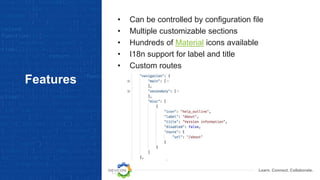

18. Learn. Connect. Collaborate.
Features
• Can be controlled by configuration file
• Multiple customizable sections
• Hundreds of Material icons available
• I18n support for label and title
• Custom routes

19. Learn. Connect. Collaborate.

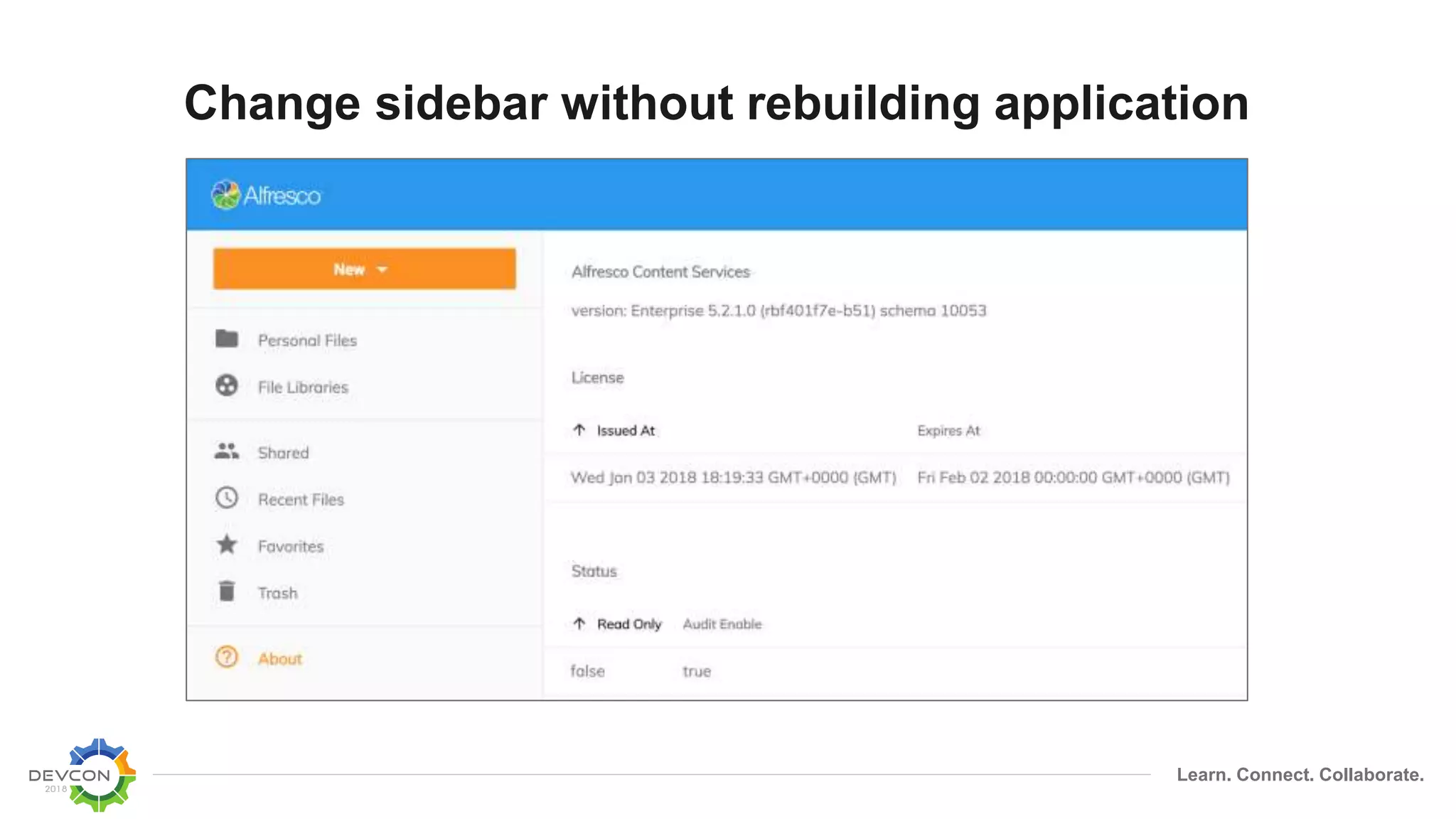

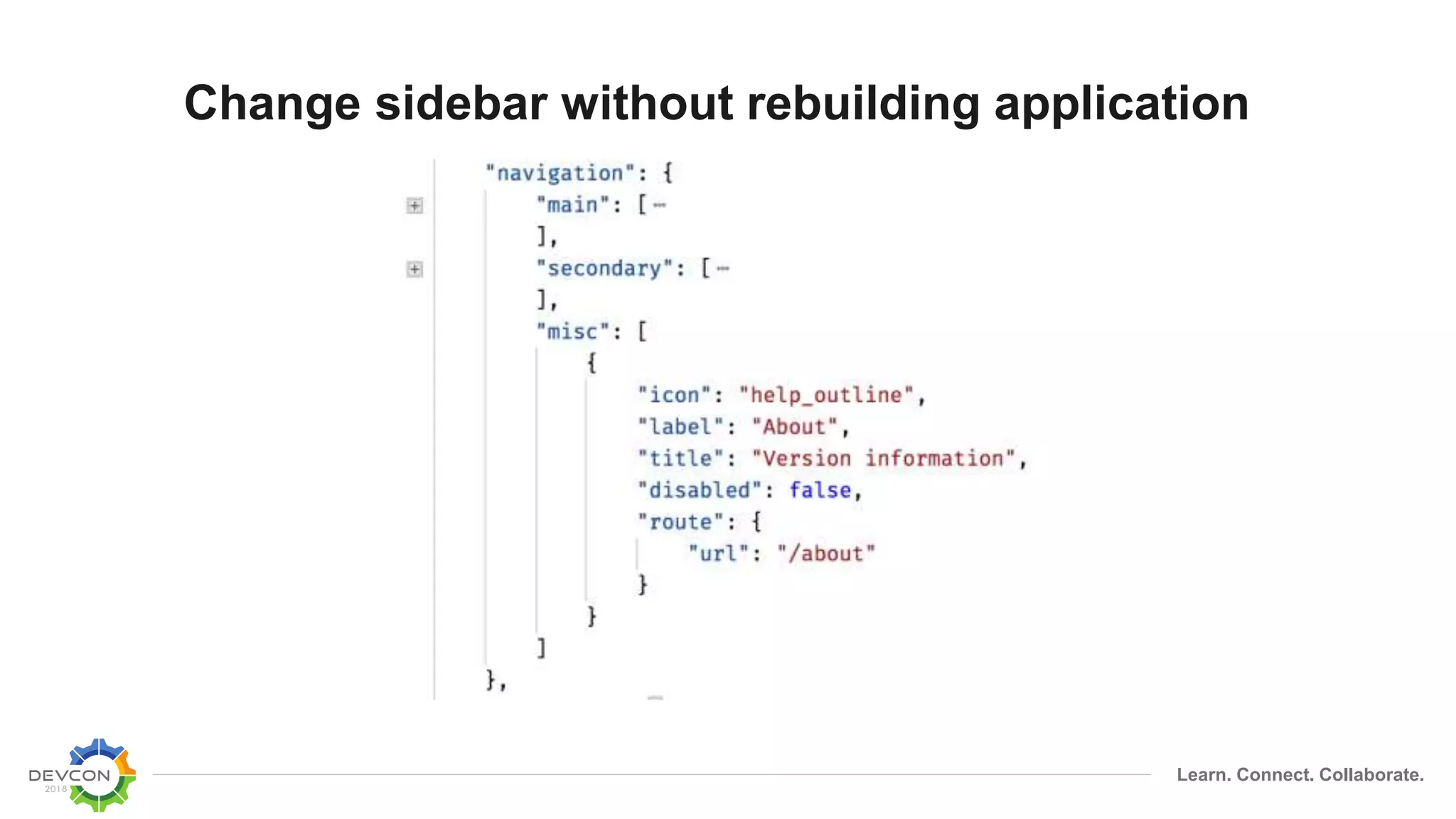

Change sidebar without rebuilding application

20. Learn. Connect. Collaborate.
Change sidebar without rebuilding application

21. Quick Demo

22. Navigation

23. Learn. Connect. Collaborate.

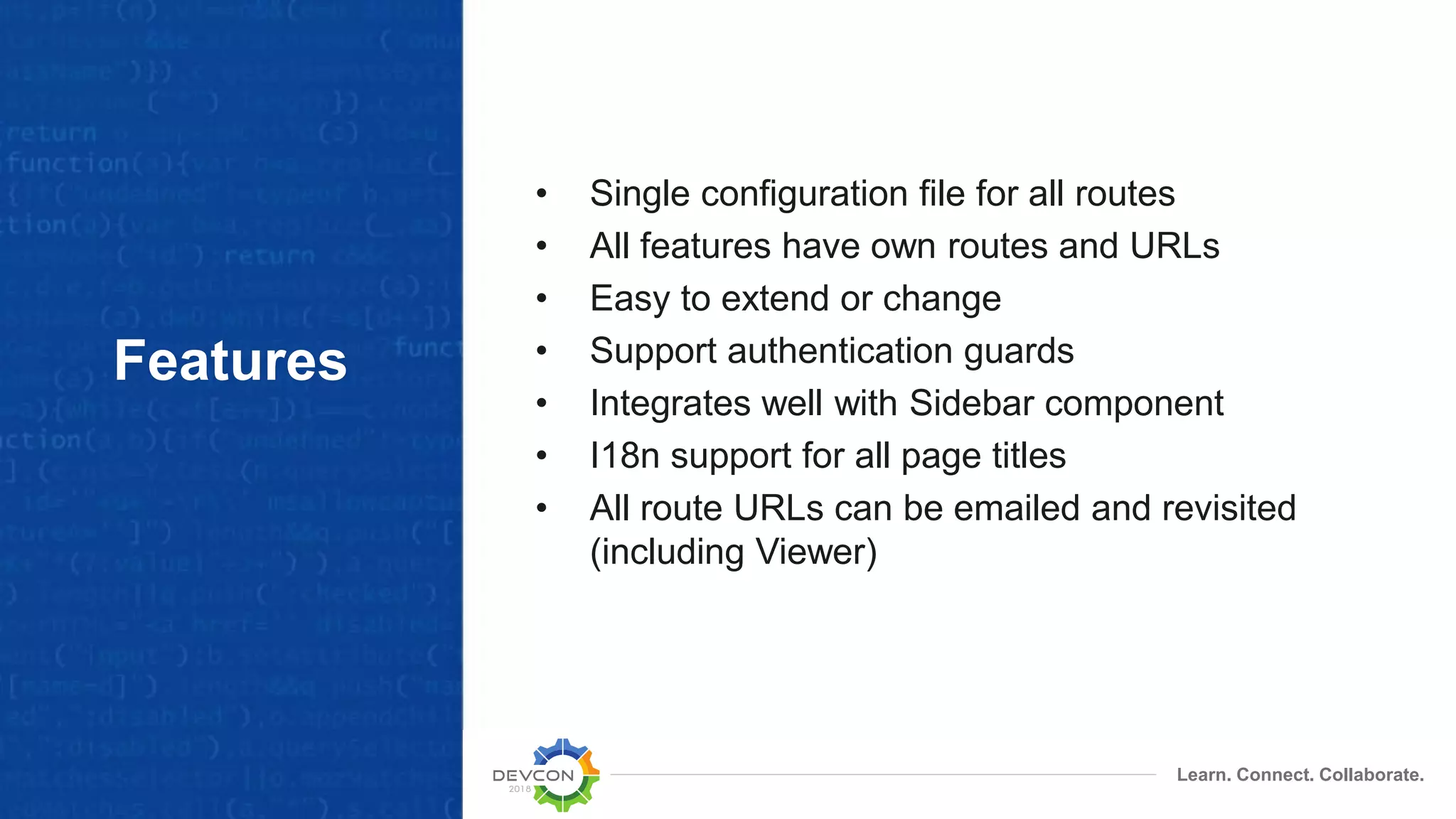

Features
• Single configuration file for all routes
• All features have own routes and URLs
• Easy to extend or change
• Support authentication guards
• Integrates well with Sidebar component
• I18n support for all page titles
• All route URLs can be emailed and revisited
(including Viewer)

24. Learn. Connect. Collaborate.

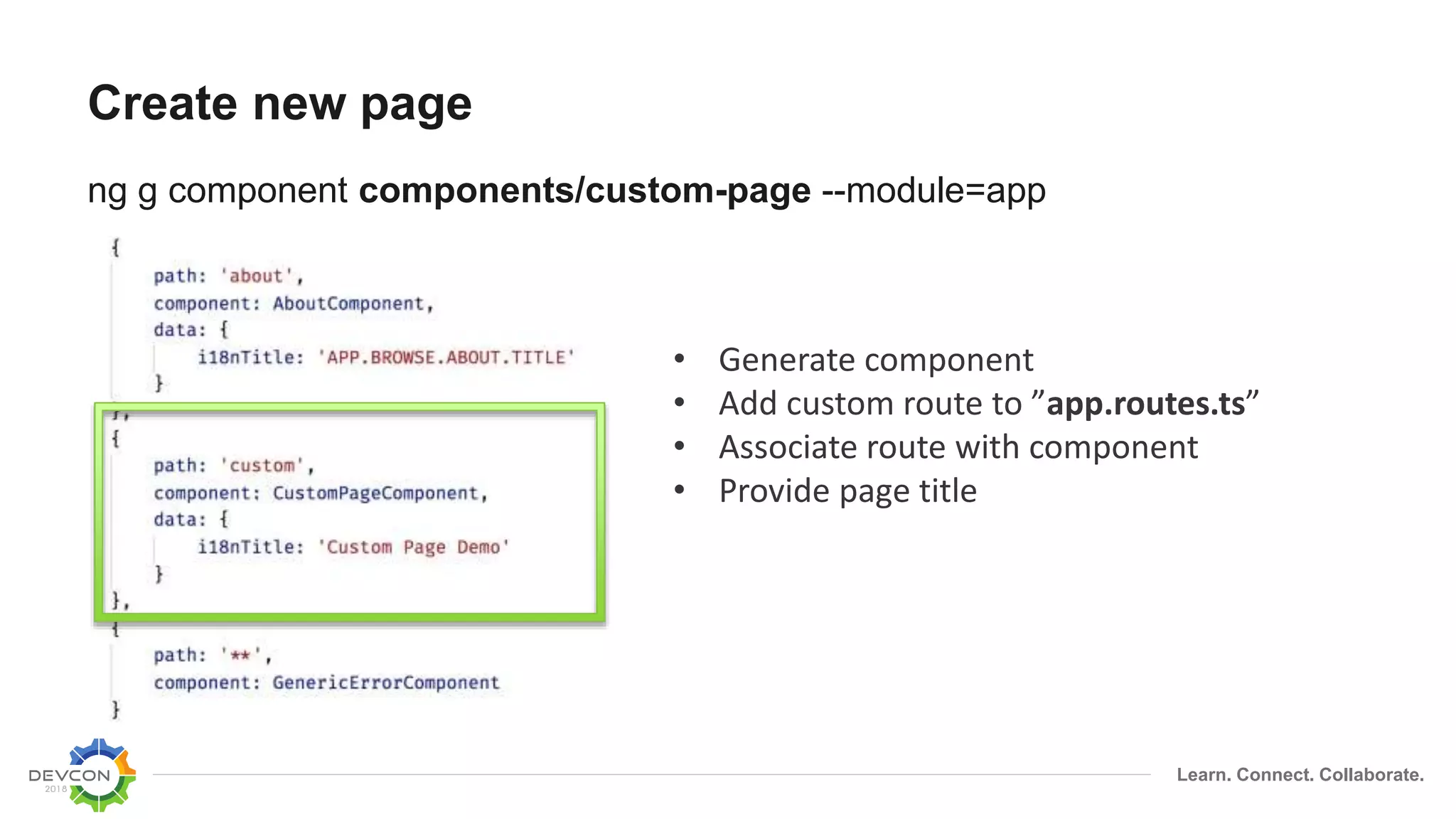

Create new page
ng g component components/custom-page --module=app
• Generate component
• Add custom route to ”app.routes.ts”
• Associate route with component
• Provide page title

25. Learn. Connect. Collaborate.

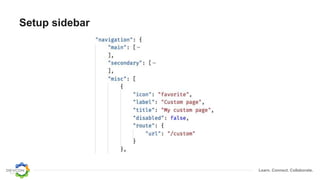

Setup sidebar

26. Learn. Connect. Collaborate.

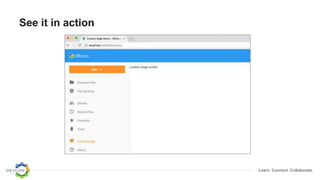

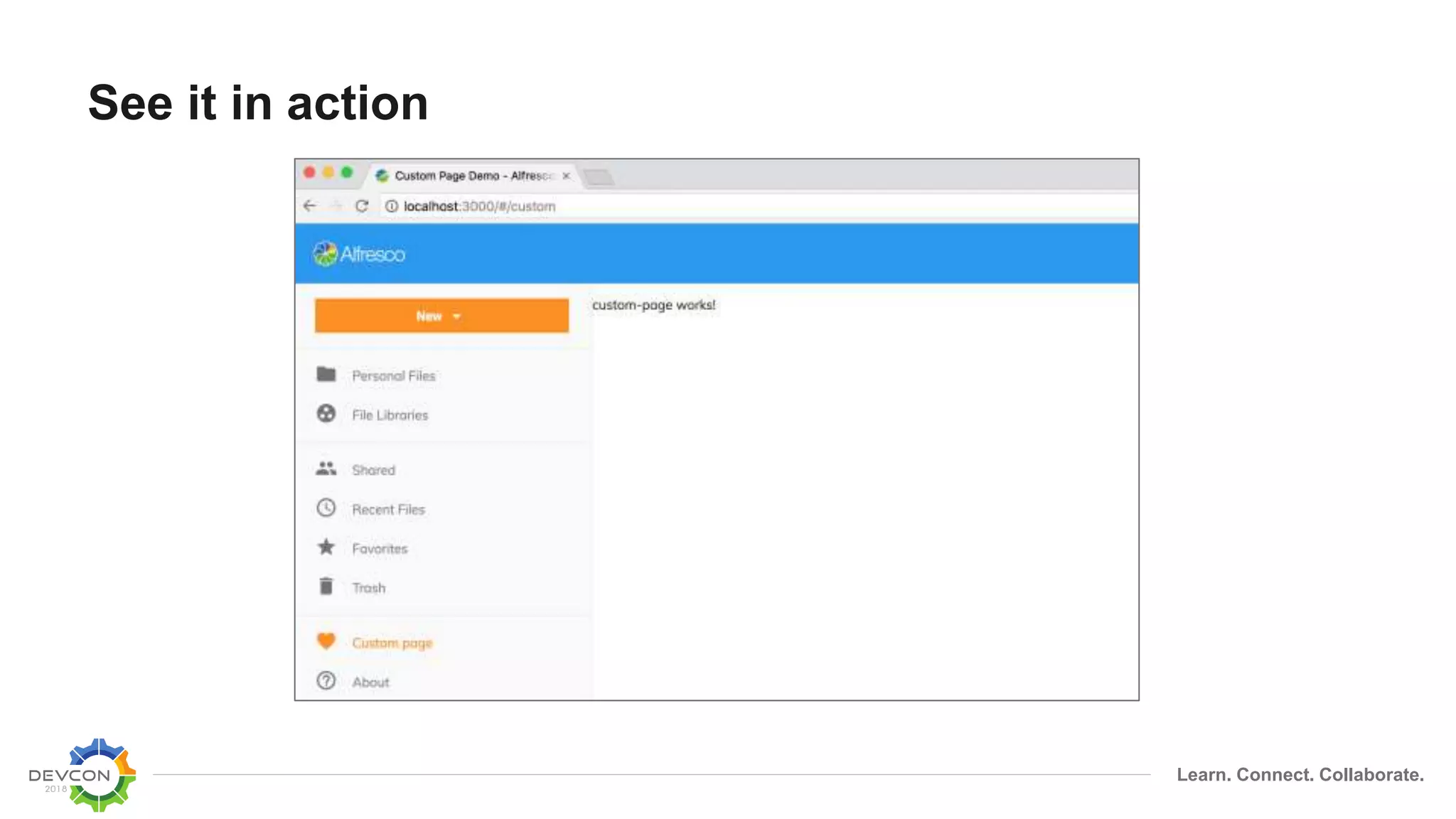

See it in action

27. Quick Demo

28. Extending Viewer

29. Learn. Connect. Collaborate.

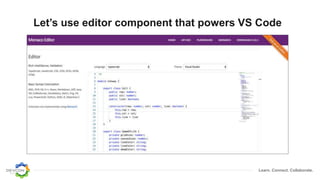

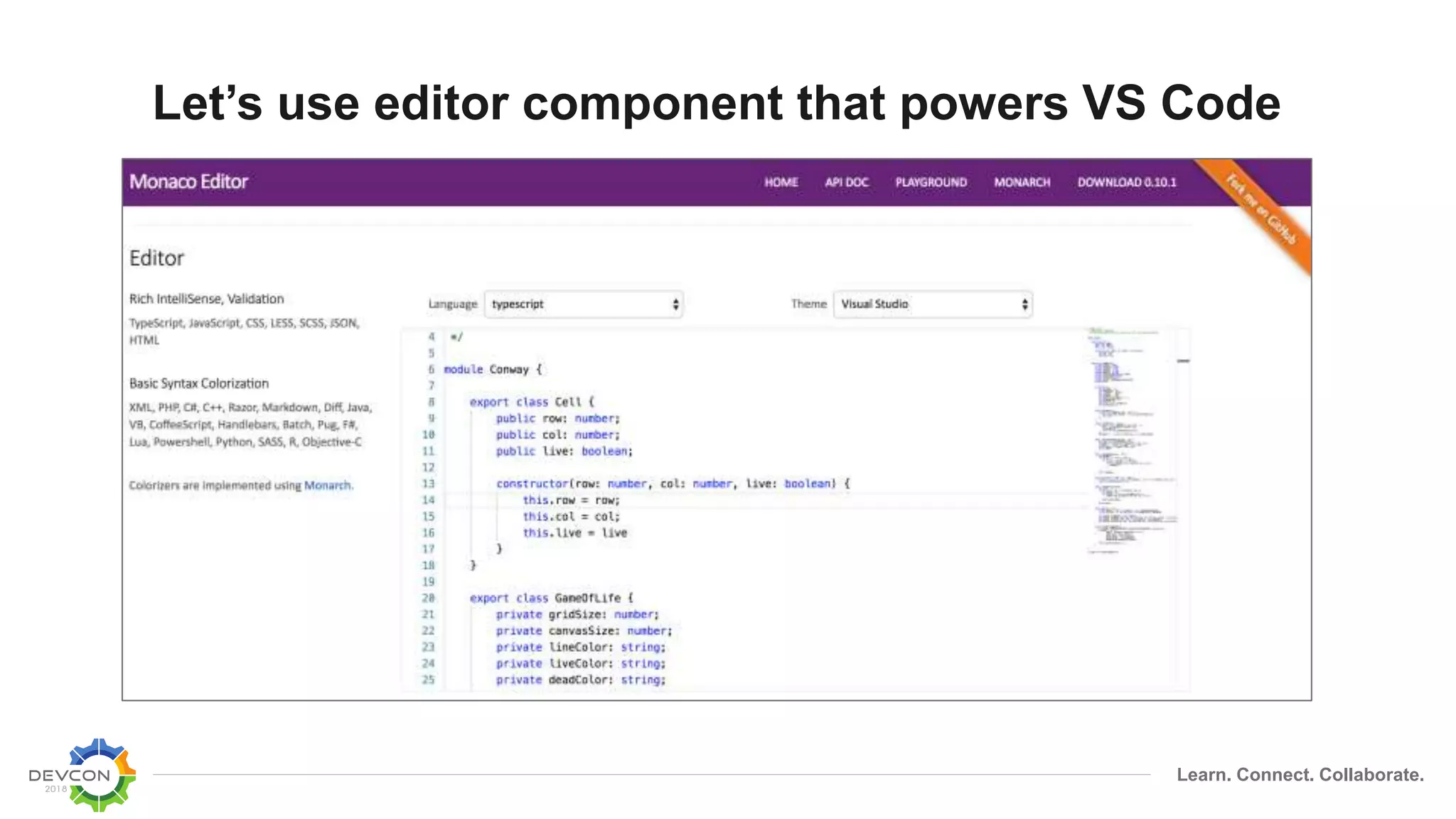

Let’s use editor component that powers VS Code

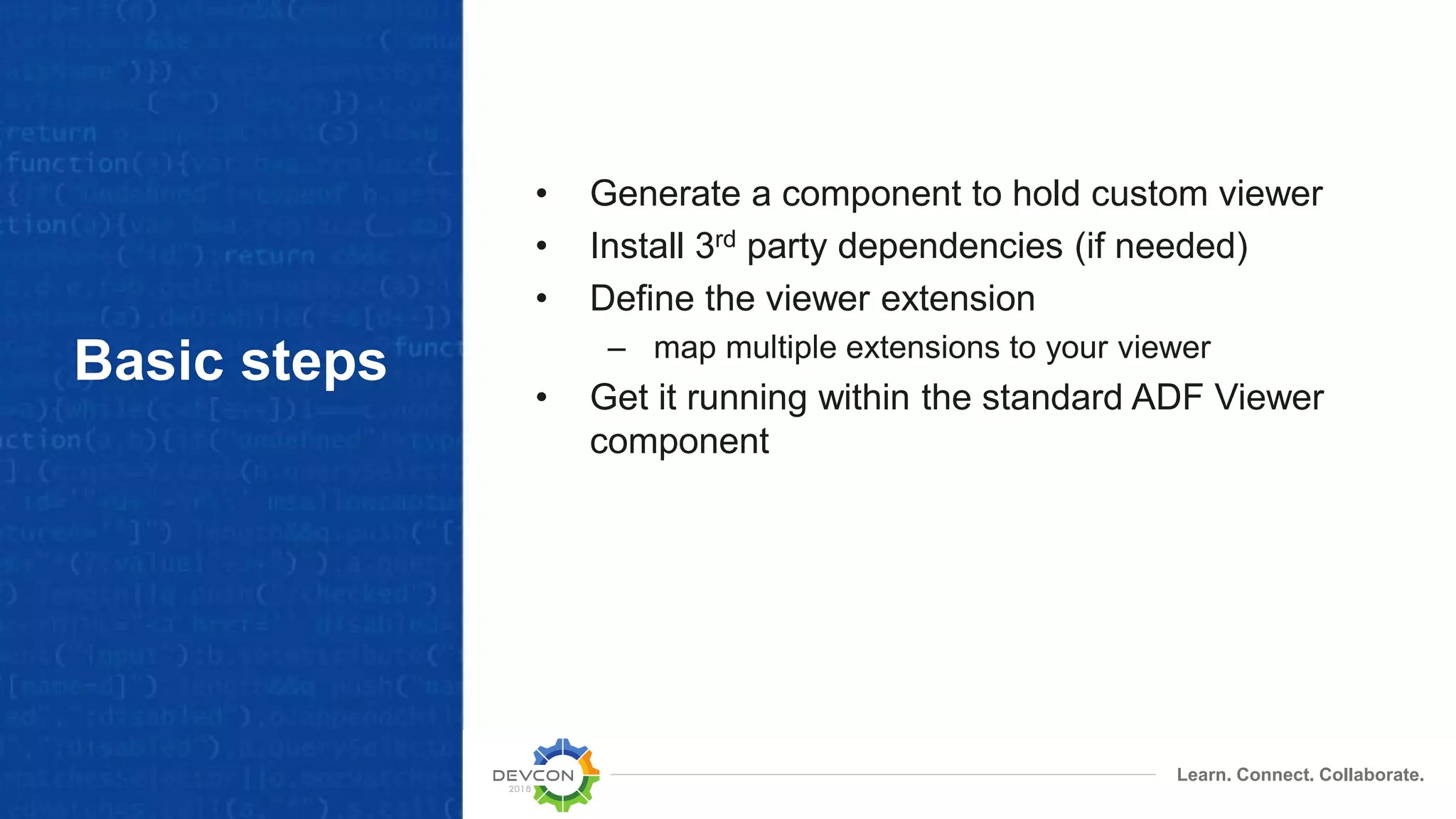

30. Learn. Connect. Collaborate.
Basic steps
• Generate a component to hold custom viewer
• Install 3rd party dependencies (if needed)
• Define the viewer extension
– map multiple extensions to your viewer
• Get it running within the standard ADF Viewer
component

31. Learn. Connect. Collaborate.

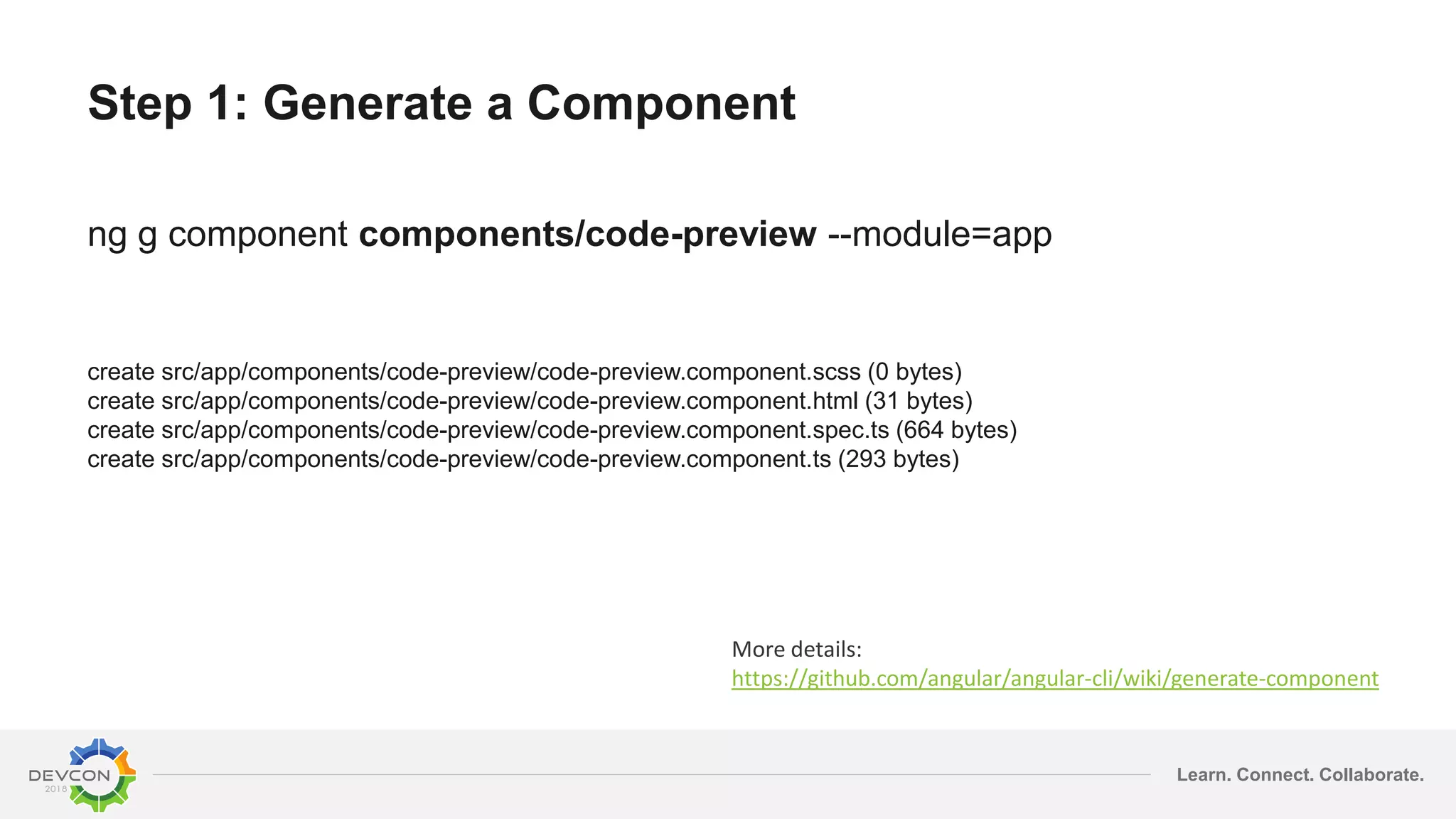

Step 1: Generate a Component
ng g component components/code-preview --module=app
create src/app/components/code-preview/code-preview.component.scss (0 bytes)
create src/app/components/code-preview/code-preview.component.html (31 bytes)
create src/app/components/code-preview/code-preview.component.spec.ts (664 bytes)
create src/app/components/code-preview/code-preview.component.ts (293 bytes)
More details:
https://github.com/angular/angular-cli/wiki/generate-component

32. Learn. Connect. Collaborate.

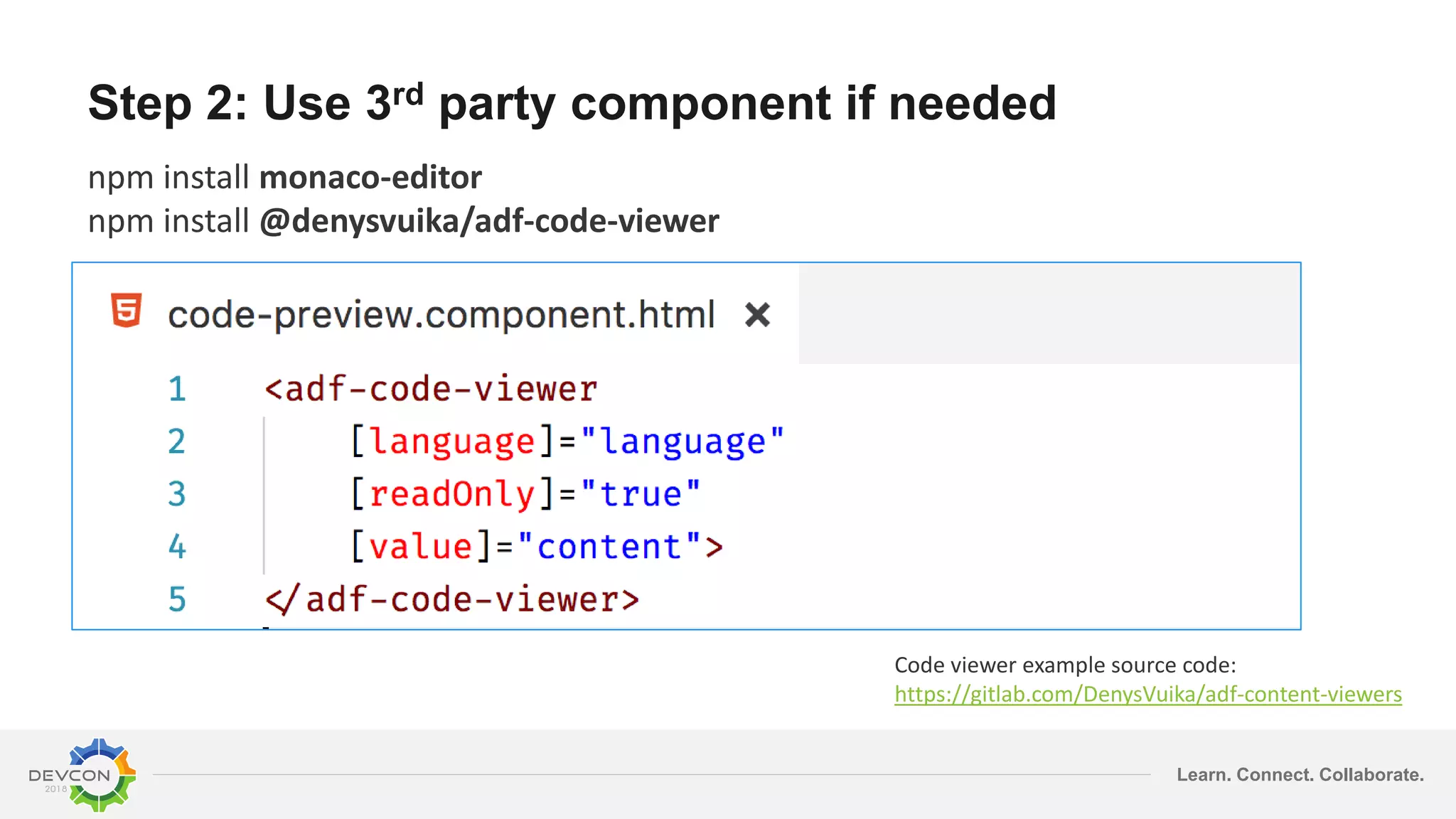

Step 2: Use 3rd party component if needed
npm install monaco-editor
npm install @denysvuika/adf-code-viewer
Update
Code viewer example source code:
https://gitlab.com/DenysVuika/adf-content-viewers

33. Learn. Connect. Collaborate.

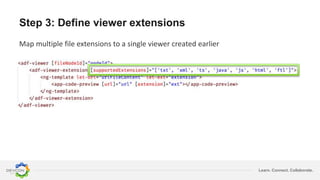

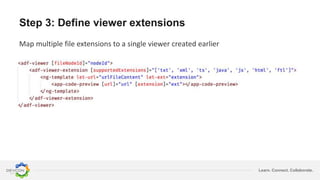

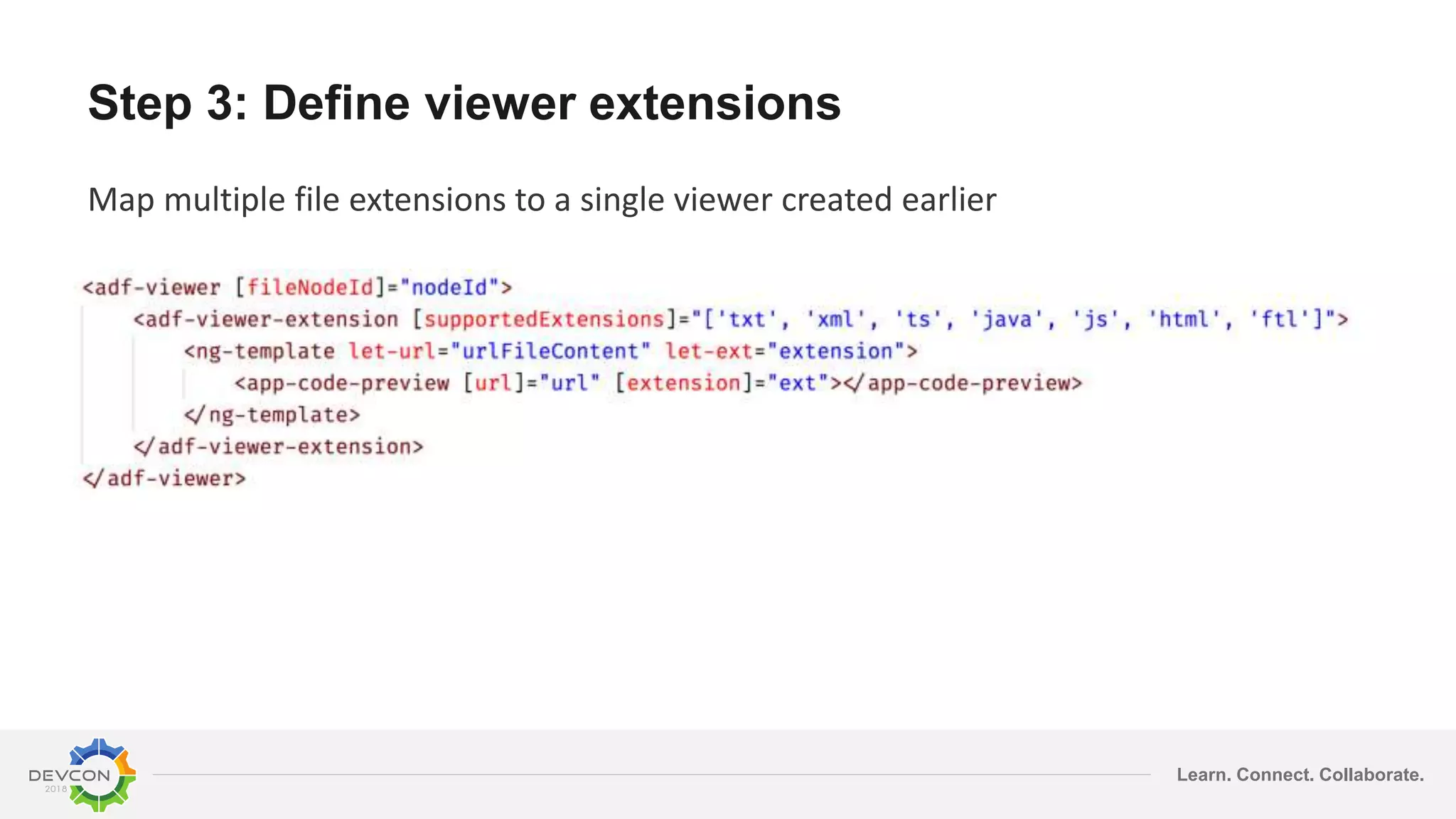

Step 3: Define viewer extensions
Map multiple file extensions to a single viewer created earlier

34. Learn. Connect. Collaborate.
Step 3: Define viewer extensions
Map multiple file extensions to a single viewer created earlier

35. Learn. Connect. Collaborate.

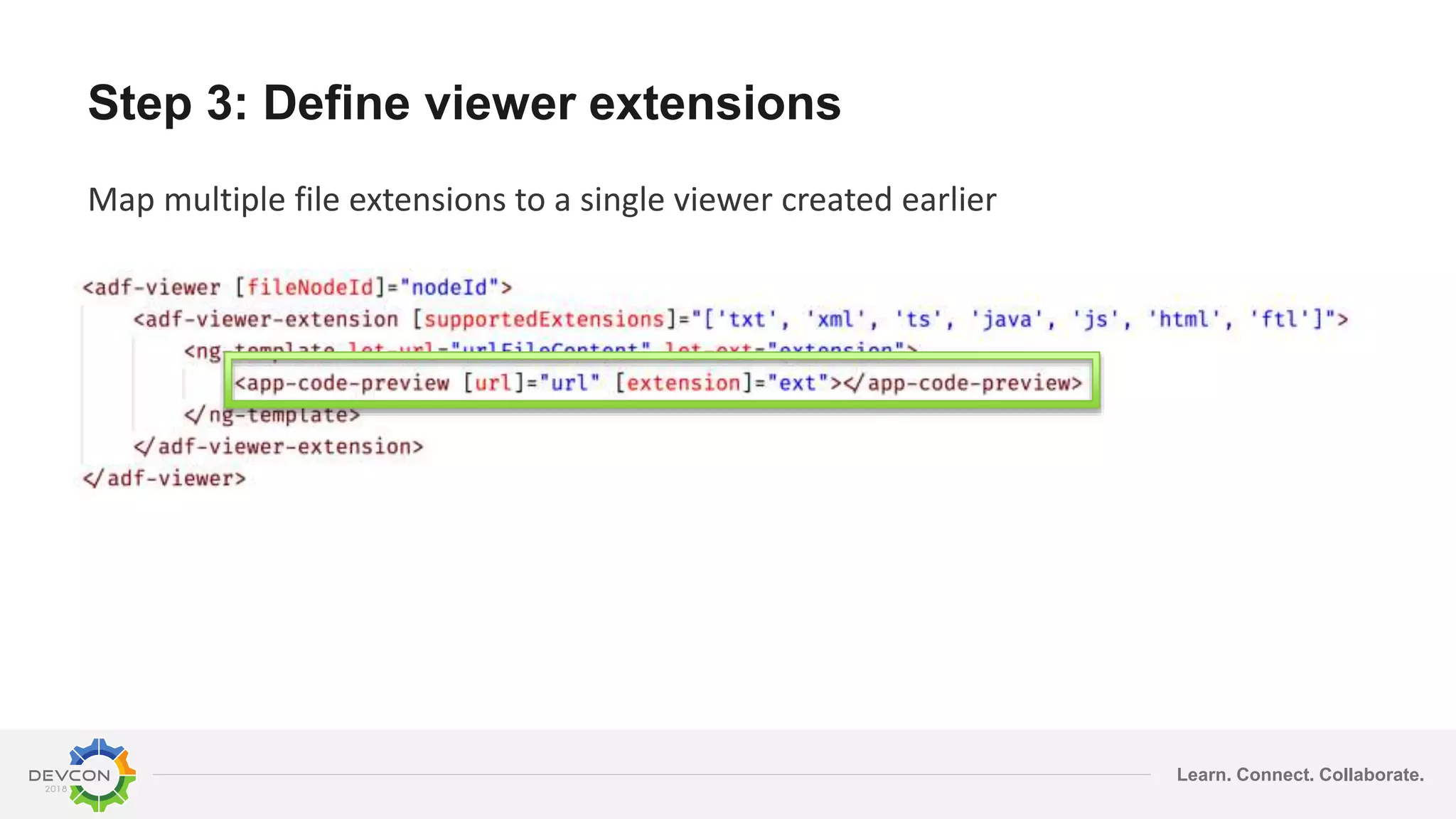

Step 3: Define viewer extensions
Map multiple file extensions to a single viewer created earlier

36. Learn. Connect. Collaborate.

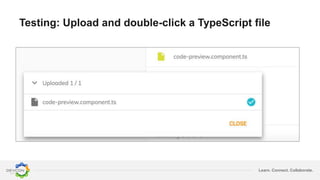

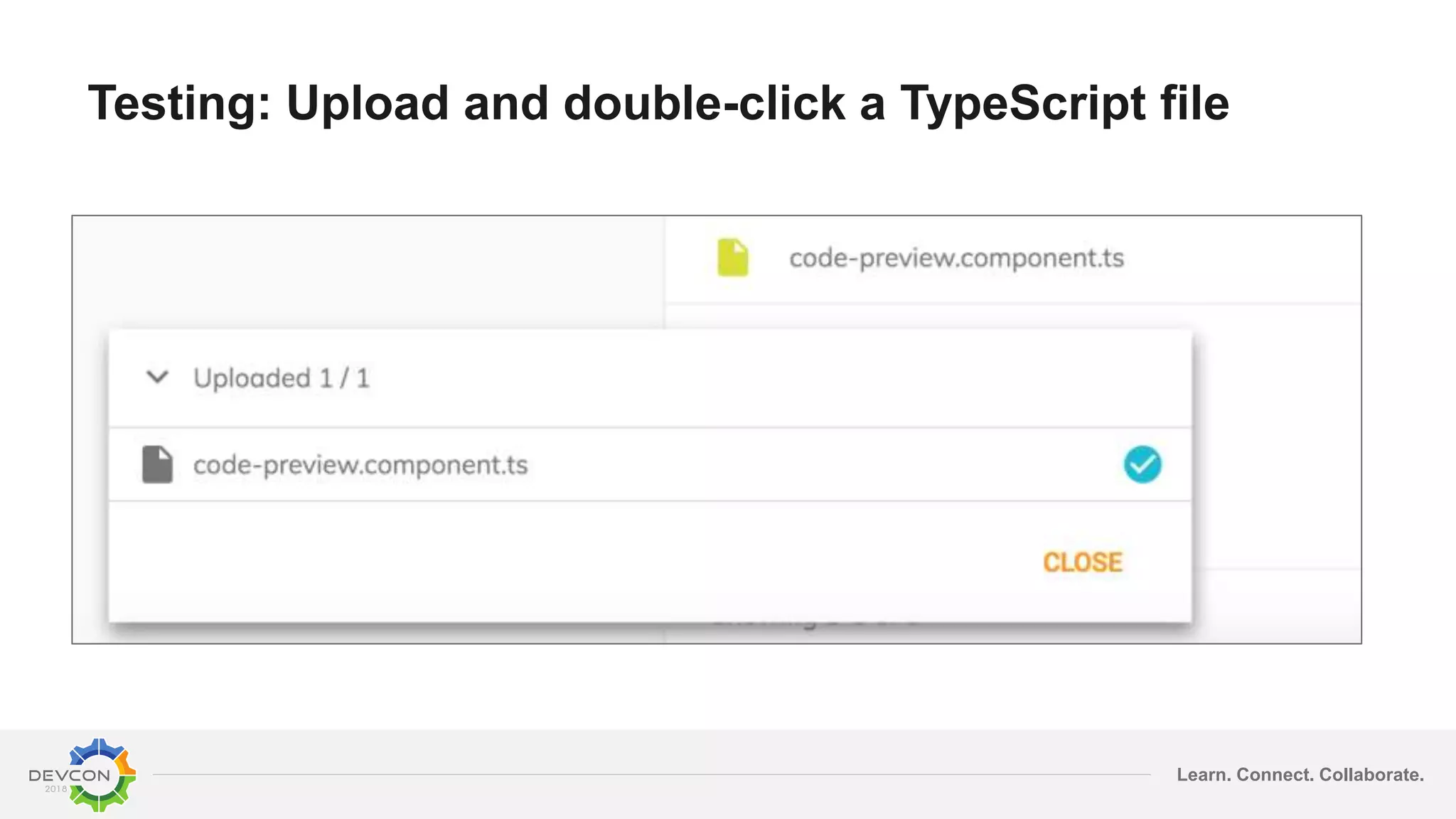

Testing: Upload and double-click a TypeScript file

38. Quick Demo

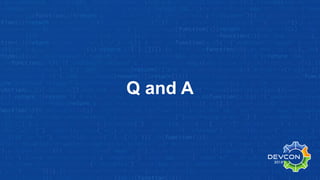

39. Q and A

40. Thank you!
All demos can be found at “DevCon”
branch:
https://github.com/Alfresco/alfresco-
content-app/tree/devcon
