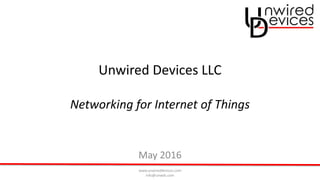

Unwired Devices LLC
Networking for Internet of Things
www.unwireddevices.com
info@unwds.com
Our Focus
• Internet-of-Things hardware and software infrastructure
• Homogeneous IPv6 mesh IoT networks
• Heterogeneous large scale LoRa+Mesh IoT networks
• “Smart Home” and “Smart Building” solutions
• SCADA and Smart Grid solutions
• Industrial and city remote lighting control solutions
www.unwireddevices.com
info@unwds.com

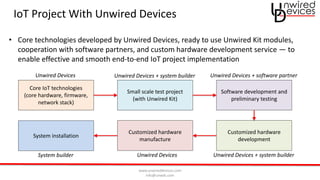

IoT Project With Unwired Devices
Core IoT technologies
(core hardware, firmware,
network stack)
Small scale test project
(with Unwired Kit)
Software development and
preliminary testing
Customized hardware
development
Customized hardware
manufacture
Unwired Devices
Unwired Devices
Unwired Devices + system builder Unwired Devices + software partner
Unwired Devices + system builder
• Core technologies developed by Unwired Devices, ready to use Unwired Kit modules,
cooperation with software partners, and custom hardware development service — to
enable effective and smooth end-to-end IoT project implementation
System installation
System builder
BASE ARCHITECTURES
www.unwireddevices.com
info@unwds.com

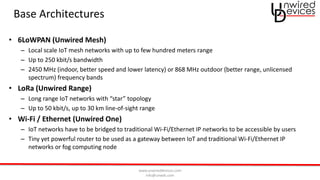

Base Architectures
• 6LoWPAN (Unwired Mesh)
– Local scale IoT mesh networks with up to few hundred meters range
– Up to 250 kbit/s bandwidth
– 2450 MHz (indoor, better speed and lower latency) or 868 MHz outdoor (better range, unlicensed
spectrum) frequency bands
• LoRa (Unwired Range)
– Long range IoT networks with “star” topology
– Up to 50 kbit/s, up to 30 km line-of-sight range
• Wi-Fi / Ethernet (Unwired One)
– IoT networks have to be bridged to traditional Wi-Fi/Ethernet IP networks to be accessible by users
– Tiny yet powerful router to be used as a gateway between IoT and traditional Wi-Fi/Ethernet IP
networks or fog computing node
www.unwireddevices.com
info@unwds.com
Homogeneous IPv6 Mesh Networks
Border
router
IPv4/IPv6
Ethernet/Wi-Fi
Node
IPv6
RF Mesh
6LoWPAN
network

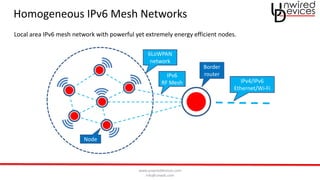

Local area IPv6 mesh network with powerful yet extremely energy efficient nodes.
www.unwireddevices.com
info@unwds.com

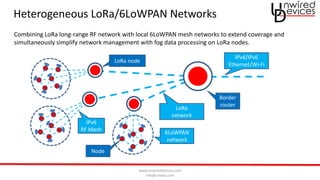

Heterogeneous LoRa/6LoWPAN Networks
Border
router
LoRa
network
IPv6
RF Mesh
6LoWPAN
network
IPv4/IPv6
Ethernet/Wi-Fi
Node
LoRa node
Combining LoRa long-range RF network with local 6LoWPAN mesh networks to extend coverage and
simultaneously simplify network management with fog data processing on LoRa nodes.
USE CASES
www.unwireddevices.com
info@unwds.com

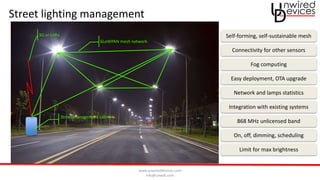

Street lighting management
6LoWPAN mesh network
3G or LoRa
Street management cabinet
Self-forming, self-sustainable mesh
Connectivity for other sensors
Fog computing
Easy deployment, OTA upgrade
Network and lamps statistics
Integration with existing systems
868 MHz unlicensed band
On, off, dimming, scheduling
Limit for max brightness
www.unwireddevices.com
info@unwds.com
Smart city management: a bigger picture
Garbage bin
level sensor
Long-range LoRa
or 3G network
3G/LoRa transceiver
6LoWPAN receiver
6LoWPAN
network
Air quality sensors
Smart LED
lamp
6LoWPAN
network
6LoWPAN
network
Smart LED
lamp
Smart LED
lamp

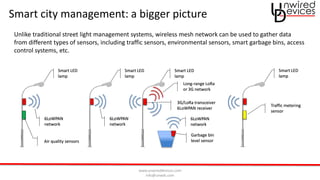

Unlike traditional street light management systems, wireless mesh network can be used to gather data
from different types of sensors, including traffic sensors, environmental sensors, smart garbage bins, access
control systems, etc.
Smart LED
lamp
Traffic metering
sensor
www.unwireddevices.com
info@unwds.com
Smart city management portal example
In partnership with saymon.info
Statistics and control for
lamps / groups
Localization on the map
Visualization for the
information coming from
third-party systems
Add-ons to support data
gathering from various
sensors: traffic,
temperature/humidity,
CO2, etc
www.unwireddevices.com
info@unwds.com
Street lights automatically creates self-sustainable IPv6 network with AES128 encryption. Network gateway can join the mesh
using same radio and provide connectivity to the external IPv4/IPv6 networks via 3G/WiFi/Ethernet or can be part of city-
wide LoRa network to cut down operational costs
LED stripes
Dimmable LED
driver
Unwired Mesh
module
LED lamps
3G/LoRa/WiFi/Eth
gateway
(street cabinet)
Single street lamp anatomy
6LoWPAN mesh
Works with any dimmable power supply
Additional features available with UNWDS power supply
0-10V PWM
Variety of interfaces for external sensors
MQTT API and SDK (gateway only) are available
Each device has own IPv6 address
Extended statistics from each lamp
Local processing and memory
Street lighting management architecture
www.unwireddevices.com
info@unwds.com

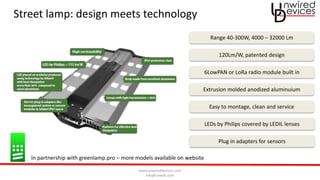

Street lamp: design meets technology
Range 40-300W, 4000 – 32000 Lm
Plug in adapters for sensors
LEDs by Philips covered by LEDIL lenses
6LowPAN or LoRa radio module built in
Extrusion molded anodized aluminuium
Easy to montage, clean and service
In partnership with greenlamp.pro – more models available on website
120Lm/W, patented design
www.unwireddevices.com
info@unwds.com
Smart Metering applications

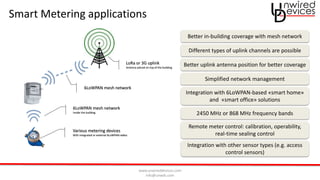

Better in-building coverage with mesh network
Different types of uplink channels are possible
Simplified network management
LoRa or 3G uplink
Antenna placed on top of the building
6LoWPAN mesh network
Inside the building
6LoWPAN mesh network
Various metering devices
With integrated or external 6LoWPAN radios
Better uplink antenna position for better coverage
Integration with 6LoWPAN-based «smart home»
and «smart office» solutions
2450 MHz or 868 MHz frequency bands
Remote meter control: calibration, operability,
real-time sealing control
Integration with other sensor types (e.g. access
control sensors)
www.unwireddevices.com
info@unwds.com

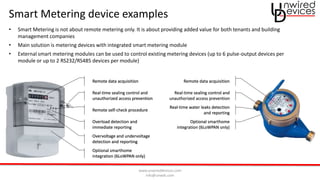

Smart Metering device examples
Real-time sealing control and
unauthorized access prevention
Remote data acquisition
Overload detection and
immediate reporting
Remote self-check procedure
Overvoltage and undervoltage
detection and reporting
Optional smarthome
integration (6LoWPAN only)
Remote data acquisition
Real-time sealing control and
unauthorized access prevention
Optional smarthome
integration (6LoWPAN only)
Real-time water leaks detection
and reporting
• Smart Metering is not about remote metering only. It is about providing added value for both tenants and building
management companies
• Main solution is metering devices with integrated smart metering module
• External smart metering modules can be used to control existing metering devices (up to 6 pulse-output devices per
module or up to 2 RS232/RS485 devices per module)
www.unwireddevices.com
info@unwds.com
Adaptive DC Office Lighting
230 VAC power line
AC-DC power supply
DC LED Lamps
without integrated power supplies
48 VDC power line
Smart DC Dimmer
LED power line
Individual light sensors & dimmers
Brightness maintained automatically
Less cabling, easy montage, low voltage
Unmatched safety, reduced costs
www.unwireddevices.com
info@unwds.com
Adaptive DC Office Lighting

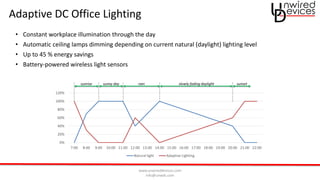

• Constant workplace illumination through the day
• Automatic ceiling lamps dimming depending on current natural (daylight) lighting level
• Up to 45 % energy savings
• Battery-powered wireless light sensors
0%
20%
40%
60%
80%
100%
120%
7:00 8:00 9:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 22:00
Natural light Adaptive Lighting
rainsunny daysunrise slowly fading daylight sunset
www.unwireddevices.com
info@unwds.com
Smart Parking Space
LED Lamps
with integrated Bluetooth beacons
Ultrasound Rangefinder
Up to 4 rangefinders per lamp
Individual light dimming
HVAC control with real-time data
Unoccupied space detection
“Find my car”
with companion mobile app
Bluetooth location service
No additional wiring required
mesh network and sensors integrated with LED lamps
www.unwireddevices.com
info@unwds.com
Smart Agriculture
Wireless soil moisture sensors
Wireless air temperature sensors
Precise crops watering
Full-year statistical data accumulation
Battery or solar power
(up to 24 months battery life for soil moisture sensor w/o solar panel)
www.unwireddevices.com
info@unwds.com
«Smart home» infrastructure
Unwired One
Wall
sockets
Wall
switches
Sensors
Unwired Mesh
Wi-Fi
Ethernet
Unwired One
Unwired Mesh
Unwired Range
• Reasonably priced
• Easy installation and initial setup, no additional
wiring required
• Integrated into standard wiring devices (wall
sockets, wall switches, light fixtures, etc.)
• High reliability
• AES-128 radio channel encryption
• Optional integration with complex smart home
systems, e.g. AV and HVAC systems
• Scalability with access level management for large
building installations, e.g. business centers or
shopping malls
Lamps
HVAC
Remotes
CORE PRODUCTS
www.unwireddevices.com
info@unwds.com

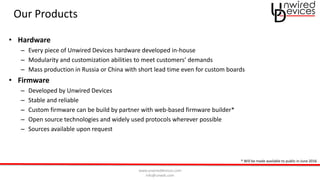

Our Products
• Hardware
– Every piece of Unwired Devices hardware developed in-house
– Modularity and customization abilities to meet customers’ demands
– Mass production in Russia or China with short lead time even for custom boards
• Firmware
– Developed by Unwired Devices
– Stable and reliable
– Custom firmware can be build by partner with web-based firmware builder*
– Open source technologies and widely used protocols wherever possible
– Sources available upon request
* Will be made available to public in June 2016
www.unwireddevices.com
info@unwds.com
Core Products
Unwired One Unwired Mesh Unwired Range Unwired Kit

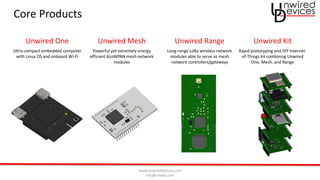

Ultra-compact embedded computer
with Linux OS and onboard Wi-Fi
Powerful yet extremely energy
efficient 6LoWPAN mesh network
modules
Long-range LoRa wireless network
modules able to serve as mesh
network controllers/gateways
Rapid prototyping and DIY Internet-
of-Things kit combining Unwired
One, Mesh, and Range
www.unwireddevices.com
info@unwds.com
IoT core components at a glance
Unwired One Unwired Mesh Unwired Range
Dimensions 25×35×4 mm 20×31.5×3 mm (2450 MHz)
20×40×3 mm (868 MHz)
20×45×3 mm
Power consumption 1.5 W 30 mA TX
1 uA sleep
130 mA TX
12 uA sleep
Frequency 2.4 GHz 2.4 GHz / 868 MHz 868 MHz
Range 20 m LoS Up to 70 m indoor
Up to 500 m LoS
Up to 5 km indoor
Up to 30 km LoS
Processor, memory 400 MHz 32-bit MIPS 24Kc
64 MB DDR2 RAM
16 MB NOR flash
48 MHz ARM Cortex-M3
28 KB RAM
128 KB flash
84 MHz ARM Cortex-M4F
96 KB RAM
512 KB flash
Interfaces onboard USB 2.0, 802.11 b/g/n Wi-Fi,
Ethernet, GPIO, SPI, I²C, UART
6LoWPAN, GPIO, SPI, I²C, UART,
ADC, Sensor Controller Hub
LoRa, GPIO, SPI, I²C, UART, ADC
OS OpenWRT 15.05 (Linux 3.18) Contiki RTOS / RIOT RTOS RIOT RTOS
SDK Linux VM with prebuild toolchain
and Eclipse IDE
Linux VM with prebuild toolchain Linux VM with prebuild toolchain
www.unwireddevices.com
info@unwds.com

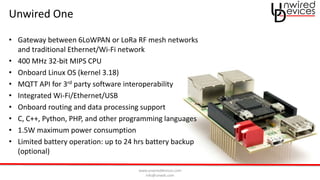

Unwired One
• Gateway between 6LoWPAN or LoRa RF mesh networks
and traditional Ethernet/Wi-Fi network
• 400 MHz 32-bit MIPS CPU
• Onboard Linux OS (kernel 3.18)
• MQTT API for 3rd party software interoperability
• Integrated Wi-Fi/Ethernet/USB
• Onboard routing and data processing support
• C, C++, Python, PHP, and other programming languages
• 1.5W maximum power consumption
• Limited battery operation: up to 24 hrs battery backup
(optional)
www.unwireddevices.com
info@unwds.com

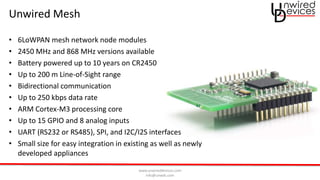

Unwired Mesh
• 6LoWPAN mesh network node modules
• 2450 MHz and 868 MHz versions available
• Battery powered up to 10 years on CR2450
• Up to 200 m Line-of-Sight range
• Bidirectional communication
• Up to 250 kbps data rate
• ARM Cortex-M3 processing core
• Up to 15 GPIO and 8 analog inputs
• UART (RS232 or RS485), SPI, and I2C/I2S interfaces
• Small size for easy integration in existing as well as newly
developed appliances
www.unwireddevices.com
info@unwds.com
Unwired Range
• LoRa long-range RF network modules
• 868 MHz license-free frequency band
• Up to 30 km Line-of-Sight range
• Bidirectional communication
• Up to 250 kbps data rate
• Up to 15 GPIO and 8 analog inputs
• UART (RS232 or RS485), SPI, and I2C/I2S interfaces
• High-performance ARM Cortex-M4F or low-cost ARM
Cortex-M0 processing core
• Pin-to-pin compatible with Unwired Mesh modules
www.unwireddevices.com
info@unwds.com

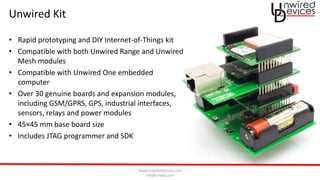

Unwired Kit
• Rapid prototyping and DIY Internet-of-Things kit
• Compatible with both Unwired Range and Unwired
Mesh modules
• Compatible with Unwired One embedded
computer
• Over 30 genuine boards and expansion modules,
including GSM/GPRS, GPS, industrial interfaces,
sensors, relays and power modules
• 45×45 mm base board size
• Includes JTAG programmer and SDK
www.unwireddevices.com
info@unwds.com

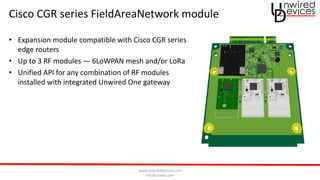

Cisco CGR series FieldAreaNetwork module
• Expansion module compatible with Cisco CGR series
edge routers
• Up to 3 RF modules — 6LoWPAN mesh and/or LoRa
• Unified API for any combination of RF modules
installed with integrated Unwired One gateway
SOFTWARE SUPPORT
www.unwireddevices.com
info@unwds.com
Ready to use SDK and IDE
• Ready to use VirtualBox Linux image
with preinstalled toolchains,
compilers, and IDE
• Open source software
• Variety of tools and languages
available for data processing on
gateway routers (C/C++, Python, PHP,
bash, SQLite, etc.)
• Schematic diagrams for all modules
available
• Web-based firmware building service*
* TBD
PARTNER SOFTWARE – SCADA
www.unwireddevices.com
info@unwds.com

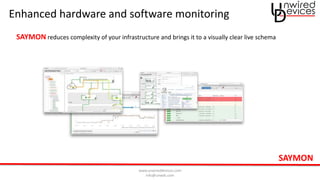

Enhanced hardware and software monitoring
SAYMON reduces complexity of your infrastructure and brings it to a visually clear live schema
SAYMON
www.unwireddevices.com
info@unwds.com

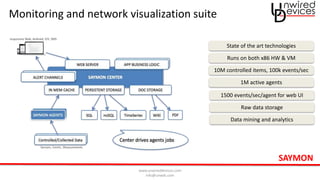

Monitoring and network visualization suite
SAYMON
State of the art technologies
Runs on both x86 HW & VM
10M controlled items, 100k events/sec
1M active agents
1500 events/sec/agent for web UI
Raw data storage
Data mining and analytics
www.unwireddevices.com
info@unwds.com
SAYMON is visual
All the operational and statistic data, all
the documentation and descriptions are
in one place
Available as WEB&APPS for Desktop
& Mobile
SAYMON
PARTNER SOFTWARE – SMART HOME
www.unwireddevices.com
info@unwds.com
iRidium Mobile – single solution for all connected devices
www.unwireddevices.com
info@unwds.com
Iridium Mobile: Project builder / editor
www.unwireddevices.com
info@unwds.com
Iridium Mobile: Smartphone / tablet GUI
MEET THE TEAM
www.unwireddevices.com
info@unwds.com
Our Company
• Unwired Devices LLC is a technology company devoted to offer its
customers best-in-class modern solutions of the Internet of Things era.
• We are focused on developing complete hardware and software solutions
based on the newest technologies, including IPv6 mesh networks, wireless
control and distributed data acquisition, and fog computing.
• The company was founded in 2015 upon successful project of developing
and launching Unwired One (formerly known as Black Swift), an embedded
wireless computer with Linux OS.
• Unwired Devices LLC is based in Moscow, Russia, with manufacturing
capabilities in both Russia and China.
www.unwireddevices.com
info@unwds.com
Our Core Team
Oleg Artamonov
Moscow, Russia
CEO, marketing and product
management
Past: Samsung Electronics
Igor Bliznyukov
Munich, Germany
Business development and
corporate relations
Past: Cisco Systems, Siemens AG
Mikhail Churikov
Moscow, Russia
Leading software and firmware
developer
Past: Intel Corporation
Alexey Andreev
Hong-Kong, PRC
Supply chain and manufacturing
supervisor
Valery Karev
Moscow, Russia
Leading hardware developer
Thank you
info@unwds.com

Unwired Devices LLC — IoT Solutions (eng)

  • 1.
  • 2.
    www.unwireddevices.com info@unwds.com Our Focus • Internet-of-Thingshardware and software infrastructure • Homogeneous IPv6 mesh IoT networks • Heterogeneous large scale LoRa+Mesh IoT networks • “Smart Home” and “Smart Building” solutions • SCADA and Smart Grid solutions • Industrial and city remote lighting control solutions
  • 3.
    www.unwireddevices.com info@unwds.com IoT Project WithUnwired Devices Core IoT technologies (core hardware, firmware, network stack) Small scale test project (with Unwired Kit) Software development and preliminary testing Customized hardware development Customized hardware manufacture Unwired Devices Unwired Devices Unwired Devices + system builder Unwired Devices + software partner Unwired Devices + system builder • Core technologies developed by Unwired Devices, ready to use Unwired Kit modules, cooperation with software partners, and custom hardware development service — to enable effective and smooth end-to-end IoT project implementation System installation System builder
  • 4.
  • 5.
    www.unwireddevices.com info@unwds.com Base Architectures • 6LoWPAN(Unwired Mesh) – Local scale IoT mesh networks with up to few hundred meters range – Up to 250 kbit/s bandwidth – 2450 MHz (indoor, better speed and lower latency) or 868 MHz outdoor (better range, unlicensed spectrum) frequency bands • LoRa (Unwired Range) – Long range IoT networks with “star” topology – Up to 50 kbit/s, up to 30 km line-of-sight range • Wi-Fi / Ethernet (Unwired One) – IoT networks have to be bridged to traditional Wi-Fi/Ethernet IP networks to be accessible by users – Tiny yet powerful router to be used as a gateway between IoT and traditional Wi-Fi/Ethernet IP networks or fog computing node
  • 6.
    www.unwireddevices.com info@unwds.com Homogeneous IPv6 MeshNetworks Border router IPv4/IPv6 Ethernet/Wi-Fi Node IPv6 RF Mesh 6LoWPAN network Local area IPv6 mesh network with powerful yet extremely energy efficient nodes.
  • 7.
    www.unwireddevices.com info@unwds.com Heterogeneous LoRa/6LoWPAN Networks Border router LoRa network IPv6 RFMesh 6LoWPAN network IPv4/IPv6 Ethernet/Wi-Fi Node LoRa node Combining LoRa long-range RF network with local 6LoWPAN mesh networks to extend coverage and simultaneously simplify network management with fog data processing on LoRa nodes.
  • 8.
  • 9.
    www.unwireddevices.com info@unwds.com Street lighting management 6LoWPANmesh network 3G or LoRa Street management cabinet Self-forming, self-sustainable mesh Connectivity for other sensors Fog computing Easy deployment, OTA upgrade Network and lamps statistics Integration with existing systems 868 MHz unlicensed band On, off, dimming, scheduling Limit for max brightness
  • 10.
    www.unwireddevices.com info@unwds.com Smart city management:a bigger picture Garbage bin level sensor Long-range LoRa or 3G network 3G/LoRa transceiver 6LoWPAN receiver 6LoWPAN network Air quality sensors Smart LED lamp 6LoWPAN network 6LoWPAN network Smart LED lamp Smart LED lamp Unlike traditional street light management systems, wireless mesh network can be used to gather data from different types of sensors, including traffic sensors, environmental sensors, smart garbage bins, access control systems, etc. Smart LED lamp Traffic metering sensor
  • 11.
    www.unwireddevices.com info@unwds.com Smart city managementportal example In partnership with saymon.info Statistics and control for lamps / groups Localization on the map Visualization for the information coming from third-party systems Add-ons to support data gathering from various sensors: traffic, temperature/humidity, CO2, etc
  • 12.
    www.unwireddevices.com info@unwds.com Street lights automaticallycreates self-sustainable IPv6 network with AES128 encryption. Network gateway can join the mesh using same radio and provide connectivity to the external IPv4/IPv6 networks via 3G/WiFi/Ethernet or can be part of city- wide LoRa network to cut down operational costs LED stripes Dimmable LED driver Unwired Mesh module LED lamps 3G/LoRa/WiFi/Eth gateway (street cabinet) Single street lamp anatomy 6LoWPAN mesh Works with any dimmable power supply Additional features available with UNWDS power supply 0-10V PWM Variety of interfaces for external sensors MQTT API and SDK (gateway only) are available Each device has own IPv6 address Extended statistics from each lamp Local processing and memory Street lighting management architecture
  • 13.
    www.unwireddevices.com info@unwds.com Street lamp: designmeets technology Range 40-300W, 4000 – 32000 Lm Plug in adapters for sensors LEDs by Philips covered by LEDIL lenses 6LowPAN or LoRa radio module built in Extrusion molded anodized aluminuium Easy to montage, clean and service In partnership with greenlamp.pro – more models available on website 120Lm/W, patented design
  • 14.
    www.unwireddevices.com info@unwds.com Smart Metering applications Betterin-building coverage with mesh network Different types of uplink channels are possible Simplified network management LoRa or 3G uplink Antenna placed on top of the building 6LoWPAN mesh network Inside the building 6LoWPAN mesh network Various metering devices With integrated or external 6LoWPAN radios Better uplink antenna position for better coverage Integration with 6LoWPAN-based «smart home» and «smart office» solutions 2450 MHz or 868 MHz frequency bands Remote meter control: calibration, operability, real-time sealing control Integration with other sensor types (e.g. access control sensors)
  • 15.
    www.unwireddevices.com info@unwds.com Smart Metering deviceexamples Real-time sealing control and unauthorized access prevention Remote data acquisition Overload detection and immediate reporting Remote self-check procedure Overvoltage and undervoltage detection and reporting Optional smarthome integration (6LoWPAN only) Remote data acquisition Real-time sealing control and unauthorized access prevention Optional smarthome integration (6LoWPAN only) Real-time water leaks detection and reporting • Smart Metering is not about remote metering only. It is about providing added value for both tenants and building management companies • Main solution is metering devices with integrated smart metering module • External smart metering modules can be used to control existing metering devices (up to 6 pulse-output devices per module or up to 2 RS232/RS485 devices per module)
  • 16.
    www.unwireddevices.com info@unwds.com Adaptive DC OfficeLighting 230 VAC power line AC-DC power supply DC LED Lamps without integrated power supplies 48 VDC power line Smart DC Dimmer LED power line Individual light sensors & dimmers Brightness maintained automatically Less cabling, easy montage, low voltage Unmatched safety, reduced costs
  • 17.
    www.unwireddevices.com info@unwds.com Adaptive DC OfficeLighting • Constant workplace illumination through the day • Automatic ceiling lamps dimming depending on current natural (daylight) lighting level • Up to 45 % energy savings • Battery-powered wireless light sensors 0% 20% 40% 60% 80% 100% 120% 7:00 8:00 9:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 22:00 Natural light Adaptive Lighting rainsunny daysunrise slowly fading daylight sunset
  • 18.
    www.unwireddevices.com info@unwds.com Smart Parking Space LEDLamps with integrated Bluetooth beacons Ultrasound Rangefinder Up to 4 rangefinders per lamp Individual light dimming HVAC control with real-time data Unoccupied space detection “Find my car” with companion mobile app Bluetooth location service No additional wiring required mesh network and sensors integrated with LED lamps
  • 19.
    www.unwireddevices.com info@unwds.com Smart Agriculture Wireless soilmoisture sensors Wireless air temperature sensors Precise crops watering Full-year statistical data accumulation Battery or solar power (up to 24 months battery life for soil moisture sensor w/o solar panel)
  • 20.
    www.unwireddevices.com info@unwds.com «Smart home» infrastructure UnwiredOne Wall sockets Wall switches Sensors Unwired Mesh Wi-Fi Ethernet Unwired One Unwired Mesh Unwired Range • Reasonably priced • Easy installation and initial setup, no additional wiring required • Integrated into standard wiring devices (wall sockets, wall switches, light fixtures, etc.) • High reliability • AES-128 radio channel encryption • Optional integration with complex smart home systems, e.g. AV and HVAC systems • Scalability with access level management for large building installations, e.g. business centers or shopping malls Lamps HVAC Remotes
  • 21.
  • 22.
    www.unwireddevices.com info@unwds.com Our Products • Hardware –Every piece of Unwired Devices hardware developed in-house – Modularity and customization abilities to meet customers’ demands – Mass production in Russia or China with short lead time even for custom boards • Firmware – Developed by Unwired Devices – Stable and reliable – Custom firmware can be build by partner with web-based firmware builder* – Open source technologies and widely used protocols wherever possible – Sources available upon request * Will be made available to public in June 2016
  • 23.
    www.unwireddevices.com info@unwds.com Core Products Unwired OneUnwired Mesh Unwired Range Unwired Kit Ultra-compact embedded computer with Linux OS and onboard Wi-Fi Powerful yet extremely energy efficient 6LoWPAN mesh network modules Long-range LoRa wireless network modules able to serve as mesh network controllers/gateways Rapid prototyping and DIY Internet- of-Things kit combining Unwired One, Mesh, and Range
  • 24.
    www.unwireddevices.com info@unwds.com IoT core componentsat a glance Unwired One Unwired Mesh Unwired Range Dimensions 25×35×4 mm 20×31.5×3 mm (2450 MHz) 20×40×3 mm (868 MHz) 20×45×3 mm Power consumption 1.5 W 30 mA TX 1 uA sleep 130 mA TX 12 uA sleep Frequency 2.4 GHz 2.4 GHz / 868 MHz 868 MHz Range 20 m LoS Up to 70 m indoor Up to 500 m LoS Up to 5 km indoor Up to 30 km LoS Processor, memory 400 MHz 32-bit MIPS 24Kc 64 MB DDR2 RAM 16 MB NOR flash 48 MHz ARM Cortex-M3 28 KB RAM 128 KB flash 84 MHz ARM Cortex-M4F 96 KB RAM 512 KB flash Interfaces onboard USB 2.0, 802.11 b/g/n Wi-Fi, Ethernet, GPIO, SPI, I²C, UART 6LoWPAN, GPIO, SPI, I²C, UART, ADC, Sensor Controller Hub LoRa, GPIO, SPI, I²C, UART, ADC OS OpenWRT 15.05 (Linux 3.18) Contiki RTOS / RIOT RTOS RIOT RTOS SDK Linux VM with prebuild toolchain and Eclipse IDE Linux VM with prebuild toolchain Linux VM with prebuild toolchain
  • 25.
    www.unwireddevices.com info@unwds.com Unwired One • Gatewaybetween 6LoWPAN or LoRa RF mesh networks and traditional Ethernet/Wi-Fi network • 400 MHz 32-bit MIPS CPU • Onboard Linux OS (kernel 3.18) • MQTT API for 3rd party software interoperability • Integrated Wi-Fi/Ethernet/USB • Onboard routing and data processing support • C, C++, Python, PHP, and other programming languages • 1.5W maximum power consumption • Limited battery operation: up to 24 hrs battery backup (optional)
  • 26.
    www.unwireddevices.com info@unwds.com Unwired Mesh • 6LoWPANmesh network node modules • 2450 MHz and 868 MHz versions available • Battery powered up to 10 years on CR2450 • Up to 200 m Line-of-Sight range • Bidirectional communication • Up to 250 kbps data rate • ARM Cortex-M3 processing core • Up to 15 GPIO and 8 analog inputs • UART (RS232 or RS485), SPI, and I2C/I2S interfaces • Small size for easy integration in existing as well as newly developed appliances
  • 27.
    www.unwireddevices.com info@unwds.com Unwired Range • LoRalong-range RF network modules • 868 MHz license-free frequency band • Up to 30 km Line-of-Sight range • Bidirectional communication • Up to 250 kbps data rate • Up to 15 GPIO and 8 analog inputs • UART (RS232 or RS485), SPI, and I2C/I2S interfaces • High-performance ARM Cortex-M4F or low-cost ARM Cortex-M0 processing core • Pin-to-pin compatible with Unwired Mesh modules
  • 28.
    www.unwireddevices.com info@unwds.com Unwired Kit • Rapidprototyping and DIY Internet-of-Things kit • Compatible with both Unwired Range and Unwired Mesh modules • Compatible with Unwired One embedded computer • Over 30 genuine boards and expansion modules, including GSM/GPRS, GPS, industrial interfaces, sensors, relays and power modules • 45×45 mm base board size • Includes JTAG programmer and SDK
  • 29.
    www.unwireddevices.com info@unwds.com Cisco CGR seriesFieldAreaNetwork module • Expansion module compatible with Cisco CGR series edge routers • Up to 3 RF modules — 6LoWPAN mesh and/or LoRa • Unified API for any combination of RF modules installed with integrated Unwired One gateway
  • 30.
  • 31.
    www.unwireddevices.com info@unwds.com Ready to useSDK and IDE • Ready to use VirtualBox Linux image with preinstalled toolchains, compilers, and IDE • Open source software • Variety of tools and languages available for data processing on gateway routers (C/C++, Python, PHP, bash, SQLite, etc.) • Schematic diagrams for all modules available • Web-based firmware building service* * TBD
  • 32.
  • 33.
    www.unwireddevices.com info@unwds.com Enhanced hardware andsoftware monitoring SAYMON reduces complexity of your infrastructure and brings it to a visually clear live schema SAYMON
  • 34.
    www.unwireddevices.com info@unwds.com Monitoring and networkvisualization suite SAYMON State of the art technologies Runs on both x86 HW & VM 10M controlled items, 100k events/sec 1M active agents 1500 events/sec/agent for web UI Raw data storage Data mining and analytics
  • 35.
    www.unwireddevices.com info@unwds.com SAYMON is visual Allthe operational and statistic data, all the documentation and descriptions are in one place Available as WEB&APPS for Desktop & Mobile SAYMON
  • 36.
  • 37.
    www.unwireddevices.com info@unwds.com iRidium Mobile –single solution for all connected devices
  • 38.
  • 39.
  • 40.
  • 41.
    www.unwireddevices.com info@unwds.com Our Company • UnwiredDevices LLC is a technology company devoted to offer its customers best-in-class modern solutions of the Internet of Things era. • We are focused on developing complete hardware and software solutions based on the newest technologies, including IPv6 mesh networks, wireless control and distributed data acquisition, and fog computing. • The company was founded in 2015 upon successful project of developing and launching Unwired One (formerly known as Black Swift), an embedded wireless computer with Linux OS. • Unwired Devices LLC is based in Moscow, Russia, with manufacturing capabilities in both Russia and China.
  • 42.
    www.unwireddevices.com info@unwds.com Our Core Team OlegArtamonov Moscow, Russia CEO, marketing and product management Past: Samsung Electronics Igor Bliznyukov Munich, Germany Business development and corporate relations Past: Cisco Systems, Siemens AG Mikhail Churikov Moscow, Russia Leading software and firmware developer Past: Intel Corporation Alexey Andreev Hong-Kong, PRC Supply chain and manufacturing supervisor Valery Karev Moscow, Russia Leading hardware developer
  • 43.
