The UK nuclear inspection industry has invested heavily over 40 years in developing inspection technology and training personnel. This includes support for new technique development from both industry and government. The UK's investment has made it a world leader in nuclear inspection technology. Doosan Babcock provides integrated inspection solutions around the world, drawing on expertise gained from inspections done in numerous countries. It tests inspection systems using realistic mockups before applying the systems at actual plant sites. All inspections are qualified following standards like ENIQ to ensure reliable defect detection.

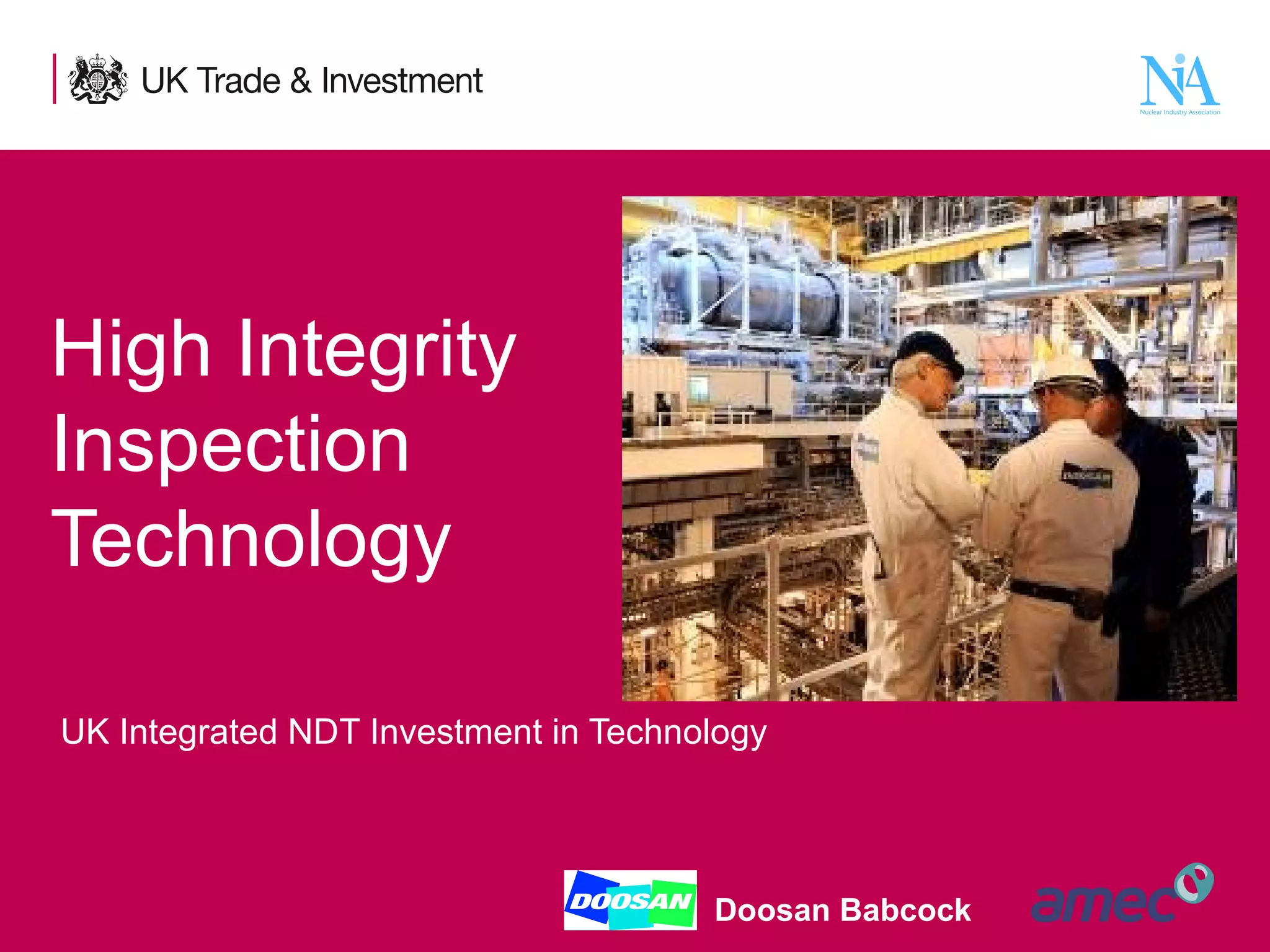

1. High Integrity
Inspection
Technology
UK Integrated NDT Investment in Technology
1
Presentation title - edit in the Master slide
Doosan Babcock

2. High Integrity Inspection Design,
Consultancy and Application
UK NDT (Inspection) industry
cooperates to provide integrated
inspection solutions throughout the
world.
Reliable procedure development
Qualification
Training
Implementation
Technology transfer
Underpinned by basic research
2
Doosan Babcock

3. France
NDT Experience Outside of UK
Argentina
Lithuania
Russia
Sweden
Lithuania
Ukraine
China
Bulgaria
Finland
Hungary
South Africa
Czech Republic
3
Doosan Babcock

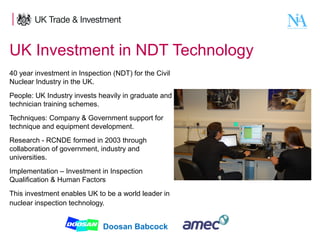

4. UK Investment in NDT Technology
40 year investment in Inspection (NDT) for the Civil
Nuclear Industry in the UK.
People: UK Industry invests heavily in graduate and
technician training schemes.
Techniques: Company & Government support for
technique and equipment development.
Research - RCNDE formed in 2003 through
collaboration of government, industry and
universities.
Implementation – Investment in Inspection
Qualification & Human Factors
This investment enables UK to be a world leader in
nuclear inspection technology.
4
Doosan Babcock

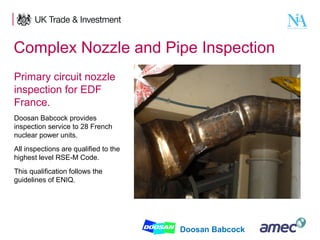

5. Complex Nozzle and Pipe Inspection
Primary circuit nozzle
inspection for EDF
France.
Doosan Babcock provides
inspection service to 28 French
nuclear power units.
All inspections are qualified to the
highest level RSE-M Code.
This qualification follows the
guidelines of ENIQ.
5
Doosan Babcock

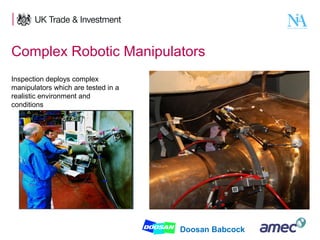

6. Complex Robotic Manipulators
Inspection deploys complex
manipulators which are tested in a
realistic environment and
conditions
6
Doosan Babcock

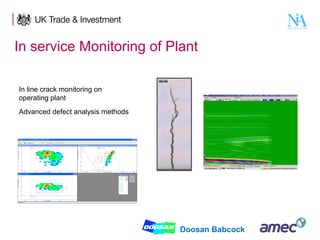

7. In service Monitoring of Plant
In line crack monitoring on
operating plant
Advanced defect analysis methods
7
Doosan Babcock

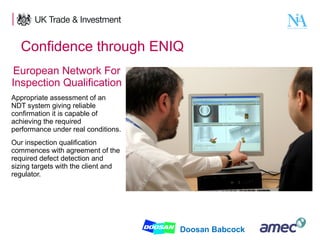

8. Confidence through ENIQ
European Network For
Inspection Qualification
Appropriate assessment of an
NDT system giving reliable
confirmation it is capable of
achieving the required
performance under real conditions.
Our inspection qualification
commences with agreement of the
required defect detection and
sizing targets with the client and
regulator.
8
Doosan Babcock

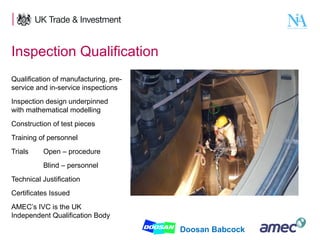

9. Inspection Qualification
Qualification of manufacturing, preservice and in-service inspections
Inspection design underpinned
with mathematical modelling
Construction of test pieces
Training of personnel
Trials
Open – procedure
Blind – personnel
Technical Justification
Certificates Issued
AMEC’s IVC is the UK
Independent Qualification Body
9
Doosan Babcock

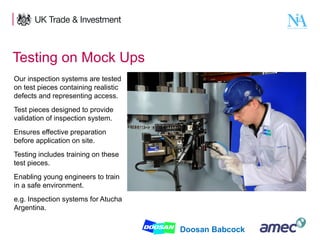

10. Testing on Mock Ups
Our inspection systems are tested
on test pieces containing realistic
defects and representing access.
Test pieces designed to provide
validation of inspection system.
Ensures effective preparation
before application on site.
Testing includes training on these
test pieces.
Enabling young engineers to train
in a safe environment.
e.g. Inspection systems for Atucha
Argentina.
10
Doosan Babcock

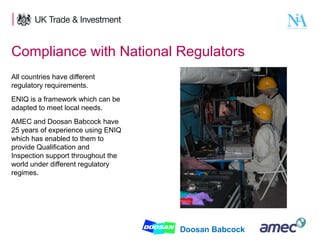

11. Compliance with National Regulators
All countries have different
regulatory requirements.
ENIQ is a framework which can be
adapted to meet local needs.
AMEC and Doosan Babcock have
25 years of experience using ENIQ
which has enabled to them to
provide Qualification and
Inspection support throughout the
world under different regulatory
regimes.
11
Doosan Babcock

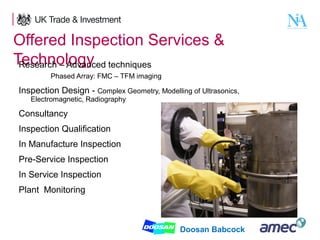

12. Offered Inspection Services &
Technology techniques
Research – Advanced
Phased Array: FMC – TFM imaging
Inspection Design - Complex Geometry, Modelling of Ultrasonics,
Electromagnetic, Radiography
Consultancy
Inspection Qualification
In Manufacture Inspection
Pre-Service Inspection
In Service Inspection
Plant Monitoring
12
Doosan Babcock

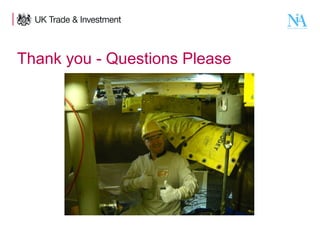

13. Thank you - Questions Please
13
