The document proposes a novel universal loyalty card called uCard that provides enhanced privacy and security compared to existing cards. uCard would allow a user to consolidate various loyalty programs, payment methods, and digital identities into a single card. It describes the basic architecture and interactions of uCard, including how users could subscribe to and unsubscribe from services, update information, and recover from lost or corrupted cards, all while protecting user privacy through encryption.

1. Krishan Sabaragamu Koralalage and Noriaki Yoshiura Department of Information and Computer Sciences, Saitama University A Novel Privacy Friendly Radio Frequency Tag Architecture for Universal Loyalty Card uCard Thursday, June 18 th 2009 Presenter: Prof. Noriaki Yoshiura

2. How many cards do we have ? Loyalty Cards Hospital Cards Access Cards Cash Cards Credit Cards Travel Cards Library Cards …… ..etc.

3. What cards are used for ? Cards are used to profile users and to locate the built profile faster for providing expected services or goods while updating new transactions. Only a unique number is stored in the card to do such things. What is uCard ?

4. Tuesday, September 15, 2009

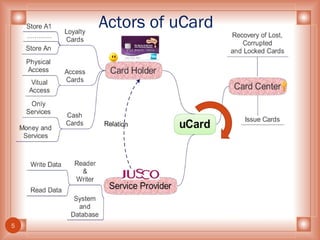

5. Actors of uCard

6. Forms of uCard Internet Shopping

7. uCard Concept oName = Object Name Public Attribute Names and Values Private Attribute Names and Values Methods to Get and Set Attribute/Value oName = uCard A- StorePointCD=A12331f B- StoreID=BBB123ws523 ………… . S-eCashID=ee242wrw423 D-BusTcktID=234oiss3423 …………… getValue(AttributeName) setValue(AttribName, Value)

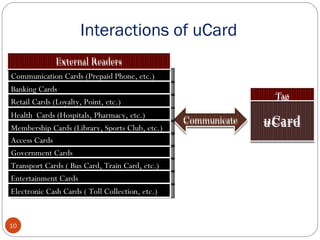

10. Interactions of uCard Communication Cards (Prepaid Phone, etc.) Banking Cards Retail Cards (Loyalty, Point, etc.) Health Cards (Hospitals, Pharmacy, etc.) Membership Cards (Library, Sports Club, etc.) Government Cards Transport Cards ( Bus Card, Train Card, etc.) Entertainment Cards Electronic Cash Cards ( Toll Collection, etc.) Access Cards Communicate Tag uCard External Readers

12. Abbreviations SP –Service Provider U.Pwd – User Password SP.Pwd – Service Provider Password PIN – User Personal Identification Master PIN – Master Secret Number

13. Producing Fresh Cards Only the Sequence Number , Anonymous ID , Processing data and dummy values for password and 3 PINs are available 1

14. Schematic Structure of uCard Entity U-Used N-Not Used L-Locked A-Public Entity B-Private Entity

16. Issuing uCard User enters Password , PIN1 , PIN2 Card Center enters Master PIN Store Store User inputs his/her own secrets 2

17. Update of Password, User PIN1, User PIN2 and Master PIN uCard When Receiving a New Card oName=?, anonymousID=? oName=“uCard” and anonymousID=“1123sdf4323s6R” Ins= 00 , U. Pwd =“ S234GH ”, OldValue=“ 430111 ”, NewValue =“ QW28P3 ” Response= NewValue/Fail Interrogator If Ins=00 NewValue = new master PIN to be updated If Ins=11 NewValue = new user password to be updated If Ins=10 NewValue = new PIN1 to be updated If Ins=01 NewValue = new PIN2 to be updated 2

18. Stopping a Card Temporarily Lost card can be re-used if temporarily stopped with the permission of card center But to use them Card Center must issue the approval Acknowledgement of lost card Card holder Verification Inform All the Service Providers Stop the Card Temporarily 3

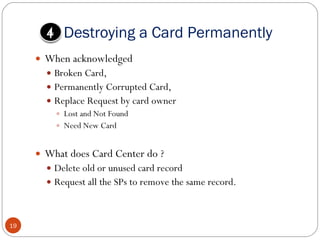

19. Destroying a Card Permanently When acknowledged Broken Card, Permanently Corrupted Card, Replace Request by card owner Lost and Not Found Need New Card What does Card Center do ? Delete old or unused card record Request all the SPs to remove the same record. 4

20. Recovering Corrupted/Lost-found Card Corrupted cards? Cards that are dent, torn, etc . Cards that can not be recognized by Reader/Writer Cards with corrupted entity Lost-found Cards Cards that are stopped temporarily or permanently Who/Where Card must be presented to the Card Center Card owner must be validated 5

21. Recovering Locked Cards 6

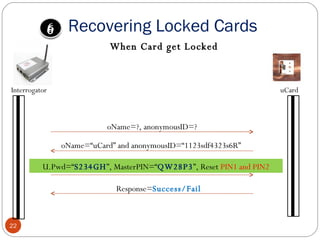

22. uCard oName=?, anonymousID=? oName=“uCard” and anonymousID=“1123sdf4323s6R” U.Pwd =“ S234GH ”, MasterPIN=“ QW28P3 ”, Reset PIN1 and PIN2 Response= Success/Fail Interrogator When Card get Locked Recovering Locked Cards 6

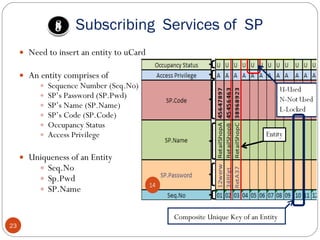

23. Subscribing Services of SP Need to insert an entity to uCard An entity comprises of Sequence Number (Seq.No) SP’s Password (SP.Pwd) SP’s Name (SP.Name) SP’s Code (SP.Code) Occupancy Status Access Privilege Uniqueness of an Entity Seq.No Sp.Pwd SP.Name Composite Unique Key of an Entity 8

24. Inserting an Entity uCard When Subscribing a Service offered by SP oName=?, anonymousID=? oName=“uCard” and anonymousID=“1123sdf4323s6R” Ins= 111 , Seq.No=?, SP.Pwd=“ 56f67ho ”, SP.Name=“ JUSCO ”, SP.Code=“ Dt64GH ” Response= Seq.No/Fail Interrogator Ins=111 SP.Pwd, SP.Name, SP.Code will be written to the uCard 8

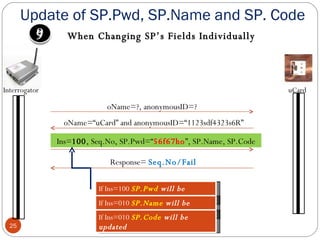

25. Update of SP.Pwd, SP.Name and SP. Code uCard oName=?, anonymousID=? oName=“uCard” and anonymousID=“1123sdf4323s6R” Ins= 100 , Seq.No, SP.Pwd=“ 56f67ho ”, SP.Name, SP.Code Response= Seq.No/Fail Interrogator If Ins=100 SP.Pwd will be updated If Ins=010 SP.Name will be updated If Ins=010 SP.Code will be updated When Changing SP’s Fields Individually 9

26. Unsubscribing Services of SP When user decided to unsubscribe servicers of a SP, Delete the relevant subscription entity record from uCard How Select the available subscriptions of the card Select an entity to be deleted Pass delete request to card Must use trusted Interrogator PIN2 is used to release an entity 10

27. Unsubscribing Services of SP uCard oName=?, anonymousID=? oName=“uCard” and anonymousID=“1123sdf4323s6R” Response= Success/Fail Interrogator Ins= 0 , Seq.No, SP. Name, U.Pwd, PIN2 Select List of (Seq.No?, SP.Name?, O.Status?), U.Pwd, PIN2 Display List of Seq.Nos, SP.Names and O.Statuses Deleting an entity of a SP If Ins=0 selected entity will be deleted If Ins=1 selected entity will be enabled 10

28. Changing Subscription from SP1 to SP2 To change subscription from one SP to another SP, First old entity must be deleted Then new entity can be written 11

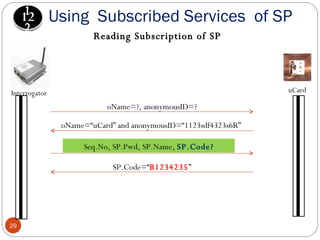

29. uCard Reading Subscription of SP oName=?, anonymousID=? oName=“uCard” and anonymousID=“1123sdf4323s6R” Seq.No, SP.Pwd, SP.Name, SP.Code? SP.Code =“ B1234235 ” Interrogator Using Subscribed Services of SP 12

30. Encrypted Reading of SP.Code uCard oName=?, anonymousID=? oName=“uCard” and anonymousID=“1123sdf4323s6R” ID T { ID T, N T , Seq.No, SP.Pwd, SP.Name, SP.Code? } K PRV ID I {ID I ,N I , SP.Code =“ B1234235 ” } K PRV Interrogator Initial {Initial, N I , ID I , ID T } K PRV ID I { ID I , N I , N T } K PRV When providing services of SP Using Subscribed Services of SP 12

31. Recovering a Locked Entity An Entity get locked, when wrong SP.Pwd entered 3 times consecutively Occupancy status becomes “L” Recovering an entity is possible with PIN2 This can be carried out by the card holder 13

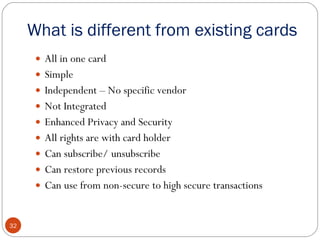

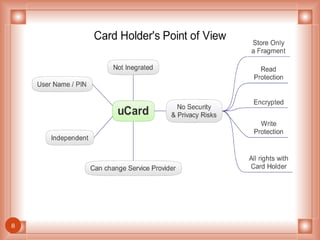

32. What is different from existing cards All in one card Simple Independent – No specific vendor Not Integrated Enhanced Privacy and Security All rights are with card holder Can subscribe/ unsubscribe Can restore previous records Can use from non-secure to high secure transactions

33. Concluding Remarks Though there are several existing, proposed, and patented solutions to this problem, No one has come up with Independent User controllable Privacy enhanced Solution like uCard We are working on uCard in mobile phones which will ultimately Eliminate the necessity of carrying and holding a bulky wallet Allow customers to enjoy rich experience in future

34. Thank you. Q & A

36. Sequence 2Bits Service Providers' Code (16 Bits) 2 Digits&4 Characters Nonce Generator, Encryption and Decryption Module, Processing Module and Hard coded Value "Initial" User Password, PIN1 and AnonymousID (random unique number) Occupancy Status 2Bits Access Privilege 2Bits Service Providers' Code 40 Bits (Fragment of Code) Service Providers' 32Bits Attribute Name Master PIN and User PIN2

37. Possible Attributes of an Entity (2/2)

38. Encrypted Communications

39. Encrypted Update of Master PIN, User PIN1, User PIN2 and User Password uCard oName=?, anonymousID=? oName=“uCard” and anonymousID=“1123sdf4323s6R” ID T { ID T, N T , Ins= 00 , U. Pwd =“ S234GH ”, OldValue =“ 430111 ”, NewValue =“ QW28P3 ” ”} K PRV ID I {N I , ID I , Response= NewValue/Fail } K PRV Interrogator Initial {Initial, N I , ID I , ID T } K PRV ID I { ID I , N I , N T } K PRV Ins(Instruction)=00 NewValue contains new master PIN to be updated ID T { ID T, N T , Ins= 11 , U. Pwd =“ S234GH ”, OldValue=“ S234GH ”, NewValue =“ ABC128 ”} K PRV ID T { ID T, N T , Ins= 10 , U. Pwd =“ S234GH ”, OldValue=“ 4301 ”, NewValue =“ 2324 ” } K PRV ID T { ID T, N T , Ins= 10 , U. Pwd =“ S234GH ”, OldValue=“ 1601 ”, NewValue =“ 1624 ” } K PRV Ins(Instruction)=11 NewValue contains new user password to be updated Ins(Instruction)=10 NewValue contains new PIN1 to be updated Ins(Instruction)=01 NewValue contains new PIN2 to be updated 2

40. Encrypted Card Release uCard oName=?, anonymousID=? oName=“uCard” and anonymousID=“1123sdf4323s6R” ID T { ID T, N T , U. Pwd =“ S234GH ”, MasterPIN=“ QW28P3 ”, Reset PIN1 and PIN2 } K PRV ID I {N I , ID I , Response= Success/Fail } K PRV Interrogator Initial {Initial, N I , ID I , ID T } K PRV ID I { ID I , N I , N T } K PRV When Registering/Changing Recovering Locked Cards 6

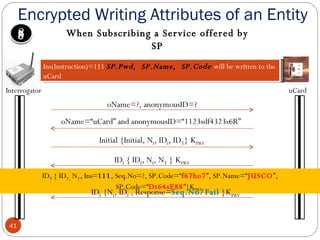

41. uCard oName=?, anonymousID=? oName=“uCard” and anonymousID=“1123sdf4323s6R” ID T { ID T, N T , Ins= 111 , Seq.No=?, SP.Code=“ f67ho7 ”, SP.Name=“ JUSCO ”, SP.Code=“ Dt64sE88 ”} K PRV ID I {N I , ID I , Response= Seq.No/Fail } K PRV Interrogator Initial {Initial, N I , ID I , ID T } K PRV ID I { ID I , N I , N T } K PRV Encrypted Writing Attributes of an Entity When Subscribing a Service offered by SP Ins(Instruction)=111 SP.Pwd, SP.Name, SP.Code will be written to the uCard 8

42. uCard oName=?, anonymousID=? oName=“uCard” and anonymousID=“1123sdf4323s6R” ID I { N I , ID I , Response= Seq.No/Fail } K PRV Interrogator Initial {Initial, N I , ID I , ID T } K PRV ID I { ID I , N I , N T } K PRV Encrypted Update of SP.Pwd, SP.Name and SP.Code When Changing SP’s Password, Name and Code Ins(Instruction)=100 SP.Pwd , SP.Name, SP.Code will be written to the uCard Ins(Instruction)=010 SP.Pwd, SP.Name , SP.Code will be written to the uCard ID T { ID T, N T , Ins= 100 , Seq.No, SP.Pwd=“ 56f67ho ”, SP.Name, SP.Code} K PRV ID T { ID T, N T , Ins= 010 , Seq.No, SP.Pwd, SP.Name=“ JUSCO ”, SP.Code} K PRV Ins(Instruction)=010 SP.Pwd, SP.Name, SP.Code will be written to the uCard ID T { ID T, N T , Ins= 001 , Seq.No, SP.Pwd, SP.Name, SP.Code=“ Dt64GH } K PRV 9

43. Unsubscribing Services of SP uCard oName=?, anonymousID=? oName=“uCard” and anonymousID=“1123sdf4323s6R” ID I {ID I, N I , Response= Success/Fail } K PRV Interrogator ID T { ID T, N T , Ins= 0 , Seq.No, SP. Name, U.Pwd, PIN2 } K PRV ID T { ID T, N T , Select List of (Seq.No?, SP.Name?, O.Status?), U.Pwd, PIN2 } K PRV ID I {ID I , N I , Display List of Seq.Nos, SP.Names and O.Statuses } K PRV Initial {Initial, N I , ID I , ID T } K PRV ID I { ID I , N I , N T } K PRV Encrypted Deleting of an Entity Ins(Instruction)=0 selected entity will be deleted 10

44. Encrypted Enabling of an Entity uCard Interrogator When a subscription entity get locked Ins(Instruction)=1 selected entity will be enabled Recovering a Locked Entity oName=?, anonymousID=? oName=“uCard” and anonymousID=“1123sdf4323s6R” ID I {N I , ID I , Response= Success/Fail } K PRV ID T { ID T, N T , Ins= 1 , Seq.No, SP. Name, U.Pwd, PIN2 } K PRV ID T { ID T, N T , Select List of (Seq.No?, SP.Name?, O.Status?), U.Pwd, PIN2 } K PRV ID I {ID I , N I , Display List of Seq.Nos, SP.Names and O.Statuses } K PRV Initial {Initial, N I , ID I , ID T } K PRV ID I { ID I , N I , N T } K PRV 13
