TURNER provides gas and steam turbine repair services, generator repair services, and balance of plant work. They offer general, technical, engineering and consulting services such as repairs, modifications, upgrades, and consulting. They provide shop services including repairs to rotors, blading, and casings. They also provide field repair services for generators and exciters. Additional support services include outage planning, diagnostics, and temporary power solutions. They have products such as monitoring systems and used power equipment, and represent Keystone Power Service Group.

1. DIRECT CONTACT: 407-927-6517 turnerbizservices@gmail.com
TURNER provides the following T-G & BOP Services
General Services:
 GAS & Steam Turbine Repair & Services
 Generator Repair & Services
 Balance of Plant work
 Repair & Refurbish Rotating & Stationary Turbine Components
 Reverse Engineering
Technical Services:
 Frequency Conversions
 Fuel System Conversions
 Emissions Abatement Systems
 Auxiliary System Modification
 Instrumentation and Control System Modifications
 Parts Sourcing
 Turbine & Generator Maintenance Consideration
 Mechanical
Engineering & Consulting Services:
 Consulting and Design Services
 Project Management
 Technical Direction
 Troubleshooting and Maintenance
 Start-Up Commissioning Services
 Combustion Dynamics and Emissions Tuning
 Unit Performance Optimization Programs
 Remote Access Support
Conversions, Modifications & Upgrade Services:
 Frequency Conversions
 Fuel System Conversions
 Emissions Abatement Systems
 Auxiliary System Modification
 Instrumentation and Control System Modifications
 Gas Turbine Installation & Reapplication

2. DIRECT CONTACT: 407-927-6517 turnerbizservices@gmail.com

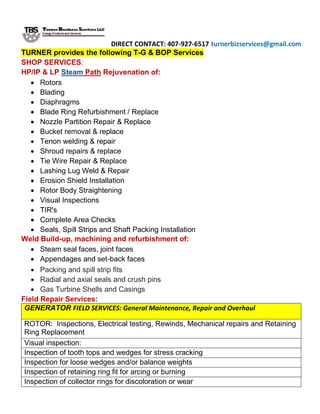

TURNER provides the following T-G & BOP Services
SHOP SERVICES:
HP/IP & LP Steam Path Rejuvenation of:
 Rotors
 Blading
 Diaphragms
 Blade Ring Refurbishment / Replace
 Nozzle Partition Repair & Replace
 Bucket removal & replace
 Tenon welding & repair
 Shroud repairs & replace
 Tie Wire Repair & Replace
 Lashing Lug Weld & Repair
 Erosion Shield Installation
 Rotor Body Straightening
 Visual Inspections
 TIR's
 Complete Area Checks
 Seals, Spill Strips and Shaft Packing Installation
Weld Build-up, machining and refurbishment of:
 Steam seal faces, joint faces
 Appendages and set-back faces
 Packing and spill strip fits
 Radial and axial seals and crush pins
 Gas Turbine Shells and Casings
Field Repair Services:
GENERATOR FIELD SERVICES: General Maintenance, Repair and Overhaul
ROTOR: Inspections, Electrical testing, Rewinds, Mechanical repairs and Retaining
Ring Replacement
Visual inspection:
Inspection of tooth tops and wedges for stress cracking
Inspection for loose wedges and/or balance weights
Inspection of retaining ring fit for arcing or burning
Inspection of collector rings for discoloration or wear

3. DIRECT CONTACT: 407-927-6517 turnerbizservices@gmail.com

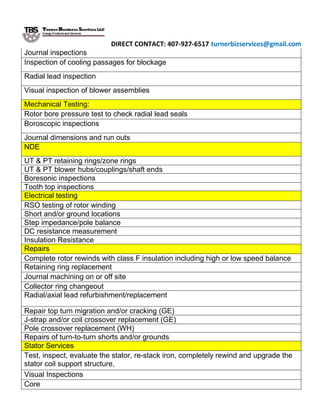

Journal inspections
Inspection of cooling passages for blockage
Radial lead inspection
Visual inspection of blower assemblies
Mechanical Testing:
Rotor bore pressure test to check radial lead seals
Boroscopic inspections
Journal dimensions and run outs
NDE
UT & PT retaining rings/zone rings
UT & PT blower hubs/couplings/shaft ends
Boresonic inspections
Tooth top inspections
Electrical testing
RSO testing of rotor winding
Short and/or ground locations
Step impedance/pole balance
DC resistance measurement
Insulation Resistance
Repairs
Complete rotor rewinds with class F insulation including high or low speed balance
Retaining ring replacement
Journal machining on or off site
Collector ring changeout
Radial/axial lead refurbishment/replacement
Repair top turn migration and/or cracking (GE)
J-strap and/or coil crossover replacement (GE)
Pole crossover replacement (WH)
Repairs of turn-to-turn shorts and/or grounds
Stator Services
Test, inspect, evaluate the stator, re-stack iron, completely rewind and upgrade the
stator coil support structure,
Visual Inspections
Core

4. DIRECT CONTACT: 407-927-6517 turnerbizservices@gmail.com

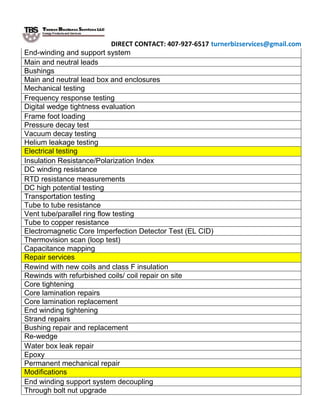

End-winding and support system
Main and neutral leads
Bushings
Main and neutral lead box and enclosures
Mechanical testing
Frequency response testing
Digital wedge tightness evaluation
Frame foot loading
Pressure decay test
Vacuum decay testing
Helium leakage testing
Electrical testing
Insulation Resistance/Polarization Index
DC winding resistance
RTD resistance measurements
DC high potential testing
Transportation testing
Tube to tube resistance
Vent tube/parallel ring flow testing
Tube to copper resistance
Electromagnetic Core Imperfection Detector Test (EL CID)
Thermovision scan (loop test)
Capacitance mapping
Repair services
Rewind with new coils and class F insulation
Rewinds with refurbished coils/ coil repair on site
Core tightening
Core lamination repairs
Core lamination replacement
End winding tightening
Strand repairs
Bushing repair and replacement
Re-wedge
Water box leak repair
Epoxy
Permanent mechanical repair
Modifications
End winding support system decoupling
Through bolt nut upgrade

5. DIRECT CONTACT: 407-927-6517 turnerbizservices@gmail.com

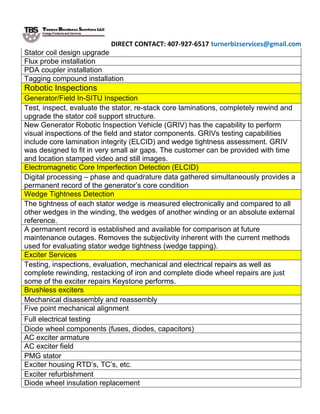

Stator coil design upgrade
Flux probe installation
PDA coupler installation
Tagging compound installation
Robotic Inspections
Generator/Field In-SITU Inspection
Test, inspect, evaluate the stator, re-stack core laminations, completely rewind and
upgrade the stator coil support structure.
New Generator Robotic Inspection Vehicle (GRIV) has the capability to perform
visual inspections of the field and stator components. GRIVs testing capabilities
include core lamination integrity (ELCID) and wedge tightness assessment. GRIV
was designed to fit in very small air gaps. The customer can be provided with time
and location stamped video and still images.
Electromagnetic Core Imperfection Detection (ELCID)
Digital processing – phase and quadrature data gathered simultaneously provides a
permanent record of the generator’s core condition
Wedge Tightness Detection
The tightness of each stator wedge is measured electronically and compared to all
other wedges in the winding, the wedges of another winding or an absolute external
reference.
A permanent record is established and available for comparison at future
maintenance outages. Removes the subjectivity inherent with the current methods
used for evaluating stator wedge tightness (wedge tapping).
Exciter Services
Testing, inspections, evaluation, mechanical and electrical repairs as well as
complete rewinding, restacking of iron and complete diode wheel repairs are just
some of the exciter repairs Keystone performs.
Brushless exciters
Mechanical disassembly and reassembly
Five point mechanical alignment
Full electrical testing
Diode wheel components (fuses, diodes, capacitors)
AC exciter armature
AC exciter field
PMG stator
Exciter housing RTD’s, TC’s, etc.
Exciter refurbishment
Diode wheel insulation replacement

6. DIRECT CONTACT: 407-927-6517 turnerbizservices@gmail.com

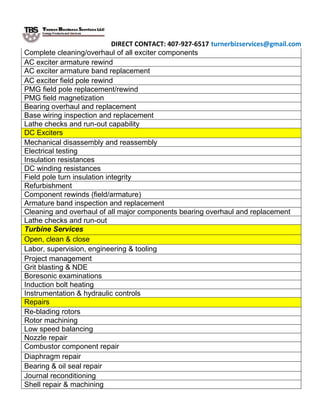

Complete cleaning/overhaul of all exciter components
AC exciter armature rewind
AC exciter armature band replacement
AC exciter field pole rewind
PMG field pole replacement/rewind
PMG field magnetization
Bearing overhaul and replacement
Base wiring inspection and replacement
Lathe checks and run-out capability
DC Exciters
Mechanical disassembly and reassembly
Electrical testing
Insulation resistances
DC winding resistances
Field pole turn insulation integrity
Refurbishment
Component rewinds (field/armature)
Armature band inspection and replacement
Cleaning and overhaul of all major components bearing overhaul and replacement
Lathe checks and run-out
Turbine Services
Open, clean & close
Labor, supervision, engineering & tooling
Project management
Grit blasting & NDE
Boresonic examinations
Induction bolt heating
Instrumentation & hydraulic controls
Repairs
Re-blading rotors
Rotor machining
Low speed balancing
Nozzle repair
Combustor component repair
Diaphragm repair
Bearing & oil seal repair
Journal reconditioning
Shell repair & machining

7. DIRECT CONTACT: 407-927-6517 turnerbizservices@gmail.com

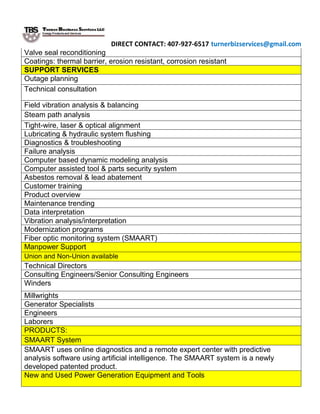

Valve seal reconditioning
Coatings: thermal barrier, erosion resistant, corrosion resistant
SUPPORT SERVICES
Outage planning
Technical consultation
Field vibration analysis & balancing
Steam path analysis
Tight-wire, laser & optical alignment
Lubricating & hydraulic system flushing
Diagnostics & troubleshooting
Failure analysis
Computer based dynamic modeling analysis
Computer assisted tool & parts security system
Asbestos removal & lead abatement
Customer training
Product overview
Maintenance trending
Data interpretation
Vibration analysis/interpretation
Modernization programs
Fiber optic monitoring system (SMAART)
Manpower Support
Union and Non-Union available
Technical Directors
Consulting Engineers/Senior Consulting Engineers
Winders
Millwrights
Generator Specialists
Engineers
Laborers
PRODUCTS:
SMAART System
SMAART uses online diagnostics and a remote expert center with predictive
analysis software using artificial intelligence. The SMAART system is a newly
developed patented product.
New and Used Power Generation Equipment and Tools

8. DIRECT CONTACT: 407-927-6517 turnerbizservices@gmail.com

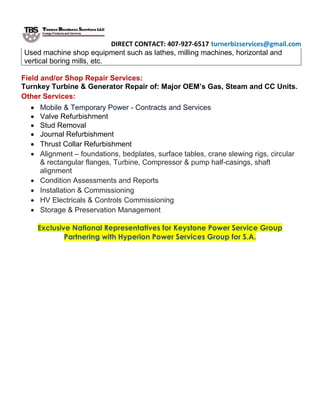

Used machine shop equipment such as lathes, milling machines, horizontal and
vertical boring mills, etc.
Field and/or Shop Repair Services:
Turnkey Turbine & Generator Repair of: Major OEM’s Gas, Steam and CC Units.
Other Services:
 Mobile & Temporary Power - Contracts and Services
 Valve Refurbishment
 Stud Removal
 Journal Refurbishment
 Thrust Collar Refurbishment
 Alignment – foundations, bedplates, surface tables, crane slewing rigs, circular
& rectangular flanges, Turbine, Compressor & pump half-casings, shaft
alignment
 Condition Assessments and Reports
 Installation & Commissioning
 HV Electricals & Controls Commissioning
 Storage & Preservation Management
Exclusive National Representatives for Keystone Power Service Group
Partnering with Hyperion Power Services Group for S.A.
