The document discusses a joint venture between HSV-X1 catamarans and M113A4 Amphigavin amphibious vehicles. It provides details of a notional infantry company cargo report outlining various equipment that could be transported by the vessels, including fire control systems, antennae, trucks, trailers, and 40 M113A4 infantry carriers weighing 1.12 million pounds total. It also lists additional cargo of over 500,000 pounds that would not be loaded onto the joint venture vessels.

1. Joint Venture HSV-X1 and AmphiGavins
combatreform.org/amphigavins.htm
oint Venture HSV-X1 & M113A4 Amphigavins
HSV - X1 HSV - X1
HSV - X1
M113A4 AmphiGavin IBCT Infantry Battalion
113A4
mphiGavins
n splash into
e water from
ern ramp, not
eding a port

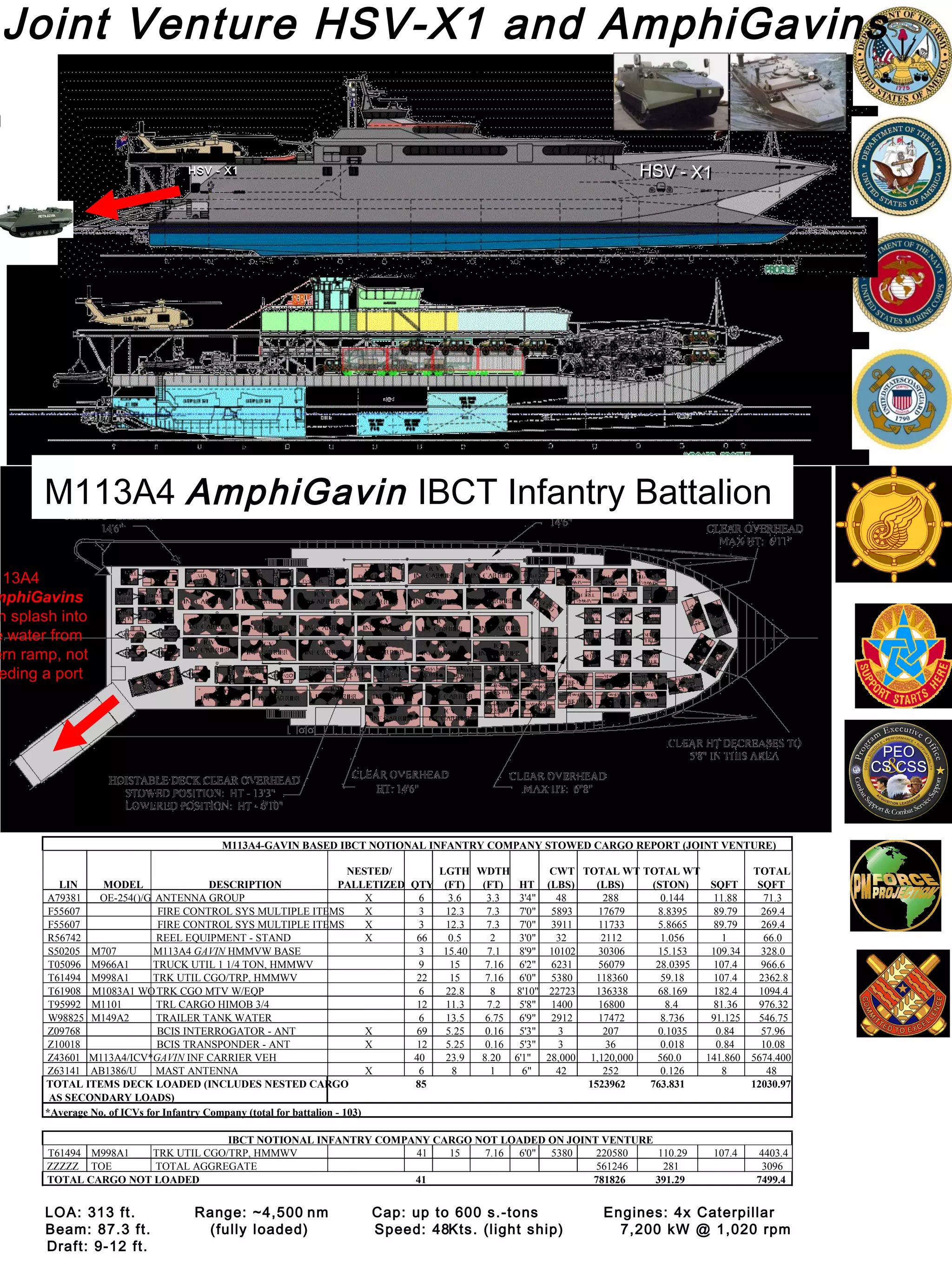

M113A4-GAVIN BASED IBCT NOTIONAL INFANTRY COMPANY STOWED CARGO REPORT (JOINT VENTURE)
NESTED/ LGTH WDTH CWT TOTAL WT TOTAL WT TOTAL
LIN MODEL DESCRIPTION PALLETIZED QTY (FT) (FT) HT (LBS) (LBS) (STON) SQFT SQFT
A79381 OE-254()/G ANTENNA GROUP X 6 3.6 3.3 3'4" 48 288 0.144 11.88 71.3
F55607 FIRE CONTROL SYS MULTIPLE ITEMS X 3 12.3 7.3 7'0" 5893 17679 8.8395 89.79 269.4
F55607 FIRE CONTROL SYS MULTIPLE ITEMS X 3 12.3 7.3 7'0" 3911 11733 5.8665 89.79 269.4
R56742 REEL EQUIPMENT - STAND X 66 0.5 2 3'0" 32 2112 1.056 1 66.0
S50205 M707 M113A4 GAVIN HMMVW BASE 3 15.40 7.1 8'9" 10102 30306 15.153 109.34 328.0
T05096 M966A1 TRUCK UTIL 1 1/4 TON, HMMWV 9 15 7.16 6'2" 6231 56079 28.0395 107.4 966.6
T61494 M998A1 TRK UTIL CGO/TRP, HMMWV 22 15 7.16 6'0" 5380 118360 59.18 107.4 2362.8
T61908 M1083A1 WO TRK CGO MTV W/EQP 6 22.8 8 8'10" 22723 136338 68.169 182.4 1094.4
T95992 M1101 TRL CARGO HIMOB 3/4 12 11.3 7.2 5'8" 1400 16800 8.4 81.36 976.32
W98825 M149A2 TRAILER TANK WATER 6 13.5 6.75 6'9" 2912 17472 8.736 91.125 546.75
Z09768 BCIS INTERROGATOR - ANT X 69 5.25 0.16 5'3" 3 207 0.1035 0.84 57.96
Z10018 BCIS TRANSPONDER - ANT X 12 5.25 0.16 5'3" 3 36 0.018 0.84 10.08
Z43601 M113A4/ICV*GAVIN INF CARRIER VEH 40 23.9 8.20 6'1" 28,000 1,120,000 560.0 141.860 5674.400
Z63141 AB1386/U MAST ANTENNA X 6 8 1 6" 42 252 0.126 8 48
TOTAL ITEMS DECK LOADED (INCLUDES NESTED CARGO 85 1523962 763.831 12030.97
AS SECONDARY LOADS)
*Average No. of ICVs for Infantry Company (total for battalion - 103)
IBCT NOTIONAL INFANTRY COMPANY CARGO NOT LOADED ON JOINT VENTURE
T61494 M998A1 TRK UTIL CGO/TRP, HMMWV 41 15 7.16 6'0" 5380 220580 110.29 107.4 4403.4
ZZZZZ TOE TOTAL AGGREGATE 561246 281 3096
TOTAL CARGO NOT LOADED 41 781826 391.29 7499.4
LOA: 313 ft . Range: ~4,500 nm Cap: up to 600 s.-tons Engines: 4x Caterpillar
Beam: 87.3 ft. (fully l oaded) Speed: 48Kts . (l ight ship) 7,200 kW @ 1,020 rpm
Draft: 9-12 ft.
