This document provides information about a 1976 ABS classified multi-purpose barge for sale or charter. The barge measures 316.5 feet by 105.75 feet with a 10 foot main deck and is equipped with two cranes with lifting capacities of 160,600 pounds and 22,000 pounds. It has accommodations for 72 people with facilities like a medical clinic, galley, offices and lounge. The barge also has a ROV system and a mooring system. Additional details are provided about a removable production module, high pressure choke manifold, and flare boom that can be included. Pricing options are listed for purchasing various marine systems with or without the production module. Contact information is provided for Mika Babineaux to inquire further

1. For all Inquiries Contact:
Mika Babineaux
mika.babineaux@gmail.com
Cell: 281-785-5278

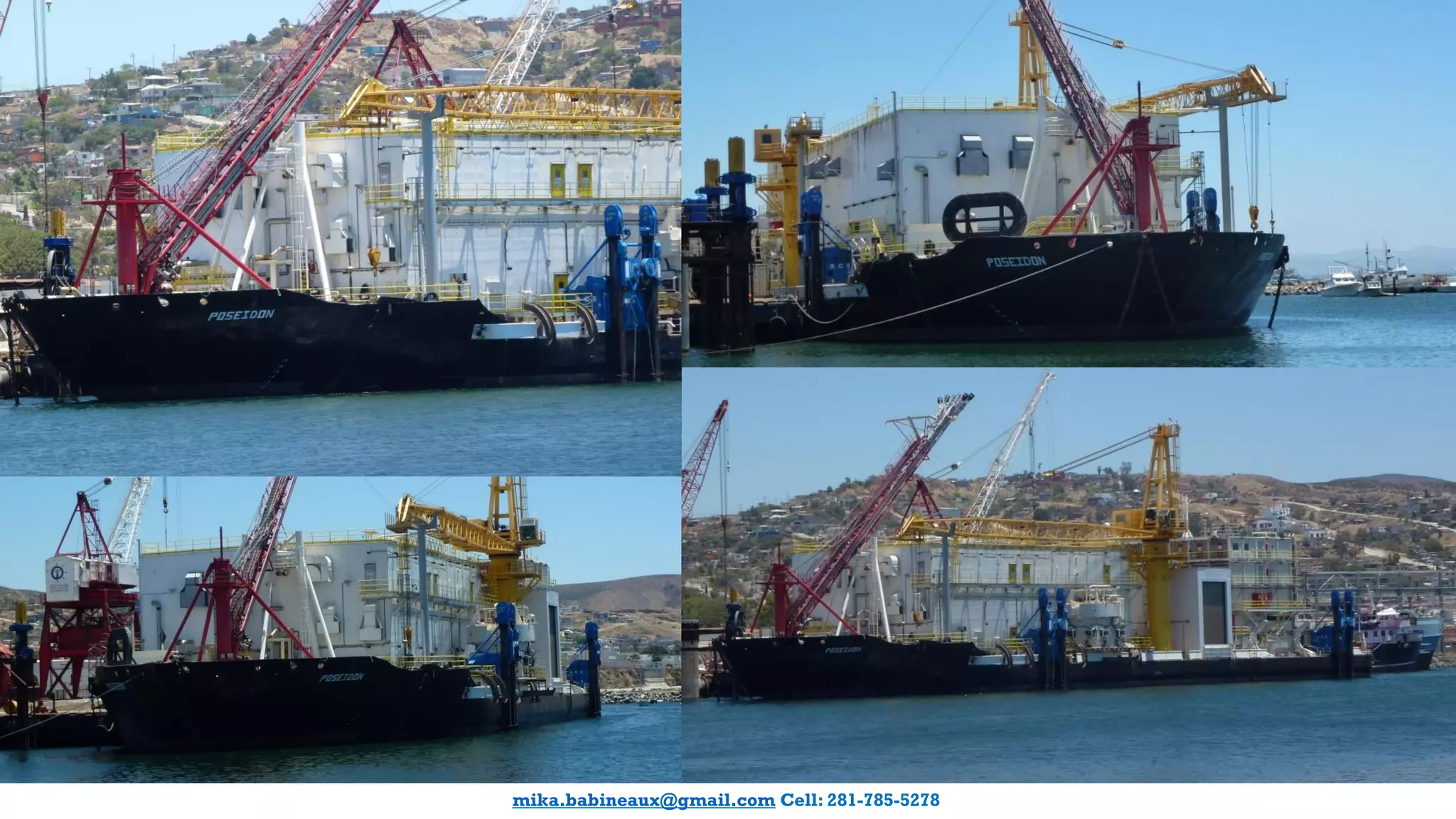

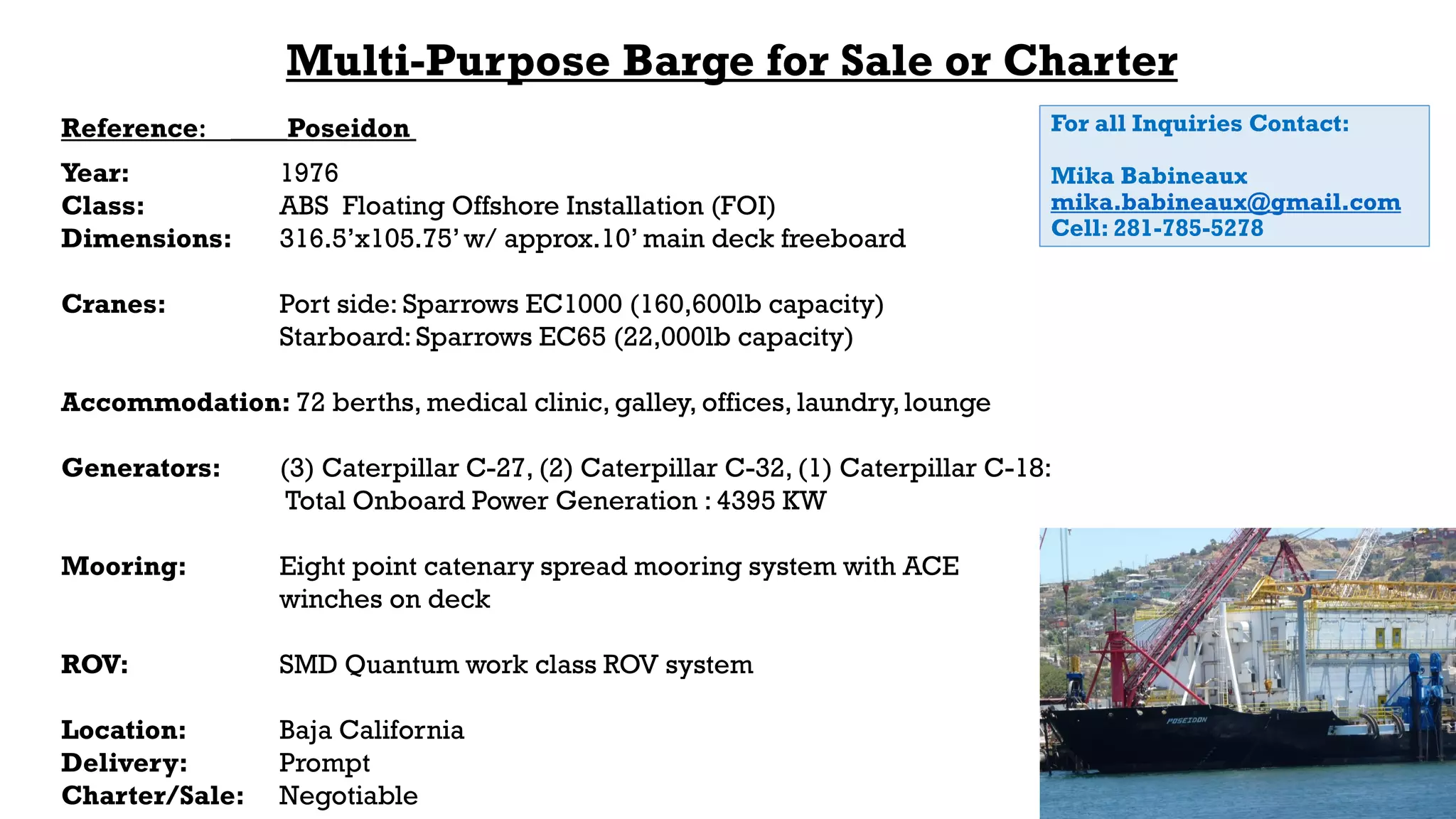

Multi-Purpose Barge for Sale or Charter
Reference: Poseidon
Year: 1976
Class: ABS Floating Offshore Installation (FOI)
Dimensions: 316.5’x105.75’w/ approx.10’ main deck freeboard
Cranes: Port side: Sparrows EC1000 (160,600lb capacity)
Starboard:Sparrows EC65 (22,000lb capacity)

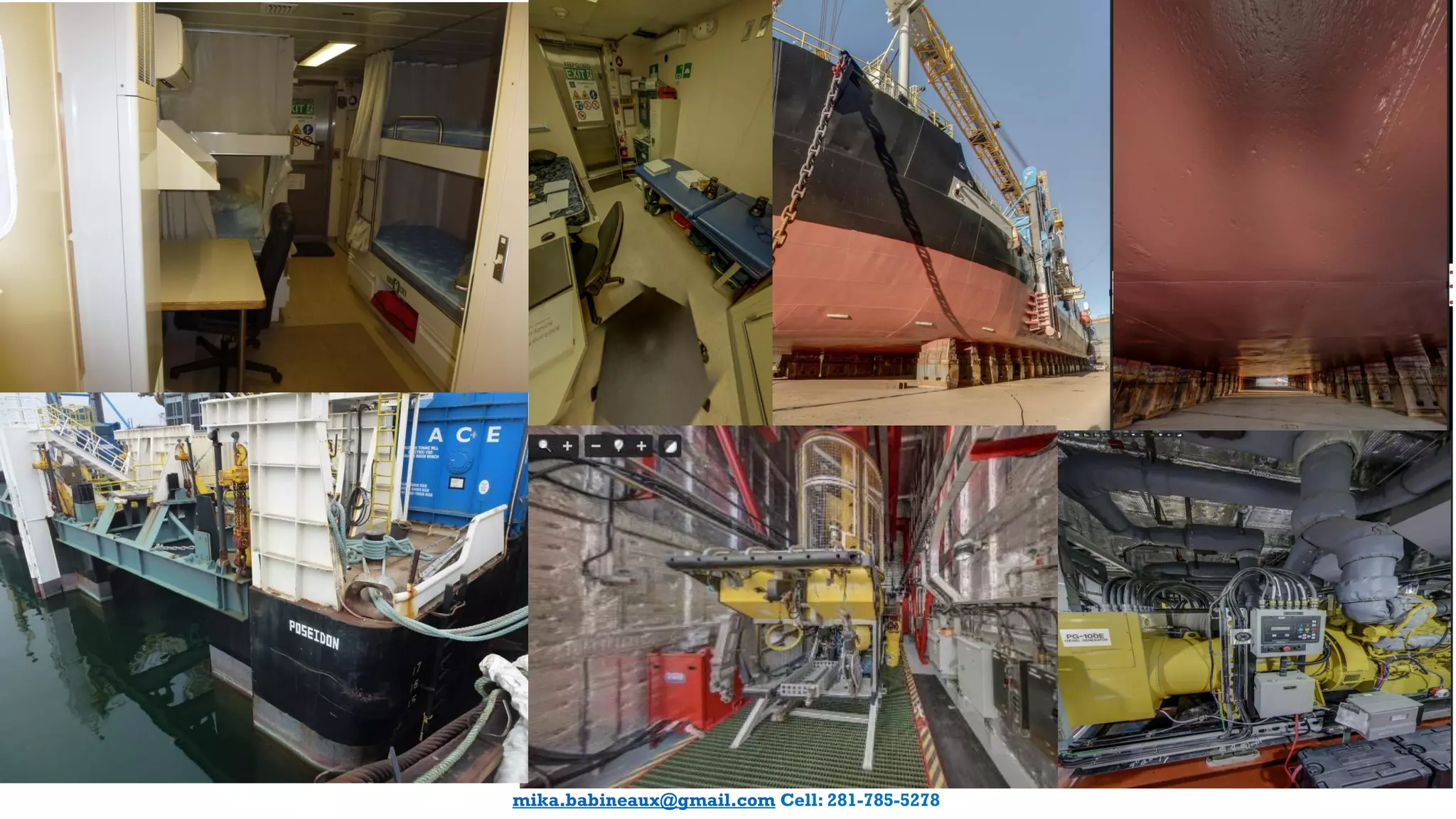

Accommodation: 72 berths, medical clinic, galley, offices, laundry, lounge
Generators: (3) Caterpillar C-27, (2) Caterpillar C-32, (1) Caterpillar C-18:
Total Onboard Power Generation : 4395 KW
Mooring: Eight point catenary spread mooring system with ACE
winches on deck
ROV: SMD Quantum work class ROV system
Location: Baja California
Delivery: Prompt
Charter/Sale: Negotiable

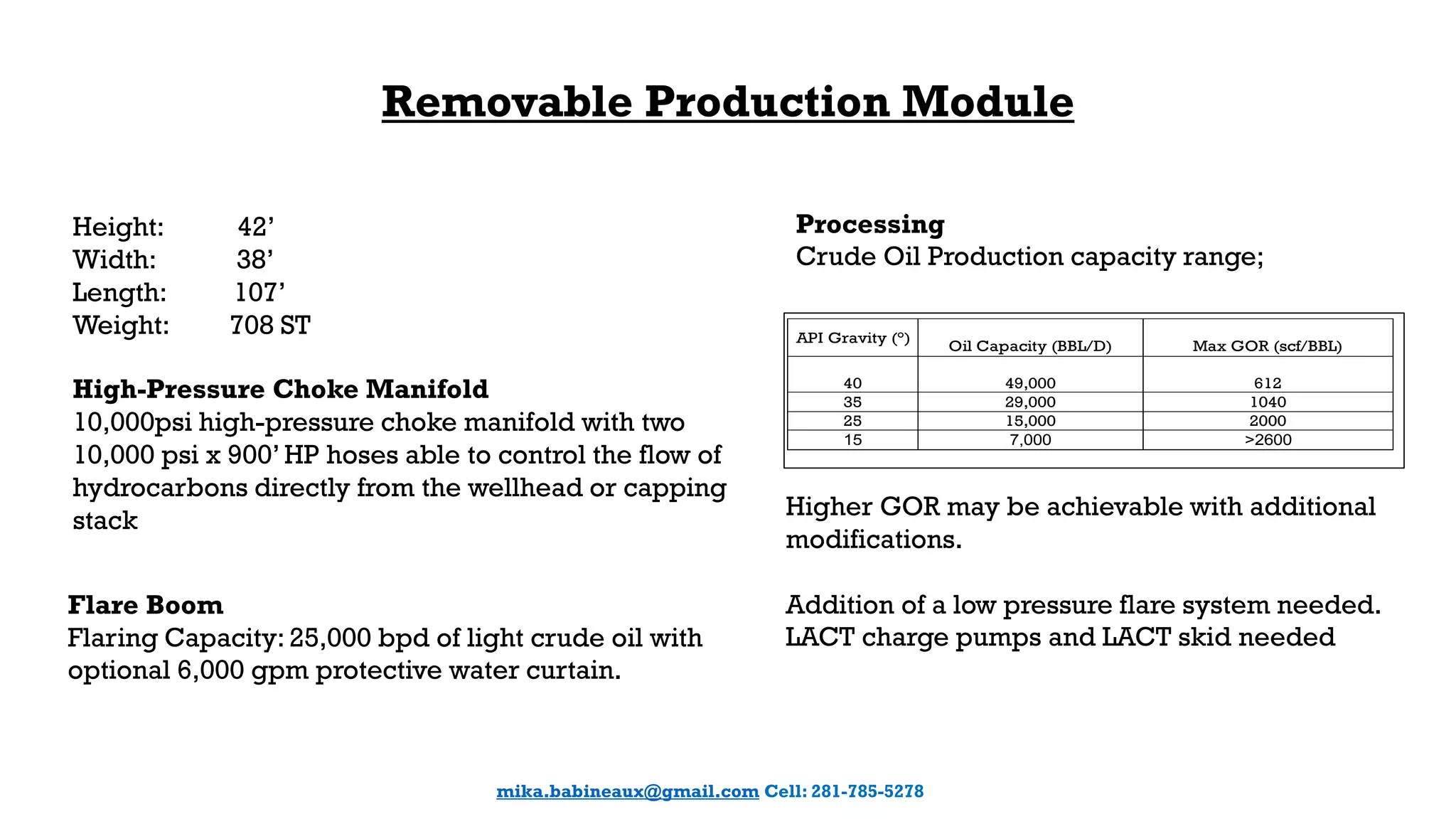

2. Removable Production Module
API Gravity (°)
Oil Capacity (BBL/D) Max GOR (scf/BBL)
40 49,000 612
35 29,000 1040
25 15,000 2000
15 7,000 >2600
Higher GOR may be achievable with additional
modifications.
Addition of a low pressure flare system needed.
LACT charge pumps and LACT skid needed
High-Pressure Choke Manifold
10,000psi high-pressure choke manifold with two
10,000 psi x 900’ HP hoses able to control the flow of
hydrocarbons directly from the wellhead or capping
stack
Flare Boom
Flaring Capacity: 25,000 bpd of light crude oil with
optional 6,000 gpm protective water curtain.
Height: 42’
Width: 38’
Length: 107’
Weight: 708 ST
Processing
Crude Oil Production capacity range;
mika.babineaux@gmail.com Cell: 281-785-5278

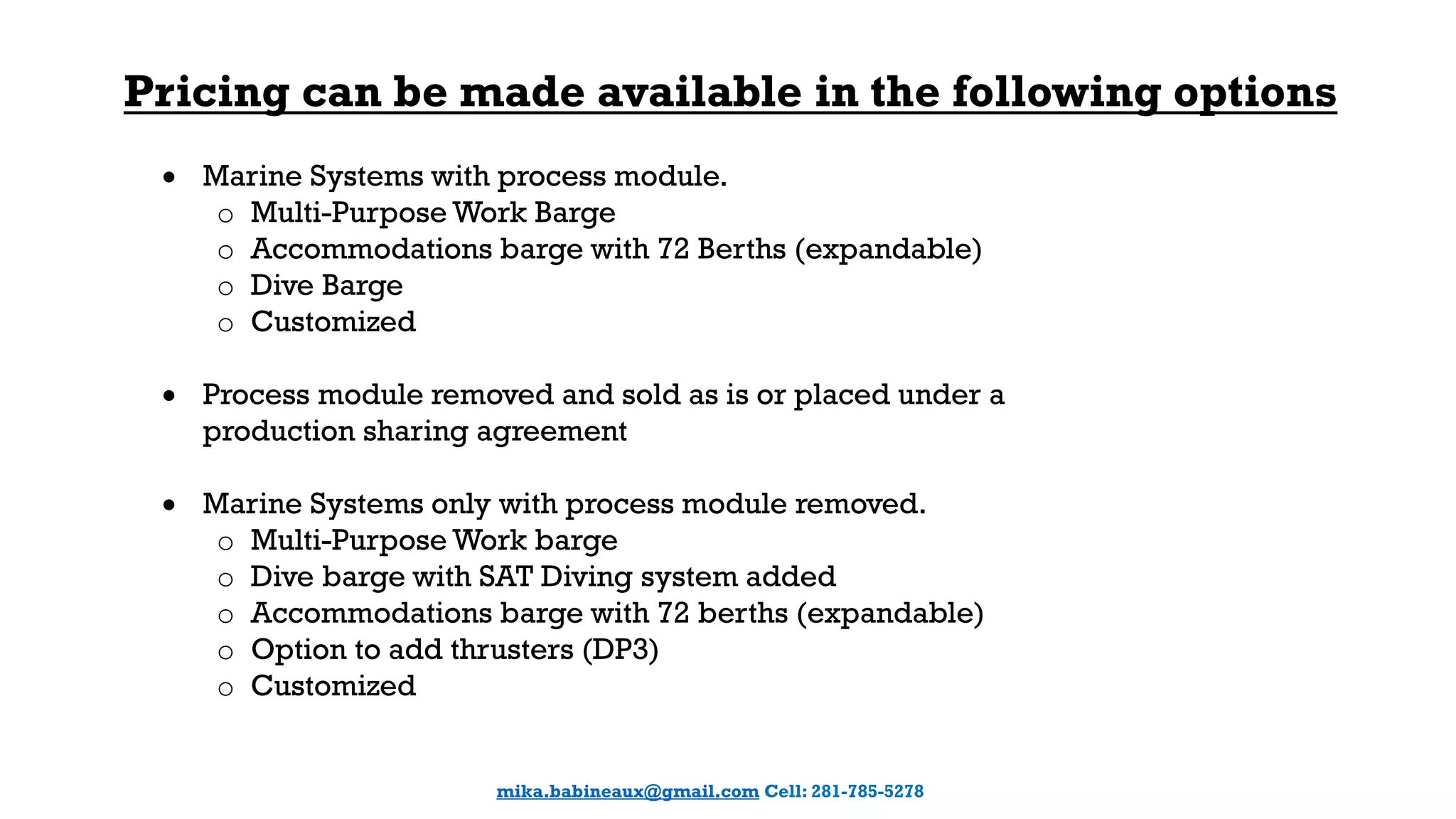

3. Pricing can be made available in the following options
 Marine Systems with process module.
o Multi-Purpose Work Barge
o Accommodations barge with 72 Berths (expandable)
o Dive Barge
o Customized
 Process module removed and sold as is or placed under a
production sharing agreement
 Marine Systems only with process module removed.
o Multi-Purpose Work barge
o Dive barge with SAT Diving system added
o Accommodations barge with 72 berths (expandable)
o Option to add thrusters (DP3)
o Customized
mika.babineaux@gmail.com Cell: 281-785-5278

4. mika.babineaux@gmail.com Cell: 281-785-5278

5. mika.babineaux@gmail.com Cell: 281-785-5278
