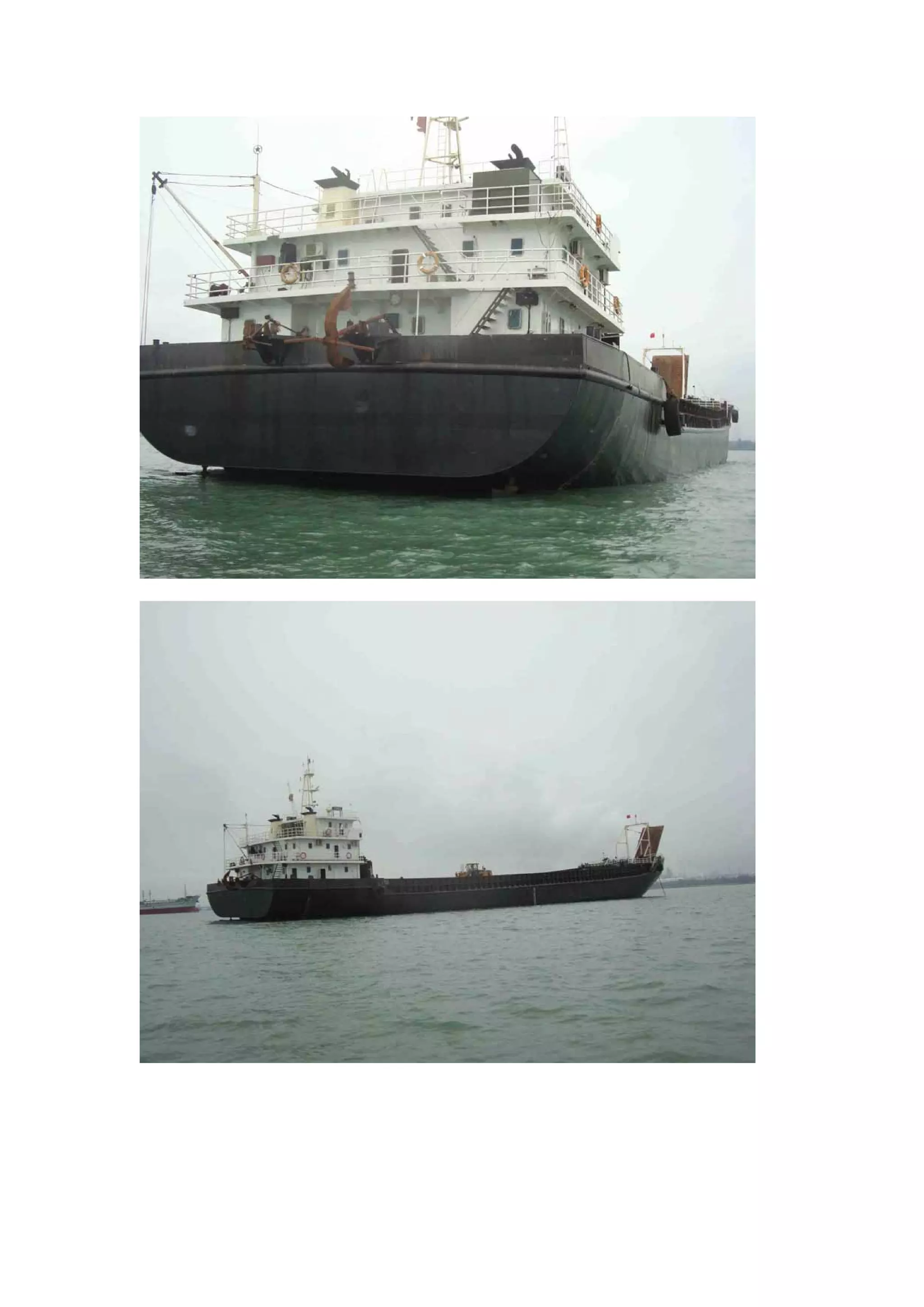

3500dwt self propelled barge

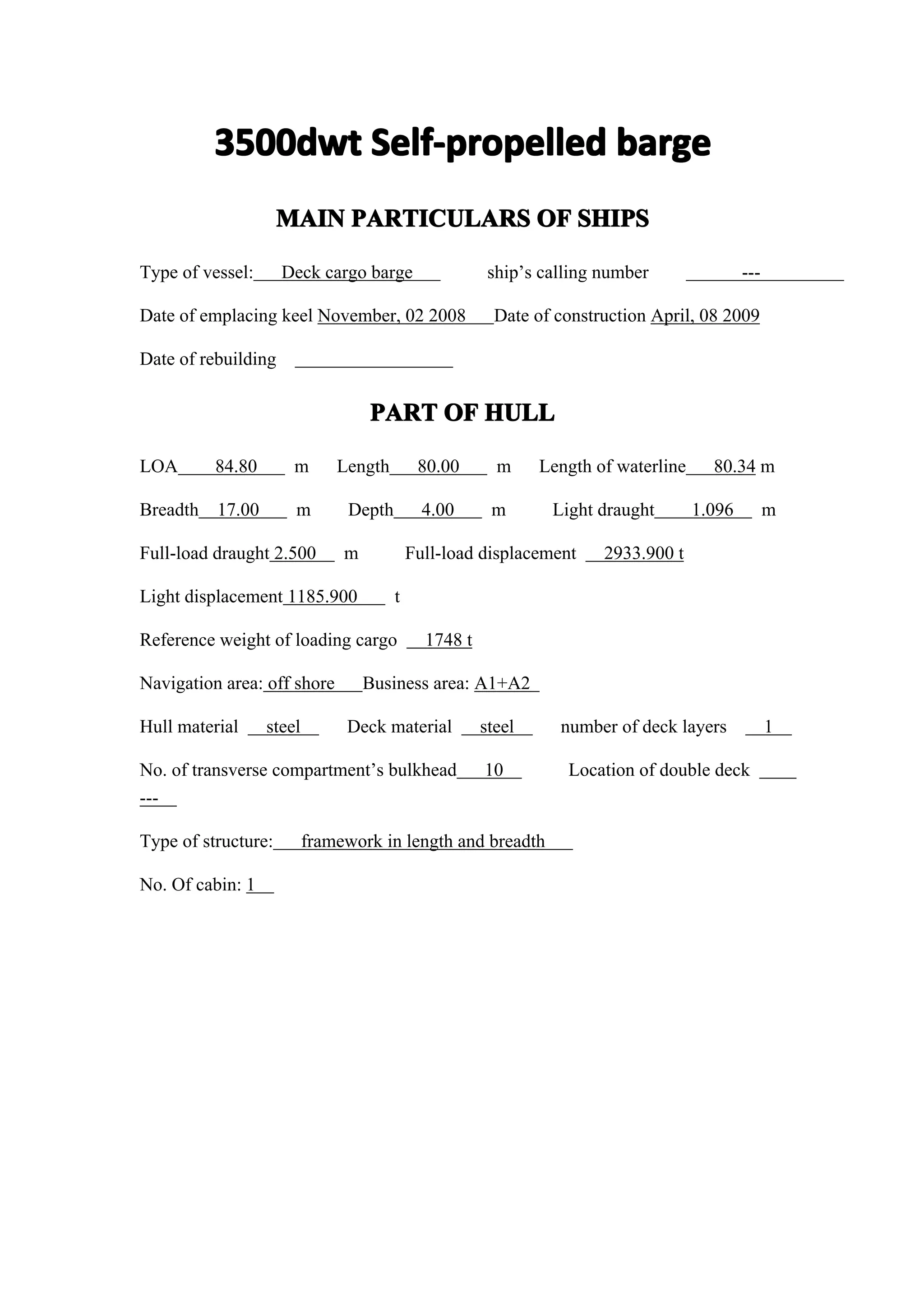

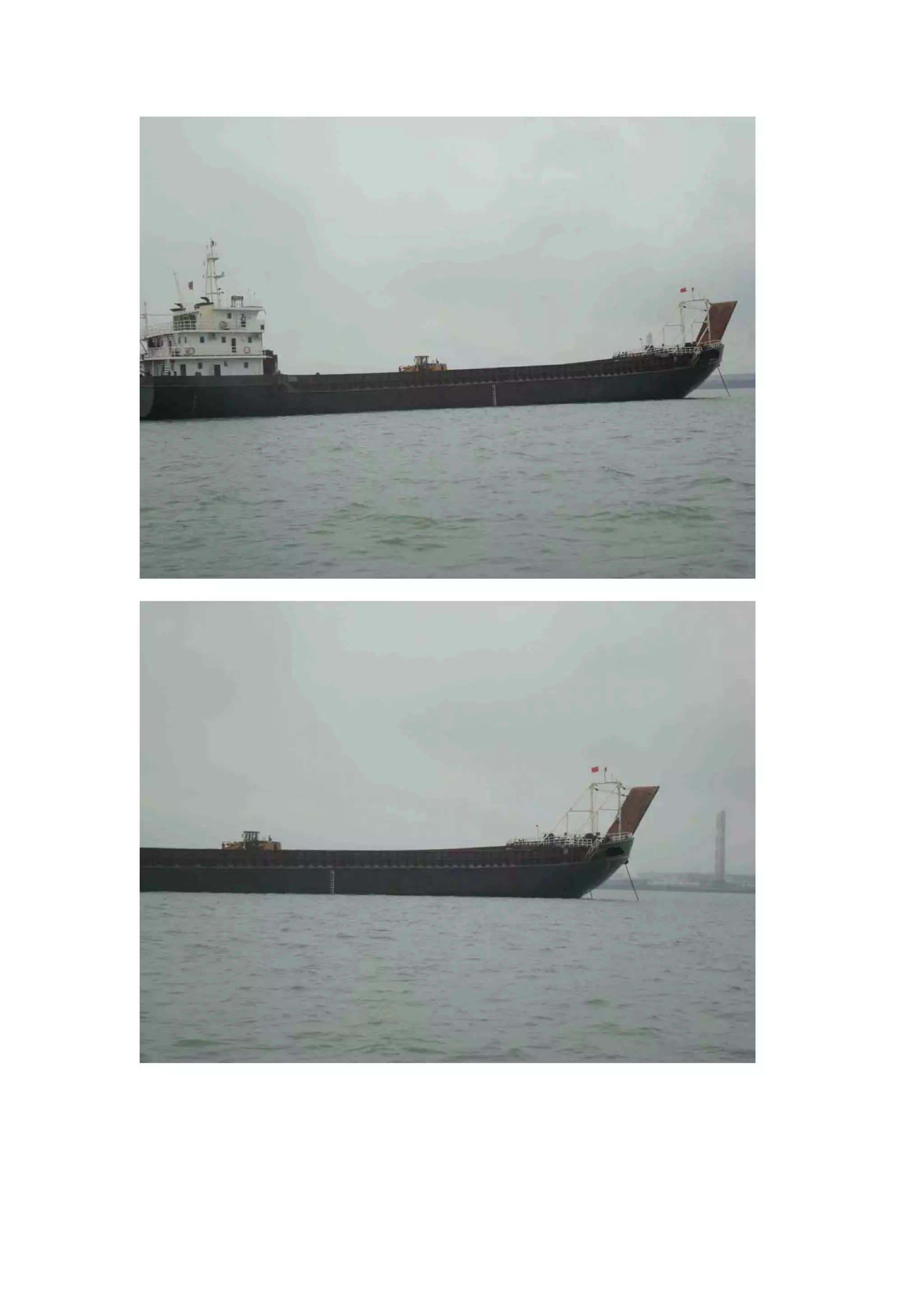

1. 3500dwt Self-propelled barge
3500dwt
MAIN PARTICULARS OF SHIPS
Type of vessel: Deck cargo barge ship’s calling number ---
Date of emplacing keel November, 02 2008 Date of construction April, 08 2009
Date of rebuilding
PART OF HULL
LOA 84.80 m Length 80.00 m Length of waterline 80.34 m
Breadth 17.00 m Depth 4.00 m Light draught 1.096 m
Full-load draught 2.500 m Full-load displacement 2933.900 t
Light displacement 1185.900 t
Reference weight of loading cargo 1748 t
Navigation area: off shore Business area: A1+A2
Hull material steel Deck material steel number of deck layers 1
No. of transverse compartment’s bulkhead 10 Location of double deck
---
Type of structure: framework in length and breadth

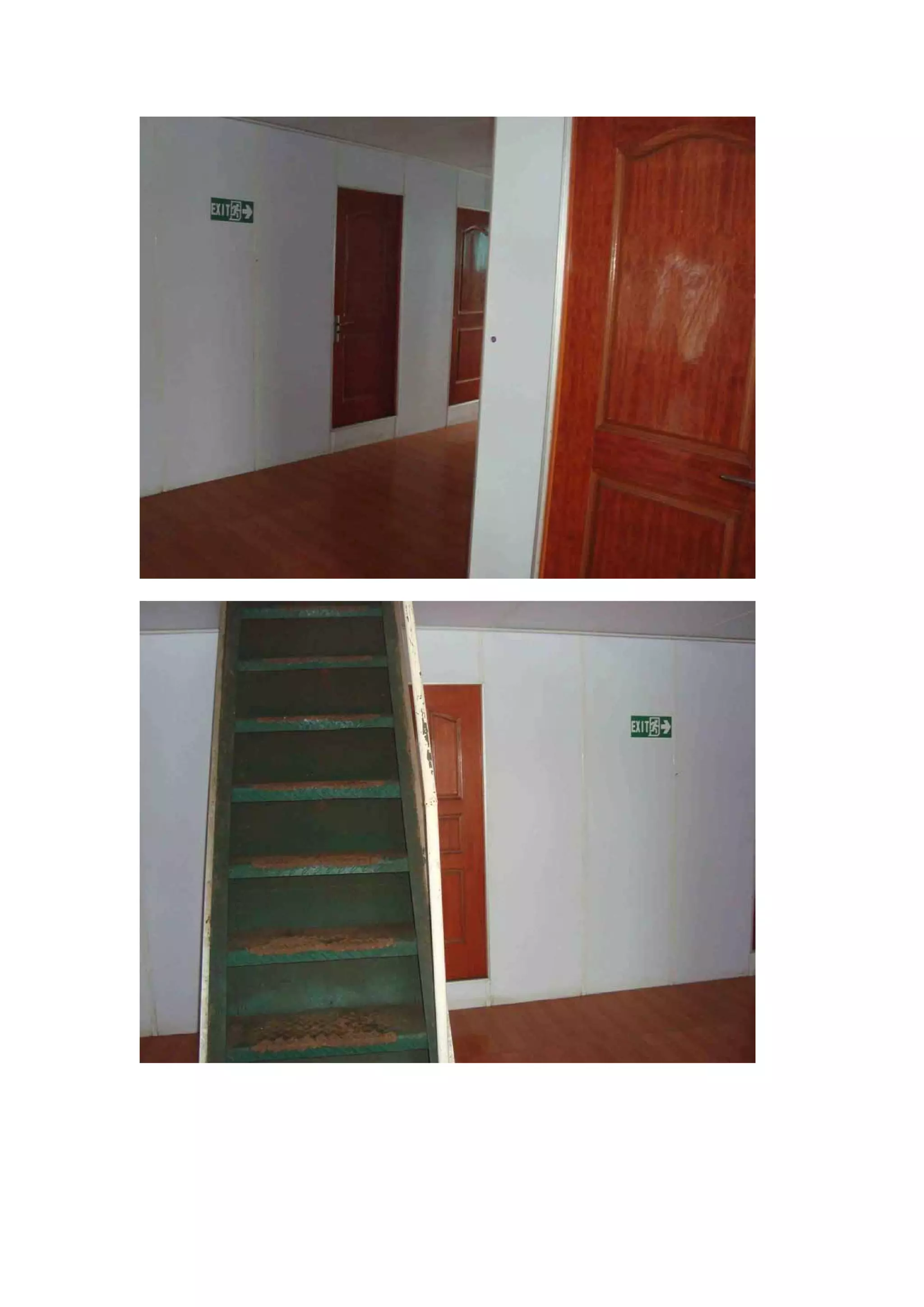

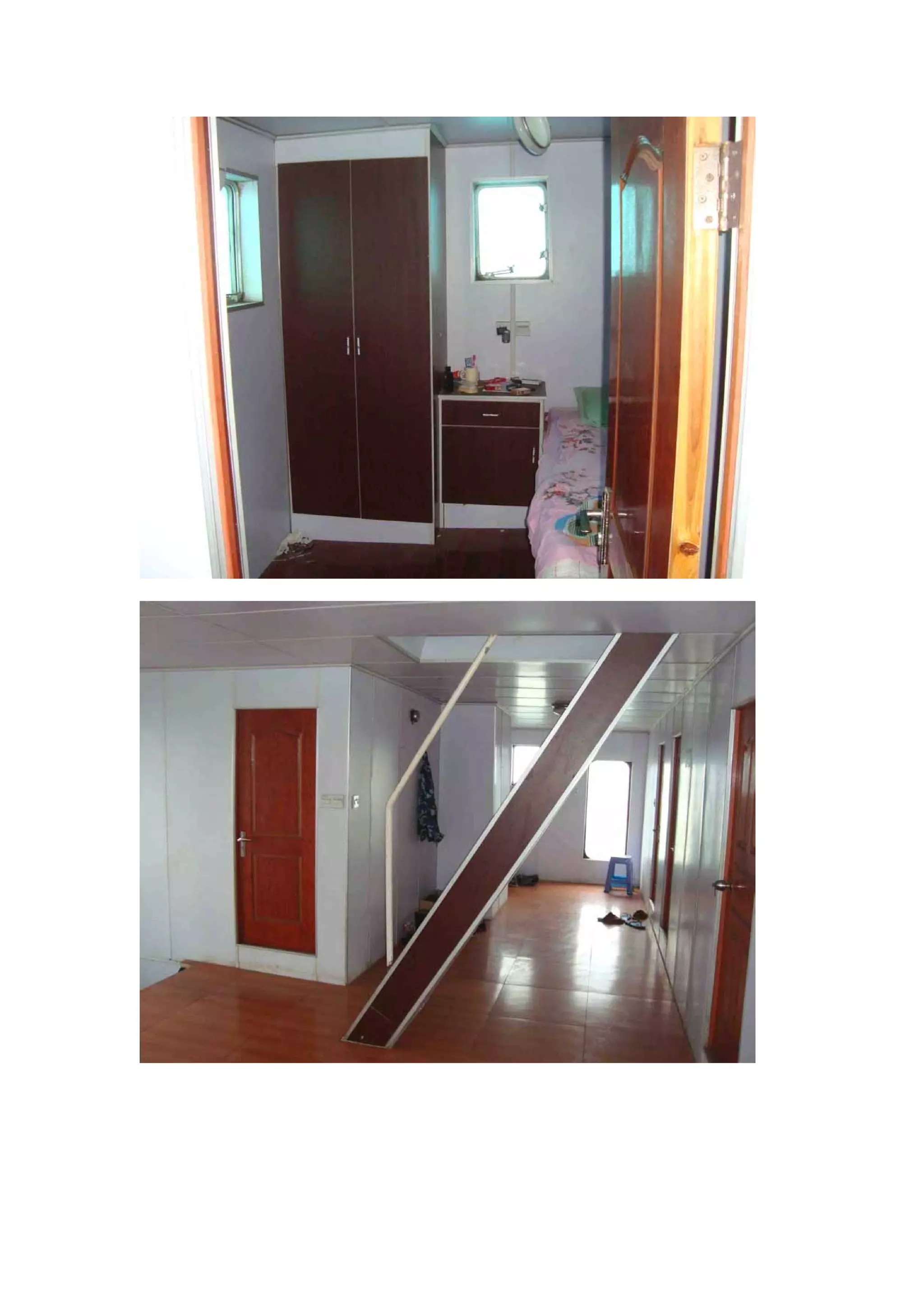

No. Of cabin: 1

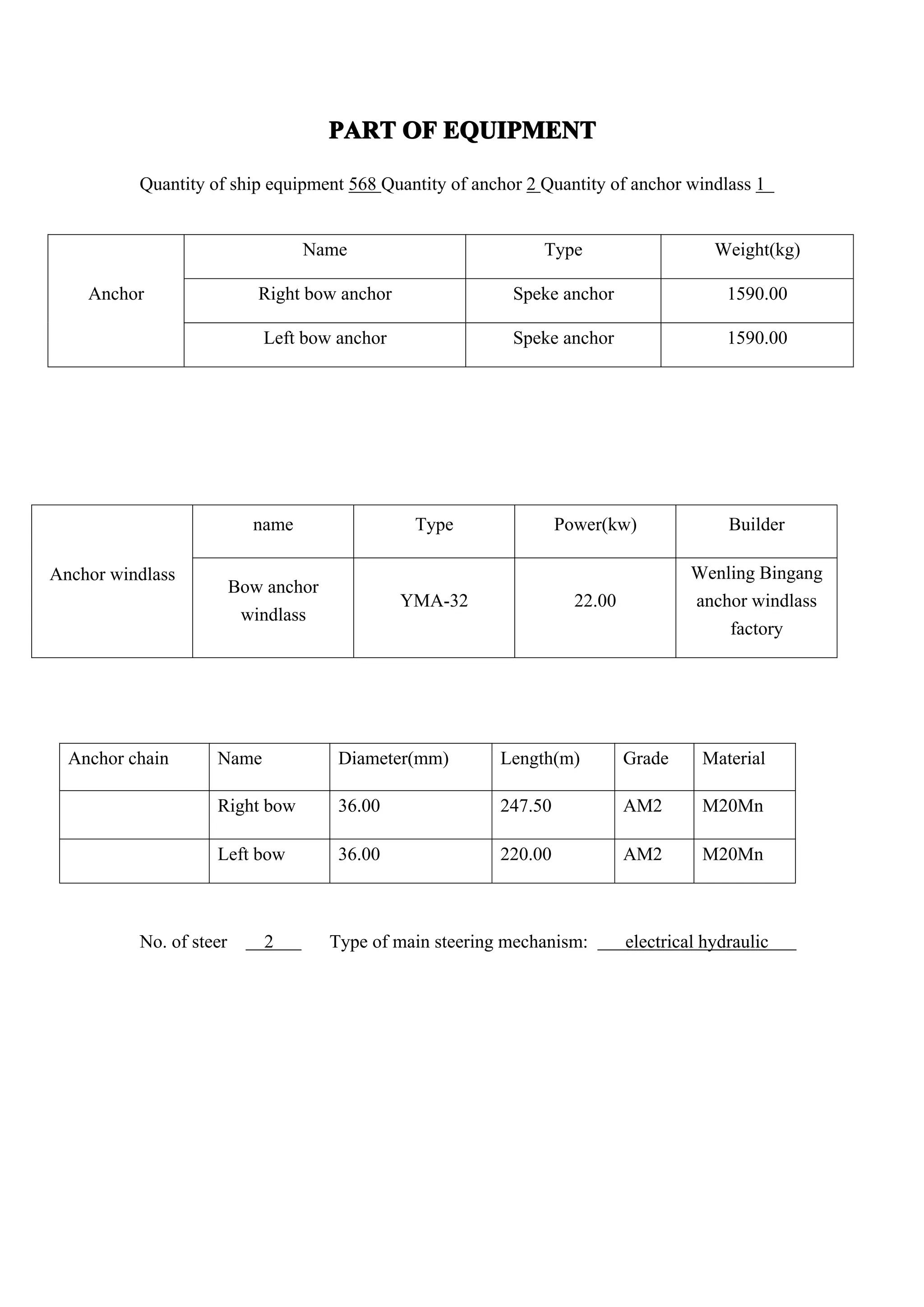

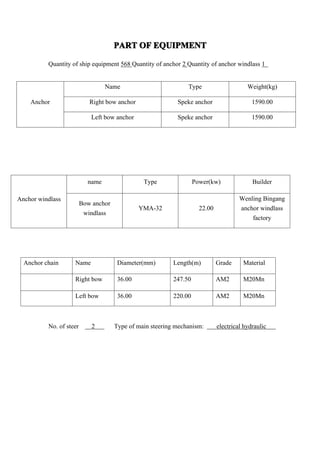

2. PART OF EQUIPMENT
Quantity of ship equipment 568 Quantity of anchor 2 Quantity of anchor windlass 1
Name Type Weight(kg)
Anchor Right bow anchor Speke anchor 1590.00
Left bow anchor Speke anchor 1590.00
name Type Power(kw) Builder

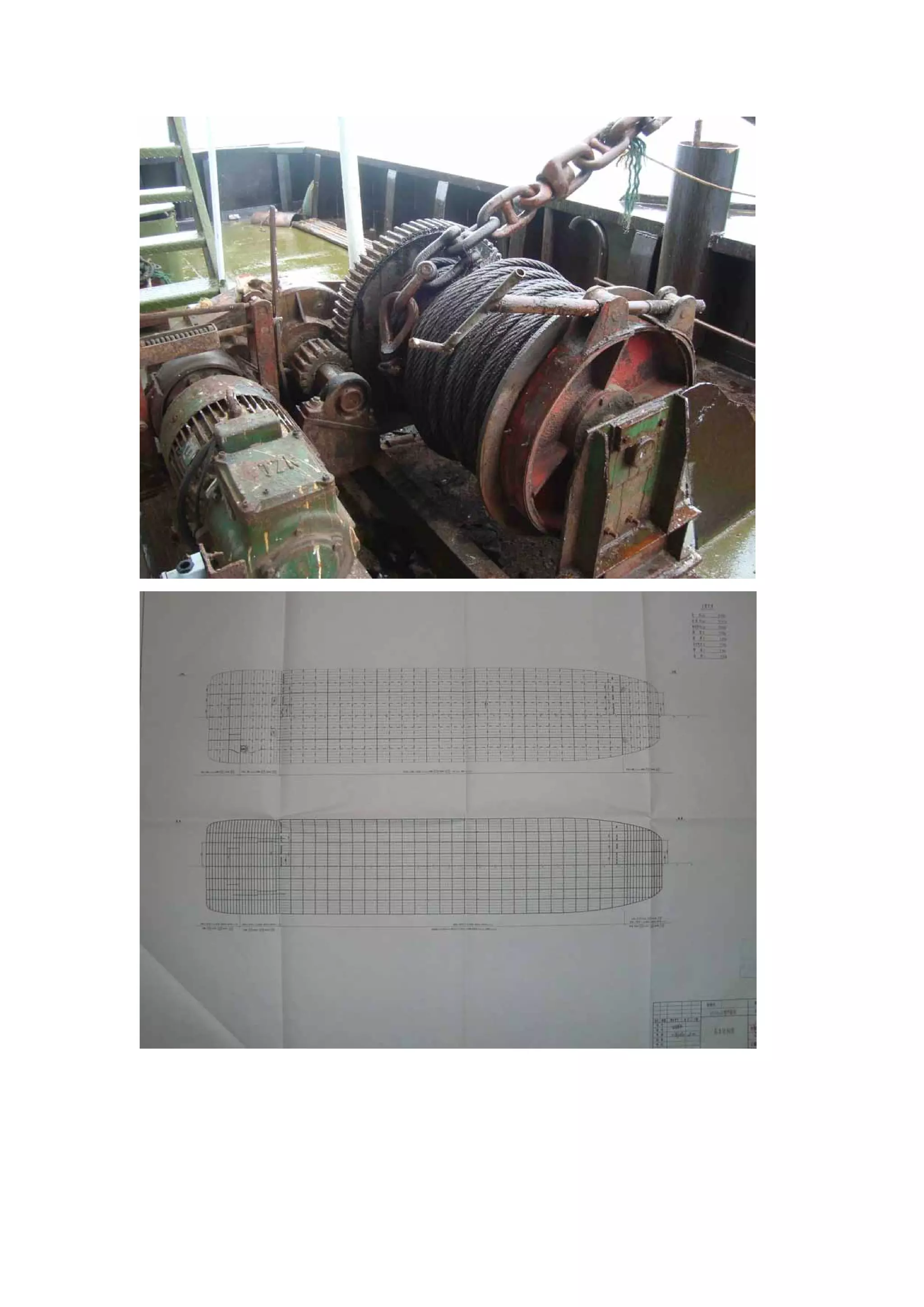

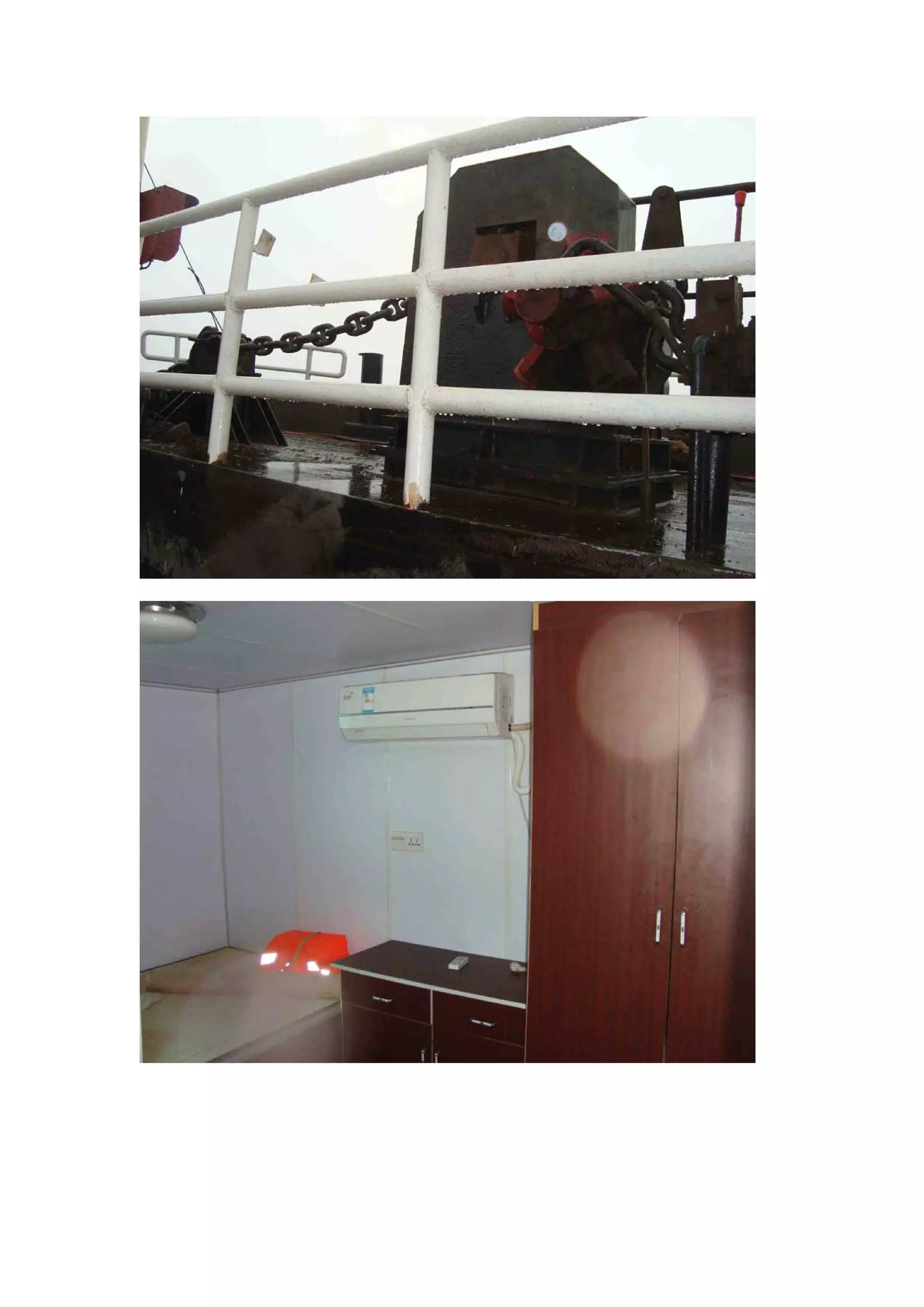

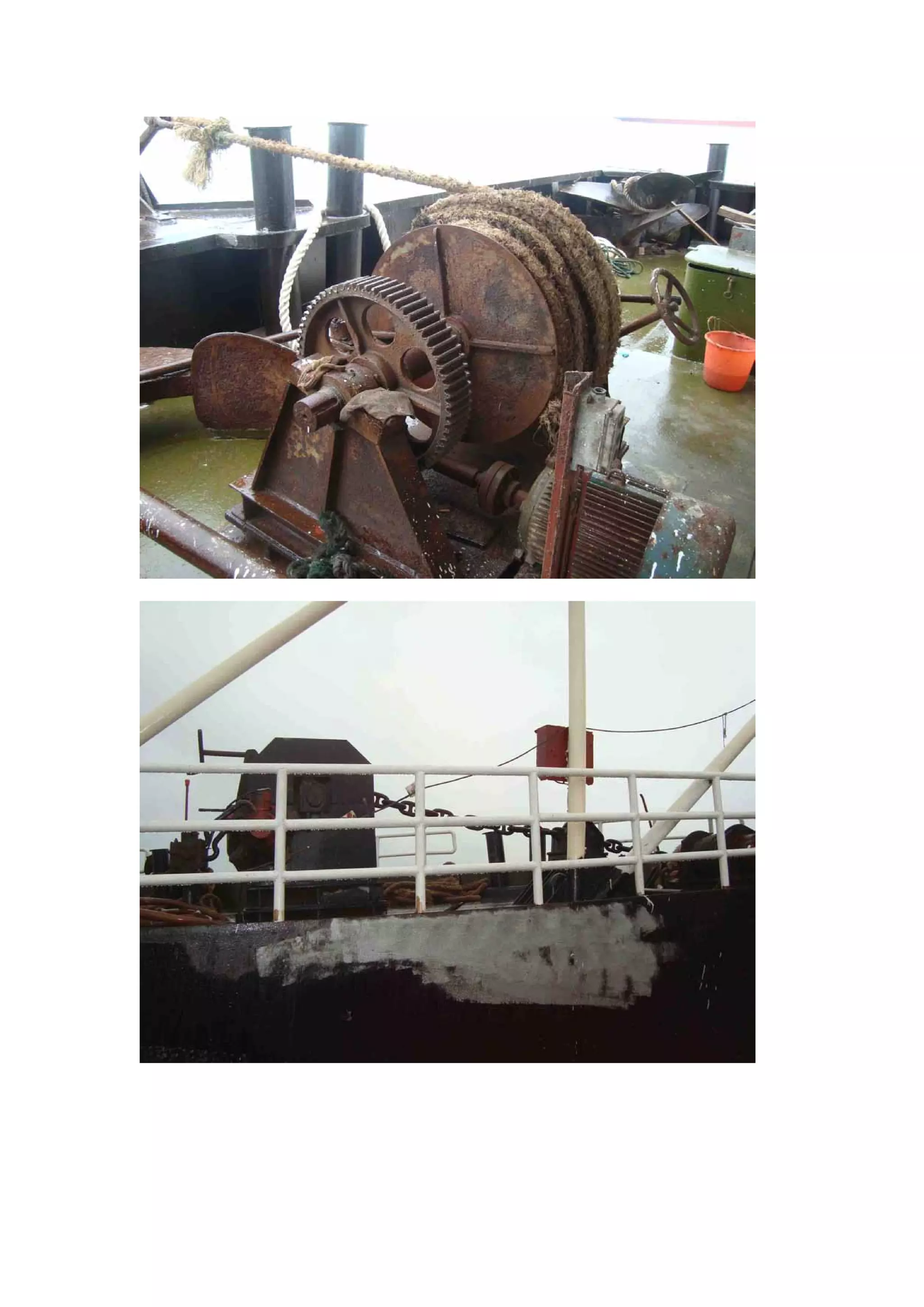

Anchor windlass Wenling Bingang
Bow anchor
YMA-32 22.00 anchor windlass
windlass
factory
Anchor chain Name Diameter(mm) Length(m) Grade Material
Right bow 36.00 247.50 AM2 M20Mn
Left bow 36.00 220.00 AM2 M20Mn
No. of steer 2 Type of main steering mechanism: electrical hydraulic

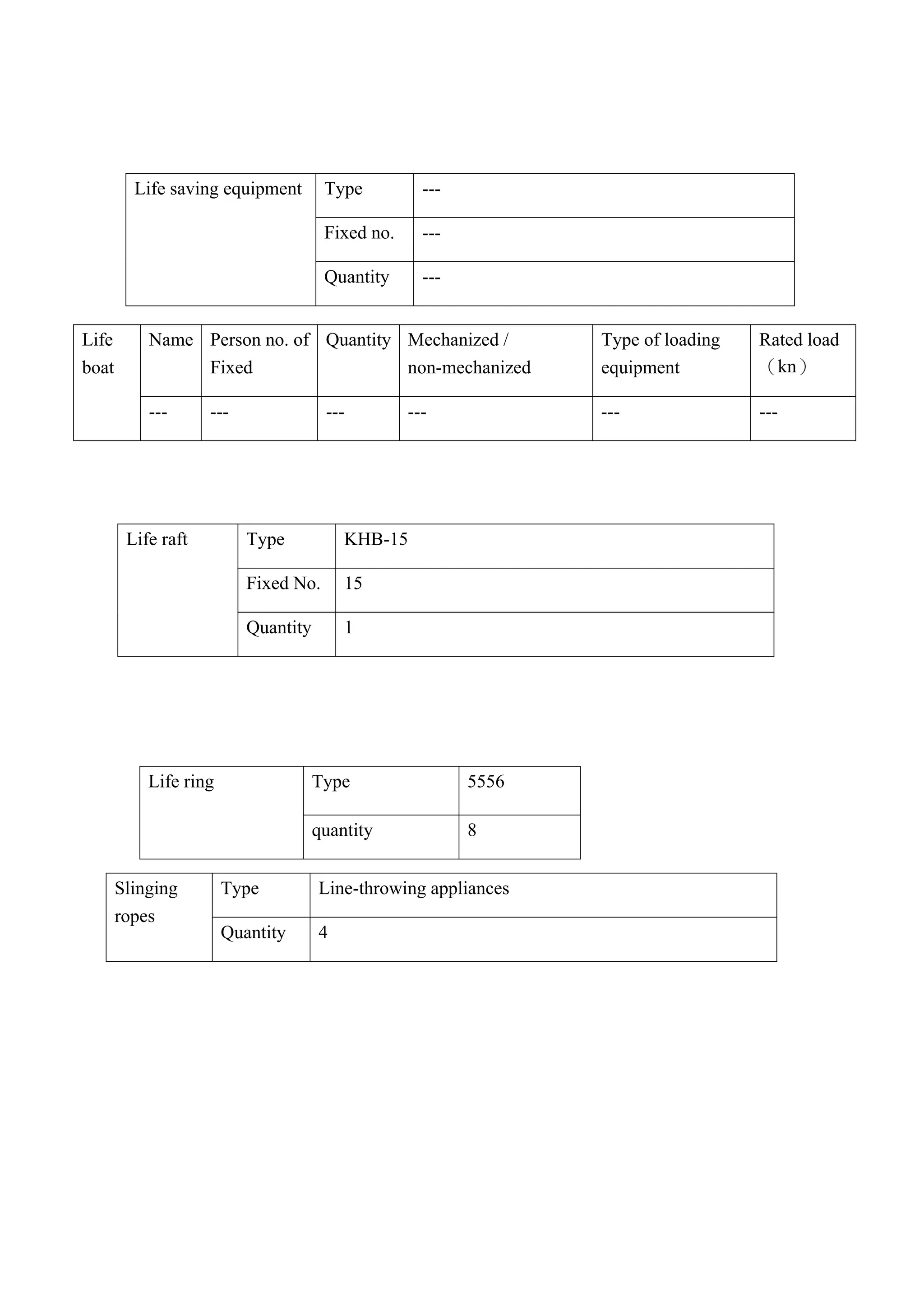

3. Life saving equipment Type ---
Fixed no. ---
Quantity ---
Life Name Person no. of Quantity Mechanized / Type of loading Rated load
boat Fixed non-mechanized equipment (kn)
--- --- --- --- --- ---
Life raft Type KHB-15
Fixed No. 15
Quantity 1
Life ring Type 5556
quantity 8
Slinging Type Line-throwing appliances
ropes
Quantity 4

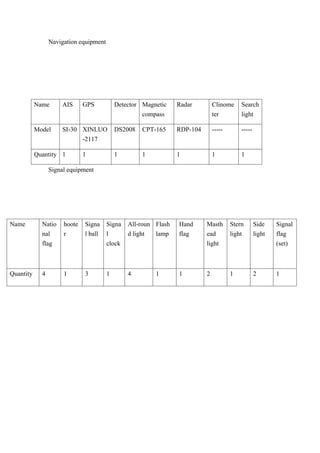

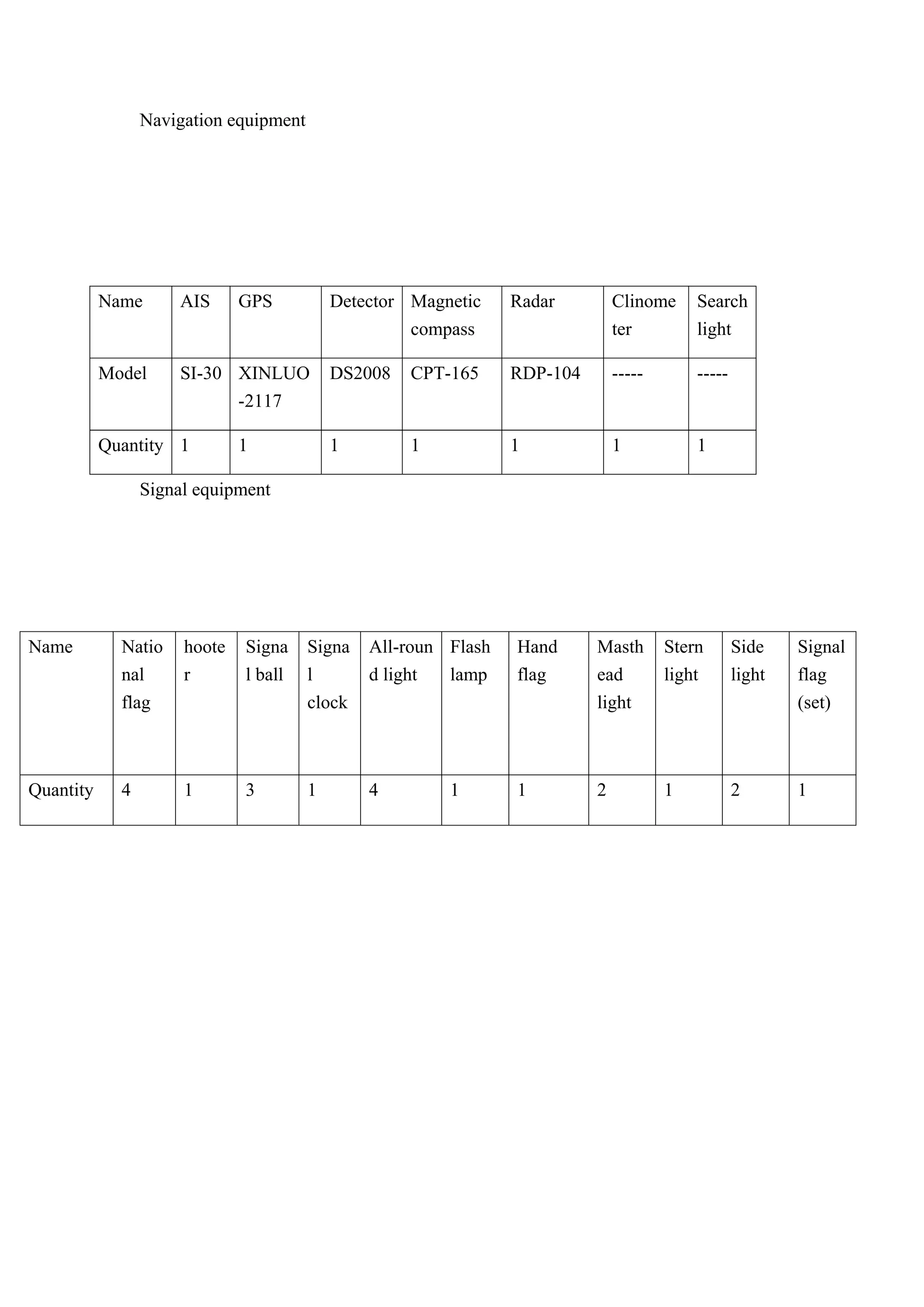

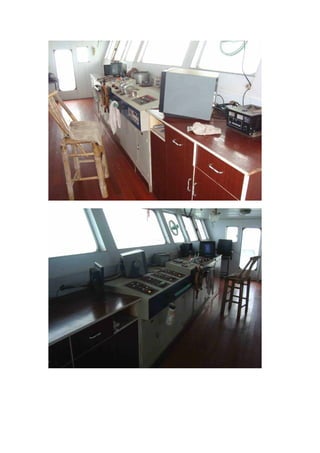

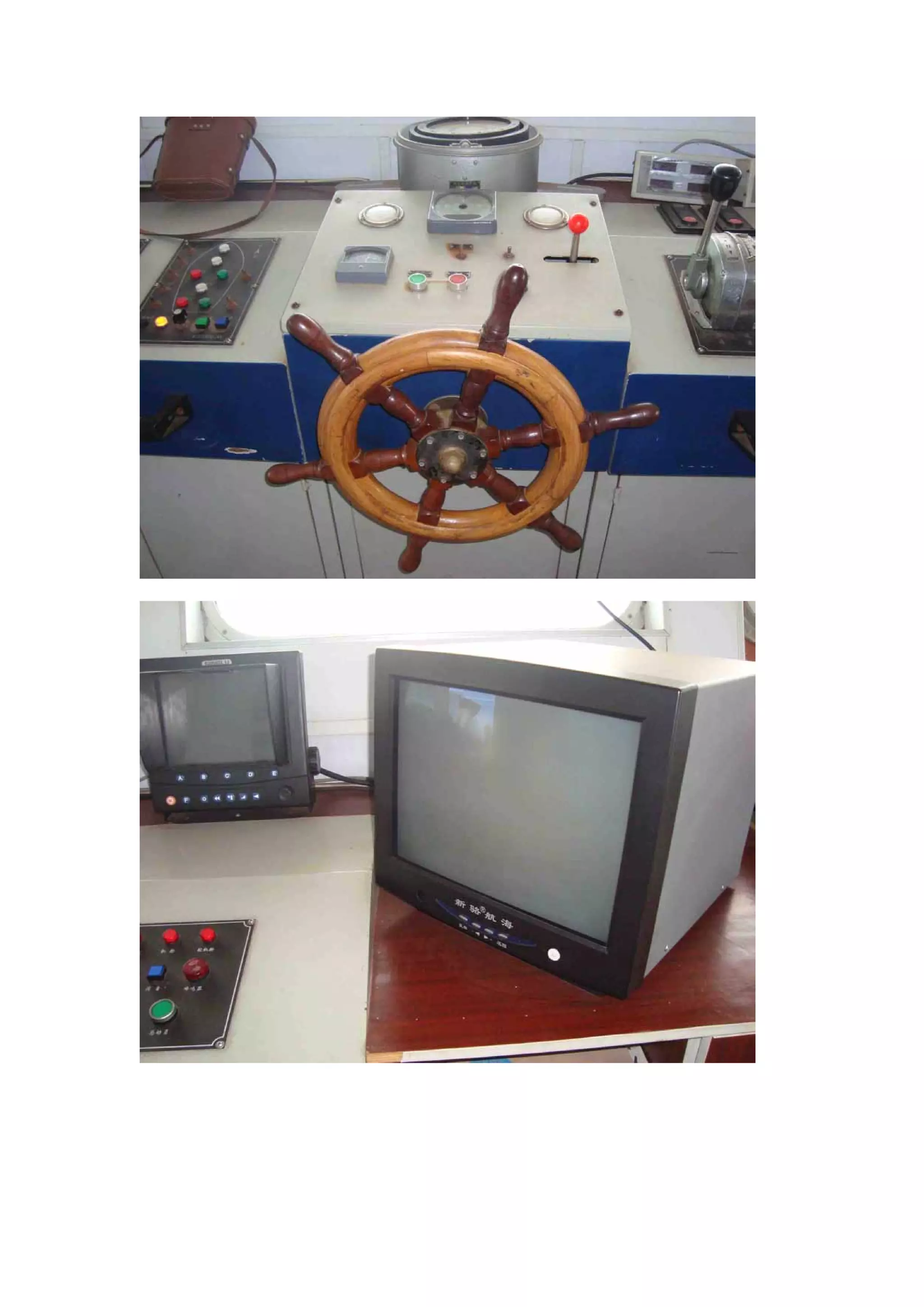

4. Navigation equipment
Name AIS GPS Detector Magnetic Radar Clinome Search
compass ter light
Model SI-30 XINLUO DS2008 CPT-165 RDP-104 ----- -----
-2117
Quantity 1 1 1 1 1 1 1
Signal equipment
Name Natio hoote Signa Signa All-roun Flash Hand Masth Stern Side Signal
nal r l ball l d light lamp flag ead light light flag
flag clock light (set)
Quantity 4 1 3 1 4 1 1 2 1 2 1

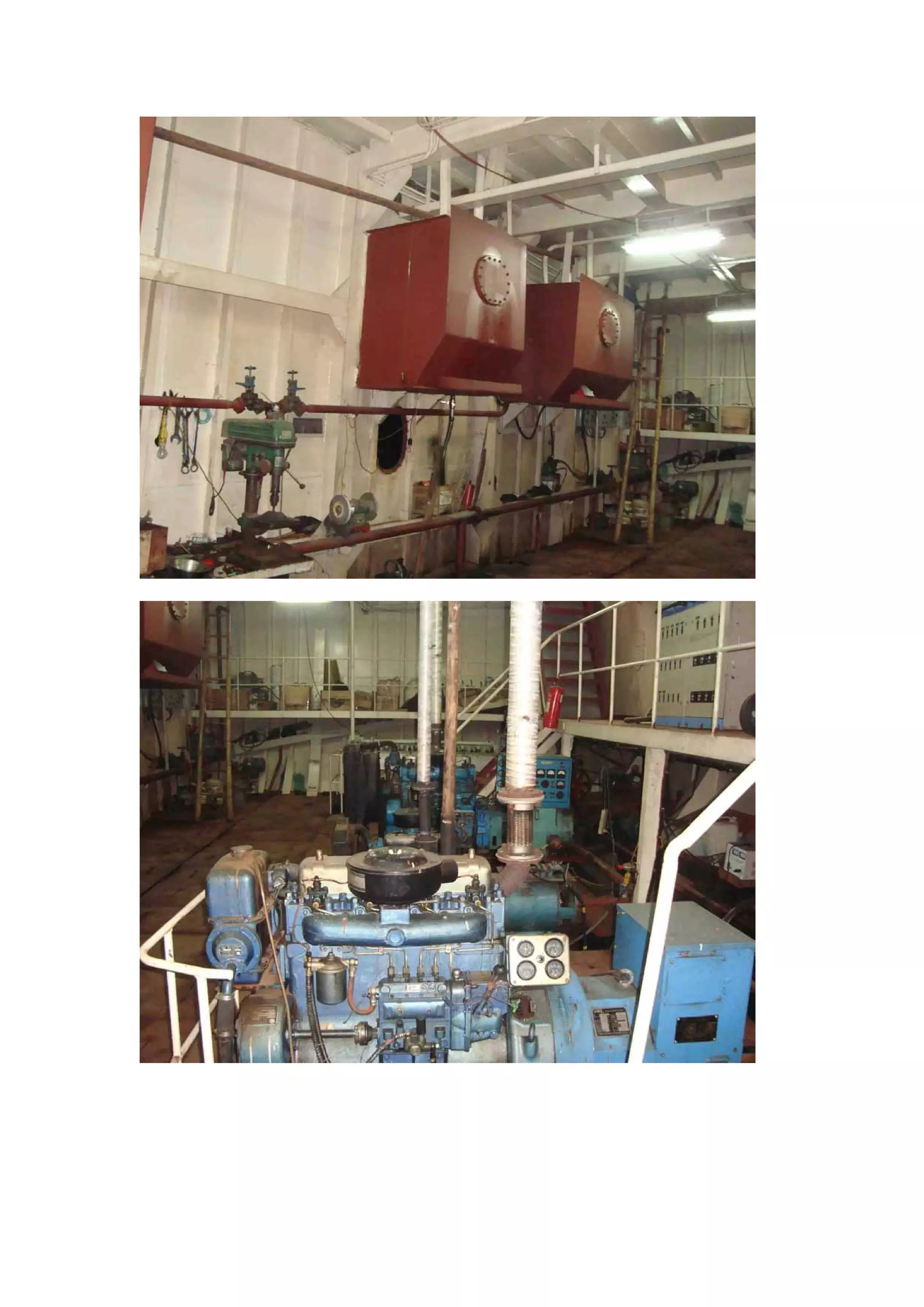

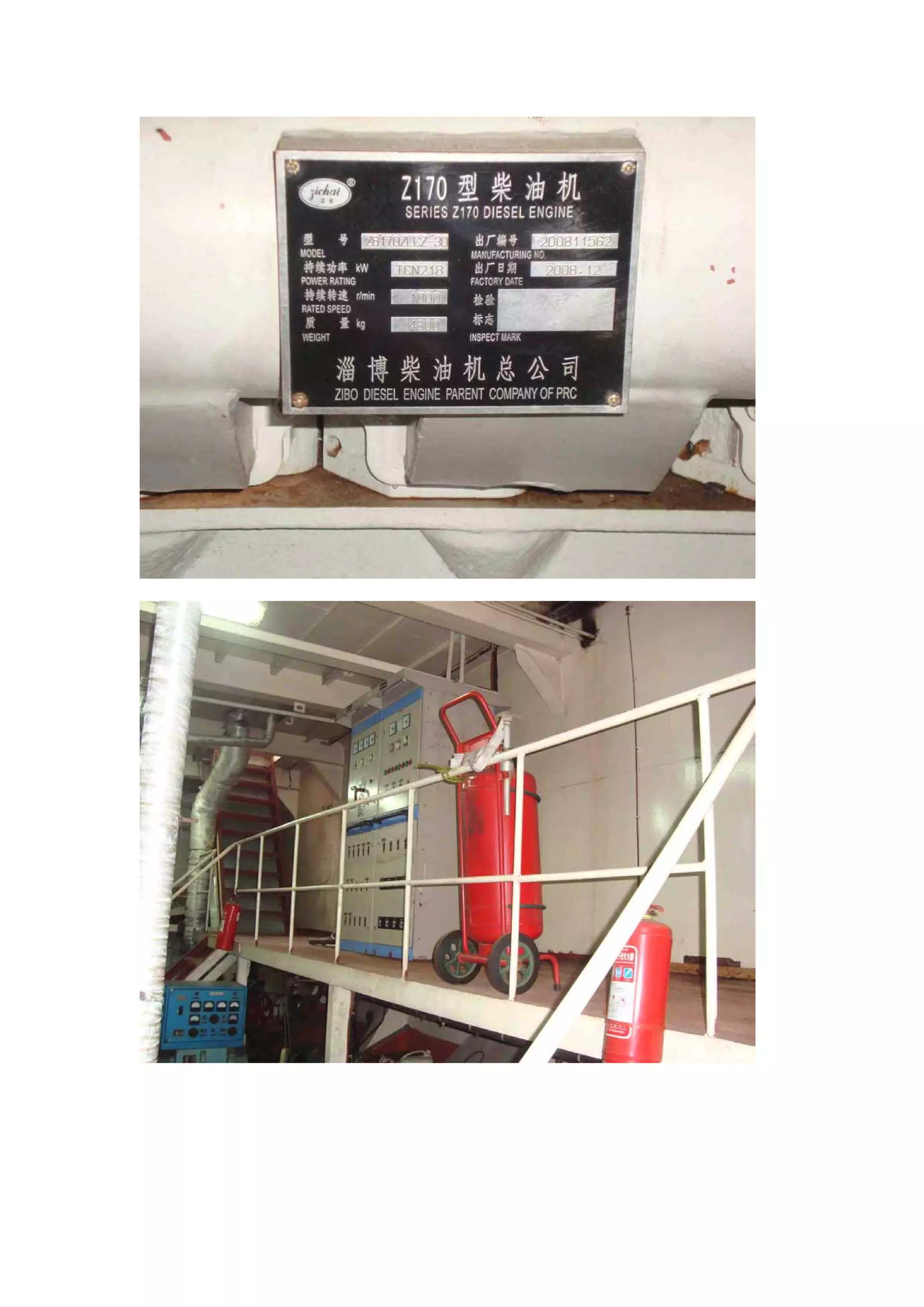

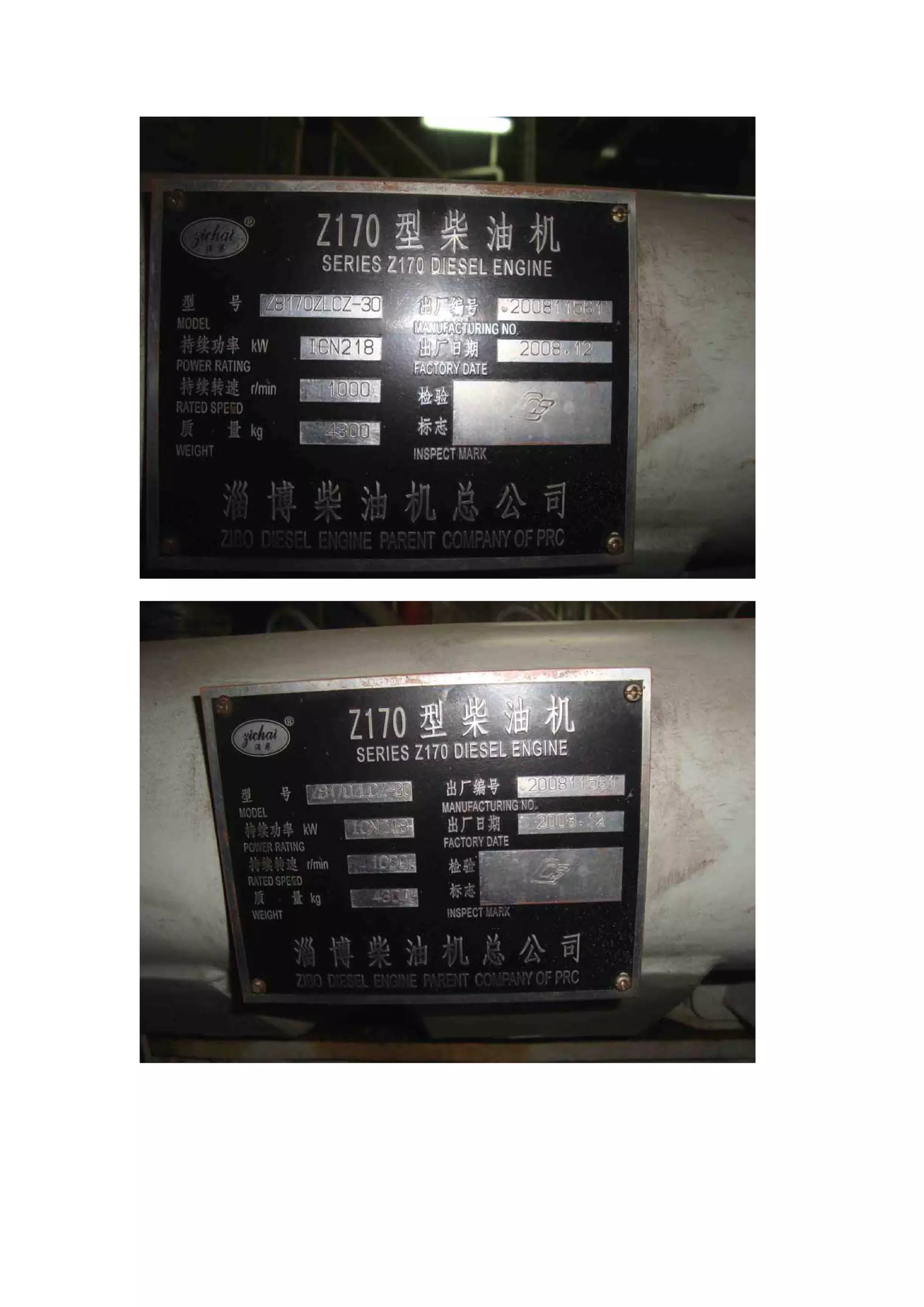

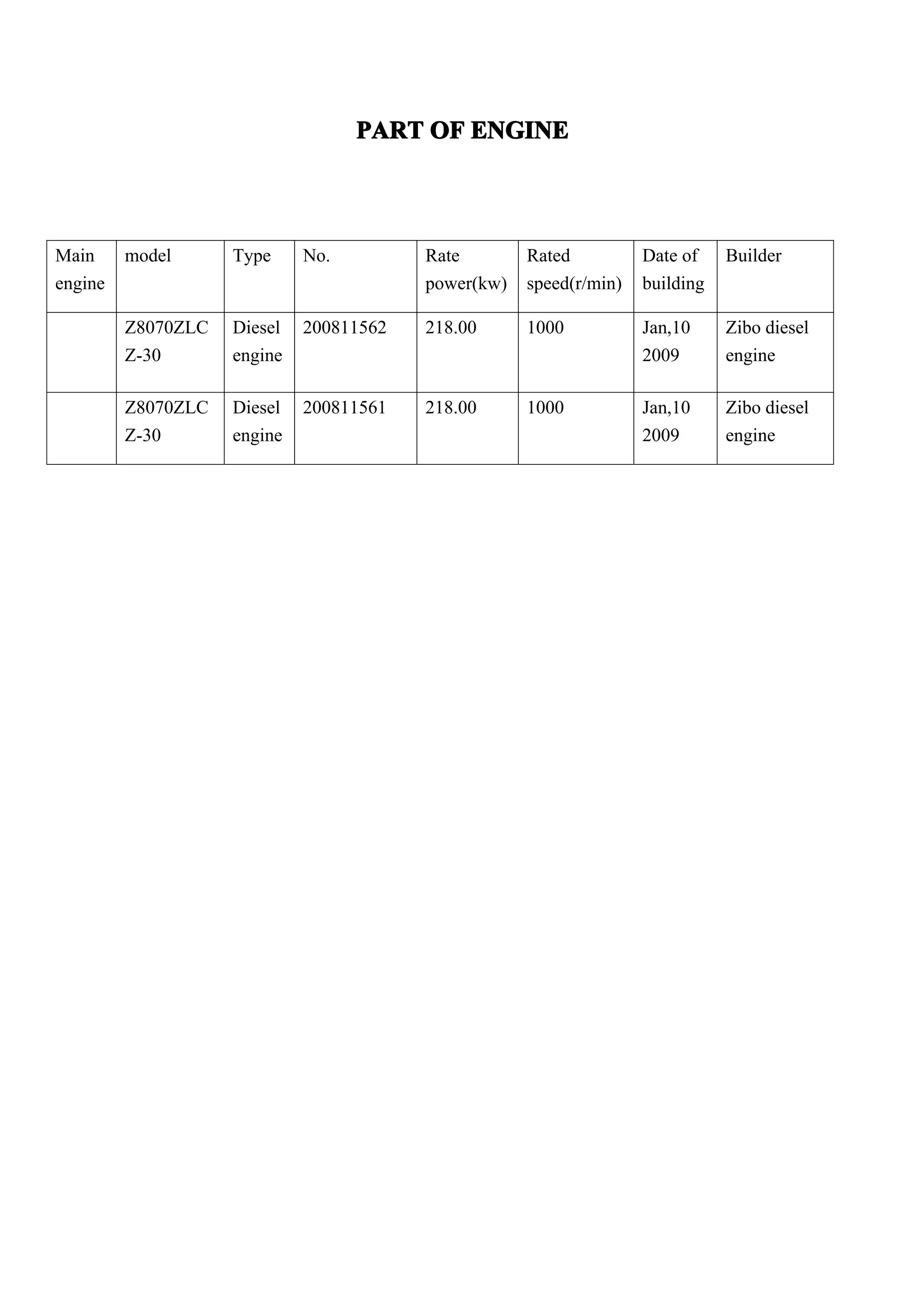

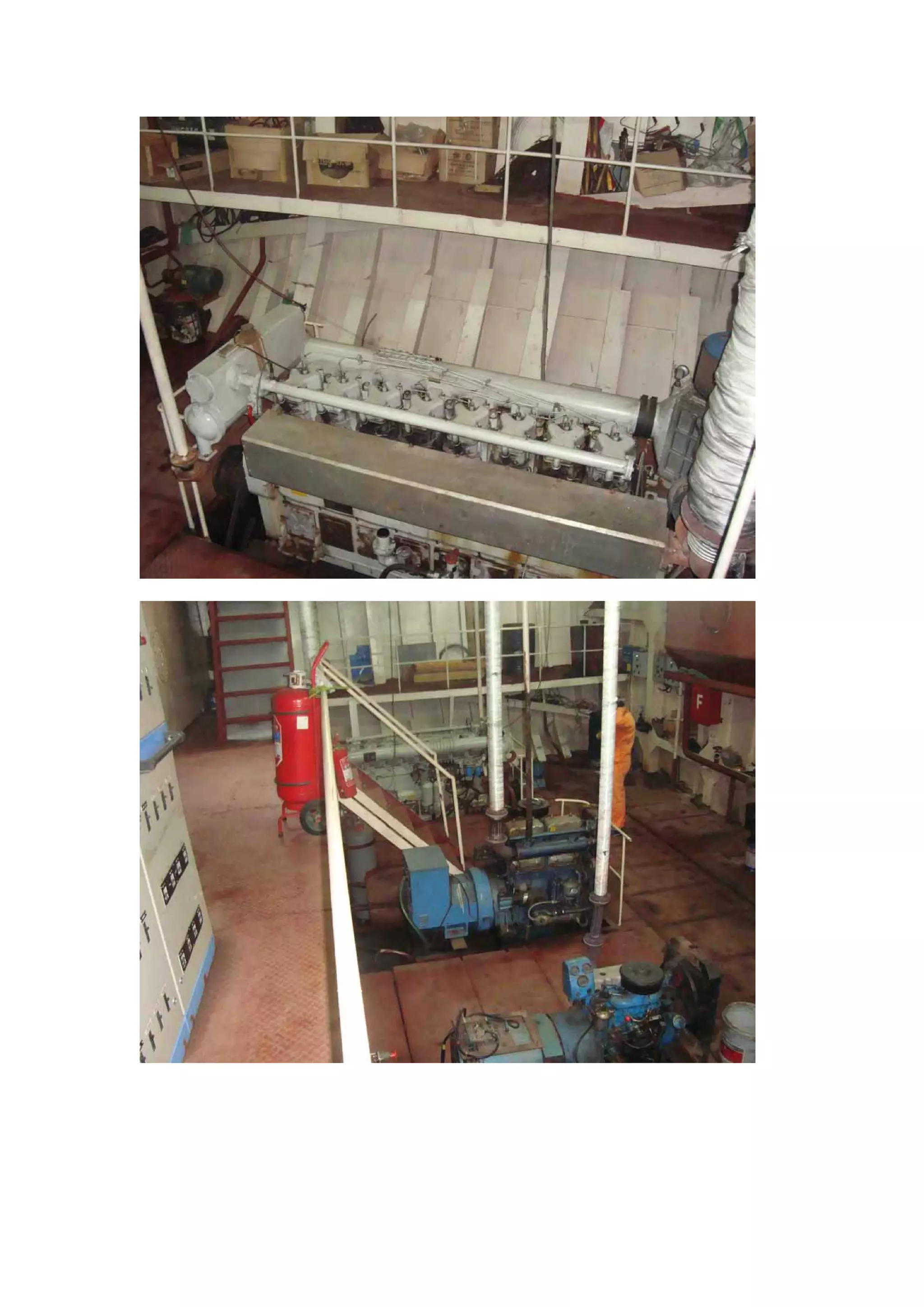

5. PART OF ENGINE
Main model Type No. Rate Rated Date of Builder
engine power(kw) speed(r/min) building
Z8070ZLC Diesel 200811562 218.00 1000 Jan,10 Zibo diesel
Z-30 engine 2009 engine
Z8070ZLC Diesel 200811561 218.00 1000 Jan,10 Zibo diesel
Z-30 engine 2009 engine

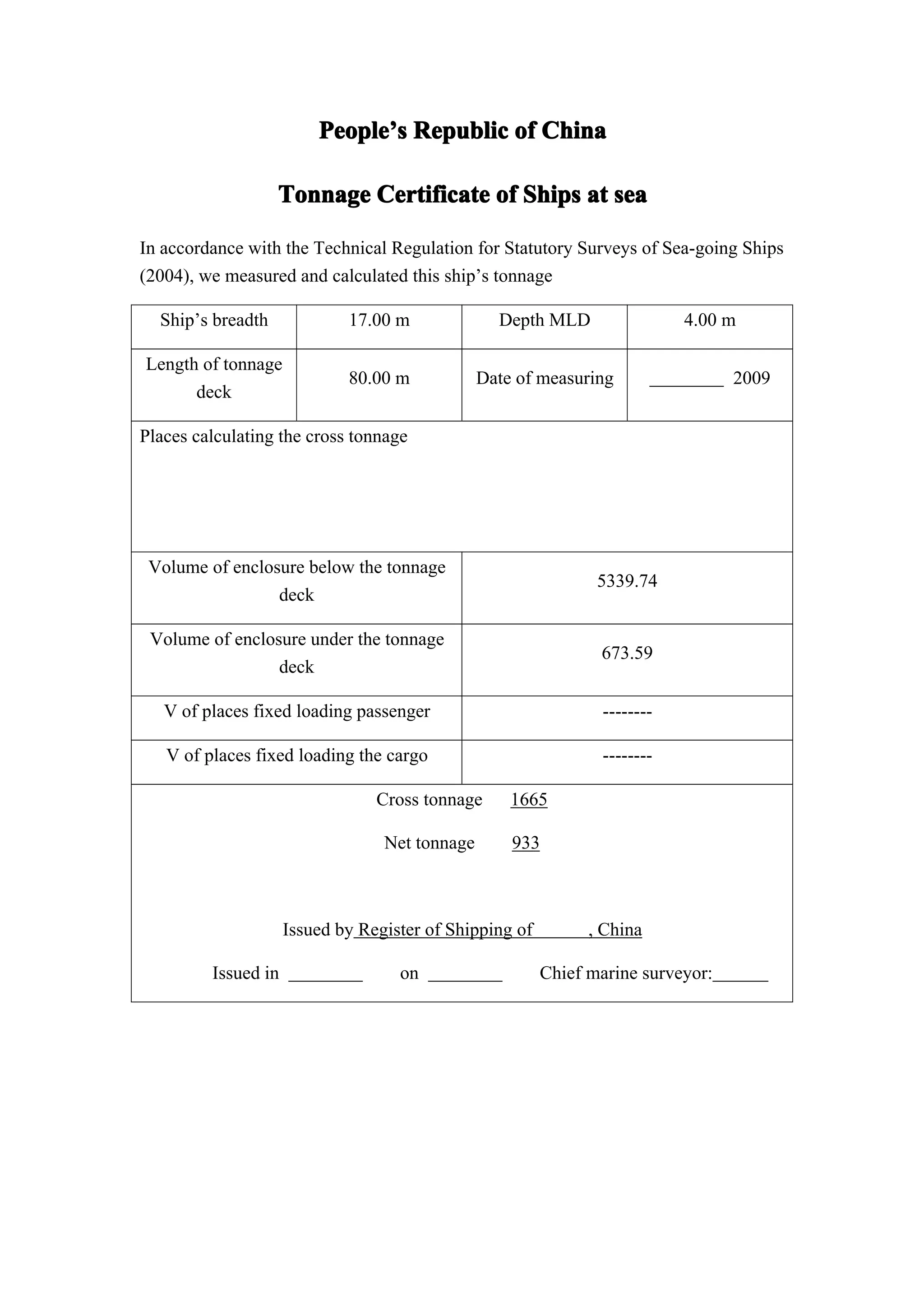

6. People’s Republic of China
People’
Tonnage Certificate of Ships at sea
In accordance with the Technical Regulation for Statutory Surveys of Sea-going Ships
(2004), we measured and calculated this ship’s tonnage
Ship’s breadth 17.00 m Depth MLD 4.00 m
Length of tonnage
80.00 m Date of measuring 2009
deck
Places calculating the cross tonnage
Volume of enclosure below the tonnage
5339.74
deck
Volume of enclosure under the tonnage
673.59
deck
V of places fixed loading passenger --------
V of places fixed loading the cargo --------
Cross tonnage 1665
Net tonnage 933
Issued by Register of Shipping of , China
Issued in on Chief marine surveyor:

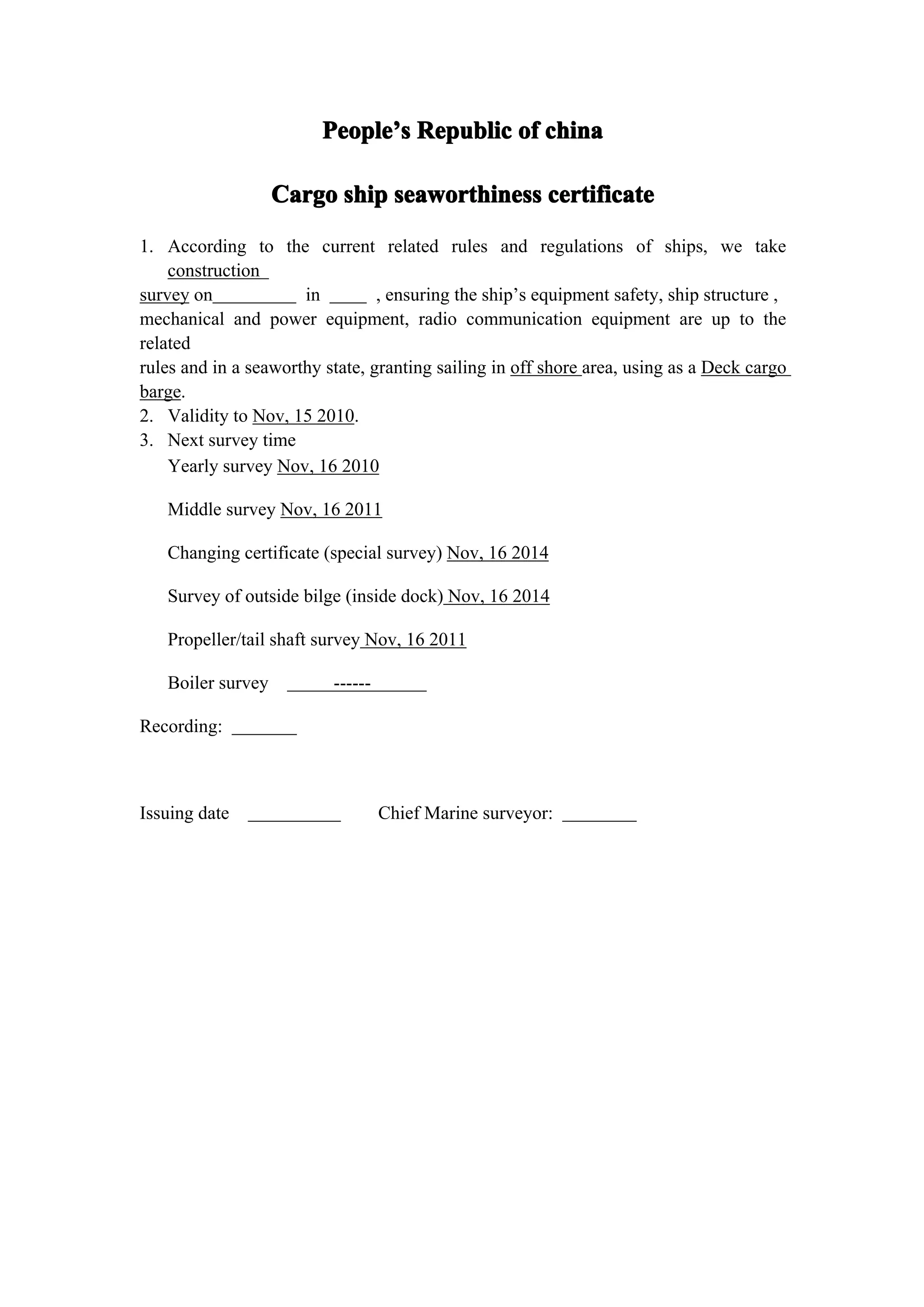

7. People’s Republic of china
People’
Cargo ship seaworthiness certificate
1. According to the current related rules and regulations of ships, we take
construction
survey on in , ensuring the ship’s equipment safety, ship structure ,
mechanical and power equipment, radio communication equipment are up to the
related
rules and in a seaworthy state, granting sailing in off shore area, using as a Deck cargo
barge.
2. Validity to Nov, 15 2010.
3. Next survey time
Yearly survey Nov, 16 2010
Middle survey Nov, 16 2011
Changing certificate (special survey) Nov, 16 2014
Survey of outside bilge (inside dock) Nov, 16 2014
Propeller/tail shaft survey Nov, 16 2011
Boiler survey ------
Recording:
Issuing date Chief Marine surveyor:
