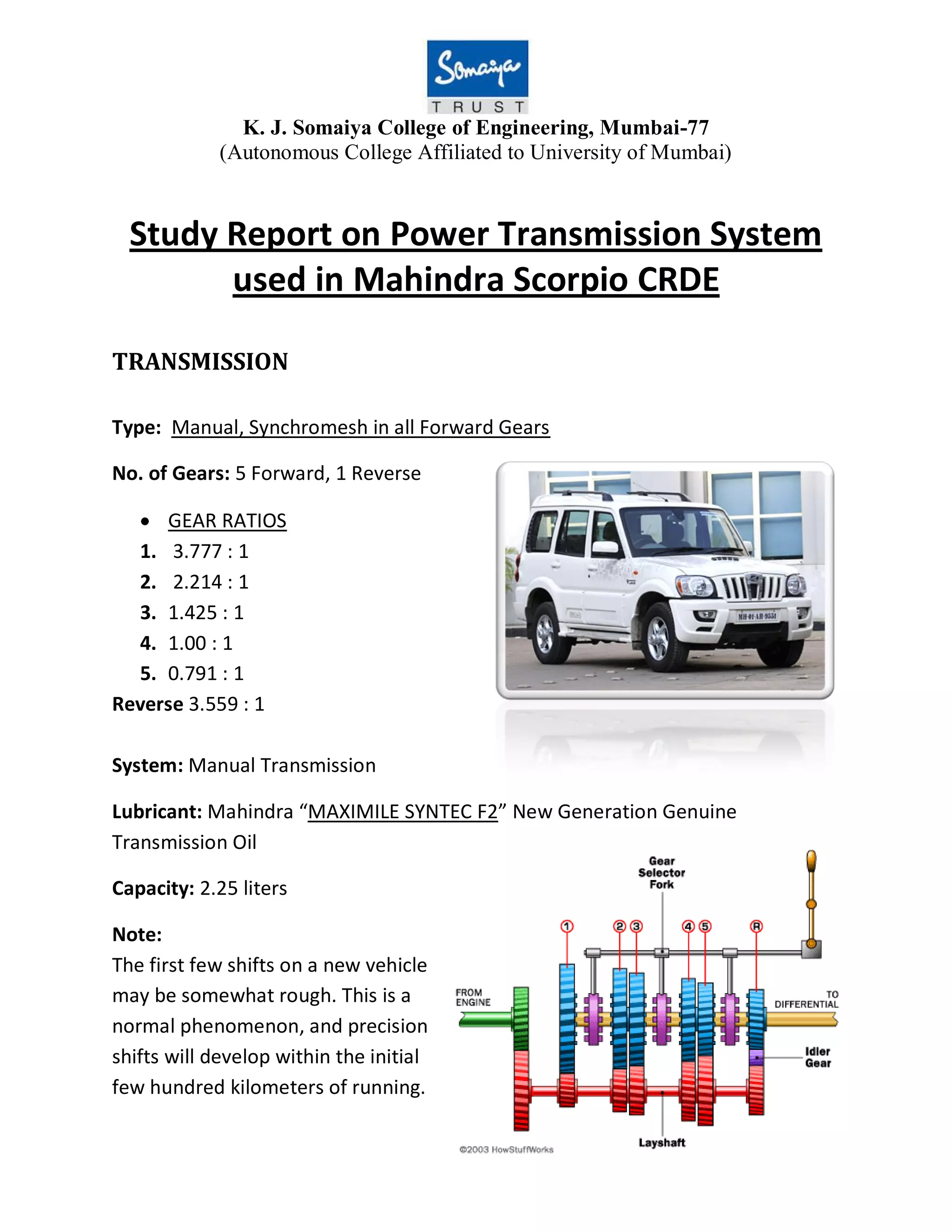

TRANSMISSION
Type: Manual, Synchromesh in all Forward Gears
No. of Gears: 5 Forward, 1 Reverse
GEAR RATIOS
1. 3.777 : 1
2. 2.214 : 1
3. 1.425 : 1
4. 1.00 : 1
5. 0.791 : 1
Reverse 3.559 : 1
System: Manual Transmission
Lubricant: Mahindra “MAXIMILE SYNTEC F2” New Generation Genuine
Transmission Oil
Capacity: 2.25 liters
Note:
The first few shifts on a new vehicle
may be somewhat rough. This is a
normal phenomenon, and precision
shifts will develop within the initial
few hundred kilometers of running.
2. Mahindra has finally introduced the
automatic version of the new-gen
Scorpio. The Scorpio Automatic is
available in both 2WD and 4WD versions,
carrying a price tag of Rs 13.13 lakh and
Rs 14.32 lakh (ex-showroom, Mumbai),
respectively.
Mahindra used to offer the previous-gen
Scorpio with an automatic gearbox.
However, at the time of the launch of the new-gen Scorpio in 2014, the SUV was
only made available with a manual gearbox across all trim variants. Mahindra may
have taken its own sweet time to introduce an automatic gearbox in the new-gen
Scorpio, but then it comes with one major improvement.
Unlike the last-gen Scorpio, the new model incorporates a 6-speed automatic
gearbox as opposed to a 5-speed transmission in the previous model. This
gearbox is slightly more advanced and new-age than before since it also does duty
in the SsangYong Tivoli, which is only available in foreign markets as of now. For
the uninformed, SsangYong is an Korean automobile manufacturer that was
acquired by Mahindra
in 2011.
The powertrain is also
the same mHawk
engine that is available
with the manual
variants of the SUV. It
is a 2.2-litre,
turbocharged four-
cylinder diesel unit
developing 122PS of
maximum power at
4,000 rpm along with
280 Nm of peak-torque between 1,800 and 2,800 rpm.
